Abstract
Purpose
Nano-drug delivery systems based on polymeric biomaterials have received considerable interest as drug delivery vehicles. In this work, radical polymerization was carried out in order to obtain nanoparticles based on a new acrylate terpolymer (PBMA-(PEG)MEMA-PDMAEMA).
Methods
Nanoparticles were developed in the form both of nanospheres and nanocapsules, an innovative kind of hollow nanoparticles with a great potential because of their low effective density and high specific surface area. The ability of the nanoparticles to load and then release a nucleic acid (DNA) to be used in cancer treatment was also investigated.
Results
Scanning electron microscopy analysis showed a spherical shape, nanometric dimensions, and a homogeneous distribution of the nanoparticles, also confirmed by dynamic light scattering measurements. Fourier-transform infrared spectroscopy chemical imaging analysis carried out on the nanocapsules before and after removal of the core demonstrated the presence of the cavity. High-performance liquid chromatography analysis confirmed good encapsulation efficiency of DNA both for nanospheres and nanocapsules. Drug release tests showed controlled release kinetics for both the systems with a high release of DNA in the first hours. In vitro MTT assay showed that the particles do not have cytotoxic effects on the cells.
Conclusions
The preliminary investigation showed that the terpolymer-based nanoparticles developed in this study could be good candidates to be used as innovative and versatile gene delivery systems.
Introduction
Pharmaceutical carriers have been widely investigated in both laboratory and clinical settings to improve the efficiency of delivering therapeutic and diagnostic agents via different administration routes (1). Nano-drug delivery systems based on polymeric biomaterials have received considerable interest as drug delivery vehicles in recent decades (2). Polymeric nanocarriers are particles of a solid, spherical structure with at least 1 dimension <500 nm (2, 3). They are prepared from natural or synthetic polymers with a therapeutic agent encapsulated within the polymer matrix, conjugated, or absorbed onto the surface (3).
As is well known, most commonly used pharmaceuticals are not able to accumulate in the target organ or tissue in a selective and quantitative way; usually they are evenly distributed within the body. Moreover, to reach the target area, the drug has to cross many biological barriers, where it can cause adverse reactions or be partially inactivated (4-5). Preclinical and clinical studies have demonstrated that drug-loaded polymeric nanoparticles confer prolonged circulation time, protection of the drug from physiological degradation, enhanced accumulation in the target sites, reduced side effects, improved drug tolerance, and/or long term drug bioavailability (6).
In order to increase the amount of encapsulated drug, nanoparticles can be functionalized from a morphological point of view with the aim of obtaining a hollow structure. Hollow polymeric nanostructures have attracted considerable interest in recent years because of their new functionalities and unique physicochemical properties anticipated from polymeric materials at nanoscale level (7). Hollow spheres have great potential for promising applications because of their low effective density, high specific surface area, and many other advantageous properties (8). Thanks to their hollow core structure, these particular kinds of nanoparticles can encapsulate a large number of guest molecules such as drugs, enzymes, proteins, and genes (9). Although there are many strategies for preparing hollow polymeric spheres, a template is often needed (10). With the template method, hollow structures can be obtained after removing the template by dissolution, evaporation, or thermolysis. Hollow nanoparticles are often cross-linked and this offers good physical resistance, preventing their collapse during the core extraction process.
In this work, radical polymerization was carried out in order to obtain nanoparticles (NPs) based on a new acrylate terpolymer starting from butyl methacrilate, poly(ethylene glycol) methyl ether methacrylate and 2-(dimethylamino)ethyl methacrylate (PBMA-(PEG)MEMA-PDMAEMA) to be used as a platform for the delivery of a nucleic acid for cancer treatment. The idea of a new copolymer based on 3 different components is triggered by the need to combine the good properties of each element. PBMA is an acrylic polymer well known for its biocompatibility and it is often used in biomedical applications to obtain platforms for drug delivery and gene delivery (11-12-13). PDMAEMA has been largely utilized as a nonviral gene delivery system with low cytotoxicity (14-15-16). The presence of PEG chains makes the surface of the carrier more hydrophilic and minimizes the tendency to absorb proteins, thus reducing the reticuloendothelial clearance (17-18-19). NPs were developed both in the form of nanospheres (NSs) and nanocapsules (NCs) using the template method. The ability of the NPs to load and then release a nucleic acid to be used for different applications, including cancer treatment, was also investigated using a model molecule of DNA.
Materials and Methods
Preparation of nanospheres and nanocapsules
Terpolymer-based NSs were obtained by radical polymerization starting from a diluted solution of BMA, (PEG)MEMA and DMAEMA (percentage molar ratio 80/10/10, respectively) in the presence of trimethylpropane trimethacrylate (TRIM) as cross-linker (20% mol/mol). The polymerization was carried out in bidistilled water in the presence of the radical initiator (Na2S2O5/(NH4)2S2O8, 10% mol/mol). The reaction was carried out for 3 h, ensuring a constant stirring at 600 rpm at 37°C. At the end of the polymerization process, the NSs were recovered, rinsed 3 times with bidistilled water in order to remove the unreacted monomers, and then freeze-dried overnight.
NCs were obtained by an innovative technique consisting in a first step during which the PMMA NPs to be used as the core were synthesized by emulsion polymerization of methyl methacrylate in the presence of SDS. Then the polymerization of the monomers around the preformed core (PMMA core/monomers weight ratio 1:5) was carried out using the procedure previously described and subsequently the core was extracted by dispersing the NCs in chloroform (Carlo Erba Reagenti, Rodan, Italy). Finally the NCs were rinsed with bidistilled water and freeze-dried overnight. All the reagents were purchased from Sigma-Aldrich (St Louis, MO, USA).
Absorption and release tests
DNA (deoxyribonucleic acid, low molecular weight from salmon sperm, Sigma-Aldrich) was dissolved in phosphate buffered solution (PBS) to obtain a concentration of 1 mg/ml. Subsequently, 10 mg of NPs were dispersed in 1 mL of DNA solution and gently stirred for 2 h. The NPs were separated from the absorption solution by ultracentrifugation (Mikro 200 Hettich Zentrifugen, Tuttlingen, Germany) at 14 000 rpm for 15 min. A solution of DNA in PBS (1 mg/ml) was centrifuged in the same conditions and subsequently analyzed by high performance liquid chromatography (HPLC; Series 200; Perkin Elmer, Waltham, MA, USA) in order to verify the possible presence of pelleted DNA. Release tests were carried out by dispersing 10 mg of DNA-loaded NPs into 1 mL of PBS at 37°C. An aliquot of the release medium was collected at predetermined intervals, and fresh PBS was reinstated. Absorption and release tests were performed in triplicate both on the NSs and NCs. The collected samples were subsequently analyzed by HPLC.
Cytotoxicity test
To evaluate the cytotoxic characteristics of the produced NPs, the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenil tetrazolium bromide (MTT) assay was performed using 3T3 cells from a mouse fibroblast cell line (Cell bank Interlab Cell Line Collection; IST, Genoa, Italy). NPs were extracted in Dulbecco's Eagle's Modified Medium (DMEM, Sigma-Aldrich) (20 mg/ml) for 24 h at 37°C. The cells were seeded onto 48-well plates at 2 different densities: 1.2·104 cells/cm2 for the 24 h and 0.6·104 cells/cm2 for the 72 h-exposure period test. Then, 24 h after seeding, culture medium was removed from the wells and replaced with fresh culture medium (800 µL) added with 200 µL of sterile filtered NC and NS extract. For each extract 10 replicates were performed. No extracts were added to 12 wells used as negative controls (NC); 4 wells containing only cell culture medium were used as blank. The plates were incubated in a humidified atmosphere containing 5% CO2 at 37°C. After 24 h and 72 h of incubation, respectively, cell viability was measured by MTT assay as follows. A total of 100 µL of MTT solution (10% v/v with respect to the culture medium volume) were added to each well. After 4 h incubation at 37°C, the medium was completely removed and replaced with 1 mL of DMSO. After 5 min of slow agitation the absorbance was read at 570 nm using a UV spectrophotometer (V-530; Jasco, Easton, MD, USA).
Characterization of the nanoparticles
The morphology of the NPs was examined by scanning electron microscope (SEM) (JSM 5600; JEOL, Tokyo, Japan). The samples were placed on the SEM sample stage and sputter coated with gold. The mean size and polydispersity index (PDI) of the NPs dispersed in different media (ethanol, PBS, buffered solution with pH 4.00 and 9.21) were determined by dynamic light scattering (DLS) using a Zetasizer nano ZS90 (Malvern Instruments, Malvern, UK). DLS analysis were performed in triplicate on both systems.
Fourier-transform infrared (FTIR) chemical imaging analysis was carried out in order to obtain information regarding the composition of the NPs, the removal of the PMMA core and the presence of DNA after absorption tests. HPLC analysis was carried out to evaluate monomer conversion, using an Alltech Alltima C18 5u (250 mm × 4.6 mm; Fisher Scientific, Waltham, MA, USA) as a column, and acetonitrile (ACN)/water (80/20 v/v), fluxed at 1 ml/min as the internal mobile phase. The injected volume was 50 µL and the UV wavelength was 210 nm.
The final monomer conversion was evaluated using the following equation:
where C0 and Ct are respectively the initial and final monomer concentration in the reactive mass.
HPLC analysis was also performed to investigate the amount of absorbed and released DNA. Samples were analyzed using a Synergi 4u Hydro-RP C18 (80 Å, 250 mm × 3.00 mm; Phenomenex, Torrance, CA, USA) as a column and ACN/water (7/93 v/v), fluxed at 1ml/min as the internal mobile phase. The injected volume was 50 µL, and the chromatograms collected at the UV wavelength of 260 nm were used for quantitative analysis. Released kinetics were analyzed using the semi empirical equation of the power low to describe drug release from polymeric systems:
where Mt and M∞ are the absolute cumulative amounts of drug released at time t and infinite time respectively, k is a constant incorporating structural and geometric characteristics of the device and n is the release exponent, indicative of the drug release mechanism (20).
Results
Monomer conversion
The radical polymerization of monomers in diluted condition allowed the formation of NPs directly in the reaction phase. Final conversion of the 3 monomers was greater than 95% both for the NSs and NCs.
Morphological and dimensional analysis
Morphological analysis revealed a spherical shape and a rather homogeneous distribution for both the NSs and NCs, with a modest state of aggregation and a high yield (Fig. 1). The core extraction process did not alter the morphology of the NCs as shown in Figures 1B and 1C.
SEM analysis of NPs. (
Quantitative information regarding the dimensions of the NPs were supplied by DLS measurements on NS and NC samples. The analysis showed an average radius between 127.5 ± 12.1 and 218.9 ± 21.2 nm for NSs and a slight increase in NC dimensions with an average radius between 163.3 ± 13.6 and 214.7 ± 19.7 nm. Table I summarizes the average radius and PDI of the NSs and NCs dispersed in different solvents, highlighting the influence of the dispersant medium on the state of aggregation. In particular, a lower average radius was observed for the NP aggregates dispersed in buffered solution at pH 4.00, in accordance with the molecular composition of the samples that caused an electrostatic repulsion. The PDI was 0.4 for NSs and 0.52 NCs suggesting that although the dispersant had a positive effect on the state of aggregation of the samples, some NPs aggregates were still present.
Average radius and polydispersity index of nanospheres and nanocapsules
NSs = nanospheres; NCs = nanocapsules; PDI = polydispersity index.
FTIR chemical imaging analysis
FTIR chemical imaging analysis highlighted the presence of the 3 components in the NPs. Figure 2 shows the chemical map (Fig. 2A) and spectrum (Fig. 2B) acquired on terpolymer-based samples. Diagnostic bands associated with the 3 components are visible: the absorption related to CxHy groups between 3000-2700 cm−1, the high adsorption around 1700 cm−1 associated with the esters of the polymer matrix, a small band around 1680 cm−1 attributable to the C = C bond of the PDMAEMA and (PEG)MEMA, and the adsorption related to the C-O-C group between 1200 cm−1 and 1000 cm−1. FTIR chemical imaging analysis was also carried out to assess the successful extraction of the core from the NCs. The possibility of evaluating the presence of PMMA is related to the adsorption of CH groups. Spectra related to the NSs and NCs before and after extraction were acquired (Figs. 3A, 3B, 3C). The NC spectrum before extraction showed the absorption around 2936 cm−1 related to the CH contribution of PMMA, and the adsorption around 2960 cm−1 related to the CH contribution of the PBMA (Fig. 3B). The maps as a function of the ratio PMMA/PBMA between 2930 to 2940 cm−1 and 2936 to 2953 cm−1 were acquired for NSs and NCs before and after extraction in order to investigate PMMA core removal (Figs. 3D, 3E, 3F). The band ratio of the NCs before extraction (R = 0.8-0.85) was higher than that of the NSs (0.75-0.80), confirming the presence of the PMMA core. After the extraction process, a decrement of the PMMA/PBMA ratio (R = 0.75-0.80) due to the reduction of the PMMA contribution was observed.

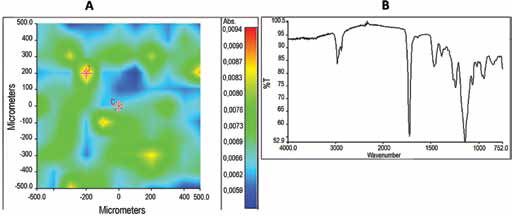

FT-IR Chemical Imaging analysis. (

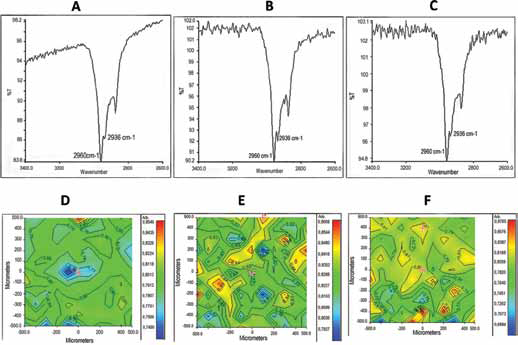

FT-IR Chemical Imaging analysis on the NPs. (
Absorption test
The encapsulation efficiency was evaluated by HPLC analysis of the absorption medium at the end of the test. Both the systems showed good encapsulation efficiency, reaching a value of 67.95% for the NSs and 87.1% for the NCs. The presence of the DNA was also investigated by FTIR chemical imaging analysis. Spectra acquired from the chemical map of the samples after adsorption showed the presence of a small band that fits on the adsorption of the ester group (data not shown). The second derivative spectra of the DNA showed a diagnostic band around 1685 cm−1, related to the vibration of the carbonyl group of the DNA bases. The second derivative spectra of NSs and NCs, respectively, before absorption did not reveal the presence of the diagnostic band of the DNA. The band around 1685 cm−1 was evident once again in the second derivative spectra of the NPs after absorption, confirming the presence of the nucleic acid on the NPs.
DNA release test
The amount of released DNA from NPs was evaluated by HPLC analysis on the samples collected at predetermined intervals. The release kinetics are shown in Figures 4A and 4B. In both cases, a rapid release in the first hours (burst effect) was observed, which tended to decrease over the following days. Moreover, HPLC analysis carried out on a solution of DNA in PBS (initial concentration of 1 mg/ml) after ultracentrifugation procedure highlighted a concentration value similar to the theoretical one, with an error of ±0.005 that can be neglected, suggesting that the initial burst effect is due to the release of DNA absorbed onto NPs. DNA release from NCs was higher than the one from NSs and prolonged in time. The models shown in Figure 4 demonstrate a good correlation degree for both the NSs and the NCs with a coefficient n<0.50.

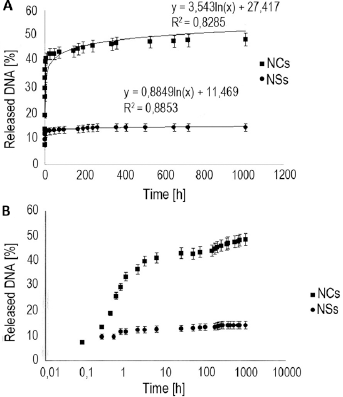

Drug delivery test. (
Cytotoxicity test
The cytotoxicity of the produced NPs was preliminarily tested using the MTT cytotoxicity assay. NS and NC extracts were added to 3T3 cells and the viability of the cells was evaluated after exposure periods of 24 h and 72 h, respectively. The obtained results are shown in Figure 5. It can be observed that at both 24 h and 72 h the mitochondrial activity of the cells was not affected by the extracts. No significant differences were found between treated and control wells (F-test, P>.05) with the exception of NCs extracts after 24 h of incubation (P<.05).
Cytotoxicity MTT test of NCs and NSs extracts after 24 h (❏) and 72 h (∎) of incubation with 3T3 cells. Comparison with the negative control is shown. The results are the mean (± SD) of 10 measurements.
Discussion and conclusions
The combination of radical polymerization of 3 distinct monomers by the precipitation method and core-shell procedure via template method allowed the production of new hollow particles with a spherical shape and nanometric dimensions.
FTIR chemical imaging analysis confirmed the successful copolymerization both for NSs and NCs. In view of a possible use of these nano-systems for gene therapy, DNA was selected as the model molecule to be loaded into NPs. Both systems showed good absorption efficiency, probably due to the presence of PDMAEMA, which provides amino groups to the terpolymer, thus improving the molecular interaction between NPs and DNA functional groups.
Moreover, the results of the absorption test demonstrated the effect of the hollow structure in maximizing the loading of nucleic acid, as shown by an evident increase in the amount of DNA encapsulated into the NCs with respect to the NSs. This behavior was also reflected on the release kinetics, which showed an amount of delivered DNA from the NCs greater than that from NSs. Both systems highlighted the typical kinetics of release from NPs (21-22-23). Analyzing the delivery profiles more in depth (Fig. 4B), especially in the case of NCs, the release kinetics can be divided into 3 steps. In a very early stage a slower release occurred, due to the fact that the system tends to achieve equilibrium with the surrounding environment. In a second phase a burst effect was evident, probably due to the DNA weakly bound to the surface of the NCs and/or to the matrix immediately below the NC surface. The third phase showed a sustained and prolonged release, due to the DNA located into the NCs cavity and its diffusion through the polymeric matrix that allows a slower and more prolonged release than the one from NSs. After 20 days the absorbed DNA was not completely released and the steady state was not reached for the NCs. This could be due to the fact that there was DNA remaining inside the cavity that probably need much more time to diffuse and be delivered. Regarding NSs, the steady state was reached after 9 days, but in this case as well not all the absorbed DNA was released, probably because of the electrostatic interactions occurring between the terpolymer and the functional groups of the nucleic acid. The release order value (n<0.50) obtained for both the samples using the semi empirical model of Peppas (20) is typical of a release dominated by a purely diffusive mechanism, in which there is no influence due to macromolecular relaxation phenomena, as expected in the case of a cross-linked structure. Finally, a preliminary cytotoxicity investigation showed no toxic effects of the NPs on the cells, thus supporting the potential use of these particles as carriers for drug delivery applications.
In conclusion, the results obtained in this study showed that thanks to their chemical composition, terpolymer-based NPs may be suitable systems to promote interaction with oligonucleotidic drugs, thus obtaining a carrier for the delivery of nucleic acid. The possibility of obtaining a hollow structure allows the amount of the absorbed DNA to be maximized and a more prolonged release kinetics than those from NSs. The hollow structure allows offer the advantage of allowing a higher amount of drug to be administrated using a lower amount of polymer.
The preliminary results obtained in this work encourage us to continue in the evaluation of these new polymeric nanocarriers as DNA delivery systems in view, of a possible application in gene therapy for cancer treatment once suitable modifications have been made.
