Abstract

Since the end of 2019, the COVID-19, which has swept across the world, has caused serious impacts on public health and economy. Although Reverse Transcription-Polymerase Chain Reaction (RT-PCR) is the gold standard for clinical diagnosis, it is very time-consuming and labor-intensive. At the same time, more and more people have doubted the sensitivity of RT-PCR. Therefore, Computed Tomography (CT) images are used as a substitute for RT-PCR. Powered by the research of the field of artificial intelligence, deep learning, which is a branch of machine learning, has made a great success on medical image segmentation. However, general full supervision methods require pixel-level point-by-point annotations, which is very costly. In this paper, we put forward an image segmentation method based on weakly supervised learning for CT images of COVID-19, which can effectively segment the lung infection area and doesn’t require pixel-level labels. Our method is contrasted with another four weakly supervised learning methods in recent years, and the results have been significantly improved.

Keywords

COVID-19 deep learning weakly supervised learning computed tomography automated segmentation

1 Introduction

In December 2019, an acute infectious respiratory illness broke out in Wuhan, China. The new coronavirus, named COVID-19 by the World Health Organization (WHO), is believed to be the cause of the outbreak of the disease. In symptomatic patients, the clinical manifestations of the disease usually start after less than a week, consisting of fever, cough, nasal congestion, fatigue and other signs of upper respiratory tract infections [1]. COVID-19 infection is a viral infection so that the clinical symptoms are generally accompanied with fatigue. The COVID-19 could be also accompanied with other symptoms, such as dizziness, sore throat and other symptoms. In January 2020, the World Health Organization (WHO) announced that COVID-19 has become a Public Health Emergency of International Concern. The COVID-19 has spread all over the world, causing serious losses to countries around the world. As of August 8, 2020, WHO has reported a total of 19,187,943 confirmed cases and 716,075 death worldwide. Although the epidemic in China has been controlled, the overall number of confirmed cases in the world is still increasing rapidly. Regrettably, there are still no effective treatment measures.

Reverse transcription polymerase chain reaction (RT-PCR) is considered to be the standard method for diagnosing COVID-19. However, it takes a long time and has a high false negative rate, which makes the detection efficiency low [2]. In recent years, medical imaging technology has become a common method for diagnosis and quantitative assessment of various diseases [1, 3]. Especially computer tomography (CT), which can show lung consolidation and ground glass shadows, has become an important auxiliary tool for detecting new coronary pneumonia [4]. Studies have shown that chest CT images are more sensitive to COVID-19 than RT-PCR [5, 6]. However, the evaluation of medical images is a manual, tedious and time-consuming process, which is also affected by the experience of radiologists [7]. Therefore, it is very important to construct a scheme that can automatically segment the lung lesions.

Lately, with the rise of deep learning, artificial intelligence has developed rapidly. As a popular method in AI field, deep learning has been widely adopted in medical image segmentation, such as brain [8, 9], lung [10], and pancreas [11]. Recently, some technologies that can automatically segment the infected area from COVID-19 CT images have been published [12, 13]. U-Net [14] is the most widely used network structure in medical image segmentation. It has a codec structure and can make full use of low-level and high-level features. After U-Net was proposed, improvements based on U-Net were successively proposed [15 –17]. However, we consider that these methods cannot be directly applied to datasets of COVID-19. On one hand, the sample size of the public COVID-19 dataset is very small. As we all know that too few samples and too many parameters will lead to overfitting, which makes the generalization ability of the model very poor. On the other hand, the fully supervised method that requires pixel-level annotations marked by experienced doctors is too costly to be a realistic solution for COVID-19.

Our work bases on the above analysis. Considering the high cost of pixel-level labeling, we adopt a method based on the datasets with weak labels to generate pseudo segmentation masks to train our segmentation network. In our method, only image-level labeling information (that is, whether the infected area exists) and a little saliency supervision information are required. Class Activation Maps (CAM) [18] is a technique that has been widely used in research related to weak supervision in recent years and is used to generate attention maps. Jiang et al. [19] proposed a module called OAA, which improved the CAM with attention accumulation, making the attention map generated by the model more complete. Our method is inspired by this, but uses a different aggregation method. At the same time, we used the method of Liu et al. [20] to generate a saliency map to extract background cues. Pseudo segmentation masks come from the combination of attention map and saliency map. Besides, because our dataset is small, building a lightweight segmentation model is our goal. However, if only deep separable convolution [21] or Ghost Module [22] are used, although the number of parameters can be greatly reduced, it will affect the segmentation quality [21, 23]. In order to reduce this influence, we propose MDPPM (Modified Dilated Pyramid Pooling Module) and FE (Features Extraction) Block, which make full use of context information in a multi-scale manner. At the same time, we introduced an attention mechanism in the encoder module. In addition, we have introduced non-linear factors at the connection between the encoder and the decoder to make the most of the features extracted by the encoder.

In summary, the contributions of our work are as follows:

We propose a weakly supervised learning segmentation method based on attention fusion.

We adopt the MDPPM and FE block in the segmentation network, which can effectively integrate contextual information.

By adopting depthwise separable convolution, our segmentation network is light enough. At the same time, the attention mechanism is used to improve efficiency.

Our Residual Connection can alleviate the gap between the feature maps generated by the encoder and the decoder by introducing non-linear operations, and make better use of the features generated by the encoder.

The rest of the paper is organized as follows. Section 2 describes some works relate to weakly supervised learning and semantic segmentation. The method our proposed is present in Section 3. We show the dataset and experiment results in Section 4. And Section 5 is a conclusion.

2 Related work

2.1 Semantic segmentation for medical images

Because the convolutional neural network will lose the image details during the convolution operation and pooling operation, the previous model cannot point out the specific contour of the target, and thus cannot complete the accurate segmentation. Fully Convolutional Networks (FCN) [24] replaced the fully connected layer with a convolutional layer, and merged multiple layers of features to achieve good segmentation results. Therefore, FCN has become the basic framework of semantic segmentation. U-Net [14] is a very widely used model in the field of medical image segmentation. The idea of U-Net is similar to FCN, which is also the encoder-decoder structure, the difference of the two is that U-Net uses the method of concatenation features instead of direct addition. Çiçek et al. [15] replaced the 2D convolution operation in U-Net with a 3D convolution operation, which can process 3D medical images more effectively. U-Net++ [16] integrates U-Net of different sizes into one network. In [25], Xiao et al. replaced each sub-module of U-Net with a module with residual link and applied it to retinal image segmentation. In [17], Ibtehaz et al. proposed the MultiRes module, and conjecture that there may be a semantic gap between the feature of the encoder and decoder. [26] adopts the attention mechanism into U-Net, which reduces the weight of the background area, thereby improving the segmentation accuracy. At present, there have been some work aimed at COVID-19 lung infection, such as [27 –29]. Unfortunately, these methods require full supervision, and the cost is much higher than weak supervision.

2.2 Weakly supervised semantic segmentation

In weakly supervised semantic segmentation, there are several common weak labels such as bounding boxes [30], scribbles [31, 32], points [33], and image-level labels [34 –37]. Among them, image-level tags are the simplest supervision and are very easy to obtain. Although weakly supervised learning has made great progress in the research of semantic segmentation of natural images, there are relatively few related works in the research of medical images. Afshari et al. [38] used bounding boxes and a new loss function to implement an end-to-end network for head and neck tumor segmentation. Wu et al. [39] used the classification network to generate Class Activation Maps (CAMs) with attention mechanism, and used this as a supervised signal to learn a representation model to segment brain lesion. Recently, Laradji et al. [40] used point-level supervision to segment the COVID-19 lung infection area and proposed a consistency-based loss function.

3 Methodology

In this section, we describe our solution and explain how each stage works.

3.1 Generating pseudo segmentation labels

CAM [18] is a visualization technique that allows us to observe which area of the picture the neural network pays more attention. In our scheme, we use CAMs to obtain foreground cues. In order to obtain attention maps by CAM, it is generally necessary to train a classification network in which a fully connected layer is replaced with a global average pooling (GAP). Given an image, the CAM of the target region can be computed by: $\begin{matrix} CAM = \frac{W^{T} f (x, y)}{\max_{x, y} W^{T} f (x, y)} \end{matrix}$ (1) where W denotes the classification weights associated to the target region, and f (x, y) is the feature vector locating at (x, y) on the last convolution layer of CNN.

Since the attention map generated by the classification network continues to focus on different positions of the target during the training process and the regions are even often complementary [19], we consider gathering the attention maps of various stages to obtain a more complete target area. Figure 1 shows this phenomenon. For the cumulative attention map M_t generated in the t-th epoch, it is calculated as: $\begin{matrix} M_{t} = CF (M_{t - 1}, C_{t}) \end{matrix}$ (2)

where CF represents CAM fusion, and C_t represents the CAM extracted from the network in the t-th epoch. In the work of Jiang et al. [19], the fusion operation adopts the element-wise maximum operation. However, for our task, the segmentation target sometimes only occupies a small part of the entire image, and the use of element-wise maximum operation is likely to cause the target range to be too large. Therefore, we adopted another simple fusion strategy, the average fusion strategy of adjacent epochs. It takes the average of the attention map C_t and the current cumulative attention map M_t - 1, and the formula is as follows: $\begin{matrix} M_{t} = (M_{t - 1} + C_{t}) / 2 \end{matrix}$ (3)

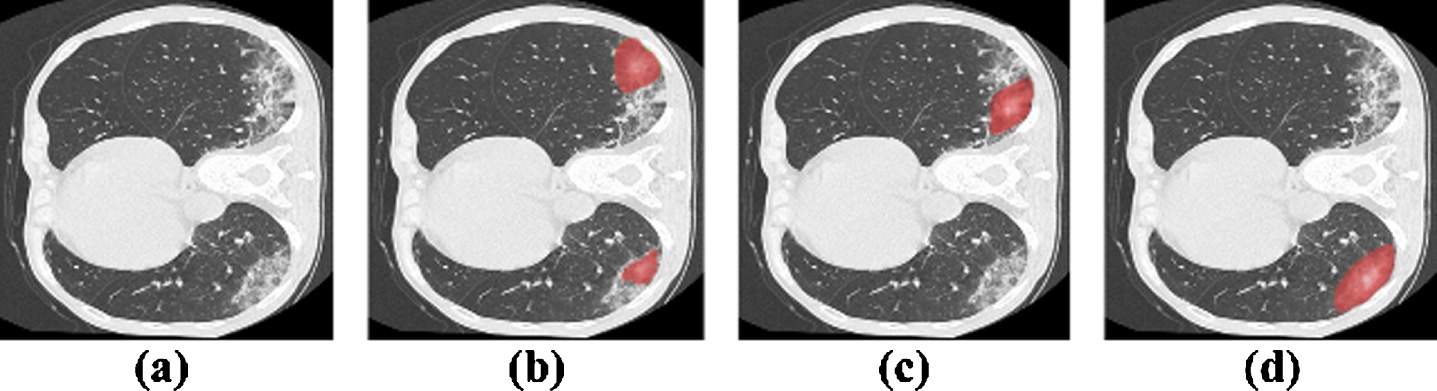

Fig. 1

Observation of attention maps. (a) Source images; (b-d) Intermediate attention maps produced by a classification network at different training stages. In order to show the demonstration effect, we removed the pixels with lower values. However, in practical experiment, these pixels are considered.

We believe that such an operation can obtain a suitable target range, which will not be too large or concentrated within the target region. However, the CAM obtained at this time is still very noisy, which makes it difficult for us to choose a suitable threshold to obtain the foreground (that is, the infected area) cues we need. To solve this problem, we consider introducing a spatial attention mechanism into the classification network.

The feature map from the last convolution layer before GAP $P \in ℝ^{C \times H \times W}$ can be considered as tensor T = [t^1,1, t^1,2, ... , t ^i,j , ... , t ^H,W ], where t ^i,j $\in ℝ^{1 \times 1 \times C}$ equivalent to the spatial location (i,j) with i ∈ {1, 2, …, H} and j ∈ {1, 2, …, W}. We can get the matrix $p \in ℝ^{H \times W}$ by the convolution operation F * T, $F \in ℝ^{1 \times 1 \times C \times 1}$ , each p_i,j in p represents the linear combination for all the C channels at location (i, j). Then, p is rescaled to [0,1] by a sigmoid layer. The result $\hat{T} \in ℝ^{C \times H \times W}$ can be represented as: $\begin{matrix} \hat{T} = [σ (p_{1, 1}) t^{1, 1}, \dots, σ (p_{i, j}) t^{i, j}, \dots, σ (p_{H, W}) t^{H, W}] \end{matrix}$ (4)

where σ (p_i,j) represents the importance of the position (i, j) relative to the overall feature map. Therefore, the feature map after the operation will highlight the more important parts in space, which is beneficial to obtain the infected area. Figure 2 shows the pipeline of the first stage.

To get segmentation mask, we adopt saliency detection technology from [20]. Specifically, we regard the region in the saliency map of which pixels are with enough low value as background. At last, the foreground cues (from the generated CAM) and the background cues (from saliency map) are merged to be a segmentation mask.

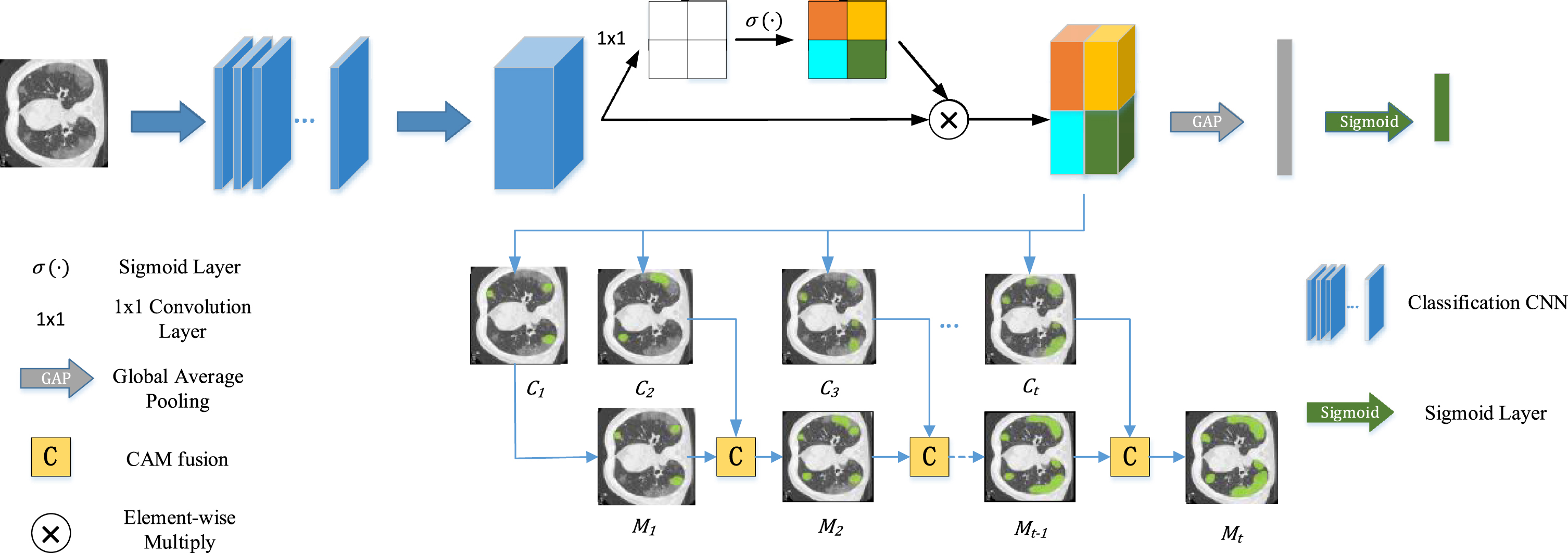

Fig. 2

The pipeline for getting more complete CAM which at the first stage of our work. We get class attention maps from the last convolution layer passed through a spatial attention mechanism. After that, the more complete CAM will be generated by a series of CAM fusion operation with training.

3.2 Segmentation network

In this section, we introduce the proposed segmentation network and the composition of each module that contained in the second stage.

3.2.1 The proposed network architecture

Our network is improved based on U-Net and consists of an encoder and a decoder. The encoder of the first four layers not only extracts features through Feature Extraction Block but also strengthens channels that are more important through Channel Attention Block (shown in Fig. 4). We complete down sampling through pooling, and add our proposed MDPPM Block to the fifth layer. MDPPM uses adaptive pooling and dilated convolution, which can combine the context of different regions to obtain multi-scale information. Then, the up-sampling information of each layer and the encoder information are projected to the label space gradually by the decoder through the skip connection combination, and finally the segmentation result is obtained. Besides, the block we adopt in the decoder and the fifth layer called ‘conv block’ is shown in Fig. 5, which consists of two depthwise separable convolutions. Before the feature map gets into decoder block, it is processed by an upsampling layer that followed by a pointwise convolution to shrink the number of channels. It is worth mentioning that, so as to diminish the number of parameters and computational complexity, most of the convolutions in the network are replaced with depthwise separated convolutions (Fig. 6). In order to alleviate the problem of precision degradation caused by depthwise separated convolutions [21 , 41], we adopt multi-scale learning in FE Block. In addition, unlike the standard U-Net, we have added a convolution operation to skip connection, which we call Residual Connection. On one hand, it can diminish the semantic difference between the encoder and decoder. On the other hand, adding non-linear factors will improve the accuracy of the model. The network architecture is displayed in Fig. 3.

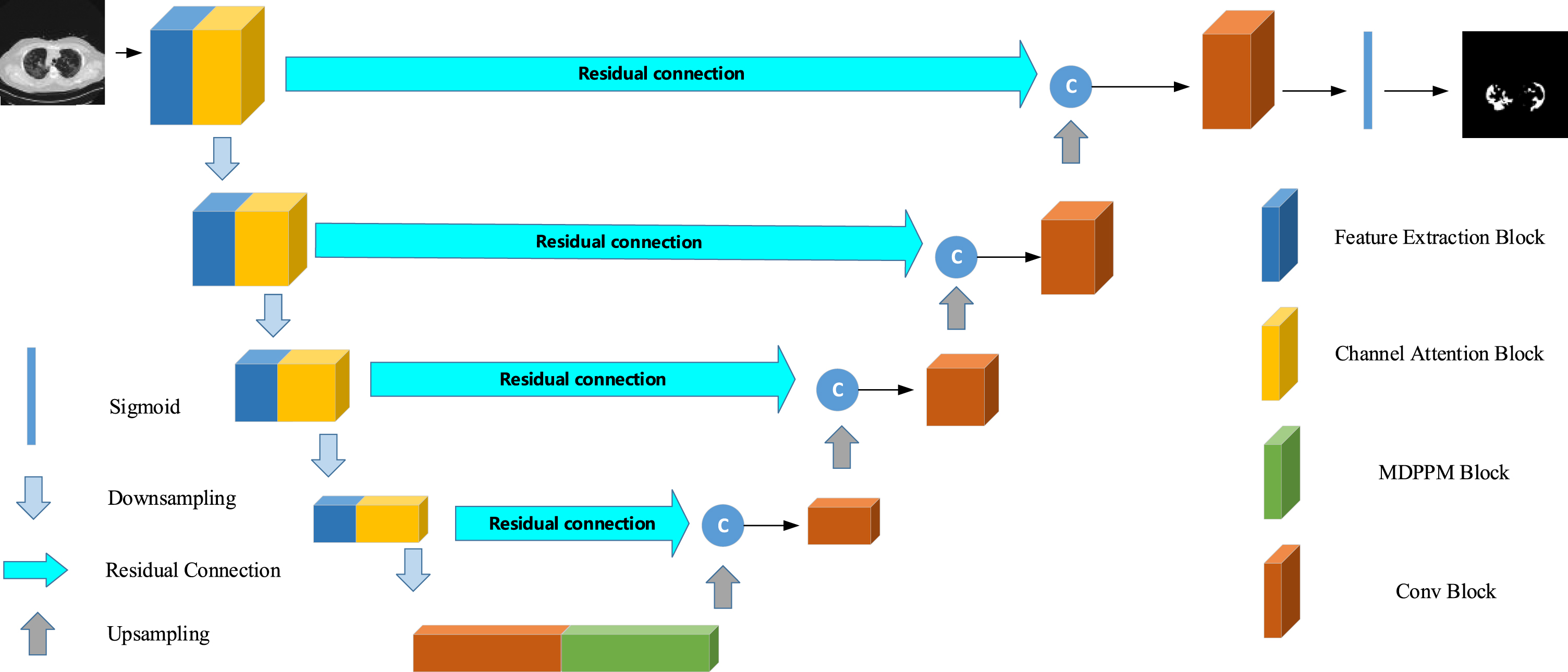

Fig. 3

Architecture of the proposed segmentation network.

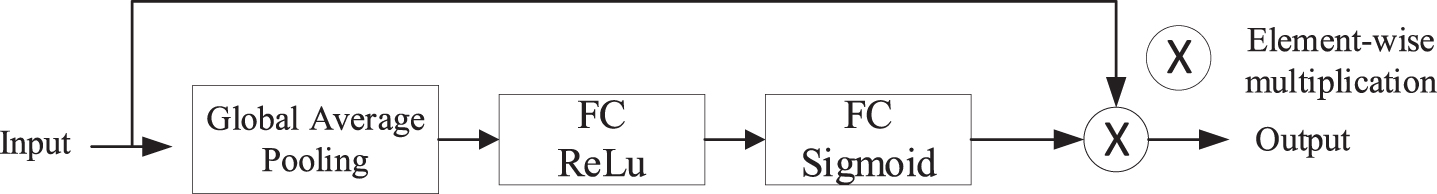

Fig. 4

Channel Attention Block in encoder. The block consists of a GAP and two fully connected layers of which activation functions are different. The size of input feature map is squeezed to 1×1×C by GAP layer. After that, the fully connected layer ahead makes the channels of feature shrink to reduce the numbers of parameters. Then, passing through the sigmoid layer, we get channel attention maps, which contain channel-wise weights. At last, the feature maps are reweighted via element-wise multiplication operation.

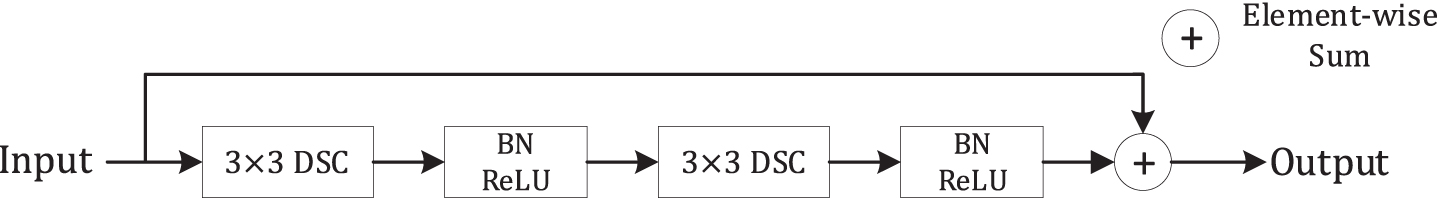

Fig. 5

The conv block contains two depthwise separable convolutions.

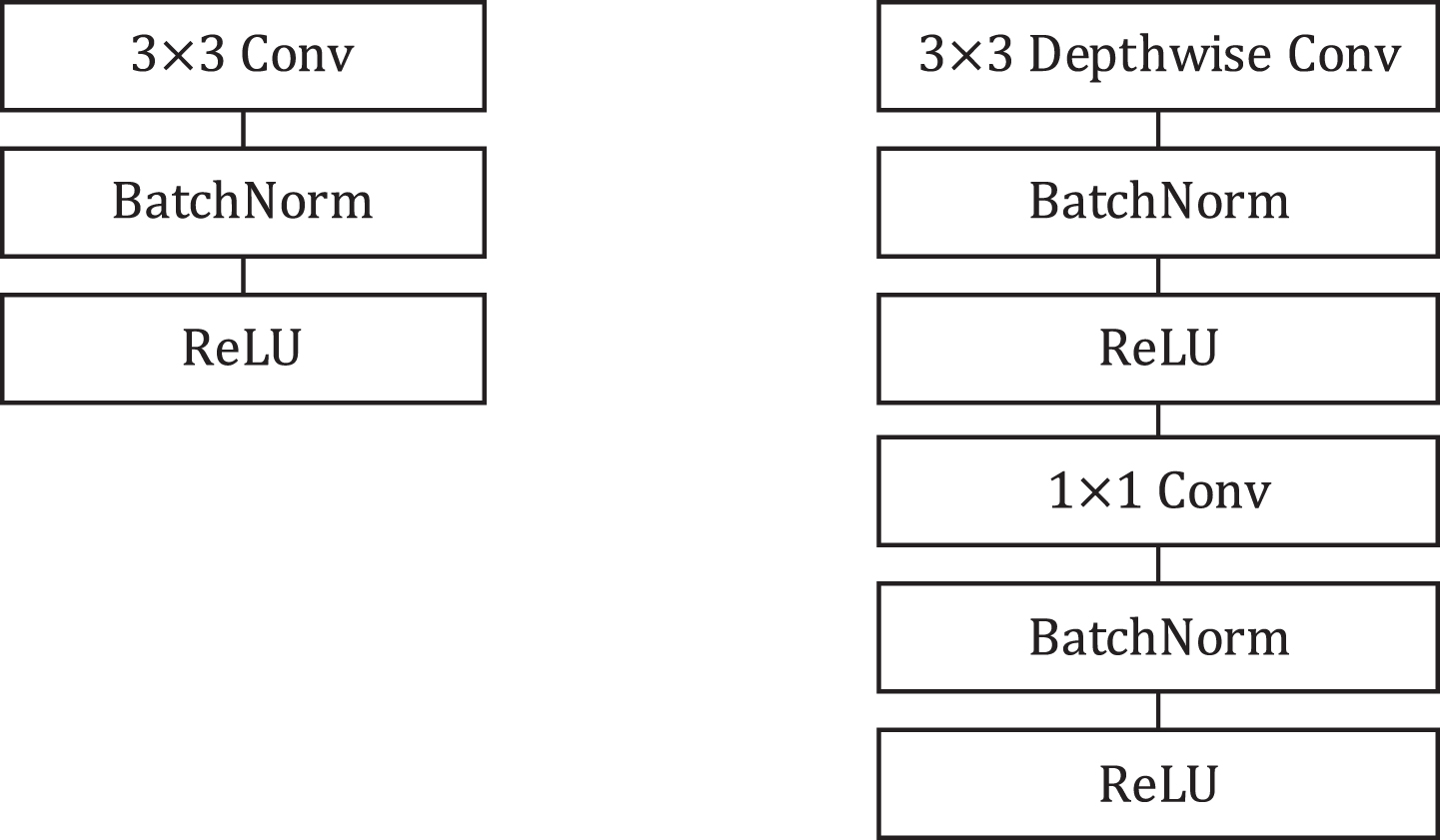

Fig. 6

Left: Standard convolution layer with Batch Normalization and ReLU activation function. Right: Depthwise separable convolution with batchnorm and ReLU which consists of depthwise convolution, pointwise convolution. Compared to the standard convolution, the use of depthwise separable convolution could obtain a diminution in computation of $1 / N + 1 / D_{k}^{2}$ , where N is the number of standard convolution filters and D_k denotes the width and height of standard convolution filters. In other words, we can get an 8 to 9 times deduction when use the 3 × 3 convolution.

3.2.2 Feature extraction block

In order to introduce the model better, we define the basic operations at first. Suppose $F_{r}^{k \times k}$ denotes a standard convolution, where k × k is the size of the kernel and r is the dilation rate. Similarly, ${\hat{F}}_{r}^{k \times k}$ denotes a depth separable convolution (DSC). The subscript r will be omitted when the dilation rate equals one. For example, F^1×1 denotes a 1×1 convolution (pointwise convolution). The above definition also applies to the following introduction. We let $X \in ℝ^{C \times H \times W}$ be the input feature map, and $FE (X) \in ℝ^{C^{'} \times H \times W}$ be the output feature map, where FE denotes the function of FE Block. After the input feature map X is processed by a 1×1 convolution, the number of channels is shrunk to C′/3 because of the three branches of the block. This operation can be formulated as: $\begin{matrix} P = F^{1 \times 1} (X) \end{matrix}$ (5)

Then the feature map P is fed into three parallel branches, passing through a dilated DSC respectively: $\begin{matrix} F_{k} = \hat{F_{2^{k - 1}}^{3 \times 3}, k = 1, 2, 3 .} \end{matrix}$ (6)

Next, we adopted a spatial attention mechanism to enable the FE module to suppress useless information while emphasizing the more important information in space. The process can be written as: $\begin{matrix} F_{ak} = F_{k} + F_{k} \otimes σ (F^{1 \times 1} (F_{k})), k = 1, 2, 3 . \end{matrix}$ (7)

where σ is sigmoid function, ⊗ is element-wise multiplication and F _bmak denotes the result of each branch. We get the attention map through a 1×1 convolution and sigmoid activation function. Then the feature map is recalibrated because of the generated attention map. Finally, we fuse the above feature map by concatenation and a 1×1 convolution as: $\begin{matrix} FE (X) = ReLU (BN (F^{1 \times 1} (Concat (F_{a 1}, F_{a 2}, F_{a 3})))) \end{matrix}$ (8)

where BN (·) denotes batch normalization. The proposed FE Block is illustrated in Fig. 7.

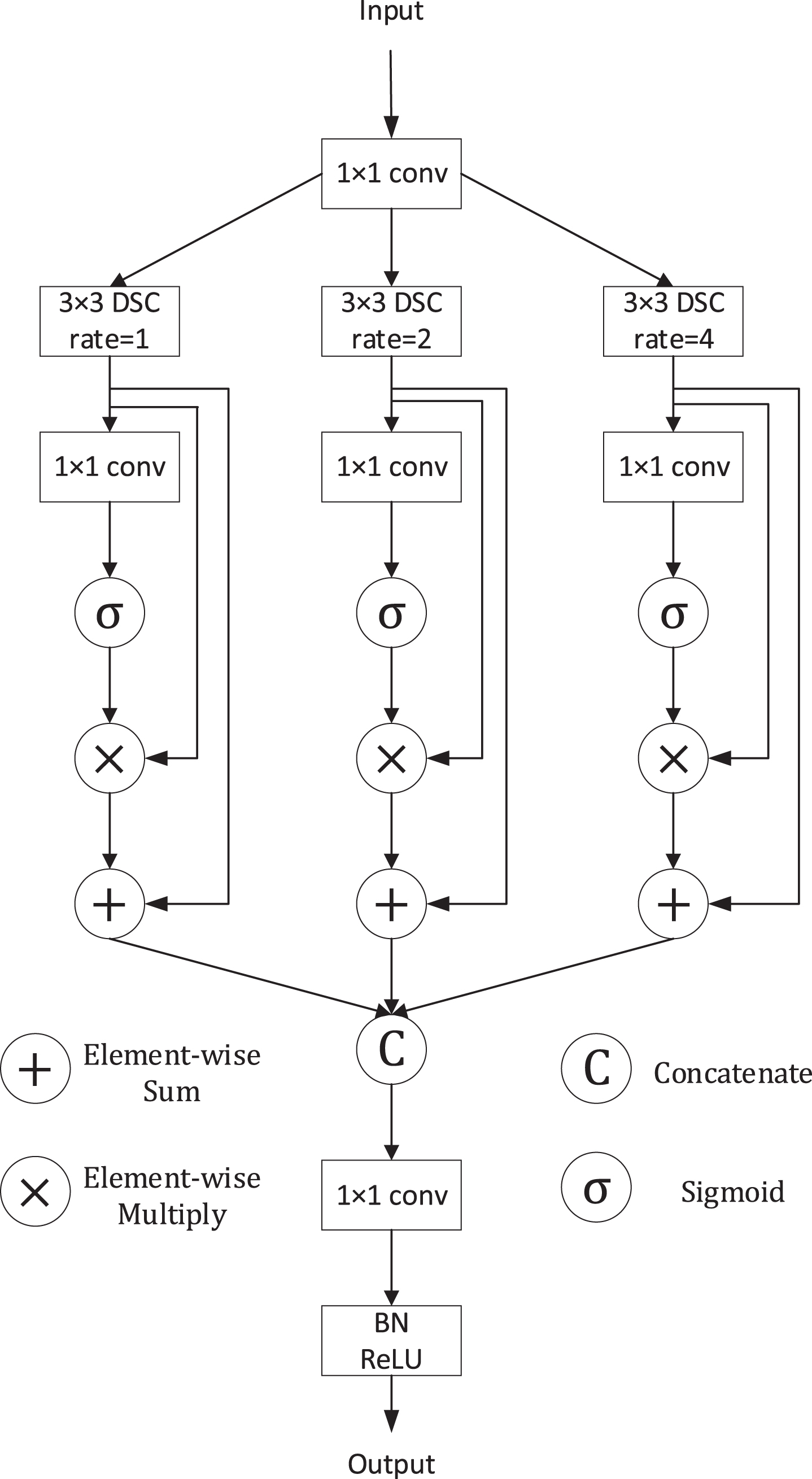

Fig. 7

Illustration of the FE Block.

3.2.3 Modified dilated pyramid pooling module

To diminish the loss of contextual information between different sub-regions while obtaining multi-scale information further, we propose Modified Dilated Pyramid Pooling Module (MDPPM) module of which the structure is illustrated in Fig. 8. We let $X \in ℝ^{C \times H \times W}$ be the input feature map, and we can obtain three features F_m1, F_m2, F_m3, which can be written as:

$\begin{matrix} F_{mk} = F^{1 \times 1} (X), k = 1, 2, 3 . \end{matrix}$ (9)

Note that, compared to the input feature map, the number of channels of F_mk decrease to C/4. Then, the generated feature F_m1 is processed by an average pooling layer, generating two feature maps named F_mp1 and F_mp2, the size of which are 1 × 1 × C/4 and 2 × 2 × C/4 respectively. After that, the two feature maps will pass through 1×1 convolution to halve the number of channels. And then, we upsample them to get the feature with the same size as F_m1 via bilinear interpolation. Next, different levels of features are concatenated. Finally, the result of the first branch $F_{1}$ can be formulated as: $\begin{matrix} A_{1} = Upsample (F^{1 \times 1} (F_{mp 1})) \end{matrix}$ (10) $\begin{matrix} A_{2} = Upsample (F^{1 \times 1} (F_{mp 2})) \end{matrix}$ (11) $\begin{matrix} F_{1} = Concat (F_{m 1}, A_{1}, A_{2}) \end{matrix}$ (12)

As for the other two branches, we adopt two dilated depthwise separable convolutions. The result of them $F_{2}$ can be written as: $\begin{matrix} F_{2} = Concat (F_{m 2} + {\hat{F}}_{3}^{3 \times 3} (F_{m 2}), F_{m 3} + {\hat{F}}_{3}^{3 \times 3} (F_{m 3})) \end{matrix}$ (13)

At last, the output of our proposed MDPPM Block M ( X ) is defined as: $\begin{matrix} M (X) = F^{1 \times 1} (Concat (F_{1}, F_{2})) \end{matrix}$ (14) The proposed MDPPM is illustrated in Fig. 8

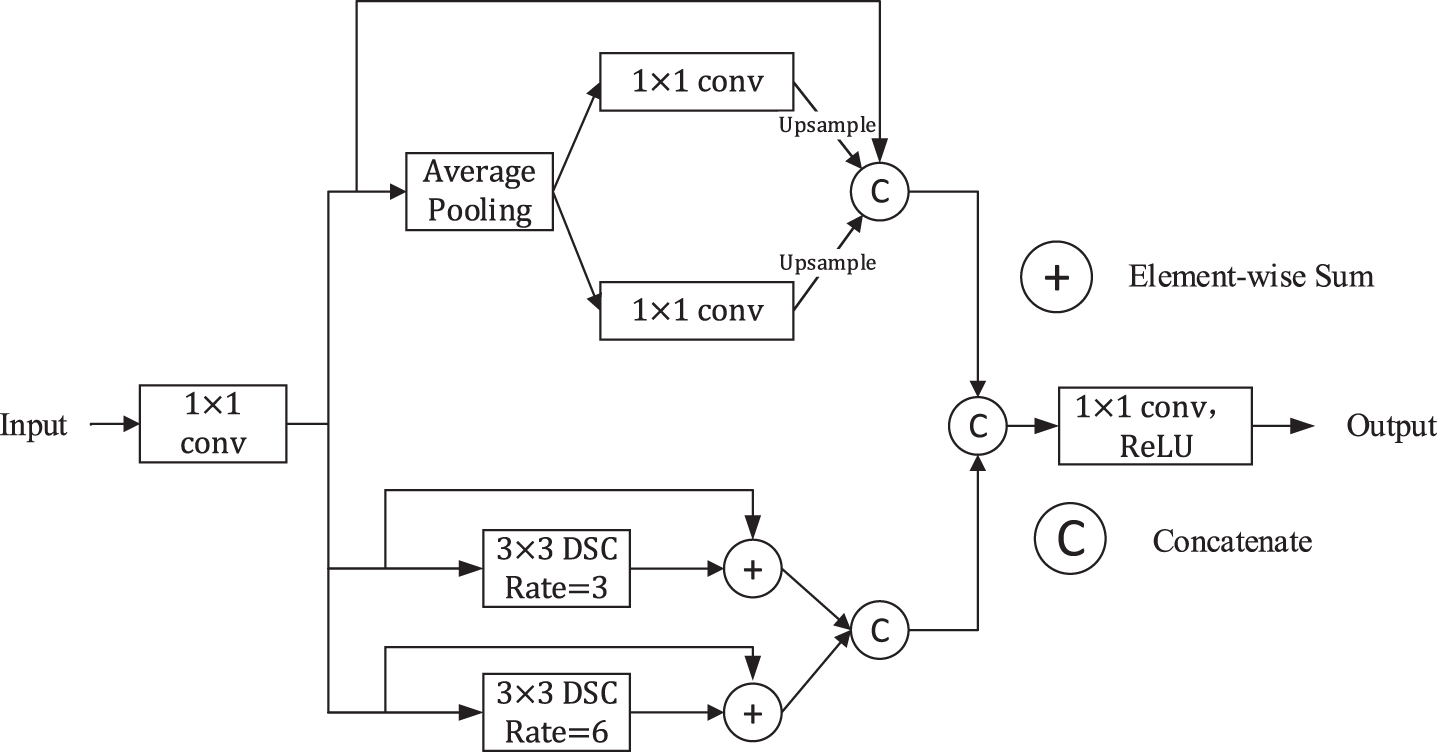

Fig. 8

Illustration of the MDPPM Block.

3.2.4 Residual connection

In the encoder-decoder structure, there may be a semantic gap between the features generated by the encoder and the features to be merged in skip connection since the features from encoder are considered as lower level feature, however, the features in decoder are supposed to be higher feature because they are computed at deeper layer [17]. Therefore, we incorporate some convolution layers because additional non-linear transformations may be able to alleviate the semantic gap. In other words, we adopt some non-linear transformations instead of only concatenating the feature maps compared to the standard U-Net. We call it ‘Residual Connection’, and the structure of the bottleneck block we used from MobileNet V2 [23] in the residual connection is shown in Fig. 9. From the structure, we can observe that the block consists of two pointwise convolutions and a depthwise convolution. Note that, the convolution at last is a linear convolution because ReLU function may cause information loss. Considering that the disparity of the deeper layer is likely to decrease gradually because they are processed and computed more, we use 4,3,2,1 bottleneck block from the top residual connection to the bottom respectively.

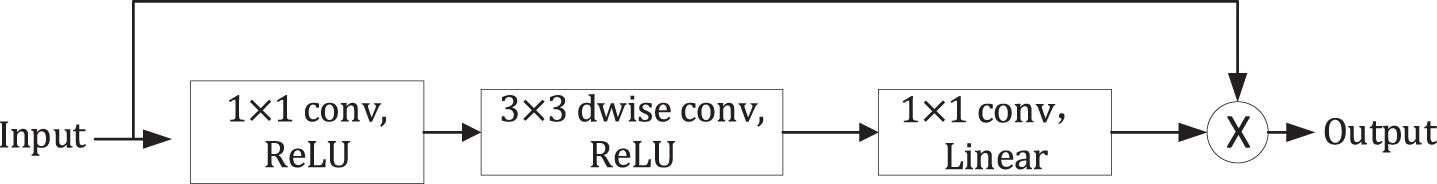

Fig. 9

Bottleneck block in Residual Connection.

3.3 Loss function

In the research of medical image segmentation, Dice Score Coefficient (DSC) is widely used to measure the quality of segmentation as a measure of set similarity.

The optimal objective for a metric is the metric itself. Milletari et al. [42] proposed a loss function based on Dice coefficient. Dice Loss is formulated as follow: $\begin{matrix} DL = 1 - \frac{2 \sum_{n = 1}^{N} p_{n} g_{n}}{\sum_{n = 1}^{N} g_{n} + \sum_{n = 1}^{N} p_{n}} \end{matrix}$ (15)

p_n is the probability that the predicted pixel n belongs to infection, g_n is the ground truth that pixel n belongs to infection. However, when facing datasets with extremely imbalanced categories and small segmentation targets (such as part of the COVID-19 infection area), Dice Loss will lead to a lower recall rate. To solve this problem, Salehi et al. [43] proposed Tversky loss: $\begin{matrix} L_{Tversky} (α, β) = T \end{matrix}$ (16) $T = \frac{\sum_{n = 1}^{N} p_{0 n} g_{0 n}}{\sum_{n = 1}^{N} p_{0 n} g_{0 n} + α \sum_{n = 1}^{N} p_{0 n} g_{1 n} + β \sum_{n = 1}^{N} p_{1 n} g_{0 n}}$ (17)

where p_0n is the probability that the predicted pixel n belongs to infection area and p_1n is the probability of pixel n be a non-infection. Besides, g_0n is the ground truth that pixel n belongs to infection and g_1n is the ground truth that pixel n belongs to non-infection area.

However, both Tversky loss and Dice loss will cause the training to be very unstable. Therefore, inspired by [44], we use a mixed loss function composed of Tversky loss and Focal loss [45]. Focal loss and the final loss function formula are as follows: $\begin{matrix} FL = - \frac{1}{N} \sum_{n = 1}^{N} g_{n} {(1 - p_{n})}^{γ} log p_{n} \end{matrix}$ (18) $\begin{matrix} L = log (1 - T) + μ FL \end{matrix}$ (19)

In the formula (19), we use the logarithmic function and introduce the variable μ, the purpose is to balance the size of Tversky loss and Focal loss, so that their values are in the same order of magnitude.

4 Experimental results

In this section, we introduce the setup and results of the experiment.

4.1 Experimental setup

4.1.1 Datasets

The two open source datasets we used in the experiment come from Italian Society of Medical and Interventional Radiology (SMIR) and the ground-truth segmentation was done by a trained radiologist [46]. Dataset A is 100 axial CT images from 60 COVID-19 patients. These 512 × 512images are converted from JPG images. Each CT image has the radiologist marking the infected area as a segmentation mask. Dataset B consists of nine axials volumetric CTs, which contain 829 slices. In the 829 slices, 373 slices have been evaluated and labeled as positive by the radiologist. The size of these images is 630 × 630, we resize them to 512 × 512, which is consistent with dataset A. We show the information of the two datasets in Table 1 and some sample images from the dataset are shown in Fig. 10. In the experiment, we will use two data sets together.

Table 1
The information of the two datasets

Dataset Name Cases Slices Infection Slices with the infected Ratio of

A 40 100 100 100%

B 9 829 373 44.9%

Dataset Name	Cases	Slices Infection	Slices with the infected	Ratio of
A	40	100	100	100%
B	9	829	373	44.9%

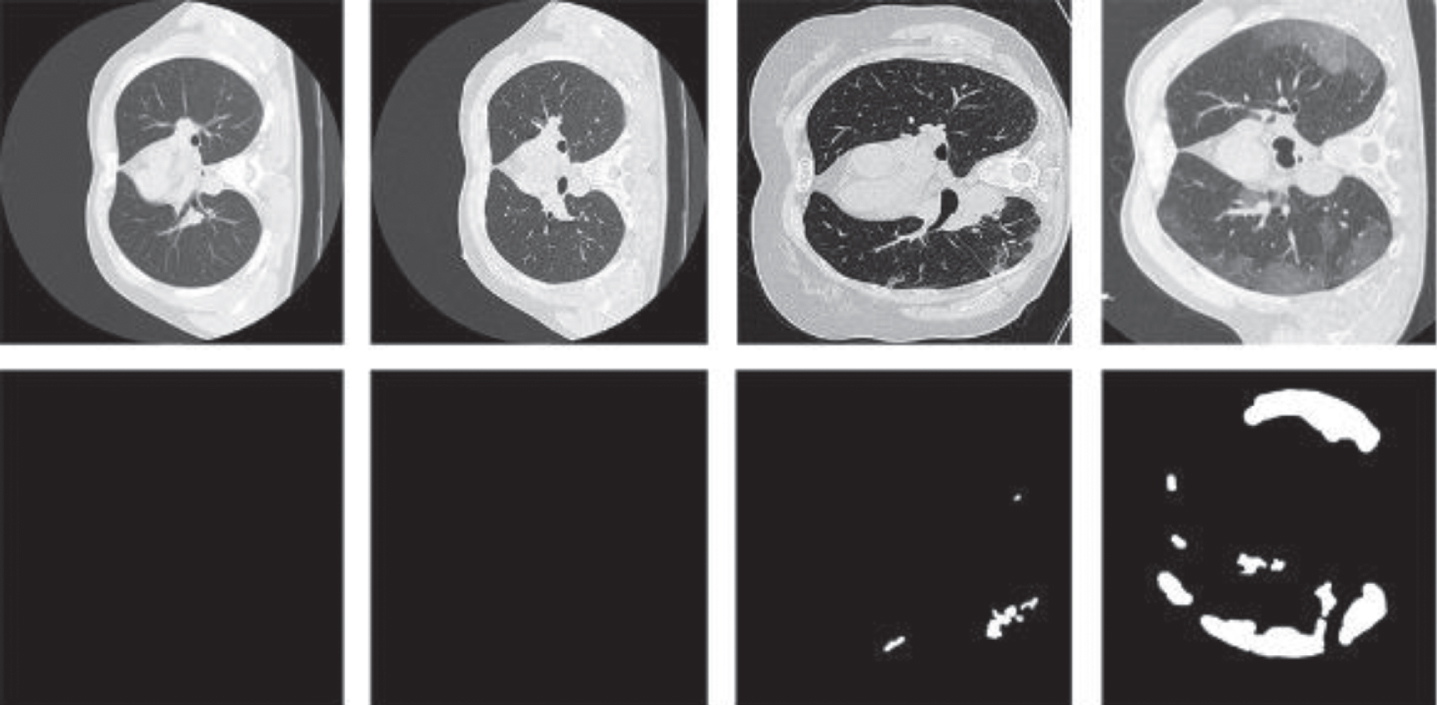

Fig. 10

Four images from the datasets we used. The first two columns display two images without infection. The images in the third and the fourth are COVID-19 images.

4.1.2 Implementation details

Considering that training a network from scratch is inefficient, we apply the transfer learning technique. We use the pre-trained WideResNet-38 [47] as the backbone classification network for generating CAM. Based on pre-training parameters, we fine-tune the classification network to obtain a more accurate CAM based on whether there is an infected area as an image-level annotation. In our segmentation network, we use the Adam optimizer [48] to set β1 = 0.9, β2 = 0.999, ɛ=10-8, and the initial learning rate is set to 1e-4. In the loss function, we set α=0.3, β=0.7. All network models in the experiment are implemented with pytorch, and are calculated on a GTX TITAN X GPU. Our results based on a 10-fold cross-validation.

4.1.3 Evaluation metrics

In this paper, we use three widely used evaluation indicators in medical image analysis to evaluate segmentation accuracy, namely Dice similarity coefficient (DSC), sensitivity (SEN), and specificity (SPC). The Dice similarity coefficient indicates the degree of similarity between the predicted area and the real labeled area on the ground. Sensitivity represents the ability of the model to predict the actual COVID-19 infection area successfully. Specificity represents the ability of the ground truth of the background area are correctly segmented. These metrics are defined as follows:

$\begin{matrix} DSC = \frac{2 TP}{2 TP + FP + FN} \end{matrix}$ (20) $\begin{matrix} SEN = \frac{TP}{TP + FN} \end{matrix}$ (21) $\begin{matrix} SPC = \frac{TN}{TN + FP} \end{matrix}$ (22)

where TP, FP, TN and FN represent the true positive, false positive, true negative and false negative, respectively.

4.2 Experiment results

In this section, we analyze the experimental results to demonstrate the effectiveness of our weak supervision scheme and segmentation network.

4.2.1 Quantitative and qualitative analysis

Our approach is measured against the other four excellent methods including CRF-RNN [49], IRN [50], IDC [51] and SEAM [52] which are also weakly supervised methods. The four methods are implemented according to the original articles. Some cases are shown in Fig. 11. We can observe that our weakly supervised method can get more detailed boundary information that is the best segmentation result in the comparison. Although the results of the other methods are not so bad, they lose so many details.

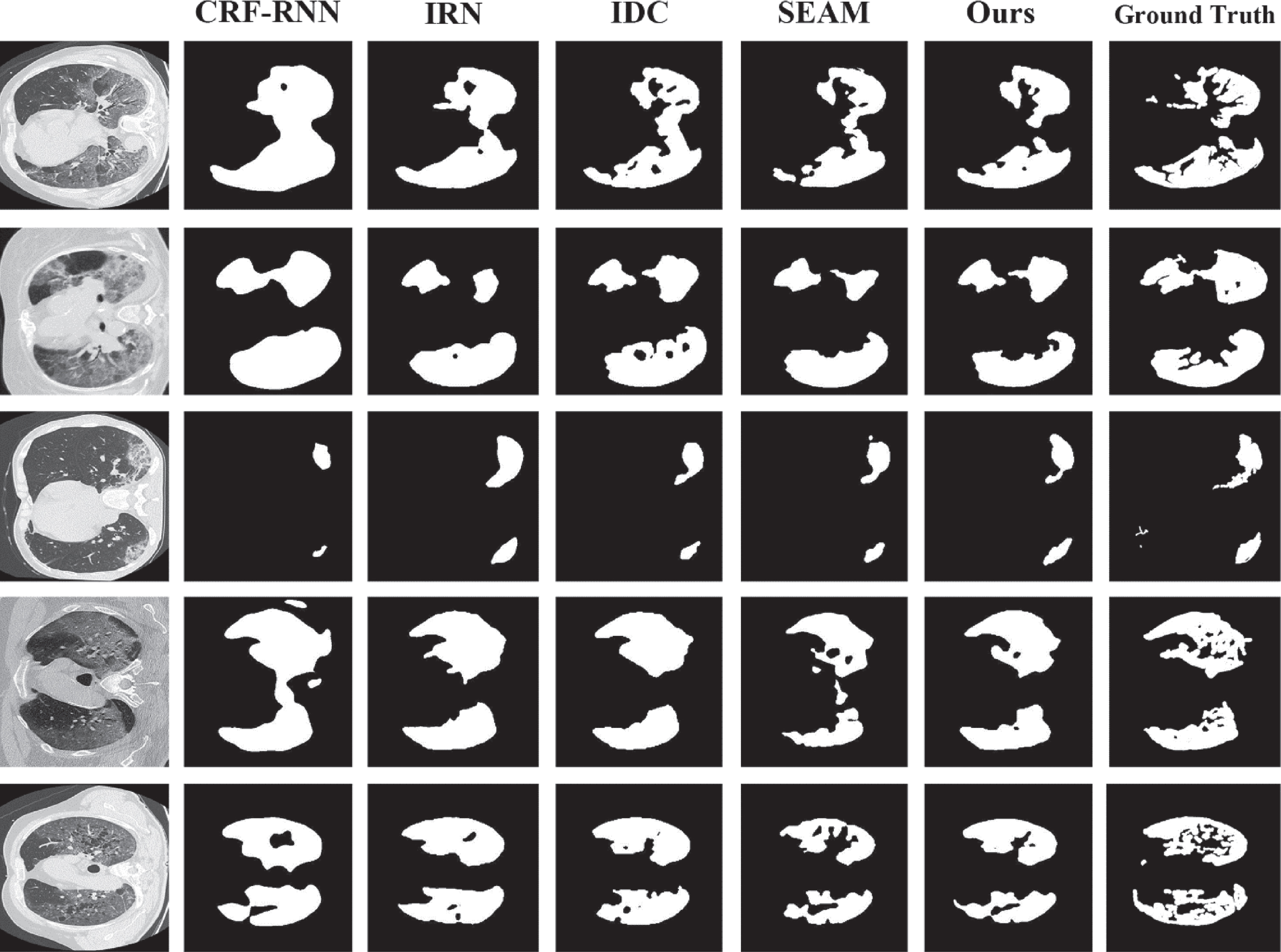

Fig. 11

Some examples of the results. We can observe that our method gains better segmentation result.

As shown in Table 2, we contrast our method with CRF-RNN, IRN, IDC and SEAM in terms of quantity. We can see that our method surpasses the other four methods on all the metrics. Comparing to SEAM, we get 1.08%, 3.12% improvement on Dice, Sensitivity.

Table 2

Segmentation performance comparison between ours and state-of-the-art methods

Methods	DSC (%)	SEN (%)	SPC (%)
CRF-RNN	57.69	66.41	94.71
IRN	66.74	75.65	96.92
IDC	67.92	77.53	96.23
SEAM	68.03	77.91	97.33
Ours	69.11	81.03	97.41

4.2.2 Ablation studies

Accumulation Strategies. The accumulation strategy called CAM fusion is used to accumulate the discovered discriminative regions at each epoch. In addition to the average fusion strategy, we also investigate the maximum fusion strategy, which can be written as: $\begin{matrix} M_{t} = max (M_{t - 1}, C_{t}) \end{matrix}$ (23)

The results of different fusion strategies are shown in Table 3. As we can see, when the maximum fusion strategy is replaced with the average fusion strategy, we can get a higher dice score. We think this is because the average fusion strategy we used does not rely on the final cumulative attention map too much, which can gain more complete discriminative region.

Table 3

Segmentation performance with different fusion strategies

Fusion Method	DSC (%)	SEN (%)	SPC (%)
MAX	68.05	79.92	96.81
AVG	69.11	81.03	97.41

Segmentation network. To show the performance of our proposed segmentation network, we replace it with some previous state-of-the-art segmentation network model in our proposed weakly supervised method. The results are presented in Table 4. We could observe that lightweight models gain better performance, which shows that the model with fewer parameters are more suitable for COVID-19 dataset. We conduct that too many parameters will cause the generalization ability to decline for a small-scale dataset. Compared to the traditional large networks, our segmentation networks achieve competitive performance with much smaller number of parameters. In other words, our proposed segmentation network is more convenient for practical deployment than such large models. In comparison with the lightweight model, although we have more parameters, we get a higher dice score.

Table 4

Parameters comparison and segmentation performance of our method with different segmentation models

Segmentation Model	Parameters	DSC (%)
U-Net [14]	31.04M	65.73
PSPNet [53]	65.7M	66.85
DeepLabV3+ [54]	53.3M	66.13
EDANet [55]	0.68M	66.47
ENet [56]	0.36M	67.25
ESPNet [57]	0.35M	64.93
Ours	1.33M	69.11

We also carry out ablation experiment to manifest the usefulness of our proposed block, and we use pixel-level labels in the experiment instead of weak labels. We list the various combinations in Table 5. We regard our proposed segmentation network without Feature Extraction (FE) block (replaced by conv block), Residual Connection (RC) and Modified Dilated Pyramid Pooling Module (MDPPM) as a baseline. The result shows that the FE block improves the segmentation performance over the baseline by 1.76% in term of DSC. In addition, RC improves the DSC to 77.54% on the basis of above. Besides, we adopt ASPP to prove the advantage of effectiveness of MDPPM. We can obtain the conclusion that residual learning and features fusion could improve performance.

Table 5

Ablation experiments with full supervision about all the blocks

	Block				Metrics (%)
Baseline	FE	RC	ASPP	MDPPM	DSC	SEN
√					74.66	75.83
√	√				76.42	77.91
√	√	√			77.54	78.68
√	√	√	√		78.25	80.13
√	√	√		√	78.61	81.24

5 Conclusion

In this paper, we are committed to using weakly supervised learning methods to segment COVID-19 infected areas from chest CT images. In the first stage of the method, we obtain object cues by gradually fusing the attention maps, and use the saliency detection method to obtain background cues. Finally, pseudo segmentation annotations, which are used to train segmentation models in the second stage, are generated from these cues. Considering the complexity of the model and the difficulty of deployment, we propose a lightweight segmentation model instead of using previous segmentation models. Owing to the depth separable convolution, the number of parameters of our segmentation model is much less than most existing models. At the same time, we adopt multi-scale learning and attention mechanism in the block that we proposed to improve performance. Besides, the effect of Residual Connection block, which is introduced above, shows that additional non-linear transformations could improve segmentation performance.

Our future work would be further improving segmentation performance. Most of the generated pseudo segmentation annotations are very rough. Therefore, there is still a gap between our method and the fully supervised method. Another research direction of our future work is the complexity of models. The lightweight model is more conducive to deployment, which has a positive effect on COVID-19 cure. We will also explore in this direction.

Footnotes

Acknowledgments

This work is supported by the Innovation Capacity Construction Project of Jilin Province Development and Reform Commission (2019C053-3), the Science & Technology Development Project of Jilin Province, China (20190302117GX) and the National Key Research and Development Program of China (No. 2020YFA0714103).
