Deep learning approaches for breast cancer detection in histopathology images: A review

Abstract

BACKGROUND:

Breast cancer is one of the leading causes of death in women worldwide. Histopathology analysis of breast tissue is an essential tool for diagnosing and staging breast cancer. In recent years, there has been a significant increase in research exploring the use of deep-learning approaches for breast cancer detection from histopathology images.

OBJECTIVE:

To provide an overview of the current state-of-the-art technologies in automated breast cancer detection in histopathology images using deep learning techniques.

METHODS:

This review focuses on the use of deep learning algorithms for the detection and classification of breast cancer from histopathology images. We provide an overview of publicly available histopathology image datasets for breast cancer detection. We also highlight the strengths and weaknesses of these architectures and their performance on different histopathology image datasets. Finally, we discuss the challenges associated with using deep learning techniques for breast cancer detection, including the need for large and diverse datasets and the interpretability of deep learning models.

RESULTS:

Deep learning techniques have shown great promise in accurately detecting and classifying breast cancer from histopathology images. Although the accuracy levels vary depending on the specific data set, image pre-processing techniques, and deep learning architecture used, these results highlight the potential of deep learning algorithms in improving the accuracy and efficiency of breast cancer detection from histopathology images.

CONCLUSION:

This review has presented a thorough account of the current state-of-the-art techniques for detecting breast cancer using histopathology images. The integration of machine learning and deep learning algorithms has demonstrated promising results in accurately identifying breast cancer from histopathology images. The insights gathered from this review can act as a valuable reference for researchers in this field who are developing diagnostic strategies using histopathology images. Overall, the objective of this review is to spark interest among scholars in this complex field and acquaint them with cutting-edge technologies in breast cancer detection using histopathology images.

1. Introduction

Figure 1.

Samples of breast histopathology images acquired from BreakHis data set, illustrated in different magnification factors [76]. (a) 40X, (b) 100X, (c) 200X, and (d) 400X.

According to the World Health Organization (WHO) report on breast cancer published in 2021, an estimated 2.3 million women worldwide were diagnosed with breast cancer in 2020, and the disease registered 685,000 fatalities. Over the past five years, 7.8 million women have been diagnosed with breast cancer, making it the most frequent cancer among humans. Ninety percent of breast cancer cases are caused by genetic abnormalities that develop with ageing and from everyday wear and tear on cells, including DNA damage and errors in copying genetic material during cell division. Several non-genetic and genetic elements, such as hormonal fluctuations, chemical exposure, and lifestyle choices like obesity and smoking, can result in defects in DNA replication, which may lead to the development of malignant tissues. In India, breast cancer is prevalent among women, with a staggering statistic that every four minutes, one woman is diagnosed with this disease [55]. From 2020 to 2040, the Global Breast Cancer Initiative (GBCI) aims to prevent 2.5 million preventable deaths attributed to breast cancer on a global scale. In women under the age of 70, this would result in a 25% reduction in breast cancer mortality by 2030 and a 40% reduction by 2040.1

¹

https://www.who.int/news-room/fact-sheets/detail/breast-cancer.

The primary means of achieving these targets are public health education to create awareness of this disease, rapid detection, and effective breast cancer therapy.

Figure 2.

Sample images from BACH dataset [7] showing (a) normal, (b) benign, (c) in-situ, and (d) invasive categories.

Accurate detection of the disease in its initial stage is crucial for successful treatment and disease management. Tumors and microcalcifications are the most common types of breast cancer. Tumors represent breast masses that appear as lumps or thickening in the breast, while microcalcifications are calcium deposits within the breast tissue. The number of mammographically identified breast calcifications rises with age, from around 10% in women in their forties to almost 50% in women in their seventies. The majority of the masses and microcalcifications that are found practically in all women of old age are not cancerous [9]. Masses such as fibroadenomas and cysts are instances of benign breast abnormalities. The screening of breast masses is usually performed manually by clinicians, and there is often disagreement over whether a tumor is benign or malignant [33]. Hence, a Computer-Aided Detection (CAD) system holds great importance in distinguishing between malignant and benign masses. The CAD system can assist physicians in making quick diagnostic decisions, reducing their workload as well as the amount of false negative and positive results. The lower the rate of false positives, the lower the danger of an undesirable biopsy suggestion [52]. The use of imaging techniques for breast cancer diagnosis might reveal the morphology and location of tumor sites, providing clinicians with valuable diagnostic information. Mammography, magnetic resonance imaging (MRI), breast ultrasonography, computed tomography (CT), digital breast tomosynthesis (DBT), optical imaging, and thermal imaging are the various modalities used to identify breast cancer. However, when contrast agents and high-energy rays are used in the imaging procedures, patients could suffer from negative side effects [51]. Therefore, choosing the right imaging technique is important and should be done with utmost care. Although breast cancer can be detected using a variety of imaging techniques, the histopathology study (biopsy) is still the gold standard for disease confirmation.

Histopathology is the process by which a pathologist thoroughly examines and estimates a biopsy sample under a microscope to identify symptoms of malignant tissue spread in the organs. The tissue slide is made prior to the microscopic examination of the sample. Histopathological specimens typically exhibit a diverse array of cell types and structures, distributed randomly across various tissues. The complexity of histological images makes it time-consuming to visually inspect and physically understand them. It takes years of expertise and experience for a manual observer to interpret these images. Speedy disease diagnosis with less burden for pathologists can be achieved by analytical and predictive approaches such as computer-assisted image analysis. It improves the effectiveness of the histopathology examination by providing a trustworthy second opinion based on reliable analysis [33, 52]. Figures 1 and 2 depict images from two different publicly available histopathology data sets.

Figure 3.

Overview of various image processing techniques used in the CAD of breast cancer detection.

2. Image analysis using CAD system

In histology image analysis, detection and diagnosis are the two challenging tasks. Computer Aided Detection/Diagnosis is a cost-effective approach that can assist clinicians lessen their workload and interpretation errors. Computer-aided analysis can be classified into two types namely, Computer Aided Detection (CADe) system and Computer Aided Diagnosis (CADx) system [31]. The abnormalities in biomedical images are detected and located using CADe systems. It is employed to find the Region of Interest (ROI), which uses pixel-based or region-based techniques [31]. The pixel-based techniques are straightforward but computationally expensive. On the other hand, with a region-based method, segmentation techniques with a lower processing complexity are employed to extract the ROIs. Compared to the pixel-based technique, it has a low computational complexity.

To identify the extracted ROI as benign or cancerous, the CADx system is used. In the CADx system, medical image processing and artificial intelligence algorithms are integrated. It serves as an additional reader in clinical practice, helping to make decisions and providing more specific information about the abnormal location [5]. To distinguish malignant and benign instances, image processing techniques such as pre-processing, segmentation, feature extraction, feature selection, and classification are employed in the images under investigation. Figure 3 shows an overview of various image analysis techniques that a CAD system may utilize to screen for breast cancer.

3. Basic steps in a standard CAD system

3.1 Image pre-processing

In mammography, it is hard to identify the difference between normal glandular breast tissue and cancerous tissue. Furthermore, it is challenging to distinguish malignant tumors from the background in the thick breast tissue. There will be only a slight variation in the attenuation of the X-ray beam when it traverses normal glandular and cancerous breast tissue. Therefore, it is difficult to differentiate between them if it has not been preprocessed. Another issue with mammography is the quantum noise, which reduces the quality of the images. This is especially true for tiny entities that have poor contrast, such as a small tumor in a thick breast [68]. To circumvent this difficulty, contrast enhancement techniques are applied, which increase the visual quality of an image by improving the contrast between two objects, allowing one to readily detect the cancerous tissue. Other image pre-processing techniques commonly employed in histopathology images are image normalization and enhancement, image augmentation, image scaling, artefact removal, stain normalisation/removal, and so on.

Variations in imaging settings, such as differences in lighting, staining, and imaging instrumentation employed during image acquisition, can have an impact on the consistency of intensity values between images. Image normalisation is the process of converting the pixel values of images to a defined scale to modify the brightness and contrast [43]. This aids in the removal of any inherent variations produced by imaging conditions. Some of the frequently used normalisation techniques are Z-score normalisation, mean-standard deviation normalisation, and min-max normalisation. Also, various image enhancement techniques, such as contrast stretching, spatial filtering, histogram equalisation and noise filtering, could be used to improve the visibility of tissue structures in images [21]. These methods aid in enhancing the contrast of tissue features and suppressing noise, which makes it easier to spot structural changes that indicate the presence of malignancy.

The process of resizing an image to a specific size or resolution is known as image scaling. The histopathology images may have varying resolutions depending on the imaging environment [65]. Processing large, high-resolution images requires a significant amount of computing power. Therefore, it is essential to limit the size and resolution to a specific level without compromising the quality. Image scaling methods can be applied to fix this issue.

Training deep learning models requires a significant amount of training data, which may not always be readily available. To overcome this challenge, image augmentation [12, 57] can be used to generate new images from existing ones through various transformations such as rotation, horizontal and vertical flipping, cropping, adding Gaussian noise, translation, contrast adjustment, and more. By augmenting the data set in this manner, the amount of available training data can be increased, thereby improving the model’s ability to generalize and make accurate predictions on new, unseen data.

In the case of histopathology images, stain normalization is a crucial pre-processing step that helps compensate for the variability in staining that can arise due to differences in time and the person performing the process of staining [80]. Hematoxylin and eosin (H & E) tissue stains are the most frequently used tissue stains in histology. For instance, as seen in Figs 1 and 2, H stain clearly separates nuclei in blue against a pink backdrop of cytoplasm and other tissue areas. Although this makes it easier for a pathologist to identify and evaluate the tissues, these H & E stained images must be normalised [36] for automated image analysis due to varying lighting conditions while capturing a digital image and noise produced by the staining process. Stain normalization is a process used to reduce the impact of staining-related variations and ensure consistency in tissue characteristics across multiple images [53, 72, 8]. This technique aims to standardize the color and intensity of staining, thereby making the images comparable and facilitating reliable analysis.

3.2 Segmentation

The segmentation process divides the image into numerous segments to isolate the region of interest from normal tissue and background [36]. Because of the poor contrast of the medical images, it is the most difficult task in automatic diagnosis systems [74]. The method for segmentation is chosen based on the different types of features to be extracted. To extract the target area in diseased images, several approaches such as region growing, nuclei segmentation, Otsu thresholding, etc. are utilised, along with filtering techniques like adaptive mean filtering, median filtering, and Wiener filtering. Thresholding is frequently done after background correction and filtering. Background correction uses an empty image to normalize the images [21].

In the case of histopathology images, a standard histology slide has a dimension of 15 mm $\times$ 15 mm tissue region that contains both essential and unwanted information [83]. Due to the high resolution at which these images are recorded, there will be an increase in both processing time and computational complexity. Segmentation is employed to locate and extract the areas that contain more specific information to process the images. Critical structures, such as malignant cells, tumor borders, and other key tissue components, are properly identified and isolated through segmentation, allowing for more precise analysis and feature extraction. Accurate segmentation allows CAD systems to detect minor discrepancies and changes in cell morphology, resulting in higher sensitivity for detecting early-stage cancer. Additionally, separating key structures decreases false positives and provides pathologists with improved diagnostic assistance. Segmented regions provide important information for tumor staging and prognosis by quantifying the size, shape, and spread of the tumor. Furthermore, it enables advanced analysis such as cell proliferation and morphological characterization, resulting in a better understanding of tumor biology. The fundamental process in the analysis of histopathology images is the segmentation of nuclei, which is the control center of the cell [84]. It contains DNA or genes, that give each cell instructions on how to behave, when to grow, when to die, etc. In cancerous cells, damage to the DNA of nuclei will affect the normal growth regulation of cells and result in malignancy. This emphasizes the significance of a thorough nuclei analysis. Moreover, precise quantitative characterization of the size, shape, and textural properties of nuclei is critical in histopathological image analysis. The most common types of segmentation are:

Digital image processing-based techniques like edge detection, thresholding, region-based segmentation, etc.

Machine learning-based segmentation techniques like unsupervised techniques and supervised techniques. Unsupervised machine learning techniques include k-means clustering, fuzzy C-means clustering, hierarchical K-clustering, etc. whereas supervised machine learning techniques include Support Vector Machine, Random Forest etc.

Deep learning-based segmentation techniques like U-net, V-net, SegNet, DeepLabv3 $+$ , Pix2Pix etc.

Attention-based models like Attention U-Net focus on specific regions of interest to improve segmentation accuracy in complex areas with overlapping structures.

Imperfections in staining can cause fluctuations in tissue appearance in histopathological images, making nuclei segmentation in breast cancer imaging challenging [41]. Semantic segmentation combined with CNN makes complex mitotic images intelligible and can provide a lot of categorization information.

3.3 Feature extraction and selection

Medical images contain a wealth of information, including subtle clues to pathology, irrelevant features, artifacts, and overlapping structures that can pose challenges for accurate interpretation. Such high-dimensional data can pose several challenges for automated algorithms. The technique of extracting features that are necessary for a given task from a set of features generated from raw data is known as feature extraction [27]. This approach will reduce computational complexity by eliminating noise and redundant information in the data. The new set of variables built through feature extraction should be capable of reconstructing the original data. One of the main issues is that using a large number of features on a small data set can lead to overfitting [37]. Overfitting occurs when the model is too complex and captures noise and random fluctuations in the data, rather than the underlying patterns and relationships. To address this problem, several techniques can be employed, such as feature selection, regularization, and dimensionality reduction [37].

Feature selection involves selecting a subset of the most relevant features based on their importance or relevance to the intended task. There are three commonly used methods for feature selection: filters, wrappers, and embeddings [17]. Filters are less computationally intensive but are slightly less accurate than the other two methods. Filters work by evaluating the relevance of each feature based on some statistical measure, such as correlation or mutual information, and selecting the top-ranked features. In contrast, wrappers and embeddings are more computationally demanding. The wrapper method selects features by evaluating the performance of a machine-learning model trained on different subsets of features. It can produce the best selection of features but requires training a model multiple times, which can be computationally expensive. Embedding techniques, such as Lasso and Ridge regression, select features by incorporating feature selection into the model training process. These techniques penalize the model for using irrelevant or redundant features, resulting in a more compact and accurate model. Overall, the choice of feature selection method depends on the specific requirements and constraints of the problem at hand, such as the size of the data set and the computational resources available.

Regularization methods, such as L1 or L2 regularization, penalize the model for using too many features, encouraging it to focus on the most important ones. Dimensionality reduction techniques, such as principal component analysis (PCA) or t-SNE, transform the high-dimensional data into a lower-dimensional space while preserving most of the relevant information [72]. This can be useful for visualizing the data, as well as reducing the computational complexity of machine learning algorithms that operate on high-dimensional data. However, it is important to note that PCA may not always be the best method for feature extraction, especially if the data has a nonlinear structure. In such cases, nonlinear dimensionality reduction techniques such as t-SNE [23] or Uniform Manifold Approximation and Projection (UMAP) [67] technique may be more appropriate.

Another challenge with high-dimensional data is the increased computational complexity. The learning algorithms may take a long time to train and make predictions when dealing with a large number of features [16]. To address this issue, several methods can be used, such as parallel computing, distributed computing, and model approximation. Parallel computing involves using multiple processors or cores to speed up the computation, while distributed computing involves distributing the computation across multiple machines. Model approximation methods, such as decision tree pruning or neural network compression, reduce the complexity of the model by simplifying its structure or reducing the number of parameters.

In breast cancer detection from histopathological images, the morphology of nuclei is a key factor to consider for disease diagnosis. To extract useful information from these images, various types of features need to be extracted using techniques such as morphological analysis, textural analysis, and graph-based analysis. Morphological features can be extracted to describe the size and shape of cells in the image, which can provide valuable information about the type and stage of cancer. Textural features, such as smoothness, coarseness, and regularity, can be extracted to reveal patterns and structures in the image that may be indicative of cancer. Graph-based topological features can also be extracted to describe the shape and spatial arrangement of nuclei in tumor tissue, providing insights into the characteristics of cancerous tissue [20, 50]. Once these features have been extracted, they can be utilized in the classification stage to distinguish between cancerous and non-cancerous tissue.

3.4 Classification

The final stage of a computer-assisted detection system is classification, which involves categorizing a set of data into different categories or classes. The primary goal of classification is to determine the category into which a particular data point will fall. To achieve this, feature vectors extracted using feature selection techniques are used as input to the classification algorithm. Most classification frameworks consist of three phases: training, testing, and validation. During the training phase, the classifier uses available data to train the model [73]. The testing phase is used to predict the class of unlabeled data, and during the evaluation stage, the performance of the classification algorithm is assessed.

Breast cancer classification problems can be either binary or multiclass. Binary classification is used to differentiate between benign and malignant tumors, while multiclass classification can be used to classify the tumors into subtypes such as In-situ, Invasive, Normal, and Benign [42]. The input features for breast cancer classification can be derived from various sources, such as histopathology images or cytology data. These features can include morphological or textural features derived from nuclei after segmentation [8]. Various algorithms can be used for classifying data, including logistic regression, artificial neural networks (ANN), decision trees, K-Nearest Neighbors (KNN), Naive Bayes, Support Vector Machines (SVM), and Random Forests [30, 31]. The choice of classification algorithm will depend on the specific problem being addressed, the available data, and the performance requirements [32]. It is important to select the most appropriate algorithm and to fine-tune its parameters for optimal performance. By utilizing a well-designed classification algorithm, a computer-assisted detection system can accurately categorize new data and aid in making critical decisions in various applications, such as medical diagnosis and surveillance.

In recent years, deep learning methods have gained popularity and have been extensively used for classification tasks due to their ability to handle large amounts of data and their superior performance. DL systems employing transfer learning have emerged as a powerful technique for improving classification accuracy in breast cancer classification tasks [41]. Transfer learning involves pre-training a CNN on a large data set of images and then fine-tuning the network on a smaller data set of breast cancer images. This approach has been shown to improve classification accuracy compared to using a CNN trained from scratch on a small data set of breast cancer images.

Figure 4.

A general block schematic of various steps employed during computer-aided diagnosis in medical images.

4. Computer aided diagnosis of breast cancer

A CAD system for breast cancer diagnosis typically consists of several components, as illustrated in Fig. 4. The system takes in histopathological images and undergoes pre-processing techniques such as filtering to remove noise and enhance contrast in the input images. After pre-processing, the region of interest (ROI) is isolated, and suspicious regions are identified using segmentation techniques. This helps to locate and highlight areas of the image that may contain abnormalities or potential tumors. The pre-processing and segmentation steps are crucial, as they help to ensure that the tumorous zone is accurately identified for further analysis.

The next stage is the detection stage, where in traditional diagnosis, a radiologist or doctor would examine the images and make a diagnosis. However, with the implementation of a decision support mechanism, the process can be automated, and the system can categorize the image as malignant or benign independently. To enable automatic diagnosis, the decision support system extracts certain features from the suspicious region. However, this process can lead to the extraction of redundant features, which can increase the computational load during processing. To mitigate this, feature selection techniques are used to identify only the most relevant decision-making features while eliminating the unnecessary ones. The feature vector obtained after this process consists of only the critical elements that aid in successful diagnosis. Finally, a classifier or machine learning algorithm is used to categorize the ROI as malignant or non-cancerous. These algorithms are trained using large data sets of previously diagnosed images to recognize patterns and identify features that can accurately differentiate between healthy and normal images.

It is worth noting that the performance of the CAD system depends on several factors, such as the quality of the input images, the choice of feature extraction methods, the type of classifier used, and the amount of training data available. Proper optimization and testing of these components are crucial to ensuring the accuracy and reliability of the CAD system for automated diagnosis [88]. In recent years, the rise of deep learning has brought about significant progress in computer-aided diagnosis of breast cancer. Using advanced neural network structures, CAD systems have become valuable tools, greatly improving the accuracy and efficiency of breast cancer detection. These systems analyze complex patterns and features present in histopathology images, allowing deep learning models to identify subtle details that might be missed by traditional diagnostic methods. This innovative approach not only showcases increased precision but also enables the early detection of tumors, even when they are extremely small. The incorporation of deep learning into computer-aided diagnosis represents a promising shift in breast cancer detection, offering enhanced diagnostic capabilities and contributing to more efficient and timely medical interventions.

Figure 5.

Illustration of artificial neural network (ANN).

5. Deep learning techniques used in breast cancer diagnosis

Deep learning techniques have become increasingly popular in breast cancer diagnosis due to their ability to extract complex features from medical images and make accurate predictions. The deep learning frameworks commonly used in breast cancer diagnosis are as follows:

Convolutional Neural Networks (CNNs): CNNs are one of the most widely used deep learning techniques for medical image analysis. They can extract features at different levels of abstraction, making them suitable for detecting complex patterns in medical images. CNNs have been used for tasks such as breast mass classification, tumor segmentation, and breast density classification.

Recurrent Neural Networks (RNNs): RNNs are another deep learning technique that has been used in breast cancer diagnosis. They are particularly useful in analyzing time-series data, such as mammography images over time, to identify changes in breast tissue. RNNs have been used for tasks such as breast cancer risk prediction and recurrence prediction.

Generative Adversarial Networks (GANs): GANs are a type of deep learning technique that involves two neural networks working together to generate new data that is similar to the original data. They have been used in breast cancer diagnosis to generate synthetic mammography images to augment the limited data set and improve the performance of the deep learning models.

Autoencoders: Autoencoders are neural networks that can learn to compress and reconstruct input data. They have been used in breast cancer diagnosis to extract features from mammography images and identify abnormalities in breast tissue.

These deep learning techniques have shown promising results in breast cancer diagnosis and have the potential to improve the accuracy and efficiency of diagnosis, leading to earlier detection and better patient outcomes. The research works corresponding to each entity are summarized in Table 2. In the remaining part of this section, we elaborate on the various deep-learning techniques that are used for breast cancer detection. In addition, a brief explanation of artificial neural networks (ANNs) is also provided in the beginning, as deep neural networks (DNN) are a type of ANN that consists of multiple layers of interconnected nodes, allowing for more complex and sophisticated computations than traditional ANNs.

5.1 Artificial Neural Network (ANN)

Artificial Neural Networks (ANNs) are computing systems that are designed to imitate the biological neural networks found in the brain. At the core of a DNN lies the artificial neuron, which is a perceptron model composed of multiple interconnected layers. The three primary layers of a neural network are the input layer, hidden layer, and output layer. These layers work together to help classify input data and make predictions.

The effectiveness of an ANN is largely dependent on the number of hidden layers it contains. As the number of hidden layers increases, the performance of the ANN improves and the false positive rate decreases. However, this increase in performance comes at the cost of increased computational complexity. In an ANN, the input features are stored in the input layer, which is then projected into a higher-dimensional space by the hidden layer. The hidden layer processes the input features through a series of interconnected nodes, each of which computes a weighted sum of its inputs and passes the result through an activation function. This process helps extract more complex features from the input data, allowing the ANN to make more accurate predictions. Figure 5 presents the ANN illustration.

In a breast cancer diagnosis task, the goal is to classify samples into two categories: benign or malignant. To accomplish this, the input features are fed into the neural network’s input layer. The perceptron in the neural network processes the input attributes by passing them through the input layer, hidden layer, and output layer. Initially, each input is given a random weight, which indicates the significance of each input variable. Additionally, each perceptron has a bias value, which is a numerical value. An activation function processes each perceptron, determining whether or not the perceptron should be activated. Only activated perceptrons transmit data from the input to the output layer.

The output layer calculates the probability of the data being either benign or malignant. If the expected output is incorrect, the neural network is trained using the back propagation method. During back propagation, the actual results are compared to the predicted results, and the weights of each input are adjusted to minimize the error. This process leads to more precise results, improving the accuracy of the neural network’s predictions.

Figure 6.

Illustration of basic blocks in a convolutional neural network.

5.2 Convolutional Neural Network (CNN)

Recently, CNNs have been widely used in breast cancer diagnosis as they can identify patterns and features in images, allowing for accurate classification. As shown in Fig. 6, a CNN typically consists of four main layers: the convolutional layer, ReLU layer, pooling layer, and fully connected layer. The convolutional layer is designed to detect spatial patterns or features in the input data. It uses a set of learnable filters or kernels to convolve over the input, performing element-wise multiplications and aggregating the results. This process helps capture hierarchical features, preserving spatial relationships. The ReLU layer introduces non-linearity to the network. After the convolutional or fully connected operations, the ReLU activation function is applied element-wise to the output. It replaces all negative values with zero, allowing the model to learn complex patterns and relationships in the data. ReLU aids in the network’s ability to capture non-linearity. Pooling layers are used to downsample the spatial dimensions of the input volume. Common pooling operations include max pooling and average pooling. Pooling helps reduce the spatial resolution, retaining important features while discarding less significant details. The fully connected layer, also known as the dense layer, connects each neuron to every neuron in the previous and subsequent layers. It transforms the features learned by the previous layers into a format suitable for classification or regression. The output of the fully connected layer is often fed into a softmax activation function for classification tasks or a linear activation for regression tasks.

The use of CNNs in breast cancer diagnosis allows for more accurate and efficient analysis of medical images. However, CNNs require a large amount of labeled data to achieve good performance, which can be challenging to obtain in some cases. One way to address this issue is to use a technique known as transfer learning. Transfer learning is a method that utilizes a pre-trained model to solve a different but related problem. The pre-trained model has already learned a set of features from a large data set, making it easier to train on a smaller data set with a similar problem. Transfer learning is especially useful when the amount of available data for training is limited. In a CNN, the deeper layers learn task-specific attributes, while the shallower layers learn more basic features such as edges, patterns, etc. However, these shallow layers are harder to train due to vanishing gradients. Transfer learning takes advantage of this by freezing the earliest layers and changing only the final few layers according to the specific task. This allows for the transfer of knowledge from the pre-trained model to the new task. Pre-trained models like VGG-16, ResNets, and DenseNets have been trained on massive data sets and can be used as a starting point for transfer learning. By modifying the final layers of these models, they can be applied to more specialized tasks, such as fine-grained classification or object detection. Figure 7 shows the schematic of the transfer learning process.

Figure 7.

Schematic of transfer learning process.

Figure 8.

The basic structure of an autoencoder network.

5.3 Autoencoders

Autoencoders are a type of neural network architecture that can learn to compress data and then reconstruct the compressed data back to its original shape and size. They consist of three layers: an input layer, a hidden layer, and an output layer. The hidden layer, also known as the bottleneck layer, is where the data is compressed.

An autoencoder works in two stages: encoding and decoding. During the encoding stage, the input data is compressed into a smaller dimension in the hidden layer. This is achieved through a series of mathematical operations that transform the input data into a lower-dimensional representation. This compressed representation is then stored in the hidden layer. During the decoding stage, the compressed representation is used to reconstruct the original input data. The hidden layer’s output is transformed back into the original input space through another series of mathematical operations that reverse the encoding process. The final output is compared to the original input, and the autoencoder’s performance is evaluated based on how accurately it can reconstruct the input data. Autoencoders are trained using the backpropagation technique, where the difference between the input data and the reconstructed output is used to adjust the network’s weights. This process is repeated until the autoencoder can accurately reconstruct the input data. Figure 8 shows the basic structure of an autoencoder network.

Autoencoders consist of an array of nodes in the input, hidden, and output layers. In order to feed an input image to the input array of nodes, the image must first be transformed into a one-dimensional array. This array is then encoded into a hidden representation in the bottleneck layer. An important goal of an autoencoder is to ensure that it can accurately reconstruct the input while avoiding overfitting or memorizing the training data. To achieve this, a loss function is used that considers both the reconstruction error and a regularizer term. The reconstruction error measures the difference between the input image and its reconstructed output, while the regularizer term tries to make the autoencoder insensitive to input. The regularizer term in the loss function encourages the autoencoder to learn from the hidden representation rather than directly from the input. By doing so, the autoencoder only learns the essential features necessary for reconstructing the input image, rather than simply memorizing the training data. This helps to prevent overfitting and improve the autoencoder’s ability to generalize to new, unseen data.

Figure 9.

The concept of generative adversarial network (GAN).

5.4 Generative Adversarial Networks (GAN)

GAN is a type of deep learning model consisting of two sub-models, namely the Generator model and the Discriminator model. The main objective of the generator model is to create synthetic data that mimics the real data, while the discriminator model aims to distinguish between the real and fake data produced by the generator. The discriminator model is typically a convolutional neural network (CNN) with multiple hidden layers and a single output layer that produces a binary output of either 0 or 1. A value of 1 indicates that the provided data is real, while a value of 0 indicates that the data is fake. On the other hand, the generator model is an inverse CNN that takes a random noise input and transforms it into a sample from the model distribution. In other words, it generates synthetic data from a piece of input data.

During the initial stages of training, the generator produces data that is very different from the real data, making it easy for the discriminator to detect it as fake. However, as training progresses, the generator starts producing fake data that is increasingly similar to the real data, making it more difficult for the discriminator to distinguish between the two. Eventually, if the generator training is successful, it will produce data that is a perfect match for the real data, and the discriminator will begin to categorize the fake data as real. This means that the discriminator’s accuracy will decline, indicating that the generator has successfully learned to generate synthetic data that is indistinguishable from the real data.

In medical imaging applications, collecting enough labeled data for training deep neural networks can be challenging. GANs can be used to generate synthetic data with a probability distribution that mimics that of benign samples, providing a useful tool for augmenting training data and improving the accuracy of medical image classification tasks. The concept of GAN is illustrated in Fig. 9.

6. Histopathology data set

Image data sets are essential components of research in machine learning and deep learning problems. These data sets provide a large and diverse set of images that researchers can use to train and evaluate their algorithms. In the case of breast cancer, histopathological image data sets provide a rich source of information about the tissue samples that is indicative of the presence or absence of cancerous cells. These data sets contain high-resolution images that can be used to train learning algorithms to identify patterns and features associated with breast cancer, such as the size, shape, and structure of cells and tissue samples. The various data sets available are:

The Breast Cancer Histopathological Image data set (BreakHIS) [76]: The BreakHIS data set is the most widely used data set for breast cancer histopathological image classification. It comprises microscopic images of breast tissue samples used for the diagnosis of breast cancer. These images are captured using a range of imaging techniques and magnification levels, producing high-resolution images of the breast tissue. The data set comprises 9109 microscopic images of breast tumor tissue collected from 82 patients, captured at different magnifying factors of 40 $\times$ , 100 $\times$ , 200 $\times$ , 400 $\times$ . The data set contains a total of 7909 tissue samples, out of which 2480 samples are benign, and 5429 samples are malignant. Each image is in PNG format with a resolution of 700 $\times$ 460 pixels, using a 3-channel RGB color space and 8-bit depth for each channel.

Breast Histology Bioimaging Competition 2015 [6]: The data set includes uncompressed, high-resolution H & E stained breast histology images with annotations. All images were digitized with the same magnification of 200 $\times$ and a pixel resolution of 0.42 $\mu$ m $\times$ 0.42 $\mu$ m. The data set contains 249 images for extended training samples and 20 images for test samples. The images are assigned to four categories, which are evenly distributed in the data set: normal tissue, benign lesion, in-situ carcinoma, and invasive carcinoma.

The BACH (ICIAR 2018) data set [7]: The data set includes whole slide images (WSIs) of breast histology samples stained with H & E. The images are provided in svs format and have a pixel size of 0.467 $\mu$ m per pixel. Each WSI is accompanied by a set of labeled coordinates that indicate the regions of benign tissue, in-situ carcinoma, and invasive carcinoma. These labels are useful for training machine learning algorithms to automatically detect and classify breast cancer regions in histology images.

In the TUPAC 16 data set [82]: The data set includes whole-slide images of breast cancer cases with an unidentified tumor proliferation score. The training set consists of 500 diseased images from the Cancer Genome Atlas, and each case is represented by a single whole slide image. The image is labeled with both a molecular proliferation score and a proliferation score based on pathologist mitotic enumeration. The images in the TUPAC 16 data set are stored in the Aperio.svs file format, which is a multiresolution pyramid structure that allows for efficient storage and retrieval of large histology images.

Table 1

Summary of various data sets that contains breast histopathology images

Sl No.	Dataset name	Number of images	Classes	Image format	URL
1	BreakHis	7909	Benign and Malignant	.png	https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/
2	Bioimaging challenge 2015 Breast	249	Normal, Benign, Insitu carcinoma	.tiff	https://rdm.inesctec.pt/dataset/nis-2017-003
	Histology Image		& Invasive Carcinoma
3	BACH (ICIAR 2018)	400	Normal, Benign, Insitu Carcinoma,	.tiff	https://iciar2018-challenge.grand-challenge.org/
			Invasive Carcinoma
4	TUPAC 16	500		.svs	https://tupac.grand-challenge.org/Dataset/
5	Invasive Ductal Carcinoma (IDC)	162	IDC & non IDC	.png	www.kaggle.com/datasets/paultimothymooney/breast-histopathology-images
6	Camelyon 16	399	Normal & Tumor	.tiff	https://camelyon16.grand-challenge.org/Data/
7	BCC	59	Benign & Malignant	.tiff	https://bioimage.ucsb.edu/research/bio-segmentation

Kaggle Breast Histopathology Image data set (www.kaggle.com/datasets/paultimothymooney/breast-histopathology-images): The dataset includes 162 whole mount slide images of breast cancer specimens scanned at a resolution of 40 $\times$ . From these images, a total of 277,524 patches were retrieved, each sized 50 $\times$ 50. Of these patches, 198,738 were invasive Ductal Carcinoma (IDC) negative and 78,786 were IDC positive. The images are stored in PNG file format, which is a widely used lossless image compression format.

Camelyon-16 (Cancer Metastates in Lymph Nodes Challenge) [11]: The dataset is a collection of high-resolution whole-slide images of lymph node tissue sections that have been stained with H&E. The dataset was created to facilitate the development and evaluation of algorithms for the detection of metastatic breast cancer in lymph nodes. The dataset consists of 400 digital slides that were obtained from two hospitals in the Netherlands: Radboud University Medical Center and University Medical Center Utrecht. The slides are divided into a training set of 270 slides and a testing set of 130 slides. The training set comprises 129 positive slides that contain at least one metastasis, and 141 negative slides that do not contain any metastases. Similarly, the testing set comprises 58 positive slides and 72 negative slides.

Breast Cancer Cell(BCC) collection [24]: The data set contain 59 H&E stained histopathology images. The images are labeled as benign and malignant and are stored in .tiff format.

Table 1 provides a summary of the available data set used for breast cancer detection using histopathology images.

7. Evaluation metrics

Evaluation of a computer-aided detection system for breast cancer involves assessing its accuracy and reliability in detecting the disease. This evaluation is crucial in determining whether the system is suitable for clinical use and identifying areas that require improvement [36]. The metrics used to evaluate the system include sensitivity, specificity [14, 89], accuracy [4, 44, 47, 49], precision, F1 score [19, 25, 54, 78], ROC curve, and AUC [60]. Other metrics used in medical image analysis systems include the image recognition rate, patient recognition rate, and patient score [50]. In this section, we will explain the terminology and mathematical formulas used to calculate these measures.

7.1 Confusion matrix

A confusion matrix is a tool utilized to assess the effectiveness of a classification model by analyzing the predicted and actual class labels of a group of test samples. It presents a concise representation of the number of true positive (P1), true negative (N2), false positive (P2), and false negative (N1) predictions made by the model. A sample confusion matrix is shown in Fig. 10. It is a table that classifies predictions based on how closely they correspond to the exact value. It can be used to determine the ROC curve, recall, specificity, accuracy, and other metrics.

Figure 10.

Schematic of a confusion matrix showing true positive (P1), true negative (N2), false positive (P2), and false negative (N1) cases.

7.2 Accuracy

It is a measurement of how many classes across all classes are accurately predicted. Accuracy should be valued as highly as possible.

$\text{𝐴𝑐𝑐𝑢𝑟𝑎𝑐𝑦}={\displaystyle \frac{P_1+N_2}{P_1+N_2+P_2+N_1}}$(1)

7.3 Precision

Precision is a classification performance metric that measures a model’s ability to correctly identify positive cases. It is the proportion of true positives (P1) to the total number of predicted positive cases (P1 $+$ P2), expressed as a percentage or a decimal between 0 and 1. Precision is calculated as:

$\text{𝑃𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛}={\displaystyle \frac{P_1}{P_1+P_2}}$(2)

7.4 Sensitivity

Sensitivity is a classification performance metric that measures a model’s ability to correctly identify positive cases. It is also known as the true positive rate (TPR) and is the proportion of true positives (P1) to the total number of actual positive cases (P1 $+$ N1), expressed as a percentage or a decimal between 0 and 1. Sensitivity is expressed as:

$\text{𝑅𝑒𝑐𝑎𝑙𝑙}={\displaystyle \frac{P_1}{P_1+N_1}}$(3)

7.5 Specificity

Specificity is a classification performance metric that measures a model’s ability to correctly identify negative cases. It is the proportion of true negatives (N2) to the total number of actual negatives (N2 $+$ P2) and is expressed as a percentage or a decimal between 0 and 1. Specificity is expressed as:

$\text{𝑆𝑝𝑒𝑐𝑖𝑓𝑖𝑐𝑖𝑡𝑦}={\displaystyle \frac{N_2}{N_2+P_2}}$(4)

7.6 F1 score

The F1 score is a classification performance metric that merges precision and recall into a single score. It is calculated as the harmonic mean of precision and recall and ranges between 0 and 1, with higher values indicating better model performance.

Precision quantifies the proportion of true positives to the total number of predicted positives, while recall measures the proportion of true positives to the total number of actual positives. The F1 score equally emphasizes both precision and recall, making it useful in evaluating models where both measures are critical.

The F1 score is particularly valuable when dealing with imbalanced data sets, where one class has a much larger number of observations than the other. In such cases, the F1 score is a more reliable measure and is represented as:

$\mathit{\text{F1 Score}}={\displaystyle \frac{2\times \text{𝑃𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛}\times \text{𝑅𝑒𝑐𝑎𝑙𝑙}}{\text{𝑃𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛}+\text{𝑅𝑒𝑐𝑎𝑙𝑙}}}$(5)

7.7 ROC curve and AUC

The ROC curve is a graphical plot that visualizes the effectiveness of a binary classification model across different classification thresholds. It compares the true positive rate (TPR) to the false positive rate (FPR) for a range of thresholds. A model with a higher TPR and lower FPR is considered better. The ROC curve also highlights the balance between TPR and FPR, with the area under the curve (AUC) being a metric of overall performance. A perfect model has an AUC of 1.0, whereas a random model has an AUC of 0.5.

AUC is widely used to compare different classification models because it is robust against imbalanced data, unlike accuracy, precision, and recall. Higher AUC implies better model performance in distinguishing between positive and negative classes. In a ROC curve, the X-axis represents the FPR, and the Y-axis represents the TPR, as illustrated in Fig. 11.

$\text{𝑇𝑃𝑅}={\displaystyle \frac{P_1}{P_1+N_1}}$(6) $\text{𝐹𝑃𝑅}={\displaystyle \frac{P_2}{P_2+N_2}}$(7)

By lowering the classification threshold, more objects are classified as positive, increasing both true positives and false positives. As the ROC curves move towards the top-left corner of the ROC space, the accuracy of the classifier improves. This is because the classifier has a higher TPR and a lower FPR, indicating that it is better at correctly identifying positive cases while minimizing false positives.

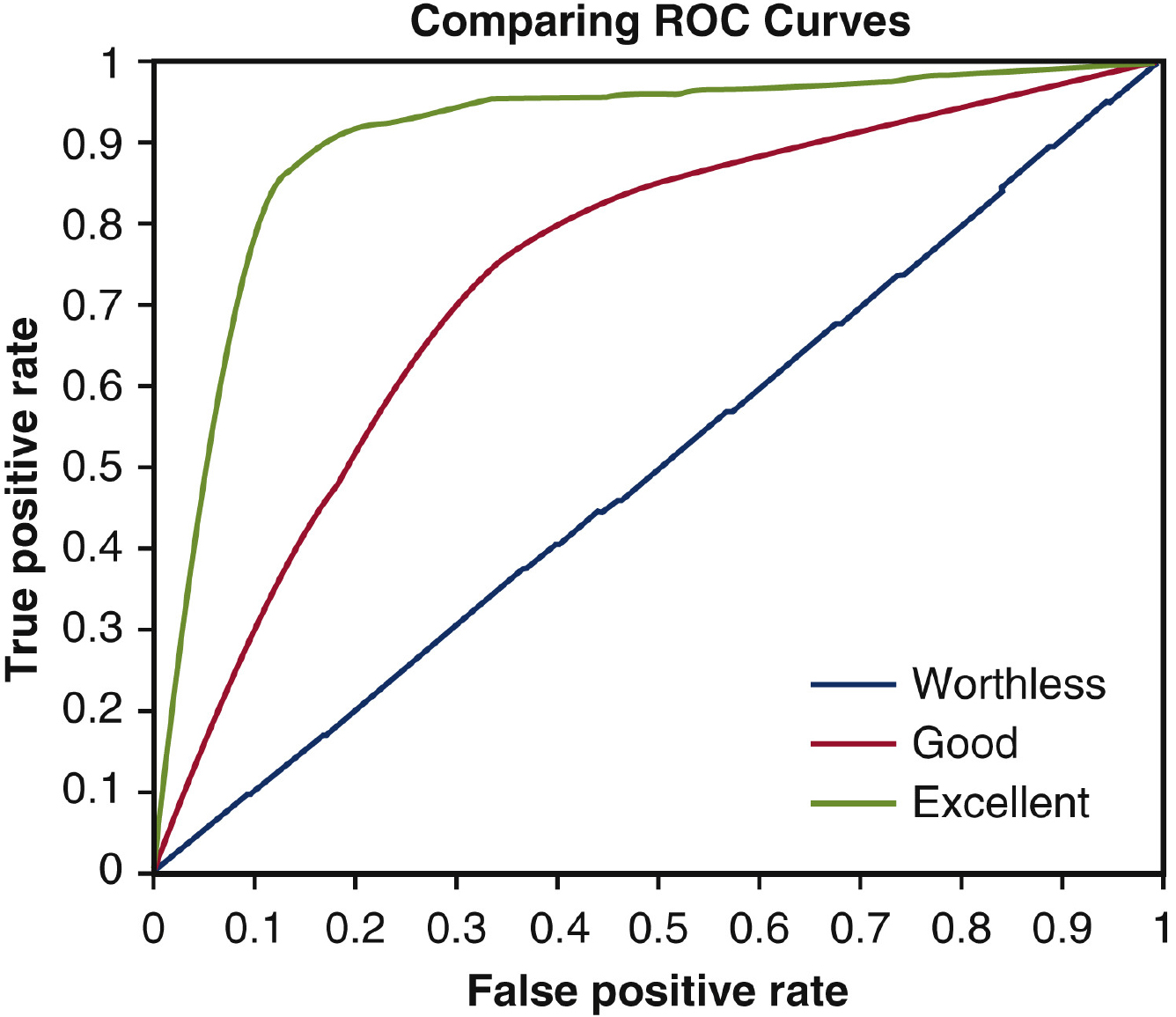

Figure 11.

A sample ROC curve that visualizes the effectiveness of a binary classification model across different classification thresholds.

7.8 Patient score

The patient score is a metric used to evaluate the performance of a classification model in detecting diseased images for individual patients. It is calculated by multiplying the total number of diseased images for a patient ( $N_p$ ) by the proportion of diseased images that the model correctly recognized for that patient ( $N_{\text{𝑟𝑒𝑐}}$ ).

The patient score reflects how well the model performs at identifying abnormal images for each patient. A higher patient score indicates that the model correctly recognized a larger proportion of diseased images for that patient, while a lower score suggests that the model may have missed some diseased images. It is expressed as:

$\mathit{\text{Patient Score}}=N_{\text{𝑟𝑒𝑐}}\times N_p$(8)

7.9 Patient recognition rate

It is the ratio of the sum of patient scores to the overall patient count.

Patient Recognition Rate

(9) $={\displaystyle \frac{\sum \mathit{\text{Patient Score}}}{\mathit{\text{Total Number of Patients}}}}$

8. Review of recent deep learning research works

Over the years, histopathology images have played a crucial role in diagnosing breast cancer. Researchers are striving to improve the efficiency of automated systems for breast cancer diagnosis using various methodologies. In computer-aided diagnosis (CAD) systems, segmentation remains the most significant challenge, involving the isolation of breast cancer cells in the image from the surrounding tissue. CNNs demonstrate exceptional proficiency in extracting spatial features from histopathology images thereby categorizing them as cancerous or benign tissues. Commonly, pre-trained architectures such as VGG16 and ResNet are fine-tuned for this specific task, enhancing their capability for accurate classification. Recurrent Neural Networks (RNNs), renowned for their effectiveness in handling sequential data, are increasingly utilized for analyzing sequences of image patches or entire tissue slides. This approach holds promise for capturing additional context and thereby enhancing the accuracy of cancer detection. The adversarial training process present in GAN not only produces more diverse training data but also holds the potential to improve the generalizability of the model across a range of histopathological images. Li et al. [49]. and Anwar et al. [4] used CNN-based models to extract features, and Yari et al. [92] fine-tuned ResNet-50 and DenseNet-121 pre-trained on ImageNet for classification. Singh et al. [75] employed a hybrid of inception and residual blocks for feature representation. Khan et al. [39] used a combination of VGG Net, GoogleNet, and ResNet to extract low-level features separately. Munien et al. [59] fine-tuned EfficientNets for classification, and Yao et al. [91] and Yan et al. [89] utilized a combination of CNN and RNN for feature extraction. Overall, these studies demonstrate the effectiveness of deep learning methods in breast cancer image classification.

Combining predictions from multiple DL models with different strengths can lead to superior overall performance in breast cancer detection from histopathology images. The integration of various techniques contributes to the improvement of accuracy and the robustness of models. Ensemble Learning [28, 35] proves to be a powerful strategy by combining predictions from different deep learning models, each with its own unique strengths. This collaborative approach often results in superior overall performance compared to individual models. Recently, attention mechanisms [90] have been employed to focus on critical regions of the image, which helps the model pay attention to relevant features within the image. This targeted attention allows the model to effectively capture and analyze relevant features such as cell morphology and tissue architecture. By emphasizing these critical regions, attention mechanisms enhance the model’s ability to make informed decisions about cancerous or benign tissues, contributing to improved diagnostic accuracy. Moreover, the utilization of weakly supervised learning [45, 70] addresses a significant challenge in the field, namely, the scarcity of labeled data. This approach involves leveraging large datasets that may be unlabeled or only partially labeled. By doing so, the models are trained to recognize patterns and features without the need for exhaustive labeling. This is particularly valuable in the context of histopathology images, where obtaining labeled data can be resource-intensive and challenging.

Many studies have utilized convolutional neural networks (CNN) such as ResNet, GoogleNet, AlexNet, VGG net, and combinations of different CNN networks [75, 39] to extract various features such as size, shape, and texture from segmented images [86, 49, 26]. When it comes to extracting hierarchical features from histopathological images, models like VGG-16, ResNet, and Inception have shown outstanding performance [79]. The simplicity of the VGG-16, ResNet’s residual learning ability to address the vanishing gradient problem, and the Inception module for efficient information extraction have made them attractive choices. CNN can automatically identify hierarchical characteristics in histopathology images, ranging from low-level features to high-level patterns. Pretrained models such as ResNet, GoogleNet, AlexNet, and VGG, which were

Table 2

Summary of recent research works present in the literature

Reference	Year	Data set used	Methodology	Experimental results
[19]	2013	ICPR 2012 mitosis data set	As a pixel classifier, Deep Neural Network (DNN) was used.	Precision $=$ 0.88 Recall $=$ 0.70 F1 Score $=$ 0.78
[87]	2015	A set of 537 H & E stained histopathological images were obtained from 49 lymph node- negative and estrogen receptor- positive breast cancer (LN $-$ , ER $+$ BC) patients at Case Western Reserve University.	For nuclei detection Stacked Sparse Autoencoder is used. The sliding window method is used to describe images as small patches. The Softmax classifier is used to determine if an object is nuclear or non-nuclear.	F-measure $=$ 84.49% Average area under Precision-Recall curve (AveP) $=$ 78.83
[56]	2015	MITOS-ATYPIA data set	Deep Belief Network and Deep Neural Network (DBN-DNN) are trained to categorise breast cancer histology into three groups.	Accuracy $=$ 96%, for training data set Accuracy $=$ 90%, for testing data set
[78]	2015	TCGA	Segmenting regions at the pixel level using a fast scanning deep convolutional neural network (fCNN).	F1 score: – 0.85
[61]	2018	ICIAR 2018 data set ( https://iciar2018-challenge.grand-challenge.org/)	A modified version of ALEXNET is used for classification.	Patch wise accuracy $=$ 75.73 Image wise Accuracy $=$ 81.25 Accuracy $=$ 57% on ICIAR-2018 data set
[26]	2018	Breast Cancer Histology Images 2018	GoogleNet is used to detect features. To minimise generalisation error, the bagging technique and hierarchy voting strategy are used.	Accuracy $=$ 0.875
[86]	2019	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	To extract features Inception-ResNet_V2 architecture is employed. The autoencoder is used to convert the retrieved features into a low-dimensional space.	Inception_V3 and Inception_ResNet_V2 based algorithm is better. Autoencoder network results in better clustering results
[60]	2019	Breast Histopathology Images data set from Kaggle	CNN architecture with softmax layer as the output layer is used. Here color constancy is used instead of histogram equalization.	AUC $=$ 0.935
[49]	2019	Bioimaging Challenge 2015 Breast Histology data set ( https://rdm.inesctec.pt/dataset/nis-2017-003)	To generate features from patches, the ResNet50 feature extractor is employed. To extract the final image information, P-norm pooling is applied. SVM for the ultimate classification of images.	Accuracy $=$ 88.89%
[4]	2019	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	Features collected using Wavelets packet decomposition, ResNet, Histogram of Oriented Gradient (HOG) (WPD). All features are fused together. Image data is reduced by PCA. The classifiers include SVM, Random Forest, and Quadratic discriminate Analysis (QDA).	Accuracy $=$ 97.1%

Table 2, continued
Reference	Year	Data set used	Methodology	Experimental results
[14]	2019	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	To extract high level features, the FCN layer acts as an encoder. The output of the FCN is received by Bi-LSTM’s layer.	40X-Accuracy $=$ 95.69 $\pm$ 1.78, Sensitivity $=$ 98.10 $\pm$ 1.51, Specificity $=$ 90.40 $\pm$ 6.88 100X-Accuracy $=$ 93.61 $\pm$ 2.28 Sensitivity $=$ 96.03 $\pm$ 2.69 Specificity $=$ 88.21 $\pm$ 7.65 Accuracy $=$ 96.32 $\pm$ 0.51 Sensitivity $=$ 97.33 $\pm$ 0.74 Specificity $=$ 94.06 $\pm$ 1.65 Accuracy $=$ 94.29 $\pm$ 1.86 Sensitivity $=$ 95.77 $\pm$ 1.60 Specificity $=$ 91.15 $\pm$ 7.41
[39]	2019	Collected from LRH hospital Peshawar, Pakisthan	To extract features, GoogleNet, VGGNet, and ResNet are employed. Data augmentation is done to increase the data set.	Accuracy: 97.525%
[48]	2019	The Israel Institute of Technology released the benchmark biopsy data set for breast cancer that was generated from clinical samples.	The prominent structural patterns are learned via a fully convolutional autoencoder. For classification, one-class support vector machines and one-layer neural networks are applied.	Accuracy $=$ 0.760 F1 score $=$ 0.777 Positive likelihood ratio (LR $+$ ) $=$ 2.645 Negative likelihood ratio (LR $-$ ) $=$ 0.304 Diagnostic odds ratio (DOR) $=$ 12.876
[90]	2019	BACH ( https://iciar2018-challenge.grand-challenge.org/)	Guided Soft Attention Network (GuSA) is used. Neurons in pertinent areas are activated, and those in noisy areas are muted. CNN serves as the foundation of the network.	Accuracy: – 90.25 $\pm$ 1.84
[2]	2019	Utilised the data set generated and released by Araujo and crew.	Tested and improved several algorithms using ResNet50, GoogleNet, and AlexNet.	Accuracy $=$ 85%
[91]	2019	BACH2018 data set, Biomedical imaging 2015 data set, Extended biomedical imaging 2015 data set.	A parallel configuration of a RNN and a CNN is used for extracting image features. Attention mechanism is used. Switchable normalization method. Targeted dropout.	BACH2018 data set: – Accuracy $=$ 0.92 Biomedical imaging 2015 data set: – Accuracy $=$ 1.00 Extended biomedical imaging 2015 data set: – Accuracy $=$ 97.5%
[92]	2020	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	ResNet50 and DenseNet 121 on ImageNet data set is used as initial weights. The model can be fine-tuned using a deep classifier and data augmentation. Done both binary classification and multiclass classification.	Accuracy in binary classification model $=$ 100% Accuracy in multiclass classification model $=$ 98%
[81]	2020	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	Residual architecture with attention modules. Hypercolumn technique is used for classification.	Classification Accuracy $=$ 98%
[46]	2020	(1) BreaKHis. (2) Grading of invasive breast carcinoma. (3) Lymphoma sub-type classification.	The Xception network to extract the feature. Transfer learning is used.
[71]	2020	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	The minority class’s data is enhanced using a deep convolution generative adversarial network. VGG-16 is utilized for classification.	For 40X, Accuracy $=$ 0.965 For 100X, Accuracy $=$ 0.94 For 200X, Accuracy $=$ 0.955 For 400X, Accuracy $=$ 0.93

Table 2, continued
Reference	Year	Data set used	Methodology	Experimental results
[85]	2020	134 histopathology images were used	Double deep transfer learning. Interactive cross-task extreme learning machine. Normal VS uninvolved, normal VS malignant, and normal VS malignant $+$ uninvolved images are the three categories used for classification.	normal VS malignant: – Accuracy $=$ 96.67% normal VS uninvolved: – Accuracy $=$ 96.96% normal VS malignant $+$ uninvolved: – Accuracy $=$ 98.18%
[66]	2020	DRYAD Digital Repository	It uses a variation of the U-Net based auto-encoder. A pre-trained ResNet152 was used as network’s encoder and decoder components.	Accuracy $=$ 91.87%
[89]	2020	Presented a data set containing 3771 histological images of breast cancer.	Otsu thresholding is used to extract tumor like regions. The most complex multilevel image features of each patch are extracted using CNN (GoogleNet). To integrate the patch characteristics and create the final image classification, RNN (LSTM) is employed.	sensitivity for normal, benign, in situ carcinoma and invasive carcinoma improved by 2.9%, 16.4%, 7.8% and 2.3% in comparison with Bioimaging2015 data set. Average accuracy $=$ 91.3%
[25]	2020	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	Built a 152-layered convolutional neural network using residual learning. Stain normalisation, image patch development, and affine transformation provide the foundation of data augmentation.	accuracy $=$ 92.52% F1-score $=$ 93.45%
[54]	2020	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	Mislabeled patch screening using generative adversarial networks (AnoGAN) for unsupervised anomaly recognition. DenseNet is used to extract multi-layered discriminative patch characteristics.	Best accuracy: 99.13% Best F1 score: 99.38%
[44]	2021	Camelyon 16 ( https://camelyon16.grand-challenge.org/Data/)	ResNet-101 or MobileNet-V2 to filter non-cancerous region. U-net is used to refine segmentation.	Accuracy of MobileNet V2 model $=$ 97.2% Accuracy of ResNet101 model $=$ 98.3% FROC score of ResNet101- U-Net model $=$ 0.796 FROC score of MobileNetV2- U-Net model $=$ 0.796
[47]	2021	BCDR-F03 (Breast Cancer Digital Repository)	CNN is employed in the extraction and fusion of characteristics from two distinct CNN structures. Classifiers like random forest, SVM is used and compared.	Accuracy $=$ 89% SVM classifier performs better
[13]	2021	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	ResNet18 is pretrained on imageNet. Block-wise fine-tuning is the foundation of transfer learning. Global contrast normalization (GCN) is used to strengthen the proposed algorithm.	Magnification Dependent Accuracy I) between 98.08% and 99.25% for binay classification II) between 89.56% and 94.49% for the eight-class classification Magnification independent accuracy I) 98.42%for binary II) 92.03% for eight-class classifications
[15]	2021	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	Deep Convolutional Neural Networks (DCNN) is employed for classification. Cuda-enabled GPU to train the model.	Accuracy $=$ 99.05%

Table 2, continued
Reference	Year	Data set used	Methodology	Experimental results
[59]	2021	ICIAR2018 ( https://iciar2018-challenge. grand-challenge.org/)	Classifies breast histology image using transfer learning and EfficientNets.	Accuracy $=$ 98.33 Sensitivity $=$ 98.44 EfficientNet-B2 architectureexhibits better performance
[3]	2021	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	Patches are derived from Whole Slide Images. Efficient-net architecture is used for feature extraction. SVM classifier is used.	Accuracy between 93.62 and 96.99%
[29]	2021	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	Three parallel CNN branches with deep resudial blocks (3PCNNB-Net) are used to extract features. The features extracted using three CNN layers are fused using average technique. Finally, Softmax layer is used for classification.	Accuracy $=$ 97.14%
[1]	2022	Camelyon 16 ( https://camelyon16.grand-challenge.org/Data/)	Two fully trained CNNs (Mobile-net, GoogleNet) as well as two deep and pre-trained models (Resnet50, VGG16) were used. Data augmentation is employed to expand the data set.	Accuracy $=$ 98.84% Precision $=$ 92.42%, for VGG16 F1- score $=$ 91.25%, for VGG16
[63]	2022	ICIAR 2018 ( https://iciar2018-challenge.grand-challenge.org/)	EffficientNet model is used for classifying and identifying histological images of breast cancer into four types. 35 patches are collected from each image.	Accuracy $=$ 98%
[10]	2022	Breast Histopathology Images data set provided at Kaggle.com	Combination of MobileNetV2 and Xception Network is employed. Data augmentation techniques like rotation, flipping,etc are done.	Balanced Accuracy $=$ 93.4% F1 score $=$ 94.8%
[22]	2022	Breast cancer histopathology image data set (BNS) used in [62]	YOLOv5 is used for the detection of nuclei breast lesions. Data augmentation and annotation is done using Roboflow library.	Precision $=$ 0.86 Recall $=$ 0.77
[18]	2022	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	A model called Multi-scale Dual Residual Recurrent Network (MTRRE-Net) is introduced. The model consists of dual residual block combined with the recurrent network. This network can be used to train small data set.	The model outperforms GoogLeNet, DenseNet169, DenseNet161, ResNet18, VGG16, etc Accuracy $=$ 97.12% for 40X Accuracy $=$ 95.22% for 100X Accuracy $=$ 96.85% for 200X Accuracy $=$ 97.81% for 400X
[75]	2022	Breast Histopathology Image (BHI) and Breast cancer histopathology database(BreakHis)	A combination of residual and inception network is used for feature representation.	Accuracy: BHI-0.8521 BreastHis – 0.8080, 0.8276, 0.8655 and 0.8580 for 40X, 100X, 200X and 400X resp.
[77]	2023	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	ResNet 50 and Inception V3 based CNN module is used for feature extraction. The RNN module with two LSTM layers are used for classification. For data augmentation ImageDataGenerator is used. Softmax activation function is used at the output.	Accuracy $=$ 99% for binary classification Accuracy $=$ 92.50% for multiclass classification

Table 2, continued
Reference	Year	Data set used	Methodology	Experimental results
[58]	2023	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	Deep Convolutional Active Features (DeCAF) are extracted using CNNs like AlexNet, VGG-16 and VGG-19. Dimensionality reduction techniques are used to eliminate irrelevant features from the extracted features. SVM is used for binary classification.	Best accuracy $=$ 91.13 $\pm$ 1.4% for AlexNet feature extractor
[93]	2023	Camelyon 16 ( https://camelyon16.grand-challenge.org/Data/)	To normalize the colors of the images cycleGAN is employed. DPN68 A and Swin transformer is used for patch based classification. The geometrical as well as morphological features are extracted from the heatmap. SVM classifier is used for classification.	AUC $=$ 96.13% Accuracy $=$ 98.44%
[38]	2023	Mitosis-Atypia 14	Pre-processing is done using random adjust contrast, random adjust saturation and random adjust hue. SMDetector is used to extract features where ResNet 101 is used as backbone. Region Proposal Network(RPN) is used to detect the ROI.	Precision $=$ 68.49% Recall $=$ 59.86% F-measure $=$ 63.88%
[64]	2023	BreakHis ( https://web.inf.ufpr.br/vri/databases/breast-cancer-histopathological-database-breakhis/)	To enhance the visual trainable features contrast enhancement and edge detection techniques are used. Light Weight Seperable Convolution(LWSC) network is used to learn and classify images.	For binary classification Accuracy $=$ 93.12% Sensitivity $=$ 96.61% Specificity $=$ 94.07% For multiclass classification Accuracy $=$ 97.23% Sensitivity $=$ 97.71% Specificity $=$ 97.93%

trained on extensive datasets such as ImageNet, enable transfer learning and improve performance even with a limited amount of annotated medical data. As CNN is very adaptable, it can be fine-tuned to fit specific characteristics of histopathological images. On the other hand, Deep CNNs require a lot of processing power; therefore strong hardware is needed for both training and testing. Moreover, it might be difficult to comprehend and interpret the sophisticated decision-making processes of CNN, which limits its applicability in medical images.

The development of CAD systems for automatic cancer diagnosis relies heavily on segmentation. It can identify and outline tumor areas in histopathology images. Localization accuracy is critical for assessing the level of malignant tissue and directing subsequent diagnostic and therapeutic decisions. It makes it possible to quantitatively analyze the size, shape, and texture of tumors. U-Net is a widely used semantic segmentation technique in histopathology images [69, 40]. Its design includes an expansive path, a bottleneck, and a contracting path. Spatial information is preserved in U-Net, which is essential for precise segmentation of regions affected by breast cancer.

GANs have gained interest because of their ability to produce realistic synthetic images. GANs [34, 71] are used to augment data in the context of breast cancer histology, which solves the problem of limited annotated datasets. It creates synthetic images with realistic structures. GANs may experience mode collapse, which occurs when the generator produces only a few types of images, limiting the diversity of synthetic images.

For feature extraction and robust representation of breast cancer histopathology images, autoencoders, particularly variational autoencoders and denoising autoencoders, have been explored [86, 87]. These approaches enable effective feature compression and reconstruction by encoding input images into a latent space. It may be difficult to directly interpret the latent space representations learned by autoencoders. Furthermore, deep autoencoder training can be difficult, and determining the best latent space representation may necessitate substantial hyperparameter tuning.

Combining generative and unsupervised methods with supervised models, such as CNNs, offers a viable way to increase the precision and robustness of breast cancer detection systems. When selecting and putting these strategies into practice, researchers should give careful consideration to the unique requirements of their applications. Table 2 provides a summary of recent research employing deep learning techniques for breast cancer analysis.

9. Discussion

Deep learning is a rapidly growing field that has shown great promise in tackling a variety of research challenges, such as segmentation, object recognition, and image classification. This has led to the development and application of several algorithms for extracting relevant information from various machine vision tasks. In this review article, we present the application of deep learning techniques for breast cancer detection in histopathology images.

Deep learning techniques have been widely used for breast cancer detection in histopathology images. Convolutional Neural Networks (CNNs) are the most commonly used deep learning architecture for this task. These models can automatically learn and extract features from histopathology images, making them ideal for detecting subtle changes in breast tissue that may indicate cancer. The advantages of using deep learning for breast cancer detection in histopathology images include high accuracy, automation, speed, and transferability. Deep learning models have shown high accuracy in detecting and classifying cancerous tissue in histopathology images. They can automate the process of breast cancer detection, reducing the workload of pathologists and increasing efficiency. Deep learning models can analyze large amounts of histopathology images in a short amount of time, allowing for quicker diagnosis and treatment. Pre-trained models can be adapted to work on new data sets, reducing the need for large amounts of labeled data.

One main challenge in computer-assisted breast cancer detection is achieving accurate segmentation of histopathological images. This is because cancerous areas are often small and may overlap, making it difficult to differentiate them from healthy tissue. Furthermore, segmentation techniques require significant processing power, which can be a challenge for resource-limited environments, especially when dealing with large and high-resolution images. Another issue is the variability in human annotations, which can result in differences in the ground truth, making it difficult to train reliable segmentation algorithms. Different segmentation strategies have their strengths and weaknesses, and choosing the right method is crucial for achieving high accuracy and reducing manual labour. Accurate segmentation can improve the classification of breast cancer, making it a critical concern for researchers and practitioners in the field.

However, there are also some drawbacks to using deep learning for breast cancer detection in histopathology images. These include data quality, interpretability, and hardware requirements. The accuracy of deep learning models depends on the quality and diversity of the training data. Poor quality or biased data can result in inaccurate models. Deep learning models can be difficult to interpret, making it challenging to understand the reasoning behind the model’s decisions. Additionally, deep learning models require significant computing power and resources, making it challenging for smaller research groups or medical facilities to implement. The researchers also face challenges due to the limited availability of large data sets required for testing a new model. Deep learning models require vast amounts of annotated data to train, but the process of annotating histopathology images is time-consuming and requires expertise. Imbalances in the data set can also negatively affect the performance of computer-aided diagnosis (CAD) systems. Therefore, it is necessary to increase the number of samples in the data set to improve the efficiency of the model.

The future of breast cancer detection through deep learning applied to histopathology images holds tremendous promise, poised to revolutionize the landscape of medical diagnosis. While its potential for delivering accurate diagnoses is evident, several challenges linger, particularly in the areas of interpretability, limited data availability, and seamless integration into clinical practices. The road ahead presents opportunities for progress, with anticipated advancements in explainable AI, personalized diagnosis using multi-modal data, and smooth integration into existing clinical workflows. The exploration of automated processes, harnessing emerging technologies like GANs and neuromorphic computing, and the prioritization of ethical considerations will be crucial in navigating this transformative journey. By tackling these challenges and embracing innovation, we can unlock the full potential of deep learning, paving the way for a future where early-stage and personalized cancer diagnosis becomes a reality, saving countless lives.

10. Conclusion

The utilization of deep learning-based breast cancer detection techniques, particularly using histopathology images, holds the potential to revolutionize the landscape of breast cancer diagnosis and treatment. Demonstrating superior accuracy and reliability compared to traditional methods, these techniques excel in early-stage detection, including identifying tumors that may be imperceptible with current imaging technologies. Their speed, automation, and cost-effectiveness position them as compelling options for public health initiatives. However, to further enhance their efficacy, addressing challenges such as the need for larger and standardized datasets for algorithm training is imperative. Ongoing research endeavors should focus on the development and refinement of computational models capable of accurately discerning breast cancer across diverse tissue types. Successful resolution of these challenges could establish deep learning-based breast cancer detection as a pivotal tool for public health initiatives, markedly elevating accuracy and reliability in both diagnosis and treatment.

Moreover, the triumph of computer-aided diagnosis (CAD) systems leveraging deep learning hinges on the quality and diversity of the datasets used for training and validation. Overcoming challenges related to limited annotated data and imbalanced datasets is crucial. Integration of CAD systems into clinical workflows, providing real-time results to clinicians, further ensures their seamless adoption. Addressing these challenges not only enhances the accuracy and reliability of breast cancer diagnosis and treatment but also solidifies the role of deep learning-based breast cancer detection techniques as transformative tools in healthcare.

Footnotes

Author contributions

Conception: Lakshmi Priya C V, Sivakumar Ramachandran.

Interpretation or analysis of data: Lakshmi Priya C V, Biju V G, Sivakumar Ramachandran.

Preparation of the manuscript: Lakshmi Priya C V, Biju V G, Vinod B R, Sivakumar Ramachandran.

Revision for important intellectual content: Biju V G, Vinod B R.

Supervision: Biju V G, Sivakumar Ramachandran.
