Efficacy of percutaneous needle electrolysis versus dry needling in musculoskeletal pain: A systematic review and meta-analysis

Abstract

BACKGROUND:

Physical therapists use dry needling (DN) and percutaneous needle electrolysis (PNE) to treat musculoskeletal pain.

OBJECTIVE:

To investigate the efficacy of PNE vs. DN in the treatment of musculoskeletal pain.

METHODS:

This systematic review and meta-analysis was based on the PICOS and PRISMA protocols. The PubMed, PEDro, Cochrane Library, SCOPUS, and Google Scholar databases were searched for randomized clinical trials measuring pain intensity in various musculoskeletal syndromes using PNE and DN. Pain outcome measures were the visual analog scale or the numerical pain rating scale. Risk of bias was assessed according to Cochrane guidelines and quality of evidence was reported using the Grading of Recommendations Assessment, Development, and Evaluation approach (GRADE). Standardized mean differences were calculated using random effects models.

RESULTS:

The meta-analysis of the six included studies showed that the overall effect of PNE vs. DN for pain reduction was statistically significant at $-$ 0.74 (95% confidence interval [CI], $-$ 1.34 to $-$ 0.14) with a large effect size (SMD $=$ $-$ 0.41; 95% CI, $-$ 0.75 to $-$ 0.08), albeit clinically insignificant in the short, medium, and long term. Risk of bias was generally low with moderate-level evidence due to the overall effect heterogeneity and the small sample.

CONCLUSIONS:

Moderate-quality evidence showed that PNE is slightly more effective than DN in reducing pain. However, because the results were not clinically significant, we cannot recommend the application of PNE over DN. More high-quality studies comparing the two interventions are needed to draw firm conclusions.

Keywords

Physical therapy modalities pain management rehabilitation meta-analysis as topic

1. Introduction

Musculoskeletal pain is defined as pain affecting the bones, muscles, ligaments, tendons, and joints [1]. It can be classified as acute or chronic and can be localized in one area or generalized, i.e., involving the whole body. Typical examples of musculoskeletal pain are low back pain, neck pain, pain related to fractures, other injuries, osteoarthritis, as well as pain caused by rheumatoid arthritis [2]. Musculoskeletal pain reduces the functional ability of the patient with direct health implications. Musculoskeletal conditions with relevant pain have been shown to increase the risk of chronic disease in the general population [3]. In addition, musculoskeletal pain has also been blamed for economic, social, and psychological impacts [4, 5, 6].

According to the World Health Organization, 20–33% of the global population (1.75 billion people) has some form of chronic musculoskeletal pain [7, 8]. A recent study found the prevalence of musculoskeletal pain in Europe to be 35.7% (28.8–31.7), while it was higher in women 41.3% (40.2–42.4) than in men 29.1% (28.0–30.3) [7].

Modern guidelines for the treatment of musculoskeletal pain state that the patient-centered approach as well as the early diagnosis and treatment of the cause of the pain are the commonly accepted treatment strategies [9]. Physical therapy through the application of therapeutic exercise, manual techniques and physical means has been shown to significantly contribute to the reduction of musculoskeletal pain [1, 10].

A technique that has been found to significantly reduce musculoskeletal pain is dry needling (DN), which is used to treat myofascial trigger points (TrPs). TrPs have been described by Travell and Simons as painful palpable nodules located along a tense muscle fascicle on the belly of the muscle [11, 12]. Their presence has been found to be greatly increased in patients with musculoskeletal pain [13]. Acute overload, chronic repetitive strain, poor static posture, unsuitable sleeping positions, and poor ergonomic practices can all lead to TrPs. These TrPs can interfere with muscle function and produce severe discomfort [14]. The use of DN to treat myofascial pain has been known for decades. Travell and Simons suggested local infusion of anesthetic blocks into the TrPs as the treatment of choice [12], while Lewit investigated anesthetic injections in patients with chronic pain and argued that it was the needle and not the infiltration of the anesthetic that caused pain relief [14, 15]. Although DN is widely used in physical therapy, its potential physiological effects are not yet fully understood [16]. According to some researchers, needle insertion into muscle tissue can disrupt dysfunctional motor end plates, increase sarcomere length, and reduce the overlap between actin and myosin filaments while reducing both peripheral and central sensitization, removing the source of peripheral pain, modulating activity of the dorsal horn of the spinal cord, and activating central inhibitory pain pathways [17]. Regarding the biochemical effect, DN was found to have an effect on the pain of an MTrP by reducing the concentration of substance $P$ and calcitonin gene-related peptide surrounding a myofascial point as well as increasing beta-endorphin in the local tissue [18].

Another technique that has also shown positive effects in the treatment of musculoskeletal pain is percutaneous needle electrolysis (PNE). It consists of the application of a continuous galvanic current which reaches the target organ through a needle that acts as a negative electrode and which is guided with the help of ultrasound to the target tissue [19, 20]. The aim of this technique is to cause a non-thermal electrolytic reaction in the affected tissue through the cathodic flow of the needle in order to create a controlled inflammatory response [21], which will result in the facilitation of phagocytosis and tissue regeneration [19]. The technique combines the mechanical effect resulting from the insertion of the needle and the biological effect resulting from the application of the galvanic current [22].

Several researchers have attempted to compare the effectiveness of DN and PNE in the treatment of musculoskeletal pain [20, 22, 23, 24, 25]. However, to date there is no systematic review and meta-analysis that has compared the two techniques. The use of PNE continues to increase around the world without being proven to offer anything more than DN, which is already popular in the physical therapy field. The aim of this systematic review and meta-analysis is to ascertain whether PNE is more effective than DN in the treatment of musculoskeletal pain.

2. Method

2.1 Design

This systematic review and meta-analysis was performed in accordance with PRISMA guidelines [26]. The international Prospective Register of Systematic Reviews (PROSPERO) registration number was CRD42022360228.

2.2 Search strategy

A Technical Expert Panel was established by 10 physical therapists to conduct the search and evaluation of the articles in the databases. A systematic, non-time-limited literature search was performed in the online databases PubMed, PEDro, Cochrane Library, SCOPUS, and Google Scholar, and completed on August 1 ${}^{\text{st}}$ 2022. The search strategy used is depicted in Table 1. Search results were filtered to include only randomized controlled trials in humans in English. Due to the paucity of results, bibliographies from existing studies were manually screened to identify relevant studies not found through the initial online search.

Table 1
Article search strategy

Database	Search strategy
PubMed Scopus PEDro Cochrane library Google scholar	(ultrasound-guided percutaneous electrolysis OR percutaneous needle electrolysis OR intratissue percutaneous electrolysis OR ultrasound-guided galvanic electrolysis) AND (dry needling OR dry needle) AND (Pain OR Myofascial Pain)

2.3 Eligibility criteria and study selection

The selection criteria for this systematic review were developed according to the PICOS framework [27]. The following elements were used to develop a search strategy in the archive databases and in subsequent stages of article selection:

Population: The sample in this study was adults with musculoskeletal pain. Patients were over 18 years of age without any other age restriction. Studies involving patients with neuropathic pain or pain associated with neurological disorders were excluded. Patients with underlying systemic medical conditions causing pain such as infections, neoplasms, and metastases were also excluded from our systematic review.

Intervention: The intervention consisted of any form of PNE (i.e., application of direct galvanic current with a needle). Other interventions using pulsed current, such as percutaneous electrical nerve stimulation (PENS) or electroacupuncture were not included. For this purpose, the search strategy included the following keywords: ultrasound-guided percutaneous electrolysis OR percutaneous needle electrolysis OR intratissue percutaneous electrolysis OR ultrasound-guided galvanic electrolysis.

Control: Acceptable comparison groups were only those treated with DN. Therefore, studies that had at least one control group consisting of DN were included. Other interventions using acupuncture based on Chinese techniques were excluded from this study. Therefore, the search strategy included the following keywords: dry needling OR dry needle.

Outcomes: The main and only primary outcome measure that had to be present in the included studies was pain. Pain intensity had to be measured with the Visual Analog Scale (VAS) or the Numerical Pain Rating Scale (NPRS). Studies that assessed other outcome measures were included in this review if they investigated pain as a secondary outcome. Studies with a VAS or NPRS score lower than three were excluded.

2.4 Screening, selection process, and data extraction

The studies found from the various databases were examined independently by two reviewers. First, duplicate studies were eliminated using the Mendeley program. Then, the title and abstract of the studies were reviewed for suitability. If they met the criteria, the full text of the study was retrieved and read, for further consideration of its suitability. The authors had to reach a common ground about the studies to be included in this review. In case of disagreement between the two reviewers, a third party was involved in the process to reach a consensus and decide whether the study should be included. Data from each trial were extracted by two authors into a standardized form and included study design, sample size, population diagnosis, interventions used, outcomes, and follow-up periods. Finally, the two reviewers had to reach consensus on each item on the data extraction form. If there was a disagreement, a third reviewer made the final decision.

2.5 Assessment of methodological quality and risk

Using the Cochrane Risk of Bias (RoB) assessment tool [28] and the PEDro scale [29] two members of the research team assessed the methodological quality and risk of bias in the included studies.

The RoB tool includes the following types of bias: selection bias (randomization sequence generation, allocation concealment), performance bias (blinding participants, blinding therapists), detection bias (blinding outcome assessor), attrition bias (incomplete outcome data), reporting bias (source of funding bias or selective outcome reporting), and other bias (sample size) [30]. Each point was classified as low risk, high risk, or unclear according to the Cochrane Collaboration tool [30]. For an article to be assessed as low risk, all key areas had to be assessed as being at low risk of bias. If all key areas were unclear risk of bias, the article was identified as unclear risk. If one or more key areas within the study were assessed as high risk, the included study was then determined to have a high risk.

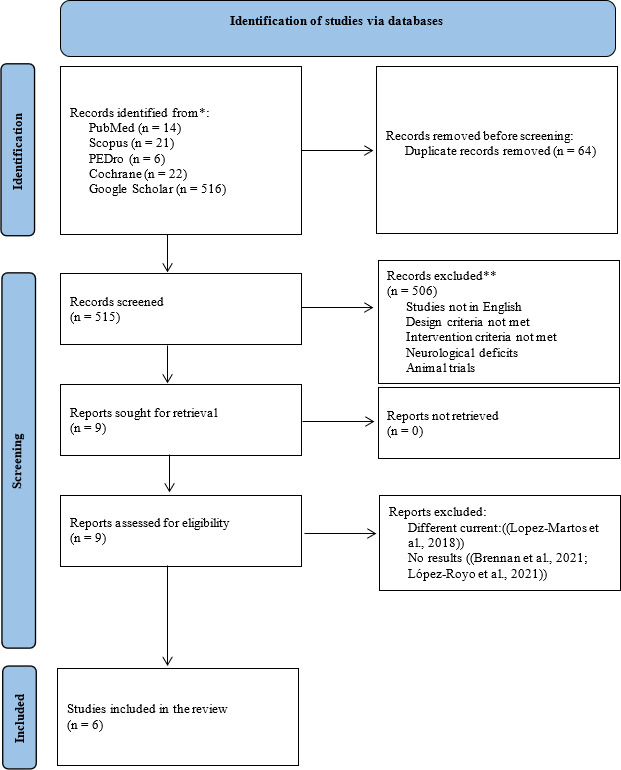

Figure 1.

Identification of studies via databases.

The PEDro scale is based on 11 criteria, 10 of which contribute to the overall score of a study. The first criterion was not included in the score as it relates to the external validity of the study. The scale assesses the following criteria: random allocation, concealed allocation, between-group similarity at baseline, participant blinding, therapist blinding, assessor blinding, dropout rate, intention-to-treat statistical analysis, between-group statistical comparison, and point measures and variability data [29]. According to Cashin and McAuley [31], if the authors of a study report an overall PEDro scale score of 0–3 this is considered “poor”, 4–5 “moderate”, 6–8 “good”, and 9–10 “excellent”. However, it is important to note that these classifications have not been validated. Furthermore, for trials evaluating complex interventions (e.g., exercise) an overall PEDro score of 8/10 is optimal [31]. In this meta-analysis a score of 6/10 and above on the PEDro scale was considered a high-quality study, based on corresponding systematic reviews and meta-analyses [19].

2.6 Quality of evidence

Table 2
Characteristics of participants of the included studies

Study	Musculoskeletal disorder	Groups	Participants	Gender, Men (Women)	Age	Pain duration
Rodríguez-Huguet et al. [22]	Supraspinatus tendinopathy	G ${}_{1}$	18	16 (2)	39.17	Not reported
		G ${}_{2}$	18	11 (7)	40.92
Rodríguez-Huguet et al. [41]	Lateral epicondylalgia	G ${}_{1}$	16	10 (6)	40.44	Not reported
		G ${}_{2}$	16	10 (6)	35.88
Lopez-Martos et al. [40]	Temporomandibular pain	G ${}_{1}$	20	5 (15)	37.83	$>$ 6 months
		G ${}_{2}$	20	2 (18)	36.65
		G ${}_{3}$	20	1 (19)	42.22
Al-Boloushi et al. [23]	Plantar pain	G ${}_{1}$	51	15	48.1	$>$ 1 month
		G ${}_{2}$	51	15	49.5
López-Royo et al. [25]	Patellar tendinopathy	G ${}_{1}$	16	14 (2)	31.3	$>$ 3 month
		G ${}_{2}$	16	13 (3)	33.2
		G ${}_{3}$	16	15 (1)	32.7
Valera-Calero et al. [42]	Patellar pain syndrome	G ${}_{1}$	5	Not reported	25.4	Not reported
		G ${}_{2}$	5		26.8
		G ${}_{3}$	5		24.8

To evaluate the quality of evidence of PNE as well as DN, the Grading of Recommendations, Assessment, Development, and Evaluations (GRADE) approach was used [32]. This assessment was performed independently by two authors, with a third author available if the two authors could not reach agreement. The quality of evidence was classified as high, moderate, low, or very low based on the presence of study limitations (downgraded if the bias according to RoB was large), indirectness of evidence, inconsistency of results or unexplained heterogeneity (downgraded if significant heterogeneity was presented by visual inspection of I ${}^{2}$ $>$ 40% and I ${}^{2}$ $>$ 60%), imprecision of results (downgraded if there were fewer than 200 participants) and the high probability of publication bias [32]. The quality of evidence was classified as high when all elements were negative, moderate when one element involved a serious risk, low when two to three elements showed a serious risk or one to two elements showed a very serious risk, or very low when all elements showed a serious risk or more than two elements showed a very serious risk.

2.7 Data synthesis and analysis

Our meta-analysis was performed using the statistical software Review Manager (RevMan version 5.4). Data synthesis was categorized by group according to the follow-up period as short-term (less than one month), intermediate (1–3 months), and long-term (3–6 months) if data were available. The data extracted from each study were the sample size, mean value, and standard deviation of each variable. It is important to note that when the study contained only standard bias, these were converted to standard deviations. Furthermore, if the study reported a non-parametric value (median and interquartile range), it was converted to mean value and standard deviation [33, 34].

Regarding the pain intensity outcome, using either the NPRS scale or the VAS, we calculated the mean difference between the PNE group and the DN group and converted it to a Standardized Mean Difference (SMD) as it has been reported that this allows the evaluation of studies that use different outcome measures to evaluate the same outcome [35]. A random-effects model was used to determine the overall SMD. An SMD effect size of 0.8 or greater was considered large, between 0.5 and 0.8 was considered moderate, and between 0.2 and 0.5 was considered small [36]. In general, P values less than 0.05 were considered statistically significant. Overall effect sizes and effect size calculations on pain intensity were obtained at short-term (0–1 months), medium-term (1–3 months), and long-term (3–6 months).

Heterogeneity of studies was assessed using the I ${}^{2}$ statistics model. The Cochrane Group has established the following interpretation of the I ${}^{2}$ model: 0–40% heterogeneity may not be relevant or significant, 30–60% indicates moderate heterogeneity, 50–90% indicates substantial heterogeneity, and 75–100% indicates significant heterogeneity [37].

3. Results

3.1 Search results

Table 3
Parameters of the treatments in the included clinical studies

Study	Group	Number of insertions	Approach	Diameter (mm)	Depth (mm)	Duration	Current intensity	Device
Rodríguez-Huguet et al. [22]	G ${}_{1}$	1	The needle acting as a cathode targeted the supraspinatus tendon. The technique was according to US guidelines.	Not reported	Not reported	1.2 minutes 1 week/ 4 weeks	350 $\mu$ A	EPTE ${}^{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}$ , Ionclinics, Valencia, Spain
	G ${}_{2}$	Not reported	Needling on the upper part of the trapezius towards the supraspinatus.	Not reported	Not reported	1 week/ 4 weeks	–	–
Rodríguez-Huguet et al. [41]	G ${}_{1}$	1	The needle acting as a cathode was aimed at the tendon ending in the lateral condyle. The technique was according to US guidelines.	0.3mm	Not reported	1.2 minutes 1 week/ 4 weeks	350 $\mu$ A	EPTE ${}^{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}$ , Ionclinics, Valencia, Spain
	G ${}_{2}$	1	Needling on the supinator and the extensor carpi brevis.	Not reported	Not reported	1 week/ 4 weeks	–	–
Lopez-Martoset al. [40]	G ${}_{1}$	1	The needle acting as a cathode was aimed at the lateral pterygoid.	0.25	40	3 seconds 1 week/ 3 weeks	2 mA	EPI Advanced Medicine ${}^{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}$ , Barcelona, Spain
	G ${}_{2}$	1	Needling on a trigger point on the lateral pterygoid.	0.25	40	1 week/ 3 weeks	–	–
	G ${}_{3}$	1	Pressing of the needle into the skin with a protective plastic.	0.25	40	1 week/ 3 weeks	–	–
Al-Boloushi et al. [23]	G ${}_{1}$	Not reported	The needle acted as a cathode on all trigger points found.	0.25–0.30 mm	30–75 mm	5 seconds 4 sessions/ 1 week	1.5 mA	Physio Invasiva, PRIM Fisiotherapia, Spain
	G ${}_{2}$	Not reported	Needling on all trigger points. The technique was as described by Hong.	0.25–0.30 mm	30–75 mm	5 seconds 4 sessions/ 1 week	–	–
López-Royo et al. [25]	G ${}_{1}$	Not reported	The technique was according to US guidelines.	Not reported	Not reported	3 seconds 4 sessions every 2 weeks for 8 weeks	3 mA	Not reported
	G ${}_{2}$	3	Not reported. The technique was according to US guidelines.	0.25mm	25mm	3 seconds 4 sessions every 2 weeks for 8 weeks	–	–
	G ${}_{3}$	1	The needle was placed in a specific sheath and manipulated during the intervention to simulate a real treatment.	0.25mm	25mm	3 seconds 4 sessions every 2 weeks for 8 weeks	–	–
Valera-Calero et al. [42]	G ${}_{1}$	1	The needle acting as a cathode was aimed at a trigger point of the rectus femoris.	0.30 mm	40 mm	10 seconds 1 session	660 mA	EPTE ${}^{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}$ , Ionclinics, Valencia, Spain
	G ${}_{2}$	1	The needle acting as a cathode was aimed at a trigger point of the rectus femoris.	0.30 mm	40 mm	10 seconds 1 session	220 mA	EPTE ${}^{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}$ , Ionclinics, Valencia, Spain
	G ${}_{3}$	1	Needling on trigger point of the rectus femoris.	0.30 mm	40 mm	30 seconds 1 session	–	–

A total of 579 articles related to our topic were found from the search. After removing duplicates, 515 studies remained. After a thorough review of their titles and abstracts, nine related articles remained for further full-text screening. The full article was then accessed and three articles were removed as two of them had no final results [24, 38] and one [39] used pulsed current. Finally, a total of six articles were included in the qualitative and quantitative analysis of our review [22, 23, 25, 40, 41, 42]. The study selection flow diagram is shown in Fig. 1.

3.2 Characteristics of studies

Participant characteristics of the included studies are listed in Table 2. The included studies were highly heterogeneous as they studied different musculoskeletal conditions. These were tendinopathy of the supraspinatus [43], lateral epicondylalgia [41] temporomandibular pain [40], plantar pain [23], patellar tendinopathy [25], and patellar pain syndrome [42].

Table 4
The effects of percutaneous needle electrolysis and dry needling on musculoskeletal pain

Study	Intervention	Sample	Intervention duration, sessions or weeks	Comparison and outcome measure	Between-groups differences (95% CI) [SMD]
Rodríguez-Huguet et al. [22]	G ${}_{1}$ : PNE and EA G ${}_{2}$ : DN and EA	1818	1 $\times$ 4 weeks 1 $\times$ 4 weeks	Pain (NPRS) G ${}_{1}$ vs G ${}_{2}$	4 weeks: $-$ 1.38 ( $-$ 2.75, $-$ 0.01) [ $-$ 0.64] 8 weeks: $-$ 0.96 ( $-$ 2.32, $-$ 0.91) [ $-$ 0.45] 52 weeks: $-$ 1.65 ( $-$ 2.7, $-$ 0.58) [ $-$ 0.98]
Rodríguez-Huguet et al. [41]	G ${}_{1}$ : PNE and EA G ${}_{2}$ : DN and EA	16 16	1 $\times$ 4 weeks 1 $\times$ 4 weeks	Pain (NPRS) G ${}_{1}$ vs G ${}_{2}$	4 weeks: $-$ 1.81 ( $-$ 2.86, $-$ 0.76) [ $-$ 1.16] 12 weeks: $-$ 2.18 ( $-$ 3.34, $-$ 1.02) [ $-$ 1.27]
Lopez-Martos et al. [40]	G ${}_{1}$ : PNE G ${}_{2}$ : DN G ${}_{3}$ : Placebo DN	20 20 20	1 $\times$ 3 weeks 1 $\times$ 3 weeks 1 $\times$ 3 weeks	Pain at rest (VAS) G ${}_{1}$ vs G ${}_{2}$ G ${}_{2}$ vs G ${}_{3}$ G ${}_{1}$ vs G ${}_{3}$	G ${}_{1}$ vs G ${}_{2}$ 4 weeks: $-$ 2.53 ( $-$ 3.95. $-$ 1.11) [ $-$ 1.08] 6 weeks: $-$ 1.57 ( $-$ 2.83. $-$ 0.31) [ $-$ 0.76] 10 weeks: $-$ 1.39 ( $-$ 2.26. $-$ 0.52) [ $-$ 0.91]
Al-Boloushi et al. [23]	G ${}_{1}$ : PNE and stretching G ${}_{2}$ : DN and stretching	51 51	4 $\times$ 1 week 4 $\times$ 1 week	Mean pain (VAS) G ${}_{1}$ vs G ${}_{2}$	4 weeks: 1.20 (0.13. 2.27) [0.43] 8 weeks: 0.50 ( $-$ 0.57. 1.57) [0.18] 12 weeks: 0.40 ( $-$ 0.67. 1.47) [0.14] 26 weeks: 0.00 ( $-$ 1.07. 1.07) [0.00] 52 weeks: $-$ 0.60 ( $-$ 1.73. 0.53) [ $-$ 0.21]
López-Royo et al. [25]	G ${}_{1}$ : PNE and EA G ${}_{2}$ : DN and EA G ${}_{3}$ : Placebo DN and EA	16 16 16	4 every 2 weeks $\times$ 8 weeks 4 every 2 weeks $\times$ 8 weeks 4 every 2 weeks $\times$ 8 weeks	Mean pain (VAS) G ${}_{1}$ vs G ${}_{2}$	G ${}_{1}$ vs G ${}_{2}$ 10 weeks: 0.30 ( $-$ 1.39. 1.99) [0.12] 22 weeks: 1.10 ( $-$ 0.24. 2.44) [0.56]
Valera-Calero et al. [42]	G ${}_{1}$ : PNE (high intensity) G ${}_{2}$ : PNE (low intensity) G ${}_{3}$ : DN	5 5 5	1 $\times$ 1 week	Pain (VAS) G ${}_{1}$ vs G ${}_{2}$ G ${}_{2}$ vs G ${}_{3}$ G ${}_{1}$ vs G ${}_{3}$	G ${}_{1}$ vs G ${}_{3}$ 1 week: $-$ 0.40 ( $-$ 1.40. 0.60)[ $-$ 0.45] G ${}_{2}$ vs G ${}_{3}$ 1 week: $-$ 0.30 ( $-$ 1.42. 0.82)[ $-$ 0.30]

Table 5

Methodological rating of randomized clinical trials using the PEDro baseline scale

Study	1	2	3	4	5	6	7	8	9	10	Total
Al-Boloushi et al. [23]	Y	Y	Y	N	N	Y	N	Y	Y	Y	7
López-Royo et al. [25]	Y	N	N	N	N	Y	Y	Y	N	Y	5
Lopez-Martos et al. [40]	Y	N	Y	N	N	N	Y	Y	Y	Y	6
Rodríguez-Huguet et al. [41]	Y	Y	Y	N	N	Y	Y	N	Y	Y	7
Rodríguez-Huguet et al. [22]	Y	Y	N	N	N	N	Y	Y	Y	Y	6
Valera-Calero et al. [42]	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y	10

Y $=$ yes, N $=$ no. 1 $=$ random allocation, 2 $=$ hide allocation, 3 $=$ basic comparability, 4 $=$ subject blinding, 5 $=$ therapist blinding, 6 $=$ assessor blinding, 7 $=$ results for 85%, 8 $=$ intention-to-treat analysis, 9 $=$ comparisons between groups, 10 $=$ mean and variability data.

All included clinical studies applied PNE and DN, but there was great heterogeneity between them, in terms of number or frequency of sessions, session time, PNE current intensity, needle depth and diameter, and combined therapy. A summary of the PNE and DN parameters applied in each study can be found in Table 3. Table 4 summarizes the main results of each of the included studies.

3.3 Methodological quality

Methodological quality scores ranged from five to 10 (mean $=$ 6.83, SD $=$ 1.57) with a maximum score of 10 points. Of the included studies, only five (83.33%) were considered of high methodological quality ( $\geqslant$ 6 points). The most common bias recorded were blinding of patients and blinding of therapists. Only one study (16.66%) succeeded in blinding therapists and patients [42]. Table 5 lists the final score of the PEDro scale for each clinical study included in our systematic review/meta-analysis.

3.4 Risk of systematic error

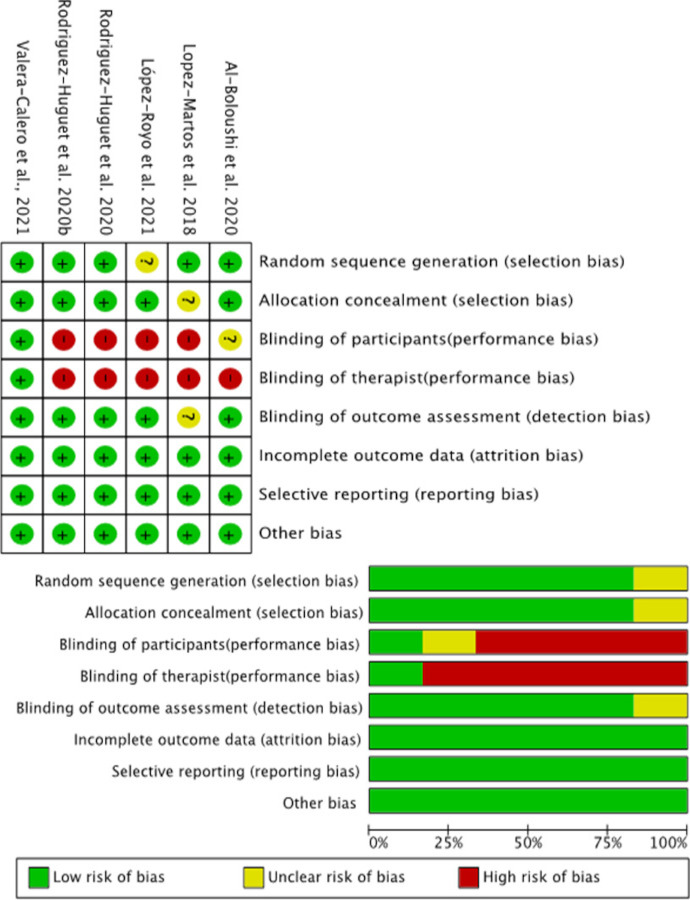

Figure 2.

Risk of systematic error charts.

Details of the assessment of the risk of bias of the included studies are shown in Fig. 2. In general, the risk of bias of the studies included in this meta-analysis was low, apart from blinding of patients and therapists. Only one clinical trial was able to blind patients and therapists [42] while the others had a significant risk of blinding patients and therapists.

3.5 Effects of PNE vs. DN on pain

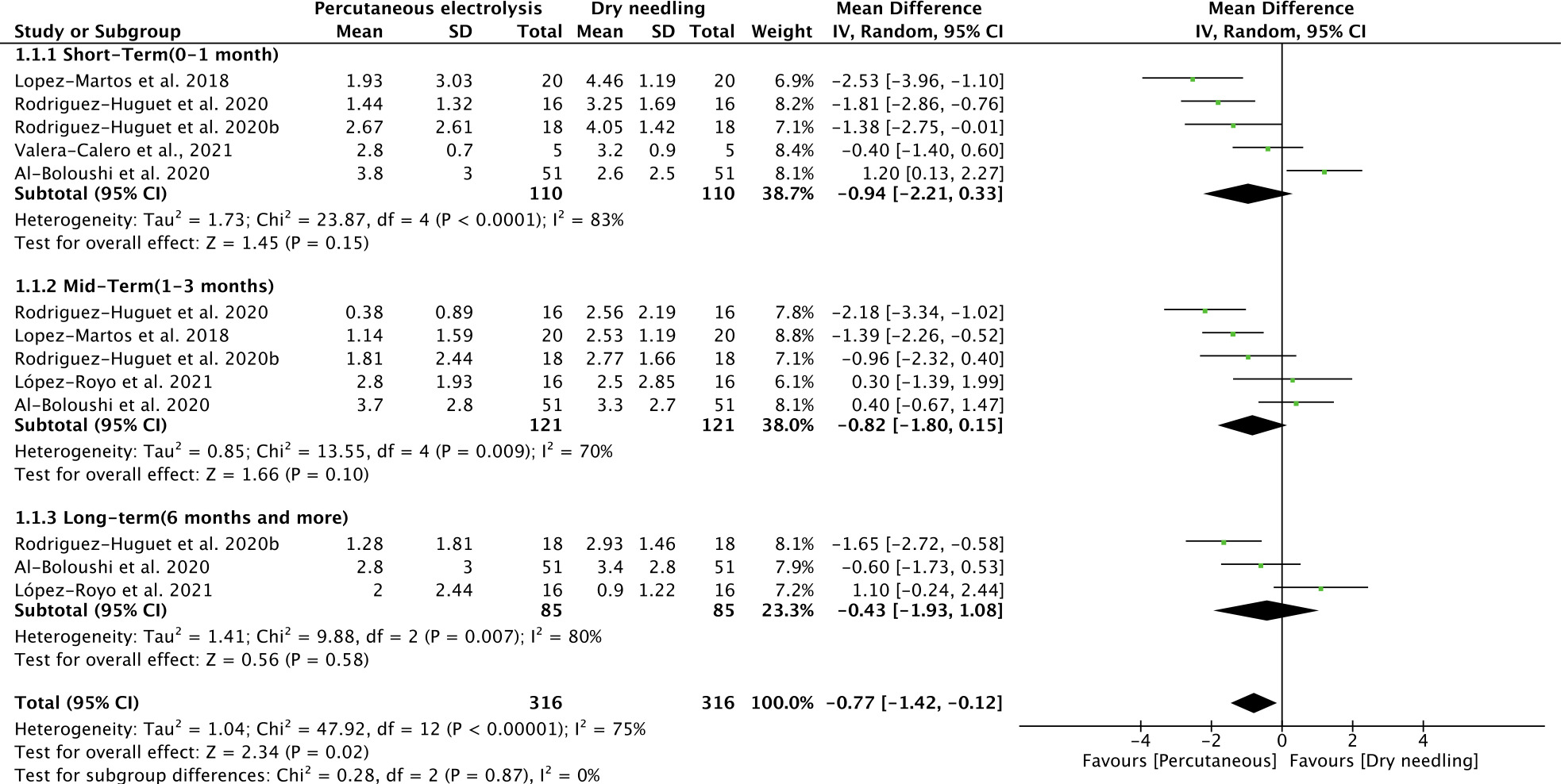

Figure 3.

Comparison (mean difference) of the effects of percutaneous electrolysis versus dry needling on pain intensity.

Table 6

GRADE evidence for percutaneous needle electrolysis and dry needling in pain intensity

Number of studies	Risk of bias ${}^{*}$	Inconsistency ${}^{{\dagger}}$	Indirectness of evidence ${}^{{\ddagger}}$	Imprecision ${}^{\S}$	Publication bias ${}^{\P}$	Quality of evidence	MD or SMD (95% CI)
Percutaneous electrolysis versus dry needling in pain intensity
Overall effects, ( $n=$ 642)	No	Serious (i ${}^{2}$ $=$ 74%)	No	No	No	Moderate	$-$ 0.74 [ $-$ 1.34, $-$ 0.14] $-$ 0.41 [ $-$ 0.75, $-$ 0.08]
Short $-$ term effects, ( $n=$ 230)	No	Serious (i ${}^{2}$ $=$ 80%)	No	No	No	Moderate	$-$ 0.83 [ $-$ 1.87, 0.22] $-$ 0.52 [ $-$ 1.19, 0.14]
Mid $-$ term effects, ( $n=$ 242)	No	Serious (i ${}^{2}$ $=$ 76%)	No	No	No	Moderate	$-$ 0.82 [ $-$ 1.80, 0.15] $-$ 0.45 [ $-$ 1.01, 0.11]
Long $-$ term effects, ( $n=$ 170)	No	Serious (i ${}^{2}$ $=$ 78%)	No	Serious	Yes	Low	$-$ 0.43 [ $-$ 1.93, 1.08] $-$ 0.21 [ $-$ 0.94, 0.52]

GRADE $=$ Grading of Recommendations Assessment, Development, and Evaluation; MD = mean difference; SMD $=$ standardized mean difference. ${}^{*}$ “No” $=$ most information is from results at low risk of bias; “Serious” $=$ crucial limitation for one criterion or some limitations for multiple criteria sufficient to lower confidence in the estimate of effect; “Very serious” $=$ crucial limitation for one or more criteria sufficient to substantially lower confidence in the estimate of effect. ${}^{{\dagger}}$ “Serious” $=$ I ${}^{2}$ $>$ 40%; “Very serious” $=$ I ${}^{2}$ $>$ 80%. ${}^{{\ddagger}}$ No indirectness of evidence was found in any study. ${}^{\S}$ Based on sample size. “Serious” $=$ $n<$ 200 subjects; “Very serious” $=$ $n<$ 200 and the estimated effect is little or absent. ${}^{\P}$ Based on funnel plots. No publication bias was found. Funnel plots are not shown because the number of trials was less than 10.

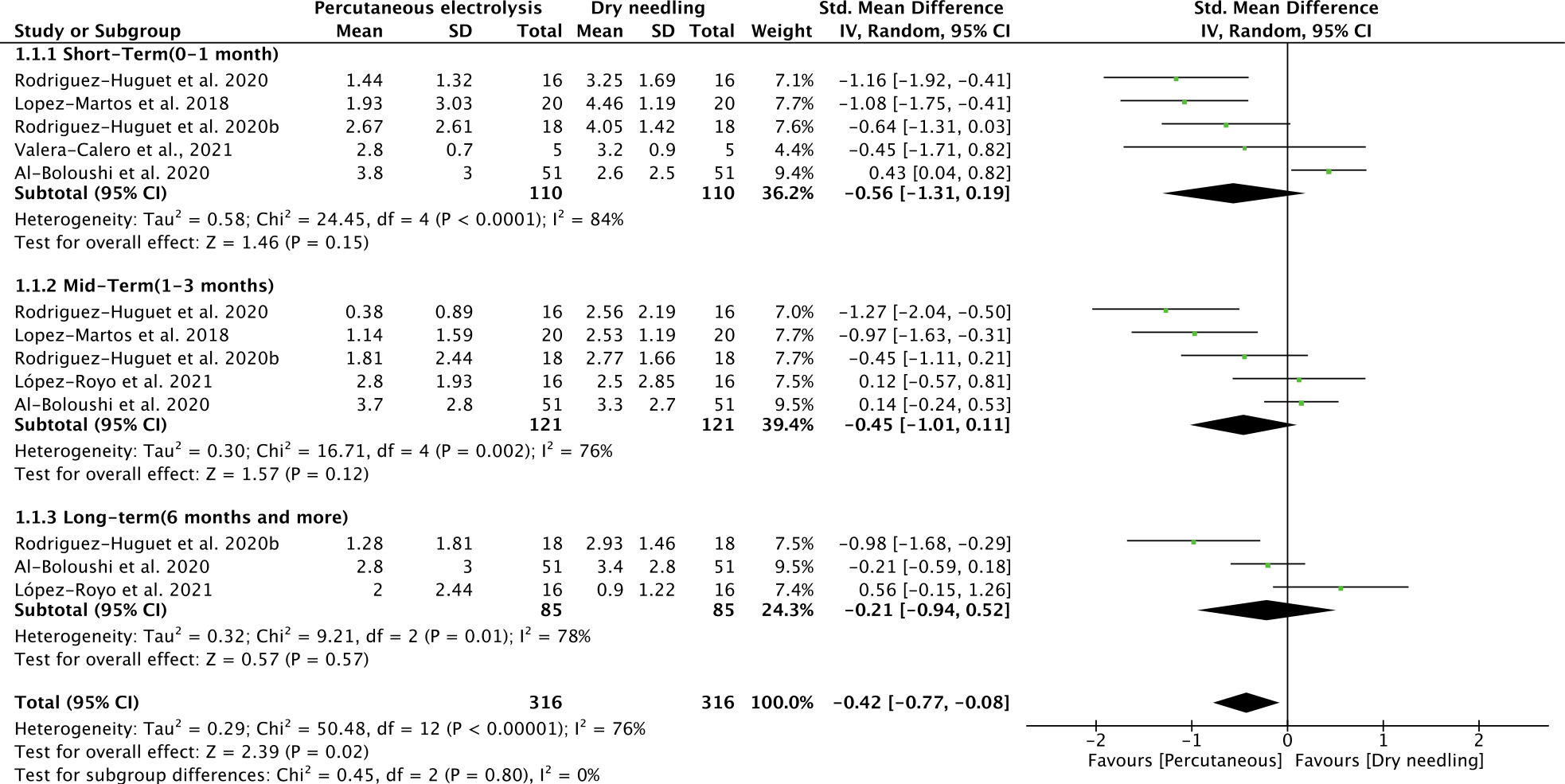

Figure 4.

Comparison (standardized mean difference) of the effects of percutaneous electrolysis versus dry needling on pain intensity.

The meta-analysis (Figs 3 and 4) showed that only the overall effect of PNE vs. DN for pain reduction was statistically significant ( $p=$ 0.02) (MD $=$ $-$ 0.77, 95% CI, $-$ 1.42 to $-$ 0.12) with a small effect size (SMD $=$ $-$ 0.42; 95% CI, $-$ 0.77 to $-$ 0.08; N $=$ 632; Z $=$ 2.39; $p=$ 0.02; Fig. 4) but with significant heterogeneity (I ${}^{2}$ $=$ 76%) between studies. During follow-up, the results were not statistically significant ( $p<$ 0.05): mean reduction in pain (MD) was $-$ 0.94 (95% CI, $-$ 2.21 to 0.33; N $=$ 220; Z $=$ 1.45; $p=$ 0.15) in the short term, $-$ 0.82 (95% CI, $-$ 1.8 to 0.15; N $=$ 242; Z $=$ 1.66; $p=$ 0.10) in the medium term, and $-$ 0.43 (95% CI, $-$ 1.93 to 1.08; N $=$ 170; Z $=$ 0.56; $p=$ 0.56) in the long term, but always with significant between-study heterogeneity (I ${}^{2}$ $>$ 70%).

3.6 Quality of evidence (GRADE)

Table 6 lists the details of the GRADE assessment. Severe heterogeneity, imprecision, and publication bias lowered the quality level of our studies to a moderate degree regarding the overall effect of PNE or DN on musculoskeletal pain.

4. Discussion

The aim of this meta-analysis was to compare the efficacy of PNE and DN in the treatment of musculoskeletal pain. A total of six studies involving 252 patients were included in the analysis. The results provided moderate-quality evidence that PNE has a slightly better effect on pain reduction than DN. Through the GRADE assessment, the resulting evidence was of moderate level due to heterogeneity (inconsistency) and inaccuracy (imprecision). It is important to mention that the results in the field of long-term intervention were of a low level as, in addition to the aforementioned, publication bias was serious, further reducing the level of quality.

This is the first meta-analysis to analyze and compare the effect of PNE vs. DN on musculoskeletal pain intensity. After a thorough search, the systematic reviews found to study the effect of PNE on musculoskeletal pain were only those of Gómez-Chiguano et al. [19] and Varela Rodríguez et al. [44], while as far as DN is concerned the reviews we found were those of Gattie et al. [11], Sánchez-Infante et al. [45], and Jackson et al. [46]. We were thus unable to directly compare the efficacy of the two techniques based on the findings of these reviews.

Percutaneous electrolysis is a new therapeutic intervention in the world of physical therapy, different from PENS and electroacupuncture, proposed for the treatment of pain. In contrast, DN has been used by physical therapists for more years and its effects have clearly been more studied [47]. We found that PNE was more effective in the short, medium, and long term in pain relief than DN. However, statistically significant pain relief effects were found only in the overall effect of PNE and not in the short, medium, and long term. Therefore, we cannot report the results as statistically significant.

Four clinical trials (83.33% of the included studies) in addition to PNE and DN used another intervention, such as eccentric exercises [22, 25, 41] stretching [23] and concentric exercises [42], while only one trial (16.66%) analyzed the effects of PNE and DN separately [42]. Most clinical trials (66.66%) reported differences in pain in favor of PNE compared to DN [22, 40, 41, 42], while only two studies reported positive results in favor of DN [23, 25]. Regarding the number of intervention groups, four out of six clinical studies [22, 23, 40, 41] had two groups (one intervention and one control), while in two [25, 42] there was another intervention group of placebo needle.

Regarding the clinical significance of the statistically significant changes in the overall effect, we observed a mean reduction in pain intensity of marginally less than one point at short-term, medium-term, and long-term follow-up, with a decrease in the overall mean score of $-$ 0.74 points (95% CI, $-$ 2.34 to $-$ 0.14). According to Salaffi et al. [48], a decrease of one point or a decrease of 15% from baseline scores represents the minimal clinically important difference (MCID) for the NPRS in patients with musculoskeletal pain. The pain reduction found with the application of PNE was below the defined MCID of one point, which shows us that although we had better results with PNE, these are not clinically significant for its application compared to DN.

In conclusion, the results of the systematic review showed that PNE, despite having statistically significant differences, was clinically insufficient.

The mechanism due to which PNE seems to have a greater analgesic effect than DN is not entirely clear to us as it is influenced by several factors. However, its analgesic effect is based on non-thermal action of the damaged area, which produces a controlled local inflammatory response activating phagocytosis and favouring the regeneration of soft tissues [49]. It is also possible that the analgesic mechanism of PNE works at the molecular level. More specifically, a study demonstrated that PNE can activate a large number of factors generated during an active inflammation thus facilitating proper phagocytosis and regeneration of damaged tissue [21]. Finally, another possible mechanism of action of PNE is at a neurophysiological level. Ronzio et al. [50] found that the pain threshold of the PNE group was significantly increased compared to the placebo group (needle insertion without electric current), thus suggesting that PNE may have a direct effect on pain regulation. Other studies that can justify these results are those of de la Cruz Torres et al. [51] as well as García Bermejo et al. [52, 53], who found parasympathetic activation of the autonomic nervous system during application of PNE.

The other possible scenario in which the positive results in favor of PNE are superimposed are the better experimental protocols used in the included studies, the adequacy of follow-up, the treatment area on the body, and the incorrect application of DN.

Regarding the safety of the application of PNE, it is worth noting that only three of the included studies reported whether there were adverse effects [23, 40, 42], with the only adverse effect being the presence of hematoma in one patient [40]. Therefore, it can be said that PNE appears to be a safe therapeutic intervention. However, this issue needs to be further explored in future research.

Therefore, it is necessary to further study different ways of treatment for musculoskeletal pain. Evidence suggests that one similar method using electrical current (PENS) is effective in treating musculoskeletal pain [54]. The PENS method shares the same logic as dry needling with the only difference being that the electrical current is pulsed. Beyond PENS, manual therapy and exercise appeared to be effective in managing musculoskeletal pain [55].

In conclusion, another possible subject for a future meta-analysis would be a comparison between percutaneous electrolysis, dry needling, and electroacupuncture (PENS) without combining them with any other therapeutic intervention to assess whether the positive results of transdermal electrolysis are due to its mechanisms and not to the electric current or to the other therapeutic intervention it was combined with. However, appropriate clinical trials are also required as there is no relevant clinical trial in the online literature to investigate and fully understand the three means of intervention.

4.1 Strengths and limitations

Even though this is the first meta-analysis to compare the effects of PNE with DN on pain, the results should always be considered under the umbrella of the potential benefits and limitations found therein. The strengths of this systematic review are the most informative question (PICO), comprehensive literature search performed in multiple scientific search engines, methodological soundness, proper data extraction, rigorous statistical analysis, and inclusion of high-quality randomized controlled trials in the quantitative analysis. Aside from the strengths, this systematic review contained several limitations that may have affected our results.

Firstly, the number of randomized controlled trials examining the effects of PNE on musculoskeletal pain was relatively small, with one clinical trial being pilot and with a small number of patients ( $n=$ 15). Furthermore, another important limitation is the large heterogeneity between studies, which may be justified by the fact that the clinical trials evaluated the application of PNE and DN in patients with different characteristics and with different doses (i.e., duration, sessions, current intensity). A variety of treatment doses were reported in the review with PNE treatment intensity reported differently in both milliamperes (mA) and microamperes ( $\mu$ A). The most consistent treatment dose reported was 1.5–3 mA for three to five seconds [23, 25, 40] and 350 $\mu$ A for 1.2 minutes [22, 41]. It is also worth noting that heterogeneity was one of the reasons we chose to use the random effects model, thus improving the internal validity of our results. Another important limitation that should be mentioned is the fact that both PNE and DN were mostly (four studies) examined in combination with another complementary treatment, which may have influenced the results of the interventions and the effects may not be entirely due to PNE or DN. In addition, another limitation concerns the area of application of the treatments as in each clinical trial the area of musculoskeletal pain was different. Therefore, the results should be considered with further caution.

4.2 Clinical recommendations

This meta-analysis found a fair amount of evidence to support a superior effect of PNE over DN on general musculoskeletal pain. However, this should be considered with caution as we do not know whether PNE could be beneficial in certain subgroups of patients with musculoskeletal pain as the painful areas included in this meta-analysis were heterogeneous. All that can be stated with certainty is that in cases where the musculoskeletal pain was due to tendon involvement, patients could benefit from PNE, as this intervention was originally developed for the management of chronic tendinopathy [56]. However, in this meta-analysis most of the clinical trials included musculoskeletal pain conditions where the tendon was partially (lateral epicondylalgia) or completely (plantar pain, patellar pain syndrome, patellar tendinopathy, supraspinatus tendinopathy) involved in the symptoms.

One of the most important issues to consider for the correct clinical application of PNE is the appropriate parameters (i.e., treatment duration, current intensity, number of sessions). For this reason, further studies should be conducted to draw safe conclusions. Because of the limited data we have, we cannot determine which treatment parameters are most effective for the application of PNE in all forms of pain. Only one study [42] compared two different intensities of electric current and concluded that at both intensities the results were equally beneficial. Future studies should investigate which are the most appropriate treatment parameters of transdermal electrolysis for the management of different musculoskeletal pain conditions.

5. Conclusions

Based on the GRADE approach and low- to mode-rate-quality evidence from studies involving a variety of musculoskeletal conditions, PNE was shown to have a marginally more positive effect on pain reduction than DN. However, our results were not clinically and statistically significant so we cannot recommend the application of PNE in place of DN. More high-quality studies comparing the two interventions are needed to draw firm conclusions about which of the two is the gold standard in the management of musculoskeletal pain.

Ethical approval

Not applicable.

Funding

The authors report no funding.

Informed consent

Not applicable.

Author contributions

Conceptualization, methodology, and writing (original draft preparation, review and editing): C.F., P.I., D.L., K.K., G.K., S.R.N., A.K., I.P.C., P.C., T.A. Formal analysis and approve final manuscript: T.A., I.P.C., G.K., all authors have read and agreed to the published version of the manuscript.

Footnotes

Acknowledgments

The authors have no acknowledgments.

Conflict of interest

The authors declare that they have no conflict of interest.
