A Role for HAPLN1 During Phenotypic Modulation of Human Lung Fibroblasts In Vitro

Abstract

Hyaluronan and proteoglycan link protein 1 (HAPLN1) stabilizes interactions between two important extracellular matrix (ECM) macromolecules, versican and hyaluronan, which facilitate proliferation of fibroblasts and their conversion to myofibroblasts. However, the role of HAPLN1 in these events has not been studied. Using immunocytochemistry, cellular and ECM locations of HAPLN1 were evaluated in cultured human lung fibroblasts during proliferation and conversion to myofibroblasts. HAPLN1 localized to pericellular matrices, associating with both versican and hyaluronan in the ECM and on the cell surface. Nuclear and total HAPLN1 immunostaining increased after myofibroblast induction. Confocal microscopy showed HAPLN1 predominant in the ECM under cells while versican predominated above cells. Versican and HAPLN1 were also juxtaposed in columnar inclusions in the cytoplasm and nucleus. Nuclear HAPLN1 staining in interphase cells redistributed to the cytosol during mitosis. In the absence of TGF-β1, addition of exogenous bovine HAPLN1 (together with aggrecan G1) facilitated myofibroblast formation, as seen by significant upregulation of α-smooth muscle actin (SMA) staining, while adding full-length bovine versican had no effect. Increased compaction of hyaluronan-rich ECM suggests that HAPLN1 plus G1 addition affects hyaluronan networks and myofibroblast formation. These observations demonstrate changes in both extracellular and intracellular localization of HAPLN1 during fibroblast proliferation and myofibroblast conversion suggesting a possible role in fibrotic remodeling:

Introduction

Hyaluronan and proteoglycan link protein 1 (HAPLN1), is a hyaluronan-binding protein (hyaladherin) that was originally characterized in cartilage proteoglycan preparations, and was shown to stabilize the interaction of aggrecan and hyaluronan in large multi-molecular aggregates that form the chondrocyte pericellular matrix.^1,2 HAPLN1 also stabilizes the interaction of other aggregating chondroitin sulfate (CS) proteoglycans, such as versican and neurocan with hyaluronan.^3–5 HAPLN1 shares about 95% sequence homology with aggrecan and versican G1 domains. These molecules exhibit tight binding to hyaluronan with Kd in the range of 10^–8 M and occupy about 6–7 disaccharides, ⁶ but, unlike the proteoglycan monomers, their binding to hyaluronan is not decreased at pH 5. ⁷ Link protein deletion in transgenic animals resulted in chondrodyplasia and perinatal lethality, while overexpression had no discernable phenotype. ⁸ HAPLN1 also stabilizes the perineuronal nets (PNNs) in neurons as evidenced by HAPLN1 deletion in the brain leading to attenuated PNNs. ⁹ HAPLN1 was recently shown to impact collagen organization in dermal fibroblasts and immune cell infiltration, ¹⁰ promoting tumor metastasis. ¹¹ Such observations suggest a role for HAPLN1 in events leading to fibrosis. Modulation of myofibroblast formation is a potential target for treating lung fibrosis. Hyaluronan and its binding partners have been shown to be important and play complex roles in the fibroblast/myofibroblast transition.^12–14 Lung fibrosis is primarily regulated by TGF-β1, which is known to increase hyaluronan, versican, and other extracellular matrix (ECM) molecules such as collagen, fibronectin, and tenascin, in addition to the characteristic increased expression of α-smooth muscle actin (α-SMA),^15–18 but the role of HAPLN1 in lung fibroblast-to-myofibroblast conversion has not been explored.

Our earlier studies have shown also that hyaluronan- and versican-dependent pericellular matrix formation was required for proliferation and migration of smooth muscle cells (SMCs) ¹⁹ and that intracellular hyaluronan was associated with proliferation of fibroblasts and SMCs.^20,21 In addition, stimulation of proliferation with platelet-derived growth factor (PDGF) also increased production of both versican and HAPLN1, and the amount of link-stabilized aggregates in the ECM of SMCs, ²² but it was unclear whether HAPLN1 interacted with both of these two components not only outside of cells, but also inside cells as well. The unusual intracellular localization of hyaluronan during cellular proliferation led us to wonder whether other hyaladherins such as HAPLN1 are present inside cells and associate with the proliferative cell phenotype.

This study used immunocytochemistry to probe the location of HAPLN1 in cultures of lung fibroblasts and TGF-β1-induced myofibroblasts. HAPLN1 localized with hyaluronan and versican in the pericellular matrix and was enriched underneath cells in adhesive structures. HAPLN1 was also enriched with versican in the nuclei of myofibroblasts and interphase cells, and transitioned to the cytosol during mitosis. We also found that a purified hyaluronan binding preparation containing HAPLN1 and aggrecan G1, dramatically altered ECM compaction, and potently stimulates myofibroblast formation, while full-length versican had no effect. Collectively, these observations suggest that both intracellular and ECM-associated HAPLN1 and its binding partners participate in fibroblast proliferation and transformation into myofibroblasts.

Methods

Antibodies and Reagents

Monoclonal mouse Anti-HAPLN1 (Crtl1), clone 8-A-4 (MilliporeSigma, Burlington, MA; cat # MABT85, lot # 3071955) was used at 1:200. Monoclonal antibody 8A5, also specific for human link protein, was the generous gift of Dr. Duncan Hiscock (University of Wales, Cardiff) and was used at 1/500. Monoclonal mouse anti-human SMA, clone 1A4, (Dako, Carpinteria, CA; Cat # M0851, lot # 20011631) was used at 1:200. Polyclonal rabbit anti-Vc, anti-human versican, a kind gift from Dr. Richard LeBaron ²³ was used at 1:2000. Rabbit anti-alpha tubulin antibody was purchased from Abcam (Cambridge, UK; # ab4074) and mouse anti-TGF-β1,2,3 pan-specific antibody was purchased from R&D Systems (Minneapolis, MN; MAB1835). Non-biotinylated hyaluronan binding protein (HABP) and biotinylated HABP (b-HABP) were prepared from bovine nasal septum cartilage by a hyaluronan affinity column as previously described. ²⁴

Assessment of the HABP by SDS PAGE revealed a single prominent protein band at ~45 kDa and small amounts of CS-containing fragments of aggrecan (data not shown) and the preparation was endotoxin-free (<1.0 EU/μg) as assessed using a ToxinSensorTM LAL Endotoxin Assay Kit (GenScript Corp., Piscataway, NJ). Versican was purified from bovine aorta by a combination of 4 M guanidinium HCL extraction, ion exchange, and size exclusion chromatography, as described previously.^25,26 The versican preparation was free of contaminants as assessed by SDS-PAGE and Coomassie blue and Alcian blue staining, and was also endotoxin-free (<1.0 EU/μg) as assessed using the ToxinSensorTM LAL Endotoxin Assay Kit. The versican specifically bound to b-HABP on ligand blots and to versican-specific antibodies on western blots and comprised the V0 and V1 isoforms (data not shown).

Cell Culture

Adult normal human lung fibroblasts (HLFs) were obtained from Lonza Biosciences (Bend, OR). A second isolate of HLFs was a generous gift from Professor Ganesh Raghu, Division of Pulmonary and Critical Care Medicine, University of Washington, Seattle. The cells were isolated as described previously in accordance with approval from the institution’s human subjects review committee. ²⁷ The HLFs were maintained in Dulbecco’s Modified Eagle Medium (DMEM) high-glucose medium supplemented with 10% fetal bovine serum (FBS; HyClone, Logan, UT), 1 mM sodium pyruvate, 0.1 mM non-essential amino acids, 0.43 mg/ml GlutMAX-1, and penicillin-streptomycin (penicillin G sodium, 100 U/ml, and streptomycin sulfate, 0.10 mg/ml; Invitrogen Life Technologies, Carlsbad, CA) at 37C in 5% CO₂. Cells were passaged with trypsin-EDTA (0.05% trypsin and 0.53 mM tetrasodium EDTA) and were used for experiments between passages 8 and 15.

Myofibroblast Induction and HABP and Versican Treatment

Cells were seeded on 22 mm glass coverslips (Corning) at 3.5 × 10⁵/well in 6-well plates in 10% FBS in DMEM. After 24 hr, cells were growth arrested in 0.1% FBS/DMEM for 48 hr, at which point the cells were about 80%–90% confluent. Cells were stimulated with TGF-β1 (10 ng/ml, R&D Systems) for 24 hr. In other experiments, HLF were plated more sparsely at 1.5 x 10⁵/well and a non-biotinylated preparation of HABP containing HAPLN1 or purified full-length bovine versican was added to cells at 10 μg/ml, either 1 hr after plating in DMEM containing 10% FBS or after 4 days of growth in 10% FBS. Cells were processed for immunocytochemistry after 4 days.

Immunocytochemistry

Cells on coverslips were fixed for 10 min at 22C in 10% formalin. Where appropriate (α-SMA, HAPLN1 staining), cells were also permeabilized in 0.5% Triton X-100 in PBS for 10 min. Following rinsing in PBS, cells were stained for hyaluronan using b-HABP (4 μg/ml) or appropriate primary antibody followed by rinsing and streptavidin AF-388 or AF-546 anti-mouse and AF-388 anti-rabbit antibodies (all from Molecular Probes, Eugene, OR, now part of ThermoFisher) (1:500) in PBS containing 1% bovine serum albumin as previously described. ²⁰ For HAPLN1 and hyaluronan co-staining, cells were first incubated with anti-HAPLN1 antibody followed by the b-HABP. Nuclei were stained during mounting with 4′,6-diamidino-2-phenylindole (DAPI) at 1 μg/ml in Fluorogel mounting medium (Electron Microscopy Sciences, Hatfield, PA). As controls, cells were incubated with normal IgG or predigested with hyaluronan-specific Streptomyces hyaluronidase, which abolished staining with the b-HABP.

Image Acquisition and Analysis

Cells were examined using a Leica DMIRB microscope under epifluorescence optics using a 63 × 0.70 numerical aperture objective, and images were acquired using a Spot cooled-charge-coupled device (CCD) camera and imaging program.

Digital images of immunofluorescence (IF)-labeled specimens were also obtained with a Leica TCS-SP5 II confocal microscope (Leica Microsystems, Wetzlar, Germany). A computer module containing Leica Application Suite, Advanced Fluorescence v. 3.3.0.10134.1 imaging software was used to render images in 3-dimensions.

α-SMA staining was quantitated in NIH Image J using thresholded fluorescent images at 20x magnification. In the same field, DAPI-stained nuclei were counted, and staining expressed as α-SMA-positive pixels per cell (n equals at least 10 fields per condition, approximately 100–200 cells per field). Nuclear HAPLN1 staining was quantitated using Image J by outlining individual nuclei as a region of interest and expressing pixel density per nucleus (n=100 cells per condition). The density of stained pixels using b-HABP was used as a measure of hyaluronan in the ECM and was assessed using Image J in untreated cells, cells treated with unlabeled HABP, or with full-length bovine versican. Regions of interest were defined specifically and only in the immediate pericellular matrix in thresholded images, and hyaluronan staining intensity was expressed as pixels per area (n=100 cells per condition). Data are representative of at least three individual experiments.

Statistical Analysis

Data were analyzed by one-way ANOVA with a Tukey’s multiple comparison test using GraphPad Prism version 7.00 for Windows, GraphPad Software, San Diego, CA, www.graphpad.com. p values less than 0.05 were considered statistically significant.

Results

HAPLN1 Localization

HAPLN1 was detected in the pericellular matrix and in cytoplasmic and nuclear locations of the HLFs (Fig. 1A and B). Weak to no staining was seen with control mouse IgG (Fig. 1C). Strong staining for HAPLN1 was seen in concentrated deposits located near a nucleus or under lamellipodia. Interestingly, with formalin fixation alone (no distinct permeabilization step) there was a greater proportion of positively stained nuclei in cells arrested in low serum, compared to cells growing in high serum, where most of the staining appeared to be in the pericellular matrix. A nearly identical nuclear and cytoplasmic staining pattern was seen with another monoclonal antibody to HAPLN1, 8A5, further supporting that the staining is specific (data not shown). Quantitation of the proportion of positive nuclei showed that 35% to 40% of the nuclei in quiescent cells were positive for HAPLN1, whereas less fewer than 10% were positive in actively cycling cells (Fig. 1D). These results suggest that changes in HAPLN1 location are associated with cell proliferation.

Figure 1.

HAPLN1 staining (red) in HLFs under (A) quiescent low serum conditions (0.1% FBS) or (B) growing in 10% FBS. The cells were not specifically permeabilized. (C), percentage of positively-stained nuclei in each condition. N=10 fields per condition. Bar equals 25 µm. Abbreviations: FBS, fetal bovine serum; HAPLN1, hyaluronan and proteoglycan link protein 1.

HLFs induced to become myofibroblasts by TGF-β1 treatment had slightly higher total HAPLN1 staining (p<0.05) compared to controls in non-permeabilized samples (Fig. 2A to C). When cells were permeabilized before staining, essentially all nuclei were positive in both conditions, except for mitotic cells, and there was significantly increased nuclear staining intensity in TGF-β1-induced myofibroblast nuclei compared to controls (p<0.001) (Fig. 2D to F). This suggests that myofibroblast formation is accompanied by increased amounts of HAPLN1 and its association with nuclei.

Figure 2.

(A and B) Non-permeabilized cells, (C), total HAPLN1 staining intensity expressed as pixels per cell. N=10 fields per condition. In (D and E), HLFs were permeabilized before staining. F, nuclear staining intensity expressed as pixels per nucleus. N=100 nuclei per condition. HAPLN1 staining in quiescent control cells (A and D) and TGF-β1-induced myofibroblasts (B and E). Bar equals 25 µm. Abbreviation: HAPLN1, hyaluronan and proteoglycan link protein 1; TGF-β1, tumor growth factor β1.

In addition to the nuclear staining, co-staining revealed a close association between HAPLN1 and hyaluronan (using b-HABP) in the pericellular matrix around cells in both low- and high-serum conditions (Fig. 3A and B). Staining required sequential incubation, first with the HAPLN1 antibody, then with the b-HABP, so the HAPLN1 in the HABP preparation was not recognized by the monoclonal antibody. Under these conditions, there were very few long coalesced cables of hyaluronan. As seen with digital magnification, the signal for HAPLN1 in the ECM was generally present in two sizes: larger globular deposits ~ 45 nm in diameter (Fig. 3C and D, arrowheads) and also smaller puncta ~ 30 nm, closely aligned along individual strands of hyaluronan (Fig. 3D). These observations are similar to those reported for recombinant versican G1. ²⁸ The larger diameter globules suggest that some aggregation of HAPLN1 or binding to globular forms of hyaluronan may occur. There was a consistent spacing ~120 nm between the smallest HAPLN1 signals along the hyaluronan strands, also consistent with the previous report. ²⁸ There is clearly ample space between existing HAPLN1 molecules along the hyaluronan strands to allow the HABP access. In addition to nuclear staining, there was also cytoplasmic staining for HAPLN1, usually in the perinuclear region and also on broad lamellipodia (Fig. 3C, arrow). Thus, HAPLN1 resides in the ECM, within the cytoplasm, and inside the nucleus.

Figure 3.

HAPLN1 (red) and hyaluronan (green) in HLFs in (A, C), 0.1% FBS or B, D in 10% FBS. HAPLN1 partially localizes to hyaluronan in the pericellular matrix. Boxed areas in (A and B) are enlarged in (C and D). Arrowheads indicate globular deposits of HAPLN1 on hyaluronan in the pericellular matrix. Arrow in C points to HAPLN1 in a broad lamellipodium. Nuclei were stained with DAPI. Bar equals 25 µm. Abbreviations: DAPI, 4′,6-diamidino-2-phenylindole; FBS, fetal bovine serum; HAPLN1, hyaluronan and proteoglycan link protein 1; HLF, human lung fibroblasts.

Mitotic cells stained intensely for HAPLN1 in a fashion similar to that previously reported for intracellular hyaluronan. ¹⁹ Fig. 4 shows co-staining for HAPLN1 and tubulin in cells growing in medium containing 10% FBS. HAPLN1 was present in the nucleus, which, as noted above, was most pronounced in interphase cells with clearly defined nucleoli (Fig. 4A). During prophase and nuclear membrane breakdown, the nuclear signal diminished and shifted into the cytoplasm (Fig. 4B and C) and surrounded the chromosomes at metaphase and anaphase (Fig. 4D and E). After telophase, HAPLN1 deposits were observed around the nucleus again (Fig. 4F).

Figure 4.

HAPLN1 redistributes from nucleus to cytosol during mitosis. HAPLN1 (red) and alpha tubulin (green). (A), interphase cells have strong nuclear staining. (B), in prophase, mitotic spindles begin forming and nuclear staining is diminished. In prometaphase through anaphase HAPLN1 is abundant in the cytosol (C, D) and in the midbody during telophase (E, F). Nuclei were stained with DAPI. Bar equals approximately 10 µm. Abbreviations: DAPI, 4′,6-diamidino-2-phenylindole; HAPLN1, hyaluronan and proteoglycan link protein 1.

HAPLN1 and versican colocalized with alternating red and green signals, closely juxtaposed along putative individual hyaluronan strands in the pericelluar matrix and at the cell surface (Fig. 5). There was also pronounced colocalization of link protein and versican in deposits at membrane adhesive sites, often located near the nucleus of a cell. In many cases, these deposits were oval shaped like the nucleus, and gave the impression that the cell and nucleus had moved, leaving the deposit behind (see also Fig. 8, below). This is suggestive for a role in stabilizing nuclear-ECM connections. In the pericellular matrix, there was a greater abundance of signal for versican compared to HAPLN1, suggesting that not every molecule of versican is associated with HAPLN1.

Figure 5.

HAPLN1 colocalizes with versican along hyaluronan strands and in adhesive structures. HLFs growing in 10% FBS were stained for HAPLN1 (red) and versican (green). (A, B, and D) larger arrows indicate colocalization in deposits, some near and shaped like the nucleus. (C) Small arrows indicate the close juxtaposition of signals interspersed along a putative strand of hyaluronan. Nuclei were stained with DAPI. Bars equal 25 µm in (A, B, and D), and 1 µm in (C). Abbreviations: DAPI, 4′,6-diamidino-2-phenylindole; FBS, fetal bovine serum; HAPLN1, hyaluronan and proteoglycan link protein 1; HLF, human lung fibroblasts.

Confocal microscopy and 3D reconstructions of stacked images with digital processing confirmed that both versican and HAPLN1 are present in the pericellular matrix, cytoplasm, and within the nucleus (Fig. 6). In an en face optical slice, midway through the nucleus (Fig. 6A), signal for both HAPLN1 and versican can be seen in the plane of the nucleus and in cytoplasmic vesicles. In a section in the transverse plane (Fig. 6B and C), HAPLN1 and versican were closely juxtaposed in columnar vesicles in the perinuclear cytoplasm, with some vesicles appearing to extend through the entire thickness of the cell. Fig. 6D shows a maximum projection image of the lateral view to include pericellular matrix from the entire stack of images, but with the cell removed. This revealed that there was a greater abundance of versican in the ECM above the cells relative to HAPLN1, and a higher proportion of HAPLN1 underneath the cells.

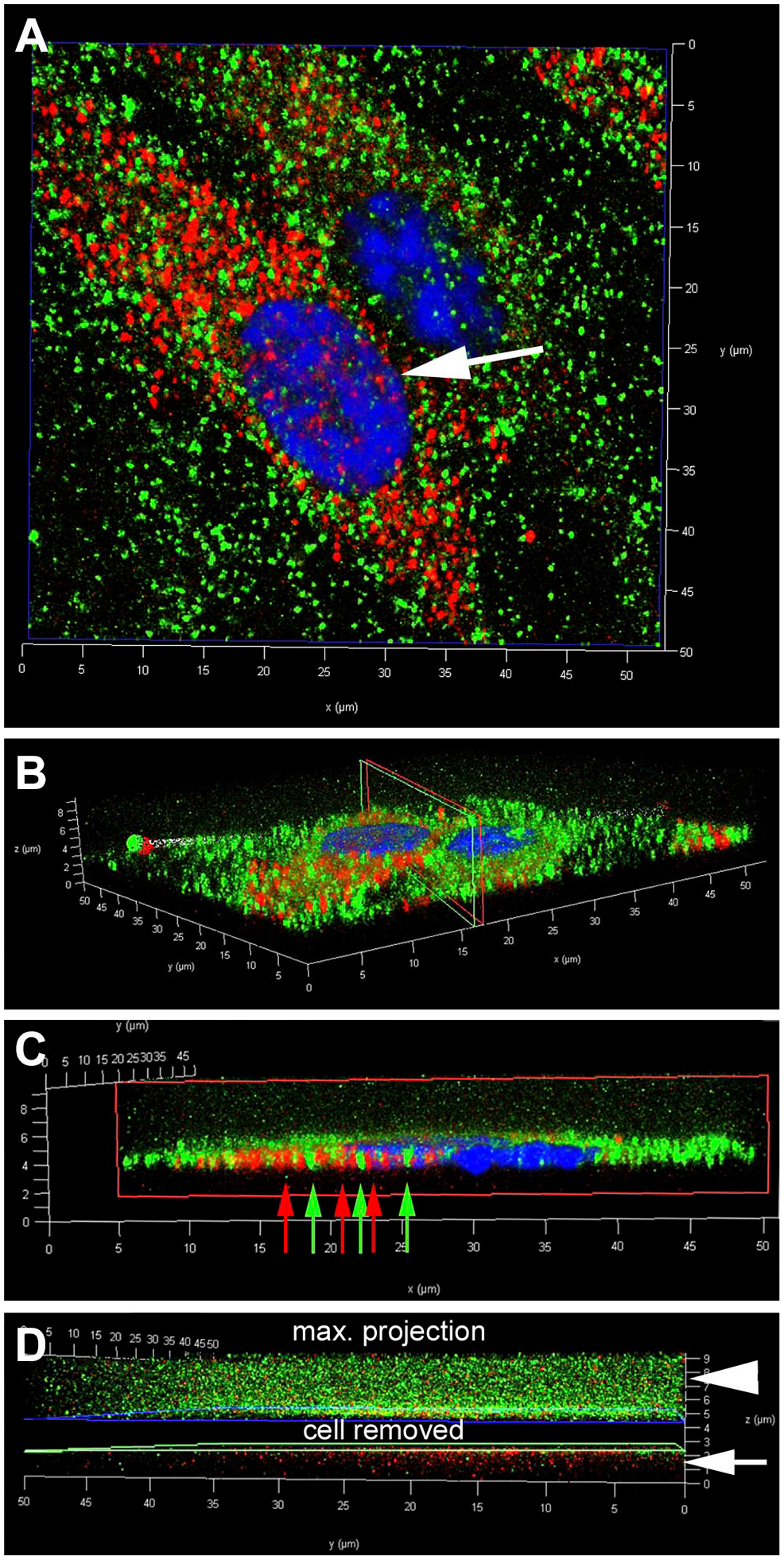

Figure 6.

Versican and HAPLN1 distribution. Confocal microscopy and 3D image analysis of HLFs in 10% FBS stained for HAPLN1 (red) and versican (green). (A) en face view in an optical section midway through the plane of the nucleus, showing HAPLN1 and versican are present in the nucleus (arrow). (B) oblique view indicating the plane of the image stack for the horizontal slice shown in (C). Arrows indicate the closely juxtaposed cytoplasmic deposits that are positive for versican and HAPLN1. (D) a maximum side view projection of the entire field with the cell removed to show apical and basal pericellular matrix. Note how versican dominates in the matrix above the cells (arrowhead), while HAPLN1 has relatively more signal underneath the cells (arrow). Nuclei were stained with DAPI. Scale is indicated. Abbreviations: DAPI, 4′,6-diamidino-2-phenylindole; FBS, fetal bovine serum; HAPLN1, hyaluronan and proteoglycan link protein 1; HLF, human lung fibroblasts.

Confocal microscopy of mitotic cells in late telophase is shown in Fig. 7, and indicated that versican and HAPLN1 were both abundant in cytoplasmic vesicles, and were present within the connecting mid-body in the area of the cleavage furrow during telophase (Fig. 7).

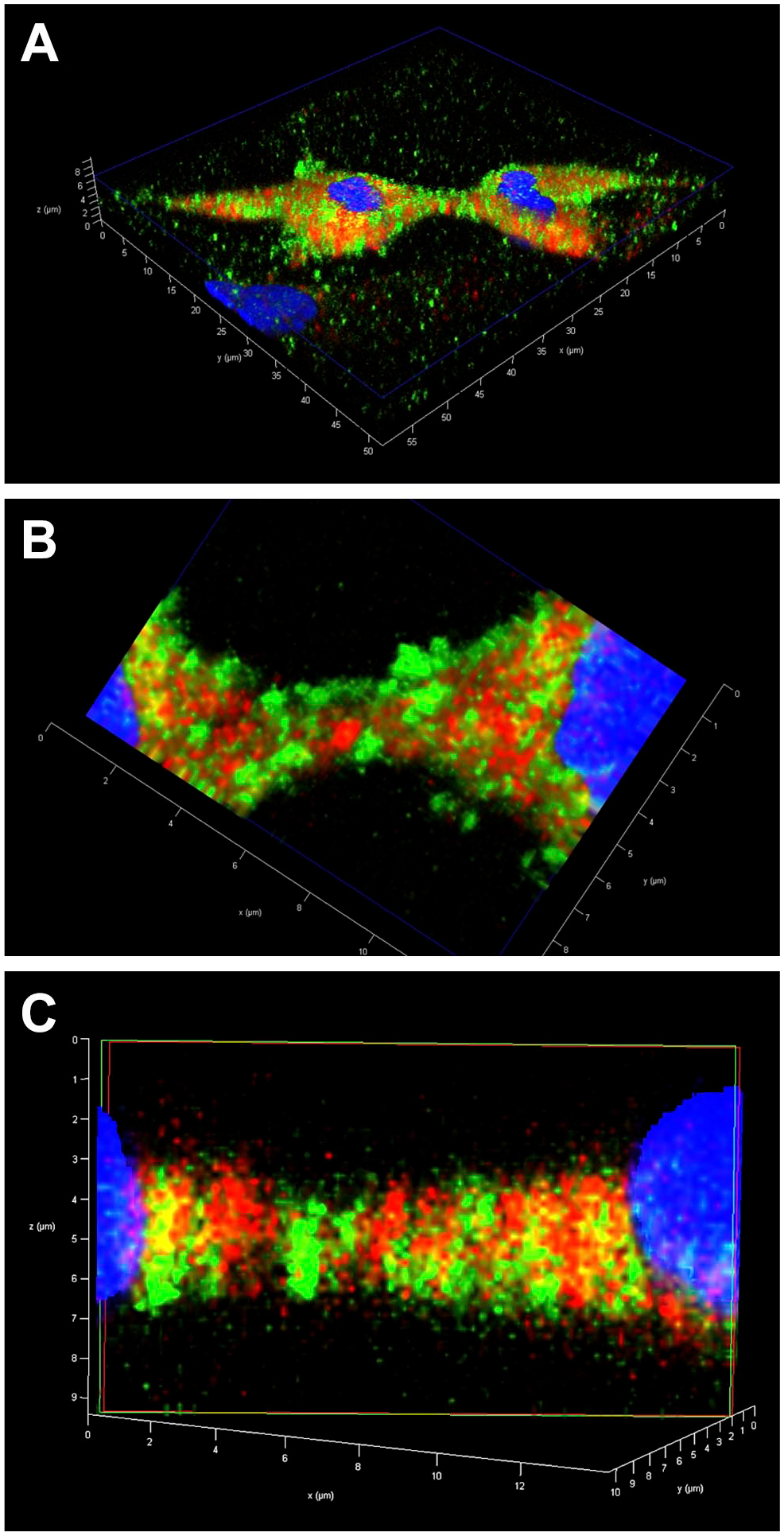

Figure 7.

HAPLN1 (red) and versican (green) in mitotic cells. (A) oblique view of a confocal image stack of mitotic cells in telophase. (B) top view of the connecting midbody. (C) side view of the midbody. Nuclei were stained with DAPI. Scale is indicated. Abbreviations: DAPI, 4′,6-diamidino-2-phenylindole; HAPLN1, hyaluronan and proteoglycan link protein 1.

HAPLN1—Cytoskeleton Relationship

We previously reported that hyaluronan and CD44 played an adhesive role, primarily in association with the cortical actin network between stress fibers in fibroblasts and myofibroblasts. ¹⁸ In the present study, the relationship of HAPLN1 to the actin cytoskeleton was examined using phalloidin and revealed no or only occasional colocalization with f-actin stress fibers (Fig. 8A). However, remnants of f-actin often were seen within heavy plaque-like deposits of HAPLN1 left on the substrate (Fig. 8B). Fig. 8B also shows an example of a deposit of HAPLN1 that is similar in size and shape to the nearby nucleus. Punctuate deposits of HAPLN1 were usually seen underneath lamellipodia (Fig. 8C). Fig. 8D shows HAPLN1 colocalizing with connecting nodes under a mature actin network in a broad lamellipodium of a quiescent fibroblast, suggesting it may play a role in adhesion in these cells. Co-staining with tubulin revealed no particular colocalization or juxtapositional relationship of HAPLN1 with microtubules in the cytoplasm (see below).

Figure 8.

HLFs stained for HAPLN1 (red) and f-actin (green). (A to C), HLFs growing in 10% FBS. The arrows point to areas of partial colocalization. The arrowheads in (B) indicate an oval-shaped deposit of HAPLN1 that resembles the nucleus in the lower left of the image. The arrowhead in (C) points to a few HAPLN1 signals under a lamellipodium. (D) TGF-β1-induced myofibroblast. Note the co-localization of HAPLN1 under the connecting nodes of a mature actin network. Nuclei were stained with DAPI. Bars equal 25 µm. Abbreviations: DAPI, 4′,6-diamidino-2-phenylindole; FBS, fetal bovine serum; HAPLN1, hyaluronan and proteoglycan link protein 1; HLF, human lung fibroblasts; TGF-β1, tumor growth factor β1.

Addition of Exogenous HABP Induces Myofibroblast Formation

We previously found that culturing dermal fibroblasts with recombinant versican G1 domain resulted in reorganization of the hyaluronan into cables. ²⁸ Given the role of HAPLN1 in stabilizing the ECM and protecting hyaluronan from degradation, we wondered if it would affect pericellular matrix organization when added exogenously. We also wanted to know if cells would take up exogenous HAPLN1 into their cytoplasm and nucleus.

A convenient source of exogenous HAPLN1 is the hyaluronan binding preparation HABP produced from bovine cartilage and used to localize hyaluronan. The preparation contains HAPLN1, together with the trypsin-resistant G1 domain fragment from aggrecan in approximately equal ratios. We used a non-biotinylated preparation to add to cells, and then the biotinylated preparation to look at subsequent effects on hyaluronan organization in the matrix. The monoclonal antibody to HAPLN1 was used to localize where the added HAPLN1 in the mixture was bound.

In HLFs incubated with HABP for 48 hr, cytoplasmic and nuclear staining for HAPLN1 was qualitatively similar to control cells and there did not appear to be any uptake of additional HAPLN1 by the cells, either into the cytoplasm or the nucleus, and no difference was seen cells in 0.1% FBS vs. 10% FBS (data not shown). In addition, the intracellular HAPLN1 showed no apparent relationship to microtubules (Fig. 9). Instead the added HAPLN1 was deposited on the substrate and gathered into clumps in the ECM and cell surface (Fig. 9A). However, by phase contrast microscopy, pronounced stress fibers were observed in the cells that were incubated with HABP (Fig. 9B and D, arrowheads).

Figure 9.

Exogenous HAPLN1 is reorganized and does not colocalize with tubulin. HABP was added to HLFs in the presence of 10% FBS and HAPLN1 (red) and alpha tubulin (green) detected by immunostaining after 4 days (A and C). No increased HAPLN1 signal was seen inside cells, suggesting not much is taken up by the cells. Instead, the HAPLN1 was gathered into clumps in the pericellular matrix (arrows). (B and D), phase contrast images of the same fields (merged with the link protein image). Note the large stress fibers inside the cells by phase contrast (arrowheads). Nuclei were stained with DAPI. Bars equal 25 µm. Abbreviations: DAPI, 4′,6-diamidino-2-phenylindole; FBS, fetal bovine serum; HABP, hyaluronan binding protein; HAPLN1, hyaluronan and proteoglycan link protein 1; HLF, human lung fibroblasts.

This prompted subsequent staining for α-SMA (Fig. 10), which revealed that HABP treatment induced myofibroblast formation, whereas treatment with purified full-length versican had no effect. Quantitation of staining intensity, normalized as pixels per cell, indicated a dramatic and significant upregulation of α-SMA in the cells treated with the HABP mixture of HAPLN1 and aggrecan G1 for 4 days. Similar results were seen in cells that had been plated for 4 days before addition of HABP (data not shown), although there tended to be higher α-SMA staining in the control cells when they had been cultured for longer periods.

Figure 10.

Alpha-SMA is increased by HABP treatment. (A), HLFs in 10% FBS alone; (B), cells treated with bovine HABP (HAPLN1 and G1), and (C), full length bovine versican were immunostained for α-SMA (green). (D), shows quantitation of α-SMA staining intensity per cell. N=10 fields per condition. Bars equal 50 µm. Abbreviations: HABP, hyaluronan binding protein; HAPLN1, hyaluronan and proteoglycan link protein 1; HLF, human lung fibroblasts; α-SMA, α-smooth muscle actin.

As mentioned, there were few, if any, ECM cables present in these cultures. Therefore, as a measure of the organization of the pericellular matrix, we quantified ECM staining by measuring the pixel density of the hyaluronan-rich ECM within circumscribed regions of interest outside the cell as shown in Fig. 11. A lower pixel density indicates less hyaluronan or less compaction of the ECM. The ECM staining density was significantly greater in the HABP-treated cells. The addition of versican on the other hand, resulted in less hyaluronan staining in the pericellular matrix. This suggests there could be either increased amounts of the hyaluronan or a stiffening effect on the hyaluronan network in the ECM when globular hyaluronan binding proteins such as HAPLN1 and aggrecan G1 are added to growing fibroblasts.

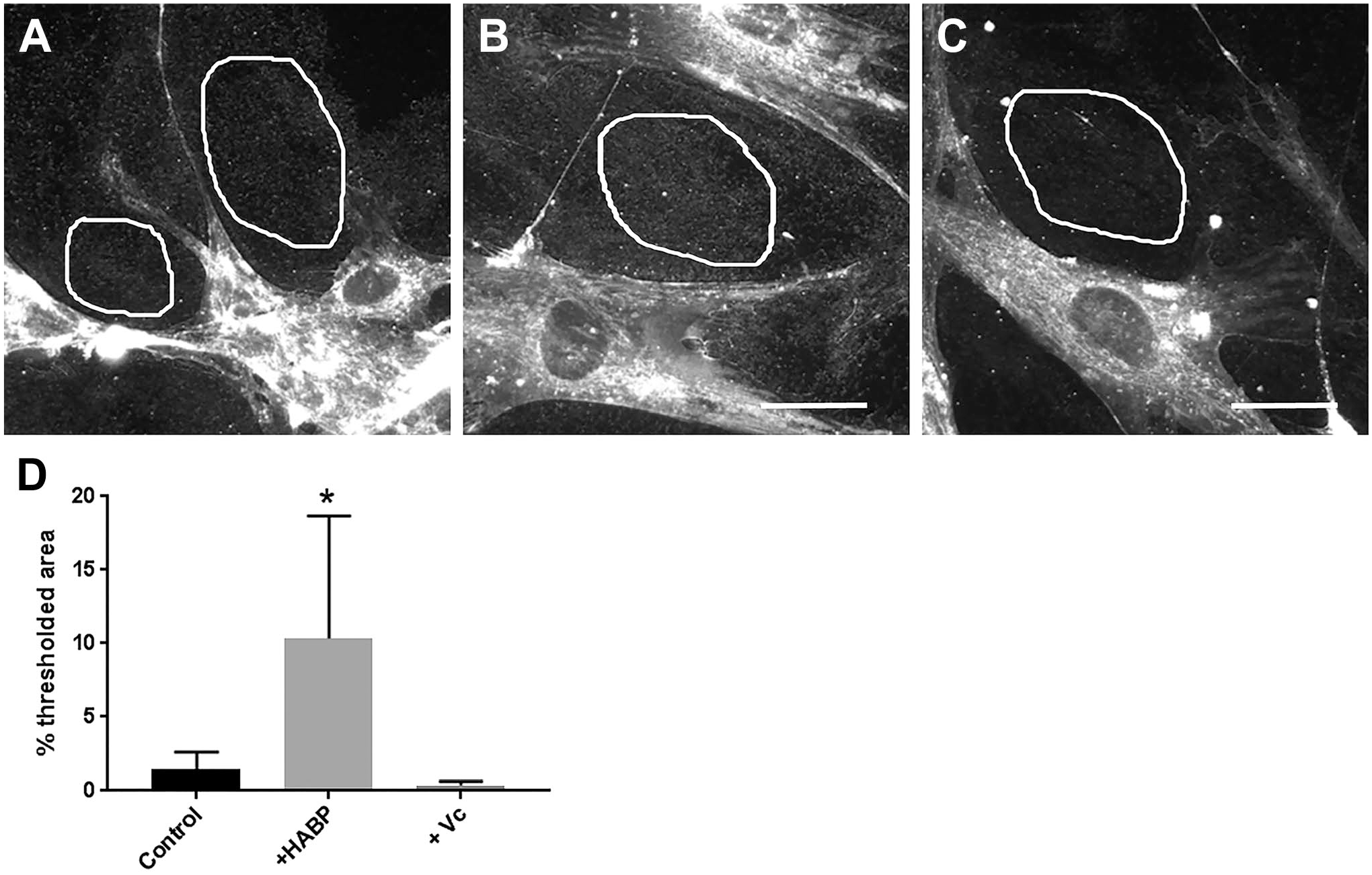

Figure 11.

Pericellular matrix compaction is increased by HAPLN1. Hyaluronan staining in (A) control; (B) HABP-treated; and (C) versican-treated cells. The outlines indicate examples of regions of interest selected for quantitation of staining density of the pericellular matrix. (D) percent of the area stained for hyaluronan in each treatment as a measure of matrix compaction. Bar equals 25 µm. Abbreviations: HABP, hyaluronan binding protein; HAPLN1, hyaluronan and proteoglycan link protein 1.

Discussion

We found that HAPLN1 is present on hyaluronan and alongside versican in the pericellular matrix, suggesting it plays a similar role in stabilizing the interaction of versican with hyaluronan of HLFs, as it does with aggrecan in the chondrocyte pericellular matrix and in PNNs in the brain.^1–5

HAPLN1 deposits were found above cells in the versican-rich ECM with alternating punctate signals along strands of hyaluronan. These deposits were similar in size and spacing as those we reported for exogenous versican G1. ²⁸ HAPLN1 also colocalized with fragments of f-actin and with versican at plaque-like deposits which were frequently near and shaped like a nucleus and gave a distinct impression that the cell had moved, leaving behind a concentrated deposit. The staining did not resemble focal adhesions, however. We previously found that hyaluronidase digestion of the ECM caused retraction specifically of cortical actin between stress fibers and CD44 in the membrane, ¹⁸ and in the present study found HAPLN1 under actin networks rather that at the tips of stress fibers. The association of hyaluronan and CD44 with cortical actin, ¹⁸ the presence of hyaluronan and versican between stress fibers, ²⁹ and the relative abundance of HAPLN1 under cell lamellipodia suggests HAPLN1 may play a role in stabilizing cell adhesion in some fashion.

All three members of the complex between hyaluronan, ¹⁹ versican, ³⁰ and HAPLN1 (present study) have now been localized to the nucleus in fibroblasts, suggesting that the presence of HAPLN1 may be important for nuclear structure or function. In addition, HAPLN1 was juxtaposed with versican in cytoplasmic vesicles inside the cell, indicating that link-stabilization may be important for any potential intracellular function of this complex. This is a novel finding, as there are very little data on HAPLN1 in fibroblasts. This is another example of these related ECM components being found in an intracellular location in fibroblasts, raising the possibility that there may be roles for these components both outside and inside cells.

Previous studies have shown that hyaluronan^13,18,31 and versican ³² can impact myofibroblast formation, but the effect of HAPLN1 has not been examined. A higher proportion of nuclei were positive for HAPLN1 staining in quiescent cells and TGF-β-induced myofibroblasts compared to cells rapidly dividing in 10% FBS, and versican was closely associated with HAPLN1. HAPLN1 and versican were clearly present in deposits found within the plane of the nucleus, possibly invaginations or clefts, as was previously reported for intracellular hyaluronan ¹⁹ and versican. ³⁰ In addition to PNNs, ⁹ HAPLN1 and hyaluronan were previously reported to be in the nucleus of neuronal cells. ³³ However, the significance of nuclear and intracellular hyaladherins and an increase in nuclear HAPLN1 in myofibroblasts is not clear. Previous studies have suggested potential roles for intracellular hyaluronan, possibly through other intracellular binding partners.^{19,21,34–36} Other studies have noted the presence of hyaluronan at the cleavage furrow in mitotic cells and the mitotic spindle décor)ated with hyaluronan and its receptor, receptor for hyaluronic acid-mediated motility (RHAMM).^19,21,37 Large amounts of cell membrane (and probably ECM molecule bound to it) are rapidly retracted during mitotic cell rounding. The redistribution of HAPLN1 from nucleus to cytosol and strong cytoplasmic staining during mitosis may reflect, in part, the drawing in of membrane and any associated ECM as part of the cell rounding and chromatin condensation process. Another study found that disruption of versican expression interfered with mitosis in embryonic dermal fibroblasts. ³⁰ However, more work will need to be done to determine if HAPLN1 disruption affects myofibroblast formation or cell proliferation.

Both hyaluronan and versican are important contributors to the development of lung diseases, including fibrosis.^12-14,^38,39 The role of hyaluronan and its binding partners in myofibroblast conversion and lung fibrosis is complex because they are part of the fibrotic ECM, and also directly impact the activation and trafficking of leukocytes during the inflammatory response.^40–45 It should be noted that our experiments were conducted in medium containing high (25 mM) glucose, which tends to promote formation of leukocyte adhesive hyaluronan matrices and intracellular hyaluronan during inflammatory processes. ⁴⁶ This could potentially result in abnormally high intracellular levels of HAPLN1. We do yet not know if the intracellular and nuclear HAPLN1 distribution reported here or synthesis will change with altered glucose concentrations. It will also be important to determine if HAPLN1 plays a direct or indirect role in mediating the effects of both versican and hyaluronan in the fibrotic response and other processes.

The HABP we used here (10 μg/ml) contains trypsin-resistant HAPLN1 and aggrecan G1. We noted an induction of α-SMA and stress fiber formation upon treatment with the HABP and apparent compaction of the pericellular matrix. This effect is similar to previous results following addition of similar concentrations of versican G1 to dermal fibroblasts, i.e., altered organization of the hyaluronan-rich ECM (by coalescing hyaluronan cables) and increased α-SMA protein expression. ²⁸ However, actual local cellular level concentrations of HAPLN1 at different regions on the cell membrane or perinuclear inclusions are difficult to estimate. We cannot rule out that this just represents more hyaluronan in the pericellular matrix. Another study used a similar HABP preparation (which they termed metastatin) to stop cancer cells from growing. ⁴⁷ Given their high homology, adding any one of these globular domains should result in similar physical effects on hyaluronan. For example, it was shown previously by electron microscopy that addition of either HAPLN1 or aggrecan G1 caused shortening and, potentially stiffening of hyaluronan chains, ⁴⁸ or disruption of the hyaluronan network. ⁴⁹

ECM stiffness is a known regulator of myofibroblast formation. ⁵⁰ Chen and Thibeault showed that 2D and 3D hyaluronan-rich ECMs inhibited α-SMA production in response to TGF-β1 due to reduced stiffness. ⁵¹ A distinction should be made between overall ECM stiffness, in which collagen fibers tend to dominate and stiffness of the hyaluronan network itself. Hyaladherins, such as HAPLN1 and others, may play roles in modifying material properties of hyaluronan-rich ECMs. In the present study, addition of HAPLN1 and G1 caused apparent ECM compaction and increased α-SMA staining, while full-length versican did not have the compaction effect and did not promote myofibroblast formation in HLFs. Another study reported that an overabundance of cell-derived versican in the ECM, due to lack of metalloprotease cleavage, promoted myofibroblast formation in mouse dermal fibroblasts. ⁵² The hyaladherin TNFα-stimulated gene-6 (TSG-6) was shown to crosslink hyaluronan and rigidify hyaluronan films. ⁵³ Interestingly, CD44, the receptor for hyaluronan, is more fluid in the membrane of fibroblasts versus myofibroblasts ⁵⁴ raising the question of whether increased cell-associated HAPLN1 following TGF-β1 induction stabilizes the ECM and could affect CD44 fluidity and cortical actin from outside the cell. Our results suggest that altering ratios of full-length versican to HAPLN1 (or other proteoglycan fragments that bind to hyaluronan) may be a way for cells to fine-tune ECM density and stiffness, and thus regulate myofibroblast formation. Future studies will focus on these possibilities.
