Polysulfide Evokes Acute Pain through the Activation of Nociceptive TRPA1 in Mouse Sensory Neurons

Abstract

Background

Hydrogen sulfide (H₂S) is oxidized to polysulfide. Recent reports show that this sulfur compound modulates various biological functions. We have reported that H₂S is involved in inflammatory pain in mice. On the other hand, little is known about the functional role of polysulfide in sensory neurons. Here we show that polysulfide selectively stimulates nociceptive TRPA1 and evokes acute pain, using TRPA1-gene deficient mice (TRPA1(–/–)), a heterologous expression system and a TRPA1-expressing cell line.

Results

In wild-type mouse sensory neurons, polysulfide elevated the intracellular Ca concentration ([Ca²⁺]_i) in a dose-dependent manner. The half maximal effective concentration (EC₅₀) of polysulfide was less than one-tenth that of H₂S. The [Ca²⁺]_i responses to polysulfide were observed in neurons responsive to TRPA1 agonist and were inhibited by blockers of TRPA1 but not of TRPV1. Polysulfide failed to evoke [Ca²⁺]_i increases in neurons from TRPA1(–/–) mice. In RIN-14B cells, constitutively expressing rat TRPA1, polysulfide evoked [Ca²⁺]_i increases with the same EC₅₀ value as in sensory neurons. Heterologously expressed mouse TRPA1 was activated by polysulfide and that was suppressed by dithiothreitol. Analyses of the TRPA1 mutant channel revealed that cysteine residues located in the internal domain were related to the sensitivity to polysulfide. Intraplantar injection of polysulfide into the mouse hind paw induced acute pain and edema which were significantly less than in TRPA1(–/–) mice.

Conclusions

The present data suggest that polysulfide functions as pronociceptive substance through the activation of TRPA1 in sensory neurons. Since the potency of polysulfide is higher than parental H₂S and this sulfur compound is generated under pathophysiological conditions, it is suggested that polysulfide acts as endogenous ligand for TRPA1. Therefore, TRPA1 may be a promising therapeutic target for endogenous sulfur compound-related algesic action.

Keywords

Transient Receptor Potential Channels (TRP Channels)Calcium imaging Dorsal root ganglia Heterologous expression

Background

Hydrogen sulfide (H₂S) is considered to be an endogenous gasotransmitter and is synthesized in the peripheral and central nervous systems [1]. H₂S exerts various physiological functions through protein sulfhydration [2,3]. It has been reported that H₂S evokes neurogenic inflammation and hyperalgesia through the activation of various channels, such as transient receptor potential vanilloid 1 (TRPV1) and T-type Ca²⁺ channels [4 –7]. We recently reported that H₂S stimulated a subset of mouse sensory neurons and induced pain-related behaviors [8,9].

TRPA1 and TRPV1 are nonselective cation channels expressed in nociceptive neurons and in part coexpressed in sensory neurons [10]. The TRPA1 channel is activated by a range of natural products [11,12], environmental irritants (acrolein, formalin) [13,14], reactive oxygen species including oxygen [15,16] and cold temperature [17,18]. TRPV1 is also activated by various stimuli such as capsaicin, protons, and noxious heat [19,20]. These channels contribute to the perception of noxious stimuli and play an important role in sensory transduction [21]. They are thought to be associated with inflammatory pain as evidenced in TRPA1 and TRPV1 gene knockout mice [22,23].

Polysulfide, a mixture of substances with varying numbers of sulfurs (H₂S_n), is generated from H₂S in the presence of oxygen [24]. Polysulfide contains sulfane sulfar, which is sustained in various proteins as a potential intracellular H₂S store to release H₂S under reduced conditions [25]. It has also been reported that polysulfide is enzymatically biosynthesized by reaction with cysteine [26]. Polysulfide rather than H₂S has been suggested to be chemical entity to sulfhydrate proteins [27]. The physiological distribution and functions of polysulfide are not well understood. It has recently been reported that polysulfide is found in the brain and activates astrocytes through stimulation of TRPA1, suggesting that it acts as a signaling molecule in the brain [28]. Moreover, polysulfide promotes oxidization of lipid phosphatase and tensin homolog [27]. Though putatively parental H₂S plays a role in nociception [8], the functional significance of polysulfide in sensory mechanisms and whether polysulfide evokes acute pain are not known.

In the present study, we investigated the effects of polysulfide on sensory neurons in vitro and on nociceptive behavior in vivo using wild-type, TRPV1-null (TRPV1[–/–]), and TRPA1-null (TRPA1[–/–]) mice. To examine the neuronal activity, we used fura-2-based [Ca²⁺]_i-imaging techniques since most of TRP channels are highly Ca²⁺ permeable [29]. We investigated the effects of polysulfide on cultured mouse dorsal root ganglion (DRG) neurons, which are a useful model of nociception in vitro [8,30,31]. We also used a heterologous expression system to analyze the effects of polysulfide at the molecular level. In addition, we examined whether polysulfide induced acute pain in vivo. The present results indicate that polysulfide excites mouse sensory neurons via the activation of TRPA1 and causes acute pain. Analyses of the TRPA1 mutant channel reveal that cysteine residues located in the N-terminal internal domain are related to the sensitivity to polysulfide.

Results

[Ca2+]i responses to polysulfide in mouse DRG neurons

Since polysulfide contains a mixture of polymers of different lengths, in the present study we used sodium salts of polysulfide; Na₂S₃ (Figure 1A), and Na₂S₄. Using the Ca-sensitive dye fura-2, we examined the effects of these polysulfides on changes in the intracellular Ca concentration ([Ca²⁺]_i) in mouse DRG cells. Actual traces of [Ca²⁺]_i and pesudocolor images showed that Na₂S₃ (10 μM) elicited [Ca²⁺]_i increases in some cells responding to 80 mM KCl (Figure 1B). Since we used 1-day cultured DRG cells (see Methods), it was easy to discriminate neurons from non-neural cells with their size and shape. In a similar morphological and functional way, DRG neurons have been distinguished from non-neural cells [32]. Moreover, KCl-responding cells were immunostained with a neural marker protein gene product 9.5 (PGP9.5) (Figure 1C). [Ca²⁺]_i responses to polysulfide peaked during their application, then returned to the basal level. Similar [Ca²⁺]_i responses were evoked by Na₂S₄. The magnitude of the polysulfide-induced [Ca²⁺]_i increases and the percentage of polysulfide-responsive neurons increased in a concentration-dependent manner (Figure 1D). Approximately 30% of the DRG neurons were responsive to both polysulfides at 10 μM or more. It has been reported that bound sulfane sulfurs, including polysulfide, release H₂S in the presence of reducing agents [24]. We estimated that the H₂S concentration of 10 μM polysulfide-containing solution was 0.4 μM or less. The EC₅₀ values of the two polysulfides were almost the same (4.4 ± 0.17 μM for Na₂S₃, 3.9±0.11 μM for Na₂S₄). In the following experiments, we used Na₂S₃ as polysulfide.

Figure 1

Polysulfide stimulates a subset of mouse sensory neurons. (A) The structural formula of Na₂S₃. (B) An image under transmitted light, and pseudocolor images; before (Pre), after the application of Na₂S₃ (+Na₂S₃, 10 μM) and KCl (+K, 80 mM). (C) A merged image of immunostaining with antibody against PGP9.5, a neural marker and of nuclear staining with Hoechst 33752. After [Ca²⁺]_i responses were measured, cells were subjected to immunostaining. In (B), cells with arrows (1–3) correspond to cells in the actual recordings and immunocytochemical image. Note that only K-responding cells show positive immunoreactivity to PGP9.5 (D) Circles and columns show the concentration-response curve for polysulfide-induced [Ca²⁺]_i increases and the percentage of polysulfide-responding neurons among all neurons, respectively (a: Na₂S₃, b: Na₂S₄). The percentages of polysulfide-responding cells were calculated from the percentage obtained with each coverslip. Symbols with vertical lines show mean ± SEM (Na₂S₃; n=42–74, Na₂S₄; n=33–44, from 3 mice).

Polysulfide increases [Ca2+]i in mouse DRG neurons sensitive to TRPA1 agonist

We examined the relationship between TRP channels and polysulfide on mouse DRG neurons. Figure 2A shows actual traces of changes in [Ca²⁺]_I in response to Na₂S₃ (10 μM) and subsequent allylisothiocyanate (AITC, a TRPA1 agonist, 0.3 mM), capsaicin (a TRPV1 agonist, 1 μM) and KCl (80 mM) of mouse DRG neurons. Most of the Na₂S₃-sensitive neurons were also AITC sensitive (Figure 2B and C). These data indicated that polysulfide-responding neurons highly corresponded to TRPA1 agonist sensitive-ones.

Figure 2

Polysulfide-responsive neurons highly correspond to TRPA1 agonist-sensitive ones. (A) Actual recordings of [Ca²⁺]_i responses to sequential application of Na₂S₃ (10 μM), allylisothiocyanate (AITC, 0.3 mM), capsaicin (Cap, 1 μM), and KCl (K, 80 mM). (B) An image under transmitted light, and pseudocolor images; before (Pre) and after the application of Na₂S₃ (+Na₂S₃), allylisothiocyanate (+AITC), capsaicin (+Cap), and KCl (+K). In a bright field image, cells with arrows (1–3) correspond to (A). (C) Venn diagram showing the sensitivities to Na₂S₃, AITC, capsaicin, and KCl (n = 322 from five mice). Numbers indicate the number of cells responding to each stimulus. A number in the outermost frame expresses the number of neurons responding to KCl alone. Note that Na₂S₃-responding neurons are mostly coincident with AITC-responding ones

Inhibition of polysulfide-induced [Ca2+]i increase by TRPA1 blockers

Next, the effects of TRP blockers on the polysulfide-induced [Ca²⁺]_i increases in mouse DRG neurons were examined. Figure 3 shows actual recordings of [Ca²⁺]_i responses to Na₂S₃ (10 μM) in the absence and presence of TRP blockers. Cells were stimulated with Na₂S₃ for 8 min and each blocker was added 2 min before and for 4 min during Na₂S₃ application. Ruthenium red (1 μM), a nonselective TRP channel blocker, HC-030031 (10 μM) and A967079 (1 μM), a TRPA1 blocker but not BCTC (10 μM), a TRPV1 blocker, suppressed the Na₂S₃-induced [Ca²⁺]_i increases (Figure 3B-E). It has been reported that H₂S sensitizes T-type Ca²⁺ channels [6,7]. However, the Na₂S₃-evoked [Ca²⁺]_i increases were unaffected by mibefradil (10 μM), a T-type Ca²⁺ channel blocker. These pharmacological results suggested that TRPA1 was involved in the polysulfide-induced [Ca²⁺]_i increase in mouse sensory neurons.

Figure 3

Inhibition of polysulfide-induced [Ca²⁺]_i increases by TRPA1 blockers. (A) Actual recording of [Ca²⁺]_i responses to Na₂S₃ (10 μM, 8 min) and KCl (K, 80 mM) inmouse DRG neurons. (B-D) The effects of ruthenium red (1 μM), HC-030031 (10 μM) and BCTC (10 μM) on the Na₂S₃-induced [Ca²⁺]_i increases. Each blocker was applied 2 min before and for 4 min during application of Na₂S₃. (E) Summarized effects of these blocking agents. Open and filled columns show the increases of [Ca²⁺]_i responses to Na₂S₃ in the absence (Control) and presence of these blocking agents, respectively. Columns with vertical lines show mean ± SEM (control; n = 201, ruthenium red; n = 32, HC-030031; n = 24, A967079 (1 μM); n = 43, BCTC; n = 43, mibefradil (10 μM); n = 44, from 3–6 mice). **P, < 0.01 vs. Control.

Absence of [Ca2+]i responses to polysulfide in TRPA1(–/–) mouse DRG neurons

Figure 4A and B show actual traces of [Ca²⁺]_i responses to Na₂S₃ (10 μM) and subsequent AITC, capsaicin and KCl in DRG neurons from TRPV1(–/–) and TRPA1(–/–) mice, respectively. In TRPV1(–/–) mouse DRG neurons, [Ca²⁺]_i responses to Na₂S₃ were detected in neurons that responded to AITC. Figure 4C shows the percentage of cells responding to each stimulus in wild-type, TRPV1(–/–) and TRPA1(–/–) mouse DRG neurons, indicating that the percentage of neurons responding to Na₂S₃ was the same in wild-type (140 of 322 cells) and TRPV1(–/–) mouse neurons (121 of 271 cells). In contrast, few cells responded to AITC or Na₂S₃ in DRG neurons from TRPA1(–/–) mouse (Figure 4B and C). These results clearly indicated that the polysulfide stimulated TRPA1 channels in mouse DRG neurons.

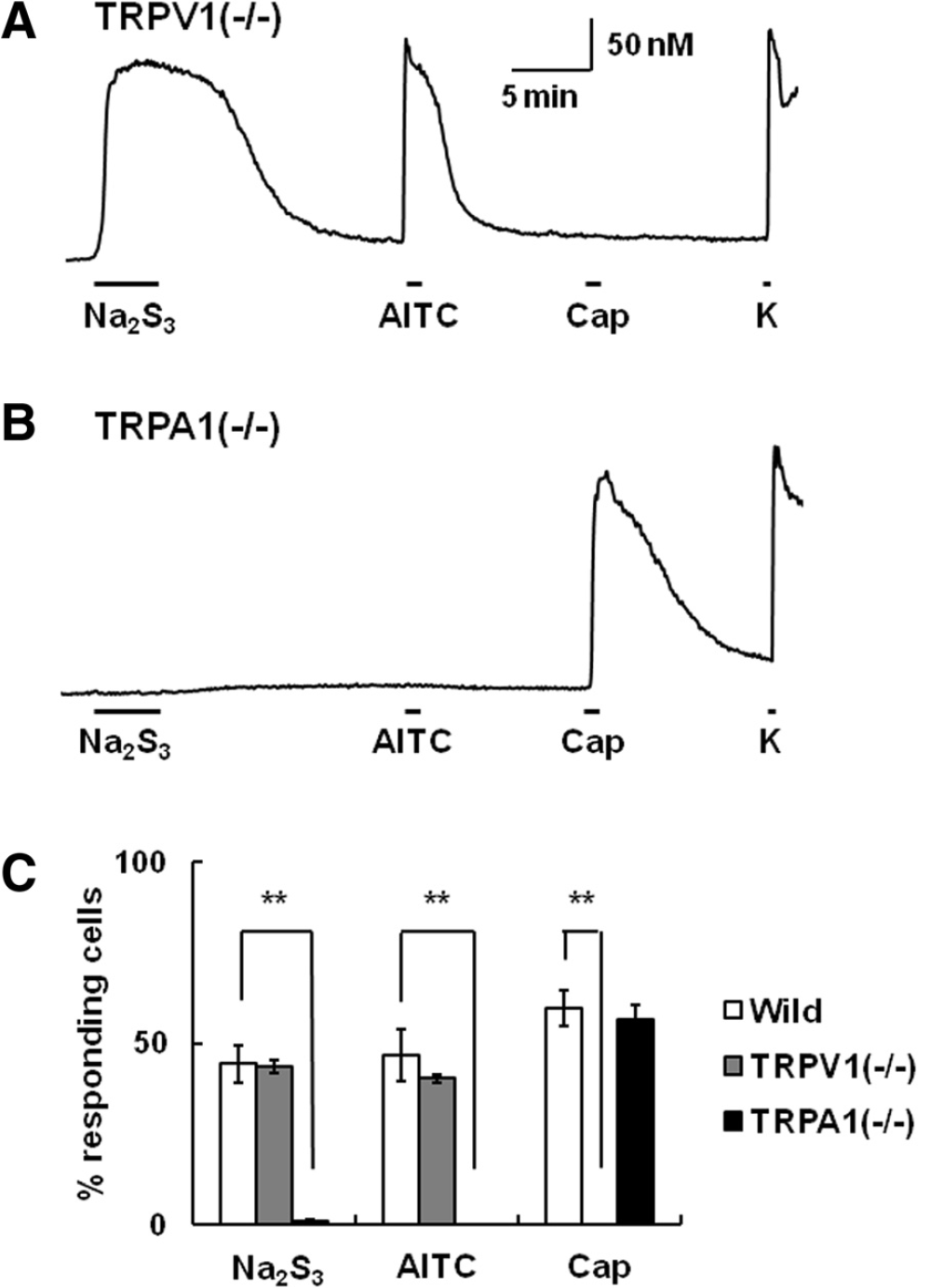

Figure 4

[Ca²⁺]_i responses to polysulfide in TRPV1(–/–) and TRPA1(–/–) mouse DRG neurons. Actual recordings of [Ca²⁺]_i responses to sequential application of Na₂S₃ (10 μM), allylisothiocyanate (AITC, 0.3 mM), capsaicin (Cap, 1 μM), and KCl (K, 80 mM) in TRPV1(–/–) (A) and TRPA1(–/–) (B) mouse DRG neurons. (C) Columns showing the % responding cells among all neurons in each animal. Columns with vertical lines show mean ± SEM (wild type; n = 322, TRPV1(–/–); n = 278, TRPA1(–/–); n = 253, from 3–5 mice for each genotype). **P, < 0.01.

Polysulfide causes desensitization of TRPA1 in mouse DRG neurons

It has been reported that AITC activates TRPA1 through covalent modification of cysteine residues and desensitizes TRPA1 [33]. We examined whether prestimulation with polysulfide influenced [Ca²⁺]_i responses to subsequent application of polysulfide and AITC. Figure 5A shows actual recordings of [Ca²⁺]_i responses to Na₂S₃ (10 μM) twice with an interval of 15 min and then AITC and KCl in mouse DRG neurons. We found that both [Ca²⁺]_i responses to Na₂S₃ and AITC after Na₂S₃ stimulation significantly decreased (Figure 5B). Similar effects were observed when AITC was applied first (Figure 5Ab and Bb). These results indicated that polysulfide desensitized TRPA1 in mouse DRG neurons.

Figure 5

Desensitization of TRPA1 by polysulfide in mouse DRG neurons. (A) (a) Actual recording of [Ca²⁺]_i responses to Na₂S₃ (10 μM) twice with an interval of 15 min and then allylisothiocyanate (AITC, 0.3 mM), and KCl (K, 80 mM), and (b) those to AITC (0.3 mM) twice with an interval of 15 min and then Na₂S₃ (10 μM), and KCl (80 mM). (B) Open and filled columns show the increases of [Ca²⁺]_i responses to Na₂S₃ (a) and AITC (b) in the first stimulation (Naïve), and those in the second stimulation after each chemical, respectively. Columns with vertical lines show mean ± SEM (Ba; n = 25, Bb; n = 54). **P, < 0.01 vs. Naive.

Polysulfide stimulates HEK 293 cells expressing mouse TRPA1 and rat TRPA1 expressing RIN-14B cells

To confirm the stimulatory action of polysulfide on TRPA1, we examined its effect on HEK 293 cells expressing mouse TRPA1 (mTRPA1-HEK). As shown in Figure 6A, Na₂S₃ induced [Ca²⁺]_i increases in mTRPA1-HEK, but not HEK 293 cells expressing mouse TRPV1 (mTRPV1-HEK). The amplitude of Na₂S₃-induced [Ca²⁺]_i increase in mTRPA1-HEK increased with increasing concentrations of Na₂S₃ and the EC₅₀ was estimated to be 3.4 ± 0.15 μM. To obtain direct evidence for TRPA1 channel activation induced by Na₂S₃, we performed whole-cell current recording from HEK293 cells expressing mouse TRPA1. Figure 3B shows representative current response to Na₂S₃ (10 μM) and the AITC (0.3 mM) in mouse TRPA1-expressing HEK293 cell. The current elicited by Na₂S₃ exhibited an outward rectifying current–voltage relationship similar to that evoked by AITC. In addition, we used RIN-14B, a rat enterochromaffin cell line that expresses TRPA1 constitutively [9,34]. As shown in Figure 6C, Na₂S₃ (10 μM) elicited [Ca²⁺]_i increases in RIN-14B cells. This [Ca²⁺]_i response was suppressed by the pretreatment with HC030031 (10 μM). The magnitude of the [Ca²⁺]_i increase induced by Na₂S₃ increased in a concentration-dependent manner (EC₅₀; 3.1± 0.16 μM). These results indicated that polysulfide selectively stimulated TRPA1, but not TRPV1.

Figure 6

[Ca²⁺]_i and current responses to polysulfide in HEK 293 cells expressing mouse TRPA1. (A) Left shows actual traces of [Ca²⁺]_i responses to Na₂S₃ (10 μM) and allylisothiocyanate (AITC, 0.3 mM) in HEK 293 cells expressing mouse TRPA1 (mTRPA1-HEK) and those to Na₂S₃ and capsaicin (Cap, 1 μM) in HEK 293 cells expressing mouse TRPV1 (mTRPV1-HEK). Right graph shows that the concentration-response relationships for Na₂S₃ in mTRPA1-HEK (closed circles) and mTRPV1-HEK (open circles). Symbols with vertical lines show mean ± SEM (mTRPA1-HEK; n = 28–65 cells, mTRPV1-HEK; n = 52–53 cells, from three different transfections). (B) Representative traces of whole-cell currents activated by Na₂S₃ (10 μM) followed by AITC (0.3 mM) in HEK293 cells expressing mouse TRPA1. The current–voltage (I-V) curves for Na₂S₃ (1) and AITC (2) exhibit outward rectification. (C,a) An actual trace of [Ca²⁺]_i response to Na₂S₃ (10 μM) and AITC (0.3 mM) in RIN-14B cells (upper panel). The Na₂S₃-induced [Ca²⁺]_i increase is suppressed by HC030031 (10 μM, lower panel). (C,b) The concentration-response relationship for Na₂S₃ in RIN-14B cells (n = 95-150, from three experiments). Vertical lines for SEM are embedded in each symbol.

N-terminal cysteine residues of TRPA1 confer sensitivity to polysulfide

It has been reported that TRPA1 is activated by reversible covalent modification of intracellular N-terminal cysteine residues in the channel [35]. We have previously reported that H₂S modifies these cysteine residues [8]. Thus, to examine whether polysulfide activated TRPA1 by modifying cysteine residues, we tested the effects of DTT (5 mM), a reducing agent, on the polysulfide-induced [Ca²⁺]_i increases in mTRPA1-HEK. The [Ca²⁺]_i responses to Na₂S₃ was diminished by DTT applied before and during application of Na₂S₃ (Figure 7A). The increment of [Ca²⁺]_i evoked by Na₂S₃ declined faster when DTT was applied after the stimulation of Na₂S₃ (Figure 7B). We calculated the magnitude and the time required for the half-decline of [Ca²⁺]_i responses to Na₂S₃ to evaluate the effect of DTT.

Figure 7

Involvement of the N-terminal cysteine residues of mouse TRPA1 in its activation by polysulfide. (A) The Na₂S₃ (10 μM)-induced [Ca²⁺]_i increase was inhibited by dithiothreitol (DTT) (a) 2 min before and during 4 min application of Na₂S₃, (b) after 4 min in HEK 293 cells expressing mouse TRPA1 (mTRPA1-HEK). The upper panels show [Ca²⁺]_i responses to Na₂S₃ without DTT, and the lower ones those in the presence of DTT. (B) Summarized effects of DTT. (a) Open and filled columns show the increases of [Ca²⁺]_i responses to Na₂S₃ in the absence (Control) and presence of DTT, respectively. (b) Times required for half-decline of [Ca²⁺]_i responses to Na₂S₃ (T_1/2) in the absence (Control) and presence of DTT. T_1/2 was calculated by subtracting the value of the time when the Na₂S₃-induced [Ca²⁺]_i increase was reduced by half from that when Na₂S₃-induced [Ca²⁺]_i increase peaked. Columns with vertical lines show mean ± SEM (a; n = 23–32, b; n = 55–63, from three different transfections). **P < 0.01. (C) The [Ca²⁺]_i increments induced by Na₂S₃ (10 μM and 30 μM) and 2APB (100 μM and 300 μM) in mTRPA1-HEK (left columns) and HEK293 cells expressing mouse TRPA1 mutant (mTRPA1-2C, right columns). Columns with vertical lines show mean ± SEM (wild-type mTRPA1; n = 55–72, mTRPA1-2C; n = 46–63, from three separate transfections). **P, < 0.01 vs. Δ[Ca²⁺]_i in mTRPA1-HEK.

To determine the molecular mechanism underlying the polysulfide-induced TRPA1 activation, we used a mutant mouse TRPA1 channel in which two cysteines were substituted by serines (mTRPA1-2C) [8,36]. It has been known that mTRPA1-2C loses the responsiveness to AITC, a cysteine-modifying agent but have sensitivity to 2-aminoethoxydiphenyl borate, a nonelectrophilic TRPA1 agonist [37]. We confirmed that 2APB were capable of activating this mutant channel. On the other hand, Na₂S₃ failed to evoke [Ca²⁺]_i increases in mTRPA1-2C expressing HEK 293 cells (Figure 7C). These data suggested that two N-terminal cysteine residues were essential for mouse TRPA1 activation by the polysulfide.

Polysulfide causes acute pain in mice through TRPA1 activation

We showed that polysulfide stimulated mouse sensory neurons via the activation of TRPA1 in vitro. Since TRPA1 is a nociceptive receptor, we next investigated whether polysulfide evoked acute pain in vivo. In wild-type mice, intraplantar injection of Na₂S₃ induced licking and lifting of the injected paw as pain-related behaviors (Figure 8A). These nociceptive behaviors began just after the injection and almost ceased within 10 min. In a control experiment, no response was observed in mice injected with the same amount of HEPES-buffered solution as a vehicle. Similar nociceptive effects of Na₂S₃ were observed in TRPV1(–/–) mice. In contrast, TRPA1(–/–) mice displayed a significant attenuation of Na₂S₃-induced nociception. Intraplantar injection of Na₂S₃ also increased paw thickness (edema) in wild-type mice (Figure 8B). This Na₂S₃-induced edema was observed in TRPV1(–/–) mice. The extent of paw edema in TRPA1(–/–) mice was significantly less than in wild-type and TRPV1(–/–) mice. These results suggested that polysulfide caused acute pain through the activation of TRPA1 in the mice.

Figure 8

Intraplantar administration of polysulfide produces pain-related behavior in mice. (A) Changes in number of pain-related behaviors (a; Licking, b; Lifting) of wild-type and TRPA1(–/–) mice after intraplantarly injection of Na₂S₃ (500 nmol/paw) and summarized number of behaviors during 10 min after Na₂S₃ injection. (B) Left and right panel show that changes in paw thickness of wild-type and TRPA1(–/–) mice before and after intraplantarly injection of Na₂S₃ (left), and changes in paw thickness 30 min after injection of Na₂S₃ or HEPES-buffered solution (Vehicle), respectively. Symbols and columns with vertical lines show mean ± SEM (A: Wild-type; n = 5, TRPA1(–/–); n = 4, TRPV1(–/–); n = 4, B: Wild-type; n = 4, TRPA1(–/–); n = 4, TRPV1(–/–); n = 4). *P, < 0.05, **P, <0.01, vs. Wild type.

Discussion

Polysulfide is a bound sulfur species derived from H₂S. It has been reported that H₂S stimulates a variety of ion channels such as TRPA1, TRPV1, and T-type Ca²⁺ channels [8,32,37]. Therefore, it is possible that polysulfide affects these ion channels. In the present study, we demonstrated that polysulfide activated TRPA1 based on the following evidence. First, both Na₂S₃ and Na₂S₄ stimulated only a subset of DRG neurons sensitive to AITC, a TRPA1 agonist. Second, the Na₂S₃-induced [Ca²⁺]_i increases were inhibited by ruthenium red, a nonselective TRP blocker, by HC-030031 and A967079, selective TRPA1 blockers. Third, [Ca²⁺]_i responses to Na₂S₃ were not detected in DRG neurons isolated from TRPA1(–/–) mouse. Fourth, Na₂S₃ elicited [Ca²⁺]_i and current responses in HEK 293 cells expressing mouse TRPA1. Similar to our observations, it has been reported that polysulfide elicits [Ca²⁺]_i increases in rat astrocytes and these responses are suppressed by ruthenium red and HC-030031 [28]. On the other hand, there are reports that H₂S stimulates TRPV1 [37 –39] and leads to neurogenic inflammation [4,5]. However, the present study showed that BCTC, a TRPV1 channel blocker, had no effect on the Na₂S₃-induced [Ca²⁺]_i increase in mouse DRG neurons. Moreover, Na₂S₃ was capable of eliciting [Ca²⁺]_i increases in TRPV1(–/–) mouse DRG neurons, and failed to stimulate HEK 293 cells expressing mouse TRPV1. Thus, we hypothesize that TRPV1 channel is not involved in the polysulfide-induced [Ca²⁺]_i increases in mouse DRG neurons. Since [Ca²⁺]_i responses to Na₂S₃ were not influenced by mibefradil, a T-type Ca²⁺ channel blocker, it seems unlikely that T-type Ca²⁺ channels contribute to the stimulatory action of polysulfide in mouse DRG neurons.

In the present study, some polysulfide-sensitive neurons did not show [Ca²⁺]_i responses to AITC (3.6% of polysulfide-sensitive neurons). When neurons were stimulated with Na₂S₃ twice, the magnitude of the second responses became smaller. The AITC-induced [Ca²⁺]_i increase after Na₂S₃-stimulation were also attenuated. These data suggest that polysulfide may desensitize TRPA1 resulting in AITC-insusceptibility in some neurons responding to polysulfides. Moreover, the sites of action for both chemicals are likely to be the same, as discussed below.

The TRPA1 channel is activated by covalent binding of electrophiles to internal cysteine residues [33,35]. We showed that the polysulfide-induced [Ca²⁺]_i increases were prevented by DTT, a reducing agent for disulfide bonds. Polysulfide contains sulfane sulfur, which releases H₂S in the presence of DTT [40]. It may be possible that DTT reduces polysulfide to change their reactivity. Thus, DTT may influence not only the TRPA1 channel but also polysulfide itself. We found that the rate of decline of the [Ca²⁺]_i increment (T_1/2) significantly decreased when DTT was applied after the washout of polysulfide, suggesting that cysteines contribute to TRPA1 channel activation by polysulfide. This idea was supported by the evidence that the polysulfide-induced TRPA1 activation disappeared in HEK 293 cells expressing cysteine mutant TRPA1. These cysteine residues are located in the N-terminal internal domain. Therefore we suggest that polysulfide produces a covalent modification of N-terminal cysteine residues for the activation of TRPA1. C422 and C634 in mouse TRPA1, being responsible for the action of polysulfide, are equivalent to C421 and C633 in human TRPA1, and these amino acids are important for sensing O₂ [16]. It has been reported that C421 in human is also sensitive to H₂O₂, nitric oxide and PGJ₂ [41]. Including the present results, several cysteine residues within the cytoplasmic N-terminal of TRPA1 channel are identified in acceptor sites for electrophilic agonists and a variety of inflammatory mediators [42].

The EC₅₀ value of polysulfide was much smaller than that of H₂S. The similar higher potency of polysulfide than H₂S has been reported in rat astrocytes [28]. H₂S plays a role in physiological functions through protein S-sulfhydration [2]. However, it is thought to be chemically impossible for H₂S itself to modify proteins oxidatively. Thus, it is suspected that polysulfide acts as the intermediate species of H₂S signaling [27]. The H₂S level of the polysulfide (10 μM)-containing solution, the concentration that induced nearly the maximal [Ca²⁺]_i increment, was estimated to be 0.4 μM or less. Since the EC₅₀ of H₂S for TRPA1 activation is reported to be 36.0 ± 2.5 μM in HEK 293 cells expressing mouse TRPA1 [8], indirectly produced H₂S may have little involvement in the polysulfide-induced [Ca²⁺]_i increases. In other words, polysulfide itself could activate TRPA1 channels rather than through H₂S production. It has been reported that polysulfide causes protein S-sulfhydration, that is, conversion of cysteinyl thiolates (Cys-S⁻) to persulfides (Cys-S-S⁻) [27]. NMDA receptor activity may be enhanced by polysulfide via S-sulfhydration [25]. This may also be the case for TRPA1 activation by polysulfide, which may add bound sulfane sulfur of cysteine residues of the channel.

It is known that H₂S is involved in nociception and hyperalgesia [8,43 –46]. The present results clearly showed that acute pain and tissue edema were induced by intraplantar injection of polysulfide in wild-type and TRPV1(–/–) mice. These effects of polysulfide were small in TRPA1(–/–) mice. It has been reported that TRPA1 is involved in neuropathic, inflammatory pain and edema [47 –49]. Although these reports support the involvement of TRPA1 in nociception, mechanisms of agonistinduced edema formation are not simple. AITC evokes edema which is completely inhibited by TRPA1 antagonist [47] and the edema induced by lipopolysaccharide is not observed in TRPA1(–/–) mice [48]. However, there is a report that AITC-induced edema is still observed in TRPA1-deficient mice [50]. Moreover, 4-oxo-2-nonenalinduced edema formation is not affected by deletion of TRPA1-gene and TRPA1 antagonist [51]. In the present study, polysulfide-induced edema was decreased but not abolished in TRPA1(–/–) mice. These differences might depend on TRPA1 agonist used and/or experimental conditions. Nevertheless, our data suggest that polysulfide activates the TRPA1 channel and then might elicit neurogenic inflammation. The H₂S level in serum rises in inflammation via upregulation of H₂S-producing enzymes [52,53]. There is a possibility that H₂S generated under the inflammatory condition may form polysulfide, which activates nociceptive TRPA1. Since putative parental H₂S is reported to be increased under inflammatory conditions, it is important to estimate endogenous polysulfide levels in relation to any inflammatory conditions. These works remained to be performed in the future. PGJ₂ and protons are known to be endogenous agonists for the TRPA1 channel [54,55]. Since these TRPA1 ligands are able to induce nociception in vivo, it may be possible that polysulfide also acts as an endogenous ligand for the nociceptive TRPA1 channel.

Conclusions

The present study demonstrates that polysulfide is more potent TRPA1 agonist than parental H₂S. Polysulfide is known to promote protein sulfhydration more efficiently than H₂S [25]. Some conditions are known to be associated with sulfhydration, including Parkinson disease and ischemia reperfusion injury [3,56]. However, the mechanisms of production, storage, and the stimulation that facilitates polysulfide-release remain to be clarified [24]. Further study will enhance the potential therapeutic value of polysulfide.

Methods

All protocols for experiments on animals were approved by the Committee on Animal Experimentation of Tottori University. All efforts were made to minimize the number of animals used.

Isolation and culture of mouse DRG neurons

We used adult mice of either sex (4–8 weeks). C57BL/6 mice, TRPA1(–/–) mice (kindly provided by Dr. D. Julius, University of California), and TRPV1(–/–) mice (The Jackson Laboratory, BarHarbor, ME, USA) were euthanized by inhalation of CO₂ gas. All efforts were made to minimize the number of animals used.

Mouse DRG cells were isolated and cultured as described previously [8]. In brief, DRG cells were removed and dissected in phosphate-buffered saline (PBS: in mM, 137 NaCl, 10 Na₂HPO₄, 1.8 KH₂PO₄, 2.7 KCl) supplemented with 100 U/ml penicillin G and 100 μg/ml streptomycin. Then the isolated ganglia were enzymatically digested for 30 min at 37°C in PBS-containing collagenase (1 mg/ml, type II, Worthington, Lakewood, NJ, USA) and DNase I (1 mg/ml, Roche Molecular Biochemicals, Indianapolis, IN, USA). Subsequently, the ganglia were immersed in PBS-containing trypsin (10 mg/ml, Sigma, St. Louis, MO, USA) and DNase I (1 mg/ml) for 15 min at 37°C. After enzyme digestion, the ganglia were washed with the culture medium, Dulbecco' s-modified Eagle's medium (DMEM, Sigma) supplemented with 10% fetal bovine serum (Sigma), penicillin G (100 U/ml) and streptomycin (100 μg/ml). DRG cells were obtained by gentle trituration with a fine-polished Pasteur pipette. Then the cell suspension was centrifuged (800 rpm, 2 min, 4°C) and the pellet-containing cells were resuspended with the culture medium. Aliquots were placed onto glass cover slips coated with poly-DL-lysine (Sigma) and cultured in a humidified atmosphere of 95% air and 5% CO₂ at 37°C. In the experiment, cells cultured within 24 h were used.

Heterologous expression in HEK 293 cells

Cells were transfected using 1 μg of mouse TRPA1 (mTRPA1), mouse TRPV1 (mTRPV1) and a double cysteine mutant of mTRPA1 (C422S/C634S, mTRPA1-2C) [36]. Human embryonic kidney (HEK) 293 cells were cultured in DMEM supplemented with 10% FBS, 100 U/ml penicillin G and 100 μg/ml streptomycin. Cells were transfected with the expression vectors using a transfection reagent (Lipofectamine 2000, Invitrogen) and used 24 h after transfection.

Culture of RIN-14B cells

The RIN-14B cells were purchased from DS Pharma Biomedical Co., Ltd. (Osaka, Japan). Cells were cultured in RPMI1640 medium (Wako) supplemented with 10% FBS, 100 U/ml penicillin G and 100 μg/ml streptomycin.

Measurement of [Ca2+]i

The intracellular Ca²⁺ concentrations ([Ca²⁺]_i) in individual cells were measured with the fluorescent Ca²⁺ indicator fura-2 by dual excitation using a fluorescent-imaging system controlling illumination and acquisition (Aqua Cosmos, Hamamatsu Photonics, Hamamatsu, Japan) as described previously [57]. To load fura-2, cells were incubated for 40 min at 37°C with 10 μM fura-2 AM (Molecular Probes) in HEPES-buffered solution (in mM: 134 NaCl, 6 KCl, 1.2 MgCl₂, 2.5 CaCl₂, 5 glucose, and 10 HEPES, pH 7.4). A coverslip with fura-2-loaded cells was placed in an experimental chamber mounted on the stage of an inverted microscope (Olympus IX71) equipped with an image acquisition and analysis system. Cells were illuminated every 5 s with lights at 340 and 380 nm, and the respective fluorescence signals at 500 nm were detected. The fluorescence emitted was projected onto a charge-coupled device camera (ORCA-ER, Hamamatsu Photonics) and the ratios of fluorescent signals (F₃₄₀/F₃₈₀) for [Ca²⁺]_i were stored on the hard disk of a computer. Cells were continuously superfused with the external solution at a flow rate of ~ 2 ml/min. The composition of high-KCl solution was (in mM) 80 KCl, 60 NaCl, 1.2 MgCl₂, 2.5 CaCl₂, and 10 HEPES (pH 7.4 with NaOH). All experiments were carried out at room temperature (22–25°C).

Immunocytochemistry

After the measurement of [Ca²⁺]_i in cultured cells, cells were fixed with 4% paraformaldehyde and then immunostained with a rabbit antiserum to protein gene product 9.5 (PGP9.5, diluted 1:5000, Chemicon, Temecula, CA, USA) as the 1st antibody. Subsequently this antibody was visualized with Alexa-labeled goat anti-rabbit IgG (10 μg/ml, Invitrogen) as the 2nd antibody. A mounting agent including Hoechest 33752 was used for nuclear staining.

Whole-cell current recording

HEK293 cells expressing mouse TRPA1 were mounted in an experimental chamber and superfused with HEPES-buffered solution as for Ca imaging experiments. The pipette solution contained (in mM: 140 KCl, 10 HEPES, 5 EGTA, pH 7.2 with KOH). The resistance of patch electrodes ranged from 4 to 5 MΩ. The whole-cell currents were sampled at 5 kHz and filtered at 1 kHz using a patchclamp amplifier (Axopatch 200B; Molecular Devices, Sunnyvale, CA) in conjunction with an A/D converter (Digidata 1322A; Molecular Devices). Membrane potential was clamped at −60 mV and voltage ramp pulses from −100 mV to +80 mV for 100 ms were applied every 5 s.

Measurement of H2S

The H₂S concentration in polysulfide-containing HEPES-buffered solution was measured according to a protocol described previously [9]. In brief, Na₂S₃ (10 μM)-containing HEPES-buffered solution (0.5 ml) was added to 10% trichloroacetic acid (0.25 ml), 1% zinc acetate (0.25 ml). The solutions were mixed with 20 mM N,N-dimethyl-pphenylenediamine in 7.2 M HCl (133 μl) and 30 mM FeCl₃ in 1.2 M HCl (133 μl) and incubated for 10 min at room temperature. Then, the absorbance at 670 nm was measured and the H₂S concentration of each sample was calculated from the calibration data.

Behavioral experiments

Mice were placed in cages for 30 min before experiments. Twenty microliters of the HEPES-buffered solution (vehicle), which was similar in composition to that used in in vitro experiments, was first injected intraplantarly into the left hind paw as a control. The number of times each mouse licked the injected paw and the time of lifting it were counted for 30 min after the injection. Subsequently, the same amount of Na₂S₃ (500 nmol/paw) was injected into the right hind paw, and the number and time of pain-related behaviors were counted for 30 min. To assess the development of edema, paw thickness was measured with a digital micrometer (AS ONE, Osaka) before and at several time points (0.5, 1, 3, 6, 12, 24 h) post injection. The results are expressed as paw thickness variation (Δedema, in millimeters), calculated by subtracting the value obtained at each time point posttreatment from that obtained before treatment.

Chemicals

The following drugs were used (vehicle and concentration for stock solution). Allylisothiocyanate (AITC, DMSO, 1 M) was from Nakarai, Tokyo, Japan. 2-Aminoethoxydiphenyl borate (2APB, dimethyl sulfoxide (DMSO), 1 M), capsaicin (ethanol, 1 mM), cremophor EL (distilled water: DW, 1%), HC-030031 (DMSO, 0.1 M), and mibefradil (DW, 0.05 M) were obtained from Sigma. A967079 (DMSO, 0.01 M) was from Focus Biomolecules (Pennsylvania, USA). N-(4-t-butylphenyl)-4-(3-chloropyridin-2-yl) tetrahydropyrazine-1(2H)-carboxamide (BCTC, DMSO, 0.05 M) was from BIOMOL Research Laboratories, Inc., Plymouth Meeting, PA, USA. Dithiothreitol (DTT, DW, 1 M), polysulfides (Na₂S₃ and Na₂S₄), and ruthenium red (DW, 0.01 M) were from Wako, Osaka, Japan. Polysulfide-containing aqueous solution was made just before each experiment. All other drugs used were of analytical grade.

Data analysis

The data are presented as the mean ± SEM (n = number of cells). For comparison of two groups, data were analyzed by the unpaired Student's t test, and for multiple comparisons, one-way ANOVA following by the Tukey-Kramer test was used. Differences with a P-value of less than 0.05 were considered significant. Values of the 50% maximal effective concentrations (EC₅₀) were determined using Origin software 9.1 J (Origin-Lab). The average percentage (±SEM) of polysulfide-responsive cells was calculated from the percentage obtained with each cover glass.

Competing interests

The authors declare that they have no competing interests.

Authors' contributions

YH carried out all of the experiments and wrote the manuscript. KT participated in some of the data analysis. MT and HK prepared experimental materials. HK and TO conceptualized the project and formulated the hypothesis. TO designed, directed the experiments and wrote the manuscript. All authors read and approved the final manuscript.

Footnotes

Abbreviations

Acknowledgements

This work was supported, in whole or part, by a JSPS KAKENHI (Grant Number 26292150), Grants-in-Aid for Scientific Research from the Ministry of Education, Culture, Sports, Science and Technology of Japan. We would like to thank Ms. Y. Nishizawa for helping immunocytochemical analyses.
