Abstract

Objective:

This systematic review aims to determine the extent, scope, and nature of research using the sonographic measurement of intraneural blood flow within the median nerve and to identify, characterize, and compare image acquisition and analysis protocols that have been reported as potential candidate techniques for standardizing research and clinical applications.

Materials and Methods:

This systematic review summarizes image acquisition protocols and analysis methodologies from 52 current research studies using Doppler ultrasound to examine median nerve intraneural blood flow.

Results:

Four types of Doppler technologies were identified: power Doppler, color Doppler, spectral Doppler, and Superb Microvascular Imaging, but there were inconsistencies in how images were acquired and analyzed. Intraneural blood flow measurements were categorized into four types based on a combination of measurement level (e.g., binary, ordinal, continuous) and type of flow indicator (e.g., pixel count, intensity, velocity).

Conclusion:

Standardized imaging protocols and reporting guidelines are needed to improve consistency. Future studies should evaluate the accuracy and reliability of different image acquisition methods and analysis measurements.

Keywords

Doppler ultrasonography median nerve blood flow velocity and carpal tunnel syndrome

With the advancement of ultrasound technologies, such as high-frequency linear-array transducers and software programs, there is an increase in the ability of Doppler ultrasound to detect low flow states in exceedingly small blood vessels. One area of such technology being adopted is in the evaluation of intraneural blood flow within the median nerve. Some studies have demonstrated that an increase in intraneural blood flow might be a sign of pathology in the median nerve, such as in carpal tunnel syndrome (CTS) and chronic inflammatory demyelinating polyneuropathy.^1,2 In the case of CTS, the median nerve is vulnerable to compression while traveling through the carpal tunnel and may undergo pathological changes, such as nerve edema, ischemia, neovascularization, and demyelination.³ Some studies have demonstrated that the presence of intraneural blood flow is associated with the early pathologic signs of CTS, which can be used to help identify CTS patients in the early phases.^4,5

Given the promising use of Doppler ultrasound in detecting blood flow signals of small vessels, there is an increase in the number of studies examining the intraneural blood flow of the median nerve in the carpal tunnel area using Doppler ultrasound. A previous review article identified wide variability in the sensitivity of intraneural blood flow measurement for the diagnosis of CTS, ranging from 41% to 95%.⁶ A potential explanation for the wide range of the sensitivity is that the studies examined in the previous review adopted various methods of image acquisition and analysis. Some of the studies used color Doppler, other studies used power Doppler, and a few studies evaluated diagnostic sensitivity using spectral Doppler. Moreover, the location of nerve evaluation differed across the studies. Finally, when analyzing the Doppler images, techniques ranged from counting the number of blood vessels to quantifying the intensity or velocity of the blood flow.

The inconsistency in image acquisition techniques and significant differences in the image analysis methods make it exceptionally challenging to compare results across studies and hinder the ability to use intraneural blood flow as a valid physiologic measure in research or diagnostic indicator in clinical practice. Given the increased use of this measurement, it is vital to identify a rigorous approach and establish a standardized imaging acquisition and analysis method that can ensure valid application of Doppler ultrasound in detecting peripheral nerve blood flow. Therefore, the aims of this systematic review were to determine the extent, scope, and nature of research using the sonographic measurement of intraneural blood flow within the median nerve and to identify, characterize, and compare image acquisition and analysis protocols that have been reported as potential candidate techniques for standardizing research and clinical applications.

Materials and Methods

This systematic review was conducted following the Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) guideline.⁷ Searches were completed in PubMed and CINAHL for relevant studies that used ultrasonography to examine median nerve intraneural blood flow. A preliminary search of PubMed and CINAHL was conducted to identify MeSH (Medical Subject Headings) terms and keywords. Three constructs were explored, including “ultrasonography,” “median nerve,” and “blood flow.” The full search strategy was built by combining the identified search terms within each construct using the “OR” operator and subsequently combining the three constructs with the “AND” operator. Considering the limited ability of Doppler ultrasound technology to detect small blood flow signals in earlier years, the search reference period was set from January 1, 2000. There were no publication language or region restrictions. The full search strategy, as provided in Table 1, was performed on August 31, 2021. To identify any additional sources, a hand search was conducted of the reference lists of included articles or related review articles and the table of contents of two journals that had published the highest number of included articles (i.e., Muscle and Nerve and Journal of Ultrasound in Medicine).

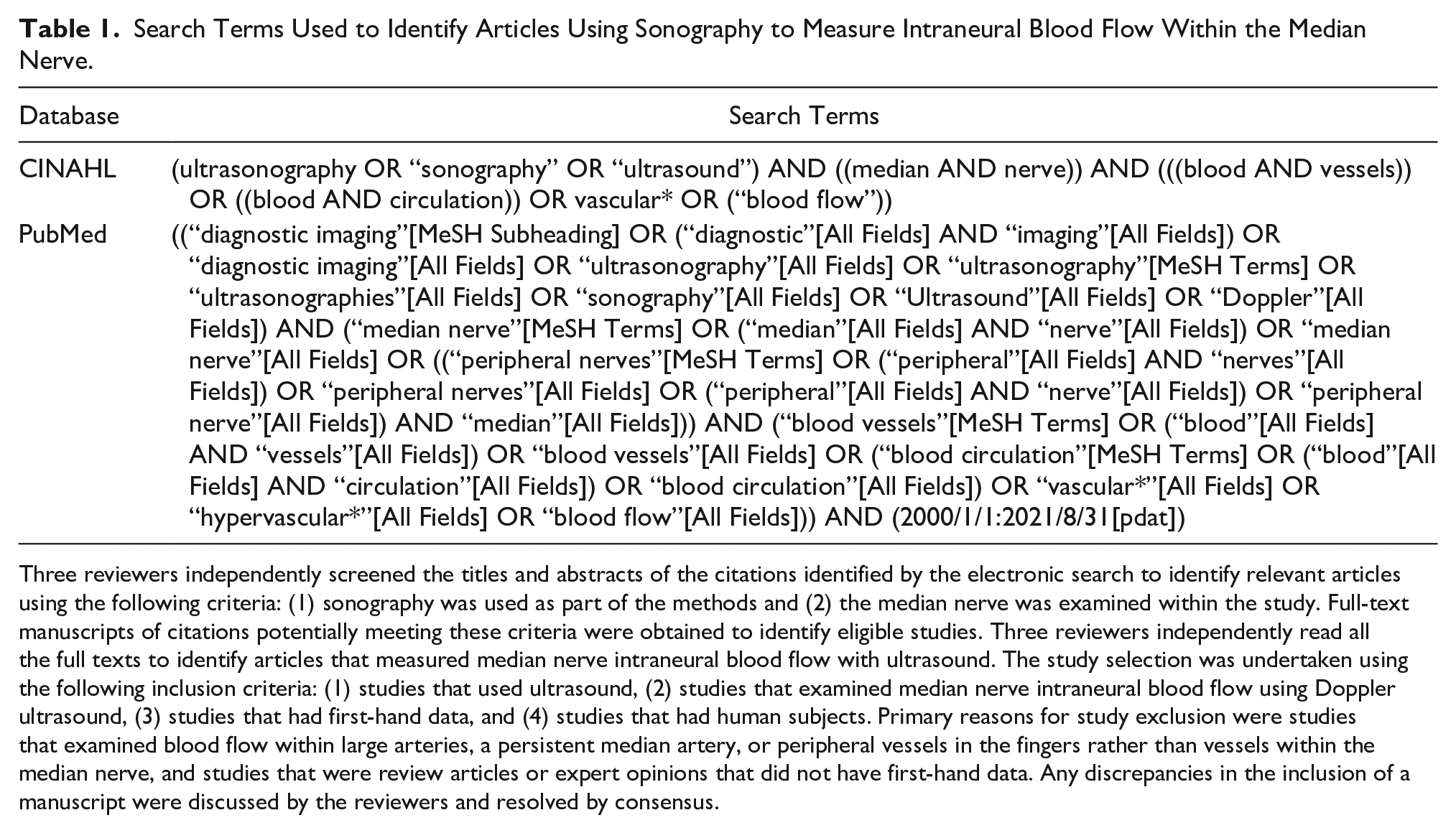

Table 1.

Search Terms Used to Identify Articles Using Sonography to Measure Intraneural Blood Flow Within the Median Nerve.

Database	Search Terms
CINAHL	(ultrasonography OR “sonography” OR “ultrasound”) AND ((median AND nerve)) AND (((blood AND vessels)) OR ((blood AND circulation)) OR vascular* OR (“blood flow”))
PubMed	((“diagnostic imaging”[MeSH Subheading] OR (“diagnostic”[All Fields] AND “imaging”[All Fields]) OR “diagnostic imaging”[All Fields] OR “ultrasonography”[All Fields] OR “ultrasonography”[MeSH Terms] OR “ultrasonographies”[All Fields] OR “sonography”[All Fields] OR “Ultrasound”[All Fields] OR “Doppler”[All Fields]) AND (“median nerve”[MeSH Terms] OR (“median”[All Fields] AND “nerve”[All Fields]) OR “median nerve”[All Fields] OR ((“peripheral nerves”[MeSH Terms] OR (“peripheral”[All Fields] AND “nerves”[All Fields]) OR “peripheral nerves”[All Fields] OR (“peripheral”[All Fields] AND “nerve”[All Fields]) OR “peripheral nerve”[All Fields]) AND “median”[All Fields])) AND (“blood vessels”[MeSH Terms] OR (“blood”[All Fields] AND “vessels”[All Fields]) OR “blood vessels”[All Fields] OR (“blood circulation”[MeSH Terms] OR (“blood”[All Fields] AND “circulation”[All Fields]) OR “blood circulation”[All Fields]) OR “vascular”[All Fields] OR “hypervascular”[All Fields] OR “blood flow”[All Fields])) AND (2000/1/1:2021/8/31[pdat])

Database

Search Terms

CINAHL

(ultrasonography OR “sonography” OR “ultrasound”) AND ((median AND nerve)) AND (((blood AND vessels)) OR ((blood AND circulation)) OR vascular* OR (“blood flow”))

PubMed

((“diagnostic imaging”[MeSH Subheading] OR (“diagnostic”[All Fields] AND “imaging”[All Fields]) OR “diagnostic imaging”[All Fields] OR “ultrasonography”[All Fields] OR “ultrasonography”[MeSH Terms] OR “ultrasonographies”[All Fields] OR “sonography”[All Fields] OR “Ultrasound”[All Fields] OR “Doppler”[All Fields]) AND (“median nerve”[MeSH Terms] OR (“median”[All Fields] AND “nerve”[All Fields]) OR “median nerve”[All Fields] OR ((“peripheral nerves”[MeSH Terms] OR (“peripheral”[All Fields] AND “nerves”[All Fields]) OR “peripheral nerves”[All Fields] OR (“peripheral”[All Fields] AND “nerve”[All Fields]) OR “peripheral nerve”[All Fields]) AND “median”[All Fields])) AND (“blood vessels”[MeSH Terms] OR (“blood”[All Fields] AND “vessels”[All Fields]) OR “blood vessels”[All Fields] OR (“blood circulation”[MeSH Terms] OR (“blood”[All Fields] AND “circulation”[All Fields]) OR “blood circulation”[All Fields]) OR “vascular*”[All Fields] OR “hypervascular*”[All Fields] OR “blood flow”[All Fields])) AND (2000/1/1:2021/8/31[pdat])

Three reviewers independently screened the titles and abstracts of the citations identified by the electronic search to identify relevant articles using the following criteria: (1) sonography was used as part of the methods and (2) the median nerve was examined within the study. Full-text manuscripts of citations potentially meeting these criteria were obtained to identify eligible studies. Three reviewers independently read all the full texts to identify articles that measured median nerve intraneural blood flow with ultrasound. The study selection was undertaken using the following inclusion criteria: (1) studies that used ultrasound, (2) studies that examined median nerve intraneural blood flow using Doppler ultrasound, (3) studies that had first-hand data, and (4) studies that had human subjects. Primary reasons for study exclusion were studies that examined blood flow within large arteries, a persistent median artery, or peripheral vessels in the fingers rather than vessels within the median nerve, and studies that were review articles or expert opinions that did not have first-hand data. Any discrepancies in the inclusion of a manuscript were discussed by the reviewers and resolved by consensus.

Two reviewers undertook data extraction to capture information on imaging acquisition, imaging analysis, and general study characteristics, such as author, journal, publication year, country, and study population. Studies were categorized by four types of Doppler imaging, including color Doppler, power Doppler, spectral Doppler, or superb microvascular imaging. Second, studies were categorized by the technique used to analyze the Doppler signals as (1) a binary outcome of the presence or absent of vascular signals within the region of interest without further grading, (2) an ordinal outcome of the grade of blood flow signals based on counting and scoring the blood flow signal numbers, (3) a continuous outcome of the amount of the blood flow that was measured as the pixel intensity of identified blood flow signals or the number of pixels, and (4) a continuous outcome of the velocity of the blood flow that was measured as the peak systolic velocity (PSV).

Since the purpose of this systematic review was to summarize image acquisition and analysis protocols that have been adopted by existing research to identify potential candidate methods, quality assessment of overall study methodologies or reporting was not completed. Instead, studies with similar image acquisition and analysis methods were summarized and compared. Specifically, iterative discussions among the authors were conducted to develop qualitative syntheses of the variability, strengths, limitations, and implications for clinical utility among studies within and across the acquisition and analysis categories.

Results

A total of 570 records with titles and abstracts were retrieved from the database search, and another eight studies were identified through the hand search. After removing the duplicated studies, a total of 520 records were screened, and a total of 361 irrelevant articles were eliminated. Thereafter, the full texts of 159 studies were reviewed, of which 52 studies met the eligibility criteria for inclusion in qualitative synthesis. An illustration of the study selection process is presented in Figure 1. Eight studies were conducted in the United States, five were conducted in India, five were conducted in Egypt, and Australia, Canada, Turkey, and Iran were each represented by four studies. Although studies published after 2000 were searched and reviewed, only three articles were published before 2010 with the remaining 49 studies being published since 2010 (Figure 2). Patients with CTS or clinically suspected CTS were included in a majority of the studies (67.3%, 35 of 52 articles); the details for these studies are included in Table 2. Other common populations being studied included patients diagnosed with diabetes, leprosy, and chronic inflammatory demyelinating polyneuropathy; details for these studies are included in Table 3.

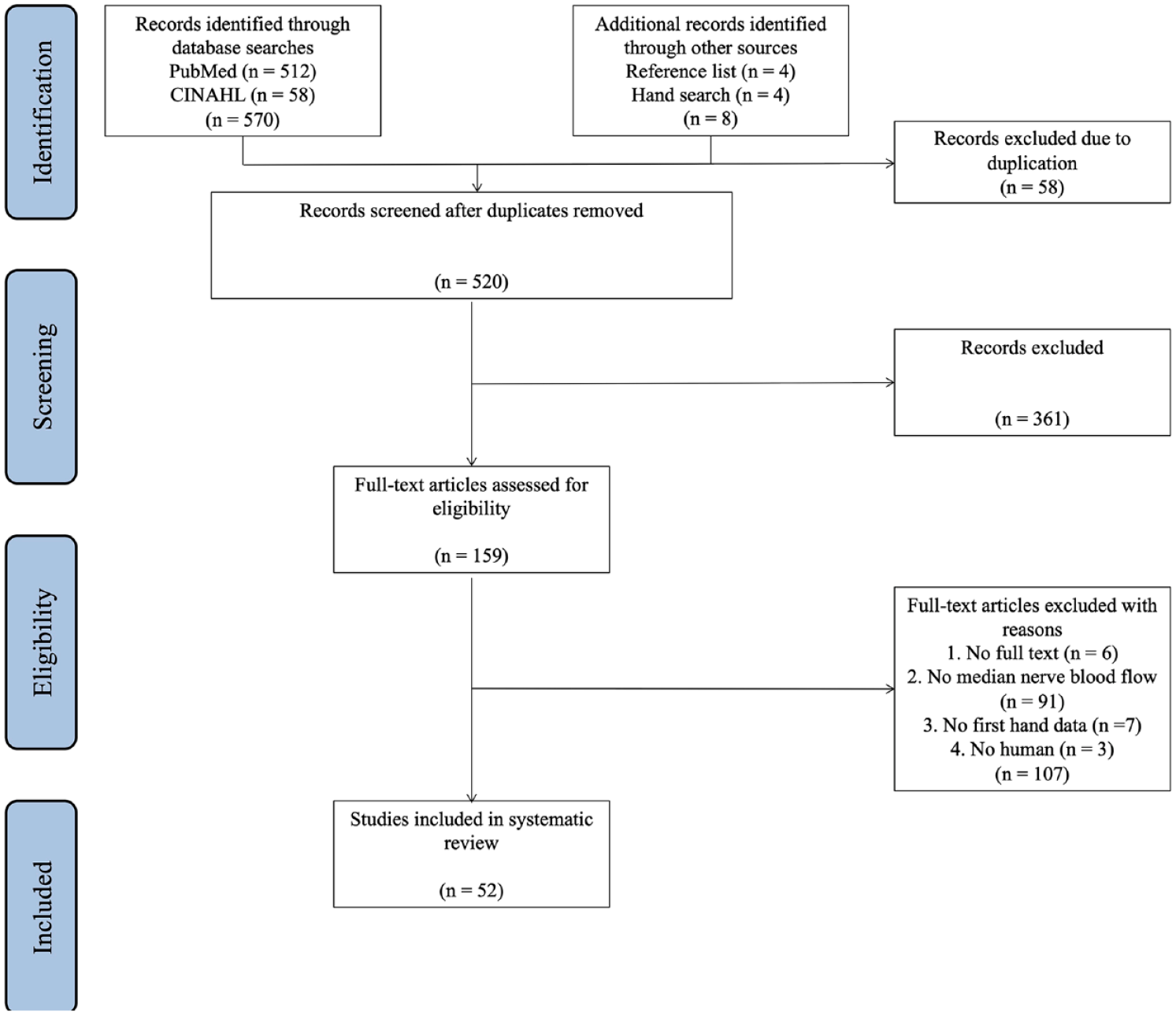

Figure 1.

Flow diagram of the study review and inclusion process.

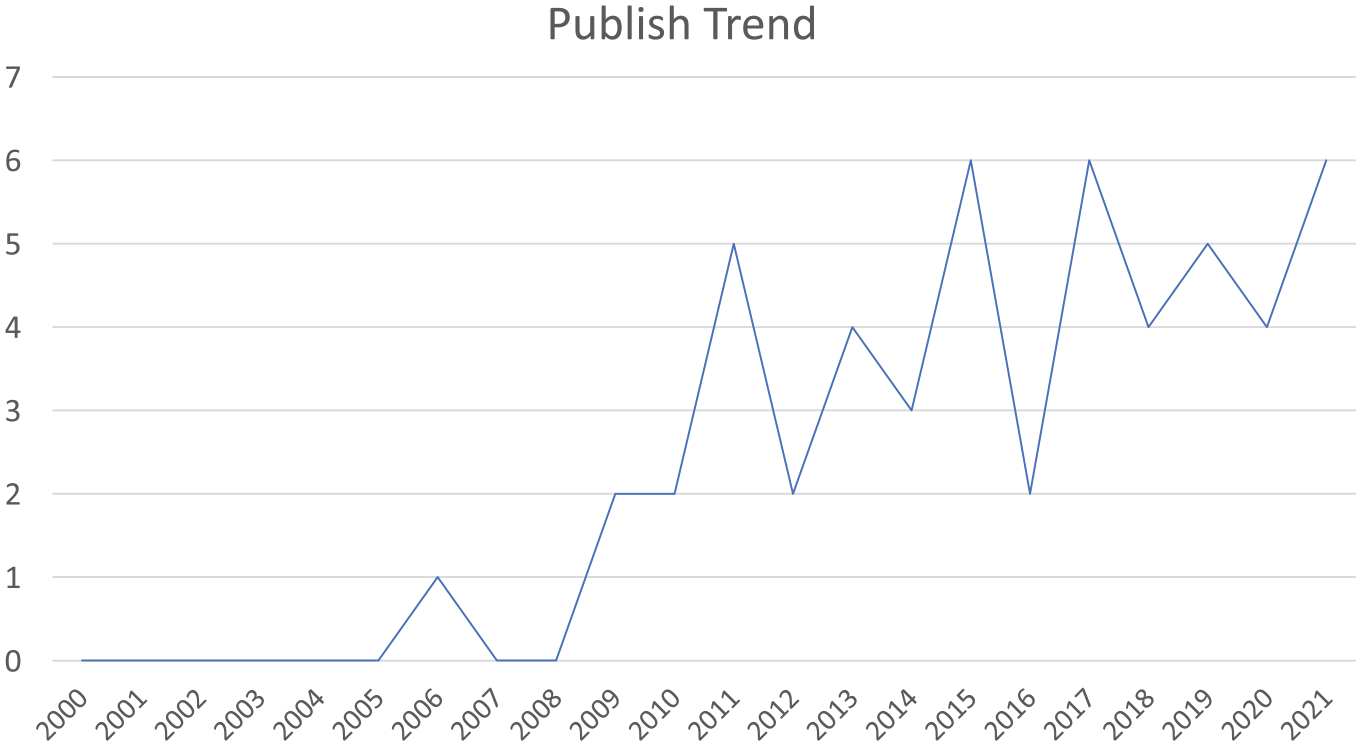

Figure 2.

The publishing trend of studies on the topic of examining median nerve intraneural blood flow with sonography.

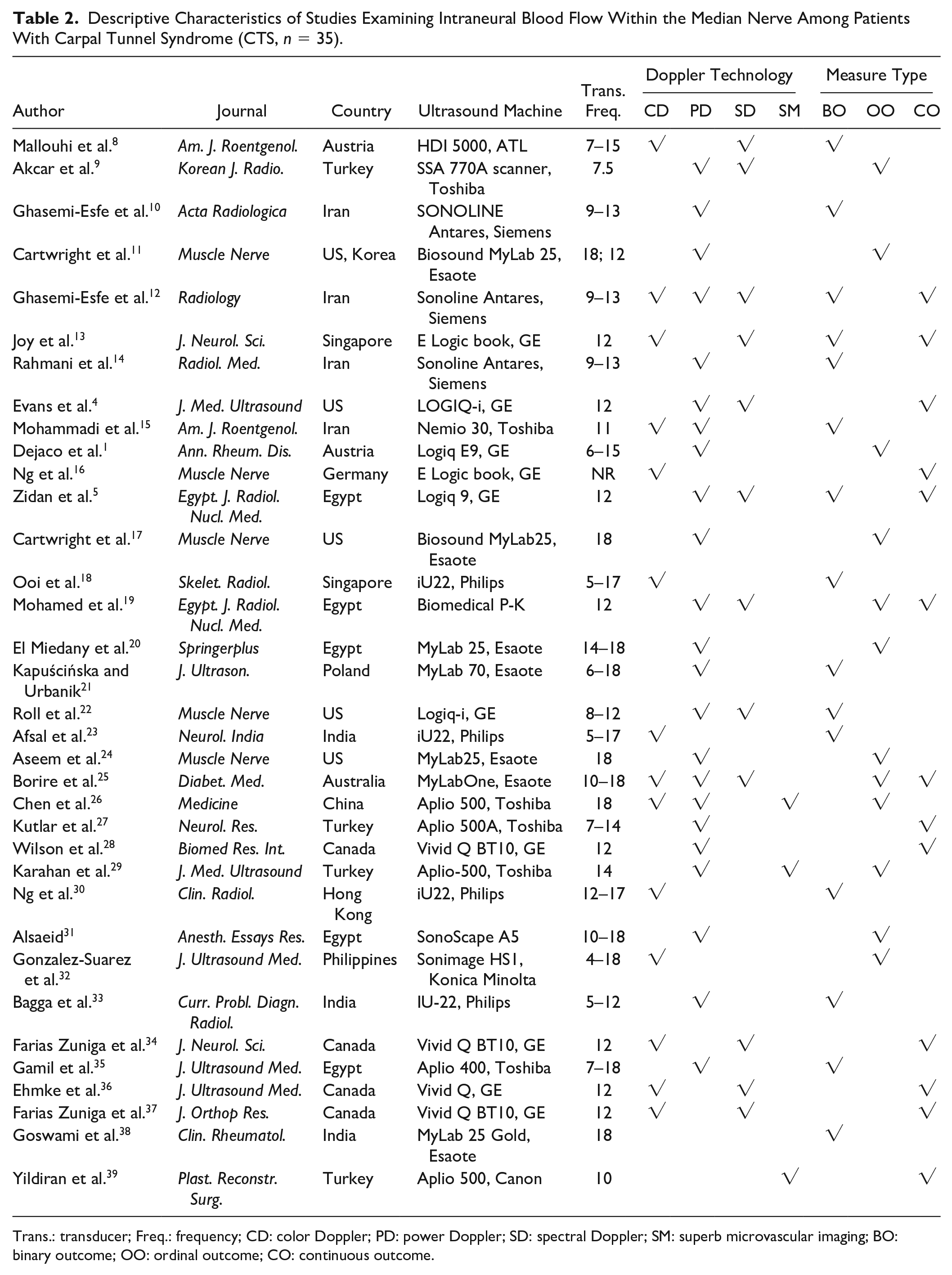

Table 2.

Descriptive Characteristics of Studies Examining Intraneural Blood Flow Within the Median Nerve Among Patients With Carpal Tunnel Syndrome (CTS, n = 35).

Author	Journal	Country	Ultrasound Machine	Trans. Freq.	Doppler Technology				Measure Type
Author	Journal	Country	Ultrasound Machine	Trans. Freq.	CD	PD	SD	SM	BO	OO	CO
Mallouhi et al.⁸	Am. J. Roentgenol.	Austria	HDI 5000, ATL	7–15	√		√		√
Akcar et al.⁹	Korean J. Radio.	Turkey	SSA 770A scanner, Toshiba	7.5		√	√			√
Ghasemi-Esfe et al.¹⁰	Acta Radiologica	Iran	SONOLINE Antares, Siemens	9–13		√			√
Cartwright et al.¹¹	Muscle Nerve	US, Korea	Biosound MyLab 25, Esaote	18; 12		√				√
Ghasemi-Esfe et al.¹²	Radiology	Iran	Sonoline Antares, Siemens	9–13	√	√	√		√		√
Joy et al.¹³	J. Neurol. Sci.	Singapore	E Logic book, GE	12	√		√		√		√
Rahmani et al.¹⁴	Radiol. Med.	Iran	Sonoline Antares, Siemens	9–13		√			√
Evans et al.⁴	J. Med. Ultrasound	US	LOGIQ-i, GE	12		√	√				√
Mohammadi et al.¹⁵	Am. J. Roentgenol.	Iran	Nemio 30, Toshiba	11	√	√			√
Dejaco et al.¹	Ann. Rheum. Dis.	Austria	Logiq E9, GE	6–15		√				√
Ng et al.¹⁶	Muscle Nerve	Germany	E Logic book, GE	NR	√						√
Zidan et al.⁵	Egypt. J. Radiol. Nucl. Med.	Egypt	Logiq 9, GE	12		√	√		√		√
Cartwright et al.¹⁷	Muscle Nerve	US	Biosound MyLab25, Esaote	18		√				√
Ooi et al.¹⁸	Skelet. Radiol.	Singapore	iU22, Philips	5–17	√				√
Mohamed et al.¹⁹	Egypt. J. Radiol. Nucl. Med.	Egypt	Biomedical P-K	12		√	√			√	√
El Miedany et al.²⁰	Springerplus	Egypt	MyLab 25, Esaote	14–18		√				√
Kapuścińska and Urbanik²¹	J. Ultrason.	Poland	MyLab 70, Esaote	6–18		√			√
Roll et al.²²	Muscle Nerve	US	Logiq-i, GE	8–12		√	√		√
Afsal et al.²³	Neurol. India	India	iU22, Philips	5–17	√				√
Aseem et al.²⁴	Muscle Nerve	US	MyLab25, Esaote	18		√				√
Borire et al.²⁵	Diabet. Med.	Australia	MyLabOne, Esaote	10–18	√	√	√			√	√
Chen et al.²⁶	Medicine	China	Aplio 500, Toshiba	18	√	√		√		√
Kutlar et al.²⁷	Neurol. Res.	Turkey	Aplio 500A, Toshiba	7–14		√					√
Wilson et al.²⁸	Biomed Res. Int.	Canada	Vivid Q BT10, GE	12		√					√
Karahan et al.²⁹	J. Med. Ultrasound	Turkey	Aplio-500, Toshiba	14		√		√		√
Ng et al.³⁰	Clin. Radiol.	Hong Kong	iU22, Philips	12–17	√				√
Alsaeid³¹	Anesth. Essays Res.	Egypt	SonoScape A5	10–18		√				√
Gonzalez-Suarez et al.³²	J. Ultrasound Med.	Philippines	Sonimage HS1, Konica Minolta	4–18	√					√
Bagga et al.³³	Curr. Probl. Diagn. Radiol.	India	IU-22, Philips	5–12		√			√
Farias Zuniga et al.³⁴	J. Neurol. Sci.	Canada	Vivid Q BT10, GE	12	√		√				√
Gamil et al.³⁵	J. Ultrasound Med.	Egypt	Aplio 400, Toshiba	7–18		√			√
Ehmke et al.³⁶	J. Ultrasound Med.	Canada	Vivid Q, GE	12	√		√				√
Farias Zuniga et al.³⁷	J. Orthop Res.	Canada	Vivid Q BT10, GE	12	√		√				√
Goswami et al.³⁸	Clin. Rheumatol.	India	MyLab 25 Gold, Esaote	18					√
Yildiran et al.³⁹	Plast. Reconstr. Surg.	Turkey	Aplio 500, Canon	10				√			√

Trans.: transducer; Freq.: frequency; CD: color Doppler; PD: power Doppler; SD: spectral Doppler; SM: superb microvascular imaging; BO: binary outcome; OO: ordinal outcome; CO: continuous outcome.

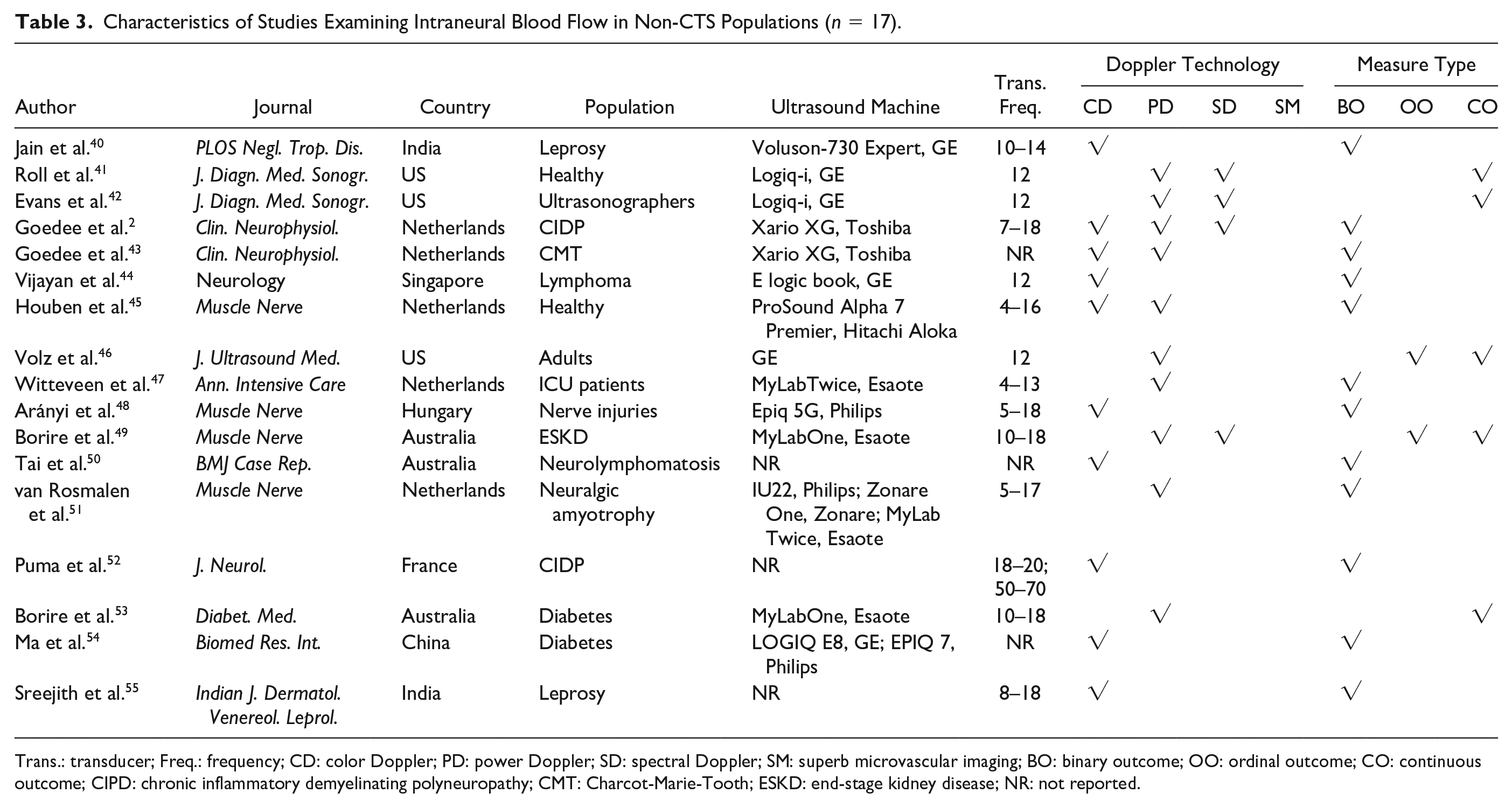

Table 3.

Characteristics of Studies Examining Intraneural Blood Flow in Non-CTS Populations (n = 17).

Author	Journal	Country	Population	Ultrasound Machine	Trans. Freq.	Doppler Technology				Measure Type
Author	Journal	Country	Population	Ultrasound Machine	Trans. Freq.	CD	PD	SD	SM	BO	OO	CO
Jain et al.⁴⁰	PLOS Negl. Trop. Dis.	India	Leprosy	Voluson-730 Expert, GE	10–14	√				√
Roll et al.⁴¹	J. Diagn. Med. Sonogr.	US	Healthy	Logiq-i, GE	12		√	√				√
Evans et al.⁴²	J. Diagn. Med. Sonogr.	US	Ultrasonographers	Logiq-i, GE	12		√	√				√
Goedee et al.²	Clin. Neurophysiol.	Netherlands	CIDP	Xario XG, Toshiba	7–18	√	√	√		√
Goedee et al.⁴³	Clin. Neurophysiol.	Netherlands	CMT	Xario XG, Toshiba	NR	√	√			√
Vijayan et al.⁴⁴	Neurology	Singapore	Lymphoma	E logic book, GE	12	√				√
Houben et al.⁴⁵	Muscle Nerve	Netherlands	Healthy	ProSound Alpha 7 Premier, Hitachi Aloka	4–16	√	√			√
Volz et al.⁴⁶	J. Ultrasound Med.	US	Adults	GE	12		√				√	√
Witteveen et al.⁴⁷	Ann. Intensive Care	Netherlands	ICU patients	MyLabTwice, Esaote	4–13		√			√
Arányi et al.⁴⁸	Muscle Nerve	Hungary	Nerve injuries	Epiq 5G, Philips	5–18	√				√
Borire et al.⁴⁹	Muscle Nerve	Australia	ESKD	MyLabOne, Esaote	10–18		√	√			√	√
Tai et al.⁵⁰	BMJ Case Rep.	Australia	Neurolymphomatosis	NR	NR	√				√
van Rosmalen et al.⁵¹	Muscle Nerve	Netherlands	Neuralgic amyotrophy	IU22, Philips; Zonare One, Zonare; MyLab Twice, Esaote	5–17		√			√
Puma et al.⁵²	J. Neurol.	France	CIDP	NR	18–20; 50–70	√				√
Borire et al.⁵³	Diabet. Med.	Australia	Diabetes	MyLabOne, Esaote	10–18		√					√
Ma et al.⁵⁴	Biomed Res. Int.	China	Diabetes	LOGIQ E8, GE; EPIQ 7, Philips	NR	√				√
Sreejith et al.⁵⁵	Indian J. Dermatol. Venereol. Leprol.	India	Leprosy	NR	8–18	√				√

Trans.: transducer; Freq.: frequency; CD: color Doppler; PD: power Doppler; SD: spectral Doppler; SM: superb microvascular imaging; BO: binary outcome; OO: ordinal outcome; CO: continuous outcome; CIPD: chronic inflammatory demyelinating polyneuropathy; CMT: Charcot-Marie-Tooth; ESKD: end-stage kidney disease; NR: not reported.

Image Acquisition

The most frequently used imaging modality to detect blood flow signals within the median nerve was power Doppler (61.5%, 32 of 52), followed by approximately half of the studies using color Doppler (48.1%, 25 of 52), and spectral Doppler (i.e., pulse wave Doppler) appearing in 16 studies (30.8%).(Figure 3). Spectral Doppler was used in some studies to confirm that the pulsatile signals obtained from power Doppler were truly vascular due to its ability to display the blood flow velocity over time as a spectrum and to distinguish true arterial waveforms from artifacts.⁴⁹ Some studies also used spectral Doppler to quantitatively measure the PSV of the blood flow within the median nerve by obtaining the classic arterial waveforms.⁴⁹

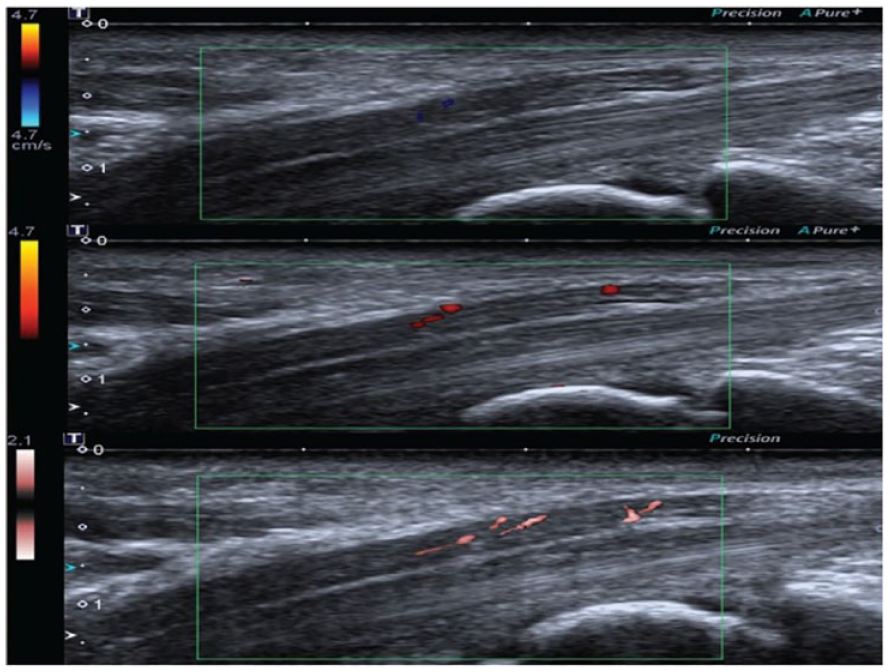

Figure 3.

Ultrasound images of the MN at the same level from a 65-year-old female CTS patient, which shows score 1 by CDUS, score 2 by PDUS, and score 3 by SMI. CDUS = color Doppler ultrasonography, CTS = carpal tunnel syndrome, PDUS = power Doppler ultrasonography, SMI = superb microvascular imaging. Cited from Chen et al.²⁶

In addition to traditional Doppler methods, three studies used superb microvascular imaging to examine the vascularity within the median nerve.^26,29,39 Superb microvascular imaging is a relatively new Doppler-based imaging method that has an advantage in eliminating the artifacts and can reveal low-velocity vascular signals more sensitively.⁵⁶ This technology was first published in 2016 to examine blood flow in thyroid tissues,⁵⁷ and the studies employing this technology in the median nerve were published in 2017, 2018, and 2021.^26,29,39

The imaging planes and location of median nerve evaluation widely varied across studies. Among the included studies, 17 (32.7%) studies examined only in long axis (i.e., sagittal plane), 17 (32.7%) studies examined only in the short axis (i.e., axial plane), and 16 (30.8%) studies examined in both planes. Most studies did not provide clear or precise descriptions of the measurement locations. The lack of description was most frequently noted when examining the median nerve in long axis, leaving it unclear as to which part of the median nerve was examined. Among studies that reported anatomic landmarks or specific imaging locations, there was no consistency or predominate location. For example, Mohammadi et al.¹⁵ examined the vascularity above the carpal tunnel region, while Ng et al.³⁰ examined the presence of vascularity from the distal forearm to the carpal tunnel outlet.

Across the studies, numerous different ultrasound machines were used, and the frequency of the transducers ranged from 7.5 to 50 MHz. Machine settings for power Doppler imaging were rarely provided, and the reported settings for spectral Doppler varied greatly in terms of frequency, pulse repetition frequency (PRF), wall filter, gate width, and angle adjusting. Given the lack of details provided for ultrasound settings, variability in the Doppler modalities used, and lack of standardization in the imaging planes and anatomic locations examined, the synthesis or comparison of findings across studies is limited, even among studies that applied similar analytic criteria.

Image Analysis

Among the four types of measures, the most frequently reported was a binary outcome that indicated the presence or absence of intraneural blood flow, which appeared in 27 studies (51.9%). Binary categorization is the most straightforward, and potentially the most reliable, method to analyze intraneural blood flow as it does not require software or extensive expertise. However, any assessment of reliability or recommended utility of this outcome is hampered by a lack of standardization in the criteria for validating the presence of intraneural flow. In fact, most studies (70.4%, 19 of 27) did not report the specific criteria used to initially determine or validate the presence of blood flow. Among those that did provide criteria, some studies specified that the signals required a pulsatile characteristic to rule out tiny artifactual colored pixels (e.g., Ghasemi-Esfe et al.¹⁰). Other studies required the pulsatile signals to have at least five consistent cycles (e.g., Wilson et al.; ²⁸ Ehmke et al.³⁶), and many studies used spectral Doppler to confirm the blood flow signals (e.g., Borire et al.;^25,49,53 Ghasemi-Esfe et al.¹²). Finally, Ooi et al.¹⁸ specified that the vascular signals need to be greater than 1 mm in length to be counted as the presence of hypervascularity.

Expansion beyond general presence into an ordinal outcome based on the number of signals was used in 14 (26.9%) of the studies (see Table 4). These studies either counted the individual signals or used increasing frequency of signals within a region of interest to create categories. A four-level rating was the most common analysis method used in ten studies; however, there were slightly different descriptions of the scoring criteria across these studies. The most common criteria rated power Doppler signals from 0 to 3, in which 0 represented no signals, 1 represented a single vessel within the median nerve, 2 indicated two or three signals or two confluent vessels, and 3 indicated more than three signals or more than two confluent vessels. The remaining four studies categorize the amount of blood flow into three levels by indicating that vascularity was “increased,” “slightly increased,” or “normal,” where “normal” means no color Doppler signal in the nerve (Cartwright et al.;^11,17 Aseem et al.;²⁴ Alsaeid³¹).

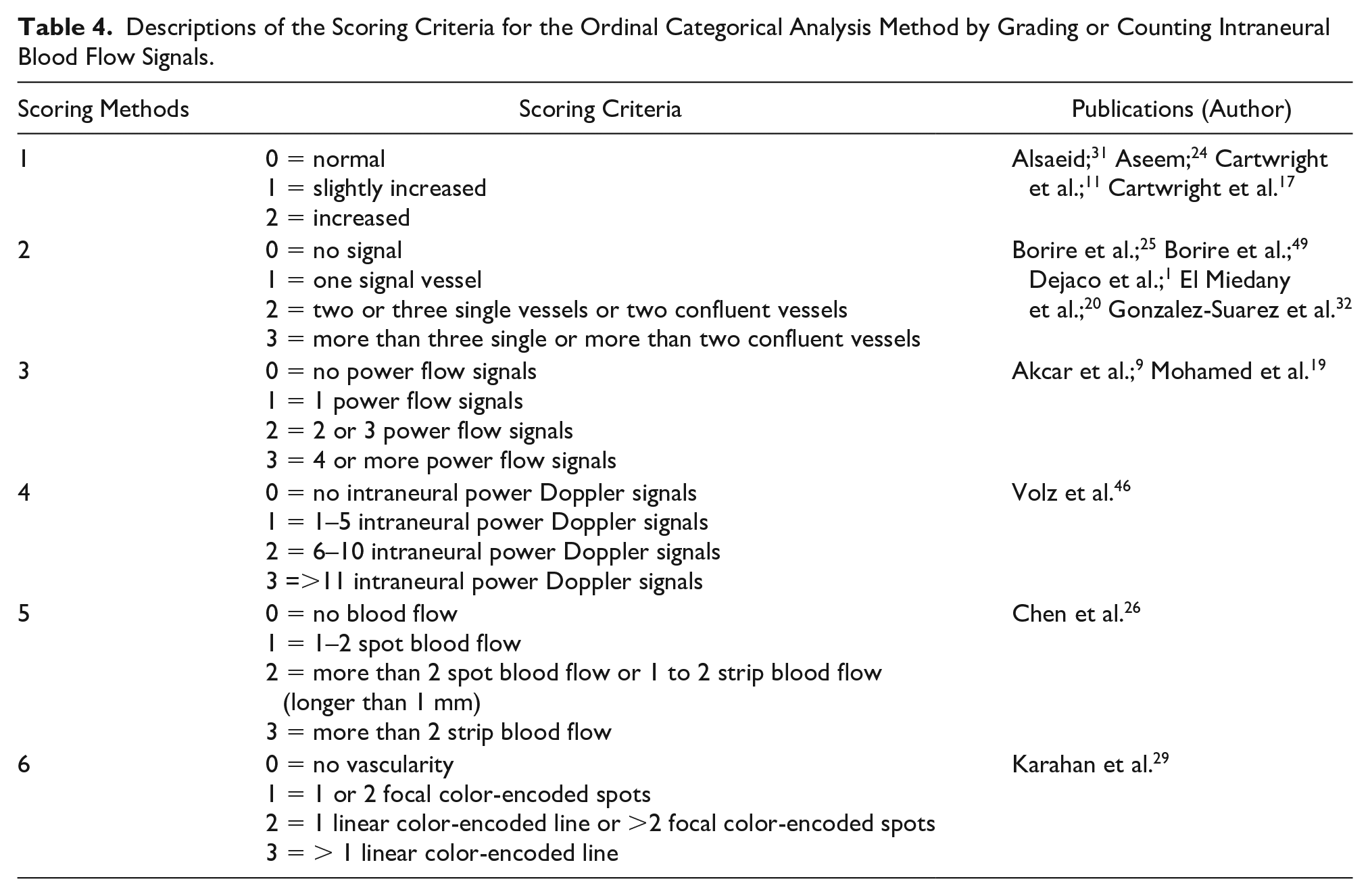

Table 4.

Descriptions of the Scoring Criteria for the Ordinal Categorical Analysis Method by Grading or Counting Intraneural Blood Flow Signals.

Scoring Methods	Scoring Criteria	Publications (Author)
1	0 = normal1 = slightly increased2 = increased	Alsaeid;³¹ Aseem;²⁴ Cartwright et al.;¹¹ Cartwright et al.¹⁷
2	0 = no signal1 = one signal vessel2 = two or three single vessels or two confluent vessels3 = more than three single or more than two confluent vessels	Borire et al.;²⁵ Borire et al.;⁴⁹ Dejaco et al.;¹ El Miedany et al.;²⁰ Gonzalez-Suarez et al.³²
3	0 = no power flow signals1 = 1 power flow signals2 = 2 or 3 power flow signals3 = 4 or more power flow signals	Akcar et al.;⁹ Mohamed et al.¹⁹
4	0 = no intraneural power Doppler signals1 = 1–5 intraneural power Doppler signals2 = 6–10 intraneural power Doppler signals3 =>11 intraneural power Doppler signals	Volz et al.⁴⁶
5	0 = no blood flow1 = 1–2 spot blood flow2 = more than 2 spot blood flow or 1 to 2 strip blood flow (longer than 1 mm)3 = more than 2 strip blood flow	Chen et al.²⁶
6	0 = no vascularity1 = 1 or 2 focal color-encoded spots2 = 1 linear color-encoded line or >2 focal color-encoded spots3 = > 1 linear color-encoded line	Karahan et al.²⁹

There were 18 (34.6%) studies that adopted an image analysis method that generated a continuous outcome of intraneural blood flow. As shown in Table 5, eight studies (15.4%) analyzed power Doppler signals. Three studies reported the sum of pixels that included a Doppler signal within the median nerve in the long axis.^12,16,27 Ghasemi-Esfe et al.¹² used a self-developed program in MATLAB to evaluate images obtained at the pisiform level of carpal tunnel, whereas Kutlar et al.²⁷ used Osirix open-source software to evaluate the median nerve at the entrance to the carpal tunnel. Ng et al.¹⁶ reported the averaged sum of pixels of three time periods using National Institute of Health J software. Similarly, Yildiran et al.³⁹ reported a sum of Doppler pixels, but examined the nerve in short axis. While a sum of pixels can be useful for within study comparisons, variability in pixel size and other machine settings across ultrasound equipment and differences in the size of the region of interest limits comparison or generalizability of this measure. Borire et al.^25,49,53 and Volz et al.⁴⁶ measured the maximum pixel intensity (MPI), which is a measure of quantity of flow within the region of interest. MPI is demonstrated by the color intensity of the pixel that has the maximum color intensity within the region of interests, and the measure is automatically derived by PixelFlux. These authors provided detailed descriptions of the machine settings used, such as frequency, PRF, gain, time-gain compensation, and harmonics, which can assist in comparing data between subjects and across studies.

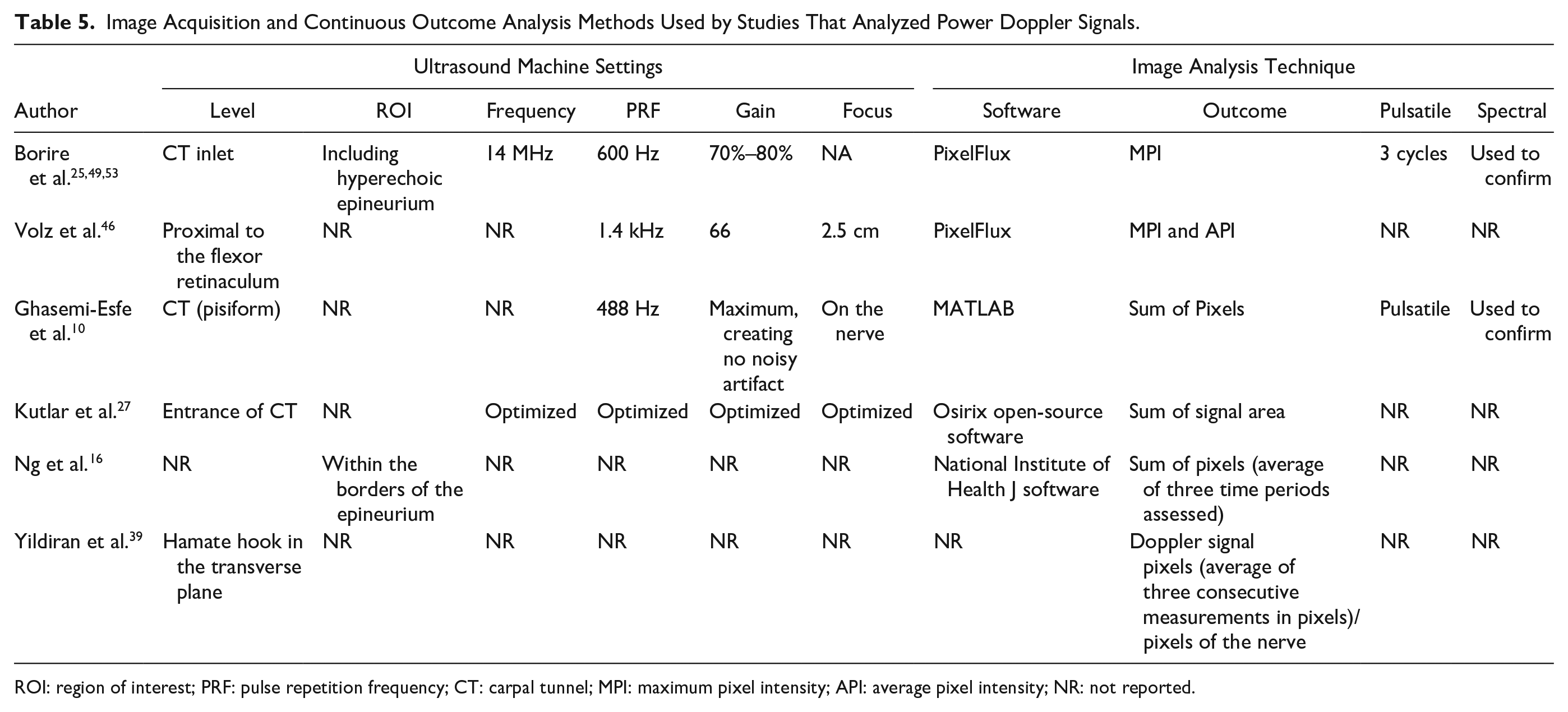

Table 5.

Image Acquisition and Continuous Outcome Analysis Methods Used by Studies That Analyzed Power Doppler Signals.

Author	Ultrasound Machine Settings						Image Analysis Technique
Author	Level	ROI	Frequency	PRF	Gain	Focus	Software	Outcome	Pulsatile	Spectral
Borire et al.^25,49,53	CT inlet	Including hyperechoic epineurium	14 MHz	600 Hz	70%–80%	NA	PixelFlux	MPI	3 cycles	Used to confirm
Volz et al.⁴⁶	Proximal to the flexor retinaculum	NR	NR	1.4 kHz	66	2.5 cm	PixelFlux	MPI and API	NR	NR
Ghasemi-Esfe et al.¹⁰	CT (pisiform)	NR	NR	488 Hz	Maximum, creating no noisy artifact	On the nerve	MATLAB	Sum of Pixels	Pulsatile	Used to confirm
Kutlar et al.²⁷	Entrance of CT	NR	Optimized	Optimized	Optimized	Optimized	Osirix open-source software	Sum of signal area	NR	NR
Ng et al.¹⁶	NR	Within the borders of the epineurium	NR	NR	NR	NR	National Institute of Health J software	Sum of pixels (average of three time periods assessed)	NR	NR
Yildiran et al.³⁹	Hamate hook in the transverse plane	NR	NR	NR	NR	NR	NR	Doppler signal pixels (average of three consecutive measurements in pixels)/pixels of the nerve	NR	NR

ROI: region of interest; PRF: pulse repetition frequency; CT: carpal tunnel; MPI: maximum pixel intensity; API: average pixel intensity; NR: not reported.

A total of 10 (19.2%) studies used spectral Doppler to examine the velocity of intraneural blood flow as the primary continuous outcome (Table 6). Peak systolic velocity was the most frequently reported measure, used by eight of the studies. Different criteria of analyzing the PSV were adopted by these studies. For example, Ehmke et al.³⁶ used the average PSVs across a serial of steady blood flow signals containing five cycles.³⁶ Evans et al.⁴ used the average of two cycles. Wilson et al.²⁸ used the initial PSV of five stable cycles, while Farias Zuniga et al.^34,37 used the average PSV of a serial of consistent blood flow signals over five seconds. Joy et al.¹³ measured PSV, and Evans et al.⁴² and Roll et al.⁴¹ measured both PSV and end diastole velocity (EDV). Two of the eight studies used EchoPack software,^28,36 one study used MAUI analysis software,³⁷ and other studies measured PSV using the ultrasound machine. As an alternative to using PSV, Zidan et al.⁵ and Mohamed et al.¹⁹ measured the pulsatility index, which is calculated as the PSV minus end diastolic velocity all divided by mean velocity.

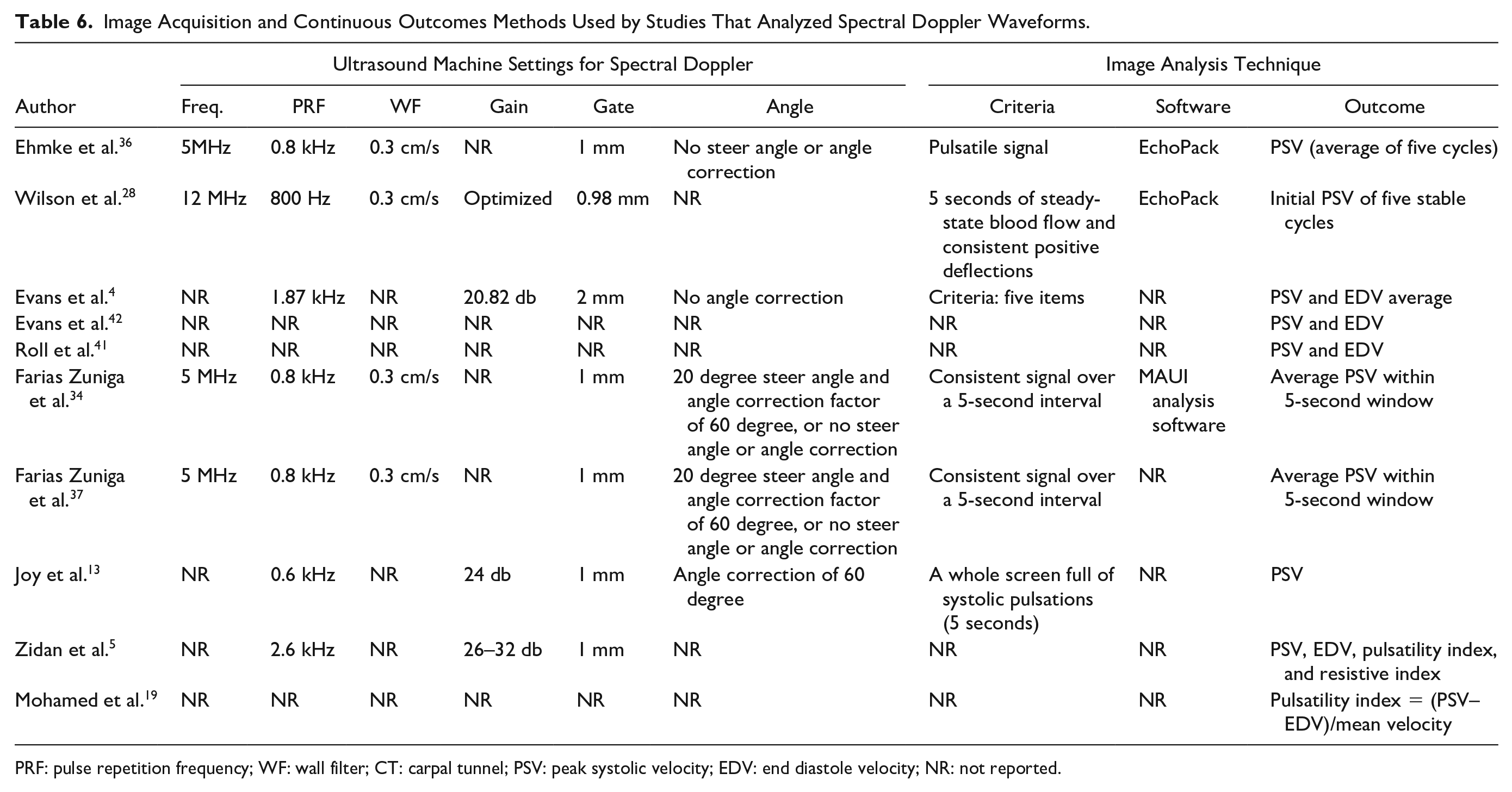

Table 6.

Image Acquisition and Continuous Outcomes Methods Used by Studies That Analyzed Spectral Doppler Waveforms.

Author	Ultrasound Machine Settings for Spectral Doppler						Image Analysis Technique
Author	Freq.	PRF	WF	Gain	Gate	Angle	Criteria	Software	Outcome
Ehmke et al.³⁶	5MHz	0.8 kHz	0.3 cm/s	NR	1 mm	No steer angle or angle correction	Pulsatile signal	EchoPack	PSV (average of five cycles)
Wilson et al.²⁸	12 MHz	800 Hz	0.3 cm/s	Optimized	0.98 mm	NR	5 seconds of steady-state blood flow and consistent positive deflections	EchoPack	Initial PSV of five stable cycles
Evans et al.⁴	NR	1.87 kHz	NR	20.82 db	2 mm	No angle correction	Criteria: five items	NR	PSV and EDV average
Evans et al.⁴²	NR	NR	NR	NR	NR	NR	NR	NR	PSV and EDV
Roll et al.⁴¹	NR	NR	NR	NR	NR	NR	NR	NR	PSV and EDV
Farias Zuniga et al.³⁴	5 MHz	0.8 kHz	0.3 cm/s	NR	1 mm	20 degree steer angle and angle correction factor of 60 degree, or no steer angle or angle correction	Consistent signal over a 5-second interval	MAUI analysis software	Average PSV within 5-second window
Farias Zuniga et al.³⁷	5 MHz	0.8 kHz	0.3 cm/s	NR	1 mm	20 degree steer angle and angle correction factor of 60 degree, or no steer angle or angle correction	Consistent signal over a 5-second interval	NR	Average PSV within 5-second window
Joy et al.¹³	NR	0.6 kHz	NR	24 db	1 mm	Angle correction of 60 degree	A whole screen full of systolic pulsations (5 seconds)	NR	PSV
Zidan et al.⁵	NR	2.6 kHz	NR	26–32 db	1 mm	NR	NR	NR	PSV, EDV, pulsatility index, and resistive index
Mohamed et al.¹⁹	NR	NR	NR	NR	NR	NR	NR	NR	Pulsatility index = (PSV–EDV)/mean velocity

PRF: pulse repetition frequency; WF: wall filter; CT: carpal tunnel; PSV: peak systolic velocity; EDV: end diastole velocity; NR: not reported.

If conducted using a standardized acquisition protocol combined with signal validation criteria, these spectral Doppler measures have the strongest potential for reliable comparison across studies due to limited measurement bias. Among these studies, Evans et al.⁴ was the only study to report detailed criteria for evaluating the validity or quality of spectral Doppler waveforms. Their criteria included five items regarding the quality of the spectral Doppler waveforms and the gray scale image.

Reliability of Image Analyses

Only 10 (19.2%) studies reported inter-observer and/or intra-observer reliability (Table 7). Three studies reported an excellent inter-reliability and intra-reliability for the binary measurement of intraneural blood flow, which ranged from 0.81 to 0.90 (kappa). Wider variability in reliability of the ordinal categorization was reported by Dejaco et al.¹ and El Miedany et al.²⁰ with weighted kappa for inter-rater reliability at 0.51 and 0.78 and intra-rater reliability at 0.65 and 0.85. Intraclass correlations (ICCs) reported in one study for the continuous measurement of MPI demonstrated excellent inter- and intra-observer reliability at 0.95 and 1.0, respectively.²⁵ Intra-observer reliability for the continuous measurement of PSV was widely variable and inconsistent when compared across measurements taken with the wrist in different positions.²⁸

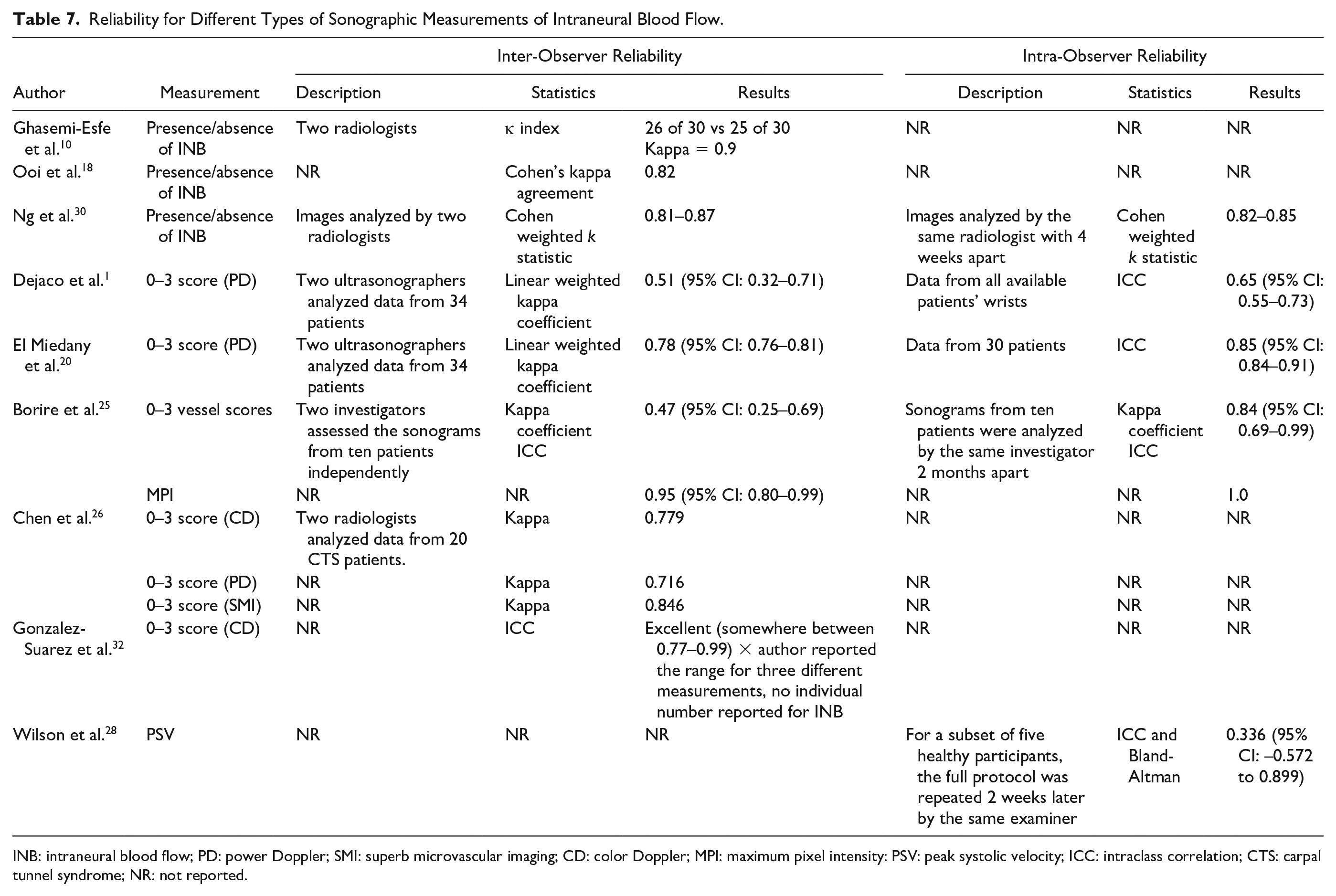

Table 7.

Reliability for Different Types of Sonographic Measurements of Intraneural Blood Flow.

Author	Measurement	Inter-Observer Reliability			Intra-Observer Reliability
Author	Measurement	Description	Statistics	Results	Description	Statistics	Results
Ghasemi-Esfe et al.¹⁰	Presence/absence of INB	Two radiologists	κ index	26 of 30 vs 25 of 30Kappa = 0.9	NR	NR	NR
Ooi et al.¹⁸	Presence/absence of INB	NR	Cohen’s kappa agreement	0.82	NR	NR	NR
Ng et al.³⁰	Presence/absence of INB	Images analyzed by two radiologists	Cohen weighted k statistic	0.81–0.87	Images analyzed by the same radiologist with 4 weeks apart	Cohen weighted k statistic	0.82–0.85
Dejaco et al.¹	0–3 score (PD)	Two ultrasonographers analyzed data from 34 patients	Linear weighted kappa coefficient	0.51 (95% CI: 0.32–0.71)	Data from all available patients’ wrists	ICC	0.65 (95% CI: 0.55–0.73)
El Miedany et al.²⁰	0–3 score (PD)	Two ultrasonographers analyzed data from 34 patients	Linear weighted kappa coefficient	0.78 (95% CI: 0.76–0.81)	Data from 30 patients	ICC	0.85 (95% CI: 0.84–0.91)
Borire et al.²⁵	0–3 vessel scores	Two investigators assessed the sonograms from ten patients independently	Kappa coefficient ICC	0.47 (95% CI: 0.25–0.69)	Sonograms from ten patients were analyzed by the same investigator 2 months apart	Kappa coefficient ICC	0.84 (95% CI: 0.69–0.99)
	MPI	NR	NR	0.95 (95% CI: 0.80–0.99)	NR	NR	1.0
Chen et al.²⁶	0–3 score (CD)	Two radiologists analyzed data from 20 CTS patients.	Kappa	0.779	NR	NR	NR
	0–3 score (PD)	NR	Kappa	0.716	NR	NR	NR
	0–3 score (SMI)	NR	Kappa	0.846	NR	NR	NR
Gonzalez-Suarez et al.³²	0–3 score (CD)	NR	ICC	Excellent (somewhere between 0.77–0.99) × author reported the range for three different measurements, no individual number reported for INB	NR	NR	NR
Wilson et al.²⁸	PSV	NR	NR	NR	For a subset of five healthy participants, the full protocol was repeated 2 weeks later by the same examiner	ICC and Bland-Altman	0.336 (95% CI: –0.572 to 0.899)

INB: intraneural blood flow; PD: power Doppler; SMI: superb microvascular imaging; CD: color Doppler; MPI: maximum pixel intensity: PSV: peak systolic velocity; ICC: intraclass correlation; CTS: carpal tunnel syndrome; NR: not reported.

Clinical Utility

The use of intraneural blood flow for the diagnosis of CTS was the most common clinical application explored. Six of the included studies reported the diagnostic value of the binary type of measurement of intraneural blood flow, demonstrating a wide range of sensitivity (4%–95%) and specificity (71%–100%).^{8,10,18,30,35,38} When using a score of two or more signals as a diagnostic cut point, the sensitivity and specificity for an ordinal categorization of blood flow ranged from 19.1% to 47.4% and from 89.8% to 96.6% when measured at different locations.¹

Rather than relying on one measure of intraneural blood flow as a diagnostic criterion, other studies proposed methods for combining blood flow with other clinical measures, or using blood flow as an indicator of severity. For example, Joy et al.¹³ found that the combination of intraneural blood flow and cross-sectional area (CSA) of the median nerve may improve the diagnostic value of sonography in detecting CTS. This has been echoed by others who have demonstrated that any combination of median nerve CSA > 12 mm², abnormal mobility, echogenicity, or vascularity, resulted in a sensitivity of 89%.¹⁷ Mixed results have been documented relating vascularity to CTS severity, where some studies suggest there is an inverse relationship,^4,5 and other studies finding the relationship to be positively related.^12,15,19,27 Despite a need for further exploration, a scoring and severity grading system using vascularity as one of multiple sonographic and clinical measures has been suggested for diagnosing CTS.²²

Although most studies focused on the diagnosis of CTS, intraneural blood flow has been also used in other ways, such as evaluating treatment outcomes and predicting the prognosis of CTS treatments. For example, Yildiran et al.³⁹ documented that intraneural vascularity decreased in moderate and severe CTS patients after surgery decompression. More recent studies suggest that an ordinal score of more than 2 is a predictor of good outcomes in response to management,²⁰ and that intraneural blood flow velocity is a significant predictor of nerve sensory and motor changes at six months.³⁷

Discussion

This systematic review was undertaken to summarize the methods used in the literature to measure median nerve intraneural blood flow using Doppler sonography, and compare different imaging acquisition and analysis protocols as a foundation for identifying best practices. The final review included 52 studies, with 90% of the studies conducted within the past 10 years. Four Doppler technologies were used for image acquisition and four types of intraneural blood flow measurements were identified and compared. Due to the lack of a standardized method and reporting guidance, not enough evidence exists to conclude which image acquisition and analysis method is the most optimal for future research and clinical use. Although intraneural blood flow has been applied in many study areas, the most common area is to use intraneural blood flow as a biomarker to diagnose CTS.

Current Landscape of Intraneural Blood Flow Analysis

As can be seen in the results of this systematic review, there are many ways of acquiring images of intraneural blood flow using Doppler ultrasound, and there are significant inconsistencies in reporting across the studies. These inconsistencies include a lack of information on standardized machine settings across the different types of Doppler technologies used (i.e., power Doppler, spectral Doppler, superb microvascular imaging). Moreover, there is a lack of clarity as to where and how the blood flow signals should be detected. This includes which plane should be examined (transverse vs longitudinal), which part of the median nerve should be examined (at carpal tunnel or at distal forearm), and what length of the median nerve should be examined (just limited at carpal tunnel region or the whole wrist region from proximal carpal tunnel to distal carpal tunnel).

In like manner, there are also many different image analysis methods. In this systematic review, four types of measurements of intraneural blood flow have been compared and summarized (i.e., binary, ordinal, and continuous measures). Even within each measurement type, significant inconsistencies are noted in how the outcome measure is obtained. For example, there is a general lack of description for the best criteria for validating the presence of blood flow, along with variations in qualitative criteria and the grading scales used for ordinal categorization of blood flow, such as the discrepancies between using three or four levels for assessment. Even among continuous outcome measures, there is a lack of standardization regarding the way in which pixel area, MPI, and PSVs are analyzed. It is vital to develop and adopt standardized criteria not only for the measurement techniques but also for validating that that signal or spectral tracing is not an artifact.

Comparing the image acquisition protocols and image analysis methods used and identifying the best technique for measuring intraneural blood flow are difficult. First, some studies reported poorly on their imaging methods. For example, some machine settings are reported in some studies but not in others; some studies did not mention their criteria for the presence of blood flow, nor did they mention the plane, position, or parts of the median nerve that they examined. Second, for the studies that did report the imaging acquisition methods, the differences exist in the technical equipment and scanning protocol that could influence the detection of intraneural blood flow and make it difficult to compare their results.

In addition to wide variability in acquisition techniques and poor reporting of methods, very few studies have compared multiple imaging technologies or image analysis methods within their studies. Power Doppler is stated to be superior to color Doppler in that it is more sensitive for detecting low-velocity blood flow signals;⁵⁸ however, no studies have compared the sensitivity of the two technologies. Karahan et al.²⁹ was the only study to compare techniques, but this study examined the sensitivity of superb microvascular imaging and power Doppler imaging, and concluded that superb microvascular imaging is more sensitive. Borire et al.²⁵ compared two image analysis methods from data obtained with power Doppler, MPI and counting the number of blood vessels, concluding that MPI might have an advantage in having a better inter-observer reliability and providing more values as a continuous variable. More studies are needed in determining the sensitivity in different image acquisition protocols and the reliability in different image analysis methods.

Opportunities to Advance Intraneural Blood Flow Analysis

Given the variation in image acquisition and analysis that has made comparing the results very challenging, there is a demonstrated need for standardized protocols for using Doppler sonography in the examination of intraneural blood flow in the median nerve. Due to a lack of evidence regarding the best technique, multiple protocols may be most useful to account for differences in the resources, effort and time required in each method. The clinician’s time and effort, the ultrasound technology, machine, and hardware requirements, and the analysis software requirements vary across the different methods. For example, a simple binary outcome of identifying the presence of blood flow using power Doppler might be easy enough to complete in any clinical setting. This binary outcome of intraneural blood flow requires the least time and does not require any additional analysis. Conversely, a clinic or research laboratory that has access to specialized software for analysis may benefit from a protocol that examines continuous measures of blood flow from power or spectral Doppler images.

Regardless of the protocol being used, clear criteria should exist to maximize the rigor, validity, and sensitivity of the interneural blood flow measurement. Protocols should clearly define what counts as a true vascularity signal to rule out other artificial signals. A scoring of the number of vessels of the blood flow may serve as a measurement for a part of the standard in assessing the severity of CTS, and is more robust than the binary measurement of intraneural blood flow. More robust measurement of intraneural blood flow, such as the continuous measurement of PSV or the pixel intensity, might provide more information, and may be the most appropriate measurement to be used in academic settings. However, these measurements do require more time and manpower to conduct the image analyses, and usually require access to software or hardware that might not be available. For example, the superb microvascular imaging function only exists in certain ultrasound machines.

Once standardized protocols are established for each of the measurements (binary, ordinal, and continuous), more studies should examine the correlation among these types of measurements; the inter- and intra-observer reliability of each of the measurements should be reported. The results of these different types of measurements cannot be compared and summarized until the consensus of the correlation among these measurements has been achieved. A review article published in 2014 concluded that a wide range of sensitivity (41%–95%) and specificity (71%–100%) existed, and the results should be interpreted with caution due to potential bias and flaws in the study design.⁶ This review article has compared and synthesized multiple intraneural blood flow measurements (binary, ordinal, and continuous outcome measures) collected by multiple technologies (color, power, and spectral Doppler). However, without a standardization of image acquisition methods and a consensus of the correlation among these types of measurements, the measurements detected by multiple technologies and methods are not comparable and the reported sensitivity and specificity range is not meaningful. Future review articles should differentiate the intraneural blood flow measurements and report the diagnostic value for these measurements separately.

Future opportunities also exist in exploring the clinical utility of these measurements. Currently, the reason that intraneural blood flow of the median nerve is altered in CTS patients is unclear. Some studies have theorized that the increase in intraneural blood flow is an early pathologic change of CTS, which can be used for early diagnosis or identification of preclinical CTS patients. The current examination of nerve conduction studies detects the changes in nerve conduction velocities, which is a late pathologic change of nerve demyelination. Thus, by detecting the early signs of median nerve pathology of increased vascularization, Doppler sonography can potentially complement the diagnosis of CTS. In addition, future opportunities exist not only for patients with CTS but also for broader populations, such as in individuals with diabetes who suffer from peripheral neuropathy.

Before the measurements of intraneural blood flow is widely used, multiple additional issues should be considered. First, there is a need to understand factors that might influence the measurements of intraneural blood flow. For example, a link between occupational risk factors, such as force and wrist flexion, and median nerve blood flow has been demonstrated.³⁶ More studies should be conducted to examine the stability of the measurements of intraneural blood flow under different conditions, such as body temperature, blood pressure, as well as wrist force and positions. Second, the terminology used in the current literature to describe the blood flow within the median nerve requires standardization. Some studies used the word “hypervascularity” to describe the phenomenon when blood flow signals were detected by Doppler ultrasound in healthy subjects, if blood flow should only exist in pathologic median nerves and the existence of blood flow in the median nerve is a sign of pathology. However, this might be problematic when a baseline value for the healthy population has not yet been established. Several studies have identified the blood flow signals within the median nerve in healthy subjects using Doppler ultrasound. In one study, 36% of the median nerves showed the presence of intraneural blood flow detected by power Doppler in an asymptomatic group.⁴⁵ However, other studies did not find any intraneural blood flow in the asymptomatic subjects.^9,33 More evidence is needed to demonstrate what is the baseline value of intraneural blood flow in the healthy population.

Limitations

This study has several limitations. First, the main focus of this study was to identify, characterize, and compare image acquisition and analysis protocols in the current literature. However, due to the wide variability in study designs and methodologies adopted by the included studies, data synthetization and comparison was precluded. Also, the quality of included studies was not evaluated since data comparison and synthetization were not performed. Thus, the nature of this study inherently has subjective bias. Caution is advised when interpreting the results of the studies discussed in this review.

Conclusion

Doppler sonography has been used to examine the intraneural blood flow of the median nerve mainly related to the topic of CTS. However, no standardized imaging protocol exists, and the wide variety of image acquisition and image analysis methods makes interpretation of any intraneural blood flow findings difficult. This systematic review demonstrated a need for a standardized sonography imaging protocol for examining intraneural blood flow within the median nerve, and a need for the clarification of nomenclature used to describe intraneural blood flow. In addition, this systematic review illuminated an issue in the lack of rigor of the reporting of ultrasound machine settings and imaging protocols. Future studies may be designed to use and compare a combination of sonographic imaging methods described in this review. Future studies are needed to examine the accuracy and reliability of different image acquisition methods and intraneural blood flow measurements. A detailed description of a standardized imaging protocol as well as guidance on how to report the imaging methodologies is warranted. Additional review is also needed to summarize the diagnostic accuracy of different intraneural blood flow measurements in diagnosing median nerve pathologies such as CTS.

Footnotes

Acknowledgements

The authors thank Chen Gong for his contribution in screening titles and abstracts of this systematic review.

Ethics Approval

This study was reviewed and approved by the Institutional Review Board at the University of Southern California.

Informed Consent

Written informed consent was obtained from all subjects before the study.

Animal Welfare

Guidelines for humane animal treatment did not apply to the present study because no animals were used during the study.

Trial Registration

Not applicable.

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Peer Reviewer Guarantee Statement

The Editor / Associate Editor of JDMS is an author of this article; therefore, the peer review process was managed by alternative members of the Board and the submitting Editor / Associate Editor had no involvement in the decision-making process.

ORCID iDs

Buwen Yao

Shawn C. Roll

References

Dejaco

Stradner

Zauner

, et al: Ultrasound for diagnosis of carpal tunnel syndrome: comparison of different methods to determine median nerve volume and value of power Doppler sonography. Ann Rheum Dis 2013;72(12): 1934–1939. doi:10.1136/annrheumdis-2012-202328.

Goedee

Brekelmans

Visser

: Multifocal enlargement and increased vascularization of peripheral nerves detected by sonography in CIDP: a pilot study. Clin Neurophysiol 2014;125(1):154–159. doi:10.1016/j.clinph.2013.05.025.

Aboonq

: Pathophysiology of carpal tunnel syndrome. Neurosciences (Riyadh) 2015;20(1):4–9.

Evans

Roll

Volz

Freimer

: Relationship between intraneural vascular flow measured with sonography and carpal tunnel syndrome diagnosis based on electrodiagnostic testing. J Ultrasound Med 2012;31(5):729–736. doi:10.7863/jum.2012.31.5.729.

Zidan

Tantawy

Fouda

Ali

: The value of power and pulsed Doppler in the diagnosis of CTS: is a solution in sight. Egypt J Radiol Nucl Med 2013;44(3):589–596. doi:10.1016/j.ejrnm.2013.05.003.

Vanderschueren

Meys

Beekman

: Doppler sonography for the diagnosis of carpal tunnel syndrome: a critical review. Muscle Nerve 2014;50(2):159–163. doi:10.1002/mus.24241.

Moher

Shamseer

Clarke

, et al: Preferred reporting items for systematic review and meta-analysis protocols (PRISMA-P) 2015 statement. Syst Rev 2015;4:1. doi:10.1186/2046-4053-4-1.

Mallouhi

Pülzl

Trieb

Piza

Bodner

: Predictors of carpal tunnel syndrome: accuracy of gray-scale and color Doppler sonography. AJR Am J Roentgenol 2006;186(5): 1240–1245. doi:10.2214/AJR.04.1715.

Akcar

Ozkan

Mehmetoglu

Calisir

Adapinar

: Value of power Doppler and gray-scale US in the diagnosis of carpal tunnel syndrome: contribution of cross-sectional area just before the tunnel inlet as compared with the cross-sectional area at the tunnel. Korean J Radiol 2010;11(6): 632–639. doi:10.3348/kjr.2010.11.6.632.

10.

Ghasemi-Esfe

Khalilzadeh

Mazloumi

, et al: Combination of high-resolution and color Doppler ultrasound in diagnosis of carpal tunnel syndrome. Acta Radiologica 2011;52(2):191–197. doi:10.1258/ar.2010.100299.

11.

Cartwright

White

Demar

, et al: Median nerve changes following steroid injection for carpal tunnel syndrome. Muscle Nerve 2011;44(1):25–29. doi:10.1002/mus.22067.

12.

Ghasemi-Esfe

Khalilzadeh

Vaziri-Bozorg

, et al: Color and power Doppler US for diagnosing carpal tunnel syndrome and determining its severity: a quantitative image processing method. Radiology 2011;261(2):499–506. doi:10.1148/radiol.11110150.

13.

Joy

Therimadasamy

Chan

Wilder-Smith

: Combined Doppler and B-mode sonography in carpal tunnel syndrome. J Neurol Sci 2011;308(1-2):16–20. doi:10.1016/j.jns.2011.06.042.

14.

Rahmani

Ghasemi Esfe

Vaziri-Bozorg

Mazloumi

Khalilzadeh

Kahnouji

: The ultrasonographic correlates of carpal tunnel syndrome in patients with normal electrodiagnostic tests. Radiol Med 2011; 116(3):489–496. doi:10.1007/s11547-011-0632-6.

15.

Mohammadi

Ghasemi-Rad

Mladkova-Suchy

Ansari

: Correlation between the severity of carpal tunnel syndrome and color Doppler sonography findings. AJR Am J Roentgenol 2012;198(2):W181–W184. doi:10.2214/AJR.11.7012.

16.

Wilder-Smith

: Provocation tests in Doppler ultrasonography for carpal tunnel syndrome. Muscle Nerve 2013;47(1):116–117. doi:10.1002/mus.23637.

17.

Cartwright

Demar

Griffin

Balakrishnan

Harris

Walker

: Validity and reliability of nerve and muscle ultrasound. Muscle Nerve 2013;47(4):515–521. doi:10.1002/mus.23621.

18.

Ooi

Wong

Tan

, et al: Diagnostic criteria of carpal tunnel syndrome using high-resolution ultrasonography: correlation with nerve conduction studies. Skeletal Radiol 2014;43(10):1387–1394. doi:10.1007/s00256-014-1929-z.

19.

Mohamed

Amin

Aboelsafa

Elsayed

: Contribution of power Doppler and gray-scale ultrasound of the median nerve in evaluation of carpal tunnel syndrome. Egypt J Radiol Nucl Med 2014;45(1):191–201. doi:10.1016/j.ejrnm.2013.10.004.

20.

El Miedany

El Gaafary

Youssef

Ahmed

Nasr

: Ultrasound assessment of the median nerve: a biomarker that can help in setting a treat to target approach tailored for carpal tunnel syndrome patients. Springerplus 2015;4:13. doi:10.1186/s40064-014-0779-4.

21.

Kapuścińska

Urbanik

: High-frequency ultrasound in carpal tunnel syndrome: assessment of patient eligibility for surgical treatment. J Ultrason 2015;15(62):283–291. doi:10.15557/JoU.2015.0025.

22.

Roll

Volz

Fahy

Evans

: Carpal tunnel syndrome severity staging using sonographic and clinical measures. Muscle Nerve 2015;51(6):838–845.

23.

Afsal

Chowdhury

Prakash

Singh

Chowdhury

: Evaluation of peripheral nerve lesions with high-resolution ultrasonography and color Doppler. Neurol India 2016;64(5):1002–1009. doi:10.4103/0028-3886.190269.

24.

Aseem

Williams

Walker

Cartwright

: Neuromuscular ultrasound in patients with carpal tunnel syndrome and normal nerve conduction studies. Muscle Nerve 2017;55(6):913–915. doi:10.1002/mus.25462.

25.

Borire

Visser

Padua

, et al: Utility of maximum perfusion intensity as an ultrasonographic marker of intraneural blood flow. Muscle Nerve 2017;55(1):77–83. doi:10.1002/mus.25200.

26.

Chen

, et al: Value of superb microvascular imaging ultrasonography in the diagnosis of carpal tunnel syndrome: compared with color Doppler and power Doppler. Medicine (Baltimore) 2017;96(21):e6862. doi:10.1097/MD.0000000000006862.

27.

Kutlar

Bayrak

İK

Canbaz

Türker

: Diagnosing carpal tunnel syndrome with Doppler ultrasonography: a comparison of ultrasonographic measurements and electrophysiological severity. Neurol Res 2017;39(2): 126–132. doi:10.1080/01616412.2016.1275455.

28.

Wilson

Tat

Keir

: Effects of wrist posture and fingertip force on median nerve blood flow velocity. Biomed Res Int 2017;2017:7156489. doi:10.1155/2017/7156489.

29.

Karahan

Arslan

Ordahan

Bakdik

Ekiz

: Superb microvascular imaging of the median nerve in carpal tunnel syndrome: an electrodiagnostic and ultrasonographic study. J Ultrasound Med 2018;37(12):2855–2861. doi:10.1002/jum.14645.

30.

AWH

Griffith

Lee

RKL

Tse

Wong

CWY

: Ultrasound carpal tunnel syndrome: additional criteria for diagnosis. Clin Radiol 2018;73(2):214.e11–214.e18. doi:10.1016/j.crad.2017.07.025.

31.

Alsaeid

: Dexamethasone versus hyaluronidase as an adjuvant to local anesthetics in the ultrasound-guided hydrodissection of the median nerve for the treatment of carpal tunnel syndrome patients. Anesth Essays Res 2019; 13(3):417–422. doi:10.4103/aer.AER_104_19.

32.

Gonzalez-Suarez

Fidel

Cabrera

JTC

, et al: Diagnostic accuracy of ultrasound parameters in carpal Tunnel syndrome: additional criteria for diagnosis. J Ultrasound Med 2019;38(11):3043–3052. doi:10.1002/jum.15012.

33.

Bagga

Sinha

Khandelwal

Modi

Ahuja

Sharma

: Comparison of magnetic resonance imaging and ultrasonography in diagnosing and grading carpal tunnel syndrome: a prospective study. Curr Probl Diagn Radiol 2020;49(2):102–115. doi:10.1067/j.cpradiol.2019.04.004.

34.

Farias Zuniga

Ghavanini

Israelian

Keir

: Blood flow velocity but not tendon mechanics relates to nerve function in carpal tunnel syndrome patients. J Neurol Sci 2020;411:116694. doi:10.1016/j.jns.2020.116694.

35.

Gamil

Shalaby

Shehata

El Deeb

: Value of grayscale and power Doppler high-resolution ultrasound in assessment of patients with clinically suspected carpal tunnel syndrome. J Ultrasound Med 2020;39(6):1155–1162. doi:10.1002/jum.15200.

36.

Ehmke

Farias Zuniga

Keir

: Effect of force, posture, and repetitive wrist motion on intraneural blood flow in the median nerve. J Ultrasound Med 2021;40(5): 939–950. doi:10.1002/jum.15467.

37.

Farias Zuniga

Ghavanini

Israelian

Keir

: Ultrasound examination predicts 6-month progression in carpal tunnel syndrome patients. J Orthop Res 2021;39(3): 609–618. doi:10.1002/jor.24893.

38.

Goswami

Sit

Chatterjee

Lahiri

Sircar

Ghosh

: High-resolution ultrasonography in carpal tunnel syndrome: role of ancillary criteria in diagnosis and response to steroid injection. Clin Rheumatol 2021;40(3): 1069–1076. doi:10.1007/s10067-020-05228-8.

39.

Yildiran

Seher

Sutcu

Nayman

Akdag

Tosun

: Median nerve’s microcirculation in carpal tunnel syndrome: superb microvascular imaging. Plast Reconstr Surg 2021;147(6):1355–1360. doi:10.1097/PRS.0000000000007940.

40.

Jain

Visser

Praveen

TLN

, et al: High-resolution sonography: a new technique to detect nerve damage in leprosy. PLoS Negl Trop Dis 2009;3(8):e498. doi:10.1371/journal.pntd.0000498.

41.

Roll

Evans

: Feasibility of using a hand-carried sonographic unit for investigating median nerve pathology. J Diagn Med Sonography 2009;25(5):241–249. doi:10.1177/8756479309345284.

42.

Evans

Roll

Sammet

: A holistic evaluation of risk factors for work-related musculoskeletal distress among asymptomatic sonographers performing neurosonology: a pilot study. J Diagn Med Sonography 2010; 26(2):64–78. doi:10.1177/8756479309352360.

43.

Goedee

Brekelmans

van den Berg

Visser

: Distinctive patterns of sonographic nerve enlargement in Charcot-Marie-Tooth type 1A and hereditary neuropathy with pressure palsies. Clin Neurophysiol 2015;126(7): 1413–1420. doi:10.1016/j.clinph.2014.08.026.

44.

Vijayan

Chan

Therimadasamy

Wilder-Smith

: Role of combined B-mode and Doppler sonography in evaluating neurolymphomatosis. Neurology 2015;85(9):752–755. doi:10.1212/WNL.0000000000001880.

45.

Houben

Maars

Beekman

: High prevalence of increased nerve vascularization in healthy individuals. Muscle Nerve 2015;51(6):938–939. doi:10.1002/mus.24655.

46.

Volz

Evans

Kanner

Dickerson

: Detection of intraneural median nerve microvascularity using contrast-enhanced sonography. J Ultrasound Med 2016;35(6): 1309–1316. doi:10.7863/ultra.15.07012.

47.

Witteveen

Sommers

Wieske

, et al: Diagnostic accuracy of quantitative neuromuscular ultrasound for the diagnosis of intensive care unit-acquired weakness: a cross-sectional observational study. Ann Intensive Care 2017;7(1):40. doi:10.1186/s13613-017-0263-8.

48.

Arányi

Csillik

Dévay

Rosero

: Ultrasonographic demonstration of intraneural neovascularization after penetrating nerve injury. Muscle Nerve 2018;57(6):994–999. doi:10.1002/mus.26065.

49.

Borire

Arnold

Pussell

, et al: Effects of hemodialysis on intraneural blood flow in end-stage kidney disease. Muscle Nerve 2018;57(2):287–293. doi:10.1002/mus.25704.

50.

Tai

Maingard

Nambiar

Lim

: High-grade B-cell lymphoma relapse presenting as neurolymphomatosis of the median nerve. BMJ Case Rep 2019;12(3):e228742. doi:10.1136/bcr-2018-228742.

51.

van Rosmalen

Lieba-Samal

Pillen

van Alfen

: Ultrasound of peripheral nerves in neuralgic amyotrophy. Muscle Nerve 2019;59(1):55–59. doi:10.1002/mus.26322.

52.

Puma

Azulay

Grecu

, et al: Comparison of high-frequency and ultrahigh-frequency probes in chronic inflammatory demyelinating polyneuropathy. J Neurol 2019;266(9):2277–2285. doi:10.1007/s00415-019-09392-z.

53.

Borire

Issar

Kwai

, et al: Sonographic assessment of nerve blood flow in diabetic neuropathy. Diabet Med 2020;37(2):343–349. doi:10.1111/dme.14085.

54.

Liu

Sun

Han

: Applicability of high-frequency ultrasound to the early diagnosis of diabetic peripheral neuropathy. Biomed Res Int 2021;2021: 5529063. doi:10.1155/2021/5529063.

55.

Sreejith

Sasidharanpillai

Ajithkumar

, et al: High-resolution ultrasound in the assessment of peripheral nerves in leprosy: a comparative cross-sectional study. Indian J Dermatol Venereol Leprol 2021;87(2):199–206. doi:10.25259/IJDVL_106_20.

56.

Hasegawa

Yamada

Kawasaki

Matsumoto

Takahashi

Suzuki

: Application of superb micro-vascular imaging (SMI) in obstetrics. J Matern Fetal Neonatal Med 2018;31(2):261–263. doi:10.1080/14767058.2016.1278206.

57.

Machado

Segal

Lyshchik

Forsberg

: A novel microvascular flow technique: initial results in thyroids. Ultrasound Q 2016;32(1):67–74. doi:10.1097/RUQ.0000000000000156.

58.

Martinoli

Derchi

Rizzatto

Solbiati

: Power Doppler sonography: general principles, clinical applications, and future prospects. Eur Radiol 1998;8(7):1224–1235. doi:10.1007/s003300050540.

Doppler Sonography Evaluation of Median Nerve Intraneural Blood Flow: A Systematic Review

Abstract

Objective:

Materials and Methods:

Results:

Conclusion:

Keywords

Materials and Methods

Results

Image Acquisition

Image Analysis

Reliability of Image Analyses

Clinical Utility

Discussion

Current Landscape of Intraneural Blood Flow Analysis

Opportunities to Advance Intraneural Blood Flow Analysis

Limitations

Conclusion

Footnotes

Acknowledgements

Ethics Approval

Informed Consent

Animal Welfare

Trial Registration

Declaration of Conflicting Interests

Funding

Peer Reviewer Guarantee Statement

ORCID iDs

References
