A frequency-domain beamforming procedure for extracting Rayleigh wave attenuation coefficients and small-strain damping ratio from 2D ambient noise array measurements

Abstract

The small-strain damping ratio plays a crucial role in assessing the response of soil deposits to earthquake-induced ground motions and general dynamic loading. The damping ratio can theoretically be inverted for after extracting frequency-dependent Rayleigh wave attenuation coefficients from wavefields collected during surface wave testing. However, determining reliable estimates of in situ attenuation coefficients is much more challenging than achieving robust phase velocity dispersion data, which are commonly measured using both active-source and ambient-wavefield surface wave methods. This article introduces a new methodology for estimating frequency-dependent attenuation coefficients through the analysis of ambient noise wavefield data recorded by two-dimensional (2D) arrays of surface seismic sensors for the subsequent evaluation of the small-strain damping ratio. The approach relies on the application of an attenuation-specific wavefield conversion and frequency-domain beamforming. Numerical simulations are employed to verify the proposed approach and inform best practices for its application. Finally, the practical efficacy of the proposed approach is showcased through its application to field data collected at a deep, soft soil site in Logan, Utah, USA, where phase velocity and attenuation coefficients are extracted from surface wave data and then simultaneously inverted to develop deep shear wave velocity and damping ratio profiles.

Introduction

The small-strain shear modulus (G_max) and small-strain damping ratio (D) form the starting point for many soil constitutive models and play a crucial role in assessing the response of soil deposits to earthquake-induced ground motions and general dynamic loading. G_max is directly related to the in situ shear wave velocity (V_s), and it represents the soil stiffness and its resistance to deformation under applied shear stress. D characterizes the energy dissipation properties of the material at small strains. The influence of D on the amplitude and frequency content of seismic waves has been recognized since at least 1940 (Ricker, 1940), with subsequent research establishing it as a pivotal parameter for seismic site response studies and for modeling ground-borne vibrations (e.g. Anderson et al., 1996; Foti et al., 2021; Papadopoulos et al., 2018; Tao and Rathje, 2019). Despite its significance, the in situ estimation of D has received far less attention when compared to measurements of V_s (Parolai, 2014). D can theoretically be inverted for after extracting frequency-dependent Rayleigh wave phase velocity and attenuation coefficients (α) from wavefields collected during surface wave testing (Foti, 2004; Lai, 1998). However, in situ α-values are generally much more difficult to reliably measure than phase velocities (Haendel et al., 2016; Parolai et al., 2022), which are commonly measured using both active-source and ambient-wavefield surface wave methods.

This article introduces a new noninvasive method to estimate frequency-dependent Rayleigh wave α using ambient noise wavefield data collected with two-dimensional (2D) arrays of surface seismic sensors for the subsequent evaluation of D. The approach relies on frequency-domain beamforming (FDBF) and applies an attenuation-specific wavefield conversion, known as the FDBFa approach. While Aimar et al. (2024a) previously used this approach for active-source surface wave testing, it has not been applied to ambient noise surface wave testing. In this article, we introduce a new method called the noise FDBFa (NFDBFa) approach and document its development and application.

The subsequent sections of this article are organized as follows: first, we cover important background information on attenuation and damping. Second, we present a concise overview of the FDBF technique introduced in the work by Lacoss et al. (1969) and the FDBFa wavefield conversion methodology proposed in the work by Aimar et al. (2024a), along with the integration of these methods within our proposed NFDBFa approach. Then, synthetic studies are presented to showcase the capabilities of the proposed NFDBFa approach and inform best practices for its application. The synthetic studies offer valuable insights into the influence of 2D array size and proximity to noise sources on attenuation estimates. For example, it is demonstrated that the optimal 2D ambient noise array design principles for attenuation estimation differ from the principles governing 2D array design for phase velocity estimation. Finally, we demonstrate the practical utility of our proposed NFDBFa technique through a field application at a deep, soft soil site in Logan, Utah, USA. In this field application, phase velocity and attenuation coefficients are extracted from surface wave data and then simultaneously inverted to develop deep V_s and D profiles. The good agreement observed between the attenuation estimates derived from our new NFDBFa technique and those obtained through the standard FDBFa analysis of active-source data collected using the multichannel analysis of surface waves (MASW) provide compelling evidence of the effectiveness of our new ambient noise approach.

Background

Seismic wave attenuation is commonly attributed to three mechanisms: material damping, geometric spreading, and apparent attenuation (Zywicki, 1999). Material damping, or anelastic attenuation, arises from the collective interaction of diverse mechanisms (Johnston et al., 1979). These factors encompass frictional losses among solid particles and fluid flow losses due to the relative motion between solid and fluid phases, a phenomenon particularly notable in coarse-grained soils (Biot, 1956; Walsh, 1966, 1968; Stoll, 1974). Fine-grained soils, however, showcase more intricate phenomena influenced by electromagnetic interactions between water dipoles and microscopic solid particles (Lai, 1998). This intrinsic material damping is typically approximated as frequency-independent (i.e. hysteretic), particularly within the frequency range spanning 0.1–10 Hz (Aki and Richards, 1980; Shibuya et al., 1995), commonly considered in seismic site response studies. However, the assumption that material damping is frequency-independent is debated in the literature, as discussed in the work by Lai and Özcebe (2016) and the references therein.

The attenuation of seismic waves due to material damping in a continuum is related to the damping ratios of both compression waves (D_p) and shear waves (D_s). Researchers have proposed widely variable assumptions about the relationship between D_s and D_p, with many simply assuming D_s equal to D_p (Aimar et al., 2024b; Badsar et al., 2010; Verachtert et al., 2018), some assuming D_s less than D_p (Bergamo et al., 2023), and some D_s greater than D_p (Xia et al., 2002). Although theoretically, D_s can be less than, equal to, or greater than D_p depending on soil types and conditions (e.g. degree of saturation) (Menq, 2003; Winkler and Nur, 1982), these assumptions have typically been made somewhat arbitrarily due to a lack of in-depth studies that provide guidelines on how to accurately measure or reasonably assume in situ D_s and D_p values. The damping ratio (D) is commonly used in engineering, while its inverse, the quality factor (Q), where $Q^{-1}=2D$ , is more prevalent in seismological and geophysical literature (Foti, 2004). Q, being the inverse of D, also differs for compressional waves (Q_p) and shear waves (Q_s).

Geometric or radiation damping involves the spread of a fixed amount of energy over a broader area or volume as the wavefront moves away from the source. Take, for instance, a harmonic unit point load applied along the normal direction to the surface of a homogeneous and isotropic half-space; this perturbation generates both body waves and Rayleigh waves. The body waves propagate radially from the source, forming a hemispherical wave front, while Rayleigh waves travel outward along a cylindrical wave front. As these waves travel, they traverse an expanding volume of material, leading to a decrease in energy density as the distance from the source increases. In the interior of the half-space, the amplitude of the body waves attenuates in proportion to $r^{-1}$ (where r is the radial distance from the source). However, along the surface of the half-space, the amplitude of body waves attenuates proportionally to $r^{-2}$ . Conversely, the amplitude of the Rayleigh waves attenuates as $r^{-0.5}$ (Ewing et al., 1957; Lamb, 1904; Richart et al., 1970). Consequently, at substantial distances from the surface source, the dominant influence on overall particle motion stems from the surface wavefield (Lai, 1998). It is worth mentioning that these geometric spreading rules do not hold with transient waveforms (Keilis-Borok, 1989) or non-homogeneous media (Lai, 1998).

Apparent attenuation includes wave scattering, which arises from the interaction of waves with heterogeneities along the seismic path (O’Doherty and Anstey, 1971; Spencer et al., 1977), and the reflection and transmission of seismic waves at interfaces and mode conversions (Rix et al., 2000). Therefore, apparent attenuation is highly site-specific and difficult to generalize.

Multiple approaches have been proposed to characterize the attenuation of seismic waves. One such technique involves the spectral decay parameter, kappa (κ), which describes the amplitude decay of the ground-motion acceleration spectrum at high frequencies. κ and its site-specific and source/path components encapsulate various damping mechanisms, including material damping and wave scattering (e.g. Anderson and Hough, 1984; Ktenidou et al., 2015; Parolai et al., 2022). Laboratory tests and in situ methods have also been proposed to estimate D. Laboratory tests, such as the resonant column (ASTM D4015-21), are valuable for parametrically studying the material/intrinsic damping ratio, but they cannot capture the other two mechanisms contributing to the attenuation of seismic waves in situ. Conversely, the damping ratio estimates obtained using in situ methods are generally influenced by all the seismic wave damping mechanisms mentioned above (Parolai et al., 2022). In situ methods also have the advantage of assessing soil characteristics in their natural and undisturbed state (Rix et al., 2000). In addition, in situ tests encompass a greater soil volume, effectively reducing result biases that might arise from localized variations in soil properties (Badsar et al., 2010). Furthermore, they provide parameter estimates on a spatial scale relevant to common engineering applications (e.g. Comina et al., 2011). In the scope of estimating D, in situ methods can be dissected into two categories: invasive and noninvasive methods. Invasive methods encompass techniques, such as cross-hole testing (Hall and Bodare, 2000; Jongmans, 1990) and downhole testing (Crow et al., 2011; Michaels, 1998). Noninvasive methods, particularly surface wave techniques, offer numerous advantages. By situating sensors at the ground surface, surface wave methods accelerate data acquisition, minimize costs, streamline validation of soil–receiver coupling, and encompass a frequency range closely aligned with those pertinent to earthquake engineering applications (Parolai et al., 2022; Rix et al., 2000; Verachtert et al., 2018).

Surface wave testing became popular in the 1980s as an effective way to non-invasively develop 1D layering and V_s profiles for both soil deposits and pavement systems (e.g. Nazarian et al., 1983; Stokoe et al., 1989). Typically, the use of surface wave methods involves acquiring experimental phase velocity dispersion data through active-source methods, ambient noise methods, or a combination of both (Tokimatsu, 1995). These dispersion data are then inverted to obtain layered subsurface models, with the primary goal of resolving changes in V_s. The combined use of active-source and ambient noise methods facilitates the generation of dispersion data across a wide frequency range, which enables resolution of both near-surface and deeper layers. Active sources predominantly produce energy concentrated at higher frequencies, typically ranging from several Hertz to perhaps 100 Hz, with limited energy generation below 5–10 Hz for small sources such as sledge hammers and lightweight drop weights. Consequently, the effective profiling depth using active-source methods is often constrained to approximately 15–40 m, contingent on the subsurface velocity and source mass (Foti et al., 2018). The primary hindrance to achieving increased penetration depths lies in generating lower frequency (i.e., longer wavelength) waves with affordable and highly portable sources. This difficulty is circumvented by ambient noise methods, which do not involve the active generation of wave energy. Instead, they rely on ground motions induced by cultural noise and microtremors (i.e., ambient noise), encompassing an abundance of low-frequency components (Lai, 1998). Consequently, ambient noise surveys offer valuable insights for deep characterization, extending to depths of hundreds of meters or more (Foti et al., 2014; Teague et al., 2018). Nevertheless, the spectral power of microtremors is generally low at higher frequencies (Peterson, 1993), which limits their ability to resolve changes in stiffness near the ground surface (Foti et al., 2014; Tokimatsu, 1995). Combining both active and ambient noise measurements offers a solution to overcome this limitation.

Ambient noise surveys typically employ 2D arrays of surface seismic sensors due to the a priori unknown location of the ambient noise sources. Unlike linear arrays, 2D arrays allow for the determination of wave propagation direction, which is necessary for resolving the true phase velocity (Cox and Beekman, 2011). While 2D ambient noise array measurements have been referred to using several names, in this article, we will refer to them as microtremor array measurements (MAM; Ohrnberger et al., 2004; Teague et al., 2018). A schematic representation of a typical survey using both active and ambient noise arrays is presented in Figure 1a. The active-source array in Figure 1a is in accordance with the MASW method (Park et al., 1999), using a linear array of receivers to capture the wavefield generated by active sources off each end of the array. Example waveforms recorded by 24 receivers placed in-line with one of the active sources to the left of the array are depicted in Figure 1b. The ambient-wavefield array depicted in Figure 1a is in accordance with MAM testing, where surface sensors are deployed in a 2D circular pattern (note that other 2D geometries are also permissible). Example ambient noise waveforms recorded by nine sensors in the circular array are depicted in Figure 1d. Figure 1c schematically illustrates phase velocity dispersion data that are commonly extracted from active-source MASW waveforms and ambient noise MAM waveforms using various well-known wavefield transformation techniques (Vantassel and Cox, 2022). Examples of these techniques include FDBF (Lacoss et al., 1969), high-resolution frequency-wavenumber (f-k) spectrum analysis (Capon, 1969), cylindrical FDBF (Zywicki, 1999; Zywicki and Rix, 2005), and Rayleigh three-component beamforming (Wathelet et al., 2018). The combined dispersion data from MASW and MAM span a wide frequency range, encompassing both low frequencies obtained from the MAM testing and high frequencies obtained from the MASW testing, with some overlap in between. The phase velocity dispersion data are then typically used to solve the parameter identification problem (i.e. inversion) and obtain 1D V_s profiles of the subsurface (Foti et al., 2018; Vantassel and Cox, 2021). Note that the inversion step and resulting V_s profiles are not illustrated schematically in Figure 1.

Figure 1.

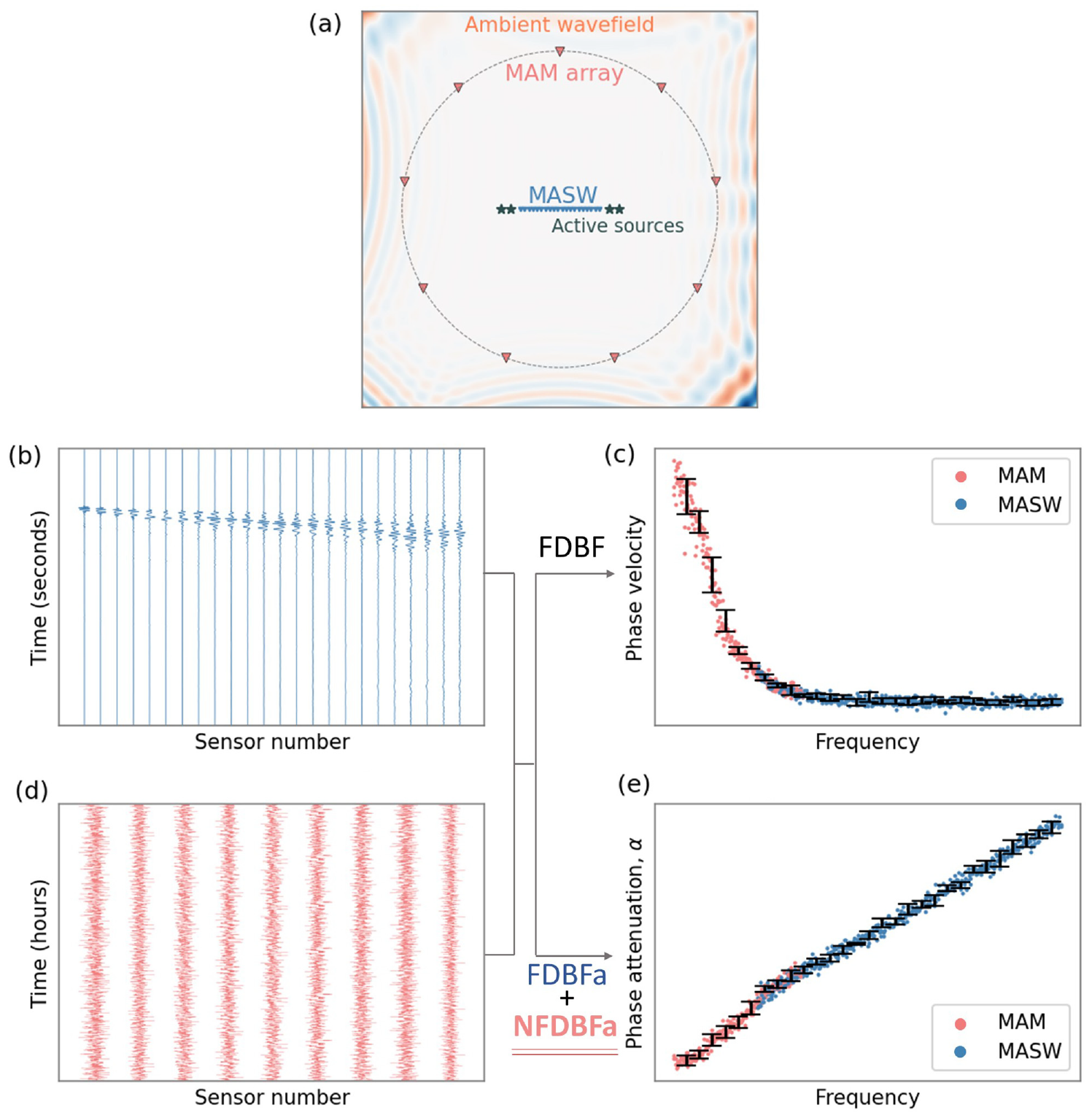

Schematic illustrating the data acquisition and processing stages of active-source and ambient-wavefield surface wave testing used to extract phase velocity and phase attenuation data. Panel (a) presents a typical acquisition setup consisting of concentric MASW and MAM arrays, featuring active sources for the MASW array and an ambient wavefield for the MAM array. Panel (b) shows waveforms from a single active-source location collected using the MASW array, while Panel (c) presents the combined phase velocity dispersion data resulting from MASW and MAM FDBF processing. Panel (d) depicts the ambient noise waveforms collected from the MAM array. In Panel (e), phase attenuation data processed through active-source FDBFa and ambient-wavefield NFDBFa techniques are illustrated.

As noted above, much more effort has been devoted to extracting phase velocity information from surface wave approaches than to extracting attenuation information. Nonetheless, multiple active-source methods have been developed to estimate the attenuation of surface waves. The methods introduced in the work by Lai (1998), Lai et al. (2002), Rix et al. (2000), Xia et al. (2002), and Foti (2004) are founded on assessing the spatial decay of Rayleigh waves, a phenomenon that is influenced by both D_p and D_s, as described in the work by Aki and Richards (1980). These approaches assume the dominance of a single Rayleigh wave mode of propagation. Consequently, they might yield inaccurate results in soil profiles where multiple surface wave modes significantly contribute to the wavefield propagation (Rix et al., 2001). Badsar et al. (2010) introduced the half-power bandwidth method, originally developed in the field of mechanical and structural dynamics to determine the modal damping ratio of a structure, to assess Rayleigh modal attenuation by analyzing the width of the Rayleigh peaks in the f-k domain. Verachtert et al. (2018) employed the circle-fit method, originally developed to determine eigen frequencies and modal damping ratios in structural dynamics (Ewins, 1984) and to estimate multimodal Rayleigh dispersion and attenuation curves. Both the half-power bandwidth and circle-fit methods facilitated the determination of modal attenuation curves from multimode wavefields (Verachtert et al., 2018). Recently, Aimar et al. (2024a) introduced an innovative technique that combines a novel wavefield conversion approach coupled with FDBF (Lacoss et al., 1969) for processing active-source data collected using MASW to estimate the frequency-dependent α-values. They called this the FDBF attenuation (FDBFa) method. Notably, the wavefield conversion proposed in the work by Aimar et al. (2024a) to extract α differs from the conventional wavefield transformations commonly used to go from the time–distance domain to the f-k domain, as detailed in the following section. To avoid confusion, we will refer to the wavefield transformation proposed in the work by Aimar et al. (2024a) as “wavefield conversion,” while reserving the term “wavefield transformation” specifically for the more common f-k domain transformations used to extract phase velocity data.

While important research on extracting phase attenuation coefficients using active-source methods is ongoing, similar to phase velocity data, combining active-source and ambient noise methods is desirable for resolving attenuation data over a broader frequency band. The majority of ambient noise techniques aimed at estimating the attenuation of surface waves were developed for regional scale estimation (Haendel et al., 2016; Parolai et al., 2022). Only a limited number of approaches have considered local scales that hold relevance for engineering purposes, such as site-specific seismic ground response analyses or dynamic vibration studies. These local-scale approaches are predominantly based on retrieving attenuation properties from the cross-correlation of seismic noise (e.g. Albarello and Baliva, 2009; Haendel et al., 2016; Parolai, 2014). Albarello and Baliva (2009) proposed a methodology that reconstructs the Green’s function based on the temporal derivative of averaged cross-correlations from noise recordings obtained by pairs of geophones, thereby incorporating attenuation effects into the process. They further validated this approach by demonstrating its potential in estimating attenuation coefficients at two distinct sites. Parolai (2014) estimated the Rayleigh phase velocity and attenuation coefficients by fitting a damped zero-order Bessel function, introduced in the work by Prieto et al. (2009), using data generated from the space correlation function introduced by Aki (1957). To mitigate the impact of uneven source distribution on cross-correlations, Haendel et al. (2016) employed a higher-order noise cross-correlation technique to extract the phase velocity and attenuation coefficient of Love waves. They illustrated that their approach yields correlation functions with higher signal-to-noise ratios (SNRs) compared with simple noise cross-correlations.

The importance of seismic noise cross-correlation methods cannot be underestimated. Nonetheless, in theory, the reconstruction of the full Green’s function requires the noise wavefield energy to be equally partitioned in all directions (Sánchez-Sesma and Campillo, 2006; Snieder et al., 2007). This is a highly specific condition that is rarely met rigorously by ambient noise on Earth (Cupillard and Capdeville, 2010; Haendel et al., 2016; Tsai, 2011). Furthermore, while travel time measurements from cross-correlation of ambient noise are theoretically understood, amplitude measurements lack a corresponding theoretical background, except when the noise is equipartitioned (Snieder et al., 2007; Tsai, 2011). Studies by Cupillard and Capdeville (2010) and Tsai (2011) have shown that attenuation estimates using cross-correlations are significantly influenced by the distribution of the noise sources. In light of the challenges posed by the equipartitioning condition for the reconstruction of the full Green’s function in ambient noise studies (Sánchez-Sesma and Campillo, 2006; Snieder et al., 2007), and considering the limitations highlighted in the work by Cupillard and Capdeville (2010) and Tsai (2011) regarding the influence of noise source distribution on attenuation estimates, we introduce a paradigm-shifting approach herein for calculating attenuation coefficients from ambient noise. This novel method not only eliminates the need for an equipartitioned noise wavefield but also remains robust in the face of uneven noise source distribution, marking a departure from existing methodologies.

This article builds upon Aimar et al.’s (2024a) work on developing an FDBFa technique for estimating α from active-source MASW testing and expands the FDBFa approach to ambient noise data recorded using MAM. Importantly, using an FDBF approach enables the actual direction of ambient noise propagation to be determined for each noise window and frequency, and does not require equipartitioning of ambient noise energy. Furthermore, using an FDBF approach enables the phase attenuation data generated from MASW and that from MAM to be combined to generate phase attenuation data spanning a broader frequency range, as illustrated schematically in Figure 1e. The experimental dispersion and attenuation data can then be combined and inverted to determine not only the V_s profile but also the D profile of the subsurface to greater depths. This inversion of dispersion and attenuation data to obtain V_s and D profiles can be carried out either sequentially, as demonstrated in the work of Rix et al. (2000), or simultaneously, as shown in the work by both Lai (1998) and Aimar et al. (2024b).

Wavefield conversion proposed by Aimar et al. (2024a)

The method introduced in the work by Aimar et al. (2024a) to estimate Rayleigh wave attenuation (α) assumes that the recorded wavefield is dominated by planar surface waves, specifically Rayleigh waves observed in the far field, with a dominant propagation mode. Several techniques have been developed to estimate the wavenumber (k) and therefore the phase velocity from such wavefields (e.g. Capon, 1969; Lacoss et al., 1969; Wathelet et al., 2018; Zywicki and Rix, 2005). Aimar et al. (2024a) harnessed this concept and introduced a novel wavefield conversion approach that provides a pathway for calculating α using methods from existing literature originally developed for estimating k. The methodology involves converting the recorded wavefield into a function interpreted as a pseudo-wave. This pseudo-wave exhibits dispersion characteristics reflecting the phase attenuation of the original wave. The determination of α then becomes straightforward through the application of existing techniques for estimating k.

Consider the harmonic, exponentially decaying displacement wavefield, U(r), depicted in Figure 2a and expressed by Equation 1. This wavefield is observed at several discrete distances at a specific moment in time and is induced by the passage of a monochromatic plane wave. Within this wavefield, α governs the amplitude decay resulting from material damping in accordance with a viscoelastic constitutive model with no geometric spreading. When the wavefield is plotted as log amplitude versus radial distance (r) from the source, the slope of the amplitude decay is α, as illustrated in Figure 2b. When the wavefield is plotted as phase angle versus r, k denotes the slope of the unwrapped phase (i.e. the linear phase shift), as shown in Figure 2c. Aimar et al. (2024a) proposed raising the recorded wavefield, U(r), to the power of the imaginary number, i (see Equation 2). Consequently, a pseudo-displacement wavefield, $v\left(r\right)$ , is generated, wherein the wavenumber is modulated by α, signifying that when the unwrapped phase of the converted wavefield is graphed against radial distance, the slope of that phase corresponds to the value of α (refer to Figure 2d). Conversely, when the log amplitude of the converted wavefield is plotted against distance, the slope manifests as k, with an inverted sign (refer to Figure 2e). This wavefield conversion allows for estimating α using any of the already established and common wavefield transformation techniques for calculating k (e.g. f-k or FDBF methods):

$$U\left(r\right)=e^{-\alpha r}{e}^{-\mathrm{ikr}}$$

(1)

$$v\left(r\right)=U{\left(r\right)}^i=e^{-i\alpha r}{e}^{\mathrm{kr}}$$

(2)

Figure 2.

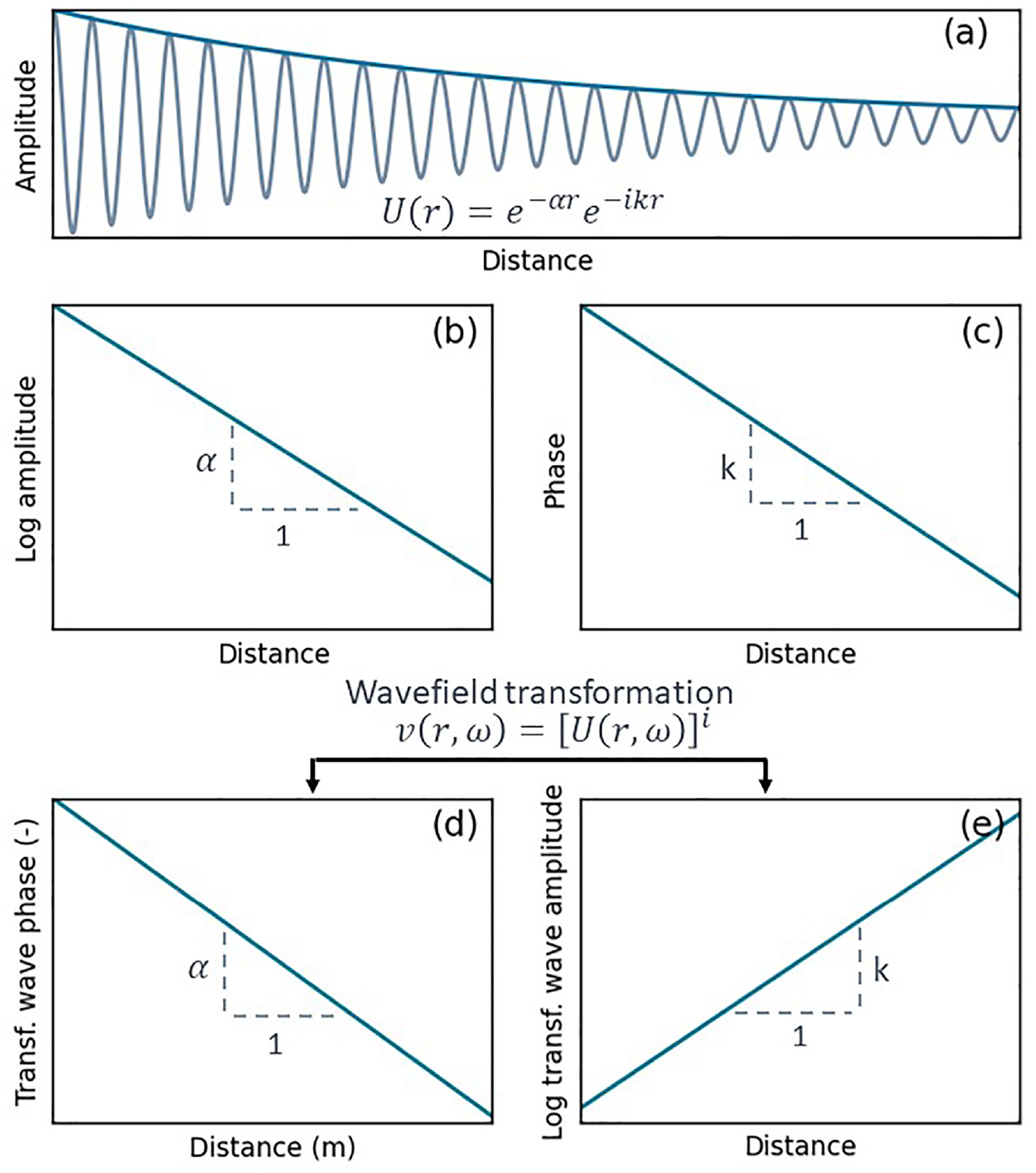

Schematic illustrating the wavefield conversion approach proposed in the work by Aimar et al. (2024a) to extract attenuation coefficients (α). Panel (a) displays the particle displacement of a monochromatic plane wave experiencing exponential amplitude decay with distance, indicative of material damping in a viscoelastic constitutive model. Panel (b) depicts linear amplitude decay in log amplitude versus linear distance space, where the slope represents the phase attenuation coefficient. In Panel (c), the slope of the unwrapped phase, corresponding to the wavenumber (k), is shown. Panel (d) illustrates that the unwrapped phase slope is equal to the phase attenuation coefficient in the converted wavefield. Panel (e) showcases the control of the slope of the log amplitude decay with linear distance by the wavenumber, albeit with an inverted sign.

This wavefield conversion can also be extended to a broadband wavefield, comprising a superposition of monochromatic plane waves by exponentiating the wavefield in the frequency domain with the power of the imaginary number. To address numerical artifacts introduced by the wrapped phase on the pseudo wavefield, Aimar et al. (2024a) recommended normalizing v(r) by its amplitude on a frequency-by-frequency basis. Aimar et al. (2024a) showed that this wavefield conversion can be successfully applied to active-source wavefields recorded using MASW as a means to estimate α. In this article, we extend this approach to estimate α from ambient noise wavefields recorded using MAM arrays, employing the FDBF technique introduced in the work by Lacoss et al. (1969).

Noise frequency-domain beamforming—attenuation

The inherent challenge in ambient noise measurements stems from the lack of a priori information about the source location or the direction of wave propagation, necessitating the use of spatial 2D arrays to determine the noise propagation directions during post-processing (Zywicki, 1999). As ambient noise wavefields operate in two spatial dimensions (e.g. x and y), it is necessary to represent the wavenumber using 2D vectors (Johnson and Dudgeon, 1993; Zywicki, 1999), like $\mathit{k}=k_x\hat{ı}+k_y\hat{j}$ , and $\hat{ı}$ and $\hat{j}$ are unit vectors in the x and y directions, respectively. Similarly, $\overrightarrow{\alpha }$ is also expressed as a 2D vector (i.e. $\mathit{\alpha }={\alpha }_x\hat{ı}+{\alpha }_y\hat{j})$ in this article. Beamforming refers to a diverse set of array processing algorithms that concentrate the signal-capturing capabilities of the array in a specific direction. The fundamental concept behind beamforming is straightforward: when a propagating signal exists within an array’s aperture, the outputs of the sensors, delayed by appropriate amounts and added together, enhance the coherent signal while mitigating the incoherent signal from waves propagating in different directions. The delays that enhance the signal are directly linked to the time it takes for the signal to travel between sensors (Johnson and Dudgeon, 1993). Delays in the time domain correspond to linear phase shifts in the frequency domain, providing information about the wavenumber. FDBF calculations are exclusively performed within the frequency domain. Applying FDBF to the original wavefield, $U\left(\mathit{r}\right)$ , provides information about $\mathit{k}$ , which informs the estimation of the phase velocity. This article aims to demonstrate that applying FDBF to the converted, normalized pseudo-wavefield, $v\left(\mathit{r}\right)$ , informs the estimation of $\mathit{\alpha }$ . Henceforth, in this article, we will denote FDBF applied to the converted noise wavefield as NFDBFa, emphasizing its role in estimating the phase attenuation from ambient noise.

In the NFDBFa approach, the first step is to partition the noise data collected by a 2D array of m sensors into B time windows. The m sensors are located at the ground surface at coordinates ( $x_i,y_i$ ) denoted by the vector ${\mathit{r}}_{\mathit{i}}$ , where i varies from 1 to m. For each time window, Fourier spectra are calculated. Following this, the complex number at each frequency in the spectra is exponentiated to the imaginary power. Then, each exponentiated complex number is normalized by dividing it by its absolute amplitude. This process is conducted to obtain the normalized spectra of the pseudo-wavefield (Aimar et al., 2024a). These spectra are then used to compute the Hermitian symmetric spatio-spectral correlation matrix, $R_{\mathrm{ij}}$ , with i and j representing indices of the m sensors in the 2D array, using Equation 3:

$$R_{\mathrm{ij}}\left(\omega \right)=\frac{1}{B}\sum _{n=1}^B{v}_{i,n}(\omega )v_{j,n}^{*}(\omega )$$

(3)

where $R_{\mathrm{ij}}\left(\omega \right)$ is the averaged pseudo cross-power spectrum between the ith and jth sensors in the array across all windows, $v_{i,n}(\omega )$ is the normalized pseudo-spectra of the ith sensor’s data in the nth window, * indicates complex conjugation, and $\omega$ is the angular frequency. Despite being frequency-dependent, the spatio-spectral correlation matrix conveys spatial wavefield properties. Power within specific frequency-phase attenuation (f- $\mathit{\alpha }$ ) pairs is determined by steering the array toward various directions and phase attenuation values. Array steering involves exponential phase shift vectors determined by trial $\mathit{\alpha }$ values in pseudo-space, as given by Equation 4:

$$e\left(\mathit{\alpha }\right)={[\exp (-i\mathit{\alpha }.{\mathit{r}}_1),\dots ,\exp (-i\mathit{\alpha }.{\mathit{r}}_{\mathit{m}})]}^T$$

(4)

where $e\left(\mathit{\alpha }\right)$ is a steering vector associated with a trial $\mathit{\alpha }$ and T denotes the transpose of the vector. The power in a particular f- $\mathit{\alpha }$ pair, $P_{\mathrm{NFDBFa}}(\mathit{\alpha },\omega )$ , is estimated by multiplying $R_{\mathrm{ij}}\left(\omega \right)$ by $e\left(\mathit{\alpha }\right)$ and summing the total power over all sensors, as given by Equation 5:

$$P_{\mathrm{NFDBFa}}(\mathit{\alpha },\omega )=e^H\left(\mathit{\alpha }\right)R_{\mathrm{ij}}\left(\omega \right)e\left(\mathit{\alpha }\right)$$

(5)

where H indicates the Hermitian transpose. The steering vectors aim to align the array with plane waves propagating from a specified direction and phase attenuation for each frequency. The successful alignment results in a peak within the $P_{\mathrm{NFDBFa}}(\mathit{\alpha },\omega )$ pseudo-spectrum estimate. Thus, the NFDBFa technique presented herein allows for estimating α from ambient noise data without requiring an equipartitioned wavefield.

Even though there are similarities between the FDBFa method proposed in the work by Aimar et al. (2024a) for estimating α using an MASW test setup and the NFDBFa method introduced in this study, there are notable differences between the two. Part of the difference is a consequence of the inherent dissimilarities between MASW and MAM. In the FDBFa method, the source location is predetermined and the array is aligned with the source, simplifying the problem and enabling the use of wavefield transformations, such as cylindrical FDBF (Zywicki and Rix, 2005). Moreover, the SNR can be readily enhanced by time-domain or frequency-domain stacking, as advocated in the work by Foti et al. (2018) and Vantassel and Cox (2022). In addition, dispersion and attenuation uncertainties can be quantified using the multiple source offset approach proposed in the work by Cox and Wood (2011). In contrast, the NFDBFa approach developed in this study encounters distinct challenges, primarily arising from the a priori unknown location of the source(s). This necessitates the utilization of 2D arrays and involves azimuthally scanning the 2D space to ascertain the direction of the most coherent source of energy at each frequency for each window. Furthermore, the enhancement of the coherent noise-to-incoherent noise ratio involves averaging multiple time windows, while uncertainty quantification involves analyzing various time blocks, each composed of different windows. Thus, in the NFDBFa approach, data are recorded for significantly longer durations (i.e. hours) compared with FDBFa (i.e. seconds). In addition, the NFDBFa approach relies on measurements of ambient noise, which is typically assumed to be generated by sources located in the far field. This implies that the ambient noise sources are far enough from the MAM array for body waves to have significantly attenuated relative to surface waves, and that the surface waves exhibit a plane wavefront rather than a cylindrical wavefront, which is typical near a seismic energy source. If the assumption of far-field sources holds true, it helps to mitigate the impact of geometric spreading, which plays a significant role on attenuation estimates near an active source (Badsar, 2012). Near-field noise sources lead to complications in extracting accurate attenuation estimates, as discussed in greater detail below.

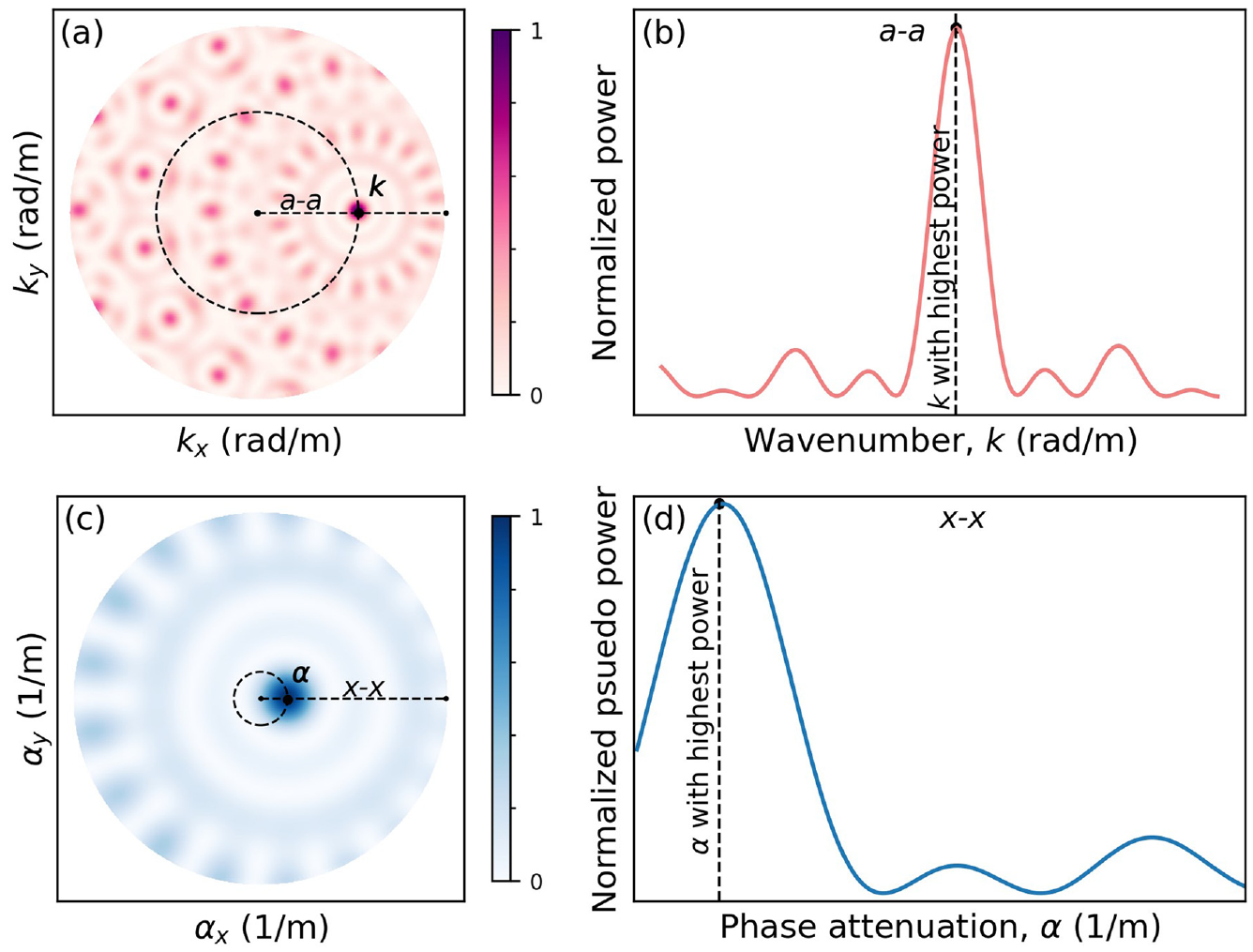

Figure 3 presents examples of the FDBF and NFDBFa responses obtained from a synthetic wavefield recorded by a 10-receiver circular MAM array for a single frequency and single time window. The array comprises nine sensors equally spaced on the perimeter of the circle and one sensor in the middle. The FDBF method is used to estimate $\mathit{k}$ and the NFDBFa method is used to estimate $\mathit{\alpha }$ . In Figure 3a and b, the results of applying the FDBF technique to the original noise wavefield recorded by the array are depicted. Figure 3a illustrates the f- $\mathit{k}$ spectrum at the considered frequency in a 2D wave number space ( $k_x$ - $k_y$ ). Stronger powers are represented by a darker purple color. This spectrum offers insights into the power and vector velocities of propagating waves. In this example, a wave propagates along the x-axis with a velocity represented by a vector wave number $\mathit{k}$ at the chosen frequency. Consequently, a spectrum peak emerges on the positive $k_x$ axis at a distance of $|\mathit{k}|$ from the origin. The associated phase velocity can be calculated as $V_r=2\pi f/|\mathit{k}|$ , and the wavelength, λ, can be determined as $\lambda =2\pi /|\mathit{k}|$ . Figure 3b illustrates the cross-section a-a from Figure 3a, revealing the main and side lobes. Generally, the narrower the main lobe and the shorter the side lobes the better the array and processing algorithm are at accurately identifying the correct $\mathit{k}$ values for a given frequency.

Figure 3.

Schematic illustrating the FDBF and NFDBFa responses obtained from an ambient noise wavefield recorded by a 10-receiver circular MAM array for a single frequency and single time window. Panel (a) presents the f- $\mathit{k}$ spectrum resulting from applying the FDBF method to the original wavefield, displaying the beamforming peak powers in k_x-k_y space. Panel (b) shows the cross-section a-a from Figure 3a, revealing the main and side lobes. Panel (c) presents the f- $\mathit{\alpha }$ spectrum resulting from applying the NFDBFa technique to the pseudo-wavefield, presenting the beamforming peak powers in ${\alpha }_x$ - ${\alpha }_y$ space. Panel (d) illustrates the cross-section x-x from Figure 3c, showing the main and side lobes along the direction of wave propagation.

Figure 3c and d display the f- $\mathit{\alpha }$ spectrum obtained from applying the NFDBFa method to the converted noise wavefield for the same time window used to develop Figure 3a. In this case, instead of presenting the beamforming peak powers in the $k_x$ - $k_y$ space, as seen in Figure 3a, they are now depicted in the ${\alpha }_x$ - ${\alpha }_y$ space. This transition occurs because the phase in the pseudo-wavefield is modulated by $\alpha$ (refer to Figure 2), rather than k. Figure 3c employs a different color scheme, where stronger powers are represented by darker blue colors. The f- $\mathit{\alpha }$ spectrum shown in Figure 3c illustrates wave propagation for a single frequency along the x-axis with a phase attenuation represented by the vector $\mathit{\alpha }$ . Figure 3d illustrates the cross-section x-x from Figure 3c, revealing the main and side lobes along the positive x-axis (i.e. direction of wave propagation). Similar to estimating $\mathit{k}$ , the narrower the main lobe and the shorter the side lobes the better the array and processing algorithm are at accurately identifying the correct $\mathit{\alpha }$ values for a given frequency. The ability of the NFDBFa approach to develop phase attenuation estimates from ambient noise recorded using MAM arrays is investigated in the following section using synthetic data.

NFDBFa evaluation with synthetic wavefields

This section uses synthetic data to validate the effectiveness of the NFDBFa approach in estimating phase attenuation from ambient noise recorded using MAM arrays. Specifically, the approach is tested on two soil models: a half-space model and a single layer above a half-space model. All numerical simulations discussed in this section were executed using Salvus (Afanasiev et al., 2019), a comprehensive 2D and 3D full-waveform modeling software suite based on the spectral element method. The simulations were performed on the Texas Advanced Computing Center’s (TACCs) high-performance cluster Lonestar6 using two compute nodes, with an allocation provided by DesignSafe-CI (Rathje et al., 2017).

Half-space model

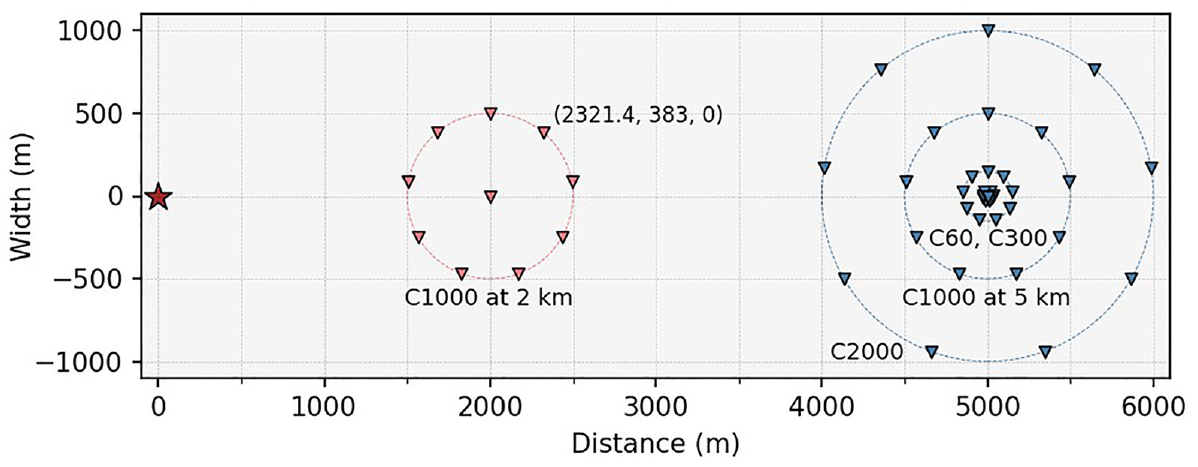

This subsection presents a simple wave propagation simulation consisting of a single surface source generating body and surface waves propagating through a half-space soil model. Despite the simplicity of the model, the outcomes obtained from this simulation offer key insights into the attenuation of a wavefield generated by a surface source and elucidate the capabilities of the NFDBFa approach. Figure 4 depicts a schematic plan view illustrating the source location and MAM array configurations employed in the half-space simulation. The wavefield was generated by a point source acting in the vertical direction at coordinates (0, 0, 0) in an x, y, z cartesian coordinate system. The source was a single Ricker wavelet with a center frequency of 5 Hz. This source function produces broadband energy over a frequency range of approximately 1–10 Hz. The wavefield emanating from the source was recorded using five circular MAM arrays, each comprising 10 sensors, with one sensor at the center and nine sensors evenly spaced around the perimeter. In this article, the arrays are named using the convention “C” followed by the diameter of the array, where “C” denotes that the array is circular. Therefore, the first array, located 2 km away from the source and with a diameter of 1 km, is denoted as C1000 at 2 km. The remaining four arrays, concentrically centered 5 km from the source, have diameters of 60 (C60), 300 (C300), 1000 (C1000 at 5 km), and 2000 m (C2000). It is noteworthy that, although currently only the vertical component of the displacement wavefield is used in NFDBFa, each sensor recorded both horizontal and vertical displacement components, and plans for using all components from noise recordings are ongoing. In addition, the NFDBFa processing operated independently of any knowledge about the source location, mirroring the conditions of an ambient noise MAM survey and ensuring an unbiased analysis.

Figure 4.

Plan view of the source (star symbol) and receiver (inverted triangle symbols) configurations used for synthetic wavefield simulations. The source was a single Ricker wavelet with a center frequency of 5 Hz. The wavefield was recorded using five MAM arrays. The first array (C1000 at 2 km) has a diameter of 1 km and is positioned 2 km from the source. The remaining four arrays are concentrically centered 5 km away from the source and have diameters of 60 m (C60), 300 m (C300), 1 km (C1000 at 5 km), and 2 km (C2000), respectively.

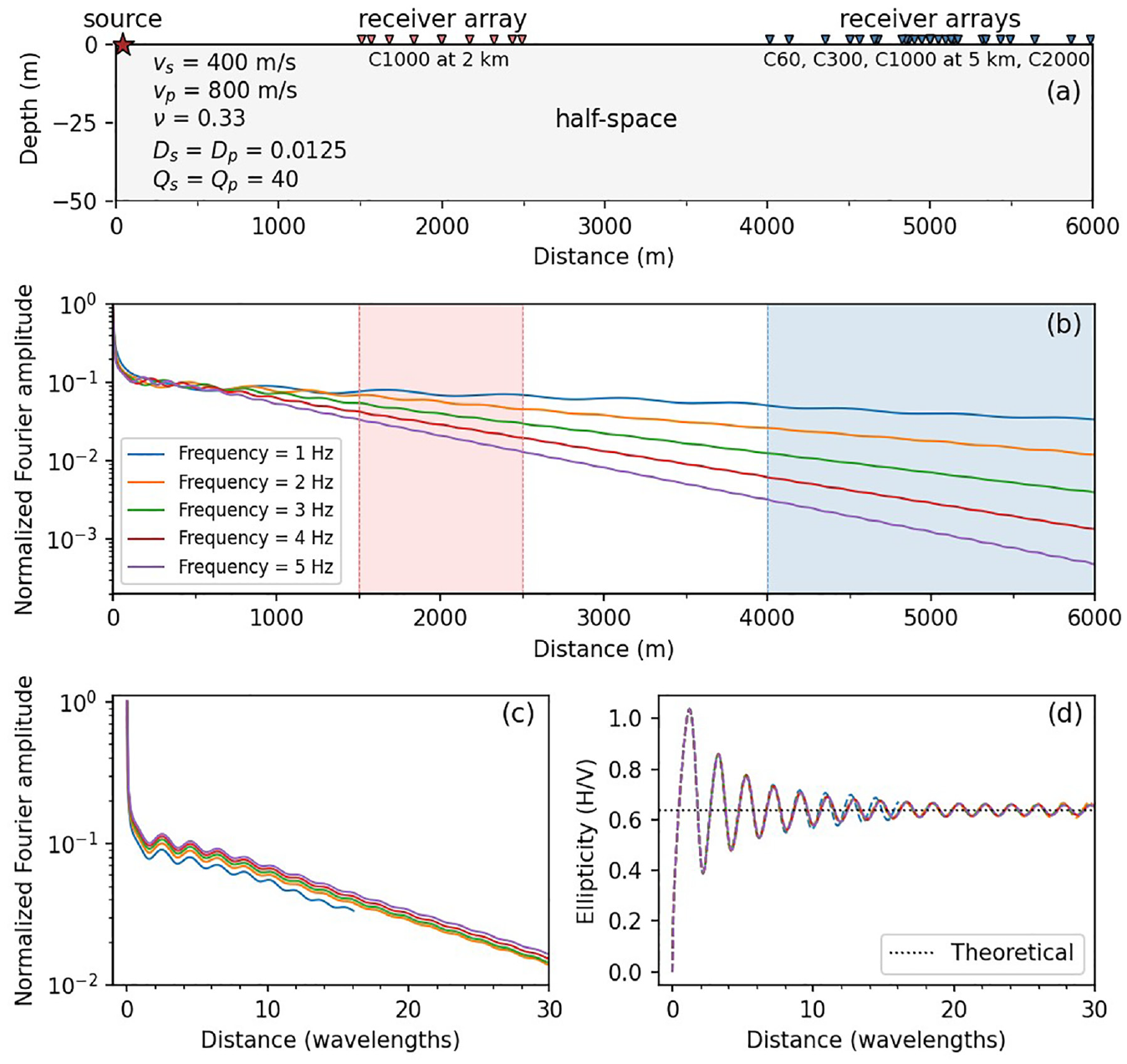

The half-space constitutive soil parameters are presented in Figure 5a, where V_p, and υ are the compression wave velocity and Poisson’s ratio, respectively. The V_s, V_p, D_s, and D_p values adopted in the simulations presented in this article are within the range of values typically measured in the laboratory for near-surface geomaterials, such as sands, clays, and gravels (Darendeli, 2001; Menq, 2003; Parolai et al., 2022). It is worth noting that while these specific values are within reasonable limits, their overall influence on the conclusions drawn from our study is limited. Due to the large spatial extent of the model and the substantial computational expense associated with running a simulation over such a vast domain, a 2D simulation was conducted rather than a 3D simulation. In the 2D simulations, the sensor locations were projected onto a 2D plane, as illustrated in Figure 5a. This entailed setting the y-coordinate to zero for each surface sensor location shown in Figure 4, resulting in their positions being determined exclusively by their x-axis coordinates. For example, the sensor initially situated at coordinates (2321.4, 383, 0) in an x, y, z system (as depicted in Figure 4), transformed to (2321.4, 0) in the 2D x, z system presented in Figure 5. However, it is important to note that, during NFDBFa processing, the coordinates assigned to each sensor were derived from those shown in Figure 4; consequently, the aforementioned sensor retained coordinates of (2321.4, 383, 0) during processing. This approach not only substantially reduced the computational cost of the simulations but also ensured that the arrays were measuring plane waves. The simulation required 4 h and 20 min of computation using 256 threads on the high-performance cluster Lonestar6.

Figure 5.

Homogeneous half-space wavefield simulation: Panel (a) presents a cross-section view of the configuration of the source and receivers shown in Figure 4, along with the half-space soil properties. Panel (b) shows the decay of particle vertical displacement as a function of distance from the source for five distinct frequencies, each normalized by its maximum amplitude at the source. Panel (c) presents the particle displacement decay patterns from Panel b, with distance now normalized by the wavelength for each frequency. Panel (d) shows the particle ellipticities for each frequency, expressed as the horizontal particle displacement divided by the vertical particle displacement, with the dotted horizontal line indicating the theoretical ellipticity calculated based on the Poisson’s ratio of the half-space soil model.

Before describing the application of the NFDBFa method, some preliminary features of the amplitude decay versus distance are discussed, as they directly influence attenuation estimates. To better observe this decay pattern, the wavefield emanating from the source was recorded every 10 m along the free surface. Those time histories were then filtered at discrete frequencies, so the amplitude decay at each frequency could be observed. The decay of Fourier amplitudes with distance from the vertical Ricker wavelet source for frequencies 1, 2, 3, 4, and 5 Hz is shown in Figure 5b and c. In Figure 5b, the amplitudes for each frequency are normalized by their respective maximum values at the source and plotted on a log scale, while the distances are not normalized and plotted on a linear scale. In contrast, in Figure 5c, the distances from the source are normalized by the Rayleigh wave fundamental mode wavelength (λ_R) corresponding to each plane wave frequency and plotted on a linear scale. The figures depict a sharp amplitude decrease near the source due to near-field effects. Following this, amplitude oscillations with diminishing power are superimposed over a linear decay trend. Note that a linear decay trend in log amplitude scale corresponds to an exponential decay in linear amplitude scale. These amplitude oscillations tend to flatten greatly after propagating approximately 10 λ_R away from the source. It is noteworthy that these oscillations in a half-space model, although verified through both 2D and 3D simulations using other software packages, such as the ElastoDynamics Toolbox (EDT; Schevenels et al., 2009), and similarly reported in the work by Tokimatsu (1995), challenge the conventional intuition of wave attenuation in a half-space. Neither the geometric spreading of Rayleigh waves nor the attenuation due to material damping should exhibit such oscillations in a half-space, as detailed in the work by Lai (1998) for 3D conditions. The oscillating amplitude decay pattern in a half-space model is a result of body wave amplitude decay oscillations, as shown in the work by Holzlohner (1980) and Tokimatsu (1995). Hence, when estimating phase attenuation using ambient noise, it is essential for the MAM arrays to be at a sufficient distance (more than approximately 10 λ_R) away from any potential surface sources, such that wave amplitude oscillations do not contaminate the expected trend of amplitude decay with distance.

It is worth noting that in 3D layered media, oscillating amplitude decay of Rayleigh waves due to geometric spreading has been reported and accounted for in attenuation studies, as observed in the work of Lai (1998). Thus, in layered media, wave amplitude oscillations can be more pronounced and may extend beyond 10 λ_R from the surface source, as demonstrated in the work by Tokimatsu (1995). This may be thought of as a type of near-field effect specific to attenuation studies, wherein the wavefield amplitude decay patterns are significantly more complicated at distances less than approximately 10 λ_R from the source. This is distinct from, and more severe than, the typical range of near-field effects for phase velocity estimations, which generally deteriorate between 0.5 λ_R and 2 λ_R from the source, depending on the subsurface velocity structure (Rix et al., 2001; Tokimatsu, 1995).

To further demonstrate the more severe near-field effects associated with amplitude decay, Figure 5d presents the simulated wavefield ellipticity, expressed through the horizontal-to-vertical (H/V) ratio of particle displacement amplitude, measured with distance in wavelengths for the same frequencies outlined in Figure 5b. The ellipticity also displays oscillations that decrease and stabilize at normalized distances greater than about 10 λ_R from the source. This observation underscores that the near-field amplitude decay oscillations stem from body waves, as Rayleigh wave ellipticity in a half-space is determined solely by Poisson’s ratio (Tokimatsu, 1995) and should not oscillate. In Figure 5d, we observe that the calculated ellipticities oscillate around the theoretical value of approximately 0.64 anticipated for Rayleigh wave ellipticity in a viscoelastic half-space with Poisson’s ratio equal to 0.33, depicted by the dotted horizontal line in Figure 5d.

The synthetic time histories recorded by the C1000 at 2 and the C1000 at 5 km MAM arrays (refer to Figures 4 and 5) were processed using the FDBF and NFDBFa methods to estimate phase velocity and attenuation, respectively, as illustrated in Figure 6. Figure 6 aims to highlight the impact of wave amplitude decay patterns on the attenuation estimates. In terms of abilities to resolve phase velocity, both the C1000 arrays seem to perform approximately the same, whether 2 km away from the source (Figure 6a) or 5 km away from the source (Figure 6b). However, on inspecting Figure 6c and d, it becomes evident that the array located 5 km from the source (i.e. Figure 6d) provides more reliable attenuation estimates at lower frequencies compared with the array closer to the source. This observation can be explained by referring to Figure 5b, where the amplitude decay patterns measured by the array positioned 2 km from the source are shaded in pink. It is apparent that in close proximity to the source, the low-frequency waves have not traveled a sufficient number of wavelengths, resulting in amplitude decay that does not conform to pure exponentials (i.e. linear decay in log scale). However, by the time these waves reach the array positioned 5 km from the source (blue shading in Figure 5b), the oscillations in amplitude decay have diminished significantly, approaching a pure exponential decay. Therefore, it is noteworthy that in an ambient noise survey, even though the source location is unknown, if the noise source is close to the array in terms of wavelengths traveled by the desired frequency, it may lead to unreliable and scattered attenuation results. Nonetheless, Figure 6c and d clearly demonstrate the reliability of the new NFDBFa approach in retrieving phase attenuation estimates over a broad range of frequencies.

Figure 6.

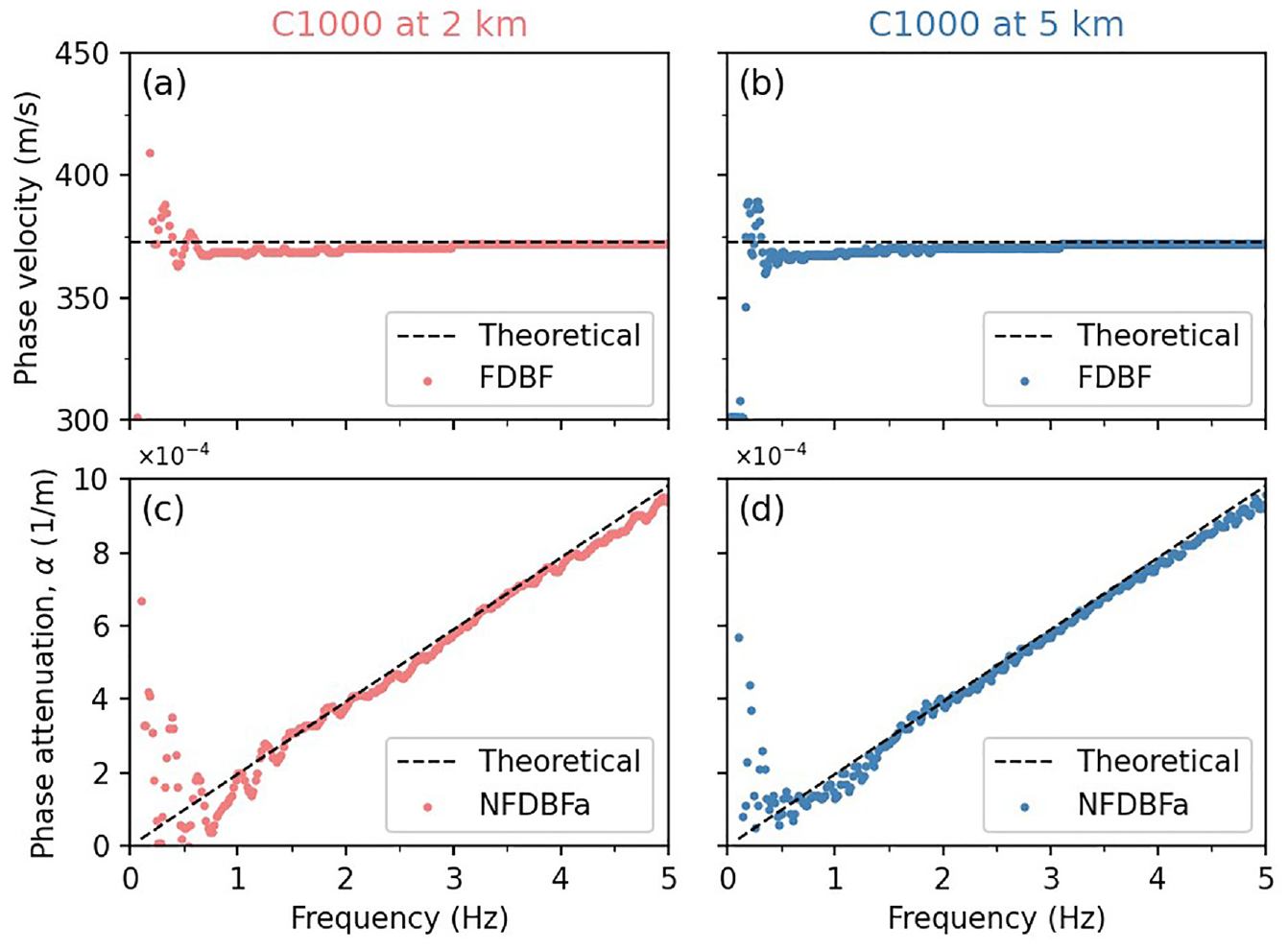

Half-space wavefield simulation: phase velocity (top) and phase attenuation (bottom) dispersion data estimated with FDBF and NFDBFa, respectively, from 1 km arrays positioned at two distinct distances from the ambient noise source: (left) at two kilometers (C1000 at 2 km), and (right) at five kilometers (C1000 at 5 km).

Finally, the performance of the NFDBFa in the presence of incoherent noise is investigated. For this purpose, Figure 7 illustrates the influence of incoherent noise and array size on phase attenuation estimates using the same half-space simulation results. The analysis focuses on the four arrays of different sizes concentrically centered 5 km from the source (refer to Figures 4 and 5a). Incoherent noise was introduced to the signal, with a target SNR at 20 dB, which resulted in the frequency-dependent amplitude decay patterns depicted in Figure 7a (compared to Figure 5b). Figure 7b to e display the attenuation estimates obtained using the C60, C300, C1000, and C2000 MAM arrays, respectively. It becomes evident that larger arrays yield more accurate attenuation estimates in the presence of incoherent noise. Figure 7a elucidates the rationale behind this enhanced performance for larger arrays across all frequencies. The C2000 MAM array samples a significantly larger area, enabling it to discern the exponential amplitude decay even in the presence of noise. The C60 MAM array samples a significantly smaller area, and thus is considerably more sensitive to amplitude fluctuations caused by incoherent noise, resulting in the significant scatter observed in the attenuation estimates shown in Figure 7b.

Figure 7.

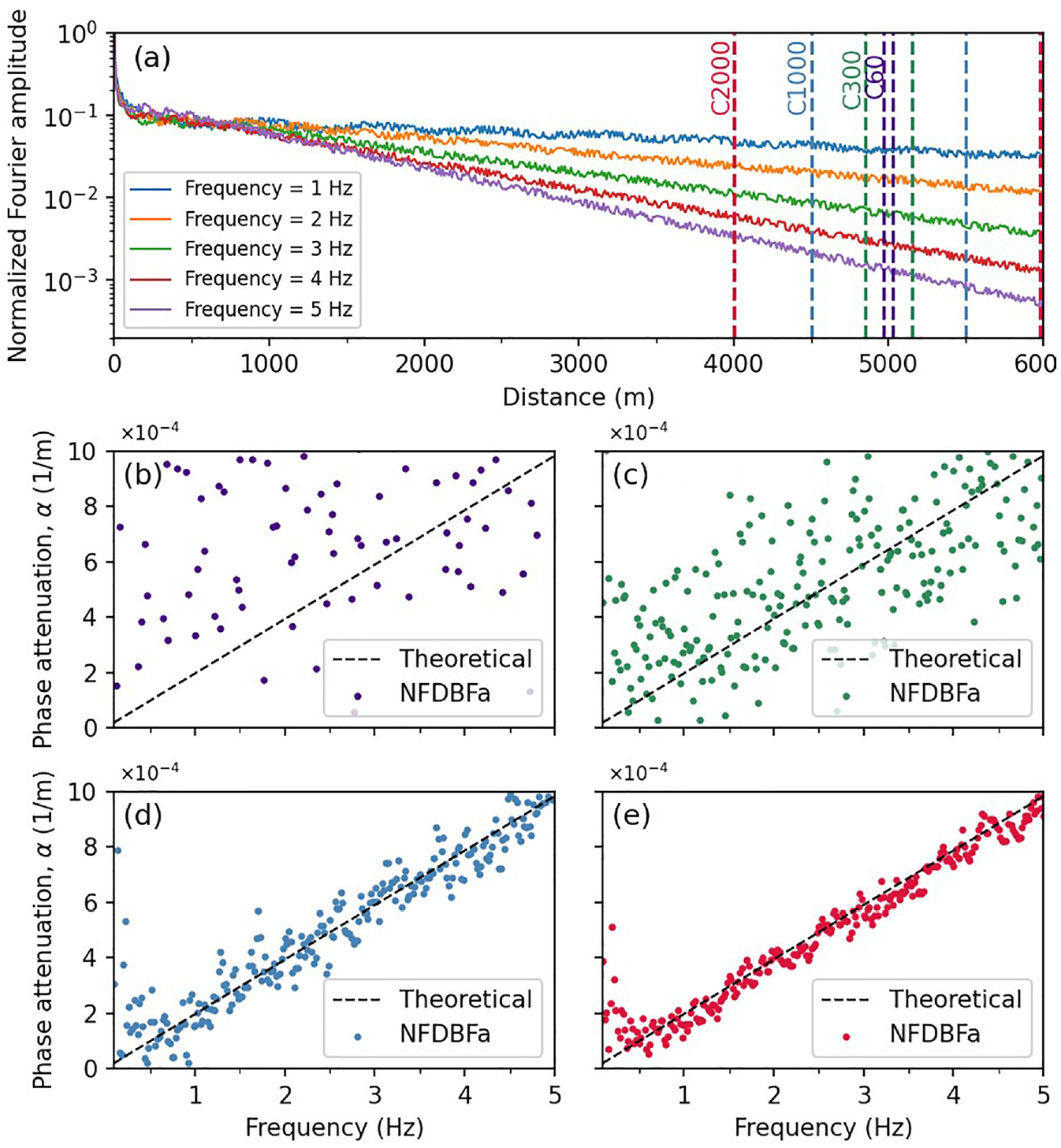

Half-space wavefield simulation with noise: Panel (a) shows the amplitude decay of the same five frequencies depicted in Figure 5 but now with added incoherent noise to the signal, setting the SNR at 20 dB. Panels (b) to (e) present the predicted phase attenuation data from the NFDBFa analysis for four arrays concentrically centered at 5 km from the source, with diameters of 60 m (C60), 300 m (C300), 1 km (C1000 at 5 km), and 2 km (C2000), respectively.

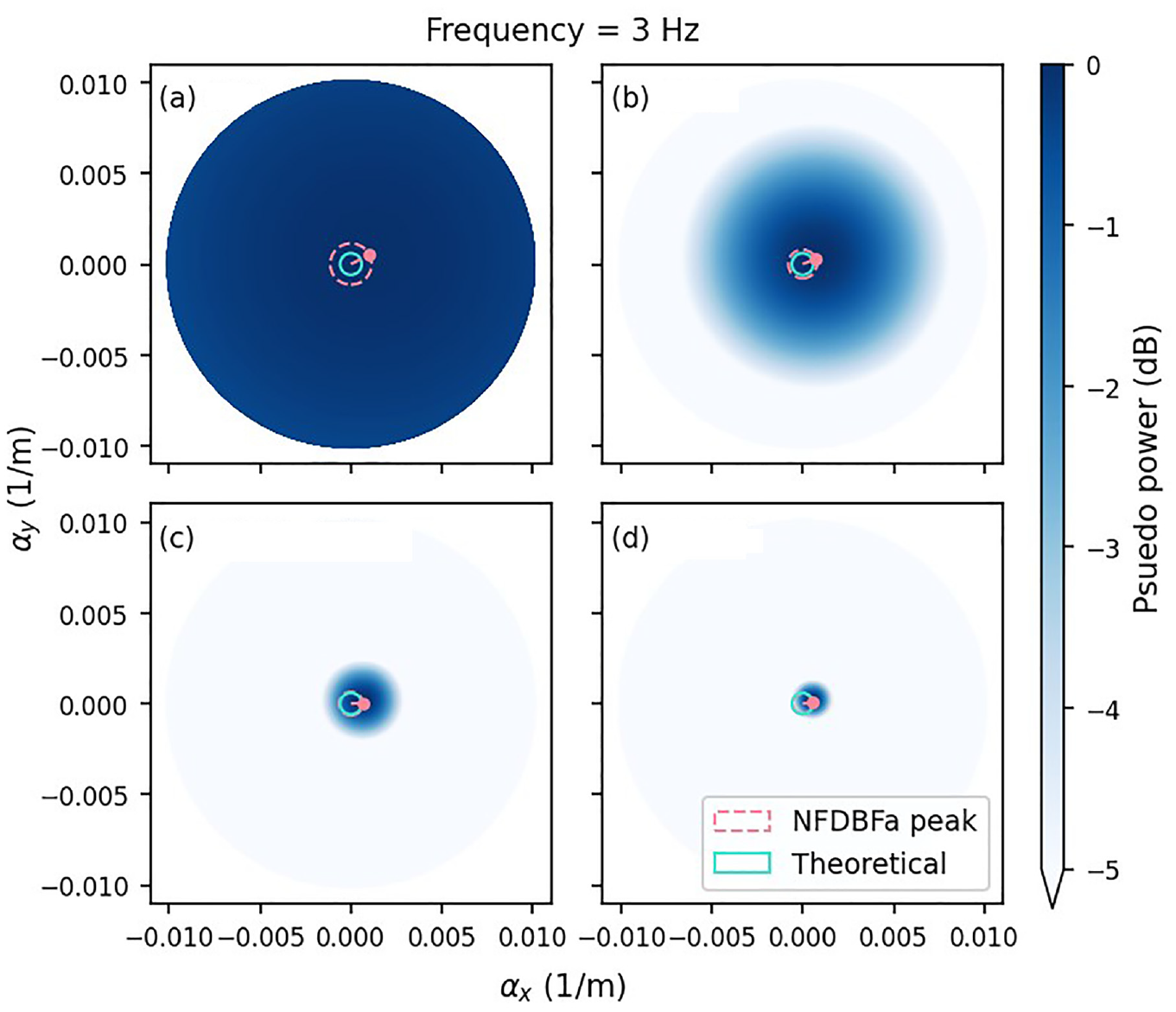

Figure 8 further illustrates the impact of array size on resolving attenuation coefficients by showcasing the f- $\mathit{\alpha }$ spectra for a frequency of 3 Hz that were calculated from the wavefield recorded by the four concentrically centered arrays located 5 km from the source. Notably, the main lobe (dark blue shaded area) is considerably narrower for larger arrays, resulting in more reliable estimates of phase attenuation. Two key points warrant attention here. First, the feasibility of employing larger arrays might be restricted due to limitations in access at a given site, or to help maintain approximately a 1D subsurface condition beneath the array, which is an implicit assumption in the analysis technique (i.e. no lateral spatial variability). Meeting this assumption becomes more challenging as the array size expands. Second, it is essential to highlight that the method used to determine the optimal MAM array size for attenuation estimates differs from the one employed in obtaining phase velocity estimates. In dispersion estimation, smaller MAM arrays are more effective at capturing high-frequency phase velocities, whereas larger arrays are better suited for resolving lower-frequency phase velocities (Foti et al., 2018; Vantassel and Cox, 2022). However, according to the results depicted in Figure 7, the larger arrays demonstrated superior ability in resolving phase attenuation across the entire considered frequency range compared to the smaller arrays.

Figure 8.

Half-space wavefield simulation with noise: Panels (a) through (d) present the f- $\mathit{\alpha }$ spectra obtained through NFDBFa analysis for a frequency of 3 Hz. The spectra are derived from the wavefield recorded by the four arrays concentrically centered 5 km from the source with diameters of 60 m (C60), 300 m (C300), 1 km (C1000), and 2 km (C2000), respectively, as depicted in Figure 7.

Layer above a half-space model

The performance of the NFDBFa approach on a synthetic model consisting of a single layer above a half-space is illustrated in this subsection. The model’s constitutive small-strain parameters, and the source and receiver configurations are provided in Figure 9a. For this synthetic study, 150 vertical point sources with varying forcing functions and trigger times were activated. The sources were triggered 5 km away from the center of a 1-km diameter circular array consisting of 10 sensors: one in the center and nine equally distributed around its perimeter (just like the C1000 at 5 km MAM array depicted in Figure 4). The waveforms recorded by the array are depicted in Figure 9b. These waveforms were subsequently processed using FDBF and NFDBFa to derive the Rayleigh wave phase velocity dispersion data shown in Figure 9c and the phase attenuation data shown in Figure 9d, respectively. The theoretical Rayleigh wave phase velocity dispersion and attenuation curves for the model are also presented in Figure 9c and d, respectively. In these figures, the fundamental theoretical mode is denoted as Mode 1, while the first higher mode is denoted as Mode 2.

Figure 9.

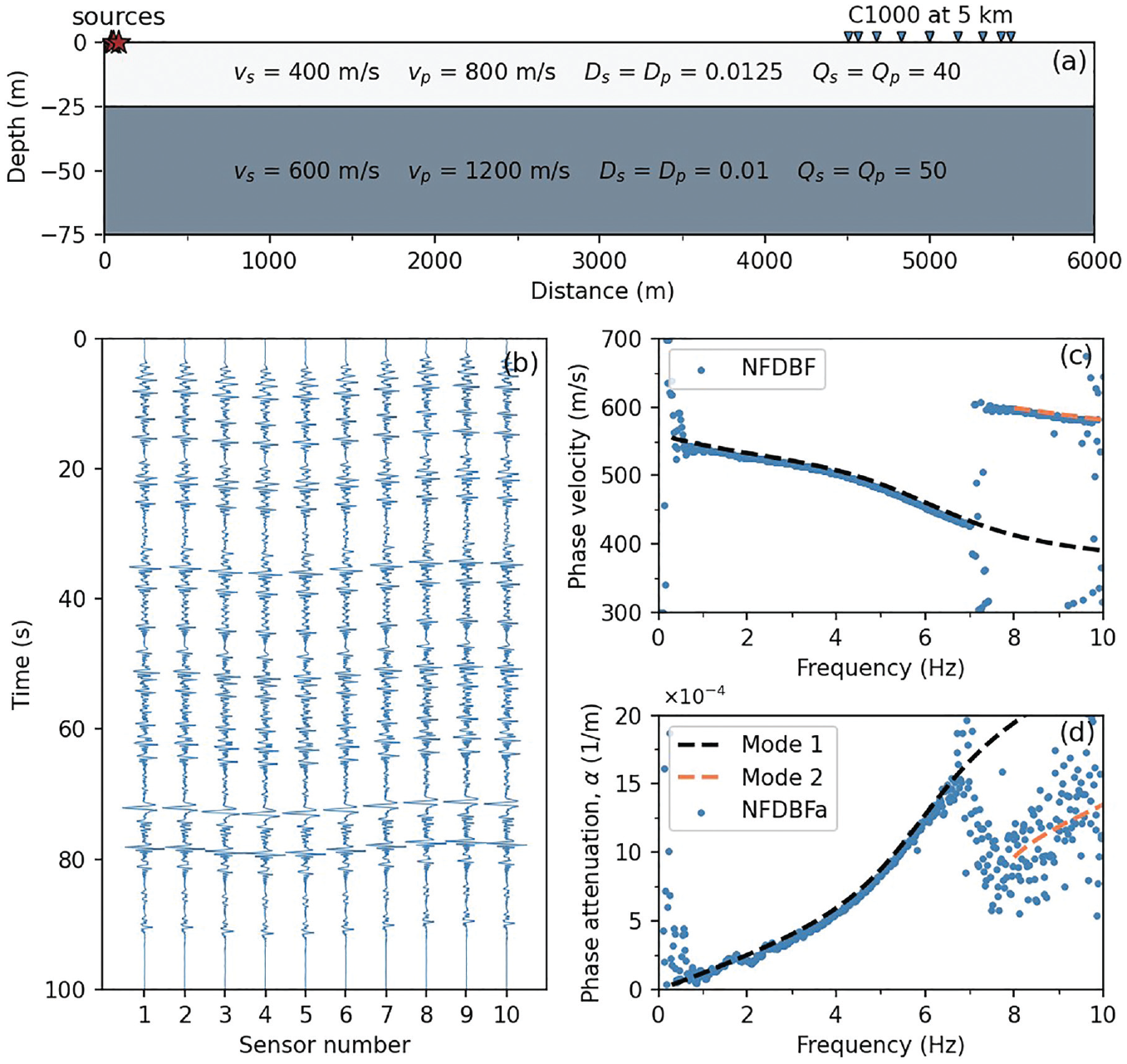

Layered model simulation: Panel (a) presents the soil properties used in the simulation for the soil layer and the half-space, along with the surface sources and 1 km receiver array located 5 km from the source (C1000 at 5 km). Panel (b) displays the waveforms collected from the C1000 array. In Panel (c), the good agreement between the theoretical Rayleigh wave phase velocity curves (Mode 1 and Mode 2) and the experimental phase velocity data obtained through the FDBF approach on the original wavefield is demonstrated. Finally, Panel (d) showcases the good agreement between the theoretical modal attenuation curves and the experimental modal attenuation data extracted from the converted wavefield using the proposed NFDBFa approach.

The FDBF method is able to extract experimental phase velocity dispersion data from the synthetic wavefield that well matches the theoretical dispersion curves and captures the transition from Mode 1 to Mode 2 at approximately 7 Hz. A strong agreement is also observed between the theoretical attenuation curves and the experimental attenuation data extracted from the synthetic wavefield using the NFDBFa method, particularly for Mode 1. The attenuation data shifts to Mode 2 at the same frequency where the phase velocity dispersion data transitions to Mode 2. A similar observation regarding the relation between the frequencies at which phase velocity and attenuation mode transitions occur was also reported in the work by Aimar et al. (2024a) using MASW data. The observation that phase velocity and phase attenuation data tend to shift modes at identical frequencies is potentially significant, as patterns in attenuation modes are generally more complex than those in phase velocity modes.

The effectiveness of the proposed NFDBFa approach has been successfully demonstrated through the analyses conducted on synthetic datasets, as discussed above. Now, we shift our focus to applying this approach to real field data, offering a thorough demonstration of its effectiveness in a practical, real-world situation.

Field application and validation

A surface wave field-testing campaign was conducted at the Drainage Farm Site in Logan, Utah, USA (refer to Figure 10), a property owned by Utah State University (USU). Structural geology indicates that Southern Cache Valley, encompassing the Drainage Farm Site and located in the northeastern part of the Basin and Range province, is a graben bounded by high-angle normal faults (Williams, 1962). The site is underlain by Paleozoic rocks, which are overlain by Tertiary formations, such as the Wasatch and Salt Lake formations, composed of conglomerate, siltstone, and tuffaceous sandstone. In certain areas of Cache Valley, these formations reach thicknesses of up to 2440 m (Evans et al., 1996). The near-surface geology of the Drainage Farm Site is characterized by sediments from ancient Lake Bonneville, which receded to form the Provo shoreline. These sediments include alluvial, lacustrine, and deltaic deposits (Evans et al., 1996; Williams, 1962). Well logs presented by Williams (1962) reveal alternating layers of silt and clay, sand, and gravel above the Salt Lake formation. Moreover, limited deep well logs from the vicinity of the Drainage Farm Site indicate that rock can be encountered at depths ranging from 176 to more than 350 m (Perez, 1969).

Figure 10.

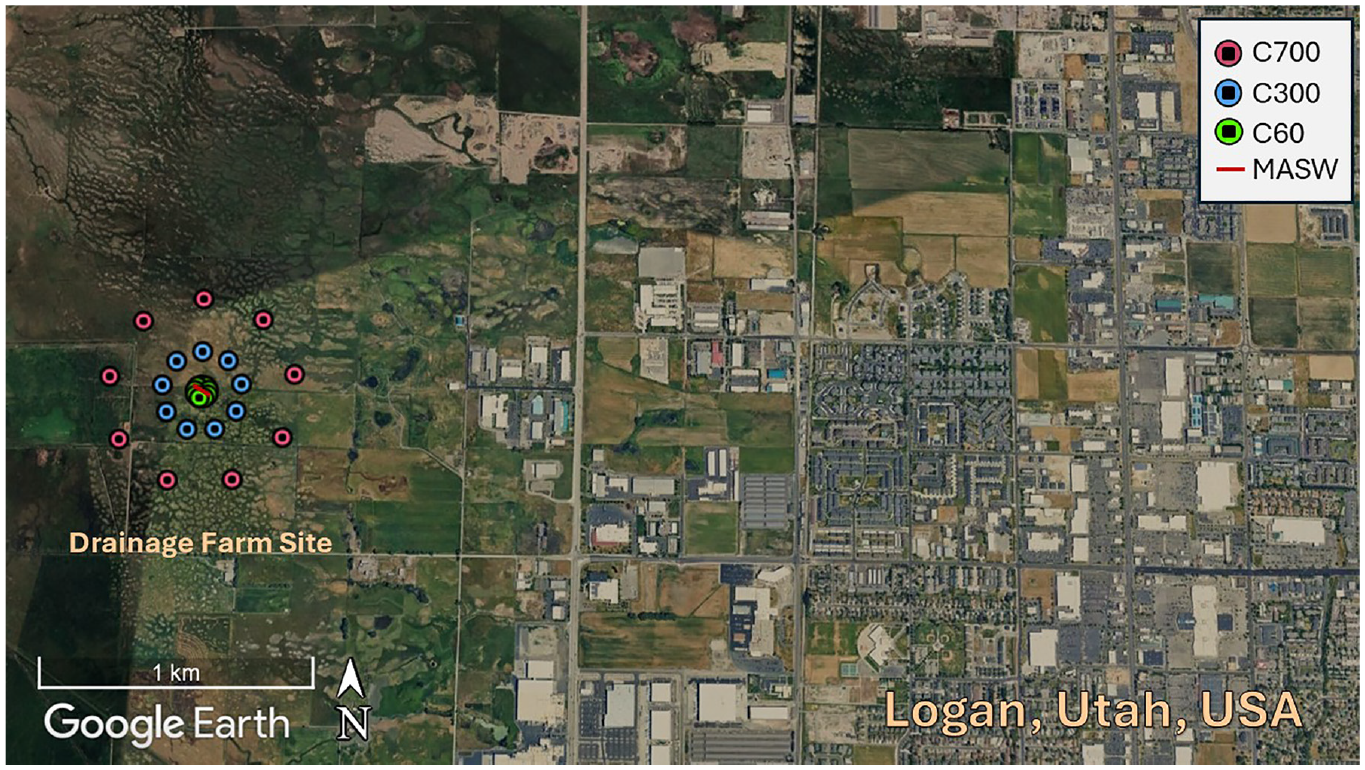

Plan view of the MASW and MAM arrays employed for testing at the Drainage Farm Site in Logan, Utah, USA. The concentric MAM arrays featured diameters of 60 (C60), 300 (C300), and 700 m (C700), while the MASW array comprised 24, 4.5 Hz vertical geophones, spanning 46 m.

The goal of the testing was to collect a high-quality surface wave dataset that could be used for attenuation studies to validate the proposed NFDBFa technique. The field testing involved both active-source MASW testing and ambient noise MAM testing. The sensor array configurations used for MASW and MAM at the Drainage Farm Site are illustrated in Figure 10. MASW testing was performed using 24, 4.5 Hz vertical geophones placed with a spacing of 2 m between successive geophones, resulting in an array length of 46 m. Wavefields with strong Rayleigh wave content were actively generated by striking vertically on a strike plate with a sledge hammer. The sledge hammer was used at eight distinct “shot” locations that were offset by 5, 10, 15, and 20 m relative to the first/last geophone off each end of the array. Five distinct sledge hammer blows were recorded at each location for subsequent stacking to increase the SNR (Foti et al., 2018). MAM testing used three concentric circular arrays that were aligned with the middle of the MASW array, as depicted in Figure 10. The three arrays were 700, 300, and 60 m in diameter, and will be referred to as C700, C300, and C60, respectively. Each array consisted of nine evenly distributed three-component broadband seismometers (Nanometrics Inc. Trillium Compact 120s seismometers) along its circumference to capture ambient vibrations. The three arrays did not record data simultaneously; instead, the nine sensors were used to collect noise data for each of the MAM arrays one array at a time. First, the sensors recorded seismic noise for 13 h and 30 min for the C700 array. Subsequently, the sensors were relocated to their designated locations for the C60 and C300 arrays, recording ambient noise for 1.5 and 3 h, respectively.

For Rayleigh wave phase velocity dispersion analysis, MASW data were analyzed using the FDBF method with cylindrical wave steering (Zywicki and Rix, 2005), as coded in the open-source surface wave processing package swprocess (Vantassel, 2021). This processing was coupled with the multiple source offset technique for identifying near-field contamination and quantifying dispersion uncertainty (Cox and Wood, 2011; Vantassel and Cox, 2022). As a result, eight phase velocity estimates were obtained for each frequency, corresponding to one phase velocity estimate from each of the eight shot locations. MASW Rayleigh wave dispersion data influenced by near-field effects or significant offline noise were trimmed before calculating phase velocity dispersion statistics.

The three-component beamforming approach (Wathelet et al., 2018) coded in the open-source software package Geopsy (Wathelet et al., 2020) was used to generate Rayleigh wave phase velocity dispersion data for each of the MAM arrays. The recorded time for each array was discretized into blocks, with each block further divided into at least 30 time windows. The window lengths were selected to contain at least 30 cycles (periods) at the lowest processing frequency that could be extracted from each MAM array (Vantassel and Cox, 2022). For each MAM array, eight phase velocity estimates were extracted at each analyzed frequency using the three-component beamforming (Wathelet et al., 2018) approach to ensure consistency with the eight phase velocity estimates obtained from the MASW processing. Spurious dispersion data stemming from high-amplitude noise in the near field (e.g. traffic noise close to the sensors) and incoherent noise were manually eliminated before calculating dispersion statistics. Ambient noise phase velocity dispersion data from all MAM arrays were combined with the active phase velocity dispersion data obtained from MASW processing, as shown in Figure 11a. The combined data, used to compute mean and ± one standard deviation dispersion estimates (Vantassel and Cox, 2022), are displayed in Figure 11b relative to the individual MASW and MAM dispersion data points for the Drainage Farm Site.

Figure 11.

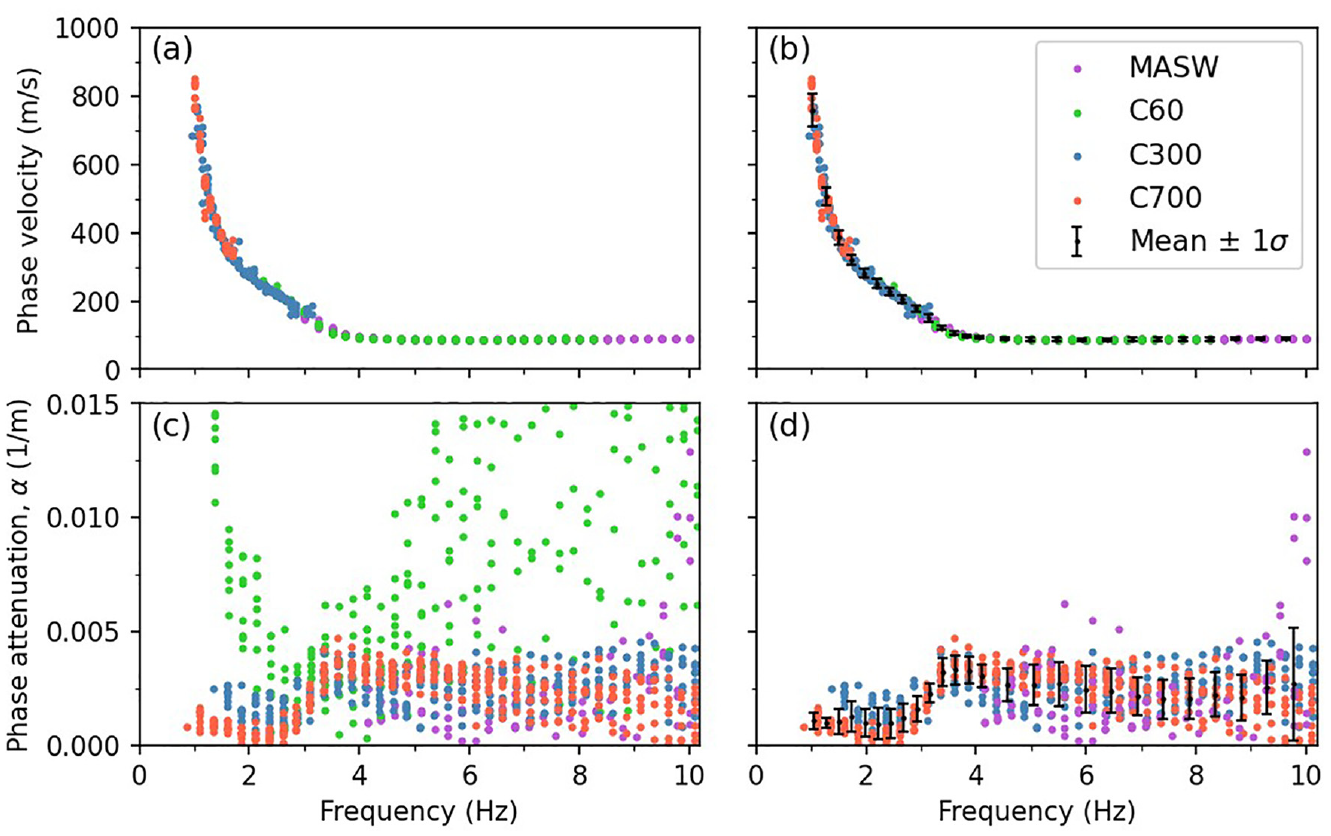

Experimental phase velocity and attenuation data extracted from MASW and MAM testing at the Drainage Farm Site in Logan, UT, USA. Panel (a) displays the experimental phase velocity dispersion data of Rayleigh waves processed from an MASW array and three circular MAM arrays, with diameters of 60, 300, and 700 m. Panel (b) showcases the mean and ± one standard deviation of the experimental Rayleigh wave phase velocity dispersion data derived from the combined MASW and MAM datasets. Panel (c) displays the experimental phase attenuation data from MASW and three circular MAM arrays. Panel (d) illustrates the mean ± one standard deviation of the experimental phase attenuation data calculated from the combined MASW, C300, and C700 MAM arrays.

The cylindrical FDBFa (CFDBFa) approach, as proposed in the work by Aimar et al. (2024a), was employed to derive attenuation estimates from the MASW data. The CFDBFa algorithm accounts for Rayleigh wave geometric spreading by considering the cylindrical shape of the wavefront. Mirroring the MASW phase velocity dispersion analysis, the multiple source-offset technique was used for quantifying attenuation uncertainty. Thus, eight attenuation estimates were extracted from the MASW data at each analyzed frequency using CFDBFa. For the MAM attenuation estimates, the new NFDBFa approach introduced in this study was employed. Geometric spreading was not accounted for, as the distance between the MAM arrays and the ambient noise sources was unknown. However, no nearby sources were observed during acquisition, so we believe that the plane wave approximation is acceptable. The recorded time for each array was discretized into eight blocks, with each block further divided into 30 windows. Consequently, the window length employed for each MAM array can be determined by dividing the total recording time of the array by the product of 8 blocks and 30 windows (i.e. 240). Similar to MAM phase velocity dispersion analysis, the window lengths were selected to contain at least 30 periods at the lowest processing frequency that could be extracted from each MAM array (Vantassel and Cox, 2022). Averaging the estimates from all windows within each block yielded a single data point per block, thus providing eight unique attenuation estimates per frequency. This processing approach ensured that an equal number of attenuation data points were obtained at each frequency for all of the MASW and MAM arrays. The combined ambient noise attenuation data from all MAM arrays and the active attenuation data from the MASW array are plotted together in Figure 11c. A good agreement is observed between the attenuation estimates derived from the MASW array and those obtained from the C300 and C700 arrays for frequencies ranging from 4 to 10 Hz. The MASW testing did not generate coherent attenuation data at frequencies less than 4 Hz, due to the limitations of the active sledge hammer source. However, the MAM testing was able to extract coherent attenuation data at frequencies below 1 Hz. The agreement observed between the active-source and ambient noise attenuation estimates serves as compelling evidence for the efficacy of the proposed NFDBFa approach. However, it is notable that there is significant scatter in the attenuation estimates obtained using the C60 array. This variability is likely caused by the challenges previously discussed in regard to using smaller MAM arrays for attenuation studies, as the phase velocity data extracted from the C60 array was very good (refer to Figure 11a). Hence, the attenuation data from the C60 array were removed prior to calculating attenuation statistics. The combined attenuation estimates from the MASW, C300, and C700 arrays, and the mean and ± one standard deviation attenuation estimates obtained from those three arrays, are depicted in Figure 11d. While a noticeable agreement exists among the three arrays, there is significantly greater scatter in the attenuation estimates (Figure 11d) compared to the phase velocity dispersion estimates (Figure 11c). Quantitatively, the coefficient of variation (i.e. the standard deviation normalized by the mean) for the phase velocity experimental data ranges between 0.05 and 0.07, whereas the coefficient of variation for phase attenuation is generally an order of magnitude larger, around 0.5 and increasing up to 0.6–0.8 at high frequencies. The larger uncertainty observed at frequencies above 9.5 Hz in Figure 11d results from the divergence between the MASW and MAM attenuation estimates, which may stem from the inability of the MAM arrays in this experiment to provide reliable attenuation estimates beyond this frequency. Nonetheless, the coefficient of variation values of the experimental attenuation data is consistent with results reported by other studies (e.g. Aimar, 2022; Rix et al., 2000). The application of the new NFDBFa approach in this field test showcases its effectiveness in estimating attenuation coefficients from ambient noise wavefield data.

Finally, the statistical experimental Rayleigh wave phase velocity and attenuation parameters derived from both the MASW and MAM testing (refer to Figure 11b and d) were used to invert for V_s and D_s profiles at the Drainage Farm Site. This was achieved through the Monte Carlo–based joint inversion of phase velocity and phase attenuation data developed in the work by Aimar et al. (2024b). Although the effectiveness of the joint inversion procedure has been proven for active surface wave data (Aimar et al., 2024b; Lai, 1998), its application to combined dispersion data from MASW and MAM testing, covering a broad frequency range, is novel. This is because past studies on inverting MAM-based attenuation data to retrieve damping properties at large depths typically adopted an uncoupled inversion approach, based on a separate inversion of Rayleigh wave phase velocity and α (e.g. Parolai, 2014; Prieto et al., 2009).

The inversions performed herein involved 50,000 five-layer trial soil models with progressively increasing thicknesses, covering a comprehensive range of layer thicknesses, V_s, and D_s values. The layering was informed by a preliminary inversion study based solely on phase velocity dispersion data, which is omitted here for simplicity. Realistic values were fixed for the Poisson’s ratio and mass densities. The D_p/D_s ratio was treated as an adjustable parameter, guided by various trials and informed by engineering judgment. Ultimately, we adopted a constant D_p/D_s ratio of 1.4, similar to the approach taken in the work by Bergamo et al. (2023). Forward dispersion and attenuation modeling were conducted using the Computer Programs for Seismology software (Herrmann, 2013). The fit to the experimental data was quantitatively assessed using a normalized root mean square (RMS) error that accounts for estimation uncertainty, similar to the metric proposed in the work by Wathelet et al. (2004).

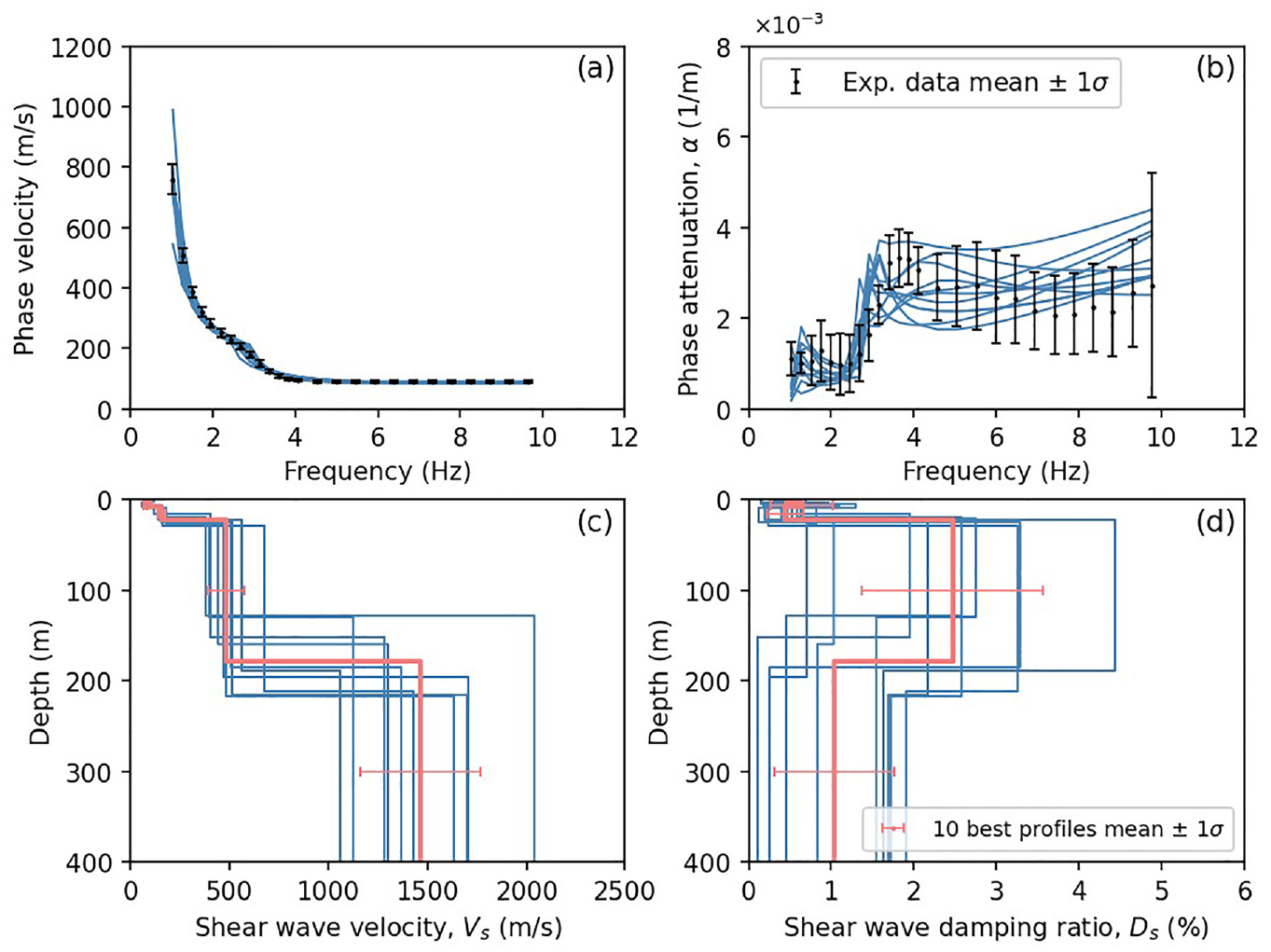

The 10 best inversion results, which are those that achieved the lowest RMS error between their theoretical phase velocity and phase attenuation curves and the experimental data statistics, are shown in Figure 12. The theoretical phase velocity and attenuation curves are shown relative to the experimental data error bars in Figure 12a and b, respectively. The 10 best V_s and D_s profiles, along with their mean and ± one standard deviation, are shown in Figure 12c and d, respectively, extending down to a depth of 400 m, which is approximately half of the maximum resolved phase velocity wavelength. The V_s profiles in Figure 12c collectively feature a shallow layer about 25-m thick with velocities ranging from approximately 90 to 185 m/s, including a low-velocity zone, which is consistent with known near-surface layering. Below this, there is generally a thicker layer extending down to approximately 180 m with velocities varying around 500 m/s. At depths of 150–200 m, a stiff layer with velocities around 1500 m/s is commonly identified across the profiles. These depths, while variable, are consistent with the location of Salt Lake Formation rock surface, as discussed above. The D_s profiles in Figure 12d indicate that damping in the top 25 m is less than 1%. Below this depth, there is a noticeable variability in the estimated D_s values between the 10 best profiles, with a coefficient of variation ranging between 0.43 and 0.7. Nonetheless, D_s can be observed to increase to approximately 2%–4% in the deeper soil deposits, which consist of alternating clay, sand, and gravel layers. At the top of the Salt Lake Formation rock surface, D_s collectively decreases again to less than 2% for all of the 10 best profiles. The large variability in D_s is likely due to the complex geology of the site, the significant standard deviation in the experimental attenuation data, and the moderately low sensitivity of theoretical attenuation curves to D_s at greater depths (e.g. Aimar et al., 2024b; Badsar, 2012). Despite these challenges, the joint inversion procedure provided in situ estimates of D_s at depths not reached by conventional site characterization techniques. This confirms the advantages of combining MASW and MAM data for the combined estimation of stiffness and dissipation parameters of soil deposits. While the results are promising, additional validation through laboratory or invasive testing will help confirm the accuracy of the D_s estimates. Continued efforts to improve attenuation estimation techniques and refine the joint phase velocity and attenuation inversion algorithm will further enhance the reliability of subsurface D_s estimation through noninvasive testing.

Figure 12.

Inversion results for the experimental Rayleigh wave phase velocity and attenuation data collected at the Drainage Farm Site in Logan, UT, USA. The figure highlights the 10 best-fitting models, with Panels (a) and (b) comparing the theoretical curves for phase velocity and attenuation, respectively, against the experimental data represented by mean values with ± one standard deviation error bars. Panels (c) and (d) display the 10 best V_s and D_s profiles along with their mean and ± one standard deviation, respectively.

Conclusion

A new methodology for estimating frequency-dependent attenuation coefficients through the analysis of ambient noise wavefield data recorded by 2D arrays of surface seismic sensors has been presented. The approach relies on the application of an attenuation-specific wavefield conversion and FDBF. It has been termed the NFDBFa method. Importantly, using an FDBF approach, as opposed to a noise cross-correlation approach, enables the direction of ambient noise propagation to be determined for each noise window and frequency, and does not require an equipartitioned ambient noise wavefield. Furthermore, using an FDBF approach enables the phase velocity and attenuation data generated from active-source testing such as MASW to be combined with phase velocity and attenuation data generated from ambient noise testing such as MAM to span a broader frequency range. This enables the joint inversion of phase velocity and attenuation to be performed as a means to extract shear wave velocity and small-strain damping ratio profiles to significantly greater depths than previously possible using only active-source data.

2D plane strain numerical simulations were conducted to deepen our understanding of the proposed NFDBFa method. These simulations aimed to evaluate how the proximity of the MAM array to the noise source, the presence of incoherent noise, and the size of the array affect the estimates of phase attenuation. The results demonstrated that near-field effects are more pronounced and extend over greater distances for phase attenuation estimates in comparison to those considered for phase velocity estimation. Furthermore, it was discovered that larger array sizes consistently provided more accurate phase attenuation estimates across all considered frequencies, contrary to the conventional MAM design criteria used for phase velocity dispersion estimation, where larger arrays are typically preferred for resolving lower frequencies while smaller arrays excel at resolving higher frequencies. This distinction emphasizes the need for unique design criteria when planning an MAM array for attenuation estimation.

The proposed NFDBFa approach underwent validation through numerical wave propagation simulations, comparing predicted frequency-dependent phase attenuation values against theoretical phase attenuation curves for two synthetic models. Furthermore, validation of the developed technique was reinforced using MASW and MAM field data collected at the Drainage Farm Site in Logan, Utah, USA. The phase velocity and attenuation data extracted from the MASW and MAM recordings agreed well over a common bandwidth, while the ambient noise MAM data allowed the phase velocity and attenuation estimates to be extracted at significantly lower frequencies. The joint inversion of the experimental Rayleigh wave phase velocity and phase attenuation data obtained from both MASW and MAM testing facilitated the estimation of shear wave velocity and small-strain damping ratio profiles to significant depths (400 m) at the Drainage Farm Site. While these results are promising, they still need to be validated through additional invasive and laboratory testing.

As noted herein and in other studies such as the study by Aimar et al. (2024a), attenuation data are significantly more variable and more complex to understand (e.g. modal curves that repeatedly cross one another) than phase velocity data. As such, there is a need for future studies to better understand attenuation data and how to invert them to retrieve reliable in situ profiles of the small-strain damping ratio. Future efforts should involve additional numerical and experimental testing of diverse subsurface conditions, coupled with comparisons to damping estimates obtained from invasive tests, such as cross-hole and downhole testing. With the validity of this approach demonstrated on the vertical component, future research will also explore the utilization of the three components of the noise wavefield to enhance attenuation estimates beyond the current method’s capabilities.
