Development of a 3-Dimensional Middle Ear Model to Teach Anatomy and Endoscopic Ear Surgical Skills

Abstract

Mastery of ear anatomy and otologic surgical skills is challenging for trainees, and educational resources are limited. Advancements in 3-dimensional (3D) printing have enabled the construction of complex microscopic models. Otoendoscopy provides excellent visualization and has been shown to enhance anatomic learning. Our aim was to develop a 3D model of the middle ear and external auditory canal using computed tomography images of a pediatric temporal bone for use with otoendoscopes. Resulting models are life sized, anatomically accurate, and allow for identification of relevant middle ear structures. Forty-six trainees were recruited for a pilot study and randomized to study using the model or standard resources. There were no differences in pretest, posttest, or 1-week posttest performance between groups; however, trainees assigned to the model reported higher prospective interest, satisfaction, and subjective improvement. This model may be used with otoendoscopes for anatomic and surgical training and represents an advancement in otologic surgical simulation.

Middle ear anatomy and otologic surgical skills are challenges for otolaryngology trainees. It is critical that students master relationships between structures within the middle ear. Current study aids include 2-dimensional atlases, 3-dimensional (3D) computer models, and cadaveric temporal bones. Two-dimensional study tools fail to adequately capture anatomic relationships, computer models lack fidelity, and human temporal bones are expensive and impractical for routine use. ¹ Thus, critical learning occurs in the operating room. Improved resources are needed for trainees.

Otoendoscopy provides high-magnification visualization and has been shown to enhance trainees’ understanding of anatomy. ² Ultra-high-definition 3D printing, in combination with otoendoscopy, provides an opportunity to improve on current methods of teaching middle ear anatomy.

The aim of this study was to develop a high-fidelity 3D-printed model of the middle ear. In addition, we aimed to determine whether the use of otoendoscopes and 3D models enhances middle ear anatomy acquisition among early learners.

Methods

Model Development

Thin-cut (0.6-mm) computed tomography images of a pediatric temporal bone were used to generate a 3D model of the middle ear and external auditory canal (Materialise Mimic, Leuven, Belgium). Segmentation from the scan was imported into Pixologic ZBrush (Los Angeles, California, USA) to increase the model’s resolution. Structures not captured on segmentation were sculpted using Maxon Cinema 4D R21 (Friedrichsdorf, Germany). Color application was performed. The model was processed on GrabCAD studios (Cambridge, Massachusetts, USA) and printed on a Stratasys J750 printer (Rehovot, Israel). Excluding initial design fees, individual models cost $136.

Pilot Study Design

Exemption was granted from the Institutional Review Board at the Children’s Hospital of Philadelphia for a pilot study to examine the use of the model for teaching anatomy. Medical students and first- through third-year residents were randomized into 2 groups that contained equal numbers of trainees at each level. Trainees were assigned to study middle ear anatomy using the model and 0° and 30° rigid endoscopes (Karl Storz, Tuttlingen, Germany) along with a written anatomic guide (Supplemental Materials 1) or the written guide in addition to dissection manuals, atlases, and teaching videos (“standard materials”). Participants had 45 minutes of supervised study time. Participants completed a test of middle ear anatomy, adapted from Anschuetz et al (Supplemental Materials 2) before, immediately after, and 1 week after the study period. ² A Likert-type scale scored from 1 to 5 was used to survey the interest level of the participants before the self-study period and satisfaction and subjective improvement levels after completing the posttest.

Data were analyzed using Stata v11 (StataCorp, College Station, Texas, USA). Student t tests were used to compare results between groups.

Results

Middle Ear Model

The model includes color-coded structures and spaces: malleus, incus, stapes, cochleariform process, tensor tympani muscle and tendon, stapedial tendon, tympanic segment of facial nerve, chorda tympani, Eustachian tube orifice, and sinus tympani ( Figures 1 and 2 ).

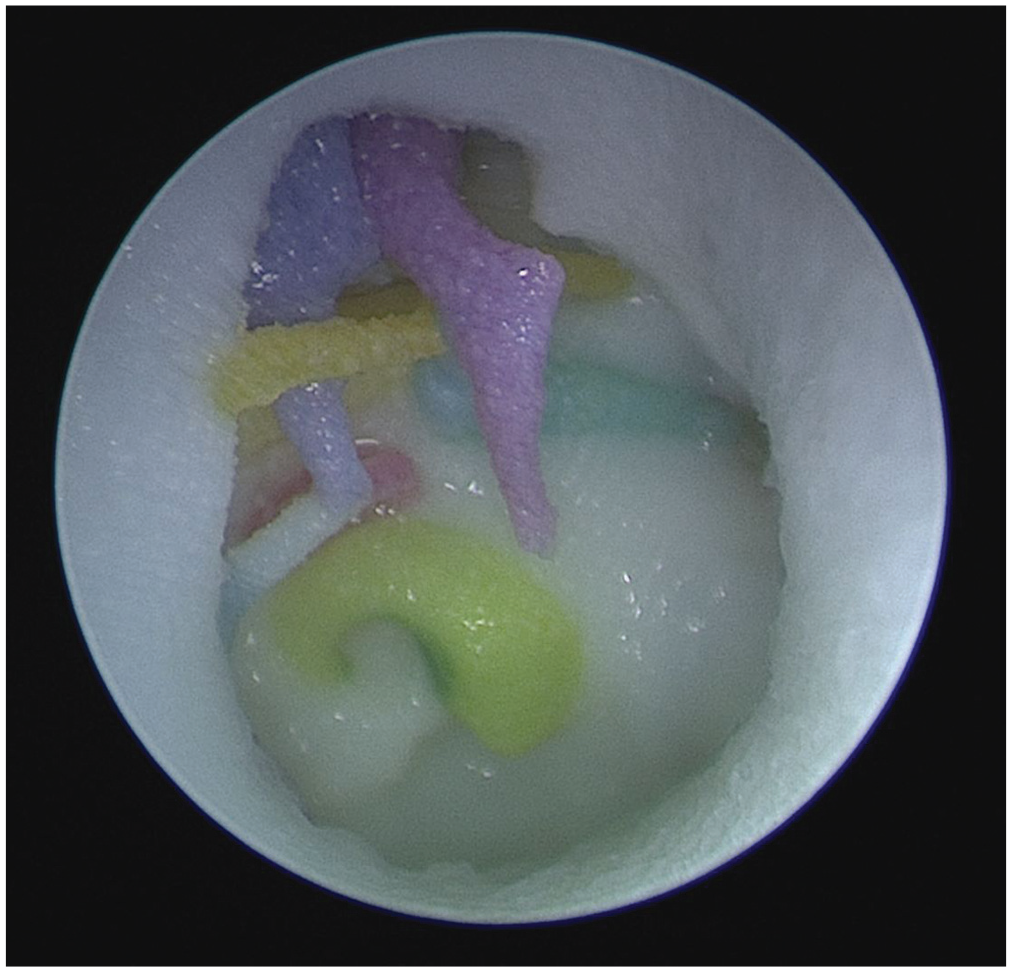

Figure 1.

Model demonstrating malleus (purple), incus (lavender), stapes (pink), chorda tympani (yellow), promontory (green), stapedius (blue), tensor tympani (aqua), and Eustachian tube (right side). Part of the bony canal was removed to visualize the epitympanum.

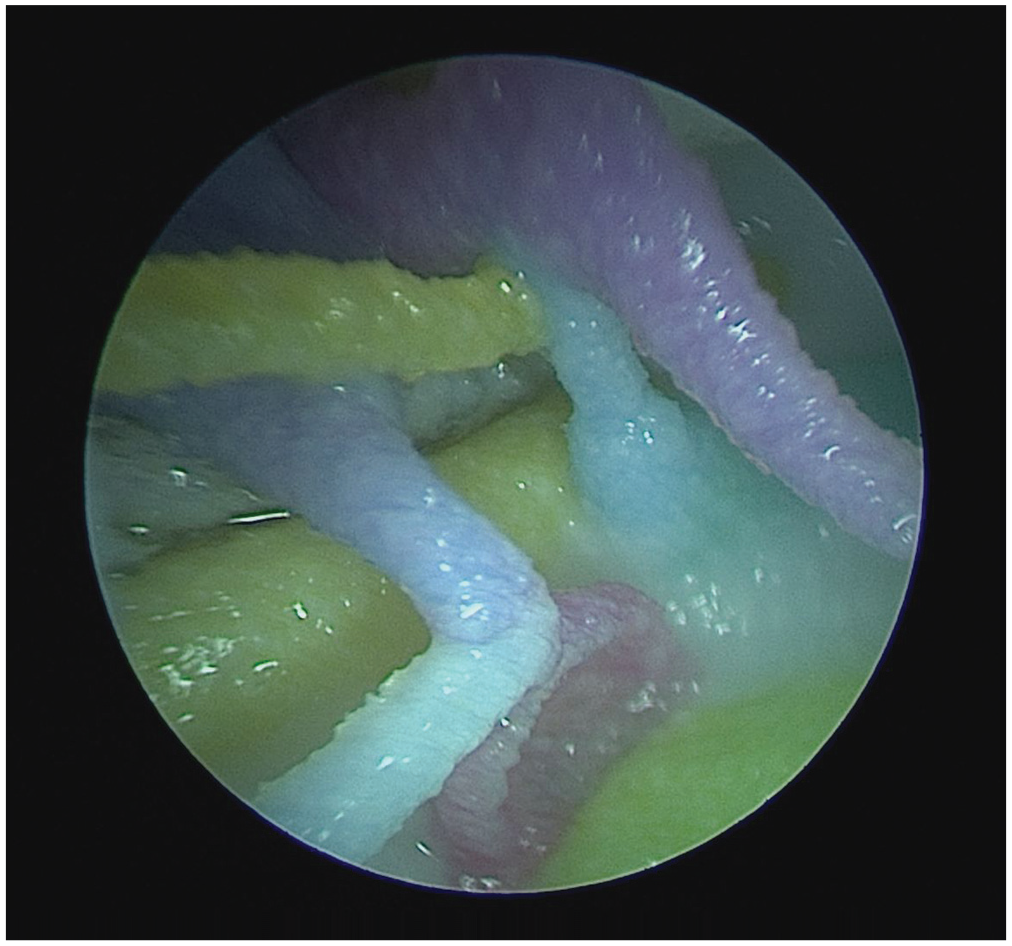

Figure 2.

View using 30° endoscope angled anterosuperiorly, highlighting the malleus (purple), incus (lavender), stapes (pink), stapedius tendon (blue), cochleariform process and tensor tympani tendon (blue), chorda tympani nerve (yellow), and facial nerve (yellow).

Pilot Study

Thirty-two students and 14 residents participated. Residents performed significantly better on pretests (63% vs 30%), postests (81% vs 56%), and 1-week posttests (79% vs 53%) compared with students (all P < .001). There were no differences in scores or changes in performance on tests between trainees using the model compared with those using standard materials ( Table 1 ).

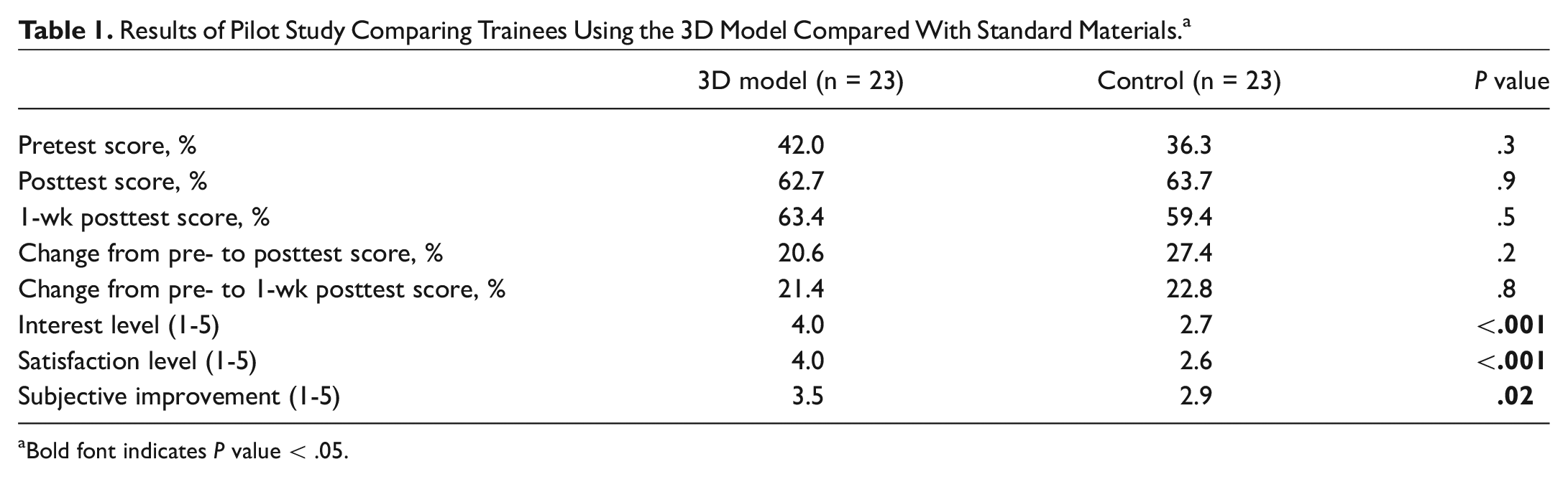

Table 1.

Results of Pilot Study Comparing Trainees Using the 3D Model Compared With Standard Materials. ^a

	3D model (n = 23)	Control (n = 23)	P value
Pretest score, %	42.0	36.3	.3
Posttest score, %	62.7	63.7	.9
1-wk posttest score, %	63.4	59.4	.5
Change from pre- to posttest score, %	20.6	27.4	.2
Change from pre- to 1-wk posttest score, %	21.4	22.8	.8
Interest level (1-5)	4.0	2.7	<.001
Satisfaction level (1-5)	4.0	2.6	<.001
Subjective improvement (1-5)	3.5	2.9	.02

a

Bold font indicates P value < .05.

Prospective interest in the assigned method (4 vs 2.7, P < .001), retrospective satisfaction (4 vs 2.6, P < .001), and subjective improvement (3.5 vs 2.9, P = .02) levels was higher among trainees assigned to the model as compared with controls ( Table 1 ).

Discussion

We developed a reproducible, reusable, inexpensive, life-sized, anatomically accurate 3D model of the middle ear. In a pilot study, trainees studied anatomy using either the model and otoendoscope or standard materials; both groups also accessed a detailed anatomy guide. We hypothesize that the guide masked benefits conferred by the 3D model; hence, no differences in performance were found between groups. Trainees using the model reported higher interest, satisfaction, and subjective improvement levels.

Advancements in otoendoscopy and high-definition 3D printing have the potential to revolutionize instruction of anatomy and endoscopic surgical skills. ³ Multiple 3D-printed models have been developed as an inexpensive and high-fidelity alternative to cadaveric specimens for simulating mastoidectomy.^4-7 Because of the complex relationships of microscopic structures in a small space, 3D printing of the middle ear is more challenging. Although 3D models have been developed for otoendoscopic middle ear surgical training, none have included the detailed middle ear anatomy required for anatomic teaching.^8,9

Otoendoscopy provides high-definition, high-magnification visualization of the middle ear space and has been shown to enhance learners’ understanding of anatomy in surgical and cadaveric lab settings.^2,10 A single-center study conducted in Switzerland that used proctored dissection of a cadaveric middle ear demonstrated enhanced learning using otoendoscopy compared with microscopy. ² However, the use of one-on-one tutoring and cadavers renders these methods impractical for everyday use. The model presented here is color coded and may be paired with a dissection manual for independent study. The model is reproducible, reusable, and inexpensive, making it practical for widespread use. This represents an advancement in the use of 3D printing and otoendoscopy for anatomic teaching. This model also provides an opportunity for otoendoscopic surgical skills training and will be developed for this purpose.

Conclusion

Our team of artists, engineers, and otolaryngologists developed a reproducible, reusable, and realistic 3D-printed model of the middle ear. Trainees who used the 3D model and endoscopes to study middle ear anatomy reported higher interest and satisfaction levels. This model represents an advancement in otologic surgical simulation to be used for both anatomic teaching and otoendoscopic surgical skills acquisition.
