Cochlear Duct Length Measurements in Computed Tomography and Magnetic Resonance Imaging Using Newly Developed Techniques

Abstract

Objective

Growing interest in measuring the cochlear duct length (CDL) has emerged, since it can influence the selection of cochlear implant electrodes. Currently the measurements are performed with ionized radiation imaging. Only a few studies have explored CDL measurements in magnetic resonance imaging (MRI). Therefore, the presented study aims to fill this gap by estimating CDL in MRI and comparing it with multislice computed tomography (CT).

Study Design

Retrospective data analyses of 42 cochleae.

Setting

Tertiary care medical center.

Methods

Diameter (A value) and width (B value) of the cochlea were measured in HOROS software. The CDL and the 2-turn length were determined by the elliptic circular approximation (ECA). In addition, the CDL, the 2-turn length, and the angular length were determined via HOROS software by the multiplanar reconstruction (MPR) method.

Results

CDL values were significantly shorter in MRI by MPR (d = 1.38 mm, P < .001) but not by ECA. Similar 2-turn length measurements were significantly lower in MRI by MPR (d = 1.67 mm) and ECA (d = 1.19 mm, both P < .001). In contrast, angular length was significantly higher in MRI (d = 26.79°, P < .001). When the values were set in relation to the frequencies of the cochlea, no clinically relevant differences were estimated (58 Hz at 28-mm CDL).

Conclusion

In the presented study, CDL was investigated in CT and MRI by using different approaches. Since no clinically relevant differences were found, diagnostics with radiation may be omitted prior to cochlear implantation; thus, a concept of radiation-free cochlear implantation could be established.

Keywords

CDL cochlear implantation temporal bone CT MRI

In cochlear implantation, optimal hearing perception can be achieved by correct electrode selection and appropriate cochlear coverage.^1,2 Therefore, it is necessary to have a precise understanding of the cochlear duct length (CDL). In clinical practice, multislice computed tomography (CT)^3,4 and cone beam CT^5,6 are most commonly used. Experimental imaging systems such as micro-CT^5,7 and synchrotron imaging⁸ have been shown to be more precise, but they are not applicable for use in humans due to their higher radiation exposure and the need for small imaging volumes.

Prior to cochlear implantation, magnetic resonance imaging (MRI) is normally performed for the assessment of the cochlear fluid signal and to exclude retrocochlear lesions and brain pathologies.⁹ The aim of the presented study was to investigate whether CDL measurements can be performed in MRI with similar accuracy to CT. For the measurement of CDL, 2 approaches were used. First, the elliptic circular approximation (ECA) formula was applied,⁵ which is the latest advanced formula with spiral functions.¹⁰ The second approach is multiplanar reconstruction (MPR), which is a new development in the field of 3-dimensional reconstructions of the cochlea.¹¹

Methods

Patient Selection

Radiologic data sets were examined from 42 patients (21 women, 21 men) with an average age of 52.9 years (range, 28-73 years). In these sequential cases, acoustic neuromas were removed from August 2016 to June 2020, and CT and MRI data sets were available. In each case, the contralateral cochlea was examined in relation to the acoustic neuroma. The data sets were exported anonymously. The retrospective data analysis was performed in concordance with the Declaration of Helsinki and approved by the local ethic committee of the University of Würzburg (2020051202).

Radiologic Measurements

The CT data sets were acquired with a SOMATOM Definition AS+ scanner (Siemens) and commercially available software (Syngo CT; Siemens) with the following parameters: tube current, 38 mA; tube voltage, 120 kV; collimation, 0.6 mm; pitch, 0.55; slice thickness, 600 µm.

The MRI data sets (T2 constructive interference in steady states) were acquired with a Skrya 3-T or Prisma 3-T magnetic resonance scanner (Siemens) and commercially available software (Syngo MR; Siemens) with the following parameters: repetition time, 7.35 ms; echo time, 3.17 ms; matrix, 384 × 384; field of view, 180 × 180; slice thickness, 600 µm.

Measurements of CDL, 2-Turn Length, and Angular Length

The data sets were converted to the DICOM standard and transferred to a medical image viewer (version 3.3.6; Horos Project). Measurements were performed with a certified radiologic screen (MultiSync Pa 322UHD; NEC) by an otologist with extensive experience in cochlear analysis (J.T.).

Multiplanar Reconstruction

First the cochlear view was generated by rotating 3-dimensionally around the axial, sagittal, and coronal axes.^12,13 Then marker points were manually defined along the bony lateral wall in the cochlear base starting at the center of the round window ( Figure 1 , A and A′). Later, the reconstruction of the cochlear spiral shape was slowly scrolled toward upper turns, and more markers were set ( Figure 1 , B and B′) until the helicotrema was reached. In addition, different points of the path were marked: A, round window; B, point at 720° = 2-turn length (2TL); C, highest point at the helicotrema = CDL ( Figure 1 , C and C′). All landmarks were automatically connected by the software via a Bézier path. Then the anatomically correct course of the reconstructed spiral was guaranteed by (1) complementing more marker points to reach closer alignment of the reconstruction curve and lateral wall, (2) repositioning existing landmarks to smoothen the creation path, and (3) ensuring the anatomically correct path every time that an alternation was made. A landmark was finally set every 30° to 60°.^14,15 The whole enrolled cochlea is presented by the software in an additional window. Herein, the CDL (A to C) and the 2TL (A to B; Figure 1 , D and D′) were measured in millimeters. Furthermore, the angular length (AL) was determined by measuring the angle in degrees between a line from the center of the cochlea through point A and B and a line from the center of the cochlea through point C. This value was added to the angle of 720° and thus the AL was calculated ( Figure 1 , E and E ′).^8,16,17 An exemplary application of the process of the MPR measurement method is shown in Supplementary Video S1.

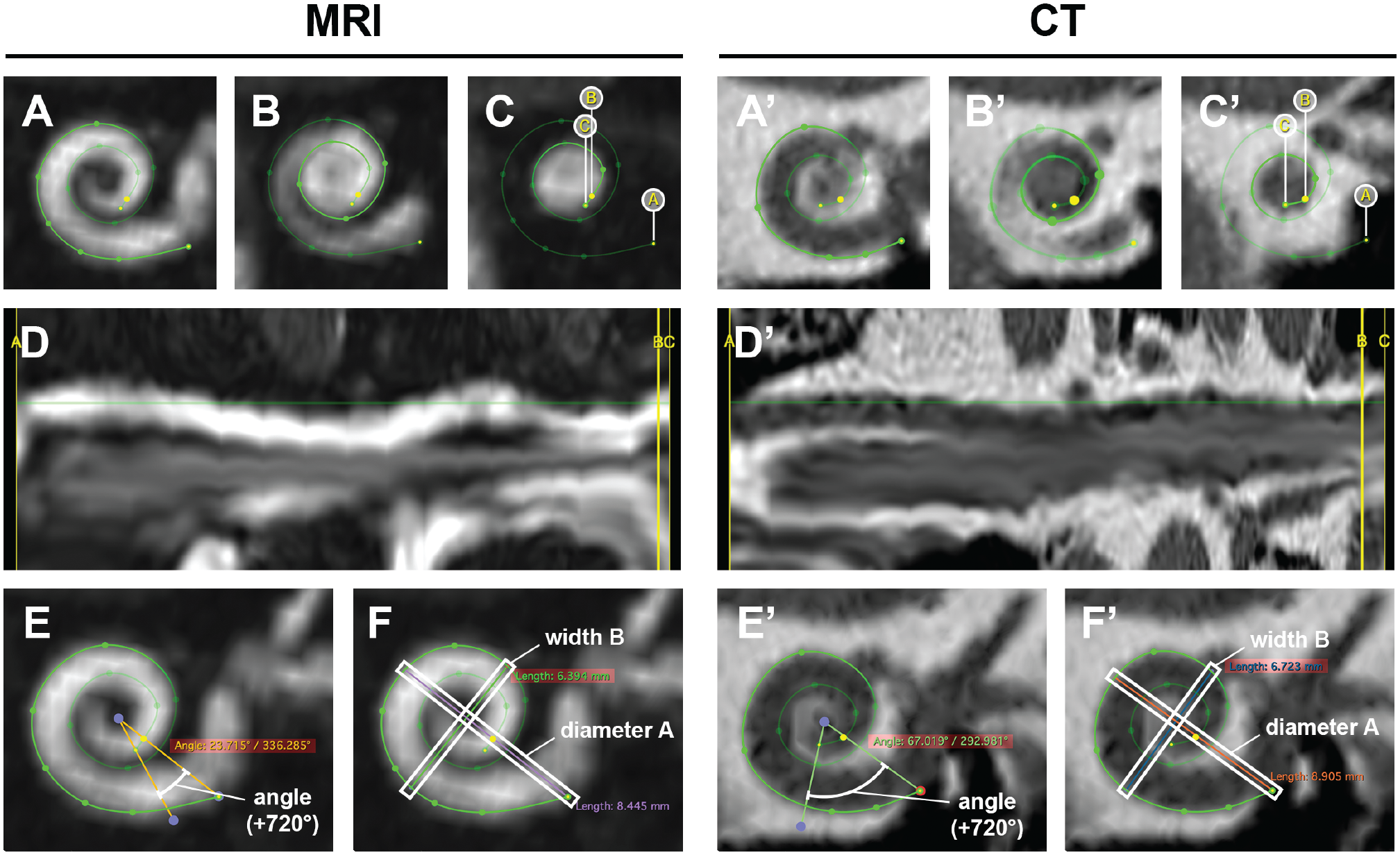

Figure 1.

Measuring methods. (A, A′; C, C′) Bézier curve along the lateral cochlear wall. (D, D′) Cochlea as longitudinal tube in 2 dimensions. (E, E′) Angular length. (F, F′) Diameter A and width B.

Elliptic Circular Approximation

In the cochlear view, the cochlear parameters diameter (A) and width (B) were measured ( Figure 1 , F and F ′). The cochlea diameter (A) is defined as a straight line from the round window ( Figure 2 , A and B ), passing the modiolus, to the farthest point on the opposite wall of the cochlea. The cochlear width (B) is the straight line connecting the 2 opposite lateral walls of the cochlea, perpendicular to the cochlear diameter passing through the modiolus. First the basal turn length (BTL) was calculated: BTL = 1.18 A + 2.69 B –\sqrt{0.72AB}. In the second step, the length at the desired cochlear angle (θ; CDL = maximum measured angle; 2TL = 720°) of the cochlea was calculated with the equation for the percentage BTL (pBTL), pBTL(θ) = 8.3 × 10⁻⁸×θ³− 2.4 × 10⁻⁴×θ²+ 3.4 × 10⁻¹×θ+ 3.7, and the final equation: CDL(θ) = pBTL(θ) × BTL.⁵

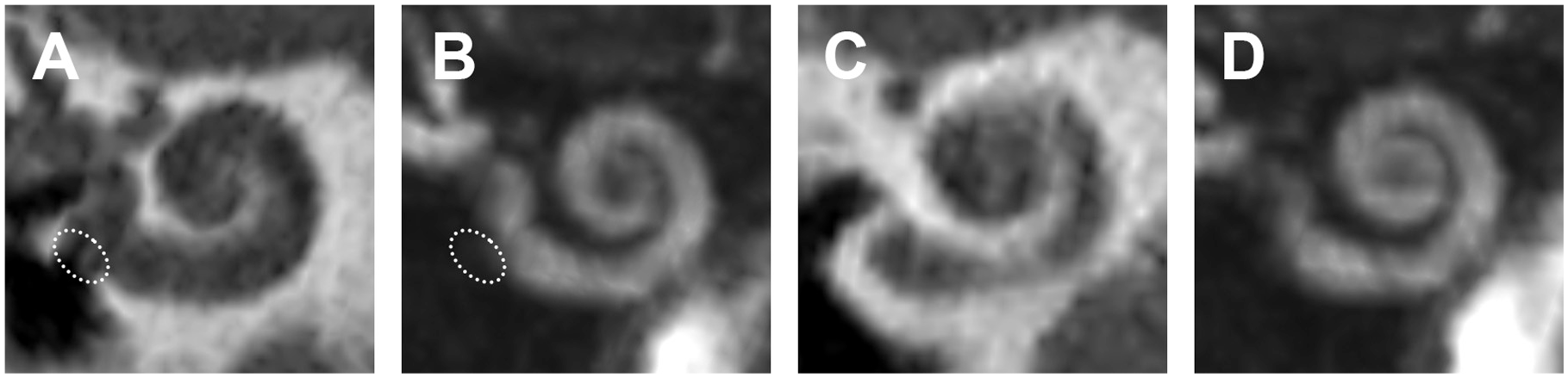

Figure 2.

Visualization of the round window (dotted circles): (A) computed tomography and (B) magnetic resonance imaging. Presentation of the apical part of the cochlea including the helicotrema: (C) computed tomography and (D) magnetic resonance imaging.

Statistics

After confirmation of the normality of all measured data through Shapiro-Wilk and Kolmogorov-Smirnov tests, 1-way repeated measures of analysis of variance and intraclass correlation (ICC) were used to quantify the reliability between the measurement methods. For reference comparison, the paired t test was used. Differences with a P value <.05 were considered statistically significant.

A 2-way mixed model was performed, and single-measure values of ICC were used.¹⁸ ICC was tested for absolute agreement. ICC values were interpreted by applying the following scale: inacceptable (<0.400), fair (0.400 ≤ ICC < 0.600), good (0.600 ≤ ICC < 0.750), and excellent (≥0.750). The associated Cronbach’s alpha was calculated according to the following scale: inacceptable (<0.700), fair (0.700 ≤α < 0.800), good (0.800 ≤α < 0.900), and excellent (≥0.900).¹⁹ Clinically acceptable margins of error were assumed: ±1.5 mm for CDL, ±1.31 mm for 2TL, and ±50° for AL.²⁰

Statistical analyses and the creation of diagrams were performed with Prism software (version 8.4.0; GraphPad) as well as SPSS Statistics (version 26.0.0.0; IBM). Data are presented as Bland-Altman plots and box charts.

Results

For all parameters measured (CDL, 2TL, and AL), the mean, SD, range, and 95% CI were determined and are presented in Table 1 . The ICC and Cronbach’s alpha values of the individual statistical tests are shown in Table 2 .

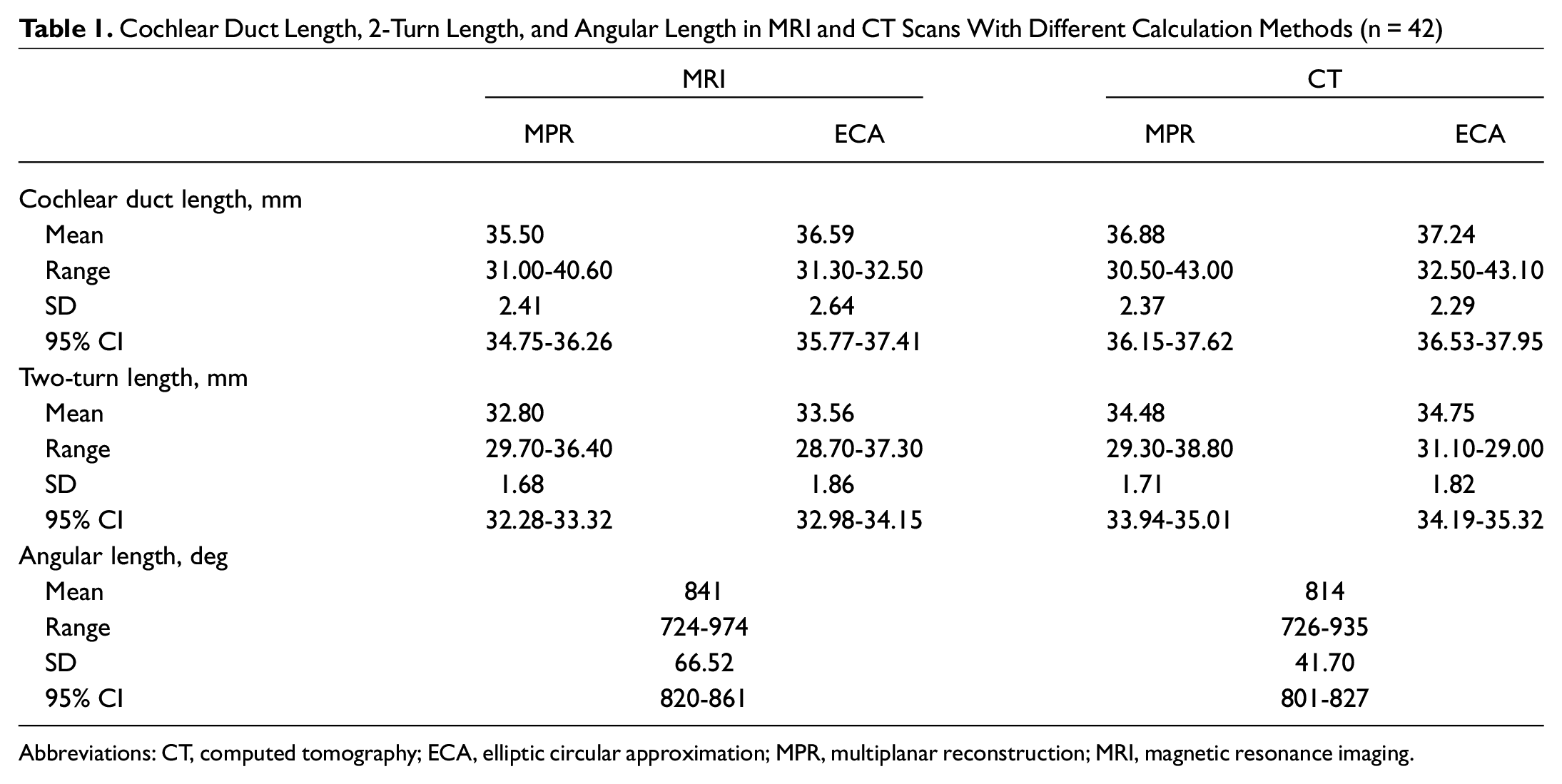

Table 1.

Cochlear Duct Length, 2-Turn Length, and Angular Length in MRI and CT Scans With Different Calculation Methods (n = 42)

	MRI		CT
	MPR	ECA	MPR	ECA
Cochlear duct length, mm
Mean	35.50	36.59	36.88	37.24
Range	31.00-40.60	31.30-32.50	30.50-43.00	32.50-43.10
SD	2.41	2.64	2.37	2.29
95% CI	34.75-36.26	35.77-37.41	36.15-37.62	36.53-37.95
Two-turn length, mm
Mean	32.80	33.56	34.48	34.75
Range	29.70-36.40	28.70-37.30	29.30-38.80	31.10-29.00
SD	1.68	1.86	1.71	1.82
95% CI	32.28-33.32	32.98-34.15	33.94-35.01	34.19-35.32
Angular length, deg
Mean	841		814
Range	724-974		726-935
SD	66.52		41.70
95% CI	820-861		801-827

Abbreviations: CT, computed tomography; ECA, elliptic circular approximation; MPR, multiplanar reconstruction; MRI, magnetic resonance imaging.

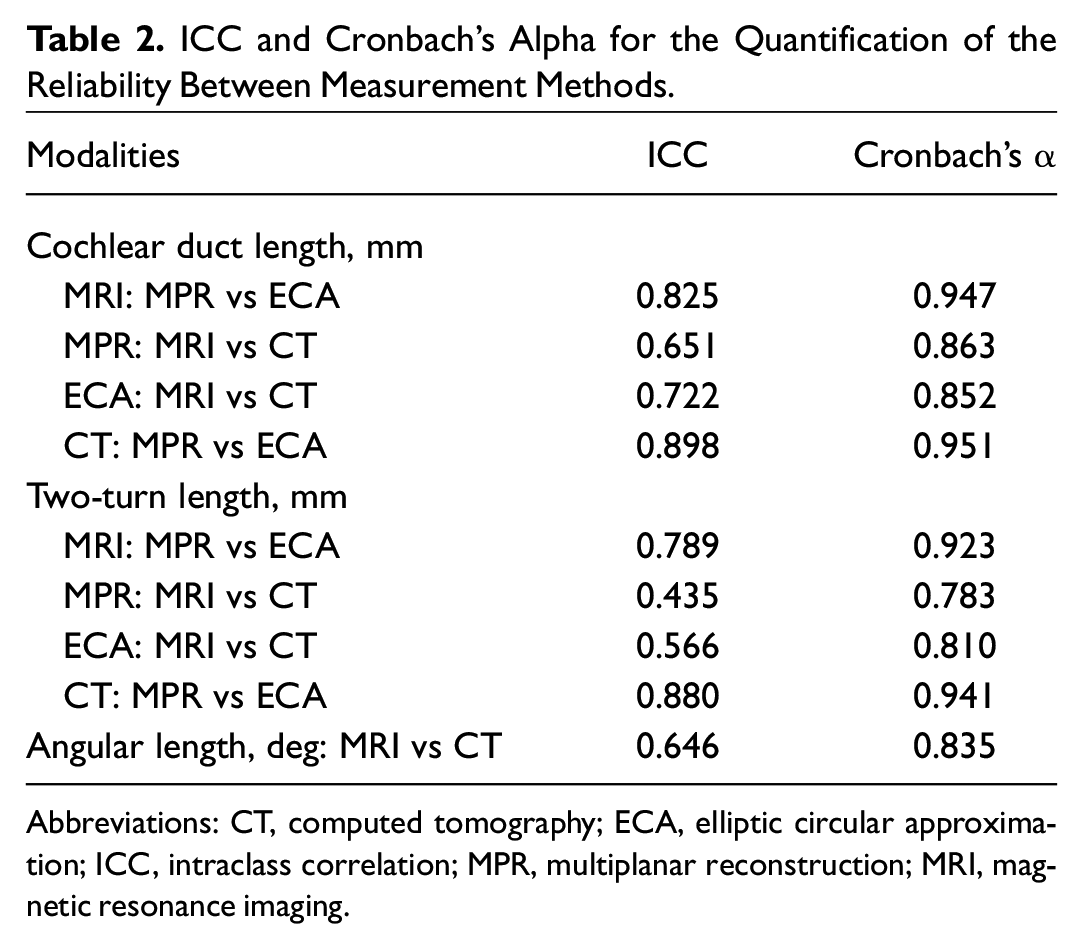

Table 2.

ICC and Cronbach’s Alpha for the Quantification of the Reliability Between Measurement Methods.

Modalities	ICC	Cronbach’s α
Cochlear duct length, mm
MRI: MPR vs ECA	0.825	0.947
MPR: MRI vs CT	0.651	0.863
ECA: MRI vs CT	0.722	0.852
CT: MPR vs ECA	0.898	0.951
Two-turn length, mm
MRI: MPR vs ECA	0.789	0.923
MPR: MRI vs CT	0.435	0.783
ECA: MRI vs CT	0.566	0.810
CT: MPR vs ECA	0.880	0.941
Angular length, deg: MRI vs CT	0.646	0.835

Abbreviations: CT, computed tomography; ECA, elliptic circular approximation; ICC, intraclass correlation; MPR, multiplanar reconstruction; MRI, magnetic resonance imaging.

Comparison of MRI and CT Imaging

The round window is the most important structure for the estimation of the CDL in both approaches. The center of the round window is the starting point to determine diameter A ( Figure 1 , F and F ′) and is 1 of the 2 values that are used in the ECA formula. In the MPR approach, the round window defines the point at which the Bézier path starts, which is used to measure the CDL ( Figure 1 , A and A′). In both imaging techniques, the round window, indicated by the ellipse, could be detected and used for the measurements ( Figure 2 , A and B ). In addition, a correct identification of the helicotrema is needed for determination of the ALs ( Figure 1 , E and E′). In CT and MRI, the helicotrema could be visualized ( Figure 2 , C and D ). The apical parts of the cochlea were better visualized in MRI, which resulted in clearer determination of the AL.

Measurements of the CDL

There were no significant differences (d = 0.36 mm, P = .1562) in CDL determination by ECA and MPR with CT data sets. The CDL measurement by ECA in MRI and CT also resulted in no significant differences (d = 0.65 mm, P = .1373). The CDL measured in MRI was significantly shorter by MPR than by ECA (d = 1.09 mm, P < .001). The MPR approach revealed significantly shorter CDL values in MRI than CT (d = 1.38 mm, P < .001; Figure 3A , Table 1 ). Neither ICC nor Cronbach’s alpha was rated as inacceptable¹⁹ ( Table 2 ). The Bland-Altman plots showed differences when comparing the measurement modalities with regard to the clinically inacceptable error of the CDL, which was set as ±1.5 mm.²⁰ The measured CDL values in CT via MPR and ECA ( Figure 3E ) showed good accuracy with low numbers of clinically inacceptable errors (8 of 42). There were higher numbers of clinically inacceptable errors (16 of 42) in measurements in MRI with a systematic underestimation of the CDL by MPR as compared with ECA ( Figure 3B ). In addition, there was a systematic underestimation of the CDL in MRI versus the measurements in CT for MPR (23 of 42; Figure 2C ) and ECA (19 of 42; Figure 3D ).

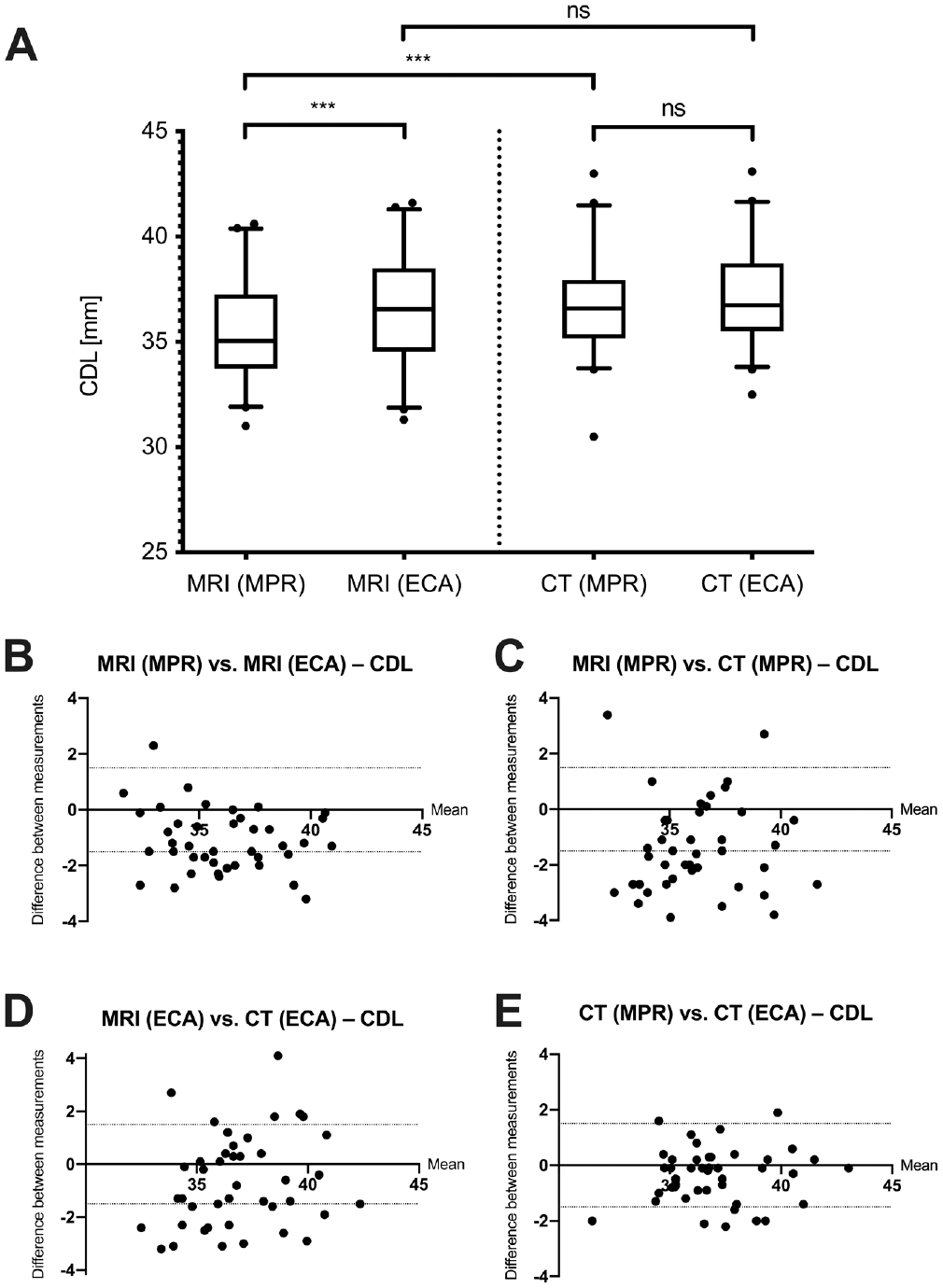

Figure 3.

(A) Comparison of the cochlear duct length (CDL) measured in MRI and multislice CT data sets. Values are presented as median (line), interquartile range (box), 95% CI (error bars), and outliers (circles). ns, not significant. ***P < .001. (B-E) Corresponding Bland-Altman plots. Dotted horizontal lines indicate clinically acceptable errors: ±1.5 mm. CT, computed tomography; ECA, elliptic circular approximation; MPR, multiplanar reconstruction; MRI, magnetic resonance imaging.

Calculation of the 2TL

No significant differences (d = 0.27 mm, P = .1578) were identified in the 2TL determination via ECA and MPR with CT data sets. The CDL measurements based on MRI were significantly shorter with the MPR approach versus the ECA formula (d = 0.76 mm, P < .001). 2TL was significantly shorter in MRI versus CT per the MPR approach (d = 1.67 mm, P < .001). By application of the ECA formula, the 2TL was significantly shorter in MRI versus CT (d = 1.19 mm, P < .001; Figure 4A , Table 1 ). ICC and Cronbach’s alpha values were not rated as inacceptable¹⁹ ( Table 2 ). When the measurement modalities were compared with regard to clinically inacceptable errors of the 2TL, which was set as ±1.31 mm,²¹ the measured values in CT via MPR and ECA showed few inacceptable errors (6 of 42; Figure 4E ). The number of clinically inacceptable errors was higher in the measurements with MRI by MPR and ECA (10 of 42; Figure 4B ). A systematic underestimation of the 2TL with high numbers of clinically inacceptable errors was found in the measurements based on MRI as compared with CT for MPR (24 of 42; Figure 3C ) and ECA (19 of 42; Figure 4D ).

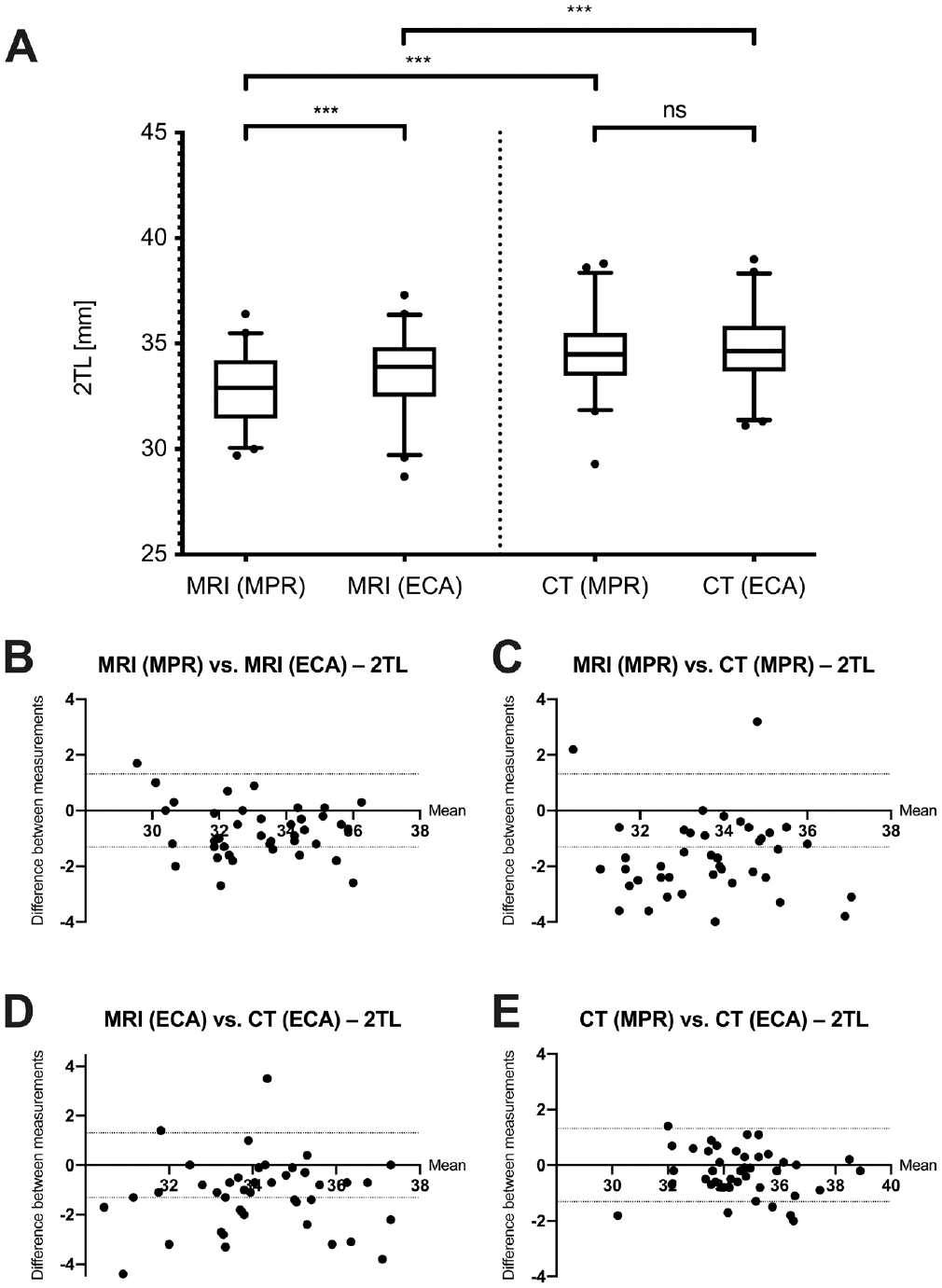

Figure 4.

(A) Comparison of the 2-turn length (2TL) measured in MRI and multislice CT data sets. Values are presented as median (line), interquartile range (box), 95% CI (error bars), and outliers (circles). ns, not significant. ***P < .001. (B-E) Corresponding Bland-Altman plots. Dotted horizontal lines indicate clinically acceptable errors: ±1.31 mm. CT, computed tomography; ECA, elliptic circular approximation; MPR, multiplanar reconstruction; MRI, magnetic resonance imaging.

Measurements of the AL

A significantly lower AL was determined in CT data sets as compared with MRI (d = 26.79°, P < .001; Figure 5A , Table 1 ). ICC and Cronbach’s alpha were not rated as inacceptable ( Table 2 ). The Bland-Altman plot showed that the AL was systematically overestimated in measurements with MRI than CT data sets. There were 14 of 42 inacceptable clinical errors in MRI measurements, exceeding the set value of ±50° ( Figure 5B ).²¹

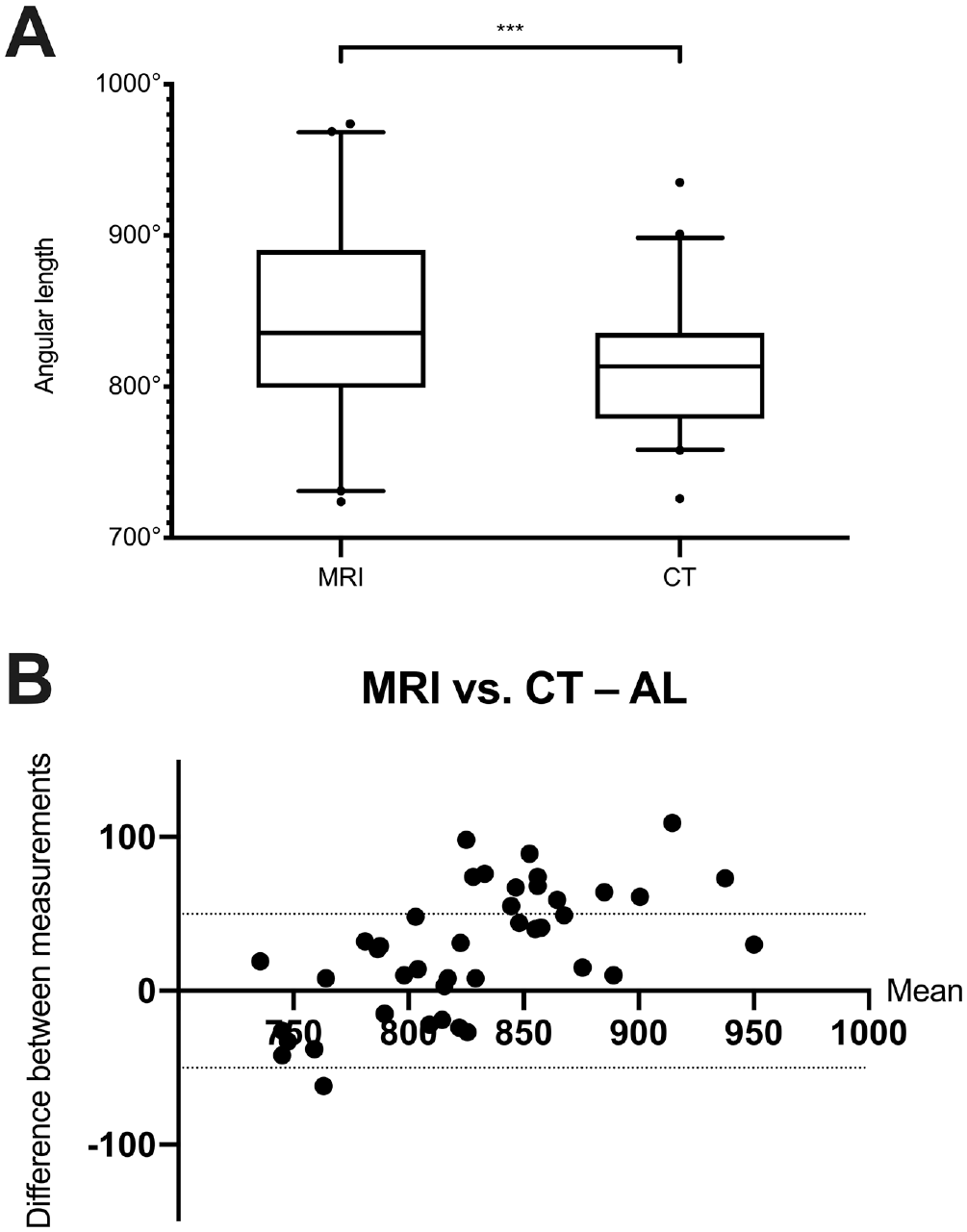

Figure 5.

(A) Comparison of the AL measured in MRI and multislice CT data sets. Values are presented as median (line), interquartile range (box), 95% CI (error bars), and outliers (circles). ***P < .001. (B) Corresponding Bland-Altman plot. Dotted horizontal lines indicate clinically acceptable errors: ±50° for AL. AL, angular length; CT, computed tomography; MRI, magnetic resonance imaging.

Discussion

The results of the presented study show that there is a small but significant difference in the determination of the CDL and the 2TL between CT and MRI by the application of 2 approaches: ECA⁵ and MPR.¹¹ The 2 modes of calculation were chosen since they are currently the most elaborated methods for measuring the CDL from radiologic data sets, and more important, they use different techniques for measuring cochlear parameters.

The ECA function is the latest development in calculations based on spiral functions,¹⁰ which originally used only diameter A for computation.^16,22 In the ECA formula, the width of the cochlea (B value) has been integrated. To precisely measure the A and B values, the cochlea has to be rotated in the cochlear view,^12,13 which was possible in the CT and MRI data sets. Several studies have investigated the ECA approach, demonstrating a high precision of CDL computation²³ and low intra- and interobserver variability.²⁴ Only 1 study has described a CDL value (32.91 mm) with CT,²⁵ but in this investigation the CDL was corrected to the organ of Corti, which results in about 10% to 15% reduction.²¹ Thus, the mean CDL of 37.24 mm measured in CT data sets via ECA in the present study is similar and can be compared with MRI.

The second approach, MPR, is the newest development described in the field of 3-dimensional reconstructions of the cochlea.¹¹ In this mode of calculation, a curved path (Bézier) along the lateral wall of the cochlear duct is set from the center of the round window to the helicotrema. In the presented study, a point was set every 30° to 60°.^20,22,26 One study investigated the needed numbers of markers and showed no benefit in setting more markers but an importance of setting the Bézier path correctly to the outer wall.²⁶ In previous studies, a CDL of 35.8 mm was determined in CT²⁷ and 37.9 mm in cone beam CT.²⁸ The values of the MPR measurements in the presented study are between CT and cone beam CT. Consequently, they can be reliably compared with MRI measurements.

The values measured with MRI by ECA and MPR were slightly but significantly shorter than the ones with CT. This can be explained by the clearer determination of the cochlear outer wall, which is needed to set the markers for diameters A and B and for the curved path along the lateral wall. In contrast, higher values were measured for the AL, which might be explained by the fact that the helicotrema can be better visualized in MRI than CT. The differences are probably due to the different imaging modalities. In CT, ionized radiation is highly adsorbed by the bone due to its high density, which results in a high contrast between bone and the aqueous lymph of the cochlea. In contrast, in MRI the protons of the lymph are responsible for the signal, which results in slightly different imaging of the cochlea.

However, it must be mentioned that the absolute differences are small between the imaging modalities: for example, 1.19 mm (ECA) and 1.68 mm (MPR) for the 2TL would result in a frequency shift of about 58 Hz at an intracochlear length of 28 mm within the organ of Corti.²⁹ In preoperative planning, these differences will not lead to the selection of a different electrode, since the electrodes that can reach up to 2TL have a length difference of 4 mm.³⁰ Consequently, the small difference will have no clinically relevant impact on the selection of the electrode.

The measurement of CDL via MRI and CT has been investigated in 2 studies. In one study, just diameter A was used, and a difference of 0.96 mm of the CDL was reported.³¹ The other study used further development of the ECA formula, in which a correction for the organ of Corti was implemented.²¹ Similar to the presented results, lower values in MRI were estimated.³²

Note that measurements of the CDL depend on the resolution of the image data sets. The longest CDL values (up to 40 mm) were determined in images from experimental imaging systems, such as micro-CT^5,33 and synchrotron imaging.⁸ But in clinical imaging, there is a dependence of the CDL on the resolution. The CDL measured in flat-panel volume CT (resolution, 100 µm) resulted in a significantly longer CDL when compared with standard flat-panel volume CT (460 µm) and CT (600 µm).³⁴ Furthermore, there was a tendency toward a longer CDL in CT data sets with higher resolution.³⁵ To exclude the variability of the resolution, the slice thickness was set to 600 µm for both MRI and CT in the present study.

Based on the present results, it is possible to waive ionized radiation–based imaging prior to cochlear implantation.³⁶ However, not performing a preoperative CT scan can lead to different problems in surgical planning. The CT scan is mainly used to identify structures of the temporal bone, especially the course of the facial nerve and the size of the mastoid.⁹ Nonetheless there is ongoing research regarding the detection of these structures in MRI^37,38; thus, preoperative planning is possible by using only MRI. Furthermore, postoperative control of the electrode can be determined in MRI.³⁹

Limitations

The measurements were done only by 1 experienced observer. However, it has been shown that the ECA formula has low intra- and interobserver variability,²⁴ so this was not further investigated. When different imaging modalities are compared and not the quality and reliability of a formula or an approach checked, measurements by 1 observer might be better to not have additional variables, such as different settings of contrast and brightness. Both approaches used in the study require clear visualization of the round window. Due to the limited resolution and the missing signal of the bone in the CISS sequence (constructive interference in steady state), there may arise difficulties identifying this structure in MRI. This problem was partially solved by using a radiologic high-resolution screen and identifying the semicircular impression of the perilymph. Nevertheless, other studies have shown that is possible to detect the round window in MRI, either for CDL measurements³² or for detection of perilymphatic fistulas.⁴⁰ Ultimately, of course, there are still uncertainties in the area of the round window and the apical portion of the cochlea in CT and MRI, which require an experienced observer. In addition, the sample size might be too small, but previous studies investigating the CDL have shown that a number of 10 is adequate to obtain sufficient statistical power.^7,41,42

Conclusion

In the presented study, the computation of cochlear length and angular measurements was simultaneously performed with CT and MRI by 2 new and relevant modes of calculation. The most relevant values regarding cochlear length (CDL and 2TL), as well as the measurement of the cochlear angle, were determined with MRI producing similar values to CT without clinically relevant differences.
