Maximising access to thrombectomy services for stroke in England: A modelling study

Abstract

Purpose

Both intravenous thrombolysis (IVT) and intra-arterial endovascular thrombectomy (ET) improve the outcome of patients with acute ischaemic stroke, with endovascular thrombectomy being an option for those patients with large vessel occlusions. We sought to understand how organisation of services affects time to treatment for both intravenous thrombolysis and endovascular thrombectomy.

Method

A multi-objective optimisation approach was used to explore the relationship between the number of intravenous thrombolysis and endovascular thrombectomy centres and times to treatment. The analysis is based on 238,887 emergency stroke admissions in England over 3 years (2013–2015).

Results

Providing hyper-acute care only in comprehensive stroke centres (CSC, providing both intravenous thrombolysis and endovascular thrombectomy, and performing >150 endovascular thrombectomy per year, maximum 40 centres) in England would lead to 15% of patients being more than 45 min away from care, and would create centres with up to 4300 stroke admissions/year. Mixing hyper-acute stroke units (providing intravenous thrombolysis only) with comprehensive stroke centres speeds time to intravenous thrombolysis and mitigates admission numbers to comprehensive stroke centres, but at the expense of increasing time to endovascular thrombectomy. With 24 comprehensive stroke centres and all remaining current acute stroke units as hyper-acute stroke units, redirecting patients directly to attend a comprehensive stroke centre by accepting a small delay (15-min maximum) in intravenous thrombolysis reduces time to endovascular thrombectomy: 25% of all patients would be redirected from hyper-acute stroke units to a comprehensive stroke centre, with an average delay in intravenous thrombolysis of 8 min, and an average improvement in time to endovascular thrombectomy of 80 min. The balance of comprehensive stroke centre:hyper-acute stroke unit admissions would change from 24:76 to 49:51.

Conclusion

Planning of hyper-acute stroke services is best achieved when considering all forms of acute care and ambulance protocol together. Times to treatment need to be considered alongside manageable and sustainable admission numbers.

Introduction

In England, Wales and Northern Ireland, 85,000 people are hospitalised with stroke each year. ¹ Standard care for eligible patients with acute ischaemic stroke within 4.5 h of onset has been intravenous thrombolysis (IVT) with alteplase. ² Time from onset to treatment is known to be especially critical, with the effectiveness of IVT declining rapidly in the first few hours after stroke. ³ More recently, endovascular thrombectomy (ET) has shown substantially improved clinical outcomes in patients with large vessel occlusion (LVO) present in approximately 40% of patients with acute ischaemic stroke.^4,5 ET may be effective up to 6 h or more after stroke onset (depending on patient selection) but also demonstrates reducing effect size with increasing time from stroke onset. ⁶ The proportion of patients eligible for ET in the UK has been estimated at about 10%. ⁷ In England, the proportion of patients receiving IVT is about 11%, ¹ although higher rates have been achieved as a result of reconfiguration of urban hyper-acute services,^1,8 with maximum rates of about 20%. ¹

Providing ET presents a significant challenge for health services. The procedure is typically carried out by a neuro-interventionist and requires support from a whole theatre team (anaesthesia, nurses, radiographers) and additional imaging workup, usually with computed tomography angiography (CTA), sometimes in association with other advanced imaging techniques (computed tomography (CT) perfusion or magnetic resonance imaging (MRI)). These additional staffing/infrastructure demands for ET require a more centralised model of service provision than currently employed for IVT.^7,9

Two models of hyper-acute stroke care have been described and compared.^10,11 In a mothership model, all services are provided by large centres (comprehensive stroke centres, CSCs) providing both IVT and ET, at the expense of greater travel times for some patients. In a drip and ship model, local IVT may be delivered at hyper-acute stroke units (HASUs) before transfer of an eligible subset of patients with LVO to a CSC (ET-capable) centre. The choice between these models can depend on geography and travel times, availability of experienced staff, urban/rural split, and other factors, including the maximum practical size of a CSC under a mothership configuration, and the minimum required size of a HASU in a drip and ship model. Exploration of the advantages and disadvantages of each model may be explored by computer modelling.

Pareto-based genetic algorithms, which develop a population of solutions with varying trade-off between competing objectives have previously been established as efficient and suitable methods for addressing the complex problem of capacity-limited facility location optimisation. ¹² We have previously used these types of genetic algorithms to identify national configurations of hyper-acute stroke services ¹³ that meet national guidelines recommending a minimum number of admissions to a HASU of 600 patients per year, ¹⁴ coupled to the recommendation that travel time to hyper-acute care should be ideally 30 min or less, and no more than 60 min. ¹⁵ Here, we apply that method to understanding how best ET can be provided at a national level in England, and explore how ET and IVT provision interacts. Multisociety consensus standards for thrombectomy centres have been published. ¹⁶ Published guidance for the UK stipulates that an operator must perform no less than 40 intracranial neurovascular procedures/year (minimum 1 per working week, excluding diagnostic catheter angiography and isolated carotid artery stenting) to maintain competencies, ¹⁷ though a minimum number of thrombectomy procedures per centre in England has not yet been described. Rinaldo et al. ¹⁸ have, however, demonstrated that outcomes in high volume centres in the US, with at least 132 ET procedures per year, were better. Additionally, to provide a robust 24/7 ET service realistically requires at least five operators and, even with some ‘double scrubbing’ on daytime cases, all five could not hope to meet minimum activity levels to maintain competence if centre volume was <150. There is no guideline on the maximum size of an acute stroke unit, but NHS England reconfiguration guidance recommends a maximum of 1500 admissions for single team, ¹⁵ and the largest centre currently in the UK has about 2000 admissions. ¹

Method

We used a genetic algorithm based on NSGA-II¹⁹ to derive potential configurations of stroke centres across England, balancing competing objectives. Genetic algorithms maintain a population of solutions. These solutions go through a series of generations where new solutions are formed by hybridising two existing solutions (with occasional random mutation). In each generation, the best solutions are kept. We used a Pareto-based method whereby, when there are multiple objectives, generated solutions are eliminated if another solution is equally as good in all optimisation parameters and is better in at least one parameter. The selected configurations were based on a range of optimisation parameters which seek to minimise travel times and to control admission numbers. Further details are given in online Appendix 1.

This location optimisation algorithm, with links to underlying data, has previously been published. ¹³ The model predicts, for any configuration of stroke centres, the values for each of the competing objectives: travel times (estimated fastest road travel time, from home location of patient to hospital); number of admissions to each stroke centre.

We included 238,887 patients coded with ischaemic or haemorrhagic stroke (ICD-10 I61, I63, I64) with an emergency admission over a 3-year period (2013–2015). Stroke admission numbers were counts of admissions for each of 31,771 lower super output areas (LSOAs) in England. No individual patient level data was accessed: counts of admissions per LSOA were extracted from Hospital Episode Statistics (HES; www.hscic.gov.uk/hes) with access to national HES data managed through Lightfoot Solutions (www.lightfootsolutions.com/). Estimated fastest road travel times were obtained from a geographic information system (Maptitude, with MP-MileCharter add-in). These travel times were used for travel time from the patient’s home location to the closest stroke unit, and for travel time for onward transfer from a local HASU to the nearest CSC centre if required.

We set a preferred size for any centre providing ET as at least 150 ET procedures per year (as outcomes have been shown to be better in centres with at least 132 admissions per year ¹⁸ ). In a mothership model, this would equate to 1500 admissions/year of confirmed stroke patients if 10% were eligible for ET.⁷ In a drip and ship model, where patients may first attend a local HASU providing IVT only before onward transfer to an ET centre if appropriate, we used a minimum centre size of 600.² As the largest stroke centre currently admits about 2000 patients, ¹ we looked for solutions with the least impact on this maximum.

Outside limited randomised controlled trial data ²⁰ there is no published evidence for what the organisational delay will be for ET in the UK, but significant transfer-related delays in ET have been described. In a large international multi-centre trial (1000 patients across 55 sites), evaluating the use of Medtronic market-released ET devices, patients receiving ET after transfer received ET 110 minutes later than patients admitted directly, 35 min of which was attributable to inter-hospital travel time, suggesting a net delay of 75 min + travel time. ²¹ In our modelling, we have assumed some improvement over these results and have assumed a 60 min net delay in addition to the inter-hospital transfer travel time.

We also sought to model the impact of a preference for ambulance personnel to convey a patient with suspected acute stroke directly to an ET-capable CSC, even if a HASU (not providing ET) were closer. Again, there is no published or real-world data on the extent of this effect, but expert consensus considered that this effect may be at least 15 min, and we have termed this parameter ‘allowable delay’ that is an acceptable delay for all patients in arrival at hospital for the sake of a proportion who will receive ET sooner through being taken directly to a CSC. We have not modelled any attempt at the pre-hospital selection of patients with potential LVO for selective transfer directly to a CSC, but this paradigm is currently under research. ²²

Results

We examined the feasibility of a mothership model by analysing the impact of having CSCs at one national centre, up to all current 127 English HASUs ¹ (Figure 1). With all 127 centres as CSCs, the predicted average patient travel time is 18 min, with 90%, 98% and >99% of patients within 30, 45 and 60 min of their closest CSC. In this configuration, 38% of patients attend units with fewer than 600 admissions/year, and 54% of units have fewer than 600 admissions per year. If the minimum number of confirmed stroke admissions required to sustain an ET service is 1500 (resulting in ∼150 ET procedures per year), then the maximum number of CSCs from the solutions identified by the algorithm is 40. The fastest average travel time for solutions with at least 1500 admissions per year is 29 min, with 62%, 85% and 95% within 30, 45 and 60 min of their closest centre. Under these parameters, the largest of the 40 CSCs would receive about 3000 confirmed stroke admissions per year.

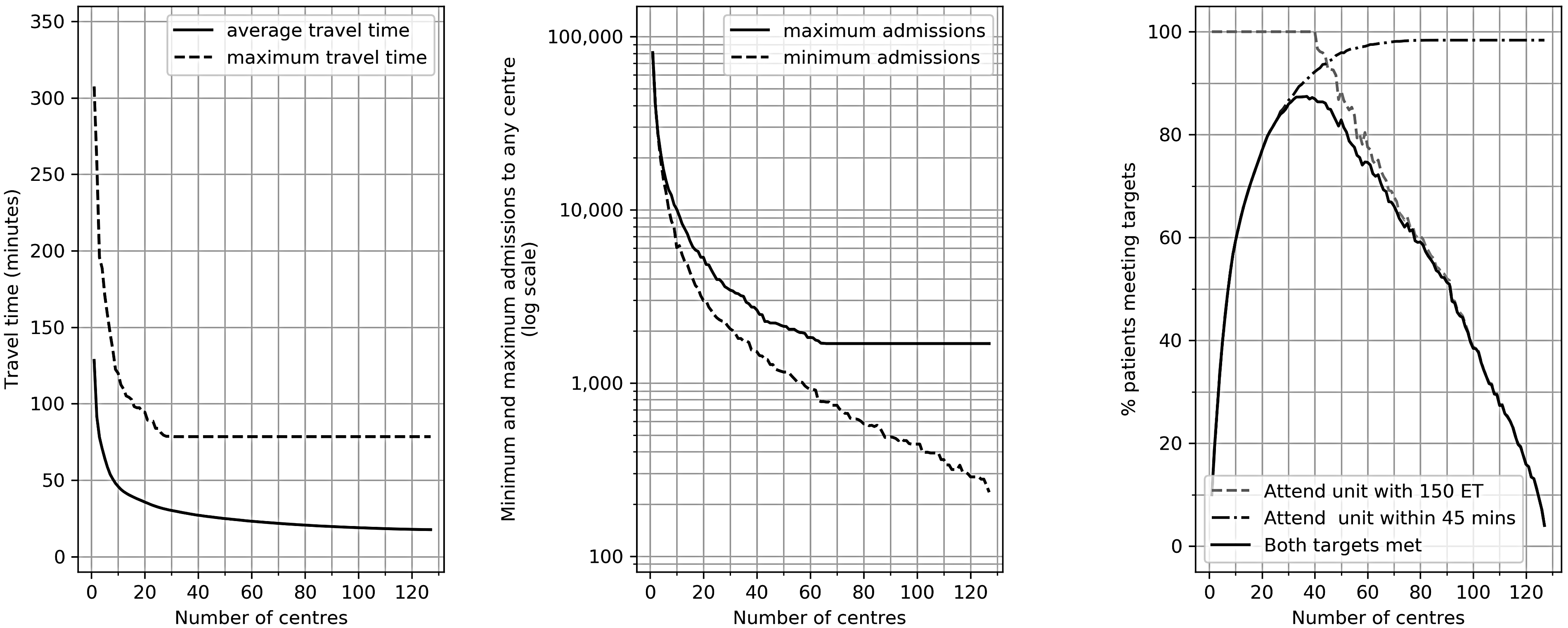

Figure 1.

Feasibility of a mothership model where all patients attend their closest comprehensive stroke centre which provides both intravenous thrombolysis and endovascular thrombectomy (ET). The panels show the relationship between the number of centres and best identified results for: (left panel) average and maximum travel time to centre, (centre panel) greatest and fewest admissions per year to any single centre, and (right panel) the proportion of patients attending a centre within 45 min and providing at least 150 ET procedures per year.

We examined the distribution of unit sizes in the obtained solutions. For example, 69 solutions were identified with 30 CSCs that also had a minimum number of admissions of 1500. The range in admission numbers per year across all solutions was 1515 to 5722 (interquartile range (IQR) 2071–3246).

The maximum number of CSCs is highly sensitive to the proportion of patients eligible for ET and the minimum recommended thrombectomy procedures. In our base case, we have assumed that a CSC must have a catchment of at least 1500 stroke admissions per year (derived from an estimate of 10% receiving thrombectomy, and 150 procedures per year being the acceptable minimum). This limits the number of CSCs to 40 (assuming there are no other constraints). These patients may all attend the CSC directly, or those requiring thrombectomy may arrive via a HASU. At this point, 62% of patients are within 30 min of a CSC. Figure 1 (middle panel) shows how the maximum number of CSCs would change if the required catchment changed. The required catchment may change because of differences in thrombectomy rate, or changes to the minimum acceptable number of thrombectomy procedures carried out. For example, if a CSC only required a catchment of 1000 patients per year, there could be 57 CSCs (if no other constraints exist) with 72% of patients within 30 min. However, if a CSC required a catchment of 2000 patients per year, the maximum number of CSCs would be 30, with 57% patients being within 30 min.

The most practical starting point for the location of ET centres is the 24 current English neurosciences centres, which already have neurointerventional staff and the necessary imaging and interventional suite infrastructure to deliver ET. A mothership model based solely on these centres is predicted to have an average travel time of 38 min, with 43%, 71% and 86% of patients within 30, 45 and 60 min of their closest centre. The number of admissions to each centre would range from 1264 to 6117 (IQR: 2292–4169). We compared these performance statistics with other configurations of 24 centres (if those centres could be chosen from any of the current 127 English HASUs). We made no judgement in the model on the practicality of “relocating” any [neuroscience] centre. The fastest average travel times for any 24-unit configuration would be of 33 min, with 48%, 80% and 93% of patients within 30, 45 and 60 min of their closest centre, with admissions ranging from 1595 to 7639 (IQR: 2092–3849). Admissions could be more evenly distributed by choosing an alternative 24-centre scenario which produces an average travel time of 36 min, with 48%, 73% and 88% of patients within 30, 45 and 60 min of their closest centre, and with admissions ranging from 2236 to 4382 (IQR: 2732–3978). However, in all these scenarios the upper limit of the pre-set desirable admission range (600–2000) is substantially exceeded in many centres.

When looking for feasible mothership solutions, we have assumed an upper limit of size of 2000 admissions per year. If this is the case, then at least 55 units would be needed across England which cannot be reconciled with the maximum number of 40 units required to sustain 1500 admissions per year to all CSCs. If the minimum unit size must be 1500 admissions per year (and no HASUs are used), then solutions exist with largest unit admissions per year in the range 2750 to 3000.

If a pure mothership model is considered unfeasible, then HASUs need to co-exist with the CSCs within a drip and ship model of care, whereby patients thought likely to be suitable for ET would receive IVT at a HASU (if that centre is their closest centre) and would then be transferred to the nearest CSC. In order to explore the impact of adding HASUs to a configuration of CSCs (moving away from a pure mothership model toward a drip and ship model), we took the current 24 neuroscience centres in England as a baseline CSC configuration and sequentially added HASUs centres from the subset of 103 remaining HASU locations. We assumed, initially, that patients travel first to their closest centre of any type. All patients eligible for IVT would receive IVT at this first centre, but those with LVO likely to benefit from ET will then be transferred to the closest ET capable CSC. In this configuration, we assumed a net delay to ET of 60 min (excluding travel time from the CSC to the HASU) for those patients taken first to a HASU.

If additional HASUs are chosen to minimise the average time to arrival at the first centre, increasing the number of HASUs reduces average time to IVT, but increases the average time to ET (Figure 2). With only 24 CSCs in a mothership model, average time to arrival for ET and IVT is 38 min, with 71% of patients arriving within 45 min travel time. If at the other extreme, the remaining 103 current English units are present as HASUs in a drip and ship model, the average time to arrival for IVT is reduced from 38 to 18 min, but the average time to arrival for ET is increased from 38 to 96 min, with only 24% of patients arriving within 45 min of stroke onset. The complex relationship between the number of HASUs, travel times and admission numbers for the first hospital attended is shown in Figure 3.

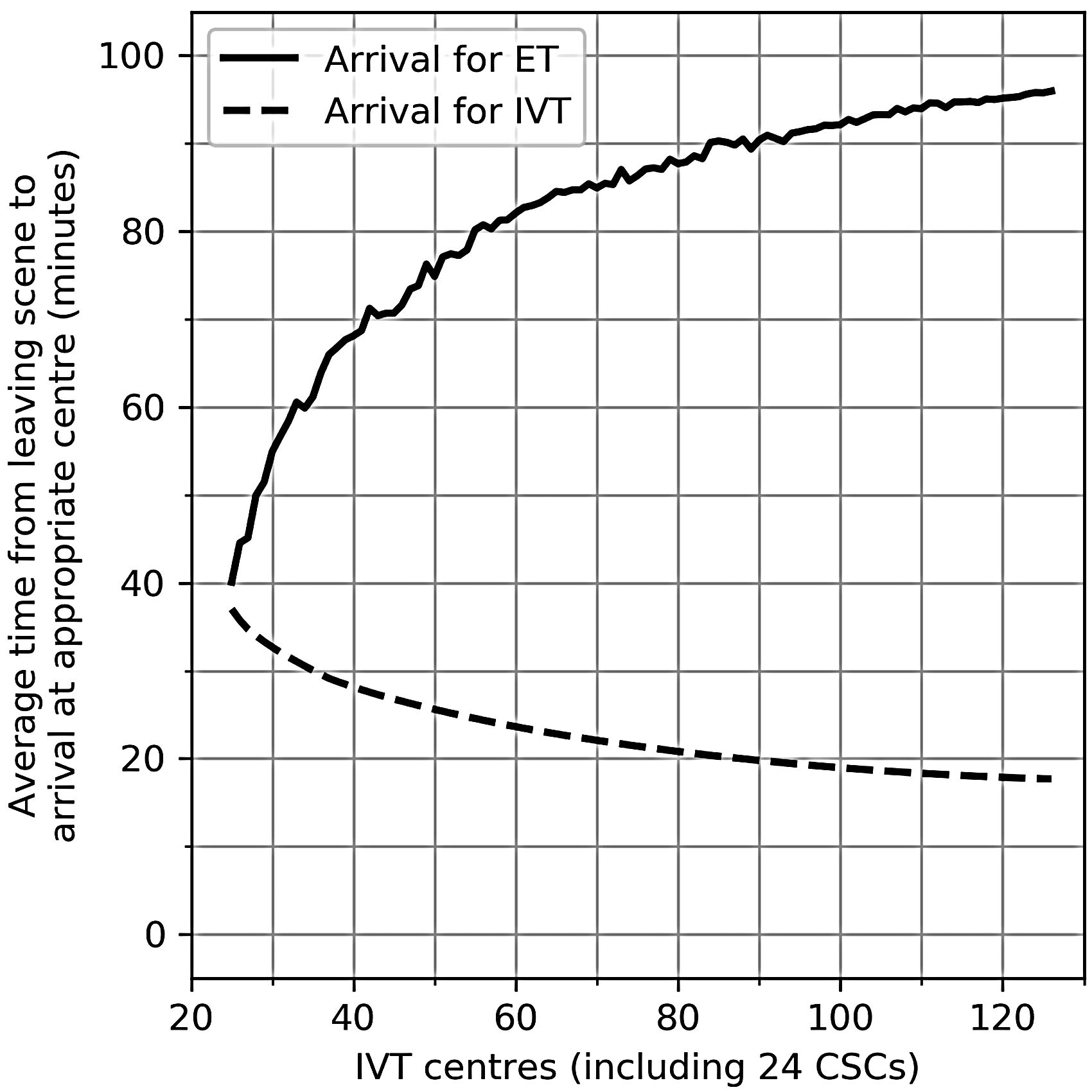

Figure 2.

Travel times drip and ship model, where all patients first attend closest centre, with onwards travel to comprehensive stroke centre (CSC) if patient requires endovascular thrombectomy (ET). The base case has 24 CSCs (located in current 24 neuroscience centres), with hyper-acute stroke units (HASUs) providing only intravenous thrombolysis (IVT) being added from the remaining 103 existing acute stroke centres in order to minimise average travel time to the first hospital. Showing the effect of adding HASUs (that only offer IVT) on the average time to arrival at hospital for IVT and ET. Onward travel for ET includes the transfer travel time and an additional 60-min transfer-related delay in receiving ET.

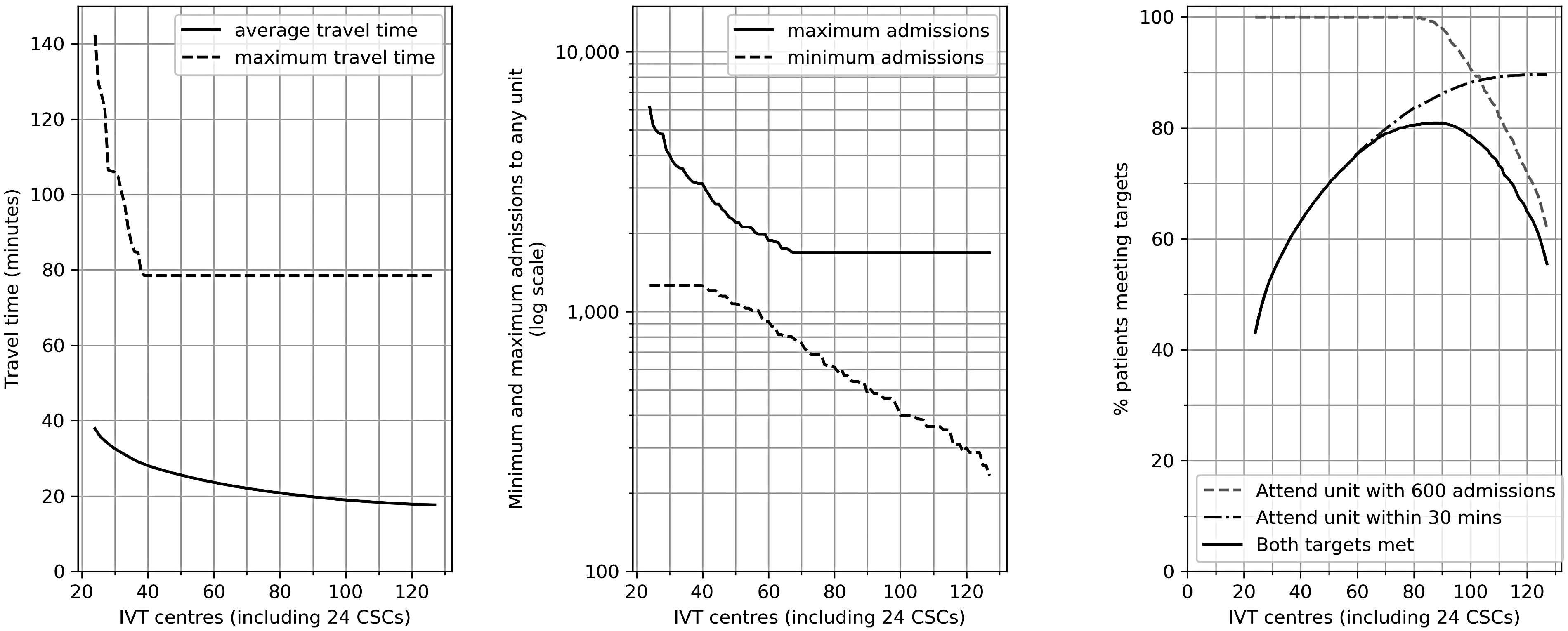

Figure 3.

Feasibility of a drip and ship model, where all patients first attend closest centre, with onwards travel to comprehensive stroke centre (CSC) if patient requires endovascular thrombectomy (ET). The base case has 24 CSCs (located in current 24 neuroscience centres), with hyper-acute stroke units (HASUs) providing only intravenous thrombolysis (IVT) being added from the remaining 103 existing acute stroke centres in order to minimise average travel time to the first hospital. Showing the effect of adding HASUs on the arrival characteristics of the first hospital attended (for IVT treatment). The panels show the relationship between the number of IVT centres and best identified results for: (left panel) average and maximum travel time to first hospital attended, (centre panel) greatest and fewest admissions per year to any single centre, (right panel) the proportion of patients attending a centre within 30 min and admitting at least 600 confirmed stroke patients per year.

If all acute stroke centres have a minimum of 600 admissions/year, then the maximum number of additional HASUs would be 58 (82 centres in total), and all first hospital admissions would be between 600 and 1810 per year (IQR: 781–1119). Average time to arrival for IVT falls from 38 min (with 24 neuroscience centres only) to 22 min, with 80%, 94% and 98% of patients within 30, 45 and 60 min. However, the average time to ET would increase from 38 to 89 min, with 31% of patients arriving within 45 min travel time (travel times include an additional 60 min net organisational delay). The algorithm identified 988 solutions where annual admissions to all centres are within the range 600 to 2000; these solutions have between 57 and 82 centres in total (from which the 24 existing neurosciences centres provide ET). We examined the distribution of unit sizes in these obtained solutions. The range in admission numbers per year across all solutions was 601 to 2000 (IQR: 911–1394).

We anticipated that in a mixed system of HASU and CSCs, there may be a preference to convey suspected stroke cases directly to the CSC, even if a HASU were closer, a phenomenon we have called ‘allowable delay’. A 15-min allowable delay would mean that the ambulance would transfer a patient directly to a more distant CSC so long as there was no more than 15 min extra travel time.

We modelled the impact of ‘allowable delay’ in the drip and ship model, with 24 CSCs located at the current neuroscience centres and with 103 HASUs at all the remaining centres. As before, assessment and IVT at a nearer HASU incurred a net delay of 60 min plus transport time. In the model, patients could be taken straight to a CSC with an allowable delay in IVT of 0–100 min, applied to all patients. Generally, allowing a delay in IVT to directly attend a CSC increases average time to IVT and decreases average time to ET (Figure 4). However, the effects are not equal; allowing up to 15 min delay for IVT increases average time to IVT by just 2 min while reducing average time to ET by 20 min. This allowable delay affects 25% of all patients, who have an average delay in IVT of 8 min, and an average improvement in time to ET of 80 min.

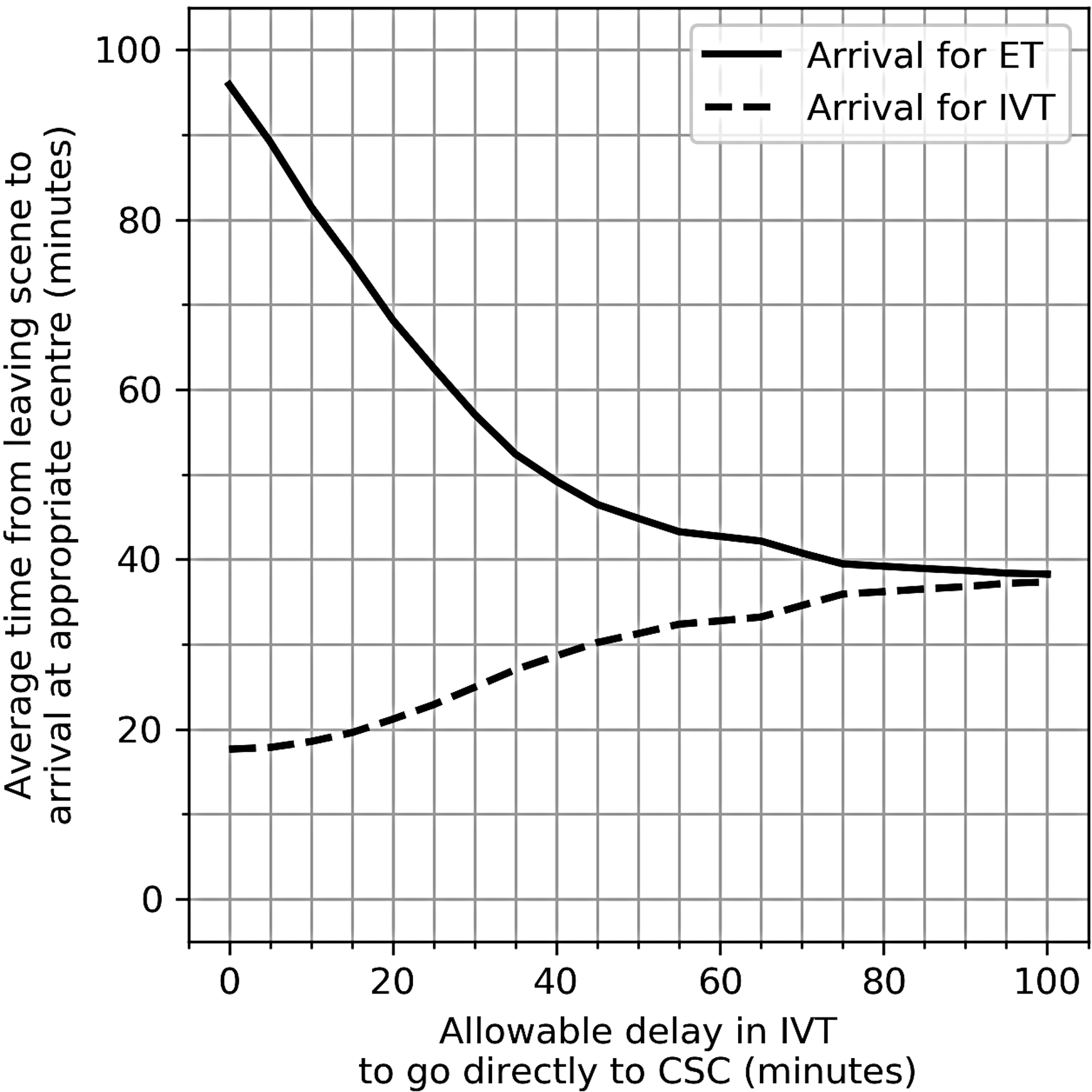

Figure 4.

A drip and ship model where all patients first attend closest centre, with onwards travel to comprehensive stroke centre (CSC) if patient requires endovascular thrombectomy (ET). Taking a fixed configuration (the current neuroscience centres as the 24 CSCs and the remaining 103 existing acute centres as hyper-acute stroke units, HASUs), the chart shows the effect of allowing a time delay in receiving intravenous thrombolysis (IVT) in order to travel directly to a CSC (capable of both IVT and ET, thus saving transfer delays for ET). The lines show average time to arrival for ET (solid line) and IVT (dashed line). Onward travel for ET includes the transfer travel time and an additional 60 min transfer-related delay in receiving ET.

The practice of accepting a delay in IVT for the sake of directly attending a CSC was found to have a significant effect on admission numbers to hospitals (Figure 5). As the allowable delay in IVT increases, admissions to CSCs increase while admission numbers to HASUs reduce. With a 15-min allowable delay for IVT, the number of centres with fewer than 300 admissions per year increases from 7 to 30, while the number of centres with fewer than 600 admissions per year increases from 69 to 92 (out of 127 HASUs). At the same time, the number of centres with more than 2500 admissions increases from none to five. With a 30-min allowable delay for IVT the number of centres with fewer than 300 IVT admissions per year increases further to 68, the number with fewer than 600 IVT admissions per year increases to 99, and the number with more than 2500 IVT admissions increases to 11. The balance of CSC:HASU admissions would change from 24:76 to 49:51.

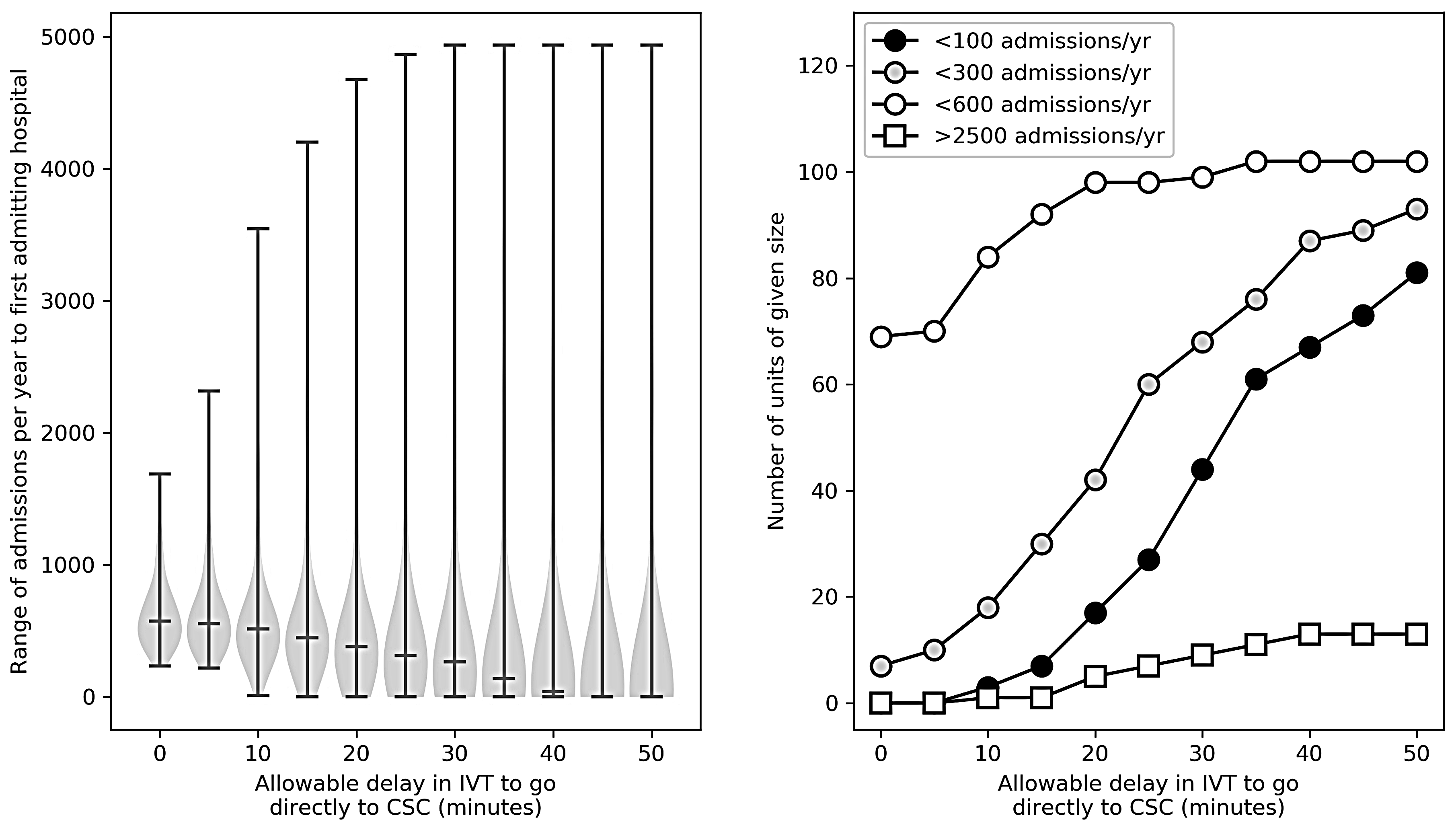

Figure 5.

A drip and ship model where all patients first attend closest centre, with onwards travel to comprehensive stroke centre (CSC) if patient requires endovascular thrombectomy (ET). Taking a fixed configuration (the current neuroscience centres as the 24 CSCs and the remaining 103 existing acute centres as hyper-acute stroke units, HASUs), the panels show the effect of allowing a time delay in receiving intravenous thrombolysis (IVT) in order to travel directly to a CSC (capable of both IVT and ET, thus saving transfer delays for ET). The violin plot (left panel) shows the effect on the admissions to the first admitting centres: range, median (middle bar) and distribution (shaded body). The line chart (right panel) shows the effect on the number of centres below or above a given threshold of annual admissions.

The effect of mixing HASUs with 24 CSCs was examined in more detail with an allowable delay in IVT of 15 min to directly attend a CSC (Figure 6). The maximum total number of centres that can maintain at least 600 admissions per year is 54 (reduced from 82 in configurations with no allowable delay in IVT). With this configuration, the average time to IVT is 26 min with 67%, 91% and 97% of patients within 30, 45 and 60 min of the first admitting centre. The average time to ET is 78 min (61% of patients within 45 min and 65% within 60 min). Admission numbers to the first admitting hospital range from 610 to 4936 (IQR: 789–1840).

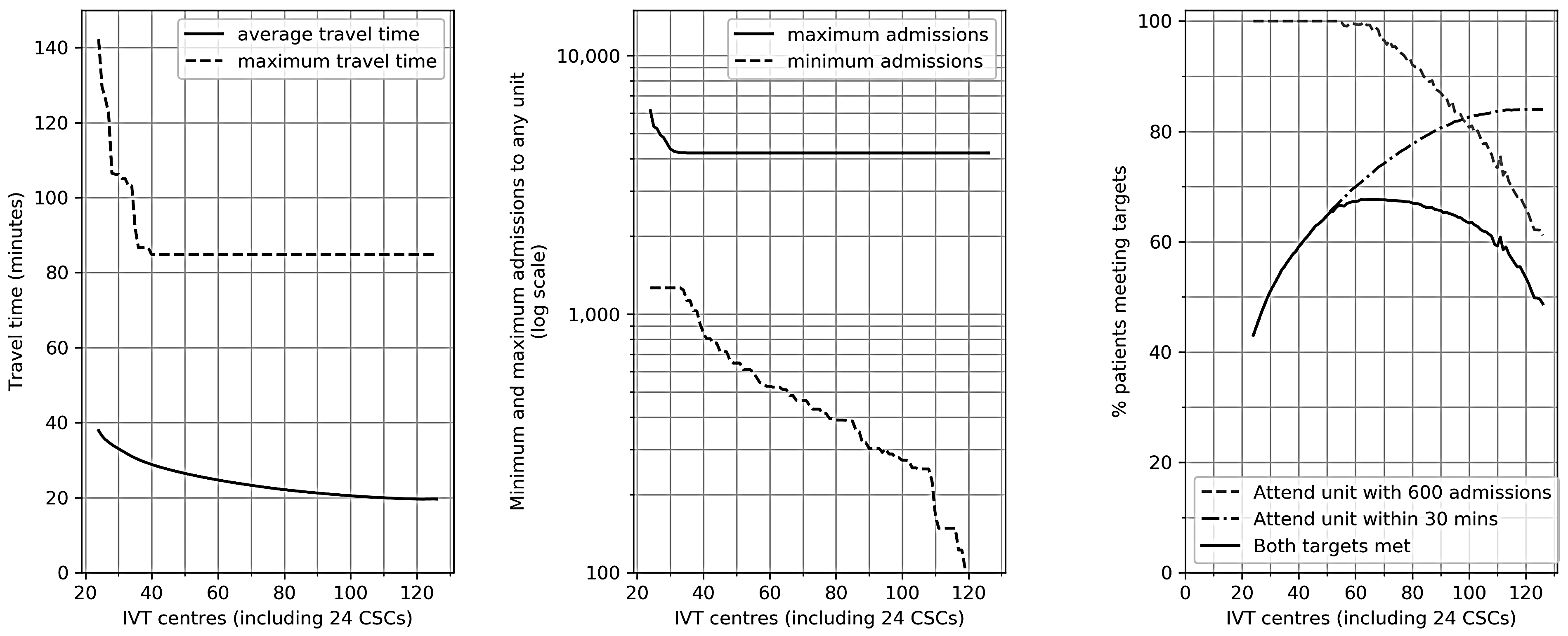

Figure 6.

Feasibility of a drip and ship model, where all patients first attend closest centre, with onwards travel to comprehensive stroke centre (CSC) if patient requires endovascular thrombectomy (ET), assuming an allowable intravenous thrombolysis (IVT) delay of up to 15 min in order to travel directly to a CSC (capable of both IVT and ET, thus saving transfer delays for ET). The base case has 24 CSCs (located in current 24 neuroscience centres), with hyper-acute stroke units (HASUs) being added from the remaining 103 existing acute stroke centres in order to minimise average travel time to the first hospital. Showing the effect of adding HASUs on the arrival characteristics of the first hospital attended (for IVT treatment). The panels show the relationship between the number of IVT centres and best identified results for: (left panel) average and maximum travel time to CSC, (centre panel) greatest and fewest admissions per year to any single CSC, (right panel) the proportion of patients attending a CSC within 30 min and having at least 600 confirmed stroke admissions per year.

The online Appendix 2 contains example maps and more detailed analysis of some specified configurations: a 24 CSC mothership model, a 30 CSC mothership model, and a 30 CSC + 50 HASU drip and ship model with either 0 or 15-min allowable delay in IVT.

Discussion

In an ideal configuration of hyper-acute stroke care, all patients would live close to a CSC offering high-quality acute stroke unit care and both IVT and ET. Our results suggest that in England, providing all acute stroke care in such centres is not likely to be considered feasible. There are three limitations to the number of CSCs: (1) economic, (2) time to train required staff in thrombectomy procedures, and (3) admission numbers (beyond a certain number of CSCs some units will fall below the admission numbers anticipated to be required to maintain a 24/7 expert thrombectomy service). With our base assumptions (10% of patients eligible for ET, and minimum CSC size delivering >150 ET/year) the algorithm identified that viable configurations would have up to 40 centres, however, 15% of stroke patients (over 12,000 patients annually) would be further than 45 min away from such centres, and centres would have to cope with 3000 or more confirmed stroke admissions per year (the largest stroke centre in England currently admits just over 2000 patients per year ¹ ). Additionally, when considering substantial service reconfiguration, there is some uncertainty over the exact proportion of stroke patients who will receive ET.

On this basis, a mixed model of CSCs (offering both IVT and ET) and HASUs (offering only IVT) appears necessary. Such a model of care reduces time to admission at the first centre (providing IVT) but will delay ET for many eligible patients. The delay comes from additional transport time and from organisational delays in arranging/starting onward travel. ²¹ The organisational delay could be reduced by having ambulances wait at the first-admission hospitals to see if CTA indicates that ET is required, or by prioritising ambulance provision for transfer to a CSC. Consideration of the substantial impact on ambulance services would need to be given with either of these strategies. ²³

The balance between HASUs and CSCs will vary across the country. Where population is dense (such as London and other large cities), it is likely that services may deliver entirely through CSCs. Where population is less dense, in areas with more rural populations, more HASUs will be required to control the time to admission to first hospital.

When planning both IVT and ET services, time to treatment for both procedures and broader issues of access to sustainable high-quality hyper-acute stroke services must be considered. It is possible that there could be an ‘over-supply’ of more local IVT services where time to ET is increased significantly with minimal improvements in time to IVT. However, local HASUs may be required, if only to mitigate the number of direct admissions to CSCs.

Our modelling suggests that allowing a small delay in IVT for patients to be taken straight to a CSC may significantly reduce time to ET without significant effect on time to IVT. This is similar to an analysis by Froehler et al., who found, in a hypothetical bypass analysis, if patients were brought directly to the ET-capable centre, IVT would be slightly delayed (by 12 min), but ET would be delivered 91 min sooner. ²¹ However, the population sizes are different – about 30% of all patients would have some delay in initial assessment and treatment (with IVT for up to 1 in 5 of these patients), whereas only about 1 in 10 of these diverted patients would be expected to benefit from improved time to ET. Ideally, we would like to model expected clinical outcomes as times to thrombolysis and thrombectomy are changed. Clinical outcome for patients receiving thrombolysis may depend on both both time to thrombolysis (received prior to thrombectomy) and then time to subsequent thrombectomy. At the moment there are no published models that predict outcome based on both of those times.

Our modelling also anticipates the practicality of implementing a mixed model of HASUs and CSCs, in that there may be a preference to convey a patient with suspected stroke to a CSC that is more distant, so long as the additional travel time is not excessive. We have shown that such an ‘allowable delay’ may significantly reduce time to ET without a substantial adverse effect on average time to IVT. Though models of clinical outcome are in relatively early stages of development, a probabilistic model of good outcome is being developed whereby for any individual patient it may be determined whether a good outcome is more likely to be achieved by going straight to an ET-capable centre rather than first attending a local IVT-only centre.^10,11 There is, however, a potential conflict between making the best decision for any individual patient, and making decisions that destabilise the wider services for all patients. Holodinsky et al. ¹¹ examined the likely outcome of drip and ship versus mothership models of care, focussing on decisions which maximise the likelihood of a good clinical outcome for any individual patient with an LVO. Such decisions, however, may undermine the sustainability of stroke services, either by undermining the capability of a local HASU by falling below minimum recommended levels of activity, or by overwhelming the capacity of CSCs with very large numbers of suspected stroke patients. The reduction in the size of centres may be mitigated, at least in part, by additional expert support to HASUs provided by the CSCs, such as the use of telemedicine/teleradiology to support clinical decision making. ²⁴ By the same token, the large numbers of admissions directly to a CSC may be mitigated by the pre-hospital selection of patients more likely to have an LVO, and the use of such instruments is currently under investigation. ²²

We have modelled on the basis that determination of suitability for thrombectomy can only be made at a hospital. There are however attempts to improve pre-hospital decision-making, ranging from pre-hospital triage scales, ²² through biochemical tests, ²⁵ through to ambulances equipped with imaging equipment. ²⁶ It is beyond the scope of this paper to deal with the effects of such pre-hospital systems, but this is an area where further modelling should be of value.

It is not only provision of ET that may pull in more patients to a CSC. Advanced imaging techniques available there 24/7, but not necessarily elsewhere, may identify patients who might benefit from ET whose stroke onset time is either unknown or is longer than would be considered for IVT.^27,28

Our model makes assumptions about, and simplifications of, the real world. Indeed, modelling may be thought of as the art of abstracting a messy real-world application into a clean problem suitable for an algorithmic solution. While not detracting from the key learnings, these simplifications need to be born in mind when interpreting our findings. A key assumption is that patients will be taken to the closest appropriate stroke centre to their home. We have previously shown that our model generally has very good predictability for admission numbers, but the prediction of admission numbers is poorer when centres are located close to each other. ¹³ When comparing predicted with actual admissions there was a median absolute error of 105 admissions per centre per year or a relative absolute error of 17%, but the error was typically about 12% when centres were separated by 30 min or more travel time, and 20–30% when centres were separated by less than 30 min. This inaccuracy may reflect considerations other than expected travel time, such as on-the-day traffic conditions, or may reflect a person having a stroke close to, but not actually, at home, such as a place of work. When centres are more closely located such as in city metropolitan areas like London, there may, therefore, be more potential to smooth admissions across centres without a significant detrimental effect on travel time.

We have assumed that once at the destination hospital, all hospitals will perform equivalently in speed to treatment. Bray et al. ²⁹ have noted, however, that larger hospitals (those performing at least 50 thrombolysis procedures per year) delivered treatment 20–30 min faster than smaller hospitals (performing <50 thrombolysis procedures per year). In the objectives for our modelling, we have sought to avoid small units, but it is still possible that larger units will be better able to deliver treatment faster or more consistently across the day and week. Decisions on whether a patient is a suitable candidate for thrombectomy depend on the patient having a CT-angiogram. While it is anticipated that all HASUs in England will be able to perform this, having rapid time to analyse and report on scans may be more challenging for smaller units (though this may be mitigated, at least in part, by alternative strategies, such as telemedicine).

We have not taken into account the admission of stroke mimics to centres in these models. Recent experience evidence suggests that about 25% of admissions to an acute stroke unit are subsequently identified as a stroke mimic. ³⁰ In large volume centres, stroke mimics have a significant impact on bed utilisation and infrastructure support. Improvements in pre-hospital diagnosis of ischaemic stroke may in the future lessen the potential impact of stroke mimics on centralised stroke services.

We have also not considered ischaemic stroke patients who are not recognised to have stroke prior to hospital admission. The majority, but not all, ischaemic stroke patients eligible for IVT and nearly all patients suitable for ET are FAST positive. ³¹ However, these patients may be admitted to hospitals without HASUs and require secondary transfer to hospitals with a HASU.

We have not taken growth in stroke incidence into account in this analysis. With an ageing population, we anticipate a significant increase in admissions to hospital with disabling stroke despite better preventative care, particularly in stroke related to atrial fibrillation.²⁴ Although such forecasting is imprecise, a potential increase in stroke incidence and hospital admissions could be driven by a predicted 54% increase in the population of England aged 75 or over the next 15 years. ³² These increases may have significant implications for centres close to the lower margin of institutional activity in current recommendations.

Though models always have simplifications, we believe this analytic approach provides clear guidance regarding provision of ET services. In England, a mothership model based on providing hyper-acute stroke care only in CSCs does not look feasible, and so consideration must be given to the optimal configuration of a drip and ship model with local HASUs providing IVT and transferring eligible patients to a tertiary CSC. In such a mixed model, the HASUs not only help to provide more rapid IVT, but they also mitigate admission numbers that directly attend CSCs, thus preventing overload of the tertiary CSC and helping maintain flow through patient pathways. However, an over-reliance on local HASUs may significantly increase time to ET with little benefit to time to IVT, and may also exceed the optimum number of HASUs necessary to control direct admissions to CSCs. When considering individual patients, it may appear beneficial to accept a short delay in IVT for the sake of direct admission to a more distant CSC for consideration of ET. However, when considering the overall population disability benefit, this strategy should be applied carefully as it has the potential to destabilise both IVT and ET provision by distorting admission numbers to both types of centre, risking making many HASUs too small to be sustainable and CSC admissions too large to be manageable, to the detriment of all stroke patients not just those eligible for IVT and/or ET. Improvements in pre-hospital diagnosis of stroke due to LVO and stroke mimics would enable such a strategy to be implemented with less destabilising effect.

Conclusion

Planning of hyper-acute stroke services is best achieved when considering all forms of acute care, and ambulance protocol, together. Times to treatment need to be considered alongside manageable and sustainable admission numbers to different types of acute stroke centre.
