Performance in an Audiovisual Selective Attention Task Using Speech-Like Stimuli Depends on the Talker Identities,But Not Temporal Coherence

Abstract

Audiovisual integration of speech can benefit the listener by not only improving comprehension of what a talker is saying but also helping a listener select a particular talker's voice from a mixture of sounds. Binding, an early integration of auditory and visual streams that helps an observer allocate attention to a combined audiovisual object, is likely involved in processing audiovisual speech. Although temporal coherence of stimulus features across sensory modalities has been implicated as an important cue for non-speech stimuli (Maddox et al., 2015), the specific cues that drive binding in speech are not fully understood due to the challenges of studying binding in natural stimuli. Here we used speech-like artificial stimuli that allowed us to isolate three potential contributors to binding: temporal coherence (are the face and the voice changing synchronously?), articulatory correspondence (do visual faces represent the correct phones?), and talker congruence (do the face and voice come from the same person?). In a trio of experiments, we examined the relative contributions of each of these cues. Normal hearing listeners performed a dual task in which they were instructed to respond to events in a target auditory stream while ignoring events in a distractor auditory stream (auditory discrimination) and detecting flashes in a visual stream (visual detection). We found that viewing the face of a talker who matched the attended voice (i.e., talker congruence) offered a performance benefit. We found no effect of temporal coherence on performance in this task, prompting an important recontextualization of previous findings.

Keywords

audiovisual integration selective attention binding speech-like stimuli

Introduction

When humans struggle to understand a talker in a noisy environment, one of the most helpful strategies is to look at the talker's face. Numerous studies have touted the benefits of faces to speech comprehension (Arnold & Hill, 2001; Reisberg et al., 1987; Sumby & Pollack, 1954), an effect which has become even more salient with the onset of widespread mask-wearing during the COVID-19 pandemic (Brown et al., 2021; Lalonde et al., 2022). Yet, in principle, a face that matches the talker's voice could do more than improve our comprehension of their words, it might also improve our ability to attend that voice when it's presented in a mix of sounds.

Binding Supports Object-Based Attention

In order to parse a scene with multiple stimuli, observers must first segregate the scene into perceptual objects (binding), and then allocate their attention to objects of interest (selection). For auditory-alone objects, formation relies on several cues, such as pitch, temporal envelope, and timbre (Bregman et al., 1990; Cusack & Roberts, 2000; Dannenbring & Bregman, 1976; Grimault et al., 2002; Singh, 1987; Singh & Bregman, 1997; Vliegen et al., 1999; Vliegen & Oxenham, 1999). Audiovisual binding is the mechanism by which stimulus features are combined across modalities to form a single object that can be attended by the observer (Bizley et al., 2016). However, the cues that drive this type of binding are still not understood, and investigating potential cues requires careful experimental design that isolates binding from other possible audiovisual effects.

As binding is thought to benefit an observer by allowing them to focus their attention on a combined audiovisual object, rather than dividing their attention between separate auditory and visual objects, forming an audiovisual object allows the observer to not only attend the features that correspond across modalities (the perception of which is also improved by late integration), but also those that are only represented in one modality. Tests for audiovisual binding exploit this key difference between early and late integration—that audiovisual binding, but not late integration can impact the perception of cues with no direct correspondence across modalities (Bizley et al., 2016; Cappelloni et al., 2019; Maddox et al., 2015).

Temporal Coherence Has Been Shown to Drive Binding

Previously, Maddox et al. (2015) designed a task in which subjects were instructed to detect pitch or timbre changes in a target auditory stream (a tone complex) while ignoring a masker (a second tone complex) and also responding to color changes in a visual stream (a circle). When the size of the visual shape and amplitude of the target auditory stream were comodulated with the same temporal envelope, listeners improved their sensitivity to orthogonal events in the auditory stream (viz., auditory timbre or frequency events that were unrelated to the visual size cue), suggesting that temporal coherence was a potent cue for binding (Maddox et al., 2015). This result was later replicated by Atilgan and Bizley (2021).

In Fiscella et al. (2022), we aimed to show that binding occurred not only for circles and tone complexes, but also had a role in audiovisual speech perception. In that experiment, we presented subjects with two sentences, one of which was identified as the target talker, in the presence of masking noise (two audiobooks). Subjects were asked to discriminate whether the target sentence had an orthogonal pitch modulation (10 Hz sinusoidal modulation with two semitone peak-to-peak amplitude applied to the entire length of the trial) or not while ignoring a masker sentence and coincidentally performing a visual catch task (identifying a white circle over the mouth of the talker). We considered four visual conditions. The speech video could match the target sentence, and thus be temporally coherent, or could match the masker sentence, making them temporally incoherent. The videos were also presented in an upright or inverted orientation, with the inverted videos having disrupted visual articulatory cues (i.e., the canonical mouth shapes associated with different speech sounds were upside down). We found that presenting a video that matched the target sentence was beneficial, but the orientation of the video did not matter (even though orientation did affect intelligibility). These results suggested that temporal coherence, but not articulatory correspondence, contributed to binding. However, there were several differences between the original task conducted by Maddox et al. (2015) and that of the Fiscella et al. (2022) study due to restrictions imposed by the natural speech stimuli, leaving lingering curiosity about cues that can influence binding in speech and ultimately motivating the current study.

The Implications of Binding's Neural Underpinnings

Even prior to research showing the behavioral effects of audiovisual binding, studies have provided evidence that audiovisual integration could occur as early as the primary auditory cortex (A1) (Schroeder et al., 2008), an area that is traditionally considered to be unisensory. Studies using a variety of imaging modalities in humans have corroborated this finding. For example, a functional magnetic resonance imaging study has shown activation of A1 to visual speech (Pekkola et al., 2005). Electroencephalography studies have shown that audiovisual speech influences event-related potentials at latencies consistent with A1 (Besle et al., 2004; van Wassenhove et al., 2005). Magnetoencephalography work also has implicated A1 specifically in the enhancement of the speech envelope when viewing a matching face (Golumbic et al., 2013).

Atilgan et al. (2018) built on this work by recording directly from A1 in ferrets. They showed that activity in A1 in response to stimuli from Maddox et al. (2015) depends on the visual stimulus that is presented with the sounds. When a mix of sounds and a visual stimulus that was coherent with one of the sounds were presented, activity in A1 preferentially represented that sound. Importantly, this work not only contributed further evidence that temporal coherence is an important cue for binding, but also indicated that binding occurs in areas that have access primarily to low-level cues.

Audiovisual Correspondences in Speech

Here we considered three separate audiovisual correspondences that could drive binding in speech: temporal coherence, articulatory congruence, and talker congruence. The first, temporal coherence, we define as the low-level physical relationship between the timecourses of mouth movements and sound production. In the natural speech, the visual area of the mouth is roughly correlated with the amplitude of the sound, specifically of energy in a frequency range corresponding with the second formant (Grant, 2001), and the movements of the mouth are synchronized with or slightly precede changes in the auditory speech (Chandrasekaran et al., 2009; Vatakis et al., 2012). Prior work testing audiovisual syllable detection and speech recognition suggests that visual cues for both timing and phonetic content play a role in visually enhanced speech perception (Lalonde & McCreery, 2020).

Next, articulatory correspondence derives from the fact that acoustic speech sounds, phones, are dependent on specific mouth shape used to create them. Mouth shape provides information that supports acoustic information, helping listeners to disambiguate place and manner of articulation (Grant & Bernstein, 2019; Grant & Walden, 1996). Notably, in order to benefit from this visual information, the correspondence of articulatory shape with specific phones must be learned based on experience with speech. We therefore theorized that higher-order computations are necessary in order to benefit from the integration of articulatory information in audiovisual speech.

Finally, talker congruence relates to whether the face and the voice originate from the same talker. This is also a learned correspondence based on experience with different individuals, both in a generalized sense (e.g., the average pitch of male talkers is lower than that of female talkers) and in a specific sense (e.g., creating associations between a known individual's voice and face).

Of these three cues, we hypothesized that temporal coherence would have the largest effect on binding based on previous work. Although in Fiscella et al. (2022), we did not see an effect of articulatory correspondence, we hypothesized that articulatory correspondence could have a small effect with stimuli that had more directly controlled articulatory content. Finally, we expected to see no impact of talker identity congruence on binding under the assumption that complex processing of the voice and face would be required and not accessible to early regions performing binding computations.

Experimental Design

Our design goals were to create an experiment that is based on naturalistic speech stimuli, manipulates potential binding cues independently, and allows for subjects to make determinations about orthogonal features. Here we created stimuli that allowed dynamic, arbitrary transitions between two acoustic vowels in the formant space, as well as visual transitions between face and mouth shapes corresponding to two vowels (which could match the acoustic stimulus or not). These stimuli were based on recordings of native English speakers smoothly transitioning between two vowels which were then manipulated. These recordings then allowed us to create an auditory or visual representation of any vowel along that trajectory, modulated by a given timecourse. By selecting from a set of recordings representing different vowel pairs and two talkers, we were also able to manipulate articulatory and talker identity correspondence independently.

In a trio of experiments, we evaluated the relative contributions of temporal coherence (timecourse), articulatory correspondence (vowel pair), and talker identity correspondence (talker). In each experiment, we engaged participants in a dual task in which they responded as quickly and as accurately as possible to brief pitch deviations in the target auditory stream, as well as pale blue flashes over the lips of the video. This design emulates as many aspects as possible from Maddox et al. (2015). Importantly, the events to be detected (pitch fluctuations) were orthogonal to stimulus features that were matched between the visual stream and either the target or masker auditory streams (timecourse, vowel identity/mouth shape, or voice/talker). In the first experiment, we verified that binding of our artificial speech-like stimuli could occur by considering two conditions: one in which the video matched the auditory target in all aspects (timecourse, vowel pair, and talker) and one in which the video instead matched the auditory masker. Subjects showed a clear benefit to performance when viewing the video that matched the auditory target. We then performed two further experiments to investigate the relative contributions of talker identity and articulatory congruence. In these experiments, we saw no influence of the vowel pair matching, but we did identify a large impact of the talker in the video matching the auditory target. In fact, the combined results across all three experiments show that the identity of the talker in the video is the only factor that significantly influences performance in this task with these stimuli. Our findings, when considered alongside previous results, paint a more detailed picture of temporal coherence as a binding cue that specifically facilitates the segregation of similar stimuli, while other cues such as talker congruence may aid selection.

Experiment 1: Methods

All methods were preregistered: DOI 10.17605/OSF.IO/V8HTE.

Subjects

We recruited 30 subjects (22 female, eight male) between the ages of 18 and 40 (mean 23.7 ± 3.5 years). All subjects had normal hearing (thresholds of 20 dB or better for octave frequencies 500 Hz to 8 kHz) and self-reported normal or corrected-to-normal vision. Subjects gave informed consent and were paid for their participation. Of the 30 subjects, only 24 were included in our analysis. Five subjects did not pass the training described below and one did not meet our pre-defined dʹ threshold of 0.8 during the main part of the experiment.

A power analysis using pilot data from two of the authors (which could not be used in the final experiment as they were overtrained in the task and not naïve participants) indicated that we would achieve sufficient power even with only five subjects. However, we expected naïven subjects will have more variable performance in their overall ability to do the task and in their alertness throughout data collection. As a more conservative decision, we based our sample size on the original Maddox et al. (2015) paper showing the effect of temporal coherence. In that paper, each task employed 16 subjects. We took that number and increased it by 50%.

Equipment

Sounds were presented at 50 dB SPL and a 48 kHz sampling rate by an RME soundcard through a KEF E301 free-field speaker at 0° azimuth and elevation. Visual stimuli were presented using an HTC Vive Pro Eye virtual reality headset with a refresh rate of 90 frames per second. Responses were collected using the Vive controllers. The loudspeaker was 2 m in front of the subject. The visual stimuli were preseted on a “virtual screen” that was also 2 m in front of the subject in a virtual version of our sound booth whose walls were co-registered with the physical walls of the actual sound booth. In this manner, there was a very good match between the physical configurations of visual and acoustic stimuli.

Task

In each trial, subjects were presented with two auditory streams and one visual stimulus. The target auditory stream was present at the beginning of the trial and the masker stream was silent for the first 3 s. Subjects were asked to attend only to the first auditory stream (target) and visual stream and respond with a button press when they detected short auditory pitch changes in the voice of the target talker and visual blue flashes over the lips of the talker. They were instructed to ignore pitch events in the masker talker.

Stimuli

We built the stimuli from audio-video recordings of two native English talkers (authors MSC and RKM) smoothly oscillating between a pair of two English vowels (/ɑ/, /ɛ/, /i/, /o/, /u/) and additional audio recordings of the two talkers speaking a neutral vowel (sometimes called “schwa”) while holding a constant pitch for a duration of at least 14 s (Figure 1). The talkers had f0s of approximately 191 and 117 Hz. A section of the videos that contained a clean vowel transition, no blinks, and minimal head movement was selected for further processing. Praat (Boersma & Weenink, 2020) was used to extract the formants (F1, F2, and F3) of the vowel transitions. A monotonic regression was performed on each formant contour. Then, time was warped such that the F1 transition was linear on the bark frequency scale with the endpoints being designated as 0 and 1. Interpolated formants of the linear model could then be applied to the neutral vowels using source-filter processing to synthesize any intermediate vowel sound between the original vowels in the pair. Video frames from the appropriate time stamp could be paired with this synthesized speech. Five vowel pairs were selected from a possible ten combinations as those with clear visual transitions for both talkers (1) /ɑ/ + /o/, (2) /ɑ/ + /u/, (3) /i/ + /u/, (4) /ɛ/ + /u/, and (5) /ɛ/ + /o/. Importantly, this analysis allowed stimuli to be constructed with any combination of talker identity, vowel pair identity, and timecourse. The talker identity, vowel pair identity, and timecourse match of the auditory and visual stimuli could therefore be independently manipulated.

Figure 1.

Task explanation. (A) Timing of stimuli. Target and masker audio are shown with their two potential visual counterparts. (B) Example timecourses for each of the two talkers. Vowels rapidly fluctuate along the vowel space. (C) Example event times. Vertical lines show the start of each auditory and visual event. (D) The pitch trajectory of an auditory event. (E) The two talkers are in both normal and event frames.

For each frame, the eye position in the frame was detected by the dlib python package. These positions were smoothed using an averaging filter with a Hann window of width 41. With the smoothed eye positions, we used the imutils python package (2022) to align and crop the image such that it was a 1024 × 1024 pixel square with the face-centered, eyes level, and size normalized between the two talkers. The scale factor for each set of images was set using the first frame and applied to the rest of the set; however, each rotation and translation was based on the smoothed eye position for the given frame.

Each trial was 14 s in duration. The vowel identity was modulated by randomly generated timecourses. The timecourses were noise generated in the frequency domain with uniform energy between 0 and 7 Hz. These timecourses had values ranging between 0 and 1 and were used to dynamically control the transitions between vowels in both the visual and acoustic stimuli. For the acoustic stimulus, the vowel timecourse was applied to the recording of the held-pitch neutral vowel using Praat. Congruence of voice and face over time could be controlled by using the same or two independent timecourses. A spectrogram of an example stimulus demonstrating the random timecourse in the vowel space can be seen in Figure 2.

Figure 2.

Spectrogram of example stimulus. Four seconds of the female voice randomly transitioning between vowels /ɛ/ and /u/ are shown. The second formant in particular can be seen when it is moving in the 1–2 kHz range. The harmonics of the 191 Hz pitch can also be seen (horizontal striations) with a target event occurring between 9.7 and 9.9 s (up-down f0 modulation).

Because talker RKM has choral experience, his vowels were more articulated, leading to more extreme trajectories than talker MSC. To compensate for this, we limited the timecourses applied to RKM's vowels from 0.1 to 0.9 (rather than 0 to 1 for talker MSC). We additionally compensated for the discrepancies in the two talkers by accentuating talker MSC's vowels. We applied the following nonlinearity twice to MSC's timecourses:

- \frac{c o s (t i m e c o u r s e * π)}{2} + 1 / 2.

These changes led to a better qualitative match between the two talkers.

Pitch events were added to the existing pitch contour of each auditory stream using Praat. Each of these events was a 200 ms sinusoidal modulation with a 2-semitone depth. Visual events were a color change of the lips of the talker that lasted 200 ms. The color change was generated by overlaying a transparent blue mask over each frame during the 200 ms event. For each frame, we first detected the lips using facial landmarks with the dlib python package. A transparent background was generated with the area of the lips shaded in opaque cyan (RGB: [0, 255, 255]). A Gaussian blur with a kernel size of 33 × 33 pixels was applied to smooth the edges. The overlay was then added to the original video frame with an alpha of 0.2.

Event start times could occur only after the first 4 s of the trial (1 s after the onset of the masker stimulus) and before the last 1.5 s. Events in any stream were at least 1.2 s apart. In a given trial there were between three and five total events. These events were distributed across the auditory and visual streams such that each stream had at least one event and up to three events.

Experiment Structure

Prior to the main experiment, subjects completed a training module to slowly introduce the task (three short auditory-only trials with a single pitch event, three short visual-only trials with a single visual event, two full-length auditory-only trials, four full-length audiovisual trials with no masker, and finally 10 full trials). If subjects did not achieve an overall auditory sensitivity of 0.7 or higher and a visual hit rate of 0.8 in the training portion of the experiment, they were offered one opportunity to redo the training. Subjects who could not meet these criteria on the second try were excused from participation.

There were two conditions in the main experiment, one in which the video matched the audio of the target talker and one in which the video matched the audio of the masker talker. There were a total of 80 trials in the experiment across the video match conditions and considering counterbalancing of stimuli (2 Conditions × 2 Target Talkers × 5 Target Vowel Pairs × 4 Masker Vowel Pairs). Participants were offered a self-timed break every 10 trials. Each session was approximately 45 min to 1 hr in duration.

Analysis

We measured the sensitivity (dʹ) of the auditory task for each condition. A hit was defined as a response within 1 s of a pitch event in the target talker. A false alarm was a response within 1 s of a pitch event in the masker talker. A miss was no response within 1 s of a pitch event in the target talker. A correct rejection was no response within 1 s of a pitch event in the masker talker. We also calculated the hit rate for visual events across the whole experiment. The visual hit rate was defined as the number of visual events for which there is a response within 1 s over the total number of visual events.

Statistical Model

To gain a holistic view of each variable's contribution to task performance, we fit a generalized linear model (GLM) to the response data. Each auditory event (target, coded as a 1 or masker, and coded as a 0) was one data point in the model. Rather than modeling whether the subject responded correctly, we instead set the outcome variable to whether the subject responded (coded as 1 for response, 0 for no response). Event type (whether the event was in the target or masker stream, coded as 1 and 0, respectively), video match (of the event stream with the video, coded as 1 for matching, and 0 for not matching), and the interaction of event type and video match were fixed effects in the model. We also included random intercepts for the talker of the event stream, the vowel pair of the event stream, their interaction, and the vowel pair of the other stream. Finally, we included a random intercept for each subject as well as random slopes for event type and video match, the maximal structure such that the model still converged. We used a probit link function. The model was fit in R Studio (v1.4.1106) using the glmer function from the lme4 package.

Experiment 1: Results

We analyzed data from all 24 subjects who clearly exceeded our data-inclusion thresholds (Figure 3). The main indicator of auditory performance, sensitivity (dʹ), improved when the auditory target stream matched the video (Figure 3A). This performance improvement was accompanied by a slight increase in bias (Figure 3B). By considering hits (Figure 3C) and false alarm rates (Figure 3D) separately, the improvement can be seen to be driven mainly by a decrease in false alarm rates. All subjects performed close to the ceiling in the visual task, confirming they were attending the video (the lowest visual hit rate was 93%).

Figure 3.

Auditory performance improves when the auditory target matches the video. Thin colored lines indicate single subjects. Thicker black lines indicate the mean across subjects. Error bars indicate 95% confidence intervals based on resampling subjects with replacement. (A) Auditory sensitivity (dʹ), (B) bias, where a positive bias indicates a bias towards not responding (false alarms considered more costly than misses), (C) hit rates, and (D) false alarm rates.

Our qualitative observations are borne out in the statistical model (Table 1). We saw significant effects on whether the event was in the target or masker stream, and whether the stream containing the event matched the video and their interaction. The large positive model term for event type (i.e., target or masker) indicated that participants were more likely to respond to target events than masker events, indicating good performance in the task (2.53, p < 2 × 10⁻¹⁶). Subjects should respond to events in the target stream (hits) but not in the masker stream (false alarms). The effect of video match showed that a coherent visual stream significantly improved performance (0.500, p = 6.35 × 10⁻¹⁰) either by increasing hits or decreasing false alarms in the video match target condition, relative to the video match masker condition. Finally, the interaction term indicated that the benefit of a matching visual stream was driven by a reduction in false alarms (−0.527, p = 1.57 × 10⁻⁷).

Table 1.

Generalized Linear Model (GLM) Fit of Experiment 1 Data.

Variable	Effect size	Std. Error	z value	p value
Event Type	2.53	0.143	17.7	< 2 × 10⁻¹⁶
Video Match	0.49	0.081	6.18	6.35 × 10⁻¹⁰
Event Type: Video Match	−0.527	0.100	−5.24	1.57 × 10⁻⁷

Further detail regarding the model's interpretation and an explanatory figure can be found in the Appendix.

Experiment 2: Methods

We followed the methods from Experiment 1 with the following deviations.

All methods were preregistered: DOI 10.17605/OSF.IO/BCFWZ.

Subjects

Thirty-three subjects (25 female, eight male, age 24.4 ± 3.3 years) participated in Experiment 2. Twenty-three of these subjects had also participated in Experiment 1.

In our first experiment, we recorded data from a total of 80 trials for 24 subjects. However, in Experiment 2 we aimed to investigate the effects of two factors (i.e., talker matching and timecourse/vowel matching). To compensate for this added complexity, we increased the number of trials to 120 and the number of participants to 32.

Experimental Conditions

In Experiment 1, auditory streams could match the video in all or none of the following aspects: timecourse, vowel pair, and talker. In Experiment 2, we separated timecourse and vowel pair from the talker. In each trial, the target or masker auditory timecourse and vowel pair could match the video timecourse and vowel pair (V_{timecourse/vowel} = AT_{timecourse/vowel} or V_{timecourse/vowel} = AM_{timecourse/vowel}, respectively), and the target or masker auditory talker could match the video talker (V_talker = AT_talker or V_talker = AM_talker, respectively). The condition in which V_{timecourse/vowel} = AT_{timecourse/vowel} or V_{timecourse/vowel} and V_talker = AT_talker is the same as V = AT from Experiment 1 and V_{timecourse/vowel} = AM_{timecourse/vowel} and V_talker = AM_talker is the same as V = AM.

The main part of Experiment 2 included 120 trials (a random subset of 2 Timecourse/Vowel Match × 2 Talker Match × 2 Target Talkers × 5 Target Vowels × 4 Masker Vowels selected for each participant).

Statistical Model

We fit a GLM to the responses with the following fixed effects: event type (whether the event was in the target or masker stream, coded as 1 and 0, respectively), talker match (of the event stream with the video, coded as 1 for matching and 0 for not matching), timecourse/vowel-pair match (following the same rules as talker match), the interaction of event type with talker match, the interaction of event type with timecourse/vowel-pair match, and the three-way interaction of event type, talker match and timecourse/vowel-pair match. As before, we included random intercepts for the talker of the event stream, the vowel pair of the event stream, their interaction, and the vowel pair of the other stream. We included a random intercept for each subject as well as a random slope for the event type. No other random effects could be included without impacting model convergence. We again fit the model in R Studio (v1.4.1106) using glmer with a probit link function.

Experiment 2: Results

All subjects who passed the training module performed the auditory and visual tasks well above chance (all visual hit rates above 90% and most over 95%). Sensitivity improved when the auditory target talker matched the video talker (V_talker= AT_talker vs. V_talker= AM_talker), especially when the auditory timecourse and vowels matched the video (V_talker= AT_talker, V_{timecourse/vowel}= AT_{timecourse/vowel}) (Figure 4A). There was also a modest decrease in performance when the auditory timecourse and vowels matched the video (V_timecourse= AT_timecourse vs. V_timecourse= AM_timecourse). Subjects were generally biased towards not responding (more misses than false alarms), and there appears to have been a decrease in bias in the V_talker= AM_talker, V_timecourse= AT_timecourse condition (Figure 4B). The hit rate (Figure 4C) was relatively stable compared to the false alarm rate (Figure 4D).

Figure 4.

Auditory performance improves when the auditory target talker matches the video, especially if the target stream's timecourse and vowel pair match the video. Thin colored lines indicate single subjects. Thicker black lines indicate the mean across subjects. Error bars indicate 95% confidence intervals based on resampling subjects with replacement. (A) Auditory sensitivity (dʹ), (B) bias, (C) hit rates, and (D) false alarm rates.

We fit the data with the GLM that we described in our preregistration (Table 2). A separate model, including the interaction term between temporal coherence and talker congruence that is needed to better describe the data, is presented in a later section describing unregistered analyses. In this preregistered model, we again saw clear evidence of subjects performing the task as instructed from the event type term (2.25, p < 2 × 10⁻¹⁶). The vowel and timecourse match term reflected a modest performance decrement (−0.17, p = 0.00188), while the talker match benefitted performance (0.269, p = 7.50 × 10⁻⁷). There was a positive, significant interaction between whether the event is in the target stream and whether the event vowel and timecourse match the video (0.245, p = 0.00157). This positive interaction term reflects the decrease in bias, and thus a larger decrease in misses relative to the increase in false alarms for V_{timecourse/vowel}= AT_{timecourse/vowel} trials. The interaction of event type and talker match in this model was not significant. In the unregistered analysis section, the model that includes the missing interaction term showed a significant negative interaction of event type and talker match.

Table 2.

Generalized Linear Model (GLM) Fit of Experiment 2 Data as Specified in Preregistration.

Variable	Effect size	Std. Error	z value	p value
Event Type	2.25	0.131	17.4	< 2 × 10⁻¹⁶
Timecourse/Vowel Match	−0.169	0.0544	−3.109	0.00188
Talker Match	0.269	0.043	4.95	7.50 × 10⁻⁷
Event Type: Timecourse/Vowel Match	0.245	0.0778	3.16	0.00157
Event Type: Talker Match	−0.123	0.0763	−1.61	0.108
Event Type: Talker Match: Timecourse/Vowel Match	−0.0511	0.0805	−0.634	0.526

Experiment 3: Methods

We followed the methods from Experiment 1 with the following deviations. All methods were preregistered: DOI 10.17605/OSF.IO/AKRVD.

Subjects

Thirty-three subjects (25 female, eight male, age 24.0 ± 3.9 years) participated in Experiment 3. Twenty subjects participated in both Experiments 1 and 2. Eight had participated in Experiment 2 but not Experiment 1. The remaining five were naïve participants. One subject was excluded from the analysis because their overall performance fell below our threshold.

We again aimed to collect data from 32 subjects with the same justification listed for Experiment 2.

Experimental Conditions

In Experiment 3, we investigated the effect of vowel pair independent of timecourse and talker. In each trial, the target or masker auditory timecourse and talker could match the video timecourse and talker (V_{timecourse/talker} = AT_{timecourse/talker} or V_{timecourse/talker} = AM_{timecourse/talker}, respectively). Additionally, the target or masker auditory vowel pair could match the video fully or not at all or, in the case where the target and masker vowel pairs shared one vowel, there could be a partial match. For the case in which the target and masker acoustic vowel pairs shared no vowels, there were two conditions: the video had a vowel identity that was fully congruent with the target auditory stream (V_vowelpair = AT_vowelpair) or was fully congruent with the masker auditory stream (V_vowelpair = AM_vowelpair). When the target and masker acoustic vowel pairs shared one vowel, we had two additional conditions: fully congruent with the target auditory stream and sharing one vowel with the masker auditory stream (V_vowelpair = AT_vowelpair ∼ AM_vowel), or fully congruent with the masker auditory stream and sharing one vowel with the target auditory stream (V_vowelpair = AM_vowelpair ∼ AT_vowel).

The main part of Experiment 3 included 120 trials (a random subset of 4 Vowel Match × 2 Timecourse/Talker Match × 2 Target Talkers × 5 Target Vowels × 4 Masker Vowels selected for each participant). Each subject was presented with a different random selection of trials.

Statistical Model

Using the same procedure as Experiments 1 and 2, we fit a GLM to the response data. This time we included the following fixed effects: event type (whether the event was in the target or masker stream, coded as 1 and 0, respectively), vowel match (of the event stream with the video, coded as 2 for two matching vowels, 1 for one matching vowel and 0 for no matching vowels), timecourse/talker match, the interaction of event type with vowel match, the interaction of event type with timecourse/talker match, and the three-way interaction of event type, vowel match and timecourse/talker match. As before, we included random intercepts for the talker of the event stream, the vowel pair of the event stream, their interaction, and the vowel pair of the other stream. Finally, we included a random intercept for each subject as well as a random slope for the event type.

Experiment 3: Results

Subjects showed a modest improvement in dʹ when the timecourse and talker of the target auditory stream matched the video (Figure 5A). This improvement was paired with an increase in bias (Figure 5B), a relatively stable hit rate (Figure 5C), and a lower false alarm rate in V_{timecourse/talker}= AT_{timecourse/talker} conditions (Figure 5D). There was little effect of vowel match on any measure of task performance. Performance in the visual task was consistently high (all above 90% and most over 95%).

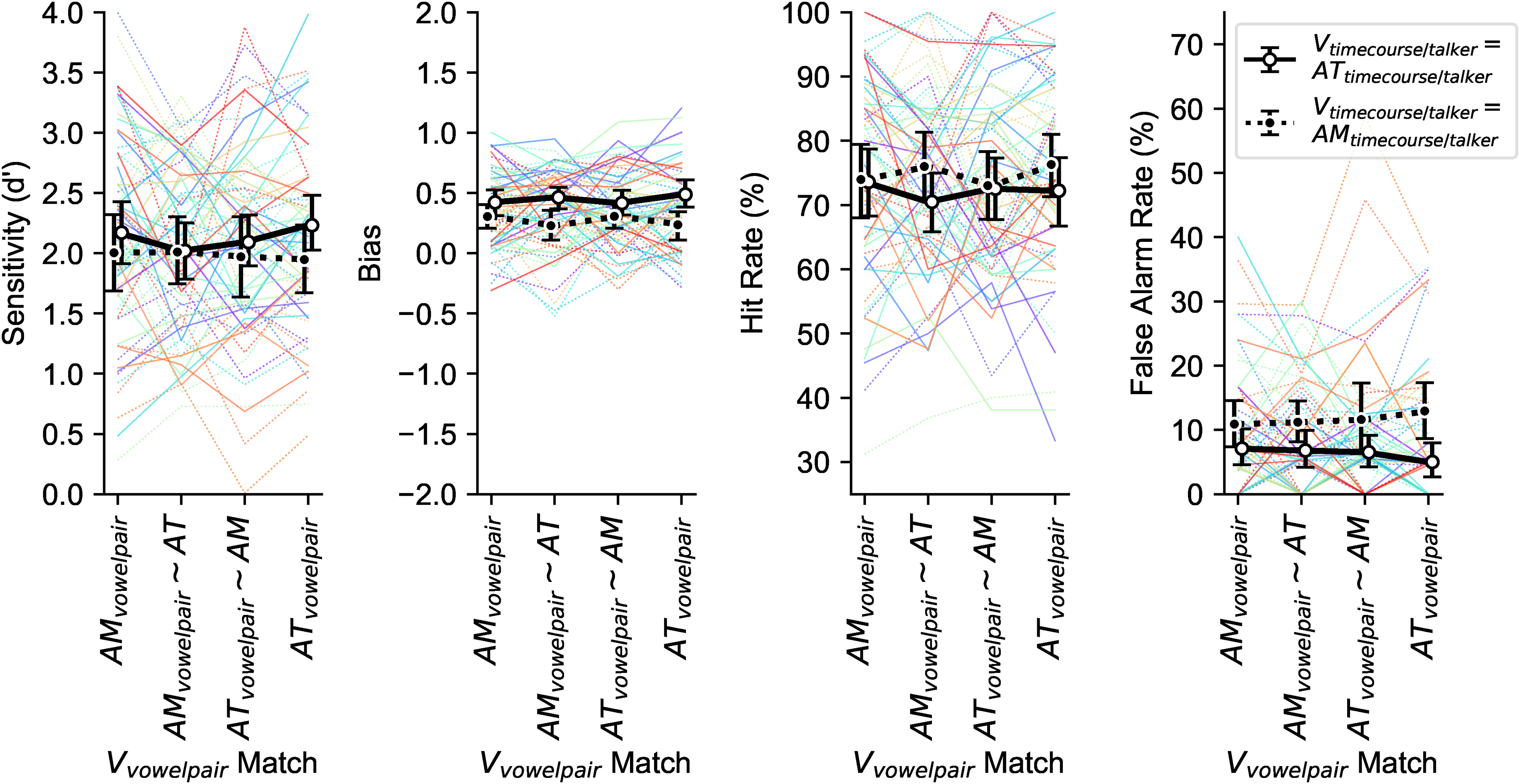

Figure 5.

Performance improves when the video talker and timecourse match the target auditory stream. Thin colored lines indicate single subjects. Thicker black lines indicate the mean across subjects. Error bars indicate 95% confidence intervals based on resampling subjects with replacement. (A) Sensitivity, (B) bias, (C) hit rate, and (D) false alarm rate.

Again, we fit the data with a generalized linear mixed effects model described in our preregistration Table 3. The version of the model with the interaction term between timecourse/talker and vowel match is presented in the following section. In the preregistered model we saw performance in the task is good (2.57, p < 2 × 10⁻¹⁶). Timecourse and talker match was associated with a clear increase in performance (0.35, p = 2.81 × 10⁻¹⁰). Vowel match offered no significant benefit (0.02, p =0.51). There was a negative, significant interaction between whether the event was in the target stream and whether the event timecourse and talker matched the video (−0.34, p = 0.00057). This is the same case discussed in Experiment 1 where the benefit created by viewing a video that matched the timecourse and talker of the target audio benefitted performance by reducing false alarms. The remaining interaction terms were not significant.

Table 3.

Generalized Linear Model (GLM) Fit of Experiment 3 Data as Specified in Preregistration.

Variable	Effect Size	Std. Error	z value	p value
Event Type	2.57	0.267	9.61	<2 × 10⁻¹⁶
Timecourse/Talker Match	0.355	0.0563	6.31	2.81 × 10⁻¹⁰
Vowel Match	0.0217	0.0329	0.660	0.509
Event Type: Timecourse/Talker Match	−0.336	0.0976	−3.45	0.000566
Event Type: Vowel Match	−0.0115	0.0497	−0.232	0.817
Event Type: Vowel Match: Timecourse/Talker Match	−0.0383	0.0527	−0.726	0.468

Unregistered Analysis Methods

Both Experiments 2 and 3 were preregistered with a model structure that excluded the interaction term between the two match conditions. Therefore, for each, we fit an additional generalized linear mixed effects model that was identical to the preregistered model except for an added interaction of timecourse/vowel match with talker for Experiment 2 and interaction of timecourse/talker with vowel match for Experiment 3.

We also fit a model to the data from all three experiments to determine which effects were strongest across experiments. The outcome variable was again whether the subject responded. The included fixed effects for that overall model were event type, timecourse match, talker match, and vowel match, which reflect general task performance and the individual benefits of the three-match parameters to overall performance, respectively. We also included interaction terms between event type and each of the three match variables to demonstrate whether any performance benefit was governed mainly by hit rate or false alarm rate (essentially, quantifying the bias). Finally, we included random intercepts for the talker and vowel pair of the event stream, as well as their interaction. Subject identity was also considered a random intercept and we fit a random slope of the session with the subject to account for any learning or difference between experiment difficulties. We continued using a probit link with the glmer function in R Studio (v1.4.1106).

We also performed an additional analysis of data previously published by Fiscella et al. (2022) for comparison with the present results. The experiment included two video match conditions (video match target and video match masker, as in Experiment 1) and two video orientation conditions (upright and inverted). We calculated sensitivity, bias, hit rate, and false alarm rate for video match conditions, averaging across orientations (Figure 6). We fit these data using a linear model that was as similar as possible to those fit to Experiments 1–3. The model was fit on the level of each trial (as this was a discrimination task rather than a detection task) where the response was predicted by the following fixed effects: trial type, video match, video orientation, and interactions of video match with video orientation, trial type with video match, trial type with video orientation, and the three-way interaction of trial type, video match, and video orientation. A random intercept for the subject was also included. We fit the model in R Studio (v1.4.1106) using the glmer function from the lme4 package. A probit link function was used in the model.

Figure 6.

Data from Fiscella et al. (2022) were reanalyzed to examine the specific effects of talker match on task performance. Here we present averages across orientation conditions and solely examine the difference between the target and masker video being presented. Dark lines/large markers show across subject averages while thin colored line indicates individual subject data. Error bars show 95% confidence intervals based on resampling subjects with replacement. (A) Sensitivity, (B) bias, (C) hit rate, and (D) false alarm rate.

Unregistered Analysis Results

Table 4 shows a model of Experiment 2 that includes the interaction of timecourse/vowel match with talker match. Consistent with observations from Figure 4, there is no consistent role of timecourse/vowel match on its own, indicating that timecourse/vowel match offers no overall benefit to sensitivity, but there is a significant interaction with talker match (−0.37, p =0.00055). This negative interaction indicates that a matching timecourse and vowel pair only hinders performance when the target auditory talker does not match the video or, equivalently, that the effect of talker match is stronger when the auditory target timecourse and vowel pair match the video. There is a positive three-way interaction of event type with both match variables (0.33, p = 0.016), which represents both a more dramatic change in false alarms when the video's timecourse/vowel match the auditory target and a slight increase in hit rate across talker match conditions when the video timecourse/vowel match the masker auditory stream. We see no overall effect of the timecourse and vowel pair matching the video in this model (0.03, p =0.65). Compared to the preregistered model, there was a substantial improvement in goodness of fit parameters (Akaike information criterion [AIC] of 8035 for this model vs. 8045 for the preregistered modeled; Bayesian information criterion [BIC] of 8143.5 vs. 8146; log-likelihood of −4002.5 vs. −4008.4).

Table 4.

Experiment 2 Generalized Linear Model (GLM) Including the Interaction of Timecourse/Vowel Match With Talker Match.

Variable	Effect Size	Std. Error	z value	p value
Trial Type	2.36	0.135	17.4	<2 × 10⁻¹⁶
Timecourse/Vowel Match	0.036	0.081	0.459	0.65
Talker Match	0.453	0.077	5.90	3.66 × 10⁻⁹
Timecourse/Vowel Match: Talker Match	−0.378	0.109	−3.45	5.5 × 10⁻⁴
Trial Type: Timecourse/Vowel Match	0.0407	0.0979	0.415	0.67
Trial Type: Talker Match	−0.306	0.0936	−3.274	0.0011
Trial Type: Talker Match: Timecourse/Vowel Match	0.327	0.136	2.41	0.0162

By including the interaction of timecourse/talker and match vowel match (Table 5), we resolved a marginal, but insignificant effect of vowel match (0.1, p = 0.051). The interaction term, which was also marginally significant, then clarifies that any effect of vowel match is present primarily when the target timecourse and talker match the video (−0.13, p = 0.044). Otherwise, this term did not change the significance of any model parameters. The goodness of fit of this model was marginally better than the preregistered model (AIC of 7732.7 for this model vs. 7734.7 for the preregistered model; BIC of 7841.2 vs. 7836; log-likelihood of −3851.3 vs. −3853.3).

Table 5.

Experiment 3 Generalized Linear Model (GLM) Including the Interaction of Timecourse/Talker Match With Vowel Match.

Variable	Effect Size	Std. Error	z value	p value
Event Type	2.67	0.273	9.81	<2 × 10⁻¹⁶
Timecourse/Talker Match	0.532	0.105	5.07	4.03 × 10⁻⁷
Vowel Match	0.101	0.0516	1.951	0.051
Timecourse/Talker Match: Vowel Match	−0.135	0.0669	−2.01	0.044
Event Type: Timecourse/Talker Match	−0.514	0.132	−3.90	9.78 × 10⁻⁵
Event Type: Vowel Match	−0.0905	0.0636	−1.42	0.155
Event Type: Vowel Match: Timecourse/Talker Match	0.0965	0.0852	1.13	0.257

When analyzing data from all three experiments in a single model (Table 6) there was a clear significant effect of the talker match (0.36, p < 2 × 10⁻¹⁶) and a negative interaction of event type with talker match (−0.33, p = 3.42 × 10⁻¹⁰). Timecourse match and vowel match had no significant effect on performance across experiments, nor did their interactions with event type.

Table 6.

Model Including all Data From Experiments 1, 2, and 3.

Variable	Effect Size	Std. Error	z value	p value
Event Type	2.31	0.0475	48.6	<2 × 10⁻¹⁶
Timecourse Match	−0.0678	0.0485	−1.40	0.162
Talker Match	0.364	0.0420	8.66	<2 × 10⁻¹⁶
Vowel Match	0.0184	0.0247	0.745	0.457
Event Type: Timecourse Match	0.0526	0.0612	0.859	0.391
Event Type: Talker Match	−0.332	0.0528	−6.278	3.42 × 10⁻¹⁰
Event Type: Vowel Match	−0.0328	0.0313	−0.761	0.447

Analysis of Previously Collected Data From Fiscella et al., 2022

We previously recorded data from listeners performing a similar task but with full sentences and orthogonal pitch modulation applied to the whole trial. Although we reported sensitivity in that paper, we did not report the hit rates or false alarm rates. Here we reanalyze our previous data to look at what drove the change in sensitivity. Full methods are presented in the original paper.

Table 7 shows the GLM of our previous data. In this experiment, only event type (1.81, p < 2 × 10⁻¹⁶) and video match (0.244, p = .00813) significantly impacted performance. Importantly, the interaction of event type and video match was near zero (−0.00894, p = .934) indicating that neither hit rate nor false alarm rate dominated changes in performance.

Table 7.

Generalized Linear Model (GLM) Fit of Data From Fiscella et al. (2022).

Variable	Effect Size	Std. Error	z value	p value
Trial Type	1.81	0.0831	21.7	<2 × 10⁻¹⁶
Video Match	0.244	0.0921	2.65	0.00813
Video Orientation	−0.154	0.103	−1.50	0.134
Video Match: Video Orientation	0.107	0.135	0.796	0.425
Trial Type: Video Match	−0.00894	0.113	−0.079	0.937
Trial Type: Video Orientation	0.114	0.121	0.937	0.349
Trial Type: Video Match: Video Orientation	−0.0515	0.163	−0.326	0.752

Discussion

Overall Summary

We performed three experiments investigating three potential contributors to audiovisual binding with speech-like stimuli and found that only the identity of the talker in the video showed a significant and consistent effect on the detection of orthogonal pitch events. Despite former research showing that the temporal coherence of audiovisual stimuli is sufficient to bind two streams and facilitate the detection of orthogonal features, temporal coherence provided no measurable benefit to performance in our task. Across experiments, however, we saw a clear benefit to performance when the visual talker identity matched the talker voice in the auditory stream.

The benefit of viewing a matching talker was broadly carried by a reduction in false alarm rates, implying that listeners improved their ability to filter out the masker talker. In contrast, previous reports of binding for nonspeech stimuli have shown benefits to sensitivity that are dominated by changes in hit rate (Atilgan & Bizley, 2021; Fiscella et al., 2022; Maddox et al., 2015). The large role of hit rate in previous studies suggests that the measured temporal coherence effects were based on improved perception of the target auditory stream itself (rather than allowing the listener to “tune out” the masker stream). We also reanalyzed data previously presented by Fiscella et al. (2022) and found that the change in sensitivity was equally supported by an increase in hit rate and a decrease in false alarms. Differences in bias effects (related to the ratio of hits and false alarms) across experiments suggest that two separate mechanisms may be associated with changes in overall sensitivity.

Audiovisual Binding and Selective Attention

Audiovisual binding is defined as the early combination of auditory and visual stimuli such that an observer can form and attend to a cross-modal perceptual object (Bizley et al., 2016). The present task, similar to its predecessors (Atilgan & Bizley, 2021; Fiscella et al., 2022; Maddox et al., 2015), required observers to detect orthogonal features in both a visual stream and a target auditory stream while ignoring features in a masker auditory stream. If an observer binds the visual and target auditory streams, they can attend to a single object rather than splitting their attention across two objects. The attentional benefit is then, canonically, measured as an improvement in sensitivity (dʹ). However, selective attention comprises both segregation and selection processes, where only the former is impacted by audiovisual binding. Conspicuously, the experiments presented here showed no evidence that temporal coherence benefits the detection of orthogonal features. We propose that this finding is due to a fundamental difference in the ease of segregating auditory streams across this and former experiments. Segregation, the forming of discrete auditory objects or streams from a mixture of sounds, relies on several cues, including features such as pitch, temporal envelope, and timbre (Bregman et al., 1990; Cusack & Roberts, 2000; Dannenbring & Bregman, 1976; Grimault et al., 2002; Singh, 1987; Singh & Bregman, 1997; Vliegen et al., 1999; Vliegen & Oxenham, 1999). Previous experiments that showed an effect of temporal coherence in audiovisual binding involved stimuli that were more difficult to segregate. In experiments using nonspeech stimuli (Atilgan & Bizley, 2021; Maddox et al., 2015), the target and masker streams had only a modest difference in fundamental frequency (440 Hz vs. 565 Hz) and different envelopes. According to Fiscella et al. (2022), a total of three masking voices were presented alongside the target voice, rendering the overall scene more complex. There was always at least one masker talker of the same sex, and therefore similar pitch, as the target talker in the scene. Here, segregation was aided by potent cues. The two voices were separated by a much larger relative difference in pitch (∼100 Hz vs. ∼200 Hz) and there was always a difference in timbre carried by the vowel identities. The masker talker in the current experiments could thus be easily segregated, so using temporal coherence to bind the visual stream with the target auditory stream offered no additional benefit to performance.

Given that temporal coherence did not benefit the listener in this task, it is then surprising that talker identity congruence offered such a consistent benefit. One possible interpretation is that seeing the face of the relevant talker offers a salient cue for maintaining selective attention on the correct talker, even without audiovisual binding. In other words, seeing the correct face makes it easier to keep track of who you are supposed to be listening to. Prior work has shown that visual cues that provide information about where and when to listen for an auditory target aid selection, improving performance without binding (Best et al., 2007). The high-level benefit observed here likely results from improved enhanced selection independent of audiovisual binding, and might explain why we saw a change in false alarm rate, rather than hit rate, in this task.

The Continuum of Speech-Like Stimuli

Across many important and informative studies, numerous stimuli have been called “speech.” However, few speech stimuli, including those employed in this work, could be construed as natural, conversational verbal communication signals. To fully understand the differences between the results of this study and those of Fiscella et al. (2022) and to motivate future studies, it is crucial to discuss the differences between our stimuli and true natural speech.

First, natural speech involves both vowels and consonants. Our stimuli here represent a very limited subset of speech sounds, a selection of common English vowels. In auditory speech, the combination of consonants with vowels is important to their identification (Strange et al., 1976). The success of lipreading in audiovisual speech, a proxy for the quality of visual information, also depends on context and coarticulation (Benguerel & Pichora-Fuller, 1982; Vroomen & de Gelder, 2001). Therefore, information is lost by presenting vowels in isolation from consonants. Yet, discrimination of both vowels and consonants has been shown to improve in audiovisual conditions over audio-only conditions (Grant & Walden, 1996; Teissier et al., 1999). We also must consider the temporal dynamics of consonants and vowels. In general, speech sounds are preceded by visual articulatory features with an overall stimulus onset asynchrony (SOA) of 100 − 300 ms (Chandrasekaran et al., 2009). Many consonants require a preparatory mouth movement that allows the talker to produce the correct articulation. While vowels in natural speech may be preempted by a movement of the tongue prior to voicing (Alfonso & Baer, 1982), this comprises a shorter delay than for consonants and is only the case when there is a voicing onset. This difference in the temporal dynamics of speech production is also reflected in the temporal windows of integration for consonants and vowels (Vatakis et al., 2012). Here we used continuous vowels with no interruptions. These auditory vowels, constrained by the physics of sound production, are synchronous with the visual face used to articulate them. Generally, by limiting the representation of speech elements, we compromise on our representation of speech and risk failing to observe any effect of multisensory integration that relies on the dynamics of consonants or on the combination of consonants with vowels.

Second, natural speech has a temporal envelope characterized by the syllabic and prosodic structures of words and phrases that are reflected in both the auditory and visual representations of speech. While the timbre of our stimuli was modulated, their overall amplitude envelope was not. Furthermore, the frequencies included in the timecourses (0–7 Hz) slightly exceeded normal syllabic rates, although the syllabic rate is highly dependent on who is speaking and what they are saying (Coupé et al., 2019; de Johnson et al., 1979; Jacewicz et al., 2009). Diphthongs can be quite short (175 − 300 ms), depending on the person speaking (Jacewicz et al., 2003), although this still leads to a maximum rate of 5.7 Hz, slightly below 7 Hz. If temporal coherence is an audiovisual binding cue for speech, it is possible that we did not measure an effect of timecourse here due to processing that is selective for amplitude modulation or a narrowly defined syllabic rate.

Finally, although the speech stimuli were synthesized to be as natural as possible and were even presented using a virtual reality headset and through real loudspeakers, they were not natural sounding. There were no prosodic cues in these stimuli, such as pitch fluctuations (other than the target events that comprised the task) or changes in emphasis. There was no syntactic or semantic information carried in the vowel streams. The viewing distance was 2 m, which exceeds the comfortable conversational distance in many cases (but was chosen to match the distance of the loudspeaker). Finally, the artificial application of vowel formants created minor signal artifacts. These factors combined lead our stimuli to have an effect that observers most commonly described as “creepy.”

Future Directions

In every study of audiovisual speech perception, choices in stimulus design necessarily impact how behavioral results are interpreted. In our previous paper regarding this topic, we separated the relative contributions of temporal coherence and articulatory correspondence by simply rotating the faces, which offered us a good deal of naturalism but very little control over the stimuli (Fiscella et al., 2022). Here, we sacrificed naturalism for control. Development of stimuli that lay in a more balanced place of naturalism and control, in combination with the present work, could help us resolve our understanding of the cues that aid binding in speech.

Our speech stimuli only included two talkers—one male, and one female. Although we find a strong effect of talker identity, it is unclear whether this is due simply to the differing genders of the talker or to the many features that define each individual's voice. Additional work, in which multiple talkers have both similar and different vocal characteristics and gender presentation, will not only help resolve the question of whether gender is primarily responsible for the performance difference, but also allow us to again look at the potential influence of temporal coherence when talkers from the same gender are not so easily segregated.

One explanation for the performance benefit of a visual identity that matches the auditory target is aided selection. However, an ideal subject should know which acoustic stream to attend from the acoustic cue at the beginning of the trial. The visual improvement, then, suggests there may be some element of “instruction decay” in which a subject becomes less certain of a target stream over the course of a given trial and relies on the face (even in cases where the face and acoustic target are incongruent). A future experiment with a condition that replaces the face with a name (e.g., “Maddy” or “Ross”) could help disentangle if the effect we report here was because of audiovisual integration at all, or if it was just a memory aid.

Conclusion

Audiovisual binding has the potential to improve the perception of speech when we see the face of the talker we are attending. Here, we aimed to understand which audiovisual correspondences of speech might support audiovisual binding, focusing on temporal coherence, linguistic congruence, and semantic congruence. Despite previous studies consistently showing a relationship between temporal coherence and orthogonal event detection—evidence of audiovisual binding—we found no effect of temporal coherence in our task. Instead, we found a strong effect of the identity of the face and voice, which reduced false alarms when matched.

Our results call into question two assumptions made in our task design: (1) binding is the only mechanism by which a participant can improve their performance in this task, (2) the attentional demands of performing a dual task with a single masker will place the subject in a task-difficulty regime where audiovisual binding is helpful. We now suggest that seeing the face of the talker that matches the target auditory stream acts as a high-level cue to aid in selecting the correct voice. The present results emphasize the need to better understand the neural underpinnings of effects that we have labeled as “audiovisual binding” as well as to refine the tasks we use to study it, ensuring they are truly specific.

Footnotes

Acknowledgments

The authors would like to thank Adrian K.C. Lee, Jennifer K. Bizley, Justin T. Fleming, Abigail K. Noyce, Liesbeth Gijbels, and others for their active participation in a discussion that guided the framing of our results. They are also grateful to Martin M. Gira and Daniel Guarino for their essential role in designing and building the virtual reality sound booth.

Data Availability

All data and analysis code are available at .

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Institute on Deafness and Other Communication Disorders, Center for Visual Science, University of Rochester (grant numbers R00 DC014288 and P30 EY001319).

ORCID iDs

Madeline S. Cappelloni

Ross K. Maddox

Appendix

In this appendix, we offer further explanation of the statistical analysis, which we hope will aid readers in its interpretation. Figure 7 presents a visual representation of the findings of our model. There are four types of events in the experiment, represented by four boxes. An event can be classified into one of these boxes based on two factors: (1) whether the video matches the target stream (left versus right columns of the grid) and (2) which of the two auditory streams contains the event (top versus bottom rows of the grid). Importantly, the video match term in the statistical model (shown visually as whether a box is blue or grey) does not correspond to the trial type. Instead, video match has a value of 1 when there is a target event in a video match target (V = AT) trial and also when there is a masker event in a video match masker (V = AM) trial. In both boxes in the top row, the correct outcome for each event is a response, here called a “hit.” For the events represented by the bottom row, subjects should not respond, noted as a “correct rejection.” If subjects are generally performing well in the task, the event type term will be positive, indicating that there are more hits (responses in the top row), than false alarms (responses in the bottom row). The effect of the video match term in the statistical model is to assign whether there are more responses for a matched video (blue boxes) than for a mismatched video (gray boxes). Here, we saw that there was indeed a positive video match term, which is represented by the direction of the arrows in Figure 7. The interaction term of the model demonstrates whether there is a stronger effect of video match (again, indicated by the arrows) for a given event type (indicated by the rows of the grid). We recorded a negative interaction term in Experiment 1. This indicates that there is a stronger effect of video match when the event type is masker (i.e., not target), so we see the change in performance dominated by false alarms (bottom row arrows have a higher magnitude change than top row arrows). Although we only show a visual explanation of the statistical model for Experiment 1, the same structure underlies the models for Experiments 2 and 3, and thus results can be interpreted similarly.
