Synovial Fluid Lubricant Properties Are Transiently Deficient After Arthroscopic Articular Cartilage Defect Repair With Platelet-Enriched Fibrin Alone and With Mesenchymal Stem Cells

Abstract

Background:

Following various types of naturally occurring traumatic injury to an articular joint, the lubricating ability of synovial fluid is impaired, with a correlated alteration in the concentration and/or structure of lubricant molecules, hyaluronan, and proteoglycan-4 (PRG4). However, the effect of arthroscopic cartilage repair surgery on synovial fluid lubricant function and composition is unknown.

Hypothesis:

Arthroscopic treatment of full-thickness chondral defects in horses with (1) platelet-enriched fibrin or (2) platelet-enriched fibrin + mesenchymal stem cells leads to equine synovial fluid with impaired lubricant function and hyaluronan and PRG4 composition.

Study Design:

Controlled laboratory study.

Methods:

Equine synovial fluid was aspirated from normal joints at a preinjury state (0 days) and at 10 days and 3 months following fibrin or fibrin + mesenchymal stem cell repair of full-thickness chondral defects. Equine synovial fluid samples were analyzed for friction-lowering boundary lubrication of normal articular cartilage (static and kinetic friction coefficients) and concentrations of hyaluronan and PRG4, as well as molecular weight distribution of hyaluronan. Experimental groups deficient in lubrication function were also tested for the ability of exogenous high–molecular weight hyaluronan to restore lubrication function.

Results:

Lubrication and biochemical data varied with time after surgery but generally not between repair groups. Relative to preinjury, kinetic friction was higher (+94%) at 10 days but returned to baseline levels at 3 months, while static friction was not altered. Correspondingly, hyaluronan concentration was transiently lower (−64%) and shifted toward lower molecular weight forms, while PRG4 concentration was increased (+210%) in 10-day samples relative to preinjury levels. Regression analysis revealed that kinetic friction decreased with increasing total and high–molecular weight hyaluronan. Addition of high–molecular weight hyaluronan to bring 10-day hyaluronan levels to 2.0 mg/mL restored kinetic friction to preinjury levels.

Conclusion:

Following arthroscopic surgery for cartilage defect repair, synovial fluid lubrication function is transiently impaired, in association with decreased hyaluronan concentration. This functional deficiency in synovial fluid lubrication can be counteracted in vitro by addition of high–molecular weight hyaluronan.

Clinical Relevance:

Synovial fluid lubrication is deficient shortly after arthroscopic cartilage repair surgery, and supplementation with high–molecular weight hyaluronan may be beneficial.

Keywords

cartilage repair synovial fluid lubrication hyaluronan proteoglycan-4

In healthy synovial joints, the normal, low friction between articulating cartilage surfaces is achieved through various lubrication mechanisms, including those acting in the boundary mode to reduce surface-to-surface interaction.^4,33 Boundary mode lubrication is mediated by interactions of synovial fluid (SF) biomolecules with the articular cartilage surface and can be detected with high sensitivity when load support by interstitial fluid pressurization subsides.⁴ When such lubrication is diminished, cartilage may undergo increased wear¹² and shear strain.⁴¹ Such diminished lubrication has been observed for SF following acute injuries in horses² and humans⁶ and in experiments with rabbits¹² and guinea pigs³⁸ where articular cartilage degeneration ensued. The elucidation of situations in which SF lubrication properties and lubricant biomolecules are diminished could lead to the development of treatments to correct such lubrication deficiency.

Previous investigations of cartilage lubrication have identified proteoglycan-4 (PRG4) and hyaluronan (HA) as boundary lubricant molecules that are variably altered after acute injury (AI) in SF. Increasing concentrations of HA and PRG4, either individually or in combination, leads to decreased cartilage-on-cartilage friction in vitro relative to saline alone.³² Relative to concentrations in normal (NL) joints, that of HA (C_HA) in AI-SF has both been reported as lower than^2,3,6 or not different^27,30,40 from C_HA of NL-SF. The molecular weight (MW) distribution of HA for AI equine SF (eSF) has been reported as either shifted toward lower MW forms² or not different relative to NL-eSF.⁴⁰ The concentration of PRG4 (C_PRG4) in AI-SF has been reported as both lower^11,12,38 and higher^2,6 than that in NL-SF. This variation may be due to a variety of factors, including study design, injury type, SF sampling times, and analytical methods.

Few studies have simultaneously examined the mechanical and biochemical properties of AI-SF and NL-SF, allowing for investigation of relationships between SF function and composition. In AI-eSF at within 3 weeks of injury, diminished (worse) lubrication was correlated with decreased C_HA, even as C_PRG4 increased²; there, addition of high-MW HA to poorly lubricating AI-eSF to bring the HA concentration to 1.0 mg/mL (physiological values for horses²) restored normal friction-reducing lubrication function. In contrast, after anterior cruciate ligament transection (ACLT) in rabbits¹² and guinea pigs,³⁸ diminished lubricating ability was correlated with decreased C_PRG4, but C_HA was not reported. In previous studies of cartilage repair using chondrocyte-fibrin matrices in horses, eSF HA concentration was decreased transiently.¹⁴ Delineation of the concomitant changes in lubricating and lubricant properties of SF after joint injury or repair would further define states in which SF lubricating function is diminished, and cartilage damage may occur.

Such alterations in SF lubricating function may occur after surgical repairs of cartilage defects, since such procedures markedly alter the joint environment. Microfracture is commonly used for cartilage repair in the knee and involves forming small holes in the subchondral bone to stimulate bone marrow cells to enter the defect and form repair tissue.³⁵ However, the regenerated tissue is fibrocartilaginous, with load-bearing properties inferior to those of native hyaline articular cartilage.²¹ The application to the defect site of autogenously derived mesenchymal stem cells (MSCs) within a platelet-enriched fibrin scaffold (F + MSC) may augment cartilage repair. Bone marrow aspirate concentrate provides a source of MSCs capable of regenerating cartilage,¹⁵ and previous equine studies indicate that injection of bone marrow aspirate¹⁶ or MSCs²⁶ results in cartilaginous repair that is superior to microfracture. However, in the postsurgery joint, SF lubrication properties may be abnormal.

The hypothesis of this study was that acute cartilage injury and subsequent arthroscopic cartilage repair procedures (fibrin and F + MSC) lead to alterations in the lubrication quality and composition of SF in a manner dependent on time after treatment. The objectives were to compare eSF at a preinjury state (t = 0 d), at 10 days (t = 10 d), and at 3 months (t = 3 mo) following fibrin or F + MSC surgery of induced full-thickness chondral defects for (1) the coefficients of friction at a normal cartilage-on-cartilage interface in the boundary lubrication mode, (2) the concentration and quality of HA and PRG4 and molecular weight, (3) the relationship between lubrication function and composition, and (4) the ability of high-MW HA to restore lubricating ability in samples deficient in lubrication function.

Materials and Methods

Materials

Reagents for lubrication testing materials were as described previously,^2,6,33 including HA in a 4000-kDa form (Healon; Advanced Medical Optics). The antibody to PRG4 was anti-Lubricin from AbCam,² nonspecific rabbit IgG was from Pierce, and mouse anti-rabbit IgG secondary antibody was from Jackson ImmunoResearch. Streptomyces hyaluronidase was from Seikagaku, SeaKem gold agarose was from Lonza; 50X TAE (2M Tris, 0.5 M ethylenediamine tetraacetic acid [EDTA]) electrophoresis buffer was from Life Technologies, Hybond-P polyvinylidene difluoride (PVDF) membrane for Western blotting was from GE Healthcare, and Stains-All was from Sigma-Aldrich.

Operative Technique and Synovial Fluid Collection

With Institutional Animal Care and Use Committee approval, bilateral experimental cartilage defects (15 mm in diameter) were created (L.R.G. and C.W.M.) by removing cartilage including the calcified layer and extending down to, but not through, the subchondral bone in the midlateral trochlear ridge of adult horses (age range, 2-6 years; n = 12). Autologous nucleated cells from iliac crest bone marrow aspirate were pelleted by centrifugation, cultured for 1 day, and separated from nonadherent cells.²² Stromal colonies were allowed to form, trypsinized, and reseeded into monolayer cultures in α-minimal essential medium with 10% fetal bovine serum and 2 ng/mL fibroblast growth factor–2 for 2 days.²² MSCs were collected, expanded an additional 4 to 5 days, and then cryopreserved until the day before surgery when they were thawed and plated at 10,000 cells/cm² in culture medium.²² Cells were then trypsinized, washed in phosphate-buffered saline (PBS), and combined with fibrinogen.²² Cells isolated in this manner have been previously shown to have chondrogenic and osteogenic differentiation potential.²² Fibrinogen and platelets were harvested from horse plasma²⁸ and formed into a fibrin-based scaffold on injection with bovine thrombin to achieve a final platelet concentration of 10¹⁰/mL. For each horse (Figure 1), 1 patellofemoral joint (side randomized) was treated with fibrin (n = 12), while the contralateral joint was treated with F + MSC (n = 12). The defect was created as a part of the repair procedure.²⁷ From each of these 2 joints, eSF was aspirated at 3 times, just (˜15 minutes) before making a portal for the arthroscopic defect creation (0 d), at 10 days (10 d), and at 3 months (3 mo) following surgery. The total eSF volume aspirated was noted (±0.1 mL), and the eSF was clarified by centrifugation (3000g, 30 minutes, 4°C) and stored at −80°C for subsequent analysis.

Figure 1.

Study design. Adult horses (n = 12) were treated with fibrin (n = 12) in the left (L) or right (R) knee and F + MSC (n = 12) in the contralateral knee for full-thickness, 15 mm–diameter chondral defects in the midlateral trochlear ridge. Each joint was aspirated initially, t = 0 days (NL), and at 10 days and 3 months following surgery. eSF, equine synovial fluid; F, fibrin; MSC, mesenchymal stem cell, NL, normal.

Experimental Design

The effects of treatment (fibrin or F + MSC) or duration (t = 0 d, 10 d, 3 mo) postsurgery on eSF lubricant function and composition were assessed. Portions of eSF samples were assessed for friction-lowering properties by lubrication tests in the boundary mode. Other portions were analyzed for the concentrations of total protein, PRG4, HA, and HA in MW ranges of 2.5 to 7, 1 to 2.5, 0.5 to 1, and 0.12 to 0.5 MDa, respectively.

Based on deficient lubricating properties and lower concentration of HA in t = 10 d samples, to determine whether HA supplementation alone could restore eSF lubricating function, pools (n = 8) of t = 10 d eSF were analyzed further. Fibrin (n = 4) and F + MSC (n = 4) pools were made by combining equal SF volumes from 2 to 3 individual fibrin or F + MSC samples, respectively. Samples were then tested for friction-lowering properties alone and after in vitro supplementation with high-MW HA (Healon) to 0.8 mg/mL (physiological) and 2.0 mg/mL (more typical of C_HA normally in humans and following therapeutic HA injection⁸) to develop a dosage response.

Lubrication Tests

Portions of eSF were analyzed for start-up (static, μ_static) and steady-state (kinetic, μ_kinetic) coefficients of friction as measures of boundary lubrication function in a cartilage-on-cartilage articulation test described previously.³³ Intact articular surface pairs used were osteochondral cores and annuli (n = 65 pairs) paired from the same adult bovine knees (n = 22 harvested), stored in PBS supplemented with protease inhibitors (PIs) (2 mM Na-EDTA, 1 mM PMSF [phenylmethanesulfonyl fluoride], 5 mM Benz-HCl [benzamidine hydrochloride], and 10 mM NEM [N-ethylmaleimide]) at −80°C prior to testing. Osteochondral substrates were bathed in test lubricant for approximately 24 hours at 4°C prior to lubrication testing with 18% cartilage compression, an effective sliding velocity of 0.3 mm/s, and prespin pause time (T_ps) of 1.2, 12, and 120 seconds. Friction coefficients were calculated using the equilibrium axial load following 30-minute stress relaxation and, for µ_static, using the peak torque (|τ|) measured either within the first 10° of the start of rotation and after the 120-second prespin pause, or, for µ_kinetic, from an averaged |τ| during steady-state sliding. Consistent with previous work, µ_kinetic did not vary significantly with T_ps, so that µ_kinetic data are presented as the average for all T_ps.

Biochemical Analyses of Lubricant Molecules

Portions of eSF were assayed for the concentrations of protein, HA, and PRG4.^2,6 Protein concentration (C_Protein) was determined by the bicinchoninic acid assay per the manufacturer’s protocol. PRG4 concentration (C_PRG4) was quantified by Western blot using anti-Lubricin antibody.² Briefly, Streptomyces hyaluronidase–digested portions of eSF were run (0.5-2.0 µL/lane) on a 2% agarose gel in TAE (40 mM Tris-acetate and 1 mM EDTA at pH 8.3) with 0.1% SDS then transferred to a PVDF membrane. The membrane was probed with anti-Lubricin antibody or nonspecific rabbit IgG, followed by a mouse anti-rabbit light chain–specific secondary antibody conjugated to horseradish peroxidase, and then quantified by ECL-Plus detection and digital scanning using a STORM 840 Imaging System (Molecular Dynamics). From the digitized data, PRG4 concentrations were determined with ImageQuant software (Molecular Dynamics) and comparison to an equine PRG4 standard.⁷ The C_HA of proteinase K–digested eSF was quantified by an ELISA-like assay using recombinant human aggrecan.¹⁹ HA MW distribution was determined by horizontal agarose gel electrophoresis of proteinase K–digested eSF (300 ng/lane) through a 1% agarose gel in TAE. Gels were stained with Stains-all, and image processing was performed to determine the distribution of HA in 7.0 to 2.5, 2.5 to 1.0, 1.0 to 0.5, and 0.50 to 0.12 MDa ranges.⁷

Statistical Analysis

Data are expressed as mean ± SEM. Differences between treatment groups were assessed by a repeated-measures analysis of variance (ANOVA), implemented as a linear mixed model with a fixed factor of treatment, covariate of time, and random effect of animal to account for the inclusion of left and right joints. This implementation allows incorporation of data even from individual joints where 1 or 2 eSF samples of the 3 time points were missing, which was the case in 6 and 1 of the 24 joints, respectively. For the preinjury state (t = 0 d), similarity of biochemical compositions of left and right knee SFs was analyzed by correlation analysis for the Pearson correlation coefficient, paired t tests, and Bland-Altman analysis.¹ Since these analyses confirmed the similarity of eSF biochemical compositions from left and right knees of an individual animal at t = 0 d, as expected, post hoc planned comparisons by Student t tests for lubrication and biochemical data were made to assess the effect of time postsurgery (0 d, 10 d, 3 mo) within each treatment group (fibrin or F + MSC) and to assess the effect of treatment within each time postsurgery (10 d, 3 mo). The dependencies of µ_kinetic and µ_static on C_HA (total and within defined MW ranges) were analyzed by univariate regression. The effect of HA supplementation to deficiently lubricating eSF was assessed by repeated-measures ANOVA, with pairwise comparisons made by paired t tests. Bonferroni corrections were applied when multiple comparisons were performed with data from an individual experimental group.

Results

Left Versus Right Knee Comparisons

The biochemical composition of eSF samples from left and right knees of individual animals were similar in the initial preinjury state (t = 0 d). This similarity between eSF from left and right knees at t = 0 d was indicated by both high Pearson correlation coefficients (r) and statistically nonsignificant paired t tests for volume, protein, PRG4, and HA (total and in MW ranges of 2.5-7 and 1-2.5 MDa) (Table 1). Furthermore, Bland-Altman plots (representative example, C_Protein) (Figure 2) indicated that each biochemical component was similar between left and right joints, with individual left-right differences for each horse being within ±2 SD of the mean difference. Values of t = 0 d C_{HA(0.5-1.0MDa)} and C_{HA(0.12-0.50MDa)} were somewhat different between left and right knees (Table 1). C_{HA(0.5-1.0MDa)} and C_{HA(0.12-0.50MDa)} at t = 0 d were on average 0.008 ± 0.001 and 0.014 ± 0.001 mg/mL, respectively (and <4.3% of the total HA for all samples), with average differences between left and right knees being small (0.009 and 0.013 mg/mL, respectively). Due to this similarity in most biochemical components (volume, protein, PRG4, total HA, and HA in 2.5-7.0 and 1.0-2.5 MDa regions), data from contralateral joints were not treated as independent measures in statistical analyses.

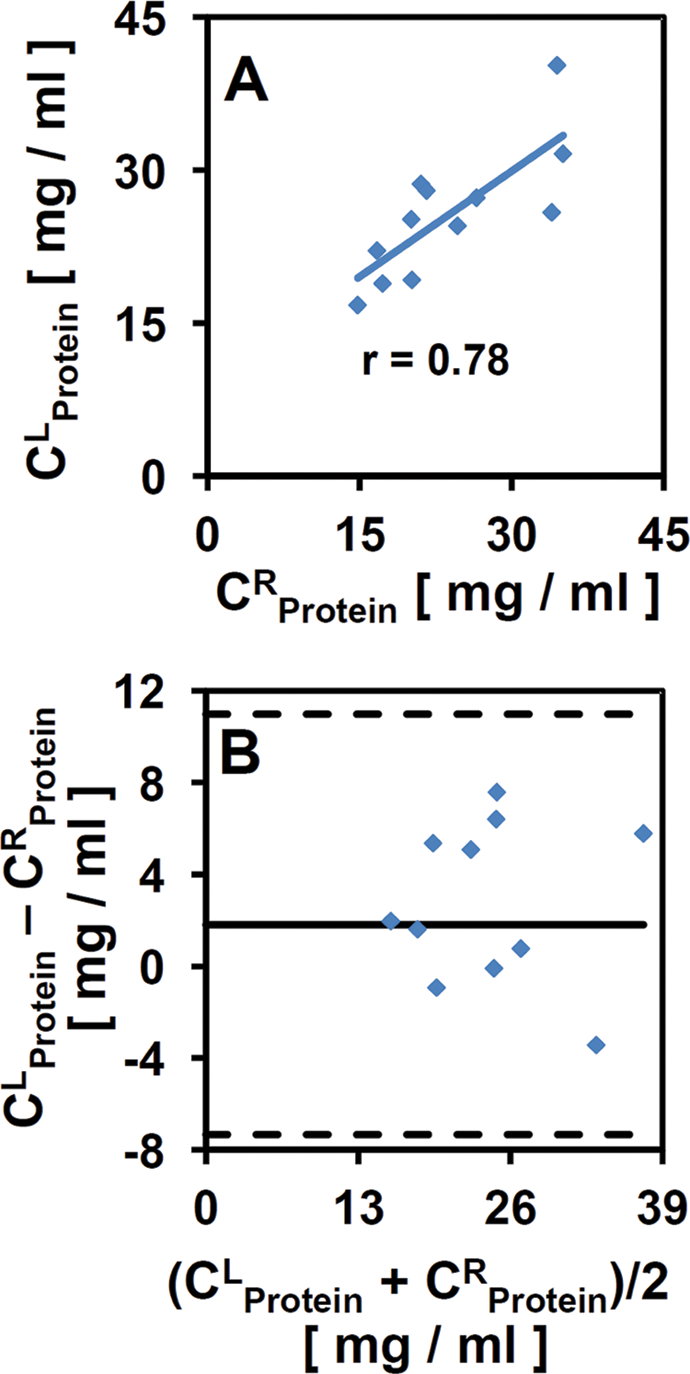

Figure 2.

Graphical representation of left versus right joint similarity of equine synovial fluid (eSF) at day 0. (A) Linear regression of left (L) versus right (R) knee C_Protein. (B) Bland-Altman plots of individual differences between left and right knee C_Protein plotted against their mean. Solid line represents the mean difference and dashed lines represent ±2 SDs (σ) of the individual differences. All individual differences were within 2σ of the mean difference.

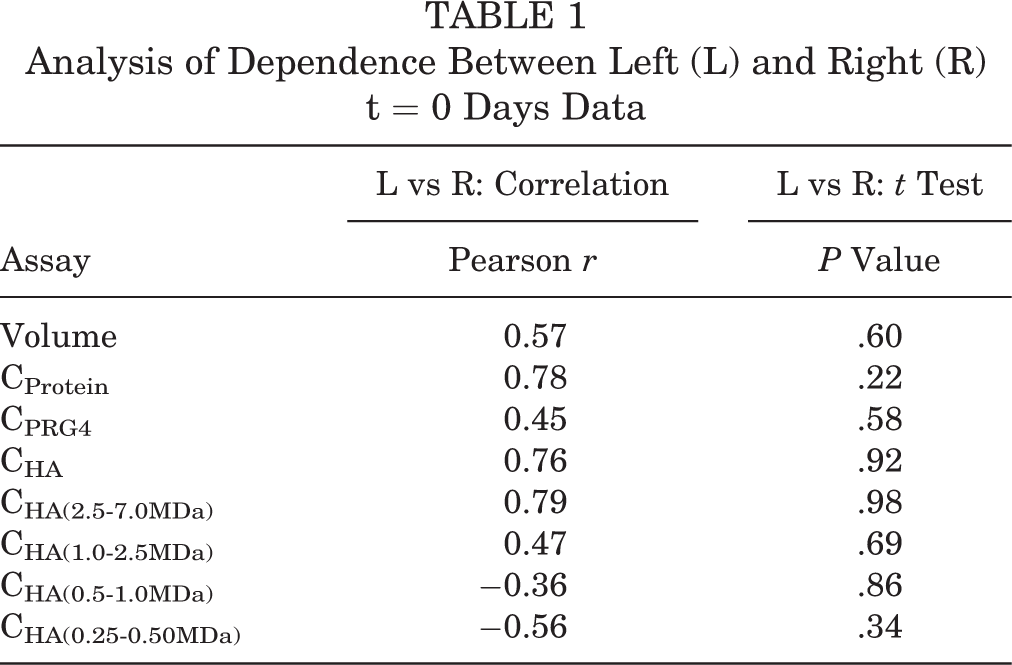

TABLE 1

Analysis of Dependence Between Left (L) and Right (R) t = 0 Days Data

Assay	L vs R: Correlation	L vs R: t Test
Assay	Pearson r	P Value
Volume	0.57	.60
C_Protein	0.78	.22
C_PRG4	0.45	.58
C_HA	0.76	.92
C_{HA(2.5-7.0MDa)}	0.79	.98
C_{HA(1.0-2.5MDa)}	0.47	.69
C_{HA(0.5-1.0MDa)}	−0.36	.86
C_{HA(0.25-0.50MDa)}	−0.56	.34

Lubrication Function of eSF

μ_static (Figure 3A) and µ_kinetic (Figure 3B) varied with time after surgery (each, P < .01) without an interaction effect with treatment (each, P > .65), with µ_kinetic varying between treatments (P = .009) while μ_static,_Tps=120s did not (P = .95). μ_static,_Tps=120s (Figure 3A) at t = 0 d averaged 0.094 ± 0.008, and relative to that, at t = 10 d for F + MSC tended to increase (+37%), but did not reach statistical significance (P = .033, α = .05/3). µ_kinetic (Figure 3B) at t = 0 d averaged 0.024, and relative to that value, increased (+94%) at t = 10 d for fibrin and F + MSC treatments (each, P < .01). In contrast, at t = 3 mo, μ_static,_Tps=120s (for both treatments) and µ_kinetic (for F + MSC) were similar to t = 0 d levels (P = .057-.41) (Figure 3, A and B), while µ_kinetic (Figure 3B) for fibrin tended to be elevated (+28%), but did not reach statistical significance (P = .029, α = .05/3). Post hoc analysis of µ_kinetic did not reveal specific differences between the 2 treatment groups (fibrin, F + MSC) at each time (t = 10 d and 3 mo) postsurgery (each, P = .14-.22).

Figure 3.

Effects of time postsurgery (0 days, 10 days, 3 months) and treatment (NL, fibrin, F + MSC) on friction-lowering lubricant properties of synovial fluid. (A) Start-up (μ_static) and (B) steady-state (μ_kinetic) friction coefficients for treatment groups () fibrin and () F + MSC. n = 9-12. Data are represented as mean ± SEM. Lines indicate significant difference between groups (P < .05/3). F, fibrin; MSC, mesenchymal stem cell; NL, normal.

Biochemical Analysis of eSF

Consistent with lubrication function results, biochemical properties of eSF were transiently altered at 10 days postsurgery. The normal eSF at t = 0 d averaged 2.73 mL in volume, with C_protein of 24.8 mg/mL and C_PRG4 of 32.6 µg/mL. Aspirated eSF volume (Figure 4A), as well as concentrations of total protein (Figure 4B), PRG4 (Figure 4C), and HA (Figure 4D) varied with time after surgery (all, P < .001) in a treatment-independent manner (P = .40-.96). While there was no interaction effect between treatment and time postsurgery for volume, C_PRG4, and C_HA (each, P = .72-.98), a significant interaction effect was observed for C_Protein (P = .016). Relative to presurgery values, volume, C_Protein (for F + MSC), and C_PRG4 at t = 10 d were higher (+150%, +55%, +210%; all, P < .005), although C_Protein (fibrin) did not reach statistical significance between t = 0 d and 10 d (P = .054). While C_PRG4 returned to normal levels at t = 3 mo (P > .069), C_Protein was diminished (–39%) in t = 3 mo samples relative to normal (P < .005), and volume tended to be slightly elevated (+91%) at t = 3 mo relative to normal but did not reach statistical significance (P = .026-.046, α = .05/3). Western blot of individual samples for PRG4 identified a specific immunoreactive band that varied substantially in intensity but not in migration distance (Figure 5A).

Figure 4.

Effects of time postsurgery and treatment on eSF properties as described in Figure 3. (A) eSF volume. Concentrations of (B) protein, (C) PRG4, and (D) HA. n = 10-12. eSF, equine synovial fluid; HA, hyaluronan; PRG4, proteoglycan-4.

Figure 5.

Effects of time postsurgery and treatment on eSF properties as described in Figure 3. Representative (A) PRG4 Western Blot and (B) agarose gels of eSF with HA MW markers at left. (C-F) C_HA for indicated MW ranges for fibrin and F + MSC. n = 10-12. eSF, equine synovial fluid; F, fibrin; HA, hyaluronan; MSC, mesenchymal stem cell; MW, molecular weight; PRG4, proteoglycan-4.

Correspondingly, the concentration of HA (Figure 4D) in eSF was transiently decreased by surgery at t = 10 d compared with baseline. Relative to C_HA = 0.889 mg/mL at t = 0 d, C_HA at t = 10 d was lower (−64%, P < .05/4) and returned to normal levels at t = 3 mo (each, P > .69). Quantification of gel electrophoresis images of HA (Figure 5B) demonstrated that HA MW distribution shifted correspondingly from baseline high levels of high-MW HA toward increasing levels of low-MW HA at t = 10 d and returned to the baseline distribution at t = 3 mo (Figure 5, C-F). C_HA within 2.5 to 7.0, 0.5 to 1.0, and 0.12 to 0.50 MDa bins varied with time postsurgery (all, P < .001), but not with treatment (P = .42-.84) or with an interaction (P = .43-.8) (Figure 5, C, E, and F). C_{HA(1.0-2.5MDa)} did not vary with time, treatment, or their interaction (all, P > .45) (Figure 5D). Relative to t = 0 d levels, C_{HA(2.5−7.0MDa)} (Figure 5C) were lower (−79%) at t = 10 d (all, P < .001) and similar at t = 3 mo (all, P > .67). C_{HA(0.5-1.0MDa)} and C_{HA(0.12-0.50MDa)} t = 10 d values were higher (+229% and +470%, respectively; all, P < .005; Figure 5, E and F) relative to normal values and returned to baseline values at t = 3 mo (P = .097-.90).

Univariate and Multivariate Linear Regression Analysis

Regression analysis indicated certain correlations between lubrication properties and eSF biochemical composition. Univariate regression showed that µ_kinetic decreased as C_HA increased (P < .001) (Figure 6). This was associated with the size distribution of HA, such that µ_kinetic decreased as C_{HA(2.5-7.0MDa)} increased (P < .001). µ_kinetic did not correlate with C_{HA(1.0-2.5MDa)} (P = .27) and increased with C_{HA(0.5-1.0MDa)} and C_{HA(0.12-0.50MDa)} (all, P < .001).

Figure 6.

Univariate regression of μ_kinetic versus C_HA.

Restoration of Lubrication Function by Supplementation With High-MW HA

Lubricating function of t = 10 d eSF samples (mean C_HA, 0.32 mg/mL) with initially deficient lubrication properties (µ_kinetic) was restored by in vitro HA supplementation (to 0.8 or 2.0 mg/mL by addition of 10 mg/mL Healon) for both fibrin and F + MSC groups, resulting in a composition of 95% eSF for 0.8 mg/mL groups and 81% eSF for 2.0 mg/mL groups. μ_kinetic was altered by added C_HA (P < .001) (Figure 7B) independent of treatment (P = .42) and without an interaction effect (P = .90). With supplementation to C_HA = 2.0 mg/mL, the elevated μ_kinetic of fibrin and F + MSC eSF (+120% of NL-eSF, P < .01) (Figure 7B) was lowered (P < .01) to levels indistinguishable from that of NL-eSF (P = .67). Supplementation to C_HA = 0.8 mg/mL tended to reduce µ_kinetic but did not reach statistical significance (P = .019, α = .05/4). µ_{static,Tps=120s} was not modulated by C_HA or treatment, and no interaction effect was evident (all, P > .10) (Figure 7A).

Figure 7.

Effect of supplementing t = 10 days equine synovial fluid (eSF) pools on (A) μ_static and (B) μ_kinetic with 4 MDa Healon. C_HA was at native levels or increased to a final concentration of 0.8 or 2.0 mg/mL. Lines indicate groups that are significantly different (P < .05/4). : versus t = 0 days (P < .05/4). n = 4 for Native, 0.6 and 2.0 mg/mL groups. Average for t = 0 days groups (n = 11) is also shown as dashed lines for reference. F, fibrin; MSC, mesenchymal stem cell; NL, normal.

Discussion

These results indicate that SF lubrication function and biochemical composition are modulated over time following arthroscopic repair of a cartilage defect for 2 types of repair. Boundary lubrication function was diminished shortly at t = 10 d after surgery and returned to normal at t = 3 mo, as indicated by increased steady-state friction coefficients for t = 10 d samples relative to t = 0 d and 3 mo samples (see Figure 3). This lubrication deficiency of eSF for t = 10 d samples was associated with decreased concentration of HA (Figures 4D and 6) and a shift toward lower MW forms of HA (Figure 5), as well as increases in volume (Figure 4A), concentration of protein (Figure 4B), and concentration of PRG4 (Figure 4C). High-MW HA supplementation of lubricant-deficient t = 10 d eSF samples resulted in a dose-dependent restoration of lubrication function (Figure 7).

The equine experimental model of the present study has a number of advantages but also some limitations. It allowed for a repeated-measures study design to investigate changes in the lubricating ability and composition of SF, as it transitioned from normal to injury and repair states. The patellofemoral joint of horses can be operated on arthroscopically, analogous to surgical repair of cartilage damage in the human knee joint. The comparison between normal (t = 0 d), injury (t = 10 d), and repair (t = 3 mo) states within each animal obviates the interanimal variability that is substantial across populations of different animals. The bilateral design ensured that similarities between left and right joints in the initial preinjury state could be evaluated. One limitation of this design is that without a sham surgery, untreated chondral defect, or microfracture treatment (commonly used cartilage repair procedure), it is unclear whether the effects at times after surgery were specific to the type of cartilage repair procedure or may have been due to the surgery, creation of the defect, or treatment of the defect. However, the focus of this study was to investigate the combined effect of defect and surgery, as relevant in the postinjury and/or postsurgery state, at which time lubrication function is diminished and further cartilage damage may occur. Further study of the effect of an untreated defect or arthroscopy alone could help to define ways to augment this surgical modality to minimize alterations to SF properties. Also, the time points (t = 0 d, 10 d, 3 mo) were limited but similar to those (4 d, 7 d, 21 d) of a previous study on equine cartilage repair.¹⁴

The finding of time-dependent alterations in lubrication after surgery is consistent with and extends previous studies of properties of SF after joint injury. The elevated t = 10 d coefficient of friction was consistent with observations of diminished lubricating ability relative to the normal state of SF obtained from acutely injured horses² and patients shortly following tibial plateau fracture,⁶ tested under the same cartilage-on-cartilage lubrication test employed here, as well as rabbits following ACLT tested under a cartilage-on-glass system,¹² and guinea pigs following ACLT tested under a whole-joint pendulum system.³⁸ The restoration of normal lubricating ability by the long (t = 3 mo) duration postsurgery may be analogous to the normal lubricating properties of eSF after chronic injury² and human SF (hSF) from patients with various grades of osteoarthritis.⁹

Certain baseline (t = 0 d) and injury properties of eSF were consistent with previous studies. The µ_kinetic of t = 0 d eSF samples was comparable to that of normal SF in previous studies in horses (0.026) and humans (0.022), using the same cartilage-on-cartilage lubrication test employed here,^2,6 and also to results from latex-on-glass lubrication tests for normal bovine SF (0.021), as well as to hSF from patients with degenerative joint disease (0.024), who were proposed to have normal lubricating ability.⁹ The increased volume and protein for t = 10 d eSF samples was in agreement with previous studies.^18,25

Variations in concentrations of the lubricant molecules HA and PRG4 were also somewhat consistent with those of previous studies. Alterations of SF composition following an arthroscopic repair procedure have been reported previously in humans³⁷ and horses,^14,20 and the present study builds on those by defining the time-dependent effect on eSF lubricant molecules and concomitant effects on eSF lubricating function. The HA concentration in t = 0 d samples (C_HA = 0.89 mg/mL) was within the published range of 0.26 to 1.3 mg/mL for normal eSF.^2,29 The decrease in C_HA for t = 10 d samples, relative to t = 0 d values, that returned by t = 3 mo was consistent with the time course and magnitude of decreased HA concentrations of eSF from joints following cartilage repair¹⁴ and was consistent with diminished HA concentrations for both eSF from acutely injured carpal or metacarpophalangeal joints² and hSF from patients with traumatic arthritis and hydrarthrosis³ or shortly following tibial plateau fracture.⁶ On the other hand, other eSF analyses have not detected effects on C_HA, relative to normal, for horses at 1 to 2 weeks following experimental treatment with fibrin matrices with or without IGF-1 for an analogous cartilage defect²⁷ and horses with acute traumatic synovitis.^30,40 The elevated PRG4 concentration in t = 10 d samples, relative to t = 0 d samples, is consistent with previous studies on hSF from patients shortly following tibial plateau fracture,⁶ eSF from acutely injured horses.² However, the opposite change, of decreased PRG4 concentration, was observed in studies on SF obtained from rabbits¹² and guinea pigs³⁸ following ACLT or from patients with ACL injury.¹¹ The differences may be due to differences in experimental design, acute injury type, joint type, species, and method of determining HA and PRG4 content and quality. For example, in addition to characterizing PRG4 directly from SF, analyses of protein and carbohydrate components may reveal differences between joint states.^13,36 Also, joint destabilization injuries, such as ACLT, may alter the synovial mechanical environment³⁴ compared with the cartilage defect injuries here, and such differences may have differential modulatory effects on the rates of secretion and joint efflux of HA and PRG4. The present study expands on these previous works by detailing the alterations in HA and PRG4 following cartilage defect repair surgery.

The finding of the decrease in HA concentration and shift in HA toward low-MW forms at 10 days postsurgery provides new information with potential therapeutic implications. One previous study on eSF HA MW had an upper detection limit of 3 MDa with high-performance liquid chromatography⁴⁰ and resolved normal HA MW as being predominantly in the 2 to 3 MDa range. This technical limitation may have led to the apparent similarity in HA MW distribution between normal and acute traumatic arthritis eSF⁴⁰ since, as found in the present study, HA MW extends up to 3 to 7 MDa.⁵ The current findings on altered structure of HA after joint injury and repair are consistent with our recent study on AI-eSF.²

The finding that the in vitro addition of high-MW HA to equine SF that is deficient in lubricating ability restores lubricant function suggests that intra-articular lubricant supplementation may help maintain and/or restore the boundary lubrication function of SF following arthroscopic joint repair surgery. While there is a vast amount of information regarding the possible mechanisms of action of HA¹⁷ and the use of HA as a clinical treatment for osteoarthritis,³⁹ there is limited information on clinical studies of HA as a treatment for acute joint injury^10,42 or cartilage repair.³¹ To evaluate a possible role of HA injections to augment lubrication after surgery for acute knee injury, the time-dependent concentrations of HA and its contribution to cartilage lubrication needs to be clarified at various times postsurgery. The dose dependence of the lubricating ability of eSF following supplementation of high-MW HA to 2.0 mg/mL extends our previous study of chemical augmentation of AI-eSF.² The finding that in vitro HA supplementation restores SF lubrication function for t = 10 d samples supports the correlative data, implicating low concentration of high-MW HA as the cause of lubrication deficiency. However, this does not eliminate the possibility that other unstudied molecules in the t = 10 d eSF may interfere with the individual or combined lubricating mechanisms of PRG4 and HA. In studies on osteoarthritis hSF with diminished lubricating ability and normal C_HA but diminished C_PRG4, normal lubricating ability was restored following supplementation with PRG4 to normal levels.²³ On the other hand, in the current study, C_PRG4 was elevated in deficiently lubricating postsurgery eSF. Thus, there may be applications for either HA or PRG4 as a viscosupplement, depending on the independent and interactive effects of molecules in SF. However, injection therapies may require repeated applications or extended-release formulations, since the residence time of HA in synovial joints is approximately 24 hours and this decreases following joint injury.²⁴
