Development of an Automated Culture System for Laboratory Evolution

Abstract

Laboratory evolution provides phenotype–genotype mappings and quantitative analysis of selective pressures, giving important insights about evolutionary dynamics. Moreover, parallel laboratory evolution clarifies which phenotypic and genotypic changes are inevitable for adaptive evolution. Such parallel experiments, however, remain labor-intensive. In this study, to facilitate massive parallel laboratory evolution, we developed an automated culture system that can maintain hundreds of independent culture series in exponential growth phase under various culture conditions. We demonstrate the performance of this automated culture system using the laboratory evolution of Escherichia coli under various stressors.

Introduction

Laboratory evolution is a promising approach for understanding the nature of evolutionary dynamics. ¹ Recent advances in several omics analyses and high-throughput sequencing have enabled us to elucidate phenotypic and genotypic changes fixed in laboratory evolution, providing valuable information on the detailed mechanisms of adaptive evolution by identifying the sets of beneficial mutations that contribute to fitness. ² These studies have also provided important insights into the characteristics of evolutionary dynamics, including second-order effects during evolution and the interrelations among population size, robustness, and evolvability.^3,4 Moreover, the impact of laboratory evolution has gone beyond the field of evolutionary biology and into engineering, as exemplified by the construction of microbial cells for biotechnological applications. For example, with the aid of in silico design of a metabolic network, microbial strains optimized for specific bioproductions were constructed by laboratory-evolution experiments. ⁵

In general, two types of long-term culture methods are used for laboratory-evolution experiments: chemostat culture and serial transfer culture. In chemostat (continuous)-culture experiments, fresh medium is continuously supplied to a bioreactor (jar fermenter), and an equal amount of medium, which includes cultured cells, is discarded to keep the culture volume constant. The advantage of the chemostat culture is its ability to keep a constant growth rate, population density, and culture condition based on the pH and dissolved oxygen. A major drawback, however, is the cost of operation, which limits the number of culture series for laboratory-evolution studies.

In serial-transfer cultures, at a regular interval (usually daily), an aliquot of cell-containing culture medium is transferred to a new tube or well with fresh medium for an additional round of growth. This simple experimental system enables massive parallel experiments, which provide valuable information on adaptive evolution. For example, evolution experiments under various environmental stress conditions revealed the molecular mechanisms for evolutionary trade-offs and cross-protection. ⁶ In another example, parallel-evolution experiments under identical conditions revealed which phenotypic and genotypic changes are inevitable for adaptive evolution and which occurred by mere chance. ⁷ Nevertheless, the serial-transfer culture for laboratory evolution suffers from its periodic (daily) changes in population density and environmental conditions, such as nutrient concentration. When the culture reaches the stationary phase, the competition among cells is not negligible, and evolutionary dynamics in such a varying environment often results in various unexpected phenomena, such as the coexistence of cells with different phenotypes. ⁸ One possible strategy to avoid environmental changes in laboratory evolution is to keep the cell concentration low. In other words, the culture should be maintained in the exponential-growth phase, when the cell–cell competition is negligible. Achieving this condition by daily serial transfer, however, requires relatively large amounts of culture volume, often compromising massive parallel laboratory-evolution experiments. For example, when the minimum transfer volume is 1 µL and the specific growth rate is 0.5 (1/h), the culture volume needs to be more than 20 mL.

In the present study, to overcome the limitation of manual laboratory-evolution experiments, we describe an automated culture system that achieves rapid (e.g., 2 to 6 h intervals) serial transfer using a 96-well microplate. A lab-automated system is placed in a clean booth and connected to a microplate reader and a shaker incubator. This system enables us to maintain hundreds of independent culture series in the exponential-growth phase. We demonstrate the performance of this automated culture system by observing the laboratory evolution of Escherichia coli under various stressors.

Materials and Methods

Strain and Media

E. coli strain MDS42 ⁹ was used for all culture experiments. Cells were grown in 200 µL of M9 minimum medium (17.1 g/L Na2HPO₄•12H₂O, 3.0 g/L KH₂PO₄, 0.5 g/L NaCl, 2.0 g/L NH₄Cl, 123 mg/L MgSO₄•7H₂O, 2.78 mg/L FeSO₄, 14.7 mg/L CaCl₂•2H₂O, 10 mg/L thiamine hydrochloride, and 5.0 g/L glucose; pH 7.0) with or without various stressors. Cell cultures were performed at 34°C and 300 rotations/min.

Automation

The automated culture system ( Fig. 1 ) consists of a Biomek® NX span8 laboratory automation workstation (Beckman Coulter, Tokyo, Japan) in a clean booth connected to a microplate reader (FilterMax F5; Molecular Devices, Tokyo, Japan), shaker incubator (STX44; Liconic, Mauren, Lichtenstein), and microplate hotel (LPX220; Liconic). These instruments are integrated as shown in Figure 2 . The shaker incubator and microplate hotel are combined with the deck of Biomek NX by a transfer unit (slide transfer station for double extended transfer reach; Liconic), and microplates are transferred between these instruments. All instruments are connected to communication ports of process-control computer by serial cables. The capacity of the incubator is 44 microplates, and the microplate hotel has 10 racks, each of which contains up to 22 plates or 7 tip boxes. The cell density is measured using optical density at 620 nm (OD₆₂₀) by the microplate reader, in which OD₆₂₀ in a blank well is subtracted as background. Fresh medium and stressors are kept on the bench using 24-well and 96-well microplates, respectively, at room temperature. All operations were controlled by our in-house program, which was developed in Biomek Software Version 3.3 (Beckman Coulter). The process flow of our method is summarized in Figure 3 .

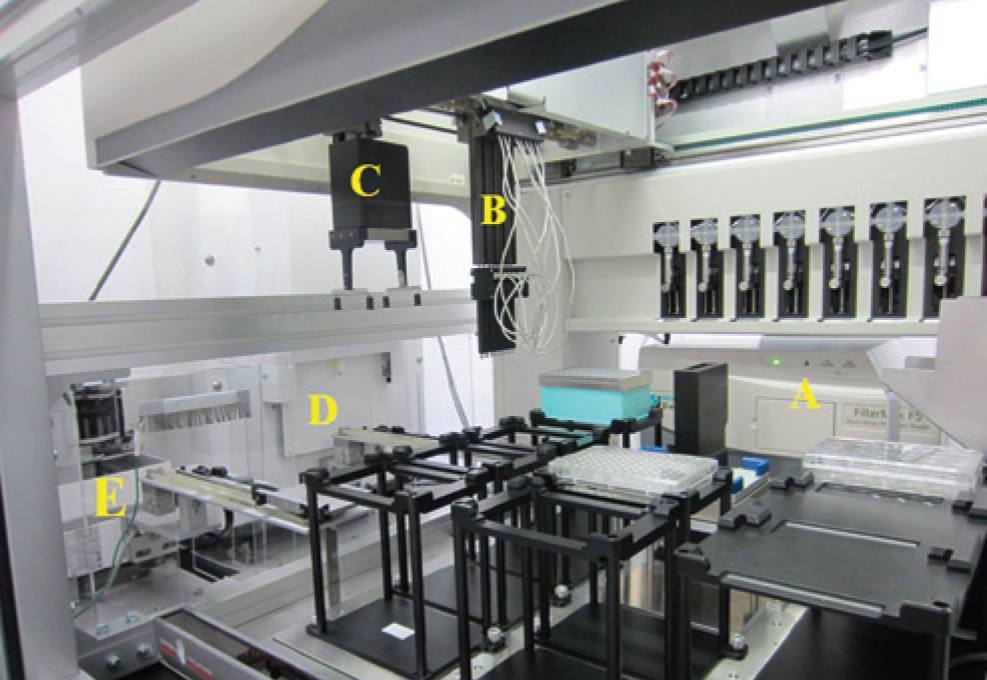

Figure 1.

The automated culture system for laboratory evolution. (a) Microplate reader; (b) pipetting arm; (c) manipulator arm; (d) incubator; (e) microplate hotel. The size of a microplate is 127×85 mm.

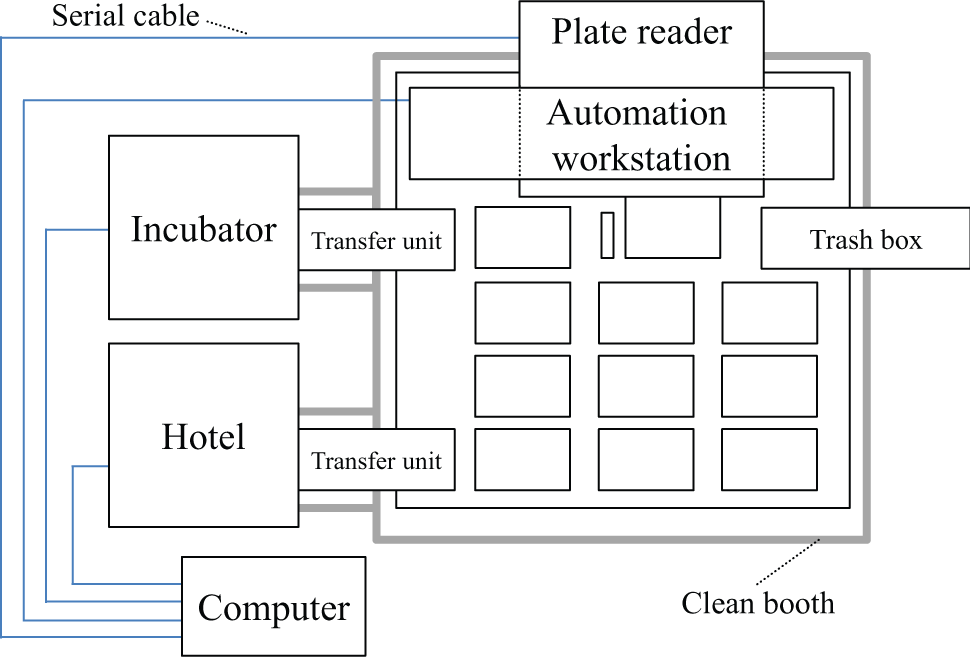

Figure 2.

Schematic representation of the system integration. The shaker incubator and microplate hotel are connected with the deck of a Biomek NX, and microplates are transported between these instruments by a transfer unit of Biomek NX. All instruments are connected to the communication ports of a process-control computer by serial cables and are controlled by our in-house developed program.

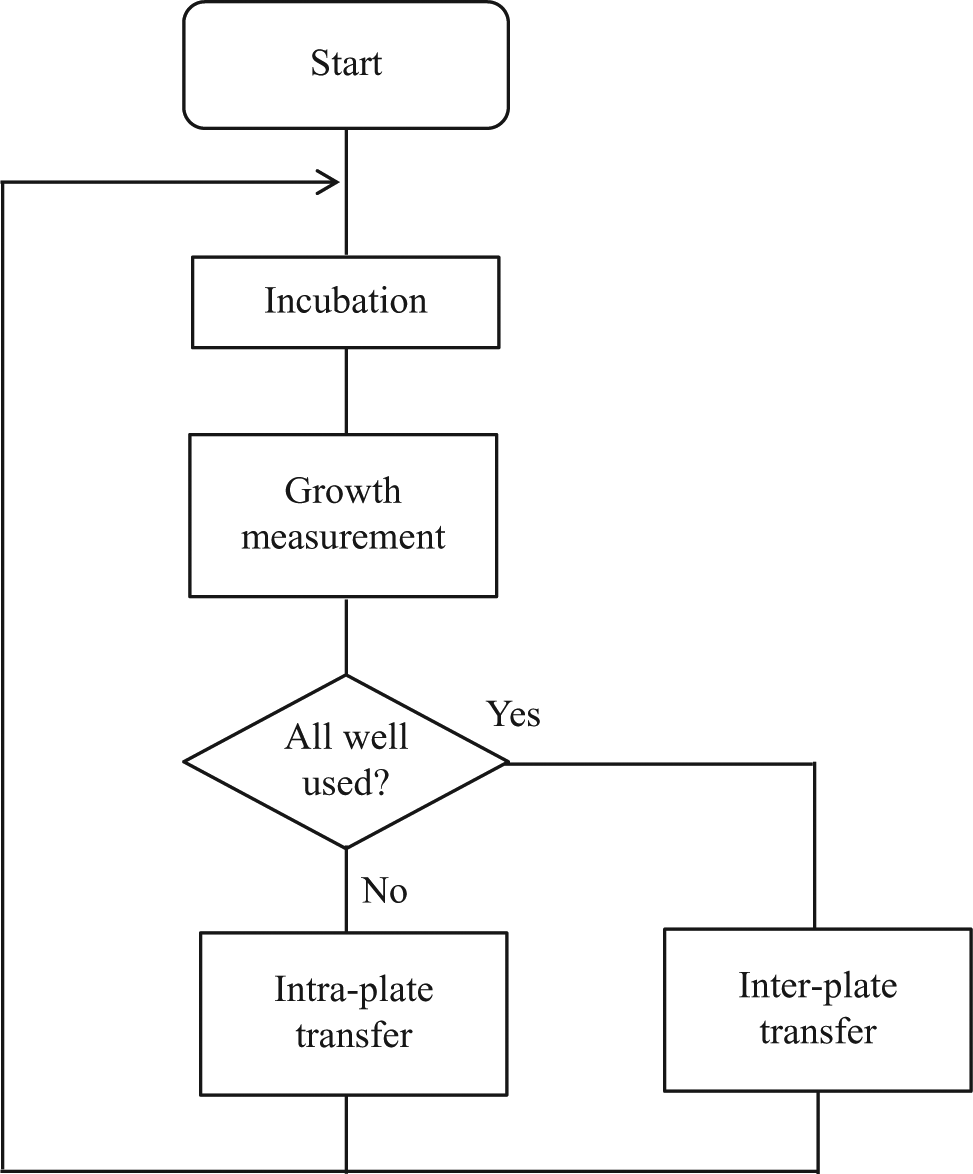

Figure 3.

Process flow for the automated culture system. A microplate is transferred from the incubator at the constant time interval. Optical density is measured by the microplate reader and based on the measured cell density, cells are transferred into an adjacent well. If all wells in a 96-well microplate are used, new plate is carried from the microplate hotel, and the cells are transferred to a well in the new plate. These cycles of cell transfers are repeated.

Laboratory Evolution Experiments

Starting from the initial cell population, the medium with cells is transferred into fresh medium at a regular interval, Δt. We assume that in the ith cycle of the serial transfer, the initial cell density soon after the transfer and the final cell density after Δt are quantified by OD₆₂₀ as ${\text{x}}_{\text{i}}^{\text{ini}}$ and ${\text{x}}_{\text{i}}^{\text{fin}}$ , respectively. The specific growth rate in this cycle is determined by the two data points as ${\text{μ}}_{\text{i}}=\frac{1}{\Delta \text{t}}\text{log}\left(\frac{{\text{x}}_{\text{i}}^{\text{fin}}}{{\text{x}}_{\text{i}}^{\text{ini}}}\right)$ . For the i+1 cycle, the amount of medium with cells to be transferred is given as

$${\text{V}}_{\text{i}+1}={\text{V}}_{\text{tot}}\frac{{\text{X}}^{\text{t}}}{{\text{x}}_{\text{i}}^{\text{fin}}}\exp \left(-{\mu }_{i+1}\Delta t\right),$$

where X^t is the target cell density after Δt, ${\text{μ}}_{\text{i}+1}$ is the specific growth rate after the transfer, and V_tot is the total volume of the medium. Using equation 1, we can assume that the cell concentration will reach the target concentration X^t after Δt. Here, ${\text{μ}}_{\text{i}+1}$ is unknown, but it is assumed to be relatively slow and approximated by the average of the specific growth rates in the three previous cycles, that is, ${\text{μ}}_{\text{i}+1}\approx ({\text{μ}}_{\text{i}-2}+{\text{μ}}_{\text{i}-1}+{\text{μ}}_{\text{i}})/3$ . We use this averaged growth rate for the calculation of V_i+1. Before the cell transfer, a volume of fresh M9 medium (with stressor if necessary) equal to V_tot − V_i+1 is added to the well to keep the total volume in the well constant. X^t is set to a value below which cells grow exponentially in the absence of significant resource competition. In this system, 6 to 8 serial transfer cultures were maintained in a 96-well microplate. The cells were transferred into an adjacent well, and when the culture series reached the end of the plate, the cells were transferred into a fresh microplate supplied from the microplate hotel.

Results and Discussion

Batch Culture

To determine the range of cell densities in which E. coli cells in the synthetic medium can grow exponentially, first we performed a batch-culture experiment in M9 synthetic medium using the automated system. The cells grew approximately exponentially when OD₆₂₀ was less than 0.05 ( Fig. 4a ). Based on this result, we set the target cell density of serial-transfer culture (X^t) to 0.035, which corresponds to approximately 10⁷ cells per well, and performed the serial-transfer culture with Δt = 6 h. The results indicate that we can maintain the culture in the exponential-growth phase using this system and parameter values ( Fig. 4b ).

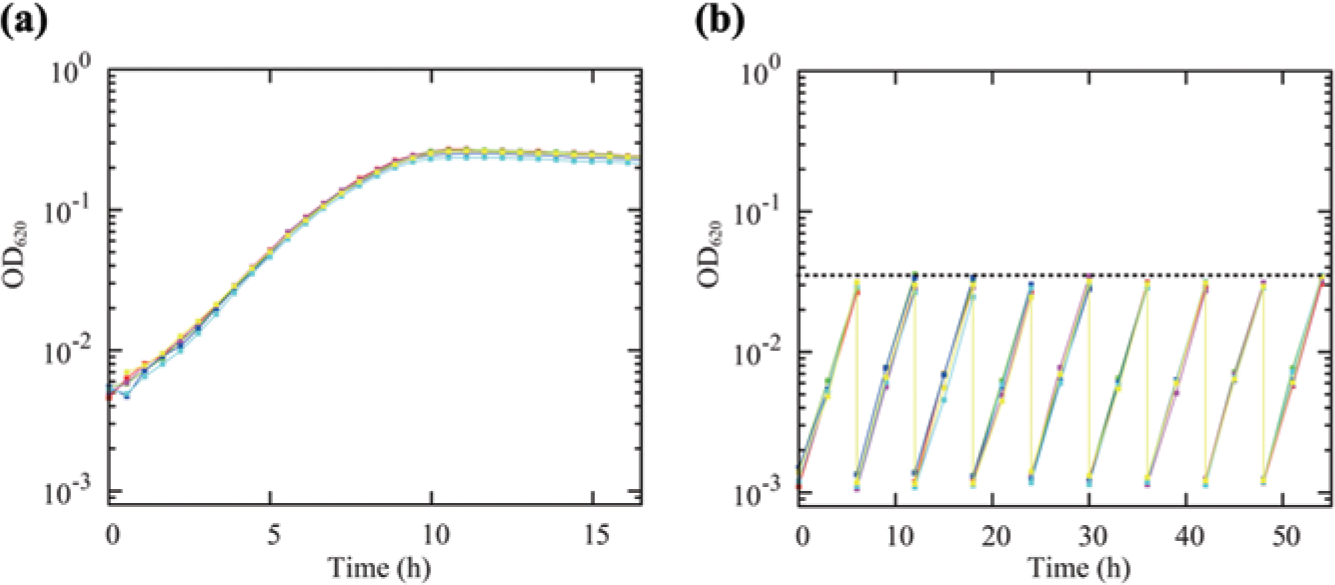

Figure 4.

Growth measurement in the automated culture system. (a) Growth curves in the batch culture. (b) Growth curves in the serial transfer culture. The cells were transferred into fresh medium at 6 h intervals. The volume of medium with cells was calculated to assure that the cell density reached the target value (X^t = 0.035; dotted line) after 6 h of cultivation (see equation 1). The OD₆₂₀ values at times soon after the transfers were calculated using OD₆₂₀ values before transfer and the dilution rate, whereas other OD₆₂₀ values were obtained by direct measurement. The growth curves of six independent cultures are overlaid.

Laboratory-Evolution Experiments

To demonstrate the performance of our automated culture system, we performed laboratory evolution under one nonstress and five stress conditions, including high salt stress (400 mM sodium chloride), acid stress (44 mM lactate or 30 mM malate), alkali stress (32.5 mM sodium carbonate), and alcohol stress (1.25% n-butanol), starting from an identical population of E. coli. The initial population used here was obtained by a serial transfer culture of 300 h under synthetic medium without stress addition and the same automated system. Based on the results of the batch culture in Figure 4 , X^t was set to 0.035 and Δt to 6 h. For each condition, six independent cultures were maintained to check heterogeneity in the evolutionary dynamics and possible experimental errors. Figure 5 shows the change of specific growth rates obtained by a serial transfer culture of 420 h. As expected, except for the nonstress condition, the specific growth rate significantly increased under various stress conditions, suggesting cycles of adaptive phenotypic changes caused by genomic mutations and selection of the adapted cells, which resulted in evolution of the E. coli population. Here, to maintain the constant cell concentration after a Δt time interval, the transferred volume was decreased with the increase of specific growth rate.

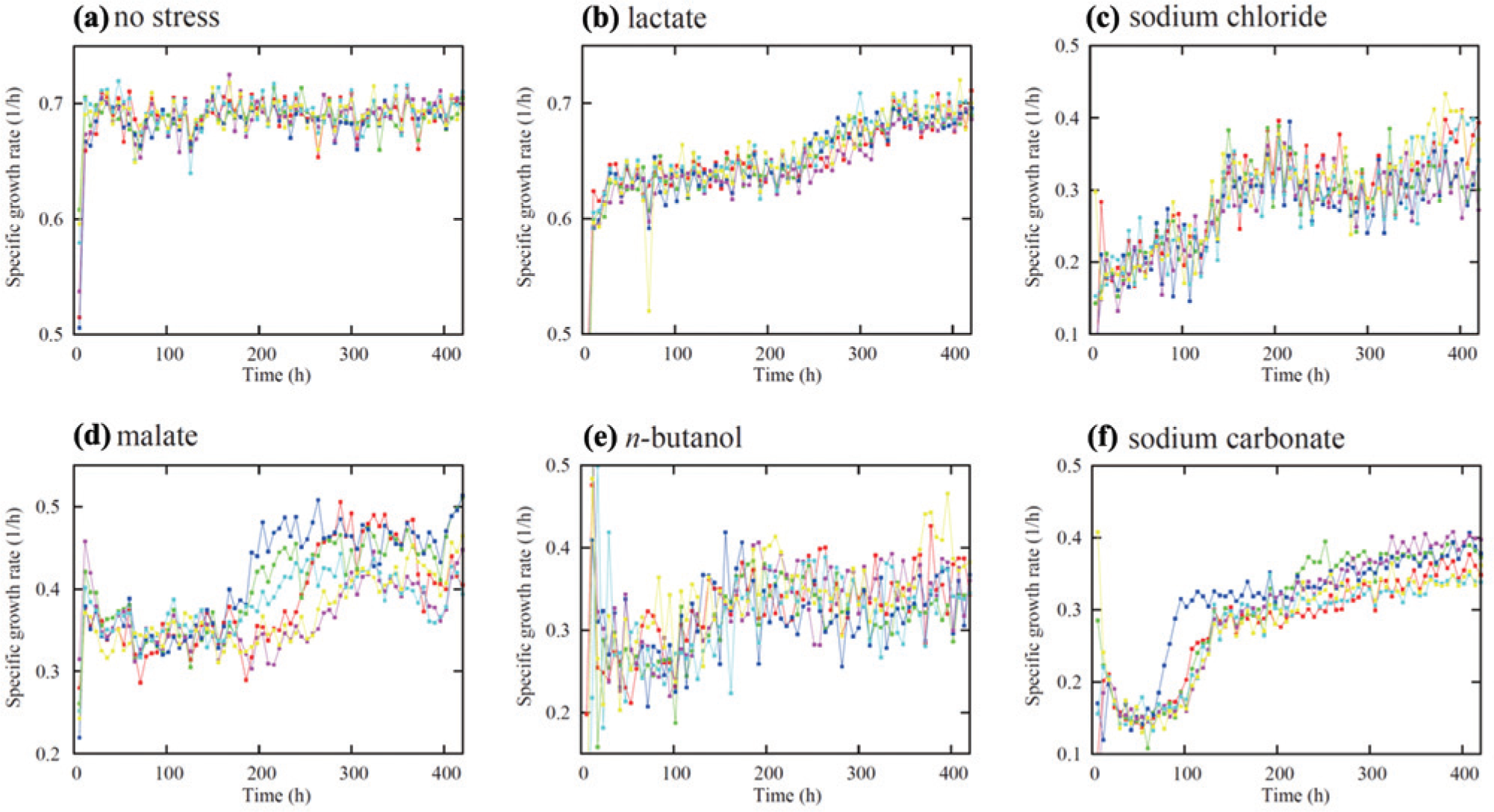

Figure 5.

Growth increases in the laboratory evolution of E. coli under various conditions. Changes of specific growth rates in (a) M9 synthetic medium without stressor, and with (b) 44 mM L-lactate, (c) 400 mM sodium chloride, (d) 30 mM L-malate, (e) 1.25% n-butanol, and (f) 32.5 mM sodium carbonate, are plotted. The specific growth rates of six independent cultures are overlaid. The parameters of serial transfer experiments were identical to those in Figure 4b .

In our automated system, the process of cell transfer includes the following steps: (1) carrying a microplate from the incubator to the microplate reader, (2) optical density measurements, (3) the transfer of medium with cells to an empty well, (4) the addition of a stressor, and (5) carrying the microplate to the incubator. A movie of this transfer process is presented in Supplemental movie 1. When six independent culture series are maintained on a 96-well microplate, one cycle of the above transfer takes 7 min at maximum. Thus, when the time interval is set to 6 h, 44 microplates (44 × 6 = 264 culture series) can be maintained simultaneously. The number of culture series in a single 96-well plate can be increased, and we estimated that when the specific growth rate is 0.19 (1/h), and the time interval is set to 24 h, 4224 independent culture series can be maintained using the automated system.

Even in cultures with identical conditions, the specific growth rate shown in Figure 5 fluctuated during time due to experimental error. In the case of the nonstress condition, the coefficient of variance of the specific growth rate was approximately 2%, which is similar to that obtained in the manual transfer of cells. In the case of stress conditions, the fluctuations in the growth rate were often larger than those of the nonstress condition. This result is presumably due to fluctuations in the amount of added stressors, because in some cases the volumes were as high as a few microliters.

Because the cells are maintained for a relatively long time, one possible problem in laboratory evolution experiments is contamination, including cross-contamination of E. coli cells from adjacent wells in the same microplate. To confirm contamination, we maintained the medium without cells using the same procedure used to maintain the E. coli cells in the adjacent wells as a negative control for contamination. After 420 h of cultivation, we found that there was no cellular growth in the well maintaining only the medium, indicating that no contamination occurred. We usually maintained control wells with only medium to check the occurrence of contamination. To date, no cellular growth has ever been observed inside the control wells.

Summary

Our culture system is the first system for fully automated evolution experiments. The unique integration of a culture system (incubator) and measurement system (microplate reader) by the Biomek NX automated system enables us to maintain growing cells in a constant environment by a rapid serial transfer. This system can trace the evolutionary dynamics of hundreds of independent culture series under various environmental conditions. Phenotypic and genotypic analyses of the evolved organisms reveal detailed mechanisms of the adaptive evolution to various stress environments, providing valuable information for both evolutionary biology and bioengineering fields. Although we used E. coli to evaluate the performance of our system in this study, other various microorganisms, including Streptococcus, and cells of higher organisms can be maintained by the automated culture system as long as the cells can be cultured in a liquid medium. We believe that massive parallel laboratory evolution by our developed automated system will facilitate better understanding of the nature of adaptive evolution.
