Development of an Automated UV Irradiation Device for Microbial Cell Culture

Abstract

Ultraviolet (UV) mutagenesis is a widely used technique to increase bacterial mutation rates in laboratory experiments. UV mutagenesis requires fine regulation of UV dose, because the number of dead cells increases exponentially as the dose increases. Ignoring this hazard can cause extinction of UV-exposed populations. Therefore, an automated system that cooperatively conducts both growth measurement and UV irradiation is needed for efficient UV mutagenesis experiments. To address this task, we constructed an automated UV irradiation device for microbial cell culture. This device can measure cell density and irradiate the bacterial cells with UV light automatically according to the state of cell growth. We demonstrated that this growth feedback control avoided extinction and enabled accumulation of mutations in bacterial genomes at a rapid rate for a long period. Whole-genome sequencing revealed the high accumulation rate, neutrality, and spectrum of UV-induced mutations. These characteristics were all consistent with those obtained by manual UV irradiation. These results indicate that our automated device is useful in accelerating mutation accumulation over a long duration.

Introduction

Ultraviolet (UV) mutagenesis is a widely used technique to increase bacterial mutation rates in laboratory experiments. Because the occurrence of mutations is one of the rate-determining factors of evolution, UV irradiation can be applied for the purpose of rapid acquisition of adaptive traits in bacterial cells.^1,2 Compared with various other methods of mutagenesis, such as administration of chemical mutagens or exposure to ionizing radiation, UV irradiation is considered to have advantages of safety and convenience. Therefore, it is important to keep investigating the types of mutations induced by UV irradiation, the rate of acquisition of these mutations, and the method of application of UV irradiation for accelerating laboratory experiments.

UV mutagenesis requires fine regulation of UV dose, because the number of cells killed by UV exposure increases exponentially as the dose increases. Overdose of UV light causes the cell population to die out, whereas too little UV radiation leads to cell saturation, which decreases the efficiency of the experiment ( Fig. 1 ). If an experimenter adjusts the UV dose while checking the status of the population, both extinction and saturation can be avoided. However, such a solution would require a tremendous amount of manual effort by the experimenter.

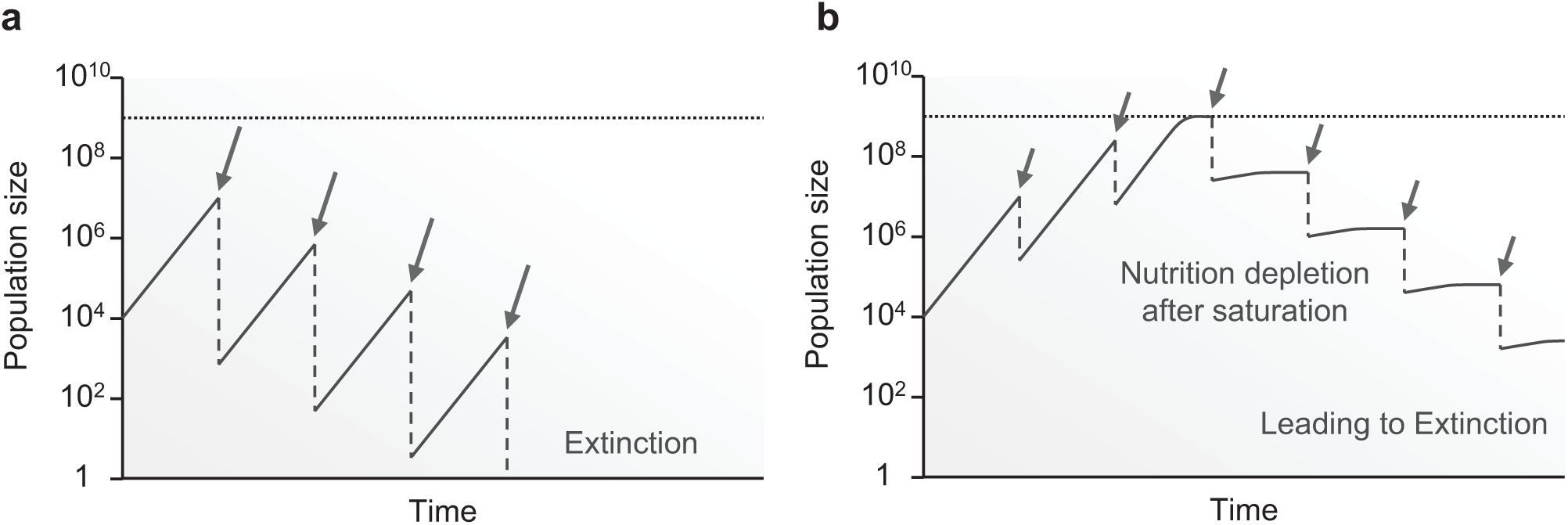

Figure 1.

Schematics of the consequences of inappropriate dosages of periodic UV irradiation on bacterial growth. (a) Growth curve of viable cells with overexposure to UV light. Extinction can occur if the cells are exposed to UV light too frequently or for too long. (b) Growth curve with too little UV light. Extinction can occur if the cells continue to be exposed to UV light after nutrition exhaustion. Frequent serial transfer or frequent nutrient resupply is needed to avoid extinction.

Therefore, an automated system that cooperatively conducts both growth measurement and UV irradiation is necessary for efficient UV mutagenesis experiments. Several studies have demonstrated that feedback between measurement and control of population growth is effective for avoiding extinction and saturation. For example, turbidostats ³ and automated serial transfer systems ⁴ can avoid saturation by controlling the rate and/or frequency of dilution of media based on the cell growth. Additionally, morbidostats ⁵ regulate the concentration of growth-inhibitory drugs on the basis of the growth status of the cell population. The feedback control embedded in these automation systems can be applied to a regulation of UV dose to achieve UV mutagenesis without extinction.

In this study, we designed a culture system for automated growth measurement and UV irradiation. The system consists of a turbidimeter, a UV emitter, and a specially designed control method. To demonstrate the performance of this culture system, we conducted mutation accumulation experiments in Escherichia coli. We showed the rate and spectrum of mutations with this system.

Materials and Methods

Strain and Media

We used E. coli strain MDS42. ⁶ We used a chemically defined medium, mM63. ⁷ Cell culture was performed at 37 °C with shaking at 200 rotations/min. During the mutation accumulation experiment, the shaking speed was transiently raised to 300 rotations/min for 1 min every 6 h to reduce cell aggregation on the wall of the culture tubes.

Automation Device

The automated UV irradiating culture device consists of a fused-quartz test tube and a socket, which has a turbidimeter and a UV emitter ( Fig. 2a ). The turbidimeter consists of a visible LED and a phototransistor (typical wavelengths were 590 and 560 nm, respectively). These are positioned at a 135° angle to maximize the detection of scattered light. ⁵ As a UV emitter, we used a Deep-UV LED module (UV-EC910ZA, Panasonic Photo & Lighting, Takatsuki, Osaka, Japan; typical wavelength was 270 nm). The UV LED is placed in a manner such that the tube is irradiated from the bottom. A 3D-printed ABS resin housing holds the electronic elements at their respective appropriate positions. The electronic components are connected to a circuit ( Suppl. Fig. S1 ) and controlled by a microcontroller board (Arduino Uno Rev3, https://www.arduino.cc/), which is connected to a laptop computer.

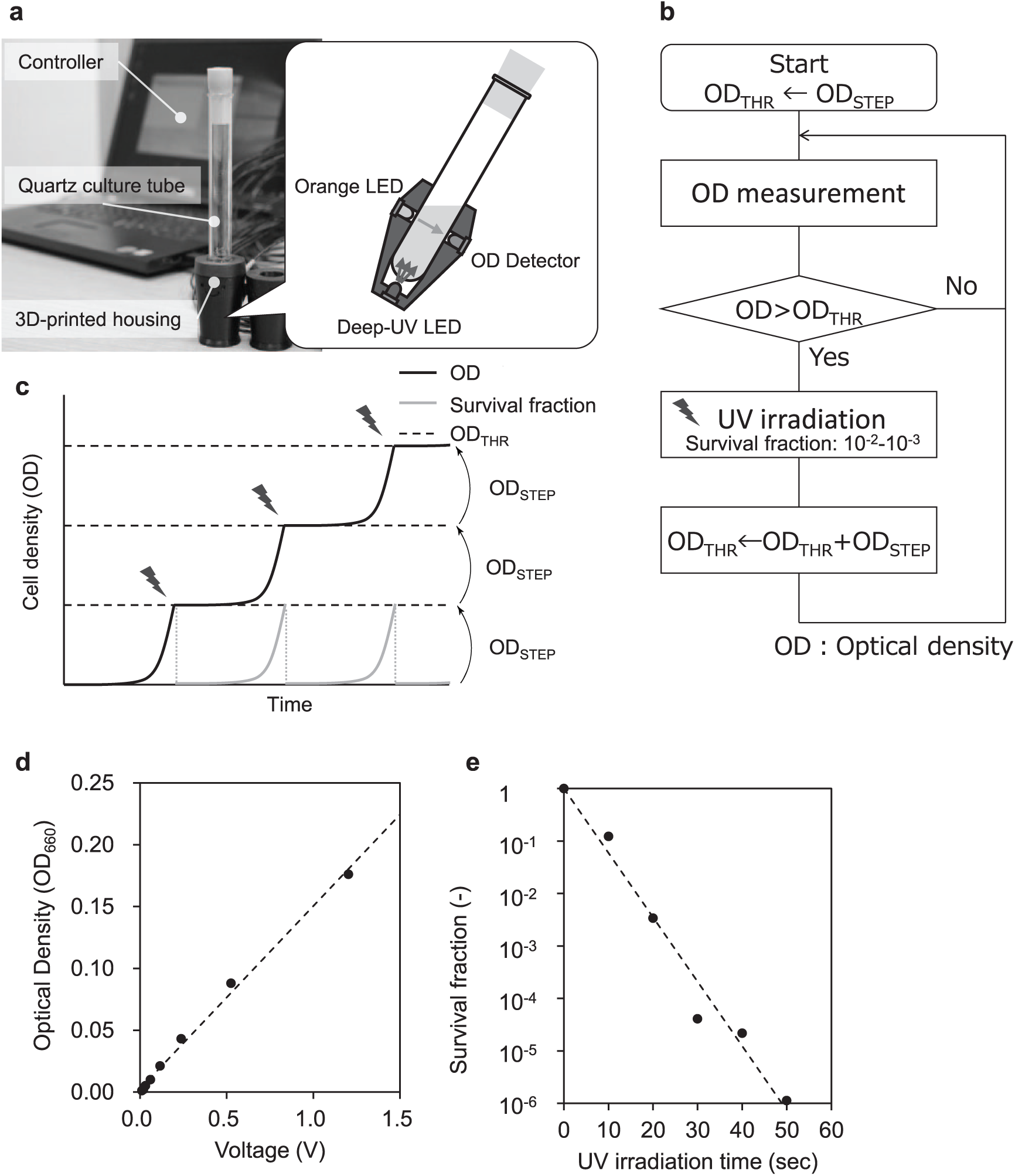

Figure 2.

Automated UV irradiation device for bacterial culture. (a) Schematic picture of the device. Bacterial culture in a quartz test tube is exposed to UV irradiation from the bottom. The OD is measured by a phototransistor. (b) Control flowchart of the device to achieve automated UV irradiation. UV irradiation is turned on for a defined time if the OD exceeds a threshold (OD_THR). The threshold is updated by adding a defined OD increment (OD_STEP). (c) Ideal growth curve (black solid line) using the device. Growth is interrupted by UV irradiation (black lightning symbols) when the OD increases by OD_STEP (horizontal dashed line). The expected growth curve of the surviving fraction (gray line) is shown to explain the stepwise growth curve of the total number of cells, including both dead and viable ones. (d) Standard curve to convert voltage readings to optical density (OD₆₆₀). The dashed line represents linear regression. (e) Relationship between survival fraction and UV irradiation time for MDS42_ANC.

Operation Procedure

All operations are controlled by in-house programs, which were developed in Arduino IDE (v1.6.5, https://www.arduino.cc/) and Visual Studio 2013 (Microsoft Corporation, Redmond, WA). A process flowchart of our method is shown in Figure 2b . Optical density (OD) measurement and UV irradiation are implemented in repeated cycles. In each cycle, cells are incubated for a set time period (3 min), during which the OD is recorded. UV irradiation is conducted when the OD value is greater than a set threshold (OD_THR) in two consecutive cycles. Initially, OD_THR is set as OD_THR = OD_STEP. After irradiation, it is modified by OD_THR + OD_STEP, so that the next irradiation is conducted when the cell population recovers to the population size corresponding to OD_STEP ( Fig. 2c ). In this way, the cells keep growing exponentially while OD increases stepwise at intervals ( Fig. 2c ), enabling cells to avoid saturation for extended durations. In our experiments, OD_STEP was set to 0.0015.

Mutation Accumulation Experiment

The time duration for one UV irradiation is set so that the survival fraction of the wild-type cells is 10^–2 to 10^–3. The cells were serially transferred and glycerol stocks were stored for sequencing every 4 days. The experiment was replicated five times and continued for 56 days.

Whole-Genome Sequencing

We performed whole-genome sequencing for the transferred populations and their ancestral strain using Illumina MiSeq Desktop Sequencer (Illumina, Inc., San Diego, CA) and identified mutations according to the procedure reported previously. ⁸

Results

Specifications of the Device in Growth Measurement and Killing Ability

To determine a reliable range for OD measurement of our device, we compared the OD values obtained by our device with those obtained using a conventional commercial spectrophotometer ( Fig. 2d ). We prepared serial dilutions of E. coli cultures and measured them using our device and the spectrophotometer. As a result, the range between OD = 0.001 and OD = 0.175 was confirmed to have a linear correlation with cell density and good compatibility with the conventional method. We also note that this range should depend on the value of the resistance Rm on the control circuit (200 kΩ in this research; Suppl. Fig. S1 ), so that we can use a different range with a small modification of the system to measure either denser or less dense cell cultures. In order to determine the relationship between UV dose and cell death, we obtained a killing curve for UV irradiation by our device. We prepared cell cultures (diluted to OD ≈ 0.01 to avoid shading effect) and exposed them to UV irradiation for several time durations shaking at 200 rpm. The cultures were then plated on agar medium and cultured. The survival fraction of the cells was calculated from the number of emergent colonies. The UV killing curve shows that the cells died exponentially with the duration of UV irradiation ( Fig. 2e ). These specifications enable us to control cell populations as desired by tuning step growth (OD_STEP in Fig. 2b ) and the UV irradiation time for each step growth. As a demonstration, we controlled a cell population with three different UV irradiation times per step growth ( Fig. 3 ), where the step growth was identical. The population with short durations of UV irradiation (10 s/step) should encounter frequent UV irradiation because the survival fraction per step is so large that the population reaches the defined step growth frequently. On the other hand, the population with long periods of UV irradiation (30 s/step) should encounter irradiation infrequently because the surviving fraction after each irradiation is small and thus requires a long time to reach step growth. As expected, the former population exhibited a small stepwise increase in growth frequently, while the latter population exhibited less frequent but larger stepwise increases in growth ( Fig. 3a ). Importantly, the total UV dose was almost the same for these different populations ( Fig. 3b ), because short irradiation per step was compensated by the step frequency. This implies that UV irradiation with growth feedback can compensate for UV dose, even though the cells change their UV tolerance during cultivation.

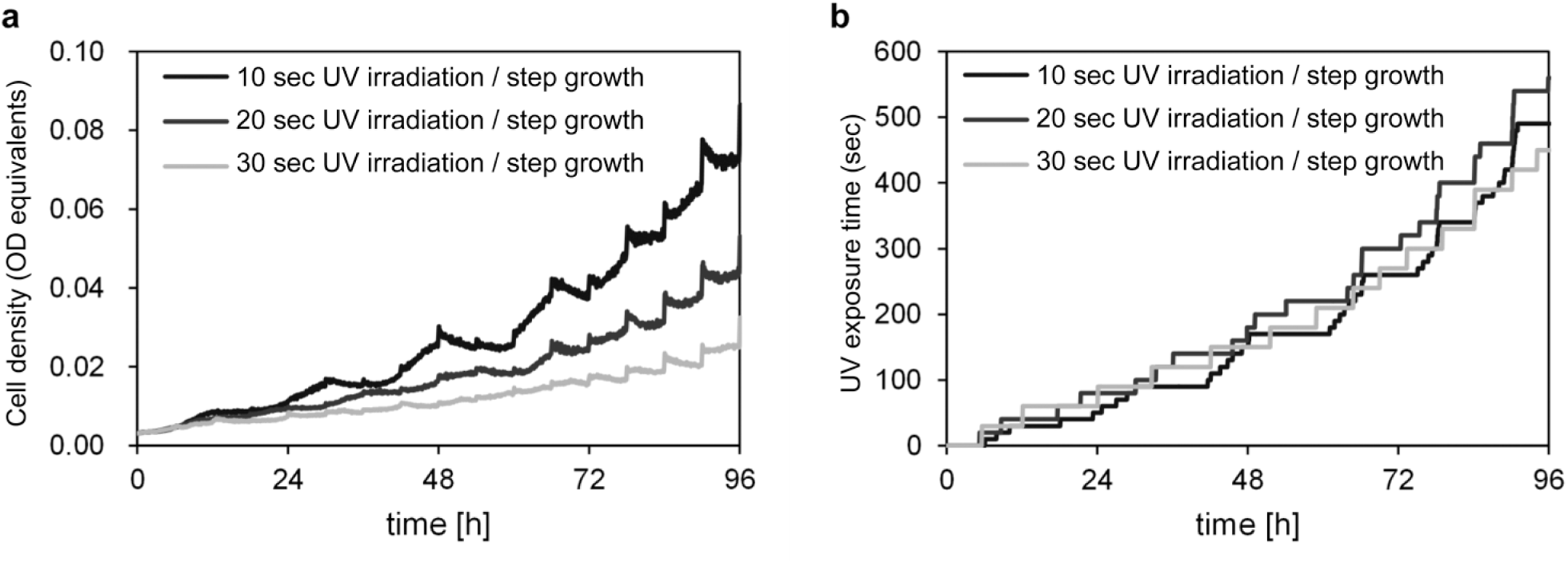

Figure 3.

Growth measurement using the automated UV irradiation device. (a) Growth curves with different UV irradiation times. (b) Cumulative curves of UV irradiation time.

UV Irradiating Cell Culture Experiment

Next, we conducted a mutation accumulation experiment using our device. We established five independent replicate cultures from the ancestral strain. We cultivated the cells with UV irradiation in the device. The device was operated according to the flowchart shown in Figure 2b , where OD_STEP was 0.0015 and UV irradiation time was 20 s. After 4 days of cultivation, we serially transferred the cultures to fresh medium. We repeated these procedures for 14 rounds, yielding 56 days of cultivation in total ( Fig. 4a , b ). The growth curves and UV doses of the replicated lineages were similar to each other for at least the initial 4–16 days ( Fig. 4c , e ). However, some lineages markedly improved their growth in the device afterwards. In particular, the cells in lineage 1 after day 36 exhibited a strong tendency to aggregate on the wall of the culture tube. The cells grown on the wall were sporadically torn off the wall by shaking, resulting in a sudden increase in the cell density of the culture beyond the normal increase due to cell growth. Accordingly, the UV dose of such lineages also increased because of growth feedback-induced UV irradiation. As a result, both growth curves and UV doses in the latter period varied between the lineages ( Fig. 4d , f ). The maximum growth rates in the absence of UV irradiation changed only a little through the mutation accumulation experiment ( Suppl. Fig. S2 ). These results indicated that UV tolerance of the propagated cells in some lineages was improved during the cultivation. We note that there was significant variability in the growth rate in the absence of UV irradiation for lineage 1 at day 56 ( Suppl. Fig. S2 ), which might suggest potential variance of UV tolerance between individuals in this lineage.

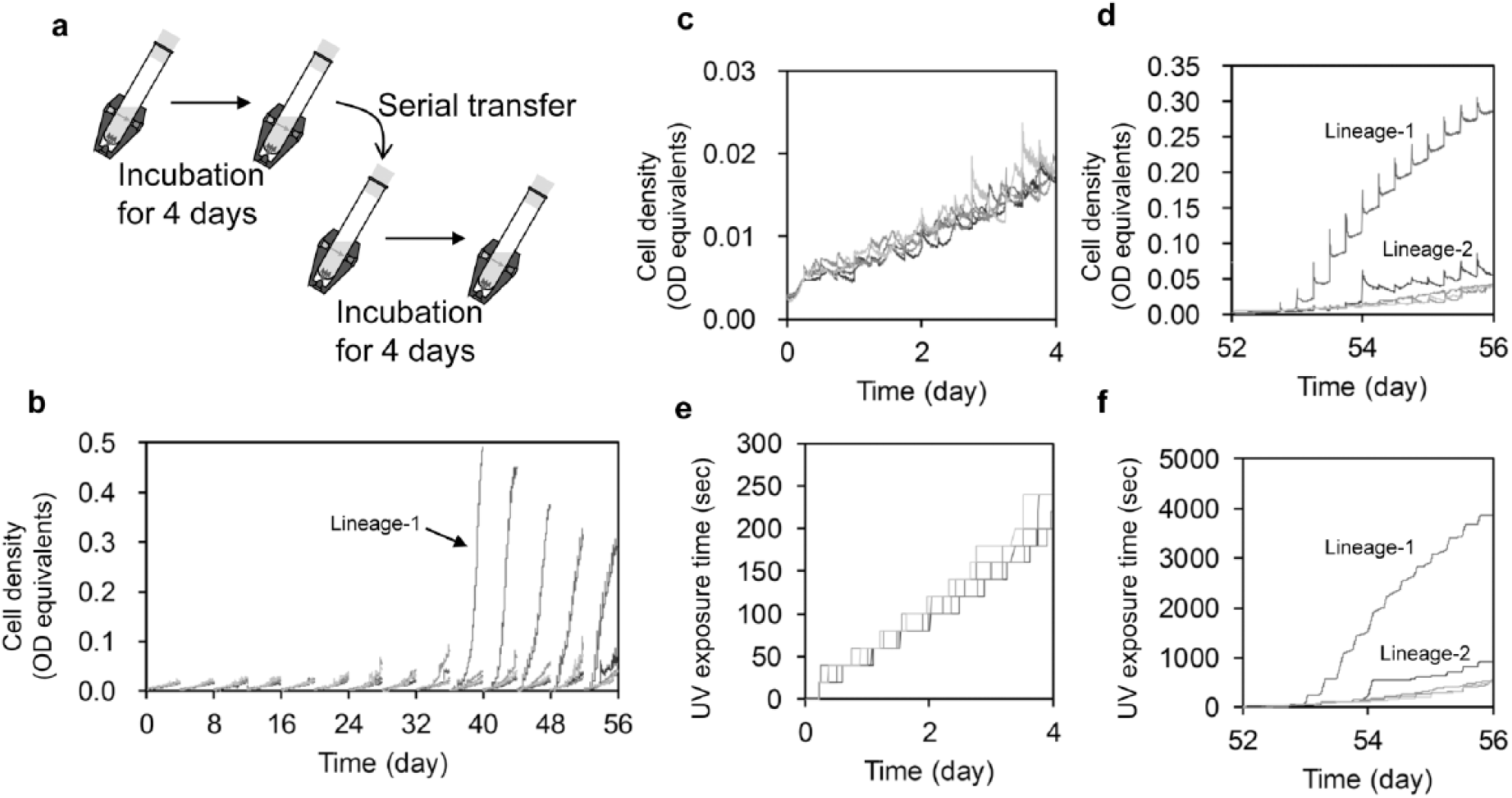

Figure 4.

Growth curves in the repeated serial transfer with automated UV irradiation. (a) Experiment design to avoid resource exhaustion. Five independent lineages were established. Each round started after serial transfer from the grown culture of the previous round and lasted for 4 days with automated UV irradiation until the next transfer. This procedure was repeated (total 14 rounds). Growth curves during 14 rounds (b), the first round (c) and the final round (d) are shown. Cumulative curves of UV irradiation time in each round are shown for the first (e) and final (f) rounds. Each lineage is distinguished with a grayscale. The colored versions are available as Supplemental Figure S4.

Detection of Accumulated Mutations

Whole-genome sequencing revealed the number of genomic mutations accumulated in the populations. Analyzing the cell populations at the end of the evolution experiment (day 56), we detected 1389 base-pair substitutions (BPSs) and 33 small insertions and deletions (InDels) as fixed in the populations (278 BPSs per lineage and 7 small InDels per lineage on average). The accumulation rate of BPSs during the evolution experiments was calculated using the number of synonymous substitutions ( Fig. 5a ). As a result, the accumulation rates were 4–6 BPSs per genome per day, which was highly comparable to the previous results using manual UV irradiation (3 BPSs per genome per day; Shibai et al. ⁸ ). These accumulation rates are approximately hundreds of times larger than the spontaneous mutation rates of a wild-type strain with proficient error correction or tens of times larger than the rates of a mutator strain with deficient DNA mismatch repair. ⁸ We also calculated the dN/dS values using the number of nonsynonymous and synonymous substitutions. We found that the dN/dS values were 0.8–1.2 (on average 0.93), indicating that most mutations were neutrally fixed. Considering the large population sizes and elevated mutation rates in our evolution experiments, these mutations were likely to be fixed in the populations by hitchhiking rather than genetic drift. Using the synonymous substitutions, we calculated the spectrum of UV-induced mutations in our device ( Fig. 5c ). The mutational spectrum obtained in our device was quite similar to that of manual UV irradiation via a conventional germicidal lamp. That is, the spectrum was narrower than that of spontaneous substitutions for wild-type cells but broader than that of spontaneous substitutions for a mutator strain.

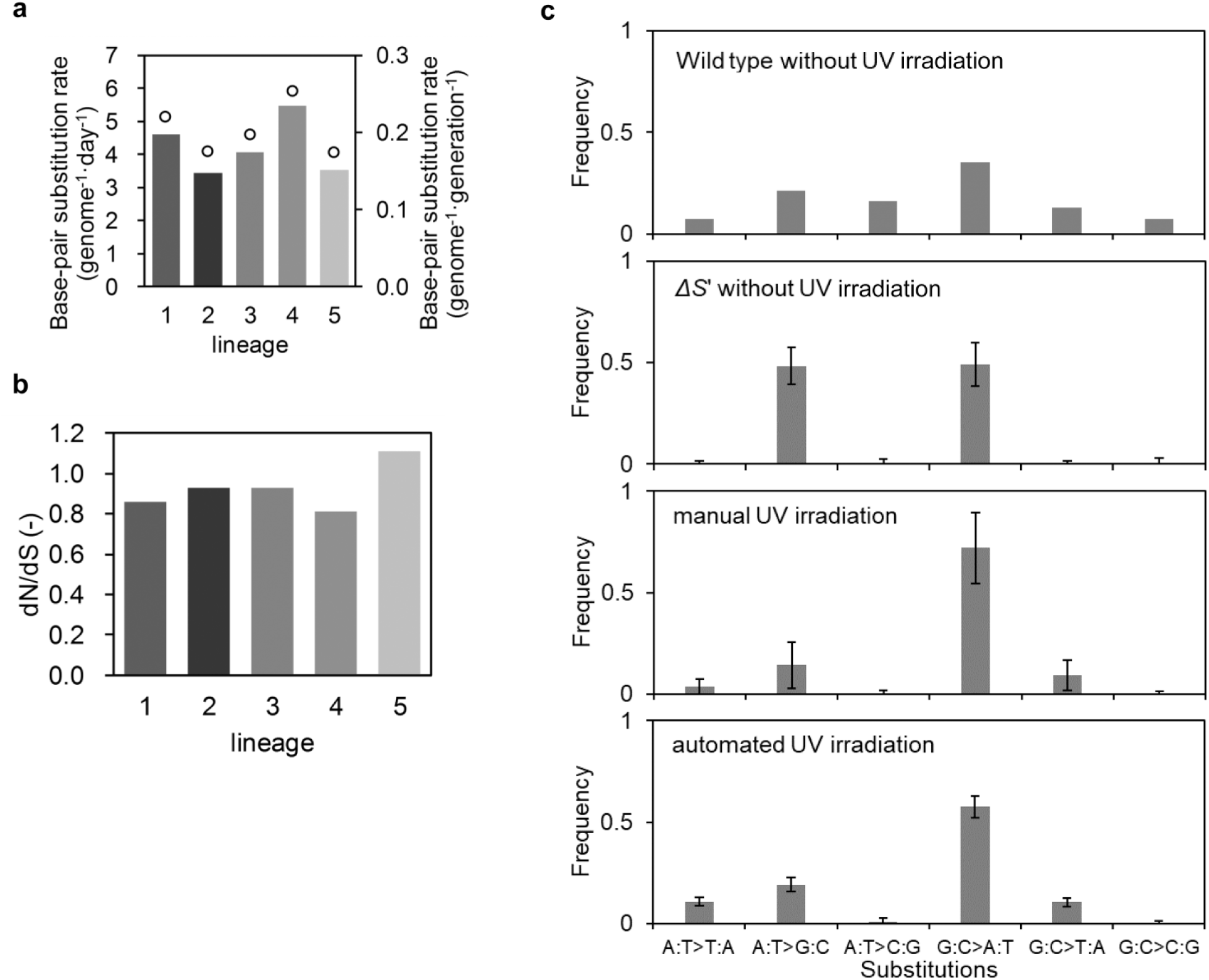

Figure 5.

Accumulated mutations. (a) BPS rate of 5 independent lineages. The rate was normalized by day (bar) or by generation (circle above bar). The number of past generation is estimated from the growth rate of cells without UV irradiation (Suppl. Fig. S2). (b) Neutrality in mutation accumulation. For a and b, each lineage is distinguished with a grayscale that corresponds to Figure 4. The colored versions are available as Supplemental Figure S5. (c) Mutational spectrum. The spectrum in this study (bottom) was calculated by combining all lineages. The spectra for the wild type (top), mutS-defective strain (upper middle; denoted as ΔS′), and experiment with manual UV irradiation (lower middle) were obtained from previous studies.^8–10

Discussion

We constructed an automated UV irradiation device for microbial cell culture. This device can automatically monitor cell density and irradiate UV light to the bacterial cells according to the cell growth state. This growth feedback control enabled us to accumulate mutations at a high rate for a long period while avoiding extinction. The accumulation speed, neutrality, and spectrum of UV-induced mutations were consistent with those obtained by manual UV irradiation. These results indicated that our device is useful to accelerate mutation accumulation over long periods so as to explore genomic evolution in bacterial cells.

Variance in mutation accumulation rate was not particularly different between the lineages (4.8 ± 0.8 per genome per day), even though the UV dose varied greatly ( Fig. 5a ). There was no significant correlation between total UV exposure time and accumulated synonymous BPSs ( Suppl. Fig. S3 ; ρ = 0.43, t = 0.82, df = 3, p = 0.47). In other words, the mutation accumulation speed seems to be insensitive to the differences in UV tolerance. This insensitivity could be derived, at least partly, from growth feedback control for UV irradiation. Enhanced UV tolerance increases the survival fraction of cells after UV irradiation. As a consequence, the time intervals between UV treatments become short. Therefore, such cell populations are exposed to UV irradiation very frequently. Thus, UV irradiation with growth feedback can contribute to counterbalancing the possible reduction in effective exposure of UV light for the cells by increasing the frequency of UV irradiation. In conclusion, our device has potential to sustain mutation accumulation at high mutation rates over the long term.
