Can a Novel Natural Language Processing Model and Artificial Intelligence Automatically Generate Billing Codes From Spine Surgical Operative Notes?

Abstract

Study Design

Retrospective cohort.

Objective

Billing and coding-related administrative tasks are a major source of healthcare expenditure in the United States. We aim to show that a second-iteration Natural Language Processing (NLP) machine learning algorithm, XLNet, can automate the generation of CPT codes from operative notes in ACDF, PCDF, and CDA procedures.

Methods

We collected 922 operative notes from patients who underwent ACDF, PCDF, or CDA from 2015 to 2020 and included CPT codes generated by the billing code department. We trained XLNet, a generalized autoregressive pretraining method, on this dataset and tested its performance by calculating AUROC and AUPRC.

Results

The performance of the model approached human accuracy. Trial 1 (ACDF) achieved an AUROC of .82 (range: .48-.93), an AUPRC of .81 (range: .45-.97), and class-by-class accuracy of 77% (range: 34%-91%); trial 2 (PCDF) achieved an AUROC of .83 (.44-.94), an AUPRC of .70 (.45-.96), and class-by-class accuracy of 71% (42%-93%); trial 3 (ACDF and CDA) achieved an AUROC of .95 (.68-.99), an AUPRC of .91 (.56-.98), and class-by-class accuracy of 87% (63%-99%); trial 4 (ACDF, PCDF, CDA) achieved an AUROC of .95 (.76-.99), an AUPRC of .84 (.49-.99), and class-by-class accuracy of 88% (70%-99%).

Conclusions

We show that the XLNet model can be successfully applied to orthopedic surgeon’s operative notes to generate CPT billing codes. As NLP models as a whole continue to improve, billing can be greatly augmented with artificial intelligence assisted generation of CPT billing codes which will help minimize error and promote standardization in the process.

Introduction

Administrative tasks are a major source of financial and labor burden across healthcare systems in the United States. These are estimated to account for up to 15%-25% of national healthcare expenditure, amounting to nearly $1 trillion dollars annually. ¹ As healthcare costs continue to rise, it will be essential for healthcare institutions to optimize financial resources and reduce wasteful spending. Among healthcare administration, billing and coding related tasks are one of the primary drivers of expenditure. This primarily revolves around the accurate characterization of services, outcomes and reimbursement through Current Procedural Terminology (CPT) codes.

The CPT system was developed by the American Medical Association to provide a standard language and methodology for coding medical procedures to streamline communication across healthcare providers. The six-digit codes are assigned to relay all components of an undertaken surgical intervention; issues can arise when the same procedure has more than one CPT code. For example, a multi-level fusion procedure will have more CPT codes based off of the number of levels fused and what devices or techniques were used.

One technique that may help optimize this process is Natural Language Processing (NLP). NLP is a sub-domain of machine learning focused on the analysis of free-text. The technique has garnered significant interest in clinical medicine owing to the vast quantity of medical documentation, approximately 80% of which is in the form of unstructured text. ² We previously developed a robust machine learning model to generate automated CPT codes in spine surgery to near-human accuracy using random forest and deep learning models. ³ We now present a second iteration using a newer and more powerful model called XLNet, a bidirectional Long Short-Term Memory (LSTM) model that outperformed the previous best model on almost all of the basic NLP tasks, including sentiment analysis and question answering. ⁴ The strength of this model comes from the amount of semantic information it can pull from a piece of text. Our objective is to show that XLNet can successfully automate the generation of CPT codes from operative notes in ACDF, PCDF, and CDA procedures.

Methods

Study Design and Setting

This study is a retrospective cohort study. We used a single natural language processing model (XLNet) to predict CPT codes from billing note data. All ethical regulations and concerns for patients’ privacy were followed during this study. The IRB approved the present study and granted waiver for consent of patient data. The protocol number is AAAS8683.

Participants and Data Sources

922 operative notes were collected from patients who either underwent elective Anterior Cervical Discectomy and Fusion (ACDF) (n = 389), Posterior Cervical Decompression and Fusion (PCDF) (n = 223), combined PCDF and ACDF approach (n = 158), or Cervical Disc Arthroplasty (CDA) (n = 152) from 2015 to 2020 written by three spine surgeons.

CPT codes were generated by the billing code department. This served as our gold standard dataset with which to compare the accuracy of our model. Identifying information was removed and the operative notes and labels (the associated CPT codes) were entered into our dataset.

Model Design and Data Cleaning

Preprocessing in the form of removing stop words, words that have little semantic value such as “and” and “the,” and lemmatization (standardizing variations of the same word by grouping them via replacing plural forms etc.), was performed using the Natural Language Toolkit (NLTK) python package, ⁵ and CPT codes with less than 50 operative notes were removed from the labels.

XLNet is a generalized autoregressive pretraining method that has managed to outperform the previous top performing model, BERT, in most of the basic NLP tasks. It functions by first generating a deep representation of the operative note. A bi-directional Long Short-Term Memory (LSTM) layer is then applied to develop a sense of sequential data within the operative note.

XLNet is pre-trained on a plethora of common NLP corpuses such as Wikipedia and BookCorpus. However, these are incredibly generalized and would perform poorly if used on such specific tasks. As a result, we needed to fine-tune our model on our operative note dataset.

Data was randomized with a train-validation set of 70% and a blinded test set of 30%. A grid search was performed to optimize the hyperparameters. We included batch size (of 8, 16, 32, 48, and 64 notes), learning rate (of 1e-2, 1e-3, 2e-3, 3e-3, 1e-4, and 1e-5), and epochs (of 5, 10, and 15). All trials were run with 5-fold cross validation. We found a batch size of 48, learning rate of 1e-5, and epochs of 10 performed the best.

The base sized XLNet model was fine-tuned on this data and used to generate CPT codes which were compared with our department generated codes.

Statistical Analysis

Our data was analyzed using the XLNet library, NLTK library, Numpy, and Pandas.^4,5 All analyses were performed using Python 3.8.9.

We measured our model’s performance using a receiver-operating characteristic analysis and calculating the area under the receiver-operating curve. The area under the receiver-operating curve tells how much a model is capable of distinguishing between classes. Additionally, in the case where you have a situation with a mix of common CPT codes and uncommon CPT codes, predictive algorithms that maintain good positive predictive value without sacrificing sensitivity are challenging to develop. To evaluate this, areas under the precision-recall curves were generated.

Four trials were performed on our dataset: one with ACDF operative notes only (n = 389), another with PCDF notes only (n = 223), one with ACDF and CDA notes (n = 541), and one with all the operative notes (ACDF only, PCDF only, CDA only, and combined PCDF and ACDF) we collected (n = 922).

Our results were measured using three metrics:

1. Accuracy - This was reported as a percentage from 0-100% for each CPT code included in the trial, as well as an average accuracy. This is simply how often the model was able to correctly predict that a specific CPT code should be assigned to an operative note. This cannot be the only metric used to evaluate a machine learning model, however, since it is limited by the nature of the data itself. For example, in a case where 90% of the data is ACDF operative notes and the other 10% are CDA operative notes, the model can achieve 90% accuracy by incorrectly adding ACDF CPT codes to 100% of the notes.

2. Area Under the Receiver-Operating Curve (AUROC) - This was reported as an averaged score from 0 to 1 across all CPT codes, where a higher score represents a better ability to differentiate between the presence or absence of a CPT code in a given operative note (whereas accuracy simply tells us how good the model is at detecting the presence of a CPT code).

3. Area Under the Precision Recall curve - This was also reported as a score from 0 to 1. A high score here indicates that the model has both good precision and recall. Precision is a representation of quality, measuring how many more relevant predictions were made compared to irrelevant. Recall represents quantity, measuring how many predictions were relevant in total. In this case, a model with high precision will return few CPT codes for a given operative note but most will be correct, whereas a model with high recall will return many CPT codes for a given operative note but many may be incorrect. Therefore, a high scoring model will return many results, and most will be correct.

Heatmap Generation

Data was visualized using an attention heatmap with a darker red color corresponding to greater attention being placed on the word. Attention matrices for specific operative notes were pulled from the model and normalized to generate these figures.

Results

Trial 1 - ACDF Operative Notes Only

389 operative notes were collected of patients who underwent elective ACDF procedures. The overall AUROC score was .82 (range: .48-.93), and the 2-class precision-recall average precision was .81 (range: .45-.97) (Figure 1A). The average class-by-class accuracy was 77% (range: 34%-91%) for the generated CPT codes (Figure 1B). Data was visualized using an attention heatmap with a darker red color corresponding to greater attention being placed on the word (Figure 1C).

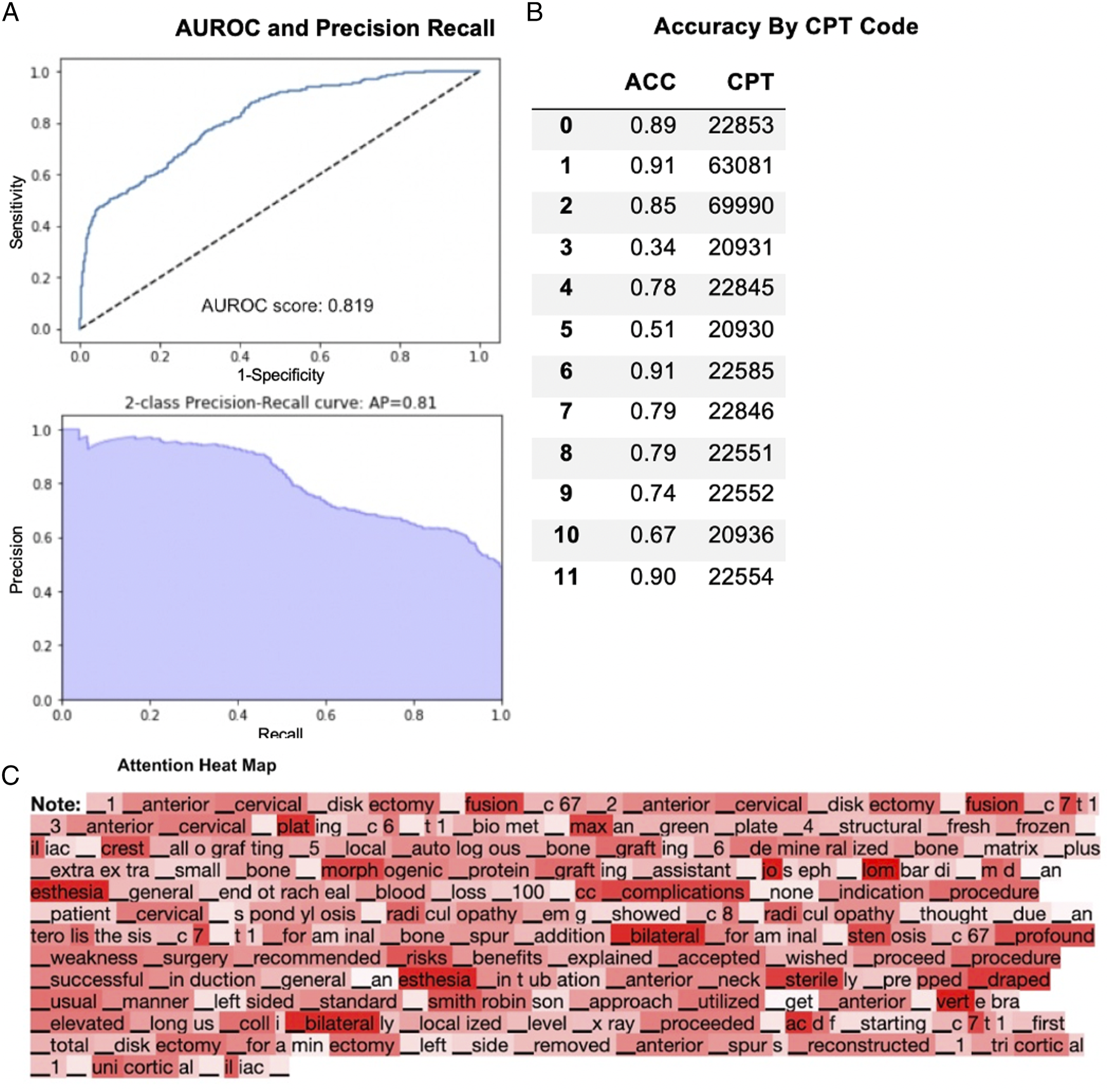

Figure 1.

Performance of fine-tuned XLNet model on ACDF clinical operative notes only. (A) AUROC and precision recall. (B) Accuracy by CPT Code. (C) Attention heat map.

Trial 2 - PCDF Operative Notes Only

223 PCDF operative notes were collected and analyzed. The overall AUROC score was .83 (range: .44-.94), and the 2-class precision-recall average precision was .70 (range: .45-.96) (Figure 2A). The average class-by-class accuracy was 71% (range: 42%-93%) for the generated CPT codes (Figure 2B).

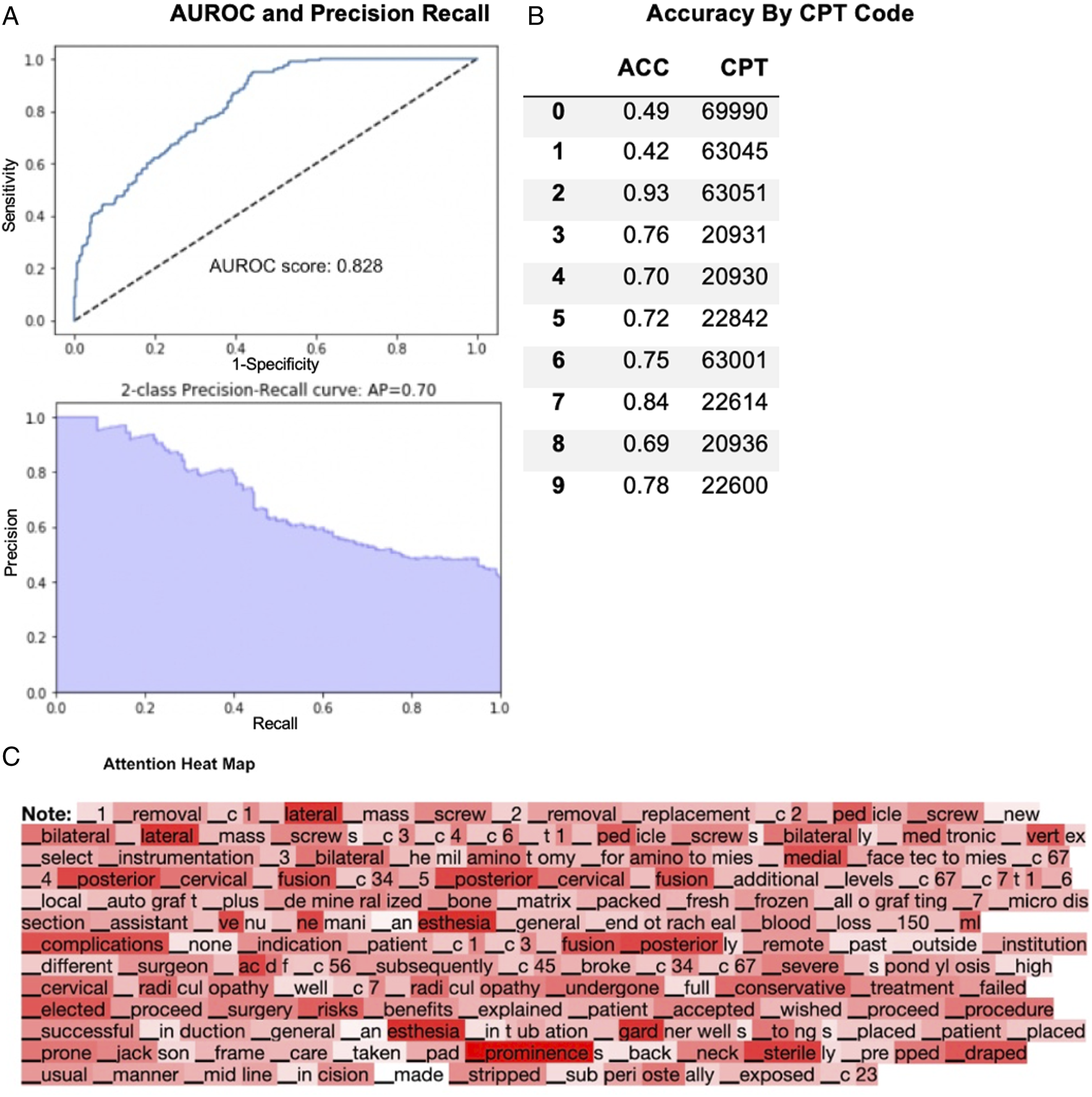

Figure 2.

Performance of fine-tuned XLNet model on PCDF clinical operative notes only. (A) AUROC and precision recall. (B) Accuracy by CPT Code. (C) Attention heat map.

Trial 3 - ACDF and CDA Operative Notes

A total of 541 ACDF and CDA Operative Notes were collected for this trial. The overall AUROC score was .95 (range: .68-.99), and the average area under the 2-class precision-recall curve was .91 (range: .56-.98) (Figure 3A). The average class-by-class accuracy was 87% (range: 63%-99%) for the generated CPT codes (Figure 3B).

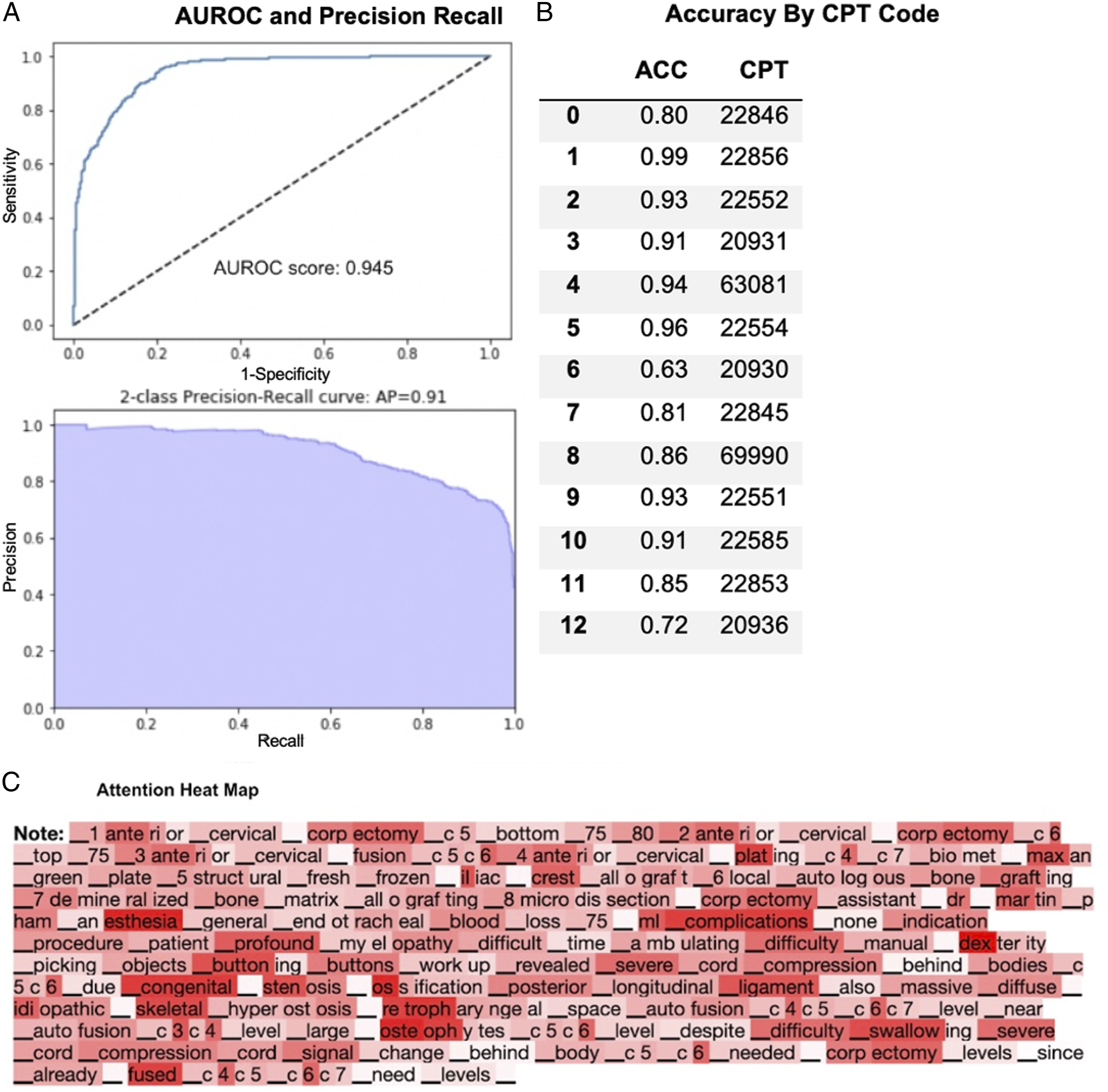

Figure 3.

Performance of fine-tuned XLNet model on ACDF and CDA clinical operative notes only. (A) AUROC and precision recall. (B) Accuracy by CPT Code. (C) Attention heat map.

Trial 4 - All Operative Notes

A total of 922 ACDF, PCDF, and CDA Operative Notes were collected for this trial. The overall AUROC score was .95 (range: .76-.99), and the average area under the 2-class precision-recall curve was .84 (range: .49-.99) (Figure 4A). The average class-by-class accuracy was 88% (range: 70%-99%) for the generated CPT codes (Figures 4B and 5).

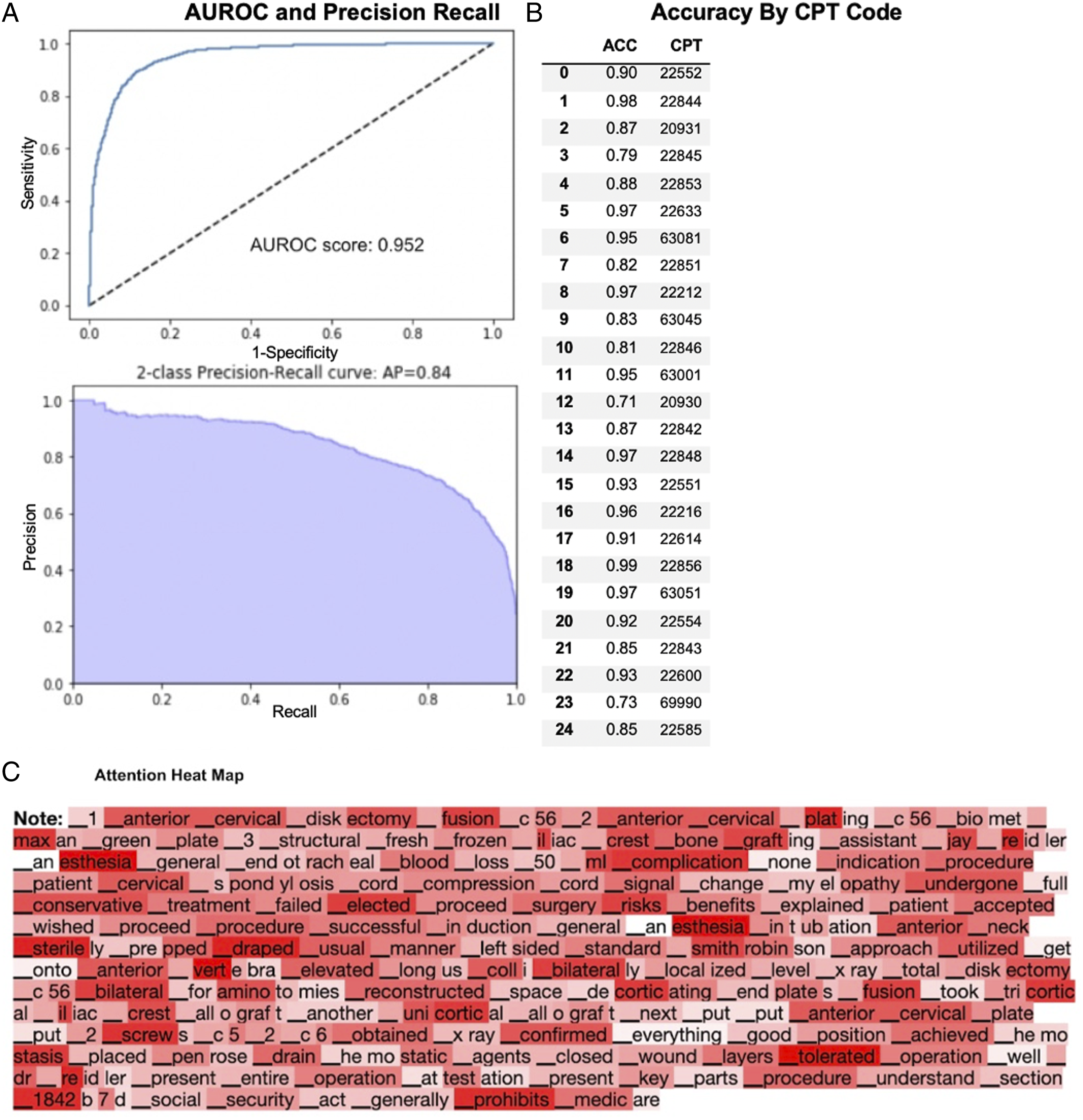

Figure 4.

Performance of fine-tuned XLNet model on ACDF, PCDF, and CDA clinical operative notes only. (A) AUROC and precision recall. (B) Accuracy by CPT Code. (C) Attention heat map.

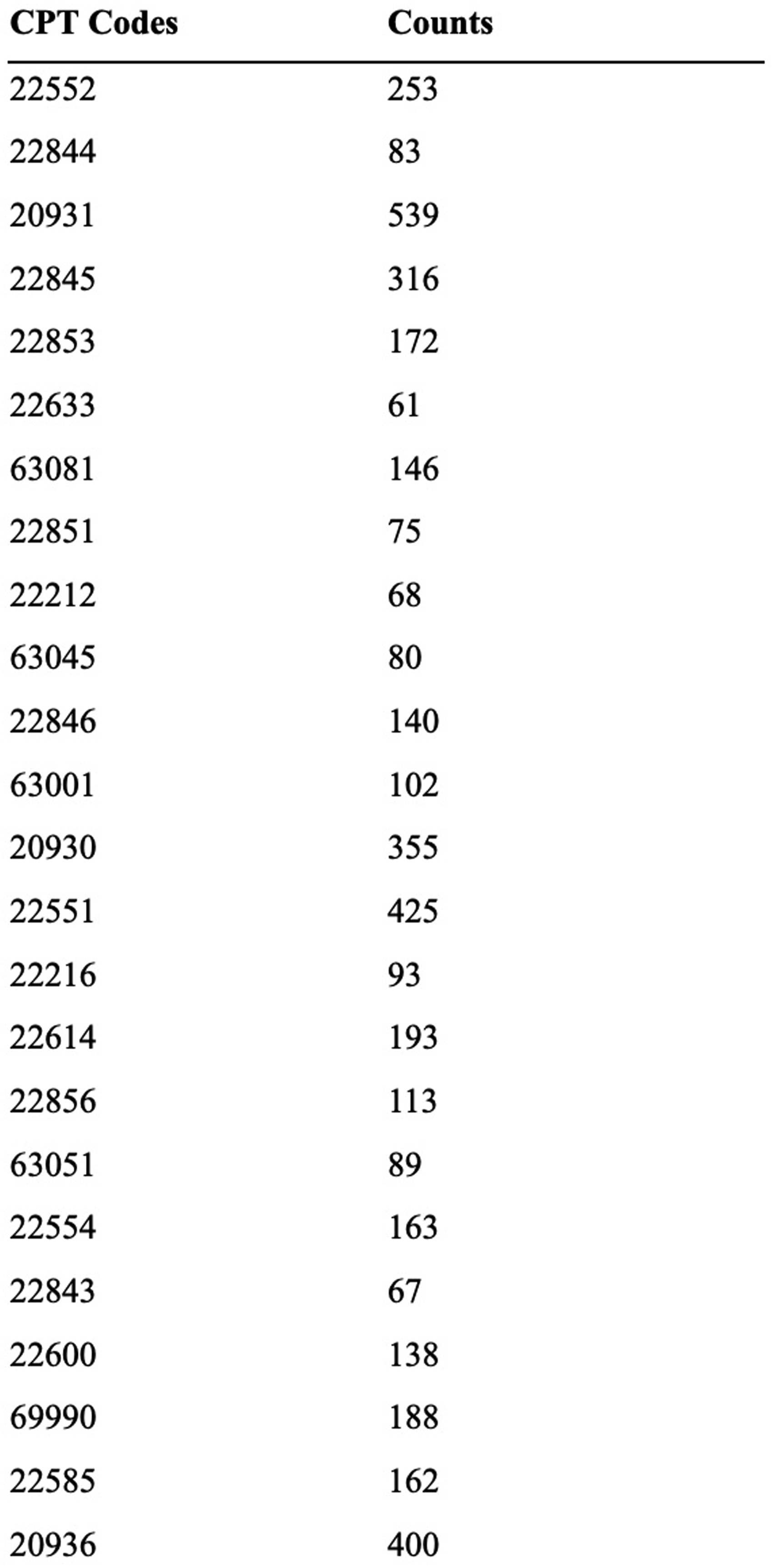

Figure 5.

CPT counts across all operative notes.

Discussion

Summary, Background, Significance

In this study, we developed and validated a machine learning model for the automated generation of CPT codes for not only ACDF, but also PCDF and CDA procedures. This study represents the second iteration of our previous pilot study, which only looked at ACDF CPT codes and used a random forest with a bag of words approach and LSTM model. Key points of improvement include the use of a more recent and advanced algorithm and the inclusion of PCDF and CDA. Overall, the XLNet model demonstrated higher performance and was broadened to include posterior fusion and cervical disc replacement.

Healthcare costs continue to rise annually, placing significant financial strain upon hospitals and provider groups across the United States. Efforts to control costs have seen the rise of value-based reimbursement models, which incentivize efficient resource utilization over volume. It will be imperative for medical institutions to optimize all parts of the healthcare delivery process. Approximately 62% of administrative-related costs are attributable to billing and coding.^6,7 Some estimates suggest that it may consume up to 14% of revenue for a physician group and thus represents a significant portion of overhead costs. ⁸ The cost of these tasks is particularly high in the United States when comparing globally. One study by Morra et al showed that US physicians spent nearly 4 times more in billing and administration related tasks than corresponding Canadian physicians. ⁹ With comparable administrative costs to Canada, the authors estimated an annual savings of $27.6 billion in the United States. ⁹ Automation can lessen the required number of support staff, leading to reduced labor costs. Moreover, automated generation of CPT codes can also help with improving coding accuracy and reduce error rates. Inaccuracies in billing can lead to lost revenue (ie: downcoding) or potentially fraudulent claims (ie: upcoding). According to the Centers of Medicaid and Medicare services (CMS), $95 billion issued payments were related to fraudulent billing in 2016.^10,11 An automated algorithm can serve as a second layer of reinforcement against miscoding.

Research into the application of machine learning for automated code generation is a recent undertaking in the medical field with few studies conducted on the topic. To the authors’ knowledge, ours is the second study demonstrating the use of machine learning for orthopedic surgery CPT code generation through operative notes, and the first to use an advanced NLP model such as XLNet. Two previous studies have applied natural language processing machine learning algorithms to CPT code generation via pathology reports ¹² and electronic health data. ¹³ Levy et al reported high accuracy of CPT generation from pathology reports using the XGBoost and BERT models and 5 primary CPT codes ¹² while Burns et al reported good accuracy of CPT generation from electronic health records using support vector machines and neural network label-embedding attentive models and 285 primary CPT codes. ¹³ We add to this small but growing body of literature by analyzing an alternative source of CPT code generation – surgeon operative notes – and using a novel NLP model – XLNet – with comparable accuracies to the previous studies.

Model Performance

The model performed well in all the trials, but especially in the combined ACDF and CDA and all Operative Notes trials, which had larger datasets and more varied CPT codes. The lower AUROC and area under the precision recall curves seen in Trials 1 and 2 is likely due to the model overfitting the data. Because the data was homogenous, with only one procedure type being presented, it aligned itself too closely to those points. This resulted in a failure to generalize properly. However, in trials 3 and 4, this problem seemed to diminish as we added in not only more data, but also less homogenous data. The greater contextual understanding afforded by models such as XLNet allows it to flourish with tasks such as this.

Words such as “posterior” and “anterior” are given a lot of attention, which makes sense given how important they would be when distinguishing between CPT codes. The cervical vertebra numbers were also given attention as well as the ‘t’ in ‘t1’, likely because the model would use that to decide when to add the CPT codes for each additional level after the first level.

Comparison to Previous Model

Compared to our pilot study, we saw important improvements. The previous long short-term memory (LSTM) model had an AUROC score of .72 and an area under the precision curve of .44. Compared to the performance of the LSTM model for only ACDF operative notes, the XLNet model performed much better across all metrics for all trials. However, when compared to the random forest with bag-of-words approach, the random forest performed better by about .1 with an AUROC score of .94 and area under the precision-recall curve of .85. This is likely due to the problem discussed previously with overfitting, since we achieve better or similar scores when there is more data that is more varied. Moreover, a model such as XLNet utilizes bi-directional LSTM layers, which take into account the context of words around the word of interest, and store it in a sort of memory, which is advantageous when data is heterogenous.

Our results are consistent with or outperform other deep learning models in code generation from clinical notes. ¹⁴ The higher AUROC and area under the precision-recall curve demonstrate that the LSTM model performs better when given a larger dataset. Our use of unstructured operative notes shows that these models can understand and even perform similarly to humans when generating billing codes.

Benefits

XLNet has been lauded as the latest and greatest model for understanding language as it outperforms the previous state-of-the-art model, BERT. ⁴ Already, XLNet has been shown to outperform previous models in predicting prolonged mechanical ventilation. ¹⁵ Unstructured clinical data has great potential compared to current methods of structuring clinical data, since it allows for a more holistic overview without loss of data in the process, such as temporal information. However, the extraction of this unstructured data is costly, whether in the time it takes a physician or billing team to sort through it, or the computation cost involved in training a machine learning model from scratch.

Each physician has their own style of writing notes, so it makes sense that structured methods of understanding operative notes would be a poor approach. This is especially true for billing. Automated generation of billing codes may allow for greater accuracy and faster billing. NLP models, in particular, are helpful in discovering fraud, both in prescription and in detecting protected health information.^16,17

Despite our limited sample size, we still managed to find examples of when the model identified notes that were missing from the ground truth. For example, in the operative note in Figure 6, the model correctly identified the CPT code 20936, which codes for an autograft, that was missed by the billing department.

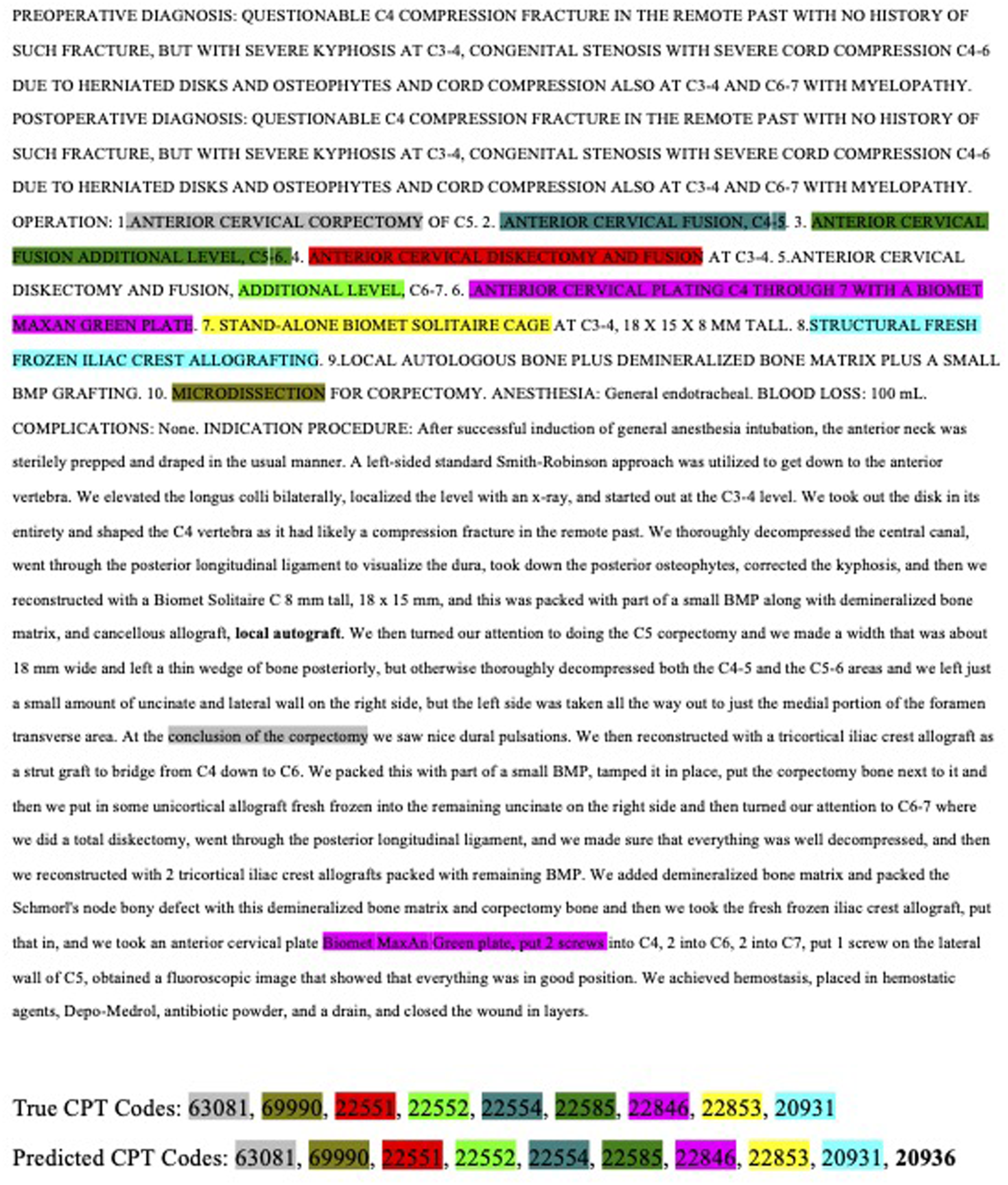

Figure 6.

Sample operative note with predicted output.

Limitations

A major limitation of this study was the size of the dataset. When compared to corpora (large text bodies used to train the XLNet Base Model) such as the Wikipedia corpus, which has millions of entries, our sample size of about 900 operative notes is very limited. This discrepancy is especially seen in the attention heatmaps, as certain phrases or words like “sterile,” that are seemingly irrelevant, are given attention that is likely a vestige of the previous training, since we are only fine-tuning over a few iterations. These words are also more common in terms of everyday usage, so the pretrained model is more familiar with them. Moreover, a more varied dataset gives the model an opportunity to learn and understand the context of words it may have never encountered in the previous corpora. We would likely see even better performance, as more data becomes available. While the source dataset was already small, we additionally limited the CPT codes to account for class imbalance in the dataset, such as having many more common codes, like 22551 for ACDF procedures, compared to those without or with rarer CPT codes, and we excluded codes with less than 50 notes. This may have restricted the model’s ability to differentiate some of the minutiae which can be seen in some of the very low accuracies and AUROC scores for CPT codes that had fewer notes. As such, the model does not incorporate all possible procedure types through the included CPT codes. Moreover, the model only has knowledge of specific pre-selected procedures, and the performance observed here may not hold for other CPT codes not tested.

Another limitation of our dataset is the lack of available surgeons’ coding. While we have demonstrated the ability of XLNet to achieve similar accuracy to human coders with small error margins, it is likely that significant errors exist among the human coders themselves. A true measure of the accuracy of XLNet would compare the generated codes to those of the surgeons and determine how this error rate compares to that of human coders and surgeon codes. While such data was not available to us, our present study still contributes important results for the future of machine generated coding.

Future studies could benefit from increasing the dataset size by increasing the number of operative notes or the variability of included CPT codes and obtaining surgeon codes for accuracy analysis. Further limitations arise from the structure of the XLNet model, which is designed to efficiently ingest unstructured data, but we did not include any structured data. An improved model architecture that could ingest both forms of data would greatly increase the size of the dataset and could improve the performance of the model. Moreover, our dataset may be biased, as it comes from a large academic hospital system and may incur some of the biases involved in such institutions.

Conclusion

Our study of the utility of natural language-processing based machine-learning techniques for automated CPT coding reveal promising results, especially given the limitations in dataset size. The combined ACDF + CDA trial and all operative notes combined trials achieved results nearing that of human accuracy with AUROC and area under the precision-recall curve values of .95 and .91 (trial 3) and .95 and .84 (trial 4), respectively. The success of our early efforts in NLP-ML assisted CPT coding strongly suggests that future work on these methods may lead to further enhancements in the accuracy of the model. These methods have the potential to greatly reduce the human time costs of manual CPT coding.
