Safety of Lumbar Interbody Fusion Procedures for Degenerative Disc Disease: A Systematic Review With Network Meta-Analysis of Prospective Studies

Abstract

Study Design:

A network meta-analysis.

Objectives:

Lumbar degenerative disc disease (LDDD) is an important issue in aging population, for which lumbar interbody fusion (LIF) is a feasible management in cases refractory to conservative therapy. There are various techniques available to perform LIF, including posterior (PLIF), transforaminal (TLIF), and anterior (ALIF) approaches. However, the comparative safety profile of these procedures remains controversial. Our study aimed to evaluate comparative adverse events of the LIF procedures in patients with LDDD.

Methods:

We searched 5 databases for relevant prospective cohort studies and randomized clinical trials. After quality assessments, we extracted neural, spinal, vascular, and wound events for conducting contrast-based network meta-analysis. Results were reported in risk ratio (RR), 95% confidence interval (CI), and surface under the cumulative ranking (SUCRA).

Results:

We identified 14 studies involving 921 participants with LDDD. Pooled result showed that open PLIF (OPLIF) leads to significantly higher overall adverse event rate than does open TLIF (OTLIF; RR = 3.43, 95% CI = 1.21-9.73). OTLIF confers the highest SUCRA in neural (78.7) and spinal (80.8) event rates. Minimally invasive TLIF has the highest SUCRA in vascular event (84.2), and minimally invasive PLIF has the highest SUCRA in wound event (88.1). No inconsistency or publication bias was detected in the results.

Conclusions:

Based on our results, perhaps OPLIF should be avoided in the management of LDDD due to the inferiority of overall complications. Specifically, TLIF seems to have the safest profile in terms of neural, spinal, and vascular events. Nevertheless, shared decision making is still mandatory when choosing the proper LIF procedure for patients with LDDD in clinical practice.

Keywords

lumbar thoracic degenerative disc disease lumbar interbody fusion

Introduction

Lumbar degenerative disc disease (LDDD), which is an important issue in the elderly, is the most common causes of low back pain (LBP) in the global trend of aging population.¹ In clinical practice, LBP is a very common complaint with respect to pain and disability among patients aged 65 or older, who are also the second most common age group to seek medical attention for LBP.^2

-5 For instance, LBP was one of the most commonly reported symptoms among 5201 participants leading to difficulties doing 17 activities on a daily basis.⁶

LDDD is an irreversible and multifactorial process of wear and tear in the lumbar disk architecture and integrity.^7,8 Several factors, including, and not exclusive to, age, genetics, gender, obesity, physical activity, occupations (repetitive lifting or vibration), have been proposed to alter the natural course of disk, leading to the LDDD.^7,8 LDDD is a spectrum of diseases, which may present as disc herniation, spondylosis, spondylolysis, spondylolisthesis, spinal stenosis, facet joint arthropathy, or their combination.⁹

In clinical practice, lumbar interbody fusion (LIF) is not only a popular operation but also a feasible treatment option for patients with LDDD who fail to respond to conservative therapy.¹⁰ The procedures were also implemented to treat other spinal disorders, including spondylolisthesis, scoliosis, severe disc degeneration, trauma, infection, and spinal fractures.^11,12 These procedures can be conducted through several approaches, including anterior lumbar interbody fusion (ALIF), posterior lumbar interbody fusion (PLIF), and transforaminal lumbar interbody fusion (TLIF). Moreover, these LIF procedures can be executed in traditional open and minimally invasive approach (MIS). Although our previous study had delved into the comparative effectiveness of these LIF procedures for LDDD and revealed the superiority of MIS-PLIF in terms of pain relief and function improvement,¹³ the results were insufficient to provide definite guidance for spine surgeons due to inadequate comparison of safety profile among these techniques. Having further knowledge of comparative adverse events among these approaches can help surgeons have better insight into surgical planning and decisions making. Although previous studies have evaluated the safety of different surgical techniques, it still remains controversial owing to limited evidence to support one is better than the other. Therefore, we would like to update evidence for safety among the LIF procedures among patients with LDDD.

Methods

This study is a prospective systematic review with network meta-analysis and was registered on the online platform PROSPERO (CRD42018094237). The methodology and reporting structure of this study follows the Preferred Reporting Items for Systematic Reviews and Meta-Analyses guidelines.

Eligibility Criteria and Evidence Selection

Before we executed this systematic review, we followed previous work to define eligibility criteria for evidence selection and designed the relatively objective method for the selection process.¹³ The eligibility criteria were related to specific population, intervention, and study design. The criteria for population were the patients with only degenerative disc disease. For the criteria of intervention, the treatments should be open TLIF (OTLIF), MIS-TLIF, open PLIF (OPLIF), MIS-PLIF, or ALIF. The criteria for study design were randomized clinical trial (RCT) or prospective cohort study. According to these criteria, 2 authors (KYC and YKK) screened the title and abstract for eligibility. Then, they retrieved the full texts for the further review. A third author (YNK) made a final judgement for disagreement between the 2 authors during the evidence selection process.

Data Source and Search Strategy

After the eligibility criteria and the evidence selection process were defined, we searched the Cochrane library database (including Cochrane Central Register of Controlled Trials), EMBASE, Ovid MEDLINE, PubMed (including MEDLINE), and Web of Science for the prospective studies and RCTs comparing the safety of LIF procedures in patient with LDDD, from inception to February 6, 2020 (Supplementary File 1), encompassing all languages. The comprehensive search involved relevant terms of degenerative disc disease, OTLIF, MIS-TLIF, OPLIF, MIS-PLIF, and ALIF. The synonyms were combined using Boolean operator “OR,” and the different concepts were combined by Boolean operator “AND.” In this study, we further screened relevant reference list for potential evidence.

Data Extraction and Quality Assessment

Two authors (YKK and EYL) independently extracted study information and outcome data. The trial information included publication year, study region, study design, treatments, age, and sex (female rate). The outcomes data was overall adverse event, neural event, spinal event, vascular event, and wound event. All the outcomes were binary data. If original reports used percentage, we converted to events according to sample size.

Two authors (KYC and YKK) also reviewed studies and assessed quality of eligible studies. Following previous synthesis, our quality assessment applied the Cochrane Risk of Bias Tool (RoB) for assessing bias in randomized clinical trials and Risk of Bias in Non-randomized Studies–Interventions (ROBINS-I) tool for nonrandomized prospective studies. We used the RoB to check randomized allocation generation, randomized allocation concealment, blinding of participants and personnel, blinding of outcome assessment, incomplete outcome data, selective report, and other source of bias. To assess nonrandomized prospective studies, we checked representative ness of the exposed cohort, selection of the nonexposed cohort, ascertainment of exposure, demonstration that outcome of interest was not present at start of study, comparability, assessment of outcome, was follow-up long enough for outcomes to occur, and adequacy of follow-up of cohorts according to the NOS. Any discrepancy on quality assessment was resolved by reaching a consensus with the other author (YNK).

Data Synthesis and Analysis

We synthesized quantitative data through contrast-based network meta-analysis in random-effects model. Because our outcomes were dichotomous data, we used events and sample size for pooled analysis in consistency model. Results were reported as risk ratio (RR) with 95% confidence interval (CI). We also applied surface under the cumulative ranking (SUCRA) to clarify risk probability among OTLIF, MIS-TLIF, OPLIF, MIS-PLIF, and ALIF. SUCRA is a numeric and graphical presentation of overall ranking among treatment groups. It transforms cumulative probabilities of each treatment into a single value between 0 and 1, with the higher value referring to the higher probability to be an effective treatment.¹⁴ Furthermore, we made a SUCRA cluster plot of overall adverse event, neural event, spinal event, vascular event, and wound event. We further analyzed the pooled quality by detecting inconsistency and small study bias in consistency model. Detection of inconsistency relied on Lu-Ades’ loop inconsistency test. About detection of small study bias in our network meta-analysis, we used adjusted funnel plot and Egger’s regression intercept. Determination of statistical significance in these analyses followed common threshold (P < .05). We conducted the analyses in STATA version 14 for Microsoft Windows.

Results

We identified 2224 references from the Cochrane library, Embase, Ovid Medline, PubMed, and Web of Science. Moreover, we followed reference lists of relevant syntheses and found one more reference. After title and abstract screening, we excluded duplicates (n = 817) and irrelevant references (n = 1375), and retrieved 32 full texts for further review. Finally, 7 randomized clinical trials and 7 prospective cohort studies met our eligibility criteria, and we included all of them in our synthesis. Figure 1 shows evidence selection flowchart.

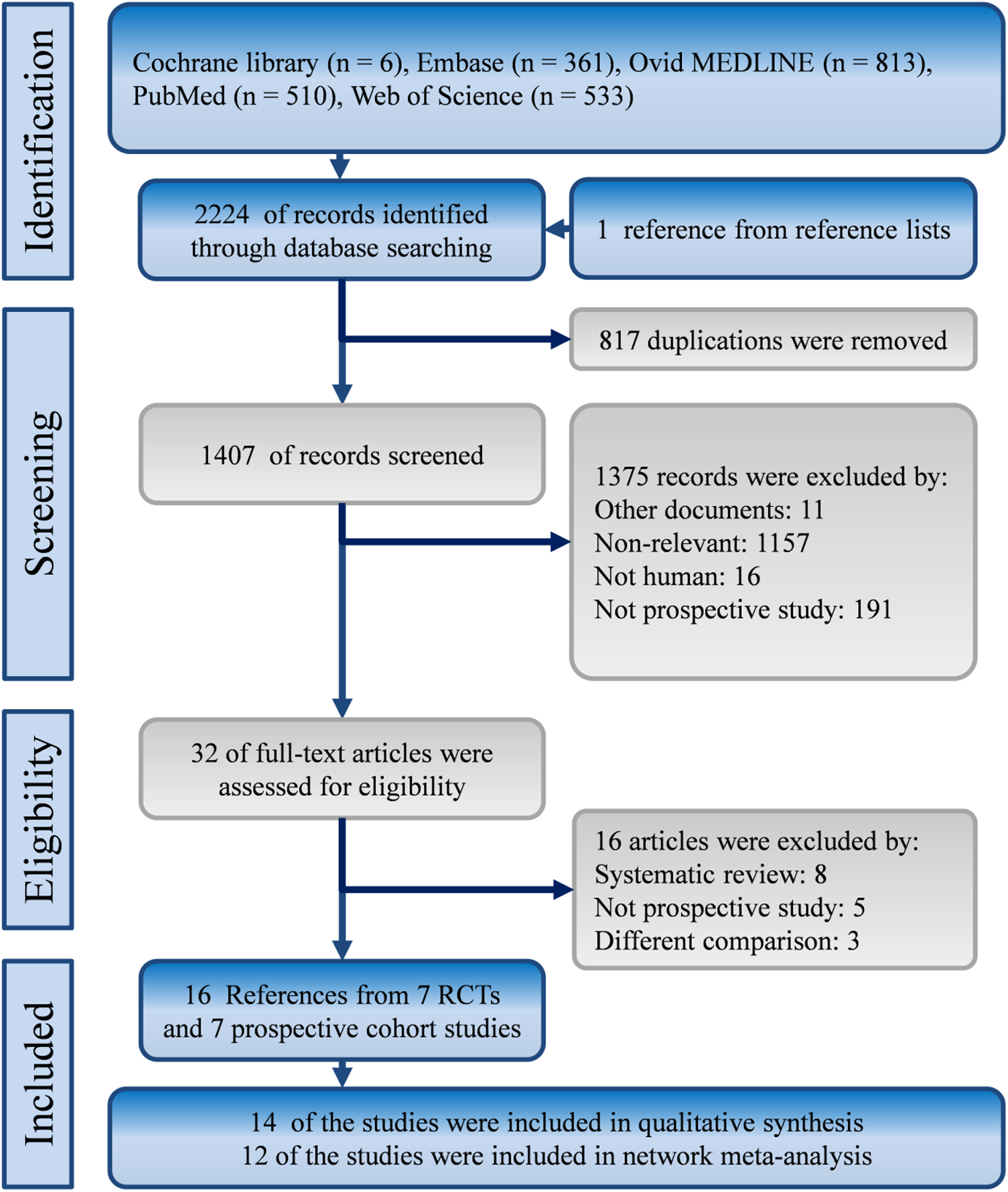

Figure 1.

Flowchart of this systematic review with network meta-analysis of prospective studies. RCTs, randomized clinical trials.

Characteristics and Quality of Included Studies

Our study involves 14 studies: 7 randomized clinical trials and 7 prospective cohort studies from America (n = 3),^15
-17 Asia (n = 7),^18

-24 and Europe (n = 4).^25

-28 These studies recruited 921 patients with LDDD in OTLIF (n = 176), MIS-TLIF (n = 298), OPLIF (n = 122), MIS-PLIF (n = 60), and ALIF (n = 55) during the period from 1996 to 2014. Nearly half of cases were females (n = 437; 47.45%). Available information showed mean age in each study was from 33.62 years to 67.5 years. Relevant information is presented in Table 1, and quality of the included studies is shown in Supplementary File 2.

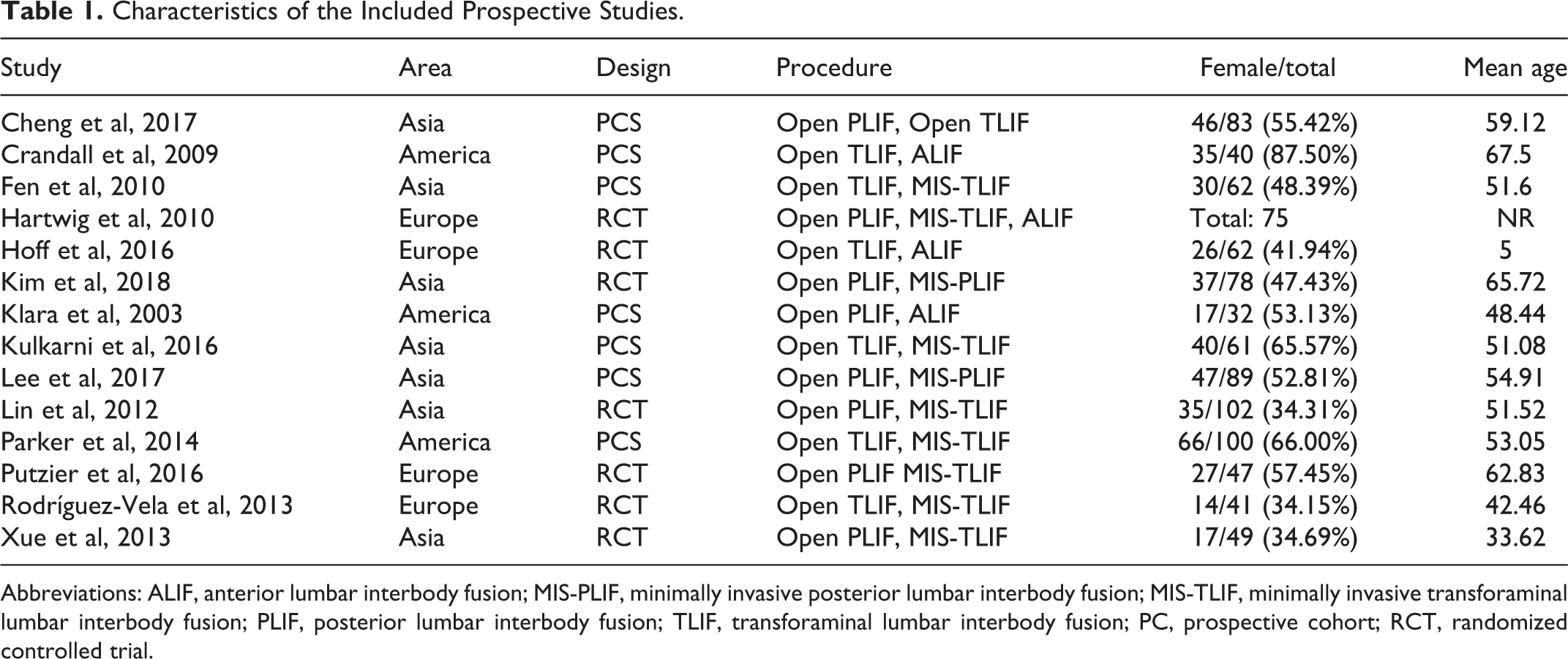

Table 1.

Characteristics of the Included Prospective Studies.

Study	Area	Design	Procedure	Female/total	Mean age
Cheng et al, 2017	Asia	PCS	Open PLIF, Open TLIF	46/83 (55.42%)	59.12
Crandall et al, 2009	America	PCS	Open TLIF, ALIF	35/40 (87.50%)	67.5
Fen et al, 2010	Asia	PCS	Open TLIF, MIS-TLIF	30/62 (48.39%)	51.6
Hartwig et al, 2010	Europe	RCT	Open PLIF, MIS-TLIF, ALIF	Total: 75	NR
Hoff et al, 2016	Europe	RCT	Open TLIF, ALIF	26/62 (41.94%)	5
Kim et al, 2018	Asia	RCT	Open PLIF, MIS-PLIF	37/78 (47.43%)	65.72
Klara et al, 2003	America	PCS	Open PLIF, ALIF	17/32 (53.13%)	48.44
Kulkarni et al, 2016	Asia	PCS	Open TLIF, MIS-TLIF	40/61 (65.57%)	51.08
Lee et al, 2017	Asia	PCS	Open PLIF, MIS-PLIF	47/89 (52.81%)	54.91
Lin et al, 2012	Asia	RCT	Open PLIF, MIS-TLIF	35/102 (34.31%)	51.52
Parker et al, 2014	America	PCS	Open TLIF, MIS-TLIF	66/100 (66.00%)	53.05
Putzier et al, 2016	Europe	RCT	Open PLIF MIS-TLIF	27/47 (57.45%)	62.83
Rodríguez-Vela et al, 2013	Europe	RCT	Open TLIF, MIS-TLIF	14/41 (34.15%)	42.46
Xue et al, 2013	Asia	RCT	Open PLIF, MIS-TLIF	17/49 (34.69%)	33.62

Abbreviations: ALIF, anterior lumbar interbody fusion; MIS-PLIF, minimally invasive posterior lumbar interbody fusion; MIS-TLIF, minimally invasive transforaminal lumbar interbody fusion; PLIF, posterior lumbar interbody fusion; TLIF, transforaminal lumbar interbody fusion; PC, prospective cohort; RCT, randomized controlled trial.

Overall Adverse Event

A total of 12 studies contributed to network meta-analysis of overall adverse event (Figure 2; Supplementary File 3).^{15

-23,26
-28} Pooled estimate showed that with OTLIF as the reference, there was no significant difference in overall adverse event rate compared to ALIF (RR 1.78, 95% CI 0.73 to 4.34), MIS-TLIF (RR 1.37, 95% CI 0.64 to 2.94), and MIS-PLIF (RR 1.57, 95% CI 0.27 to 9.00). Notably, OPLIF leads to significantly higher adverse event rate than OTLIF (RR 3.43, 95% CI 1.21 to 9.73). In SUCRA, OTLIF had the highest value of safety (mean rank = 1.6; SUCRA = 84.4) followed by MIS-TLIF (mean rank = 2.6; SUCRA = 59.5), MIS-PLIF (mean rank = 2.9; SUCRA = 53.4), ALIF (mean rank = 3.3; SUCRA = 43.5), and OPLIF (mean rank = 4.6; SUCRA = 9.1; Supplementary File 4). Loop inconsistency test did not show inconsistency in the network model of overall adverse event (χ² = 1.64; P = .44; Supplementary File 5), and no evidence demonstrated small study effects in the pooled estimate of overall adverse event (t = −0.27, 95% CI −1.22 to 0.95; Supplementary File 6).

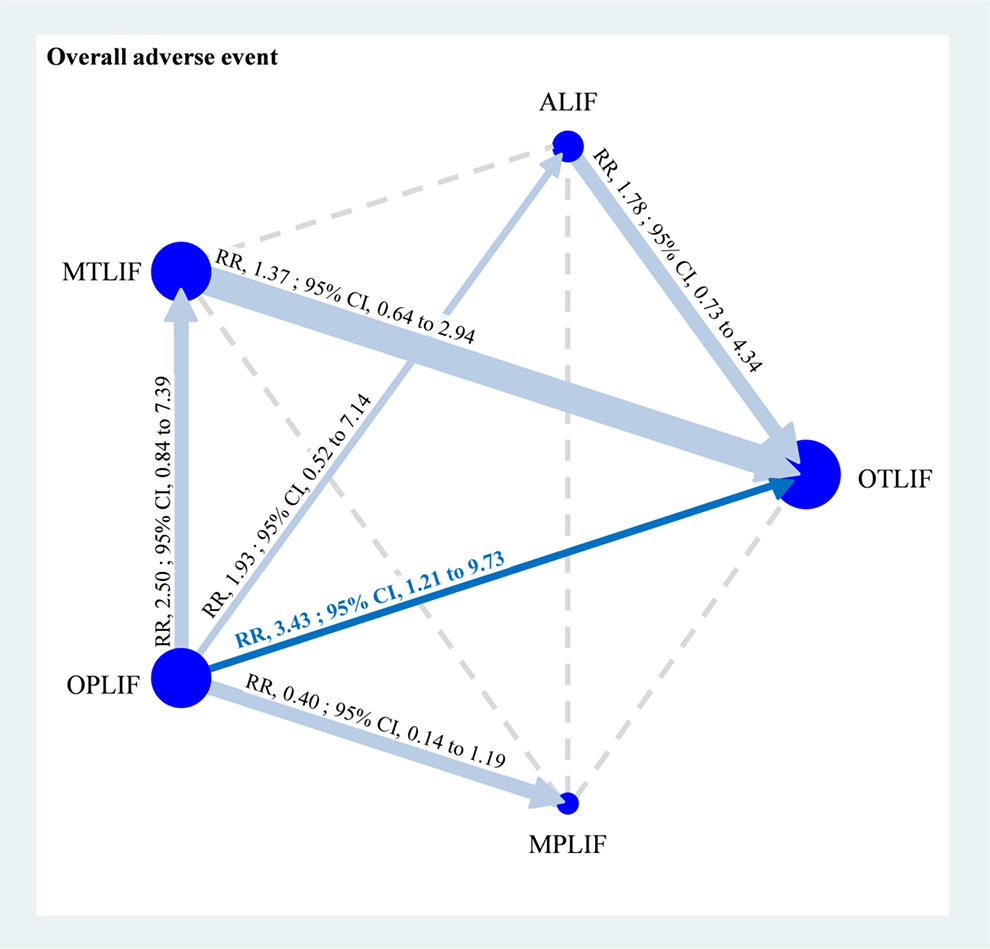

Figure 2.

Network geometry of consistency model of overall adverse event. ALIF, anterior lumbar interbody fusion; CI, confidence interval; MIS-PLIF, minimally invasive posterior lumbar interbody fusion; MIS-TLIF, minimally invasive transforaminal lumbar interbody fusion; OPLIF, open posterior lumbar interbody fusion; OTLIF, open transforaminal lumbar interbody fusion; RR, risk ratio.

Neural Event

Seven of the included studies reported data on neural event among the 5 LIF procedures (Figure 3A).^{15,16,18,20,21,26,29} Pooled result of neural event rate indicated that no significant difference was noted among the comparisons of OTLIF, ALIF, MIS-TLIF, OPLIF, and MIS-PLIF though ALIF (RR 2.09, 95% CI 0.34 to 13.00), MIS-TLIF (RR 3.51, 95% CI 0.18 to 70.19), OPLIF (RR 3.10, 95% CI 0.28 to 34.57), and MIS-PLIF (RR 2.87, 95% CI 0.14 to 58.71) seemed to have higher neural event rate than does OTLIF (Table 2). Similar trend could be observed in SUCRA. OTLIF had the highest SUCRA value and mean rank of safety (mean rank = 1.9; SUCRA = 78.7), but mean ranks of the other 4 LIF procedures were very close to each other (Figure 4; Supplementary File 7). About quality of this pooled estimate, loop inconsistency test showed no significant difference in the network meta-analysis of neural event rate (χ² = 0.00; P = .97; Supplementary File 8), and Egger’s test demonstrated no significant small study effects in the pooled estimate of neural event rate (t = −0.75, 95% CI −4.33 to 2.37; Supplementary File 9).

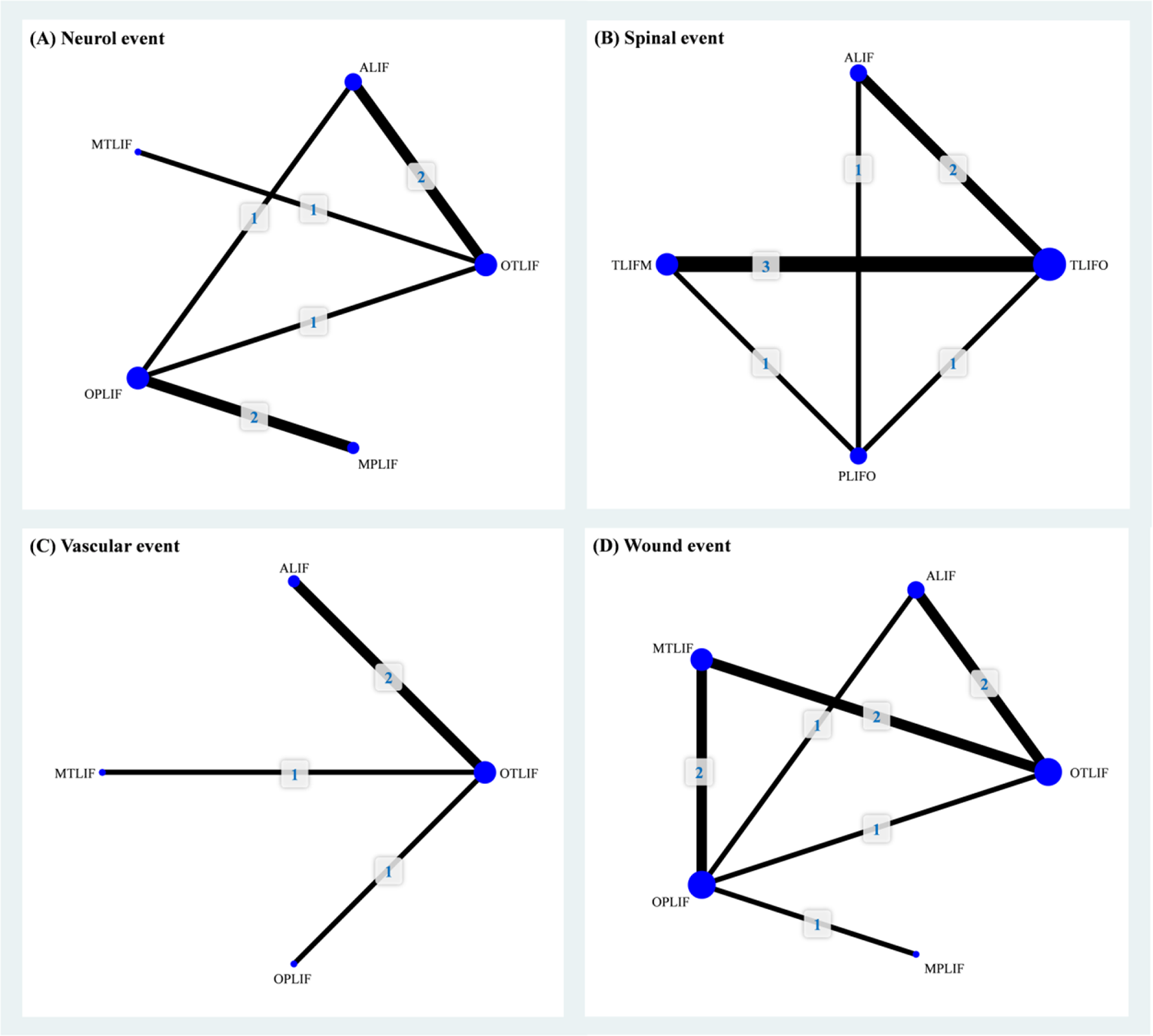

Figure 3.

Network geometry of consistency model of (A) neural event, (B) spinal event, (C) vascular event, and (D) wound event. ALIF, anterior lumbar interbody fusion; MIS-PLIF, minimally invasive posterior lumbar interbody fusion; MIS-TLIF, minimally invasive transforaminal lumbar interbody fusion; OPLIF, open posterior lumbar interbody fusion; OTLIF, open transforaminal lumbar interbody fusion.

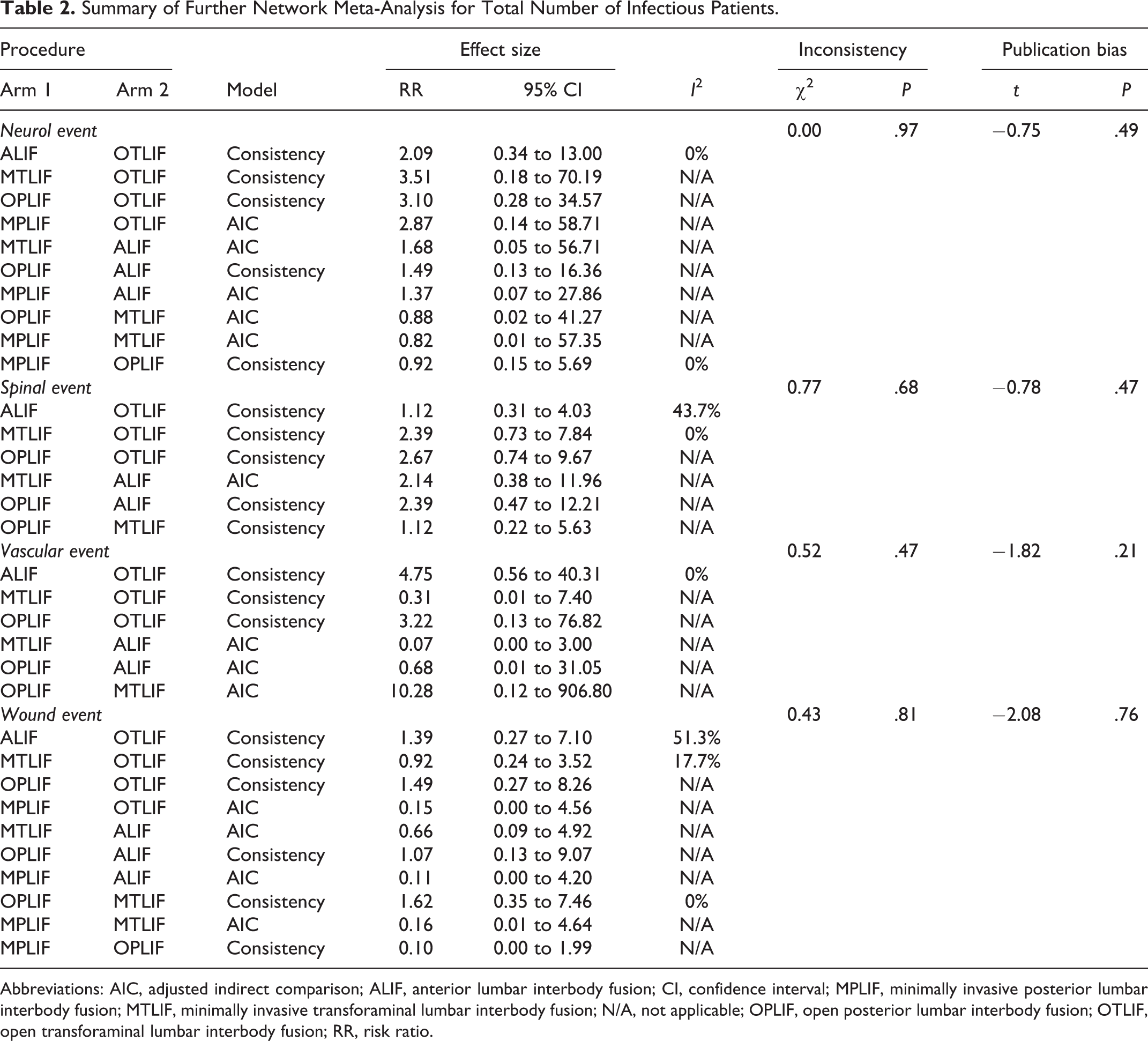

Table 2.

Summary of Further Network Meta-Analysis for Total Number of Infectious Patients.

Procedure		Model	Effect size		I ²	Inconsistency		Publication bias
Arm 1	Arm 2	Model	RR	95% CI	I ²	χ²	P	t	P
Neurol event						0.00	.97	−0.75	.49
ALIF	OTLIF	Consistency	2.09	0.34 to 13.00	0%
MTLIF	OTLIF	Consistency	3.51	0.18 to 70.19	N/A
OPLIF	OTLIF	Consistency	3.10	0.28 to 34.57	N/A
MPLIF	OTLIF	AIC	2.87	0.14 to 58.71	N/A
MTLIF	ALIF	AIC	1.68	0.05 to 56.71	N/A
OPLIF	ALIF	Consistency	1.49	0.13 to 16.36	N/A
MPLIF	ALIF	AIC	1.37	0.07 to 27.86	N/A
OPLIF	MTLIF	AIC	0.88	0.02 to 41.27	N/A
MPLIF	MTLIF	AIC	0.82	0.01 to 57.35	N/A
MPLIF	OPLIF	Consistency	0.92	0.15 to 5.69	0%
Spinal event						0.77	.68	−0.78	.47
ALIF	OTLIF	Consistency	1.12	0.31 to 4.03	43.7%
MTLIF	OTLIF	Consistency	2.39	0.73 to 7.84	0%
OPLIF	OTLIF	Consistency	2.67	0.74 to 9.67	N/A
MTLIF	ALIF	AIC	2.14	0.38 to 11.96	N/A
OPLIF	ALIF	Consistency	2.39	0.47 to 12.21	N/A
OPLIF	MTLIF	Consistency	1.12	0.22 to 5.63	N/A
Vascular event						0.52	.47	−1.82	.21
ALIF	OTLIF	Consistency	4.75	0.56 to 40.31	0%
MTLIF	OTLIF	Consistency	0.31	0.01 to 7.40	N/A
OPLIF	OTLIF	Consistency	3.22	0.13 to 76.82	N/A
MTLIF	ALIF	AIC	0.07	0.00 to 3.00	N/A
OPLIF	ALIF	AIC	0.68	0.01 to 31.05	N/A
OPLIF	MTLIF	AIC	10.28	0.12 to 906.80	N/A
Wound event						0.43	.81	−2.08	.76
ALIF	OTLIF	Consistency	1.39	0.27 to 7.10	51.3%
MTLIF	OTLIF	Consistency	0.92	0.24 to 3.52	17.7%
OPLIF	OTLIF	Consistency	1.49	0.27 to 8.26	N/A
MPLIF	OTLIF	AIC	0.15	0.00 to 4.56	N/A
MTLIF	ALIF	AIC	0.66	0.09 to 4.92	N/A
OPLIF	ALIF	Consistency	1.07	0.13 to 9.07	N/A
MPLIF	ALIF	AIC	0.11	0.00 to 4.20	N/A
OPLIF	MTLIF	Consistency	1.62	0.35 to 7.46	0%
MPLIF	MTLIF	AIC	0.16	0.01 to 4.64	N/A
MPLIF	OPLIF	Consistency	0.10	0.00 to 1.99	N/A

Abbreviations: AIC, adjusted indirect comparison; ALIF, anterior lumbar interbody fusion; CI, confidence interval; MPLIF, minimally invasive posterior lumbar interbody fusion; MTLIF, minimally invasive transforaminal lumbar interbody fusion; N/A, not applicable; OPLIF, open posterior lumbar interbody fusion; OTLIF, open transforaminal lumbar interbody fusion; RR, risk ratio.

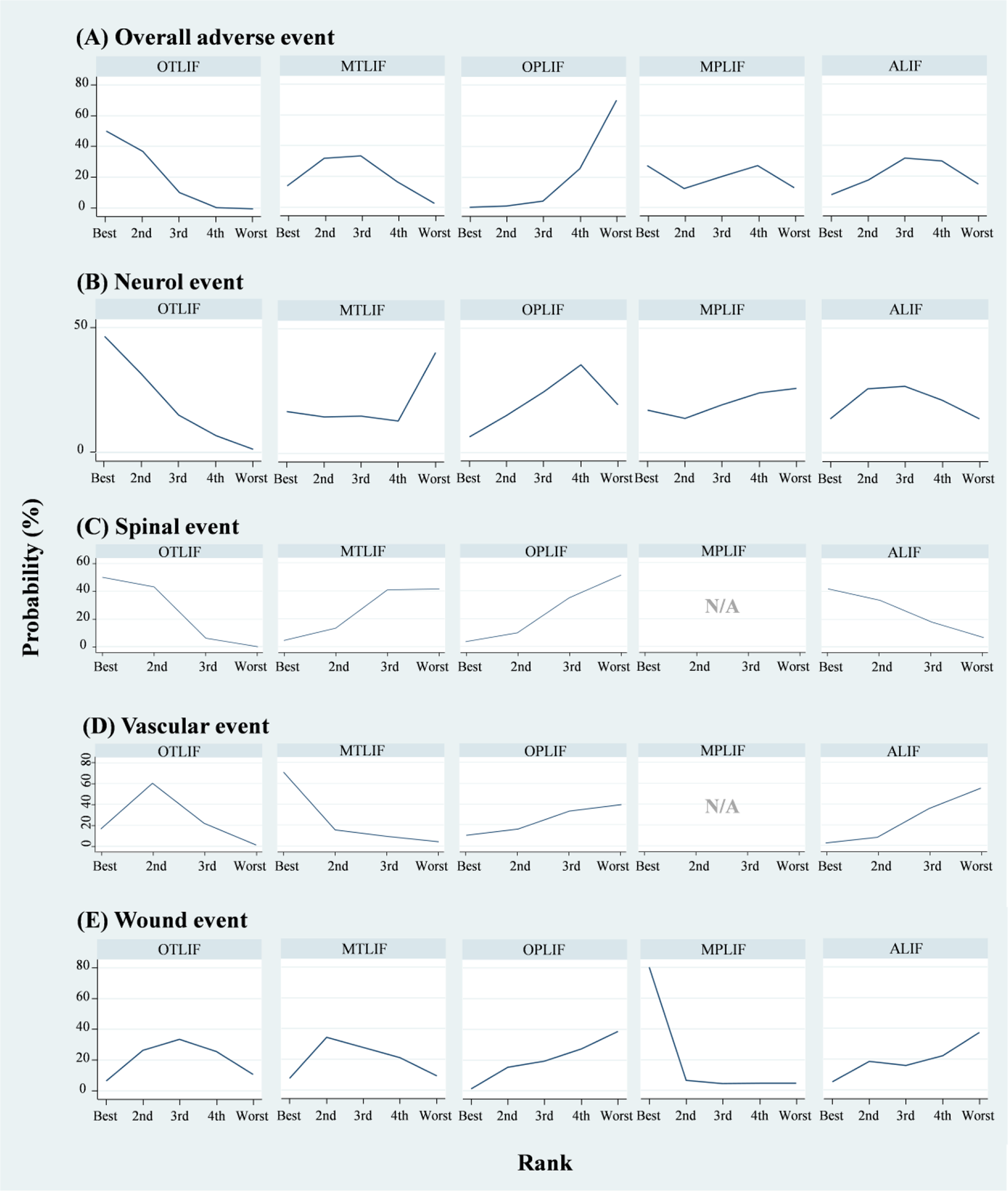

Figure 4.

Ranking probability of (A) overall adverse event, (B) neural event, (C) spinal event, (D) vascular event, and (E) wound event. ALIF, anterior lumbar interbody fusion; MIS-PLIF, minimally invasive posterior lumbar interbody fusion; MIS-TLIF, minimally invasive transforaminal lumbar interbody fusion; OPLIF, open posterior lumbar interbody fusion; OTLIF, open transforaminal lumbar interbody fusion.

Spinal Event

There were 8 studies reported data on spinal event from 4 LIF procedures (OTLIF, ALIF, MIS-TLIF, and OPLIF).^{15

-19,23,26,28} Network meta-analysis showed that the difference in spinal events was little among OTLIF, ALIF, MIS-TLIF, and OPLIF (Figure 3B). However, ALIF (RR 1.12, 95% CI 0.31 to 4.03), MIS-TLIF (RR 2.39, 95% CI 0.73 to 7.84), and OPLIF (RR 2.67, 95% CI 0.74 to 9.67) had higher point estimates when they were compared with OTLIF (Table 2). SUCRA provided similar trend. OTLIF had the highest SUCRA value and mean rank of safety (mean rank = 1.6; SUCRA = 80.8) followed by ALIF (mean rank = 1.9; SUCRA = 69.9), MIS-TLIF (mean rank = 3.2; SUCRA = 27.2), and OPLIF (mean rank = 3.3; SUCRA = 22.1; Supplementary File 10). Loop inconsistency test did not detect significant inconsistency in the network meta-analysis of spinal event rate (χ² = 0.77; P = .68; Supplementary File 11), and Egger’s test detected no significant small study effects in the pooled estimate of spinal event rate (t = −0.78, 95% CI −2.36 to 1.23; Supplementary File 12).

Vascular Event

A total of 4 studies presented available data on vascular event in OTLIF, ALIF, MIS-TLIF, and OPLIF.^15,18,19,26 Pooled estimate demonstrated no significant finding of vascular event rate among OTLIF, ALIF, MIS-TLIF, and OPLIF (Figure 3C; Table 2). Yet MIS-TLIF seems to cause lower vascular event rate than OTLIF (RR 0.31, 95% CI 0.01 to 7.40), ALIF (RR 0.07, 95% CI 0.00 to 3.00), and OPLIF (RR 0.10, 95% CI 0.00 to 8.58). In SUCRA, MIS-TLIF had the highest SUCRA value and mean rank of safety (mean rank = 1.5; SUCRA = 84.2) followed by OTLIF (mean rank = 2.1; SUCRA = 64), OPLIF (mean rank = 3.0; SUCRA = 32.5), and ALIF (mean rank = 3.4; SUCRA = 19.4; Supplementary File 13). No significant inconsistency was detected by loop inconsistency test in the network meta-analysis of vascular event rate (χ² = 0.52; P = .74; Supplementary File 14), and no significant small study effects was detected by Egger’s test in the pooled estimate of vascular event rate (t = −1.89, 95% CI −13.29 to 5.40; Supplementary File 15).

Wound Event

There were 9 studies that reported data on wound event among OTLIF, ALIF, MIS-TLIF, OPLIF, and MIS-PLIF (Figure 3D).^{15

-19,22,23,26,27} Pooled result showed that no significant difference in wound event rate among the 5 LIF procedures though MIS-PLIF seems to result in lower wound event rate than OTLIF (RR 0.15, 95% CI 0.00 to 4.65), ALIF (RR 0.11, 95% CI 0.00 to 4.20), MIS-TLIF (RR 0.16, 95% CI 0.01 to 4.64), and OPLIF (RR 0.10, 95% CI 0.00 to 1.99; Table 2). Similar trend could be observed in SUCRA. MIS-PLIF had the highest SUCRA value and mean rank of safety (mean rank = 1.5; SUCRA = 88.1), but mean ranks of the other 4 LIF procedures were very close to each other (Figure 4; Supplementary File 16). Loop inconsistency test showed no significant result in the network meta-analysis of wound event rate (χ² = 0.43; P = .81; Supplementary File 17), and Egger’s test demonstrated no significant small study effects in the pooled estimate of neural event rate (t = −2.08, 95% CI −3.49 to 0.22; Supplementary File 18).

Discussion

Key Findings

To examine the comparative safety profile of MIS-TLIF, MIS-PLIF, OTLIF, OPLIF, and ALIF in patients with LDDD, we successfully synthesized 7 prospective cohort studies and 7 randomized clinical trials involving 921 participants to compare safety of the 5 LIF procedures for LDDD. The main finding of the present network meta-analysis is that OTLIF demonstrated the lowest rates of overall complications (including neurological, spinal, vascular, and wound events), comparted to other LIF procedures (Figure 2).

According to our network meta-analysis, the complications rate of OPLIF is significantly higher than that of OTLIF (RR 4.06; 95% CI 1.25 to 13.18). In addition, compared to MIS-TLIF, MIS-PLIF, and ALIF, OPLIF still demonstrates higher tendency of complications in spite of statistical insignificance. It came as no surprise because OPLIF had been reported to bear many complications, inclusive of nerve root injury, dural tear, and epidural adhesions,^30,31 which are compatible with the fact that OPLIF also serves the highest rate of neurological events, including foot-drop, affections of left sympathetic plexus, and of spinal events in our further analysis. Because there is fewer retraction of the dura in TLIF technique from its lateral approach to the vertebral foramen, TLIF approach causes the least neurological events. Our meta-analysis and previous studies constantly support the theory.^32,33

For the vascular events, including nonfatal pulmonary embolus, stroke, deep vein thrombosis, injury of the iliac vein, and postoperative hematoma, MIS-TLIF has the least chance to cause the complications compared to OPLIF; although it is not statistically different, such high RR of 10.28 deserves attention from clinical practitioners. Interestingly, this finding is consistent with our previous study showing that the operative time of MIS-TLIF is significantly longer than OPLIF (57.48 minutes; 95% CI 4.18 to 110.79), which reflects the fact that longer operation is directly related to an increased risk of thromboembolism.³⁴ Moreover, ALIF is notorious for its vascular events due to its retroperitoneal approach to access the anterior spine with high probability to result in visceral and vascular injury,^35
-37 and it explains our finding that ALIF is the poorest approach with regard to vascular events.

In terms of wound events, defined as prolonged wound secretion, fat liquefaction of postsurgical incision, superficial and deep wound infection, MIS-PLIF contributes to better outcomes, followed by OTLIF, MIS-TLIF, ALIF, and OPLIF, though there is no statistically significant distinction among the comparisons. There is no astonishment that OPLIF has the greatest wound events owing to its approach involving dissection of the paraspinal muscle for the access to the posterior column of the vertebral body,^12,38 which may prolong the wound recovery for its iatrogenic injury. On the other hand, both TLIF and ALIF diminish direct dissection of paraspinal muscles with its unilateral and anterior access, respectively.³⁶ However, our results present a bizarre phenomenon that OTLIF has lower wound events than MIS-TLIF does and it could probably be attributed to relatively lower proficiency and experience of minimal invasive approach by surgeons compared to open approach since the OTLIF was first introduced in 1982 by Harms and Jeszenszky,^39,40 which is way more earlier than MIS-TLIF was. For the same reason, PLIF is a traditional approach first described by doctor Cloward in 1953,⁴¹ and most spinal surgeons are well trained and much more familiar with this procedure, which could probably explain why MIS-PLIF has the best result. Nevertheless, we believe that as time goes by, with the increased volume of minimal invasive approach, MIS-TLIF will further decrease the wound events and may have the chance to surpass the OTLIF and MIS-PLIF.

Comparison With Previous Syntheses

This is the first network meta-analysis on comparative safety profile of PLIF, TLIF, and ALIF in patients with LDDD, yet our evidence is not the first synthesis in this field. Although some syntheses also investigated safety of LIF procedures before our study,^32,33,42
-44 few of them focused on LDDD.³² Pooling data from various populations usually leads to inappropriate estimate. For instance, one of them identified 29 studies for comparing efficacy and safety among ALIF, PLIF, TLIF, and lateral LIF,⁴⁴ and it concluded that complication rates were similar between each 2 LIF procedures. However, the conclusion was based on highly heterogeneous results, and, for instance, I² in pooled complication rate between ALIF and PLIF reached 83.3%. This may be associated with the fact that the synthesis did not separate MIS surgery from open surgery and they involved diverse demographics of patients with not only LDDD but also with post discectomy syndrome, spondylosis, stenosis, and spinal deformity. Furthermore, they only pooled data from the four LIF procedures in head-to-head meta-analysis.

Another synthesis appropriately specified population and comparators.³² It focused on the efficacy and safety of PLIF and TLIF on LDDD. Moreover, the meta-analysis clarified complications including nerve injury, wound infection, and graft malposition. Its conclusion mentioned that TLIF was superior to PLIF with lower incidence of complication (nerve root injury and dural tear). Unfortunately, the pooled result of overall complication was heterogeneous (I² = 40%; P = .05). As in the meta-analysis of 2017 we mentioned above, this synthesis also simply pooled data without considering MIS and open surgery. In addition, the study admitted that its evidence may be limited because of data source. Using retrospective observational studies in meta-analysis possibly lead to imprecise estimate. Taken together, we designed our study to overcome potential bias from diverse population, mixed interventions (MIS and open surgery), and inadequate analysis. Our systematic review specified population with LDDD and clarified MIS surgery from open surgery. Then, our team member constructed 5-arm (ALIF, OTLIF, MIS-TLIF, OPLIF, and MIS-PLIF) consistency model for providing an overview of safety of common LIF procedures on LDDD.

Limitation

Our study has 2 main limitations though we tried to overcome some problems in previous syntheses. First, because our study would like to avoid inherent biases from retrospective studies, we only synthesized 14 studies with 921 cases. This sample size may lead to pooled estimates under power. In fact, we have expanded our literature by searching Web of Science in this update systematic review. Second, surgeon experience is very important in this topic, especially in clinical practice, but we did not find enough information in the included studies. We anticipate that future studies on this topic provide sufficient information about surgical team.

Conclusions

Our evidence reveals that perhaps OPLIF should be avoided in the management of LDDD because it confers significantly higher overall adverse event rate. Moreover, TLIF seems to have the safest profile in terms of neural, spinal events, and vascular evens. Nevertheless, our previous work found that MIS-PLIF and OPLIF may have better outcomes in terms of pain relief and Oswestry Disability Index.¹³ Therefore, shared decision making may be an appropriate approach to choose LIF procedure for LDDD before surgery. Our evidence only focuses on the most common LIF procedures, and we anticipate further studies taking lateral LIF, extreme lateral LIF, and oblique LIF into analysis though these LIF procedures are not popular in clinical practice now. A comprehensive comparison of LIF procedures will improve decision of LIF surgery.

Supplemental Material

Supplemental Material, Appendix - Safety of Lumbar Interbody Fusion Procedures for Degenerative Disc Disease: A Systematic Review With Network Meta-Analysis of Prospective Studies

Supplemental Material, Appendix for Safety of Lumbar Interbody Fusion Procedures for Degenerative Disc Disease: A Systematic Review With Network Meta-Analysis of Prospective Studies by Kuan-Yu Chi, Shih-Hao Cheng, Yu-Kai Kuo, En-Yuan Lin and Yi-No Kang in Global Spine Journal

Footnotes

Author Contributions

KYC: Conception of the work, interpretation of data, drafting the work, and final approval of the version to be published.

SHC: Supervision of the research, critical revision of the draft for enhancing crucial intellectual content, and final approval of the version to be published.

YKK: The acquisition of data and final approval of the version to be published.

EYL: Interpretation of data, revising draft critically for important intellectual content, and final approval of the version to be published.

YNK: Design of the work, the acquisition of data, analysis, interpretation of data, revising draft critically for important intellectual content, and final approval of the version to be published.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Shih-Hao Cheng, MD

Yi-No Kang, MA

Supplemental Material

Supplemental materials for this article is available online.
