Transforming commercial contracts through computable contracting

Abstract

Contracts are an essential and fundamental component of commerce and society, serving to clarify agreements between multiple parties. While digital technologies have helped to automate many activities associated with contracting, the contracts themselves continue, in the main, to be in the form of unstructured, natural language text. This limits the scope for improvements in productivity and automation, as well as the emergence of new business models. To this end, this paper examines the concept of “computable contracts” as objects that are understandable by both humans and computers, and goes on to present a framework that unifies a range of technologies and approaches that collectively will help to make computable contracting a reality.

Introduction

Contracts are the bedrock of commerce: through helping to build a common understanding between multiple parties, contracts help to orchestrate the global exchange of tens of billions of dollars of goods and services around the world every single day (Statista). However, despite the ever-increasing levels of digital connectivity, the drafting, reviewing, execution, and monitoring of contracts remain relatively unchanged and has not kept pace with the levels of innovation seen in other areas of business.

While this paper is highly relevant to those directly involved in the management of contracts, the fundamental importance of contracts means that it is equally relevant to senior management and those charged with implementing digital transformation. In these professional contexts, this paper seeks to fulfill the following key objectives:

Develop a conceptual framework for computable contracting that unifies the many areas of relevant research and development in this space and to show how they are related.

Based on this framework, identify some of the key considerations that will determine the success of adopting and implementing computable contracting approaches.

Figure 1 overleaf presents an innovation landscape for contracting technologies with two key dimensions: one that indicates the ease with which contracts can be understood and used by humans and the second that indicates the degree to which contracts can be understood or processed by computers.

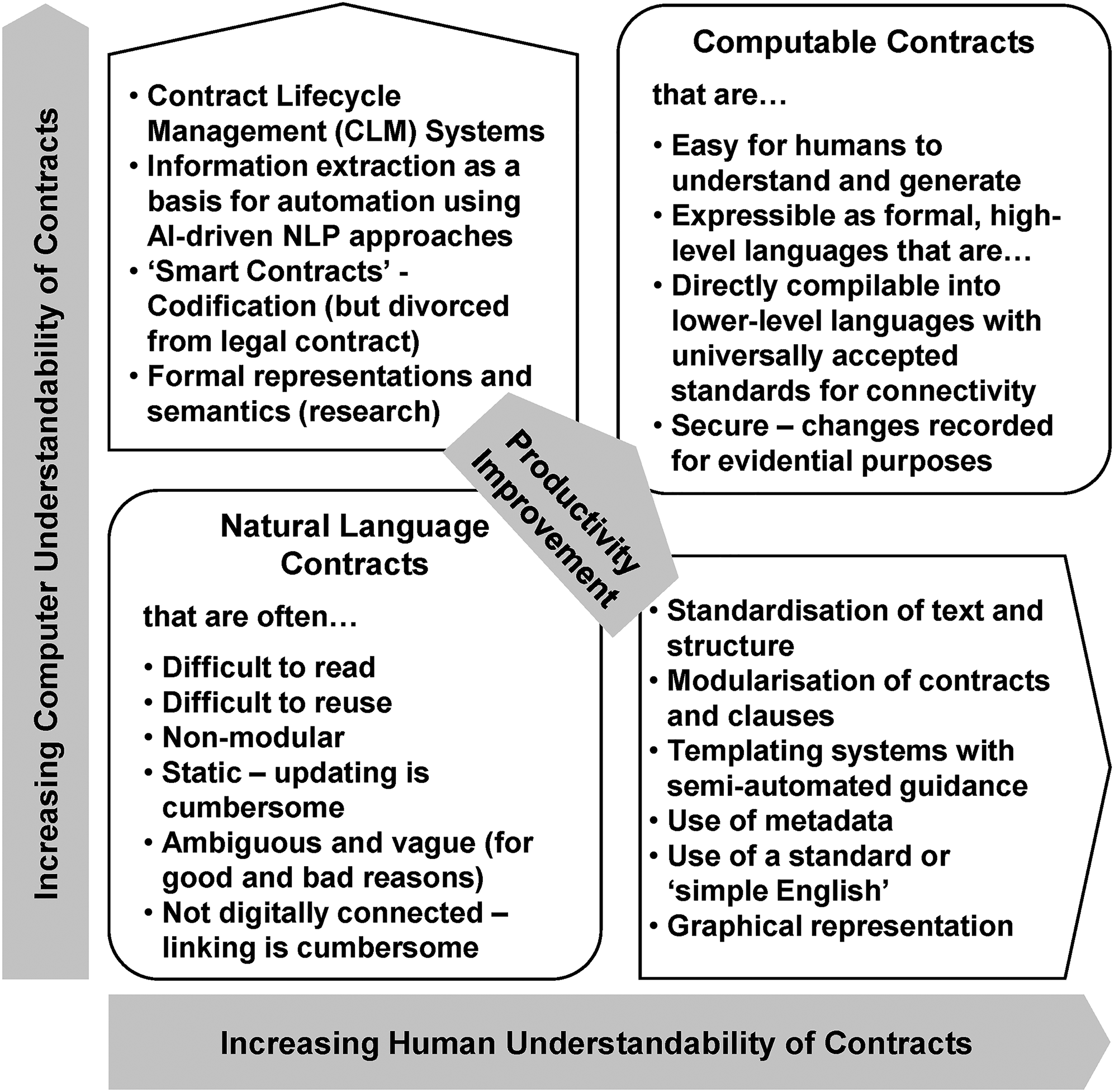

Figure 1.

Innovation landscape for contracting technologies.

As a broad generalization, the activity of contracting in the business world of today is characterized by the bottom left quadrant. Created as monolithic, non-modular documents in natural language form, contracts are often difficult to read and to modify, and when they are modified, the process of doing so is clumsy, sometimes with unintended consequences such as inconsistencies and time delays. While “vagueness” in contracts is sometimes a practical necessity, all too often it reflects the limited resources available for drafting, again with the possibility of costly dispute resolution actions further down the line. For the most part, contracts are isolated documents (either in hard or soft copy formats) with little connectivity to the business systems to which they refer.

The consequences of this innovation shortfall in contracting have been highlighted in a recent Harvard Business Review article on “how AI is changing contracts” (Rich 2018), which suggests that “inefficient contracting causes firms to lose between 5% and 40% of value depending on circumstances”. Research undertaken by the International Association for Contract and Commercial Management (IACCM) (Cummins 2012) concluded that: “good contract development and management could improve profitability by the equivalent of a massive 9% of annual revenue.” Finally, according to KPMG research (KPMG 2017): “ineffective governance of provider contracts can cause value leakage ranging from 17% to 40%.”

Innovation in contracting has tended to fall into two main areas, either by moving horizontally or vertically from the bottom left quadrant, as shown in Figure 1. By moving horizontally and toward the right from this quadrant, we are enabling humans to read and use contracts more easily. Typically, this might involve the creation of contracting standards, and indeed, there are many industry trade associations that take on this important role, e.g. the International Swaps and Derivatives Association (ISDA 2019) in financial services, or the Joint Contracts Tribunal (JCT 2020) in the construction sector. Further innovations along the horizontal dimension might include the modularization of contracts and the use of templating systems that can help to semi-automate the drafting of contracts. Contracts might also be annotated with metadata—information about the legal text. And, even the English used might be standardized in some way so as to avoid unintended ambiguities. Finally, and as the old adage suggests, “a picture is worth a thousand words”: the judicious use of carefully constructed graphics might actually make the act of reading contracts a more inviting experience, e.g. Lemonade contracts for insurance (Lemonade 2020).

A vertical transition upwards from the bottom left quadrant represents innovations that permit contracts to be understood by computers in some way. The most commonly deployed of these are contract lifecycle management (CLM) systems, essentially using document management approaches to underpin increased automation. Pushing forward on another front, and sometimes referred to as “contract analytics”, artificial intelligence (AI)-based approaches are currently being deployed to help speed up the process of searching for, retrieving and analyzing information from large bodies of text-based contracts (or “large, unstructured datasets”). And finally, and perhaps the most fashionable at the moment, there are “smart contracting” approaches, which involve the creation of pieces of computer code to enact specific aspects of a contract, and in some cases, mainly in fintech, are starting to muddy the distinction between computer code and legal contracts (Harley 2017).

While these technology-driven solutions go some way toward addressing the innovation shortfall mentioned above, the scope for significant improvements in productivity is limited because of the way in which the vast majority of contracts are represented, i.e. in a natural language form, with little, if any, formal structure, or metadata. Hence, it is proposed that, only through fundamentally rethinking the way in which contracts are structured and expressed, can the full potential for productivity improvements in contracting be realized.

The overall vision therefore is to reach the quadrant in the upper right. This means the transformation of contracting from the creation of static documents, created in a natural language form and that often have limited direct linkage to business operations, to one that is driven by “computable contracts”—readily understood by humans and computers, and that have a significantly greater level of digital connectivity. This transformative vision of computable contracting will facilitate productivity improvements and lower costs through reducing contract drafting times, increasing the scope for the automation of contract execution, and speeding up (or even avoiding) dispute resolution.

The term “computable contracting” was first used and discussed extensively by Surden (2012). Here, Surden indicates that “computable” means that the legal result is “able to be automatically generated by a rules-based process”. And led in part by Goodenough (2019), the pioneering work of Surden continues to be advanced by the Codex Group at Stanford University.

Making contracts computable should not only bring about a profound and fundamental shift in the way that contracting in undertaken, but also pave the way for the emergence of new business models. In an analogous sense, it could do for contracting what computer-aided design and production control systems have done for the automation of manufacturing.

Review of the state of the art

Innovation in the area of contracting to achieve productivity gains has generally pursued one or more of four main approaches from both product and business process perspectives: contract standardization, CLM, smart contracts, and contract analytics.

Contract standardization is essentially achieved through the creation of templates that can be used in a variety of similar situations. Either in hard copy, or more often in digital formats, these templates (and templating systems) range in their levels of sophistication, but they all seek to facilitate the entry of information into a standardized “data structure”, such as a set of clauses with predefined fields. In its most basic form, it may be that the only information required for a template is the names of the contracting parties. More advanced, so-called “contract assembly” systems, such as Hotdocs (2020), offer greater scope for contractual variation, often using modular (“lego-type”) approaches for structuring contracts together with guidance on their use, that is both situation-specific and user-friendly. Using AI-driven technologies, Martin (2011–2012) has developed a comprehensive set of approaches for the deconstruction and standardization of contracts, described more fully in the blog “Contract Analysis and Contract Standards”.

CLM systems often build upon contract templates to create a managed interface between a portfolio of contracts, on the one hand, and the relevant business systems on the other. At the heart of CLM systems is a set of managed data fields, from which data can be exported and imported, and therefore fed into (or drawn from) various automated or semi-automated business processes. In addition, some CLM providers offer relatively sophisticated contract assembly systems (as described above) as an initial step in managing the overall lifecycle of a contract. In their report on contract automation, the IACCM and Capgemini (2018, 1) suggest that there are over 200 vendors of CLM systems. This collaboration has led to the development of a “contract automation software comparison tool” (IACCM Capgemini 2018, 2).

Smart Contracts are concerned with helping to automate the performance (of part) of a contract and are perhaps the area most talked about in contract innovation. Although this term has been used for over two decades, coined initially by Szabo (1997) in the 1990s, the rapid increase in its current usage has been driven largely by the cryptocurrency community. Reflecting the work of Nick Szabo, the term “smart contract” has been defined more generally by Clack, Bakshi, and Braine (2016) to mean “an automatable and enforceable agreement. Automatable by computer, although some parts may require human input and control. Enforceable either by legal enforcement of rights and obligations or via tamper-proof execution of computer code.”

In the cryptocurrency community, the term “smart contract” has been used to refer to computer code that is sometimes (but not always) linked to a natural language-based legal contract. In the work by Goldby and Maynard (2019) in the insurance industry, smart contracts are defined as “pieces of computer code that are designed to start carrying out tasks automatically in response to external triggers”. A good example here is perhaps the Accord Project (2020), with its “smart legal contracts stack” and templating system. Crucially, however, for crypto-related smart contracts, the code is quite separate from the contract (or is an agreement that is not legally enforceable), and has resulted in several observers to suggest that “smart contracts are neither smart nor contracts” (Giancasproa 2017).

From a legal perspective, there have been recent developments for smart contracts. In November 2019, the UK Jurisdiction task force concluded that smart contracts can be, or be part of, binding legal contracts. In the legal statement on cryptoassets and smart contracts (UK Lawtech Panel 2019), the task force suggests that while “it is open to parties to agree expressly that a smart contract is not legally binding, as they could with a conventional agreement, it would be very unusual (and unwise) in a commercial context”. In principle therefore, and subject to a range of points (that go beyond the scope of this paper), the ordinary rules of law apply to smart contracts.

Contract analytics concerns the use of a number of computational techniques that are used to establish insights into the content and structure of contracts. The broader term of “AI” for contracts usually concerns the application of machine learning to natural language processing (NLP). These AI techniques, coupled with substantial computing power, can be used for various forms of contract analysis, such as searching for specific information contained within large bodies of text. Martin (2011–2012) uses AI-based approaches to analyze contracts and to develop representative standards. Often, contract analytics is embedded within a broader CLM-based or workflow automation system, so that information extracted can then be used to help perform or trigger some kind of operation such as automated payments or email notifications.

State of the art for computable contracts

At a fundamental level, all automation is driven by a set of coded instructions. Hence, in order to automate the tasks specified in a contract, some form of machine-understandable code must be created, the functionality of which accurately reflects the content of a contract, or at least the automatable parts of it. In other words, it is vital that the set of coded instructions is an accurate translation of the contract (Farrell, Machin, and Hinchliffe, 2019). This is not necessarily always the case, possibly because of ambiguity/vagueness in the contract, or poor coding, or misunderstandings between lawyers and programmers.

At the moment, and as reflected in this review of the state of the art, most of the approaches currently used to improve contracting efficiency are still built upon the fundamental notion that a contract is created and expressed using a natural language (such as English), both with its high level of expressivity (and concomitant scope for multiple interpretations), as well as its lack of direct machine executability. And crucially, any coding required to support automation is undertaken very separately from the creation of the contract. There are, however, several exceptions to this general observation that will herald an evolution toward computable contracting, several key ones of which are mentioned in this section below.

The work by Surden has helped to pave the way for the Stanford Computable Contracts Initiative (SCCI 2020), led in part by Goodenough. With a strong focus on use cases, the SCCI project is seeking to create contracts in a computable form from the outset. As suggested on the SCCI project page, “when terms and conditions are represented in highly structured data, computers are able to process them automatically with a guaranteed degree of accuracy. The effect is not only a significant reduction of legal transaction costs, but it also opens a variety of new options to create better contracts”.

Earlier work by Grigg (2000) in the late 1990s proposed the idea of a term “Ricardian Contract” for financial trading. It is usefully defined as “a form of digital document that acts as an agreement between two parties on the terms and conditions for an interaction between the agreed parties” (Alam 2018). It is also suggested that Ricardian contracts are simultaneously understandable by humans and computers, which is achieved by adding tags and metadata to clauses (Lampič 2019). Hazard has developed a library of “prose objects” (Hazard 2020) that have extensive tagging and exploit the parsing of natural language to facilitate computer readability.

In terms of languages that are simultaneously understandable by computers and humans, the very recent work by Diedrich (2020) on “Lexon” digital contracts and Kowalski (2019) on the development of a form of “logical English” are both noteworthy advances based on a substantial body of work. The domain-specific, contract specification language (CSL) developed by Deon Digital (2020) in conjunction with the University of Copenhagen is a particularly good example of a language that straddles the divide between “logical English” and standard computer code.

Other academic centers of excellence currently focussing on computable contracting approaches include the Financial Computing and Analytics Group in the Department of Computer Science at UCL (FCAG 2020) in the UK and the work undertaken by CSIRO and the Data 61 initiative (2020) in Australia. There are also several other groups around the world working on important elements for computable contracting, particularly in the area of legal informatics, and many of whom are members of the International Association for Artificial Intelligence and Law (IAAIL 2020) and have showcased their work at the International Conference on Artificial Intelligence and Law (ICAIL).

Computable contracts—a vision

As described in the top right quadrant of Figure 1, computable contracts embody the following characteristics:

Easy for humans to understand and generate;

Expressible as a formal, high-level language that is directly compilable (“translatable”) into lower-level languages;

Adoption of universally accepted standards for connectivity (interoperability); and

Secure—changes recorded for evidential purposes.

Arguably, current approaches for distributed ledger technology (DLT)-based smart contracts can claim to have made significant progress in terms of interoperability and security. Crucially, however, it is the first two characteristics where computable contracting makes a significant and innovative step: contracts, expressed in a high-level, structured “language” that can be (a) readily generated, understood and used by humans and (b) easily and simultaneously understood (or processed) by computers.

Making this vision a reality requires a somewhat broader view of contracting, one where contracts are seen as a fully integrated (or digitally connected) part of a commercial system and its associated business processes. And, as shown in Figure 2, this broader vision has four key components covering contracts, more specifically, and system-wide aspects, more generally, and all of which are subsequently discussed in turn.

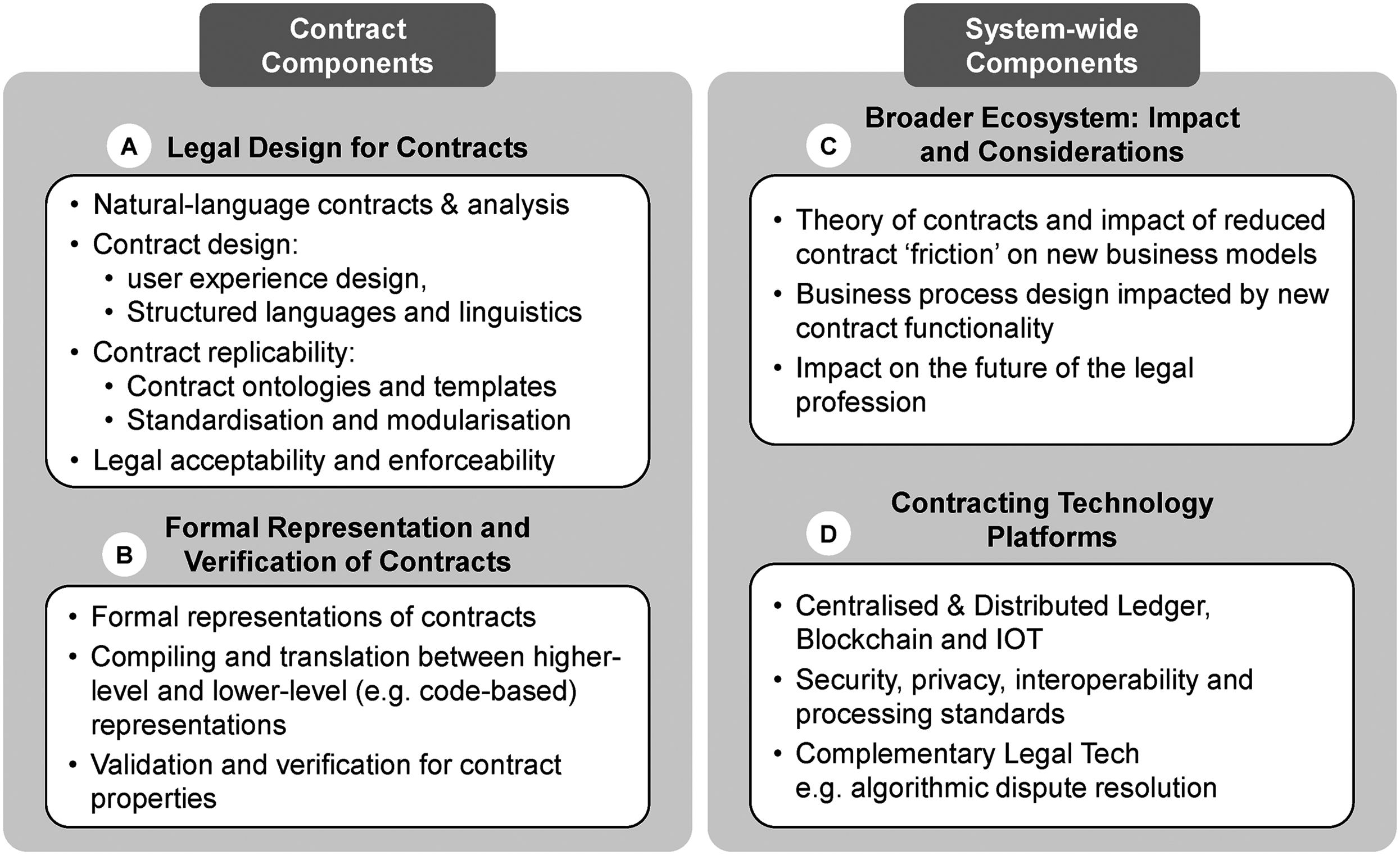

Figure 2.

Vision for computable contracting.

Legal design for contracts

This concerns all aspects that directly impact a lawyer, including both the study of traditional natural language contracts and the study of contracts drafted in a more standardized manner. As indicated earlier, some of the AI-driven techniques for contracts analysis may continue to assist with contract standardization. Importantly, computable contracting envisages that contracts will be partially or entirely expressed in some form of formal specification or high-level programming language, assisted with user-friendly interfacing, such as the pioneering work of Haapio and Hagan (2016). Furthermore, computable contracting does not mean that there is no room for vagueness, but more that vagueness, where it is deemed necessary, will be employed in a more deliberate way.

Potentially, a contracts development environment, somewhat analogous to what we currently see in the web development space, could emerge for legal professionals and will help to underpin adoption by a critical mass of practitioners. This is likely to require an intuitive, modular approach, supported by graphically enhanced user interfaces as well as specially structured libraries of “contract objects” validated by legal experts. Only when a critical mass of legal practitioners has been established will computable contracting achieve the required level of acceptability in the legal profession, which in turn will provide a solid platform for wider adoption.

Formal representation and verification of contracts

This covers the underlying science and logic concerning the structure and semantics of contracts, the development of formal analytical tools, and formal verification and validation techniques. Developments in this area include translation from the high-level representations used in (A) to more formal representations (perhaps using formal logics or languages) and interaction with (A) in terms of reporting the results of analysis to lawyers. Work by Peyton-Jones, Eber, and Seward (2000) focuses on the application of functional programming techniques to financial contracts and has been an important catalyst in the emergence of domain-specific languages for defining contracts such as LexiFi's MLFi language (Eber 2003) (Ali, Haldane, and Nahai-Williamson, 2012). Of particular importance here is the work of Hvitved and Henglein (2014) at the University of Copenhagen in broadening the development of domain-specific languages for enterprise systems. From a more commercial perspective, the Zurich-based Deon Digital has developed these ideas into the CSL language (Deon Digital 2020); and in a similar vein, Digital Asset has developed their “smart contracting” language, DAML (2020). Finally, a noteworthy example of a user-friendly and modular, contract specification language is Marlowe (Thompson 2020).

More generally, the translation from higher-level representations (that are domain-specific and user-friendly) to lower-level representations (in raw code) will provide more of a seamless link between a human-understandable contract and automation across the broader ecosystem in areas such as negotiation, execution, contract performance, and contract management.

Broader ecosystem: Impact and considerations

This concerns research into issues of broader commercial economic and societal relevance, such as the way in which new contracting technology might alter the way in which firms do business and the size distribution of commercial entities. In 2016 The Nobel Memorial Prize in Economic Science was awarded to Oliver Hart and Bengt Holmström (Schmidt 2017) for their work in building the foundations of contract theory, and serves as a reminder that, as technology improves and organizations become more complex, the theory and practice of contract design will only increase in importance.

This also includes implications for the legal profession and law. It has often been suggested that lawyers will have to learn how to code, or maybe that they should think in a structured way, as a programmer might. Arguably, however, good lawyers (as do good programmers) already display a high level of structured thinking, and rather than “getting lawyers to code”, lawyers should be encouraged to think like designers. Indeed, the idea of “Legal Design”, championed by Haapio and Hagan (2016), has already had a significant impact on the legal community.

Contracting technology platforms

The platform component comprises a range of facilitating technologies that support computable contracting such as DLTs; intelligent networks (including the “Internet of Things” and the need for interoperability and security); and automated decision-making and machine learning technologies.

Well-known DLT platforms include Hyperledger, Corda, Cardano, and Plutus. Corda builds on Grigg's work into Ricardian contracts (Grigg 2000), as well as the work of Clack et al., into smart contract templates (Clack, Bakshi, and Braine (2016)). A deeper analysis of these technologies goes beyond the scope of this paper, but it is important to recognize that much of the current momentum in the area of smart or computable contracting stems from the growing excitement around blockchain and DLTs.

Academics from the Judge Business School have produced a conceptual framework (Rauchs 2018) for DLTs and identifies five key characteristics that a DLT system must be capable of ensuring:

Shared recordkeeping,

Multi-party consensus on a shared set of records,

Independent validation by each participant,

Evidence of nonconsensual changes, and

Resistance to tampering.

While all of these characteristics are important for DLT, they are not necessarily a requirement for computable contracting. It is important to understand, therefore, that while DLTs may help to accelerate the adoption of smart and computable contracting approaches, other technology platforms may also be appropriate.

Vision—technological evolution toward computable contracts

This evolution toward computable contracting, and the shift away from natural language-based approaches that are typical in commerce today is shown in Figure 3. Moving from left to right, from “business as usual”, through various modes of “smart contracting”, and then onto “unified contracts and code”, the level of “contract computability” increases.

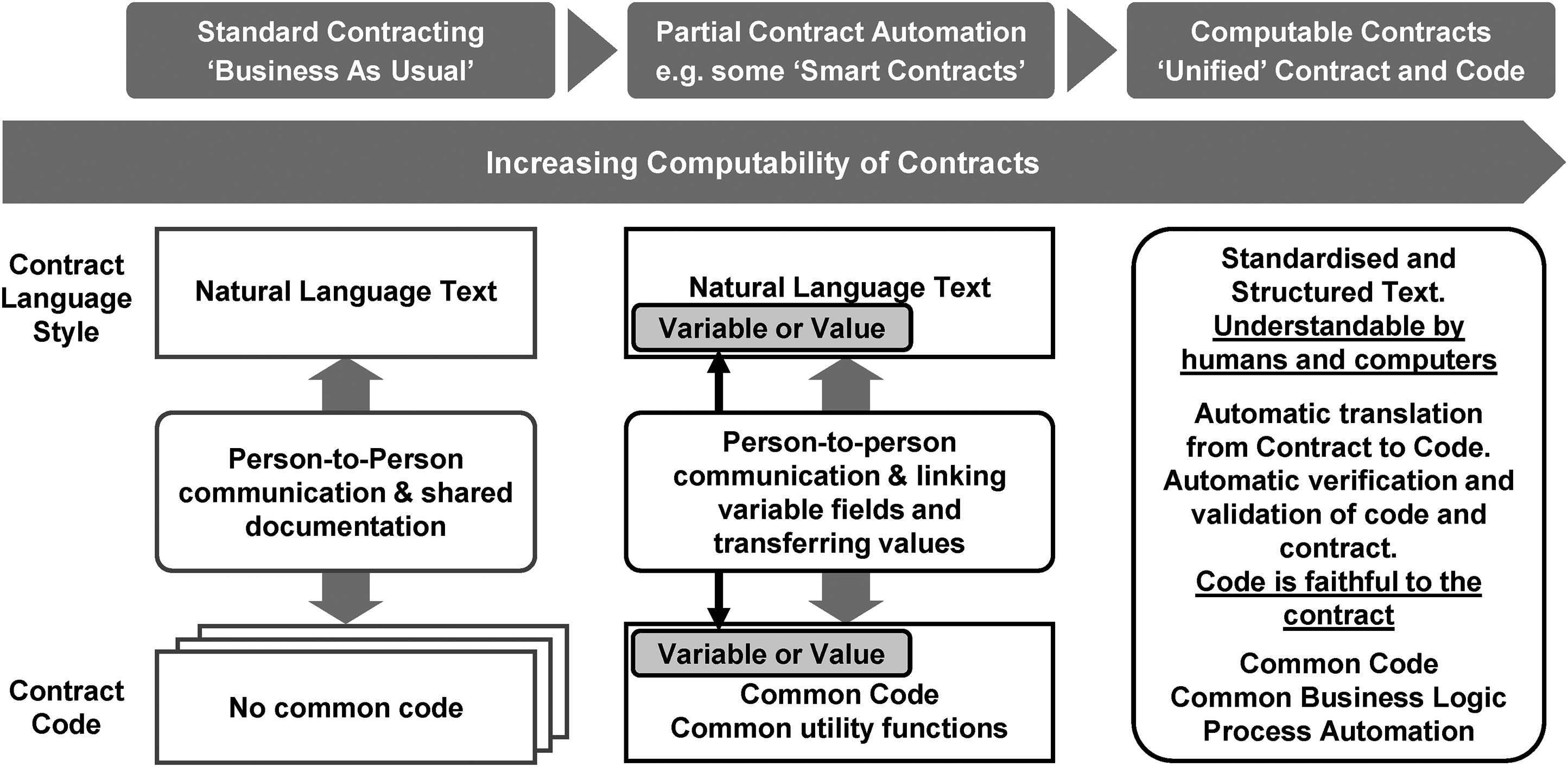

Figure 3.

Technological evolution toward computable contracts.

Standard contracting—“business as usual”

This scenario captures the bottom left quadrant from Figure 1. It represents fundamental gaps in communication, not only between different organizational entities (where there is little or no common code), but also between lawyers and programmers. The scope of code use for contracting operations is typically limited, but where it is used, validation is time-consuming and expensive. With coding in different languages and multiple interpretations of contracts, there is a high likelihood of conflicts requiring costly and drawn-out human resolution.

Partial contract automation—“smart” and Ricardian contracting

In this scenario, pragmatic approaches are taken to achieve “partial automation”, mainly through extracting information from defined information fields of contracts and feeding it onto wherever it is required in the broader system. Importantly, the establishment of common code across organizational boundaries has a significant and positive impact on overall efficiency. From a contracts perspective, the partial automation (e.g. through smart contracts) usually means identifying those parts of the contract where there is little complexity or vagueness (e.g. names or numerical values), and establishing various links to business processes, usually through some kind of tagging approach.

Current smart contracts fall short on two main fronts. The first problem is that only a relatively small part of the contractual information is captured for automation: current smart contracts tend to capture only a part of the operational aspects and rarely capture the deontic aspects concerning rights and obligations. This leads to a second problem concerning the piecemeal selection of operational information from defined fields in contracts: there is a tendency to ignore more complex (and perhaps less visible) conditionalities that are nonetheless related to the information that has been selected.

For some contracts, however, and particularly financial contracts, where there is relatively little (or very simple) embedded logic concerning the operational information, Ricardian contracts using some form of “tagging approach” (such as that proposed by Hazard) may well provide sufficient functionality for successful implementation (Alam 2018) (Lampič 2019) (Hazard 2020).

Computable contracts—unified contracts and code

In the final scenario, the legal contract and the code are more unified with automated compiling (or translation) between the two. To enable this to happen, computable contracting approaches will tend to place a greater emphasis on the use of standardized or structured text that is more readily codified. Such approaches will include domain-specific languages and very high-level programming languages that adopt a standard form of English, such as the “Logical English” approach proposed by Kowalski (2019). Contract semantics will be captured formally, with flexibility relating to deliberately vague propositions. As these approaches are developed further, it is likely that a whole range of tried-and-tested, reusable “legal objects” will be available, where the code is faithful to the contract, and which suit a whole range of deployment situations.

To get a sense of how the future may unfold for computable contracting, the core ideas behind the Semantic Web provide some important insights (Wikipedia). With the overall objective of enabling a computer to understand Internet data, the Semantic Web embodies a number of technologies that seek to build meaning and structure around this data. As indicated in the Wikipedia definition for “semantic technology” (Wikipedia), “these technologies formally represent the meaning involved in information. For example, ontologies can describe concepts, relationships between things, and categories of things.” Recent work by Casanovas et al. (2016) explores the Semantic Web for the legal domain, while earlier work by Johannesson et al. (2003), and more recently Griffo (2017), looks at modeling contracts using an ontology-based approach. Finally, in a presentation at the Internet of Agreements conference in 2017, Wong (2017) presents some useful ideas for a computable contracting technology stack, which shares several similarities with the Semantic Web technology stack.

Computable contracts—key considerations for implementation

As described in the It is hoped that the potential for significant improvements in operational efficiency and the opportunity to exploit new business models will encourage the implementation of computable contracting solutions in the foreseeable future (i.e. the next three to five years) across different industry sectors (and in particlar in e.g. finance, insurance, construction). This will include early stage, prototyping deployments, as well as enhancements to existing systems.

However, before any initiative is undertaken to implement a computable contracting approach, and as with any new business initiative, it is vital to determine whether or not it makes sense to do so.

As a general guide, and as shown in Figure 4, there are three broad areas of consideration for the successful implementation of computable contracting, either for whole (or a suite of) contracts or for parts of a contract. The optimal conditions are found at the favorable ends of the spectrum for each of these three areas, namely:

Contract Computability: Ease with which a contract may be represented in a computable form, and where the representation of the contract can be understood simultaneously by computers and by humans. Important aspects to be assessed here are consistency, completeness (e.g. are all, or most, event states definable?), and vagueness.

Integration and Automation: Ease with which a contract can be integrated with other components of a business system to support automation. Digital connectivity and interoperability are critical aspects to be addressed here.

Business Impact: Degree of impact on business operations, which may be measured in terms of efficiency, productivity, quality and benefits; and financial performance, which may be measured in terms of cost savings and profitability.

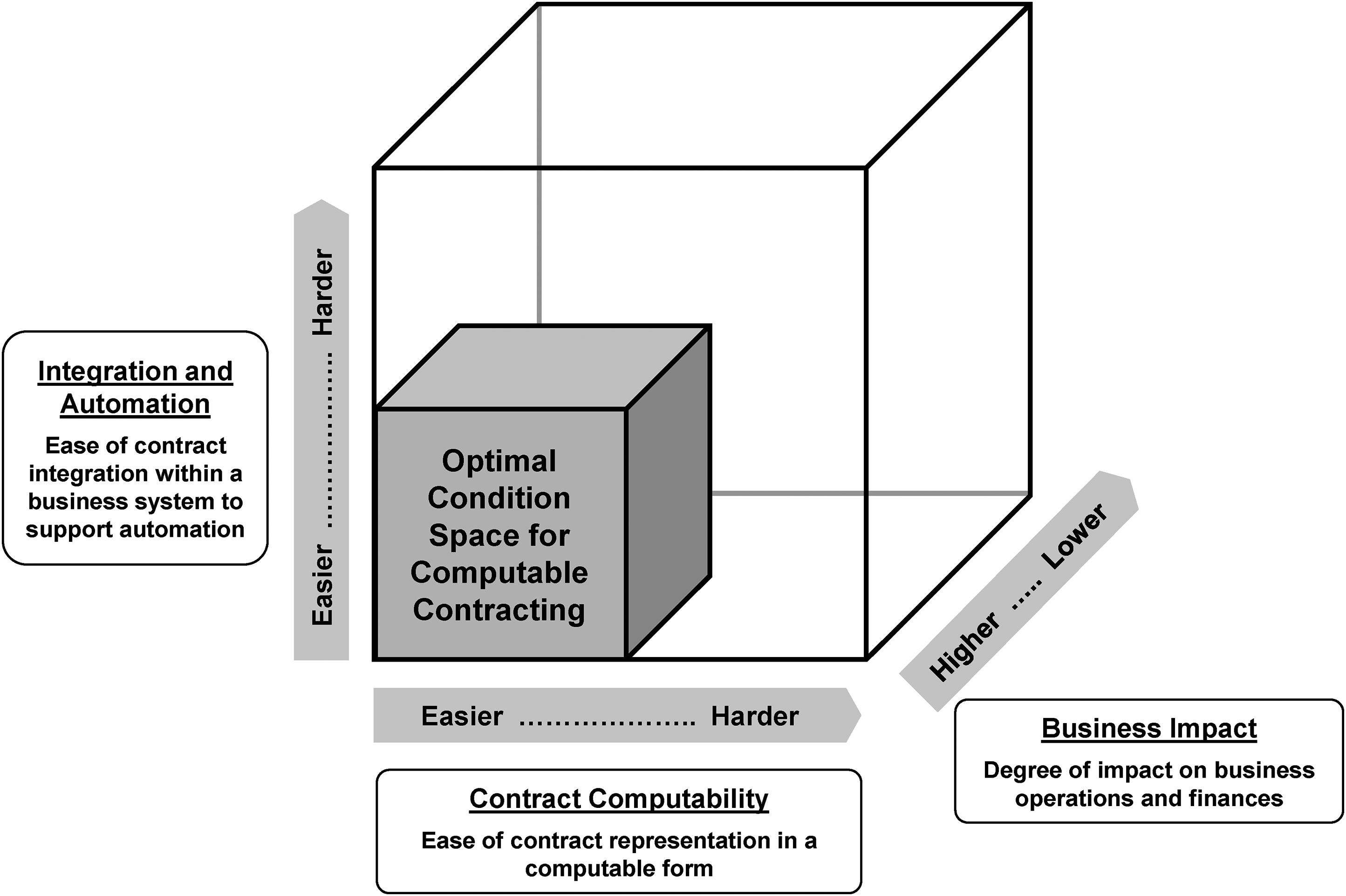

Figure 4.

Key considerations for implementation of computable contracts.

Each of these three areas (contract computability; integration and automation; and business impact) are discussed in the next three subsections.

Contract computability

Making contracts computable means that the information contained within a contract can be understood by humans and computers. To achieve this objective, the following aspects should be considered:

The main components of a contract;

The consistency with terms are used (including vagueness and ambiguity);

The complexity and completeness of a contract—covering both product and process complexity; and

Domain-specific languages and user-friendly approaches for contract representation.

Each of these aspects is addressed in the following subsections.

Main components of contracts

While the following is not an exhaustive list, it provides an overview of most of the components in a contract, and certainly those that are relevant for computability:

Contract objects and their definitions—to clarify the meaning of key terms used in the contract, e.g. an insurance contract may define specific types of insurance coverage.

Parties—individuals or organizations between whom a contract exists.

Rights and obligations of the parties (deontic aspects) – this deals with what is expected of the parties to fulfill the contract.

Operational aspects—this covers how the contract obligations are to be fulfilled.

Temporal aspects—this concerns aspects of time for fulfillment of the obligations, e.g. what is actually meant by: “within a seven day period”.

Events—situations that may or should arise during the contract period.

Contract states—may be thought of actual scenarios involving the parties, their fulfillment of obligations (or not), the operational and temporal aspects, and events. An example of a contract state might be: “the supplier has not sent the shipment (obligation) with the required packaging (obligation/operational) and, due to bad weather (event), the shipment has arrived late (temporal)”.

Anticipated contract states—potential scenarios that may arise and which are defined in the contract so that clarity is achieved on respective obligations in these specific scenarios.

Representations and warranties concerning the above.

Representing the above information pertaining to a contract (or at least some of it) in a computable form has two main requisites: first, managing consistency, vagueness, and ambiguity of contracts; and second, managing the complexity and completeness of contracts by defining a full or complete set of contract variations and states.

Consistency, vagueness, and ambiguity of contracts

While contracts may vary in their degree of complexity, there are also different ways of interpreting what “complexity” of a contract actually means in practice. To start with, the perceived complexity of a contract may arise from inconsistent drafting, and where similar ideas are represented in different ways or with different terms. It may also be that, even though it displays internal consistency, a contract has terms that do not fall in line with industry standards (if indeed there are any!).

To represent contracts in a computable form, consistency of expression is vital. This is the first step and may be achieved without seeking any recourse to computational support. With reference to the innovation landscape for contracting technologies in Figure 1, this first step is represented as a horizontal move from the bottom left to the right.

In his work on contract deconstruction and analytics, Martin (2018) develops a two-dimensional visual analysis tool for the consistency (or standardization) and commonality of specific provisions across a set of contracts. Here, it is worth noting that:

The degree of consistency in a contract serves as an indication of the amount of preparatory work needed for making contracts computable and

The commonality of provisions, on the other hand, serves as more of a guide as to which parts of the contract might be prioritized for representation in a computable form.

Assuming that a high level of consistency has been established for a contract, the next thing to consider is vagueness. The ease with which contractual statements may be represented in a computable form depends upon the extent to which they can be defined with sufficient specificity. The term “vague” is used to describe something that is not defined specifically, e.g. “both parties will take reasonable measures to ensure that the project progresses satisfactorily”. Both of the words “reasonable” and “satisfactorily” are vague, and often it may well be that the use of vague terms enables the parties to agree to the contract in the first place. Lawyers will also argue that, in specific situations, vague terms have specific meanings. To be pragmatic, therefore, a “managed” approach should be taken, and where building in specificity makes sense to (and is agreeable by) all parties concerned.

With regard to managing vagueness, there are two approaches that can be pursued. The first approach is to define what is meant by “reasonable” within the contract—internal management. This would require a set of clear statements on what the parties would actually consider “reasonable” to mean in the context that it is used, and may involve the definition of multiple scenarios. The second approach is to define how disagreements that may arise will be managed, perhaps through both parties agreeing on some form of dispute resolution process or third-party arbitration. This approach enables an objective view to be secured on whether or not something is reasonable, if and when such a view is required. This approach may also be fully or partially automated.

The term “ambiguous” is used to describe something that, while appearing to be clear, is open to multiple interpretations, e.g. “the delivery should include A or B and C”. Whereas vagueness may require managing (or even be desirable), ambiguity should be avoided from the outset.

Complexity of contracts—variations and states

When a high level of consistency has been established for a portfolio of contracts (which in itself is no mean feat), a measure of complexity may be established through considering two further aspects: first, the number of contract variations (all of which must be defined consistently); and second, the number of process states (or operational scenarios) that are envisaged by the contract. This is shown in Figure 5, where the suitability of computable contracting for different modes of complexity is indicated.

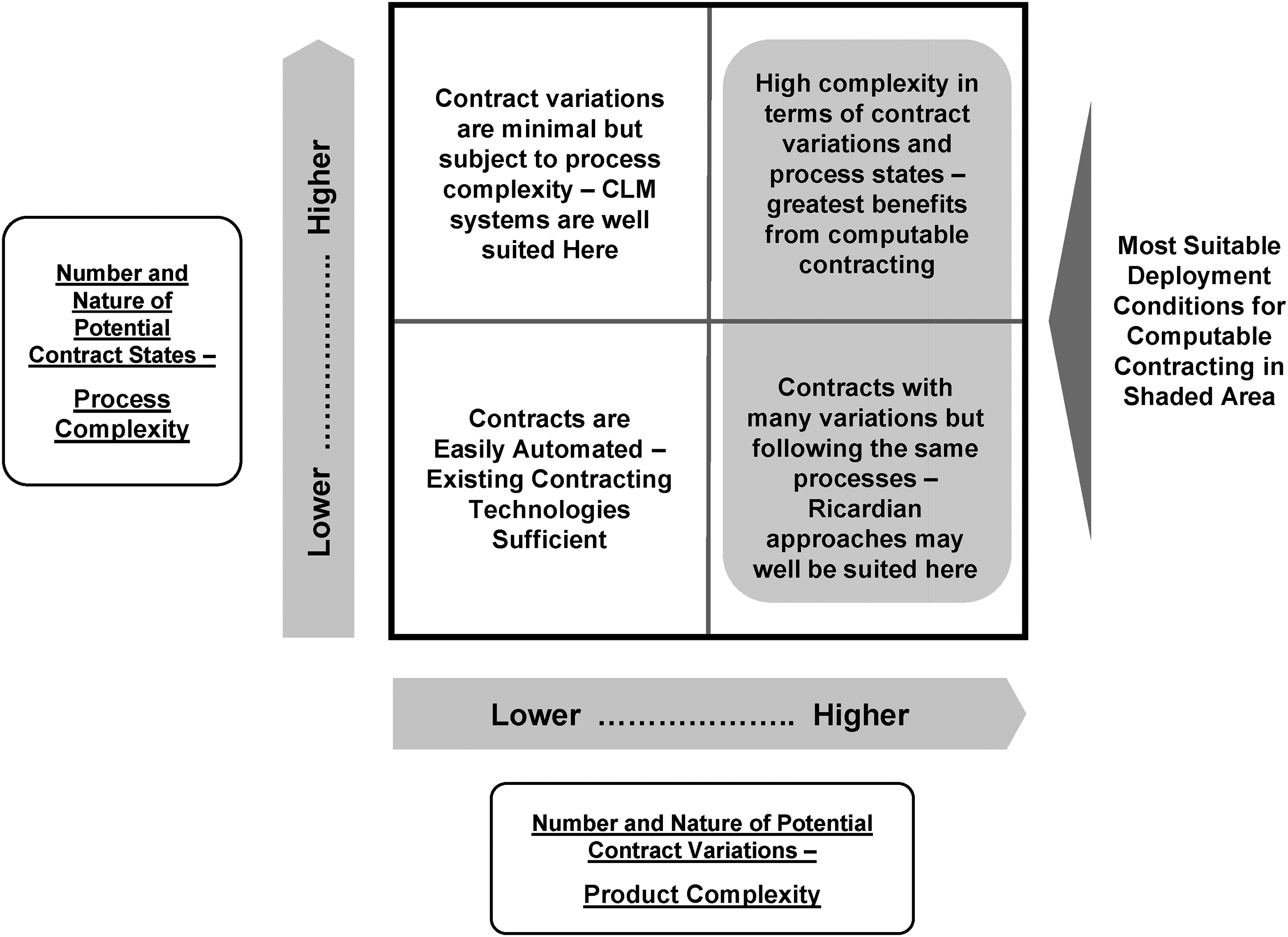

Figure 5.

Contract complexity and computable contracting.

The lower, left-hand quadrant in Figure 5

As a rule-of-thumb, it is easier to represent contracts with a lower level of complexity (i.e. contracts with minimal variations and contract states) in a computable form. However, for those contracts with a low level of complexity, there may be little added value of adopting computable contracting approaches beyond those contracting solutions currently deployed (and as shown in Figure 1).

For example, possibly the simplest form of contractual variation concerns the changing of one or more of the contracting parties across a suite of otherwise identical contracts. And it may also be that, irrespective of the contracting parties, the number and nature of operational scenarios are also identical in all cases. Here, given the success of many templating and smart-contract-based solutions, there is little justification for an alternative.

Moving vertically or horizontally from the lower, left-hand quadrant in Figure 5

More complex contracts are represented by moving horizontally to the right (increasing product complexity), or vertically upwards (increasing process complexity) as shown in Figure 5. More complex contracts may also involve interdependencies, e.g. between product variations and operational processes, or where a change in one aspect of a contract leads to several changes elsewhere.

For deployment scenarios where the process complexity is high, but the product complexity is low, CLM systems are likely to be adequately suited. For the converse situation, where the process complexity is low, but the product complexity is high, a Ricardian (or “smart contracts”) approach is likely to work well.

“Complete” contracts and their representation

With regard to the overall set of possible variations in a contract, the idea of “completeness” is useful. In short, this means that all of the variations (either product or process related) of the contract can be specified (or anticipated) in some way. Furthermore, it may well be that there are thousands of potential contractual variations, but it is often the case that these are driven by a relatively small number (e.g. 10 to 20) of underpinning variables.

Various data structure formats may be used to fully represent the complete set of different contract variations and states. Contract variations may usefully be represented using a hierarchical approach. A tabular form may be used for contract-related process states, as well as those events which determine transitions between states, an example of which is given by Goodenough for loan contracts (Goodenough and Flood 2015). Here, the contract is viewed as an automaton and a full analysis of contract “completeness” is undertaken by specifying all of the contract states and transition functions between the states.

In the previous subsection, the importance of standardization or consistency was emphasized. Indeed, without the shared adoption of standards, there can be no implementable form of computable contracting, whatever the level of complexity of the contracts. A good example of the development of standards to underpin digital transactions is the work of International Swaps and Derivatives Association (ISDA) to establish a “Common Domain Model (CDM)”. The CDM will provide “a single, common digital representation of derivatives trade events and actions, and will enhance consistency and facilitate interoperability across firms and platforms” (ISDA 2020a). Hence, events and processes throughout the lifecycle of the trade of a derivative or swap are standardized under the ISDA CDM and operate on the same shared data, or on data that is consistent with the ISDA CDM format.

Domain-specific languages and user friendliness

As indicated earlier in this document, most of the existing computer code relating to contracts and their automation is wholly separate from the contract with few, if any, links. This raises the fundamental question as to whether or not the contract has faithfully been represented by the commercial system(s) and any operations undertaken. It has already been emphasized that computable contracting aims to integrate both the contract and the code in a more unified, high-level representation that is understandable by both humans and computers. One way of achieving this is through the use of a standard (or domain-specific) language (rather than an unconstrained natural language) to faithfully represent the different components of a contract (as outlined in the earlier subsection).

In his work on contract formalization, Hvitved (2012) looks at the suitability of formal languages (and models) for the representation of various aspects of contracts. His work demonstrates that the type of formal language used (and therefore the nature of the domain-specific language) depends upon the required functionality of the contract. In other words, a domain-specific language is not suited because it has the right vocabulary, but more because it has the right grammar (i.e. how the language works at a more fundamental level). The work by Kowalski (2019) to develop a standard (or “logical”) form of English is relevant here.

To facilitate the reuse of elements of a computable contract and the establishment of shared/universal standards, a domain-specific language should facilitate “modular approaches”. Hvitved also addresses the important aspect of modularity of contracts in his PhD thesis (2012), and the concept is also explored by Smith (2006), who suggests that modularity “plays a pervasive role in managing contractual complexity”.

Modularity also concerns the creation and reuse of larger contract “blocks” that comprise smaller objects or modules, each of which fits together naturally to provide a functionality that is greater than any provided by the individual objects/modules. Furthermore, the creation of these larger blocks might be made easier through the use of “wizards” (expert systems employing rules-based and/or probabilistic approaches) to assist the contract designer. Such approaches are already used to some extent in contract drafting.

A good example of a domain-specific language with a high-level language representation, and that adopts a modular, “building-block” (almost literally using Blockley) is Marlowe (Thompson 2020), developed by Simon Thompson from the University of Kent in the UK. Marlowe is used for modeling financial instruments as smart contracts, and importantly has “been designed for people who are business engineers or subject experts rather than experienced developers”, with little, if any, need for programming experience. With regard to modularity, Marlowe “comprises a small number of powerful building blocks that can be assembled into expressive financial contracts”. Another example of a domain-specific language in its early stages of development is L4 from Legalese (Wong 2020). Their ambition is undoubtedly to go beyond smart and Ricardian contracting and to change the way in which legal documents are expressed from the outset.

Continuing with the example of establishing standards in the previous section, ISDA has also established a platform (ISDA Create) (ISDA 2020b) to produce, deliver, negotiate, and execute derivatives documents in a digital environment. The use of a common platform provides for increased efficiencies in both transactional and decision-making activities.

Graphical approaches may also be used to extend the expressivity of any standard language and will contribute toward the definition and validity-checking of both the variables and the logic of a contract. While it is not common practice at the moment, the use of innovative graphical approaches to enhance clarity and computability would be welcomed by the contracting parties and contract designers alike. For example, Wong, Haapio, and others have worked collaboratively (Wong and Haapio, 2015) to bring together concepts from contract visualization and computable contracting.

Integration and automation for computable contracting

The second key area to be considered in implementing computable contracting concerns integration and automation, each of which is dealt with in turn.

Integration through digital connectivity

For a computable contract to be useful, it must have digital connectivity. In other words, even though a contract may have been represented in a form that could (in theory) be understood by a computer, it will still essentially be a “dumb” object if it cannot be connected to the system(s) to which it refers (e.g. a payments system or a delivery registration system). Hence, the ease with which this connectivity can be established (and thereby integrating the contract with other components of a business system to support automation) will determine whether or not a contract can be made computable.

One of the chief determinants of connectivity is interoperability, i.e. whether the individual components (including the computable contract itself) can successfully communicate with one another. This need for interoperability will also be driven by the emergence of what is sometimes referred to as the “internet of things”, a global network of devices and systems, each with its own unique IP address. Arguably, this fundamental shift toward a more connected system of devices across a network may be pivotal in heralding a new paradigm in contracting.

Automation

With the increased use of automatic devices and controls in mechanized production lines in the automobile industry, the term “automation” became commonly used in the late 1940s. Going back further still, the word “automate” comes from the Greek word “automatos”, which means “to act of itself” or demonstrating self-governance. Automation is now used to describe the application of machines to tasks once performed by human beings or, increasingly, to tasks that would otherwise be impossible for humans to undertake. And, driven by the two key drivers of quality and efficiency improvements, there is scarcely an area of modern life that has not been affected by automation.

Curiously, and until fairly recently, the practice of law, had managed to resist any significant changes driven by automation, apart from maybe for the use of fairly standard, document management, word processing, and electronic mailing systems. Over the last decade, however, this has started to change; law firms and paralegal teams are now fully embracing the world of “legal tech”. This has already had a significant impact on case management through the use of intelligent and automated tools for the search and retrieval of information. And, as discussed earlier, contract analytics is now common practice, as is automated dispute resolution.

As with any process, the automation of contracting processes requires a thorough understanding of how activities fit together, the inputs and outputs, and how these might vary as circumstances change. For example, this requires all event states referred to in the contract to be defined, and for events to be monitored, categorized, and registered. However, where we cannot anticipate every future eventuality (or do not wish to spend the time doing so) a managed approach toward dealing with vagueness will be needed.

Even when a contracting system is operating within the bounds of a defined set of states, there may well be a need for human intervention, particularly where decisions with significant consequences, e.g. sizeable transfers of funds or assets are necessary, or where additional human judgement is required. Human intervention can be designed into processes from the outset, and follows an increasing trend of collaboration between computers and humans (Deloitte 2019). For example, the term “cobot” is used to describe a robot that can collaborate with a human.

Successful deployments of computable contracting may also consider compliance as part of the overall system functionality. In the same way that contracts can be represented in a computable way, so too can some of the legislation to which contracts should adhere. Indeed there is a significant level of interest in the emerging area of “reg tech”, where the computability of regulations (rather than contracts) is very much center stage. Hence, forward-thinking deployments of computable contracting systems should build in the connectivity to (and interoperability with) guiding legislation. One of the world leaders in this space is CSIRO and the Data 61 Initiative (2020).

Automated contracting systems need to be trusted, and it is here that DLT have a role to play. Having an immutable record of the dynamic states of a system will help to establish the necessary levels of trust so that multiple parties are willing to use it. There are several different DLT types, each suited to specific implementation scenarios (Governatori et al. 2018), and understanding how to design and build a system with the required levels of trust and security for different contracting scenarios between multiple parties is vital.

Business impact of computable contracting

It may well be that a set of contracts lends itself to computability, both in terms of its formal representation and its digital connectivity, but there is one further hurdle to clear: does it make business sense? Without a high level of impact on business operations (in terms of efficiency, productivity, quality, and benefits) and financial performance (costs and profits), any attempt to make contracts computable is likely to fail.

Hence, computable contracting initiatives need an appropriate costs/benefits analysis that extends across the full value chain, rather than considering improvements in, for example, the drafting or amendment of contracts alone. One aspect to be considered here may concern any reductions in contractual disputes (and the resources associated with them).

From a senior management perspective, computable contracting will provide a better platform for decision-making. The data models and structures that are embedded in computable contracts can be readily aggregated and expressed in a dashboard format to allow for a more comprehensive coverage of the decision-making space, greater accuracy, and increased responsiveness.

Computable contracting will also lead to the development of new business models, and while difficult to predict, let alone quantify, it is here perhaps that the most significant benefits will be found. A good example can be found in the insurance sector where there is significant latent potential for an increased level of capitalization options for some types of more complex risk. One essential element in achieving this requires the underlying contracts to be built upon more standardized provisions and a shared set of data structures (Lloyds of London 2019).

Achieving this business impact also requires organizational change, but there may well be resistance toward adopting some of the approaches necessary for computable contracting. Without a strong drive to establish standards (from the top), as well as a shared incentive to adopt these standards (throughout the organizations concerned), then change will be slow and piecemeal. And for many industries, even though a strong drive toward establishing standards from the top may well exist, it is the shared incentives (or ensuring benefits to all) that is usually the stumbling block. It follows, therefore, that successful implementation of computable contracting solutions will require a combination of ambition, realism, and pragmatism.

Summary and conclusion

In the last three decades or so, digital innovations of all forms have had a transformational impact on our lives and the way in which commerce is undertaken. As a cornerstone of business, commercial contracts, however, have been left somewhat behind: they are generally created in a monolithic (rather than a modular) form and have little inbuilt structure and intelligence that might directly underpin greater digital automation.

Where advanced technologies have been used (e.g. CLM systems), they have tended to automate around the contracts, leaving the contracts themselves largely untouched in their unstructured, natural language form.

This shortfall in digital innovation for contracting is one of the causes of inefficiency and loss of productivity in commerce, and it is also holding back the emergence of more agile business models. Various studies over the past 5–10 years have concluded that inefficient contracting causes double-digit losses in a wide range of industries.

Computable contracting sets out to close this productivity gap by transforming contracts into digital objects that are:

Easy for humans to understand and generate and

Expressible (as far as possible) as a formal, high-level language that is directly compilable (“translatable”) into lower-level languages.

To do this will require the adoption of universally accepted standards for connectivity (and interoperability) throughout the relevant community of interest, as well as providing the required levels of security.

Designing (or “drafting”) computable contracts is likely to borrow some of the ideas from the Semantic Web movement, with its associated technology stack (higher to lower level coding languages), and rich set of functionalities (such as ontology development and cryptography). Natural language may still be used in contracts, if only to provide annotated descriptions for the contract, but many aspects of contracts will have greater structure and shared formats from the outset. Hence, rather than dispensing with lawyers, the future of (computable) contracting will call upon new skills; the creativity in drafting contracts will be deployed in designing multifaceted digital objects that are fully interoperable across business systems and the value chain.

The evolution toward computable contracting will take years, and will have to contend with resistance to change from several quarters, and not only the lawyers. It will build on many of the contracting technologies already being used today such as CLM systems, smart and Ricardian contracting approaches, and automated document assembly systems. It will draw upon many of the ideas and practices commonly seen in the web development space, as well as the emergence of new coding languages. And, it will emerge more quickly in some industries than it will in others: financial services are likely to lead the way.

Building structure is about taming complexity, and for contracting, it is no different. On the assumption that standards can be established, the task of making contracts computable must deal with those aspects of a contract that concern the “product” (i.e. what the obligations are) and the “process” (i.e. how the obligations are met). Computable contracting will have the biggest impact initially where the product complexity is higher and the process complexity lower, and this is where much of the innovation in fintech and insuretech is seen.

Future directions in research for computable contracting will be strongly focussed on the representation of the knowledge contained in the contract and related documentation, and in particular, the selection of the most appropriate representational form to suit the purpose. The three main forms to choose from are:

Controlled natural language—essentially, a natural language in a structured format,

Natural language with embedded metadata, and

Graphical representations.

Building contracts that bring together all of the above in the most appropriate way will herald the emergence of a new skill of contract engineering and design.
