Abstract
Objective
Determine the utility of aquaporin 4 IgG (AQP4-IgG) testing (live cell-based assay) for Neuromyelitis Optica Spectrum Disorders (NMOSD).
Methods
We included Mayo Clinic patients (1/1/2018-12/31/2019) tested for serum AQP4-IgG by live cell-based flow-cytometric assay. Medical records were reviewed to assess if patients fulfilled 2015 NMOSD criteria.
Results
Of 1371 patients tested, 41 were positive (3%) and all fulfilled NMOSD criteria with AQP4-IgG (specificity = 100%). Only 10/1330 testing negative met NMOSD criteria without AQP4-IgG (sensitivity = 80%) and seven of these 10 were MOG-IgG positive.
Conclusions
AQP4-IgG by live cell-based assay was highly specific and without false positives in a high throughput setting.
Introduction
Neuromyelitis Optica Spectrum Disorder (NMOSD) is an inflammatory CNS demyelinating disease, associated with aquaporin-4 immunoglobulin-G antibodies (AQP4-IgG). We previously showed AQP4-IgG live cell-based assay (M1-isoform) had 83% sensitivity and 100% specificity for NMO diagnosis using older 2006 criteria and similar results (69.7–100% sensitive; 90.6–100% specific) from other centers are reported with the 2006 and 2015 criteria.1–4 In a clinical setting with high testing volumes, the risk of false positivity for diagnostic biomarkers can increase, particularly when ordered in low probability situations. 5 Our aim was to assess the sensitivity, specificity, likelihood ratios (LHR) and frequency of false positives with AQP4-IgG live cell-based assay using updated 2015 NMOSD diagnostic criteria 6 in a high throughput clinical setting at a tertiary referral center.
Methods
Standard protocol approvals, registrations, and patient consents
The study was approved by the Mayo Clinic Institutional Review Board (IRB#: 08-006647). Patients consented to use of their medical records for research purposes.
Data collection
This retrospective observational study involved 1371 consecutive Mayo Clinic patients evaluated for serum AQP4-IgG during routine clinical care (1/1/2018–12/31/2019). Although the test is mostly ordered by neurologists, requests for testing by any physician at any of the three Mayo Clinic sites (Jacksonville[FL], Rochester[MN], Scottsdale[AZ]) were included. Electronic medical records and MRI's were available in all patients and reviewed to determine age at testing, sex, ethnicity, clinical and radiologic phenotypes to determine if they fulfilled 2015 criteria for NMOSD. 6 If AQP4-IgG positive patients did not fulfill 2015 NMOSD criteria either by lacking core clinical characteristics or having an alternative diagnosis, they were designated false positives.
Antibody testing
AQP4-IgG testing was performed with an in-house live cell-based flow-cytometric/fluorescence-activated-cell-sorting (FACS) assay using HEK293 cells transfected with human AQP4 M1-isoform as previously described. 1 Samples were screened at 1:5 dilution. If the IgG-binding-index (IBI: Ratio of median-fluorescence-intensities of AQP4 transfected to non-transfected cells) was ≥2.0, they were retested and titrated from 1:10 dilution, in ten-fold steps, to establish end-point titers (i.e. last dilution with IBI ≥2.0; reference value <1:5). Myelin oligodendrocyte glycoprotein immunoglobulin-G (MOG-IgG) live cell-based assay was tested in 29/41 AQP4-IgG seropositives and all ten NMOSD without AQP4-IgG, using previously described methodology. 5
Data analysis
The sensitivity (true positives/true positives plus false negatives), specificity (true negatives/true negatives plus false positives) and negative likelihood ratio (1-sensitivity/specificity) for NMOSD diagnosis were calculated along with 95% confidence intervals (CI) using ‘R’ version 4.1.
Data availability statement
Anonymized data used for this study are available upon request from authors.
Results
Of the 1371 patients tested for AQP4-IgG, 41 were positive (3%) (median titer, 1000 [range, 5–100,000]) (Figure 1). Demographics are summarized in Table 1.
Flow chart of patients tested for AQP4-IgG. AQP4-IgG, aquaporin-4-IgG; CIS, clinically isolated syndrome; CNS, central nervous system; FND, functional neurologic disorder; MOG-IgG, myelin oligodendrocyte glycoprotein-IgG; MS, multiple sclerosis; NMOSD, neuromyelitis optica spectrum disorder; ON, optic neuritis; RIS, radiologically isolated syndrome.
Demographics and results.
one case was paraneoplastic.
There were no cases of AQP4/MOG-IgG dual positivity.
Includes Native American, Pacific islander, Arab.
Abbreviations: AQP4-IgG, Aquaporin-4-IgG; MOG-IgG, Myelin Oligodendrocyte Glycoprotein-IgG; MOGAD, Myelin Oligodendrocyte Glycoprotein antibody associated disorder; NMOSD, Neuromyelitis optica spectrum disorder.
All 41 AQP4-IgG positive patients fulfilled contemporary criteria for NMOSD with AQP4-IgG and their core clinical characteristics are summarized in Table 2. No false positives were identified, and AQP4-IgG specificity was 100% (95% CI, 99.7–100%). Positive LHR not calculable as specificity was 100%. Of these 41 patients, 28 (68%) were receiving immunosuppressants (steroids, azathioprine, mycophenolate or rituximab) at AQP4-IgG testing.

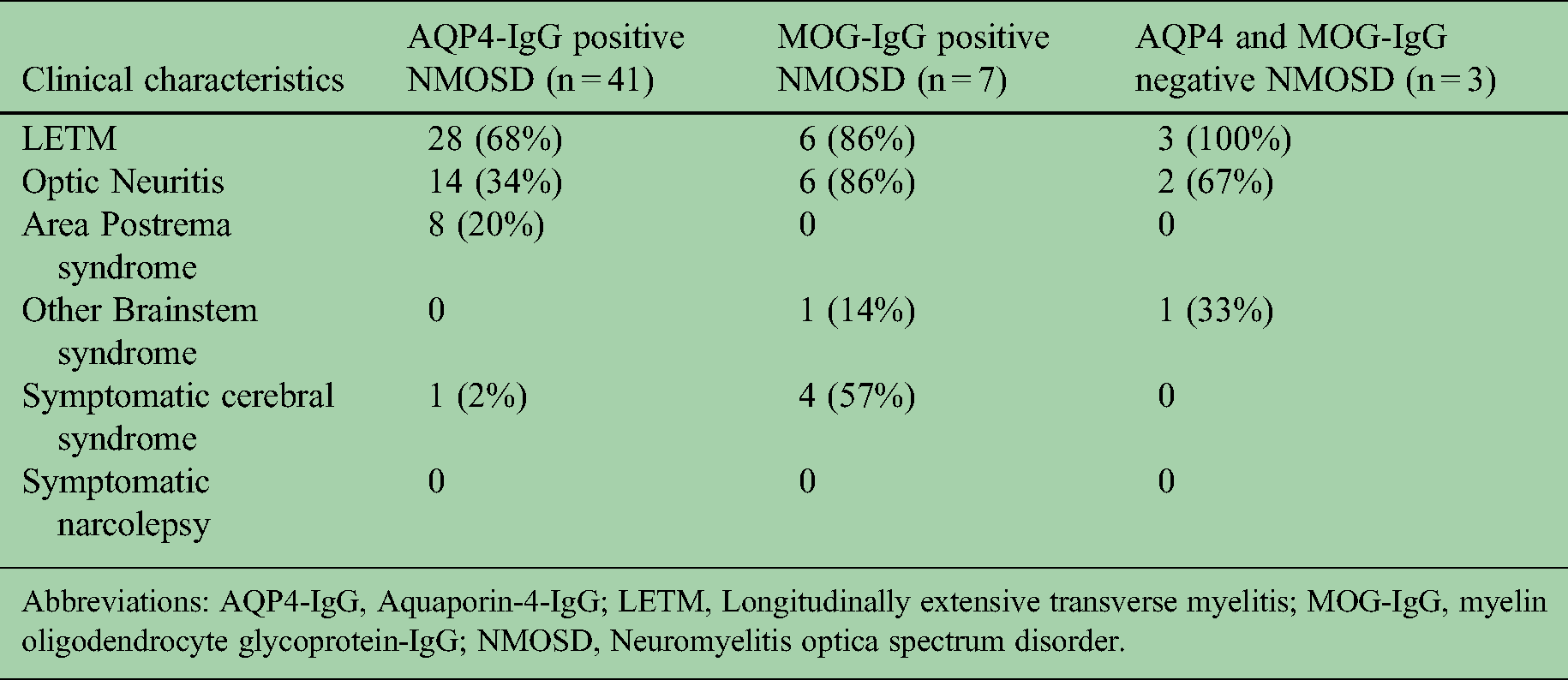

Core clinical characteristics of seropositive and seronegative NMOSD.
Abbreviations: AQP4-IgG, Aquaporin-4-IgG; LETM, Longitudinally extensive transverse myelitis; MOG-IgG, myelin oligodendrocyte glycoprotein-IgG; NMOSD, Neuromyelitis optica spectrum disorder.
Of the 1330 AQP4-IgG seronegative patients, ten fulfilled clinical diagnostic criteria for NMOSD without AQP4-IgG and are summarized in Table 1. Thus, AQP4-IgG sensitivity for NMOSD diagnosis was 80.4% (95% CI, 66.7–90.2%) and negative likelihood ratio was 0.2 (95% CI, 0.11–0.34). Seven of those ten cases were MOG-IgG positive (median titer, 1:100 [range, 1:20–1:1000]), and three were negative for both AQP4-IgG and MOG-IgG. Three of the ten patients (30%) were receiving immunosuppressants at antibody testing (One MOG-IgG1 positive patient and two dual seronegative patients).
The clinical phenotype of all 7 MOG-IgG positives was consistent with that defined for MOG-IgG associated disease (MOGAD) 5 and no false positives or dual AQP4-IgG and MOG-IgG positives were encountered. Overall, 1072 of 1371 patients were tested for MOG-IgG and 64 were positive including the 10 that fulfilled criteria for NMOSD without AQP4-IgG.
Discussion
Our data show that AQP4-IgG seropositivity has high sensitivity and extremely high specificity for NMOSD diagnosis in a real-world clinical setting, consistent with our prior study using 2006 NMO criteria. 1 The lack of false positive results, despite testing large numbers attests to the value of live cell-based AQP4-IgG assays as a diagnostic biomarker for NMOSD. Although testing of even larger patient populations may be anticipated to yield occasional false positives, these data indicate false positives are rare.
Recently, we showed MOG-IgG was highly specific (97.8%) for MOGAD diagnosis, but the overall positive predictive value of seropositivity was 72%, with particular risk of false positives at low titer when tested in low pre-test probability situations. 5 Thus, more generous ordering of AQP4-IgG by cell-based assay can be considered compared to MOG-IgG which requires more judicious test ordering and result interpretation.
MOG-IgG accounted for 70% of AQP4-IgG seronegative NMOSD, higher than the 41.6% reported previously, 7 but is limited by smaller number of NMOSD patients analyzed. The demographics and clinical features differed for AQP4-IgG and MOG-IgG positive patients justifying separate MOGAD diagnostic criteria, particularly as only 23% of adult MOGAD fulfill criteria for NMOSD without AQP4-IgG. 8
It is worth noting that the percentage of patients seen at the Mayo Clinic during the two year period (January 2018 - December 2019) who met the 2015 NMOSD criteria (3.7%; 51/1371), is similar to that observed during a previous six year study at the Mayo Clinic (October 2005 - November 2011) in which patients met either the 1999 or 2006 criteria for NMOSD (3%; 164/5349). 9 This demonstrates that despite the changes in criteria the percentage of seropositivity has remained quite stable (85% vs 80%, respectively).
Our study had limitations. CSF was not assessed but serum is optimal for AQP4-IgG detection. 10 AQP4-IgG testing was not processed in batch but rather individually as samples arrived and some samples were not tested for MOG-IgG. Some patients were receiving immunotherapy at the time of testing but most AQP4-IgG seronegative NMOSD were MOG-IgG positive making it unlikely this majorly impacted our results. Referral bias is possible and studies in a community setting or other centers are needed, nevertheless, the characteristics of AQP4-IgG positives in our study fit well with typical AQP4-NMOSD. 6
