Pain in AQP4-IgG-positive and MOG-IgG-positive neuromyelitis optica spectrum disorders

Abstract

Background

Pain is a frequent symptom in aquaporin-4-immunoglobulin-G-positive neuromyelitis optica spectrum disorders (AQP4-IgG-pos. NMOSD). Data on pain in myelin-oligodendrocyte-glycoprotein-immunoglobulin-G autoimmunity with a clinical NMOSD phenotype (MOG-IgG-pos. NMOSD) are scarce.

Objective

The objective of this paper is to investigate pain in MOG-IgG-pos. NMOSD, AQP4-IgG-pos. NMOSD and NMOSD without AQP4/MOG-IgG detection (AQP4/MOG-IgG-neg. NMOSD).

Methods

Forty-nine MOG-IgG-pos. (n = 14), AQP4-IgG-pos. (n = 29) and AQP4/MOG-IgG-neg. (n = 6) NMOSD patients were included in this cross-sectional baseline analysis from an ongoing observational study. We identified spinal cord lesions on magnetic resonance imaging, assessed pain by the painDETECT and McGill Pain questionnaires, quality of life by Short Form Health Survey, and depression by Beck Depression Inventory.

Results

Twelve MOG-IgG-pos. NMOSD patients (86%), 24 AQP4-IgG-pos. NMOSD patients (83%), and all AQP4/MOG-IgG-neg. NMOSD patients (100%) suffered from pain. MOG-IgG-pos. NMOSD patients had mostly neuropathic pain and headache; AQP4-IgG-pos. and AQP4/MOG-IgG-neg. NMOSD patients had mostly neuropathic pain. A history of myelitis was less frequent in MOG-IgG-pos. NMOSD than in AQP4-IgG-pos. NMOSD patients. Pain influenced quality of life in all patients. Thirty-six percent of patients with pain received pain medication; none of them were free of pain.

Conclusions

Pain is a frequent symptom of patients with MOG-IgG-pos. NMOSD and is as important as in AQP4-IgG-pos. and AQP4/MOG-IgG-neg. NMOSD. Despite its impact on quality of life, pain is insufficiently alleviated by medication.

Keywords

Aquaporin 4 (AQP4)myelin oligodendrocyte glycoprotein antibody (MOG)neuromyelitis optica (NMO) spectrum disease (NMOSD)pain

Introduction

Pain is one of the most frequent comorbidities of neurologic diseases and severely reduces the quality of life (QoL) of affected patients. In the management of patients with neuroinflammatory diseases, the appropriate treatment of pain is a difficult challenge.

Neuromyelitis optica spectrum disorders (NMOSD) are inflammatory autoimmune diseases of the central nervous system (CNS) associated with immunoglobulin G antibodies (IgG) to the astrocytic water channel aquaporin-4 (AQP4), to myelin oligodendrocyte glycoprotein (MOG) or in some cases without antibody proof.^1,2 Currently, it is unclear whether MOG-IgG-positive NMOSD (MOG-IgG-pos. NMOSD) is a disease entity of its own, defined by the presence of anti-MOG-IgG and a clinical phenotype similar to AQP4-IgG-positive NMOSD (AQP4-IgG-pos. NMOSD). Consequently, some authors recognize both diseases as separate disease entities based on different cellular pathologies,³ while others describe them as different forms of a larger disease spectrum, usually under the NMOSD umbrella, based on a similar clinical phenotype characterized by relapsing optic neuritis and/or extensive transverse myelitis leading to blindness, weakness, numbness, cognitive impairment, and pain.^4,5

Systematic studies of pain syndromes associated with NMOSD are relatively scarce and have so far been limited to AQP4-IgG-positive or AQP4-IgG-negative NMOSD.^6–10 Here, we systematically study pain syndromes of patients suffering from MOG-IgG-pos. NMOSD, contribute to the literature on pain syndromes of patients with AQP4-IgG-pos. and AQP4/MOG-IgG-neg. NMOSD, and provide a comparison of pain syndromes and QoL aspects in MOG-IgG-pos. and AQP4-IgG-pos. NMOSD.

Methods

Ethics, study protocol and patient sample

Data are derived from the baseline visit of an ongoing observational study that is following patients with AQP4-IgG-pos. NMOSD and related disorders. The study was approved by the ethics committee of the Charité–Universitätsmedizin Berlin, Germany (EA1/041/14) and conducted according to the 1964 Declaration of Helsinki in its currently applicable version. All participants provided written informed consent prior to inclusion.

Inclusion criteria for this analysis were diagnosis of NMOSD according to the international consensus diagnostic criteria for NMOSD 2015¹ or positive proof of anti-MOG-IgG associated with a demyelinating disease of the CNS with a clinical phenotype equivalent to NMOSD diagnosis criteria in patients over 18 years of age.² Anti-MOG-IgG was detected by a live cell-based assay using HEK293A cells transfected with full-length human MOG and was confirmed by means of a commercial fixed-cell based assay with HEK293 cells transfected with full-length human MOG (Euroimmun, Lübeck, Germany).^2,4 We treated MOG-IgG positivity as equivalent to positive AQP4-IgG for fulfilling the diagnostic criteria.

At the time of screening, our database contained 53 baseline visits. Forty-nine patients were included in the analysis. Of these, 14 patients suffered from MOG-IgG-pos. NMOSD and 29 patients from AQP4-IgG-pos. NMOSD.¹ Six patients fulfilled the 2015 International Panel for NMO Diagnosis criteria for NMOSD and were negative for anti-MOG-IgG and anti-AQP4-IgG. Three patients were not included in the analysis because of a diagnosis of antibody-negative isolated longitudinally extensive transverse myelitis without fulfilling NMOSD diagnostic criteria or positive MOG-IgG testing. One patient was excluded because of incomplete pain assessment. The resulting female-to-male ratio of 2.5:1 in the MOG-IgG-pos. and of 9:1 in the AQP4-IgG-pos. NMOSD patients corresponds to previous data in the literature.^1,4,11,12 Demographic data, Expanded Disability Status Scale (EDSS), and health-related quality of life (hr-QoL) assessment scores were similar between MOG-IgG-pos. and AQP4-IgG-pos. NMOSD patients (Table 1).

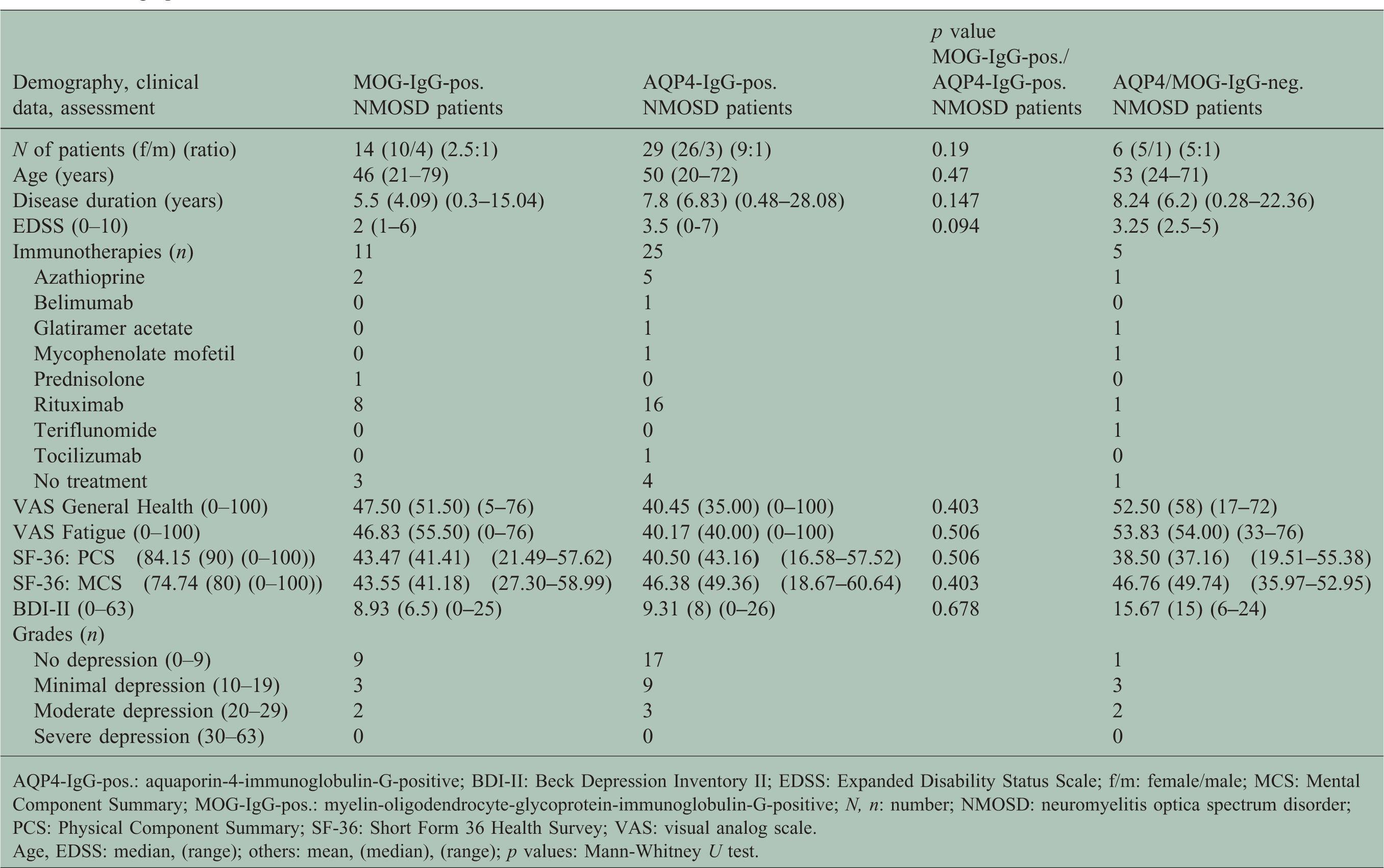

Table 1.

Demographics, clinical data and assessment.

Demography, clinical data, assessment	MOG-IgG-pos. NMOSD patients	AQP4-IgG-pos. NMOSD patients	p valueMOG-IgG-pos./AQP4-IgG-pos. NMOSD patients	AQP4/MOG-IgG-neg. NMOSD patients
N of patients (f/m) (ratio)	14 (10/4) (2.5:1)	29 (26/3) (9:1)	0.19	6 (5/1) (5:1)
Age (years)	46 (21–79)	50 (20–72)	0.47	53 (24–71)
Disease duration (years)	5.5 (4.09) (0.3–15.04)	7.8 (6.83) (0.48–28.08)	0.147	8.24 (6.2) (0.28–22.36)
EDSS (0–10)	2 (1–6)	3.5 (0-7)	0.094	3.25 (2.5–5)
Immunotherapies (n)	11	25		5
Azathioprine	2	5		1
Belimumab	0	1		0
Glatiramer acetate	0	1		1
Mycophenolate mofetil	0	1		1
Prednisolone	1	0		0
Rituximab	8	16		1
Teriflunomide	0	0		1
Tocilizumab	0	1		0
No treatment	3	4		1
VAS General Health (0–100)	47.50 (51.50) (5–76)	40.45 (35.00) (0–100)	0.403	52.50 (58) (17–72)
VAS Fatigue (0–100)	46.83 (55.50) (0–76)	40.17 (40.00) (0–100)	0.506	53.83 (54.00) (33–76)
SF-36: PCS (84.15 (90) (0–100))	43.47 (41.41) (21.49–57.62)	40.50 (43.16) (16.58–57.52)	0.506	38.50 (37.16) (19.51–55.38)
SF-36: MCS (74.74 (80) (0–100))	43.55 (41.18) (27.30–58.99)	46.38 (49.36) (18.67–60.64)	0.403	46.76 (49.74) (35.97–52.95)
BDI-II (0–63)	8.93 (6.5) (0–25)	9.31 (8) (0–26)	0.678	15.67 (15) (6–24)
Grades (n)
No depression (0–9)	9	17		1
Minimal depression (10–19)	3	9		3
Moderate depression (20–29)	2	3		2
Severe depression (30–63)	0	0		0

AQP4-IgG-pos.: aquaporin-4-immunoglobulin-G-positive; BDI-II: Beck Depression Inventory II; EDSS: Expanded Disability Status Scale; f/m: female/male; MCS: Mental Component Summary; MOG-IgG-pos.: myelin-oligodendrocyte-glycoprotein-immunoglobulin-G-positive; N, n: number; NMOSD: neuromyelitis optica spectrum disorder; PCS: Physical Component Summary; SF-36: Short Form 36 Health Survey; VAS: visual analog scale.

Age, EDSS: median, (range); others: mean, (median), (range); p values: Mann-Whitney U test.

Clinical data

We recorded immunotherapies and pain medication including nonsteroidal anti-inflammatory drugs, anticonvulsants, tricyclic antidepressants, atypical antidepressants, selective serotonin norepinephrine reuptake inhibitors, selective serotonin reuptake inhibitors and muscle relaxants. Every patient had a medical interview by a trained neurologist about clinical history and underwent a neurological examination determining the EDSS.

All scales used in this study are established measurements for pain^7,13,14 and hr-QoL^6,7,9,13,15 both in multiple sclerosis and in NMOSD.

Pain assessment

Pain was recorded whenever a patient reported via the painDETECT questionnaire (PDQ) either current pain or pain within the previous four weeks.

Neuropathic pain is pain caused by a lesion or disease affecting the somatosensory system.¹⁶ We classified pain as neuropathic if sensory signs corresponding to the affected nervous structure were examined, and if the magnetic resonance imaging (MRI) confirmed a corresponding CNS lesion.¹⁶

We administered the PDQ to ask about pain localization and current and previous pain. The PDQ supports the discrimination of neuropathic and nociceptive pain by seven questions about pain quality. Each quality is rated from 0 to 5 so a maximum subscale score of 35 can be reached. A PDQ-score of 12 or higher is indicative of neuropathic pain,^14,17 but was not used as a deciding diagnostic criterion. Similar to previous findings,¹⁸ the sensitivity of the PDQ compared to the clinical diagnosis of neuropathic pain was only 70%.

In the McGill Pain Questionnaire (MGQ), patients describe their pain experience with up to 20 words from a list of 78 words, categorized as sensory-discriminative to describe the sense of intensity, location and duration of pain, as motivational-affective to describe unpleasantness, and as cognitive-evaluative to describe cognitions such as appraisal. The chosen words map onto a rating index ranging from 0 to 78 with higher values meaning worse pain.¹⁹

hr-QoL

We measured hr-QoL with the Short Form 36 Health Survey (SF-36). A Physical and a Mental Component Summary (PCS/MCS) were calculated using norm-based attaining values from 0 (worst) to 100 (best).²⁰

Self-reported effect of general health and fatigue was acquired by visual analog scales (VAS) asking in German, “How strong is your fatigue/impairment of general health?” labeled with “no fatigue/impairment” as the starting point and “unbearable fatigue/impairment” as the end point. The different positions are related to numbers between 0 (best) and 100 (worst).²¹

To evaluate depressive symptoms, we administered the Beck Depression Inventory (BDI-II). It contains 21 questions with a score from 0 (best) to 63 (worst) (0–9: nondepressive affect; 10–19: minimal mood disturbance; 20–29:moderate depression; 30 and above: severe depression).²²

MRI

MRI was performed with a Siemens 3-Tesla Magnetom Trio scanner (Erlangen, Germany). A neuroradiologist (M.S.) reviewed scans of the brain (three-dimensional (3D) fluid-attenuated inversion recovery, 1 mm isotropic resolution, repetition time (TR)/echo time (TE)/inversion time (TI) = 6000/388/2100 ms) and spinal cord (T2-weighted sagittal, 3 mm slice thickness, TR/TE = 3500/101 ms) to detect residual lesions to confirm or reject the diagnosis of neuropathic pain.

Statistical analysis

We carried out all statistical analyses using IBM SPSS Statistics version 22.0 software (IBM, Armonk, NY, USA). Demographic and clinical characteristics are shown as means plus standard deviation and as range or counts. We performed the Mann-Whitney U test to compare ordinal data, the Fisher exact test to compare binary data between MOG-IgG-pos. and AQP4-IgG-pos. NMOSD patients, and the Pearson correlation test to explore the relationships between the dependent measure of pain intensity and the independent variables of SF-36, VAS and BDI-II. All tests were two tailed and significance was set as p < 0.05. Data derived from AQP4/MOG-IgG-neg. NMOSD patients are descriptively listed because of the low sample size. All statistical analyses have explorative character and should be interpreted as statistical tendency.

Results

MOG-IgG-pos. NMOSD patients suffered considerably from pain. Pain frequency, intensity, pain type, pain localization and frequency of pain treatment were comparable to AQP4-IgG-pos. NMOSD patients (Tables 2 and 3). Twelve out of 14 MOG-IgG-pos. NMOSD patients (86%) indicated via the PDQ that they suffer from pain. Average pain intensity was mild; one patient (7%) suffered from severe pain. According to medical interview, clinical examination, and MRI, five MOG-IgG-pos. NMOSD patients suffered from neuropathic pain (41.6%), whereas only three patients had a PDQ score >12. Six MOG-IgG-pos. NMOSD patients reported mainly headache/neck pain (50%). Pain types comprised retrobulbar pain (n = 2), tension headache in association with recurrent optic neuritis (n = 1), occipital neuralgia (n = 1) and cervicogenic headache (n = 2). Three patients additionally suffered from migraine, which was aggravated in two of them in the context of MOG-IgG-pos. NMOSD.

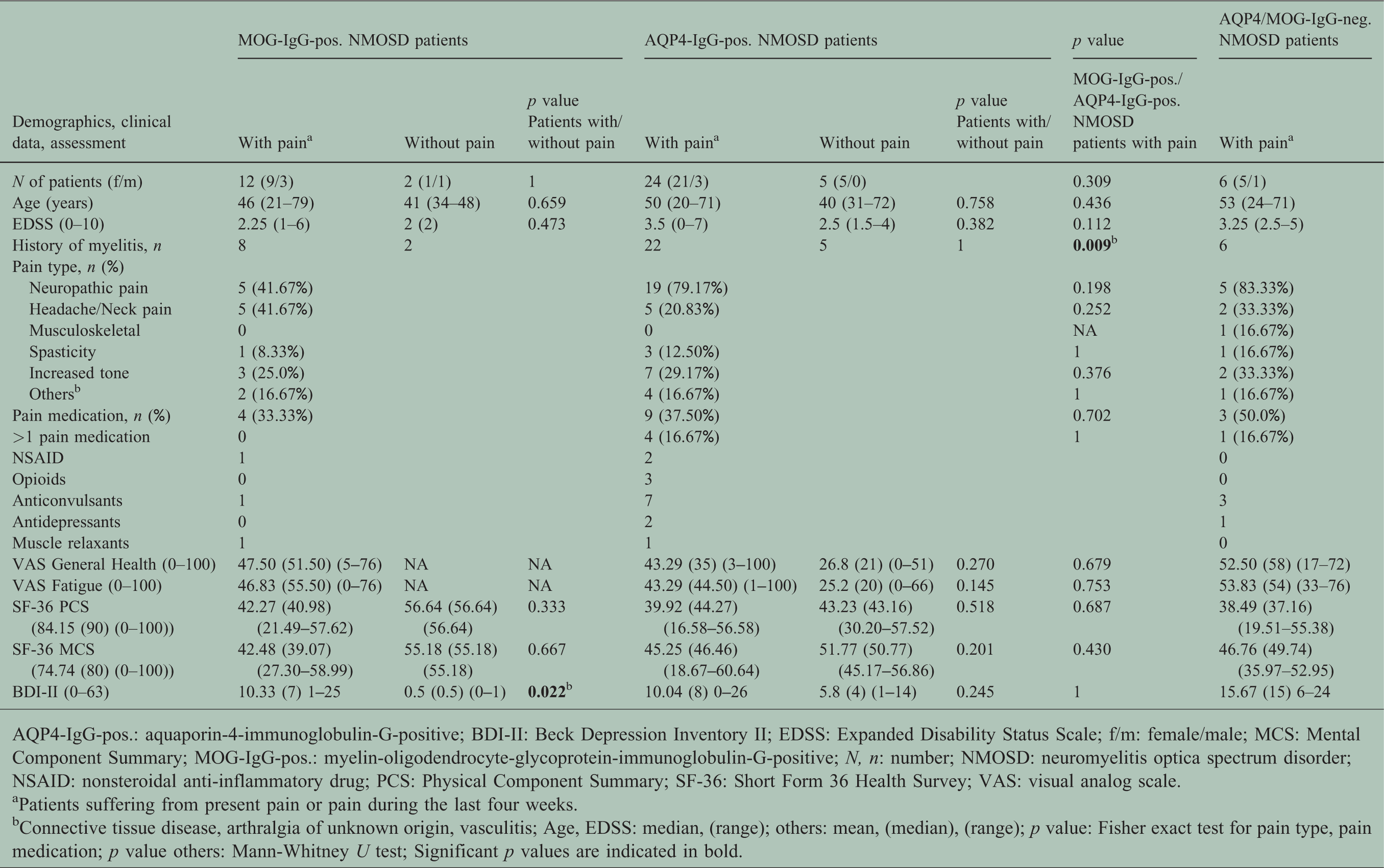

Table 2.

Demographics, clinical data, and assessment subject to pain.

Demographics, clinical data, assessment	MOG-IgG-pos. NMOSD patients			AQP4-IgG-pos. NMOSD patients			p value	AQP4/MOG-IgG-neg. NMOSD patients
Demographics, clinical data, assessment	With pain^a	Without pain	p valuePatients with/without pain	With pain^a	Without pain	p valuePatients with/without pain	MOG-IgG-pos./AQP4-IgG-pos. NMOSD patients with pain	With pain^a
N of patients (f/m)	12 (9/3)	2 (1/1)	1	24 (21/3)	5 (5/0)		0.309	6 (5/1)
Age (years)	46 (21–79)	41 (34–48)	0.659	50 (20–71)	40 (31–72)	0.758	0.436	53 (24–71)
EDSS (0–10)	2.25 (1–6)	2 (2)	0.473	3.5 (0–7)	2.5 (1.5–4)	0.382	0.112	3.25 (2.5–5)
History of myelitis, n	8	2		22	5	1	0.009 ^b	6
Pain type, n (%)
Neuropathic pain	5 (41.67%)			19 (79.17%)			0.198	5 (83.33%)
Headache/Neck pain	5 (41.67%)			5 (20.83%)			0.252	2 (33.33%)
Musculoskeletal	0			0			NA	1 (16.67%)
Spasticity	1 (8.33%)			3 (12.50%)			1	1 (16.67%)
Increased tone	3 (25.0%)			7 (29.17%)			0.376	2 (33.33%)
Others^b	2 (16.67%)			4 (16.67%)			1	1 (16.67%)
Pain medication, n (%)	4 (33.33%)			9 (37.50%)			0.702	3 (50.0%)
>1 pain medication	0			4 (16.67%)			1	1 (16.67%)
NSAID	1			2				0
Opioids	0			3				0
Anticonvulsants	1			7				3
Antidepressants	0			2				1
Muscle relaxants	1			1				0
VAS General Health (0–100)	47.50 (51.50) (5–76)	NA	NA	43.29 (35) (3–100)	26.8 (21) (0–51)	0.270	0.679	52.50 (58) (17–72)
VAS Fatigue (0–100)	46.83 (55.50) (0–76)	NA	NA	43.29 (44.50) (1–100)	25.2 (20) (0–66)	0.145	0.753	53.83 (54) (33–76)
SF-36 PCS(84.15 (90) (0–100))	42.27 (40.98)(21.49–57.62)	56.64 (56.64)(56.64)	0.333	39.92 (44.27)(16.58–56.58)	43.23 (43.16)(30.20–57.52)	0.518	0.687	38.49 (37.16)(19.51–55.38)
SF-36 MCS(74.74 (80) (0–100))	42.48 (39.07)(27.30–58.99)	55.18 (55.18)(55.18)	0.667	45.25 (46.46)(18.67–60.64)	51.77 (50.77)(45.17–56.86)	0.201	0.430	46.76 (49.74)(35.97–52.95)
BDI-II (0–63)	10.33 (7) 1–25	0.5 (0.5) (0–1)	0.022 ^b	10.04 (8) 0–26	5.8 (4) (1–14)	0.245	1	15.67 (15) 6–24

AQP4-IgG-pos.: aquaporin-4-immunoglobulin-G-positive; BDI-II: Beck Depression Inventory II; EDSS: Expanded Disability Status Scale; f/m: female/male; MCS: Mental Component Summary; MOG-IgG-pos.: myelin-oligodendrocyte-glycoprotein-immunoglobulin-G-positive; N, n: number; NMOSD: neuromyelitis optica spectrum disorder; NSAID: nonsteroidal anti-inflammatory drug; PCS: Physical Component Summary; SF-36: Short Form 36 Health Survey; VAS: visual analog scale.

^aPatients suffering from present pain or pain during the last four weeks.

^bConnective tissue disease, arthralgia of unknown origin, vasculitis; Age, EDSS: median, (range); others: mean, (median), (range); p value: Fisher exact test for pain type, pain medication; p value others: Mann-Whitney U test; Significant p values are indicated in bold.

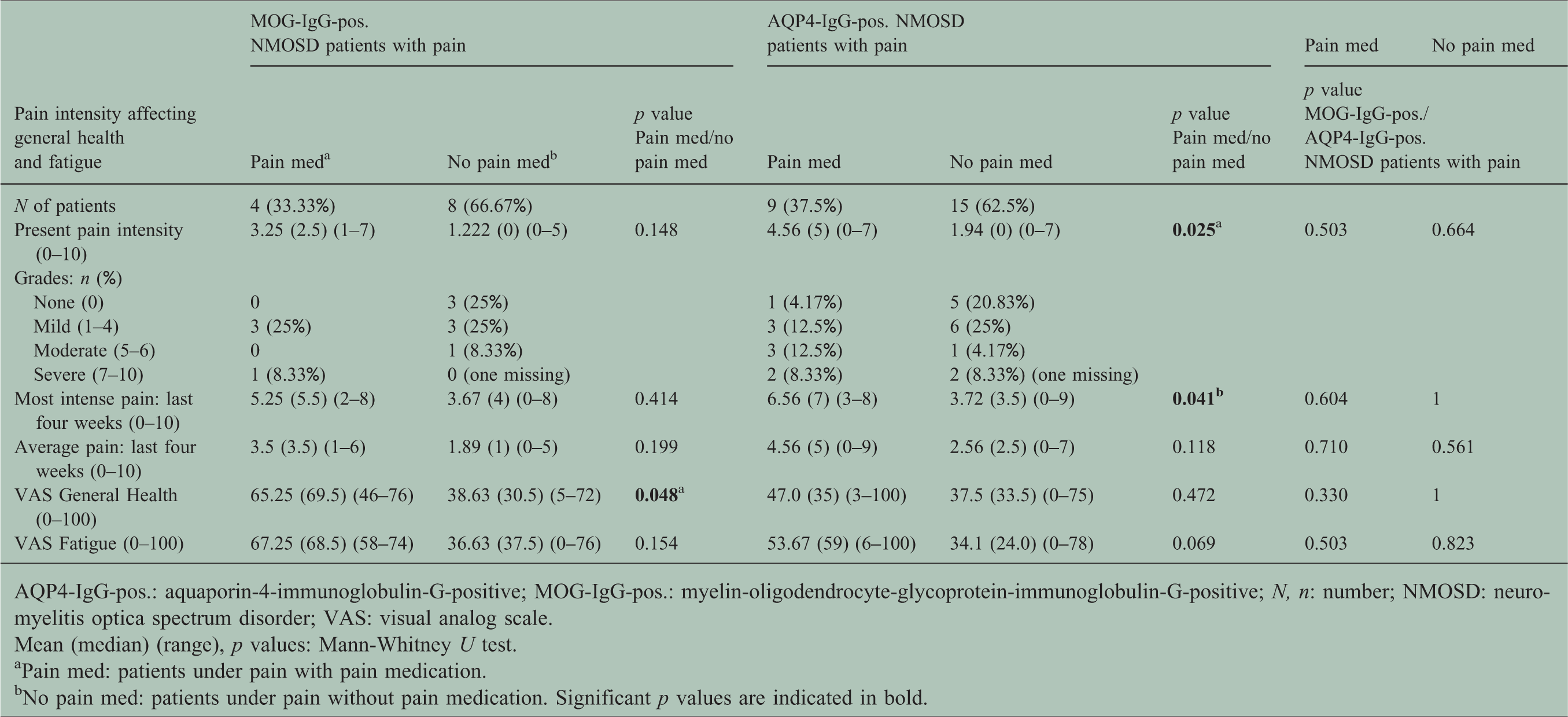

Table 3.

Pain intensity affecting general health and fatigue in relation to pain medication.

Pain intensity affecting general health and fatigue	MOG-IgG-pos. NMOSD patients with pain			AQP4-IgG-pos. NMOSD patients with pain			Pain med	No pain med
Pain intensity affecting general health and fatigue	Pain med^a	No pain med^b	p valuePain med/no pain med	Pain med	No pain med	p valuePain med/no pain med	p valueMOG-IgG-pos./AQP4-IgG-pos. NMOSD patients with pain
N of patients	4 (33.33%)	8 (66.67%)		9 (37.5%)	15 (62.5%)
Present pain intensity (0–10)	3.25 (2.5) (1–7)	1.222 (0) (0–5)	0.148	4.56 (5) (0–7)	1.94 (0) (0–7)	0.025 ^a	0.503	0.664
Grades: n (%)
None (0)	0	3 (25%)		1 (4.17%)	5 (20.83%)
Mild (1–4)	3 (25%)	3 (25%)		3 (12.5%)	6 (25%)
Moderate (5–6)	0	1 (8.33%)		3 (12.5%)	1 (4.17%)
Severe (7–10)	1 (8.33%)	0 (one missing)		2 (8.33%)	2 (8.33%) (one missing)
Most intense pain: last four weeks (0–10)	5.25 (5.5) (2–8)	3.67 (4) (0–8)	0.414	6.56 (7) (3–8)	3.72 (3.5) (0–9)	0.041^b	0.604	1
Average pain: last four weeks (0–10)	3.5 (3.5) (1–6)	1.89 (1) (0–5)	0.199	4.56 (5) (0–9)	2.56 (2.5) (0–7)	0.118	0.710	0.561
VAS General Health (0–100)	65.25 (69.5) (46–76)	38.63 (30.5) (5–72)	0.048 ^a	47.0 (35) (3–100)	37.5 (33.5) (0–75)	0.472	0.330	1
VAS Fatigue (0–100)	67.25 (68.5) (58–74)	36.63 (37.5) (0–76)	0.154	53.67 (59) (6–100)	34.1 (24.0) (0–78)	0.069	0.503	0.823

AQP4-IgG-pos.: aquaporin-4-immunoglobulin-G-positive; MOG-IgG-pos.: myelin-oligodendrocyte-glycoprotein-immunoglobulin-G-positive; N, n: number; NMOSD: neuromyelitis optica spectrum disorder; VAS: visual analog scale.

Mean (median) (range), p values: Mann-Whitney U test.

^aPain med: patients under pain with pain medication. ^bNo pain med: patients under pain without pain medication. Significant p values are indicated in bold.

All MOG-IgG-pos. NMOSD patients who received pain medication reported pain and tended to have stronger pain than those without pain-relieving treatment.

Similar to the pain frequency among MOG-IgG-pos. NMOSD patients, 24 out of 29 AQP4-IgG-pos. NMOSD patients (83%) suffered from pain. The average pain intensity was mild. However, four AQP4-IgG-pos. NMOSD patients (14%) suffered from severe pain. Nineteen AQP4-IgG-pos. NMOSD patients were diagnosed with neuropathic pain (82.6%). Among these, 17 patients had a PDQ-score indicating probable neuropathic pain. Five AQP4-IgG-pos. NMOSD patients suffered mainly from headache/neck pain (21.7%). Headache types comprised tension headache (n = 3) that occurred in two patients as a primary symptom of the NMOSD, occipital neuralgia (n = 1) and cervicogenic headache (n = 1). Eight AQP4-IgG-pos. NMOSD patients with pain who received pain medication still reported pain. Present pain intensity (p = 0.025) and maximal pain intensity in the previous four weeks (p = 0.041) were higher in patients with pain medication than in those without. Detailed results of the PDQ are shown in Supplementary Table 1. Table 3 provides details on pain intensity and hr-QoL subject to pain medication.

Pain intensity had a substantial impact on patients’ well-being. Present pain intensity was correlated with higher depression scores in MOG-IgG-pos. NMOSD patients (p = 0.001) and with emotional affect (measured with MCS) both in MOG-IgG-pos. NMOSD (p = 0.047) and in AQP4-IgG-pos. NMOSD patients (p = 0.031). With growing pain intensity, the latter showed moreover a stronger effect on general health (p < 0.001), PCS (p = 0.008) and fatigue (p < 0.001) (Supplementary Table 1). Thus, MOG-IgG-pos. and AQP4-IgG-pos. NMOSD patients were similar with respect to different quantitative and qualitative aspects of pain as well as to related aspects of their hr-QoL.

To describe their pain experience, MOG-IgG-pos. and AQP4-IgG-pos. NMOSD patients chose different words within the MGQ, but the number of chosen words, and the pain intensity in all categories, were similar. The cognitive-evaluative component was the most affected. MOG-IgG-pos. NMOSD patients described their pain experience in the MGQ mainly by the sensory-discriminative word “throbbing” (50%), by the motivational-affective word “punishing” (62.5%) and by the cognitive-evaluative word “annoying” (50%). AQP4-IgG-pos. NMOSD patients described their pain quality mainly by the sensory-discriminative words “flashing” (55.6%), “pricking” (61.11%) and “tingling” (62.5%). A detailed evaluation of MGQ is provided in Supplementary Table 2.

MOG-IgG-pos. and AQP4-IgG-pos. NMOSD patients showed a similar effect on their hr-QoL. As expected, all patient groups showed impaired mental and physical function in the SF-36 survey (Table 1). There was no difference between MOG-IgG-pos. and AQP4-IgG-pos. NMOSD patients (PCS: p = 0.687; MCS: p = 0.430). Both groups indicated a clear effect on general health and fatigue (Tables 1 and 2). MOG-IgG-pos. NMOSD patients with pain-relieving treatment reported a higher impairment of general health than those without pain medication (p = 0.048; Table 3). Both MOG-IgG-pos. NMOSD patients without pain did not participate in the VAS, while one of them also did not participate in the SF-36. MOG-IgG-pos. NMOSD patients compared to AQP4-IgG-pos. NMOSD patients with pain had similar depression scores (p > 0.999). Five MOG-IgG-pos. NMOSD patients (36%) and 12 AQP4-IgG-pos. NMOSD patients (42%) suffered from mild or moderate depression according to the BDI-II (Table 1). MOG-IgG-pos. NMOSD patients with pain had higher depression scores than those without pain (p = 0.022). Table 2 displays the BDI-II results in patients with and without pain.

During assessment, all patients were stable; none of them had an acute relapse. The different clinical phenotypes were the following: Both of the MOG-IgG-pos. NMOSD patients without pain and two MOG-IgG-pos. NMOSD patients with pain had a history of recurrent myelitis and optic neuritis. Six MOG-IgG-pos. NMOSD patients with pain had a history of recurrent optic neuritis without history of myelitis, three MOG-IgG-pos. NMOSD patients with pain had a history of one-time (n = 2) or recurrent (n = 1) myelitis without history of optic neuritis. Of the latter one patient additionally had a history of encephalitis and one patient a history of brainstem syndrome. One MOG-IgG-pos. NMOSD patient with pain had a clinical presentation of one episode of atypical facial pain and one episode of cranial allodynia.

Twelve AQP4-IgG-pos. NMOSD patients with pain had a clinical history of recurrent myelitis and optic neuritis. Three of them additionally had a history of brainstem syndrome. Two AQP4-IgG-pos. NMOSD patients with pain had a history of recurrent (n = 2) optic neuritis without history of myelitis, 10 AQP4-IgG-pos. NMOSD patients with pain had a history of one-time (n = 1) or recurrent (n = 9) myelitis without history of optic neuritis. One of them had an episode of area postrema syndrome and one of them had a history of brainstem syndrome.

Five AQP4-IgG-pos. NMOSD patients without pain had a clinical history of recurrent myelitis and optic neuritis (n = 3) or myelitis without history of optic neuritis (n = 2).

Three AQP4/MOG-IgG-neg. NMOSD patients had a history of recurrent myelitis and optic neuritis. Two AQP4/MOG-IgG-neg. NMOSD patients had a history of one-time optic neuritis without history of myelitis and one AQP4/MOG-IgG-neg. NMOSD patient had a history of myelitis and area postrema syndrome.

A clinical history of myelitis occurred less frequently in MOG-IgG-pos. NMOSD patients than in AQP4-IgG-pos. NMOSD patients (p = 0.009). All patients with neuropathic pain showed residual spinal cord lesions, whereas other pain types occurred independently from former myelitis attacks. The respective pain types and their relationships to myelitis attacks are illustrated in Figures 1 and 2.

Figure 1.

Flowchart illustrating current pain conditions in MOG-IgG-pos. NMOSD patients with and without a history of myelitis. n: number of patients; MOG-IgG-pos.: myelin-oligodendrocyte-glycoprotein-immunoglobulin-G-positive; NMOSD: neuromyelitis optica spectrum disorder. *Others: connective tissue disease, arthralgia of unknown origin, vasculitis.

Figure 2.

Flowchart of current pain conditions in AQP4-IgG-pos. NMOSD patients with and without a history of myelitis. AQP4-IgG-pos.: aquaporin-4-immunoglobulin-G-positive; n: number of patients; NMOSD: neuromyelitis optica spectrum disorder. *Others: connective tissue disease, arthralgia of unknown origin, vasculitis.

Current immunomodulatory treatment is listed in Table 1. Four MOG-IgG-pos. NMOSD patients (33%) and nine AQP4-IgG-pos. NMOSD patients (37.5%) had a pain treatment, whereas the majority of the patients with pain did not have any pain medication. All patients undergoing pain treatment still suffered from pain. Table 2 provides a list of the different pain medication classes.

Discussion

MOG-IgG-pos. NMOSD patients suffer from pain at a frequency comparable to AQP4-IgG-pos. NMOSD patients. The high prevalence of pain in more than 80% of AQP4-IgG-pos. NMOSD is consistent with previous findings.^6,7,9

Frequent pain syndromes in NMOSD include neuropathic pain, spasticity-associated pain, musculoskeletal pain and headache.^10,23,24 These pain syndromes were equally present in our cohort of MOG-IgG-pos. NMOSD patients. Moreover, we included patients with pain due to coexisting autoimmune-modulated diseases such as connective tissue disease and vasculitis as they may jointly emerge with and may be causally linked to NMOSD.^1,4

Different dominant pain qualities between the groups might be generated by different underlying pathophysiological mechanisms in MOG-IgG-pos. and AQP4-IgG-pos. NMOSD.

Under healthy conditions the neuropeptide nerve growth factor (NGF) has a high affinity to tropomyosin receptor kinase A (TrkA). TrkA is expressed on unmyelinated nociceptive axons of the spinal cord and regulates synaptic strength and plasticity of sensory neurons.²⁵ NGF has a high affinity to bind MOG, thus loss of MOG by antibody-mediated destruction in MOG-IgG-pos. NMOSD may cause abundant NGF-concentrations in the CNS. This might lead to aberrant sprouting of unmyelinated nociceptive fibers in the posterolateral tract of the spinal cord,²⁶ causing chronic neuropathic pain. Depending on the level of the lesion, this process could lead to occipital neuralgia or to more distal neuropathic pain syndromes.

Furthermore, the brainstem is involved in up to one-third of MOG-IgG-pos. NMOSD patients.²⁷ The brainstem is a critical region in the pathophysiology of migraine and trigeminal neuralgia.^28,29 Cervicogenic headache can result from inflammatory lesions in the superior cervical spine leading to musculoskeletal dysfunction.²⁴

In AQP4-IgG-pos. NMOSD the high frequency of spinal cord lesions might be a risk factor for neuropathic pain.^8,10 In line with recent data by Jarius et al.,² we show that APQ4-IgG-pos. NMOSD patients had a higher incidence of clinical myelitis compared to MOG-IgG-pos. NMOSD patients.

Under healthy conditions AQP4 is coexpressed with excitatory amino acid transporter 2. Loss of AQP4 in NMOSD may lead to an excessive accumulation of glutamate in the extracellular space, interrupting the glutamine-glutamate-GABA axis. This may disrupt the balance between excitation and inhibition in nociceptive pathways²³ and lead to neuropathic pain in AQP4-IgG-pos. NMOSD.

Whereas MOG-IgG-pos. NMOSD patients characterized their pain experience mainly as throbbing, punishing and annoying, AQP4-IgG-pos. NMOSD patients described it as flashing, pricking and tingling. The more affective words used by MOG-IgG-pos. NMOSD patients might reflect the important influence of pain on their state of mind. MOG-IgG-pos. NMOSD patients with pain also showed a stronger impairment by depression than those without pain, as well as a positive correlation between pain intensity and depression grade, indicating a possible interaction of pain and mood disorders. Both symptoms are known to make the emergence and exacerbation of the other symptom more likely.³⁰ Furthermore, differences in descriptive words could be related to the more common diagnosis of headaches in the MOG-IgG-pos. NMOSD patients. To our knowledge, however, a predominance of certain words to describe headache compared to other pain conditions is not provided in the literature. All patients showed a clear impairment of general health and strong restrictions caused by fatigue.³¹ MOG-IgG-pos. NMOSD patients with pain reported a higher impairment by fatigue than those without pain. This may be a neuropsychological effect whereby chronic pain could exhaust the patient and lead to fatigue. It could also be caused by a biochemical process, whereby increased levels of cytokines present in neuroimmunological diseases³² may contribute to the development of fatigue^33,34 and pain.²³ In addition, deep gray matter pathology, cortical atrophy and axonal damage in the CNS are presumably involved in the development of fatigue and chronic pain conditions in various diseases.³⁵ Side effects of medication could also contribute to fatigue in pain patients.

We show that pain intensity in all patient groups correlated with physical and mental impairment of the patient’s hr-QoL. In contrast, the EDSS did not differ between patients with and without pain. Pain is not represented in the EDSS and therefore needs to be carefully examined using patient medical history and specific evaluation tools.

In line with previous NMOSD studies,⁷ we show that MOG-IgG-pos. NMOSD patients with pain are currently not effectively treated. Less than 40% of patients with pain in both diagnostic categories receive pain treatment, and even those were not pain free. Pain intensity, impairment of general health, and fatigue were even more severe in patients with pain treatment than in patients without. These findings might indicate that patients who complain about severe pain are more likely to receive pain medication than those who suffer from light pain; however, it seems that pain treatment is not effective in improving the patients’ QoL.

These alarming results show the necessity of exploring the efficacy of a multimodal and multidisciplinary approach to pain management in MOG-IgG-pos. NMOSD as well as in AQP4-IgG-pos. and AQP4/MOG-IgG-neg. NMOSD since pharmacologic interventions are currently insufficient.

Limitations

Results from single-center studies are not generalizable to a broader population, especially since sample sizes are small. Nonetheless, the overlap of our results in NMOSD patients with previously published data supports validity in a broader context. Patients who tested AQP4-IgG and MOG-IgG negative might show antibody positivity if tests were more sensitive, but fulfill the current criteria for antibody-negative NMOSD. Because of the small number of AQP4/MOG-IgG-neg. NMOSD patients, we used descriptive data only and did not include them in statistical comparisons. Finally, our results do not allow any certain pathophysiological conclusion.

Conclusions

Pain is a frequent and severe symptom of patients suffering from MOG-IgG-pos., AQP4-IgG-pos. and AQP4/MOG-IgG-neg. NMOSD. The vast majority of MOG-IgG-pos. and AQP4-IgG-pos. NMOSD patients suffer from pain. MOG-IgG-pos. NMOSD patients suffer from headache or neuropathic pain, whereas AQP4-IgG-pos. NMOSD patients mostly suffer from neuropathic pain. These findings might be linked to different underlying pathophysiological mechanisms in AQP4-IgG-pos. NMOSD patients, causative for neuropathic pain. Both patient groups describe their pain experience differently, while its impact on the patients’ QoL is similar. Pain is currently insufficiently controlled by medication. Only between one-third and one-half of patients receive pain medication and among those, not one is permanently free of pain. Therefore, it is important to systematically record pain, to carefully distinguish among different pain types, and to concentrate in future research on effective pain management in patients suffering from NMOSD.
