Abstract
Objective
The NEX project has developed an integrated Internet of Things (IoT) system coupled with data analytics to offer unobtrusive health and wellness monitoring supporting older adults living independently at home. Monitoring involves visualising a set of automatically detected activities of daily living (ADLs) for each participant. ADL detection allows the incorporation of additional participants whose ADLs are detected without system re-training.
Methods
Following a user needs and requirements study involving 426 participants, a pilot trial and a friendly trial of the deployment, an action research cycle (ARC) trial was completed. This involved 23 participants over a 10-week period each with
Results
Association rule mining was used to detect a range of ADLs for each participant independently of others and then used to detect ADLs across participants using a single set of rules for each ADL. This allows additional participants to be added without the necessity of them providing training data.
Conclusions
Additional participants can be added to the NEX system without the necessity to re-train the system for automatic detection of their ADLs.
Keywords
Introduction
Using internet of things (IoT) technologies, the use of ambient sensors to detect activities in the homes of older or more vulnerable people has grown in recent years. 1 In its basic form, the use case for this has been to record and visualise the raw data from actual sensor triggers and activations and to present aggregated views of this data spanning days, weeks or even months. This allows a clinician, a caregiver or a family member to observe whether certain sensors have been triggered or not. In turn, it also allows an observer to use their observation of sensor activations to deduce whether or not higher-level activities to do with eating, cleaning or social interaction with others, has taken place. For example, if IoT sensors on the kettle and on the doors to the cupboards where cups, tea and sugar are stored are all activated within a short time frame during the morning, then the observer could infer that a mid-morning tea or coffee was made.
Visualising raw data from sensors can allow patterns of in-home behaviour to be observed but this is far more challenging because typically there are a large number of sensor activations that are not connected with the higher level activities which we may wish to observe as well as the general visual “noise” from visualising so much data. For example, just because a sensor on the entrance door to a home has been activated does not mean the occupant has left or arrived, the activation could have been caused by a caller to the home, or by a delivery. It is only by looking at combinations of sensor activations in occasions of activities of daily living (ADLs) that the actual behaviour can be accurately determined. So if presence sensors in more than one part of the home are simultaneously activated after the entrance door sensor has been activated that implies there is a caller to the home.
While the approaches to gathering and visualising raw sensor activations are useful, their limitation is that they place the burden on the clinician or observer to interpret raw sensor activations into higher-level activities which correspond to the things that people do in their everyday life by grouping combinations of sensor activations. This can be seen in Figure 1 from our deployed system showing one week of raw sensor data from a participant’s home. A total of 16 sensors are deployed including motion sensors, 6-in-1 environmental sensors, smart plugs and contact sensors on doors and presses. While scanning this visualisation can reveal daily daytime and evening patterns of activities particularly in the kitchen and other rooms, it is difficult to get an overall view and especially to extend an overall view of activities into multiple weeks
Visualisation of raw sensor data from a participant’s home showing activations of 16 different sensors categorised into motion, environmental, electrical device use and contact sensors (
ADLs are a set of known, pre-defined and agreed daily physical or movement activities which most people will carry out and which correspond to the skills required to manage our basic physical needs. 2 Proposals for what makes up a definitive set of ADLs have been around for many years 3 and some have been revised since those first proposals and specialised for areas including activities for people with dementia and activities for stroke patients.4–6 Even with such subject specialisms, the set of ADLs commonly used today are fairly stable. 2
ADLs are typically used to provide a summative assessment of whether a person is able to reach a certain level of movement and to competently complete basic tasks to self-manage their lives and typically this would be used in assessments of older citizens. 7 ADLs are essential and routine tasks that most healthy individuals can perform without assistance. 3 The inability to accomplish essential ADLs may lead to unsafe conditions, and poor quality of life and may be indicative of a physical or cognitive disability in older adults. Eligibility for home care is frequently associated with deficits in ADL ability.8,9 Assessment of ADLs through self-reported, observed or objective data provides evidence to individuals and caregivers on existing baselines and potential deficits in self-care ability and supports potential interventions which may be required for continued independence.
The state-of-the-art in the field of recognition of ADLs is already well developed as shown by systematic reviews published within the last decade including.10–14 These works describe a field which has received much attention because it is an important topic and it has a very practical and useful nature.
In this paper, we present a technique to automatically detect a subset of common ADLs from raw sensor data in the homes of older citizens living alone and to ‘tag’ their routine behaviour. The sensors used in our study of ADL generation are not wearable sensors but are in-situ sensors in the home though participants did use a smartwatch which was not used in this study. The set of ADLs is chosen as indicators of routine everyday behaviour. The ability to infer and visualise higher level activities as well as viewing the raw sensor data means that caregivers and family, as well as participants themselves, can assess behaviour and behaviour changes over time in a more natural and intuitive way.
The technique we use for inferring ADLs uses association rule mining (ARM) and relies on an initial set of manual annotations from participants but once this is in place we can incorporate additional participants without the necessity for further manual annotation. While our approach to ADL detection is data-driven, other approaches to ADL detection have been taken including a knowledge-driven approach in Chen et al., 15 which uses domain knowledge, structured ontologies and semantic reasoning to disambiguate potential conflicts. The focus of the work in Chen et al. 15 is on real-time detection of ADLs as they happen, in an incremental way hence the use of semantic reasoning and ontologies to disambiguate. In the work in this paper, the detection of ADLs happens retrospectively, at the end of each day because our use case does not require real-time detection.
The work which is possibly closest to what we report here is a series of works by researchers from INRIA in France.16,17 Their work involved several older healthy participants, living normally in their homes and targeting a range of daily activities to detect while using sensor data to assist in the detection. That work culminated in a method to detect six generic activity types including meal preparation, leaving the home, and dressing/waking up which overlap with the ADLs we use in this paper, and was tested on five adults over a short period of 5 days. 18 In that work, the target was activity verification where the participants’ declarations of their own daily activities were refined with sensor logs and visualised for them for confirmation. The work we report in this paper targets detection of similar ADLs but we take a more data-driven approach, are less reliant on participants’ self-verification of their activities and our experiments are larger with more participants and over a longer period of data logging.
Methods
The overall aim of the action research cycle (ARC) trial was to investigate the technical performance and participant evaluation of a refined version of the NEX system. Ethical approval to conduct the ARC trial was obtained from the Dublin City University Research Ethics Committee (DCUREC202221) on 25 January 2022. The NEX ARC trial was advertised through various networks including the Age-Friendly University, Dublin City University and NEX study social media platforms. Eligibility criteria to participate in the trial included: demonstrated capacity to provide written consent as determined by a cognitive assessment, 19 willingness to provide written informed consent to participate, aged 60 years or over, with or without one or more stable chronic condition(s), fully vaccinated against COVID-19 and had an active Wi-Fi connection at home. Older adult participants were enrolled to the study for a 10-week period if they met the eligibility criteria.
Between January 2022 and July 2022, 26 healthy older adults (aged 60 years and over) who were living independently at home in the community participated in the trial. The gender profile was predominantly female (81%,
The research team devised a study design which greatly minimised face-to-face contact with participants in an effort to minimise the risk of COVID-19 spread. This meant that the majority of study visits were completed over Zoom. After enrolment to the trial, participants met with a researcher on Zoom to complete a demographics questionnaire, a questionnaire about technology use, and a compilation of health and well-being assessments. Additionally, during these research calls, the researcher completed a home configuration assessment in collaboration with participants. The purpose of this home configuration was to inform the research team about the participant’s home layout and their routine so that decisions about the appropriate placement of IoT sensors and smart plugs could be made. The assessment consisted of a number of questions, for example, the type of home where the participant lived, number of rooms, number of external doors, doors used most often, the layout of the participants’ kitchen, which cabinets were used to store food, what appliances were used most frequently, etc.
During a second visit, a researcher and technical engineer visited the participant in their home environment to facilitate the installation of the NEX system technology. The researcher, technician and participant complied with a very strict COVID-19 study protocol, which was developed by the research team and consisted of antigen testing prior to, and mask-wearing during home visits. The researcher and technician used a home configuration assessment with the participant in Visit 1 to determine the most appropriate placement of preconfigured technology. The NEX system design consisted of a range of IoT technologies, including a smartwatch (for measurement of sleep and step count), voice-activated assistant (entertainment and reminder functionality), contact sensors (detecting activity around the home and opening and closing of doors and cupboards), smart plugs (measuring energy use of appliances), motion sensors (detecting movement, temperature, humidity, and light in the home), hub (a central connection point for sensor devices), tablet (display NEX system data to participants), and a cloud-hosted secure device management platform.
The technologies were deployed in combination to facilitate the detection of some of the key ADLs from participants’ in-home sensor and smart plug use data over the trial period. Face-to-face training on the technology was provided to participants at the time of installation, and a training manual and a series of training videos were also provided. Throughout the remainder of the ARC trial, the researchers met with 19 of the 23 participants individually on two subsequent occasions over Zoom and met with the other 4 once, to present them with a snapshot of raw data that was collected via the NEX technologies in the previous 24 h. In preparation for these, sensor data for each participant was pre-processed to generate candidate occurrences of ADLs. These were presented to participants for validation and the briefings also included gathering recollections of in-home activities in the day or days immediately preceding the briefings, for example, confirming what time did they have breakfast at? etc. These provided training data for subsequent ADL detection.
At the end of the ARC trial, the technical engineer visited the participant in their home and removed all of the technology. During the final research visit, the researcher interviewed participants about their experience of the trial and the NEX technology and completed an assessment of the system acceptability and usability (adapted version of the Technology Acceptance Model 20 and System Usability Scale. 21 The researcher also repeated the health and well-being measures administered at the start of the trial to investigate whether having NEX installed in participants’ homes for the duration of the trial affected their well-being and other aspects of life.
While there are many individual ADLs we could focus on, we balanced the value of different ADLs given the characteristics and demographics of the ARC trial participants against the feasibility of detecting ADLs given the sensors which were deployed in their homes. After much consideration and taking the requirements of the clinical partners into consideration, we focused on four ADLs and grouped each with a set of in-home sensors which could be used to detect them automatically. These ADLs are presented in Table 1. Increasing the number of ADLs would not affect the validity of our approach since each additional ADL would be grouped with a set of sensors needed to detect it and each additional ADL would have its own set of rules for detection. Table 1 shows that the sets of in-home sensors used for each ADL in this work do not overlap but even if they did, that would not affect the performance of ADL detection.
Mapping between activities of daily living (ADLs) and the in-home sensors likely to be used to detect them.
To turn the training data for ADL occurrence into automatic detection of ADLs we examined different machine learning techniques that could be used to build classifiers to recognise ADLs. Within the field of machine learning, deep learning approaches are regarded as best in terms of accuracy but their downside is that they need much training data in order to be reliable. 22 In addition, once the models have been created they cannot offer any explanation for recommendations or outputs that they generate. 23 Our application has limited amounts of training data because there are only so many times we can ask participants to indicate when they had eating, sleeping, bathing or other ADL activities before user fatigue sets in and the quality of the annotations deteriorates. Our participants and our clinical partners are also wary of black-box machine learning precisely because they have no explanation capabilities.
ARM is a machine learning technique which automatically develops conditional rules based on input data such as sensor data readings and annotated training data. 24 It is a technique which has been around for many years and used successfully in a wide range of applications. 25
As the name implies, association rules are a series of if/then statements that aid the discovery of relationships between seemingly unrelated data collections. ARM seeks to identify recurring patterns, correlations, or relationships in datasets. A rule generated by the ARM process has two parts, an antecedent and a consequent. An item found in a data collection is called an antecedent, and an item found in combination with an antecedent is called a consequent. For instance, consider the following: A participant is 90% more likely to watch television when he/she is having breakfast.
In this case, breakfast is the antecedent and watching TV is the consequent in the association rule above.
The process of developing sets of association rules involves carefully reviewing data and searching for recurring if/then patterns. The most significant associations are then determined according to the following two parameters:
When processing large datasets using ARM, for every conceivable item combination of data items, the apriori algorithm
26
is attractive to use as it scans the data collection only once as it derives a set of association rules. In an earlier phase of our work, we validated that the apriori algorithm can be used successfully to detect ADLs using the data from seven participants in a friendly trial where we detected kitchen events only.
27
The results from the earlier trial indicated that for a given participant we could mine rules for the occurrence of kitchen-based activities if we have training data for occurrences of those activities from data-informed briefings.
In practice, the requirement for having to have training data for ADL occurrence is not scalable to larger sets of participants so our aim in generating ADLs in this work is to use the annotations from briefings with ARC participants and apply them unseen to new participants. This consideration also influenced our choice of using ARM for ADL detection in the ARC trial.
Processing with the apriori algorithm for ARM required setting minimum values for the
Detecting relatively short-duration ADLs requiring a small number of activations of a dependent set of sensors but not in a particular sequence, presented challenges in the temporal domain. For example, a participant may take a longer or shorter time to complete any of the ADLs and may activate sensors in a different order each time, for example, putting the kettle on first and then preparing the crockery in the morning, and then doing these in the reverse order in the afternoon. To address this, we used sliding windows to aggregate sensor activations over a set time period of various durations, effectively grouping the sensor data into an order-independent set and thus smoothing out variations in the ordering.
It was crucial to choose a window size that was both small enough to detect individual activities and large enough to reduce noise associated with smaller window sizes. Analysis of the data-informed briefings with participants provided insights to establish a baseline for the size of the sliding windows for various ADLs and combined with experiments reported later, the window sizes chosen were as shown below:
For ‘Dressing’ and ‘Leaving House’ the window sizes were 30 min. For ‘Eating/Drinking’ and ‘Bathing’, the window sizes were 60 min.
The shift or stride for ADL detection was set to 5 min. That means that the association rules test for the presence of an ADL in a given time window (30 or 60 min) and if not present then the window would shift forward by 5 min and would retest.
Our choice of 30 or 60 min for window sizes is in line with the work in Belloum et al., 18 where those authors use window sizes varying from 30 to 120 min for the same ADLs as we detect here, though their windows begin and end at fixed times and theirs do not slide and overlap as ours do. Our method accommodates ADLs taking place close to each other in time because each ADL detection runs independently of the others. Thus our approach will detect a participant dressing directly after taking a bath, for example. This can be seen later in Figure 2 where ADL co-occurrences are shown to overlap for a participant.
With the window sizes for ADLs determined and using the training data from participant briefings, association rules for ADL detection from sensor data were generated, initially for each ADL for each participant. To illustrate, the conditions for some ADL detection rules for Participant 11 are shown in Figure 2. These show that for an Eating/Drinking event the use of any of the kitchen appliances or opening of the doors to the food staples, combined with presence detection, is the trigger. For the Bathing ADL, detecting the presence and an increase in humidity within the time window is the trigger while for the Dressing ADL, opening the wardrobe and the underwear drawer is the trigger, for this participant. If these sensor activation conditions are satisfied within a 60-min or within a 30-min time window depending on the ADL, the activity will be labelled as that ADL.
Example of conditions for some of the association rules generated to determine some activities of daily living (ADLs) for Participant 11.
Logging period for action research cycle (ARC) trial participants – the blue square shows the first data-informed briefing and the purple square shows the second data-informed briefing.
For creating ground truth training data, the clinical partners met with each of the participants on at least one occasion after the sensors had been installed in their homes for a briefing or a data-informed recall on how their deployment was going. During these meetings held over Zoom because of the pandemic, the clinicians gathered data on occurrences of the five ADLs that had happened in the previous days, noting the ADL and the timestamp and this recall was prompted by the clinician sharing a visualising of the raw sensor data with the participant on the SafeTRX platform. So seeing sensors for, say, the kitchen being activated in mid-afternoon would prompt the participant to remember that s/he had made tea and had a biscuit during that afternoon which would be recorded as an eating or drinking ADL.
The timings of the clinical partner’s data-informed briefings and their place in the overall data logging for the ARC participants are shown in Figure 3, which shows sensor data logging for 159 days from 23 participants. Here we see that 23 participants, all except participants 5, 8, 13, and 23 had two briefings and that the briefings were rarely on consecutive days and most were at least one, and closer to two, weeks apart.

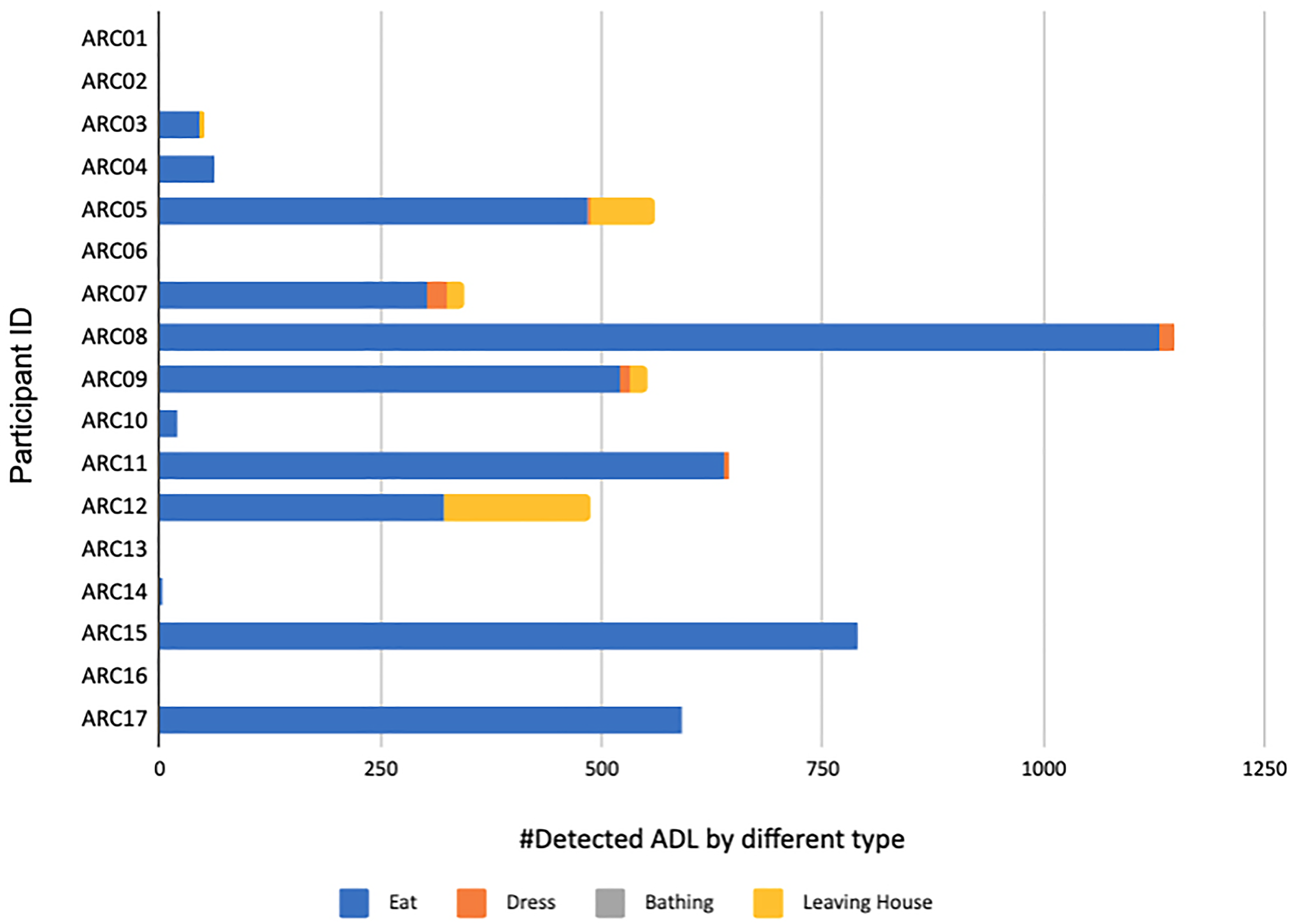

ADLs detected from an early version of ARM, showing the raw counting of all detected ADLs (x-axis) stacked by different ADL types for each of the participants (y-axis). ADL: activity of daily living; ARM: association rule mining.
Results
We developed a number of versions using ARM to build sets of rules to detect ADLs. This was so we could (1) incrementally determine the best time window sizes to use for different ADLs and (2) include more of the participants’ validations of candidate ADLs and their suggestions of additional ones from their data-informed briefings. Different versions of the rule mining generated different sets of ADLs for the same participants. It was necessary for the rule generation and the subsequent ADL detection to take place immediately prior to participants having one of their briefings so that some of the candidate ADLs could be presented to them during their interviews.
We started our use of ARM using participants’ feedback from their first briefing with no candidate ADLs offered to them as we had no training data and treating each participant independently of others. For their second briefing, we offered candidate ADLs generated using training data from their first briefing and these were validated and further training data was gathered during the second briefing. As mentioned earlier, we experimented with varying the sizes of time windows for different ADLs choosing 30 and 60 min depending on the ADL and generating ADLs for each participant based on their own set of rules, independent of others. Finally, we used ARM to generate a single set of rules for ADL detection which we applied across all participants. Note that not all participants were used for ADL detection at all stages of the investigation depending on the timing of their briefings and the availability of their own sensor data as shown in Figure 3.
As mentioned above, different deployments of ARM generated different ADLs raising the question of whether a new set of activities is better than a previous one. Evaluating the effectiveness of a set of rules can only be done by validating the ADLs it generates against manually annotated training data, to which we have no further access, and we cannot go back to participants to get this. This is a consequence of our focus to have little annotation data from participants from their data-informed briefings which we could use as ground truth for training ADL detection and/or for evaluation of different ADL detection rule sets. Thus our evaluation is done in terms of how the distribution of ADLs generated by a version, appears overall.
An early version of our rule mining is where training data has been generated from two data-informed briefings and where each participant’s ADL generation is completed independent of others but with no adjustment of window sizes for resolution of clashing ADLs for the same participant. Figure 4 shows the raw number of ADLs of each type where eating ADLs dominate, and ADLs have not been generated for all participants at that point because not all ARC installations had been completed. The different numbers of (absolute) ADLs for different participants reflect the fact that participant data logging had been running for different durations for different participants. Figure 5 shows the proportion of ADL types for participants for this ARM version and that is a more useful indicator. From this, we can see that the leaving house and dressing ADLs were not detected for some participants and the bathing ADL was not detected for any because the humidity sensor in the 6-in-1 bathroom sensor was sampled once every 10 min, which was insufficient but subsequently corrected.
Proportions (between 0 and 1) of ADLs detected from an early version of ARM (proportional view of Figure 5). ADL: activity of daily living; ARM: association rule mining.

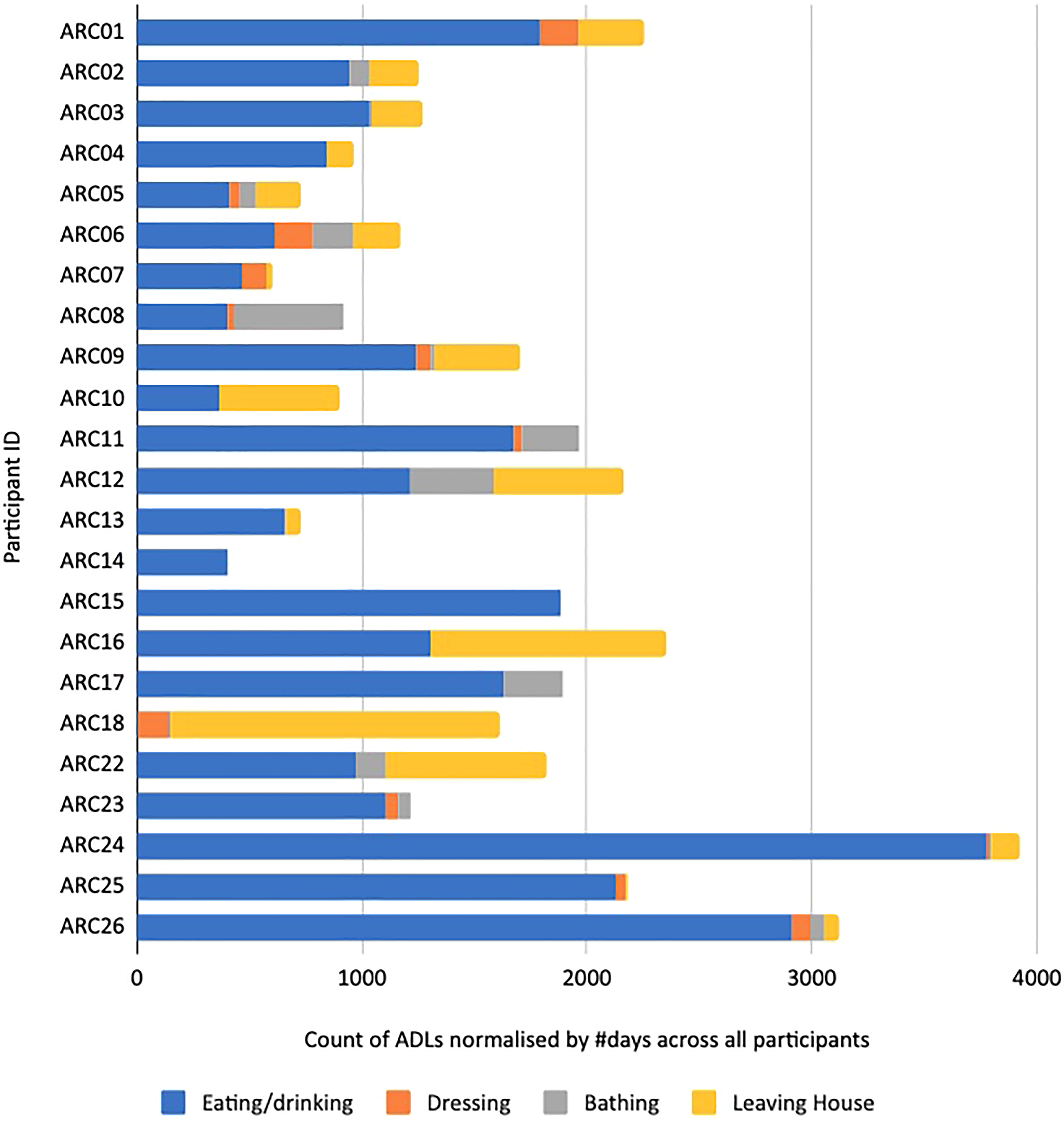

ADLs detected from the final version of ARM, normalised by the number of days of data logging per participant which is taken from Figure 4, showing the counts of detected ADLs (x-axis) stacked by ADL type for each participant (y-axis). ADL: activity of daily living; ARM: association rule mining.
After several iterations of ARM development, our final implementation generates ADL rules from the training data from all participants, use the optimal window settings for different ADLs and resolves clashes and overlaps between ADLs.
Figures 6 and 7 show ADLs generated for all ARC participants. In Figure 6, the numbers of ADLs per participant are normalised by the total number of days by ARC01 (171 days) taken as the longest duration of all participants for the data capture in this study. The normalised view helps us draw comparisons across participants for their relative amounts of ADLs, given their numbers of ADLs are for the same logging period. In Figure 7, we show the relative proportions of ADLs per participant. The figures show some outliers and errors like no “eating or drinking” ADL and a disproportionally high number of “leaving house” ADLs for ARC18 and some participants with no dressing ADL.

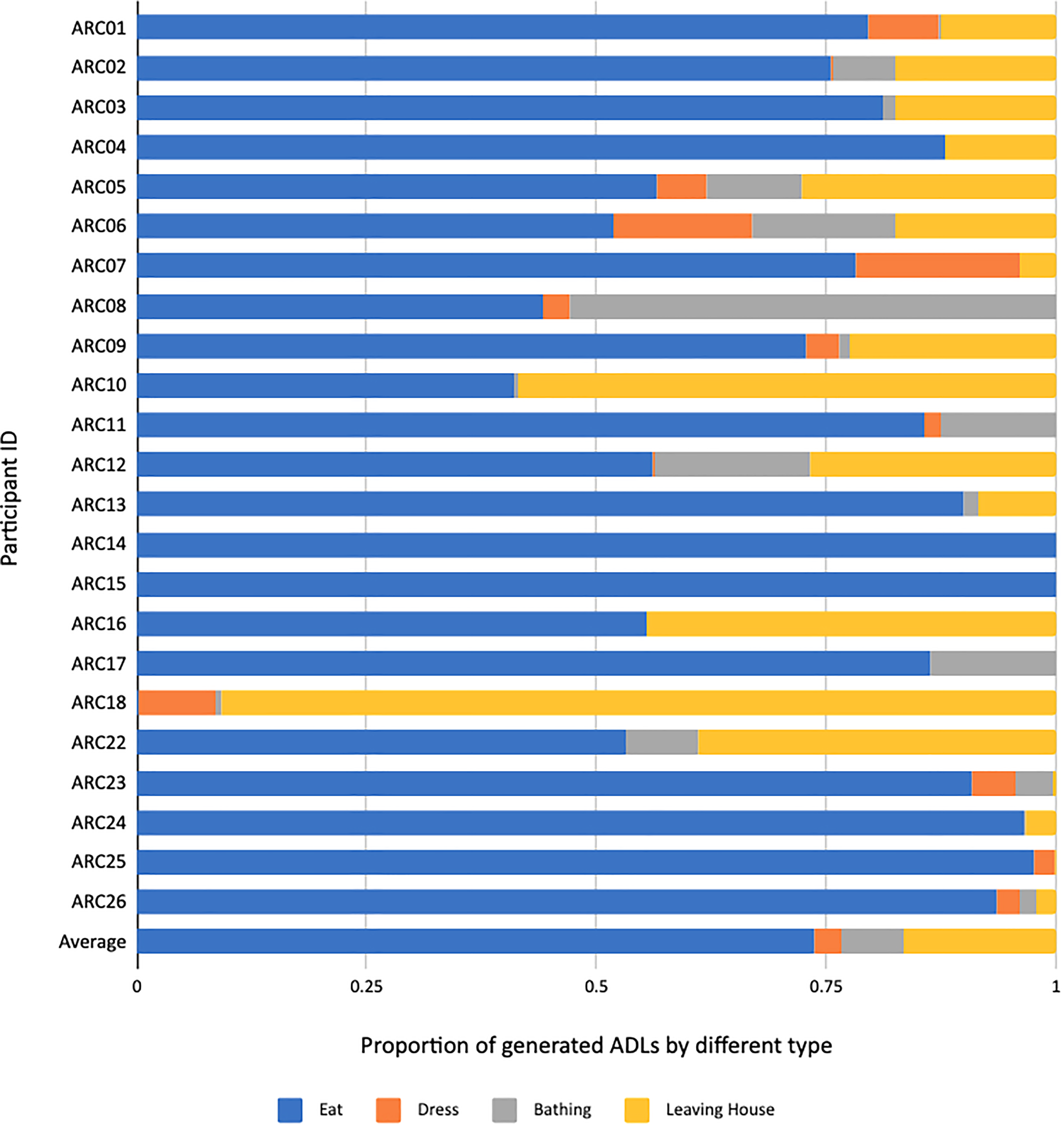

Proportions (between 0 and 1) of ADLs detected from final version 5 of ARM (proportional view of Figure 6). ADL: activity of daily living; ARM: association rule mining.
ADLs automatically detected from raw sensor data shown in Figure 1 using association rules mined from training data from all participants.
When results from all participants were completed, we analysed each participant’s ADLs individually with the clinician who carried out their data-informed briefing. For each of the outliers and errors in ADL detection were able to determine an explanation such as having no training data to work with for a given ADL from the online participant briefings such as a participant not leaving their home recently or having no appropriate deployed sensors for an ADL for a given participant.
The numbers of detected ADLs across participants in Figure 6 do show a lot of variety. ARC24 shows the largest number because of the large number of eating events, similar to ARC26 and is explained as follows. Figure 8 shows the ADLs generated for participant ARC24 over the same time period as the raw sensor data shown earlier in Figure 1. This shows a regular bathing and dressing activity and a leaving of the house on 5 of the 7 days. March 20 shows the participant not leaving the house though the front door was opened and March 15, 16, 17 and 18 show a lot of front door activity not identified as leaving the house so the participant must have had callers or deliveries. The eating activity is well represented throughout each day because as shown in Figure 1 this participant does seem to spend large parts of the day in and out of the kitchen, opening and closing the fridge, food presses and drawers. Some of these recognised as the eating/drinking ADL may actually be food preparation or returning from grocery shopping rather than food or drink consumption.
Other observations from Figures 6 and 7 show a high number of leaving the house ADLs for some participants, especially ARC18. This can be traced back to the fact that ARC18 had more callers to the front door than others.
As part of the analysis of each participant’s ADLs with the clinician who carried out their data-informed briefing as mentioned above, we analysed which of the in-home sensors appeared most often in the rules and which were used most in the triggering of those rules. From this analysis we identified 11 core in-home sensors which should be included for any new participants for whom automatic detection of these ADLs is desired. This set of 11 is driven by their common use across all our ARC participants, and their use in the rule mining for ADL recognition and assumes that the same ADLs are the target for detection. The 11 core sensors are listed in Table 2.

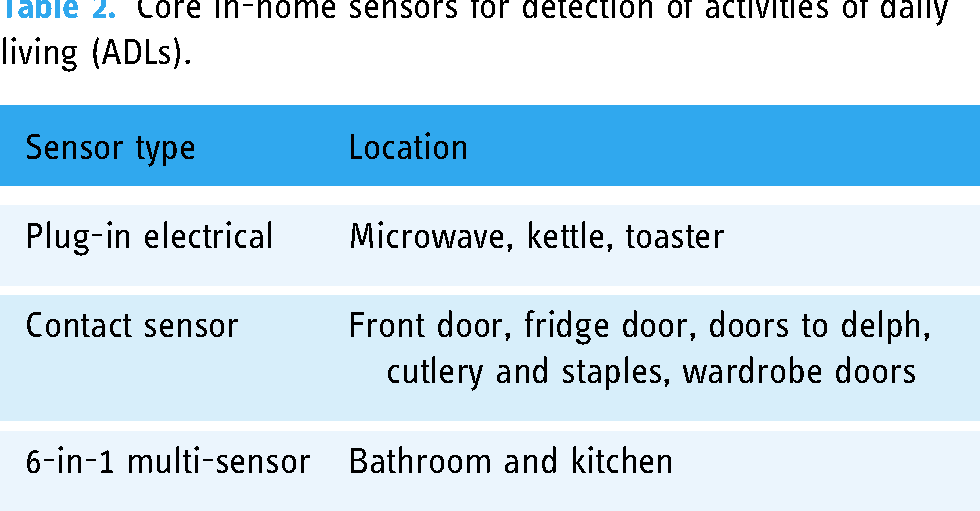

Core in-home sensors for detection of activities of daily living (ADLs).
Conclusions
This paper describes the data processing carried out on in-home sensor data gathered from 23 participants over periods varying from 6 weeks to 6 months. The sensor data was processed into a set of ADLs, which were chosen as typical indicators of regular, routine behaviour by the participants. A characteristic of our use case of turning sensor data into ADLs is that there is a limited amount of training data available. Our training data was gathered directly from participants during two online data-informed briefings and corresponds to participants indicating, or validating, an instance of an ADL occurrence as being true and valid. We then used this as input to ARM to determine a set of rules for ADL detection.
Our initial sets of ADLs were based on a different set of association rules for each participant and then we fused the training data to generate a set of rules for detecting ADLs across all participants. This means that we can now add additional participants without requiring additional training data by re-using the training data from the pool of 23 ARC trial participants. In this way, our ADL detection is scalable and can be made available to others.
One of the unresolved questions about the work in this paper is the end goal and what to do with detected ADLs. In a clinical setting, even the visualisation of ADLs over time has limited capacity to support observations of subtle behaviour changes and degradations. In our future work, we will apply the automatic detection of periodicity intensity, namely how strongly or weakly the activities of a participant fit into the regular 24-h circadian rhythm or the weekly cycle of behaviours, to detect ADLs. It is known that strong rhythmicity in our lives is an indicator of wellness and that degradations in our regular behaviour can be detected automatically as a weakening of the strengths of our circadian and other regular rhythms. We have already done this work using raw sensor data as input to periodicity detection 28 but believe that using higher-level ADLs will give even better detection of behaviour changes.
There are also limitations including the limited number of ADLs
In summary, the work reported here has been successful in applying analytics techniques to raw sensor data from participant homes to inform clinical partners about the long-term behaviour and behaviour changes in the routine daily in-home lifestyle and activities of participants. Insights gained from visualising activities at an ADL level rather than at the level of raw sensor data are more insightful and ultimately beneficial for the participant and the clinician.
