Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis

Abstract

French

Background:

As part of their living kidney donor assessment, all living donor candidates complete a computed tomography (CT) angiogram, but some also receive a nuclear renogram for split renal function (SRF%).

Objective:

We considered whether split renal volume (SRV%) assessed by CT can predict SRF%.

Design:

Systematic review and meta-analysis.

Setting:

Living donor candidates undergoing evaluation as potential living kidney donors.

Patients:

Living donor candidates who received both a nuclear renogram for split function and CT for SRV as part of their living donor work-up.

Measurements:

Split renal volume from CT scans and SRF from nuclear renography.

Methods:

We performed a systematic review and meta-analysis of the literature, abstracting data and digitizing plots where possible. We searched Medline, EMBASE, and the Cochrane Library. We added data from donor candidates assessed in London, Ontario from 2013 to 2016. We used fixed and random-effects models to pool Fisher’s z-transformed Pearson’s correlation coefficient (r). We conducted random-effects meta-regression on digitized and aggregate data. Studies were restricted to living kidney donors or living donor candidates.

Results:

After pooling 19 studies (n = 1479), we obtained a pooled correlation of r = 0.74 (95% confidence interval [CI] = 0.61-0.82). By linear regression using individual-level data, we observed a 0.76% (95% CI = 0.71-0.81) increase in SRF% for every 1% increase in SRV%. Split renal volume had a specificity of 88% for discriminating SRF at a threshold that could influence the decision of which kidney is to be removed (between-kidney difference ≥10%). Predonation SRV and SRF both moderately predicted kidney function 6 to 12 months after donation: r = 0.75 for SRV and r = 0.73 for SRF; Δr = 0.05 (–0.02, 0.13).

Limitations:

Most studies were retrospective and measured SRV and SRF only on selected living donor candidates. Efficiency gains in removing the SRF from the evaluation will depend on the transplant program.

Conclusion:

Split renal volume has the potential to replace SRF for some candidates. However, it is uncertain whether it can do so reliably and routinely across different transplant centers. The impact on clinical decision-making needs to be assessed in well-designed prospective studies.

Trial registration:

The digitized data are registered with Mendeley Data (doi10.17632/dyn2bfgxxj.2).

Keywords

living kidney donor split kidney volume split renal function computed tomography

What was known before

There was correlation between split renal volume and split renal function, but the interpretability of Pearson’s r made next steps difficult to convey. Knowledge on this topic was limited to results of individual studies, which is not enough to inform clinical decision-making.

What this adds

To our knowledge, this is the first systematic review and meta-analysis of this topic. This study highlights the work done to date and suggests future directions for improvement in a real-world setting. We recommend that prospective studies with a clear goal should be designed and tested, rather than continuing to perform retrospective analyses that will add little additional value.

Introduction

The living kidney donor evaluation has been estimated to take 8 to 16 months from the time the donor’s evaluation starts until donation.^1,2 During this time, some recipients may start dialysis before their transplant, adversely affecting patient quality of life and post-transplant outcomes.^3,4 More time on dialysis also has substantial costs to the health care system.^3,4 Although some of these outcomes are unavoidable, there have been recent calls to improve the efficiency of the living donor evaluation process.^2,5-8 One strategy is to remove any unnecessary tests from the evaluation without jeopardizing the safety and quality of the evaluation.

Deciding which kidney is most suitable for donation is a necessary part of the donor candidate evaluation. The left kidney is generally preferred because the left renal vein is longer and may reduce the surgical complexity of the transplant.⁹ However, this decision also depends on other factors, including (1) the number of accessory arteries and veins serving each kidney (the kidney with less vascular complexity may be chosen); (2) the presence of benign or resectable anomalies on each kidney, including small stones or cysts (the kidney with greater anomaly may be chosen for donation leaving the donor with the “better” kidney); and (3) the relative function of each kidney if they are suspected to have a clinically relevant difference (the lower-functioning kidney may be chosen, again leaving the donor with the “better” kidney).^7,10,11 For the latter consideration, if early imaging identifies a clinically significant size difference (≥1 cm or ≥10%) between the right and left kidneys, a nuclear renogram is ordered in many programs to measure the function of each kidney (the split renal function [SRF]).^7,12 However, as a standard part of their evaluation, living donors at most transplant centers also complete a computed tomography (CT) scan, which can be used to accurately map out the vasculature, identify anomalous findings, and potentially measure the donor’s glomerular filtration rate (GFR).^13-15 More recently, CT imaging has also been suggested to be as reliable as nuclear renography (the gold standard) for measuring the SRF using the split renal volume (SRV) as a surrogate.¹⁶ If true, this may eliminate the need to perform nuclear renography for some donor evaluations.

In this study, we assessed whether SRV on CT can reliably estimate measures of SRF on nuclear renogram. We performed a chart review of living kidney donor candidates in London, Ontario, Canada, and conducted a systematic review and meta-analysis of the literature.

Methods

Chart Review

We reviewed the medical records of all living donor candidates who were evaluated at London Health Sciences in Ontario, Canada. To be eligible, donor candidates were required to have had a nuclear renogram performed between 2013 and 2016. Kidney dimensions were measured from CT scans using a 64-slice scanner following infusion of intravenous iodinated contrast. Tri-planar images were obtained with a maximum thickness of 3 mm. Renal dimensions were obtained from each scan and were measured by 2 authors (C.G.-O. and G.B.), independent of knowledge of the others’ results and the SRF. Transverse and anteroposterior measurements were obtained on the axial images, whereas the length was obtained on the sagittal images (Supplemental Appendix 1). We used the ellipsoid formula (length × width × depth × π/6) to calculate renal volume (note that variants of the ellipsoid formula exist, yet for the calculation of SRV%, the constant [eg, π/6] cancels out).¹⁷ At our medium-sized center, we do not have software to conduct volume calculations using more accurate means (eg, 3-dimensional [3D] rendering), which would also be true for many other transplant centers that currently evaluate living kidney donor candidates worldwide. The left kidney SRV% was calculated using left kidney volume/(left + right kidney volume). The left SRF% was abstracted from nuclear renogram reports, which were reported as a percentage of the total GFR that came from the left (and right) kidney. Nuclear renograms were performed using the radionuclide technetium-99m (Tc99m) conjugated to mercaptoacetyltriglycine (MAG3) or diethylenetriaminepentaacetic acid (DTPA).

Systematic Review and Meta-Analysis

We conducted and reported this systematic review and meta-analysis according to the PRISMA guidelines (Supplemental Appendix 2). We searched Medline (via PubMed), EMBASE (via OVID), and the Cochrane Library on August 11, 2017, using the key terms “split renal function” and “computed tomography” or “ultrasound.” Reference lists and the “related articles” feature in PubMed were scanned for relevant articles. As some studies that included donors were not captured by this search strategy, we conducted a second search using the terms “donor nephrectomy and (nuclear or split function or volume*).” Eligible articles were written in English and reported both SRF and SRV. Conference abstracts were excluded.

Study variables

Two authors (S.H. and C.G.-O.) extracted the following information from the studies: mean age of study population, the CT technique, the contrast medium used (if any), slice thickness to measure volume, region of the kidney measured (ie, whole kidney, cortex only, parenchyma only), the volumetric calculation method (ie, 3D rendering, ellipsoid method), the tracer used for nuclear renography, and the reported Pearson’s correlation coefficient between SRV% and SRF%. A third author (G.B.) served as arbiter if there were any uncertainties about data abstraction. As indicators of the quality of the method used, we recorded which studies indicated technicians were blinded (unaware) to the nuclear renogram results when measuring SRV. We also documented whether the method of patient ascertainment was comprehensive (eg, all patients received both scans, either through prospective recruitment or standard protocol) or opportunistic (eg, patients were selected retrospectively because they had both scans). We also recorded the time between CT scan and nuclear renogram, as these can change over time for patients with kidney disease (this may be relevant for donor candidates who are screened out due to the presence of kidney disease). We reported the number of studies with an upper-case N and the number of patients as lower-case n.

Study outcomes

The primary analysis was the correlation of SRV% from CT with SRF% from nuclear renography, with the measure of association being Pearson’s correlation coefficient (r). For studies that did not report r, we calculated it where possible by abstracting individual-level data from the published tables. Alternatively, the figures of studies presenting scatterplots (SRV vs SRF as a percentage or a ratio) and/or their respective Bland-Altman plots were digitized (https://automeris.io/WebPlotDigitizer/), and r was estimated directly from the extracted data. Digitization enables otherwise inaccessible information to be pooled in individual patient meta-analyses.^18,19 The digitized data are provided in Supplemental Appendix 3. We also attempted to contact the authors of 3 studies to obtain missing values of r, but we were unsuccessful.

The secondary analysis was the ability of SRV to discriminate between a clinically important difference in relative kidney function (at least a 10% difference between the 2 kidneys; eg, at least 45%/55% SRF). This difference is large enough to influence decision-making (the donor usually retains the higher-functioning kidney).¹² The digitized data were used for these calculations if not reported by study authors. Finally, we summarized the associations of SRV and SRF with postdonation kidney function.

Statistical Methods

To pool Pearson’s correlation coefficients, we transformed r into Fisher’s z, where z = 0.5 × ln(1 + r)/(1 – r).²⁰ The z-values were pooled using random effects using the inverse of the squared standard error (SE) as the weight (weight = 1/SE² = n − 3). The pooled z-value (and 95% confidence limits) was then back-transformed into r. A general rule of thumb is that an r of 0.5 to 0.7 represents a moderate positive correlation, and r > 0.7 a high or very high positive correlation.²¹ Transformation and back-transformation were performed using the Microsoft Excel functions FISHER() and FISHERINV(), respectively. Meta-regression was performed to estimate the association of study-specific factors on Fisher’s z using the metareg procedure in Stata. Analysis of publication bias was performed using Egger’s test and presented with a funnel plot.

Given the potential biases associated with comparing correlation coefficients from different studies (as the value of the correlation depends on the standard deviation (SD) of both the SRV and SRF), we used the digitized data to estimate the association of SRV and SRF using linear regression via mixed models (proc mixed in SAS).^22,23 In these models, SRF was treated as the dependent (y) variable and the SRV as the only individual-level predictor. The study indicator was included as a random-effects variable to accommodate within-study clustering. From this model, the proportion of the variability in SRF that could be accounted for by between-study differences could be calculated. Other study-level factors were included as fixed effects (eg, year of publication, type of nuclear scan, and method of volumetric assessment). We reported β coefficients with 95% confidence intervals (CIs), which signifies the change in SRF (per percent in left kidney function) due to a 1-unit increment for each continuous predictor or a change in the level of a categorical predictor compared with its reference category. Analyses were conducted using Review Manager 5.3, STATA (v13.0; StataCorp LP, College station, TX, USA), and Statistical Analysis Software (SAS Institute, Cary, NC, USA).

Results

Chart Review

A total of 115 living kidney donor candidates had a nuclear renogram performed for SRF in London, Ontario, between 2013 and 2016. The donor candidates were a mean 49 (SD = 12.4) years of age, 80 (70%) were women, and 57 (50%) ultimately donated by January 2018. Of these 115 candidates, 93 (81%) also had a CT scan for SRV performed a median (25th, 75th percentile) of 1 (–6, 33) day after the nuclear renogram. Only 11/93 (12%) of the CT reports provided bilateral measurements (length, width, and depth) for volumetric calculations, and so all available CT scans were obtained and dimensions measured (n = 87). The total kidney volume was a mean 299 (SD = 66) mL as measured by 1 technician and 282 (65) mL by the other (Pearson’s r = 0.80 for total volume, r = 0.56 for SRV%). The kidney volume (average of the 2 technicians) was a mean 142.8 mL (SD = 32.5 mL) for the left and 139.2 mL (SD = 38.7 mL) for the right.

SRV% from CT and SRF% from nuclear renography

Split renal volume was weakly correlated with SRF, regardless of technician (r = 0.22-0.28; Figure 1A). For comparison, the split renal length was similarly only weakly correlated with SRF (r = 0.24; Figure 1B).

Figure 1.

Correlation of split renal function percent with (A) split renal volume by computed tomography by technician and (B) split renal length by ultrasound or computed tomography.

Systematic Review and Meta-Analysis

Study selection

A total of 562 studies were identified after automatically removing duplicates. After screening titles and abstracts, 19 additional duplicates were identified, 476 were not relevant, and 9 were case reports, editorials, or reviews. Fifty-eight articles received full-article screening. Of these, we excluded the following: 22 studies were not relevant; 10 studies only included patients with kidney disease (and not kidney donors);^24-33 4 studies did not report Pearson’s r and data could not be extracted;^34-37 and 1 study compared SRF with SRV in mL/min rather than as a percent and was inappropriate for pooling.³⁸ The 21 eligible studies are described in Table 1 and were mathematically combined in meta-analysis along with the results from the London, Ontario chart review.

Table 1.

Study Demographics.

References	Mean age	N	Country	Population	Blinding	Patient ascertainment^a	Time between SRF and SRV	Kidney region measured for volume
Nilsson et al³⁹	48	27	Sweden	Donors	NR	Clinical	NR	Parenchyma
Wu et al⁴⁰	46	28	Taiwan	Donors	NR	Clinical	NR	NR
Hackstein et al⁴¹	53	26	Germany	Donors and patients^b	NR	Clinical	Within 4 weeks	Parenchyma
Summerlin et al⁴²	40	152	United States (Alabama)	Donors	Yes	Clinical	NR	Parenchyma
Jeon et al⁴³	41	222	Korea	Donors	Yes	Research	NR	NR
Knox et al⁴⁴	47	54	Canada (Alberta)	Donors	Yes	Clinical	Mean 30 days	Parenchyma
Miyazaki et al⁴⁵	53	60	Japan	Donors	NR	Research (unsure)	Within 5 days	Whole kidney
Kato et al⁴⁶	56	28	Japan	Donors	NR	Clinical	Median 1 month	Parenchyma
Gupta et al⁴⁷	65	36	U.S. (MA)	CKD and controls (eGFR >60)	Yes	Clinical	Within 2 weeks	Parenchyma
Soga et al⁴⁸	44	38	U.S. (MA)	Donors	Yes	Clinical	Average 32 days	Parenchyma
Halleck et al⁴⁹	49	167	Germany	Donors	NR	Routine	NR	Cortex
Diez et al⁵⁰	40	65	U.S. (Indiana)	Donors	NR	Clinical	NR	Parenchyma
Patankar et al⁵¹	49	12	Australia	Donors	yes	Clinical	Within 2 months	Whole, cortex, and medulla
Tanriover et al⁵²	44	96	U.S. (New York)	Donors, ≥10% renal size mismatch	NR	Clinical	NR	Whole kidney
Yanishi et al⁵³	52	35	Japan	Donors	NR	Routine	NR	Whole kidney
Yokoyama and Ishimura⁵⁴	53	46	Japan	Donors	NR	Clinical	NR	NR
Barbas et al⁵⁵	50	88	Canada (Ontario)	Donors	NR	Routine	Within 1 to 2 weeks	Parenchyma
Weinberger et al⁵⁶	53	13	Germany	Donors	NR	Clinical	NR	Cortex
Wahba et al¹⁶	50	101	Germany	Donors	NR	Clinical	NR	Parenchyma
Mitsui et al⁵⁷	61	34	Japan	Donors	NR	Clinical	NR	Cortex, parenchyma
Lee et al⁵⁸	42	264	Korea	Donors	NR	Routine	NR	Parenchyma
This study	49	13	Canada	Donors and candidate	Yes	Clinical	Median 1 day	Whole kidney

Note. SRF = split renal function by nuclear renography; SRV = split renal volume by computed tomography scan; NR = not reported; U.S. = United States; MA = Massachusetts; CKD = chronic kidney disease; eGFR = estimated glomerular filtration rate.

Describes whether patient ascertainment was comprehensive (eg, all patients received both scans, either through prospective recruitment [research] or standard protocol [routine]) or opportunistic (eg, patients were selected retrospectively because they had both scans [clinical]).

Only the donor data were extracted.

Study characteristics

Most studies (N = 14) were conducted in countries with predominantly white persons. Most studies used Tc99-MAG3 (N = 8), Tc99-DTPA (N = 5), or Tc99-dimercaptosuccinic acid (DMSA; N = 4) as the sole radionuclide, or otherwise used some combination. Most studies measured the renal volume of the kidney parenchyma and used either a series of slices to calculate the volume (calculated as the area/slice times slice thickness) or used software to reconstruct a 3D image of the kidney to automatically calculate the volume (Tables 1 and 2). Only 2 studies reported the ellipsoid formula. Blinding of SRV calculation to the SRF measurement was reported in 7 studies. Most studies were retrospective analyses that included patients who had both scans, although 4 studies indicated that SRF was routinely measured for all donor candidates. As reported in 9 studies, the time between the CT scan and the nuclear renogram was mostly within 3 months (Table 2).

Table 2.

Correlation and Agreement Between Split Function and Volume.

References	Nuclear GFR tracer	Computed tomography characteristics				Individual patient data and discrimination of >55% split					Pearson’s^a correlation, r
References	Nuclear GFR tracer	Technique	Contrast medium	Slice thickness (mm)	Volume calculation	IPD	n/N data points digitized	% SRF >55% or <45%	% SRV >55% or <45%	% agreement	Pearson’s^a correlation, r
Nilsson et al³⁹	MAG3	CTA	Iohexol	2	Area × thickness	✓	27/27 (100%)	1 (4%)	0 (0%)	26 (96%)	.90
Wu et al⁴⁰	NR	CTA	NR	NR	NR	✘	0/28 (0%)	—	—	—	NR
Hackstein et al⁴¹	MAG3	Helical (triphasic)	Iopromide	4	Patlak; area × thickness	✓	26/26 (100%)	12 (46%)	8 (31%)	22 (85%)	.9056
Summerlin et al⁴²	NR	Spiral	Iohexol	3	3D-reconstruction	✓	127/152 (84%)	12 (9%)	25 (20%)	100 (79%)	.61
Jeon et al⁴³	DTPA	Helical	Iopamidol	1	Area × thickness	✘	0/222 (0%)	—	—	—	.453
Knox et al⁴⁴	DMSA	MDCT	Iopamidol	1.25	Area × thickness	✓	49/54 (91%)	6 (12%)	3 (6%)	44 (90%)	.61^b
Miyazaki et al⁴⁵	DTPA	MDCT	NR	10	Area × thickness	✘	0/60 (0%)	—	—	—	.907
Kato et al⁴⁶	DMSA	MDCT	NR	1	3D reconstruction	✓	28/28 (100%)	2 (7%)	1 (4%)	27 (96%)	.9352
Gupta et al⁴⁷	DTPA	MDCT	Iohexol	5	3D reconstruction	✓	35/36 (97%)	29 (83%)	21 (60%)	27 (77%)	.95
Soga et al⁴⁸	MAG3 or DTPA	Helical	Iodinated	NR	Area × thickness; area × thickness × mean attenuation; mod ellipsoid; length × width; length	✓	38/38 (100%)	5 (13%)	8 (21%)	33 (87%)	.84
Halleck et al⁴⁹	DTPA, MAG3	MDCT	Iopromide	0.5	3D reconstruction	✘	0/167 (0%)	—	—	—	.93
Diez (2014)⁵⁰	MAG3	MDCT	Iodinated	1	3D reconstruction	✓	60/65 (92%)	19 (32%)	9 (15%)	38 (63%)	.59
Patankar et al⁵¹	DMSA	MDCT	Iohexol	0.8	Attenuation area	✓	12/12 (100%)	2 (17%)	0 (0%)	10 (83%)	.451^b
Tanriover et al⁵²	DMSA	MDCT	Iohexol	2.5	3D reconstruction	✓	90/96 (94%)	15 (17%)	13 (14%)	78 (87%)	.78
Yanishi et al⁵³	MAG3	3D-CT	NR	NR	NR	✓	34/35 (97%)	5 (15%)	0 (0%)	29 (85%)	.714
Yokoyama and Ishimura⁵⁴	MAG3 (ERPF)	3D-CT	NR	NR	3D reconstruction	✓	46/46 (100%)	8 (17%)	2 (4%)	38 (83%)	.441
Barbas et al⁵⁵	DTPA	CTA	NR	NR	Attenuation method	✓^e	88/88 (100%)^e	3 (3%)	13 (15%)	72 (82%)	.51
Mitsui et al⁵⁷	MAG3	MDCT	Iopamidol	1	3D reconstruction	✓	34/34 (100%)	32 (94%)	33 (97%)	33 (97%)	.942^c
Wahba et al¹⁶	MAG3	MDCT	Iohexol	2	Voxel, ellipsoid	✓	100/101 (99%)	25 (25%)	22 (22%)	63 (63%)	.36^b
Weinberger et al⁵⁶	MAG3	MDCT	Iodinated	0.5-1.0	3D reconstruction	✓	13/13 (100%)	3 (23%)	6 (46%)	6 (46%)	.19^b,d
Lee et al⁵⁸	DTPA	Helical	NR	2.5	3D reconstruction	✘	0/264 (0%)	—	—	—	.949^c
This study	MAG3 or DTPA	MDCT	Various	Various	Ellipsoid	—	—	8 (9%)	22 (25%)	63 (72%)	.28^d
Total	—	—	—	—	—	—	1150/1202 (96%)	297 (25%)	296 (25%)	953 (80%)	—

Note. GFR = glomerular filtration rate; IPD = individual person data (obtained by digitization); SRF = split renal function; SRV = split renal volume; MAG3 = mercaptoacetyltriglycine; NR = not reported; DTPA = diethylenetriaminepentaacetic acid; DMSA = dimercaptosuccinic acid; ERPF = effective renal plasma flow; EDTA = ethylenediaminetetraacetic acid; 3D = 3-dimensional; CTA = computed tomography angiography; MDCT = multi-detector computed tomography.

Pearson’s correlation (r) of split renal volume percent (from computed tomography imaging) with split renal function percent (from nuclear scintigraphy).

Digitized from scatterplot or Bland-Altman plot, or calculated using data from table provided in article.

Split function and split volume were reported in mL/min/1.73 m² instead of a percentage. Conversion to a percentage was not possible as this required both left and right kidney volume and function measurements to be linked.

Study reported Spearman’s correlation.

Fully digitized smaller subset (n = 88) with restricted to patients with 6-month follow-up. For purpose of discrimination, only points <45% or >55% were counted, and all remaining points were assumed to lie within the 45% to 55% range for both CT and nuclear scintigraphy.

Digitization

Among studies that reported Pearson’s correlation and presented a scatterplot or Bland-Altman plot for digitization, we assessed the accuracy of digitizing data points from graphs to recalculate r. A very strong linear correlation was observed between the reported and the digitized-recalculated Pearson’s correlation coefficients (r = 0.998, N = 11; Figure 2). Confident in the accuracy, the digitized data were included in the meta-analyses and regressions.

Figure 2.

Comparison of reported and digitized Pearson’s correlation coefficient when data were abstracted from Bland-Altman plots, scatterplots, or individual-level data were presented in tables.

Correlation of SRV% with SRF%

Nineteen studies reported Pearson’s correlation coefficient (r) directly or could be derived from digital images (N = 19; n = 1479; Table 2). The pooled r was 0.74 (95% CI = 0.61-0.82); however, there was significant heterogeneity across studies (I² = 94%, P < 0.0001; Figure 3A). There was no evidence of publication bias (Egger’s test P = 0.30; Figure 3B, omitting this study). Using the digitized individual patient data (N = 16, n = 850), the calculated r was 0.72 (95% CI = 0.69-0.75; Figure 4A). The Bland-Altman plot suggests good agreement, with 94% of the data points falling within −7.4 and +7.2%, 86% within ±5%, and 99% within ±10% (Figure 4B and C).

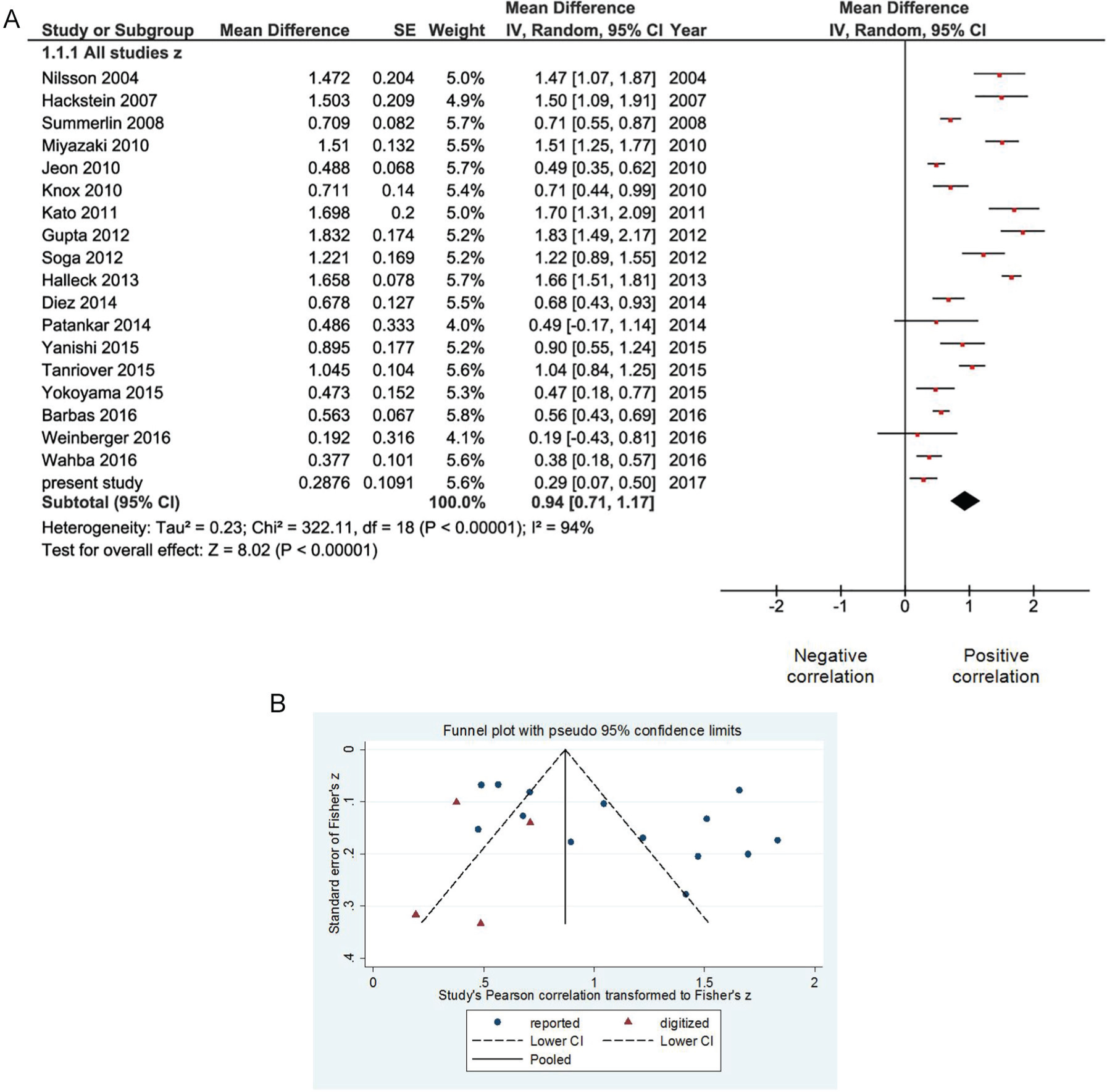

Figure 3.

Meta-analysis of Pearson’s correlation coefficients transformed to Fisher’s z using aggregated study data. (A) Forest plot reporting pooled individual-study Pearson’s correlation coefficients. (B) Funnel plot for publication bias excluding this study (P = .30 for publication bias when reported and digitized data are combined; P = .11 when digitized studies are omitted).

Figure 4.

Correlation and agreement of split renal volume and split renal function from individual-level data. (A) Correlation of split renal function% with split renal volume% using all individual-level data. (B) Bland-Altman plot for agreement between split renal function and volume from all individual-level data. (C) Distribution of differences between split renal function and volume from all individual-level data.

Meta-regression—aggregate data

To examine various factors that may explain the heterogeneity between studies, we conducted meta-regression on the aggregated data (N = 19; n = 1479). In terms of study characteristics of quality, the magnitude of Fisher’s z was not associated with the study sample size (P = .32), measurement blinding (P = .48), method of patient ascertainment (eg, opportunistic versus routine; P = .67), or method of CT volumetry (eg, ellipsoid versus 3D rendering versus area × slice thickness; P = .79). However, Fisher’s z was significantly lower if studies did not report Pearson’s correlation coefficient and had to be digitized: r = 0.45 (95% CI = 0.25-0.60), N = 4 if not reported versus r = 0.80 (95% CI = 0.69-0.88), N = 14 if reported; P = .03. Regarding other study characteristics, Fisher’s z was not associated with the type of nuclear scan (ie, MAG3, DMSA, DTPA; P = .73), whether CT volume was measured using the parenchyma (P = .44 vs cortical or whole kidney volume), whether the method used to calculate SRV was through 3D reconstruction, the ellipsoid formula, or the summation of slice areas times their thickness (P = .67), or CT slice thickness (P = .14). Fisher’s z was lower in more recently published studies (P = .03; Figure 5A) and non-significantly higher among studies with an older study population (P = .07; Figure 5B).

Figure 5.

Bubble plots from meta regression of the correlation between split renal volume and split renal function by (A) publication year and (B) average age of the study population.

Meta-regression—individual-level (digitized) data

To account for heterogeneity between studies using the individual-level digitized data (N = 16; n = 850), we fit a linear mixed model. Using SRV as the only predictor and accommodating for clustering by study, the β coefficient for SRV was 0.76 (95% CI = 0.71-0.81), P < .0001, and between-study differences accounted for only 1.7% of the total variability in SRF (P = .10). Heteroskedasticity was not observed in residual-versus-predictor or residual-versus-fitted plots (Supplemental Appendix 4). After adding other study-level (eg, aggregate) variables to the model, there was no association between SRF and year of publication (β = −0.04 [95% CI = −0.16 to 0.08] per year; P = .51), slice thickness (β = 0.12 [95% CI = −0.33 to 0.56] per millimeter; P = .57), average age of study cohort (β = −0.05 [95% CI = −0.11 to 0.02] per year; P = .14), blinding of measurements (β = 0.27 [95% CI = −0.68 to 1.23]; P = .55), or method of patient ascertainment (β = 0.36 [95% CI = −0.92 to 1.64] for routine versus opportunistic imaging; P = .55).

Discrimination of 45/55% SRF

Only 7 studies evaluated the relative difference in right and left kidney function and volume.^{42,46,48,50,51,55,56} Variable reporting made this difficult to pool. After digitization, we calculated the ability of SRV and SRF to identify a clinically significant difference between the right and left kidneys (≤45% or ≥55% relative volume or function). Sixteen percent of CT scans and 18% of nuclear renograms identified such a clinically significant difference with 78% overall agreement (proportion where SRF and SRV were both abnormal or both normal; Table 2). Using SRF as the gold standard, CT volumetry had a sensitivity of 35%, a specificity of 88%, a positive predictive value of 40%, and a negative predictive value of 86% to detect an SRF where 1 kidney provided at least 55% of total function or more (Table 3).

Table 3.

Sensitivity and Specificity.

		Split renal function<45%/55%		Total	Sensitivity
		Yes	No	Total	Sensitivity	54/155 = 35%
Split renal volume <45%/55%	Yes	54	82	136	Specificity	613/695 = 88%
Split renal volume <45%/55%	No	101	613	714	PPV	54/136 = 40%
	Total	155	695	850	NPV	613/714 = 86%

Note. Ability of split renal volume percent to discriminate a split renal function percent <45%/55%, a differential function deemed clinically significant. PPV = positive predictive value; NPV = negative predictive value.

Prediction of postdonation residual kidney function among live donors

Nine studies reported on the ability of both predonation SRF and SRV to predict postdonation absolute GFR (estimated by different methods) in kidney donors (Table 4).^{16,55,51,40,49,52,53,57,58} Studies varied by the duration of follow-up and most studies reported Pearson’s correlation coefficients. The pooled correlation with estimated glomerular filtration rate (eGFR) measured 6 to 12 months postdonation was r = 0.75 (95% CI = 0.71-0.78) for SRV and r = 0.73 (95% CI = 0.69-0.76) for SRF (Figure 6A). The difference in Fisher’s z-transformed Pearson’s correlation (Δz) was calculated for each study (z for CT volumetry vs eGFR minus z for nuclear GFR vs eGFR) and pooled (Figure 6B). The pooled Δz was back-transformed to obtain Δr = 0.05 (95% CI = −0.02 to 0.13), suggesting no difference between either method in the correlation with postdonation eGFR.

Table 4.

Prediction of Postdonation Donor eGFR.

References	Donor follow-up period after living kidney donation				Assessment of kidney function at follow-up	Method of comparison	Comment
References	1 month	3 month	6 months	12 months	Assessment of kidney function at follow-up	Method of comparison	Comment
Mitsui et al⁵⁷	0.755 (nuclear)0.679 (cortex)0.806 (parenchyma)	0.615 (nuclear)0.638 (cortex)0.592 (parenchyma)	—	0.763 (nuclear)0.747 (cortex)0.764 (parenchyma)	MDRD	Correlation
Barbas et al⁵⁵	—	—	0.6808 (nuclear)0.6997 (volume)	—	CKD-EPI	Correlation
Yanishi et al⁵³	—	—	—	0.634 (nuclear)0.708 (volume)	Other equation	Correlation
Wahba et al¹⁶	—	—	—	0.66 (nuclear)0.71 (volume)	CKD-EPI	Correlation	Correlations were slightly higher if CG was used instead of CKD-EPI
Halleck et al⁴⁹	—	—	0.85 (nuclear)0.83 (volume)	—	Cockcroft-Gault	Correlation
Patankar et al⁵¹	—	—	—	0.76 (nuclear)0.85 (volume)	CKD-EPI	Correlation
Wu et al⁴⁰	—	—	—	—	Cockcroft-Gault	Correlation	The time of follow-up was not specified.r = −0.201 (nuclear)r = 0.123 (volume)
Lee et al⁵⁸	0.685 (nuclear)0.726 (volume)	0.688 (nuclear)0.711 (volume)	0.711 (nuclear)0.747 (volume)	—	MDRD	Correlation
Tanriover et al⁵²	—	—	—	β = 16.8, P < .001 (volume)β = −0.203, P = .552 (nuclear)	CKD-EPI	Multiple linear regression	Adjusted for donor eGFR, weight-adjusted donor renal volume, delta split function (%), and biopsy score

Note. Volume was measured by computed tomography. Presented in this table if the authors reported correlations for parenchyma and cortex separately. Correlation refers to Pearson’s correlation coefficient (r) between predonation split kidney function (mL/min or mL/min/1.73 m²) or total kidney function corrected by split kidney volume (mL/min or mL/min/1.73 m²). eGFR = estimated glomerular filtration rate in mL/min or mL/min/1.73 m,² estimated by CKD-EPI (Chronic Kidney Disease Epidemiology Collaboration); MDRD (modification of diet in renal disease); or creatinine clearance by the Cockcroft-Gault equation; mGFR = measured glomerular filtration rate in mL/min/1.73 m².

Figure 6.

Comparison of split renal function (SRF, mL/min or mL/min/1.73 m²) by nuclear renography and split renal volume (SRV, total kidney function corrected by split kidney volume, mL/min or mL/min/1.73 m²) by computed tomography (CT) with estimated glomerular filtration rate of 6 to 12 months postdonation. (A) Forest plot for the Fisher’s z-transformed Pearson’s correlation coefficient for SRV (SRV_z; upper panel) and SRF (SRF_z; lower panel). (B) Forest plot for the difference in Fisher’s z-transformed Pearson’s correlation coefficient (delta z = SRV_z – SRF_z).

Discussion

In this meta-analysis, we found a moderate correlation between SRV by CT and SRF by nuclear renography. For every 1 mL/min increase in SRV%, the SRF% increased on average 0.76 mL/min, suggesting a less than 1:1 linear relationship between the 2 methods. However, in our own center we could not obtain such robust results, and the correlation between SRV by CT and SRF by nuclear renography was weak. Although reporting was sparse, there was no difference in predicting eGFR postdonation by either method, and the strength of this correlation was moderate.

If reliable, replacing nuclear renography with a CT scan for donor candidate evaluations would have many advantages, including reduced exposure to potentially harmful radioisotopes and reducing the number of tests needed to evaluate a candidate. This could also translate into an improved living donor experience, as well as reduced costs to the health care system (approximately CAD$220 per nuclear renogram).⁵⁹ Eliminating nuclear renograms for SRF may also result in the CT scan being performed earlier in the evaluation, which may result in a quicker time until approval (and a quicker time until transplant), which may translate into more donor candidates completing the evaluation.⁶⁰ A survey of transplant programs in Europe identified 7 centers in The Netherlands, 2 centers in Croatia, and 1 center in Belgium that rely solely on SRV% instead of SRF%.⁴⁹

The ability of SRV to discriminate donor candidates with SRF >55% or <45% is a threshold that influences decision-making, as this is 1 criterion used to decide which kidney to leave with the donor. Using SRF as the gold standard, for every 100 CT volumetric examinations performed, 60 would be false positives (with no recognizable adverse consequences as the choice of kidney would not depend on SRF), but 14 would be false negatives that would result in the wrong kidney being chosen (assuming all other decision-altering factors are absent). This estimate was derived using available individual-level data, which came from studies that predominantly measured SRV on a selected subset of patients rather than all patients. The measures of agreement among such studies are subject to verification bias and should be confirmed in large unselected populations.^61,62

In the living donor work-up in many centers, nuclear renography for SRF is performed for a select subset of donor candidates: those with a significant (>1 cm or >10%) difference in kidney length. Thus, the patient population selected for this study and those in the literature are less likely to have an SRF or SRV of 50/50, effectively increasing the prevalence of discrepant kidney function. Prevalence does not affect measures of sensitivity and specificity, but does influence predictive values.⁶³ Increasing the prevalence of the condition (ie, testing candidates more likely to have disparate relative kidney function) will reduce the negative predictive value (more false negatives). Thus, the current false negative rate of 14% is higher than would be anticipated had all candidates been tested. The predictive values presented in Table 3, therefore, may vary by living donor program depending on the criteria used to decide whether or not to perform SRF. As all donor candidates require a CT scan before donating (regardless of ultrasound results), this is less likely to be an issue.

The Pearson correlation coefficient was the measure of choice for most studies, despite several caveats. First, the correlation coefficient is an unadjusted measure. Although adjustment was not anticipated to influence the relationship between SRV and SRF in the primary analysis, the correlation of predonation SRF or SRV with postdonation eGFR was much lower (r = 0.73-0.75) and subject to improvement by adjustment or risk stratification.⁵² Prediction of postdonation residual kidney function may depend on predonation donor factors other than kidney size or function, including donor age, gender, body mass index, blood pressure, smoking, and other factors, which cannot be easily estimated using correlation alone.^64,65 Second, correlation coefficients have been criticized as unsuitable measures of effect for comparison across studies due to its dependence on the distribution of its inputs.^22,23 Using digitization to extract individual-level data with high accuracy, we were able to overcome this limitation and found no association between SRF and any predictor variable. Although there was no evidence of publication bias, studies that had to be digitized to be meta-analyzed had a significantly lower correlation than those that reported Pearson’s correlation. Third, because of its unitless property, correlation coefficients may be difficult to interpret. Using regression methods, we demonstrated only a moderate relationship between SRV and SRF. Fourth, Pearson’s correlation assumes both variables are normally distributed. Although deviation from this assumption is less likely to influence the results in large sample sizes (ie, in a digitized and pooled dataset), the small sample size for each individual study may bias the individual study correlation coefficients. Finally, the potential for partial validation bias reduces the reliability of measures of agreement for clinical decision-making. This bias is frequently observed in 2-phase diagnostic tests, whereby the second diagnostic test (SRF) is only performed on a subset of patients that depends on the result of the first diagnostic test (SRV).⁶¹ This strategy is expected to reduce the number of points falling within the normal range by both diagnostic tests (eg, within 5% difference). Omitting many of these data points due to this bias is not expected to influence the Pearson correlation or the linear regression coefficient as these are non-influential points.⁶⁶ Rather, this may influence the measures of agreement for discriminating kidneys with a significant functional difference. This cannot be accounted for in this study because the first-stage test may have been a renal ultrasound rather than a CT scan, introducing a differential verification bias that may be more difficult to correct.⁶²

There are some limitations that may influence the potential efficiency gains resulting from omitting the nuclear renogram for split function. Although most centers included in this study conduct this test only if indicated, these indications may vary from center-to-center (eg, despite a 10% size difference, a program may not perform a nuclear renogram if the measured GFR is well above or below their donation threshold). Moreover, some centers performed this test for all candidates routinely and are therefore most likely to benefit from removing this additional test if this can be done without compromising the accuracy of the donor candidate evaluation (Table 1). Measured GFR (for total kidney function) is performed by some transplant programs for a selected subgroup of donor candidates, whereas other programs conduct this test more routinely.² Eliminating the nuclear renogram for these candidates may still be valuable if the protocol for these 2 tests differ (eg, different contrast agents).^38,51 The availability of CT angiography relative to the nuclear renogram may also influence the efficiency gains of an individual program. Most centers in this study completed both scans within 1 month of each other, although it is not clear which test came first. These results may have a greater impact for transplant centers where the CT scan is readily available and can be conducted before the nuclear renogram without delaying the candidates’ evaluation process.

In conclusion, further work is needed to establish whether SRV may replace SRF for the evaluation of living donor candidates. The present findings are supportive of this in some but not all transplant centers. However, neither method is ideal. Understanding the reasons behind the 14% false negative rate in the absence of verification bias is important to understand the potential impact of relying on SRV on clinical decision-making. The addition of additional retrospective studies based on opportunistic (rather than routine) testing is unlikely to advance our understanding of the performance characteristics of SRV assessment. Further work in a well-designed prospective setting is needed.

Supplemental Material

Appendix_1 – Supplemental material for Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis

Supplemental material, Appendix_1 for Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis by Steven Habbous, Carlos Garcia-Ochoa, Gary Brahm, Chris Nguan and Amit X. Garg in Canadian Journal of Kidney Health and Disease

Supplemental Material

Appendix_2_-_PRISMA_-_CT_SRV_and_SRF.docx_1 – Supplemental material for Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis

Supplemental material, Appendix_2_-_PRISMA_-_CT_SRV_and_SRF.docx_1 for Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis by Steven Habbous, Carlos Garcia-Ochoa, Gary Brahm, Chris Nguan and Amit X. Garg in Canadian Journal of Kidney Health and Disease

Supplemental Material

Appendix_3_-_individual-level_data_-__donors_only – Supplemental material for Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis

Supplemental material, Appendix_3_-_individual-level_data_-__donors_only for Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis by Steven Habbous, Carlos Garcia-Ochoa, Gary Brahm, Chris Nguan and Amit X. Garg in Canadian Journal of Kidney Health and Disease

Supplemental Material

Appendix_4_-_residual_plots – Supplemental material for Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis

Supplemental material, Appendix_4_-_residual_plots for Can Split Renal Volume Assessment by Computed Tomography Replace Nuclear Split Renal Function in Living Kidney Donor Evaluations? A Systematic Review and Meta-Analysis by Steven Habbous, Carlos Garcia-Ochoa, Gary Brahm, Chris Nguan and Amit X. Garg in Canadian Journal of Kidney Health and Disease

Footnotes

Ethics Approval and Consent to Participate

Research ethics approval was obtained from Western University (London, Ontario, Canada) (HSREB #107847).

Consent for Publication

As this was a retrospective analysis, patient consent was waived.

Availability of Data and Materials

Individual-level data were de-identified and published with Mendeley Data (doi: 10.17632/dyn2bfgxxj.2).

Author’s Note

Chris Nguan is now affiliated with Department of Urologic Sciences, University of British Columbia, Vancouver, British Columbia, Canada.

Declaration of Conflicting Interests

The author(s) declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: Dr. A.X.G. received partnership funding from Astellas for a research grant funded by the Canadian Institutes of Health Research. The other authors have no conflicts of interest to disclose.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: S.H. is supported by the Canadian Institutes of Health Research (CIHR) Frederick Banting and Charles Best Canada Doctoral Scholarship (funding reference number: GSD 140313). Dr. A.X.G. is supported by the Dr. Adam Linton Chair in Kidney Health Analytics and a CIHR Clinician Investigator Award. This work is supported by Can-SOLVE CKD, Canadians Seeking Solutions and Innovations to Overcome Chronic Kidney Disease. This is a patient-oriented research network to transform the care of people affected by kidney disease.

ORCID iDs

Steven Habbous

Carlos Garcia-Ochoa

Supplemental Material

Supplemental material for this article is available online.

References

Habbous

Arnold

Begen

, et al. Duration of living kidney transplant donor evaluations: findings from 2 multicenter cohort studies. Am J Kidney Dis. 2018;72(4):483-498. doi:10.1053/j.ajkd.2018.01.036.

Habbous

Woo

Lam

Lentine

Reich

Garg

AX.

Efficiency of living kidney donor evaluation process: a scoping review. Transplant Direct. 2018;4(10):e394.

Habbous

McArthur

Begen

, et al. Initiating maintenance dialysis prior to living kidney donor transplantation when a donor candidate evaluation is well underway. Transplantation. 2018;102(7):e345-e353.

Habbous

McArthur

Sarma

, et al. Potential implications of a more timely living kidney donor evaluation. Am J Transplant. 2018;18(11):2719-2729. doi:10.1111/ajt.14732.

Getchell

McKenzie

Sontrop

Hayward

McCallum

Garg

AX.

Increasing the rate of living donor kidney transplantation in Ontario: donor- and recipient-identified barriers and solutions. Can J Kidney Heal Dis. 2017;4(4):2054358117698666. doi:10.1177/2054358117698666.

Moore

Serur

Rudow

Rodrigue

Hays

Cooper

Living donor kidney transplantation: improving efficiencies in live kidney donor evaluation-recommendations from a consensus conference. Clin J Am Soc Nephrol. 2015;10(9):1678-1686. doi:10.2215/CJN.01040115.

Lentine

Kasiske

Levey

, et al. KDIGO clinical practice guideline on the evaluation and care of living kidney donors. Transplantation. 2017;101(8S Suppl 1):S7-S105.

National Health Service. Living donor kidney transplantation 2020: A UK strategy. National Health Service. http://odt.nhs.uk/pdf/ldkt_2020_strategy.pdf. Accessed November 30, 2017.

Wang

Zhang

Fan

Right versus left laparoscopic living-donor nephrectomy: a meta-analysis. Exp Clin Transplant. 2015;13(3):214-226.

10.

Tonyali

Erdem

Yilmaz

Erkan

Aki

FT.

Urologic disorders in living renal donors and outcomes of their recipients. Transplant Proc. 2015;47(5):1306-1308. doi:10.1016/j.transproceed.2015.04.068.

11.

Kok

NFM

Dols

LFC

Hunink

MGM

, et al. Complex vascular anatomy in live kidney donation: imaging and consequences for clinical outcome. Transplantation. 2008;85(12):1760-1765. doi:10.1097/TP.0b013e318172802d.

12.

Richardson

Connelly

Dipchand

, et al. Kidney paired donation protocol for participating donors 2014. Transplantation. 2015;99(10 Suppl 1):S1-S88. doi:10.1097/TP.0000000000000918.

13.

Tan

Charoensak

Ajwichai

, et al. Prevalence of incidental findings on abdominal computed tomography angiograms on prospective renal donors. Transplantation. 2015;99(6):1203-1207. doi:10.1097/TP.0000000000000486.

14.

Kawamoto

Montgomery

Lawler

Horton

Fishman

EK.

Multidetector CT angiography for preoperative evaluation of living laparoscopic kidney donors. AJR Am J Roentgenol. 2003;180(6):1633-1638. doi:10.2214/ajr.180.6.1801633.

15.

Yan

Guo

, et al. Multi-detector row CT as a “one-stop” examination in the preoperative evaluation of the morphology and function of living renal donors: preliminary study. Abdom Imaging. 2011;36(1):86-90. doi:10.1007/s00261-009-9595-7.

16.

Wahba

Franke

Hellmich

, et al. Computed tomography volumetry in preoperative living kidney donor assessment for prediction of split renal function. Transplantation. 2016;100(6):1270-1277. doi:10.1097/TP.0000000000000889.

17.

Breau

Clark

Bruner

, et al. A simple method to estimate renal volume from computed tomography. Can Urol Assoc J. 2013;7(5-6):189-192. doi:10.5489/cuaj.1338.

18.

Guyot

Ades

Ouwens Welton

NJ.

Enhanced secondary analysis of survival data: reconstructing the data from published Kaplan-Meier survival curves. BMC Med Res Methodol. 2012;12:9. doi:10.1186/1471-2288-12-9.

19.

Habbous

Przech

Acedillo

Sarma

Garg

Martin

The efficacy and safety of sevelamer and lanthanum versus calcium-containing and iron-based binders in treating hyperphosphatemia in patients with chronic kidney disease: a systematic review and meta-analysis. Nephrol Dial Transplant. 2016;32(1):111-125.

20.

Corey

Dunlap

Burke

MJ.

Averaging Correlations: expected values and bias in combined Pearson r s and Fisher’s z transformations. J Gen Psychol. 1998;125(3):245-261.

21.

Mukaka

MM.

Statistics corner: A guide to appropriate use of correlation coefficient in medical research. Malawi Med J. 2012;24(3):69-71.

22.

Greenland

Schlesselman

Criqui

MH.

The fallacy of employing standardized regression coefficients and correlations as measures of effect. Am J Epidemiol. 1986;123(2):203-208.

23.

Greenland

Maclure

Schlesselman

Poole

Morgenstern

Standardized regression coefficients: a further critique and review of some alternatives. Epidemiology. 1991;2(5):387-392.

24.

Frennby

Almen

Lilja

, et al. Determination of the relative glomerular filtration rate of each kidney in man. Acta Radiol. 1995;36(4):410-417.

25.

Tsushima

Blomley

Okabe

Tsuchiya

Aoki

Endo

Determination of glomerular filtration rate per unit renal volume using computerized tomography: correlation with conventional measures of total and divided renal function. J Urol. 2001;165(2):382-385. doi:10.1097/00005392-200102000-00007.

26.

Bjorkman

Eklof

Wadstrom

Andersson

Nyman

Magnusson

Split renal function in patients with suspected renal artery stenosis: a comparison between gamma camera renography and two methods of measurement with computed tomography. Acta Radiol. 2006;47(1):107-113.

27.

Hidas

Sosna

Neeman

, et al. Estimating relative renal function from relative parenchymal volume—A feasibility study. J Endourol. 2008;22(11):2527-2530. doi:10.1089/end.2008.0221.

28.

Funahashi

Hattori

Yamamoto

Kamihira

Sassa

Gotoh

Relationship between renal parenchymal volume and single kidney glomerular filtration rate before and after unilateral nephrectomy. Urology. 2011;77(6):1404-1408. doi:10.1016/j.urology.2010.03.063.

29.

Liu

Zhu

Yang

Tang

CT-based renal volume measurements: correlation with renal function in patients with renal tumours. Clin Radiol. 2015;70(12):1445-1450. doi:10.1016/j.crad.2015.09.005.

30.

Martinez-Suarez

Durso

Kadlec

Gupta

Farooq

Turk

Three-dimensional renal parenchymal volume as a surrogate for renal function estimation in obstructed kidneys undergoing surgical repair. J Endourol. 2015;29(6):630-633. doi:10.1089/end.2014.0232.

31.

Chroustova

Trnka

Sirova

Urbanova

Langer

Kubinyi

Comparison of planar DMSA scan with an evaluation based on SPECT imaging in the split renal function assessment. Nucl Med Rev Cent East Eur. 2016;19(1):12-17. doi:10.5603/NMR.2016.0003.

32.

Lee

Park

HK.

Clinical application of calculated split renal volume using computed tomography-based renal volumetry after partial nephrectomy: Correlation with technetium-99m dimercaptosuccinic acid renal scan data. Int J Urol. 2017;24(6):433-439.

33.

Zhang

Y-D

Xue

C-Q

C-J

Tao

Zhou

W-L

Shi

H-B.

Feasibility of triphasic CT with a modified two-point Patlak plot to determine spit kidney glomerular filtration rate in clinical practice. Abdom Radiol (NY). 2017;42(1):226-235. doi:10.1007/s00261-016-0858-9.

34.

Hwang

Yoon

Park

, et al. Noninvasive and direct measures of kidney size in kidney donors. Am J Kidney Dis. 2011;58(2):266-271. doi:10.1053/j.ajkd.2011.02.392.

35.

Yakoubi

Autorino

Kassab

Long

Haber

G-P

Kaouk

JH.

Does preserved kidney volume predict 1 year donor renal function after laparoscopic living donor nephrectomy. Int J Urol. 2013;20(9):931-934. doi:10.1111/iju.12080.

36.

Helck

Schonermarck

Habicht

, et al. Determination of split renal function using dynamic CT-angiography: preliminary results. PLoS ONE. 2014;9(3):e91774. doi:10.1371/journal.pone.0091774.

37.

Courbebaisse

Gaillard

Tissier

A-M

, et al. Association of mGFR of the remaining kidney divided by its volume before donation with functional gain in mGFR among living kidney donors. Clin J Am Soc Nephrol. 2016;11(8):1369-1376. doi:10.2215/CJN.12731215.

38.

Gaillard

Pavlov

Tissier

A-M

, et al. Use of computed tomography assessed kidney length to predict split renal GFR in living kidney donors. Eur Radiol. 2017;27(2):651-659. doi:10.1007/s00330-016-4410-7.

39.

Nilsson

Wadstrom

Andersson

Raland

Magnusson

Measuring split renal function in renal donors: can computed tomography replace renography. Acta Radiol. 2004;45(4):474-480.

40.

C-T

Liu

K-L

Chu

S-H

Chiang

Y-J.

Preoperative evaluation of living related kidney donor: which kidney to donate. Transplant Proc. 2006;38(7):1980-1981. doi:10.1016/j.transproceed.2006.06.110.

41.

Hackstein

Buch

Rau

Weimer

Klett

Split renal function measured by triphasic helical CT. Eur J Radiol. 2007;61(2):303-309. doi:10.1016/j.ejrad.2006.09.001.

42.

Summerlin

Lockhart

Strang

Kolettis

Fineberg

Smith

JK.

Determination of split renal function by 3D reconstruction of CT angiograms: a comparison with gamma camera renography. AJR Am J Roentgenol. 2008;191(5):1552-1558. doi:10.2214/AJR.07.4023.

43.

Jeon

Lee

Joo

, et al. Predictors of kidney volume change and delayed kidney function recovery after donor nephrectomy. J Urol. 2010;184(3):1057-1063. doi:10.1016/j.juro.2010.04.079.

44.

Knox

Rivers-Bowerman

Bardgett

Cowan

NC.

Multidetector computed tomography with triple-bolus contrast medium administration protocol for preoperative anatomical and functional assessment of potential living renal donors. Eur Radiol. 2010;20(11):2590-2599. doi:10.1007/s00330-010-1855-y.

45.

Miyazaki

Harada

Shuke

Okizaki

Miura

Hirano

99mTc-DTPA dynamic SPECT and CT volumetry for measuring split renal function in live kidney donors. Ann Nucl Med. 2010;24(3):189-195.

46.

Kato

Kamishima

Morita

, et al. Rapid estimation of split renal function in kidney donors using software developed for computed tomographic renal volumetry. Eur J Radiol. 2011;79(1):15-20. doi:10.1016/j.ejrad.2009.11.013.

47.

Gupta

Singh

Shabbir

Hahn

Harris

Sahani

Assessing renal parenchymal volume on unenhanced CT as a marker for predicting renal function in patients with chronic kidney disease. Acad Radiol. 2012;19(6):654-660. doi:10.1016/j.acra.2012.02.006.

48.

Soga

Britz-Cunningham

Kumamaru

Malek

Tullius

Rybicki

FJ.

Comprehensive comparative study of computed tomography-based estimates of split renal function for potential renal donors: modified ellipsoid method and other CT-based methods. J Comput Assist Tomogr. 2012;36(3):323-329. doi:10.1097/RCT.0b013e318251db15.

49.

Halleck

Diederichs

Koehlitz

, et al. Volume matters: CT-based renal cortex volume measurement in the evaluation of living kidney donors. Transplant Int. 2013;26(12):1208-1216. doi:10.1111/tri.12195.

50.

Diez

Powelson

Sundaram

, et al. Correlation between CT-based measured renal volumes and nuclear-renography-based split renal function in living kidney donors. Clin Transplant. 2014;28(6):675-682. doi:10.1111/ctr.12365.

51.

Patankar

Low Blakeway

Ferrari

Comparison of computer tomographic volumetry versus nuclear split renal function to determine residual renal function after living kidney donation. Acta Radiol. 2014;55(6):753-760. doi:10.1177/0284185113504195.

52.

Tanriover

Fernandez

Campenot

, et al. Live donor renal anatomic asymmetry and posttransplant renal function. Transplantation. 2015;99(8):e66-74. doi:10.1097/TP.0000000000000599.

53.

Yanishi

Kinoshita

Yoshida

, et al. Comparison of renal scintigraphy and computed tomographic renal volumetry for determining split renal function and estimating post-transplant renal function. Transplant Proc. 2015;47(9):2700-2702. doi:10.1016/j.transproceed.2015.07.037.

54.

Yokoyama

Ishimura

Usefulness of three-dimensional computerized tomographic volumetry for determining split renal function in donors for living-related kidney transplantation. Transplant Proc. 2015;47(3):588-590. doi:10.1016/j.transproceed.2014.11.044.

55.

Barbas

Zair

, et al. CT volumetry is superior to nuclear renography for prediction of residual kidney function in living donors. Clin Transplant. 2016;30(9):1028-1035. doi:10.1111/ctr.12784.

56.

Weinberger

Baeder

Scheurig-Muenkler

, et al. Optimizing scintigraphic evaluation of split renal function in living kidney donors using the geometric mean method: a preliminary retrospective study. J Nephrol. 2016;29(3):435-441. doi:10.1007/s40620-015-0223-z.

57.

Mitsui

Sadahira

Araki

, et al. The assessment of renal cortex and parenchymal volume using automated CT volumetry for predicting renal function after donor nephrectomy. Clin Exp Nephrol. 2017;22(2):453-458.

58.

Lee

Han

Kang

, et al. Usefulness of multi-detector computed tomography scanning as a replacement for diethylenetriamine pentaacetic acid. Transplant Proc. 2017;49(5):1023-1026. doi:10.1016/j.transproceed.2017.03.056.

59.

Habbous

Sarma

Barnieh

, et al. Health care costs for the evaluation, surgery, and follow-up care of living kidney donors. Transplantation. 2018;102(8):1367-1374. doi:10.1097/TP.0000000000002222.

60.

Graham

Courtney

. The adoption of a one-day donor assessment model in a living kidney donor transplant program: a quality improvement project. Am J Kidney Dis. 2017;71(2):209-215.

61.

de Groot

JAH

Bossuyt

PMM

Reitsma

, et al. Verification problems in diagnostic accuracy studies: consequences and solutions. BMJ. 2011;343:d4770. doi:10.1136/bmj.d4770.

62.

deGroot

Dendukuri

Janssen

, et al. Adjusting for partial verification or workup bias in meta-analyses of diagnostic accuracy studies. Am J Epidemiol. 2012;175(8):847-853. doi:10.1093/aje/kwr383.

63.

Simundic

AM.

Measures of diagnostic accuracy: basic definitions. EJIFCC. 2009;19(4):203-211.

64.

Grams

Sang

Levey

, et al. Kidney-failure risk projection for the living kidney-donor candidate. N Engl J Med. 2015;374(5):411-421.

65.

Massie

Muzaale

Luo

, et al. Quantifying postdonation risk of ESRD in living kidney donors. J Am Soc Nephrol. 2017;28(9):2749-2755. doi:10.1681/ASN.2016101084.

66.

Vach

Regression Models as a Tool in Medical Research. Boca Raton, FL: CRC Press; 2012.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.07 MB

0.17 MB

0.07 MB
