Pharmacogenomically actionable medications in a safety net health care system

Abstract

Objective:

Prior to implementing a trial to evaluate the economic costs and clinical outcomes of pharmacogenetic testing in a large safety net health care system, we determined the number of patients taking targeted medications and their clinical care encounter sites.

Methods:

Using 1-year electronic medical record data, we evaluated the number of patients who had started one or more of 30 known pharmacogenomically actionable medications and the number of care encounter sites the patients had visited.

Results:

Results showed 7039 unique patients who started one or more of the target medications within a 12-month period with visits to 73 care sites within the system.

Conclusion:

Findings suggest that the type of large-scale, multi-drug, multi-gene approach to pharmacogenetic testing we are planning is widely relevant, and successful implementation will require wide-scale education of prescribers and other personnel involved in medication dispensing and handling.

Introduction

The implementation of pharmacogenomics is increasingly relevant at the population level. Nearly 70% of Americans take at least one medication and more than 20% take five or more, ¹ with spending on medications projected to be over US$457 billion by 2019. ² Defined as the study of genetic variation associated with drug response, pharmacogenomics seeks to understand how genes affect the pharmacokinetics and pharmacodynamics of drugs. ³ Pharmacogenomics allows drug therapy to be individualized based on genotypes, potentially addressing the 20%–95% of variability in drug disposition that is genetics related. ⁴

Clinical implementation of pharmacogenetic testing may improve patient outcomes by reducing side effects and improving treatment response. ⁵ Currently, drug therapy for many conditions is plagued by unacceptable levels of adverse drug reactions, ineffectiveness, and poor adherence. Each year, adverse drug reactions are responsible for the death of approximately 100,000 patients ⁶ and 5% of hospitalizations. ⁷ Adverse reactions are one of several reasons for poor medication adherence, which ultimately reduces drug efficacy and worsens the societal disease burden.^8,9 Genomic science has the potential to change this picture. For many of the most commonly used drugs, the specific genetic variants that result in either toxic adverse reactions or sustained efficacy are now known.

Pharmacogenetically actionable medications are defined as those for which there is sufficient information to guide drug or dosing changes in clinical practice. Over 160 medications now incorporate pharmacogenetic information on their labels, ¹⁰ and a subset of these have sufficient evidence to guide clinical practice changes based on an individual patient’s pharmacogenetic test results. For example, the Clinical Pharmacogenetic Implementation Consortium (CPIC) has produced 35 evidence-based guidelines for gene and drug pairs to help clinicians understand how genetic test results should be used to optimize both individual medications (e.g. codeine and warfarin) and classes of drugs (e.g. tricyclic antidepressants). ¹¹ CPIC guidelines suggest alternative medications or higher or lower doses based on pharmacogenetic test results. However, only a limited number of institutions in the United States, Canada, and Europe have begun to implement clinical pharmacogenetic testing to guide medication prescribing. ¹¹

In order to implement pharmacogenetic testing within a health care system, it is important to determine how many patients and clinics might be affected. Such knowledge is critical to identifying how and where to best direct resources for testing patients and educating providers about pharmacogenomics initiatives, particularly in resource constrained settings. Empirical data to answer these questions are somewhat limited. One study showed that 64% of patients seen in the primary care clinics of a large academic medical center had been prescribed at least one known pharmacogenomically actionable medication. ¹² Whether those results generalize to other clinics or to non-academic or underserved settings is unclear.

The study purpose was to evaluate the potential scope of implementing multi-drug pharmacogenetic testing in a large safety net health care system. Our aims were to (1) identify the number of patients exposed to at least one of 30 known pharmacogenomically actionable medications and (2) identify the number and types of clinics involved to best direct provider education efforts during implementation. Our guiding questions were as follows: How many patients are exposed to known pharmacogenomically actionable medications? What are the age, race, and gender of those patients? In what clinics do patients receive care?

New contribution

This study extends research on the implementation of pharmacogenomics in several ways. To the best of our knowledge, it is the first to focus on a large, safety net health care system. Prior pharmacogenomic studies have focused on academic health centers^12–15 which have greater resources for implementation. It is well documented that poverty is closely aligned with poor health, and that expensive health care complications occur with greater frequency in the underserved, who are at greater risk of emergency room visits, frequent hospital admissions, ¹⁶ and adverse outcomes from diseases and their treatments.^17–20 Thus, data from academic health centers may not generalize to safety net health care systems. Second, measuring the costs and benefit of pharmacogenetics testing is challenging and requires an informatics infrastructure capable of measuring both financial costs and clinical outcomes. As a result, the business case for implementation of genomic and pharmacogenetic testing in large health care systems has not been persuasive.^21,22 Data from our study will provide a better understanding of the potential scope of implementation of a multi-drug, multi-gene approach to help build the business case for implementation to help drive change. Third, we interpret our results in the context of health care providers’ educational needs. Gaps in clinician education have been identified as a barrier to implementation of pharmacogenomics ¹⁵ with one national survey indicating only 10% of nearly 400,000 physicians felt appropriately informed about pharmacogenetic testing. ²³ No data are available on nurse practitioner knowledge. Identifying the estimated number and type of providers who are likely to encounter pharmacogenomically guided medication orders will also help drive implementation forward.

Conceptual model

This study is based on a three-step model for implementation of pharmacogenetic testing. ¹⁵ Step 1, obtaining genomic data, requires clear understanding of the patient population, the genomic data storage needs, as well as the genes and variants to be screened. Having addressed the latter two points during planning, the current analysis was undertaken to better understand the patient population. Step 2 of the process relates to interpreting genomic data which will be automated within our implementation system. Step 3, returning genomic data to providers, requires educated clinicians capable of acting upon pharmacogenetic test results. The current analysis of clinic encounters was designed to better understand the number and type of providers likely to be touched by and require education about implementation. Thus, our analysis was designed to provide crucial data for Steps 1 and 3 within the implementation process.

Methods

Design and data source—overview

This was a retrospective analysis of existing electronic medical record data from the Eskenazi Health System in Indianapolis, IN, that was judged to be an exempt study by the institutional review board office. As a result, no informed consent or authorization to use protected health information was required. Three sources of data were used. Some Eskenazi data (including medication-dispensing events) are housed in the Regenstrief Medical Record System (RMRS). There is also a computerized physician order entry system (Gopher). ²⁴ Other Eskenazi data (number and locations of health care encounters, diagnoses, dates) are housed in Eskenazi Health’s own clinical data repository. Pharmacogenetic testing has not been previously offered within this health care system.

Identification of medications

As part of the Implementing Genomics in Practice National Institutes of Health/National Human Genome Research Institute (IGNITE NIH/NHGRI)-funded project called INGENIOUS (INdiana GENomics Implementation: an Opportunity for the UnderServed), we identified 30 medications known to be pharmacogenomically actionable. All of the chosen medications had sufficient evidence to guide drug changes or dosing adjustments in practice. The targeted medications were based on extensive literature reviews of peer-reviewed publications, Food and Drug Administration labeling, internal pre-publication data from our groups of scientists, and a strong emphasis on guidelines published by CPIC, the Dutch Pharmacogenetics Working Group, and the Canadian Pharmacogenomics Network for Drug Safety. A working group composed of cross-functional team members representing clinical and scientific specialties reviewed the data, engaged in a series of face-to-face discussions over the period of a year, and reached consensus on the selection of targeted medications and relevant genes and variants to be studied. The working group members included pharmacogeneticists, clinical pharmacologists, the clinical laboratory director, and physicians from nephrology, cardiology, gastroenterology, infectious disease, oncology, pediatrics, obstetrics, geriatrics, and general internal medicine. Our focus on multiple drugs required a multi-gene approach since each drug is affected by specific genetic polymorphisms. The entire process allowed for informed decisions regarding clinical and scientific evidence supporting each targeted medication. Because proton pump inhibitors are used commonly in this health care system, and risk of adverse events can to some extent be stratified based on indications, we limited the cohort with proton pump inhibitors to patients with International Classification of Diseases—Ninth Revision (ICD-9) diagnosis codes that reflected higher risk of adverse events.

Identification of patients

We sought to identify patients who had received a new prescription for any one of the 30 targeted medications. The first inclusion criterion identified patients with at least one new (Gopher) order for any of the 30 medications of interest between 1 July 2013 and 30 June 2014. By “new” order, we meant no previous order for the same medication between April 2011 (when the current version of Gopher went online) and 30 June 2013. We then narrowed this “new” order cohort to those who had received their relevant new medication order at a care encounter site (outpatient, emergency, or inpatient) on the main campus of Eskenazi Health (including Eskenazi Hospital), or at any Eskenazi mental health site in Indianapolis. This step excluded new medication orders at any of Eskenazi Health’s eight off-campus primary care sites in Indianapolis neighborhoods. We adopted this approach because our plan in the prospective trial is to recruit subjects on the main campus. Separately from using order data to define “new,” we also examined medication-dispensing data to define “new.” Medication-dispensing data were not directly linked to the encounter sites. Because medication orders were linked to the encounter sites (Gopher), we used medication orders in our primary analyses. We used medication-dispensing data as a secondary source, to help triangulate the order data to confirm the number of patients.

We then scrutinized how the medication records had actually been stored electronically, for the year 1 July 2013 to 30 June 2014. We reviewed all 3349 orderable medication names in the Gopher system in order to find all possible forms, strengths, and combinations (n = 47) in which the 30 medications of interest could have been ordered. We reviewed all 17,062 medication names stored in the RMRS, in order to find all forms, strengths, and combinations in which relevant dispensing events had been recorded for Eskenazi patients during that year. In this way, we identified many more records than Regenstrief initially provided us. For example, for codeine, Regenstrief initially provided only records containing the full-word “codeine,” but we knew to query for abbreviated forms such as “Acetaminophen-cod #4 tablet.”

Once the patient cohort was identified, demographics contained in the medical record were abstracted. Data included age, gender, and race.

Number and types of clinic encounters

Similarly, for locations of care, we reviewed the way that all unique encounter locations had been stored in the Eskenazi system for patients on at least one of the 30 medications. We then winnowed this set of locations down to those on the main campus inpatient, outpatient, or emergency department, or those within mental health services sites (outpatient or inpatient).

Results

A total of 7039 unique patients had received a new order for one or more of our targeted medications during the 12-month time period meeting our inclusion criteria. Patients represented diverse genders, ages, and races/ethnicities (see Table 1). Races/ethnicities shown in Table 1 were comparable to the adult patients seen within the health care institution during the same time period, the latter being 40% Black, 32% White, 2% Asian, 3% Hispanic, 4% mixed races, and 19% other/unknown. These patients had received a total of 8169 prescriptions, with 20% of the patients receiving prescriptions for two or more of the targeted medications (see Table 1). These numbers suggest that each day on average, about 26 unique patients began a new prescription for one or more of these pharmacogenetically actionable medications.

Table 1.

Demographic characteristics of patients who received a new prescription for one or more known pharmacogenomically actionable medications.

	(n = 7039)
Age (mean, SD)	51.0 (14.4)
Median	52.5
Range	21.1 to >89
Gender (n, %)
Female	3943 (56%)
Male	3096 (44%)
Race (n, %)
Black	2858 (41%)
White	3036 (43%)
Asian	100 (1%)
Hispanic	30 (<1%)
Mixed	99 (1%)
Other/unknown	916 (13%)
Number of targeted medications per patient (mean, SD)	1.2 (0.5)
Median (range)	1.0 (1 to 5)
Number of patients taking targeted medications
1 of the targeted medications	5648 (80%)
2	1173 (17%)
3	185 (3%)
4	30 (<1%)
5 of the targeted medications	3 (<1%)

Table 2 shows the total number of prescriptions by medication. Tramadol, citalopram, and clopidogrel were the three most commonly prescribed overall. No prescriptions were seen for three of the targeted medications: cyclophosphamide, mercaptopurine, or rasburicase. Prescriptions were also relatively rare (<15 Rx) for capecitabine, tacrolimus, and voriconazole.

Table 2.

Number of new prescriptions for each of the targeted medications.

Targeted medication	No. of Rx	Targeted medication	No. of Rx
1. Amitriptyline	521	16. Mercaptopurine	0
2. Aripiprazole	215	17. Methotrexate	183
3. Atazanavir	111	18. Nortriptyline	216
4. Atomoxetine	19	19. Phenytoin	142
5. Azathioprine	94	20. PPIs	507
6. Capecitabine	14	21. Quetiapine	525
7. Citalopram	890	22. Rasburicase	0
8. Clopidogrel	820	23. Simvastatin	455
9. Codeine	467	24. Tacrolimus	12
10. Cyclophosphamide	0	25. Tenofovir	320
11. Doxepin	131	Tenofovir and efavirenz	188
12. Efavirenz	203	26. Thioguanine	0
13. Escitalopram	146	27. Tramadol	1388
14. Fluorouracil (systemic)	43	28. Venlafaxine	267
15. Glyburide	136	29. Voriconazole	10
		30. Warfarin	557

PPI: proton pump inhibitor.

PPI limited indications as noted in the “Methods” section.

Prescriptions originated across the health system in 73 different care sites. Tramadol was among the three most commonly prescribed of the targeted medications across the emergency department, outpatient clinics, and inpatient units (Figures 1–4). Overall, the largest number of prescriptions for each targeted medication originated in the outpatient, non-mental health clinics with these exceptions: (1) clopidogrel, codeine, and phenytoin (emergency department) and (2) aripiprazole and quetiapine (mental health care sites). In total, there were 73 different care sites.

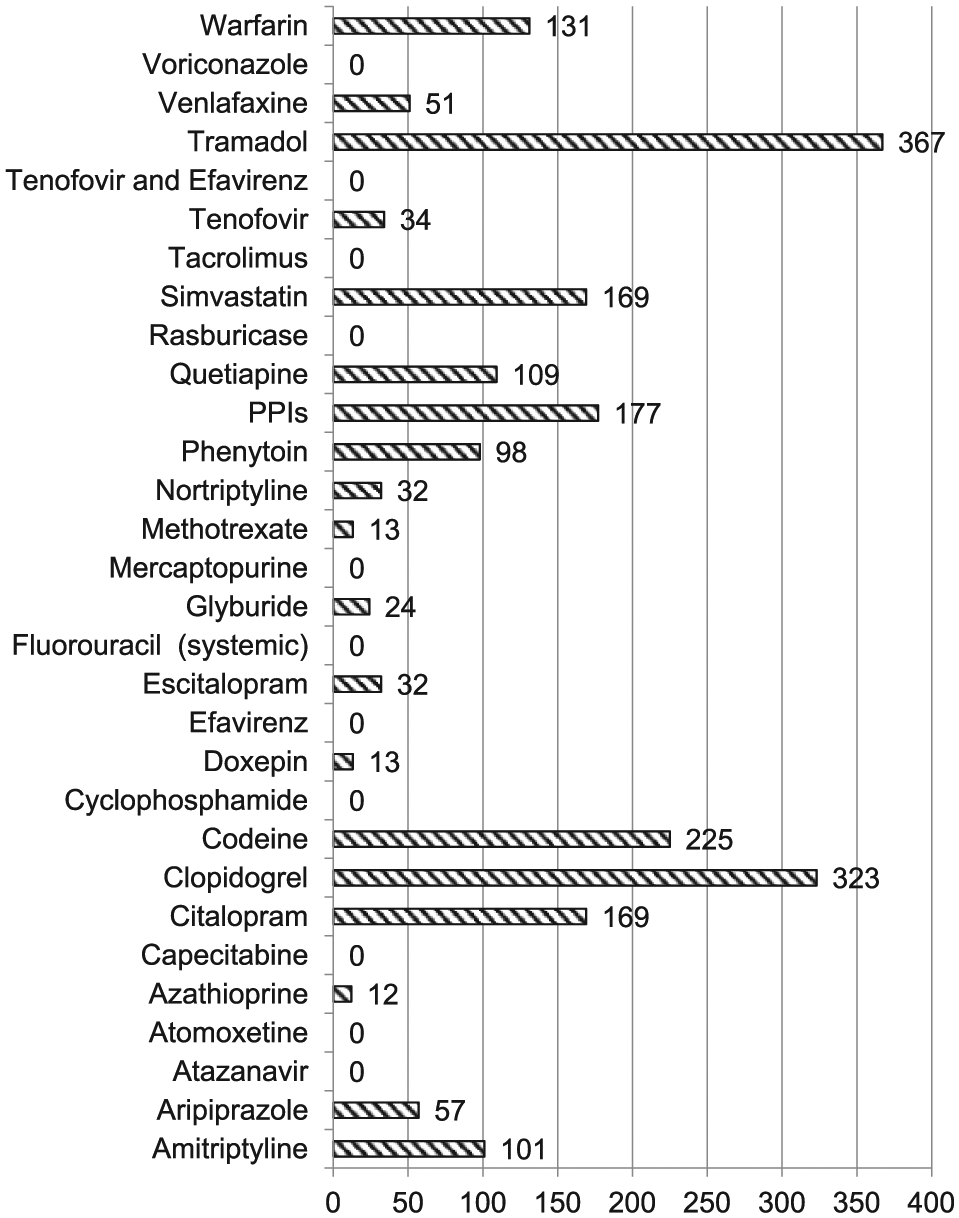

Figure 1.

Medication prescriptions within the emergency department. Figure shows number of prescriptions originating in the emergency department with tramadol, clopidogrel, and codeine being the three most common. No patients were prescribed thioguanine.

Figure 2.

Medication prescriptions within outpatient, non-mental health clinics. Figure shows number of prescriptions originating in non-mental health specific outpatient clinics with tramadol, amitriptyline, and citalopram being the three most common. No patients were prescribed thioguanine.

Figure 3.

Medication prescriptions within inpatient, non-mental health clinics. Figure shows number of prescriptions originating in non-mental health specific inpatient clinics with clopidogrel, warfarin, and tramadol being the three most common. No patients were prescribed thioguanine.

Figure 4.

Medication prescriptions within inpatient and outpatient mental health specific settings. Figure shows number of prescriptions originating in mental health specific outpatient clinics and inpatient units with citalopram, quetiapine, and aripiprazole being the three most common. No patients were prescribed thioguanine.

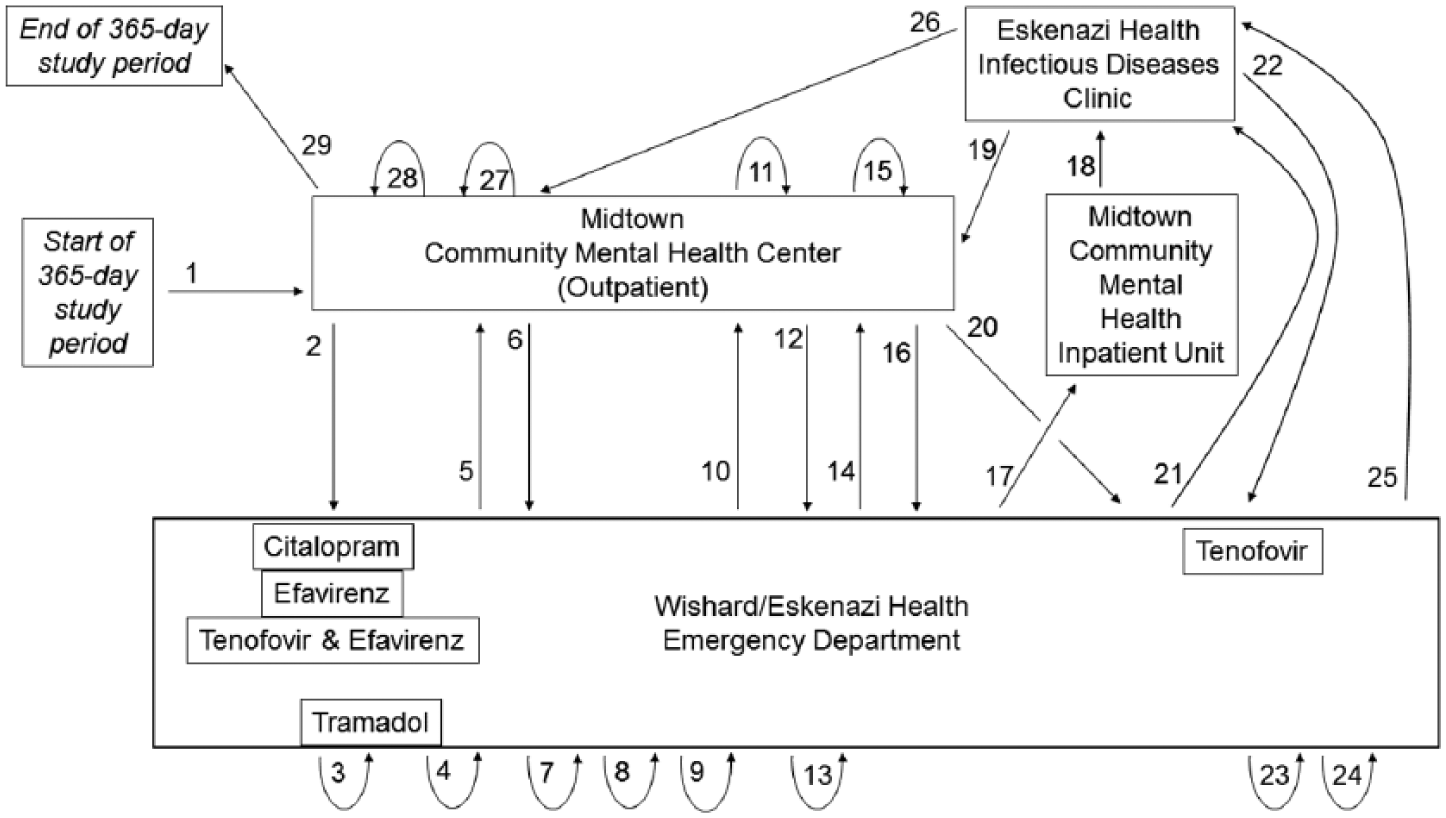

Figure 5 shows the complex trajectory of health care encounters and related prescriptions at different clinical encounter sites for one of the three patients taking five of the targeted medications. During the year, this patient made 28 health care visits to four different care locations, although all prescriptions originated in the emergency department.

Figure 5.

Case study illustration. Figure shows the complex trajectory of health care encounters (numbered arrows) of one patient during a 1-year period. New prescriptions for pharmacogenetically actionable medications (named in boxes) are linked to visits (proximity of boxes to numbered arrows). Tightly curved arrows are used to illustrate repeat visits to the same health care encounter site. Longer straight or curved arrows link visits between one encounter site and another.

Discussion

The goal of personalized medicine is to implement advances in biomarker pharmacology, molecular diagnostics, and genomics to improve public health. For the full benefits of this science to be realized, it is critical that scientific advances made in experimental settings and on a small scale be extended to community practice and that a business case can be made to support such dissemination. Furthermore, it is important that key innovations be extended beyond individual hospital settings to large health care systems, especially those that include underserved populations.

In terms of clinical implementation, our findings showed that a multi-gene, multi-drug pharmacogenetic testing approach would be relevant to a large number of patients who are diverse in terms of age, gender, race, and clinical settings. These data strengthen the case for system-wide rather than select clinic-based implementation, since the latter would be inadequate for capturing the target population and inefficient since patients are seen across many care settings. Our methods for identifying patients using existing electronic medical record data are a cost-efficient means that others can use to evaluate and model subsequent implementation costs. For example, our trial will be based on patients who received an order for a target medication, rather than on pre-emptive genotyping. Our data can be used to model the most cost-efficient frequency for running tests based on the number of samples per day likely to be received and cost variations related to running small, medium, or large batches of samples. Our data could also be useful for those planning pre-emptive genotyping for one or more of the targeted medications.

Implementation requires well-educated prescribers. Our data suggest that educational efforts should be system-wide and ongoing to address any changes or turnover in prescribers. Such large-scale efforts are likely to require asynchronous, cost-efficient educational modules (e.g. web-based) that are either mandatory or incentivized (e.g. continuing education credits). In addition, our case study data can be used during educational efforts to illustrate the potential complexity of incorporating and acting upon pharmacogenetic test results. They also suggest that education include strategies for communicating pharmacogenetic information during handoffs and care transitions. Our data suggest that wide-scale prescriber education efforts that cross different care encounter sites be fully considered during planning so that they do not become a hidden or unexpected cost.

Study findings should be interpreted in light of some limitations. Although the findings provide an important perspective from a safety net rather than tertiary academic health care setting, the data are from a single system and may not be generalizable to other safety net systems. The reason why several of the targeted medications had not been ordered during the previous year is unclear. In addition, because findings are based on the US health care system, they may not generalize to other countries.

Conclusion

Findings document the potential scope of implementing multi-gene, multi-drug pharmacogenetic testing in a large safety net health care system. A large number and diversity of patients and clinics would be directly affected by implementation indicating the need for large-scale education of prescribers and other personnel involved in medication dispensing and handling.
