Abstract
It has been generally accepted that severe forms of pulmonary arterial hypertension are associated with inflammation. Plasma levels in patients with severe pulmonary arterial hypertension show elevated levels of interleukins and mediators of inflammation and histologically the diseased small pulmonary arterioles show infiltrates of inflammatory and immune cells. Here, we review the literature that connects pulmonary hypertension with the arachidonic acid/5-lipoxygenase-derived leukotriens. This mostly preclinical background data together with the availability of 5-lipoxygenase inhibitors and leukotriene receptor blockers provide the rationale for testing the hypothesis that 5-lipoxygenase products contribute to the pathobiology of severe pulmonary arterial hypertension in a subgroup of patients.
Introduction
Severe pulmonary arterial hypertension (PAH) occurs as an idiopathic and sometimes hereditary process as well as one associated with congenital heart disorders, HIV infection, collagen vascular diseases, chronic liver disease, and schistosomiasis. 1 Although PAH has not classically been regarded as an inflammatory process, the presence of inflammatory cells in vascular lesions was, in fact, recognized many years ago. Donald Heath initially brought attention to mast cells in and around pulmonary vascular lesions 2 and lymphocytes were later documented using immunohistochemistry. 3 Elevated blood levels of the proinflammatory cytokines IL-1 and IL-6 were reported in 1995 4 and it is now believed that their degree of elevation is related to clinical outcomes. 5
Several recent reviews have sought to consider the importance of inflammation in PAH within an overall pathobiological context.6–9 This question of “How important is inflammation?” will ultimately be answered by clinical trial data.
Leukotrienes and the lung circulation.
Lipoxygenases, leukotrienes, and leukotriene receptors
Lipoxygenases (or LOs) are a group of fatty acid dioxygenase enzymes that oxidize polyunsaturated fatty acids to hydroperoxy derivatives which, in turn, are further metabolized to bioactive lipid mediators. They are also key players in the regulation of cellular redox homeostasis, itself an important modulator of gene expression. The human genome contains six LO genes, each of which encodes a distinct enzyme with specific biochemical activity. Here, we focus on 5-LO (Fig. 1), which oxygenates arachidonic acid at its C-5 carbon to first generate 5-HPETE and then LTA4 .The 5-LO gene has been mapped to human chromosome 10,
11
and it is worth noting that the expression level of 5-LO changes during lung development.
12
A major advance was the recognition that 5-LO must work in concert with 5-LO activating protein (FLAP), which binds and presents arachidonic acid to the oxygenase enzyme.13,14 Under the influence of leukotriene C4 synthase, LTA4 is glutathionylated to LTC4, which can be further converted to LTD4 and then LTE4; collectively, LTC4, D4, and E4 are termed peptido-LTs or cysteinyl-LTs (cysLTs). Mast cells and eosinophils are recognized as the major cellular sources for cysLTs. In contrast, the enzyme leukotriene A4 hydrolase (LTA4H) hydrolyzes LTA4 to the potent chemotactic mediator LTB4; neutrophils and macrophages are considered the major cellular sources for LTB4. Initially, cysLTs, in particular LTC4, were a focus of research in pulmonary arterial responses because they were known to cause contraction of bronchi,
15
accounting for the bioactivity long known as slow-reacting substance of anaphylaxis and implicated in allergic diseases such as rhinitis and asthma.

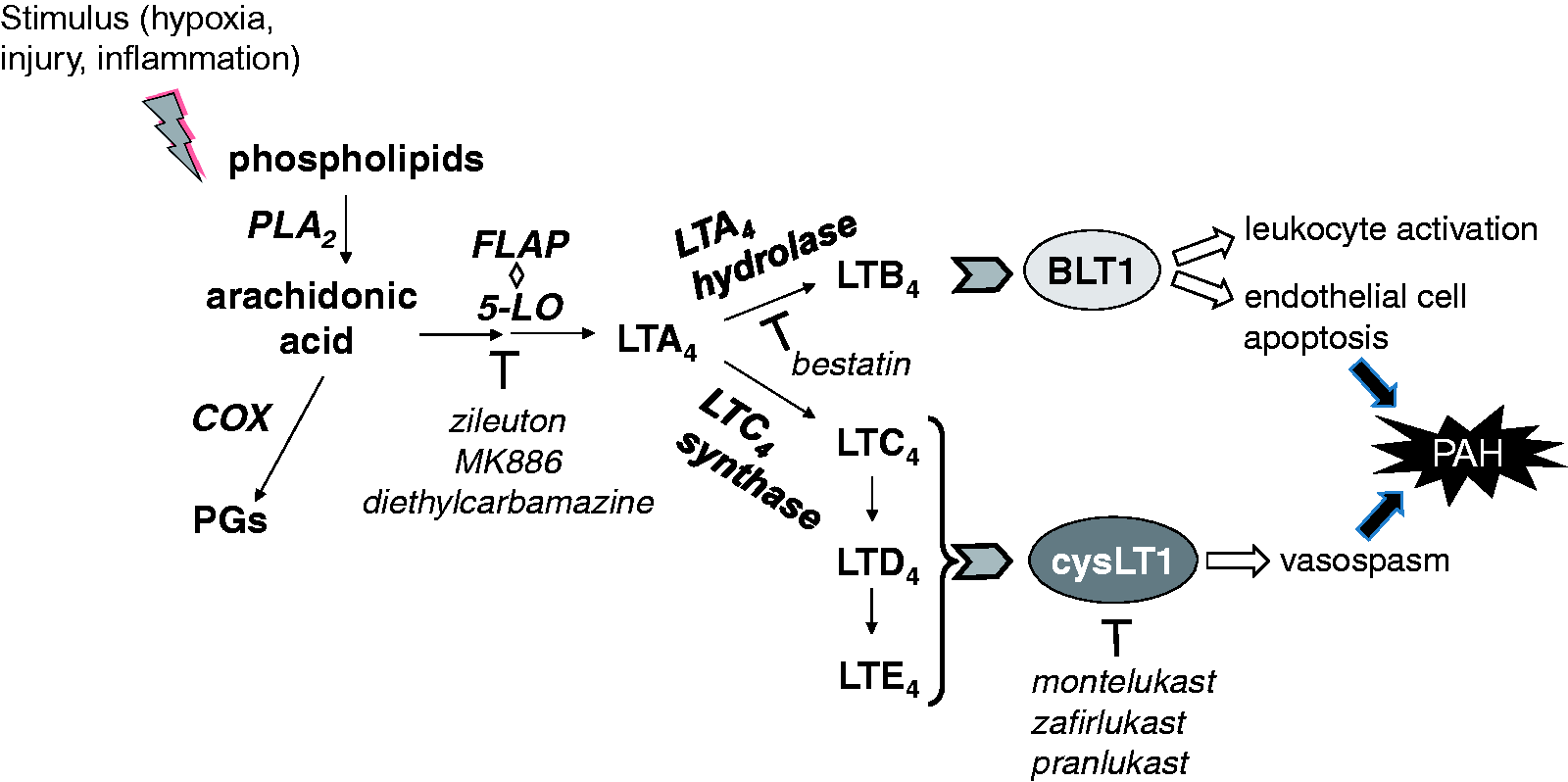

The 5-lipoxygenase biosynthesis-response pathway in PAH and pharmacologic strategies for its interruption.
Both cysLTs and LTB4 exert their biological actions via multiple G protein-coupled receptors, which differ in their ligand specificity, affinity, cellular distribution, and signal transduction. Comprehensive reviews of LT biology and receptors exist 16 ; for our purposes, it is sufficient to know that the major receptors mediating the classical actions of cysLTs and LTB4, respectively, are CysLT1 and BLT1. Polymorphisms of the genes encoding both LT synthetic enzymes17,18 as well as receptors have been described, and some of these have been investigated in cohorts of patients with atopic disorders.19,20
Over the last four decades, the recognized biological actions of LTs have expanded well beyond smooth muscle contraction and chemotaxis, and a sampling of these can be found in references.21–37 For example, 5-HETE and cysLTs are now recognized to stimulate cell proliferation and have been implicated in the development of colon and prostate cancer;36,37 LTC4 appears to be a major trigger of stress-induced oxidative damage. 21
The expression of LT biosynthetic enzymes as well as LT receptors are under the control of transcriptional and epigenetic mechanisms, in particular DNA methylation, and are themselves modulated by a variety of cytokines, growth factors like TGF beta, hormones, and inflammatory mediators.38–41 Interestingly, there is a gender difference in the formation of leukotrienes by stimulated neutrophiles: those obtained from females produce several-fold higher amounts than those from males. 39
From pulmonary vasoconstriction to pulmonary vascular remodeling
Early research in PH was dominated by investigations of the mechanism of hypoxic vasoconstriction. 42 Initially described as a pulmonary vascular reflex, 43 hypoxic vasoconstriction could be studied in isolated perfused lungs.44,45 Because mast cells were widely recognized to synthesize and release cysLTs,46,47 Heath’s description of mast cell hyperplasia in human lungs from patients with severe PAH2 provided a rationale supporting the investigation of a role of LTs in PH,44,48 and systemic hypoxia was considered a possible stimulus for mast cell degranulation. 49 A collaboration between investigators at the Cardiovascular Pulmonary Research lab at the University of Colorado and Robert Murphy, who—while on sabbatical in the lab of Bengt Samuelsson at the Karolinska Institut in Stockholm—had elucidated the structure of LTs and named them, 46 was highly productive and generated much of the foundational information on these mediators in PH. Among the key observations were that cysLTs were produced and released in lungs44,45,50,51 during vasoconstriction,52–54 including acute hypoxic vasoconstriction. 55 However, while Naeije.et al. 56 reported that high doses of the 5-LO inhibitor diethylcarbamazine failed to inhibit acute hypoxic pulmonary hypertension in anesthetized dogs, LT synthesis inhibitors had salutary actions in rat models of chronic pulmonary hypertension.57,58 Subsequently, other stimuli, including intravascularly presented anti-IgE antibodies, were shown to elicit release of LTs, and neutrophils and lung vessels were demonstrated to cooperate in LT generation.59,60 A number of years later, the FLAP inhibitor MK866 was likewise demonstrated to inhibit chronic hypoxia-induced PH in rats. 61 Finally, Wright et al. 62 documented gene and protein expression of both 5-LO and FLAP in the lung endothelial cells of patients with idiopathic pulmonary arterial hypertension (IPAH). The latter finding was important because prior to this discovery, the dogma had been that endothelial cells (and indeed, other nonmyeloid cells) do not express 5-LO. While the molecular mechanisms explaining aberrant expression of LT forming enzymes in vascular cells in PAH remain to be elucidated, it is intriguing to speculate that mutual interactions between 5-LO, p53, and beta-catenin, which appear to be part of the “cancer paradigm” of severe PAH are involved.
Work conducted in the lab of Joseph Loscalzo in Boston confirmed that normal pulmonary arterial endothelial cells in culture did not express 5-LO and did not generate LTs; overexpression using adenoviral 5-LO in these cells was required to enable the production of LTB4 and cysLTs in response to stimulation with the calcium ionophore A23187. 63 Overexpression of 5-LO worsened, while the 5-LO inhibitor zileuton and the FLAP inhibitor MK866 inhibited, the development of PH in the monocrotaline rat model of PAH. 64 Because the BMPR2 gene is the most frequently mutated gene in hereditary forms of PAH, Loscalzo's lab explored the connection between impaired BMPR2 signaling and pulmonary expression of 5-LO in the pathogenesis of PAH; BMPR2 heterozygous mice did not spontaneously develop PH, but they did so after intratracheal instillation of an adenoviral 5-LO construct. 65
Al Husseini et al. 66 studied the VEGF receptor antagonist (Sugen 5416)/chronic hypoxia rat model of severe angio-obliterative PAH and found elevated levels of LTC4 in the hypertensive lung tissues and also that the 5-LO inhibitor diethylcarbamazine prevented and reversed the angio-obliteration in this model. The drug also partially reversed the right ventricular hypertrophy. While there is a paucity of data on myocardial leukotriene levels, myocardial mast cell numbers increase in heart failure 67 and one study shows increased expression of 5-LO, LTC4-synthase and the CystLT1 in biopsy tissues obtained from human ischemic myocard. 68 In aggregate, this body of research provided a strong link between PAH and 5-LO/LTs.
Leukotriene B4
While the focus of attention in regards to PH and the 5-LO pathway had for many years been on cysLTs as potential mediators, a possible mechanistic role for LTB4 had never been seriously considered. This was reasonable, given the prevailing views that cysLTs were contractile actors whereas the major job description ascribed to LTB4 had been neutrophil chemotaxis.
These long-held assumptions were ultimately turned on their head by elegant studies performed in the laboratory of Mark Nicolls at Stanford University. They identified LTB4 as a major player in lung vascular endothelial cell apoptosis and angio-obliteration using a model in which athymic rats (lacking regulatory T-lymphocytes) are treated with Sugen 5416. This model may be particularly representative of pathogenic events in forms of severe PAH with an underlying immune disorder, such as those associated with systemic sclerosis and lupus erythematosis. In these rats, lung LTB4 levels were high and bestatin – an inhibitor of LTA4 hydrolase – prevented and reversed severe PAH. Perivascular lung macrophages were identified as the major source of the overproduced LTB4. Further studies revealed – quite unexpectedly – that macrophage-derived LTB4 itself was the major driver of endothelial cell apoptosis. 69 These novel preclinical findings were of obvious clinical interest and led to the randomized LIBERTY trial of treatment of patients with severe PAH with the LTA4 hydrolase inhibitor bestatin. Disappointingly, when the data were analyzed by the sponsoring drug company across the entire cohort, the bestatin treatment arm was not different from the placebo arm. Unfortunately, the study results have not yet been published.
In hindsight, two possible shortcomings afflicted the design of the LIBERTY trial. First, many of the patients enrolled were on background treatment with prostacyclin analogs, and continuous infusion of prostacyclin has itself been reported to result in a reduction in the high lung tissue levels of LTB4 found in PAH patients not treated with prostacyclin. 70 Second, it was not determined whether those patients enrolled in the trial actually exhibited elevated plasma LTB4 levels, as is frequently the case in patients with scleroderma-associated PAH, 69 or if those that did preferentially demonstrated a reduction with bestatin treatment. For these reasons, the LIBERTY trial failed to definitively answer the question of whether LTB4 plays an important role in some patients with severe PAH. It also remains unclear whether there are immunocompetent patients with LTC4 (as opposed to LTB4)-centered forms of severe PAH.
Does 5-LO participate in the control of gene transcription?
Since the actions of LTs require them to be secreted by source cells into the extracellular space where they can bind to receptors on the surface of target cells, it had long been assumed that the enzymes involved in their biosynthesis would be localized at the plasma membrane. It was, therefore, quite surprising to learn that FLAP is constitutively localized at the nuclear envelope, while 5-LO translocates to this same site from a soluble resting compartment upon cell activation (reviewed in 71 and 72). LTC4 synthase is also constitutively localized to the nuclear envelope, whereas LTA4H is predominantly cytosolic. Such a pattern of localization – which has been confirmed by numerous investigators – makes it obvious that LTs are generated at or very near to the nucleus (Fig. 2). Even more surprising is the further observation that in many cell types, including alveolar macrophages, mast cells, and recruited neutrophils, the soluble compartment in which 5-LO resides in resting cells is not the cytosol, but the nucleoplasm.71–74 In resting alveolar macrophages, immunoelectron microscopic visualization localized most nuclear 5-LO to the euchromatin region of the nucleus – the zone containing chromosomes uncoiled to permit active gene transcription – rather than in the heterochromatin region containing coiled sections of chromosomes.
14
Upon cell activation resulting in LT biosynthesis, 5-LO redistributed from the euchromatin region to the inner membrane of the nuclear envelope. This observation fueled the speculation that 5-LO could be participating in the regulation of transcriptional phenomena in a noncanonical manner independent of its enzymatic actions (see the recent review by Haefner et al.
75
and Fig. 2). Using an immunoprecipitation strategy, Frank Fitzpatrick and Robert Lepley did identify 5-LO bound to the transcription factor protein NFκB,
76
which is known to be of critical importance for the transcription of a number of genes encoding cytokines and other mediators of inflammation. Moreover, a role for NFκB has been described in models of PAH.77–80 Further investigative efforts are necessary to clarify the intriguing question of whether there is an enzyme activity-independent role for 5-LO as a transcriptional regulator.

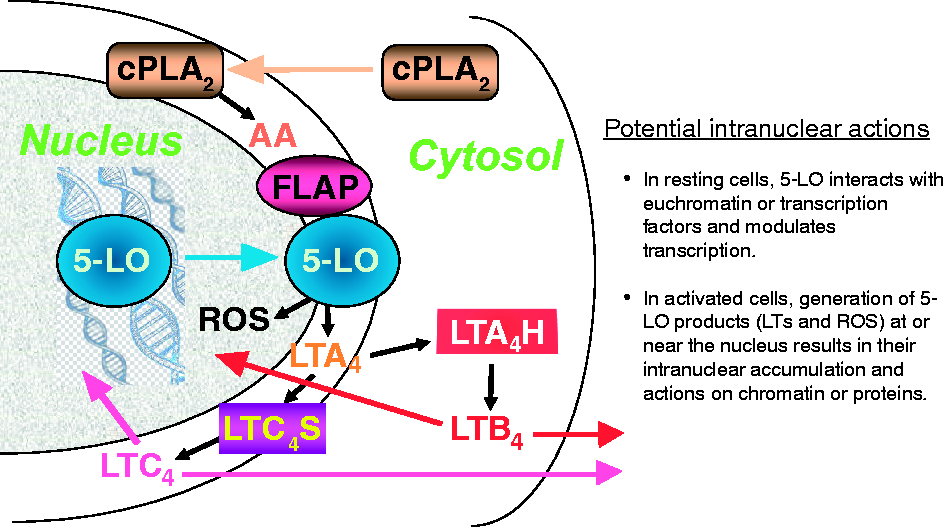

The nucleus as a site of LT biosynthesis and potential actions.
5-Lipoxygenase and the pulmonary hypertension-cancer overlap
Apoptosis-resistant cell growth, phenotypic switching of cells, inflammation, angiogenesis, and participation of stem cells are hallmarks that are shared between cancer and angio-obliterative forms of severe PAH. One view is that in severe angioproliferative PAH wound healing has gone awry. Harold Dvorak has called cancer “the wound that never heals.”. In this context, it is of interest that 5-LO, together with heme oxygenase 1, also plays a critical role in wound healing. 81 Recent publications confirm expression of 5-LO in cancer tissues,82–84 associate cysLT receptor signaling with tumor angiogenesis and metastasis, 85 and demonstrate that inhibition of 5-LO inhibits cell growth in chronic myeloid leukemia 86 and in solid tumors.87,88 One recent study has described p53-dependent expression of 5-LO 89 and induction of apoptosis of prostate cancer cells by 5-LO inhibition. 90 Clearly, however, the nature of the relationship between 5-LO or LTs and apoptosis is complex and likely cell-specific, as we have noted previously that LTB4 promotes pulmonary endothelial cell apoptosis. 69 In contrast, apoptotic cancer cells suppress 5-LO in tumor-associated macrophages. 91 Clinical trials that evaluate the efficacy of 5-LO inhibitors in cancer patients are largely lacking.
Summary and conclusion
The preclinical data obtained in PH are clear and consistent: LTs are generated in the human lung 92 and by the “sick lung circulation,” 93 and inhibitors of 5-LO abrogate the development of PAH in animal models. Without doubt, chronic inflammation is a salient contributing factor to the remodeling seen in hypertensive pulmonary vessels. Additionally, the key enzymatic components required for LT synthesis – 5-LO, FLAP, and LTA4 hydrolase – are expressed in the lung vessels from patients with severe PAH.62,69
A small study conducted with patients diagnosed with COPD and cor pulmonale found that oral administration of the cysLT1 receptor blocker zafirlukast acutely lowered the pulmonary arterial pressure on average by 23%. 94 There is a convincing rationale for designing and conducting additional clinical trials testing drugs acting on the 5-LO pathway in patients with severe forms of PAH. These may include drugs inhibiting the 5-LO itself, which has the advantage of blocking production of both LTB4 and cysLTs. Alternatively, antagonists of cysLT and/or BLT receptors could be considered. Some drugs exhibiting pertinent actions are already available and could be repurposed; e.g., zileuton, diethylcarbamazine, montelukast, and zafirlukast. 95 Other drugs have been developed by pharmaceutical companies for other indications but were never marketed. The risk/benefit ratio using these agents is likely to be acceptable, and at least in the case of 5-LO inhibitors, dose titration of these drugs in such trials can be guided by measuring plasma and urinary levels of LT metabolites. However, while the expression of 5-LO and of LTA4 hydrolase in the vascular lesions of patients with IPAH can be seen as a reflection of the cells' phenotypic shift and suggestive that 5-LO metabolic products are directly or indirectly involved in the pathobiology, it remains to be validated that plasma or urinary levels of LT metabolites accurately reflect LT synthesis by and release from the sick lung circulation.
The community of PH investigators and clinicians has begun to realize the need to transition from treatment of the disease with vasodilator drugs to testing new drugs designed to achieve disease modification. The repurposing of inhibitors acting on LT synthesis and actions and designing clinical trials to test whether there exists a 5-LO endotype of severe PAH appear to be justified, as these drugs have the potential to modify the pathobiology of severe PAH. Our patients deserve such trials to be pursued. For a first proof of concept trial, it would be preferred to enroll incident PAH patients that have been selected because they demonstrate significantly elevated plasma or urine LTC4 or LTB4 levels. A placebo control arm may not be necessary as long as the investigators monitor the leukotriene levels. Nonresponders would be identified as patients where 5-LO inhibition, i.e., clear reduction of leukotriene levels had been accomplished, did not result in clinical improvement.
Footnotes
Authors’ contribution
Both authors contributed equally to the writing.
Conflict of interest
The author(s) declare that there is no conflict of interest.
Funding
This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.
