Abstract

Right ventricular (RV) failure (RVF) has garnered significant attention in recent years because of its negative impact on clinical outcomes in patients with pulmonary hypertension (PH). PH triggers a series of events, including activation of several signaling pathways that regulate cell growth, metabolism, extracellular matrix remodeling, and energy production. These processes render the RV adaptive to PH. However, RVF develops when PH persists, accompanied by RV ischemia, alterations in substrate and mitochondrial energy metabolism, increased free oxygen radicals, increased cell loss, downregulation of adrenergic receptors, increased inflammation and fibrosis, and pathologic microRNAs. Diastolic dysfunction is also an integral part of RVF. Emerging non-invasive technologies such as molecular or metallic imaging, cardiac MRI, and ultrafast Doppler coronary flow mapping will be valuable tools to monitor RVF, especially the transition to RVF. Most PH therapies cannot treat RVF once it has occurred. A variety of therapies are available to treat acute and chronic RVF, but they are mainly supportive, and no effective therapy directly targets the failing RV. Therapies that target cell growth, cellular metabolism, oxidative stress, and myocyte regeneration are being tested preclinically. Future research should include establishing novel RVF models based on existing models, increasing use of human samples, creating human stem cell-based in vitro models, and characterizing alterations in cardiac excitation–contraction coupling during transition from adaptive RV to RVF. More successful strategies to manage RVF will likely be developed as we learn more about the transition from adaptive remodeling to maladaptive RVF in the future.

Keywords

pulmonary hypertension right ventricular failure cardiac hypertrophy

Right ventricular (RV) failure (RVF; also referred to as right heart failure) that develops as a result of pulmonary hypertension (PH) has been increasingly recognized as a determiner of outcome in many patients who have PH with cardiac involvement.¹ RVF not only decreases RV cardiac output but also reduces left ventricular (LV) diastolic filling due to the RV dilates and the septum becomes flattened (or even convex), adversely affecting RV function.² In addition, a severely dilated RV will cause RV ischemia and systemic congestion, thus further impairing the functions of vital organs (e.g. RV, liver, kidney, gastrointestinal tract) and negatively affecting patient outcomes. Medical management with Ca²⁺ channel blockers, endothelin receptor antagonists (ERA), phosphodiesterase (PDE) type 5 inhibitors/guanylate cyclase stimulators, and prostacyclin analogs/prostacyclin receptor agonists has been aggressively implemented to treat PH,³ but these drugs have shown limited ability to improve survival of patients with RV dysfunction because they mainly target pulmonary circulation. Recently, therapies that target RV dysfunction in PH patients have garnered great interest but achieved little success, primarily because the mechanism(s) underlying right heart failure, especially the transition from compensated RV to failing RV, is poorly understood.⁴ Nevertheless, continuous research efforts have improved our understanding of many changes at the cellular and molecular levels during development of RVF, as witnessed by a few recent excellent reviews on the subject.^4–10 This review, however, will highlight current research on the molecular mechanism that underlies RV adaptation to pressure overload and the transition to maladaptive RVF. These recent studies have helped to improve our understanding of PH-induced RVF.

Methods

We searched MEDLINE through January 2019, using keywords such as right heart failure, right heart dysfunction, right heart hypertrophy, RVF, RV dysfunction, and RV hypertrophy (RVH). We then combined each key word with pulmonary hypertension, experimental, molecular mechanisms, and treatment to identify more relevant papers. We focused our review on original studies of presented topics. However, systematic reviews, society statements, and guidelines were also reviewed. Primarily, we reviewed original preclinical studies that used various models of PH, RVH, and RVF.

The right ventricle

The unique anatomy of the RV's anatomy determines its responses to physiologic and pathophysiologic changes in afterload and interaction with the LV.^11,12 The RV appears triangular when viewed from the apex on transthoracic echocardiography (Fig. 1). Under normal conditions, pulmonary arterial pressure (PAP) is low and the RV has low wall tension and low energy consumption, though it ejects the same amount of blood as the LV during the cardiac cycle. RV contractility decreases abruptly with an acute increase in PAP > 15 mmHg.² The RV has a greater ability than the LV to adapt to chronic loading: the RV wall thickens to decrease wall tension and maintain (or increase) contractility. As a whole chamber, the RV is more compliant than the LV because it has a relatively smaller extracellular tissue network and much greater endothelial coverage. Thus, the RV usually dilates in response to increases in afterload (i.e. PAP). However, RV dilatation is usually limited because of increased RV wall thickness and mass and augmented contractility during adaptation.¹² RVF is characterized by a severely dilated RV, decreased RV contractility, and elevated RV diastolic pressure. The dilated RV with increased pressure pushes the interventricular septum leftward, which flattens the septum and disrupts the normal interventricular relationship.² The loss of the septal (contraction) contribution to RV stroke volume (SV) and the decreased LV performance caused by the leftward septal shift and limited diastolic filling further impair RV contractility.

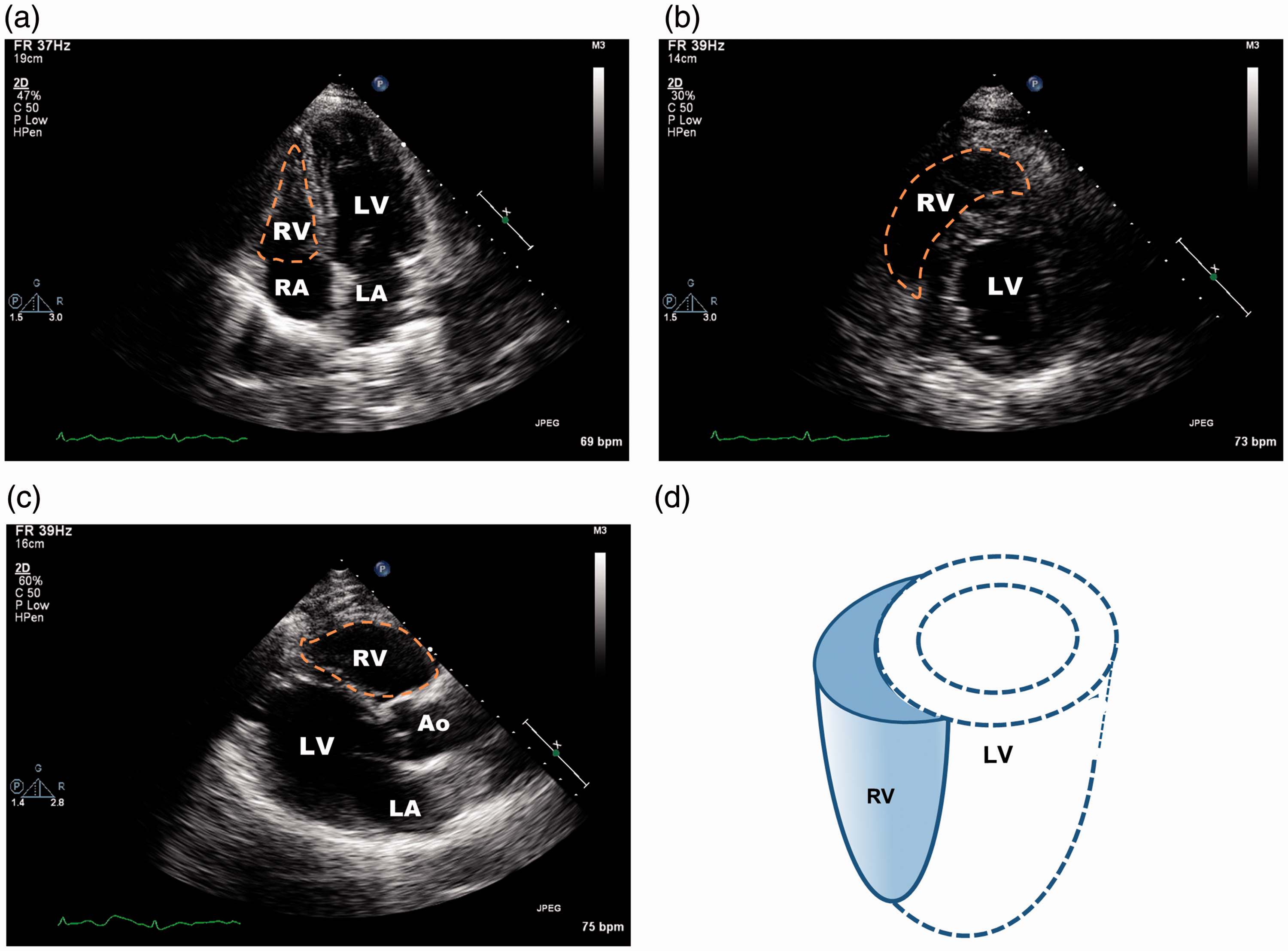

Fig. 1.

Transthoracic echocardiographic images of right ventricle (RV). (a) Apical four-chamber view showing RV, left ventricle (LV), right atrium (RA), and left atrium (LA). The RV cavity appears triangular (orange dashed line). (b) Subcostal mid-papillary view showing circular LV and crescent-shaped RV. (c) Parasternal long-axis view showing RV, LV, and aortic root (Ao). (d) Three-dimensional drawing of the RV and its relationship to the LV.

At the cellular level, RV myocytes have unique features. In animal studies, RV myocytes exhibit less unloaded shortening and smaller intracellular Ca²⁺ transients than do LV myocytes.¹³ These findings are consistent with observations that force development is lower in cardiac muscles from the RV than in those from the LV.¹⁴ Moreover, RV myocytes seem to have a shorter action potential owing to larger K⁺ current density. However, the functions of all the major Ca²⁺ handling components do not differ between myocytes from the left and right ventricles,¹³ suggesting other underlying mechanism(s) for these differences. Metabolism of glucose and fatty acids, mitochondrial energy production processes, and volume fraction of mitochondria are similar in right and left ventricles.¹⁵

The so-called endocardial endothelial–myocyte coupling, which regulates a variety of cardiac functions such as growth, contraction, and rhythmicity,¹⁶ seems to be more prominent for myocytes in the RV. In the RV, extensive trabeculations can make up > 50% of the wall thickness. These trabeculae, together with projecting (into the RV cavity) microappendages or microvilli, augment the surface area of endothelial coverage in the RV by a factor of 100).¹⁶ Thus, nearly 25% of RV myocytes are in contact with endocardial endothelial cells. Contraction and force development of the myocytes in the RV are more profoundly modulated by a few well-established endothelial-derived signal transduction pathways activated by nitric oxide, endothelin, prostaglandins, angiotensin II, etc.^16–19

RV hypertrophy

Elevations in PAP increase RV wall stress, which triggers a series of responses that eventually lead to RV remodeling.¹ The increase in afterload sensed by cardiac cells generates biochemical or electrical signals that initiate structural and functional changes in the cells and tissues (i.e. mechanosensing). An initial, transient, redistribution of cytoplasmic microtubules parallel to sarcomeres is followed by onset of sarcomere growth.²⁰ These microtubules continue to multiply and distribute along myofibrils during the onset of hypertrophy to keep the growing myofibrils in registry.²¹ Total protein in the myocyte increases because of increased protein synthesis/accumulation. Hypertrophy develops from the activation of several signaling pathways (Fig. 2).^22–25 Stress (i.e. increased afterload) induces activation of G protein-coupled receptor (GPCR)-mediated CaMKII and calcineurin-Nuclear factor of activated T-cells (NFAT) signaling. Mechanical stress also activates integrin-dependent cytoskeletal protein focal adhesion kinase (FAK) and Ras/Rho–intracellular mitogen-activated protein kinase/extracellular regulated kinase (MEK) signaling pathways. Mechanical stretch causes activation of stretch-activated membrane ion channels, allowing Ca²⁺ to flow into the cell²⁶ and promote hypertrophy development. Last, but not least, increased angiogenesis accompanies development of hypertrophy.²⁷

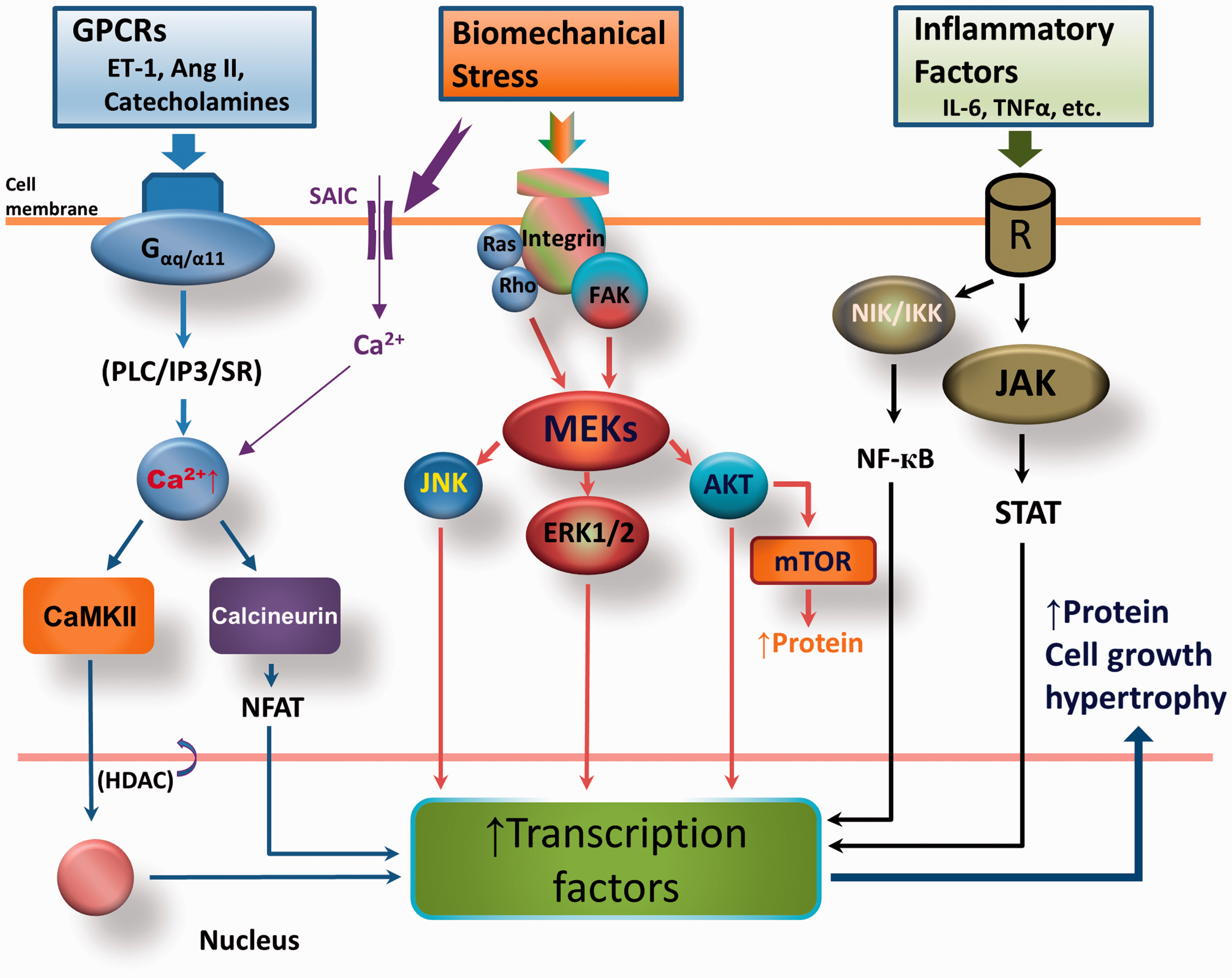

Fig. 2.

Molecular mechanism by which RV hypertrophy (RVH) develops in response to pressure overload. G-protein-coupled receptors (GPCRs) are activated during stress, leading to activation of Gα-dependent calmodulin kinase II (CaMKII) and the calcineurin/ nuclear factor of activated T-cells (NFAT) pathway. Mechanical stress also directly stimulates the membrane integrin-associated mitogen-activated protein kinase kinase (MEK) pathway. In addition, inflammatory factors activate respective receptors to induce nuclear factor kappa-light-chain-enhancer of activated B cell (NF-кB) and Janus kinase (JAK)–signal transducer and activator of transcription protein (STAT) signaling. Activation of these three pathways increases transcription factors, thus promoting the cell proliferation, protein synthesis, and growth that lead to hypertrophy. Ang II, angiotensin II; ERK1/2, extracellular-signal regulated kinase; ET-1, endothelin-1; FAK, focal adhesion kinase; HDAC, histone deacetylase; IKK, IкB kinase; IL-6, interleukin 6; IP3, inositol trisphosphate; JNK, c-Jun N-terminal kinase; mTOR, mammalian target of rapamycin; NIK, NF-кB inducing kinase; PLC, phospholipase C; SAIC, stretch-activated ion channels; SR, sarcoplasmic reticulum.

RV adaptation and mechanisms

The RV responds to stress or higher afterload by increasing its mass/wall thickness. Changes include increases in myocyte size and hyperplasia of the non-muscular cells to mitigate wall stress (thus conserving energy expenditure) and maintain contractility (thus ensuring normal cardiac output). This hypertrophic remodeling with normal (or higher) contractility is called adaptive hypertrophy. When evaluated by cardiac magnetic resonance (CMR), the adapted RV has increased wall thickness but a normal chamber size.²⁸ Several metabolic changes also occur during this adaptive phase to meet the energy demand for a normal cardiac output. This RV adaptive process is dependent on the degree, time course, and time of onset of pressure overload. Sometimes, RV adaptation can last for years without progressing to RVF, such as in patients with surgically repaired congenital heart disease²⁹ and those with Eisenmenger syndrome,³⁰ because contractility of the hypertrophied RV is maintained. Several cellular- and molecular-level mechanisms work together to maintain the RV in an adaptive state during overload.

Neurohormonal activation

Neurohormonal activation involves the activation of sympathetic and renin-angiotensin-aldosterone systems to maintain (or increase) contractility for normal cardiac output during pressure overload. A number of other agents also increase, such as endothelin-1, apelin, angiotensins, renin, transforming growth factor (TGF)-β1, insulin-like growth factor, and vascular endothelial growth factor (VEGF).^1,31,32 Neurohormonal activation is important for hypertrophy development, but the pathways involved are not well-known at present. Neurohormonal signaling pathways (which involve GPCRs), mechanical stress-mediated, integrin-dependent signaling and inflammation-mediated pathways, are activated when the heart is stressed (Fig. 1). Because the RV is able to maintain contractility, hypertrophy from these signaling pathways is considered adaptive. Although it is beneficial, signaling for adaptive hypertrophy differs from that for the physiologic hypertrophy that occurs in response to exercise, growth, and pregnancy,³³ and it becomes harmful if activated persistently. Another mediator in RV adaptation is the angiotensin II–TGF-β1 interaction, which promotes hypertrophy and cell growth.³⁴ Vascular proliferation and angiogenesis mediated by endothelin-1 and VEGF^35,36 are also involved.

Metabolic adaptation

When the RV is under stress, a shift occurs from fatty acid metabolism to glucose utilization for adenosine triphosphate (ATP) production, as further supported by downregulation of genes associated with fatty acid transport for mitochondrial oxidation.³⁷ This adaptation offers more economical energy production, as glucose metabolism uses less ATP to generate energy. Oxidation of fatty acids to provide substrate for the Krebs cycle requires oxygen for β-oxidation, which also inhibits glucose oxidation (i.e. Randle cycle). As a result, more oxygen is required for the same amount of ATP production from fatty acid. Thus, inhibiting fatty acid metabolism, or promoting glucose oxidation, improves RV function/cardiac output.^38,39 A shift from glucose oxidation to glycolysis has also been found in compensated RV myocardium.³² The increased glycolysis in hypertrophy results from activation of phosphofructokinase by several activators (ADP, AMP, P_i, and fructose-2,6-bisphosphate) and increased insulin-independent uptake of glucose.⁴⁰ It remains debatable whether increased glycolysis is beneficial, however, because glycolysis is much less energy-efficient and causes accumulation of lactate.

Mitochondria also undergo functional remodeling. In hypertrophied RV, mitochondrial membrane potential is increased (i.e. hyperpolarization) owing to increased intracellular Ca²⁺ and activation of transcriptional factor NFAT.³⁹ Paradoxically, this depression of mitochondrial function seems to be beneficial because reactive oxygen species (ROS) and mitochondrial-dependent apoptosis decrease.³² Despite the potential for decreased energy production, mitochondrial hyperpolarization does not seem to impact contractility at this adaptive stage, likely because energy production from glycolysis is increased.⁴¹ Increased mitochondrial fission and decreased mitochondrial fusion (i.e. increased mitochondrial fragmentation) have been shown in hypertrophied RV but are associated with decreased RV function.⁴² Thus, whether these changes in mitochondria are adaptive is controversial.

Hypoxia-inducible factor 1α (HIF-1α), which plays a major role in the pathogenesis of PH by promoting proliferation and contraction of vascular smooth muscles in the lung,⁴³ is increased in hypertrophied RV as a result of mitochondrial remodeling (see above). Activation of HIF-1α is associated with angiogenesis and increased glucose uptake. The role of HIF-1α activation in preserving adapted RV is controversial because this pathway promotes aerobic glycolysis other than glucose oxidation by activating pyruvate dehydrogenase kinase (PDK), which uncouples glycolysis from glucose oxidation, leading to generation of lactate.⁴⁴ However, the failed RV is associated with inhibited HIF-1α, suggesting a supporting role for HIF-1α in adapted RV during pressure overload.³²

PDK activation (by several factors including HIF-1α during stress) has been postulated to play a key role in metabolic remodeling during adapted RVH.^5,32 Inhibition of pyruvate dehydrogenase by PDK suppresses glucose oxidation via Krebs cycle and mitochondrial respiratory chain, thus diverting glucose oxidation to aerobic glycolysis. Reduced mitochondrial respiration leads to less ROS production and further activates HIF-1α, which stimulates angiogenesis and exerts a positive feedback stimulus to PDK. However, the claim that increased PDK activation is beneficial to the adapted RV is challenged by studies in which dichloroacetate, a small molecule inhibitor of PDK, reversed the RV dysfunction induced by PH.⁵ Whether activation of PDK is beneficial or harmful seems to be dependent on the time course of RV adaptation.

Maintained RV contractile reserve and underlying molecular and cellular mechanisms

Clinically, maintained RV functional reserve (reflected by maintained systolic and diastolic reserve from the pressure–volume relationship, maintained force–frequency relationship, and maintained RV–pulmonary artery [PA] coupling) predicts better outcomes in patients with severe pulmonary arterial hypertension (PAH).^45,46 Thus, preserved RV functional reserve can be viewed as the signature of RV adaptation/compensation. RV–PA coupling, the ratio of end-systolic elastance (E_es, a measure of cardiac contractility originally described by Suga et al.⁴⁷), and effective arterial elastance (E_a, determined by dividing end-systolic pressure by SV) are optimally maintained (i.e. close to 1) because of maintained (or slightly increased) contractility. As a result, RV cardiac output (or SV) is guaranteed owing to preserved RV functional reserve and RV–PA coupling during adaptation (Fig. 3a). At a cellular level, several potential mechanisms may underlie the maintenance of (or increase in) RV SV and contractility (Fig. 3b).

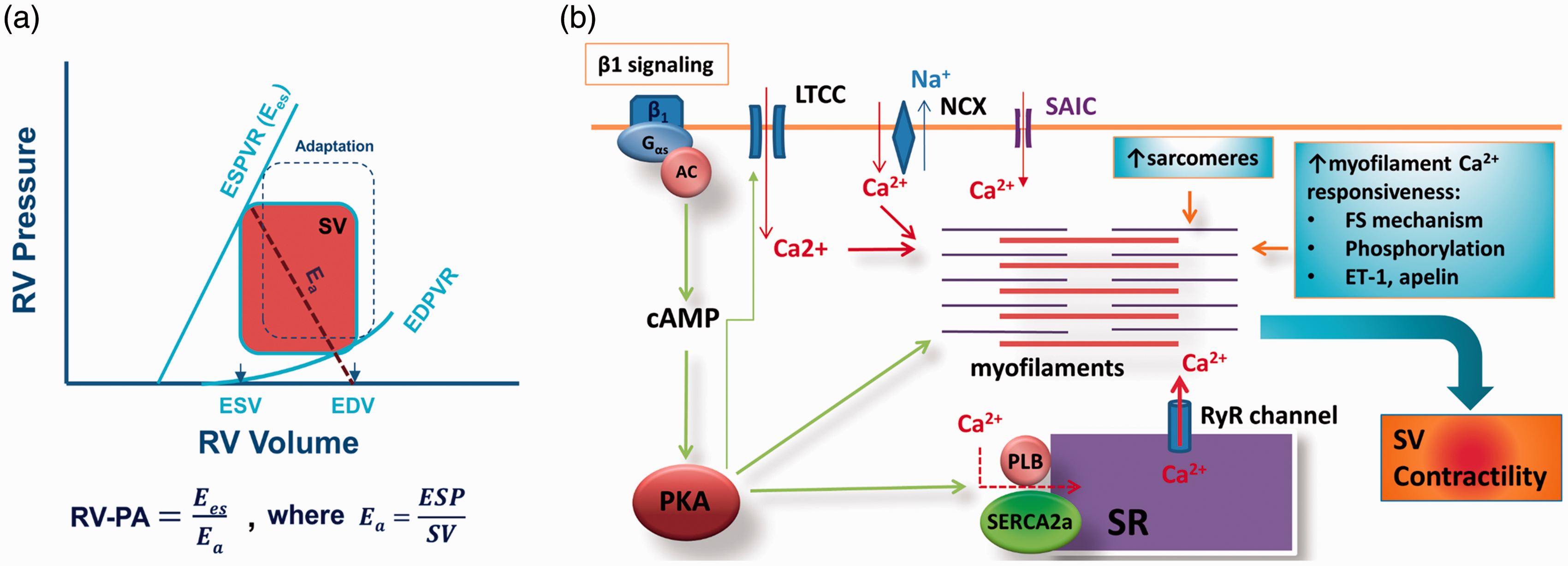

Fig. 3.

(a) Schematic illustration of pressure-volume relationship of the right ventricle (RV) and RV–pulmonary artery (PA) coupling. An adapted RV pressure–volume relationship is also shown (defined by dotted square). E_a, arterial elastance; EDPVR, end-diastolic pressure-volume relationship; EDV, end-diastolic volume; ESD, end-systolic volume; ESPVR, end-systolic pressure-volume relationship, defined as contractility and known as E_es; SV, stroke volume. (b) Mechanism by which contractility is maintained in adapted or compensated RV during PH. An increase in afterload activates three fundamental mechanisms that increase contractility within the RV. These mechanisms remain active throughout the adaptive/compensated phase. See text for details. AC, adenylate cyclase; FS, Frank-Starling; ET-1, endothelin 1; LTCC, L-type calcium channel; PKA, protein kinase A; RyR, ryanodine receptor; SAIC, stretch-activated ion channels; SR, sarcoplasmic reticulum.

Preload and sarcomere length-dependent increase in cardiac output

Frank-Starling's mechanism describes the dependence of force development on sarcomere length.⁴⁸ In the 1950s, it was demonstrated that acute increases in PAP led to increases in cardiac output as a result of increased end-diastolic RV volume.⁴⁹ When afterload increases, SV decreases because of increased resistance at a given contractility. Reduced SV results in increased diastolic volume, leading to lengthening of sarcomeres and thus higher force development, as recently shown by Borgdoff et al.⁵⁰ Although we believe that Frank-Starling's law is functioning, especially when the chamber is dilating, its operation could be limited in the hypertrophied/adapted RV because: (1) there is no clear evidence that the adapted RV myocardium has a longer sarcomere length to account for increased contractility at baseline. It has also been shown that after acute pulmonary arterial occlusion, cardiac output, and SV are maintained with normal (not dilated) RV end-diastolic volume,⁵¹ indicating additional mechanism(s) for the increased RV performance (i.e. cardiac contractility, rather than preload-dependent Frank-Starling mechanism) in response to increased pulmonary pressure; (2) the increase in extracellular matrix and fibrosis would limit the stretch of sarcomeres;⁵² and (3) possible changes in titin, a large molecule that contributes to the resting tension of cardiac muscle, would also offset this mechanism during hypertrophy (i.e. decreased phosphorylation) owing to increased stiffness.⁵³

Increased Ca²⁺ availability and altered myofilament protein properties increase contractility

Intracellular Ca²⁺, the activator of contraction, can be increased in a number of ways in adapted RV. Stretch can activate stretch-activated membrane channels to allow Ca²⁺ influx into the cell.²⁶ Additionally, activation of β-adrenergic receptors increases intracellular Ca²⁺ via G-protein-dependent pathways, leading to activation of protein kinase A.⁵⁴ This pathway represents a major mechanism by which intracellular Ca²⁺ is increased, especially during early adaptation. Increased release of endothelin-1 as a result of angiotensin receptor activation by angiotensin II stimulates sarcolemmal Na⁺/H⁺ exchange, leading to elevation of intracellular Na⁺.⁵⁵ Increased intracellular Na⁺ stimulates sarcolemmal Na⁺/Ca²⁺ exchange in the reversed mode, resulting in intracellular Ca²⁺ increases.⁵⁶ Other potential mechanisms for the increased intracellular Ca²⁺ include nitrosylation of sarcoplasmic reticulum Ca²⁺ release channel and activation of protein kinase C. A number of active vascular agents such as endothelin-1, apelin, and angiotensin can also increase intracellular Ca²⁺ by stimulating Ca²⁺ release from the sarcoplasmic reticulum.^57,58

Myosin isoform switching is a key feature of the adapted RV. The switch from α-myosin heavy chain (MHC) to β-MHC has been considered an adaptive effort to maintain contraction economy because cross-bridges formed by β-MHC generate relatively more force while using less ATP.⁵⁹ Nevertheless, β-MHC is less powerful overall.⁵⁹ Thus, whether this switch leads to increased contraction or contractility is questionable. In addition, in the adult heart, most myosin (>70–90%) is already β-MHC. Recently, Hanft et al.⁶⁰ showed that there was no change in β-MHC in compensated hypertrophy when contractility was increased. These findings suggest that the β-MHC switch is not responsible for increased contractility in the adapted RV.

Sympathetic activation upon pressure overload maintains contractility and cardiac output by activating β-adrenergic receptor-PKA signaling, which can lead to phosphorylation of contractile proteins.⁶¹ Phosphorylation of myosin binding protein C is particularly influential in increasing contraction.⁶² Recently, myosin binding protein C was shown to be phosphorylated in hypertrophic adapted heart.⁶⁰ Phosphorylation of regulatory myosin light chain (MLC) 1 can also increase force development.⁶³ In compensated, hypertrophied, and hypercontractile regions of the LV after myocardial infarction, phosphorylation of regulatory MLC was found to be increased by 50%.⁶⁴ Regulatory MLC is phosphorylated by myosin light chain kinase, which is required for adaptation to pressure overload.⁶⁵ Phosphorylation of myosin binding protein C and regulatory MLC increase force development by altering the behavior of cross-bridges.⁶³ Other active agents such as endothelin-1 and apelin, which are increased in adapted RV, also increase contractility by sensitizing the myofilament to Ca²⁺.^58,66

RV diastolic function in RV adaptation

Conceivably, RV diastolic stiffness would increase in adapted RV owing to hypertrophy-induced increases in RV wall thickness. However, in animal models of PAH, RVH and maintained function were not associated with increased end-diastolic pressure during adaptation.^32,67 Another animal study showed that end-diastolic elastance (E_ed) was not increased in adapted RV either.⁵⁰ In patients with PAH whose RV was well adapted, diastolic stiffness (i.e. E_ed) was modestly increased but was normalized when corrected for RVH.⁶⁸ Thus, it appears that normal or near normal diastolic function is another feature of adapted RV.

As discussed above, activation β-adrenergic receptor-PKA signaling in response to pressure overload leads to phosphorylation of a number of proteins, including SERCA2a and troponin I. Phosphorylated SERCA2a prevents cytosolic Ca²⁺ from rising during diastole by removing it into the sarcoplasmic reticulum. Moreover, phosphorylated troponin I desensitizes the myofilament to Ca²⁺, thus minimizing Ca²⁺-induced diastolic contraction (if any). Both mechanisms also accelerate relaxation. cGMP-protein kinase G (PKG)-maintained phosphorylation of the sarcomere protein titin keeps the sarcomeres in relaxed state during diastole.⁶⁹ It is likely that these intracellular “relaxing” mechanisms could offset the increases in chamber stiffness in the adapted RV. Investigating the diastolic function of the adapted RV is apparently needed.

Right ventricular failure

RVF occurs when the above-mentioned stress-induced adaptive mechanisms (i.e. pressure/volume overload) fail in the presence of unrelenting stress. Clinically, RVF is characterized by a dilated RV (the shape of the RV changes from crescent to spherical with flattening and leftward shift of the ventricular septum), tricuspid regurgitation, and decreased contractility.

RVF has its own characteristics. Development of RVF is not purely mechanical-load-dependent. For example, patients with Eisenmenger syndrome experience increased RV afterload very early in life but have a better survival rate than patients with PH from other causes. This fact indicates that RVF also results from pressure-independent factors. The failing RV undergoes a variety of changes that differ from those of the adapted RV (Figure 4).^{1,5,7,8,25,70} Some of these changes may have already begun in the adaptive phase and some may be the “byproducts” of maladaptation, with little relation to RVF. The following sections focus on several studied mechanisms that underlie transition to RVF when the adaptive processes fail.

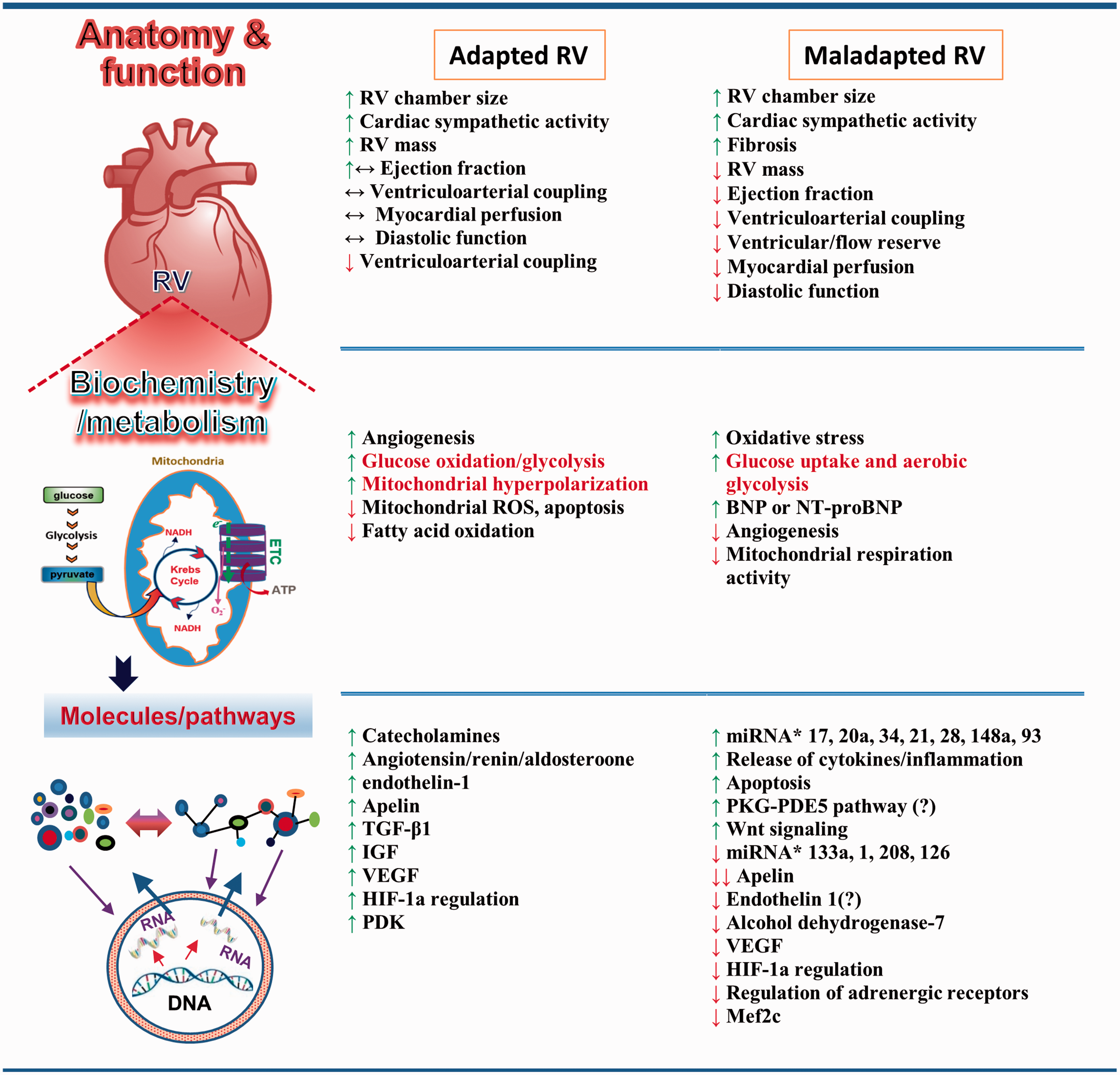

Fig. 4.

Features of RV adaptation and RVF. RV adaptation and RVF manifest at different levels of organization. At the organ level, RV adaptation is associated with RVH and maintained function. RVF presents as alterations in anatomy and function. At the cellular level, changes in metabolism and biochemistry occur in both adapted RV and RVF. Some metabolic mediators are found in both adapted and maladapted RV, and their roles in promoting each are controversial. At the molecular level, metabolites, molecules, proteins, and mediators of signaling pathways are altered or modified in adapted RV and RVF. New signaling pathways and mediators have been identified in RVF. BNP, B-type natriuretic peptide; ETC, electron transport chain; HIF-1α, hypoxia-inducible factor 1α; IGF, insulin-like growth factor; miRNA, microRNA; NT-proBNP, N-terminal pro b-type natriuretic peptide; PDE5, phosphodiesterase-5; PDK, pyruvate dehydrogenase kinase; PKG, protein kinase G; ROS, reactive oxygen species; TGF-β1, transforming growth factor beta 1; VEGF, vascular endothelial growth factor.^{6,73,94,98,124,125}

RV ischemia

Under normal conditions, the RV receives blood during both systole and diastole, and the coronary flow is lower (than that of the LV at the same perfusion pressure) with low O₂ extraction (50%). RV O₂ supply/demand is sustained by autoregulation, which maintains blood flow to keep O₂ extraction low. Increased pulmonary pressure will stimulate vasodilation and increase coronary blood flow in the RV.⁷¹ However, maladaptive RV is ischemic because of an imbalance between O₂ demand and supply. This imbalance can be caused by several factors: (1) maladaptive, hypertrophied RV has a higher O₂ demand and uses O₂ inefficiently; (2) increased RV pressure reduces coronary perfusion pressure and limits coronary perfusion to diastole;⁷² and (3) the number of capillaries and small intramyocardial arterioles decreases when the RV is failing. Among these factors, impaired angiogenesis plays a key role in transition from a compensated to a decompensated state. Initially, RVH is accompanied by increased angiogenesis; however, as hypertrophy continues, RV angiogenesis stops.²⁷ Studies in animals have also shown that decompensated RV has less coronary density than does compensated RV.⁷⁰ The suppression of angiogenesis in RVH seems to relate to an increase in mitochondrial-derived ROS, which inhibit activation of HIF-1α. Decreased expression of microRNA (miR)-126 has also been shown to decrease RV angiogenesis and capillary density to promote RVF.⁷³ Patients with systemic sclerosis are predisposed to RVF because they have endothelial injury and impaired angiogenesis, which causes RV ischemia.⁷⁴

Metabolic derangement

The decreased utilization of glucose in hypertrophied RV is believed to mark a transition step between compensated and decompensated states. The decrease reflects inhibition of glucose oxidation through the Krebs cycle. Glycolysis, on the other hand, increases to meet the cell's need for ATP. Upregulation of PDK, as shown in patients with RVF,⁷⁵ is believed to play a key role in this process. Upregulation of PDK inhibits PDE, uncouples glycolysis and glucose oxidation, and decreases cardiac contractility and cardiac output.^5,44 Excessive glycolysis causes an increase in lactate production, which leads to acidosis, further impairing RV contractility. In animal studies, promoting glucose oxidation by inhibiting PDK restored RV function.⁴⁴ Increased glycolysis also stimulated glucose uptake (as demonstrated by increased ¹⁸F-fludeoxy-d-glucose (18F-FDG) uptake in the RV of patients and mice with PH) and was inhibited by inhibiting PDK.^44,76 However, it is controversial whether increased glycolysis alone will cause RVF, as most animal studies have shown increased aerobic glycolysis in adapted RV (i.e. no RVF).⁸

Coupled with decreased glucose oxidation and increased glycolysis, glutaminolysis, a pathway that promotes cell proliferation in cancer cells, was found to be augmented in maladaptive RV in both animals and humans with PAH.⁷⁷ It is believed that glutaminolysis, like glycolysis, inhibits glucose oxidation, thus promoting RV dysfunction in PAH. It is, however, not clear whether increased glutaminolysis triggers transition from RV adaptation to RVF because it is induced by RV ischemia-activated cMyc-Max signaling. Nevertheless, inhibiting glutaminolysis improved RV function⁷⁷ and also decreased pulmonary vascular stiffness,⁷⁸ suggesting that increased glutaminolysis contributes to the development of RVF.

RVF is associated with alterations in fatty acid oxidation (FAO) and utilization. RV long chain fatty acid (LCFA) accumulation as a result of impaired FAO could lead to RVF in PH.⁷⁹ This toxic effect of lipid accumulation inside RV myocytes was initially demonstrated in the RVs of bone morphogenetic protein receptor type 2 (BMPRT2)-mutant mice and patients with heritable PAH.⁸⁰ Furthermore, the degree of RV lipid accumulation correlated inversely with RV function.⁸¹ In agreement with these studies, patients with PH also showed increased blood levels of LCFA and RV triglyceride, as well as ceramide accumulation.⁷⁹ Although these studies provide strong evidence that abnormal lipid accumulation in myocytes has a role to play, the researchers did not examine RV function or myocyte contraction. Thus, data pertaining to the direct effect of lipid accumulation on myocardial contraction are lacking. Whether the lipotoxic effect, which likely impairs RV function to some extent, will eventually lead to RVF needs further investigation/confirmation.

The mechanism by which FAO is altered in RVF is not well understood. In both human and rat RVF, Gomez-Arroyo et al.⁸² found decreased expression of peroxisome proliferator-activated receptor-γ coactivator-1α (PGC1α), peroxisome proliferator-activated receptor-α, and estrogen-related receptor-α. Expression levels of multiple PGC1α target genes required for FAO, including acyl-CoA dehydrogenases, were similarly decreased (as were genes related to glucose oxidation).⁸² These findings suggest that FAO is inhibited at multiple levels during RVF. However, another study showed that inhibition of FAO with trietazidine increased glucose oxidation, RV ATP levels, cardiac output, and exercise tolerance.³⁸ Thus, the role of FAO in RVF is still not well established. In addition, it is not entirely clear to what extent PGC1α-dependent metabolic alterations contribute to development of RVF and what drives downregulation of PGC1α.

Increased oxidative stress and decreased mitochondrial function

Animal models of RVH and failure exhibit increased oxidative stress as a result of stress-induced ROS production.^83,84 However, in the RV, antioxidative defense mechanisms are not activated.⁸⁴ This lack of antioxidant activity predisposes the RV to ROS damage and failure. Decreased expression of PGC1α, the master oxidative transcription factor regulator, also reduces cellular oxidative capacity. ROS have a wide range of negative effects on cardiac contraction and remodeling, from altering Ca²⁺ movements/handling to inducing arrhythmias, apoptosis, and necrosis.⁸⁵ As expected, decreasing ROS production and oxidative stress improved RV function and decreased RVF in animal studies.⁸⁶

Decreases in PGC1α, a key regulator of mitochondrial biogenesis, also leads to mitochondrial alterations during RVF.⁸⁷ Additionally, a reduction in the expression of transcriptional factor A, mitochondria (TFAM) resulted in the inhibition of mitochondrial biogenesis, alterations in ultrastructure, and impaired respiratory function.⁸² Consistent with these effects, mitochondrial membrane potential is high in RVF.³⁹ Because mitochondria are the major source of ROS,⁸⁸ dysfunctional mitochondria further increase ROS and worsen oxidative stress. Thus, dysfunctional mitochondria not only reduce ATP production but also promote other deleterious processes (such as apoptosis and necrosis).

Downregulation of β₁ adrenergic receptors

β₁ adrenergic receptor density and adenylate cyclase catalytic subunit activity were found to be decreased in patients with PH who had RVF.⁸⁹ In animals with RVF, downregulation of β₁ and dopamine D₁ receptors was associated with G protein-coupled receptor kinase-2 (GRK2)-mediated uncoupling of β-adrenergic receptor signaling.⁹⁰ In LVF, β-adrenergic blockade improves survival by preventing sympathetic overstimulation and therefore downregulating β adrenergic receptors.⁹¹ By the same rationale, β-blockers have been investigated in both patients with RVF (caused by PH and congenital heart diseases) and animals with RVF (induced by pulmonary banding and PH). Although β blockade showed some benefits (improved RV function and survival) in experimental animals, no clear benefit was observed in patients because results among studies were contradictory.⁹² Consequently, β blockers are not recommended for routine management of patients with RVF. Thus, while it appears that downregulation of adrenergic and dopaminergic receptors may underlie the development of RVF, the trigger for the downregulation may not be simply limited to sympathetic overstimulation.

Inflammation, fibrosis, and apoptosis

The idea that inflammation plays a role in RVF development comes from the clinical observation that RVF is less common in patients with Eisenmenger syndrome or idiopathic PH than in those with scleroderma-associated PH. One study showed that the RVs of scleroderma patients harbored more inflammatory cells⁹³ than those of patients with other types of PH. Inflammatory mediators such as cytokines (tumor necrosis factor [TNF]-α, interleukins) and toll-like receptors are suspected to contribute to RVF because of their known effect in left heart failure.⁹⁴ Table 1 lists these mediators and their possible modes of action in RVF. Although these inflammatory responses have been studied in LVF, most have not been well studied in RVF.

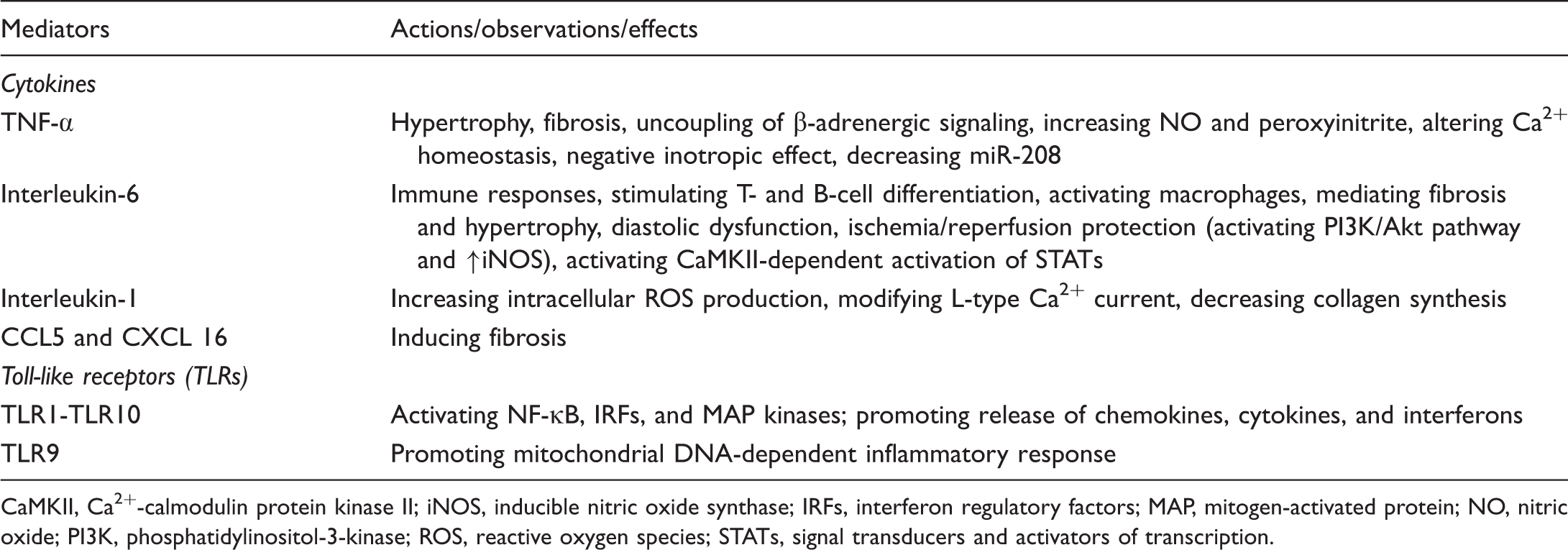

Table 1.

Inflammatory mediators in RVF.^94,150

Mediators	Actions/observations/effects
Cytokines
TNF-α	Hypertrophy, fibrosis, uncoupling of β-adrenergic signaling, increasing NO and peroxyinitrite, altering Ca²⁺ homeostasis, negative inotropic effect, decreasing miR-208
Interleukin-6	Immune responses, stimulating T- and B-cell differentiation, activating macrophages, mediating fibrosis and hypertrophy, diastolic dysfunction, ischemia/reperfusion protection (activating PI3K/Akt pathway and ↑iNOS), activating CaMKII-dependent activation of STATs
Interleukin-1	Increasing intracellular ROS production, modifying L-type Ca²⁺ current, decreasing collagen synthesis
CCL5 and CXCL 16	Inducing fibrosis
Toll-like receptors (TLRs)
TLR1-TLR10	Activating NF-κB, IRFs, and MAP kinases; promoting release of chemokines, cytokines, and interferons
TLR9	Promoting mitochondrial DNA-dependent inflammatory response

CaMKII, Ca²⁺-calmodulin protein kinase II; iNOS, inducible nitric oxide synthase; IRFs, interferon regulatory factors; MAP, mitogen-activated protein; NO, nitric oxide; PI3K, phosphatidylinositol-3-kinase; ROS, reactive oxygen species; STATs, signal transducers and activators of transcription.

Fibrosis has been reported in PH-induced RVH,⁷⁰ but the degree of fibrosis does not correlate with the degree of RV dysfunction.⁵⁰ Therefore, fibrosis may be a byproduct of RVH, not a trigger of RVF. Nevertheless, treatment with a ROS scavenger was shown to attenuate PH-induced RVF and reduce RV fibrosis and apoptosis.⁸⁶ In patients with PAH, RVF is highlighted by significant RV diastolic dysfunction—a result of sarcomere stiffening and fibrosis.⁹⁵

Apoptosis, a feature of LVF, is also found in hypertrophied RV tissue. Levels of the proapoptotic signaling factors Bax and caspase-3 were shown to increase in the pressure-overloaded rat RV.⁹⁶ It is also known that many factors (ROS, β₁-adrenoreceptor agonists, angiotensin II, and proinflammatory cytokines) induce apoptosis in response to pressure overload. However, whether apoptosis signals occur during transition from the compensated to the decompensated stage is not clear. A recent study showed that significant apoptosis and fibrosis resulted from activation of p53-dependent downregulation of Bcl_-XL and GATA4 but that contractility was maintained (even augmented) in a rat model of PH-induced right heart hypertrophy.⁹⁷ Thus, apoptosis contributes to cell loss during RVF, but does not initiate RVF.

MicroRNAs

Small, non-coding microRNAs (miRNAs) interfere with protein translation by binding to and degrading or inhibiting mRNA. miRNAs are differentially expressed during RVH, RVF, and transition to RVF.⁹⁴ Notably, miRNAs miR-34 and miR-21 are upregulated and miRNAs miR-1, miR-133, and miR-208 are downregulated during transition from compensated to decompensated stages. In addition, loss of miR-208 is accompanied by decreased expression of cardiogenic transcription factor Mef2 (which regulates expression of genes that control cardiomyocyte differentiation, proliferation, morphogenesis, and contractility) and increased expression of TNF-α (a strong inflammatory mediator).⁹⁸ The differential expression of these miRNAs causes loss of genes that promote cell growth, function, and angiogenesis.⁹⁴ miR-34a, miR-28, miR-93, and miR-148a, which are expressed in non-cardiac cells, act via paracrine pathways to increase oxidative stress, reduce oxidative defense, decrease angiogenesis, and activate cell death pathways, thus promoting transition to RVF.⁶ However, these findings only establish an association between these miRNAs and the development of RVF.

Recently, Potus et al.⁷³ showed that capillary density (as determined with CD31⁺ and von Willebrand-positive staining density) was decreased by downregulation of miR-126, the proangiogenic factor downstream of VEGF receptor-2 (VEGFR2) signaling in human decompensated RV. In monocrotaline-injected rats, RV capillary density and function were preserved after two weeks of treatment with mimic-126 (to increase miR-126 expression). Thus, downregulation of miR-126 promotes transition from compensated RVH to decompensated RVF by decreasing angiogenesis and capillary density.⁷³

Diastolic RV dysfunction

Most of the discussion so far has focused on systolic RVF. In fact, diastolic RV dysfunction (or failure) is not uncommon in patients with RVF.⁹⁹ In one study, >60% of patients with PAH (with normal LV function) had RV diastolic dysfunction as determined by lower tricuspid E-A ratios, lower peak E-wave velocity, and prolonged RV isovolumic relaxation time in 2D echocardiography. Interestingly, over half of patients with LVF (normal pulmonary pressure) also had RV diastolic dysfunction. These observations suggest that PH is associated with (but not necessary for) development of diastolic RVF. In rats with monocrotaline-induced PH, diastolic RV dysfunction presented as a significantly steeper RV end-diastolic pressure volume relationship.¹⁰⁰ Several potential factors are involved in RV diastolic dysfunction (Fig. 5). Hypertrophy and fibrosis have long been thought to make the RV stiffer and therefore cause RV diastolic dysfunction. However, hypertrophy itself does not seem to cause significant RV diastolic dysfunction in rats with PH of varied etiologies.⁵⁰ Correlation between fibrosis and RV diastolic dysfunction is also difficult to show, as the amount of fibrosis and the time course of fibrosis development vary widely among experimental models. Recently, Reddy et al.¹⁰¹ followed disease progression in a murine model of RVF induced by a combination of pulmonary insufficiency and PH. They found that diastolic dysfunction began approximately one month after RV overloading and was accompanied by fibrosis, TGF-β signaling, and tissue expression of profibrotic miR-2. Interestingly, when systolic dysfunction began after several months, miR-2 expression decreased and RV fibrosis continued.

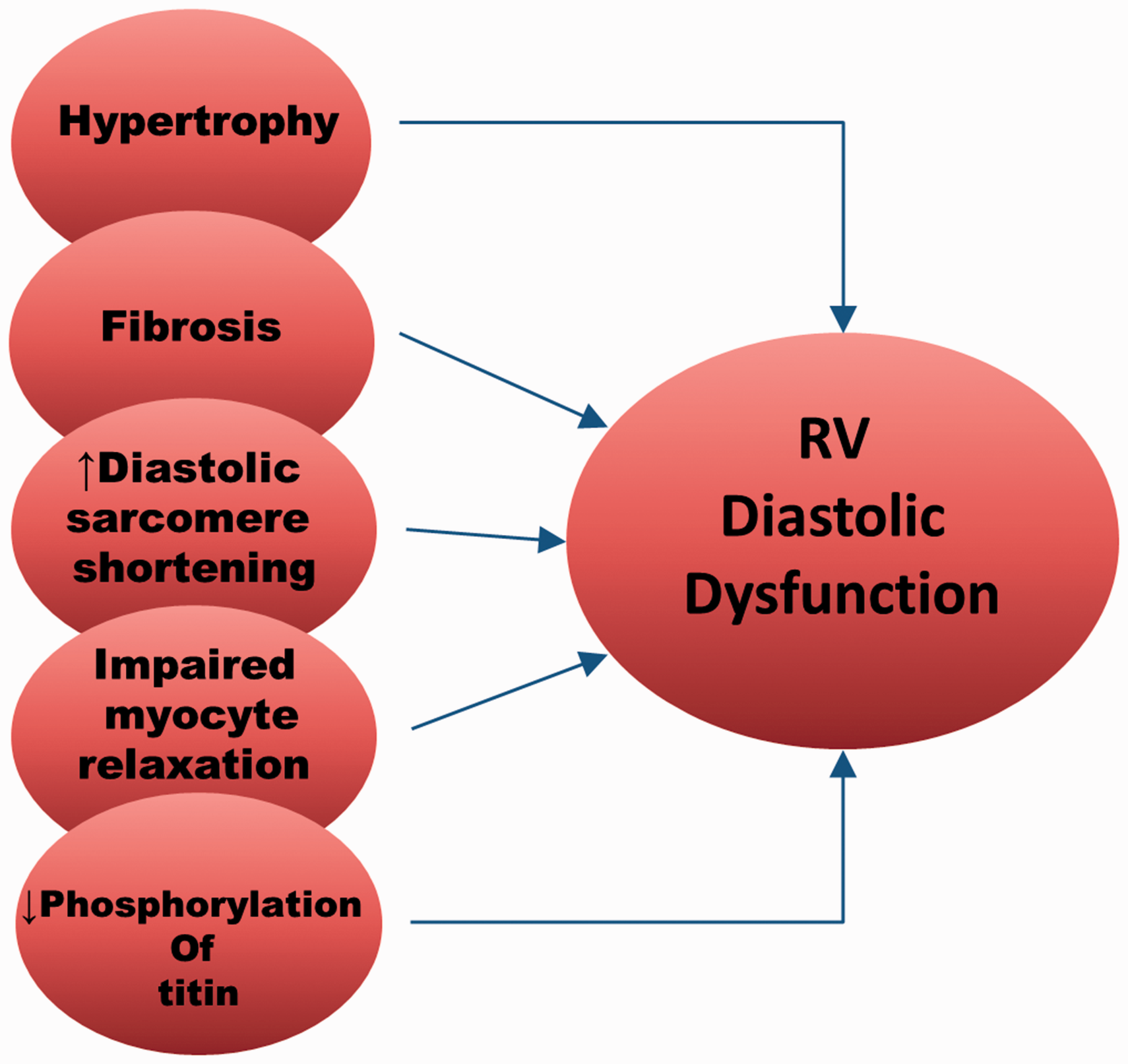

Fig. 5.

Factors contributing to diastolic dysfunction of the RV in PH.

Intrinsic changes in the myocytes themselves during RVF also cause diastolic dysfunction. The resting length-force relation is steeper and resting sarcomere shorter in individual isolated myocytes, suggesting impaired diastolic function.¹⁰⁰ Furthermore, the increased resting sarcomere shortening is Ca²⁺-independent and believed to be due to decreased creatine kinase activity leading to an altered ratio of ADP:ATP near the sarcomere. PKG activity⁶⁹ and decreased phosphorylation of the sarcomere protein titin are also associated with diastolic dysfunction in patients with PH.⁹⁵ Titin is normally phosphorylated by PKG to maintain the sarcomere in a “relaxed” state and dephosphorylation leads to stiffer sarcomeres.⁶⁹ If PKG is inhibited, diastolic dysfunction occurs. Targeting PKG-mediated pathways has been proposed as a treatment for diastolic dysfunction and failure.¹⁰²

Imaging of the RV in PH

Molecular imaging

Molecular imaging (or metabolic imaging) is a noninvasive imaging technique that uses detectable tracers (usually radiotracers) of physiologic importance to visualize, characterize, and measure biologic processes in vivo. Thus, it enables cellular metabolism to be monitored “live” in patients with PAH. ¹⁸F-FDG positron emission tomography (PET) has shown that glucose uptake is increased in patients with PAH and RVF.^103,104 Although these studies showed that glucose uptake increases in RV stress and correlates with RV ejection fraction (RVEF), it is not clear whether increased glucose uptake signals the transition from compensated RVH to decompensated RVF. Besides, ¹⁸F-FDG-PET does not distinguish glucose oxidation and glycolysis. Alterations in fatty acid metabolism have also been investigated with molecular imaging. An early study using ¹²³I-labeled 15-(p-iodophenyl)-3-(R,S)-methylpentadecanoic acid (BMIPP) SPECT showed decreased uptake of fatty acids in RVF caused by PAH.¹⁰⁵ However, tissue uptake of BMIPP is an energy-dependent process that sequesters fatty acid and decreased BMIPP uptake does not necessarily reflect decreased fatty acid utilization. Recently, both glucose and fatty acid metabolism were assessed using ¹⁸F-FDG-PET and ¹⁸F-fluoro-6-thioheptadecanoic acid (FTHA) PET imaging in the same patient with PAH.¹⁰⁶ Both glucose and fatty acid uptake were positively related to pulmonary pressure and negatively to RVEF. Interestingly, in maladapted RV, increases in glucose uptake were higher than increases in fatty acid uptake, indicating that imaging of metabolic shifts between glucose and fatty acid could be used to assess transition from compensated to decompensated states.

Cardiac MRI (CMR)

CMR provides assessment of RV size and function with high resolution and has been used to follow morphologic and functional changes of RV in PH. RV volume/mass, RVEF/SV, and LV volume predict mortality during one-year follow-up in patients with PH.²⁸ Importantly, progressive dilation of the RV, a decrease in RVEF, a decrease in SV, and a reduction in LV volume are strong predictors of mortality,^28,107 indicating that MRI can be used to monitor the transition from compensated to failing RV in patients with PH. Sanz et al.¹⁰⁸ combined CMR measurement of RV volume and RVEF with phase-contrast velocity-encoded CMR to assess RV–PA coupling non-invasively. They found that RV–PA coupling was maintained during the compensated phase and decreased gradually as RVF developed.

The tissue composition of RV can also be assessed quantitatively by measuring and comparing so-called native T1 and T2 relaxation time mapping in CMR.¹⁰⁹ An increased T1 image usually suggests fibrosis whereas increased T2 suggests active inflammation, edema, and fat accumulation. A relatively unchanged T1 along with increasing T2 may indicate early remodeling to failure—but this needs to be substantiated with more clinical studies.

Coronary vasculature/flow imaging

Considerable experimental evidence suggests that RV ischemia as a result of decreased angiogenesis and capillary rarefaction leads to RVF. However, RV angiogenesis and coronary vasculature data from patients are lacking. Recently, a new technique called coronary ultrafast Doppler angiography (CUDA) was introduced to image micro-coronary anatomy and flow.¹¹⁰ CUDA allows researchers to map coronary vessels of approximately 100 μm diameter and quantify intramural coronary flows during both systole and diastole. It has been tested successfully in both animals (with myocardial infarction) and normal human subjects. It is expected that CUDA will be used to image RV microvasculature and coronary flow in compensated and decompensated stages of PH.

Treatment of RVF

Because RVF develops as a result of PH, lowering pulmonary pressure is the first necessary step in RVF management. Patients with PH are conventionally managed by targeting the pulmonary vasculature in an effort to decrease RV stress and reverse the pathologic remodeling. Drug therapy for PH includes use of Ca²⁺ channel blockers, ERAs, PDE5 inhibitors/guanylate cyclase stimulators, and prostacyclin analogs/prostacyclin receptor agonists.³ Because these drugs target mainly pulmonary circulation, it is conceivable that they would have limited ability to treat patients with RVF. However, protecting the RV in PH patients and aggressively treating RVF when it occurs are paramount to improving outcomes in these patients. Recently, interest has been growing in therapies that directly target the RV because RVF directly impacts patient survival.¹ At present, most therapies aimed at protecting the RV are still in experimental and preclinical phases. Table 2 shows the current and emerging therapies for RVF. The following discussion highlights some controversial and emerging medical therapies.

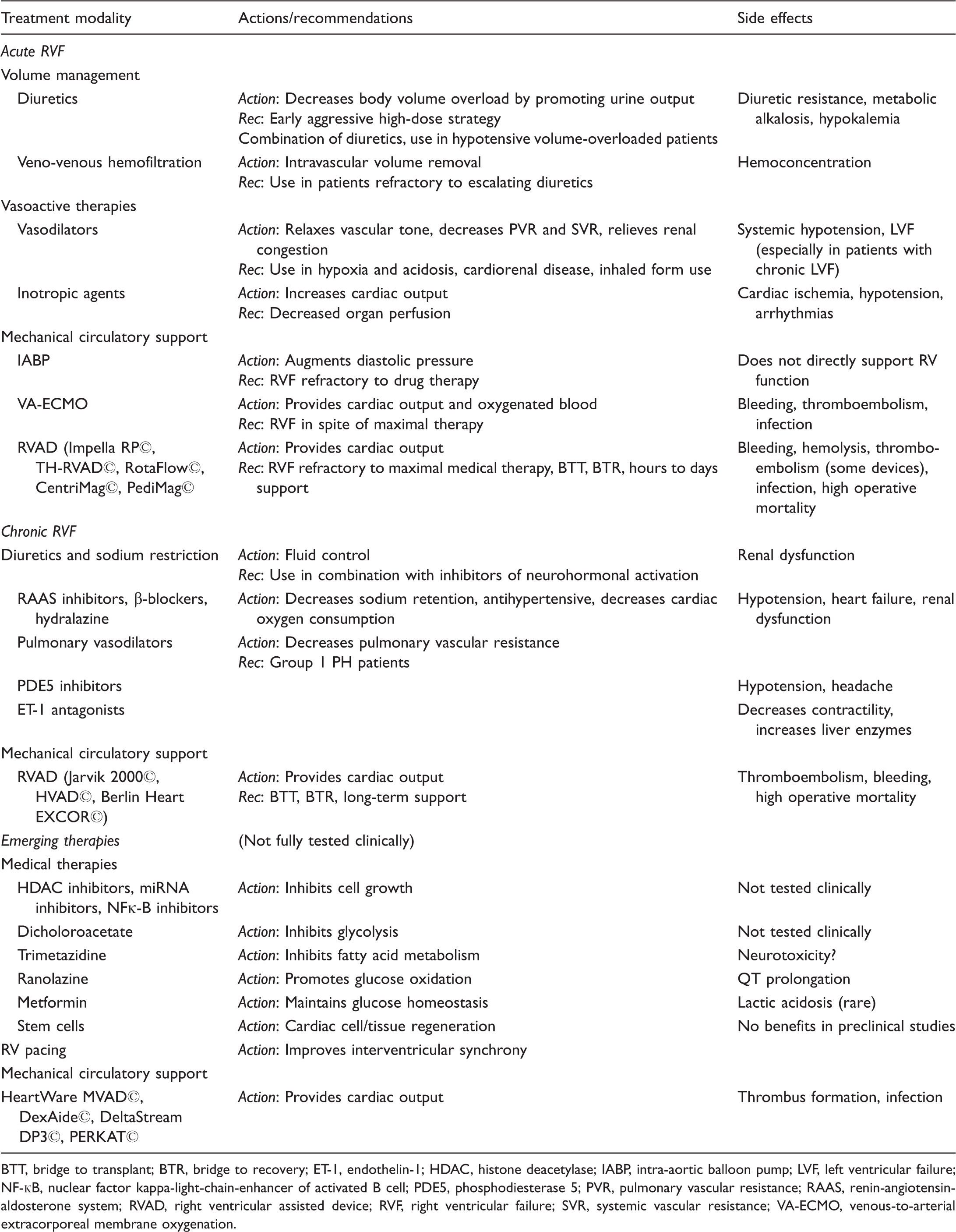

Table 2.

Treatment of RVF.^9,5

Treatment modality	Actions/recommendations	Side effects
Acute RVF
Volume management
Diuretics	Action: Decreases body volume overload by promoting urine output Rec: Early aggressive high-dose strategy Combination of diuretics, use in hypotensive volume-overloaded patients	Diuretic resistance, metabolic alkalosis, hypokalemia
Veno-venous hemofiltration	Action: Intravascular volume removal Rec: Use in patients refractory to escalating diuretics	Hemoconcentration
Vasoactive therapies
Vasodilators	Action: Relaxes vascular tone, decreases PVR and SVR, relieves renal congestion Rec: Use in hypoxia and acidosis, cardiorenal disease, inhaled form use	Systemic hypotension, LVF (especially in patients with chronic LVF)
Inotropic agents	Action: Increases cardiac output Rec: Decreased organ perfusion	Cardiac ischemia, hypotension, arrhythmias
Mechanical circulatory support
IABP	Action: Augments diastolic pressure Rec: RVF refractory to drug therapy	Does not directly support RV function
VA-ECMO	Action: Provides cardiac output and oxygenated blood Rec: RVF in spite of maximal therapy	Bleeding, thromboembolism, infection
RVAD (Impella RP©, TH-RVAD©, RotaFlow©, CentriMag©, PediMag©	Action: Provides cardiac output Rec: RVF refractory to maximal medical therapy, BTT, BTR, hours to days support	Bleeding, hemolysis, thromboembolism (some devices), infection, high operative mortality
Chronic RVF
Diuretics and sodium restriction	Action: Fluid control Rec: Use in combination with inhibitors of neurohormonal activation	Renal dysfunction
RAAS inhibitors, β-blockers, hydralazine	Action: Decreases sodium retention, antihypertensive, decreases cardiac oxygen consumption	Hypotension, heart failure, renal dysfunction
Pulmonary vasodilators	Action: Decreases pulmonary vascular resistance Rec: Group 1 PH patients
PDE5 inhibitors		Hypotension, headache
ET-1 antagonists		Decreases contractility, increases liver enzymes
Mechanical circulatory support
RVAD (Jarvik 2000©, HVAD©, Berlin Heart EXCOR©)	Action: Provides cardiac output Rec: BTT, BTR, long-term support	Thromboembolism, bleeding, high operative mortality
Emerging therapies	(Not fully tested clinically)
Medical therapies
HDAC inhibitors, miRNA inhibitors, NFκ-B inhibitors	Action: Inhibits cell growth	Not tested clinically
Dicholoroacetate	Action: Inhibits glycolysis	Not tested clinically
Trimetazidine	Action: Inhibits fatty acid metabolism	Neurotoxicity?
Ranolazine	Action: Promotes glucose oxidation	QT prolongation
Metformin	Action: Maintains glucose homeostasis	Lactic acidosis (rare)
Stem cells	Action: Cardiac cell/tissue regeneration	No benefits in preclinical studies
RV pacing	Action: Improves interventricular synchrony
Mechanical circulatory support
HeartWare MVAD©, DexAide©, DeltaStream DP3©, PERKAT©	Action: Provides cardiac output	Thrombus formation, infection

BTT, bridge to transplant; BTR, bridge to recovery; ET-1, endothelin-1; HDAC, histone deacetylase; IABP, intra-aortic balloon pump; LVF, left ventricular failure; NF-кB, nuclear factor kappa-light-chain-enhancer of activated B cell; PDE5, phosphodiesterase 5; PVR, pulmonary vascular resistance; RAAS, renin-angiotensin-aldosterone system; RVAD, right ventricular assisted device; RVF, right ventricular failure; SVR, systemic vascular resistance; VA-ECMO, venous-to-arterial extracorporeal membrane oxygenation.

β-adrenergic blockade

Persistent β-adrenergic activation in the stressed heart can lead to receptor desensitization and downregulation, pathologic remodeling, and eventually heart failure.¹¹¹ β-blockers are widely used in the management of LHF because they reverse pathologic LV remodeling and improve survival. However, the failing RV may not tolerate β-blockers because they have a negative inotropic effect and lower blood pressure. As a result, RV contractility can be further decreased and ischemia worsened by low blood pressure. Despite these concerns, preclinical studies in animals have shown promising results. In a rat model of PH and RVF induced by hypoxia+Sugen-5416 or monocrotaline,¹¹² both carvedilol and metoprolol increased exercise tolerance, improved RV function, and decreased RV dilation. It was not clear whether the beneficial effect occurred directly by protecting the RV or indirectly through an effect on the lungs. Although carvedilol did not affect pulmonary vasculature or pressure in the hypoxia model, it prevented lung remodeling in the monocrotaline model. In addition, metoprolol might have decreased PH. The effect of β-adrenergic blockade was further studied with bisoprolol, a cardio-selective β-blocker, in a rat model of monocrotaline-induced PH.¹¹³ Bisoprolol delayed RVF development, improved RV function, reduced RV fibrosis and inflammation, and interestingly, restored the β-adrenergic signaling pathway. In addition, bisoprolol did not affect pulmonary pressure. It should be mentioned that, despite these significant improvements, the delay to RVF was only five days, a rather modest effect. Nevertheless, most preclinical studies in experimental animals show beneficial effects of β-adrenergic blockade in PH-induced RVF.⁹²

A meta-analysis of clinical studies showed that β-adrenergic blockade significantly improved systemic heart failure but did not improve RV function in CHD patients with RVF.¹¹⁴ Recently, in the PAHTCH (Pulmonary Arterial Hypertension Treatment with Carvedilol for Heart failure) double-blinded trial, 30 patients (out of 321 with PH) were enrolled and randomly divided into treatment and placebo groups.¹¹⁵ After six months, carvedilol lowered heart rate, accelerated heart rate recovery from exercise, and improved RV function. These improvements were associated with decreased RV glycolytic rate and recovery of β-adrenergic receptor density. Although this trial is encouraging, most of the clinical studies so far have failed to show a clear advantage of β-blockade in reducing mortality from PH with RV dysfunction, despite the fact that some studies have shown improved RV function.^92,116

Phosphodiesterase-5 inhibition

Because PDE5 is expressed in the hypertrophied human RV,¹¹⁷ PDE5 inhibitors are gaining attention as a possible treatment for RV dysfunction. In a rat model of RV dysfunction induced by PH, acute inhibition of PDE5 increased RV contractility in isolated hearts and myocytes. This effect was not seen in normal RV tissue where PDE5 was not expressed.¹¹⁷ However, chronic inhibition of PDE5 had varied results in experimental animals, from no effect on hypertrophy and fibrosis to improvement of diastolic dysfunction and little effect on contractility.⁸ Although PDE5 inhibitors have been used to treat patients with PH, evidence for a direct benefit to the RV is lacking.

Endothelin receptor antagonists

Endothelin receptor type A has been shown to be upregulated in patients with PH.^118,119 Activation of this receptor increases cardiac contractility,¹²⁰ which can be an adaptive mechanism to maintain cardiac output. Thus, antagonizing endothelin receptor function may be deleterious. However, in a hypoxia-induced PH model, bosentan attenuated RVH and fibrosis without significantly decreasing RV function.¹²¹ At present, controversy remains regarding whether endothelin receptor antagonism is beneficial to the failing RV.

Emerging therapies that specifically target the RV

Targeting myocyte growth

Histone deacetylase (HDAC) inhibition. HDACs promote cell growth (and therefore hypertrophy development) by enhancing the accessibility of transcription factors. Both specific and non-specific inhibitors of HDACs have shown success in reducing hypertrophy in animal models.^122,123 Because development of hypertrophy is considered an important adaptive process, inhibiting hypertrophy may be detrimental. Thus, the use of HDAC inhibitors needs more thorough investigation.

Targeting miRNAs and Notch/NFκ-B signaling. miRNAs regulate gene expression at the post-transcription level, and several are known to be up- or downregulated (see “MicroRNAs” section above). Animal studies have shown very promising results: inhibition of miR-17 or miR-20a, both of which are upregulated in RVF, reduced hypertrophy and improved RV function.^124,125 The notch-NFκ-B pathway is also involved in hypertrophy development. Kumar et al.¹²⁶ reported that inactivation of NFκ-B prevented RVH whereas activation of NFκ-B promoted RVH. However, preclinical studies targeting miRNAs and the Notch-NFκ-B pathway are very limited at present.

Targeting altered metabolism

Promoting glucose oxidation by using dichloroacetate to inhibit PDK was shown to prevent hypertrophy and improve RV contractility in animals with PH induced by monocrotaline injection or pulmonary artery banding.^44,127 Partial inhibition of FAO also increased cardiac function and exercise capacity.⁴⁴ Improving energy metabolism/efficiency by encouraging glucose oxidation and reducing fatty acid uptake and oxidation has recently been the focus of clinical investigations in patients with chronic stable ischemic heart disease.¹²⁸ Most studies have shown beneficial results in these patients. It remains to be seen if these metabolic modulators will be beneficial to PH patients with RV dysfunction.

Metformin therapy for PAH. Metformin, a well-known drug for type 2 diabetes, has been investigated in PAH and RV dysfunction. In female rats exposed to Sugen-5416+hypoxia, metformin treatment (100 mg/kg daily) attenuated development of PAH and RVH by inhibiting aromatase and phosphorylation of AMPK.¹²⁹ However, a recent study showed that metformin failed to inhibit PAH and RVH in male rats subjected to the same Sugen-5416+hypoxia PAH model,¹³⁰ making metformin therapy very controversial. Interestingly, metformin was shown to normalize PH via SIRT-AMPK signaling in skeletal muscle in a model of PAH-associated heart failure with preserved ejection fraction (i.e. the PH-HFpEF model).¹³¹ Based on these studies, the main benefit of metformin seems to be improved glucose homeostasis and mitochondrial energy production in PAH associated with metabolic syndrome. Nevertheless, metformin seems to have little direct effect on RV contractility. It is thus doubtful that metformin will be effective in PH-induced systolic RVF.

Ranolazine therapy for PAH-dependent RV dysfunction. Ranolazine is a new anti-ischemic drug. It is used for stable angina because it inhibits the so-called late membrane Na⁺ current, which promotes Ca²⁺ entry into myocytes, thus increasing energy consumption.¹³² In preclinical animal studies, ranolazine improved PAH-induced RV function by inhibiting the ability of pyruvate dehydrogenase to promote glucose oxidation and depress FAO.³⁸ In a pilot study, patients with WHO group I PAH improved functional class, exhibited better RV function, and had a smaller RV chamber size after three months of ranolazine treatment but showed no improvement in hemodynamics.¹³³ Despite the limited success, interest in the continued testing of ranolazine for PAH and RV dysfunction is strong.¹³⁴

Targeting oxidative stress

Given the strong evidence that increased oxidative stress is central to the development of RVF, attempts have been made to use antioxidant therapy to prevent and treat RVF. ROS scavenging with superoxide dismutase and catalase decreased RVH and fibrosis in rats with RVF secondary to both monocrotaline- and hypoxia-induced PH.^86,135 Resveratrol, a potent antioxidant with anti-inflammatory properties, reversed pulmonary vascular remodeling and restored RV function.¹³⁶ Melatonin, another strong antioxidant, reduced fibrosis and improved cardiac function in rats with RVF.¹³⁷ Despite the overwhelming experimental evidence for a beneficial effect, antioxidative therapy has not been successfully tested in the clinical setting. One concern is that such therapy would remove ROS indiscriminately such that the vital regulating effect of ROS for adaptation may be eliminated.¹³⁸

Future research

Over the past few years, a wealth of information has been obtained on RV function, especially transition from compensated state to failure, but challenges and significant knowledge gaps have been identified by a group of some 20 international experts in the field.⁴ One of the challenges is the lack of a “perfect” RVF model; therefore, existing models must be optimized. Moreover, we lack knowledge about the molecular mechanism that underlies the transition from adaptive to maladaptive RV remodeling, including, for example, the roles of angiogenesis, cell death, inflammation, fibrosis, metabolism, and contractile signaling. Within the general framework of research priorities put forward by the experts on behalf of the American Thoracic Society,⁴ we select the following issues to highlight.

Study models

Currently, over a dozen RVF models are available.¹³⁹ These models have helped researchers to characterize adaptive and maladaptive remodeling of the RV in PH. Monocrotaline injection, chronic hypoxia, chronic hypoxia+Suugen (i.e. angioproliferative), and pulmonary banding are four commonly used animal models of RVF. Some models may start from physiologic adaptation and some may start pathologic remodeling right away, making it difficult to study the transition in these models. An animal RVF model with clear-cut adaptive-to-maladaptive transition characteristics would be ideal but is unlikely. Nevertheless, some possible alternatives may help us meet the challenge.

Combining knockout or overexpression of a particular gene with induced PH models may be useful. For example, both compensated and decompensated RVs develop hypertrophy in response to PH, and it is difficult to distinguish between physiologic hypertrophy (adaptive) and pathologic hypertrophy (maladaptive), and their contributions to RVF development. Using a transgenic model in which the heart's physiologic hypertrophy pathway is knocked down,¹⁴⁰ we would be able to detect the timing of pathologic RVH development and its associated pathways. Likewise, using a transgenic mouse in which the pathologic hypertrophy pathway (e.g. the calcineurin-NFAT pathway) is suppressed,¹⁴¹ we would be able to evaluate the relative contribution of physiologic hypertrophy to the RVF transition. Signaling of other, non-hypertrophic, pathologic processes that contribute to the RVF transition in PH can also be studied using transgenic models. Use of transgenic mice with suppressed inflammation signaling has provided us with novel information about the crucial role of early inflammation in adverse cardiac remodeling during pressure overload (see below).¹⁴²

Using human RV tissue samples to study the mechanism of RVF would represent the “gold standard.” The RV functional status is usually well documented clinically in patients with PH, and the biopsied tissue presents clear clinical pictures of compensated versus decompensated states. However, studying human RV biopsy samples from PH patients still has significant limitations. First, RV biopsies are not routinely performed for every PH patient because the procedure is invasive and caries high risk. Second, the quantity of tissue biopsied is very small, as it is meant for pathology diagnosis only.

The successful generation of human cardiomyocytes from human induced pluripotent stem cells (hiPSCs) makes it possible to decipher the mechanism of cardiac disease in human myocytes.¹⁴³ In addition to being used as a single myocyte model system for studying disease mechanism, these young human myocytes can be used to regenerate adult human heart-like microtissue.¹⁴⁴ Although tremendous efforts are needed to continuously improve these hiPSC-based human cardiac models and achieve a mature, adult-like functional phenotype,¹⁴⁵ these single-cell and tissue-level models provide new platforms for studying the mechanisms of PH-associated RVF development, especially if they are studied in an in vitro microsystem,¹⁴⁶ which can be modified to recapitulate the structural and mechanical microenvironment of the stressed RV.

Characterization of cardiac excitation-contraction (EC) coupling

Direct studies of RV myocyte EC coupling in RVH and RVF are lacking, and we do not know how Ca²⁺ metabolism is altered. For example, in compensated RVH, we do not know how contractility is maintained despite significant pre- and afterload changes at the cellular level. Little information is available regarding post-translational modification of myofilament proteins in compensated myocardium. Membrane channel electrophysiology also needs to be investigated in compensated RV myocytes. More importantly, we need to determine whether these EC coupling changes set the stage for transition to failure or delay the transition process. Much of our understanding about EC coupling in RVF is based on the wealth of information obtained from LVF studies. Few studies have focused on aspects of EC coupling (membrane electrophysiology, sarcoplasmic reticular Ca²⁺ regulation, and myofilament properties) by using myocytes or tissues from hearts with RVF. Serial studies on changes in EC coupling will offer crucial information regarding the exact role of EC coupling in transition from compensated state to failure.

Characterization of endothelial-myocyte (EM) coupling

Endothelial dysfunction decreases angiogenesis and promotes development of RVF. The cross-talk between endothelial cells and myocytes, or EM coupling, mediates angiogenesis via VEGF signaling to meet the nutrient demand of the hypertrophied myocytes.¹⁴⁷ Prolonged hypertrophy downregulates HIF-1 by increasing p53, thus leading to reduced VEGF signaling and angiogenesis and promoting transition from compensated to decompensated hypertrophy.¹⁴⁸ However, the mechanism for p53 accumulation, as well as other signaling involved in the EM coupling-mediated angiogenesis, needs further investigation.

Endothelial cells (in both endocardium and coronary vasculature) also modulate myocyte contraction and force development via EM coupling.¹⁶ We showed that endocardial endothelium modifies the cardiac force-frequency response via PKA and PKC signaling.¹⁴⁹ The impact of dysfunctional cardiac endothelium on force generation in RVF has not been investigated, nor has the impact of EM on transition from compensated RVH to decompensated RVF in PH. Deciphering the underlying mechanisms for these changes in EM coupling during RVH and RVF will enable us to identify novel pathways and offer new targets for interventions to halt the transition to RVF.

Identifying new inflammatory pathways

Evidence of inflammation in the stressed RV has been documented in patients with PH and in animal models of PH.¹⁵⁰ The role of inflammation has been better studied in LVF,^151,152 but anti-inflammatory therapy for LVF has failed so far. Recently, Suetomi et al.¹⁴² showed that Ca²⁺/calmodulin-dependent protein kinase II δ (CaMKIIδ) activated NOD-like receptor pyrindomain-containing protein 3 (NLRP3) inflammasome to promote adverse cardiac remodeling. Their study deepened our understanding of the role that inflammation plays in RVF development: (1) early activation of the inflammatory process is essential for later pathologic remodeling; and (2) identification of novel inflammatory pathways is necessary for the development of new targeted therapies. Research in these areas of PH-associated RVH and RVF is currently lacking.

Summary

Physiologically, the RV behaves like the LV. However, the unique anatomy of the RV enables it to become much larger and more adaptive to chronic afterload increases (than to acute afterload increases). The RV adapts to increased afterload (i.e. PH) and develops hypertrophy in similar fashion to the LV, by activating fetal gene programs, activating several neurohormonal pathways, and undergoing metabolic and mitochondrial remodeling. RV adaptation maintains contractility through the Frank-Starling mechanism and by increasing activator Ca²⁺ and myofilament responsiveness to Ca²⁺. RV maladaptation manifests as RVF, which results from RV ischemia; inhibition of glucose oxidation; deranged metabolism of energy production; and increases in ROS, cell loss, inflammation, and fibrosis. Recently, miRNAs have been implicated in promoting RVF. RV diastolic dysfunction is an integral part of RVF and is likely caused by hypertrophy, fibrosis, and altered properties of the myofilaments. Non-invasive imaging offers the opportunity to visualize the adapted and maladapted RV and will potentially guide clinical therapies. Therapies to treat RVF include conventional therapies (which are similar to those for LVF) and experimental therapies designed to protect the RV. β-blockers have been investigated, and most preclinical and animal studies have shown promising results. However, clinical studies have not shown a clear benefit so far. Traditional agents that target PH (PDE5 inhibitors, endothelin-1 antagonists) are being tested, but their benefits to the failing RV need to be established. Therapies are emerging that specifically target the RV, such as inhibiting myocyte growth to reduce hypertrophy, promoting glucose oxidation to improve energy metabolism/efficiency, and reducing oxidative stress. New research is needed that will decipher the molecular mechanism by which a compensated state transitions to decompensated state, for example by alterations in EC and EM coupling and new inflammatory pathways. Knowledge in these areas will permit the development of more successful RVF management strategies.

Footnotes

Acknowledgments

The authors thank Ms. Claire Levine for her editing of the manuscript.

Conflict of interest

The authors declare that there is no conflict of interest.

Funding

National Institute of Health U52HL123827 (Johns). American Heart Association 17GRNT33670387 (Gao).
