Abstract
Oral targeted therapies play an important role in the treatment of pulmonary arterial hypertension (PAH). Several new oral agents have emerged for PAH in recent years. However, whether they provide a survival advantage is still not clear. This meta-analysis aimed to assess the efficacy and safety of oral targeted therapies, especially on predefined clinical worsening events. Trials were searched in the Cochrane Library, EMBASE, and PUBMED databases through June 2018. We calculated risk ratios for dichotomous data and weighted mean differences with 95% confidence intervals (CI) for continuous data. Twenty-five trials with a total of 6847 participants were included in the meta-analysis. Oral targeted therapies were associated with significant risk reduction in clinical worsening compared with placebo (relative risk [RR] 0.64; 95% CI = 0.58–0.70; P < 0.001). This reduction in risk was driven by reduction in non-fatal endpoints, including PAH-related admissions to hospital (RR = 0.66; 95% CI = 0.56–0.76; P < 0.001), treatment escalation (RR = 0.43; 95% CI = 0.28–0.66; P < 0.001), and symptomatic progression (RR = 0.55; 95% CI = 0.48–0.64; P < 0.001), but not by reduction of mortality (RR = 0.87; 95% CI = 0.68–1.12; P = 0.215). Oral targeted therapies were also associated with improvement in 6-min walk distance (26.62 m; 95% CI = 20.54–32.71; P < 0.001) and World Health Organization functional class (RR = 1.36; 95% CI = 1.20–1.54; P < 0.001). The results of this meta-analysis showed the benefits of oral treatments on clinical worsening events in PAH. However, these oral agents did not show any survival benefit in the short-term follow-up.
Introduction
Pulmonary arterial hypertension (PAH) is a devastating, progressive disease, manifested as a progressive increase in pulmonary vascular resistance (PVR) and pulmonary arterial pressure (PAP) which ultimately leads to limited exercise capacity, right heart failure, and eventually death. 1 In the past 20 years, several specific drugs targeting endothelial dysfunction have emerged in the era of PAH treatment. Although the survival rate has greatly improved compared with that in national registry study in 1991, 2 the prognosis is still poor. 3 Current approved PAH-specific therapies include five pharmacological classes of drugs: prostacyclin analogues; endothelial receptor antagonists (ERAs); phosphodiesterase type 5 inhibitors (PDE-5Is); soluble guanylate cyclase stimulators (sGCs); and a selective prostacyclin receptor agonist. 1
Previous clinical trials have confirmed the efficiency of oral agents in alleviating the symptoms of PAH and improving the exercise capacity and hemodynamics. 4 Combination therapy with two oral agents could further improve exercise capacity, functional class (FC), and hemodynamic status compared with monotherapy.5–9 However, because of the limited improvement of exercise capacity by medication, short duration, and the small size of the individual studies, whether these oral agents have a survival benefit is still controversial. 10 Meta-analyses have suggested that oral pulmonary vasodilators are beneficial in decreasing clinical worsening and increasing 6-min walk distance (6MWD), but do not show any survival benefits.11,12 However, there have been several new oral agents available for PAH treatment in recent years, including riociguat, macitentan, and selexipag. These new oral agents have demonstrated significant benefits in the treatment of PAH.13–15 Therefore, in the era of many new oral agents, a new meta-analysis focusing on survival advantage is still needed in this area.
In the present study, we performed a new meta-analysis on PAH therapy with all oral targeted drugs,5–9,13–31 including data from six recently published randomized controlled trials (RCTs),5–8,13,16 with the aim of determining whether the benefits of oral targeted therapies on exercise capacity and hemodynamics are translated into improvement of clinical outcomes, particularly overall mortality and morbidity.
Methods
This meta-analysis was conducted in accordance with the preferred reporting items for systematic reviews and meta-analyses (PRISMA) statement. 32
Protocol and registration
The study protocol was not published online.
Eligibility and exclusion criteria
The inclusion criteria were as follows: (1) randomized double-blind placebo-controlled trials; (2) patients definitely diagnosed as PAH according to the guideline; 1 (3) any study on oral targeted therapies including oral prostanoids, ERAs, PDE-5Is, prostacyclin receptor agonists, and sGCS; (4) adult PAH patients who had a follow-up of ≥8 weeks; (5) they reported one of the primary and secondary outcomes of interest. The exclusion criteria were as follows: (1) any study on intravenous, inhaled, or subcutaneous targeted therapies; (2) PAH diagnosed by echocardiography; (3) studies of newborns or children with PAH; and (4) acute hemodynamic studies. In addition, as sitaxsentan was withdrawn from the market due to liver toxicity, studies of sitaxsentan were excluded.
Information source and search
We systematically searched PubMed, EMBASE, the Cochrane Library, previous reviews, and reference lists from identified articles with the strategy of using the term “pulmonary hypertension” through to June 2018. In MEDLINE and EMBASE, this strategy was combined with an RCT filter. No language restriction was applied. We included studies published in abstract form if sufficient information was available to assess methodologic quality. When the same population was reported in several publications, we retained only the most informative article or complete study to avoid duplication of information.
Study selection
All literature searches were independently reviewed by two reviewers (YGZ and HM) to identify relevant trials that met the inclusion criteria. Disparities were resolved by discussion. The concordance analyses suggested high concordance between the two reviewers (Kappa = 0.83; P < 0.05). The selected articles were further examined to determine if they contained relevant information.
Data collection process and data items
We applied a predefined standardized form from the Cochrane Handbook to this process. Each reviewer extracted the data from included studies independently. Discrepancies were resolved by discussion between the two reviewers. If consensus could not be achieved, a third independent reviewer would be involved in the decision. In event-driven studies, we extracted data on the first event only. For incompletely presented data, we contacted the study investigators to request the data.
Quality assessment
Quality assessment of each study was assessed using the Jadad scale, 33 which graded studies according to the random assignment, double blinding, and the flow of patients. The studies with low Jadad scores were excluded (Jadad scale < 3).
Summary measures
Clinical worsening is a composite endpoint generally defined as a combination of death, admission to hospital, lung transplantation, treatment escalation including initiation of prostaglandins, and symptomatic progression.12,34 The primary aim of our analysis was to assess whether oral targeted therapies reduced the risk of clinical worsening in PAH. Whenever possible, we also assessed if this outcome was homogeneous among subgroups of PAH-specific therapy classes. The additional secondary parameters included all-cause mortality, lung transplantation, admission to hospital, treatment escalation, World Health Organization (WHO) FC improvement, symptomatic progression, as well as exercise capacity (6MWD). Treatment discontinuation was used to assess the safety of drugs.
Synthesis of results and bias analysis
We calculated relative risks (RR) for dichotomous data and weighted mean differences (WMD), with 95% confidence intervals (CI) for continuous data. All tests were two-tailed and a P value < 0.05 was deemed statistically significant. For the multi-armed trial (AMBITION), we split the data between two treatment-control comparisons by splitting the control group and halving the sample sizes. In those multi-dose trials including BREATHE-1, SUPUR-1, PHIRST, ARIES, PATENT-1, and SERAPHIN, we combined all active arms into one and compared it with the control group. For exercise capacity (as assessed by 6MWD), we computed the effect size of the tested drugs by using the WMD, which was calculated after subtracting from baseline the end-study values in treated and control groups. In studies reporting the median and quartiles, mean and standard deviation (SD) were estimated from median and quartiles. 35 When only baseline/end of study data were presented, mean changes as well as their associated SD were calculated according to the formula described in the Cochrane Handbook. 36
The Cochran Q test and I-squared were used to assess the magnitude of effect size heterogeneity. Study-level heterogeneity was considered to exist if the I-squared was > 50%. When the research effect size was homogeneous, the data were analyzed using a fixed effect model (Mantel–Haenszel method), otherwise the random effect model (DerSimonian–Laird method) for combined effect size was applied for estimation. Publication bias was assessed with funnel plots by Eggers’ regression test 37 and Begg’s rank correlation test. 38 If publication bias was indicated, we further conducted a trim and fill analysis. 39 All analyses were performed using Stata 12.0 (Stata Corporation, College Station, TX, USA).
Results
Study selection
A total of 5929 studies were identified using the aforementioned search methods, among which 24 articles met the inclusion criteria (Fig. 1).5–9,13–31 As ARIES-1 and ARIES-2 were reported in one article, 25 RCTs were included.
24
Among them, 11 assessed the effects of ERAs, seven assessed the effects of PDE-5Is, five assessed the effects of prostacyclin analogues, two assessed the effects of prostacyclin receptor agonists, and one assessed the effects of sGCs. The AMBITION study investigated both the effects of ambrisentan or tadalafil as add-on therapy, while compared with monotherapy.
7
The PATENT-PLUS study was not included in this meta-analysis, as combination of riociguat and sildenafil was not recommended in the guideline.
40
In addition, Iversen’s study was excluded because of its cross-over design and low Jadad scale (Jadad scale = 2).
41

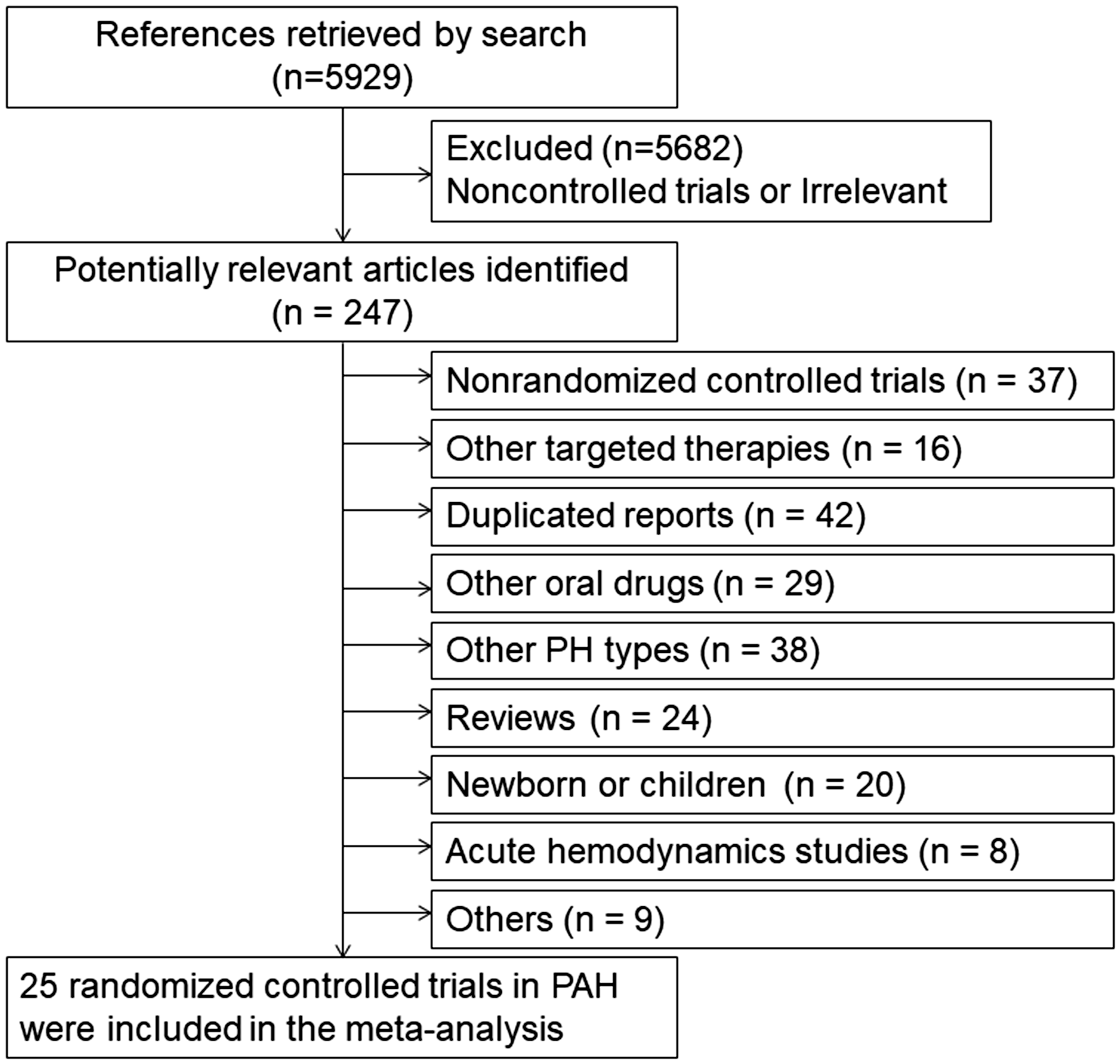

Flowchart of study selection.
Study characteristics

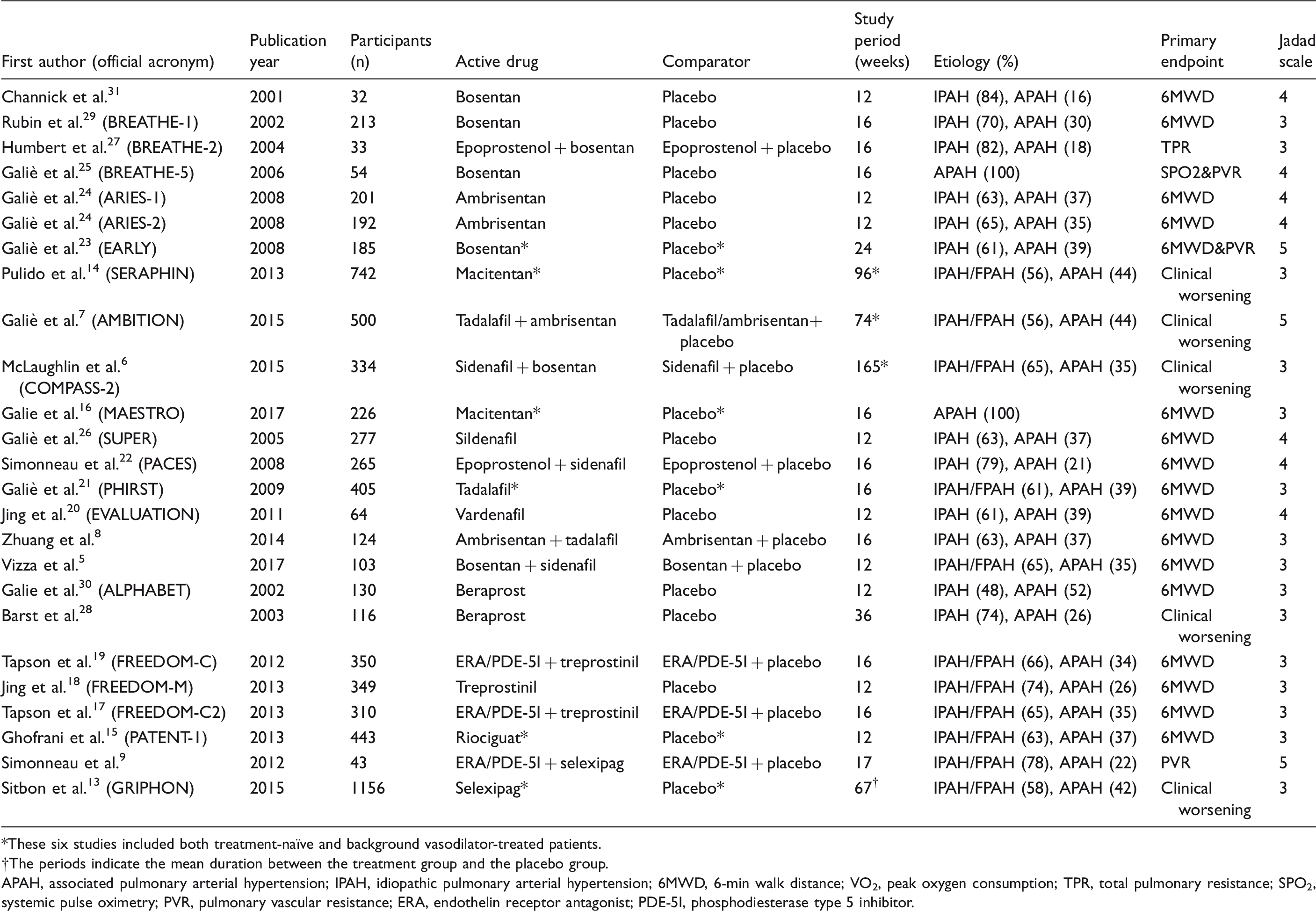

Randomized controlled trial characteristics.
These six studies included both treatment-naïve and background vasodilator-treated patients.
The periods indicate the mean duration between the treatment group and the placebo group.
APAH, associated pulmonary arterial hypertension; IPAH, idiopathic pulmonary arterial hypertension; 6MWD, 6-min walk distance; VO2, peak oxygen consumption; TPR, total pulmonary resistance; SPO2, systemic pulse oximetry; PVR, pulmonary vascular resistance; ERA, endothelin receptor antagonist; PDE-5I, phosphodiesterase type 5 inhibitor.
Pooled analysis of clinical worsening
Clinical worsening, assessed in 20 studies, was the primary outcome in five studies6,7,13,14,28 and the secondary outcome in 15 studies (Supplementary Table 1).5,8,9,15–24,26,29 In the other five trials that did not report this endpoint as defined, we extracted the data according to the definition.16,25,27,30,31 If the study did not report all the relevant endpoints of clinical worsening, we combined the reported endpoints together as clinical worsening.
Clinical worsening occurred in 18.9% (1293/6847) participants: 14.6% (587/4027) in the oral targeted treatment group and 25.0% (706/2820) in the placebo group (Fig. 2, Table 2). The cumulative RR estimate of clinical worsening was a significant reduction of 36% (RR = 0.64; 95% CI = 0.58–0.70; P < 0.001). The overall heterogeneity suggested moderate heterogeneity (I2 = 36.4%; P = 0.034) and data were assessed by a fixed effects model. Similar results were noted if we used a random effects model (RR = 0.59; 95% CI = 0.51–0.70) or excluded five studies which did not report clinical worsening (RR = 0.64; 95% CI = 0.58–0.70). Furthermore, subgroup analyses according to the drug classes suggested that ERAs, PDE-5Is, sGCs, and prostacyclin receptor agonists produced beneficial effects on reducing clinical worsening. However, oral prostanoids only showed a trend toward reducing clinical worsening but did not have statistical significance (Fig. 2).

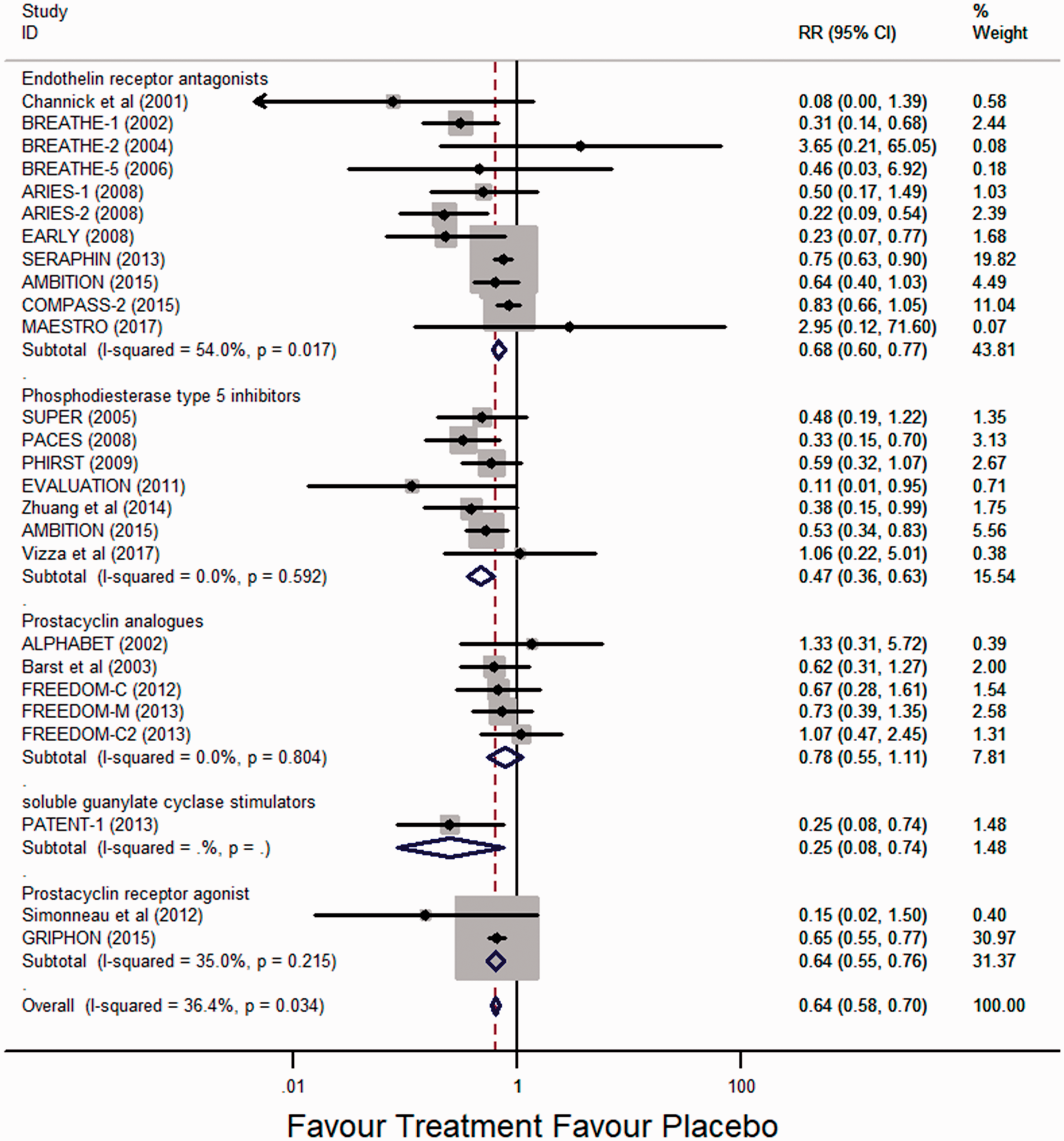

Reduction of clinical worsening in oral targeted treatment groups compared with the placebo groups. Data were analyzed with the fixed effects model. RR, relative risk. Primary and secondary outcomes. All deaths, including those as first event of clinical worsening and those after censoring for another event. RR, rate ratio; CI, confidence interval; PAH, pulmonary arterial hypertension; FC, functional class.
With regard to publication bias, Begg’s rank correlation test indicated no publication bias (P = 0.440), but Egger’s linear regression test indicated possible publication bias for the association (P = 0.011) (Fig. 3). However, when we excluded the four studies with the logRR far from the middle line in the funnel plot, this resulted in a similar RR for clinical worsening (RR = 0.66; 95% = CI 0.60–0.72; P < 0.001).

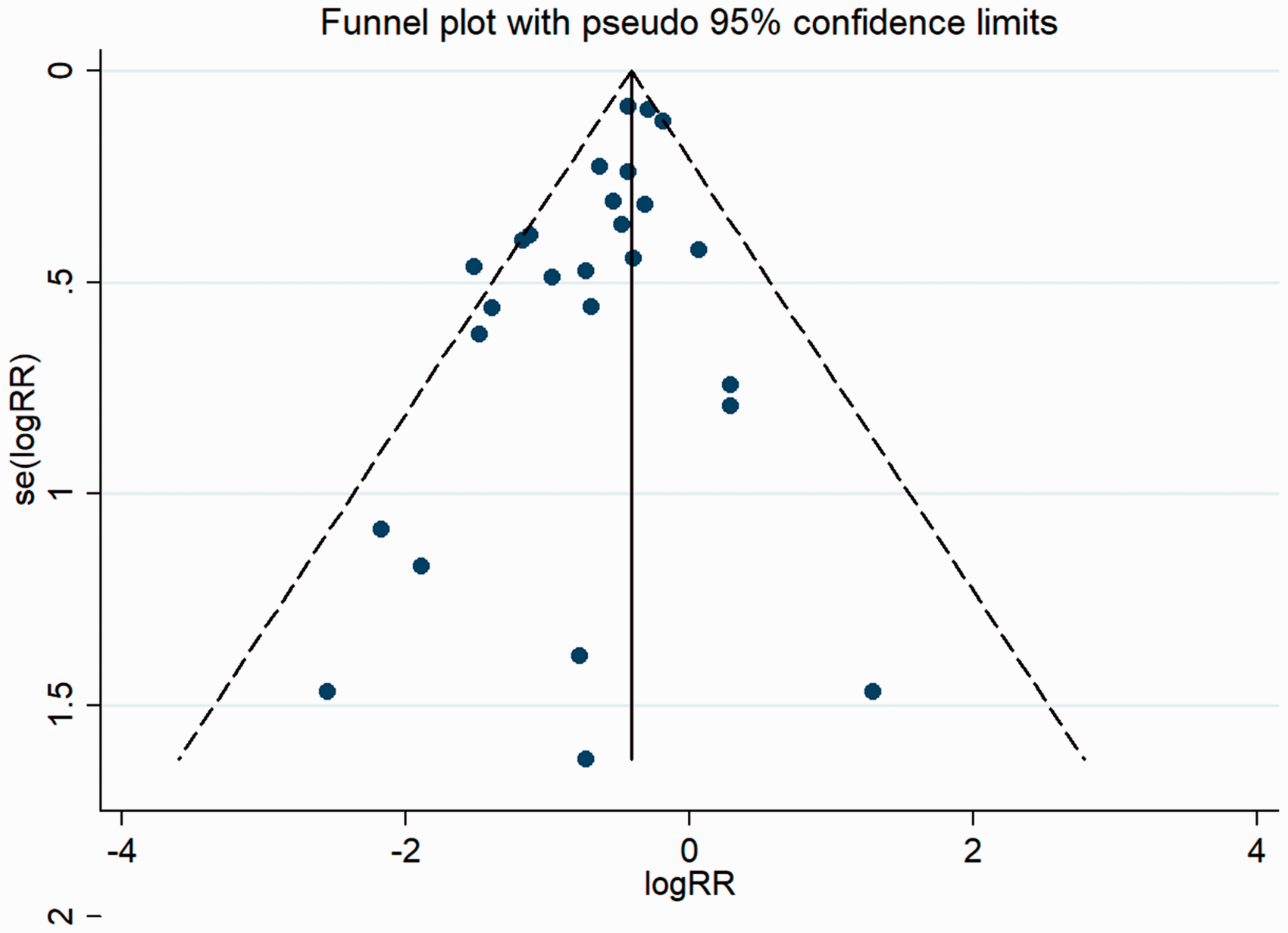

Publication bias of the meta-analysis. Studies were plotted with RRs along the horizontal axis and SE of the RR along the vertical axis. RR, risk ratio; SE, standard error.
Other outcomes

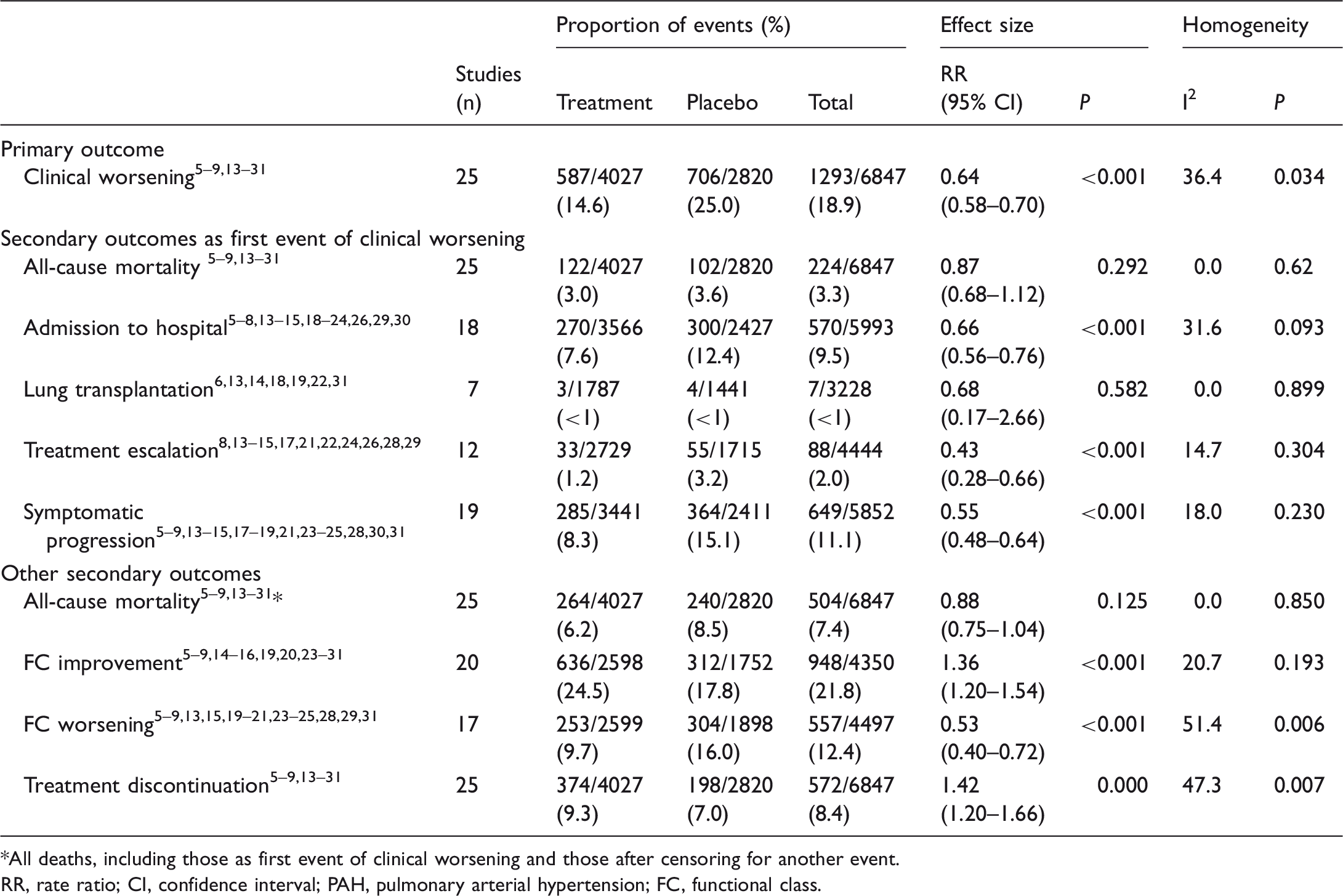

A meta-analysis of other outcomes was summarized in Table 2. Overall mortality (Fig. 4) in the 25 trials was 3.27% (224/6847 patients). Mortality in the treatment group and placebo group was 3.03% (122/4027 patients) and 3.62% (102/2820 patients), respectively. Oral targeted therapies were not associated with reduced all-cause mortality (RR = 0.87; 95% CI = 0.68–1.12; P = 0.215) and no heterogeneity (I2 = 0.0%; P = 0.624) was apparent among studies (Table 2). Moreover, oral targeted treatment significantly improved exercise capacity assessed by 6MWD. The weighted mean improvement of 6MWD assessed by the random effects model in patients allocated to experimental treatments was 26.62 m (range = −4.7–76 m; 95% CI = 20.54–32.71; P < 0.001) (Fig. 5).

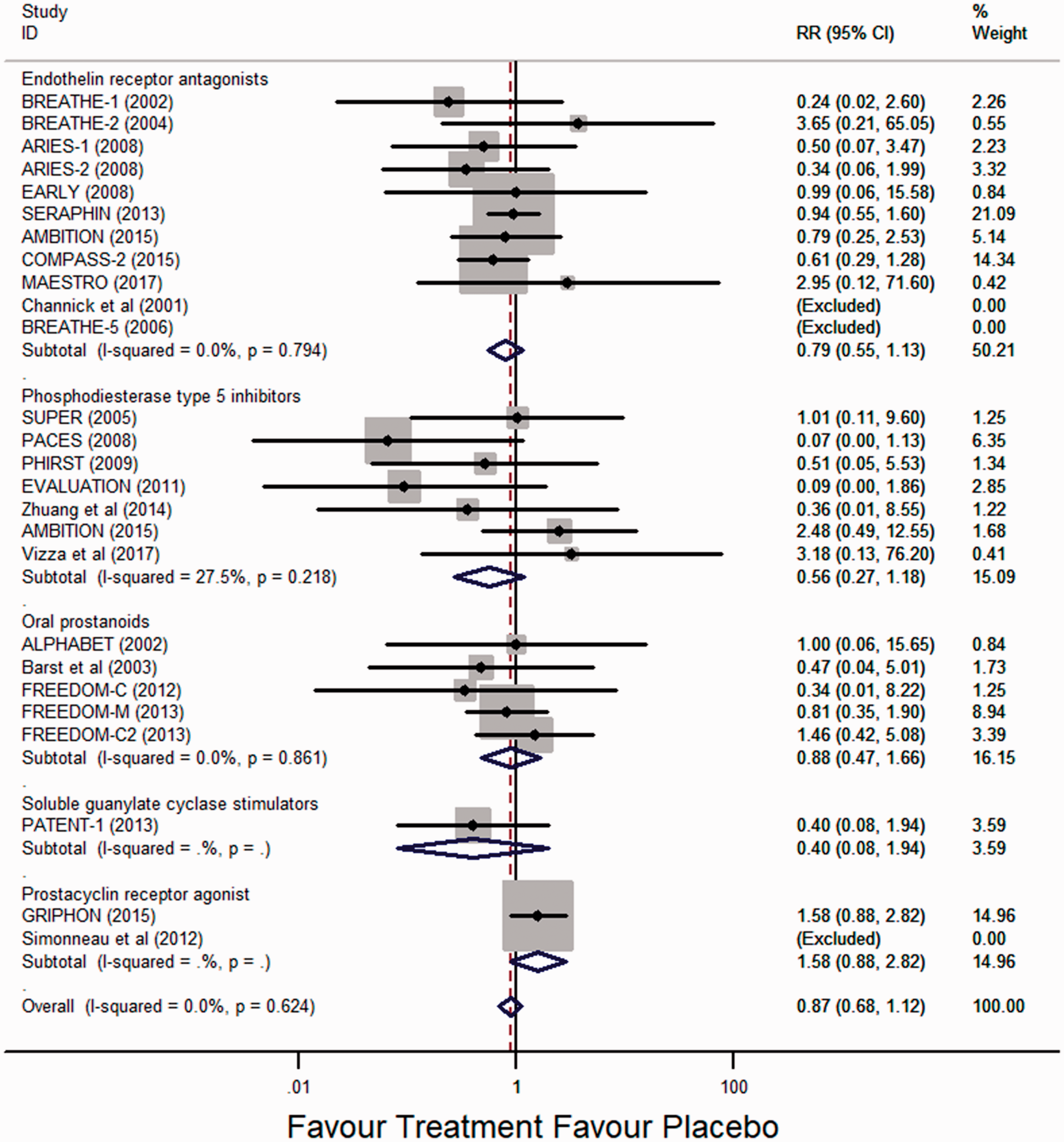

Cumulative RR estimate of all-cause mortality in oral targeted treatment groups compared with control groups. Data were analyzed with the fixed effect model. RR, relative risk. Weighted mean improvement of 6MWD in patients allocated to oral targeted therapies compared with control groups. ES, estimate.

Monotherapy versus combination therapy sub-analysis
Of the 25 trials, ten assessed the effects of PAH-specific monotherapy,18,20,24–26,28–31 nine assessed the effects of combination therapy,5–9,17,19,22,27 and the other six included both treatment-naïve and background vasodilator-treated patients.13–16,21,23 A meta-analysis of ten studies with only treatment-naïve patients revealed that monotherapy was associated with a significant reduction in clinical worsening (RR = 0.46; 95% CI = 0.34–0.62; P < 0.001). It was associated with a non-significant reduction in mortality (RR = 0.56; 95% CI = 0.32–1.00; P = 0.051), but significantly reduced PAH-related admissions to hospital (RR = 0.46; 95% CI = 0.30–0.73; P = 0.001) and symptomatic progression (RR = 0.31; 95% CI = 0.17–0.55; P < 0.001), improved WHO FC (RR = 1.68; 95% CI = 1.32–2.14; P < 0.001), and increased the 6MWD by 41.1 m. Moreover, monotherapy did not significantly increase the incidence of treatment discontinuation (RR = 1.59; 95% CI = 0.94–2.69; P = 0.082).
Regarding the nine trials with only background vasodilator-treated patients, a total of 2062 patients were enrolled to evaluate combination therapy versus monotherapy. A meta-analysis of these nine studies revealed that combined therapy did not show any benefit in reducing mortality (RR = 0.77; 95% CI = 0.49–1.22; P = 0.268) and improving WHO FC (RR = 1.17; 95% CI = 0.98–1.39; P = 0.075), but it reduced clinical worsening (RR = 0.67; 95% CI = 0.57–0.80; P < 0.001), treatment escalation (RR = 0.14; 95% CI = 0.04–0.47; P = 0.001), symptomatic progression (RR = 0.64; 95% CI = 0.49–0.83; P < 0.001), and increased the 6MWD by 18.7 m. Combination therapy was associated with a significant increase in the incidence of withdrawal due to adverse effects (RR = 1.60; 95% CI = 1.23–2.07; P < 0.001).
Discussion
This meta-analysis compared the clinical outcomes of oral targeted treatments versus placebo in a large population of patients with PAH between 2001 and 2018. In this study, we included five classes of oral drugs which were available for PAH treatment in recent years. The results demonstrated that oral targeted therapies significantly reduced the incidence of clinical worsening but showed no positive efficacy on survival. Compared with placebo, oral agents also reduced the incidence of PAH-related admissions to hospital, treatment escalation, symptomatic progression, and improved exercise capacity (measured by 6MWD and WHO FC improvement). However, oral targeted therapies were associated with a higher incidence of withdrawal due to adverse effects.
Clinical worsening is a composite endpoint, which can truly reflect the clinical status and degree of disease progression. It has been used as the primary endpoint of morbidity and mortality in several recently published studies.6,7,13,14 We noted a reduction in the overall risk of clinical worsening of 36% for patients assigned to oral targeted treatment when compared with patients assigned to placebo. Subgroup analyses suggested that ERAs, PDE-5Is, sGCs, and IP receptor agonists produced beneficial effects on reducing clinical worsening, while oral prostanoids only showed a trend. Oral prostanoids had limited clinical benefit observed in the RCTs and were weakly recommended in the guideline. 1 In the analysis excluding oral prostanoids, the cumulative RR estimate of clinical worsening was a reduction of 38%. Zhang et al. 11 found that the use of oral drugs was associated with a 45% reduction in clinical worsening events. He et al. 42 also concluded that clinical worsening was reduced by 67% in patients who received inhaled iloprost, oral bosentan, and sildenafil. Therefore, our study was consistent with these previous studies about the impact of oral drugs on clinical worsening.
Conversely, oral targeted treatment was not associated with significant reductions in deaths and transplantation occurring as first events. This result was also consistent with a previous study by Zhang et al; 11 however, in a meta-analysis of 35 RCTs by Liu et al., 43 active treatments were associated with a 29% reduction in mortality (P = 0.004). This former analysis of active treatment strategies included both oral agents and those non-oral agents, including epoprostenol, iloprost, and treprostinil. Of all these trials that provided mortality data, only the PPHSG trial of epoprostenol showed significantly mortality reduction in the active treatment group than in the placebo group (RR = 0.06; 95% CI = 0.00–0.96). 44 In this study, we included five long-term trials which used clinical worsening as the primary outcome. Indeed, the analysis of death as first events was limited by informative censoring by other components of the definition of clinical worsening. 45 Death as a first event was uncommon in PAH and it most commonly occurred subsequent to symptomatic progression or admission to hospital. Therefore, the use of a time-to-first-event outcome might have underestimated the beneficial effects of oral agents on mortality. If we took all deaths into account, including both those as first event and those after censoring for another event, oral targeted therapy was associated with a non-significant trend for reduced all-cause mortality.
Combination therapy is a new trend in the treatment of PAH and it can be applied sequentially or initially (upfront). Combining two or more agents from different classes has theoretical appeal, since modulation of several pathways by combining drugs may improve patient outcomes without increasing drug toxicity. In the new guideline of PAH, combination therapy was recommended as evidence Grade IB. 1 In the previous meta-analysis of 2011, combination therapy was only associated with moderate improvements in 6MWD without evidence of reduction in mortality or other clinical worsening events. 46 However, several new studies focusing on combination therapy have been published in recent years.5–8 These trials have event-driven protocols that require increased patient recruitment and longer study duration. In our study, we included these recently published studies and found that combination therapy was associated with a significant reduction in clinical worsening but had non-significant effects on mortality. These results were consistent with several recently published meta-analyses, which also suggested that combination therapy significantly reduced the risk of a combined clinical worsening events by approximately 35%.34,45 These findings confirmed the efficiency of combination therapy on clinical outcomes. However, regarding combination therapy, there were still several questions that need to be answered. First, drug–drug interactions differ among different classes of drugs and it remains unknown which therapeutic classes are most effective in combination. Second, both upfront and sequential combination therapies are recommended in the guideline and it remains controversial which treatment route is more effective in clinic practice. In addition, owning to the short duration and study design, the benefits of combination therapy on mortality remain inconclusive.
Several potential limitations should be taken into consideration when interpreting the present results. First, it was not possible to obtain individual patient-level data from the RCTs, which may have weakened the accuracy of our analysis. Second, the majority of the included trials had a small sample size and relatively short duration, making it difficult to assess the long-term effects. Third, clinical worsening was defined differently in different studies and only some of the trials reported some secondary outcome parameters, possibly leading to reporting bias. Fourth, we did not register our review protocol in the PROSPERO online registry and this may be associated with a perceived risk for publication and reporting bias. Furthermore, the time between the publication of the first and the last trial was prolonged (about 17 years) and considerable progress has been made in treatments and medical care. Finally, as the funnel plot is asymmetry (Egger test, P = 0.011; Fig. 3), publication bias in favor of the publication of positive studies also cannot be excluded.
Conclusions
Our meta-analysis suggested that oral targeted therapies significantly reduced the risk of clinical worsening but had less favorable effects on survival in the short-term follow-up. Oral treatment also reduced the risk for admission to hospital, treatment escalation, and symptomatic progression, and resulted in improved patient functional status. These observations support the use of oral targeted therapies in the treatment of PAH.
Supplemental Material
Supplemental material for Efficacy and safety of oral targeted therapies in pulmonary arterial hypertension: a meta-analysis of randomized clinical trials
Supplemental material for Efficacy and safety of oral targeted therapies in pulmonary arterial hypertension: a meta-analysis of randomized clinical trials by Ya-guo Zheng, Hong Ma, Liang Chen, Xiao-min Jiang, Ling Zhou, Song Lin and Shao-liang Chen in Pulmonary Circulation
Footnotes
Conflict of interest
The author(s) declare that there is no conflict of interest.
Funding
This work was supported by Science and Technology Development Nanjing Medical University (2015NJMUZD051) and Jiangsu Provincial Outstanding Medical Program (BL20142338).
