Abstract

The maintenance of endothelial barrier integrity is absolutely essential to prevent the vascular leak associated with pneumonia, pulmonary edema resulting from inhalation of toxins, acute elevation to high altitude, traumatic and septic lung injury, acute lung injury (ALI), and its life-threatening complication, acute respiratory distress syndrome (ARDS). In addition to the long-known edemagenic and inflammatory agonists, emerging evidences suggest that factors of endothelial cell (EC) mechanical microenvironment such as blood flow, mechanical strain of the vessel, or extracellular matrix stiffness also play an essential role in the control of endothelial permeability and inflammation. Recent studies from our group and others have demonstrated that substrate stiffening causes endothelial barrier disruption and renders EC more susceptible to agonist-induced cytoskeletal rearrangement and inflammation. Further in vivo studies have provided direct evidence that proinflammatory stimuli increase lung microvascular stiffness which in turn exacerbates endothelial permeability and inflammation and perpetuates a vicious circle of lung inflammation. Accumulating evidence suggests a key role for RhoA GTPases signaling in stiffness-dependent mechanotransduction mechanisms defining EC permeability and inflammatory responses. Vascular stiffening is also known to be a key contributor to other cardiovascular diseases such as arterial pulmonary hypertension (PH), although the precise role of stiffness in the development and progression of PH remains to be elucidated. This review summarizes the current understanding of stiffness-dependent regulation of pulmonary EC permeability and inflammation, and discusses potential implication of pulmonary vascular stiffness alterations at macro- and microscale in development and modulation of ALI and PH.

Keywords

substrate stiffness lung injury pulmonary hypertension endothelial permeability inflammation

Introduction

The vascular luminal surface is covered by a monolayer of endothelial cells (EC) and underlying basal lamina composed of extracellular matrix (ECM) proteins. The overall regulation of endothelial permeability is governed not only by bioactive soluble mediators, mechanical forces, and cell–cell interactions but also by the stiffness of the substrate to which EC are adhered.^1,2 The role of the surrounding ECM on the regulation of EC response to various biochemical or mechanical stimuli has recently gained significant attention with the findings that substrate stiffness per se is sufficient to cause EC permeability.^1,3,4 The matrix stiffness in lung parenchyma of healthy lungs is in the range of 0.5–3 kPa, but increases six- to eightfold in pulmonary fibrosis. The range of natural stiffness microenvironment for other cells in the body is in the range of 1 kPa in the brain to ∼30 kPa in pre-calcified bone and ∼100 kPa in calcified sites of atherosclerotic thoracic arteries (Fig. 1). These findings highlight an important, although under-studied, role of substrate stiffness in pathophysiology of many diseases and modulating cellular responses in different tissue types.^5–7 Indeed, matrix stiffness has been shown to regulate a number of cellular processes including cell signaling, cytoskeletal reorganization, cell–cell communication, generation of inter- and intracellular forces, and determination of lineage of progenitor cells.^1,8–12 More importantly, matrix stiffness has been implicated in a number of cardiovascular, pulmonary, and other diseases such as aging, tumor progression, and angiogenesis, to name a few.^13–17 The focus of this review will be substrate stiffness-induced EC hyperpermeability and inflammation, both of which are known contributors of acute lung injury (ALI). We will also discuss potential mechanisms of stiffness-dependent modulation of EC permeability and inflammation with focus on RhoA GTPase-mediated signaling. Lastly, we will briefly review the role of stiffness in the development and progression of pulmonary hypertension (PH).

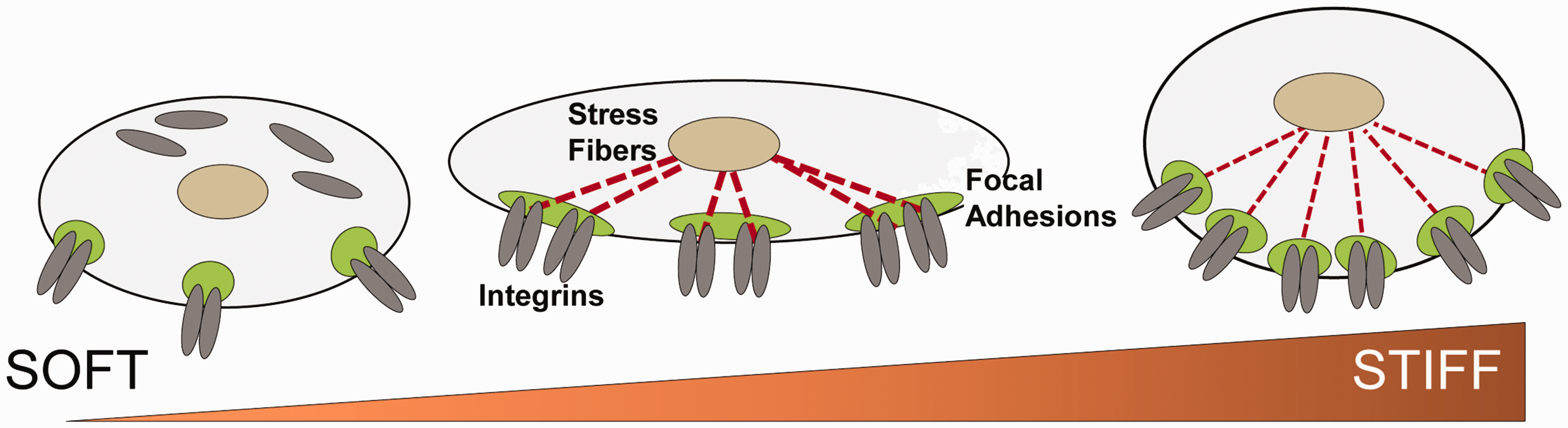

Fig. 1.

Stiffness induces cytoskeletal reorganization. (a) The stiffness varies among the tissues according to their physiological needs with softer tissues having low and harder tissue such as bone having higher elastic modulus (figure modified from Janmey and Miller⁸⁹). Endothelial cells have ∼1200–2000 Pa elastic modulus. (b) Stiffness causes the cytoskeletal remodeling via integrin signaling with elongated focal adhesion (FA), increased traction force, and formation of actin stress fibers.

EC cellular stiffness and endothelial permeability

Since the dynamic actomyosin contractility and cytoskeletal reorganization controls EC permeability, a direct interaction between EC and ECM plays a vital role in this process.^2,18,19 Multiple studies have demonstrated that the microenvironment of EC governs its many cellular features including adhesion, cell–cell contact, migration, and force generation.^20–22 The studies have shown that EC develop stiffening response to shear stress, tumor necrosis factor-α (TNF-α), and oxidized low-density lipoprotein.^23–25 The stiffness of surrounding ECM and strength of cell–cell interactions also define the intrinsic levels of basal actomyosin contraction and stiffness of vascular EC.^26,27 Analysis of EC force generation and intracellular stiffness distribution in pulmonary EC stimulated with barrier-protective and barrier-disruptive agents has been performed using traction force microscopy (TFM) and atomic force microscopy (AFM) and related to endothelial permeability responses.^28–31 These studies showed that barrier-disruptive agonists activated EC force generation and increased stiffness in the central region (Fig. 2). In turn, barrier-protective agents decreased overall EC contractile response and stiffness in the central regions and caused redistribution of cytoskeleton leading to formation of peripheral actomyosin rim and increased local cytoskeletal stiffness at the periphery of the cell. Consistently, the attenuation of agonist-induced EC permeability by barrier-protective agonists well correlated with the reduction of EC contraction and decreased cellular stiffening in the central part.²⁸

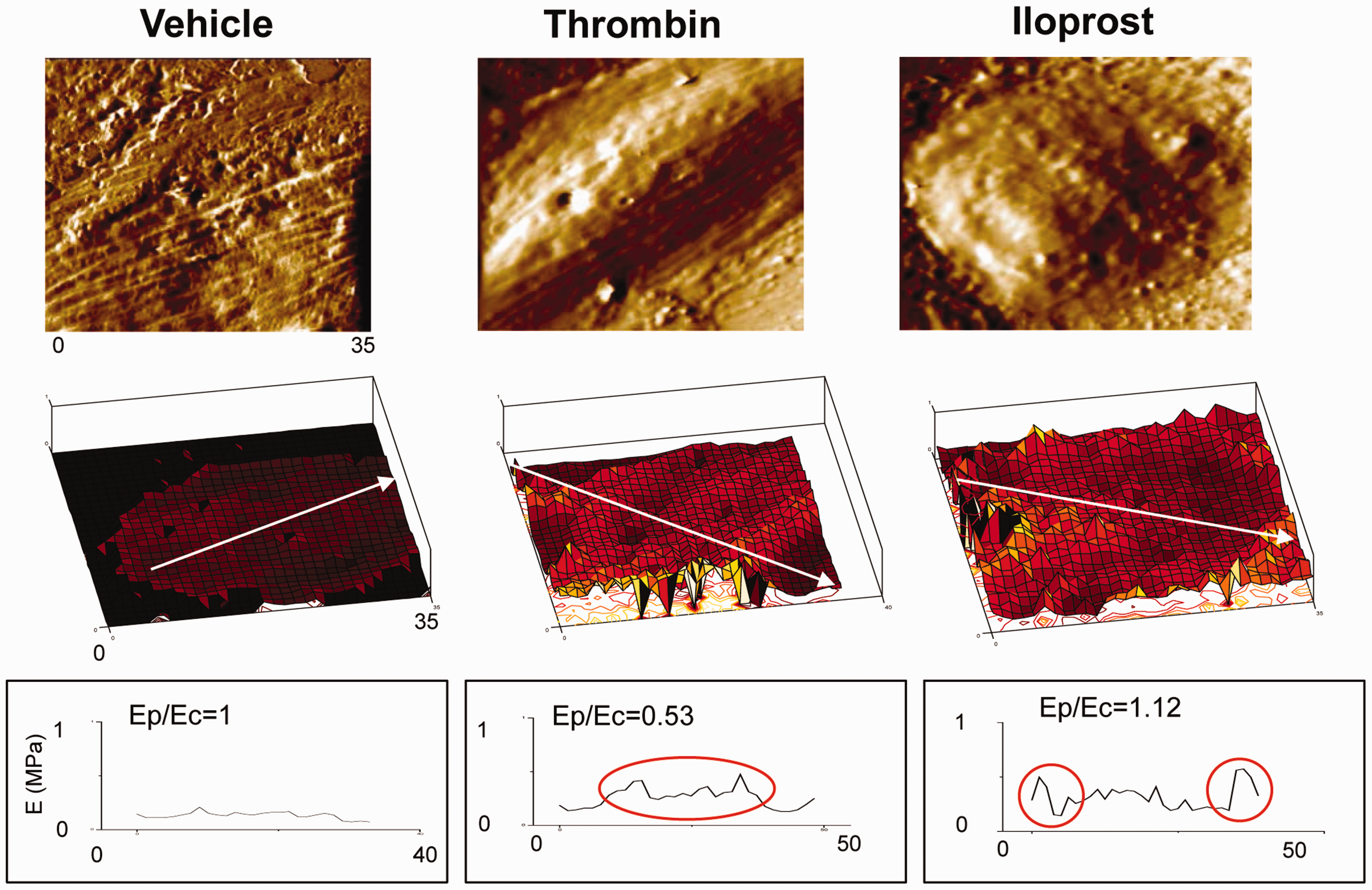

Fig. 2.

EC stiffness changes by agonists and antagonists. Barrier-disruptive and -protective agents change the local stiffness distribution differently. Human pulmonary EC were grown on glass coverslips and elasticity was measured using atomic force microscopy. Thrombin increased elastic modulus at the center (Ec) while iloprost increased it at the cell periphery (Ep).²⁸

Substrate stiffness and endothelial permeability

Changes in endothelial mechanical microenvironment take place under physiological circumstances and appear to play an important role in endothelial function. For example, age-related intimal stiffening increases EC permeability and leukocyte transmigration in atherosclerosis by upregulating cell contractility and disrupting cell–cell junctions.⁴ These observations suggested that the age-dependent increase in ECM stiffness, a normal phenomenon of aging, directly induces EC permeability and might play a role in the progression of vascular disease. Likewise, traction force microscopy studies showed that EC monolayers grown on stiffer substrates generate higher levels of endothelial contractile forces leading to more robust EC permeability.¹ Thrombin treatment of pulmonary EC monolayers grown on stiffer substrates increased generation of traction forces and enhanced formation of intercellular gaps in EC, as compared to the cells grown on softer substrates. EC grown on stiffer substrates showed disrupted adherens junctions and an appropriate level of ECM stiffness (4 kPa) was essential to maintain EC barrier function.³²

Pulmonary EC grown on three different grades of stiffness-very low (0.55 kPa), physiologically relevant (8.6 kPa), and very high (42 kPa) showed that the formation of stress fiber increases with increasing substrate stiffness, and thrombin induces the maximal stress fiber formation in the cells grown on very high stiffness matrices.³ In support of these findings, a recent study has shown that thrombin or TNF-α treatment increases traction force, monolayer tension, and permeability in EC grown on stiffer substrates.³³ Maximal barrier disruptive and contractile response to thrombin in EC grown on high stiffness substrates was associated with high and sustained activation of Rho signaling. Interestingly, although EC grown on lower substrate stiffness substrates developed less pronounced Rho activation at early time points of response to thrombin, they exhibited higher levels of Rac GTPase activation at later time points after thrombin challenge; the signaling event consistent with the efficiency of EC barrier recovery.³ Substrate stiffness in coordination with force-transduction signaling by VE-Cadherin is also suggested to increase cell contractility and gap formation.³⁴ A recent study has suggested a role of gap junction-mediated cell–cell interaction in the regulation of EC stiffness.³⁵ These recent findings clearly indicate that the interplay between substrate stiffness and mechanotransduction signaling modulate endothelial permeability. Interestingly, inhibition of lysyl oxidase, an enzyme involved in collagen and elastin crosslinking and overall stiffening of the lung tissue, reduced pulmonary vascular leak in mice.³²

Mechanism of stiffness-induced endothelial permeability

EC respond to the change in their microenvironment by cytoskeletal remodeling and cell contractility that modulates endothelial permeability.²⁸ The enhanced adhesion and spreading of EC on stiffer substrate is mediated by integrins signaling with cytoskeleton reorganization and actomyosin contractility.^26,36–39 The Rho signaling pathway is the major regulator of actomyosin contraction and cell-matrix adhesion.^2,40 Rho and its downstream effector Rho-associated kinase (ROCK) induce the phosphorylation of myosin light chain (MLC) either by directly phosphorylating it or by phosphorylation and suppression of myosin phosphatase activity.^41–43 The increased MLC phosphorylation leads to cell contraction, F-actin stress fiber formation, and ultimately causes endothelial barrier dysfunction.^44,45 The generation of Rho-activated contractile forces, stress fiber formation, and increased number of focal adhesions have all been associated with stiffness.^1,45,46 In addition to the regulation of EC contractility, the activation of Rho pathway with increased ROCK activity is shown to enhance matrix stiffness-induced fibroblast contractility and myofibroblast differentiation.¹⁶

It has been demonstrated that the increased traction forces generated on EC grown on stiffer substrate is dependent on the activation of Rho kinase, ROCK.¹ In turn, EC grown on stiffer substrate (11 kPa) compared to those on softer substrate (1.2 kPa) revealed a high level of thrombin-induced Rho kinase activation.¹ Consistently, inhibition of Rho kinase activity with ROCK selective pharmacological inhibitor, Y-27632, decreased basal traction forces and prevented thrombin-induced cellular gap formations. The role of Rho signaling pathway in stiffness-induced endothelial permeability was further confirmed in another study where EC grown on hydrogels of stiffer substrate (10 kPa) had robustly increased Rho activity compared to the cells grown on stiffer substrate (2.5 kPa).⁴ Again, inhibition of Rho activation with Y-27632 decreased traction forces uniformly on EC grown on all different levels of matrices and also decreased stiffness-induced endothelial permeability.⁴ The decrease of stiffness-caused permeability was observed with siRNA mediated depletion of ROCK and pharmacological inhibition of ROCK abolished the destabilization of cell–cell junctions, thereby improving the endothelial barrier function in mice. A growing body of evidence from multiple studies has further established the crucial role of Rho in mediating stiffness-induced endothelial permeability. For example, the activation of Src-Vav2-RhoA signaling axis is shown to regulate stiffness-induced cytoskeletal organization and proliferation of EC.⁴⁷ Likewise, ROCK-mediated contractility facilitates the increase in EC monolayer tension and permeability in response to thrombin and TNF-α.³³

Substrate stiffness and inflammation

As mentioned above, substrate stiffness exacerbates the effects of pro-inflammatory cytokine TNF-α on EC permeability. More importantly, substrate stiffness has been directly implicated in inflammation since increased substrate stiffness is shown to promote leukocyte transendothelial migration.^4,48 In turn, the adhesion, spreading, and migration of leukocytes on EC is determined by EC stiffness-dependent clustering of ICAM1 where integrins mediate the mechanosensitive response of leukocytes.^38,49,50 As discussed earlier, endothelial stiffness is directly regulated by the stiffness of underlying substrate and therefore increases in inflammatory settings. These mechanisms are summarized in Fig. 3.

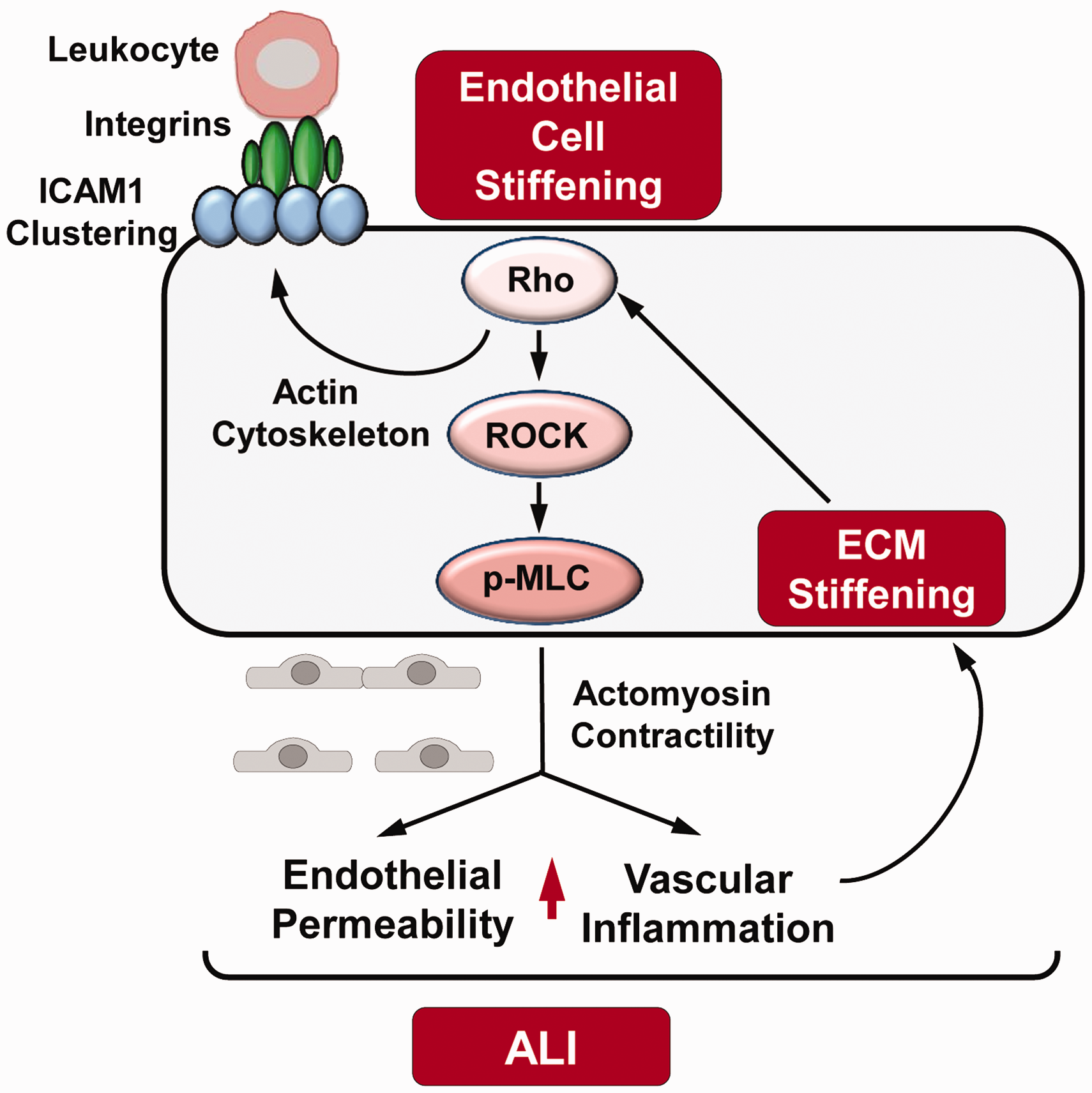

Fig. 3.

Stiffness-induced EC permeability and inflammation in ALI. Extracellular matrix (ECM) stiffening leads to leukocyte transendothelial migration via integrin signaling and ICAM-1 clustering in endothelial cells (EC). The activation of Rho and Rho-associated kinase (ROCK) increase myosin light chain (MLC) phosphorylation inducing actomyosin contractility and ultimately causing increased permeability and inflammation which are two major hallmarks of acute lung injury (ALI).

Patients and animal models of lung dysfunction show the decrease in lung compliance which might reflect a significant alteration of mechanical properties of lung tissues. Bacterial pathogens as well as bacteria-derived endotoxins stimulate the production of ECM proteins by lung cells^51,52 leading to increased expression of ECM proteins (fibronectin, collagen) and their deposition in the inflamed lung and further stiffening of the lung.^53,54 Tissue remodeling and increased ECM production has been observed as a prominent feature in the course of ALI.

Direct measurements of microvascular wall stiffness had been performed in the murine model of LPS-induced lung inflammation. Atomic force microscopy measurements in precisely cut live lung slices showed that LPS increased perivascular stiffness in lung and stimulated expression of ECM proteins: fibronectin, collagen I, and ECM crosslinking enzyme, lysyl oxidase.⁵⁵ Increased stiffness and ECM remodeling exacerbated LPS-induced inflammation reflected by the enhanced expression of adhesive surface molecules: intercellular adhesion molecule (ICAM-1) and vascular cell adhesion protein 1 (VCAM-1) along with the increased production of IL-8 by lung EC.⁵⁵ Increased expression of EC surface adhesion molecules facilitated the adhesion and transmigration of leukocytes, an early key event of inflammation.⁵⁶ Stiffness-augmented EC inflammatory responses to LPS and TNF-α were also confirmed in EC cultures grown on compliant matrices of different stiffness. Attenuation of LPS-induced inflammation by lipoxin analog 15-epi-lipoxin A4 (eLXA4) inhibited LPS-increased lung stiffness and attenuated stiffness-dependent activation of EC inflammation. These findings suggest a direct role of matrix stiffness in lung inflammation and attenuation of local vascular stiffness by anti-inflammatory agents like lipoxin could be a potential therapeutic for stiffness-caused lung dysfunction.

Increased vascular endothelial permeability contributes to inflammation. For example, destabilization of cell–cell adherens junctions and internalization of EC-specific adherens junction structural protein VE-cadherin increases endothelial permeability and positively regulates the leukocyte transmigration into the vessel wall, a key event to parenchymal inflammation.^57,58 Increased matrix stiffness also induced the leukocyte transmigration in TNF-α- stimulated EC.⁴ We studied the interplay between substrate stiffness and pro-inflammatory agonists in inducing lung inflammation and found that LPS-activated inflammatory response on EC is augmented on stiffer (40 kPa) compared to softer (1.5 kPa) polyacrylamide hydrogels.⁵⁹ LPS-induced inflammation was accompanied by the increased expression of ECM proteins fibronectin and collagen I, enhanced expression and activity of lysyl oxidase, increased production of IL-8, and augmented expression of ICAM-1 and VCAM-1.

A strong association between the matrix stiffness and inflammation is considered a major contributing factor to the progression of fibrosis. During fibrosis, excessive accumulation of ECM further enhances matrix stiffening that escalates the inflammatory response which stimulates fibroblasts to secret more ECM, aiding to the exacerbation of fibrosis.^6,60,61 The role of matrix stiffness in fibrosis was further revealed in a recent study where the loss of Fibulin-5, an elastin fiber component of ECM, decreased tissue stiffness, inflammatory response, and abolished fibrotic phenotype in a mouse of cutaneous fibrosis.⁶²

Mechanism of stiffness-induced endothelial inflammation

Rho-ROCK pathway also appears to play a key role in stiffness-induced regulation of inflammation. Given that inflammation involves the activation of Rho pathway, Rho-ROCK-actomyosin contractility is suggested to be the major mechanotransduction signaling axis employed by both EC and leukocytes during stiffness-induced leukocytes transmigration.^39,63,64 In fact, the increased transmigration of leukocytes with increasing matrix stiffness was significantly decreased by the inhibition of Rho pathway.⁴ Our study has shown that LPS-induced activation of guanine nucleotide exchange factor (GEF-H1), a Rho activator, is dependent on stiffness.⁵⁹ EC grown on 40 kPa hydrogels had higher basal level of GEF-H1 expression and LPS-induced increase in GEF-H1 expression was attenuated by pharmacological or genetic inhibition of lysyl oxidase. An earlier study had allocated the role of GEF-H1 in mediating cellular stiffness in response to mechanical forces.⁶⁵ In regards to the relation between stiffness and inflammation, a recent study reported that matrix stiffening induces the activation of nuclear factor-kappa B (NF-κB), a major pathway leading to the activation of several inflammatory genes, causing the disruption of endothelial barrier and increased susceptibility to proinflammatory agonists.⁶⁶

Role of other factors in ECM stiffness-induced pathologies

There is a growing appreciation of the role of other factors which in association with matrix stiffness play a role in modulating the EC behavior in various pathological conditions. For example, fluid shear stress enhances EC barrier integrity by downregulating RhoA activation in cells grown in softer matrices.⁶⁷ Likewise, matrix stiffness modulates the functional crosstalk between EC, epithelial cells, smooth muscle cells, and immune cells and may be an important factor contributing to severity of disease.⁶⁸

ECM composition changes also have a big impact in the development of various diseases. Since ECM is a dynamic structure that constantly undergoes remodeling to control tissue homeostasis, any change in the composition of ECM proteins may play a crucial role in the vascular pathophysiology of various organs including the lung.⁶⁹ As an example, acute exposure of endothelial cells to shear stress stimulates NF-κB through a pathway involving activation of integrin αvβ3.⁷⁰ However, shear stress-induced activation of NF-κB and increased expression of the proinflammatory proteins ICAM-1 and VCAM-1 occur on fibronectin (FN) or fibrinogen (FG) matrix, but not in cells plated on collagen (Coll) or laminin.⁷¹ Such contrasting effects are explained by different types of integrins interacting with FN/FG and Coll/laminin substrates and bearing distinct sets of integrin-associated signaling molecules.

The other important factor affecting endothelial responses in pathologic conditions that needs special consideration is ECM proteins post-translational modifications including enzymatic and chemical crosslinking, glycation and glycosylation, oxidation, and enzymatic degradation. These factors also significantly affect overall ECM biomechanics. For instance, the ECM glycation or reactive oxygen species-induced ECM oxidation leads to ECM stiffening, altered mechanical microenvironment of vascular EC, and has been linked to fibrosis.⁷²

Implications of stiffness-induced vascular permeability and inflammation in ALI and PH

Acute lung injury

The increased endothelial permeability and inflammation are two major hallmarks of many pulmonary disorders including ALI, ARDS, and edema. An extensive study in the recent years have established that most of the barrier disruptive agonists induce EC hyperpermeability and activate inflammatory signaling cascades that ultimately leads to vascular leak, lung injury, and inflammation.^2,73 As discussed above, matrix stiffness is directly associated with the onset of both endothelial permeability and inflammation, suggesting that ECM mechanics might play a key role in the pathogenesis of ALI (Fig. 4). With the consistent findings from AFM studies and EC culture on hydrogels of varying degree of stiffness, it is now widely accepted that mechanodynamics of ECM composition play a pivotal role in regulating endothelial barrier integrity, with increased stiffness acting as a trigger for endothelial permeability and inflammation. Some in vivo studies have further bolstered this evidence demonstrating that agonists-induced vascular leak and inflammation is accompanied by stiffer lung phenotype mediated by the change in ECM.^32,55 The adhesion and transmigration of leukocytes, a key event in initiation of inflammation, is also determined by endothelial and ECM stiffness, indicating an important interplay between ECM and inflammation that might play a pivotal role in the etiology of ALI. The activation of Rho signaling functions as a common central pathway to mediate the effects of barrier disruptive and inflammatory agonists during the induction of ALI.^74–76 The concurrent findings that matrix stiffness also leads to the activation of Rho and inhibition of Rho-ROCK pathway protects stiffness induced EC dysfunction suggest that stiffness likely exacerbates effects of various agonists, bacterial pathogens, and endotoxins which trigger ALI.

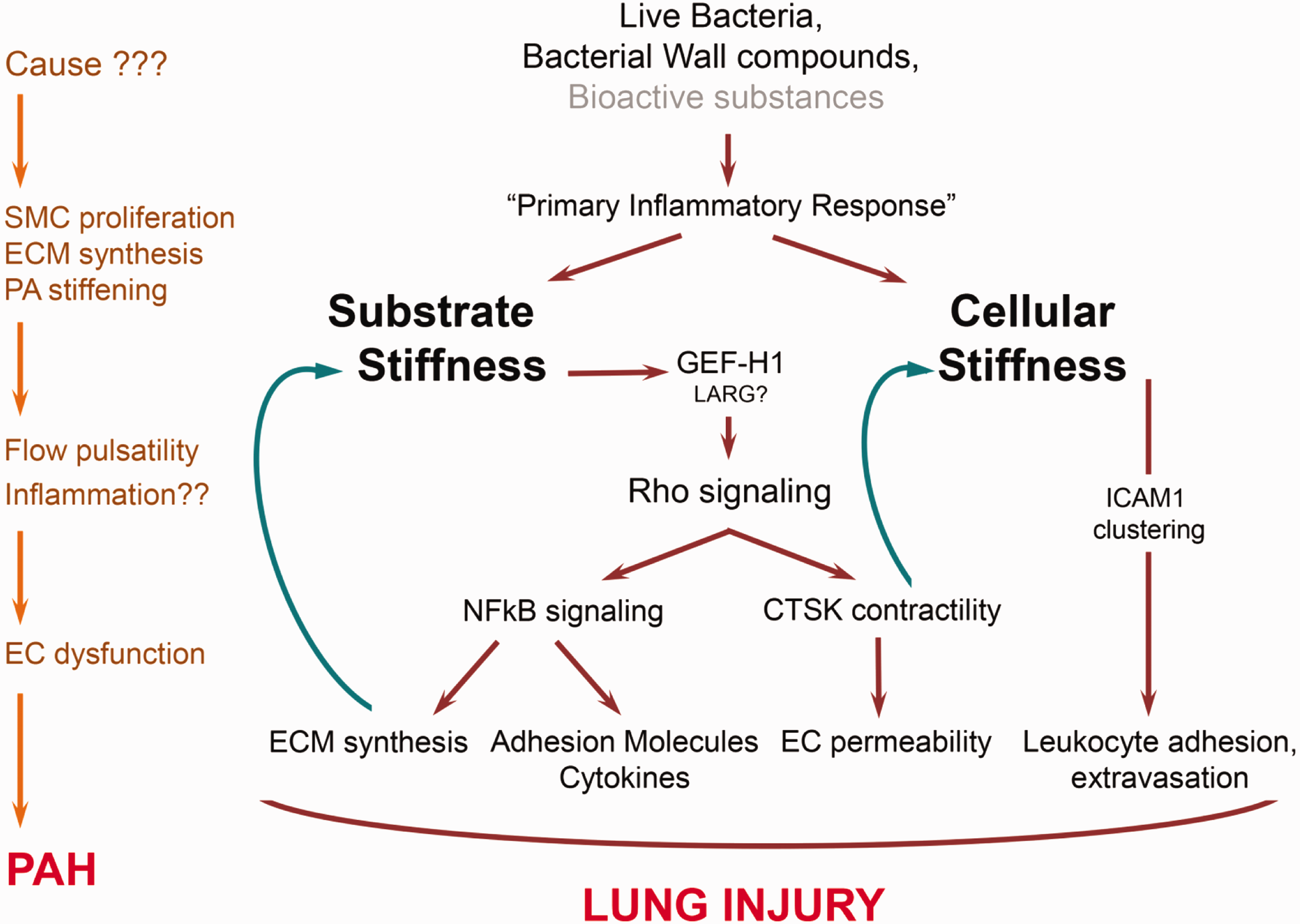

Fig. 4.

Mechanism of stiffness-induced ALI and PH. During ALI, pathogens or their virulent components induce inflammatory response by facilitating the leukocyte extravasation and may also simultaneously increase endothelial permeability by the activation of GEF-H1/Rho signaling pathway. The increased ECM proteins and adhesion molecules synthesis is mediated by NFkB pathway which acts as a feedback mechanism to increase stiffness. In pulmonary hypertension (PH), the causes yet to be known induce pulmonary artery stiffening with increased flow pulsatility which possibly initiates inflammation and EC dysfunction.

Pulmonary hypertension

Increased vascular stiffness has been recognized as a major risk factor for cardiovascular disorders including PH. Specifically, higher levels of pulmonary arterial stiffness are suggested to precede development of clinical picture of PH.^77,78 The reactive phase of hypertension indicated by an increased smooth muscle contractility during pathogenesis of PH is followed by an organic phase, i.e. morphological and structural changes in the vessel wall with increased thickness of smooth muscle layer and strengthening the ECM. At the macroscale, these changes increase the stiffness of the vessel as anatomical structure leading to decrease in arterial compliance and increased pulse wave velocity. The decrease in the compliance of pulmonary arteries due to the increased collagen deposition is considered as a predictor of increased mortality rate in PH patients.⁷⁹ The decreased arterial compliance leads to an increase in pulse wave velocity which is also regarded as an important contributor to PH.⁷⁸ Since the changes in arterial stiffness followed by altered pulse wave velocity are two established major causes of PH, the efforts have been directed to develop new tools to measure these parameters to have a better prognosis and diagnosis of PH. Although the precise role of pulmonary artery stiffening in PH remains to be elucidated, some studies have shown that it increases flow pulsatility in the pulmonary vasculature that can contribute to endothelial dysfunction and inflammation.^80–82 In line with this, stiffening-induced high pulsatility flow induces inflammation in pulmonary artery EC by the activation of TLR2/NF-κB pathway.⁸³ The cellular and molecular mechanisms behind this effect are not clear, but the increased pulsatility caused by stiffening of large pulmonary artery increases flow shear stress and EC might sense and respond to these mechanical forces by activating inflammatory signaling pathways (Fig. 4). In fact, the high pulsatility flow induces the proinflammatory responses in the vascular endothelium and causes EC dysfunction by promoting endothelial to mesenchymal transition.⁸⁴ Based on these findings, it was suggested that there might be sequential molecular events that dictate high pulsatility force-induced PH hypertrophy, inflammation, endothelial phenotype transition, and fibrosis.⁸⁴ Conversely, mechanical stretch in combination with inflammation induced aortic stiffening in hypertension by promoting collagen deposition.⁸⁵ Thus, direct role of vascular stiffness-induced endothelial permeability as in atherosclerosis is not well-known in PH and future studies are required to address it. Nevertheless, the beneficial effects of Rho kinase inhibitor fasudil, which improves endothelial function in both atherosclerosis and PH, hints that both diseases might involve the common feature of vascular stiffness-induced EC dysfunction by Rho activation.^86–88

Summary

Vascular stiffening and decreased lung compliance are common features of aging and are implicated as risk factors for multiple cardiovascular and pulmonary diseases including ALI and PH. The role of mechanodynamic changes in ECM and subsequent EC barrier dysfunction by increased endothelial permeability and inflammation has now been well appreciated. The studies have established that Rho-mediated actomyosin contractility and cytoskeletal remodeling plays a critical role in mediating stiffness-induced vascular leak and inflammation. The inhibition of Rho signaling pathway could be a potential therapeutic for matrix stiffness-caused diseases as augmented by the fact that Rho inhibitors provided promising beneficial effects in preclinical trials against multiple cardiovascular disorders including PH. Furthermore, the future studies employing the advanced cell culture systems including 3D and organotypic tissue culture would closely mimic the in vivo microenvironment and help to better explore the role of substrate stiffness in the pathophysiology of ALI, PH, and other diseases.

2017 Grover Conference Series

This review article is part of the 2017 Grover Conference Series. The American Thoracic Society and the conference organizing committee gratefully acknowledge the educational grants provided for the support of this conference by Actelion Pharmaceuticals US, Inc., Gilead Sciences, Inc., and United Therapeutics Corporation. Additionally, the American Thoracic Society is grateful for the support of the Grover Conference by the American Heart Association, the Cardiovascular Medical Research and Education Fund, and the National Institute of Health.

Footnotes

Conflict of interest

The author(s) declare that there is no conflict of interest.

Funding

This work has been supported by NHLBI grants HL107920 and HL130431, and NIGMS grant GM114171.
