Abstract

Background:

Diabetes mellitus type 1 (DM1) is an autoimmune disease characterized by metabolic destruction of pancreatic cells responsible for insulin production, with treatment based on replacing insulin. Long-acting insulin analogs are indicated for patients with DM1 who exhibit important oscillations of their daily glycemia, despite its higher cost. Our study objective was to evaluate the effectiveness and safety of two long-acting insulins, insulin glargine and detemir, in treating patients with DM1.

Methods:

We undertook a systematic review with meta-analysis of observational studies (cohort and registry) available in the databases and the gray literature, and a complementary search in the Diabetes Care journal. Outcomes assessed were: glycated hemoglobin concentration; fasting plasma or capillary glucose; occurrence of episodes of severe hypoglycemia and occurrence of nocturnal hypoglycemia. The assessment of methodological quality was performed using the Newcastle score. The meta-analyses were performed on software Review Manager^® 5.2.

Results:

Out of 705 publications, 8 cohort studies were included. The quality of these studies was classified as high. In the meta-analysis, results regarding episodes of severe hypoglycemia (p = 0.02) and fasting glucose (p = 0.01) were in favor of detemir. The glycated hemoglobin (p = 0.49; I² = 89) showed high heterogeneity and no statistically significant difference between the two. The meta-analysis of total insulin dose favored glargine (p = 0.006; I² = 75). The rates of nocturnal hypoglycemia (NH) were evaluated only for one study and showed a significant reduction of NH after therapy with detemir, (p < 0.0001).

Conclusion:

Although some outcomes were favorable to detemir insulin analog, it has not been possible to identify important differences of effectiveness and safety between the two analogs. These results can help in the current debate on the inclusion of long-acting analogs on the list of reimbursed medicines in Brazil, especially with the recent introduction of an insulin glargine biosimilar at a considerably lower price.

Keywords

comparative effectiveness detemir diabetes mellitus type 1 glargine systematic review

Introduction

Diabetes mellitus (DM) is a heterogeneous group of metabolic disorders that includes increased levels of blood glucose resulting from defects in insulin action, on insulin secretion, or both. DM is considered a chronic disease with high morbidity and mortality, being one of the leading causes of stroke, myocardial infarction, chronic renal failure, blindness and nontraumatic amputations.^1,2 Among the types of DM, DM type 1 (DM1) and DM type 2 (DM2) are the most prevalent.³

According to the International Diabetes Federation (IDF), the number of people with DM in the world increased from 108 million in 1980 to 422 million in 2014, and it is estimated that this number will increase to 642 million by 2040. Approximately 80% of patients with DM live in developing countries due to the growth in populations in these countries, population aging, greater urbanization, the prevalence of obesity and progressive sedentariness, as well as increased survival of patients with DM.⁴

Among the therapeutic alternatives available on the market for the treatment of DM1, neutral protamine Hagedorn (NPH), which has a profile of intermediate action, is currently considered as standard treatment, and the long-acting insulin analogs, such as insulin glargine (GLA) and insulin detemir (DET), can be combined with fast-acting insulin for better modulation of pharmacotherapy and glycemic control. GLA and DET allow a more stable profile compared with NPH insulin, without a pronounced peak action that does not require homogenization, leading possibly to more flexible administration.^5,6

However, a number of meta-analyses and other studies conducted to date do not support the clinical superiority of GLA and DET compared with NPH. In four systematic reviews,^6–9 there appeared to be no additional clinical benefit of GLA compared with NPH insulin in terms of effectiveness and side effects. Similar results were observed in a recent cohort study,¹⁰ as well as in a recent systematic review comparing the quality of life or patient-reported outcomes in GLA versus NPH insulin.¹¹ Despite these and similar studies of long-acting insulins versus NPH insulin,^{6–10,12,
13} with concerns echoed by the Brazilian Agency of Health Technology Assessment [Comissão Nacional de Incorporação de Tecnologias no SUS (CONITEC)]¹⁴ resulting in long-acting insulins not being recommended for inclusion in the list of official reimbursed medicines, GLA has been incorporated into the list of the Secretary of Health of the State [Secretaria Estadual de Saúde do Estado de Minas Gerais (SES/MG)] in Brazil. This resulted in public spending of approximately US $6 million in 2011 for long-acting insulins, since the difference between the cost of monthly treatment in Brazil was 536% for GLA versus NPH, 377% for DET versus NPH and 34% for GLA versus DET.^7,14

Concern about the additional costs of long-acting insulin analogs has resulted in some countries restricting the indications for funding.⁶ In Brazil, SES/MG attempted to restrict the free supply of GLA to patients with DM1 who demonstrate inadequate glycemic control or episodes of frequent hypoglycemia following NPH insulin; however, there are still requests from patients with DM2 or those patients outside the established criteria.¹⁵ Whilst Siebenhofer-Kroitzsch and colleagues also question the clinical relevance of potential minor improvements with insulin analogs versus NPH insulins, they may have a place in selected patients such as those with higher occurrence of nocturnal hypoglycemia.¹⁶ It is also worth noting that investment in self-management programs for patients with DM have resulted in sustained clinical gain in terms of glycemic control and a reduced risk of severe hypoglycemia than has been observed with long-acting insulins.¹⁴ Nevertheless, long-acting insulin analogs are available in Brazil with restrictions on their use in SES/MG.

In view of concerns with cost differentials between different long-acting insulins in some countries, improved kidney function in some patients with the long-acting analogs, although still concerns with their overall benefit versus NPH insulins, and potential differences in effectiveness between the long-acting insulins with differences in action between them,^{6–8,17–19} the objective of this study was to evaluate the effectiveness and safety of GLA in comparison with DET in patients with DM1 through a systematic review and meta-analysis. The results will help inform future decision making in Minas Gerais, as well as wider in Brazil and other countries, especially as more biosimilars of long-acting insulins become available.

Materials and method

This review was conducted in accordance with guidelines of the Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA)²⁰ with registration protocol (available at: http://www.crd.york.ac.uk/PROSPERO/display_record.asp?ID=CRD42017054925).

Database and search strategy

An electronic search was performed in articles published until August to 2017 in databases including MEDLINE (PubMed), Latin American literature and Caribbean Health Sciences (LILACS), EMBASE and the Cochrane Library. Various combinations of terms were used following the peak (population, intervention strategy, comparing, and result): DM1, GLA and DET (Table 1). As a complement to the electronic search, a search was carried out on the references of all included studies, as well as in the electronic journal Diabetes Care from 2003 to August 2017. We also made a search of gray literature studies included in the bank of theses and dissertations of the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES) and Digital Library of Theses and Dissertations at the Federal University of Minas Gerais (UFMG), in case we had missed any important studies.

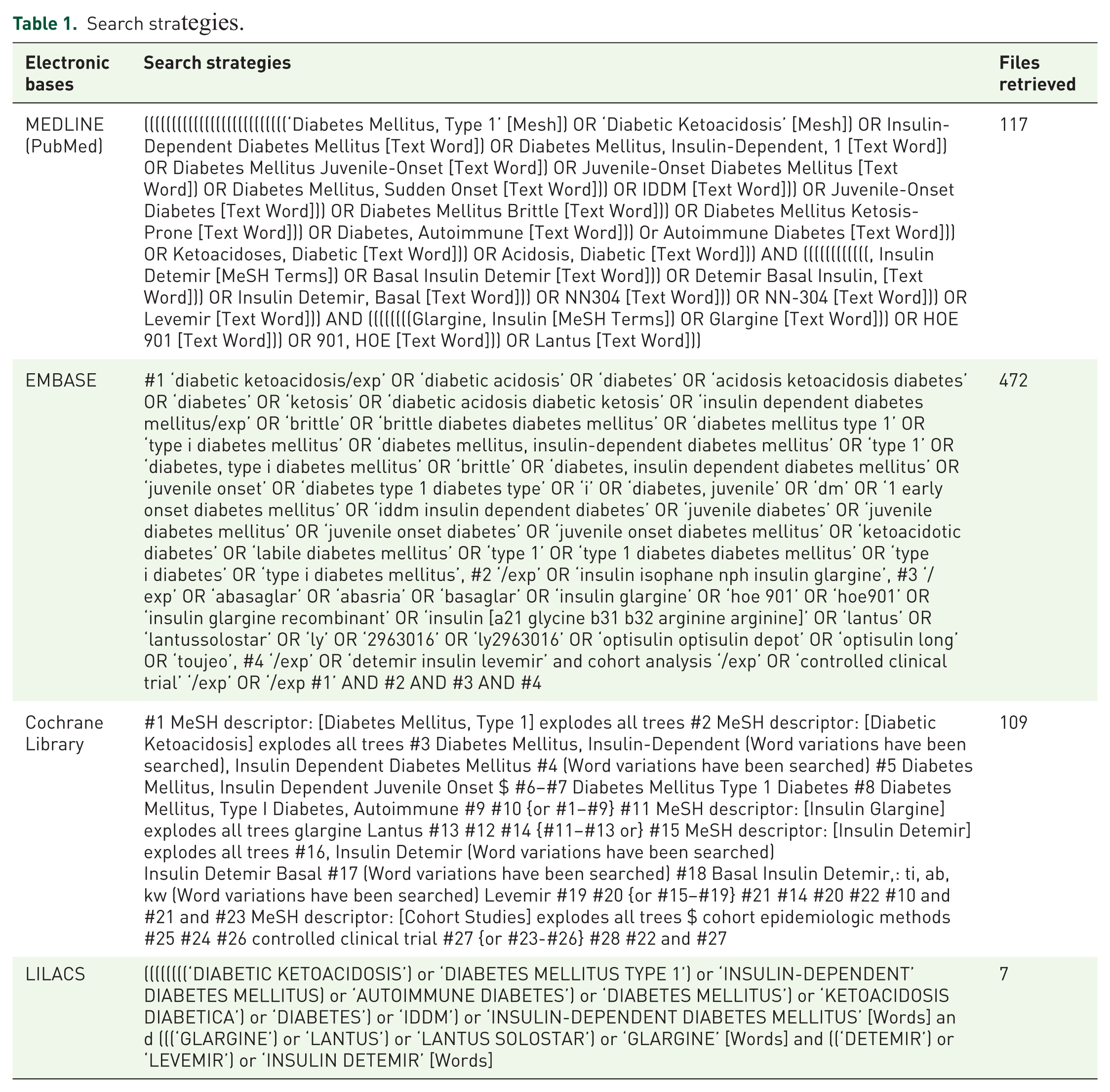

Table 1.

Search strategies.

Electronic bases	Search strategies	Files retrieved
MEDLINE (PubMed)	((((((((((((((((((((((((((‘Diabetes Mellitus, Type 1’ [Mesh]) OR ‘Diabetic Ketoacidosis’ [Mesh]) OR Insulin-Dependent Diabetes Mellitus [Text Word]) OR Diabetes Mellitus, Insulin-Dependent, 1 [Text Word]) OR Diabetes Mellitus Juvenile-Onset [Text Word]) OR Juvenile-Onset Diabetes Mellitus [Text Word]) OR Diabetes Mellitus, Sudden Onset [Text Word])) OR IDDM [Text Word])) OR Juvenile-Onset Diabetes [Text Word])) OR Diabetes Mellitus Brittle [Text Word])) OR Diabetes Mellitus Ketosis-Prone [Text Word])) OR Diabetes, Autoimmune [Text Word])) Or Autoimmune Diabetes [Text Word])) OR Ketoacidoses, Diabetic [Text Word])) OR Acidosis, Diabetic [Text Word])) AND ((((((((((((, Insulin Detemir [MeSH Terms]) OR Basal Insulin Detemir [Text Word])) OR Detemir Basal Insulin, [Text Word])) OR Insulin Detemir, Basal [Text Word])) OR NN304 [Text Word])) OR NN-304 [Text Word])) OR Levemir [Text Word])) AND ((((((((Glargine, Insulin [MeSH Terms]) OR Glargine [Text Word])) OR HOE 901 [Text Word])) OR 901, HOE [Text Word])) OR Lantus [Text Word]))	117
EMBASE	#1 ‘diabetic ketoacidosis/exp’ OR ‘diabetic acidosis’ OR ‘diabetes’ OR ‘acidosis ketoacidosis diabetes’ OR ‘diabetes’ OR ‘ketosis’ OR ‘diabetic acidosis diabetic ketosis’ OR ‘insulin dependent diabetes mellitus/exp’ OR ‘brittle’ OR ‘brittle diabetes diabetes mellitus’ OR ‘diabetes mellitus type 1’ OR ‘type i diabetes mellitus’ OR ‘diabetes mellitus, insulin-dependent diabetes mellitus’ OR ‘type 1’ OR ‘diabetes, type i diabetes mellitus’ OR ‘brittle’ OR ‘diabetes, insulin dependent diabetes mellitus’ OR ‘juvenile onset’ OR ‘diabetes type 1 diabetes type’ OR ‘i’ OR ‘diabetes, juvenile’ OR ‘dm’ OR ‘1 early onset diabetes mellitus’ OR ‘iddm insulin dependent diabetes’ OR ‘juvenile diabetes’ OR ‘juvenile diabetes mellitus’ OR ‘juvenile onset diabetes’ OR ‘juvenile onset diabetes mellitus’ OR ‘ketoacidotic diabetes’ OR ‘labile diabetes mellitus’ OR ‘type 1’ OR ‘type 1 diabetes diabetes mellitus’ OR ‘type i diabetes’ OR ‘type i diabetes mellitus’, #2 ‘/exp’ OR ‘insulin isophane nph insulin glargine’, #3 ‘/exp’ OR ‘abasaglar’ OR ‘abasria’ OR ‘basaglar’ OR ‘insulin glargine’ OR ‘hoe 901’ OR ‘hoe901’ OR ‘insulin glargine recombinant’ OR ‘insulin [a21 glycine b31 b32 arginine arginine]’ OR ‘lantus’ OR ‘lantussolostar’ OR ‘ly’ OR ‘2963016’ OR ‘ly2963016’ OR ‘optisulin optisulin depot’ OR ‘optisulin long’ OR ‘toujeo’, #4 ‘/exp’ OR ‘detemir insulin levemir’ and cohort analysis ‘/exp’ OR ‘controlled clinical trial’ ‘/exp’ OR ‘/exp #1’ AND #2 AND #3 AND #4	472
Cochrane Library	#1 MeSH descriptor: [Diabetes Mellitus, Type 1] explodes all trees #2 MeSH descriptor: [Diabetic Ketoacidosis] explodes all trees #3 Diabetes Mellitus, Insulin-Dependent (Word variations have been searched), Insulin Dependent Diabetes Mellitus #4 (Word variations have been searched) #5 Diabetes Mellitus, Insulin Dependent Juvenile Onset $ #6–#7 Diabetes Mellitus Type 1 Diabetes #8 Diabetes Mellitus, Type I Diabetes, Autoimmune #9 #10 {or #1–#9} #11 MeSH descriptor: [Insulin Glargine] explodes all trees glargine Lantus #13 #12 #14 {#11–#13 or} #15 MeSH descriptor: [Insulin Detemir] explodes all trees #16, Insulin Detemir (Word variations have been searched) Insulin Detemir Basal #17 (Word variations have been searched) #18 Basal Insulin Detemir,: ti, ab, kw (Word variations have been searched) Levemir #19 #20 {or #15–#19} #21 #14 #20 #22 #10 and #21 and #23 MeSH descriptor: [Cohort Studies] explodes all trees $ cohort epidemiologic methods #25 #24 #26 controlled clinical trial #27 {or #23-#26} #28 #22 and #27	109
LILACS	((((((((‘DIABETIC KETOACIDOSIS’) or ‘DIABETES MELLITUS TYPE 1’) or ‘INSULIN-DEPENDENT’ DIABETES MELLITUS) or ‘AUTOIMMUNE DIABETES’) or ‘DIABETES MELLITUS’) or ‘KETOACIDOSIS DIABETICA’) or ‘DIABETES’) or ‘IDDM’) or ‘INSULIN-DEPENDENT DIABETES MELLITUS’ [Words] an d (((‘GLARGINE’) or ‘LANTUS’) or ‘LANTUS SOLOSTAR’) or ‘GLARGINE’ [Words] and ((‘DETEMIR’) or ‘LEVEMIR’) or ‘INSULIN DETEMIR’ [Words]	7

Selection of studies and eligibility criteria

Cohort studies were selected, as well as database records of concurrent and nonconcurrent patients with DM1. Considered studies included those that assessed GLA versus DET, principally in terms of their effectiveness and safety.

We excluded studies that concentrated on dose comparisons, compared other drugs apart from GLA and DET, pregnant patients, clinical protocols, reviews, case reports, studies in animals, in vitro studies, pharmacodynamic studies or studies that combined oral antidiabetic medicines with insulin therapy for DM1, as well as studies that included less than 30 participants or follow-up time was less than 4 weeks, similar to the review by Marra and colleagues.⁷

Data collection and methodological quality assessment

The studies found in the electronic databases were allocated on a single basis to exclude duplicates using the EndNote software program. Two independent reviewers (TS and PA) evaluated the titles (phase 1), the abstracts (phase 2), and the full text (phase 3). Disagreements were resolved by a third reviewer (VA). The data, including methodological quality, participant information, treatment duration, effectiveness and safety data, were extracted and collected independently with each reviewer on a previously formulated and tested Excel spreadsheet for this purpose.

For the assessment of methodological quality, we used the Newcastle–Ottawa Scale.²¹ This scale was originally developed to evaluate the quality of observational studies. On this scale, each study is evaluated in three dimensions. These include the selection of the study groups, comparability of groups and the calculation of exposure or outcome of interest. The total score of nine is considered to be of high quality. In addition, funding sources have been identified and explored in view of concerns with bias identified in the previous systematic review of Marra and colleagues⁷ and Almeida and colleagues.¹¹ The possibility of publication bias was assessed via analysis using a funnel plot.²² It was considered that there was no conflict of interest in any part of the text if no comment about conflict of interest was found. Conflict of interest refers to sources of funding from pharmaceutical companies or when there was a bond with any of the authors of the study with the pharmaceutical companies. This could include speaker fees or funding for conferences.

Summary of the findings and statistical analysis

The outcomes assessed were the glycated hemoglobin concentration (HbA1c), fasting plasma or capillary glucose, and occurrence of episodes of severe hypoglycemia and occurrence of nocturnal hypoglycemia.

The data from the studies were combined using the random effects model of Review Manager^® software version 5.3 Cochrane Community, Haymarket, London, UK. The results were presented by the mean difference (MD) for continuous variables with a 95% confidence interval (CI 95%). Analyses with a heterogeneity (I²) greater than 40%, and a p value chi-square test less than 0.10, were considered as high/significant heterogeneity. Sensitivity analysis was conducted to investigate the causes of the heterogeneity, excluding one study at a time and observed changes in I² values and p value.²²

Results

Included studies

There were 705 publications found in the electronic databases. After deleting duplicates, 609 articles were selected for analysis of the titles and abstracts and 13 for complete reading. After the analysis of the articles using our inclusion criteria, only seven studies were finally selected and the manual search added another publication, totaling eight studies for inclusion in the meta-analysis (Figure 1). Overall, a total of 596 studies were excluded in the first phase after reading titles and abstracts (Figure 1). Following this, as mentioned, 13 studies were progressed to full reading. One study was excluded,²³ as the authors had a sample of less than 30 participants. Two studies^24,25 were excluded due to the lack of information and a detailed design of the study, and three studies^26–28 were excluded due to differences in the type of intervention.

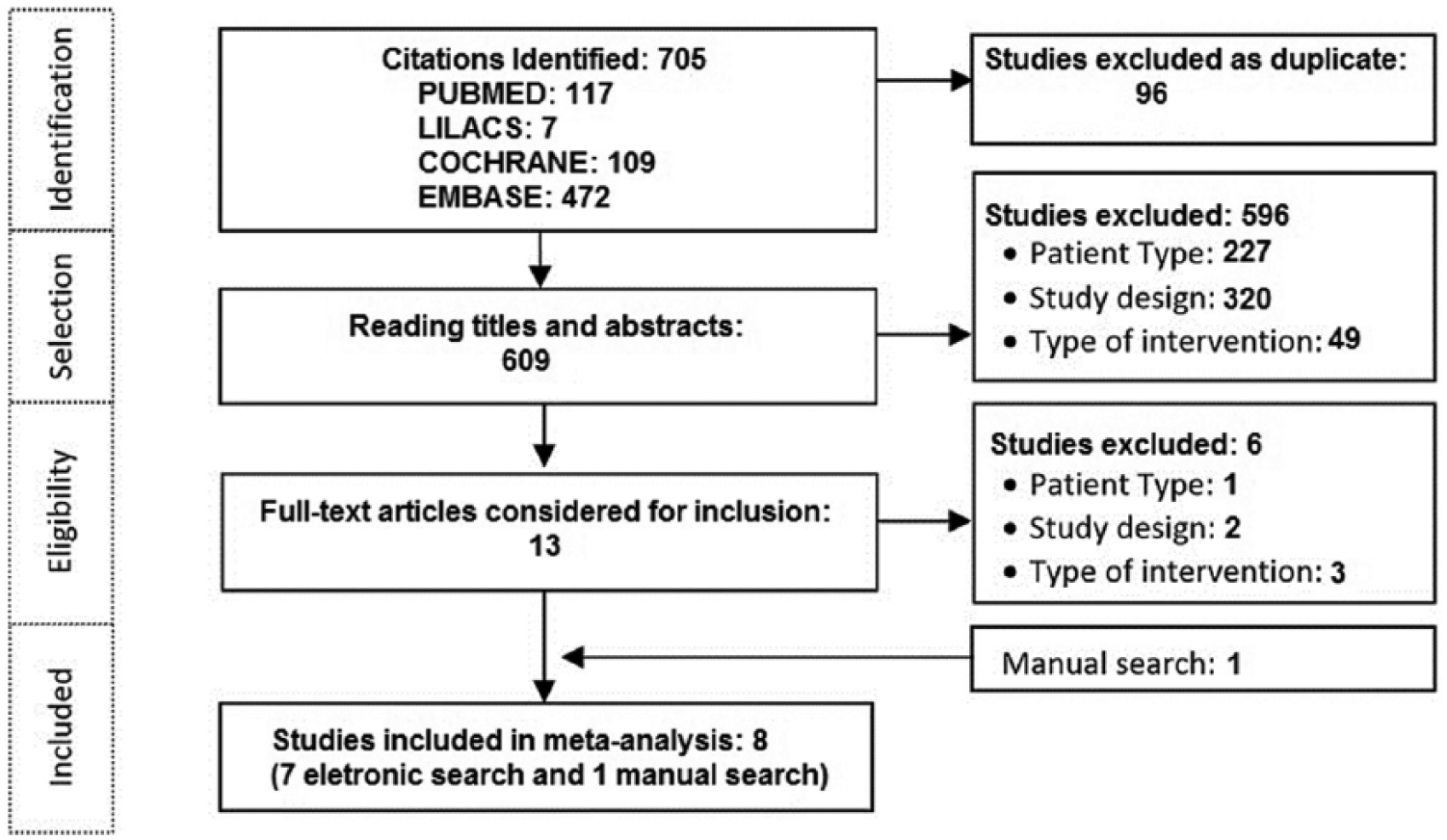

Figure 1.

Study selection chart.

Characteristics of included studies

Of the eight cohort studies retrieved, three were nonconcurrent design^29–31 and five, concurrent.^32–36 Five studies were multicenter studies^{30,32,33,35,36} and three were single-center studies.^29,31,34 The follow-up time ranged from 3.5 to 54 months (Table 2).

Table 2.

General characteristics of included studies.

Study	Yearof publication	Typeof study	Numberof participants^*	Male (%)	Meanage	Patients	Locationof study	Scope	Conflict of interest	Financing	Classification of the duration of the study^****	Total score in Newcastle–Ottawa Scale
Abali et al. ²⁹	2014	Cohort no (concurrent)	117 (85/32)	55	12 ± 3.4	Pediatric	Turkey	SC	NR	NR	Long	7
Haukka et al. ³⁰	2013	Cohort no (concurrent)	7110 (3359/7110)	NR	NR	Pediatric and adult	Finland	MC	Yes	Novo Nordisk	Long	6
Kabadi et al. ³¹	2008	Cohort no (concurrent)	45 (24/21)	56	NR	Adult	USA	SC	No	No	Intermediate	7
Jinno et al. ³²	2012	Cohort no concurrent	90 (29/90)	36	11.9 ± 3.8	Pediatric	Japan	MC	NR	Japan Diabetes Foundation	Long	6
Hermansen et al. ³³	2009	Cohort no (concurrent)	643 (643/643)	39	40.3 ±15.7	Adult	6 countries ^**	MC	Yes	Novo Nordisk	Intermediate	7
Preumont et al. ³⁴	2009	Cohort no (concurrent)	181 (181/181)	NR	NR	Adult	Belgium	SC	Yes	Novo Nordisk	Intermediate	6
Yenigun et al. ³⁵	2009	Cohort no (concurrent)	508 (482/26)	48	NR	Adult	11 countries ^***	MC	Yes	Novo Nordisk	Long	7
Dornhorst et al. ³⁶	2007	Cohort no (concurrent)	3330 (1665/1665)	NR	NR	Adult	Austria, Czech Republic and Denmark	MC	Yes	Novo Nordisk	Short	5

The value in brackets indicates (n_i/n_c) where, n_i = the number of participants in the intervention group (glargine), and n_c = the number of participants in the control group (detemir).

Czech Republic, United Kingdom, Republic of Ireland, Netherlands, Sweden and Finland.

***

Austria, Czech Republic, Denmark, Finland, Germany, Ireland, Israel, Netherlands, Sweden, Turkey and United Kingdom.

****

Studies with follow-up time up to 3 months were classified as short, 3–6 months as intermediate and >6 months as long.

NR, not reported; Cohort no, study with declaration of no conflict of interest; SC, single center; MC, multicenter.

Five studies^{30,33,34–36} declared conflicts of interest, one³¹ stated the absence of conflicts of interest and two^32,37 didn’t mention this. Only two studies^32,37 did not report funding, five studies^30,33–36 were funded by the pharmaceutical industry and a single study³¹ had its own financing. Two studies evaluated only pediatric patients, five studies, only adult patients, and one study, both adults and children. The eight studies included a total of 9375 patients (Table 2).

With respect to the characteristics of patients, the average age ranged between 12 and 49 years, 56% were men, and the average disease duration ranged from 4 to 21 years.

Methodological quality

No studies obtained the maximum score of nine stars on the Newcastle–Ottawa Scale (Table 2). Four studies scored seven, three scored six, and one scored five. The quality of the included studies was ranked as high. There was asymmetry in the funnel plot (Figure 2) for the HbA1c outcome, suggesting an influence of publication bias.

Figure 2.

Funnel plot of mean difference in glycated hemoglobin.

Summary of the findings

To assess the effectiveness and safety of the different long-acting insulins in meta-analysis, the following outcomes were included: HbA1c, severe hypoglycemia, total dose of insulin and fasting glucose. As for the outcome of events of NH, we described only the results presented in each study, since they did not provide data in pairs that could be combined in a meta-analysis.

HbA1c analysis was included six studies.^{29,31,33–36} The results did not favor any of the two long-acting insulins (p = 0.49), with an average difference of 0.10 (CI: −0.17, 0.37, p < 0.00001; I² = 89%), and significant heterogeneity (Figure 3).

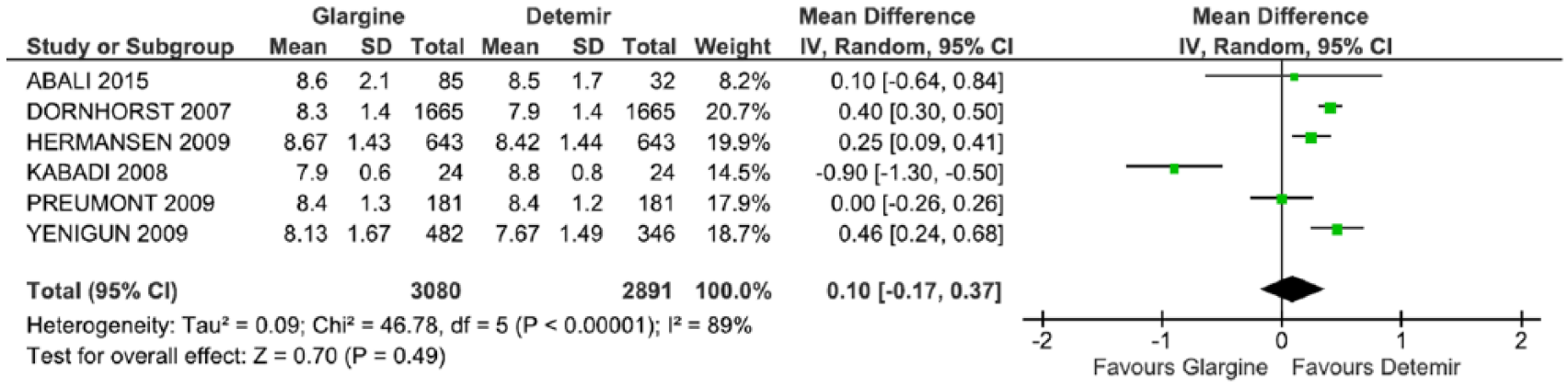

Figure 3.

Meta-analysis of glycated hemoglobin (%).

In the meta-analysis that assessed the total dose of insulin administered, four studies were included.^29,31,34,35 There was a statistically significant difference favoring GLA (p = 0.006) in −0.07 (CI: −0.12, 0.02, p = 0.007; I² = 75%) and with a significant heterogeneity (Figure 4).

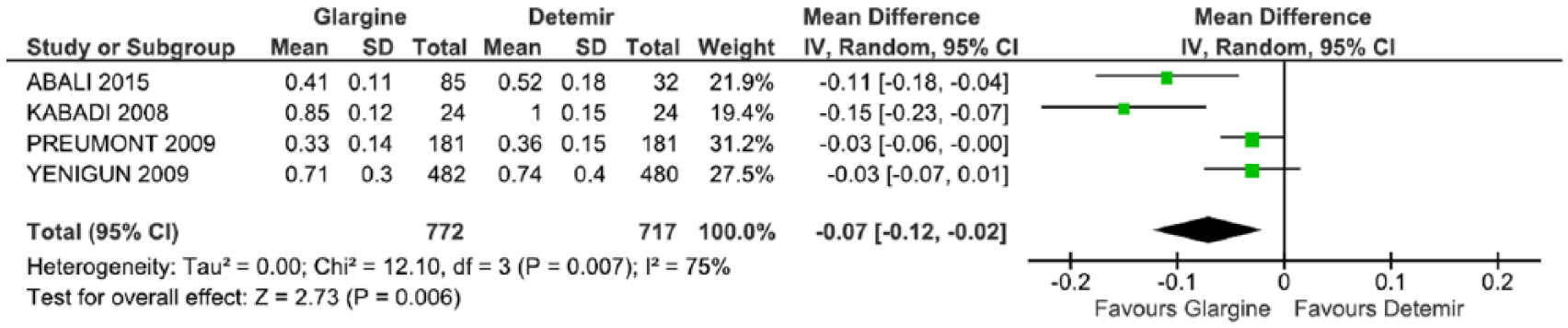

Figure 4.

Meta-analysis of full insulin dose (U/kg/day).

In the meta-analysis that assessed the occurrence of severe hypoglycemia, only two studies were included.^30,36 The data showed a statically significant difference favoring DET (p = 0.002), with an average difference of 0.68 (CI: 0.26, 1.10, p = 0.30; I² = 8%) (Figure 5).

Figure 5.

Meta-analysis of severe hypoglycemia (episodes/person-year).

Five studies were included in the evaluation of fasting glucose levels.^32–36 The result was statistically significant, favoring DET (p = 0.01), with an average difference of 0.64 (CI: 0.13, 1.15, p < 0.00001; I² = 89%) with a high heterogeneity (Figure 6).

Figure 6.

Meta-analysis of fasting glucose (mmol/l).

Nocturnal hypoglycemia events were assessed in the meta-analysis because the studies did not present data that could be combined. In the study of Yenigun and colleagues,³⁵ nocturnal hypoglycemia events per patient-year were reduced to 10.01 with GLA once a day and to 3.77 with DET once a day (p < 0.0001). Dornhost and colleagues³⁶ noted a decrease of 10.1 nocturnal hypoglycemia events per patient-year with GLA versus DET (p < 0.0001).

In the study of Haukka and colleagues,³⁰ DET presented a lower risk of 13.1% (1.0%), 29.6−23.6% (−47.8%) and 17.9–5.1% (3.6–30.1%) for the occurrence of the first recurring hypoglycemia, as well as hypoglycemia and coma hypoglycemia (p = 0.034, p = 0.021, p = 0.016), respectively, versus GLA.

Analysis of subgroups

The outcome of HbA1c was also evaluated in two subgroups: the time of follow up and the presence of conflict of interest.

Studies classified as intermediate follow up^31,33,34 (Table 2) had nonstatistically significant findings (p = 0.51) (MD = −0.19; CI: −0.74, 0.37, p < 0.0001; I² = 93%). In longer duration studies,^29,35 the difference of the average was estimated at 0.43 (CI: 0.22, 0.64, p = 0.36; I² = 0%) favoring DET. When consolidated, an estimate of the difference of the average was 0.10 (CI: –0.17, 0.37, p < 0.00001; I² = 89%) with high heterogeneity and did not favor either of the two long-acting insulins. Sensitivity analyses excluding one study³¹ affected the outcome favoring DET (p = 0.0005) and decreasing the heterogeneity for I² = 61% (Table 3, Figure 7).

Table 3.

Result of meta-analysis.

Outcome	Number of studies	Participants	Estimated effect (CI 95%)	I² (%)	p value^*
(1) HbA1c (%)	6	5971	0.10 (−0.17, 0.37)	89	0.49
(1.1) Studies of intermediate duration	3	1696	−0.20 (−0.77, 0.38)	91	0.51
Long-term studies	2	945	0.43 (0.64, 0.22)	0	<0.0001
Studies of short duration	1	3330	0.40 (0.30, 0.50)	–	<0.00001
(1.2) With conflict of interest	4	5806	0.30 (0.12, 0.47)	0	<0.00001
Without conflict of interest	2	165	−0.45 (−1.43, 0.52)	86	0.0007
(2) Severe hypoglycemia (episodes/person-year)	2	8598	0.68 (0.26, 1.10)	8	0.002
(3) Total dose of insulin (U/kg/day)	4	1489	−0.07 (−0.12, −0.02)	75	0.006
(4) Fasting glucose (mmol/l)	5	5816	0.64 (0.13, 1.15)	89	0.01

p value of the test for general effect.

CI, confidence interval; HbA1c, glycated hemoglobin.

Figure 7.

Meta-analysis of glycated hemoglobin (%) in a subgroup of the study duration.

In the subgroup of studies without conflicts of interest,^29,31 there were no statistically significant differences in HbA1c (DM = −0.45, CI = −1.43, 0.52, p = 0.02; I² = 82%). In the subgroup of studies with conflicts of interest,^33–36 there was an estimated average difference of 0.30 (CI: 0.14, 0.46, p = 0.01; I² = 72%) favoring DET. All the results showed no statistically significant difference between the two long-acting insulins with a mean difference of 0.10 (CI: –0.17, 0.37, p < 0.00001; I² = 89%), with high heterogeneity (Table 3, Figure 8). The exclusion of any studies in the sensitivity analyses affected the direction of the result.

Figure 8.

Meta-analysis of glycated hemoglobin (%) in the conflict-of-interest subgroup.

Discussion

Faced with a chronic disease such as DM1, which requires that patients take care of themselves over a long period of time, it is necessary to outline a plan of action which can be modified when new clinical findings or laboratory results justify such modification. Intensive therapy, bringing together multiple daily injections and self monitoring, aiming to achieve improved glycemic control, are considered the optimal treatment for the DM1 to reduce the risk of complications. Strict control of DM1 can delay the progression of chronic microvascular complications in approximately 50% of cases, which makes the treatment of DM1 cost effective.³⁸

The availability of long-acting insulins adds to the armamentarium where there are concerns about HbA1c control and hypoglycemia with current approaches. The findings from our meta-analysis of Hb1Ac found no differences between the two long-acting insulins (GLA and DET) in terms of glycemic control. Similar results were also described in randomized clinical trials (RCTs) and systematic reviews that compared GLA, DET and NPH insulin.^{9–12,33,34,39} Swinnen and colleagues, in their earlier systematic review of RCTs comparing GLA versus DET, also showed that glycemic control, as measured by the Hb1Ac, did not differ statistically significantly between the different long-acting insulins,³⁷ supporting our findings.

When evaluating the results of HbA1c, the studies-without-conflict-of-interest subgroup did not show a statistically significant difference between GLA and DET. In the subgroup with conflicts of interest, the results favored DET, but the reference values for HbA1c control, recommended by the American Diabetes Association as below 7.0%, were not achieved.³⁸ Bekelman and colleagues claim that financial relations between industry, researchers and academic institutions, can lead to favorable results for the sponsor, which can compromise subsequent patient welfare.⁴⁰ Similar results were found in a previous meta-analysis.¹⁰

Two studies were included in the meta-analysis of doses used, with the results favorable to GLA. A daily dose (possibly two) is a basal scheme, with lispro/asparte/glulisine before each meal or, in the case of unpredictability of food intake (common in children), immediately after the meal. Despite GLA and DET having very similar absorption curves, there are differences between the two insulins, as a side-chain fatty acid promotes the formation of hexamers in the injection site, decreasing the absorption of DET and prolonging even further its action, indicating that the doses of DET should be about 30% higher than the doses of NPH used previously.⁴¹ On the other hand, there seems to be less intra-individual variation with the use of DET compared with GLA and NPH.⁴²

The results of the meta-analysis of severe hypoglycemia involving 8598 patients showed statistical significance, favoring DET. Singh and colleagues⁸ showed that the DET reduced the risk of occurrence of episodes of severe and nocturnal hypoglycemia in relation to NPH, an advantage not seen with GLA insulin. Pieber and colleagues⁴³ showed that the use of DET is equally effective in glycemic control versus GLA in patients with DM1, but with less daytime or severe hypoglycemia. However, in relation to the control of hypoglycemia episodes (any episode of hypoglycemia), the meta-analysis by Monami and colleagues⁹ showed that the incidence of any event of hypoglycemia was equal among the long-acting insulin analogs and NPH insulin.

In this context, self management is integral to the control of DM1, as it allows patients to assess their individual response to therapy with insulin, as well as monitor whether blood glucose targets are being effectively achieved, and may be useful in preventing hypoglycemia or hyperglycemia symptoms and therapeutic adjustment.⁴⁴

The results of the meta-analysis of fasting glucose also favored DET, with lower values in patients treated with DET when compared with GLA. However, recent studies have questioned this parameter to monitor the glycemic control of patients, because it reflects a one-time nonrecurring measure, at the time of blood collection.³⁷

Although some results favored the DET, in most cases, the therapeutic goal for glycemic control was not achieved in the groups of patients monitored. This can be due to barriers the disease imposes, such as the occurrence and fear of hypoglycemic events, the complexity of daily treatment, the need for self monitoring and frequent adjustments of insulin doses, and because in routine clinical care, the results from long-acting insulin analogs may not duplicate those observed in RCTs.^4–8 Consequently, the choice of long-acting insulin analogs should be based on the individual characteristics of the patient, the effectiveness of existing therapies and any cost differential between the different insulins.

Currently, the annual cost of treating people with DM represents approximately 12% of total health expenditure in the world.⁴ Whilst not the subject of this review, the cost differential between GLA, DET and NPH insulins must be considered, especially in healthcare systems striving for, or currently attaining, universal access within finite resources. A study conducted by the Canadian Agency for Drugs and Technologies in Health (CADTH) compared the cost effectiveness of GLA and DET with NPH in patients with DM1 and DM2, and noted that the long-action analogs are not cost effective and that the substitution of NPH by DET and GLA in patients with DM1 would be costly to the Canadian health system.¹³ Evaluations carried out in the United Kingdom estimated savings of up to US $836 million over a decade with greater use of NPH versus long-acting analogs.⁴⁵ The savings would have been higher if you take into account the Brazilian perspective, since in the United Kingdom, the cost differential between long-acting analogs and NPH insulin is lower than the 536% differential that currently exists in Brazil.

However, in 2017, the National Agency of Sanitary Vigilance [Agência Nacional de Vigilância Sanitaria (ANVISA)] of Brazil registered a GLA biosimilar (Abasagar), with its price determined by the Regulation of the Marketing of Medicines [Câmara de Regulação do Mercado de Medicamentos (CMED)] at 70% lower than originator GLA and 45% lower than DET.^46,47 This systematic review and meta-analysis, along with other studies and economic analyses, can help health authorities, and those responsible for the coordination of health programs and services within finite resources in Brazil and other countries with universal healthcare, re-evaluate the possible incorporation of different long-acting analogs into the list of publicly funded of medicines, as well as potentially help with price negotiations. In Germany, after the authorities recommended the exclusion of short-acting insulin analogs since there were no data demonstrating superiority over NPH insulin to justify significantly higher prices, the manufacturers introduced significant price reductions to continue being reimbursed.⁴⁸ A similar approach could be adopted in Brazil, as well as in the state of Minas Gerais, as more biosimilar long-acting analogs become available with limited differences between them, in terms of their clinical effectiveness and safety, and potentially considerable price reductions versus the originators. These are considerations for the future.

We acknowledge there are limitations of this systematic review. It included cohort studies with the intrinsic selection bias of observational studies. There were also differences in the number of participants between the groups and the monitoring period between studies. Nevertheless observational studies generally have greater statistical power and a population closer to the ‘real world’, that is, with broader inclusion criteria, without exclusion of patients with potentially more complicated disease and without the strict limits of RCTs.

The selected data for the meta-analysis can also be influenced by publication bias, that is, the tendency of the published results is systematically different from reality. An analysis of clinical trials registered on the basis of the ClinicalTrial.gov protocol revealed that less than 70% of studies are published.⁴⁹ The nonpublication of results may be due to the decision of the author or the funder of the study where there are unfavorable findings; alternatively, less interest from publishers of scientific journals where there are negative results or results without statistical significance. The publication bias, with the selection of favorable results, can also influence the data used in meta-analyses.⁴⁰ To minimize the potential for publication bias, a comprehensive search was conducted, including gray literature and complementary searches. However, in this systematic review analysis of the funnel plot we found asymmetry. Most of the studies showed great precision though, usually performed with large samples, and distributed symmetrically in the upper part of the funnel. Only the study by Kabadi and colleagues³¹ showed lower precision, located on the outside of the funnel. Another limitation of our meta-analysis was the small number of studies included in the review and the lack of complete and accurate information for inclusion in the quantitative analyses, as few published studies made direct comparison between GLA and DET, which hindered the explanation of sources of heterogeneity. In relation to the sensitivity analysis, the inclusion and exclusion of studies in each comparison did not change the direction of most outcome measures, without significant changes in heterogeneity, with the exception of the study by Kabadi and colleagues,³¹ which when deleted, changed the direction of the results in the analysis favoring DET. Overall, the scarcity of studies comparing GLA versus DET, and the absence of other analyses with ‘real world’ data, make it difficult to fully compare the results. Nevertheless, we believe our findings are robust, providing direction to the authorities in Brazil and wider.

Conclusion

Although some results are favorable to DET, it has not been possible to identify differences in effectiveness and safety compared with GLA. This would require new long-term studies and better methodologies. Nevertheless, our findings, suggesting limited clinical differences between the different long-acting insulin analogs, can help in the current debate on the inclusion of long-acting analogs, including biosimilars, in the official list of medicines reimbursed in Brazil. The market entry of GLA and other future biosimilars can assist with price negotiations and subsequent listing, including potentially expanding population groups. It is important to note though that for good glycemic control, therapeutic interventions should be accompanied by continuous monitoring of blood glucose, dietary interventions and effective education. These are considerations for the future.
