Hydrogel-Embedded Poly(Lactic- co -Glycolic Acid) Microspheres for the Delivery of hMSC-Derived Exosomes to Promote Bioactive Annulus Fibrosus Repair

Abstract

Objective

Intervertebral disk degeneration is a prevalent postoperative complication after discectomy, underscoring the need to develop preventative and bioactive treatment strategies that decelerate degeneration and seal annulus fibrosus (AF) defects. Human mesenchymal stem cell–derived exosomes (MSC-Exos) hold promise for cell-free bioactive repair; however, their ability to promote AF repair is poorly understood. The objective of this study was to evaluate the ability of MSC-Exos to promote endogenous AF repair processes and integrate MSC-Exos within a biomaterial delivery system.

Design

We characterize biophysical and biochemical properties of normoxic (Nx) and hypoxic (Hx) preconditioned MSC-Exos from young, healthy donors and examine their effects on AF cell proliferation, migration, and gene expression. We then integrate a poly(lactic-co-glycolic acid) microsphere (PLGA µSphere) delivery platform within an interpenetrating network hydrogel to facilitate sustained MSC-Exo delivery.

Results

Hx MSC-Exos led to a more robust response in AF cell proliferation and migration than Nx MSC-Exos and was selected for a downstream protection experiment. Hx MSC-Exos maintained a healthy AF cell phenotype under a TNFα challenge in vitro and attenuated catabolic responses. In all functional assays, AF cell responses were more sensitive to Hx MSC-Exos than Nx MSC-Exos. PLGA µSpheres released MSC-Exos over a clinically relevant timescale without affecting hydrogel modulus or pH upon initial embedment and µSphere degradation.

Conclusions

This MSC-Exo treatment strategy may offer benefits of stem cell therapy without the need for exogenous stem cell transplantation by stimulating cell proliferation, promoting cell migration, and protecting cells from the degenerative proinflammatory microenvironment.

Introduction

Lesions in the annulus fibrosus (AF) are a significant risk factor for intervertebral disk (IVD) herniation, biomechanical dysfunction, and progressive degeneration, yet current discectomy procedures do not repair AF defects after nerve root decompression.^1-4 Since the IVD is the largest avascular organ in the body, it has a poor intrinsic healing capacity and AF defects tend to heal by the formation of a fibrous capsule at the outer AF.^5-8 These poor healing outcomes can lead to painful postoperative complications following discectomy such as recurrent herniation and progressive IVD degeneration (IVDD), thus motivating development of strategies that improve repair of AF defects to slow IVDD and mitigate the risk of adverse events after surgery.^9-13

Injectable bioadhesive hydrogels are an emerging treatment option to seal AF defects and prevent recurrent herniation of nucleus pulposus (NP) tissue. Our group recently developed a 2-part biomaterial repair strategy composed of a dual-modified glycosaminoglycan that bonds an interpenetrating network (IPN) hydrogel to extracellular matrix proteins to seals AF defects. ¹⁴ The low modulus hydrogel had low herniation risk and may be amenable for delivery of bioactive agents. Regenerative strategies that promote AF repair using exogenous cell delivery is challenging because of low cell viability, injectate leakage, aberrant differentiation, and osteophyte formation.^15-22 The development of cell-free alternatives that can overcome these translational obstacles and prevent progressive IVDD.^23-27 Furthermore, its delivery in a biomaterial sealant also has potential to provide functional repair.

Mesenchymal stem cell-derived exosomes (MSC-Exos) are an emerging cell-free strategy with demonstrated potential to promote endogenous tissue repair for a number of tissuese.^28-31 Specifically, MSC-Exos enhanced healing outcomes by attenuating inflammation, reducing catabolism, decreasing levels of apoptosis, promoting proliferation, and stimulating migration.^28,29,32,33 The use of MSC-Exos to treat IVDD is still in its infancy, with few prior studies targeting IVDD. Studies that do use MSC-Exos for IVDD focus on NP or organ-level responses to treatment with a dearth of information regarding AF responses to treatment.^34-43 Given the distinct differences between AF and NP phenotypes, as well as their functional roles in IVD homeostasis and healing, there is a clear need to define AF cell treatment responses to MSC-Exos in order to evaluate their regenerative potential for cell-free therapy in a tissue-specific manner.^44-46

Two important considerations for the success of MSC-Exo therapy are the specific bioactive cargo and the delivery system. Few studies have demonstrated regulatory effects of the parent cell’s culture environment on the MSC-Exos molecular signature which may be implicated in MSC-Exo treatment responses. ⁴⁷ Particularly, the oxygen tension (pO₂) of MSC culture may differentially regulate specific small RNA transcripts.^48-50 Therefore, normoxic (Nx; 18.6% O₂) and hypoxic (Hx; 5% O₂) MSC culture conditions were used to determine the influence of pO₂ on the composition of human MSC-Exos. In regard to the delivery system, poly(lactic-co-glycolic acid) (PLGA) is a Food and Drug Administration (FDA)-approved biodegradable, biocompatible synthetic copolymer that is widely used to fabricate microsphere carriers (PLGA µSpheres) for controlled release applications. ⁵¹ PLGA µSpheres loaded with MSC-Exos may be integrated into our IPN hydrogel to form a bioactive AF sealant given that they achieve the following design goals: (1) incorporation of PLGA µSpheres does not significantly stiffen hydrogel constructs since the IVD herniation risk was shown to be inversely proportional to the hydrogel stiffness ¹⁴ ; (2) degradation of PLGA µSpheres does not significantly decrease the environmental pH to that which aligns with the degenerative microenvironment since PLGA hydrolytically degrades into 2 acidic compounds and the acidic milieu can promote progressive degeneration^20,52-54; and (3) PLGA µSpheres demonstrate proof-of-concept encapsulation and subsequent release of MSC-Exos on a clinically relevant timescale in order to postoperatively enhance endogenous AF repair responses.

The global objectives of this study are 2-fold: (1) to evaluate the therapeutic potential of MSC-Exos to enhance endogenous AF repair and prevent hallmarks of IVDD in vitro and (2) integrate a biodegradable MSC-Exo carrier for local delivery to the AF ( Fig. 1 ). In Part 1, we compare the biophysical and biochemical composition between Nx and Hx preconditioned MSC-Exos, then assess migratory and proliferative AF cell responses to MSC-Exo treatment in order to select the MSC pO₂ conditioning environment with the most robust responses. We next apply this MSC-Exo group to TNFα-challenged AF cells to determine whether MSC-Exos can enable AF cells to resist aberrant changes in cell phenotype under a proinflammatory cytokine challenge. In Part 2, we integrate a degradable PLGA µSphere carrier within an adhesive hydrogel system for the local delivery of MSC-Exos to AF repair sites. We evaluate the effects of PLGA µSphere embedment on the short- and long-term mechanical and material properties of the hydrogel, assess the effect of PLGA degradation on culture acidity, and determine whether PLGA µSpheres can feasibly encapsulate MSC-Exos and enable sustained release. Successful completion of Parts 1 and 2 will demonstrate proof-of-concept that IPN hydrogel-embedded PLGA µSpheres loaded with MSC-Exos can be used to engineer a bioactive AF sealant for treating IVDD.

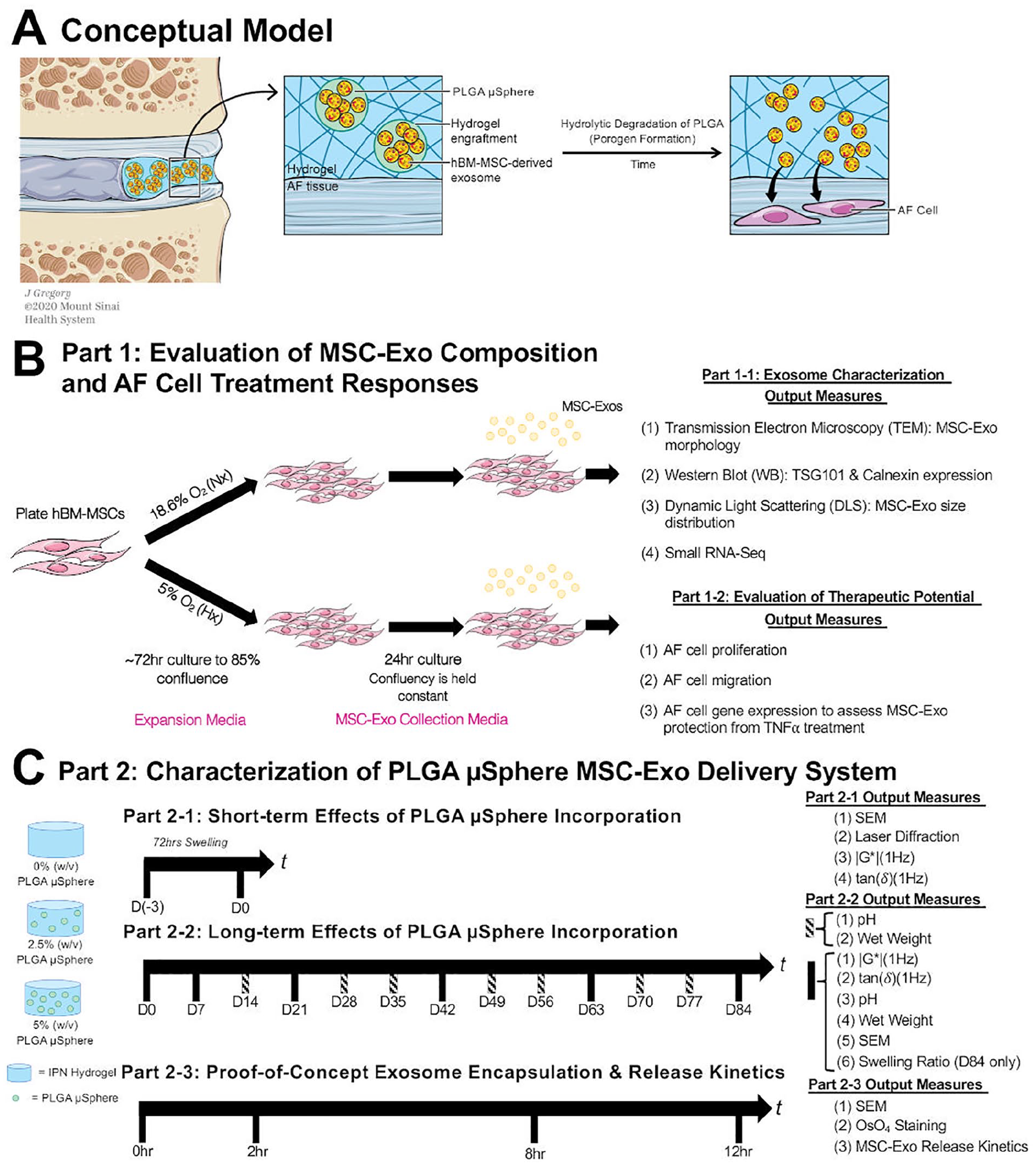

Figure 1.

Conceptual model of the bioactive AF repair strategy and 2-part study design. (A) Conceptual model of MSC-Exo-laden IPN hydrogel for cell-free AF repair. (B) Part 1 study design for MSC-Exo characterization and AF cell treatment. (C) Part 2 study design to characterize MSC-Exo delivery system. AF = annulus fibrosus; MSC-Exo = mesenchymal stem cell-derived exosome; IPN = interpenetrating network; PLGA = poly(lactic-co-glycolic acid); hBM = human bone marrow; SEM = scanning electron microscopy.

Materials and Methods

hBM-MSC Culture for MSC-Exo Production

Human Bone Marrow-MSCs (hBM-MSCs) from 3 young, healthy biological donors (MSC00115, MSC00175, and MSC00179) were purchased from RoosterBio Inc., Frederick, MD. MSC donor selection criteria included young adult age, high positivity for CD166, CD105, CD90, and CD73 flow markers, and negative for CD14, CD34, and CD45 flow markers. hBM-MSCs from donor MSC00115, MSC00175, and MSC00179 were isolated from a 20-year-old female, a 25-year-old male, and a 21-year-old male, respectively. hBM-MSCs for all donors were demonstrated to have trilineage (adipogenic, osteogenic, and chondrogenic) differentiation potential from the supplier. Frozen hBM-MSCs (RoosterVial™-hBM-10M) were thawed and spun down to remove excess dimethyl sulfoxide (DMSO) in the freezing medium, then cultured using tissue culture treated Corning® CellSTACK® CS2 culture chambers (Corning Inc., Kennebunk, ME). hBM-MSCs were cultured in either normoxic (18.6% O₂, 5% CO₂, 70.2% N₂) conditions or hypoxic conditions (5% O₂, 5% CO₂, 83.8% N₂) at 37 °C for expansion according to supplier’s instructions.

At 90% confluency, hBM-MSC expansion culture medium was aspirated and fully exchanged with RoosterCollect™-EV medium supplemented with of EV Boost™. After 24 hours, the MSC-conditioned medium was collected and stored at −80 °C until downstream use for MSC-Exo isolation. Of note, hypoxic conditioned hBM-MSCs remained in the hypoxic incubator, undisturbed for the full expansion phase (~72 h) as well as the MSC-Exo conditioning phase (~24 h), with the exception to exchange media after confluency was reached (~5 min). ⁵⁵

MSC-Exo Isolation from MSC Conditioned Medium

MSC-Exos were isolated from conditioned media by ultracentrifugation and separated from the soluble protein fraction using a sucrose gradient, as previously described. ⁵⁶ The Micro BCA™ Protein Assay Kit (Thermo Fisher Scientific, Rochester, NY) was used according to manufacturer’s instructions to quantify MSC-Exo concentration in all freshly isolated samples and then immediately stored at −80 °C until downstream use.

Transmission Electron Microscopy

Isolated MSC-Exos were characterized by transmission electron microscopy (TEM) to examine MSC-Exo morphology. MSC-Exos samples were first fixed in 2% paraformaldehyde (PFA; Electron Microscopy Sciences, Hatfield, PA) for 5 minutes and subsequently loaded on copper grids (Electron Microscopy Sciences) to air dry for 10 minutes. After drying, 1% uranyl acetate solution was applied to the sample for at least 10 minutes for negative staining. Samples were then imaged at 80 kV and 25,000x magnification on a HT7000 transmission electron microscope (Hitachi America, Ltd., Santa Clara, CA).

Dynamic Light Scattering

Isolated MSC-Exos were characterized by dynamic light scattering (DLS) to determine nanoparticle size distribution. About 30 µL of reconstituted MSC-Exos was added to 970 µL of 1X phosphate-buffered saline (PBS) in a spectrophotometry cuvette (Fisher Scientific, Fair Lawn, NJ). The cuvette was placed in the ZetaPALS Zeta Potential Analyzer and data were acquired over 3 cycles (1.5 min/cycle) and analyzed using ZetaPALS Particle Sizing Software (Brookhaven Instruments Corporation, Holtsville, NY). Lognormal size distributions for each sample were exported and the D₅₀ values for hydrodynamic diameters were recorded.

MSC-Exo Protein Extraction and Western Blot

Following ultracentrifugation, MSC-Exos were lysed directly in 1x Pierce™ RIPA Lysis and Extraction Buffer (Thermo Fisher Scientific) at 4 °C. After collection, protein expression in MSC-Exos was analyzed by western blot, as previously described.^56,57 The 2 primary antibodies were used to examine protein expression in MSC-Exo samples and hMSC lysate controls: Mouse monoclonal antibody [4A10] to human TSG101 (ab83, 1:1000, Abcam Inc., Cambridge, MA) and rabbit polyclonal antibody to human Calnexin (ab22595, 1:1000, Abcam Inc.). ⁵⁸ IRDye® goat-anti-mouse or IRDye® goat-anti-rabbit were used as secondary antibodies (1:10,000 in 5% [w/v] non-fat milk in TBS-T, Jackson ImmunoResearch Laboratories, West Grove, PA). Polyvinylidene difluoride (PVDF) membranes were imaged using the Azure c600 Gel Imaging System (Azure Biosystems, Dublin, CA).

MSC-Exo RNA Isolation and Small RNA-Seq

Following ultracentrifugation, MSC-Exos were collected directly in 500 µL of QIAzol Lysis Reagent (QIAGEN Sciences, Germantown, MD). After collection, samples were transferred into sterile 1.5 mL microcentrifuge tubes and total MSC-Exo RNA was isolated using a guanidinium thiocyanate-phenol-chloroform extraction method. ⁵⁹ MSC-Exo RNA concentration was quantified using a Qubit® RNA High Sensitivity Assay Kit (Invitrogen, Carlsbad, CA) according to the manufacturer’s instructions with a Qubit® 4 Fluorometer (Invitrogen). Samples were stored at −80 °C until downstream use for sequencing.

Sequencing was performed on an Illumina NextSeq 500 platform (Illumina, San Diego, CA) with NextSeq 500/550 High Output Kit V2 (Illumina) as the sequencing platform reagent. Norgen Biotek Small RNA Library Prep Kit was used for library preparation (Norgen Biotek Inc., Thorold, ON, Canada). miRbase version 21, gtRNAdb, RNAdb, Gencode version 21 (hg38) were used as reference/database sequences for miRs, tRNAs, piRNA, and genome species, respectively. Read counts of RNAs were first normalized using the trimmed mean of M-values normalization (TMM) method to adjust for sequencing library size difference. ⁶⁰ To test whether any miRNAs were differentially expressed between Hx and Nx MSC-Exo samples, paired differential expression analysis was performed by employing a moderated t test implemented in the limma package. ⁶¹

Primary AF Cell Isolation

Primary bovine AF cells from were isolated from 10 healthy and skeletally mature biological donors from coccygeal levels cc1/2, cc2/3, cc3/4, and cc4/5 using a collagenase digestion protocol as previously described. ¹⁴ All primary AF cells were expanded to passage 2 (p2) in complete growth medium and cryopreserved in 93% (v/v) fetal bovine serum (FBS; Gemini Bio-Products, West Sacramento, CA) and 7% (v/v) DMSO (Sigma-Aldrich Inc., St. Louis, MO) as freezing medium. Complete growth medium was composed of high glucose (4.5g/L) DMEM (Life Technologies Corporation, Grand Island, NY), 10% fetal bovine serum (Gemini Bio-Products), 1% penicillin/streptomycin (Life Technologies Corporation), and 0.2% l-ascorbic acid (Fisher Scientific).

Cell Proliferation Assay

AF cell proliferation was measured using the CellTiter-Glo® 2.0 Assay (Promega Corporation, Madison, WI) according to the manufacturer’s instructions. Bovine AF cells (p2) from 3 biological donors were plated into Nunc™ MicroWell™ 96-Well Optical Bottom Plates with Polymer Base (Thermo Fisher Scientific) at a density of 4,000 cells/cm². At the time of plating, cells were treated with 0 to 50 µg/mL of Nx or Hx MSC-Exos in serum-free medium from donors MSC00115, MSC00175, and MSC00179. All conditions were carried out in triplicate for all biological donors. Plates were cultured at 37 °C, 5% CO₂ until an assay timepoint was reached (0, 24, 48, and 72 h), then the CellTiter-Glo® 2.0 Assay was carried out. Luminescence in Relative Luminescence Units (RLUs) was recorded on a SpectraMax i3x Multi-Mode Microplate Reader (Molecular Devices, San Jose, CA). All RLU values were normalized to the untreated control values at each timepoint.

Transwell Migration Assay

AF cell migration was evaluated using a Corning™ Transwell™ Multiple Well Plate with Permeable Polyester Membrane Inserts (8 µm pore size) (Corning Inc.) and adapted from a previously established protocol. ⁶² Bovine AF cells (p2) were first seeded on the top of the filter membrane and experimental medium was placed carefully into the bottom of the lower chamber according to following conditions: (1) serum-free medium (negative control), (2) serum-free medium supplemented with 100 ng/mL recombinant human CCL5/RANTES as a comparison group (Cat. No. 278-RN-010/CF; R&D Systems Inc., Minneapolis, MN), and (3) serum-free medium supplemented with 50 µg/mL MSC-Exos. The well plate was then incubated at 37 °C, 5% CO₂ for 24 hours. After fixation with 4% paraformaldehyde at 4 °C for 15 minutes to fix migrated cells on the bottom side of the membrane, 0.2% (w/v) crystal violet (Sigma-Aldrich) was used to stain cells for 5 minutes. Transwell membranes were imaged on a Leica DM6 B (Leica Microsystems Inc., Buffalo Grove, IL). AF cell migration was evaluated for 3 biological donors in triplicate per condition. Migrated cells were counted using ImageJ software (National Institutes of Health, Bethesda, MD) and cell counts were normalized to the negative control conditions.

Fluorescent Labeling of MSC-Exos and Uptake Visualization

MSC-Exos were labeled using the PKH67 Green Fluorescent Cell Linker Kit for General Cell Membrane Labeling (Sigma-Aldrich) according to the manufacturer’s instructions. After preparation, samples were then centrifuged at 190,000 g for 2 hours at 4 °C. Following ultracentrifugation, the medium and interface layer was aspirated out and the fluorescently labeled MSC-Exo pellet was resuspended in sterile 1X PBS.

Bovine AF cells (p2) were plated in a Corning® Costar® 6-well Clear TC-Treated Multiple Well Plate (Corning Inc.) at a seeding density of 4000 cells/cm² in complete growth medium (2 mL/well). When 65% confluence was reached, complete growth medium was fully exchanged with serum-free medium for the following 2 conditions: (1) untreated serum-free medium and (2) serum-free medium supplemented with the total resuspended volume of fluorescently labeled MSC-Exos. Plates were incubated at 37 °C, 5% CO₂ for 6 hours. Following the 6-hour incubation period, AF cells were fixed with ice cold 4% PFA (Electron Microscopy Sciences) for 15 minutes, washed twice with 1X PBS (5 min/wash), and immediately imaged on a Leica DMi8 widefield microscope (Leica Microsystems Inc.).

AF Cell Protection Experiment

AF cells (p2) from 10 biological bovine donors were plated in Corning® Costar® 12-well Clear TC-treated Multiple Well Plates at a density of 4,000 cells/cm² in complete growth medium (1 mL/well). When 85% confluence was reached, growth medium was aspirated and fully replaced with serum-free medium. Cells were divided into the following 5 groups: (1) serum-free medium (untreated control), (2) serum-free medium supplemented with 10 ng/mL recombinant human TNFα (Cat. No. 210-TA-020/CF; R&D Systems Inc.), (3-5) serum-free medium pre-treated with 50 µg/mL Hx MSC-Exos from donors MSC00115, MSC00175, or MSC00179 for 1 hour and subsequently supplemented with 10 ng/mL recombinant human TNFα. Cells were incubated at 37 °C, 5% CO₂ for 24 hours.

RNA Isolation and Quantitative Real-Time Polymerase Chain Reaction

Following the protection experiment incubation period, AF cell RNA was isolated by guanidinium thiocyanate-phenol-chloroform extraction with TRIzol™ Reagent (Life Technologies Corporation), as described (“MSC-Exo RNA Isolation & Small RNA-Seq” section). cDNA was synthesized with 1 µg of total RNA from each sample using a High Capacity cDNA Reverse Transcription Kit (Applied Biosystems, Foster City, CA) according to the manufacturer’s instructions. Gene expression was determined using quantitative real-time polymerase chain reaction (qRT-PCR). An ABI PRISM® 7900HT Sequence Detection System (Applied Biosystems) was used to determine cycles to amplification for qRT-PCR reactions with Power SYBR™ Green PCR Master Mix (Applied Biosystems), according to manufacturer’s instructions. Specific primer sequences for genes of interest can be found in Table 1 . Fold changes in gene expression were determined using the 2^-ΔΔCt quantification method.

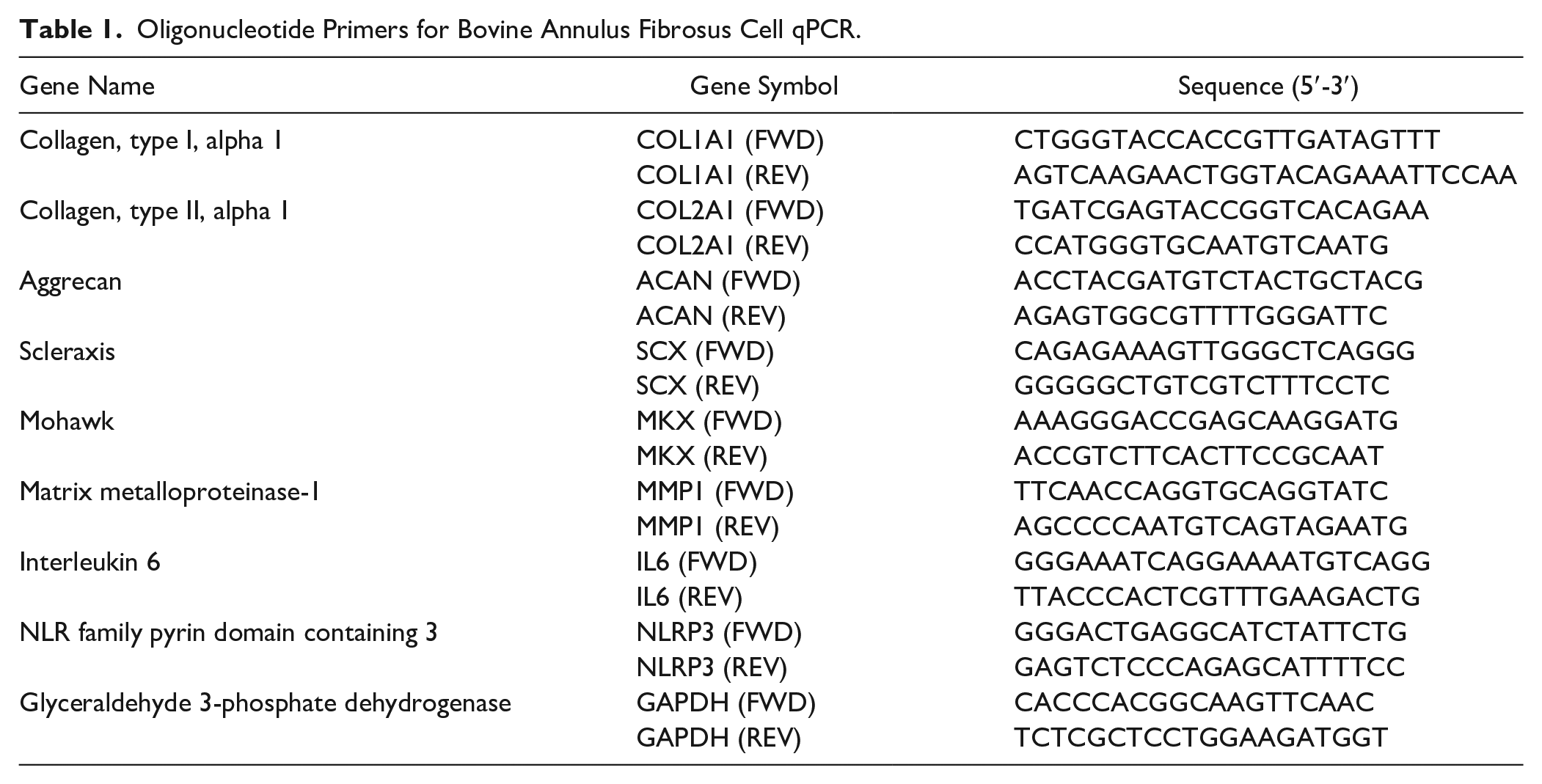

Table 1.

Oligonucleotide Primers for Bovine Annulus Fibrosus Cell qPCR.

Gene Name	Gene Symbol	Sequence (5′-3′)
Collagen, type I, alpha 1	COL1A1 (FWD)	CTGGGTACCACCGTTGATAGTTT
	COL1A1 (REV)	AGTCAAGAACTGGTACAGAAATTCCAA
Collagen, type II, alpha 1	COL2A1 (FWD)	TGATCGAGTACCGGTCACAGAA
	COL2A1 (REV)	CCATGGGTGCAATGTCAATG
Aggrecan	ACAN (FWD)	ACCTACGATGTCTACTGCTACG
	ACAN (REV)	AGAGTGGCGTTTTGGGATTC
Scleraxis	SCX (FWD)	CAGAGAAAGTTGGGCTCAGGG
	SCX (REV)	GGGGGCTGTCGTCTTTCCTC
Mohawk	MKX (FWD)	AAAGGGACCGAGCAAGGATG
	MKX (REV)	ACCGTCTTCACTTCCGCAAT
Matrix metalloproteinase-1	MMP1 (FWD)	TTCAACCAGGTGCAGGTATC
	MMP1 (REV)	AGCCCCAATGTCAGTAGAATG
Interleukin 6	IL6 (FWD)	GGGAAATCAGGAAAATGTCAGG
	IL6 (REV)	TTACCCACTCGTTTGAAGACTG
NLR family pyrin domain containing 3	NLRP3 (FWD)	GGGACTGAGGCATCTATTCTG
	NLRP3 (REV)	GAGTCTCCCAGAGCATTTTCC
Glyceraldehyde 3-phosphate dehydrogenase	GAPDH (FWD)	CACCCACGGCAAGTTCAAC
	GAPDH (REV)	TCTCGCTCCTGGAAGATGGT

PLGA µSphere Fabrication

Blank and exosome-loaded PLGA µSpheres were fabricated with poly(d,l-lactide-co-glycolide (PLGA; 75:25 lactide: glycolide; M_w = 66-107 kDa; Sigma-Aldrich) using a modified double emulsion technique. ⁶³ For exosome-loaded µSpheres, 125 µL of isolated MSC-Exos in 1X PBS was added to the primary emulsion and subsequently vortexed on high speed for 5 seconds. About 5 mL of 4% (w/v) poly(vinyl alcohol) (PVA; M_w = 31-50 kDa; 98-99% hydrolyzed; Sigma-Aldrich) was then added to the solution to form the second emulsion (w/o/w) and the second emulsion was vortexed for either 15 seconds (µSphere Condition 1), 30 seconds (µSphere Condition 2), 45 seconds (µSphere Condition 3), or 60 seconds (µSphere Condition 4). Following collection, PLGA µSpheres were frozen down at −80 °C overnight and subsequently lyophilized for 7 days to obtain freeze-dried µSphere product.

PLGA µSphere Particle Size Distribution Analysis

Particle size distribution (PSD) was measured for all µSphere conditions by laser diffraction with dynamic image analysis using a RODOS-Helos system (Sympatec Inc., Pennington, NJ) at an operating pressure of 0.5 bar. Following data acquisition, the D₁₀ (10^th percentile), D₅₀ (50^th percentile), and D₉₀ (90^th percentile) diameter values were recorded for each PLGA µSphere condition in triplicate batches.

IPN Hydrogel Fabrication

About 15% (v/v) poly(ethylene glycol) diacrylate (PEGDA; M_w = 20 kDa; Polysciences Inc., Warrington, PA) IPN hydrogels were fabricated as previously described. ¹⁴ Hydrogels for the short-term and long-term studies (Parts 2-1 and 2-2) incorporated blank PLGA µSpheres in the prepolymer solution at 2.5% (w/v) and 5% (w/v). Hydrogels for the release kinetics experiment (Part 2-3) incorporated MSC-Exo-laden PLGA µSpheres in the prepolymer solution at 2.5% (w/v) and 5% (w/v).

Scanning Electron Microscopy

Scanning electron microscopy (SEM) imaging was performed on a Hitachi S-4300 system (Hitachi America, Ltd.). All samples were prepared by lyophilization for 7 days and subsequently sputter coated with gold-palladium (Electron Microscopy Sciences) for 2 cycles. SEM images were taken at 2 to 5 kV to ensure that samples would not charge during image acquisition. Pore size and PLGA µSphere counts were quantified from independent technical replicates (N = 4-5/group) over the 84-day culture period. Hydrogel pore size measurements are reported as the largest pore diameter(s) for each discernable pore within 3 independent regions of interest (ROIs) for a given technical replicate. PLGA µSphere count is reported as the mean number of visible µSpheres across 3 regions of interest for a given technical replicate.

Hydrogel Mechanical Testing

Hydrogel specimens underwent parallel plate shear testing (N = 10/group) after a 72-hour swelling period in 1X PBS using a TA Instruments AR2000ex rheometer (TA Instruments, New Castle, DE) to evaluate short-term mechanical effects of µSphere embedment on IPN hydrogels. To examine the long-term effects of µSphere embedment on IPN hydrogel mechanical properties, the same mechanical testing protocol was performed on days 7, 21, 42, 63, and 84. Specimens underwent a frequency sweep from 0.1 to 10 Hz at 1% strain, and the complex modulus (|G*|) and tangent phase angle (tan δ) values were obtained at 1 Hz, which is a physiologically relevant loading frequency. ⁶⁴

pH Measurements

pH of solution was measured at the start of the 84-day culture period and every 7 days for each hydrogel in culture (N = 7-10/group/timepoint) using a FiveGo Portable F2 pH/mV Meter (Mettler-Toledo, Columbus, OH). Buffer was fully exchanged with sterile 1X PBS every 7 days and the pH of fresh buffer was measured before each exchange.

Specimen Wet Weight and Swelling Ratio

Before placing specimens in new buffer for medium exchange, the wet weight of all hydrogel formulations (N = 17-20/group/timepoint) was recorded using a Sartorius CP124S Analytical Balance (Sartorius Corporation, Bohemia, NY). After 84 days of culture, the hydrogel specimens were lyophilized for 7 days and the dry weight was recorded. Using both the wet and dry weight measurements at the 84-day timepoint, the swelling ratio was calculated using the following equation: Q_w = M_wet/M_dry.

Histological Assessment of PLGA µSpheres

Lyophilized PLGA µSpheres with and without encapsulated MSC-Exos were first embedded in Epredia™ HistoGel™ Specimen Processing Gel (Epredia, Kalamazoo, MI) and then fixed in aqueous buffered zinc formalin fixative (Anatech Ltd., Battle Creek, MI) for 48 hours. After fixation, specimens were placed in a 4% osmium tetroxide (OsO₄) solution (Electron Microscopy Sciences) for 2 hours to crosslink MSC-Exos lipids. Specimens were then infiltrated with a hydrophilic resin, 2-hydroxypropyl methacrylate (Sigma-Aldrich), for 48 hours with 2 changes of monomer solution. The monomer solution was then polymerized by the slow addition of heat at 37 °C to form blocks for sectioning. About 5 µm histological sections were then prepared, deplasticized, and imaged using a 63X oil immersion objective on a Leica DM6B Upright Microscope (Leica Microsystems GmbH, Wetzlar, Germany).

MSC-Exo Release Kinetics

MSC-Exo release kinetics for hydrogel-free µSpheres (i.e., PLGA µSpheres in 1X PBS) and hydrogel-embedded µSpheres (i.e., PLGA µSpheres in IPN hydrogels) was characterized by Nanoparticle Tracking Analysis (NTA) with a ZetaView® instrument (Particle Metrix Inc., Mebane, NC).^65,66 Samples were cultured in sterile 1X PBS, and culture medium was fully exchanged at collection timepoints and on a weekly basis. Releasate samples were collected at 0-, 2-, 8-, and 12-hour timepoints (N = 4/group/timepoint) for the following conditions: (1) 7.5 mg PLGA µSpheres in 1 mL sterile 1X PBS, (2) 15 mg PLGA µSpheres in 1 mL sterile 1X PBS, (3) 2.5% (w/v) PLGA µSpheres embedded in IPN hydrogels cultured with 3 mL sterile 1X PBS, and (4) 5% (w/v) PLGA µSpheres embedded in IPN hydrogels cultured with 3 mL sterile 1X PBS. About 7.5 mg PLGA µSpheres equates to the amount of µSpheres in one hydrogel-embedded technical replicate at 2.5% (w/v) and 15 mg PLGA µSpheres equates to the amount of µSpheres in one hydrogel-embedded technical replicate at 5% (w/v).

Statistical Analyses

Quantitative data were reported as mean ± standard deviation. Student’s t test assessed effects of pO₂ on MSC-Exo hydrodynamic diameter. Analysis of variance (ANOVA) with Tukey’s post hoc tests assessed effects of PLGA concentration on hydrogel swelling ratio (Q_w), and complex shear modulus (|G*|), and Brown-Forsythe and Welch ANOVA with Dunnett’s T3 assessed tangent phase angle (tan δ) due to unequal variance. Two-way ANOVA assessed quantitative data pertaining to AF cell proliferation response, AF cell migration, long-term|G*| response, long-term tan δ response, hydrogel pore size measurements, µSphere count measurements, and µSphere diameter, and MSC-Exo release kinetics measurements. Dunnett’s post hoc detected differences across groups in AF cell proliferation, long-term|G*| response, long-term tan δ response, and MSC-Exo release kinetics. Tukey’s post hoc was used to detect specific differences across groups in hydrogel pore size over time. Šidák’s multiple comparison test detected differences across groups in AF cell migration. Mixed-effects analyses with Dunnett’s multiple comparisons test was used to assess significant differences across groups for quantitative data pertaining to AF cell gene expression, pH, and hydrogel wet weight. ROUT method (Q = 1%) was used to remove outliers for qPCR gene expression analyses. AF cell proliferation response over time was plotted and fit via linear regression for a given MSC donor at 50 µg/mL MSC-Exos and differences in regression coefficients across MSC-Exo pO₂ groups were tested via t test. Pearson correlation evaluated the strength of association of AF cell proliferation with miR-21-5p read counts in MSC-Exo samples, and of AF cell migration with miR-652-3p and miR-214-5p read counts. Statistical analyses used GraphPad Prism 9 (GraphPad Software, San Diego, CA) with α = 0.05.

Results

Biophysical and Biochemical Characterization of MSC-Exos

MSC-Exos displayed a characteristic vesicular morphology distinct of exosomes using TEM, where samples featured a cup-like shape with a distinguishable lipid bilayer ( Fig. 2A ). All MSC-Exo groups exhibited undetectable protein expression for Calnexin (90 kDa) and detectable protein expression for TSG101 (47 kDa), consistent with established positive and negative markers for exosomes, respectively ( Fig. 2B ). Nx and Hx MSC-Exos featured hydrodynamic diameters within the accepted range for exosomes (30-150 nm), where Nx MSC-Exos had an average diameter of 113.3 nm ± 30.56 nm and Hx MSC-Exos had an average diameter of 88.6 nm ± 34.49 nm with no significant difference between pO₂ groups (P = 0.407) ( Fig. 2C ). Small RNA-Seq analyses indicated that there was no differential expression observed between Nx and Hx MSC-Exo groups, although there was considerable heterogeneity observed among biological MSC donors as visualized in the heatmap for the top 60 variable miRs ( Fig. 2D ). Principal component analysis showed that MSC donor and pO₂ conditions contributed to variability in MSC-Exo small RNAs. pO₂ conditions contributed to the variability in MSC-Exo small RNAs for donor MSC00179, where Nx and Hx groups did not cluster together due to differences along dimension 2. However, pO₂ conditions did not appear to drive variability in MSC-Exo small RNAs for donors MSC00115 and MSC00175, as Nx and Hx groups clustered together on the principal component analysis (PCA) plot. Notably, variability between donors MSC00115 and MSC00175 was observed along dimension 2 as well as variability in donor MSC00179 Hx along dimension 1 ( Fig. 2E ). Volcano plot shows miRs trending toward differential regulation between Nx and Hx MSC-Exos, although no transcripts were significantly upregulated or downregulated between pO₂ MSC-Exo group after false discovery rate correction. Top 5 miRs (by FC differences) trending toward upregulation were miR-210-3p, miR-376a-5p, miR-10399-5p, miR-210-5p, and miR-3163. Top 5 miRs trending toward downregulation were miR-1292-5p, miR-23a-5p, miR-146b-5p, miR-296-5p, and miR-769-3p ( Fig. 2F ).

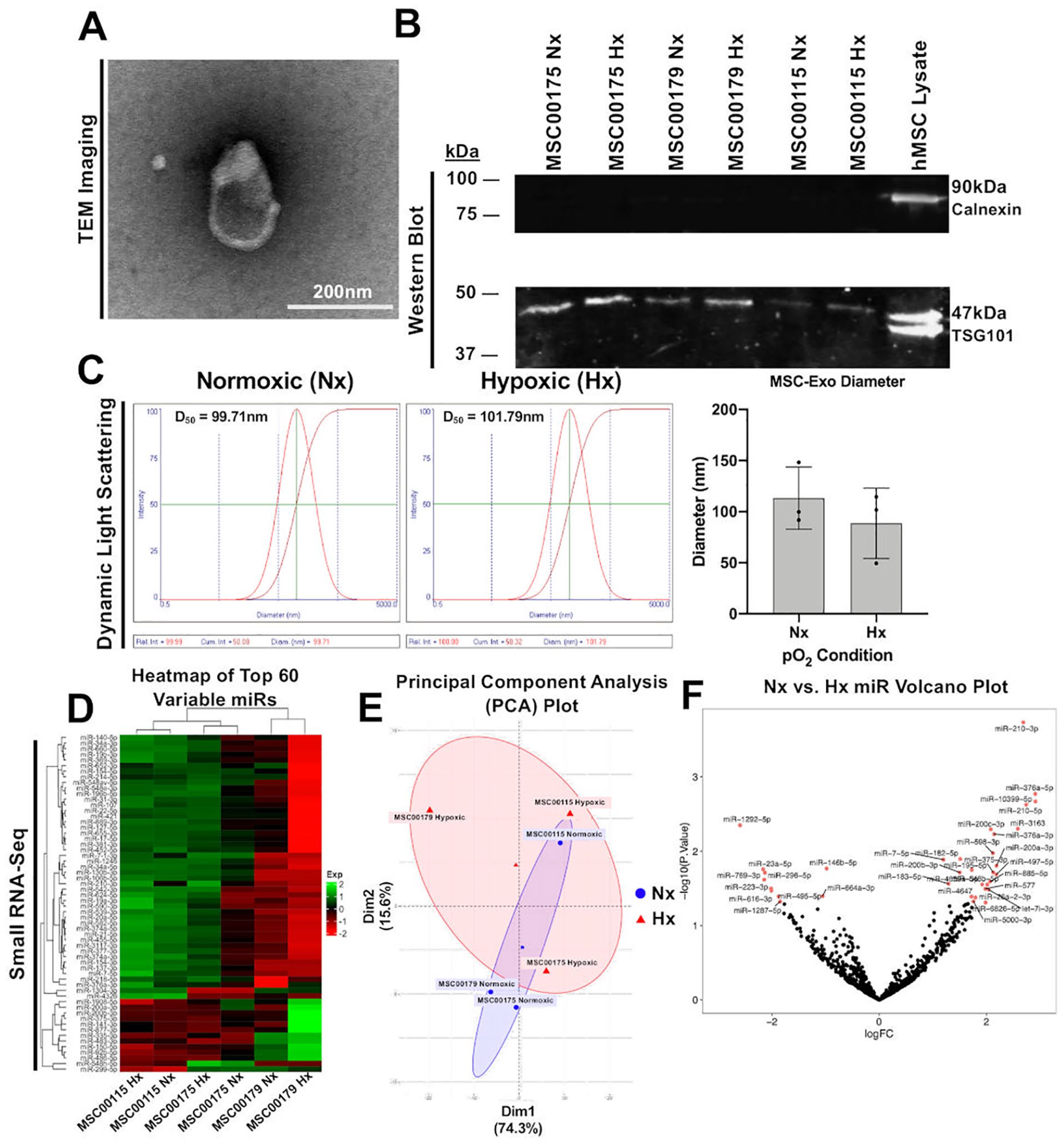

Figure 2.

MSC-Exos exhibited biophysical and biochemical properties that align with established exosome properties, with no difference observed between pO₂ conditioning environments in MSC-Exo protein expression, hydrodynamic diameter, or small RNA-Seq analyses. (A) Representative transmission electron microscope image of an MSC-Exo following isolation. TEM magnification = 25 K; Scale bar = 200 nm. (B) Western blot of positive exosome marker TSG101 and negative exosome marker Calnexin. (C) Representative lognormal distributions of MSC-Exo hydrodynamic diameter obtained via dynamic light scattering, with no significant differences observed between Nx and Hx MSC-Exos. (D) Heatmap of the 60 miR transcripts with the highest observed variability across MSC-Exo groups. (E) Principal component analysis plot of the MSC-Exo groups using the 2 most variable dimensions. (F) Volcano plot of upregulated and downregulated miR transcripts. Transcripts labeled as red for nominal P < 0.05 (P value before multiple-test correction). Y-axis = −log₁₀(p_nominal) and X-axis = log₂(Fold Change). MSC-Exo = mesenchymal stem cell-derived exosome; TEM = transmission electron microscopy.

AF Cell Proliferation

AF cells exhibited a dose- and time-dependent proliferative response to Nx and Hx MSC-Exo treatment. A significant interaction between MSC-Exo concentration and time was observed for both MSC-Exo treatment groups, suggesting a possible non-linear dosing effect. Post hoc analyses were used to identify the MSC-Exo concentration that elicited a proliferative effect in the shortest amount of time for each MSC-Exo treatment group. Nx MSC-Exos induced proliferation as quickly as 48 hours post-treatment using 6.25 µg/mL MSC-Exos (P = 0.0001 and Hx MSC-Exos induced proliferation as quickly as 72 hours post-treatment using 6.25 µg/mL MSC-Exos (P < 0.0001) ( Fig. 3A ). Comparison between pO₂ MSC-Exo groups indicate that Hx MSC-Exos elicited a stronger proliferative response in AF cells over the 72hour treatment period (at 50µg/mL) compared with Nx MSC-Exos ( Fig. 3B ). There was a strong positive (r = 0.763) and significant (P = 0.0389) correlation between normalized luminescence and MSC-Exo miR-21-5p reads per million ( Fig. 3C ).

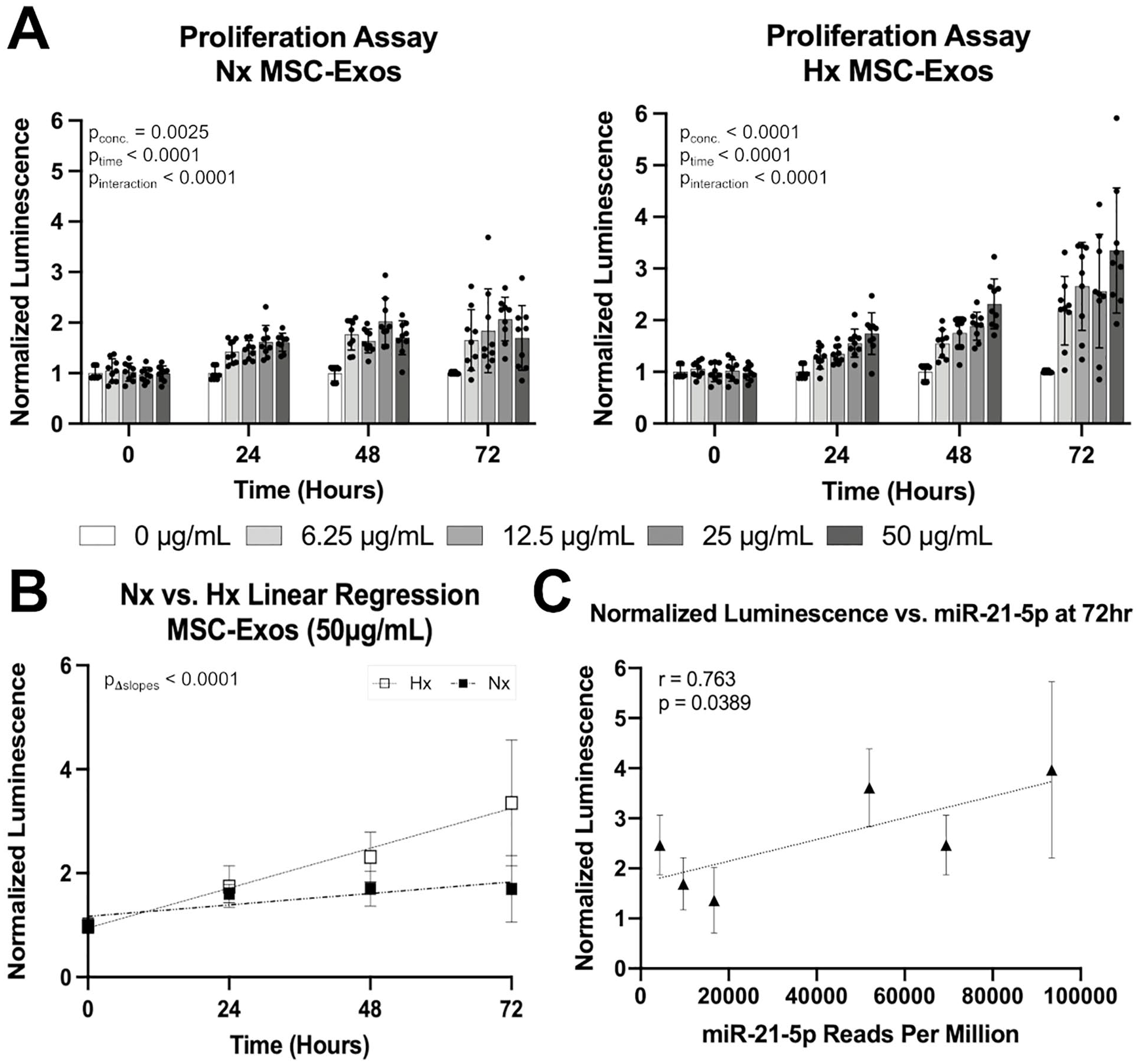

Figure 3.

MSC-Exo treatment promotes AF cell proliferation over 72 hours in a dose-dependent manner with a more robust proliferative response to Hx MSC-Exos than Nx MSC-Exos. (A) Normalized luminescence readings from the CellTiter-Glo® 2.0 assay at 0, 24, 48, and 72 hours after Nx and Hx MSC-Exo treatment at 0, 6.25, 12.5, 25, and 50 µg/mL showed significant increases with dose and time. (B) Hx MSC-Exo treatment had significantly greater proliferation than Nx MSC-Exo treatment. (C) Luminescence significantly correlated with MSC-Exo miR-21-5p reads per million 72 hours after treatment at 50 µg/mL. MSC-Exo = mesenchymal stem cell-derived exosome; AF = annulus fibrosus.

AF Cell Migration

After 24 hours of culture, crystal violet staining demonstrated observable AF cell migration in response to an MSC-Exo chemotactic gradient at 50 µg/mL, with notable visual differences compared with the negative control group and CCL5-treated positive control comparison group ( Fig. 4A ). Quantification of migrated AF cells indicated a significant main effect of MSC-Exo treatment on migrated cell count (p_treatment < 0.0001). However, there was no statistical effect of MSC-Exo pO₂ group on AF cell migratory response (p_pO2 = 0.3818). Post hoc analyses indicated a significant increase in migratory response compared with the negative control when a chemotactic gradient was established with 50 µg/mL of Hx MSC-Exos (P = 0.0005), but not for Nx MSC-Exos (P = 0.0629). No statistical difference was observed in AF cell migration when a chemotactic gradient was established with CCL5 at 100 ng/mL (P = 0.8260) ( Fig. 4B ). There was a strong negative (r = −0.796) and significant (P = 0.0292) correlation between normalized migrated cell count and MSC-Exo miR-652-3p reads per million ( Fig. 4C ). There was also a strong negative (r = −0.743) and significant (P = 0.0453) correlation between normalized migrated cell count and MSC-Exo miR-214-5p reads per million ( Fig. 4D ).

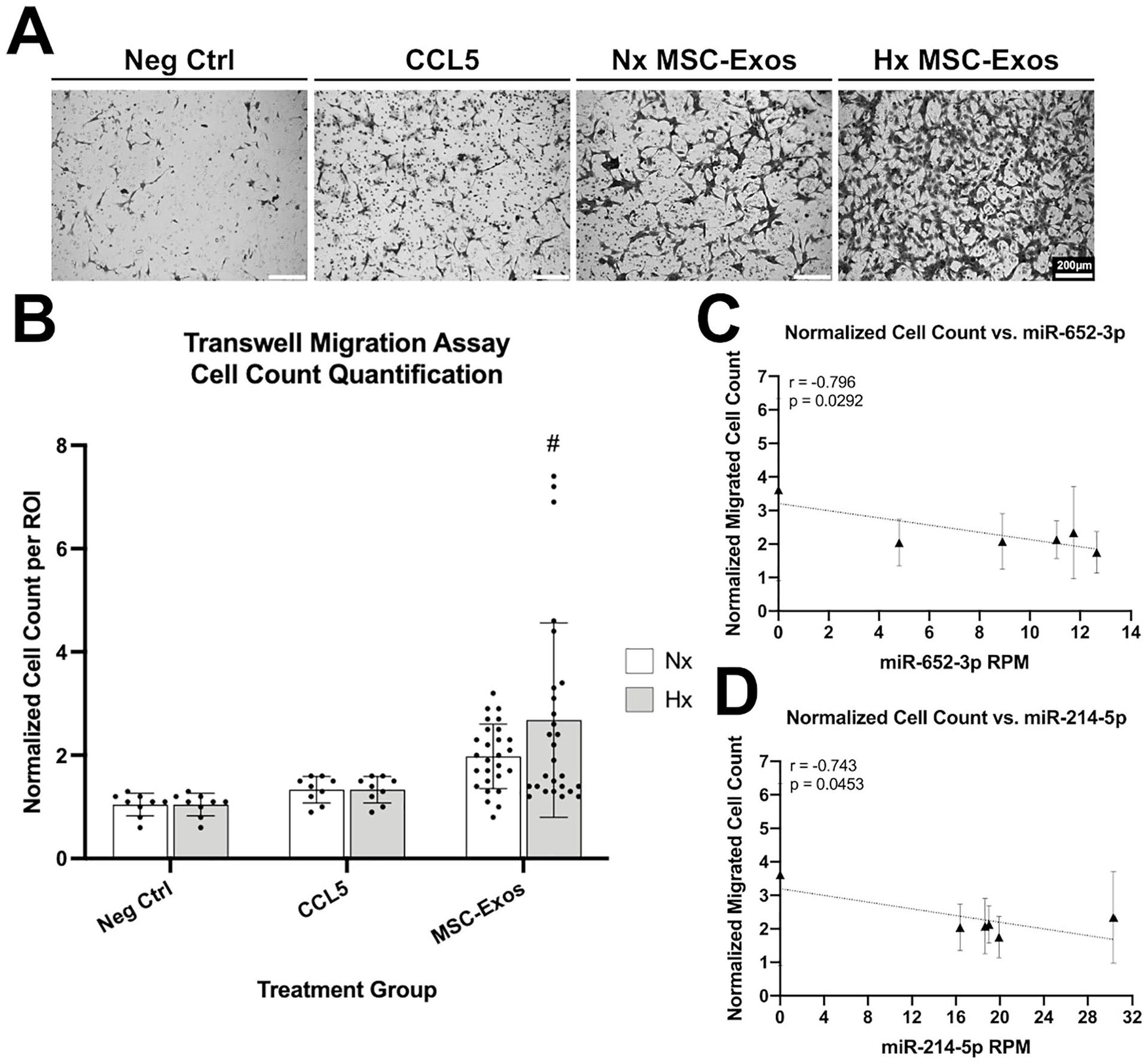

Figure 4.

MSC-Exo treatment (50 µg/mL) elicits a chemotactic AF cell response after 24 hours. (A) AF cells stained with 0.2% (w/v) crystal violet on the underside of the transwell insert showed greatest migration for MSC-Exos. Objective = 10x; Scale bars = 200 µm. (B) Quantification of migrated cells after 24 hours for 3 ROIs and 3 biological AF cell donors showed Hx MSC-Exos exhibited the significantly more migration. ^#P < 0.05 compared with negative control. Normalized migrated cell count correlated with (C) MSC-Exo miR-652-3p reads per million and (D) MSC-Exo miR-214-5p reads per million 24 hours after treatment at 50 µg/mL. MSC-Exo = mesenchymal stem cell-derived exosome; AF = annulus fibrosus; ROIs = regions of interest.

AF Cell Internalization of MSC-Exos

AF cells internalized MSC-Exos within 6 hours following treatment, as indicated by the presence of fluorescently labeled MSC-Exos (PKH67 staining) within the F-actin cytoskeleton (phalloidin staining). MSC-Exos resided within the cytosol and localized to the perinuclear region of the cytoplasm (adjacent to DAPI staining). Untreated AF cell controls showed no PKH67 staining indicating there was no uptake of MSC-Exos within the cytoplasm ( Fig. 5A ).

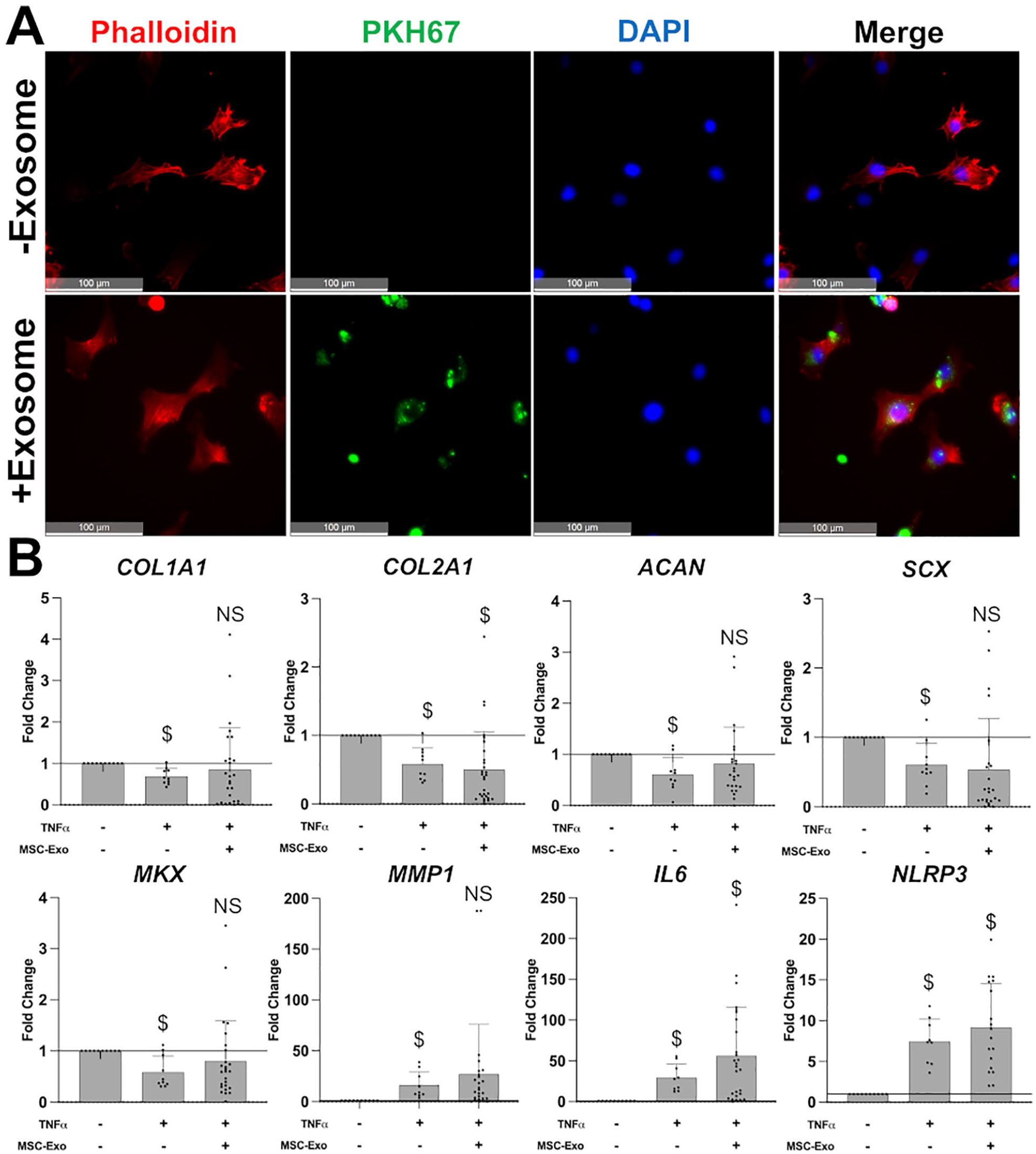

Figure 5.

AF cells internalize MSC-Exos and maintain a healthy AF phenotype under a proinflammatory cytokine challenge with Hx MSC-Exo treatment at 50 µg/mL. (A) Fluorescent labeling of MSC-Exos (PKH67), F-actin cytoskeleton (phalloidin), and cell nuclei (DAPI) demonstrates internalization within AF cells at 6 hours after MSC-Exo treatment. Objective = 40x; Scale bars = 100 µm. (B) AF cell gene expression after 24 hours of TNFα (10 ng/mL) ± Hx MSC-Exo (50 µg/mL) showed MSC-Exo treatment maintained control levels with TNFα challenge for multiple genes. AF = annulus fibrosus; MSC-Exo = mesenchymal stem cell–derived exosome; TNFα = tumor necrosis factor alpha; COL1A1 = collagen type I alpha 1; COL2A1 = collagen type II alpha 1; ACAN = aggrecan; SCX = scleraxis; MKX = Mohawk; MMP1 = matrix metalloproteinase-1; IL6 = interleukin 6; NLRP3 = NLR family pyrin domain containing 3; NS = not significantly different than untreated controls. ^$P < 0.05 compared with untreated control.

AF Cell Protection to Proinflammatory Cytokine Challenge

AF cells displayed an aberrant phenotype when challenged with 10 ng/mL TNFα for 24 hours, indicated by a significant decrease in COL1A1, COL2A1, ACAN, SCX, and MKX (P < 0.05) and significant increase in MMP1, IL6, and NLRP3 (P < 0.05) compared with untreated controls. Hx MSC-Exo treatment at 50 µg/mL for 24 hours was able to prevent some aberrant gene expression changes. In the MSC-Exo treatment group, AF cell gene expression was not statistically different from untreated controls for COL1A1, ACAN, SCX, MKX, and MMP1 (P > 0.05). However, treatment could not prevent the significant downregulation of COL2A1 and the upregulation of IL6 and NLRP3 associated with TNFα challenge ( Fig. 5B ).

Morphology and PSD of PLGA µSpheres

PLGA µSpheres were fabricated using a sonication-free double emulsion method that successfully produced MSC-Exo carriers with spherical morphology for all vortexing conditions, as demonstrated by SEM imaging. Visual assessment of SEM images showed considerable polydispersity for all PLGA µSphere fabrication groups. Laser diffraction analysis quantified the PSD for all PLGA µSphere fabrication groups and statistically verified sample polydispersity with a significant main effect across PSD percentiles (D₁₀, 10th percentile diameter; D₅₀, 50th percentile diameter; and D₉₀, 90th percentile diameter) (P < 0.0001), but no significant effect of vortexing condition (P = 1.159) or interaction (P = 0.893) ( Fig. 6A ). SEM imaging showed that the sonication-free double emulsion method yields a heterogeneous internal structure of PLGA µSpheres, where some PLGA µSpheres were predominantly mononuclear whereas others were polynuclear with notable differences in nuclear size ( Fig. 6B ).

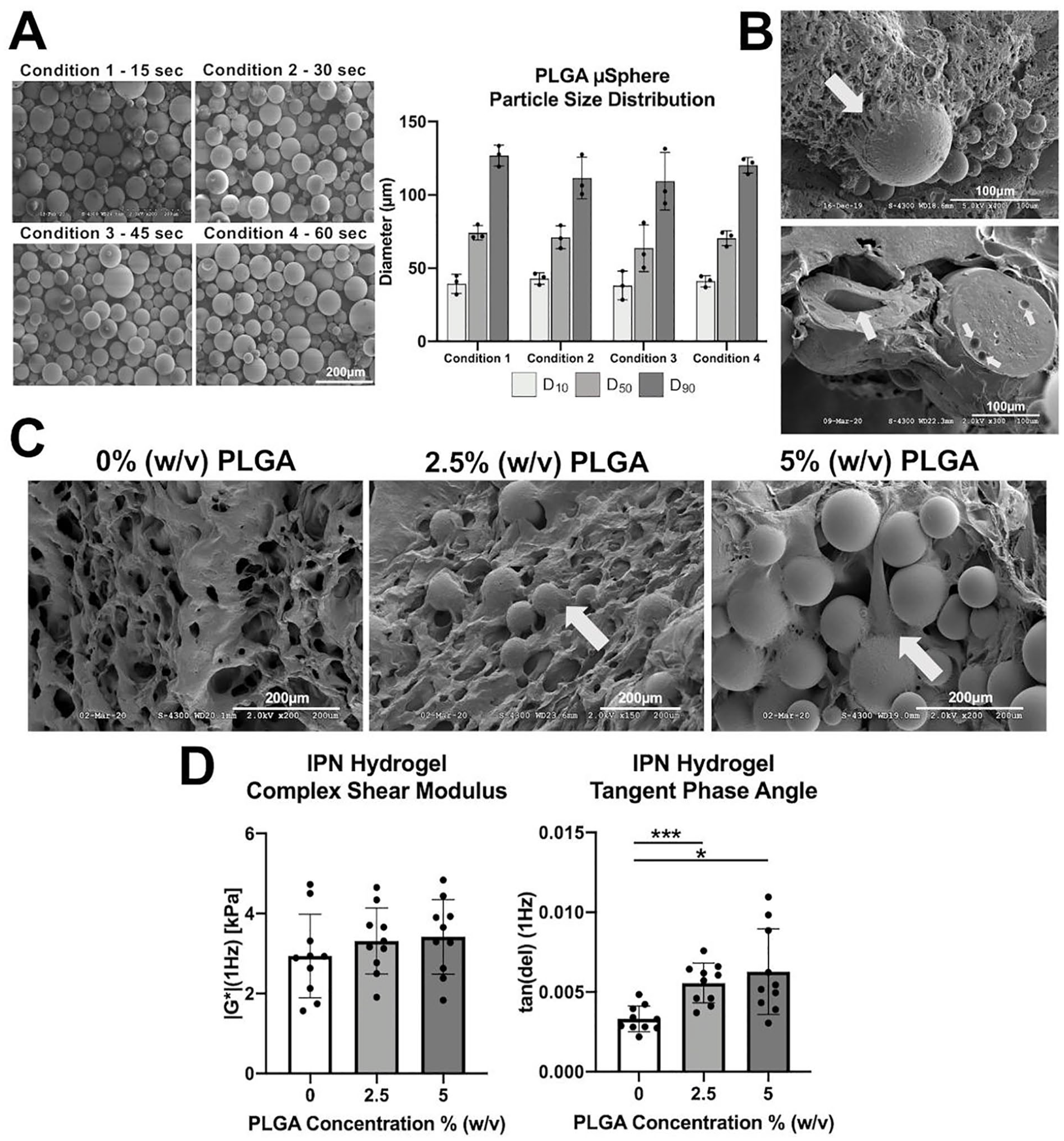

Figure 6.

PLGA µSpheres integrate within the IPN hydrogel’s bioadhesive polymer network, do not significantly increase the complex shear stiffness upon hydrogel embedment, and significantly increase the energy dissipation potential of the IPN hydrogel after equilibrium swelling. (A) SEM and laser diffraction analysis show no difference in µSphere morphology or particle size distribution, respectively, when minimizing vortexing time in the double emulsion fabrication protocol. D₁₀ = 10th percentile PLGA µSphere diameter, D₅₀ = 50th percentile PLGA µSphere diameter, and D₉₀ = 90th percentile PLGA µSphere diameter. Panel A scale bar = 200 µm. (B) SEM demonstrating hydrogel polymerization around the µSphere surface upon embedment (white arrows—top image) and that µSpheres are mononuclear and polynuclear by composition (white arrows—bottom image). Panel B scale bar = 100 µm. (C) Microstructure of the PLGA µSphere delivery system within the IPN hydrogel for 2.5% (w/v) and 5% (w/v) conditions compared with µSphere-free controls (0% [w/v]). Panel C scale bar = 200 µm. (D) Complex shear stiffness (|G*|) and tangent phase angle (tan δ) at 1 Hz for IPN hydrogels with 0% (w/v), 2.5% (w/v), and 5% (w/v) PLGA µSpheres after 72 hours of equilibrium swelling in 1X phosphate-buffered saline. PLGA = poly(lactic-co-glycolic acid); IPN = interpenetrating network; SEM = Scanning Electron Microscopy. *P < 0.05; ***P < 0.0005.

Short-Term Effects of PLGA µSphere Integration within IPN Hydrogels

PLGA µSpheres were incorporated successfully within the IPN hydrogels and did not exhibit any degradation due to redox initiator exposure used for hydrogel cross-linking. SEM imaging indicated that the PLGA µSphere carriers were homogenously distributed within the hydrogel constructs, integrated within the bioadhesive polymer network (white arrows), and the corresponding visual density of PLGA µSpheres proportionally increased as the µSphere concentration increased up to 5% (w/v) ( Fig. 6C ). Incorporated PLGA µSpheres within the IPN hydrogels did not result in a significant increase in the complex shear modulus (|G*|(P > 0.05)); however, PLGA µSphere incorporation did result in an increase in the tangent phase angle (tan δ) at 2.5% (w/v) (P = 0.0007) and 5% (w/v) (P = 0.0189) µSphere concentrations ( Fig. 6D ).

Long-Term Effects of PLGA µSphere Integration within IPN Hydrogels

Long-term culture of µSphere-free and µSphere-laden IPN hydrogels demonstrated a significant decrease in complex shear modulus (|G*|(1 Hz)) for all formulations as early as 7 days in culture compared with day 0 and monotonically decreased in magnitude through day 84 (p_time < 0.0001). PLGA µSphere concentration exhibited a significant effect on the complex shear modulus for long-term culture (p_{concentration} = 0.0082) and significantly interacted with time over the 84-day period (p_interaction = 0.0003). Conversely, the tangent phase angle (tan δ) significantly increased for all formulations as early as 7 days in culture compared with day 0 and monotonically increased in magnitude through day 84 (p_time < 0.0001), although values for tan δ remained very little indicating negligible dissipation. PLGA µSphere concentration did not exhibit a significant effect on the tangent phase angle for long-term culture (p_{concentration} = 0.0603), but significantly interacted with time over the 84-day period (p_interaction = 0.0169) ( Fig. 7A ). Over the 84-day culture period, the pH of solution for all µSphere-free and µSphere-laden IPN hydrogel cultures remained within the pH range of 7.0 to 7.4. The only significant decreases in pH occurred after the first 7 days of culture, and the pH remained significantly elevated from the original pH of solution at day 35 onward ( Fig. 7B ). IPN hydrogel wet weight steadily increased over time, where all formulations exhibited significantly higher wet weight by the end of the 84-day culture period compared with the initial wet weight ( Fig. 7C ). By day 84, the swelling ratio of all hydrogel formulations were not significantly different from one another ( Fig. 7D ), motivating an analysis of the hydrogel microstructure over the 84-day period.

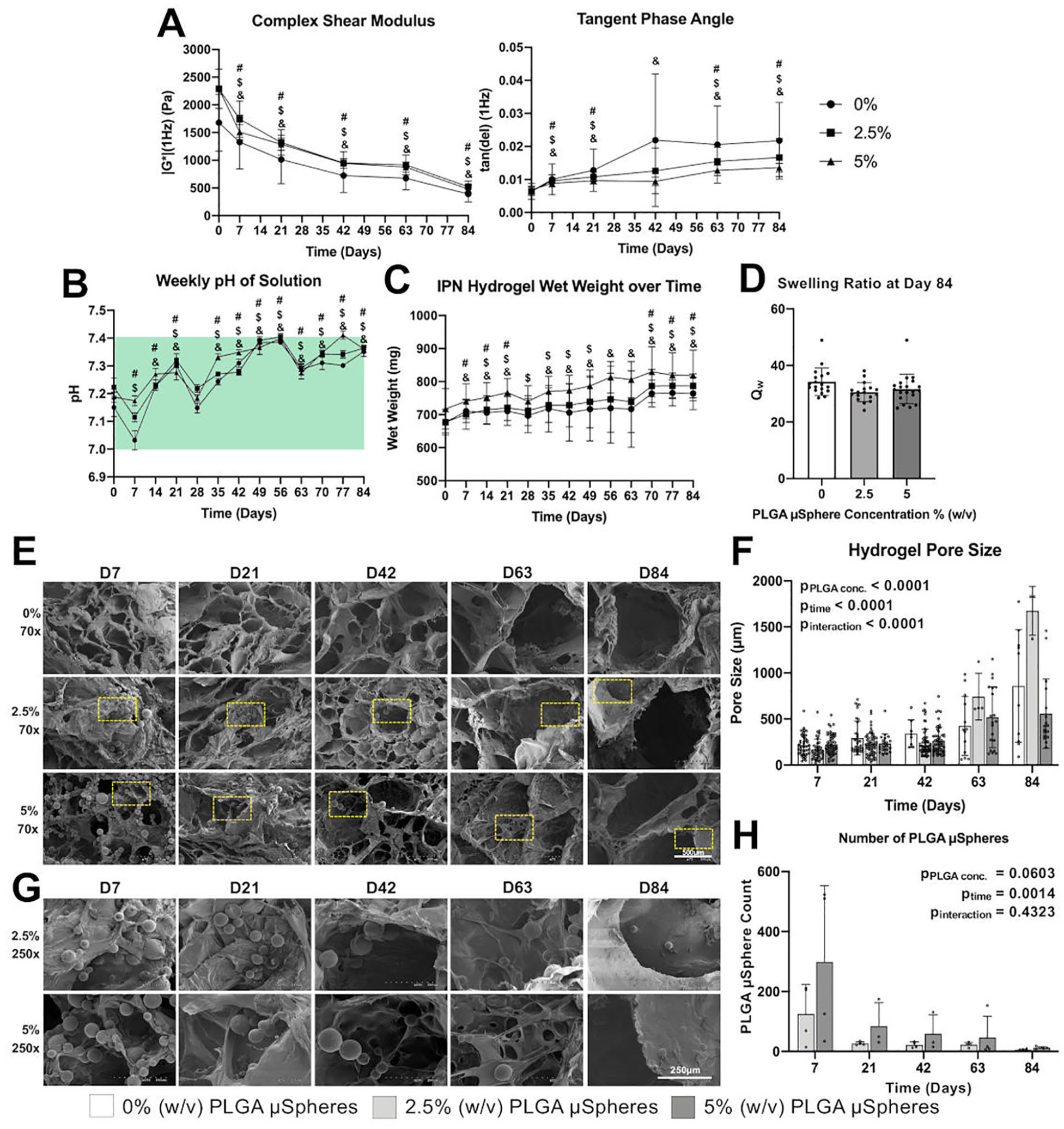

Figure 7.

Long-term culture demonstrates that hydrogel-embedded PLGA µSpheres degrade over an 84-day period and leads to a significant decrease in biomechanical properties while maintaining a physiological pH range corresponding to that of a healthy IVD. (A) Complex shear stiffness (|G*|) and tangent phase angle (tan δ) at 1Hz for IPN hydrogels with 0% (w/v), 2.5% (w/v), and 5% (w/v) PLGA µSpheres over an 84-day culture period. (B) Weekly pH of culture solution over the 84-day culture period for all hydrogel conditions. (C) IPN hydrogel wet weight over the 84-day culture period for all hydrogel conditions. (D) Swelling ratio (Q_w) at day 84 for IPN hydrogels with 0% (w/v), 2.5% (w/v), and 5% (w/v) PLGA µSpheres. (E) SEM images of IPN hydrogel microstructure over the 84-day culture period for all hydrogel conditions. Yellow dashed box = regions corresponding to higher magnification SEM images in panel F. Objective = 70x; Scale bar = 500 µm. (F) Quantification of hydrogel pore size after 7, 14, 21, 42, 63, and 84 days in culture. (G) SEM images of IPN hydrogel microstructure over the 84-day culture period for IPN hydrogels with 2.5% (w/v), and 5% (w/v) PLGA µSpheres. Objective = 250x; Scale bar = 250µm. (H) Quantification of PLGA µSphere count embedded within the IPN hydrogels after 7, 14, 21, 42, 63, and 84 days in culture. PLGA = poly(lactic-co-glycolic acid); IVD = intervertebral disk; IPN = interpenetrating network; SEM = Scanning Electron Microscopy. #: P < 0.05 at t_n compared with t₀ for 0% (w/v) PLGA µSpheres; $: P < 0.05 at t_n compared with t₀ for 2.5% (w/v) PLGA µSpheres; &: P < 0.05 at t_n compared with t₀ for 5% (w/v) PLGA µSpheres.

SEM imaging demonstrated that the hydrogel microstructure was predominantly similar between the µSphere-free and µSphere-laden formulations, where the only observable difference between groups was the incorporation of PLGA µSpheres within the polymer network. Visual examination indicated that the hydrogel pore size increased over time and supports findings from wet weight and swelling ratio measurements ( Fig. 7E ). Quantitative analysis of SEM images indicated that there was a significant effect of time on hydrogel pore size (p_time < 0.0001), where the pore size was significantly larger at day 84 compared with day 7 for all formulations (p_0% < 0.0001; p_2.5% < 0.0001; p_5% < 0.0001). Interestingly, there was a significant effect of µSphere concentration (p_{concentration} < 0.0001), as well as a significant interaction (p_interaction < 0.0001), on pore size measurements ( Fig. 7F ). Examination of µSphere-laden constructs at higher magnification showed a proportionally higher concentration of µSpheres in 5% (w/v) constructs compared with 2.5% (w/v) constructs at earlier timepoints, but differences in µSphere density between formulations was considerably less discernable over time ( Fig. 7G ). Quantification of µSphere count demonstrated a significant decrease over time (p_time = 0.0014), with no significant effect of µSphere concentration (p_{concentration} = 0.0603) or interaction (p_interaction = 0.4323) ( Fig. 7H ).

Encapsulation of MSC-Exos in PLGA µSpheres and Release Kinetics

Blank PLGA µSpheres exhibited a smooth surface topography and interior composition through SEM imaging ( Fig. 8A and B ). Histological analysis indicated an absence of OsO4-stained particles within the interior of the PLGA µSpheres, as well as the outer surface ( Fig. 8C ). MSC-Exo-laden µSpheres demonstrated particle speckling on the carrier surface and the inner PLGA core (white arrows) which was distinctly different from the smooth surface topography of the blank controls ( Fig. 8D and E ). Histological assessment of MSC-Exo-laden µSpheres also presented a distinctly different composition than the blank µSphere controls, where the MSC-Exo-laden µSpheres featured OsO4-stained particles at the outer radius of the PLGA µSpheres, as well as the interior (black arrows) ( Fig. 8F ). Hydrogel-free MSC-Exo-laden µSpheres controlled the release of MSC-Exos from PLGA µSpheres over a 12-hour period, with significant effects of time and concentration as well as interaction ( Fig. 8G ). Hydrogel-embedded MSC-Exo-laden µSpheres demonstrated controlled release of MSC-Exos over a 12-hour period, with a significant effect of time, but no effect of concentration or interaction ( Fig. 8H ).

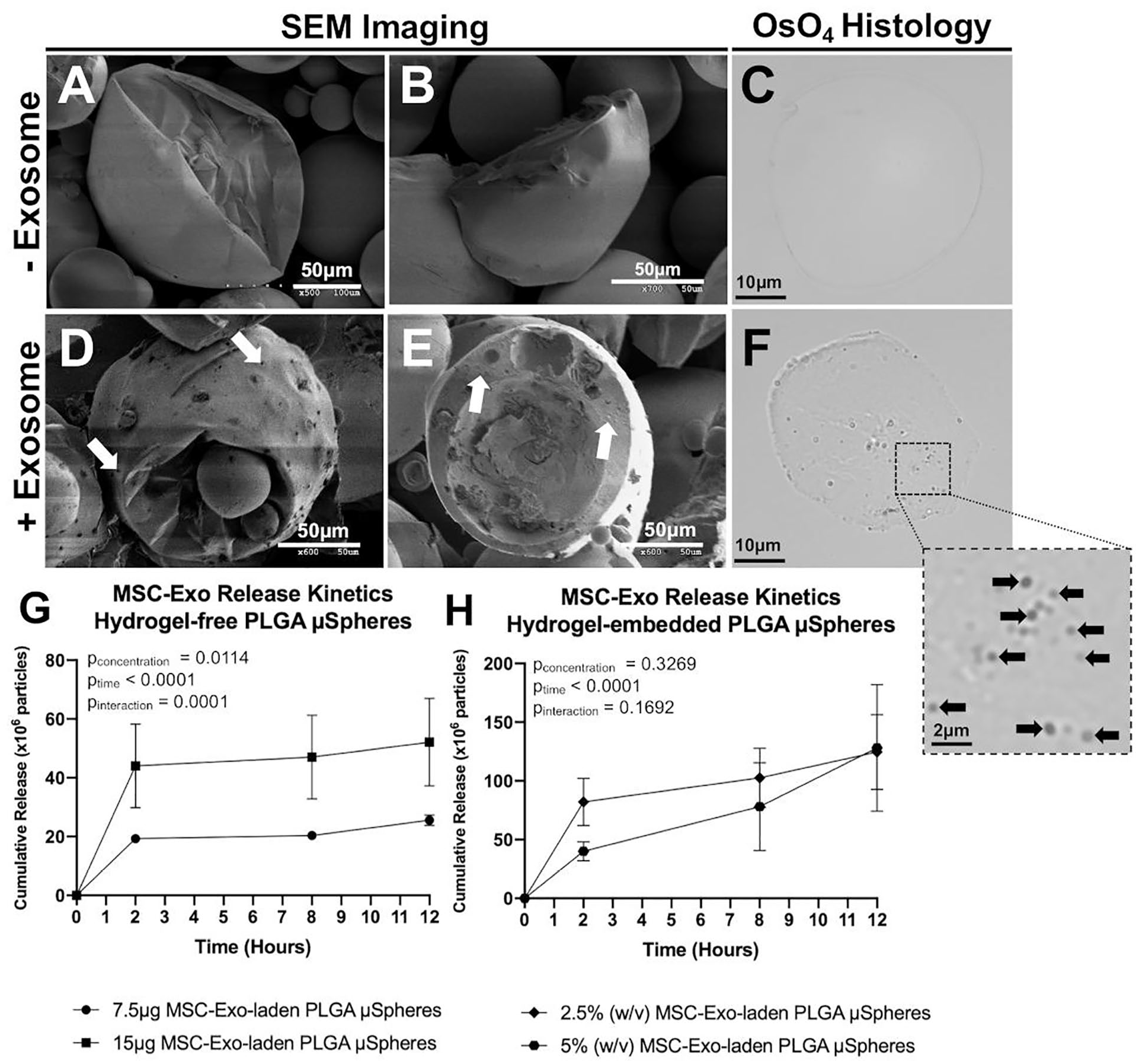

Figure 8.

PLGA µSpheres demonstrate proof-of-concept MSC-Exo encapsulation and controlled release over a 12-hour period. (A-B) SEM of unloaded PLGA µSphere controls. Scale bar = 50 µm. (C) Histological assessment of OsO4 stained blank PLGA µSphere controls. Scale bar = 10 µm. (D-E) SEM of MSC-Exo-loaded PLGA µSpheres. Scale bar = 50 µm. (F) Histological assessment of OsO4 stained MSC-Exo-loaded PLGA µSpheres. Scale bar = 10 µm. Digitally zoomed scale bar = 2 µm. (G) Release kinetics of MSC-Exo-loaded PLGA µSpheres not embedded in IPN hydrogels. (H) Release kinetics of MSC-Exo-loaded PLGA µSpheres embedded in IPN hydrogels. PLGA = poly(lactic-co-glycolic acid); MSC-Exo = mesenchymal stem cell-derived exosome; SEM = scanning electron microscopy; IPN = interpenetrating network.

Discussion

In this study, we investigate the potential of naive MSC-Exos as a new treatment strategy for biologically active AF repair without the need for exogenous stem cell transplantation, that are delivered in a biomaterial system capable of sustained release in an AF sealant. In the present work, we evaluate the ability of MSC-Exos to promote cellular responses that would enhance the AF’s innate endogenous repair capacity. Specifically, we determined that MSC-Exos promote proliferation, stimulate migration, and protect AF cells from aberrant phenotypes when exposed to a TNFα challenge. An MSC-Exo delivery system using PLGA µSpheres was developed and integrated within a bioadhesive hydrogel previously designed for AF repair. ¹⁴ We found that PLGA µSpheres can feasibly encapsulate and release MSC-Exos as well as integrate within the bioadhesive hydrogel network without affecting the hydrogel’s mechanical properties or pH of the microenvironment as the µSpheres degrade. Taken together, these results point toward a new approach to simultaneously seal AF defects while delivering stem cell–derived vesicles that may enhance endogenous AF repair and decelerate the degenerative cascade.

Cell proliferation in response to MSC-Exo treatment is a key cellular response of interest, and our results indicate that MSC-Exos promote AF cell proliferation in a dose-dependent manner for all MSC-Exo treatment groups, where the greatest proliferative responses were observed at 72 hours following treatment. Therapeutic application of MSC-Exos to promote mitotic activity may prevent disease progression since cellular senescence is a pathological hallmark of IVDD. ⁶⁷ pO₂ conditioning demonstrated differences in proliferative responses between Nx and Hx MSC-Exos. When relating AF cell proliferation to small RNA-Seq data, there was a significant and strong positive correlation between luminescent output and miR-21-5p, suggesting that this miR is involved in regulating cellular division. This finding corroborates with previous studies that empirically validated miR-21-5p to post-transcriptionally regulate PTEN, a known repressor of mitosis.^40,68-71 Overall, these outcomes demonstrate that naive MSC-Exos, particularly those containing high levels of miR-21-5p, can promote proliferation in an effort to repopulate the disk space with mitotically active cells and in turn mitigate the progression of IVDD.

Resident cell infiltration and stem cell homing are critical phenomena that support endogenous AF tissue repair, and our findings indicate that MSC-Exos, regardless of pO₂ conditioning environment, promoted AF cell migration when a chemotactic gradient was established with at least 50 µg/mL.^72-74 Notably, Hx MSC-Exos produced the strongest migratory responses. When comparing AF cell migratory responses to the small RNA-seq data, hypoxic downregulation of miR-652-3p and miR-214-5p across all MSC-Exo donors may support our observation that Hx MSC-Exos induced a more robust migratory response than Nx MSC-Exos. These findings are in agreement with the significant and strong negative correlation between migrated cell count and miR-652-3p as well as miR-214-5p, suggesting that these miR transcripts regulate cell motility. Downregulation of miR-652 may be implicated in increased AF cell migration by reduced targeting of poly(ADP-ribose) glycohydrolase (PARG) and vascular endothelial growth factor (VEGF) pathways. ⁷⁵ Moreover, downregulation of miR-214 may result in increased AF cell migration by reduced targeting of PLAGL2. ⁷⁶

Since Hx preconditioned MSC-Exos demonstrated the most robust cellular responses with respect to AF cell proliferation and migration, we selected this MSC-Exo pO₂ group for downstream use to treat TNFα-challenged AF cells. This in vitro system is useful to simulate the proinflammatory microenvironment analogous to that of IVDD and determine whether MSC-Exos can protect AF cells from an aberrant phenotype that emulates one found in IVDD pathologies. ⁷⁷ Following treatment, AF cells internalized MSC-Exos within 6 hours and were localized in the perinuclear and cytosolic spaces, suggesting that these particles can modulate AF cell expression through post-transcriptional repression and mRNA destabilization once their small RNA cargo is released intracellularly.^78-80 Our study supports the concept that naive MSC-Exos exert a protective effect against TNFα-induced damage as indicated by their gene expression levels that were comparable to the untreated control for many genes that are associated with a normal AF phenotype (i.e., COL1A1, ACAN, SCX, and MKX). ⁸¹ Moreover, we found that MSC-Exos can modulate catabolic and inflammatory responses in AF cells by attenuating MMP1 expression, which is implicated in IVDD pathogenesis.^82,83 Outcomes in our study corroborate with complementary findings in the only prior study that examines MSC-Exo treatment on AF cells. ⁸⁴ Notably, AF cells were challenged with IL1β instead of TNFα in the previous study, which is also associated with IVDD-related inflammation. ⁸⁵ However, IL1β elicits distinctly different responses in AF cell gene expression than TNFα due to differences in respective intracellular signaling cascades, motivating the present study to determine the protective effects of MSC-Exos on AF cells when challenged with TNFα.^86-88 Nevertheless, the present study and previous work substantiate the therapeutic potential of MSC-Exos for AF repair in the context of proinflammatory conditions.

To achieve clinical utility of an MSC-Exo treatment strategy, an integrated drug delivery system is required to enable sustained release of biological cargo and to seal IVD defects to prevent leakage. PLGA µSpheres are widely used to deliver biologics, and their use to deliver exosomes is just starting to emerge in regenerative medicine.^65,66 A bioadhesive IPN hydrogel is also used to seal AF defects and retain PLGA µSpheres within the repair site. ¹⁴ Given the central role of mechanics in IVD physiology, AF-specific applications must determine whether drug delivery systems impart biomechanical changes in AF repair hydrogels. The present work therefore evaluated the short-term and long-term effects of PLGA µSphere integration on mechanical and biomaterial properties. In our previous study, we found that the herniation risk was inversely proportional to the hydrogel modulus. ¹⁴ Since IVD herniation risk is a clinical design priority for AF repair hydrogels, a design requirement posed for the current study was to not affect the modulus of the IPN hydrogel system when fabricating hydrogel composites with PLGA µSpheres.^89-93 Although there were visual differences in network structure, the complex shear modulus was not significantly different between composite and µSphere-free hydrogels, suggesting that the herniation risk is unchanged when repairing AF defects with PLGA µSphere-IPN hydrogel composites.

Controlled release of MSC-Exos and associated tissue repair responses are contingent on long-term degradation of the IPN hydrogel system and PLGA µSpheres, warranting the characterization of time-dependent properties for this treatment strategy in long-term culture.^94,95 The SEM findings demonstrate that the polymer network is visually less dense with a significant increase in pore size over time, indicating that hydrogel degradation occurs substantially within a 84-day period. Degradation-related changes in polymer network architecture corroborate with temporal changes in mechanical properties, where the complex shear modulus monotonically decreases over time, while the tangent phase angle monotonically increases over time.^96,97 Given that AF cells are under 20 µm in diameter, pore size measurements suggest that this hydrogel system would easily permit cellular infiltration. ⁹⁸ To promote AF cell infiltration, PLGA µSpheres must simultaneously degrade so as to release the MSC-Exo payload into the surrounding environment and establish a chemotactic gradient. When quantifying the hydrogel-embedded PLGA µSpheres in long-term culture, we found that µSpheres significantly degrade over an 84-day period and may sustain continuous MSC-Exo release. The limited transport of the avascular IVD has highlighted pH as an important factor in IVD repair strategies, so it was necessary to examine culture pH during PLGA µSphere degradation.^20,53,99 By composition, PLGA is a copolymer of 2 acidic monomers that hydrolytically degrades into these 2 byproducts over time. Our findings indicate that incorporating up to 5% (w/v) PLGA µSpheres in IPN hydrogels enabled maintenance of a stable physiologically healthy pH range over the 84-day period, suggesting PLGA degradation would not deleteriously affect the IVD pH during repair. ¹⁰⁰

Drug delivery systems enable controlled biologic release, prevent rapid clearance, and allow for single dose administration, which leads to enhanced regenerative outcomes compared with bioinert strategies without integrated delivery systems. ¹⁰¹ Here, we utilize a sonication-free double emulsion fabrication protocol to generate PLGA µSpheres with an MSC-Exo payload, while minimizing vortex perturbation time during fabrication. Exosomes are more sensitive to µSphere fabrication conditions than other biologics traditionally delivered with PLGA µSpheres, and our histological findings support the use of this adapted sonication-free technique to generate MSC-Exo-loaded PLGA µSpheres. SEM and histological findings indicate successful MSC-Exo encapsulation within PLGA µSpheres and NTA quantification exhibits sustained release of MSC-Exos from the carrier with and without the hydrogel, demonstrating technical feasibility of this drug delivery system for bioactive AF repair in IVDD conditions with and without large defects. Together, these outcomes suggest this delivery system would achieve these 2 primary objectives since µSpheres embed in the bioadhesive hydrogel during polymerization and would consequentially remain within the AF repair site.

There are a few limitations associated with the present study and key avenues of future directions that would advance this novel treatment strategy toward clinical application. Although this study directly measures MSC-Exo release kinetics from PLGA µSpheres via NTA, it is not known whether the MSC-Exo concentration in the releasate elicits the most robust therapeutic responses in AF cells, and our duration is limited to 12 hours. Two prior studies in craniofacial tissue engineering utilized an analogous approach to deliver MSC-Exos from PLGA µSpheres in dental pulp tissue and found that MSC-Exos maintain their bioactivity throughout encapsulation and release processes.^65,66 While it is a limitation that long-term kinetics and the degree of AF cell responses are not known, we anticipate that the MSC-Exos will continue to be released and retain their bioactivity as the particle concentration is a corollary for the RNA released into the culture environment. Future work will optimize PLGA µSphere formulations with respect to polymer molecular weight and lactic acid to glycolic acid ratios in order to optimize MSC-Exo release kinetics and achieve MSC-Exo releasate concentrations that maximize therapeutic responses. Another limitation is the in vitro focus of this study, where this study focused on functional evaluation of AF cell responses to MSC-Exo treatment and biomaterial delivery system development and characterization. Preclinical models of IVDD in vivo are important next steps to study this AF treatment strategy in the context of interconnected systems with the IVD, including neurological pain behaviors and immune system responses.

Conclusions

This study is the first to develop a combination strategy composed of a bioadhesive PLGA µSphere-IPN hydrogel composite system to deliver MSC-Exos for bioactive AF repair. MSC-Exos offer distinct advantages over cell delivery strategies in IVD regenerative medicine to confer the therapeutic benefits of stem cells, while circumventing translational obstacles in IVD cell therapy. Here, we show that MSC-Exos can (1) promote proliferative and chemotactic AF cell responses, (2) modulate AF cell expression through post-transcriptional regulation and protect against aberrant phenotypes associated with IVDD, and (3) be encapsulated within PLGA µSpheres for controlled release in IVDD conditions with and without AF defects. Our results provide strong evidence to suggest that MSC-Exos are a promising therapeutic for IVDD and may enhance the AF’s poor intrinsic repair capacity by directing pro-regenerative responses in resident AF cells without the need for exogenous stem cell transplantation.
