Mesenchymal Stromal Cell Transplantation Induces Regeneration of Large and Full-Thickness Cartilage Defect of the Temporomandibular Joint

Abstract

Objective

Cartilage damage (CD) in the temporomandibular joint (TMJ) continues being a major problem in maxillofacial field. Evidence suggests that cellular therapy may be used for repairing CD in the TMJ.

Design

A murine model of condyle CD (CCD) was generated in the TMJ to evaluate the capacity of mesenchymal stromal cells (MSCs) to induce cartilage regeneration in CCD. A large CCD was surgically created in a condyle head of the TMJ of C57BL/6 mice. Human MSC embedded into preclotted platelet-rich plasma (PRP) were placed on the surface of CCD. As controls, untreated CCD and exposed TMJ condyle (sham) were used. After 6 weeks, animals were sacrificed, and each mandibular condyle was removed and CCD healing was assessed macroscopically and histologically.

Results

Macroscopic observation of CCD treated with MSC showed the presence of cartilage-like tissue in the CCD site. Histological analysis showed a complete repair of the articular surface with the presence of cartilage-like tissue and subchondral bone filling the CCD area. Chondrocytes were observed into collagen and glycosaminoglycans extracellular matrix filling the repaired tissue. There was no evidence of subchondral bone sclerosis. Untreated CCD showed denudated osteochondral lesions without signs of cartilage repair. Histological analysis showed the absence of tissue formation over the CCD.

Conclusions

Transplantation of MSC induces regeneration of TMJ-CCD. These results provide strong evidence to use MSC as potential treatment in patients with cartilage lesions in the TMJ.

Introduction

Cartilage damage (CD) in the temporomandibular joint (TMJ) is a challenging problem in maxillofacial field. Condylar CD (CCD) in the TMJ is associated with acute injury, overloading, and microtraumas in the mandibular condyle. ¹ Patients suffering from CCD have decreased mobility of the TMJ, problems to perform a normal mastication and severe pain episodes. Current management of CCD in the TMJ includes conservative therapies and surgical interventions. ² When it is left untreated, CCD can lead to a degenerative joint disease characterized by the degradation of articular cartilage and subchondral bone with the presence of fibrous or fibrocartilaginous tissue repair.^3-5

It is well known that articular cartilage has a limited capacity of repairing and regeneration. It is because to the low capacity of proliferation of chondrocytes and lack of vascularization of the cartilage tissue. ⁶ Several clinical and surgical therapeutics strategies have been used to induce cartilage repair. ¹ However, they have shown a great variety of outcomes.^7,8 Cellular therapy based on autologous chondrocytes has been used as a therapeutic strategy to induce cartilage regeneration. ⁹ However, the dedifferentiation process that suffer these cells when they are cultured in vitro, restrict their use in cellular therapy protocols. ¹⁰ More recently, cellular therapy based on transplantation of mesenchymal stromal cells (MSCs) has been postulated as potential treatment to induce cartilage regeneration.^11,12 The use of MSC is based on their multipotential capacity of differentiation to several cell lineages, including chondrocytes. ¹³ Likewise, there is evidence that shows that transplantation of MSC may enhance cartilage repair and regeneration. ¹¹ There are reports that show that MSC may induce repair and regeneration of the TMJ cartilage.^14,15

In this study, it is evaluated the cartilage regeneration capacity of bone marrow–derived MSC in a murine model of CCD in TMJ. Evidence of MSC transplantation as a potential treatment of CCD in TMJ is provided.

Methods

Reagents and Culture Medium

Monoclonal antibodies anti-human CD90 and CD105 were from BioLegend (USA). Alpha MEM and DMEM-F12 media were from Life Technologies (USA) and Chang medium was from Irvine Scientific (USA).

Animals

Female C57BL/6 mice (8-10 weeks old) were used in this study. Mice were obtained from the Laboratory Animal Center (Instituto Venezolano de Investigaciones Cientificas, IVIC) and maintained on a standard laboratory diet and housed in a controlled environment. All animal experimentation was performed in accordance with institutional guidelines. This project was approved by the Bioethic Committee for Animal Research (COBIANIM) of IVIC.

Experimental Model of Mandibular Condyle Cartilage Damage

We induced cartilage damage in the mandibular condyle of mice. For this purpose, anesthetized C57BL/6 mice were placed over a surgical thermal blanket and pre-auricular hair was removed ( Fig. 1A ). An electrocautery pre-auricular skin incision was performed over the TMJ. One mandibular condyle from each mouse was exposed and disarticulated from the TMJ ( Fig. 1B ). Focal cartilage damage was performed at the mandibular condyle head by using a low-speed high torque handpiece ( Fig. 1C ). The cartilage damage was extended until subchondral bone ( Fig. 1D ). After inducing cartilage damage, the condyle head was returned to the TMJ. The articular capsule and skin were closed independently in layers. Animals were returned to the animal facility. Mandibular joint mobility was evaluated by the capacity of the mice to eat during the first 7 days, after surgery, with soft diet and later with solid diet. No detectable mandibular functional restriction was observed during the eating process. No weight loss was evident between all the experimental groups. Dipyrone was intraperitoneally administered (5 mg/kg) every 12 hours per 3 days.

Figure 1.

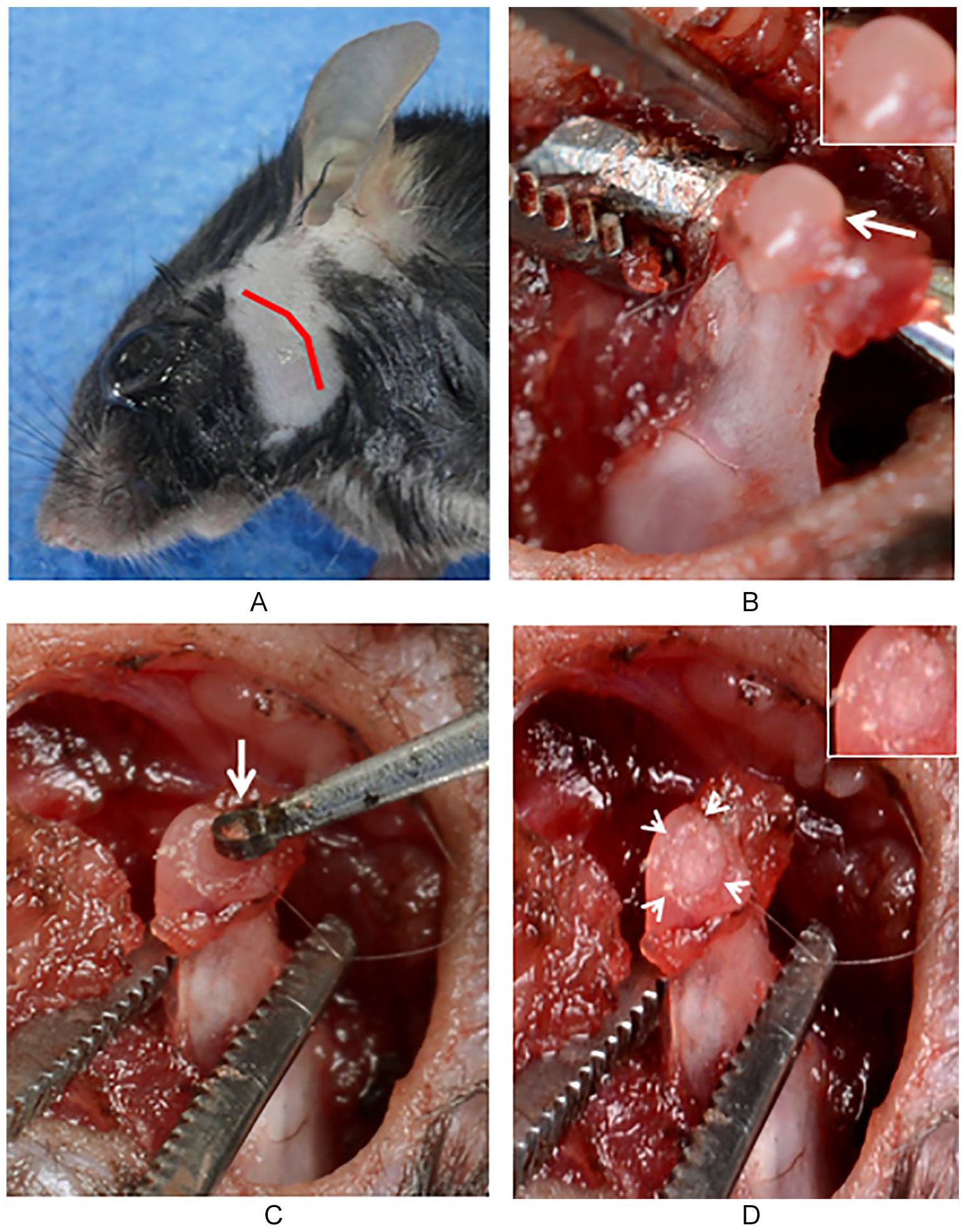

Surgical procedure for condylar cartilage damage CCD. Preauricular shaving and surgical pen designed skin incision (A). Mandibular condylar head and cartilage exposure (arrow) (B). Microsurgical bur (arrow) applied on the head condyle surface for inducing chondral damage (C). Focal chondral defect (head arrows) in the condylar head (D).

Isolation and Culture of Bone Marrow MSC

Bone marrow MSC used in this work was from a healthy patient treated for bone regeneration, due to pseudarthrosis secondary to a fracture, ¹⁶ who authorized the use of the cells by signing informed consent. Briefly, bone marrow aspirates were obtained from the posterior iliac crest of the patient. The mononuclear cells were isolated by using Ficoll-Hypaque (GE Healthcare, Sweden) gradient, washed and cultured in plastic culture flasks with alpha-MEM-Chang medium supplemented with 20 % autologous serum (regular medium). The MSC were isolated by its adherence to the plastic of the culture flask and expanded by culturing in regular medium. MSC were cultured, expanded, and stored at −70°C until its use. The study protocol was approved by the Bioethics Committee of Hospital Universitario de Caracas. This study was performed in accordance with the ethical standards as laid down in the 1964 Declaration of Helsinki and its later amendments.

Culture and Characterization of MSC

MSC were thawed and cultured in plastic culture flasks with regular medium at 37°C and 5% CO₂. When they reached almost 80% of confluency, the cells were harvested by trypsinization and examined for the expression of MSC markers (CD90 and CD105) by flow cytometry. Data collection and analysis of the fluorescent intensities were carried out using a FACSort (Becton Dickinson, San Jose, CA). Ten thousand events were acquired and analyzed using the CELLQuest software program.

Multipotent Differentiation of MSC

The multipotential capacity of MSC was examined by culturing these cells in osteogenic and chondrogenic differentiation media. Briefly, MSC monolayer were harvested by trypsinization and cultured in osteogenic and chondrogenic differentiation media (GIBCO, USA), with media change every 5 days. After 14 and 21 days (osteogenic and chondrogenic differentiation, respectively), MSC were examined by microscopic observation, photographically recorded and stained with alizarin (to stain calcium deposits) and Alcian blue (to stain glycosaminoglycans). ¹⁶

Transplant of MSC on the Surface of CCD

CCD in the TMJ were treated or untreated with MSC (n = 4 in each group). For this purpose, subconfluent MSC cultures were harvested, counted, and the viability was assessed by trypan-blue. The viability of MSC was always greater than 95%. MSCs (10⁴ cells) were mixed with human platelet-rich plasma (PRP) from healthy donors. A solution of 5% CaCl₂/thrombin was added to each vial containing MSC/PRP (final volume of 0.1 mL), and before the clot was formed it was immediately implanted onto the cartilage defect during the CCD surgery. Clot formation on the CCD was confirmed after 1 minute of MSC/PRP implantation. As control, we included a sham group without any treatment (n = 2). After 6 weeks of MSC implantation, animals were sacrificed by cervical dislocation and each condyle was macroscopically evaluated and photographed.

Histological Analysis

For histological analysis, condyles were removed and fixed in 10% buffered formalin for 24 hours, decalcified, paraffin-embedded, and sectioned at 3 µm for hematoxylin and eosin and Alcian blue staining. The degree of cartilage damage in each condyle section was determined by 3 independent observers according to Mankin scores. All condyle histological images were acquired from a Motic B1 microscope, at 10× magnification, equipped with a color video camera.

Results

Morphological, Phenotypical, and Functional Characterization of MSCs

MSCs were thawed and expanded until becoming near confluent, as previously described. ¹⁶ MSC showed the typical fibroblastoid-like morphology ( Fig. 2A ) and expressed CD90 and CD105 (100% of total analyzed cells) ( Fig. 2B ). They showed osteogenic and chondrogenic capacity of differentiation ( Fig. 2C and D , respectively).

Figure 2.

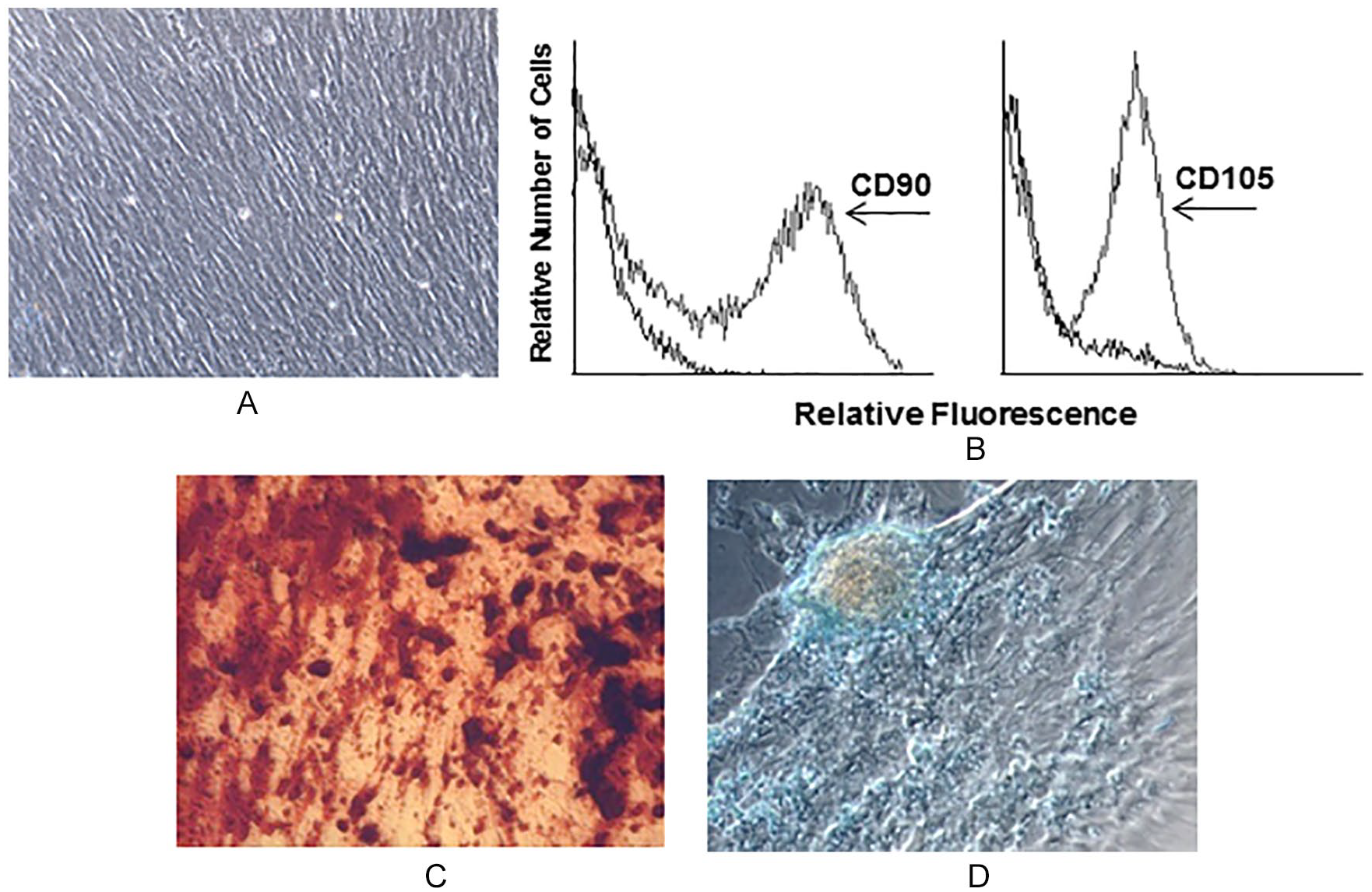

Culture, Characterization, and Differentiation of mesenchymal stromal cells (MSCs). Adherent cells from bone marrow (BM) show fibroblast-like cell morphology (A) and express CD90 and CD105 (B). MSCs differentiate into osteogenic and chondrogenic progenitors (C and D, respectively).

Macroscopic Analysis of Mandibular CCD

After 6 weeks of CCD surgery, there was no evidence of cartilage repair in untreated CCD (n = 4) ( Fig. 3A-C ). Macroscopic observation showed subchondral defect with no evidence of cartilage repair or new tissue filling untreated CCD ( Fig. 3C ). In some animals the subchondral lesion appeared larger than the original ones with degenerative joint characteristics ( Fig. 3C ). In contrast, macroscopic observation of CCD treated with MSCs (n = 4) showed a smooth cartilage-like tissue covering the whole condyle area ( Fig. 3F ) in which CCD was made ( Fig. 3E ). It has similar characteristics of color and brightness as normal articular cartilage ( Fig. 3D ). Neither fovea nor tissues peeling off from the articular surface were observed over the condylar head area ( Fig. 3F ). Animals have no complications after CCD surgery and the follow-up period of 6 weeks.

Figure 3.

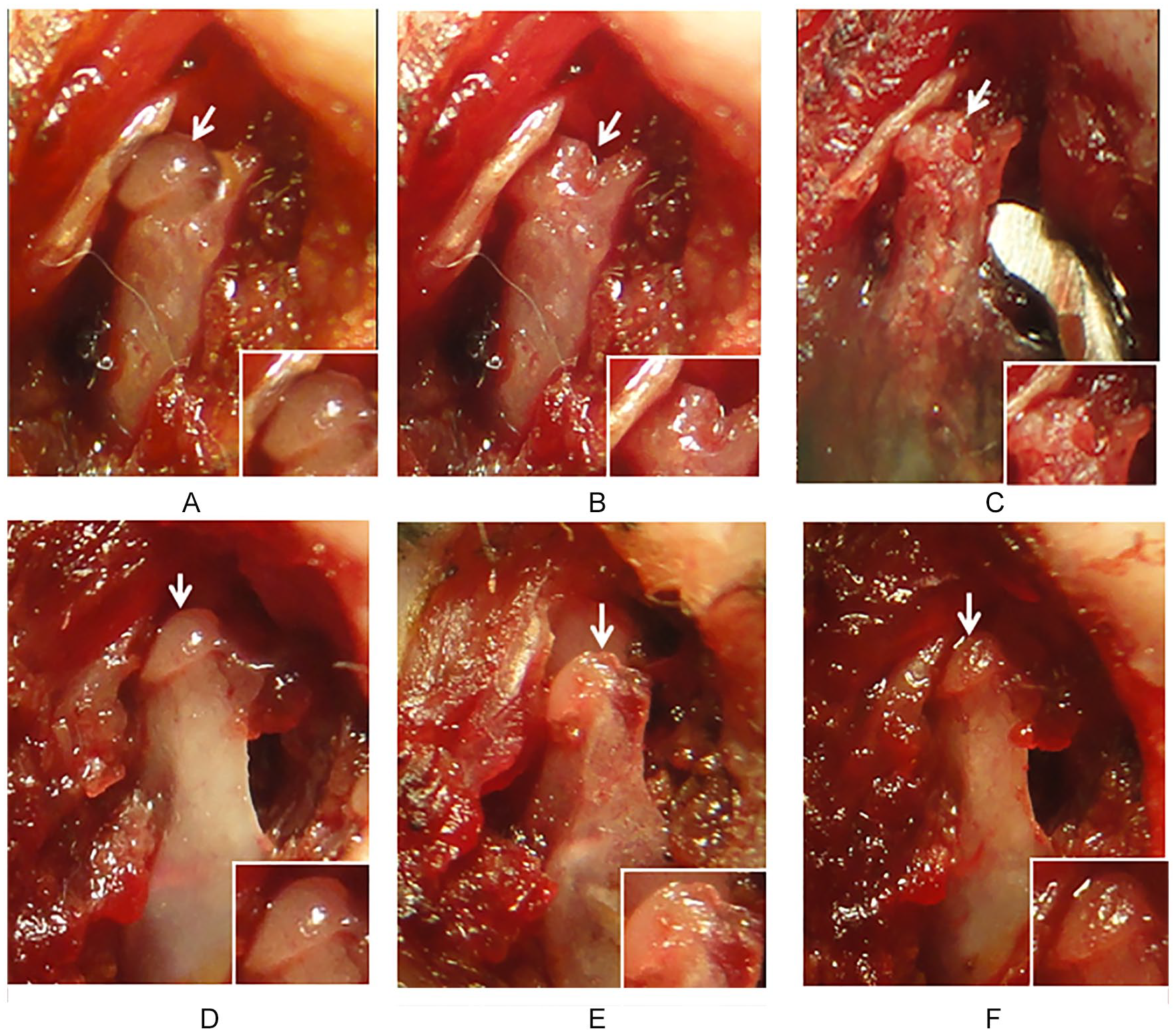

Evaluation of condylar cartilage damage (CCD) after mesenchymal stromal cell (MSC) transplantation. Condylar head of untreated CCD (A-C). The condylar cartilage is observed before (A, arrow) and after CCD (B, arrow). Chondral defect after 6 weeks (C). The chondral defect remains without evidence of tissue repair (arrow and insert). Condylar head of MSC-treated CCD (D-F). The condylar cartilage is observed before CCD (D, arrow). Chondral defect after CCD (E, arrow), and after 6 weeks post-MSC transplantation (F, arrow). Evidence of cartilage regeneration is observed at the site of CCD were MSC were implanted (F). New cartilage-like tissue is observed filling the chondral defect (arrow and insert). Results are representative of 4 CCD (one joint in each TMJ ) in each group, all of which had similar results.

Histologyc Analysis of CCD Treated with MSC

Histologic evaluation of mandibular condyles was performed in untreated or treated CCD. Untreated CCD showed the absence of tissue repair with exposed subchondral bone in the cartilage defect ( Fig. 4A ). The lack of cartilage matrix tissue repair in the CCD site was evidenced by Alcian blue staining ( Fig. 4B ). Histologic evaluation of CCD treated with MSC revealed the presence of chondral tissue integrated to the margin zones of the cartilage defect and to the subchondral bone ( Fig. 4C ). Chondrocytes within their matrix completely filled the cartilage defect ( Fig. 4C ). These cells were forming clusters but with lack of columnar distribution. A thin subchondral plate and trabeculae without evidence of subchondral bone sclerosis was observed. Alcian blue staining confirmed the presence of glycosaminoglycan in the extracellular matrix ( Fig. 4D ). Sham group showed a continuous surface of fibrocartilaginous tissue containing rounded cells (not shown). Mankin scores was lower in MSC-treated CCD group than the untreated CCD group ( Fig. 4E ). Altogether, these results are a clear evidence of neotissue formation associated with areas of chondrogenesis with cartilage extracellular matrix deposition in CCD.

Figure 4.

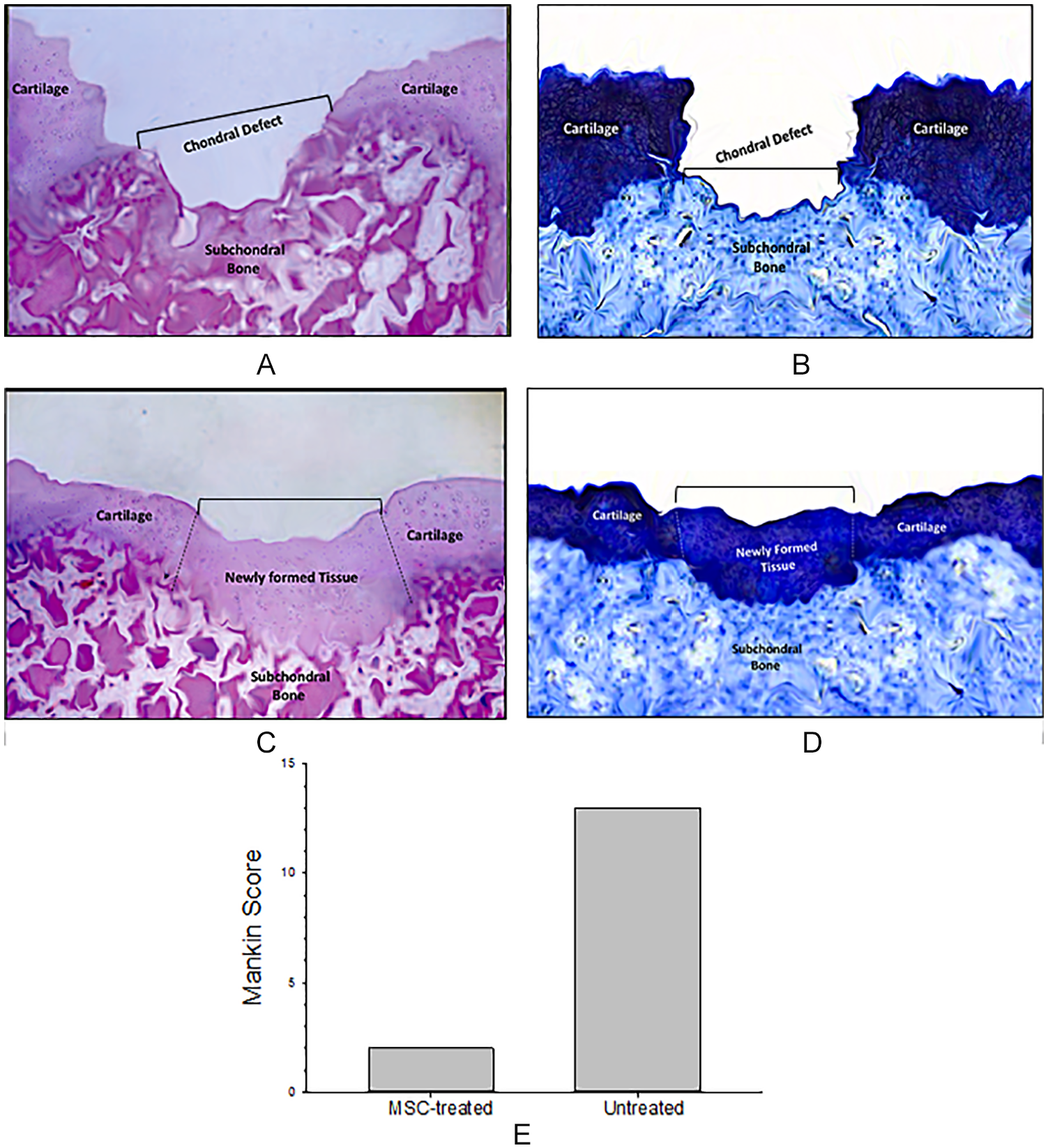

Histological analysis from untreated or mesenchymal stromal cell (MSC)-treated condylar cartilage damage (CCD). After 6 weeks of MSC transplantation, untreated or MSC-treated CDD lesions were processed for histological examination by hematoxylin and eosin (H&E) staining. An area of cartilage discontinuity (bucket defect) with denuded subchondral area is observed in untreated CDD lesions (A). Alcian blue staining show the absence of extracellular matrix formation in the CDD area (B). CDD transplanted with MSCs showed new a continuous cartilaginous tissue, containing chondrocytes, and ECM (C). The CCD defect was completely covered by newly cartilage and bone at the top of the condyle. A thin subchondral plate and trabeculae is evidenced at the site of CDD. The repaired cartilage defect shows a strong and homogenous Alcian blue staining, which indicates the presence of extracellular matrix with proteoglycan content (D). Representative H&E and Alcian blue staining from condyle slices are showed. Mankin scores ¹⁷ of MSC-treated CCD was lower than that of untreated CCD (E). Data are shown as the average of Mankin scores performed by 3 independent observers.

Discussion

Repair and regeneration of CD in the TMJ is a challenging problem in the maxillofacial field. An optimal treatment for CD should not only repair the cartilage defect but also restore the structure and functionality of the TMJ. Although several therapeutic strategies have been used to induce cartilage regeneration,^8,14,15 there is no single optimal treatment for TMJ disorders associated with CD. Recently, experimental and clinical protocols based on cellular therapy have been used to induce repair and regeneration of CD in the TMJ.^8,14,15

MSC are the most used cells in cellular therapy for tissue repair and regeneration.^11,12 There are experimental and clinical studies using MSC transplantation for articular cartilage repair in orthopedic and maxillofacial trials.^8,14,15,18 It is known that scaffolds should be used for MSC transplantation as support and vehicle of these cells.^19-21 An optimal scaffold for MSC should support not only the survival but also maintains the biological functions of these cells. Numerous scaffolds have been used as support of MSC, including protein-based scaffolds (i.e., fibrin).^19-21 We have previously showed that PRP clot constitutes an excellent scaffold because it provides a tridimensional framework to MSC, in which these cells can survive, proliferate, differentiate, and migrate. ²² Additionally, PRP can also provide growth signals derived from activated platelets. ²³ Recently, we have used MSCs incorporated into PRP clots for inducing bone regeneration in patients with pseudoarthrosis. ¹⁶

Here, the capacity of MSC to induce cartilage regeneration in CCD of the TMJ was investigated. For this purpose, a large cartilage defect involving subchondral bone was made in the condyle head of the TMJ. In this CCD model, mice did not show evidence of secondary effects and weigh loss after surgery. Although, there is evidence that shows that articular cartilage of the TMJ can heal and regenerate,^24-26 our results indicate that the size of the lesion made on the condylar cartilage of the TMJ (untreated CCD) does not allow spontaneous repairing and regeneration of the CCD. In fact, untreated CCD was not only not repaired but also macroscopic and histological observation showed a larger lesion than the one observed after surgery.

In the present work, human MSCs were implanted embedded in a PRP clot in the CCD site. In contrast with untreated-CCD, transplantation of MSC induced cartilage and bone tissue regeneration in CCD. After 6 weeks of MSC implantation, macroscopic evaluation of MSC-treated CCD showed a significant difference in terms of filling, color, and smoothness, as compared with untreated CCD. Thus, the surface of the mandibular CCD treated with MSC showed a smoother and brighter surface. Histological studies confirmed a complete repair and regeneration of the whole cartilage defect. Cartilage repair was associated with fibrocartilage formation, chondrocytes within extracellular matrix formed by proteoglycans and subchondral bone repair. The fibrocartilage tissue formed on CCD was associated to the underlying subchondral bone plate. Altogether, these results constitute strong evidence that MSC may induce new cartilaginous tissue characterized by the presence of areas of chondrogenesis with cartilage extracellular matrix deposition. Based on previous evidence suggesting that paracrine signals from MSC may exert effects on other cells,^27-30 we propose that growth factors produced by donor MSC induce migration of host MSC, which may differentiate in chondrocytes, resulting in healing of the CCD. However, there is evidence suggesting that MSC paracrine effects may also result from the release of exosomes by these cells.^31-34 It has been reported that MSC-derived exosomes may promote restoration of cartilage and subchondral bone, and also enhance extracellular matrix deposition (type II collagen and sulfated glycosaminoglycan). ³⁵ Finally, based on the low immunogenicity of human MSC, the possibility of rejection of these cells by murine cells is very low. ¹⁸ In fact, we did not observe any evidence of rejection in CCD treated with human MSC.

Our results support previous evidence that transplantation of MSC can induce articular repair.^11,27-31 It has been reported that injection of differentiated MSC stimulates cartilage regeneration in an experimental model of TMJ osteoarthritis. ²⁹ However, unlike the degenerative environment associated with this osteoarthritis model, our CCD model is associated with an acute damage of the condylar cartilage, which involves a great surface of the cartilage and subchondral bone. To our knowledge, our results constitute the first evidence showing that MSCs induce regeneration of cartilage and subchondral bone in CCD of the TMJ.

In conclusion, our work shows that transplantation of MSC induces repair and regeneration of cartilage and subchondral bone in CCD of the TMJ. Our results provide new evidence for using allogeneic MSC transplantation as a potential treatment in patients with cartilage defects of the TMJ.
