Carbohydrate Requirement for Exercise in Type 1 Diabetes: Effects of Insulin Concentration

Abstract

Physical activity is a keystone of a healthy lifestyle as well as of management of patients with type 1 diabetes. The risk of exercise-induced hypoglycemia, however, is a great challenge for these patients. The glycemic response to exercise depends upon several factors concerning the patient him/herself (eg, therapy, glycemic control, training level) and the characteristics of the exercise performed. Only in-depth knowledge of these factors will allow to develop individualized strategies minimizing the risk of hypoglycemia. The main factors affecting the exercise-induced hypoglycemia in patients with T1D have been analyzed, including the effects of insulin concentration. A model is discussed, which has the potential to become the basis for providing patients with individualized suggestions to keep constant glucose levels on each exercise occasion.

Physical activity should be encouraged in people with type 1 diabetes (T1D),^1-3 being a keystone in the management of the illness. ⁴ Indeed, the effects of a healthy lifestyle are well documented,^5-8 although the long-term effects are still debated.^1,2,9-11

Individuals with T1D, however, have to face a number of exercise-related challenges, among which the risk of hypoglycemia is the strongest one.^12-16 Exercise-induced hypoglycemia can be difficult to be identified as the symptoms mimic the feelings due to the exercise itself. ¹⁷ As a result, a large percentage of patients do not reach the recommended guidelines for exercise,^4,18 even so among adolescents.^19,20

Personalized patient-oriented strategies should be developed to minimize the risk of exercise-induced hypoglycemia, not only for competitive athletes, ² but also for those who train essentially for well-being. ²¹ To reach this ambitious goal, the main factors affecting the requirements for exercise in people with T1D on each exercise occasion have to be well known.

Effects of Insulin Concentration

In healthy people, blood glucose level is maintained within very narrow limits, insulin concentration being the main messenger that coordinates fuel storage into and fuel mobilization out of the various depots. ²² In between meals (ie, in the “fasted” state), insulin concentration is low and the hepatocytes deliver glucose backward to the bloodstream, while the transporter GLUT1 allows for basal glucose uptake in skeletal muscles without the intervention of insulin. ²³ In the “fed” state, following the ingestion of carbohydrate containing foods, insulin levels are high, opening up peripheral cells for glucose removal to facilitate the return of glycemia to the norm. In skeletal muscles, insulin, as well as muscle contraction (with additive effects), stimulate the translocation to the plasma membrane of the transporter GLUT4.^24,25 Glucose trapped within the muscles cannot leave them, ²³ the stored amount decreasing only if burned for energy production. Glucose enters also into the hepatocytes, through a transporter driven by the gradient between blood and intracellular concentration. ²³

In a general model of glucose level control, designed as a hydraulic system (Figure 1), insulin concentration is the main parameter managing the control valves governing the glucose fluxes among its depots. The latter are restricted to three main compartments (blood, liver, and muscles), each one with its own starting level, that can either increase or decrease (ie, ΔB, ΔL, ΔM, respectively). The ingestion of carbohydrate containing foods (Fi) increases the amount of glucose in blood, whereas the burning of carbohydrates for energy production (Fo) decreases the muscular stores. The overall equation describing the system is the following:

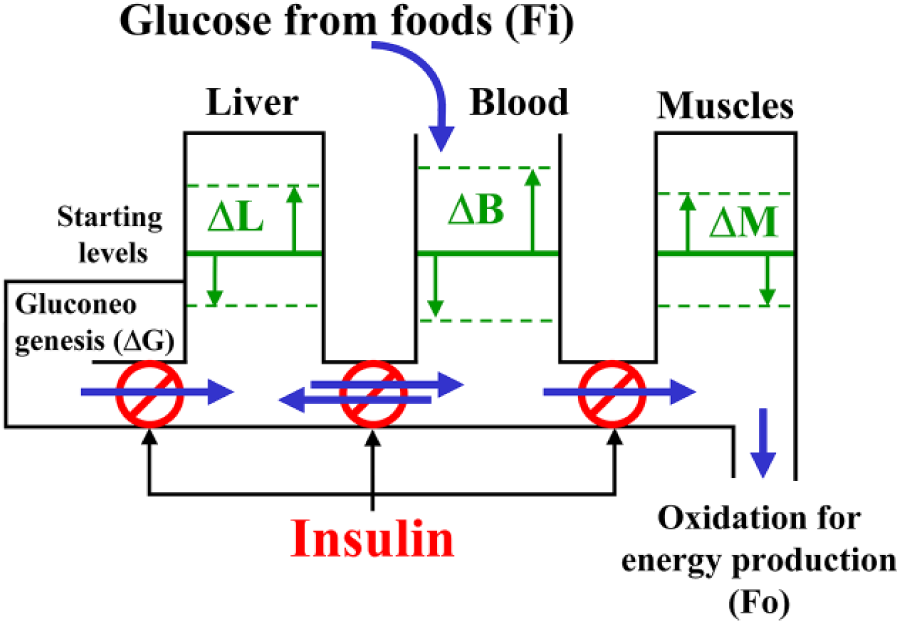

Figure 1.

Generic model of glucose level control. The main body compartments involved in the glucose fluxes are modeled as a hydraulic system, where insulin acts as main parameter managing control valves for the regulation of the correspondent flux. ΔL, ΔB, and ΔM represent the possible changes in the corresponding compartment starting level, Fi is the amount of glucose entering the system, whereas Fo is the amount of glucose leaving the system. See text for further details.

$$0=(\mathrm{Fi}-\mathrm{\Delta }\mathrm{B}-(\mathrm{\Delta }\mathrm{L}+\mathrm{\Delta }\mathrm{M}-\mathrm{\Delta }\mathrm{G}))-\mathrm{Fo},$$

where Fi, ΔB, and Fo can be rather easily determined, whereas ΔL, ΔM, ΔG can be assessed only through complex and invasive measurements.

The mandatory use of exogenous insulin by people with T1D results in particular conditions compared to healthy individuals:

1. because of the peripherally delivered insulin, the physiological portal-peripheral insulin gradient, with threefold higher concentrations in the liver, is absent ²⁶

2. to maintain glycemia the most possible in the norm, supraphysiological insulin levels are usually observed in the periphery

3. insulin level cannot be modified physiologically according to the body needs, for example, as a consequence of exercise, being essentially determined by the last insulin administration in terms of type and dose injected and time elapsed

Insulin Concentrations and Exercise

During aerobic exercise glucose uptake of working muscles can increase up to 50 times. A prompt decrease in insulin concentration occurs in healthy subjects, thus facilitating the release of glucose from the liver to maintain a near normal glycemia.^27-29 Independent from insulin signaling, the depletion of glycogen induces the translocation of glucose transporter to the cell membrane, ³⁰ so the decrease in circulating insulin does not restrict glucose provision. During predominantly anaerobic activities, insulin concentrations do not decrease so markedly, likely because of the shorter duration of the activity. ¹⁸

Patients with T1D frequently exercise under supraphysiological insulin levels ³¹ that result in a reduced glucose delivery by the liver because of the inhibitory effect of insulin on glycogen breakdown.^32,33 The additive effects of insulin and of the exercise-induced increase in muscle glucose uptake,^24,34,35 predispose to hypoglycemia. ³ In addition, the high glucose flux into the muscles, due to the high insulin concentration, might induce a greater carbohydrate oxidation rate. Nevertheless, in patients exercising at different time distances from the prebreakfast insulin injection, no differences were observed in the carbohydrate oxidation rate.^29,36 Moreover, despite patients showed higher insulin and blood glucose levels, their carbohydrate oxidation rates were not significantly different compared to healthy controls even during incremental ³⁷ or prolonged exercise. ³⁸ Linear relationships have been proposed to estimate the glucose oxidation rate during exercise (specifically for “active” and “sedentary” subjects) based on the percentage theoretical maximal heart rate. ³⁷ Data on healthy people and T1D patients were pooled together ³⁹ as well as those of both genders, which effects are still under debate. ⁴⁰

Patients might also exercise at relatively long time distances from the last insulin bolus, when insulin levels might be too low, thus resulting in hyperglycemia because of an excess glucose released from the liver,^31,32 not taken up by the working muscles.

Finally, the increased glucose uptake by skeletal muscles for the replenishment of glycogen stores^18,41 and the rise in insulin sensitivity after exercise ⁴² maintain elevated the risk of hypoglycemia for several hours after exercise,^41,43 with greatest risk during nighttime.

Current Guidelines for Exercise Management in T1D Patients

Individuals with T1D, either trained and untrained, typically require an extra carbohydrate intake and/or an insulin dose reduction before commencing aerobic exercise. Several factors affect the blood glucose responses to exercise in these patients^12,18,44 and, consequently, different amounts of carbohydrates and/or insulin dose adjustments should be recommended.^18,45 Nevertheless, the variability of the adopted protocols, ⁴⁴ together with the small number of recruited patients or the only observational studies, ²⁷ contribute in making it difficult to draw quantitative guidelines for all the possible conditions and, as a result, only rather qualitative guidelines are currently available.^18,44

An increased ingestion of carbohydrates is the countermeasure preferred by patients; ⁴⁶ it can be applied also for unplanned exercise, ⁴⁷ thus remaining the mainstay of exercise management.^48,49

A frequently suggested strategy is the adjustment of mealtime insulin bolus in anticipation of exercise, ⁵⁰ or of basal insulin infusion in pump therapy. ⁵¹ A reduced insulin bolus, however, is useful when the exercise is performed early after the meal, ⁴⁹ and does not always exempt patients from extra carbohydrates. ⁵² Moreover, the improved glucose profile is commonly obtained at the cost of hyperglycemia before the effort. ⁵³

Recently, the practice of anaerobic exercises has been recommended, since these activities are typically associated with lower declines (or even increases) in glucose levels.^18,44,54 An exercise program based on high intensity mode, however, may not be easily administered to all patients ¹⁰ and there is insufficient evidence of its real advantages. ¹³

Several overlooked factors affect patient’s requirement for exercise. Indeed, an episode of hypoglycemia in the preceding hours, or a preceding exercise, increases the risk of hypoglycemia,^55,56 possibly resulting in a vicious cycle with exercise. ⁵⁷ Despite insulin concentration during the effort is recognized as an important factor determining the carbohydrate requirements, ²⁷ current guidelines suggest to exercise only during precise narrow time frames ⁵⁸ or consider solely two main conditions, that is, the fasting and the postabsorptive states, respectively. ¹⁸ Patient’s actual insulin concentration and/or insulin sensitivity at the time of the effort, as well as his or her physical conditioning, have never been included in the guidelines for exercise management so as to tune better the actual needs.

New Methods for Exercise Management in T1D Patients

The development of a tool able to deal with the main factors affecting patients’ need for exercise might overcome the general scarcity of knowledge around exercise management. ¹⁸ To this aim, however, comprehensive models of insulin action and glucose uptake are needed. ⁵⁹

Closed-loop systems have the potential to ameliorate exercise management in patients with T1D, ⁶⁰ recent algorithms having reduced the exposure to exercise-induced hypoglycemia.^61,62 The development of an “exercise smart” artificial pancreas, however, still remains a major hurdle, ⁶³ physical activity having been identified as one of the challenges.^64,65

In the past years, Perkins and Riddell ⁴⁵ proposed standardized tables reporting recommended amounts of carbohydrates according to the patient’s body mass that included several different types of exercise, in some cases also with varying intensities. Other important factors, such as the patient’s insulin sensitivity, his or her state of physical conditioning, and the timing of the exercise relative to the last insulin bolus ³¹ were, however, not given consideration.

Simplified decision trees have been proposed ¹⁸ to help patients in determining the best countermeasure; again, however, they hardly include all the influencing factors, thus patients have still difficulty in facing the exercise.

Current knowledge concerning the main physiological effects of insulin concentration has been implemented in an algorithm (called ECRES) recently developed to estimate the glucose supplement required by patients to maintain safe blood glucose levels on each exercise occasion. ⁴⁷ In summary, insulin level throughout the effort is first estimated on the basis of patient’s usual therapy data and on standard pharmacokinetic profiles of the used insulin analogues (Figure 2). The figure clearly shows that rather different insulin concentrations can be observed at the same time distance from a meal (eg, after breakfast or lunch), making too weak the recommendations distinguished only for the fasting and the postabsorptive states. ¹⁸ The patient’s insulin sensitivity, inferred from his or her dietary carbohydrate-to-insulin ratio, is taken into account to establish the percentage carbohydrates of the overall amount of glucose burned during the exercise, which is linearly related to insulin concentration.^47,66 The patient’s insulin sensitivity at the time of the exercise, with the same insulin concentration, affects the required percentage of burned carbohydrates (eg, as in the afternoon compared to the evening in Figure 2); none of the current solutions takes into account this factor. Finally, the carbohydrates supplement required to avoid the exercise induced hypoglycemia is obtained applying the above percentage to the overall amount of glucose burned during the exercise, estimated from patient- and exercise-specific data (ie, age, sex, body mass, training level, duration, and intensity of the exercise).

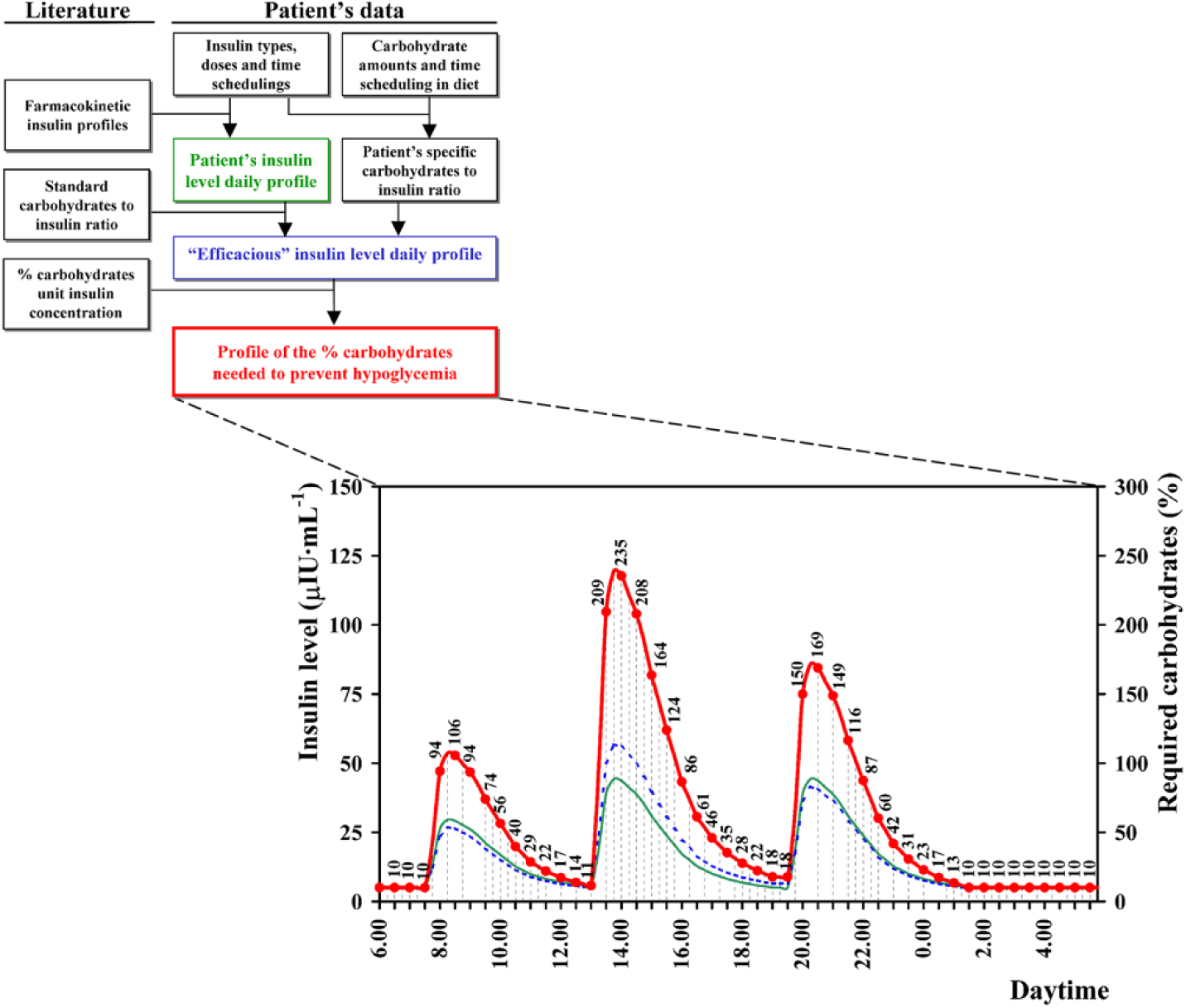

Figure 2.

Flow diagram of the part of the ECRES algorithm that models the total daily insulin profile (green line), the sensitivity-corrected “efficacious” daily insulin profile (blue line), and the profile of percentage carbohydrates needed to prevent hypoglycemia (red line and dots) (modified from Francescato and Carrato ⁶⁶ ). The profiles are estimated based on the patient’s individual therapy (ie, insulin types, doses, time scheduling and dietary carbohydrates).

The amount of carbohydrates estimated by the ECRES algorithm enabled 27 patients with T1D to maintain glycemia within the recommended range (ie, 3.9-10 mmol/L) in more than 70% of 1-hour supervised laboratory-based exercises, independent of the time elapsed (1:30, 3:00, and 4:30 hours) from the lunchtime insulin injection.^47,66 Similar results were obtained for prolonged exercise (3 hours duration) ⁶⁷ or when patients participated to a stressful event (a 24 × 1-h relay marathon), where each patient ran at a different time throughout the day. ⁴⁶ Finally, a recent study showed that the ECRES algorithm, compared to Perkins’s tabular approach, ⁴⁵ suggested significantly lower amounts of extra carbohydrates for standardized physical activity (14.8 ± 12.0 g vs 23.4 ± 4.7 g, P < .05), while maintaining patients’ blood glucose within safe clinical limits. ⁶⁸

Results of these studies are promising and support the validity of approaches based on the main physiological effects of insulin concentration to obtain personalized systems for the management of exercise in patients with T1D. Future studies should investigate the possibility for further personalization and improvement of the estimation of the actual requirements by using patient’s own collected data (eg, activity tracker, glucose excursions, ingested glucose supplements) and machine learning techniques. Moreover, innovative algorithms for artificial pancreas are needed to enhance glycemic control during and following exercise, ⁶⁹ in particular for the pediatric population, ⁷⁰ likely based also on better estimates of patient’s insulin sensitivity.^71,72 Indeed, having an exercise smart system may encourage persons with T1D to increase their physical activity. ⁶³

Conclusion

An optimal glucose control remains of paramount relevance in T1D, even during exercise. Clear-cut quantitative approaches to prevent exercise-induced hypoglycemia are needed to allow patients practice regular physical activity and safely enjoy all its beneficial aspects. This paper discussed the main factors affecting patient’s carbohydrate requirement for exercise, focusing in particular on the role of insulin concentration. The promising results obtained by application of a simplified model have been summarized, supporting the validity of personalized approaches. The possibility for further personalization and improvement, however, should be investigated, to reduce even more the risk of exercise-induced hypoglycemia—the most frequent and potentially harmful event during/after exercise.
