Continuous Glucose Monitoring: Current Use in Diabetes Management and Possible Future Applications

Abstract

The recent announcement of the production of new low-cost continuous glucose monitoring (CGM) sensors, the approval of marketed CGM sensors for making treatment decisions, and new reimbursement criteria have the potential to revolutionize CGM use. After briefly summarizing current CGM applications, we discuss how, in our opinion, these changes are expected to extend CGM utilization beyond diabetes patients, for example, to subjects with prediabetes or even healthy individuals. We also elaborate on how the integration of CGM data with other relevant information, for example, health records and other medical device/wearable sensor data, will contribute to creating a digital data ecosystem that will improve our understanding of the etiology and complications of diabetes and will facilitate the development of data analytics for personalized diabetes management and prevention.

Current Status

Glucose monitoring in diabetes therapy has been revolutionized by the introduction of continuous glucose monitoring (CGM) sensors.^1-4 Most of the CGM sensors currently on the market are minimally invasive systems that measure glucose concentrations in the subcutis by a needle electrochemical sensor, but other systems based on optical sensing technologies (including both implantable fluorescence sensors and noninvasive optical sensors) have also been proposed (see, eg, Lee et al ⁵ and Chen et al ⁶ for reviews of current and future trends in CGM sensor technologies).

The use of CGM sensors is very beneficial for glycemic control, particularly for reducing HbA1c and the frequency of hypoglycemic events,^7-11 and is potentially cost effective in terms of the ratio between costs and quality-adjusted life-years.^12-15 Nevertheless, the distribution of CGM sensors has remained limited to a small segment of the population with diabetes, mainly type 1 diabetes (T1D) subjects. ¹⁶ The most recent data from T1D Exchange ¹⁷ suggest that only 17%-25% of participants use CGM. ¹⁸ The use of CGM is even less widespread among type 2 diabetes (T2D) subjects.^19-21 A recent study conducted among T1D Exchange participants ²² reported that the most common barriers to CGM use were related to high device costs and lack of insurance coverage,^23,24 followed by the hassle of wearing devices and the dislike of having devices on the body; the most common reasons for stopping CGM use were cost, alarm fatigue, perceived sensor inaccuracy, and dislike of wearing devices.

However, the CGM usability is rapidly improving because of increases in sensor accuracy,^25-32 extension of the sensor wear time, and decreases in calibration requirements.^33-37 Moreover, some CGM devices received regulatory approval for nonadjunctive use; that is, the patient can make treatment decisions without using confirmatory self-monitoring of blood glucose (SMBG) measurements obtained by finger stick, except in certain situations (eg, rapidly changing glucose levels or CGM readings that do not match the patient symptoms).^38-41 The nonadjunctive indication together with the improved CGM usability and increasing evidence for its clinical safety and efficacy has stimulated new policies for system reimbursement. ¹² For instance, Medicare recently announced criteria for Dexcom G5 Mobile (Dexcom, San Diego, CA) reimbursement to T1D and T2D patients on intensive insulin therapy. ⁴² These important achievements will likely contribute to expanding CGM use in the next years.

The increasing availability of CGM sensors is also stimulating the development of several interesting applications, for example, programs for retrospective CGM data visualization, ⁴³ mobile apps integrating CGM data with other relevant information for diabetes management (eg, medications, food intake and exercise),^44-46 decision support system prototypes providing physicians with personalized recommendations for therapy adjustment,^47-49 and algorithms for automatic CGM-based regulation of basal insulin delivery. ⁵⁰ Other interesting projects underway include the development of algorithms for automatic optimization of insulin dosing parameters,^51-53 and advisory applications for smart insulin pens and artificial pancreas systems. ⁵⁴ Table 1 summarizes the current CGM-based applications.

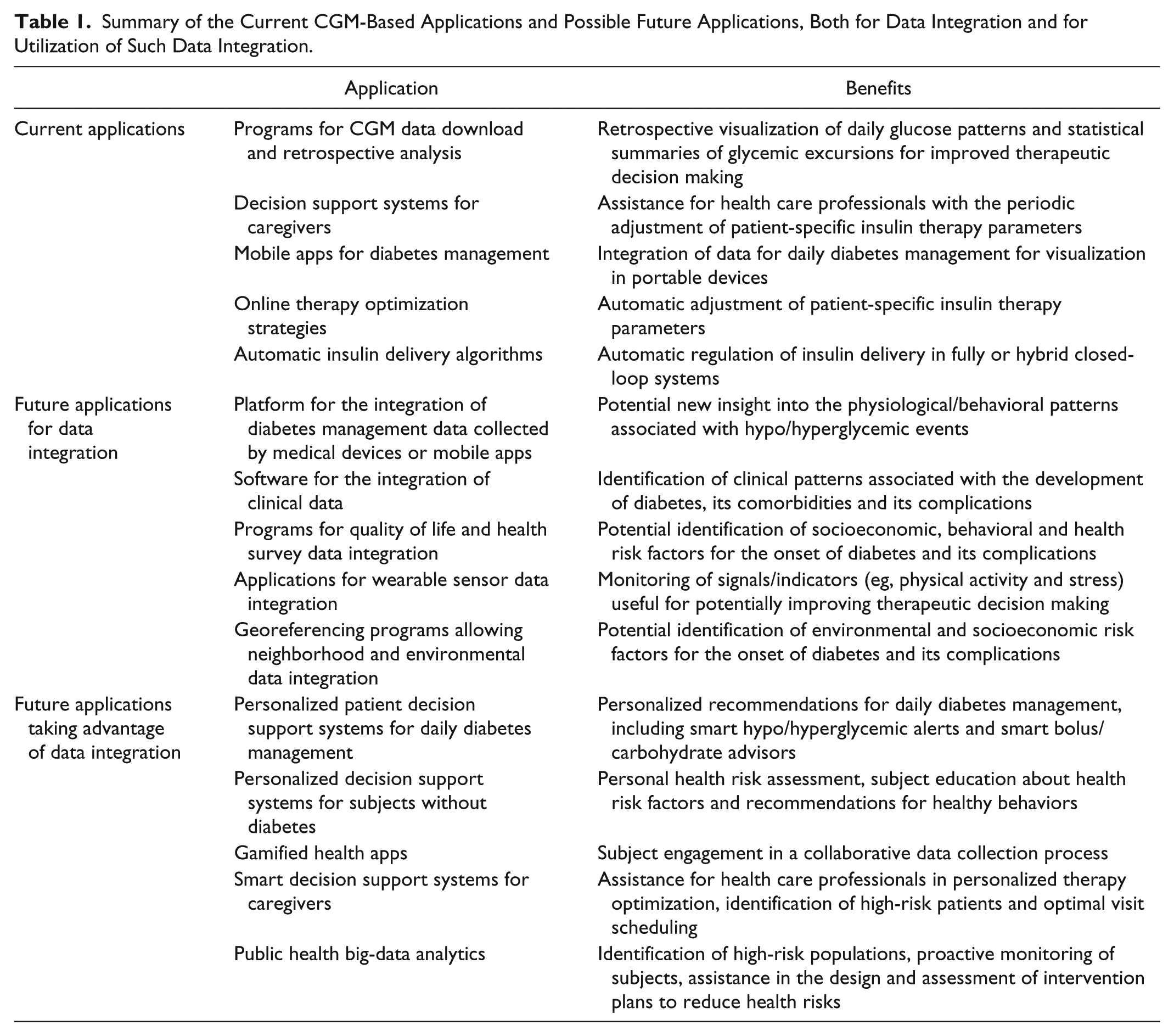

Table 1.

Summary of the Current CGM-Based Applications and Possible Future Applications, Both for Data Integration and for Utilization of Such Data Integration.

	Application	Benefits
Current applications	Programs for CGM data download and retrospective analysis	Retrospective visualization of daily glucose patterns and statistical summaries of glycemic excursions for improved therapeutic decision making
	Decision support systems for caregivers	Assistance for health care professionals with the periodic adjustment of patient-specific insulin therapy parameters
	Mobile apps for diabetes management	Integration of data for daily diabetes management for visualization in portable devices
	Online therapy optimization strategies	Automatic adjustment of patient-specific insulin therapy parameters
	Automatic insulin delivery algorithms	Automatic regulation of insulin delivery in fully or hybrid closed-loop systems
Future applications for data integration	Platform for the integration of diabetes management data collected by medical devices or mobile apps	Potential new insight into the physiological/behavioral patterns associated with hypo/hyperglycemic events
	Software for the integration of clinical data	Identification of clinical patterns associated with the development of diabetes, its comorbidities and its complications
	Programs for quality of life and health survey data integration	Potential identification of socioeconomic, behavioral and health risk factors for the onset of diabetes and its complications
	Applications for wearable sensor data integration	Monitoring of signals/indicators (eg, physical activity and stress) useful for potentially improving therapeutic decision making
	Georeferencing programs allowing neighborhood and environmental data integration	Potential identification of environmental and socioeconomic risk factors for the onset of diabetes and its complications
Future applications taking advantage of data integration	Personalized patient decision support systems for daily diabetes management	Personalized recommendations for daily diabetes management, including smart hypo/hyperglycemic alerts and smart bolus/carbohydrate advisors
	Personalized decision support systems for subjects without diabetes	Personal health risk assessment, subject education about health risk factors and recommendations for healthy behaviors
	Gamified health apps	Subject engagement in a collaborative data collection process
	Smart decision support systems for caregivers	Assistance for health care professionals in personalized therapy optimization, identification of high-risk patients and optimal visit scheduling
	Public health big-data analytics	Identification of high-risk populations, proactive monitoring of subjects, assistance in the design and assessment of intervention plans to reduce health risks

The purpose of this commentary is not to exhaustively review current and developing CGM technologies and applications but rather to discuss how, in our opinion, the current trends in CGM technological development are expected to further increase CGM utilization in the future, possibly targeting not only subjects with diabetes but also people with prediabetes or even healthy individuals (Section Future Developments in CGM Technology to Target New Population and Markets ). We will also propose a perspective on how the integration of CGM data with other relevant patient/environment data could open the way for the development of applications for personalized diabetes management and prevention within the context of building a learning health care system (Section Building a Digital Ecosystem of Diabetes and Health Data ).

Future Developments in CGM Technology to Target New Populations and Markets

Current research in CGM technology is expected to further expand the adoption of CGM beyond the T1D population. Indeed, some of the leading companies in CGM manufacturing are working on developing new products that were announced to be smaller, less expensive and factory calibrated to target not only people with T1D but also the much wider market of people with T2D. Reduced cost and factory calibration are two of the most innovative features of the Freestyle Libre Flash (Abbott Diabetes Care, Alameda, CA), launched by Abbott in 2014, although this system does not provide continuous glucose and trend data in real time but instead requires the patient to place the receiver close to the sensor for data visualization. ⁵⁵ The Freestyle Libre Flash costs approximately one-half to one-third of the price of other commercial CGM systems ²³ (this cost difference is market dependent) and is now being used by more than 400,000 people across more than 40 countries. ⁵⁶ In 2015, Dexcom (San Diego, CA) and Verily Life Sciences (Mountain View, CA) announced a collaboration for developing next-generation CGM products designed to be miniaturized, factory calibrated, inexpensive and less obtrusive than current systems. ⁵⁷ Similarly, in 2016, Medtronic and Qualcomm Life (San Diego, CA) announced a collaboration to jointly develop a future generation of CGM sensors for T2D; these sensors are supposed to be single use, as well as smaller, easier to use and more affordable than current sensors. ⁵⁸ These systems could all become accessible not only to people with diabetes but also to subjects affected by prediabetes or obesity, thus transitioning from reactive to proactive health care.

Other emerging companies, such as Glucovation (San Diego, CA) ⁵⁹ and Nemaura Medical (Loughborough, United Kingdom), ⁶⁰ are working on novel low-cost CGM products devised not only for the medical market but also for the consumer market as tools to track health and well-being. Possible users for these applications are people in weight-loss programs or athletes, for whom a CGM system could be beneficial for monitoring metabolism and making informed nutritional decisions, although evidence for the benefits of CGM use in healthy individuals has not yet been reported.

Building a Digital Ecosystem of Diabetes and Health Data

The availability of smartphone- and internet-connected CGM sensors,^61,62 together with the extension of their use to a larger population, will allow the creation of large databases in which CGM data (Figure 1a) are integrated with several other data sources (Figure 1b). For example, CGM data can be merged with information provided by other medical devices for diabetes, for example, SMBG devices, insulin pumps and pens, and the variables collected by mobile apps for diabetes management,^63-67 including information on medications, diet and exercise. The integration of other clinical data sources, such as clinical registries, ¹⁷ electronic health records, prescription registries and biomarkers collected in laboratory tests, will provide important clinical contextualization for CGM data. The integration with clinical data would facilitate the design of new strategies for diabetes management, improving the engagement of patients with their clinical care data, ⁶⁸ and the investigation of clinical patterns in the development of diabetes and its comorbidities and complications. ⁶⁹ Information gathered by quality of life and health surveys^70-72 will further enrich the database, providing useful insights into psychosocial and economic factors influencing the behavior (eg, diet and exercise habits) and, as a consequence, health (eg, diabetes complications) of subjects.

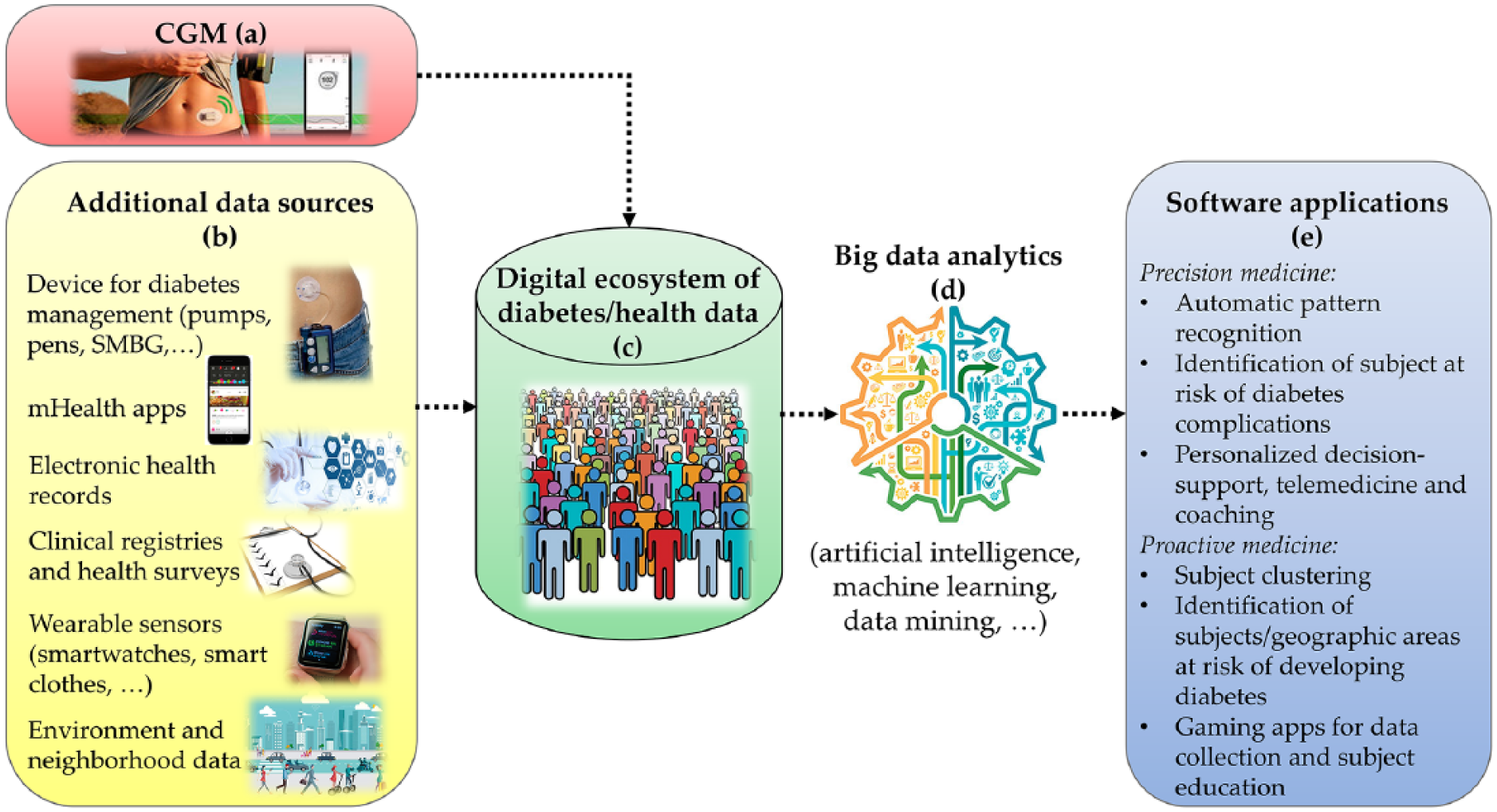

Figure 1.

Possible data sources (a) that can be integrated with CGM data (b) to create a digital ecosystem of diabetes and health data (c) and possible applications (e) for precision and proactive medicine relying on big data analytics (d).

CGM data can also be combined with measurements collected by several other wearable sensors, such as currently available smartwatches, which can track heart rate, steps/motion, energy consumption, sleep and biometric parameters such as weight and body mass index,^73,74 or with measurements collected by new prototypes that can even measure blood oxygenation, skin temperature, skin blood perfusion, respiratory rate, cutaneous sweat, stress and exposure to addictive substances.^75,76 A new generation of smart clothes is also entering the market that can provide biometrics and activity data from textile-sensing technologies.^77,78 Finally, new wearable and miniaturized sensors currently under development will provide real-time measurements of biomarkers with potential clinical utility based on tear, saliva, sweat, or breath analysis. ⁷⁹

The connection of CGM and other wearable sensors to smartphones equipped with GPS connectivity allows data georeferencing. CGM data can thus be integrated with information about the quality of the living environment (eg, pollution data collected by air quality sensors) and neighborhood (eg, presence of parks and healthy food shops). The geolocalization of CGM data will allow a better understanding of the environmental factors influencing the onset of metabolic disorders and their course.^80,81 In one study employing CGM geolocalization, ⁸² CGM, insulin pump and exercise tracker data were geolocalized to characterize patients with diabetes during exercise. Other studies in which health factors were geolocalized and connected to environmental/neighborhood factors are the Seattle Obesity Study ⁸³ (obesity in relation to food environment, diet quality and disparities) and MOSAIC ⁸⁴ (correlation between T2D glycemic control and air pollution maps). Interesting scenarios may be revealed by other projects underway, such as the Kavli HUMAN Project, ⁸⁵ which aims to understand how biology, behavior, and environment affect health and well-being in New York City, and PULSE, ⁸⁶ which investigates novel insights into the relationship between environmental/behavioral factors and risk of developing T2D and asthma in urban environments.

The integration of CGM data with this variety of other patient/environment data is certainly not straightforward, and it would require the development of ad hoc software applications (summarized in Table 1) allowing interoperability between the different data collection systems. Such data integration will contribute to the generation of a digital ecosystem of diabetes data ⁸⁷ or more general health and well-being data (Figure 1c); these data can be used to improve our understanding of the biological, behavioral and environmental factors driving the development of diabetes and its complications. This integration will be part of a wider trend that is already observed in other medical areas: to create learning health care systems exploiting data analytics to extract new medical knowledge that cannot be discovered by relying on a single source of information.^88-90 In particular, diabetes data integration will offer the opportunity to design data analytics (Figure 1d) for personalized diabetes management and prevention solutions (Figure 1e).

The integration of CGM data with other information relevant to diabetes management, for example, insulin administrations, diet, exercise and stress, will provide new insight into the physiological/behavioral patterns associated with hypo/hyperglycemic events, which are not possible to identify by relying on a single data source. This insight would allow the development of telemedicine services^91,92 and personalized decision support systems, which can implement, for example, real-time algorithms to generate smart hypo/hyperglycemia alerts and smart bolus/carbohydrate advisors, with the aim of tailoring the therapy to the personal exercise habits, stress triggers and circadian rhythms of the patient. ⁹³ Caregivers could also benefit from the development of decision support systems for health care providers, such as dashboards implementing automatic pattern recognition to identify patients with poor glycemic control and models predicting diabetes complications to identify patients at high risk of developing diabetes-related complications. ⁹⁴ Via patient risk stratification, tools for optimal visit scheduling, for example, giving higher priority to high-risk patients, can be designed. Moreover, software providing personalized therapy adjustment recommendations can be useful to assist the caregiver in revising therapy for the patient. Such applications can exploit not only the information available for a specific patient but also the evidence obtained from patients with similar characteristics.

The extension of CGM technology beyond diabetes will enable the development of software solutions for proactive medicine. For example, mobile decision support systems could be designed not only for people with diabetes but also for healthy individuals as tools to educate subjects about their personal risk factors for diabetes (and other health conditions) and to promote positive behavioral changes. In addition, software applications to identify subjects at high risk of developing diabetes can be designed by implementing models for predicting the onset of diabetes; ⁹⁴ these models currently include mostly demographics, biometrics and blood test biomarkers as risk factors but can be potentially improved by the incorporation of CGM-based glucose variability indices,^95,96 as well as behavioral, socioeconomic, and environmental factors. This development will allow health care agencies to devise targeted prevention and screening plans for diabetes, thus promoting the efficient use of resources. The geolocalization of data will allow public health analysts to identify geographic areas where the population is at high risk of diabetes and more efficiently plan initiatives to reduce the relevant risk factors. ⁹⁷

However, several important challenges related to data integration need to be faced. ⁸⁸ The collection of large amounts of individual data will not be trivial, and strategies to engage the subjects in a collaborative data collection process need to be designed, for example, the use of gamified apps.^98-100 In addition, data security and veracity cannot be neglected. ¹⁰¹ The necessity of handling the copious varied and complex data will require the use of big data analytics tools based on artificial intelligence techniques^80,102,103 to overcome the limitations of traditional hypothesis-driven statistical approaches. Real-time applications will also need sophisticated data-storage infrastructures to easily pull and retrieve information. Furthermore, effective integration of signals that have temporal information, such as CGM time series, with static data that do not always provide the true time context, such as health records, can be challenging. ⁸⁹ Last but not least, evidence about the clinical effectiveness and safety of such big data analytics, as well as proof of their clinical utility, must be provided to support employment of these applications in health care. ⁸⁸

Conclusion

The use of CGM sensors will certainly grow significantly in the next years in response to improvements in accuracy, regulatory approval for making treatment decisions and expansions of reimbursement criteria. Moreover, cost decreases will extend the CGM market to new populations, possibly including subjects with prediabetes and even healthy people, as a part of well-being programs, although the effectiveness of CGM use in these populations has not yet been proved.

The availability of a vast amount of CGM data will contribute to new insights into diabetes onset and progression mechanisms, especially when these data are integrated with data from other sources, for example, wearable sensors and health records. The thus-obtained digital ecosystem of diabetes and health data will enable the development of big data analytics tools for precision and proactive medicine, for example, decision support systems, proactive patient monitoring systems and public health applications. Nevertheless, several delicate issues, such as technical challenges (from security to data volume, velocity, veracity, and variety) and the need to provide evidence of their clinical safety and utility, must be carefully addressed.
