Characteristics and properties of nitrocellulose/glycidyl azide polymer/2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane nanocomposites synthesized using a sol–gel supercritical method

Abstract

Nitrocellulose/glycidyl azide polymer/2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane nanocomposites, in which 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane nanoparticles uniformly embedded in nitrocellulose/glycidyl azide polymer matrix, were synthesized using a sol–gel supercritical method. The micron morphology, crystal phase, molecular structure, specific surface area, and surface elements were characterized using scanning electron microscopy, X-ray diffractometry, infrared, Brunauer–Emmett–Teller, and X-ray photoelectron spectroscopy analyses, respectively. Thermal analyses were performed, and the kinetic and thermodynamic parameters, such as activation energy, per-exponent factor, rate constant, activation heat, activation free energy, and activation entropy, were calculated. The decomposition products of the nitrocellulose/glycidyl azide polymer matrix and nitrocellulose/glycidyl azide polymer/2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane were also investigated by differential scanning calorimetry–infrared analysis. The result indicated that the main decomposition product of nitrocellulose/glycidyl azide polymer is carbon dioxide and the –N₃ group in glycidyl azide polymer decomposed to nitrogen without being detected by infrared spectrometer; the main decomposition products of nitrocellulose/glycidyl azide polymer/2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane are carbon dioxide, nitrous oxide, and water, and few carbon monoxide, methane, and nitrogen oxide are also detected. Energy performances of nitrocellulose/glycidyl azide polymer matrix and nitrocellulose/glycidyl azide polymer/2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane nanocomposites were evaluated, that is, the parameters such as standard specific impulse, characteristic speed, combustion chamber temperature, average molecular weight of combustion products, and explosion heat were calculated. The results illustrated that as the weight percentage of nitrocellulose increases, the values of standard specific impulse, characteristic speed, average molecular weight of combustion products, combustion chamber temperature, and explosion heat increase. This was ascribed to that the oxygen balance of glycidyl azide polymer is substantially lower than that of nitrocellulose, which results in that the chemical energy of glycidyl azide polymer does not release sufficiently. Additionally, as weight percentage of glycidyl azide polymer increases, the impact and friction sensitivity of the composites decrease obviously. This means that glycidyl azide polymer is much more insensitive than nitrocellulose.

Introduction

The development of high-energy, low-sensitivity, low-cost explosives has long been the goal in the field of energetic materials. Update of energetic materials is an important indicator of update of weapons. 2,4,6,8,10,12-Hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane (CL-20) is the most outstanding nitroamine explosive with the highest density, the highest detonation velocity, the highest explosion heat, and high oxygen balance (OB). ^1,2 It has cage-like molecular structure, which results in very high molecular tension. ³ Thus, the detonation performance of CL-20 is 10% higher than that of 1,3,5,7-tetranittro-1,3,5,7-tetrazocane (HMX). However, as a fatal defect, much high sensitivity substantially restricts the practical application of CL-20. Low safety is an inherent property of CL-20, and it is hard to change. Usually, there are two ways to alleviate this problem. One is the preparation of eutectic materials, that is, CL-20 co-crystallizes with a very insensitive explosive crystal to form an insensitive co-crystal. Ghosh and coworkers prepared CL-20/HMX co-crystal through solvent evaporation and proved that the performance of CL-20/HMX eutectic is more stable than CL-20 ⁴ ; another discovery is that nano explosives have obviously lower sensitivities than the micron explosives. ⁵ So there are many researchers who try to fabricate nano-CL-20 by different methods. Bayat and Zeynali fabricated nano-CL-20 via precipitative crystallization. ⁶ Shang et al. prepared nano-CL-20 by the supercritical fluids method. ⁷ Guo et al. produced nano-CL-20 by mechanical milling method. ⁸ Similar studies were also reported by Wang et al. ⁹ and Bayat et al. ¹⁰ ; they prepared nano-CL-20 via ultrasonic spray-assisted electrostatic adsorption technology and micro emulsion method, respectively. Furthermore, to reduce the sensitivities of explosives, other nanoenergetics also were reported, such as nano-HMX, ^{11 –15} nano-RDX, ^{16 –18} nano-NTO, ¹⁹ nano-HNS, ^20,21 and nano-TATB. ^22,23

The energetic nanocomposites are another form of nanoenergetics. Although there are many preparation methods, the sol–gel method is the most commonly used one. It is because that the sol–gel method has many advantages, such as the convenience of low-temperature preparation, easy control over the stoichiometry and homogeneity of composites, and environment-friendly. ^24,25 Moreover, the existence of the gel matrix effectively prevents the agglomeration of nanoparticles, controls the particle size at nanometer level, reduces the sensitivity of energetic materials, and enhances the energy and combustion performances. Previously, researchers used inert gel matrix such as ferric oxide, silicon dioxide, and Fluorine rubber (RF) to prepare nanocomposites. But this will bring a considerable penalty on energy performance. Thus, energetic gel matrix is a better choice to prepare nanocomposites.

Now, some nanocomposites using energetic materials as matrix have been fabricated, such as nitrocellulose (NC)/HMX, ²⁶ glycidyl azide polymer (GAP)/HMX, ²⁷ and RDX/GAP. ²⁸ Because it is cheap and easily available, NC is the most widely used as the matrix. However, because NC has a high glass-transition temperature (T _g) and there are lots of rings in its molecules, NC is very crisp and NC-based composites are of very poor mechanical properties in a cold environment, which limits the application of NC-based composites. As a new type of energetic polymer binder, GAP has the advantages of high nitrogen content, low mechanical sensitivity, good thermal stability, and very low T _g. Thus, GAP is an ideal alternative for NC to fabricate nanocomposites. However, GAP is very expensive and the composites using GAP as the binder show a lack of rigidity. And the presence of the –CH₂N₃ side chain in GAP molecules causes the main chain to carry fewer atoms and the intermolecular forces are small, resulting in low tensile strength. Hence, a combination of NC and GAP is a better choice for preparation of nanocomposites. We made a practice of this idea, that is, NC/GAP/CL-20 nanocomposites were prepared here and their energetic properties were probed.

Experiment

Materials

NC (12.6% N, industrial grade) was purchased from Foshan Junyuan Chemical Co., Ltd (Foshan City, Guangdong Province, People’s Republic of China). CL-20 was purchased from Gansu Yinguang Chemical Co., Ltd (Baiyin City, Gansu Province, People’s Republic of China); GAP (number-average molecular weight = 4000, hydroxyl value of 0.49 mmol·g⁻¹) was provided by the 42nd Institute of the Fourth Academy of China Aerospace Science and Technology Corporation. Ethyl acetate (purity of 99.5%) was purchased from Tianjin Fuyu Fine Chemical Co., Ltd (Tianjin city, People’s Republic of China). Toluene diisocyanate (TDI, purity of 98%) was purchased from Tianjin Guangfu Chemical Co., Ltd (Tianjin city, People’s Republic of China). Dibutyltin dilaurate (T-12, purity of 95%) was purchased from Tianjin Bodi Chemical Co., Ltd (Tianjin city, People’s Republic of China). Triethylenediamine (TED; purity of 98%) was purchased from Sinopharm Group Chemical Reagent Co., Ltd.

Synthesis of nanocomposites

NC, GAP, and CL-20 were dissolved completely in 20 mL of ethyl acetate at ambient temperature in various weight ratios (the ratios of NC:GAP:CL-20 were 0.67:0:0.33, 0.5:0.17:0.33, 0.33:0.34:0.33, 0.17:0.5:0.33, 0:0.67:0.33). Then, add the measured amount of TDI, the appropriate amount of TED solution (0.05 g of TED was dissolved into 1–2 mL of ethyl acetate), and T-12 (maintain the R value n (–NCO): n (–OH) is 0.95) into the mixed solution. A wet gel formed after 5–10 min standing in thermostatic tank. The wet gel was dried via the supercritical drying method to obtain the NC/GAP/CL-20 nanocomposite energetic materials.

The catalyst played an important role in the process. In general, there are two types of catalyst used in polyurethane production. Amine has been used in the early production of polyurethanes. TED is an amine catalyst commonly used. TED is an amine with weak alkalinity, but its steric hindrance is close to zero; so in practice, it exhibits excellent catalytic performance in promoting the polymerization reaction. The catalytic mechanism is shown in Figure 1(a). Tertiary amines easily undergo complex reaction with –NCO radicals to form complexes with high reactivity. This complex can quickly react with alcohol to produce carbamate and TED. Organotin catalysts such as stannous octoate, stannous oleate, and T-12 are commonly used for the production of polyurethanes and other products and are another catalyst in addition to amine catalysts. Organotin usually works at higher temperatures than amines. In theory, as shown in Figure 1(b), organotin can undergo coordination reaction with –NCO radicals to polarize it. After polarization, carbon atoms (positively charged in isocyanate molecules) exhibit high reactivity and are vulnerable to nucleophile attack. In the experiment, the use of these two catalysts alone did not achieve the desired effect. However, satisfactory results were achieved with both catalysts.

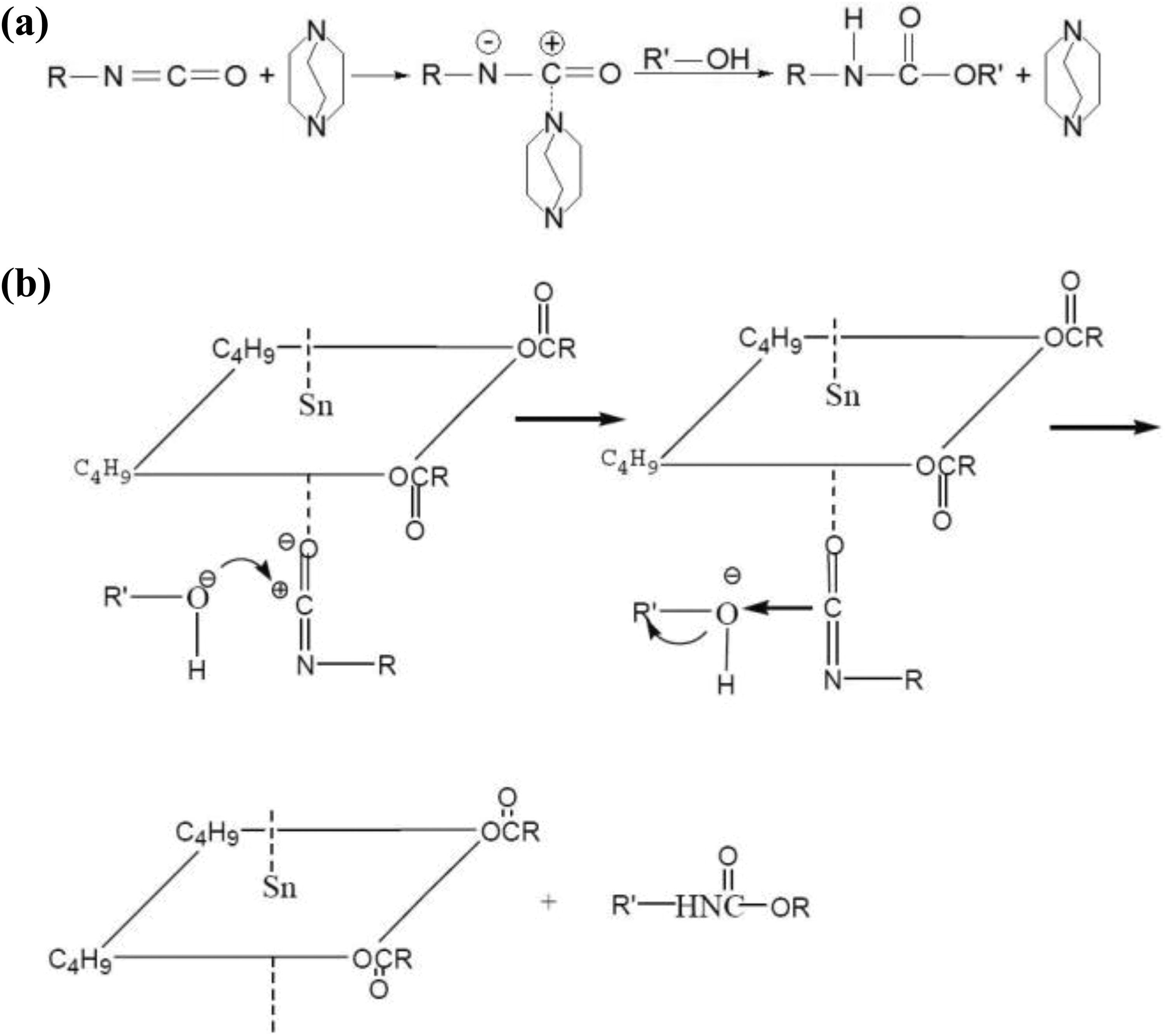

Figure 1.

Catalysis mechanism of TED (a) and T-12 (b). TED: triethylenediamine; T-12: dibutyltin dilaurate.

Characterization and tests

The morphology was observed with a field-emission scanning electron microscope (SEM, JEOL JSM-7500, JEOL LTD.). The phases of the samples were investigated with an X-ray diffractometer (XRD, Bruker Advance D8, Bruker LTD.) using copper K _α radiation at 40 kV and 30 mA. Infrared (IR) analysis was performed on a Thermo Fischer Scientific (Thermo Fischer Scientific LTD.) Nicolet 6700 IR spectrometer (iodine bromide tablet). X-Ray photoelectron spectroscopy (XPS) analysis was performed using XPS and a PHI5000 Versa-Probe (ULVAC-PHI, Ulvac-PHI LTD.). Thermal analysis was performed on a differential scanning calorimeter (DSC, TA Model Q600, American TA LTD.) at the heating rates of 5, 7, and 10°C·min⁻¹. DSC-IR analysis was carried out at a heating rate of 10°C·min⁻¹ using a thermal analyzer system (DSC, Mettler Toledo, Mettler Toledo LTD.) coupled with a Fourier transform IR spectrometer.

The impact sensitivity of the samples was tested with an HGZ-1 impact instrument (HGZ-1 impact instrument). The special height (H ₅₀) represents the height from which a 5-kg drop hammer will result in an explosive event in 50% of the trials. In each determination, 25 drop tests were made to calculate the H ₅₀, and each lot was tested three times to obtain a mean value and a standard deviation. The friction sensitivity of the samples was tested with a WM-1 friction instrument (North University China), and three test standards were adopted (90 ± 1°, 3.92 MPa). In each determination, 50 samples were tested and an explosion probability (P, %) was obtained. Each lot was tested three times to obtain a mean value and a standard deviation.

Results and discussion

Morphology and structure

The morphology and structure are disclosed, and the SEM images are displayed in Figure 2. Figure 2(a) shows the image of the NC/GAP matrix. The NC/GAP matrix presents a cross-linked network structure, and the size is approximately 30 nm. There are abundant nanoscale voids formed among the network structures. Figure 2(b) depicts the morphology of NC/GAP/CL-20. It is clear that the morphology of nanocomposites is different from that of the matrix. The cross-linked network structures disappear because CL-20 particles embedded in the pores occupied the voids of the matrix. The size of the nanocomposite is about 100–200 nm and becomes lager than the size of the matrix.

Figure 2.

SEM images of nanocomposites: (a) NC_0.5/GAP_0.5 and (b) NC_0.33/GAP_0.34/CL-20_0.33. SEM: scanning electron microscope; NC: nitrocellulose; GAP: glycidyl azide polymer; CL-20: 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane.

To identify the crystallinity of nanocomposites, XRD analysis is performed, and the diffraction pattern is shown in Figure 3(a). It is clear that there are obvious crystal peaks at 2θ of about 10°–20° and 2θ of about 25°–40°, corresponding to diffraction of CL-20. According to the study of Bolton, the peak at 2θ = 13.2° can be attributed to the CL-20. ²⁹ The full width at half maximum of this peak is about 0.1062. According to the Scherrer formula, the rough value of nanocrystallite size is 74 nm. The amorphous peaks appear at 2θ of about 20°–25°, corresponding to the NC/GAP matrix. The molecular structure and the functional group of NC/GAP/CL-20 nanocomposites are characterized by IR analyses, and the spectrum is displayed in Figure 3(b). Peak located at 2100 cm⁻¹ relates to the stretching vibration of –N₃ in GAP molecules. Peaks at 1580 and 1284 cm⁻¹ are assigned to the shear bending vibration of –N–H and the stretching vibration of C–N, respectively, indicating that the –OH groups in NC/GAP reacted with –NCO groups in TDI to form carbamate during the sol–gel process. The peak at 2360 cm⁻¹ corresponds to the –NCO groups in TDI, illustrating that the residual TDI was remained in the nanocomposite. Peaks at 1740 and 1390 cm⁻¹ reflect the stretching vibration of C=O and –NO₂. The peaks ranged from 1126 cm⁻¹ to 992 cm⁻¹ are ascribed to the out-of-plane bending vibration of C–H.

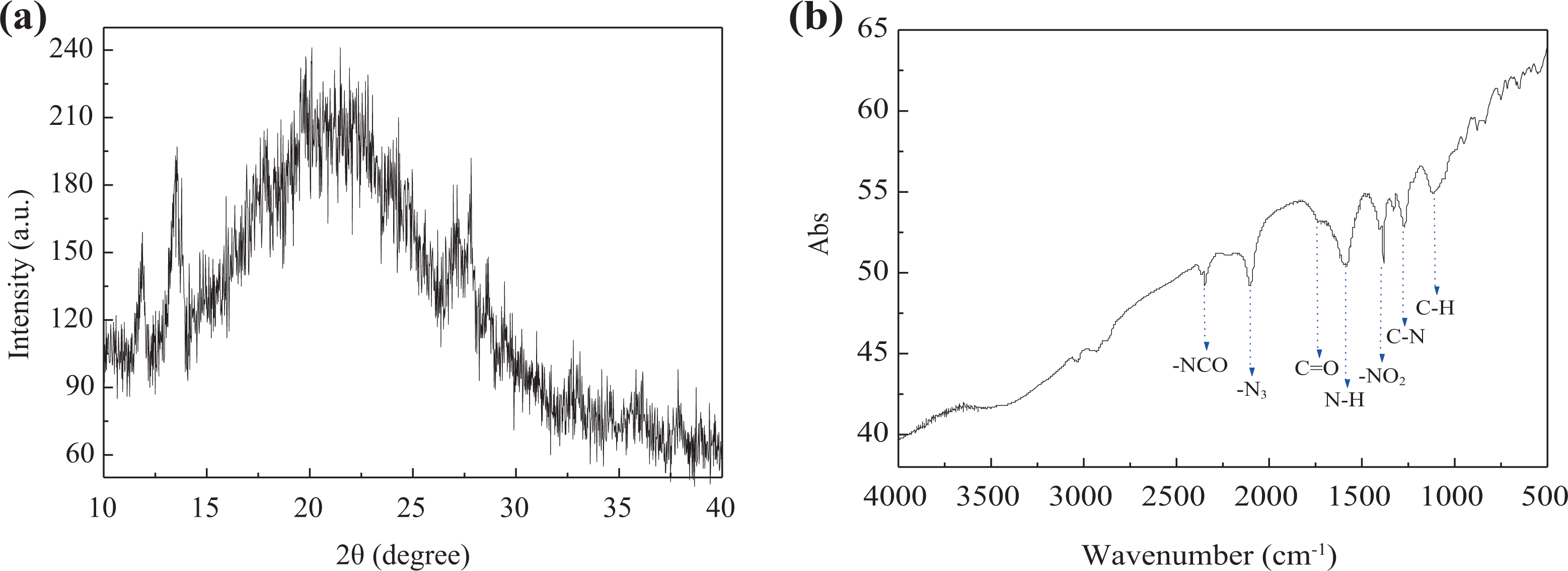

Figure 3.

XRD pattern (a) and IR spectra (b) of NC_0.33/GAP_0.34/CL-20_0.33. XRD: X-ray diffractometer; IR: infrared; NC: nitrocellulose; GAP: glycidyl azide polymer; CL-20: 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane.

The specific surface area and the difference of porous properties of nanocomposites were investigated by nitrogen (N₂) adsorption tests, and the results are exhibited in Figure 4. The curve of the low P/P ₀ region is convex upward, indicating a strong affinity between the adsorbate and the adsorbent. In the higher P/P ₀ zone, capillary condensation of the adsorbent occurs, and the isotherm rises rapidly. When all pores are agglomerated, adsorption occurs only on the outer surface that is much smaller than the inner surface area, and the curve is flat. As the relative pressure is close to 1, adsorption happens on the big hole, and the curve rises. Due to capillary condensation, hysteresis can be observed in this zone. That is, the isotherm obtained during desorption does not coincide with the isotherm obtained during adsorption. The desorption isotherm above the adsorption isotherm produces a desorption hysteresis and shows a hysteresis loop. The pore structure parameters of samples are presented in Table 1. It can be observed that all the parameters of nanocomposites decreased sharply compared with the NC/GAP gel. This attributes to that CL-20 nanoparticles occupy the holes existing in the structure of the NC/GAP matrix.

Figure 4.

BET data of samples: (a) isotherm linear plot and (b) Brunauer Emmett Teller (BET) surface area plot.

Table 1.

Pore structure parameters of samples.

Samples	BET surface area (m2·g−1)	Pore volume (cm3·g−1)	Pore size (nm)
NC0.5/GAP0.5	290.8	0.4429	61.95
NC0.33/GAP0.34/CL-200.33	2.7	0.0055	23.21

NC: nitrocellulose; GAP: glycidyl azide polymer; CL-20: 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane.

The surface elements of nanocomposites were characterized by XPS, and the spectrum is shown in Figure 5. It can be seen that there are three obvious peaks corresponding to the electron excitation of the 1s orbital of O, N, and C atoms. The chemical bond information of O, N, and C elements was obtained from the narrow sweep of high resolution, and the results are exhibited in Figure 5(b) to (d). Electron excitation of the 1s orbital of O shows a peak, corresponding to oxygen atoms in the –NO₂ group. Electron excitation of the 1s orbital of N shows three peaks, corresponding to nitrogen atoms in –NO₂, –NH–, and –N₃ groups. Electron excitation of the 1s orbital of C also shows three peaks, corresponding to carbon atoms in –CH₂–, C=O, and –C– groups. These results are in accordance with the molecular structure of NC, GAP, and CL-20.

Figure 5.

XPS spectra of NC_0.33/GAP_0.34/CL-20_0.33. XPS: X-ray photoelectron spectroscopy; NC: nitrocellulose; GAP: glycidyl azide polymer; CL-20: 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane.

Thermolysis properties

To study the thermolysis properties of NC/GAP/CL-20 nanocomposites, thermal analyses are performed, and the DSC traces are shown in Figure 6. Each curve displays two exothermic peaks corresponding to the decomposition of the nanocomposite. The peaks at about 166.9–170.8°C, that is, decomposition (i), should attribute to decomposition of the NC/GAP matrix; the peaks at about 238.1–246.6°C, that is, decomposition (ii), should attribute to decomposition of CL-20. The kinetic and thermodynamic parameters are calculated, and the results are listed in Table 2. The kinetic parameters, containing the activation energy (E _k), the pre-exponential factor (A _k), and the rate constant (k), are calculated with Kissinger equation (equation (1)) and Arrhenius equation (equation (2)). It is obvious that the ln (β/ $T_{\text{p}}^2$ ) varies linearly with 1/T _p. E _k represents the difficult degree for initiation of a chemical reaction. The rate constant k directly reflects the reaction rate of a chemical reaction. Decomposition (i) has a lower E _k and a higher k than decomposition (ii). The thermodynamic parameters such as activation Gibbs free energy (ΔG ^≠), activation heat (ΔH ^≠), and activation entropy (ΔS ^≠) are calculated using equations (3) to (5). ΔG ^≠ is the Gibbs free energy difference between the normal state and the activated state. ΔG ^≠ of both decomposition (i) and (ii) are positive, which indicates that the activation is not a spontaneous process and needs to absorb energy. The ΔH ^≠ represents activated enthalpy, which presents the heat that makes the explosive activated. The ΔH ^≠ of decomposition (ii) is smaller than decomposition (i), so decomposition (i) needs more heat to be initiated. ΔS ^≠ is the entropy difference that the explosive is heated from the ordinary state to the activated state. Larger ΔS ^≠ means higher degree of freedom and confusion. More gas products lead to larger ΔS ^≠. The value of ΔS ^≠ for decomposition (i) and (ii) is all positive, showing that the confusion degree of the activated complexes is higher than that of the normal molecules. The abovementioned values are roughly consistent with those reported by Turcotte et al. ³⁰ who have performed a similar study about CL-20 using heating rates from 1°C·min⁻¹ to 10°C·min⁻¹ (E _a = 207 ± 18 kJ·mol⁻¹, lnA _k = 47.7 ± 4.6)

$\text{ln}\frac{\beta }{T_{\text{p}}^2}=\hspace{0.17em}\text{ln}\frac{R\cdot A_{\text{K}}}{E_{\text{K}}}-\frac{E_{\text{K}}}{R}\cdot \frac{1}{T_{\text{p}}}$

1

$k=A_{\text{K}}\cdot \hspace{0.17em}\text{exp}\left(-\frac{E_{\text{K}}}{T_{\text{p}}\hspace{0.17em}\cdot \hspace{0.17em}R}\right)$

2

$A\text{exp}\left(-\frac{E_{\text{K}}}{R{T}_{\text{P}}}\right)\hspace{0.17em}=\hspace{0.17em}\frac{K_{\text{B}}{T}_{\text{P}}}{h}\text{exp}\left(-\frac{\Delta G^{\ne }}{R{T}_{\text{P}}}\right)$

3

$\Delta H^{\ne }\hspace{0.17em}=\hspace{0.17em}{E}_{\text{K}}\hspace{0.17em}-R{T}_{\text{P}}$

4

$\Delta G^{\ne }\hspace{0.17em}=\hspace{0.17em}\Delta H^{\ne }\hspace{0.17em}-\hspace{0.17em}{T}_{\text{P}}\Delta S^{\ne }$

5

where T _p is the peak temperature in the DSC trace; K _B and h are the Boltzmann’s (K _B = 1.381 × 10⁻²³ J·K⁻¹) and Plank’s constant (h = 6.626 × 10⁻³⁴ J·s⁻¹), respectively; β is the heating rate; E _K and A _K are the activation energy and pre-exponential factor calculated by the Kissinger equation, respectively; ΔH^≠ is the activation enthalpy of thermal decomposition (J·mol⁻¹); ΔG^≠ is the activation free energy of thermal decomposition (J·mol⁻¹); and ΔS^≠ is the activation entropy of thermal decomposition (J·mol⁻¹·K⁻¹).

Figure 6.

(a) DSC traces of NC_0.33/GAP_0.34/CL-20_0.33 collected at different heating rates. (b) Kissinger plots of ln (β/ $T_{\text{p}}^2$ ) to 1000/T _p; “i” and “ii” represent decomposition of (i) and (ii). DSC: differential scanning calorimeter; NC: nitrocellulose; GAP: glycidyl azide polymer; CL-20: 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane.

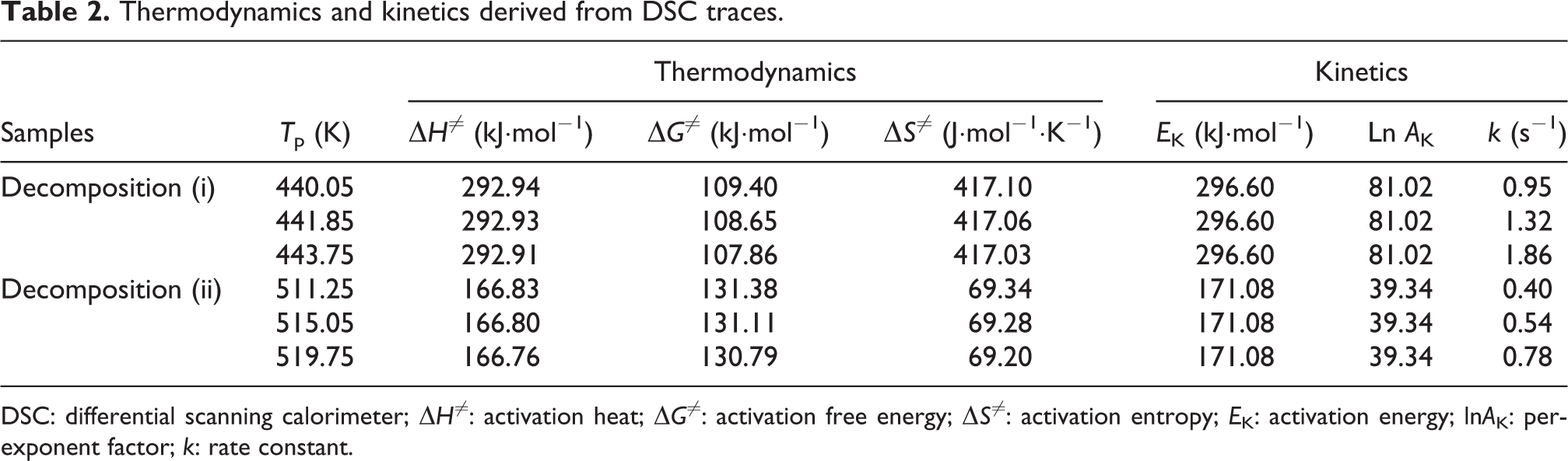

Table 2.

Thermodynamics and kinetics derived from DSC traces.

Samples	T p (K)	Thermodynamics			Kinetics
		ΔH≠ (kJ·mol−1)	ΔG≠ (kJ·mol−1)	ΔS≠ (J·mol−1·K−1)	E K (kJ·mol−1)	Ln A K	k (s−1)
Decomposition (i)	440.05	292.94	109.40	417.10	296.60	81.02	0.95
	441.85	292.93	108.65	417.06	296.60	81.02	1.32
	443.75	292.91	107.86	417.03	296.60	81.02	1.86
Decomposition (ii)	511.25	166.83	131.38	69.34	171.08	39.34	0.40
	515.05	166.80	131.11	69.28	171.08	39.34	0.54
	519.75	166.76	130.79	69.20	171.08	39.34	0.78

DSC: differential scanning calorimeter; ΔH^≠ : activation heat; ΔG^≠ : activation free energy; ΔS^≠ : activation entropy; E _K: activation energy; lnA _K: per-exponent factor; k: rate constant.

For disclosing the decomposition mechanism of the nanocomposites, we investigate the gas products of thermal decomposition of NC/GAP and NC/GAP/CL-20 via DSC-IR analyses, and the results are shown in Figure 7. Firstly, for the NC/GAP matrix, Figure 7(a) indicates that its decomposition is not violent, and it decomposes gradually in the time range of about 623–2062 s. We extract the IR spectra at 623, 912, 1179, 1648, and 2062 s and illustrate them in Figure 7(b). The decomposition product of NC/GAP is very simple, that is, only carbon dioxide (CO₂) is detected. Where is the N element? The –N₃ groups in GAP molecules decompose to N₂ which is a nonpolar molecule and cannot be detected by IR spectrometer. The –ONO₂ groups in NC molecules split out and react with the C element, which accounts for the formation of CO₂. The N element in –ONO₂ groups are reduced to N₂, and it evolves without being detected. Decomposition of NC/GAP/CL-20 is very different from that of NC/GAP. In Figure 7(c), it is very obvious that many gas products produce in the time range of about 600–1600 s, which attributes to the thermolysis of NC/GAP/CL-20. We extract the IR spectra at 704, 793, 865, 1110, and 1288 s and show them in Figure 7(d). Figure 7(d) indicates that the main decomposition products are CO₂, nitrous oxide (N₂O), and water (H₂O); meanwhile, few carbon monoxide (CO), methane (CH₄), and nitrogen oxide (NO) are also detected. Comparing these five IR spectra carefully, we can find that CO₂ always appears in the whole decomposition process, but N₂O appears only in the early stage of the decomposition. We have known that decomposition of NC/GAP does not produce N₂O. Thus, as a product, N₂O results from the reaction of –NO₂ groups (splitting from homolysis of CL-20) with –C– and –N– fragments. Hence, CL-20 acts as an oxidizer in main decomposition of the nanocomposite. At 1110 s, no N₂O is detected, but CO₂ is still detected. Please note that at the end of the decomposition, ammonia (NH₃) gas is released, and the signal of NH₃ is very strong. It is much unexpected. No cation (just like ammonium), which can directly dissociate or to NH₃, exists in the molecules of NC, GAP, or CL-20. Thus, we speculate that at elevated temperature, the remainder –N– and –CH– fragments (from homolysis of CL-20) take a molecular recombination to form NH₂ radicals, and the NH₂ radicals instantaneously combine each other to form hydrazine (H₂N–NH₂). And then the hydrazine decomposes to NH₃, N₂, and H₂. In the IR spectrum at 1288 s in Figure 7(d), the formation of CH₄, accompanying with the formation of NH₃, confirms the molecular recombination. Additionally, the producing of NH₃ and CH₄ at the end of the decomposition reveals that the OB of NC_0.33/GAP_0.34/CL-20_0.33 is a negative value because of the lack of enough oxidizing groups to completely oxidize NH₃ and CH₄ to N₂, CO₂, and H₂O.

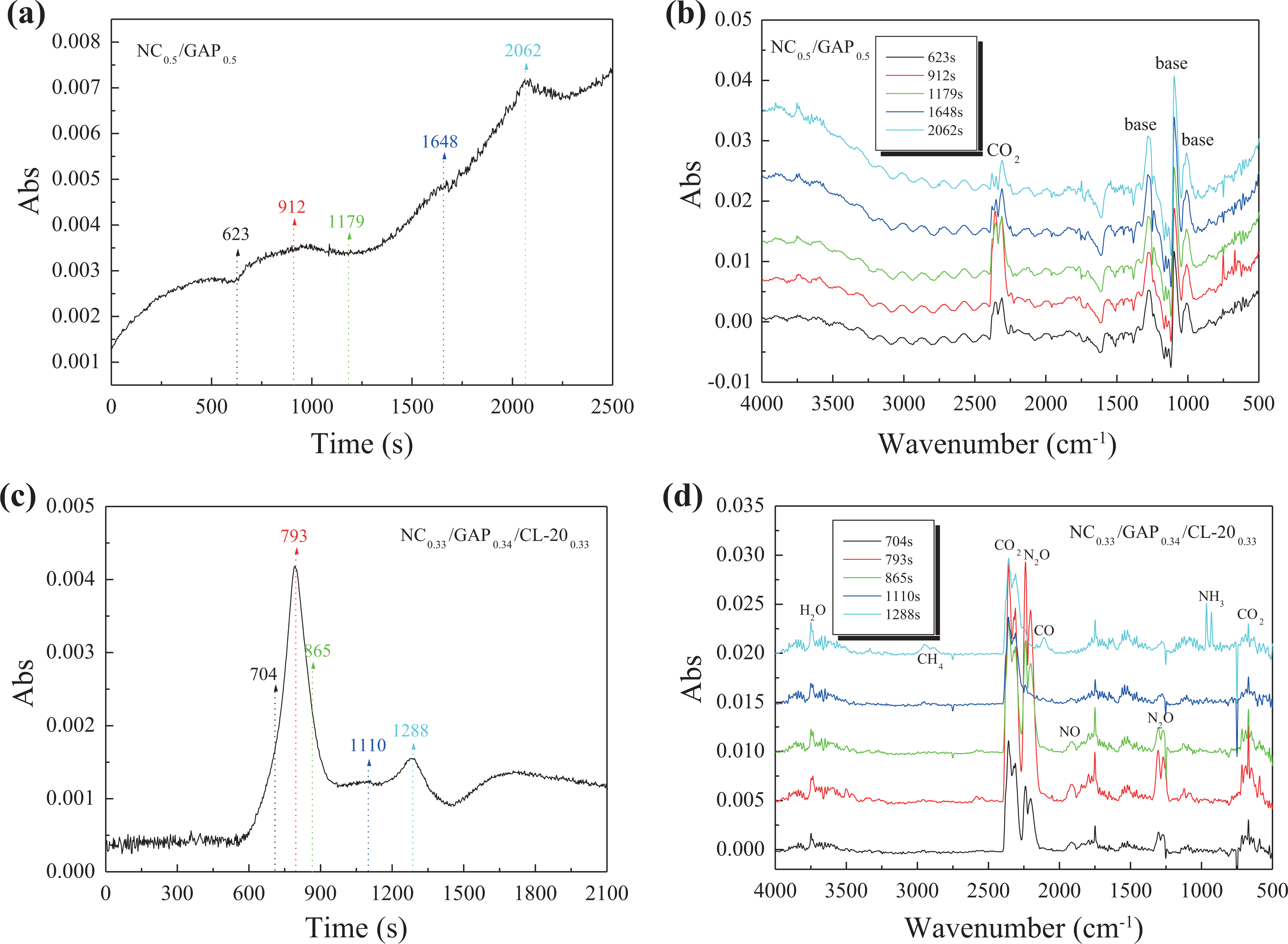

Figure 7.

DSC-IR analysis for NC_0.5/GAP_0.5 (a) and (b) and NC_0.33/GAP_0.34/CL-20_0.33 (c) and (d) nanocomposites: (a) and (c) represent total absorbance of gas products; (b) and (d) represent IR spectra of gas products intercepted at different times (the time nodes of interception were illustrated in (a) and (c). DSC: differential scanning calorimeter; IR: infrared; NC: nitrocellulose; GAP: glycidyl azide polymer; CL-20: 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane.

Energy performance

For a further investigation on energetic properties of NC/GAP/CL-20, their energy performances are evaluated. Firstly, the evaluation on NC/GAP matrix is performed, and the results are listed in Table 3. It is clear that the standard specific impulse (I _sp) of NC monopropellant is higher than that of GAP monopropellant. Figure 8(a) indicates that I _sp value increases with increasing the weight percentage of NC in the NC/GAP matrix. In fact, this cannot confirm that NC is a binder with higher energy than GAP, because the OB of NC is different from OB of GAP. OB of NC (12.6%N) and GAP is −35.1% and −121.2%, respectively. Meanwhile, no oxidizing groups (just like –ONO₂) exist in molecules of GAP. Thus, for GAP monopropellant, its chemical energy cannot be released sufficiently. The C* values show the potential energy of propellants. C* is a parameter that reflects the power of a propellant itself in the combustion process. It is independent on pressure (P _c) and is dependent on combustion temperature (T _c) and average molecular weight (M _c). C* only reflects the combustion of propellant in the chamber and is independent on gas expansion process in nozzle. Hence, C* is more suitable than I _sp to characterize the chemical energy storage of propellant. Although T _c of GAP monopropellant is remarkably lower than that of NC monopropellant, but M _c of GAP monopropellant is also considerably lower than that of NC monopropellant. C* is inversely proportional to M _c and is directly proportional to T _c. Thus, in Table 3, it indicates that the C* value of GAP monopropellant is higher than that of NC monopropellant.

Table 3.

Energy performance of NC/GAP nanocomposites.^a

Samples	Energy performance
	I sp (N·s·kg−1)	C* (m·s−1)	T c (K)	M c (g·mol−1)	Q p (kJ·kg−1)
NC	2219.7	1405.5	2525	24.74	3937.3
NC0.75/GAP0.25	2051.1	1322.8	1856	20.88	2797.8
NC0.5/GAP0.5	2010.0	1305.7	1548	18.58	2346.6
NC0.25/GAP0.75	2009.9	1397.1	1576	16.39	2610.5
GAP	2009.0	1458.8	1605	14.66	2887.5

NC: nitrocellulose; GAP: glycidyl azide polymer; I _sp: standard specific impulse; C*: characteristic speed; T _c: combustion chamber temperature; M _c: average molecular weight of combustion products; Q _p: explosion heat.

^a All parameters were calculated by means of software ProPep 3.0 at condition of P _c/P _e = 70/1 and T ₀ = 298 K.

Figure 8.

Energy performance of NC/GAP nanocomposites as a function of weight percentage of NC. NC: nitrocellulose; GAP: glycidyl azide polymer.

The energy performances of NC/GAP/CL-20 nanocomposites are also evaluated, and the results are listed in Table 4. Figure 9 indicates that the I _sp increases with increasing the weight percentage of NC; meanwhile, changes of T _c and Q _p show the same pattern as the change of I _sp, but M _c value almost linearly decreases with increasing of GAP. This is in accordance with the result of the NC/GAP matrix. The lower values of T _c and M _c of GAP_0.67/CL-20_0.33 (than those of NC_0.67/CL-20_0.33) are ascribed to the higher H/C ratio in the GAP molecule (1.667; than the ratio in NC molecule, 0.105); meanwhile, it is also attributed to higher N content in the GAP molecule (42.4%; than that in NC molecule, 12.6%). Especially, higher H/C ratio means higher energy conversion efficiency, that is, the same heat energy, released from the combustion of propellants, does more work. Roughly, an increase of 1.0 wt% hydrogen is equivalent to an increase of 2000 kJ·kg⁻¹ formation enthalpy when the OB is similar. But the improvement of energy conversion efficiency still cannot offset the reduction of chemical energy. Therefore, I _sp of GAP_0.67/CL-20_0.33 is lower than that of NC_0.67/CL-20_0.33. However, just like the result of the NC/GAP matrix, replacement or partial replacement of NC by GAP does not imply a decrease of energy performance because OB of GAP is substantially lower than OB of NC. CL-20 is an energetic material with negative OB (−10.95%). So the introduction of CL-20 cannot make the chemical energy of GAP released sufficiently. But the situation will change if we add some traditional oxidizer with positive OB (just like ammonium perchlorate (AP)) into the formula. For example, the I _sp value of formula AP_0.34/NC_0.33/CL-20_0.33 (2522 N·s·kg⁻¹) is lower than the I _sp value of formula AP_0.34/GAP_0.33/CL-20_0.33 (2534 N·s·kg⁻¹). In this case, the difference between the two I _sp values is still very small. If we continue to increase the content of AP, the difference becomes obvious. For example, the I _sp value of AP_0.57/GAP_0.33/CL-20_0.10 is 2439 N·s·kg⁻¹ and the I _sp value of AP_0.57/NC_0.33/CL-20_0.10 is 2360 N·s·kg⁻¹; the I _sp value of AP_0.67/GAP_0.33 is 2437 N·s·kg⁻¹ and the I _sp value of AP_0.67/NC_0.33 is 2236 N·s·kg⁻¹. This does confirm the higher chemical energy storage of GAP than NC. Moreover, it also reveals that the introduction of CL-20 remarkably increases I _sp values of propellants. All in all, adding NC/GAP/CL-20 nanocomposites to propellants will be beneficial to the energy performance of propellants.

Table 4.

Energy performance of NC/GAP/CL-20 nanocomposites.^a

Samples	Energy performance
	I sp (N·s·kg−1)	C* (m·s−1)	T c (K)	M c (g·mol−1)	Q p (kJ·kg−1)
NC0.67/CL-200.33	2414.7	1522.4	3105	26.29	4719.6
NC0.5/GAP0.17/CL-200.33	2310.8	1477.4	2665	23.31	4065.8
NC0.33/GAP0.34/CL-200.33	2196.2	1427.1	2204	20.85	3342.0
NC0.17/GAP0.5/CL-200.33	2184.4	1456.6	2080	19.14	3282.7
GAP0.67/CL-200.33	2188.3	1528.8	2082	17.47	3498.1

NC: nitrocellulose; GAP: glycidyl azide polymer; CL-20: 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane; I _sp: standard specific impulse; C*: characteristic speed; T _c: combustion chamber temperature; M _c: average molecular weight of combustion products; Q _p: explosion heat.

^a All parameters were calculated by means of software ProPep 3.0 at condition of P _c/P _e = 70/1 and T ₀ = 298 K.

Figure 9.

Energy performance of NC/GAP/CL-20 nanocomposites as a function of weight percentage of NC. NC: nitrocellulose; GAP: glycidyl azide polymer; CL-20: 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane.

Mechanical sensitivities

Mechanical sensitivities are other parameters that also characterize the energetic properties of the nanocomposites, that is, the safety of the nanocomposites. Figure 10(a) and (b) shows the special height (H ₅₀) and the explosion probability (P) of NC/GAP matrixes, which represent their impact sensitivity and friction sensitivity, respectively. Higher H ₅₀ value means lower impact sensitivity and higher P value means higher friction sensitivity, and impact and friction sensitivities are called “mechanical sensitivities.” It is obvious that as the weight percentage of GAP increases, both the impact sensitivity and the friction sensitivity of NC/GAP decrease. This means that GAP is a more insensitive energetic material than NC. In the GAP molecule, the energetic group is –N₃; and in the NC molecule, the energetic group is –ONO₂. The bond energy of C–N₃ is much higher than that of C–ONO₂. So –ONO₂ is much more sensitive to the impact and friction stimuli than –N₃. Therefore, NC is of higher mechanical sensitivities than GAP. For the results of NC/GAP/CL-20 in Figure 10(c) and (d), the trend of impact and friction sensitivities is as same as that for NC/GAP matrixes, that is, the increase in GAP benefits to a reduction of mechanical sensitivities. Additionally, comparing sensitivities of NC/GAP and NC/GAP/CL-20, we can find that the introduction of CL-20 deteriorates the safety of nanocomposites because CL-20 is a very sensitive energetic material. Despite this, NC/GAP/CL-20 nanocomposite is remarkably more insensitive than raw CL-20. The mechanical sensitivities of raw CL-20 are shown in the study by Song et al. ³¹ In the nanocomposites, CL-20 nanoparticles are embedded in the NC/GAP matrix. The matrix plays the roles of protection and buffer when the external impact or friction stimulus acts on nanocomposites. Hence, NC/GAP/CL-20 is a kind of insensitive material that may be used as an energetic additive in propellants to improve their combustion performance.

Figure 10.

Mechanical sensitivities of samples: (a) and (c) impact sensitivity; (b) and (d) friction sensitivity.

Conclusions

NC/GAP/CL-20 nanocomposites are prepared by sol–gel supercritical method, in which CL-20 nanoparticles are embedded in the NC/GAP matrix. XRD pattern indicates that the NC/GAP matrix is an amorphous material, while CL-20 is a crystal. IR spectrum shows that NC/GAP/CL-20 nanocomposite contains the molecular structure of NC, GAP, and CL-20. BET data of samples present that NC_0.5/GAP_0.5 is a kind of mesoporous material, which consists with the result in SEM images. In XPS spectrum, there are C, N, and O three elements. The results of thermal analysis indicate that two exothermic peaks corresponded to decomposition of NC/GAP and CL-20 from the low temperature peak (E _K = 296.6 kJ·mol⁻¹) to high peak (E _K = 171.1 kJ·mol⁻¹), respectively. All ΔG^≠ values are positive, which means that the activation of the molecules would not proceed spontaneously unless some energy was introduced. DSC-IR analyses show that NC/GAP decomposes to CO₂; the main decomposition products of NC/GAP/CL-20 are CO₂, N₂O, and H₂O, and few CO, CH₄, and NO are also detected. The results of evaluation on energy performance of NC/GAP/CL-20 nanocomposites illustrate that as the content of GAP increases, the parameters such as I _sp, C*, M _c, T _c, and Q _p decrease. The main reason is that the OB of GAP is substantially lower than OB of NC, which results in that the chemical energy of GAP does not release sufficiently. Additionally, as the content of GAP increases, the impact and friction sensitivity of the composites decrease obviously. This means that GAP is much more insensitive than NC.
