Abstract

Graphite-based anode materials undergo electrochemical reactions, coupling with mechanical degradation during battery operation, can affect or deteriorate the performance of lithium-ion batteries dramatically, and even lead to the battery failure in electric vehicle. First, a single-particle model based on kinetics of electrochemical reactions was built in this article. Then, the lithium-ion concentration and evolution of diffusion induced stresses within the single-particle model under galvanostatic operating conditions were analyzed by utilizing a mathematical method. Next, evolutions of stresses or strains in the single-particle model, together with mechanical degradation of anode materials, were elaborated in detail. Finally, in order to verify the aforementioned hypothesis, surface and morphology of the graphite-based anode dismantled from fresh and degraded cells after galvanostatic charge/discharge cycling were analyzed by X-ray diffraction, field-emission scanning electron microscopy, and transmission electron microscopy. The results show that large volume changes of anode materials caused diffusion-induced stresses during lithium-ion insertion and extraction within the active particles. The continuous accumulations of diffusion-induced stresses brought about mechanical failure of the anode eventually.

Keywords

Graphite-based anode materials electrochemical reactions lithium-ion batteries scanning electron microscopy

Introduction

Lithium (Li)-ion cells are very compelling candidates for power supplies with their high-power and energy density and low self-discharge rate. They have been widely used in new energy vehicles such as battery electric vehicles, hybrid electric vehicles (HEVs), and plug-in HEVs in the past few decades.¹ For the health management study of Li-ion batteries in electrical vehicles, knowledge about the mechanical degradation of anode materials under certain operating conditions is of great significance.² Mechanical degradation may appear owing to deformations and stress generation as Li-ions intercalate/deintercalate into/from the active anode and cathode materials during charging and discharging operations over time. It is important to understand and mitigate mechanical electrode degradation in Li-ion batteries for EVs since it can accelerate battery aging and further lead to failure.³

Unfortunately, the mechanical degradation under some special working conditions is one of the critical challenges in improving performance and prolonging life span of the cells at present. The difficulties existing in measurement of the critical properties and phenomena in electrode materials instigated extensive research activities on numerical modeling of Li-ion batteries worldwide in the last few years.^3
–5 Christensen and Newman⁶ developed a mathematical model based upon concentrated solution theory and porous electrode theory that calculate the volume changes and simulate the distribution profiles of Li-ion concentration and stress during the repeated Li insertion/extraction processes into/from a spherical electrode particle. Doyle et al.⁷ presented numerical models with a finite volume method and porous electrode theory which predict the transport, kinetics, and reaction processes in batteries. These models or methods have shown good agreement with discharge experiments to a certain extent; however, they cannot ideally account for mechanical failure of active materials within the electrodes in batteries applied in EVs. Cheng and Verbrugge⁴ recently analyzed the evolution of stress and strain energy due to diffusion-induced stress (DIS) in a spherical insertion electrode particle under either galvanostatic or potentiostatic condition. Deshpande et al.^8,9 established relationships between surface stress, surface energy, and the magnitude of DISs in nanowires and investigated the effects of surface elasticity and surface energy on the stress evolution in spherical electrodes. They also correlated elastic strain energy, DISs, and stress discontinuities at the phase boundaries of the different phases that form during lithiation/delithiation using a core–shell structural model.¹⁰

Literature on modeling of stress and crack formation within active electrode particles is quite extensive. Stresses and fracture in electrodes undergoing volume changes were predicted in a one-dimensional model by Huggins and Nix.¹¹ Furthermore, a terminal particle size below which particles are not expected to crack was also predicted in their model. Crack formation of electrode particles was modeled with facture mechanics by Aifantis and Dempsey.¹² Other researchers^{4,13

–21} noted that the maximum stress within active particles is in proportion to the product of particle size and the concentration gradient. The maximum stress increases with current density, radius of spherical particles, and lower Li-diffusivity in the electrode material, all of which lead to steeper concentration gradients between the surface and the core, and was also verified in literatures.^6,9
–11

Despite significant advances in the theoretical investigation of stress and strain evolution within electrode active materials of Li-ion batteries, some innovative researches are still needed to explore the mechanisms of mechanical failure. In this article, the single particle model (SPM) was established in the “Single-particle electrode model” section. The solutions of the diffusion equations with initial and boundary conditions and analytic expression of evolution of DISs for the galvanostatic control within the SPM were presented in the “Evolution of stresses within an SPM” section. In the “Validation” section, a commercial Li-ion battery was cycled in a constant current (CC) charge/discharge process with a battery cycler in the potential range of 3.0–4.2 V. For comparison, the other fresh battery belonging to the same batch was disassembled in this article. The anodes dismantled from fresh and degraded batteries were analyzed by X-ray diffraction (XRD), scanning electron microscopy (SEM), and transmission electron microscopy (TEM). The measurements from XRD reveal the lattice parameter changes, and SEM and TEM were applied to verify the microstructure differences of the graphitic nanoparticles between the fresh and degraded batteries. These are the main contributions and helpful to understand the DISs in this article. Besides, the complex interplay between the origins and evolution of mechanical degradation and structure changes during electrochemical reaction in electrode materials were also discussed.

Single-particle electrode model

The SPM was first proposed by Haran et al.²² in determination of the hydrogen diffusion coefficient within a metal hydride electrode and used to calculate the Li-ion diffusion of the insertion electrode during discharging/charging process.²³ A schematic illustration of electrochemical-based Li-ion battery is depicted in Figure 1. The Li-ion battery is considered as three parts: negative electrode (graphite anode), separator, and positive electrode (metallic oxide cathode), as shown in Figure 1 with a single spherical particle representing respective electrode of Li-ion batteries in the discharge/charge process according to the literature.^24
–26 During charge process, Li-ions diffuse to the surface of metallic oxide particles in the cathode, where they extract from the lithiated particles, travel through the electrolyte separator, and insert and diffuse in solid phase of graphite particles in the anode. Simultaneously, electrons emitted from the cathode transmit through the external circuit toward the anode. During discharge, positive Li-ions and electrons flow in the reverse direction (see Figure 1).

Figure 1.

Schematic illustration of a lithium-ion battery during discharge/charge.

Evolution of stresses within an SPM

For a spherical particle, several groups provided evidence for Li-ion diffusion and phase transformations in mechanical properties. Qi et al.²⁷ showed that material properties change substantially upon Li insertion. Deshpande et al.^9
–11,15 considered the effects of elastic properties dependent on solute concentration on DISs in single-phase systems. Furthermore, analytic solutions for stresses^{3,4,8

–11,14

–17,19

–23} can help elucidate the effects of Li-ions diffusion on DISs. We study DISs within an SPM as Li-ions insert and remove in Li-ion battery electrodes under galvanostatic charging strategies.

Solid mechanics of DIS

The stresses induced by Li-ion diffusion are considered in an SPM of radius R. The analogy between thermal and DIS is based on the assumption that the bulk of the spherical single particle (SP) is an isotropic linear elastic solid. The expressions of stress–strain relationships are established for the radial and tangential components in the spherical coordinate system by employing the analogy^{4,8

–11,20–21}

\begin{array}{l} ∊_{r} = \frac{1}{E} (σ_{r} - 2 ν σ_{θ}) + \frac{1}{3} Ω c \\ ∊_{θ} = \frac{1}{E} [(1 - v) σ_{θ} - ν σ_{r}] + \frac{1}{3} Ω c \end{array}

where E is Young’s modulus, ν is Poisson’s ratio, Ω is the partial molar volume of the solute, and c is the molar concentration. Besides, the elastic properties are assumed to be constant and have nothing to do with the concentration c.

For infinitely small formulation of deformation, the radial and tangential strains of the spherically symmetric particle are given by

∊_{r} = \frac{d μ}{d r}, ∊_{θ} = \frac{μ}{r}

where μ is the radial displacement. As atomic diffusion is much slower than rates of elastic deformation in solids, transients are often neglected in solving the problem of solid mechanics. Without any body force, the static mechanical equilibrium equation within a sphere is listed by Timoshenko and Goodier²⁸

\frac{d σ_{r}}{d r} + \frac{2}{r} (σ_{r} - σ_{θ}) = 0

The boundary condition $σ_{r} (R) = 0$ and remains finite at r = 0, and the solutions for radial and tangential stresses are listed by

\begin{array}{l} σ_{r} (r) = \frac{2}{9} E Ω {(1 - v)}^{- 1} [c_{av} (R) - c_{av} (r)] \\ σ_{θ} (r) = \frac{E Ω}{9} {(1 - v)}^{- 1} [2 c_{av} (R) + c_{av} (r) - 3 c (r)] \end{array}

where $c_{av} (r) \equiv (3 / r^{3}) \int_{0}^{r} r^{2} c (r) d r$ is the average solute concentration of the spherical volume within the particle of radius R.

One principal shear stress equals zero and the other two are both $(σ_{r} - σ_{θ}) / 2$ for the spherical symmetry, and the principal shear stress is given by

\frac{σ_{r} (r) - σ_{θ} (r)}{2} = \frac{E Ω}{6} (1 - ν) (c (r) - c_{av} (r))

Thus, the stresses distributed at any given time and location can be obtained under the conditions that the concentration distribution is known.⁴

DIS under galvanostatic operation conditions

The stress evolution within the spherical particles under galvanostatic condition is studied in this article since Li-ion batteries applied in EVs are mostly charged with a typical CC–constant voltage (CV) charging strategy. A simple relevant equation of Li-ion diffusion within a spherical SP of radius R is listed in the spherical coordinate system by Crank²⁹ and Shobukhov and Maximov³⁰

\frac{\partial c}{\partial t} = \frac{D}{r^{2}} \frac{\partial}{\partial r} (r^{2} \frac{\partial c}{\partial r})

where symbol D represents the constant diffusion coefficient.

Considering that the particle parameters of different batteries will be different, equation (6) would be transformed into dimensionless form as follows

X = \frac{r}{R}, τ = \frac{D t}{R^{2}}, y = \frac{c - c_{0}}{c_{R} - c_{0}}

Then, the governing equation (6) in dimensionless form is shown by the following equation

\frac{\partial y}{\partial τ} = \frac{1}{X^{2}} \frac{\partial}{\partial X} (X^{2} \frac{\partial y}{\partial X})

This condition denotes that the current is a constant and the ionic flux is invariant at electrode surface. The initial and boundary conditions subjected to galvanostatic control in dimensionless form are given by

\begin{array}{l} y (0, X) = y_{0}, τ = 0, 0 \leq X \leq 1 \\ \frac{\partial y (τ, X)}{\partial X} |_{X = 0}, τ \geq 0 \\ \frac{\partial y (τ, X)}{\partial X} |_{X = 1} = \frac{I}{F}, τ \geq 0 \end{array}

The analytic solution to address the diffusion equation (equation (8)) with initial and boundary conditions (equation (10)) subjected to galvanostatic control is as follows^29,30

y = \frac{I R}{F D (c_{R} - c_{0})} (3 τ + \frac{1}{2} X^{2} - \frac{3}{10} - \frac{2}{X} \sum_{n = 1}^{\infty} (λ_{n}^{- 2} \csc (λ_{n}) sin (λ_{n} X) \exp (- λ_{n}^{2} τ)))

where $λ_{n} (n = 1, 2, 3, ...)$ are the positive roots of $tan (λ_{n}) = n$ .

Utilizing equation (10), the average concentrations of Li-ions can be expressed as

y_{av} (τ, X) = \frac{3 I R}{F D (c_{R} - c_{0})} [τ + \frac{1}{10} (X^{2} - 1) - \frac{2}{X^{3}} \sum_{n = 1}^{\infty} {(n π)}^{- 4} \csc (n π) (sin (n π X) - (n π X) \cos (n π X) \exp (- n^{2} π^{2} τ))] y_{av} (τ, 1) = \frac{3 I R τ}{F D (c_{R} - c)}

Equation (11) can be used to solve for stresses after equation (3) is substituted into it.

\frac{3 σ_{r} (1 - v) F D}{E Ω I R} = \frac{1}{5} (1 - X^{2}) + \frac{4}{X^{3}} \sum_{n = 1}^{\infty} {(n π)}^{- 4} \csc (n π) (sin (n π X) - (n π X) \cos (n π X) \exp (- n^{2} π^{2} τ)) = ξ_{r}^{I} (τ, X) \frac{3 σ_{θ} (1 - v) F D}{E Ω I R} = \frac{1}{5} (1 - 2 X^{2}) + 2 \sum_{n = 1}^{\infty} \frac{\exp (- n^{2} π^{2} τ)}{n π sin (n π)} {(n π X)}^{- 1} (sin (n π X) - {(n π X)}^{- 2} sin (n π X) - {(n π X)}^{- 1} \cos (n π X)) = ξ_{θ}^{I} (τ, X)

12where

ξ_{r}^{I} (τ, X)

and

ξ_{θ}^{I} (τ, X)

are the radial and tangential stresses, respectively, in dimensionless form under galvanostatic control. The shear stress is determined by the following equation

\frac{3 (σ_{r} - σ_{θ}) (1 - v) F D}{2 E Ω I R} = \frac{X^{2}}{10} + \frac{3}{X^{3}} \sum_{n = 1}^{\infty} {(n π)}^{- 4} \csc (n π) (sin (n π X) - (n π X) \cos (n π X) \exp (- n^{2} π^{2} τ)) - \frac{1}{X} \sum_{n = 1}^{\infty} {(n π)}^{- 2} \csc (n π) (sin (n π X) \exp (- n^{2} π^{2} τ))

Figure 2 shows the Li-ion concentration, radial, tangential, and shear stresses of SPM in the insertion process under galvanostatic condition. The algebraic expression, normalized by $\frac{1}{3} E Ω I R {(F D)}^{- 1} {(1 - v)}^{- 1}$ , is a function of position and time.

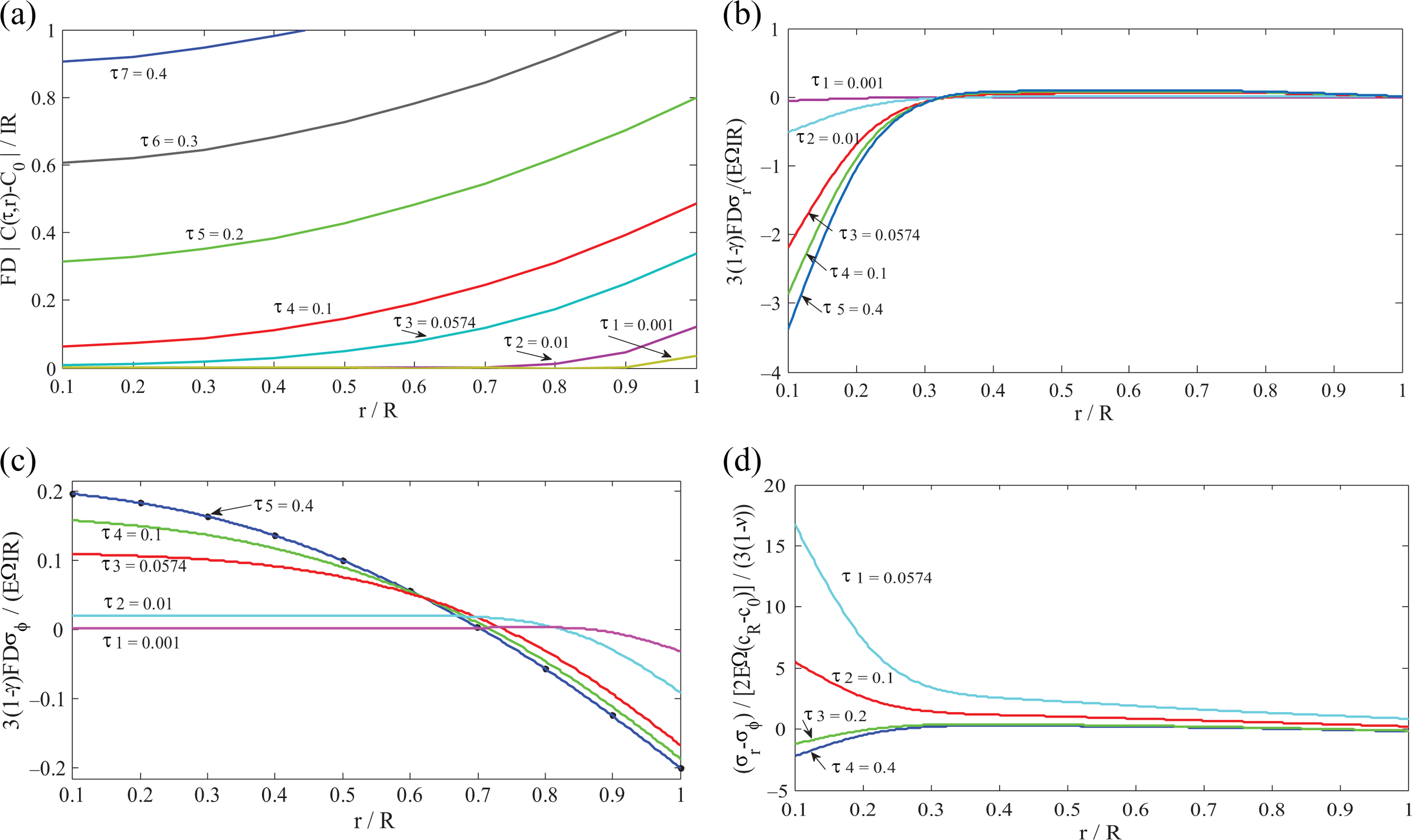

Figure 2.

Characteristic profile of SPM in the insertion process under galvanostatic control: (a) Li-ion concentration; (b) radial stress; (c) tangential stress; and (d) shear stress. SPM: single particle model.

The current sign in equation (10) is defined as follows: positive current expresses for insertion process and negative corresponds to extraction. The Li⁺ concentration increases with position and time as depicted in Figure 2(a). During Li-ion insertion process, the radial stress appears in the form of compressive stress at the center of the sphere and approximates to zero close to the sphere surface. It increases with time near the sphere center and reaches maximum at the center (see Figure 2(b)).

The tangential stress appears as tensile stress near the sphere center and compressive close to the surface. The maximum of tensile tangential stress appears at the center before the Li-ions reach there and decreases monotonically toward the surface; then, it reverses and expresses as compression stress. Afterwards, it increases along the direction of sphere surface. Moreover, the tangential stress increases in magnitude with time at any location and finally tends to a steady state (see Figure 2(c)).The shear stress reaches the maximum at the location of sphere center and decreases toward the surface for all times and reaches a steady state afterwards. In addition, the shear stress decreases before dimensionless time $τ = D t / R^{2} = 0.1$ , while increases after dimensionless time $τ = D t / R^{2} = 0.2$ for all positions within the sphere, as shown in Figure 2(d). Similar conclusions (i.e. compression instead of tension) can be drawn for Li-ion extraction process.

Validation

To demonstrate the complex causality between electrochemistry and mechanical degradation of anode in Li-ion batteries, we opted to study mesocarbon microbeads (MCMB) anode as a representative material that undergoes interactions and subsequent DISs during electrochemical cycling. The investigated commercial batteries used in this work have a normal capacity rating of 87 Ah and contain carbon material in anodes. The fresh battery was first charged at 1C rate to 4.2 V and discharged to 3.0 V subsequently. 1C rate means the current is 87 A. During each cycle, the battery was operated in a CC charge mode and then underwent a CC discharge until its voltage reaches 3.0 V. The rest time between charge and discharge is 2 h. The stop criterion for the cycling tests is state of health (SOH) = 80% at 25°C. The surface and structure morphology of anode obtained from dismantled cells before and after cycled were investigated by XRD, SEM, and TEM.

The graphitic MCMB is spherical and contains somewhat randomly oriented graphitic domains. It consists of graphene sheets staggered in either an AB (hexagonal, the most common form) or ABC (rhombohedral) stacking arrangement. Upon insertion of Li-ions during charge, the graphite was lithiated, and every fourth layer was filled before the next layers begin to take up Li. However, lithiation may be initiated at several different sites on the surface of a graphite grain, and the lithiated layers did not correspond to one another at different nucleation sites. Hence, the expansion of each grain may represent a large fraction of the expansion of a fully lithiated grain.¹⁹ During discharge, the graphite was delithiated, and each grain may embody the contraction of a delithiated grain. The anode film mechanically failed due to the stress induced by the lattice parameter change during Li-ion intercalation/deintercalation. The average grain sizes of nanoparticles on the anode from a fresh and degraded cell are compared by XRD in Figure 3. Thus, the volume changes of the particle during Li-ion insertion and extraction resulted in a differential strain. It accumulated continuously and gave rise to stresses within the particle as the cycle increases.⁹ Subsequently, cracks initiated, propagated preferentially at grain boundaries of the particle, and resulted in mechanical failure of the anode materials. They were also verified by the SEM and the high-resolution TEM micrographs (Figure 4), with an average particle size of 100 nm, which is in good agreement with the results obtained by XRD.¹³ TEM images of lithiated anode display smooth edges of graphite (Figure 4(b)) with a very thin solid electrolyte interphase film. The crack and fracture could be observed on cycled anode from the TEM images (Figure 4(b)). The red arrows in Figure 4(b) point to the cracked nanoparticles visible on the graphitic layer surface. Besides, the edge of graphite sheet structure began to mellow and some circular particles with diameter of 100–150 nm appeared on the surface of the sheet, which can be associated with the Li plating and side reaction products produced at the reactions between anode surface and the electrolyte. They can also be observed in SEM and TEM images in Figure 4(b). By a unique combination analysis of SEM, TEM, and XRD, the results suggest that the mechanical failure of anode material can be caused by accumulated DISs within active particles. The stresses are initiated by repeated volume changes while the Li-ions insert/extract the host particles during charging/discharge.

Figure 3.

XRD spectra of graphite-based anode from a fresh and degraded cell. XRD: X-ray diffraction.

Figure 4.

SEM images of (a) fresh graphite-based anode before cycling tests and (b) degraded graphite-based anode after 500 cycles. SEM: scanning electron microscopy.

Conclusions

This article studied the evolution of stresses in a graphite-based anode of Li-ion batteries for EVs considering solid mechanics, diffusion theory, and electrochemical interfacial kinetics under galvanostatic condition. The profiles of Li-ion concentration, radial, tangential, and shear stresses in the SPM were analyzed and presented in the insertion and de-insertion process of the Li-ions in the particles. Furthermore, the evolution of phase structure and morphology for materials with anode demonstrates that a combination of XRD, SEM, and TEM can track the cause and effect of electrochemical and mechanical failure processes in a Li-ion battery for EVs. The experimental and analytical results show that large volume changes of anode materials occur during Li-ion insertion and extraction within the active particles when a battery discharges or charges. The accumulated changes lead to stresses within the active particles as the battery cycles, and they further lead to mechanical failure of the anode.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (51575044).

References

Rahimi-Eichi

Baronti

Chow

M-Y

. Online adaptive parameter identification and state-of-charge co-estimation for lithium-polymer battery cells. IEEE Trans Ind Electron 2014; 61(4): 2053–2061.

Zhang

Wang

Lyu

. Non-destructive analysis of degradation mechanisms in cycle-aged graphite/LiCoO₂ batteries. Energies 2014; 7: 6282–6305.

Kuzmin

Maximov

Savenkova

. Mathematical modeling of hysteresis in porous electrodes. J Math Chem 2012; 50: 2471–2477.

Cheng

Y-T

Verbrugge

. Evolution of stress within a spherical insertion electrode particle under potentiostatic and galvanostatic operation. J Power Sources 2009; 190: 453–460.

Stiaszny

Ziegler

Krauß

. Electrochemical characterization and post-mortem analysis of aged LiMn₂O₄-NMC/graphite lithium ion batteries part II: calendar aging. J Power Sources 2014; 258: 61–75.

Christensen

Newman

. Stress generation and fracture in lithium insertion materials. J Solid State Electrochem 2006; 10: 293–319.

Doyle

Fuller

Newman

. Modeling of galvanostatic charge and discharge of the lithium/polymer/insertion cell. J Electrochem Soc 1993; 140(6): 1526–1533.

Deshpande

Cheng

Y-T

Verbrugge

. Modeling diffusion-induced stress in nanowire electrode structures. J Power Sources 2010; 195: 5081–5088.

Deshpande

Cheng

Y-T

. Effects of concentration-dependent elastic modulus on diffusion-induced stresses for battery applications. J Electrochem Soc 2010; 157(8): A967–A971.

10.

Deshpande

Cheng

Y-T

Verbrugge

. Diffusion induced stresses and strain energy in a phase transforming spherical electrode particle. J Electrochem Soc 2011; 158: A718–A724.

11.

Huggins

Nix

. Decrepitation model for capacity loss during cycling of alloys in rechargeable electrochemical systems. Ionics 2000; 6: 57–63.

12.

Aifantis

Dempsey

. Stable crack growth in nanostructured Li-batteries. J Power Sources 2005; 143(1): 203–211.

13.

Ebner

Marone

Stampanoni

. Visualization and quantification of electrochemical and mechanical degradation in Li ion batteries. Science 2015; 342: 716–719.

14.

Lin

Tang

. Aging mechanisms of electrode materials in lithium-ion batteries for electric vehicles. J Chem 2015; 2015: 104673. DOI: 10.1155/2015/104673.

15.

Harris

Deshpande

. Mesopores inside electrode particles can change the Li-ion transport mechanism and diffusion-induced stress. J Mater Res 2010; 25: 1433–1440.

16.

Woodford

Chiang

Y-M

Carter

, “Electrochemical shock” of intercalation electrodes: a fracture mechanics analysis. J Electrochem Soc 2010; 157: A1052–A1059.

17.

Soni

Sheldon

Xiao

. Diffusion mediated lithiation stresses in Si thin film electrodes. J Electrochem Soc 2012; 159: A1520–A1527.

18.

Purkayastha

McMeeking

. An integrated 2-D model of a lithium ion battery: the effect of material parameters and morphology on storage particle stress. Comput Mech 2012; 50: 209–227.

19.

Christensen

. Modeling diffusion-induced stress in Li-ion cells with porous electrodes. J Electrochem Soc 2010; 157: A366–A380.

20.

Cheng

Y-T

Verbrugge

. Diffusion-induced stress, interfacial charge transfer, and criteria for avoiding crack initiation of electrode particles. J Electrochem Soc 2010; 157: A508–A516.

21.

Cheng

Y-T

Verbrugge

. Application of Hasselman’s crack propagation model to insertion electrodes. Electrochem Solid State Lett 2010; 13: A128–A131.

22.

Haran

Popov

White

. Determination of the hydrogen diffusion coefficient in metal hydrides by impedance spectroscopy. J Power Sources 1998; 75: 56–63.

23.

Tatsukawa

Tamura

. Activity correction on electrochemical reaction and diffusion in lithium intercalation electrodes for discharge/charge simulation by single particle model. Electrochimica Acta 2014; 115: 75–85.

24.

Fang

Kwon

Wang

C-Y

. Electrochemical–thermal modeling of automotive Li-ion batteries and experimental validation using a three-electrode cell. Int J Energy Res 2010; 34: 107–115.

25.

Schmidt

Bitzer

Imre

ÁW

. Experiment-driven electrochemical modeling and systematic parameterization for a lithium-ion battery cell. J Power Sources 2010; 195: 5071–5080.

26.

Smith

Rahn

Wang

C-Y

. Model-based electrochemical estimation and constraint management for pulse operation of lithium ion batteries. IEEE Trans Control Syst Technol 2010; 18: 654–663.

27.

Guo

Hector

Jr . Threefold increase in the Young’s modulus of graphite negative electrode during lithium intercalation. J Electrochem Soc 2010; 157(5): A558–A566.

28.

Timoshenko

Goodier

. Analysis of stress and strain in three dimensions. In: Critchlow

Foster

(eds) Theory of elasticity. 3rd ed. New York: McGraw-Hill, 1970, pp. 13–313.

29.

Crank

. The mathematics of diffusion. 2nd ed. Oxford: Clarendon, 1956, pp. 89–97.

30.

Shobukhov

Maximov

. Exact steady state solutions in symmetrical Nernst–Planck–Poisson electrodiffusive models. J Math Chem 2014; 52: 1338–1349.
