Transferrin Enhances Neuronal Differentiation

Abstract

Although transferrin (Tf) is a glycoprotein best known for its role in iron delivery, iron-independent functions have also been reported. Here, we assessed apoTf (aTf) treatment effects on Neuro-2a (N2a) cells, a mouse neuroblastoma cell line which, once differentiated, shares many properties with neurons, including process outgrowth, expression of selective neuronal markers, and electrical activity. We first examined the binding of Tf to its receptor (TfR) in our model and verified that, like neurons, N2a cells can internalize Tf from the culture medium. Next, studies on neuronal developmental parameters showed that Tf increases N2a survival through a decrease in apoptosis. Additionally, Tf accelerated the morphological development of N2a cells by promoting neurite outgrowth. These pro-differentiating effects were also observed in primary cultures of mouse cortical neurons treated with aTf, as neurons matured at a higher rate than controls and showed a decrease in the expression of early neuronal markers. Further experiments in iron-enriched and iron-deficient media showed that Tf preserved its pro-differentiation properties in N2a cells, with results hinting at a modulatory role for iron. Moreover, N2a-microglia co-cultures revealed an increase in IL-10 upon aTf treatment, which may be thought to favor N2a differentiation. Taken together, these findings suggest that Tf reduces cell death and favors the neuronal differentiation process, thus making Tf a promising candidate to be used in regenerative strategies for neurodegenerative diseases.

Introduction

The most widely characterized component of the central nervous system (CNS), neurons are highly polarized cells showing axons and dendrites at a mature stage. The polarization of axons and dendrites underlies neuronal capacity to integrate and transmit information within the nervous system (Barnes & Polleux, 2009).

Transferrin (Tf) is a glycoprotein of approximately 80 kDa which is capable of reversibly binding Fe³⁺ and takes part in cellular iron uptake with association constant 10²⁰ M⁻¹ (Gkouvatsos et al., 2012). In the CNS, Tf is synthesized by oligodendrocytes (OLG) and cells of the choroid plexus (Moos et al., 2007; Morris et al., 1992; Tsutsumi et al., 1989) and has been shown to influence many cellular processes not directly linked with iron metabolism. Neurons are not able to synthesize Tf but incorporate iron from the extracellular space via the transferrin receptor (TfR) and the divalent metal transporter 1 (DMT1) (Moos & Morgan, 2000).

Regarding OLG, previous work by our laboratory and others have shown that apotransferrin (aTf) accelerates oligodendroglial maturation both in vivo (Escobar Cabrera et al.,1994, 1997; Espinosa de los Monteros et al., 1999; Marta et al., 2000; Saleh et al., 2003) and in vitro (Paez et al., 2002; Paez et al., 2004). aTf also prevents iron deficiency-induced hypomyelination (Badaracco et al., 2008; Badaracco et al., 2010), stimulates remyelination in the cuprizone model of demyelination (Adamo et al., 2006), and reduces hypoxic/ischemic white matter and neuronal damage in rats (Guardia Clausi et al., 2010; Guardia Clausi et al., 2012). aTf treatment in oligodendroglial progenitor cells (OPC) leads to Tf internalization through clathrin-mediated endocytosis and subsequent Fyn kinase activation by a mechanism involving TfR (Perez et al., 2013). Nevertheless, despite the beneficial effects of aTf on glial cell populations, its impact on neuronal cells has not been thoroughly assessed.

Neuronal differentiation is a complex process in which the molecular signals of many hormones and neurotransmitters are converted into cellular responses and induce morphological changes. Neural differentiation processes have wide clinical applications. Stem cell-derived neurons have been extensively used in the development of cell-based therapies for the treatment of neurological diseases such as Parkinson's disease, Huntington's disease, and amyotrophic lateral sclerosis (Adler, 2019). For cell therapy to succeed, however, grafted neuronal progenitors need to differentiate into specific types of neurons, which requires proper inputs from the host environment so that grafted cell activity is suitably regulated (Rossi & Cattaneo, 2002). In addition, these cells have been used for fundamental neurological studies, drug-screening platforms, and neurodevelopmental and neurodegenerative disease modeling (Little et al., 1994).

In this context, the goal of the present work was to analyze the effect of Tf on neurons and determine its impact on neuronal physiology and differentiation. To these ends, we used Neuro2a (N2a) cells, a fast-growing cell line established from a spontaneous tumor in an albino mouse (Olmsted et al., 1970) which, once induced to differentiate, shares neuronal properties such as the extension of processes, the expression of many neuronal markers and the emergence of electrical activity (Nakamura et al., 2000; Musa & Veenstra, 2003). Differentiation was also evaluated in primary cultures of cortical neurons following aTf administration to validate the results obtained in cell line assays. Furthermore, Tf pro-differentiating effects were assessed in iron-deficient and iron-enriched conditions, as well as in co-cultures of N2a cells with OPC and microglia.

Materials and Methods

Materials

Triton X-100, paraformaldehyde, human aTf (Cat. #T2252 Sigma Aldrich), dimethyl sulfoxide (DMSO), Höechst, 5-bromo-2′-deoxyuridine (BrdU), ethidium bromide and dynasore hydrate (Dyn) were obtained from Sigma Aldrich. Dulbecco's modified Eagle medium (DMEM/F12 Cat. #11320033) was from Thermo Fisher Scientific. Fetal calf serum (FCS) was from Cripion. Rhodamine-phalloidin was from Molecular Probes (Cat. #R415). Human Tf-Texas Red (Tf-red) was from Life Technologies (Cat. #P35376). Mowiol was from Calbiochem. Immun-Blot Polyvinylidenedifluoride (PVDF) membranes were from BIO-RAD. ECL Plus Western blot (WB) reagents were from GE Healthcare. Trizol was from Invitrogen. Oligo(dT) was from Biodynamics. Moloney murine leukemia virus (MMLV) reverse transcriptase was from Promega. Antibodies and their corresponding brands are listed elsewhere. All other reagents were of analytical grade.

Animals

All animal procedures were held following the guidelines established by the Committee of Bioethics at Facultad de Farmacia y Bioquímica, Universidad de Buenos Aires (CICUAL: Exp: 0006360/15; Res: 2429/15). Wistar rats and C57BL/6 mice were housed under 12-h dark/12-h light cycles and fed ad libitum.

N2a Cell Cultures

N2a cells were generously provided by Dr. Morelli’s lab at Instituto Leloir, Buenos Aires, Argentina. Cells were grown at 37°C and 5% CO₂ in a humidified atmosphere stove and amplified in an undifferentiated state in proliferation media, which consisted of DMEM/F12 supplemented with 10% FCS. Experiments on cellular response and differentiation were carried out using differentiation media, which consisted of DMEM/F12 deprived of FCS, in the presence or absence of 125 µM N⁶, 2′-O-Dibutyryladenosine 3′,5′-cyclic monophosphate sodium salt (db-cAMP, Cat. #D0627) with or without aTf (100 µg/ml, Cat. #T2252 Sigma Aldrich), depending on the condition. N2a cells were transfected using PEI MAX 40 K (Polyscience,Cat. #NC1038561). DNA/PEI mixtures were prepared in serum-free DMEM/F12 in a 1 DNA:8 PEI ratio. Experiments were performed 48 h after plasmid transfection. The EKAREV biosensor was provided by Dr. Michiyuki Matsuda (Kyoto University, Kyoto, Japan).

Cortical Neuron Primary Cultures

Cortical neuron cultures were prepared from the brains of mice at postnatal day 2. Briefly, brains were aseptically dissected in DMEM/F12, and meninges were removed and chemically digested with a solution of trypsin (0.05%, Cat. #27250018, Gibco) and DNase (0.06%, Cat. #90083, Gibco) at 37°C for 15 min. Digestion was stopped with FCS and the suspension was mechanically digested by repeated passages through a glass pipette. The resulting cell suspension was transferred to a 15 ml-tube and centrifuged at 300g for 5 min. The supernatant was discarded, and the pellet resuspended in NeuroBasal medium (Cat. #21103049, Thermo Fisher Scientific) containing 2%B27 (Cat. #17504044, Thermo Fisher Scientific) and 0.25 mM GlutaMax I (Cat. #35050061, Thermo Fisher Scientific) without FCS. Cells were counted and plated onto coverslips previously coated with poly-L-lysine at a density of 40,000 cells/well. Cells were kept in a culture stove at 37°C and 5%CO₂ for 9 or 15 days depending on treatment.

OPC and Microglia Primary Cultures

Primary cultures of microglial cells from newborn Wistar rats were carried out following McCarthy and de Vellis (1980). After the removal of meningeal membranes, newborn rat cerebral hemispheres were mechanically dissociated in a mixture of DMEM/F12 (1:1 v/v) containing 20 μg/ml streptomycin and 20 U/ml penicillin, supplemented with 10% FCS. Cell suspensions were seeded in 75-cm²poly-L-lysine-coated tissue culture flasks and incubated at 37°C in 5% CO₂, with medium changes every 3 days. When cells reached confluence, the microglial subpopulation was obtained after 140 rpm/minute shaking for 1 h. More than 96% of the microglial cells isolated were CD11b-positive (Cat. #CBL1512, EMD Milipore). The cell suspension was centrifuged at 300g for 10 min, and the pellet resuspended in DMEM/F12 (1:1 v/v) with 10% FCS. Cells were cultured either on 12-mm coverslips or 30-mm Petri dishes for 24 h.

OPC were separated from astrocytes by orbital agitation at 240 rpm for 16 h. The cell suspension was filtered through membranes and then centrifuged at 300g for 5 min. The resulting oligodendroglial cell pellet was resuspended in glia defined medium without FCS (GDM; Casaccia-Bonnefil et al., 1996), seeded on poly-L-lysine-coated covers, and maintained for 2 days in the presence of basic fibroblast growth factor (b-FGF; Cat. #100-18B, Peprotech), and platelet-derived growth factor (PDGF; Cat. # 100-13A, Peprotech) before treatment.

N2a Co-Cultures with OPC and Microglia

To obtain N2a and OPC co-cultures, 15,000 N2a cells were cultured overnight in DMEM/F12 supplemented with 5% FCS and added 20,000 OPC the following day. The co-culture was maintained in GDM with or without aTf (100 µg/ml). After 2 days, cells were processed for immunocytochemistry. To obtain N2a and microglia co-cultures, 15,000 N2a cells were processed as described above and added microglia at a density of 15,000 cells/cover in DMEM/F12 supplemented with 10% FCS. After 24 h, the medium was replaced with DMEM/F12 without aTf. Cells were co-cultured for 2 days before the addition of aTf (100 µg/ml) and/or lipopolysaccharide (LPS; 10 ng/mL). Cells were processed for immunocytochemistry and the culture medium for ELISA.

RNA Extraction and PCR

N2a RNA was extracted using Trizol® (Cat. # 15596026 Invitrogen-Thermo Fisher Scientific). following the manufacturer's instructions. cDNA was obtained using Oligo(dT) and MMLV reverse transcriptase following the protocols provided by the manufacturers. The cDNA was used for PCR reactions by means of a Veriti Thermal Cycler (Applied Biosystems). Primers were obtained from IDT and designed to amplify regions of the Tf and TfR mRNAs; their sequences are detailed in Table 1.

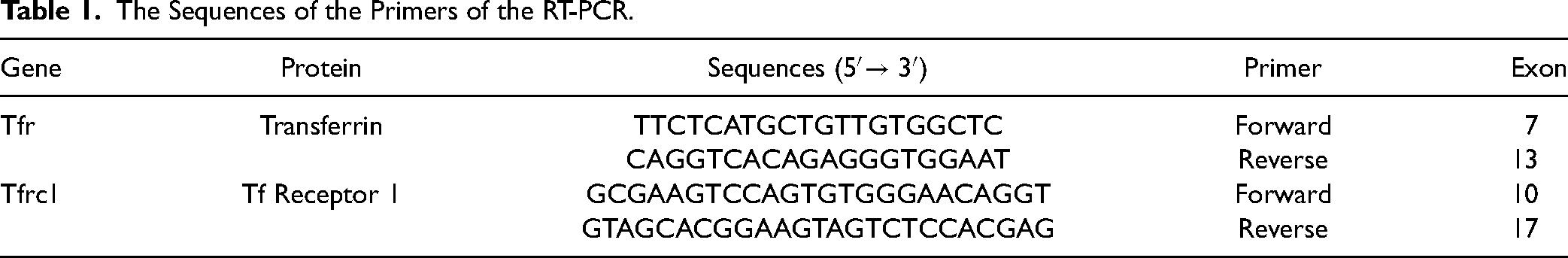

Table 1.

The Sequences of the Primers of the RT-PCR.

Gene	Protein	Sequences (5′→ 3′)	Primer	Exon
Tfr	Transferrin	TTCTCATGCTGTTGTGGCTC	Forward	7
		CAGGTCACAGAGGGTGGAAT	Reverse	13
Tfrc1	Tf Receptor 1	GCGAAGTCCAGTGTGGGAACAGGT	Forward	10
		GTAGCACGGAAGTAGTCTCCACGAG	Reverse	17

Protein Extraction and WB

Protein extraction was performed with TOTEX extraction buffer (20 nM HEPES pH 7.9, 350nMNaCl, 20% glycerol, 1% Igepal, 1 mM MgCl₂, and 0.5 nM EGTA) containing a complete protease inhibitor cocktail (Sigma, complete TM) and 1 mM sodium orthovanadate to avoid protein dephosphorylation. Protein extracts were sonicated and quantified using Bradford’s assay. Proteins were used for SDS-PAGE in 12.5% polyacrylamide gels, loading 40 µg of total protein per lane. Proteins were then transferred onto PVDF membranes previously activated with methanol and afterwards blocked with 5% (w/v) non-fat dry milk in 0.1% a Tween PBS solution for 2 h at room temperature. Membranes were then incubated with primary antibodies overnight at 4°C. All antibodies were diluted in a 1% FCS, 0.1% Tween TBS solution. The following primary antibodies were used: anti-Tf (Cat. # sc-9099, Santa Cruz), anti-CD71 (Cat. # BD-554889, BD Pharmingen), anti-pERK (Cat. # 9101, Cell Signaling), anti-ERK (Cat. # sc-154, Santa Cruz), and anti-GAPDH (Cat. # ab-8245, Abcam). Membranes were washed and incubated with the corresponding horseradish peroxidase (HRP)-conjugated secondary antibodies (Jackson ImmunoResearch Laboratories) for 2 h at 37°C. Immunodetection was performed colorimetrically using 0.1% 3,3′-diaminobenzidine in acetate buffer or through chemiluminescence using ECL Plus WB reagents (Cat. # 32132, Thermo Fisher Scientific). Densitometric analyses were performed using Scion Image software (Scion Corporation). Secondary antibodies were used at a concentration of 1:5,000 for colorimetric detection and 1:10,000 for chemiluminescent detection.

Coomassie Blue Staining

Cells were stained with Coomassie as described by Mochizuki and Furukawa (1987). Briefly, N2a cells were cultured on coverslips at 37°C and 5% CO₂ for different times and then fixed with 4% paraformaldehyde in PBS for 20 min at room temperature. Cells were incubated with a 46.5% Coomassie Brilliant Blue R-250 solution in methanol (Cat. # 32132, Sigma-Aldrich), 7% acetic acid, and 46.5% distilled water for 20 min at room temperature. Cells were rinsed with a PBS solution several times before being mounted onto glass slides using Mowiol mounting solution.

Immunocytochemistry

Cells were cultured on coverslips at 37°C and 5% CO₂ for different times depending on experiments. After fixation with 4% paraformaldehyde in PBS for 20 min at room temperature, cells were permeabilized and blocked simultaneously with a 1% FCS, 0.01% Triton X-100 in PBS solution for 2 h and incubated with the corresponding primary antibodies overnight at 4°C. Coverslips were rinsed and then incubated for 2 h at 37°C with the corresponding fluorescent secondary antibodies. Coverslips were rinsed again and mounted onto glass slides using Mowiol mounting solution. Primary antibodies used in the current work were goat anti-Tf (Cat. # sc-9099, Santa Cruz), mouse anti-CD71 (Cat. # BD-554889, BD Pharmingen); mouse anti-BrdU (Cat. # 170376001, Roche), mouse anti-βIII-tubulin (Cat. # ab-14545, Abcam), and rabbit anti-cleaved-caspase 3 (Cat. # 9664, Cell Signaling). Cy3-, DyLyght488-, and DyLyght594-conjugated secondary antibodies were all from Jackson ImmunoResearch Laboratories.

Tf Uptake Assay

N2a cultures were treated with Tf-red (100 µg/ml) for different time periods (0, 2.5, 5, 10, 15, and 30 min) starting at the beginning of the differentiation condition at 37°C. After being washed with PBS, cells were fixed with 4% paraformaldehyde, and Tf incorporation was quantified by measuring Tf-red fluorescence. Tf endocytic internalization controls were evaluated through (i) the same protocol at 4°C or (ii) the same protocol at 37°C in the presence of 1 µM dynasore (Dyn; Cat. # D7693, Sigma-Aldrich), an inhibitor of dynamin-mediated endocytosis.

Spectral FRET

N2A cells expressing the fluorescence resonance energy transfer (FRET) biosensor EKAREV were seeded in glass-bottom dishes. Cell imaging was performed on an inverted LSM 710 (ZEISS) equipped with an automated stage, an incubation chamber, and Definite Focus system. Data acquisition was performed with ZEN Black 2011 software. Images were acquired with a C-Apochromat 40 × /1.2 water immersion and temperature-corrected objective lens at 1,024  ×  1,024 pixels, 16 bits, pixel dwell time 3.15 μs, with open pinhole (600 μm). The emission spectra of fluorescent proteins Cerulean and Venus were determined using a 405 laser for excitation and lambda mode for detection using a 32-channel QUASAR detector arranged with bandwidth channels of 9.7 nm. For FRET experiments, cells were illuminated with a 30-mW, 405-nm diode laser at 2% laser power (550–650 gain), and a 405-nm dichroic mirror; emission was collected at 413- to 723-nm wavelengths every 30 s over 30 min. The saturation level was verified for each image. Phenol red-free DMEM supplemented with 20 mM HEPES was used for reference spectra and experiments, and imaging was performed at 37°C and 5% CO₂. Tf was added approximately 2.5 min after the beginning of the experiment. For lambda FRET experiments, the linear unmixing tool of ZEN Black 2011 software was used to obtain an image for each fluorophore using the reference spectra. Image quantification was performed with Fiji software. After background subtraction, FRET and donor intensities were measured for single cells for each time point. The FRET/donor ratio was calculated and normalized to resting levels (before stimulation).

Cytokine Quantification

N2a cells were cultured at a density of 7,000 cells/well in the presence or absence of microglial cells. Cultures were stimulated through the addition of LPS and/or aTf at a concentration of 10 ng/ml and 100 μg/ml, respectively. Conditions were as follows: control without LPS, aTf without LPS, control with LPS, and aTf with LPS. The presence of interleukin (IL)-1β (MLB00C, R&D System), IL-6 (M6000B, R&D System), IL-10 (DY417-5, R&D System), and TNF-α (MTA00B, R&D System) was measured in the culture supernatants after 2 days of treatment using commercially available ELISA kits, following manufacturers’ instructions.

MTT Assay

The MTT (3-(4,5-Dimethylthiazol-2-yl)-2,5-Diphenyltetrazolium bromide (Cat. #475989, Sigma-Aldrich) assay was performed following a method previously published by Mosmann (1983). A sterile solution of MTT (5 mg/ml) was added to each well and incubated for 2 h at 37°C. The reaction was stopped with a solution of 10% SDS 0.1 M HCl, and absorbance was measured with an Amersham Biotrack TM II Visible Plate Reader at 570 nm.

Propidium Iodide Incorporation Assay

After 2 days of treatment on poly-L-lysine-treated coverslips, N2a cultures were incubated with a 5 µg/ml propidium iodide (PI, Cat. # P4170 Sigma-Aldrich) solution for 15 min at 37°C. After washing with PBS to remove PI excess, cells were taken alive to an epifluorescence microscope for image acquisition.

BrdU Incorporation Assay

Cells seeded onto coverslips were incubated for 2 days in the presence or absence of aTf (100 µg/ml). Over the last 3 h of treatment, cells were incubated with BrdU (Cat. # B5002, Sigma-Aldrich) at a final concentration of 0.1 mM. Cells were fixed, permeabilized, and blocked as described above for the immunocytochemistry protocol. Cells were incubated overnight with an anti-BrdU primary antibody (1:200, Cat. #170376001, Roche) and the corresponding secondary antibody. Images were acquired, and the rate of BrdU-positive cells was calculated for the different conditions.

Neurite Outgrowth Assay

N2a cells were seeded at an initial density of 15,000 cells/well onto coverslips placed on 24-well plates. Cells were left overnight in DMEM/F12 5% FCS to favor cell adhesion, then washed twice with sterile PBS to remove serum remnants, and cultured in DMEM/F12 without FCS, with or without 125 µM db-cAMP. In the treated condition, human aTf was added to reach a final concentration of 100 µg/ml. All treated conditions were compared with control conditions performed in parallel in which aTf was not added. Cells were incubated at 37°C and 5% CO₂ for 48 h and then processed for immunocytochemistry assays. To quantify neurite outgrowth parameters, cells were stained with a primary antibody against βIII-tubulin, a neuronal marker, and rhodamine-phalloidin, a fluorescent conjugated probe which binds to F-actin and thus stains the actin cytoskeleton. Then, four neuronal differentiation parameters were measured: (1) the proportion of differentiated cells measured as the ratio of neurite-bearing cells over total cell nuclei; (2) the average number of neurites per cell; (3) neurite length; and (4) a differentiation score defined as the rate of total neurite length over total nuclei in a given field (Liu et al., 2014).

Intracellular Iron Quantification by the Colorimetric Ferrozine Assay

Intracellular iron was quantified as described by Riemer et al. (2004). Briefly, N2a cells were cultured on coverslips at 37°C for different treatments and then washed with cold PBS. Frozen cells (2 h at −20 °C) were lysed by applying 200 μL 50 mM NaOH to each well and incubating for 2 h at room temperature. Then, 200 μL 10 mM HCl and 200 μL iron-releasing reagent were added (1:1 volumes of 1.4 M HCl and 4.5% (w/v) KMnO₄ in H₂O), and wells were sealed with foil and incubated for 2 h at 60 °C. Finally, 60 μL of the detection reagent (6.5 mM ferrozine, 6.5 mM neocuproine, 2.5 M ammonium acetate, and 1 M ascorbic acid dissolved in water) was added, and wells were incubated for 30 min at room temperature. Absorbance was measured at 550 nm. Iron content was relativized to protein content in replicate wells.

Microscopy Image Processing

Images were obtained with an Olympus BX-50 epifluorescence microscope, and processed, analyzed, and quantified using Image-Pro Plus Software (Media Cybernetics).

Statistical Analysis

The number of independent values obtained for each experiment is expressed in the corresponding figure. Statistical analysis was performed using GraphPad Prism 5.00 software. Data are presented as the mean  ±  standard error of the mean (SEM). Student’s t-test and one-way analysis of variance (ANOVA) followed by Dunnett's comparison test were used to determine statistical significance; ***p < 0.001, **p < 0.01, *p < 0.05, ns: non-significant.

Results

N2a Cells Express TfR and are Able to Internalize Tf from the Culture medium

Our experimental design involved the use of exogenous aTf in the culture medium. For this reason, the abbreviation aTf will be used to make reference to the iron-free compound, Tf will be used when it is not possible to determine whether free iron is bound in the culture medium, and Tf-red will be used to describe experiments using Texas red-conjugatedTf. We analyzed the expression of the key elements in Tf delivery in mammalian cells, Tf and its receptor TfR, through RT-PCR and WB. Results showed both TfR and Tf mRNA but only TfR protein expression in N2a cells in control and treated conditions (Figure 1(A) and (B)). Immunocytochemistry assays also showed TfR expression in βIII-tubulin-positive N2a cells (Figure 1(C)).

Figure 1.

N2a cells express both Tf and TfR mRNA but only the TfR protein. (Panel A) RT-PCR experiments performed on mRNA isolated from N2a cells in proliferating and differentiating conditions, in the presence or absence of exogenous aTf addition (100 µg/ml). The subventricular zone (SVZ) of 2-day-old mice, which is known to express both proteins, was used as a positive control. (Panel B) WB analysis of whole N2a lysates cultured in the same conditions as A and incubated with primary antibodies against Tf, TfR, and β-III-tubulin. Pure aTf was used as a positive control. (Panel C) Immunocytochemical assays of differentiated N2a cells labeled with antibodies against β-III-tubulin and TfR. Scale bars represent 15 µm for all images in Panel C. Note. aTf = human apoTransferrin; Ctl = control; Diff = differentiation; Prol = proliferation; SVZ = subventricular zone; Tf = transferrin; TfR = transferrin receptor.

On the basis of TfR expression results, cultures were treated with Tf-red for different periods ranging from 0 to 30 min to assess Tf internalization. N2a cells effectively internalized Tf added to the culture medium, showing an increase as a function of time which became significantly different from controls after 30 min of incubation. To determine whether Tf internalization involved an endocytic mechanism, the assay was also performed at 4°C and in the presence of Dyn, an inhibitor of dynamin-1 and dynamin-2 widely used as a general endocytosis inhibitor. Tf-red internalization was significantly reduced in these two conditions, which suggests the participation of the endocytosis machinery (Figure 2(A)–(D)). Results regarding N2a capacity to internalize Tf were confirmed through WB, which allowed an even earlier detection of Tf (Figure 2(E)).

Figure 2.

N2a cells incorporate Tf. (Panel A) Immunofluorescence images of Tf-red incorporation performed in cultures incubated with Tf-red (100 µg/ml) for time periods ranging from 0 to 30 min. (Panel B) Images of Tf-red incorporation at 4°C and 37°C in the presence or absence of Dyn, a cell-permeable inhibitor of dynamin, for 15 min. Höechst nuclear dye is shown in blue (A and B). Scale bars represent 20 µm for all images in Panels A and B. (Panel C) Quantitation of Tf-red from images shown in A. Tf-red IOD was normalized to total nuclei. (Panel D) Quantitation of Tf-red from images shown in B. Tf-red IOD was normalized to total nuclei. (Panel E) WB analysis of Tf incorporation at different time periods using an anti-Tf antibody. Quantitation is expressed as the Tf/GAPDH ratio. (Panel F) EKAREV sensor evaluation of ERK1/2 activity in N2a cells stimulated with Tf (100 µg/ml) at time 0. The time course of FRET changes was measured at single-cell level. (Panel G) WB analysis of whole N2a lysates treated with Tf (100 µg/ml) for time periods ranging from 0 to 30 min. ERK phosphorylation levels were assessed as the pERK/ERK ratio. Bars in C, D, E, and G represent the mean  ±  SEM for two independent experiments using one-way ANOVA followed by Dunnett’s multiple comparison test. **p < 0.01, *p < 0.05, ns = non-significant. Symbols above bars indicate significance compared to corresponding control. Note. Dyn = dynasore; GAPDH = glyceraldehyde 3-phosphate dehydrogenase; IOD = integrated optical density; Tf = human transferrin; Tf-red = human transferrin-Texas Red; FRET = fluorescence resonance energy transfer.

As it is well established that Tf incorporation through its canonical pathway can activate MAPK signaling (Perez et al., 2013), ERK1/2 activation was assessed in response to aTf at short times ranging from 0 to 30 min. ERK1/2 activity evoked by Tf was evaluated at single-cell level using the EKAREV biosensor. An enhancement was observed in FRET responses—indicative of an increase in ERK1/2 activity—with a maximum detected at around 8 min and a return to basal levels at around 25 min (Figure 2(F)). Moreover, ERK1/2 phosphorylation assessment through WB revealed time-dependent phosphorylation, with a peak at 15 min and a decline afterwards (Figure 2(G)). Both results suggest that Tf activates the MAPK cascade, reinforcing the notion that internalization occurs through canonical pathway.

Tf Treatment Promotes Neuronal Survival

As N2a cells do not express endogenous Tf but are capable of internalizing it, we next evaluated the effects of aTf addition on different cell parameters. Two conditions were established to characterize treatment effects on differentiated cells, that is, with and without the addition of db-cAMP, an analog of cyclic AMP which has been shown to stimulate N2a differentiation.

Cell survival evaluation through MTT assays showed that 2-day Tf treatment increased N2a metabolic activity both in the presence and absence of db-cAMP (Figure 3(A)). Given that this increase in cell survival could be due to a decrease in cell death, an increase in cell proliferation, or a combination of both, we next assessed each of these processes separately. Cell death was analyzed by PI incorporation, a DNA intercalating agent which stains dead cells regardless of the death mechanism involved. Tf was found to reduce cell death after 2 days in culture both in the presence and absence of db-cAMP (Figure 3(B)). Furthermore, as cell death may occur through auto-phagocytosis, necrosis, or apoptosis (Arya & White, 2015), we next determined the cleaved-Caspase-3 proportion, a protein which plays a pivotal role in the execution of apoptosis and is thus used as a marker of apoptotic events. The proportion of apoptotic cells was significantly smaller in the aTf-treated condition than in controls after 2 days in the presence or absence of db-cAMP (Figure 3(C)). Finally, and in order to determine Tf effects on cell proliferation, cultures were treated with BrdU, a synthetic analog of thymidine which can be incorporated into newly synthesized DNA and can therefore stain newly divided cells. Results showed unaltered N2a cell proliferation rates after 2-day Tf treatment (Figure 3(D)).

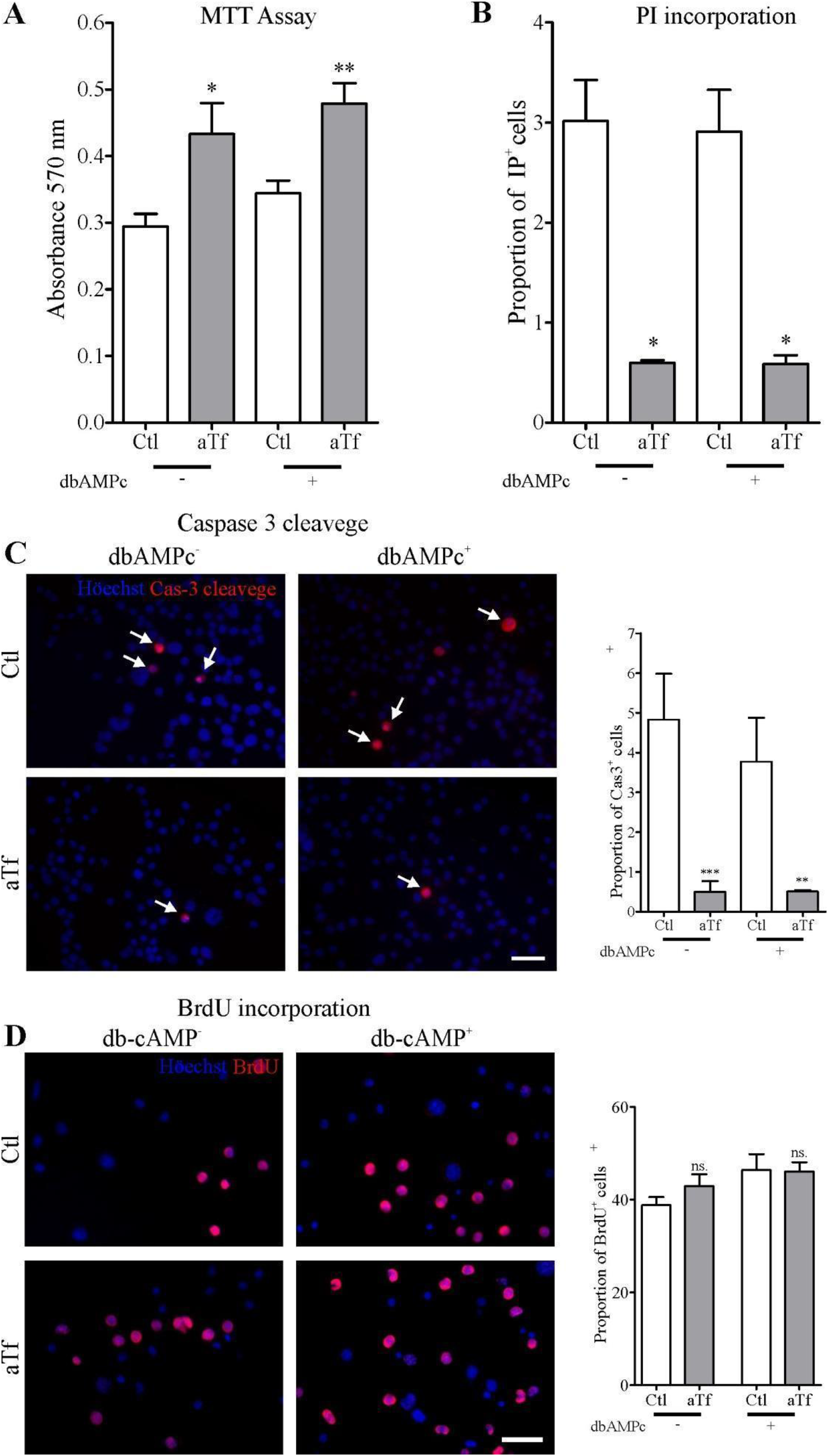

Figure 3.

Tf increases cell survival, dampens cell death and apoptosis, and does not affect proliferation in N2a cells. (Panel A) MTT assays on cell viability after 2 days of Tf treatment and 3-h incubation with MTT (0.5 mg/ml). (Panel B) PI incorporation assays on cell death after 2 days of Tf treatment and 15-min incubation with PI (0.02 mg/ml). Cells were photographed alive. (Panel C) Representative immunofluorescence images showing the immunodetection of cleaved-caspase-3 (red) and quantitation analysis. Cleaved-caspase-3 (red) co-localization with Höechst (blue) is indicated with arrows. (Panel D) Representative immunofluorescence images showing the immunodetection of BrdU (red) and quantitation analysis. Höechst dye is shown in blue. Scale bars represent 40 µm for all images in Panels C and D. Bars in A–D represent the mean  ±  SEM for three independent experiments using Student’s t-tests. ***p < 0.001, **p < 0.01, *p < 0.05, ns = non-significant. Symbols above bars indicate significance compared to corresponding control. Note. aTf = human apoTransferrin; BrdU = 5-bromo-2′-deoxyuridine; Cas-3 cleavage = caspase 3 cleaved; Ctl = control; db-cAMP = N6,2′-O-dibutyryladenosine 3′,5′-cyclic monophosphate sodium salt; MTT = 3-(4,5-dimethylthiazol-2-Yl)-2,5-diphenyltetrazolium bromide.

Tf Promotes Neurite Outgrowth in N2a Cells

As the pro-maturational effects of aTf had been previously established in the oligodendroglial lineage (Paez et al., 2002), we further assessed its impact on neurons by measuring neurite outgrowth, a parameter commonly used to estimate neuronal differentiation. In order to unequivocally determine Tf effects on maturation, we removed the db-cAMP conditions from the original experimental design. The remaining experiments were therefore performed in the presence or absence of aTf in the culture medium during differentiation.

The following criteria were established to quantify differentiated N2a cells according to their morphology: neurites were defined as processes which measured at least twice the soma diameter, and cells were considered differentiated when they bore at least one neurite. Additionally, four differentiation parameters were measured: (1) the proportion of differentiated cells measured as the ratio of neurite-bearing cells over total cell nuclei; (2) the average number of neurites per cell; (3) neurite length; and (4) a differentiation score defined as the rate of total neurite length over total nuclei in a given field (Liu et al., 2014).

The proportion of neurite-bearing cells was significantly larger in the Tf condition than in controls, as were the average number of neurites per cell and the differentiation score. However, neurite length did not differ between conditions. These results seem to indicate that Tf exerts a pro-differentiating effect on N2a cells (Figure 4(A) and (B)). Given that aTf can be loaded with iron before interacting with its receptor and being internalized by cells, and that this protein is involved in cellular iron acquisition, we analyzed intracellular iron concentrations in aTf-treated and untreated conditions after 2-day culture using a colorimetric ferrozine-based assay. Results showed significantly higher levels of intracellular iron in aTf-treated cells than in controls (Figure 4(C)).

Figure 4.

Tf treatment promotes neurite outgrowth and increases intracellular iron levels. (Panel A) Immunocytochemistry images of N2a cells after 2 days of Tf treatment and stained with neuronal marker β-III-tubulin (green) and actin marker phalloidin (red). Neurites are shown with white arrowheads in merge image. Scale bar represents 40 µm for all images in Panel A. (Panel B) Quantitation of four neuronal differentiation parameters after 2 days of Tf treatment: (1) the proportion of differentiated cells measured as the ratio of neurite-bearing cells over total cell nuclei; (2) a differentiation score defined as the rate of total neurite length over total nuclei in a given field; (3) neurite length; and (4) the average number of neurites per cell. (Panel C) Colorimetric ferrozine-based assay on intracellular iron levels after 2 days of Tf treatment. Bars in B and C represent the mean  ±  SEM for three independent experiments using Student’s t-test. **p < 0.01, *p < 0.05, ns = non-significant. Symbols above bars indicate significance compared to corresponding control. Note. aTf = human apoTransferrin; Ctl = control.

Iron Modulates Tf Pro-Differentiating Effects on N2a Cells

As aTf treatment increased the proportion of differentiated cells and also enhanced intracellular iron concentrations, we wondered whether N2a differentiation could be explained by a direct effect of aTf or by iron intracellular accumulation. To test these alternatives, we cultured cells in either an iron-deficient or an iron-enriched medium. Iron deficiency was induced by the addition of deferoxamine (DFO), a potent iron chelator which renders this ion unavailable to cells; iron enrichment was induced through the addition of two different iron salts, that is, iron sulfate (FeSO₄), which provides Fe²⁺, and iron chloride (FeCl₃), which provides Fe³⁺.

When administered in an iron-deficient medium, Tf was still able to exert its pro-differentiating effect, but the proportion of differentiated cells, the differentiation score, and the number of neurites per cell were significantly lower than those observed with normal iron levels (Figure 5). When cells were oversupplied with iron, Tf exhibited two different effects, depending on the compound used. In the presence of FeSO_4, values were comparable to those obtained with normal iron levels for all parameters measured (Figure 5). Instead, in the presence of FeCl_3, the proportion of differentiated cells and the differentiation score were significantly higher than those obtained in normal iron levels, both in the presence and absence of Tf. These results indicate that iron is capable of modulating the effects of Tf on N2a cells, especially when in a Fe3⁺ state.

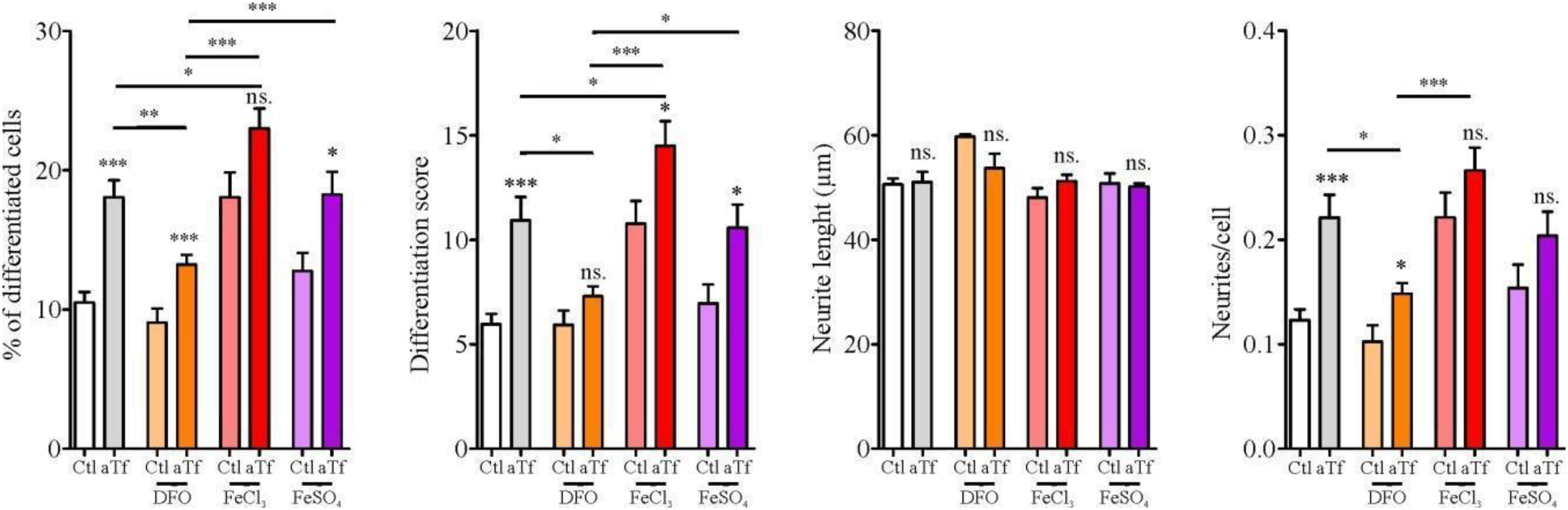

Figure 5.

Tf prodifferentiating effect on N2a cells is modulated by iron. Quantitation of neuronal differentiation parameters (1) the proportion of differentiated cells measured as the ratio of neurite-bearing cells over total cell nuclei; (2) a differentiation score defined as the rate of total neurite length over total nuclei in a given field; (3) neurite length; and (4) the average number of neurites per cell in the presence of normal iron levels (white and grey bars), iron deficiency (DFO, orange bars) or iron surplus (FeCl₃ and FeSO₄, red and purple bars, respectively). Bars represent the mean  ±  SEM for three independent experiments using one-way ANOVA followed by Dunnett's comparison test. ***p < 0.001, **p < 0.01, *p < 0.05, ns = non-significant. Symbols above bars indicate significance compared to corresponding control. Note. aTf = human apoTransferrin; Ctl = control; DFO = deferoxamine; FeCl₃ = iron (III) chloride; FeSO₄ = iron (II) sulfate.

Tf Pro-Differentiating Effects are Mediated by the PI3K-Akt Signaling Pathway

Even if neuronal differentiation is known to involve PI3K-Akt and MEK/ERK signaling (Eagleson, et al., 2016), it is a complex process in which several other signaling pathways may be at play. Moreover, aTf maturational effects on OLG are mediated by Fyn/MEK/ERK as well as PI3K/Akt signaling (Perez et al., 2013).To test whether these two signaling pathways are involved in Tf effects on N2a cells, we carried out differentiation experiments in the presence of selective inhibitors of constitutive proteins in both signaling cascades, that is, MEK inhibitor UO126and PI3K inhibitor LY294002.

When UO126 was used, differentiation parameters were not affected; Tf increased the proportion of differentiated cells, the differentiation score, and the average number of neurites per cell, while neurite length was not affected. These results suggest that the MEK/ERK pathway is not involved in aTf effects (Figure 6). In contrast, in the presence of LY209002, Tf failed to increase the proportion of differentiated cells, the differentiation score, or the average number of neurites per cell (Figure 6). Therefore, Tf pro-differentiating effects were lost when the PI3K-Akt pathway was inhibited, which hints at a critical role for PI3K-Akt signaling in Tf action.

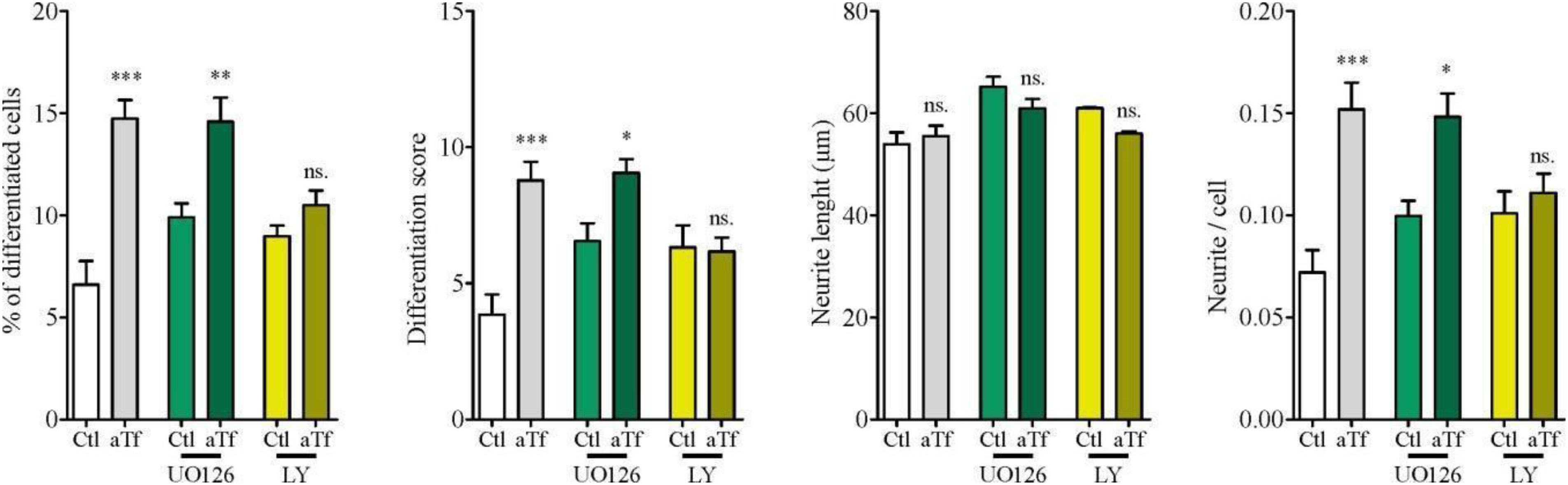

Figure 6.

Tf prodifferentiating effect on N2a cells is dependent on PI3K/Akt but not on MEK/ERK signaling. Quantitation of four neuronal differentiation parameters (1) the proportion of differentiated cells measured as the ratio of neurite-bearing cells over total cell nuclei; (2) a differentiation score defined as the rate of total neurite length over total nuclei in a given field; (3) neurite length; and (4) the average number of neurites per cell in the presence of MEK 1/2 inhibitor UO126 (green bars) and PI3K inhibitor LY294002 (yellow bars). Bars represent the mean  ±  SEM for three independent experiments using one-way ANOVA followed by Dunnett's comparison test. ***p < 0.001, **p < 0.01, *p < 0.05, ns = non-significant. Symbols above bars indicate significance compared to corresponding control. Note. aTf = human apoTransferrin; Ctl = control; LY = LY294002.

Tf Promotes Cortical Neuron Differentiation

Further assays were carried out to establish whether the pro-differentiating effects of Tf on N2a cells could be replicated in primary cultures of mouse cortical neurons. Firstly, we confirmed that these cells were able to internalize Tf added to the culture medium through a Tf-red incorporation assay (Figure 7(A)). Given that primary culture neurons establish processes which are much longer and intermingled than N2a cells, images were more complex to analyze. Therefore, two new parameters were defined as indicators of differentiation: the area occupied by doublecortin (DCX), a microtubule-associated protein expressed by immature neurons, and the proportion of NeuN-positive cells, a marker of mature neurons.

Figure 7.

Tf treatment promotes neuronal differentiation in primary cultures of cortical neurons. (Panel A) Immunocytochemistry images of Tf-red incorporation by cortical neurons incubated with Tf-red (100 mg/ml, red) for 15 min. TfR is stained in green. (Panel B) Immunocytochemistry images of cortical neurons stained with immature neuronal marker DCX (yellow) and quantitation of DCX area after 4 and 8 days of treatment. (Panel C) Immunocytochemistry images of cortical neurons stained with mature neuronal marker NeuN (red) and quantitation of NeuN⁺ cells after 4 and 8 days of treatment. Scale bars represent 10 µmin A and 30 µm for all images in panels Band C. Bars in B and C represent the mean  ±  SEM for three independent experiments using Student’s t-test. **p < 0.01, ns = non-significant. Symbols above bars indicate significance compared to corresponding control. Note. aTf = human apoTransferrin; Ctl = control; DCX = doublecortin; TfR = transferrin receptor; Tf-red = Human transferrin-Texas Red.

Studies of cortical neuron cultures revealed a significantly smaller area covered by DCX-positive processes after 4-day aTf treatment, although differences were lost after 8-day treatment (Figure 7(B)). In agreement with this result, more NeuN-positive cells were found at 4 days, but no differences were found 8 days post-treatment (Figure 7(C)). These results indicate that Tf pro-differentiating effects are conserved in primary cortical cultures. Also, the temporal dynamics of marker expression suggests that neuron differentiation is initially accelerated by Tf but reaches a plateau at longer times.

Tf Does not Affect N2a Maturation in N2a-OPC Co-Cultures

As OPC is one of the main sources of aTf, the impact of OPC on neuronal maturation was next assessed in N2a-OPC co-cultures, with results comparable to those observed in single N2a cultures. Briefly, the proportion of mature neurons, the differentiation index, and the number of neurites per cell increased upon co-culture treatment with aTf, while the average neurite length was unaltered (Figure 8(A)–(C)). In addition, the effect of Tf on N2a-OPC co-cultures and their capacity to express myelin basic protein (MBP) was evaluated using the area of MBP per cell as an indicator of differentiation (Franco et al., 2015; de Faria et al., 2019). Interestingly, results showed an increase in MBP integrated optical density (IOD) and area in OPC after aTf treatment as compared to control co-cultures (Figure 8(D)). Overall, while aTf affected the maturation of OPC, they exerted no effects on the maturation of neurons.

Figure 8.

Tf promotes neuronal differentiation in co-cultures of N2a and oligodendrocyte. (Panel A) Immunocytochemistry images of co-cultures of N2a cells and OPC labeled with antibodies against neuronal marker β-III-tubulin (green) and mature oligodendrocyte marker MBP (red). (Panel B) Insets in A are shown at higher magnification on the right side of each panel. Scale bar in B represents 30 µm for all images in panels A and B. (Panel C) Quantitation of neuronal differentiation parameters (1) the proportion of differentiated cells measured as the ratio of neurite-bearing cells over total cell nuclei; (2) a differentiation score defined as the rate of total neurite length over total nuclei in a given field; (3) neurite length; and (4) the average number of neurites per cell in single N2a cultures (white and grey bars) and co-cultures (yellow bars). (Panel D) Quantitation of MBP IOD and area as oligodendrocyte differentiation parameters in co-cultures of N2a cells and OPC. Bars represent the mean  ±  SEM for three independent experiments using one-way ANOVA followed by Dunnett's comparison test. ***p < 0.001, **p < 0.01, *p < 0.05, ns = non-significant. Symbols above bars indicate significance compared to corresponding control. Note. aTf = human apoTransferrin; Ctl = control; IOD = integral optical density; MBP = myelin basic protein.

Tf Protects N2a Cells Upon Microglial Activation in N2a-Microglia Co-Cultures

Cytokine analysis in co-cultures of N2a and non-activated microglia after aTf treatment showed an increase in the synthesis of IL-10 (Figure 9, grey bars) and a decrease in the synthesis of TNFα, IL-1β, and IL-6 (Figure 9(B)–(D), grey bars) by microglial cells, although these changes were not statistically significant. In contrast, two differences were observed after microglial activation with LPS (10 ng/mL) as compared to the basal state; first, the synthesis of all cytokines increased regardless of the presence of Tf and, second, the effects produced by Tf became significant, strengthening the hypothesis that aTf modulates microglia toward an M2 phenotype. Worth pointing out, no cytokines were detected in any condition in pure N2a cultures.

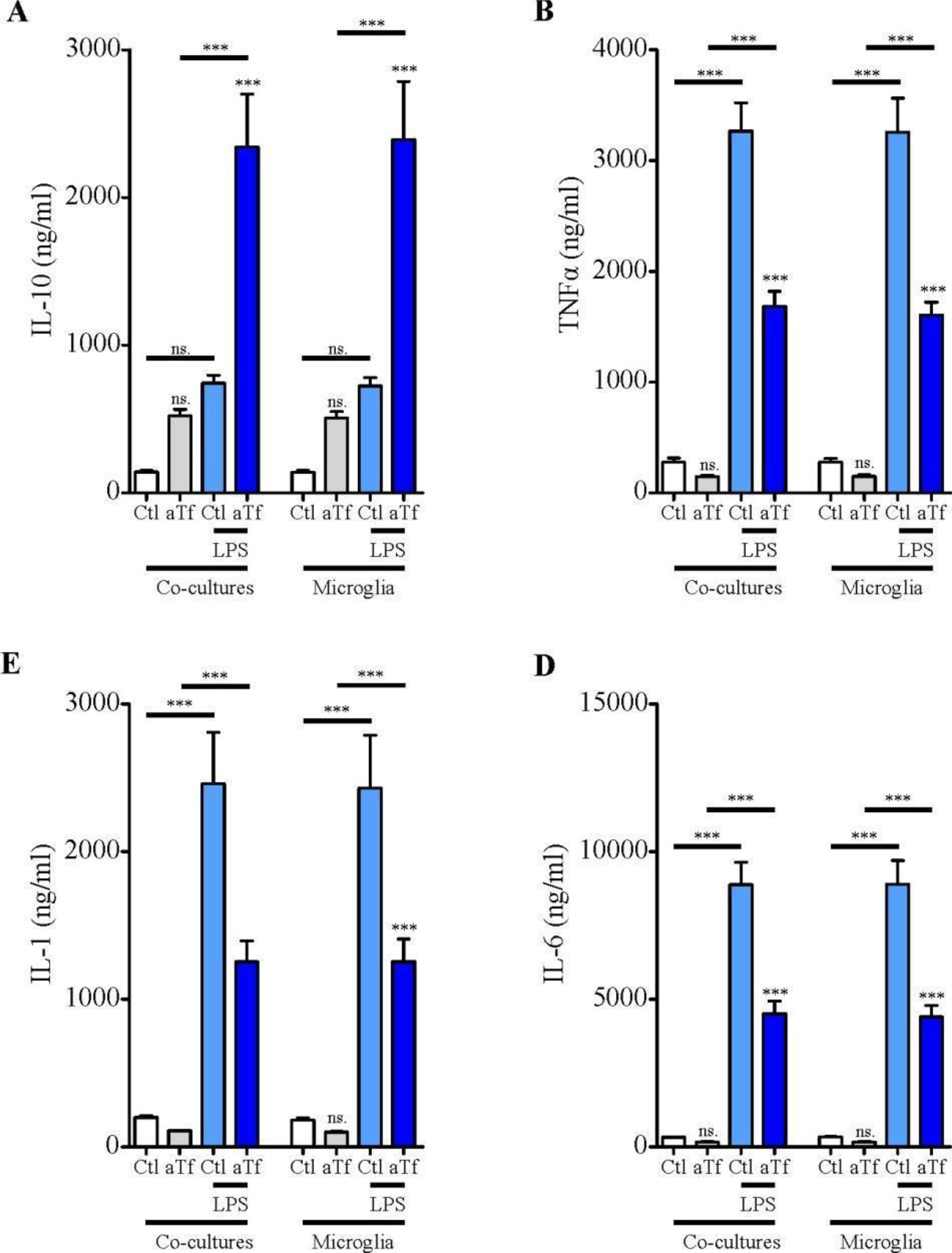

Figure 9.

Tf induces anti-inflammatory responses in co-cultures of N2a and microglial cells. ELISA of A, IL-10, B, TNF-α, C, IL-1β, and D, and IL-6 release to the culture medium in co-cultures in basal state (white and grey bars) and in the presence of LPS (10 ng/mL, blue bars) after 2 days of Tf treatment (100 µg/mL). Bars in A–D represent the mean  ±  SEM for three independent experiments using one-way ANOVA followed by Dunnett's comparison test. ***p < 0.001, **p < 0.01, *p < 0.05, ns = non-significant. Symbols above bars indicate significance compared to corresponding control. Note. aTf = human apoTransferrin; Ctl = control; LPS = lipopolysaccharide.

Finally, cytokine concentration assays in supernatants from N2a-microglia co-cultures rendered results similar to those observed in microglial cultures. However, significant differences were observed upon microglial activation with LPS (10 ng/mL); cytokine release in the absence of Tf increased as compared to the basal condition for all the molecules assayed, with the exception of IL-10. In contrast, LPS stimulation in the presence of Tf produced a significant increase in the synthesis of IL-10 and a marked decrease in IL-1β, IL-6, and TNFα (Figure 9(A)–(D), blue bars).

On the basis of Tf effects on cytokine expression in N2a-microglia co-cultures, we next evaluated N2a differentiation parameters to determine whether microglial modulation by Tf has protective effects on neurons (Figure 10(A)). Microglial activation with LPS reduced both the proportion of differentiated N2a and the differentiation index as compared to control. In contrast, microglial activation in the presence of Tf rendered normal differentiation index values (Figure 10(B)). These results unveil a neuroprotective function for Tf in the presence of activated microglia.

Figure 10.

Tf promotes neurite outgrowth in co-cultures of N2a and microglial cells. (Panel A) Immunocytochemistry images of co-cultures of N2a and microglial cells labeled with neuronal marker β-III-tubulin (red) and microglial marker Iba-1 (green).Scale bar in A represents 40 µm. (Panel B) Quantitation of neuronal differentiation parameters (1) the proportion of differentiated cells measured as the ratio of neurite-bearing cells over total cell nuclei; (2) a differentiation score defined as the rate of total neurite length over total nuclei in a given field; (3) neurite length; and (4) the average number of neurites per cell in basal state (white and grey bars) and in the presence of LPS (10 ng/mL, yellow bars). Bars in B represent the mean  ±  SEM for three independent experiments one-way ANOVA followed by Dunnett's comparison test. **p < 0.01, *p < 0.05, ns = non-significant. Symbols above bars indicate significance compared to the corresponding control. Note. aTf = human apoTransferrin; Ctl = control; LPS = lipopolysaccharide.

Discussion

In the CNS, Tf is not expressed by neurons but is synthesized and released to the brain parenchyma by OLG and choroid plexus (de Arriba Zerpa et al., 2000; Espinosa de los Monteros et al., 1990). Also, a small proportion of liver-synthesized Tf crosses the blood–brain barrier (BBB) from the plasma by transcytosis (Bradbury, 1997; Malecki et al., 1999). As most mammalian cells, neurons can internalize Tf-bound iron through TfR, which is expressed on their cellular membrane (Giometto et al., 1990; Moos, 1996; Ji & Kosman, 2015). In line with this evidence, our N2a cell cultures incorporated Tf by endocytic mechanisms through TfR. To our knowledge, this is the first report on the positive effects of Tf on neuronal cells and suggests that Tf might be a molecular ligand participating in the crosstalk between OLG and neurons. In particular, axonal signals may influence myelinogenesis, while Tf produced by OLG may provide trophic support for neurons and promote neurite outgrowth (Marta et al., 2000, 2003).

ApoTf has been previously characterized by our group as a pro-differentiating factor in other CNS cell types. An intracranial injection of aTf in young rats was shown to increase myelination (Escobar Cabrera et al., 1994, 1997; Marta et al., 2000; Saleh et al., 2003), which was later concluded to result from acceleration in oligodendroglial maturation (Paez et al., 2002; Garcia et al., 2003). These in vivo effects were in turn reproduced in vitro in OLG primary cultures and in cell lines such as N19 and N20.1 (Franco et al., 2015). Other reports have shown that Tf is not secreted by immature OLG in vitro. These findings are in stark contrast with protein expression in hepatocytes and Sertoli cells and may be attributed to the synthesis of a specific transcript lacking a signal peptide sequence. These results hint at a functional difference between Tf synthesized in the brain and other organs and suggest a specific role, other than iron transport, in OLG maturation and myelination (de Arriba Zerpa et al., 2000).

Tf has the capacity to modulate a variety of cellular processes ranging from cell survival and differentiation to metal detoxification and transport (Wang et al., 2016; Levina et al., 2016). Despite the great body of literature supporting Tf capacity to promote cell cycle progression in various cellular systems (Brock et al., 1986; Cam et al., 1989; Djeha et al., 1993), our results show no impact of Tf on N2a cell proliferation in culture media lacking FCS. Moreover, our findings showing that Tf prevented neuronal death are in agreement with in vivo results obtained in a hypoxia-ischemia model in mice, where the intranasal administration of aTf prevented white matter and neuronal damage and OLG loss (Guardia Clausi et al., 2012). Moreover, the administration of exogenous aTf has shown neuroprotective effects in experimental ischemic stroke promoting holoTf extravasation (De Gregorio-Rocasolano et al., 2018). Overall, the reduction observed in cell death may be considered at least partly due to a decrease in apoptosis, which could also be responsible for increased overall metabolic activity.

The differentiation of neural tissue has also been studied in mouse embryonic stem cells. A report by Belovari et al. (2001) confirmed that Tf single-handedly improved neural tissue differentiation not only in vitro but also in transplants of cultured embryos. Both TfR and Tf have been found in embryonic regions where the neural tube is in progress, and Tf is also known to be a growth factor for differentiation contributing iron to the embryo (Hoyle et al., 1996).

Regarding the possible molecular mechanisms involved in Tf-dependent differentiation processes, signaling through the MAPK cascade has been shown to play a critical role in the differentiation of various neuronal cell lines (Cowley et al., 1994; Waetzig & Herdegen, 2003). In our laboratories, treatment of primary cultures of OPC with aTf has revealed TfR involvement in Fyn kinase activation mechanisms and, in turn, a key role for Fyn kinase activation in MEK-mediated transient phosphorylation of ERK1/2 (Perez et al., 2013). Other reports have linked the differentiating effects observed in different neuroblastoma cell lines, including N2a, with an activation of the MAPK cascade. Reports by Chen et al. (2016) have demonstrated that the inhibition of ERK/MAPK hinders neurite outgrowth in N2a cells. Moreover, the forced activation of this cascade rescues cell differentiation, even in the presence of inhibitor stimuli. Sarina et al. (2013) established that the induction of neurite growth in PC12 cells in the presence of artemisinin is mediated by ERK phosphorylation. In agreement with these and other reports (Chen et al., 2009; Chen et al., 2010; Wang et al., 2011), our results offer further proof of ERK involvement in Tf-induced neurite outgrowth. In addition, PI3K inhibition through LY294002 offset the differentiating effects of Tf, in line with evidence of PI3K essential role in neuronal polarity (Shi et al., 2003; Ménager et al., 2004). Furthermore, our group has previously reported that aTf effects on OLG are mediated by PI3K/Akt and that TfR endocytosis is fundamental for triggering signal transduction, which subsequently spurs differentiation (Perez et al., 2013)

In terms of N2a cell differentiation parameters, we observed a greater proportion of neurite-bearing cells upon Tf treatment but, unexpectedly, no significant changes in average neurite length, which could be due to the fact that such neurites have reached their maximum potential growth. These pro-differentiating effects of Tf are again in line with those described by Sriramoju et al. (2015), who showed lactoferrin-induced neuroblastoma cell differentiation. The greater proportion of microtubule-associated protein 2-positive cells promoted by Tf in primary cultures of cortical neurons can be interpreted as a higher number of postmitotic, differentiated cells. Worth pointing out, Marta et al. (2003) reported an increase in the percentage of myelinated axons in different areas of the brain such as the corpus callosum and optic nerve in vivo after an intracranial injection of aTf, These results allow us to speculate that Tf synthesized by choroid plexus cells and secreted to the media (Espinosa de los Monteros et al., 1999) could be incorporated by neuronal cells, thus inducing their differentiation and generating an increase in myelin production by OLG to meet axon myelination demands.

The pro-differentiating effects of Tf on neurons may result from either an increase in iron transport by Tf, as it has a major role in brain maturation, or the triggering of intracellular signals. Indeed, it is well documented that the lack of iron alters dendritic morphology and blocks communication between neuronal synapses (Jorgenson et al., 2003; Brunette et al., 2010). On the other hand, Escobar Cabrera et al. (1994) postulated that the maturational effect of aTf was independent of iron and demonstrated that the administration of iron-dextran failed to reproduce the effects of aTf. Also, Rosato-Siri et al. (2010) observed that hypomyelination in an iron deficiency model was corrected by aTf treatment when the hematocrit was low, which indicates that iron is not involved in myelin recovery. Experiments will be carried out mutating the site of iron binding in Tf to clarify this point. The second hypothesis has been tested through the activation of canonical signaling pathways associated to the endocytosis mechanism mediated by TfR in response to aTf treatment (Perez et al., 2013; English et al., 2018; Yarwood et al., 2017). Experiments carried out at low and high iron concentrations confirmed that iron can partly modulate the pro-differentiating effects of Tf, while the signal originated when Tf is internalized by endosomes may also be involved. If this were the case, and given that Tf affinity for its receptor increases with iron binding, a larger amount of iron in the medium could favor its uptake and, as a consequence, trigger intracellular signals. Whether these effects are mediated by aTf without iron or by the Tf-iron complex remains to be fully elucidated. However, results obtained in DFO-treated cultures suggest that both aTf and/or Tf-iron complexes may take part in pro-differentiating effects.

Microglia are the resident immune cells of the CNS and represent about 5–12% of total brain cells in healthy conditions. It has been well established that microglial cells are in close contact with neurons, as well as with OLG and astrocytes. Interestingly, it has been demonstrated that IL-10, which could also be released by microglia, may antagonize certain functions of IL-1β, TNF-α, and the expression of iNOS (Park et al., 2006). In addition, IL-10 can also abrogate IL-1β-induced inhibition of glutamate release (Kelly et al. 2011). These data are in agreement with our results showing an increase in IL-10, which antagonizes TNF-α, IL-1β, and IL-6 in the presence of Tf and LPS and induces neuronal differentiation.

It is well known that, in vitro, microglial cells express TfR and can incorporate Tf added to the medium. Studies by our group demonstrate that treatment with Tf modifies the microglial response, producing an increase in metabolic activity in basal, non-LPS stimulated conditions due to cellular proliferation. Tf in activated microglia produces an even sharper proliferative effect, as a decrease in nitrite release increases their phagocytic capacity (Carden et al., 2019) and probably induces an M2 phenotype or an anti-inflammatory profile associated with regeneration (Cameron & Landreth, 2010). In this work, cytokine expression profiles showed no differences between cultures of microglia and co-cultures with N2a, which is consistent with N2a inability to synthesize cytokines. However, microglial activation with LPS blocked N2a differentiation in co-culture conditions. Of note, this effect was offset by Tf, which induced a recovery in N2a differentiating capacity and differentiation index and rendered control non-LPS-activated values. Even if this work did not address other potentially neuroprotective cytokines such as TGF-β, results suggest an important role for Tf in neuroregeneration, not only by promoting neural cell differentiation, but also by inducing an increase in IL-10 and modulating microglia toward an anti-inflammatory phenotype.

Although further studies will determine whether the pro-differentiating effects are mediated by aTf or Tf-transported iron, the current findings suggest that Tf reduces neuronal cell death and favors the differentiation process. Altogether, our results make Tf a promising candidate to be used in regenerative strategies in the context of neurodegenerative diseases.
