Abstract

Background:

Trastuzumab and chemotherapy is the standard first-line treatment in human epidermal growth factor receptor 2 (HER2)-positive advanced gastro-oesophageal cancer. The objective was to develop a predictive model for overall survival (OS) and progression-free survival (PFS) in patients treated with trastuzumab.

Methods:

Patients with HER2-positive advanced gastro-oesophageal adenocarcinoma (AGA) from the Spanish Society of Medical Oncology (SEOM)-AGAMENON registry and treated first line with trastuzumab and chemotherapy between 2008 and 2021 were included. The model was externally validated in an independent series (The Christie NHS Foundation Trust, Manchester, UK).

Results:

In all, 737 patients were recruited (AGAMENON-SEOM, n = 654; Manchester, n = 83). Median PFS and OS in the training cohort were 7.76 [95% confidence interval (CI), 7.13–8.25] and 14.0 months (95% CI, 13.0–14.9), respectively. Six covariates were significantly associated with OS: neutrophil-to-lymphocyte ratio, Eastern Cooperative Oncology Group performance status, Lauren subtype, HER2 expression, histological grade and tumour burden. The AGAMENON-HER2 model demonstrated adequate calibration and fair discriminatory ability with a c-index for corrected PFS/OS of 0.606 (95% CI, 0.578–0.636) and 0.623 (95% CI, 0.594–0.655), respectively. In the validation cohort, the model is well calibrated, with a c-index of 0.650 and 0.683 for PFS and OS, respectively.

Conclusion:

The AGAMENON-HER2 prognostic tool stratifies HER2-positive AGA patients receiving trastuzumab and chemotherapy according to their estimated survival endpoints.

Keywords

gastric cancer HER2-positive nomogram oesophageal cancer survival trastuzumab

Introduction

Globally, gastroesophageal cancer is the fourth most common cancer and represents 8.7% of all cancers. In 2020, there were an estimated 1,700,000 new cases. Likewise, it is the second cause of cancer mortality, accounting for 13.2% with 1,312,869 estimated deaths in 2020.¹ The Cancer Genome Atlas divides gastric cancer into four subtypes that may serve as a valuable adjunct to histopathology.² Tumors with chromosomal instability are the most frequently ocurring subtype (50%), mainly in neoplasms located in the gastroesophageal junction (GEJ)/cardia, with intestinal histology, and the presence of various chromosomal abnormalities actionable by receptor tyrosine kinase-directed therapies. Amplification or overexpression of human epidermal growth factor receptor 2 (HER2) is one of the most frequent alterations (9–36%) and serves as a predictive biomarker.^3,4 In 2010, the ToGA phase III randomised clinical trial (RCT) demonstrated the benefit of adding an anti-HER2 antibody (trastuzumab) to a backbone of six cycles of cisplatin and fluoropyrimidine in HER2-positive (HER2+) for unresectable, recurrent or metastatic gastro-oesophageal and gastric adenocarcinoma.⁵ Patients receiving trastuzumab had increased overall survival (OS), 13.8 versus 11.0 months [hazard ratio, 0.74, 95% confidence interval (CI), 0.60–0.91)], and delayed deterioration in quality of life.⁶ In an exploratory analysis, median OS reached 16 months in the subgroup with immunohistochemistry (IHC) 2+/fluorescence in situ hybridisation (FISH) + or IHC 3+.⁵ Reassuringly, this has been confirmed in the real-world setting where rates of testing for HER2 in gastric cancer patients have been shown to correlate with improved OS.⁴ In the near future, it is likely that other HER2-directed therapies will be incorporated into the therapeutic arsenal (e.g. margetuximab, trastuzumab–deruxtecan).^7–9 The addition of trastuzumab and chemotherapy to an immune checkpoint inhibitor, the anti-programmed cell death 1 (PD-1) antibody pembrolizumab, has shown favourable preliminary results in the phase III RCT Keynote 811.¹⁰

In this context of expanding therapeutic options, a predictive tool for the benefit of trastuzumab-based regimens could be useful to select the most appropriate treatment for each patient, help understand the variation in prognosis of patients with HER2+ advanced gastro-oesophageal adenocarcinoma (AGA), identify which patient subgroups have poorer OS expectations, and stratify patients in future clinical trials. Thus, multivariable models may complement validated biomarkers in the development of risk-based therapeutic strategies. However, despite the recognition that these neoplasms form an entity with particular clinical-biological and therapeutic characteristics,¹¹ specific models of HER2+ AGA are scarce.^12–14 This limits the understanding of prognostic heterogeneity, as models that do not consider HER2 status perform worse.^15,16 With this premise, we have used the AGAMENON-Spanish Society of Medical Oncology (SEOM) registry (NCT04958720) to develop a predictive model of progression-free survival (PFS) and OS specific to patients with a HER2+ AGA who received trastuzumab as first-line therapy. The model has been externally validated in a cohort at the Christie Hospital in Manchester.

Method

Patients and study design

The model was designed in a training cohort that included patients from the AGAMENON oesophageal and gastric cancer registry managed by the SEOM in which 42 Spanish university hospitals participate. The characteristics of this registry, quality criteria, methods and data collection criteria have been described previously.^17–20 To comprehend the representativeness of the data, Supplemental Annex Table 1 contains a description of all the centres that are participating in the registry.

Patients eligible for this study were adults (age ⩾18 years), diagnosed with locally advanced or metastatic unresectable adenocarcinoma of the distal oesophagus, GEJ and stomach, HER2+ who received at least one cycle of chemotherapy and trastuzumab as first-line treatment. HER2 status was studied locally at the centres and defined as IHC 3+ or IHC 2+/FISH+. Subjects who had completed perioperative or adjuvant systemic treatment in the previous 6 months and those with HER2+ cancers that were not treated with first-line trastuzumab were excluded.

Data were collected from medical records or directly from the patient by medical oncologists experienced in treating AGA and trained to meet the requirements of the study via an online platform. This tool includes real-time alerts to avoid inconsistencies, unjustified missing values and errors, and regular telephone and online monitoring is performed. Patient-reported outcome measures were not collected.

Results were externally validated in a separate cohort from The Christie NHS Foundation Trust (Manchester, UK), which included consecutive patients who met the same eligibility criteria.

Objectives and variables of interest

The objective was to develop and externally validate a multivariable model to stratify patients with HER2+ AGA according to PFS/OS. Outcome variables were PFS and OS defined as the time in months between initiation of first-line chemotherapy and progression or death, respectively, censoring subjects alive at last follow-up.

Candidate predictors were selected after an exhaustive literature search, and after consultation with experts from the participating centres. No data-driven method was used in the final selection of variables.²¹ All covariates had to be available at the start of treatment (e.g. the primary tumour surgery variable was only considered when subjects had been exposed before the start of first-line treatment). The covariates considered in this model were age, Eastern Cooperative Oncology Group performance status (ECOG PS; ⩾2 versus 0–1), primary tumour location (oesophagus, GEJ, stomach), HER2 expression level (IHC 2+/FISH+ versus IHC 3+), Lauren subtype (intestinal versus diffuse and mixed), signet ring cells, histological grade (1, 2, versus 3), overall tumour burden (stratified into four categories, Table 1), neutrophil-to-lymphocyte ratio (NLR; non-linear, continuous), albumin, carcinoembryonic antigen, CEA (non-linear, continuous), primary tumour surgery, chemotherapy regimen (anthracycline-based triplets, carboplatin–5-fluorouracil, carboplatin–capecitabine, cisplatin–5-fluorouracil, docetaxel-containing regimens, 5-fluorouracil/oxaliplatin, capecitabine/oxaliplatin, capecitabine/cisplatin, others). Criteria to stratify the overall tumour burden (Table 1) have been used previously by our group.²² The OS analyses stratified by this variable on the entire cohort, as well as the Manchester series, suggest that these criteria are valid (Supplemental Annex Figure 1).

Table 1.

Definitions of overall tumour burden.

Tumour burden	Definition
Low	• 1 single organ involved with 1 or 2 lesions or mild ascites/microscopic peritoneal dissemination with no other sites
Moderate	• 1 single involved organ with 3–5 lesions • 2 involved organs with <3 lesions per organ
High	• 1 single organ involved with >5 lesions • 3 or more involved organs
Very high	• Baseline sum of total diameters >15 cm • Moderate or severe ascites • Diffuse peritoneal metastases with nodules >2–3 cm • CNS metastases • 3 or more bone metastases • Liver tumour burden >50%

Mild ascites was defined as not clinically evident, diagnosed with CT or ultrasound.

CNS, central nervous system; CT, computed tomography.

Statistics

Correlation of predictors with OS was assessed using Somers’ Dxy rank correlations. Missing data were imputed using predictive mean matching.²³ None of the predictors were found to have more than 20% missing data. Redundancy analysis was performed with flexible parametric additive models to remove any covariates that could be predicted by the remaining variables.²¹ We used a log-normal accelerated failure time (AFT) model, as the aim was to model the mean time to PFS/OS.²⁴ We tested the adequacy of the log-normal parametric model by calculating the Kaplan–Meier estimate of the distribution of the residuals versus the theoretical gaussian. In AFT models, survival times are multiplied by a constant effect under this formulation so that the exponentiated coefficients, exp(β), are called time ratios (TRs). A TR of more than 1 for the covariate implies that the covariate slows down or lengthens the time to the event, while a TR of less than 1 indicates that an event is more likely to occur earlier. Thus, the regression coefficient of a binary predictor equal to log(0.5) means that the median time to event is halved in its presence. CIs of 90%, 95% and 99% are reported. Time is expressed in months. Non-linear effects were modelled using restricted cubic splines. In terms of sample size, the number of predictors was chosen so that there were at least 15 events per covariate.²¹ To obtain a simplified, more convenient model, a version of fast backward elimination on factors was used, using a method based on Lawless and Singhal.²⁵ The simplified model was represented as a nomogram and online calculator; calibration curves were plotted and discrimination was assessed using Harrell’s C-index, which takes into account right-censored data. In the derivation series, the c-index was corrected for bias by bootstrap. Using the linear predictor, the same measures of model performance were obtained in the validation cohort. Analyses were performed with R version 4.01,²⁶ including the Hmisc and rms libraries.^27,28

Results

Patients and treatments

A total of 737 patients treated between 2008 and 2021 were consecutively enrolled – 654 from the training cohort of the AGAMENON-SEOM registry and 83 from the external validation subset. Baseline characteristics are illustrated in Table 2. Demographics and therapies are comparable in both cohorts, except for a higher percentage of GEJ adenocarcinomas in the Christie Hospital series (21% versus 53%), more tumours with very high tumour burden in the AGAMENON-SEOM cohort (41% versus 13%), and a more homogeneous treatment pattern with a predominance of ToGA regimens (cisplatin/capecitabine in 93%) in the Christie Hospital series versus a greater predilection for oxaliplatin-based doublets (n = 301, 46%) in AGAMENON-SEOM.

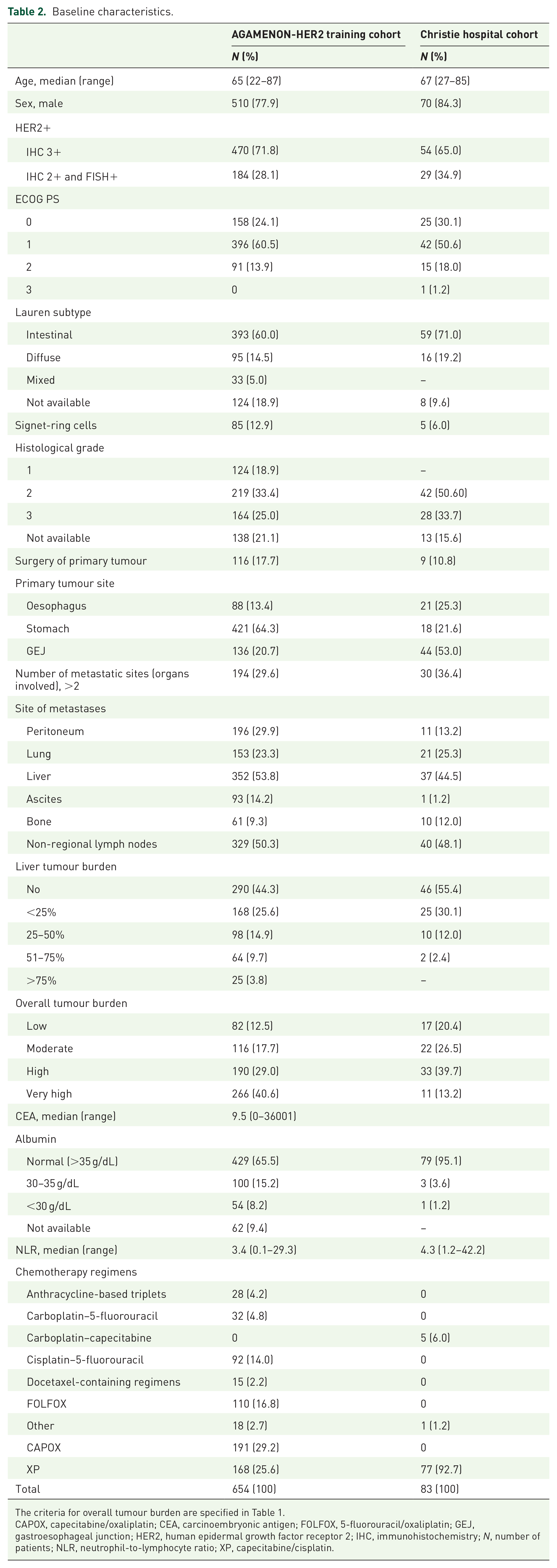

Table 2.

Baseline characteristics.

	AGAMENON-HER2 training cohort	Christie hospital cohort
	N (%)	N (%)
Age, median (range)	65 (22–87)	67 (27–85)
Sex, male	510 (77.9)	70 (84.3)
HER2+
IHC 3+	470 (71.8)	54 (65.0)
IHC 2+ and FISH+	184 (28.1)	29 (34.9)
ECOG PS
0	158 (24.1)	25 (30.1)
1	396 (60.5)	42 (50.6)
2	91 (13.9)	15 (18.0)
3	0	1 (1.2)
Lauren subtype
Intestinal	393 (60.0)	59 (71.0)
Diffuse	95 (14.5)	16 (19.2)
Mixed	33 (5.0)	–
Not available	124 (18.9)	8 (9.6)
Signet-ring cells	85 (12.9)	5 (6.0)
Histological grade
1	124 (18.9)	–
2	219 (33.4)	42 (50.60)
3	164 (25.0)	28 (33.7)
Not available	138 (21.1)	13 (15.6)
Surgery of primary tumour	116 (17.7)	9 (10.8)
Primary tumour site
Oesophagus	88 (13.4)	21 (25.3)
Stomach	421 (64.3)	18 (21.6)
GEJ	136 (20.7)	44 (53.0)
Number of metastatic sites (organs involved), >2	194 (29.6)	30 (36.4)
Site of metastases
Peritoneum	196 (29.9)	11 (13.2)
Lung	153 (23.3)	21 (25.3)
Liver	352 (53.8)	37 (44.5)
Ascites	93 (14.2)	1 (1.2)
Bone	61 (9.3)	10 (12.0)
Non-regional lymph nodes	329 (50.3)	40 (48.1)
Liver tumour burden
No	290 (44.3)	46 (55.4)
<25%	168 (25.6)	25 (30.1)
25–50%	98 (14.9)	10 (12.0)
51–75%	64 (9.7)	2 (2.4)
>75%	25 (3.8)	–
Overall tumour burden
Low	82 (12.5)	17 (20.4)
Moderate	116 (17.7)	22 (26.5)
High	190 (29.0)	33 (39.7)
Very high	266 (40.6)	11 (13.2)
CEA, median (range)	9.5 (0–36001)
Albumin
Normal (>35 g/dL)	429 (65.5)	79 (95.1)
30–35 g/dL	100 (15.2)	3 (3.6)
<30 g/dL	54 (8.2)	1 (1.2)
Not available	62 (9.4)	–
NLR, median (range)	3.4 (0.1–29.3)	4.3 (1.2–42.2)
Chemotherapy regimens
Anthracycline-based triplets	28 (4.2)	0
Carboplatin–5-fluorouracil	32 (4.8)	0
Carboplatin–capecitabine	0	5 (6.0)
Cisplatin–5-fluorouracil	92 (14.0)	0
Docetaxel-containing regimens	15 (2.2)	0
FOLFOX	110 (16.8)	0
Other	18 (2.7)	1 (1.2)
CAPOX	191 (29.2)	0
XP	168 (25.6)	77 (92.7)
Total	654 (100)	83 (100)

The criteria for overall tumour burden are specified in Table 1.

CAPOX, capecitabine/oxaliplatin; CEA, carcinoembryonic antigen; FOLFOX, 5-fluorouracil/oxaliplatin; GEJ, gastroesophageal junction; HER2, human epidermal growth factor receptor 2; IHC, immunohistochemistry; N, number of patients; NLR, neutrophil-to-lymphocyte ratio; XP, capecitabine/cisplatin.

Eighty-two percent (82%) of the subjects (538/654) in the derivation sample had synchronous metastases since the time of diagnosis, whereas the rest had undergone surgery with curative intent and relapsed later on.

Outcomes

In the training cohort (AGAMENON-SEOM), 580 progression events and 549 deaths were recorded after a median follow-up in living patients of 62.8 months (95% CI, 49.1–86.0). Median PFS was 7.7 months (95% CI, 7.1–8.2), and median OS was 14.0 months (95% CI, 13.0–14.9). Survival data stratified by regimen are summarised in Supplemental Annex Table 2, with comparable results except for carboplatin-based regimens. At the time of analysis, 93% (n = 609) had discontinued first-line treatment. Patients received a median of six cycles of platinum chemotherapy (range, 1–14), and eight cycles of a fluoropyrimidine. The median duration of trastuzumab treatment was 7.6 months (95% CI, 7.1–8.3).

In the Christie Hospital test cohort, 55/83 death events were detected, after a median follow-up in living subjects of 38.6 months (95% CI, 26.2–not reached). The median PFS was 8.1 months (95% CI, 7.1–11.3) and OS 12.8 months (95% CI, 10.3–20.4). Patients received chemotherapy for a median of five cycles (range, 1–6), and trastuzumab therapy was maintained for a median of 6.3 months (range, 1–74).

Development of predictive models for PFS and OS

AFT models to predict PFS and OS were fitted with all candidate covariates. The exponentiated coefficients (TRs) are shown in Figure 1 and Table 3. For continuous variables, the contrasts show interquartile effects. The full model with all coefficients is shown in Supplemental Annex Table 3.

Figure 1.

Effect of AGAMENON-HER2 covariates on PFS (a) and OS (b).

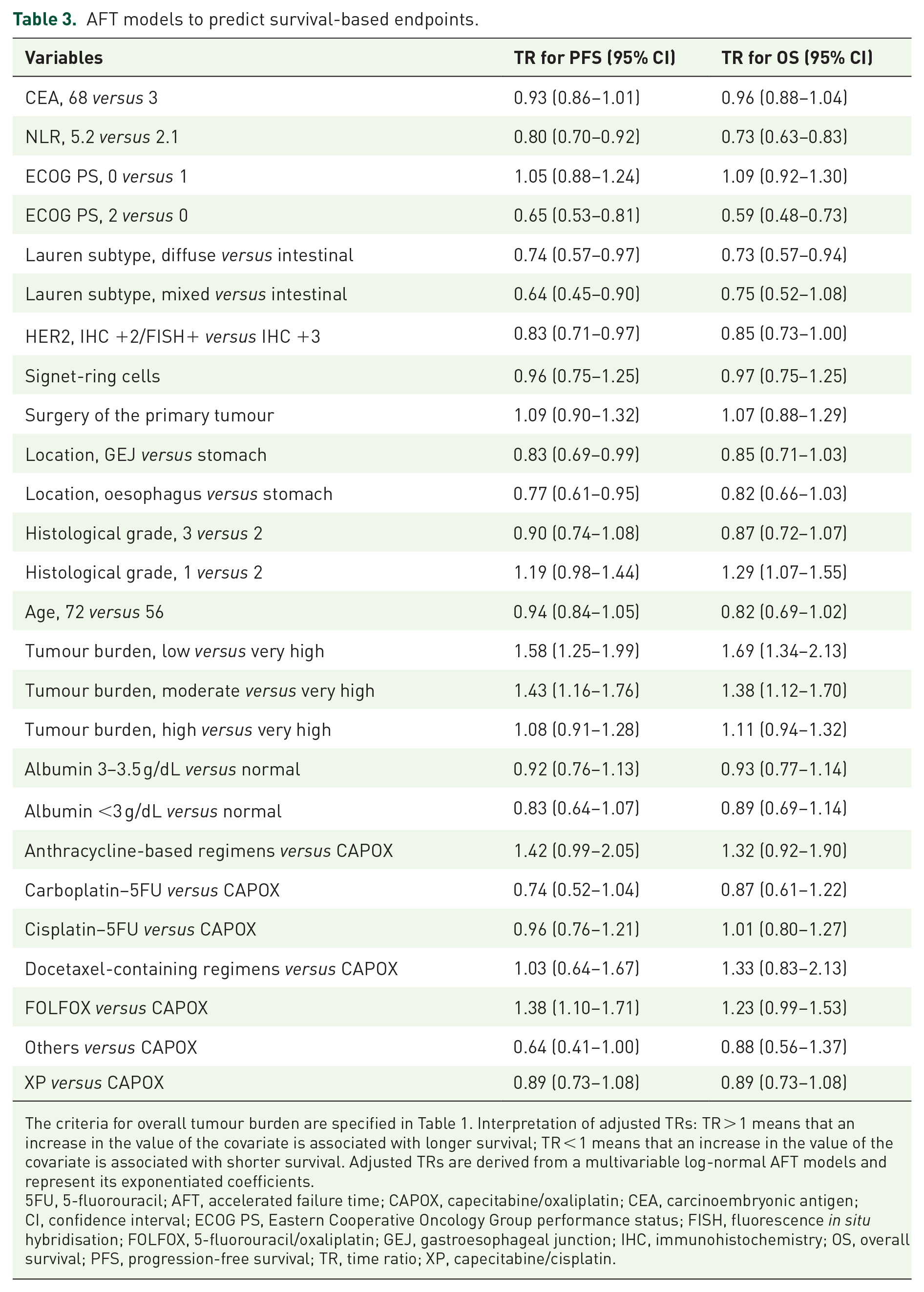

Table 3.

AFT models to predict survival-based endpoints.

Variables	TR for PFS (95% CI)	TR for OS (95% CI)
CEA, 68 versus 3	0.93 (0.86–1.01)	0.96 (0.88–1.04)
NLR, 5.2 versus 2.1	0.80 (0.70–0.92)	0.73 (0.63–0.83)
ECOG PS, 0 versus 1	1.05 (0.88–1.24)	1.09 (0.92–1.30)
ECOG PS, 2 versus 0	0.65 (0.53–0.81)	0.59 (0.48–0.73)
Lauren subtype, diffuse versus intestinal	0.74 (0.57–0.97)	0.73 (0.57–0.94)
Lauren subtype, mixed versus intestinal	0.64 (0.45–0.90)	0.75 (0.52–1.08)
HER2, IHC +2/FISH+ versus IHC +3	0.83 (0.71–0.97)	0.85 (0.73–1.00)
Signet-ring cells	0.96 (0.75–1.25)	0.97 (0.75–1.25)
Surgery of the primary tumour	1.09 (0.90–1.32)	1.07 (0.88–1.29)
Location, GEJ versus stomach	0.83 (0.69–0.99)	0.85 (0.71–1.03)
Location, oesophagus versus stomach	0.77 (0.61–0.95)	0.82 (0.66–1.03)
Histological grade, 3 versus 2	0.90 (0.74–1.08)	0.87 (0.72–1.07)
Histological grade, 1 versus 2	1.19 (0.98–1.44)	1.29 (1.07–1.55)
Age, 72 versus 56	0.94 (0.84–1.05)	0.82 (0.69–1.02)
Tumour burden, low versus very high	1.58 (1.25–1.99)	1.69 (1.34–2.13)
Tumour burden, moderate versus very high	1.43 (1.16–1.76)	1.38 (1.12–1.70)
Tumour burden, high versus very high	1.08 (0.91–1.28)	1.11 (0.94–1.32)
Albumin 3–3.5 g/dL versus normal	0.92 (0.76–1.13)	0.93 (0.77–1.14)
Albumin <3 g/dL versus normal	0.83 (0.64–1.07)	0.89 (0.69–1.14)
Anthracycline-based regimens versus CAPOX	1.42 (0.99–2.05)	1.32 (0.92–1.90)
Carboplatin–5FU versus CAPOX	0.74 (0.52–1.04)	0.87 (0.61–1.22)
Cisplatin–5FU versus CAPOX	0.96 (0.76–1.21)	1.01 (0.80–1.27)
Docetaxel-containing regimens versus CAPOX	1.03 (0.64–1.67)	1.33 (0.83–2.13)
FOLFOX versus CAPOX	1.38 (1.10–1.71)	1.23 (0.99–1.53)
Others versus CAPOX	0.64 (0.41–1.00)	0.88 (0.56–1.37)
XP versus CAPOX	0.89 (0.73–1.08)	0.89 (0.73–1.08)

The criteria for overall tumour burden are specified in Table 1. Interpretation of adjusted TRs: TR > 1 means that an increase in the value of the covariate is associated with longer survival; TR < 1 means that an increase in the value of the covariate is associated with shorter survival. Adjusted TRs are derived from a multivariable log-normal AFT models and represent its exponentiated coefficients.

5FU, 5-fluorouracil; AFT, accelerated failure time; CAPOX, capecitabine/oxaliplatin; CEA, carcinoembryonic antigen; CI, confidence interval; ECOG PS, Eastern Cooperative Oncology Group performance status; FISH, fluorescence in situ hybridisation; FOLFOX, 5-fluorouracil/oxaliplatin; GEJ, gastroesophageal junction; IHC, immunohistochemistry; OS, overall survival; PFS, progression-free survival; TR, time ratio; XP, capecitabine/cisplatin.

The log-normal parametric survival time model adequately fitted the data to the most relevant prognostic factors (Supplemental Annex Figure 2). The PFS model has a bias-corrected c-index of 0.606 (95% CI, 0.578–0.636) and is well calibrated (Figure 2(a)). The OS model has a bias-corrected c-index of 0.623 (95% CI, 0.594–0.655), and is well calibrated at various time points (Figure 2(c) and Supplemental Annex Figure 3). As these models are too complex for use in clinical practice, they were simplified using Lawless and Singhal’s factor reduction algorithm. The simplified models contain six predictors (ECOG PS, HER2 status, Lauren subtype, histological grade, overall tumour burden and NLR). These covariates have the highest correlation with OS in the Somers’ Dxy rank correlations so that omission of the remaining variables does not substantially affect the discrimination indices (Supplemental Annex Figure 4). The NLR showed a clear non-linear behaviour with worse prognosis at higher values, up to a value of 8 (see Supplemental Annex Figure 5). None of the outliers (NLR > 8) were due to errors, steroid use or obvious infections. The discrimination indices in the simplified model (0.610 and 0.635 for PFS and OS, respectively) are comparable to those of the complete model. The simplified models for PFS and OS have been graphically represented as nomograms (Figure 3(a) and (b)), and a web-based calculator has been designed to access the predictions conveniently (https://www.prognostictools.es/her2/inicio.aspx). The underlying equations are specified in Supplemental Annex Figure 6.

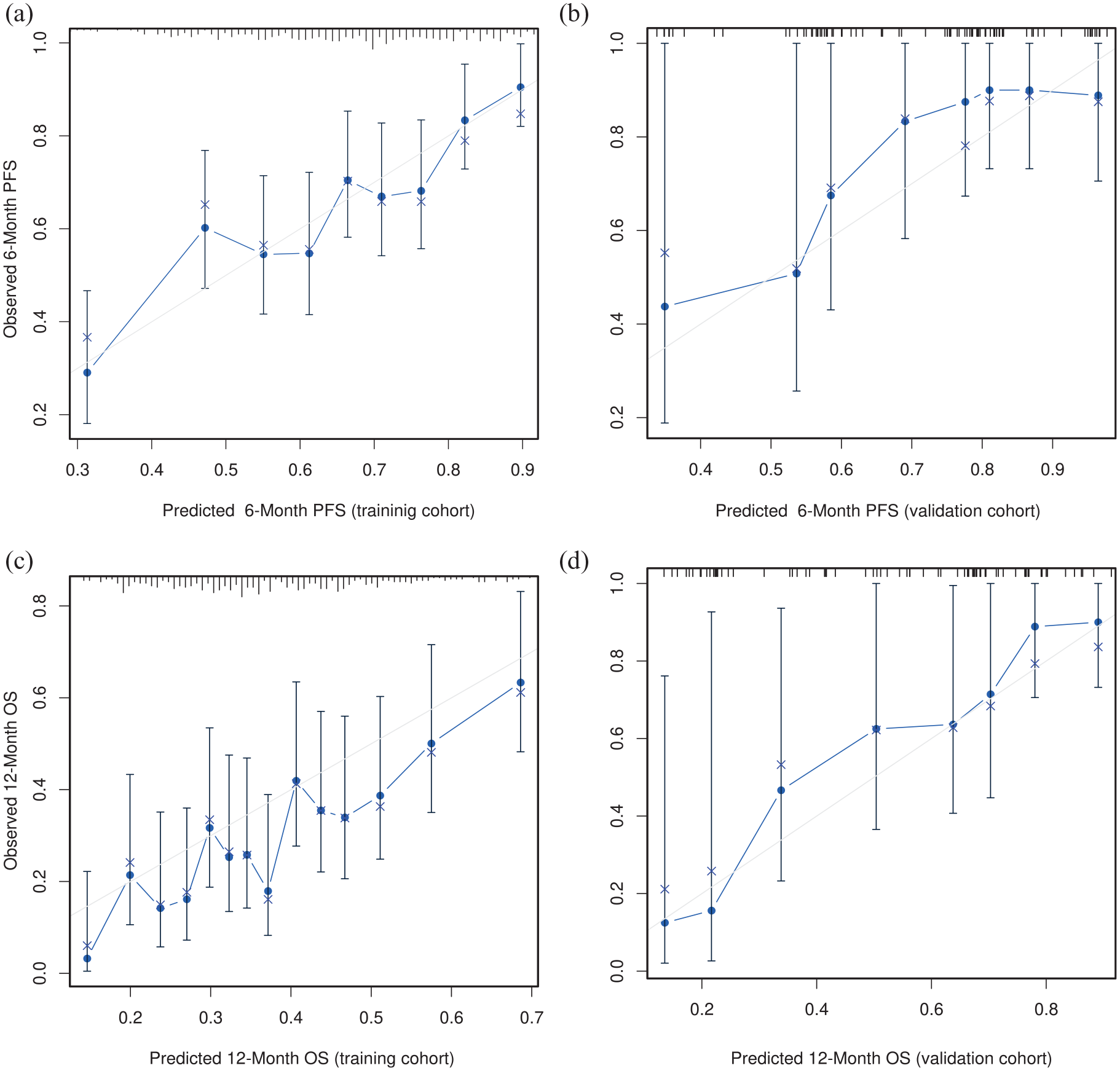

Figure 2.

Calibration curves in the training cohort for PFS and OS. The term ‘predicted’ means the probability of PFS/OS at fixed points of time, whereas observed refers to the Kaplan–Meier survival estimate stratified by intervals. (a) 6-month PFS in the AGAMENON-SEOM cohort. (b) 6-Month PFS in the Christie Hospital cohort. (c) 12-month OS in the AGAMENON-SEOM cohort. (d) 12-month OS in the Christie Hospital cohort.

Figure 3.

AGAMENON-HER2 nomograms for PFS (a) and OS (b).

External validation

The AGAMENON-HER2 nomograms were validated in an independent series. In this external validation cohort, the models retained adequate calibration (Figure 2(b) and (d) shows the calibration plots for the PFS and OS predictor models, respectively). The models allow for adequate discrimination with a c-index of 0.650 and 0.683 for PFS and OS, respectively. In the testing cohort, the NLR variable shows the same non-linear trend seen in the training cohort (Supplemental Annex Table 4).

Discussion

This study describes the development and external validation of a model predictive of survival-based endpoints in individuals with AGA treated with trastuzumab-based therapy. This tool was needed because of the significant variation in outcomes seen in AGA patients treated with HER2-directed therapy.¹³ To our knowledge, the AGAMENON-HER2 model is the first tool developed to make individualised predictions and stratify subjects with AGA treated with HER2-targeted therapies and chemotherapy. The model has been externally validated in a sample of consecutive patients, achieving adequate calibration and discrimination capacity. The resulting models assign an estimate of PFS and OS based on the additive effect of key clinicopathological variables in these patients.

All the covariates used are known, and feature in other models for prognosis in HER2-negative AGA.¹³ The contribution of NLR is known in AGA²⁹ and other advanced malignancies, reflecting the presence of a systemic proinflammatory state.^30,31 It should be noted that the effect on survival-based endpoints is non-linear, with a threshold between 6 and 8, beyond which successive increases are not associated with worse prognosis. The non-linear association with various endpoints has been described in oncology and non-oncology patients in various settings,^19,32,33 but does not occur in all studies.³⁰ The impact of tumour histology on prognosis is another aspect to consider. Most HER2+ AGA usually have a well or moderately differentiated intestinal histological subtype.¹¹ However, about 19% of HER2+ neoplasms in our series (both AGAMENON-SEOM and Christie hospital) have a diffuse histological component. The presence of diffuse histology and poor differentiation of HER2+ AGA, although infrequent, has been documented and consistently associated with a worse prognosis.³⁴ As there are no definitive criteria for classification our model does not consider intratumoural heterogeneity of HER2 expression a known prognostic factor and incorporation of this in future developments would be important.^35,36 In our series, IHC 2+/FISH+ tumours had worse PFS/OS, in line with the rest of the literature.^37–40 A novel variable in our model is the incorporation of overall tumour burden. In the absence of pre-established criteria, we resorted to a classification previously defined by our group.²² The observed results from our current and previous studies, including the capacity to stratify the participants in the Manchester series, suggest that these criteria are valid.

Regarding the external validity of our nomogram, there are several key points to consider. First, the use of alternative regimens to the ToGA trial is common in this and other contemporary series, which may subtly modify the survival results of HER2-directed therapy.^19,41 To our knowledge, the contribution of the chemotherapy backbone has not been evaluated in any comparative research. However, this impact is not expected to be relevant in a recommended setting of using platinum- and fluoropyrimidine-based chemotherapy combinations, as is the case in more than 95% of patients in our cohorts. Second, the optimal duration of chemotherapy and maintenance with trastuzumab-associated fluoropyrimidine, a strategy used in patients in this series, remain uncertain.⁴² In the ToGA trial, chemotherapy was administered for six cycles, with trastuzumab maintained thereafter until progression.⁵ In phase II clinical trials not stratified by HER2-status, there appears to be no substantial difference between stop & go or maintenance strategies.^43,44 However, a previous analysis of the AGAMENON-SEOM registry suggested that maintenance with fluoropyrimidines and trastuzumab might be useful when the chemotherapy backbone was FOLFOX.^19,42 Third, although the ToGA trial did not include them, the benefit of anti-HER2 therapies has been extrapolated to distal oesophageal adenocarcinoma and is supported by retrospective data analyses.^45,46 As a real-world prospective data collection, our database incorporates the diversity seen in clinical practice supporting the validity of our nomogram in a broad range of settings. This is confirmed by the similar performance of our model in the AGAMENON cohort and the Christie NHS Foundation Trust validation cohort despite the diversity in tumour subtypes and chemotherapy regimen. Fourth, given that the model was developed on a sample of Western patients, its external validation in broader populations (e.g. Asian) must be confirmed. Indeed, the results observed here are in line with the findings of trials conducted in our setting,⁴⁷ although discreetly lower than those reported in other studies performed in predominantly Asian countries.⁴¹

Our study has several limitations, the most obvious being its retrospective nature, with the obvious risk of bias. Although the data have been reviewed and are consistent across two independent series, they do not entirely exclude the possibility of systematic errors. Recent studies have demonstrated the existence of remarkable molecular heterogeneity within HER2-positive tumours, which could substantially influence the outcome of HER2-targeting therapies.^48–55 The introduction of new HER2-targeted therapies may influence the prognosis of these patients. The development of future HER2-testing strategies (i.e. next-generation sequencing, liquid biopsy) could affect the applicability of the nomogram. While the model captures the most general predictors, it is necessary to be aware of infrequent risk factors that could have a decisive influence on the evolution of some patients. In particular, the criteria for classifying the overall tumour burden are empirical and need further validation, although a sensitivity analysis suggests that the classification method is promising. Moreover, the model has been established with a sample of patients treated with trastuzumab and chemotherapy, so its validity should be confirmed with the addition of PD-1 targeting drugs and/or new anti-HER2 therapies.^7–9,56 This model captures a mix of covariates associated with general functional status, proinflammatory levels, histopathological diversity and tumour burden, so we believe it will continue to be useful as regimens for HER2-positive AGA evolve. While other tumour inflammatory signature-related parameters, as well as immune-related prognostic biomarkers (e.g. programmed cell death ligand 1 pathway, tumour infiltrating lymphocytes, interleukins) have demonstrated an emerging prognostic role, these determinations are not yet available for most of the cases included in this registry. Regardless, it may prove difficult to uncouple the possible prognostic effect of these biomarkers from the use of immunotherapy in the future.⁵⁷ The c-index of this model (0.650), while relatively low, is deemed acceptable within the context of a well-calibrated model that accurately predicts the probability of failure at specific time points.⁵⁸ Although the data have been validated in an independent series, the reader must bear in mind the uncertainty in a relatively small sample when estimating performance indices. Finally, the reader should be aware that our analysis does not provide insight into the per se benefit of trastuzumab-based chemotherapy, although the model is able to identify subgroups with poor survival expectations, which should be a priority in clinical research for a more personalised approach. As for applicability, this model can in no way be used to choose treatment strategies in first line other than the ones used in the derivation series, with all participants receiving trastuzumab and polychemotherapy.

In conclusion, the AGAMENON-SEOM-HER2 evidence-based prognostic tool is able to predict survival-based endpoints in patients with HER2+ AGA receiving trastuzumab-based treatment. This nomogram may be useful when stratifying patients with HER2+ AGA in future trials. Furthermore, evidence-based knowledge about prognosis could be useful as part of the discussion that entails decision-making in daily clinical practice during the course of anti-HER2 therapy (conversations with the patient about initiating drugs, assessing a clinical trial, multidisciplinary committee deliberations regarding locoregional therapies, how long to administer the therapy, response evaluation timing, ICU management in individuals having a better prognosis, etc.).
