iNOS/Arginase-1 expression in the pulmonary tissue over time during Cryptococcus gattii infection

Abstract

Inhalation of Cryptococcus gattii yeasts (causing cryptococcosis) triggers an anti-cryptococcal immune response initiated by macrophages, neutrophils or dendritic cells, and the iNOS expressed by various cells may regulate the function and differentiation of innate and adaptive immune cells. Here, we evaluated the effect of progression of C. gattii infection on the host innate immune response. C. gattii infection in BALB/c mice spreads to several organs by 21 d post infection. The numbers of neutrophils and lymphocytes in the peripheral blood of C. gattii–infected mice were remarkably altered on that day. The frequency of CD11b⁺ cells and cell concentrations of CD4⁺ and CD8⁺ T cells was significantly altered in the pulmonary tissue of infected mice. We found a higher frequency of CD11b⁺/iNOS⁺ cells in the lungs of infected mice, accompanied by an increase in frequency of CD11b⁺/Arginase-1⁺ cells over time. Moreover, the iNOS/Arginase-1 expression ratio in CD11b⁺ cells reached its lowest value at 21 d post infection. In addition, the cytokine micro-environment in infected lungs did not show a pro-inflammatory profile. Surprisingly, iNOS knock-out prolonged the survival of infected mice, while their pulmonary fungal burden was higher than that of infected WT mice. Thus, C. gattii infection alters the immune response in the pulmonary tissue, and iNOS expression may play a key role in infection progression.

Keywords

host immune response iNOS arginase-1 pulmonary tissue

Introduction

Cryptococcus gattii, a causative agent of cryptococcosis, is an emerging fungal pathogen that preferentially infects the lungs and CNS of immunocompetent individuals.¹ It preferentially infects the pulmonary tissue, which is supported by animal studies that associate mortality with pulmonary infection.² Following the inhalation of C. gattii yeast or desiccated basidiospores, lung-resident macrophages initiate an anti-cryptococcal immune response. Infiltrating macrophages can act in both fungal clearance and dissemination, which have been described as two phenotypes: M1 (classically activated macrophages) and M2 (alternatively activated macrophages), respectively.^3,4 These macrophage phenotypes are defined by expression of markers: M1 markers include inducible NO synthase (iNOS or iNOS2), while M2 markers include arginase-1 (Arg-1), found in inflammatory zone 1 (Fizz1), and chitinase-like molecule (Ym1).^5,6

The role of iNOS expressed by macrophages is critical in the balance between M1 and M2 subsets, because iNOS regulates the expression of hallmark genes in M1 macrophages and modulates the production of pro-inflammatory cytokines.^7,8 On the other hand, Arg-1 expressed by macrophages plays a pivotal role in the regulation of the immune response, mostly through competition between iNOS and Arg-1 for the intracellular arginine, resulting in the protection of tissue against injury in response to inflammation.⁹ iNOS and Arg-1 are expressed by a variety of cells, and the effector activity of immune cells may be regulated by iNOS.^10–12 Previous studies have demonstrated that iNOS expression can negatively regulate the differentiation of effector dendritic cells (DCs),¹³ and iNOS also acts as a mediator in the suppressive function of myeloid-derived suppressor cells.¹⁴ These findings evidence a regulatory function of iNOS expression on immune cells modulating the immune response against pathogens. In the context of Cryptococcus neoformans infection, iNOS activity was required to generate a primary immune response, while iNOS expression was not essential for the development of secondary immunity to C. neoformans infection.¹⁵

Previous studies have reported a protective effect of IFN-γ and Th1 cells during C. neoformans infection.^16,17 Th17 immunity has been shown to collaborate with the protective Th1-type anti-cryptococcal immune response.^18,19 However, Th1 and Th17 responses in the lungs are impaired during C. gattii infection, owing to multiple factors: (a) C. gattii fails to provoke the migration of neutrophils in the lungs, (b) lower levels of pro-inflammatory cytokines in the lung and higher levels of IL-13 in response to C. gattii infection and (c) attenuation of DCs, impairing chemokine expression associated with the induction of the Th1 immune response.^20,21 Interestingly, the major pro-inflammatory cytokine, IFN-γ, associated with an overall protective Th1 immune response, failed to potentiate the phagocytic and microbicide activity of macrophages in the presence of C. gattii.^22,23 In this line, reactive oxygen species (ROS), which play a critical role in the microbicidal activity of phagocytic cells, favour the growth of C. gattii strain R265.^24,25 These findings support the ability of C. gattii to infect both immunocompromised and immunocompetent hosts.

In the current study, we evaluated the effects of the progression of C. gattii infection on the host immune response. The plasticity of iNOS/Arg-1 expression in the lungs was also studied. The frequency of CD11b⁺ cells in pulmonary tissue was higher in C. gattii–infected mice than in uninfected mice in all periods studied, and the concentrations of CD4⁺ and CD8⁺ T cells were significantly increased on day 21 post infection relative to uninfected mice. We found that the cell concentration of CD11b⁺/Arg-1 cells increased over time during infection and reached levels close to CD11b⁺/iNOS on day 21 post infection. Interestingly, the C. gattii burden in the lungs of knock-out (KO) mice for iNOS was higher relative to WT mice. However the absence of iNOS prolonged the survival of mice infected with C. gattii.

Materials and methods

Animals

Male BALB/c, C57BL/6 and iNOS KO (C57BL/6 genetic background) mice, 6–8 wk old, were acquired from the animal house of the Campus of Ribeirão Preto, University of São Paulo (Ribeirão Preto, São Paulo, Brazil). Animals were maintained under standard housing conditions in the Department of Cell and Molecular Biology and Pathogenic Bioagents of the Ribeirão Preto Medical School, University of São Paulo, under optimised hygienic conditions. All animal experiments were approved by the Committee on Ethics in Animal Research of the Ribeirão Preto Medical School at the University of São Paulo and were conducted in accordance with the Ethical Principles in Animal Research adopted by the Brazilian College of Animal Experimentation (protocol 204/2016).

Fungicidal activity of AMJ2-C11 cell line in the presence of l-NG-monomethyl-l-arginine acetate

The alveolar macrophage cell line was routinely grown in DMEM (Gibco®; Life Technologies, Carlsbad, CA) supplemented with 10% FBS, 4 mM L-glutamine, 4500 mg/l Glc, 5 mM HEPES and antibiotics in a humidified 5% CO₂ atmosphere at 37°C. The AMJ2-C11 cell line was kindly provided by Dr Ana Marisa Fusco-Almeida (Department of Clinical Analysis, Laboratory of Clinical Mycology, Faculty of Pharmaceutical Sciences, São Paulo State University-UNESP, Araraquara-SP, Brazil).

AMJ2-C11 macrophages (5 × 10⁵/ml) were incubated with L-NG-monomethyl-L-arginine acetate (L-NMMA; 1 mM) or medium alone (negative control) for 4 h, and these cells were infected with C. gattii yeasts (yeast-to-macrophage ratio of 1:100). After 24 h of incubation, the monolayer culture was detached and mixed with supernatant to quantify the growth of C. gattii by the CFU assay.

C. gattii infection and survival analysis

C. gattii strain R265 (VGII molecular genotype) was recovered from 25% glycerol stocks stored at –80°C and plated on Sabouraud dextrose agar. After 24 h of incubation at 30°C, one loopful from a single colony was inoculated in Sabouraud dextrose broth and grown for 24–30 h at 30°C with constant shaking. Yeast were harvested by centrifugation at 7500 g for 10 min at 25°C, washed in sterile PBS and counted using China ink in a Neubauer chamber.

Animals were anaesthetised with ketamine (150 mg/kg of body mass) and xylazine (7.5 mg/kg of body mass) prior to intra-nasal inoculation of C. gattii (10³–10⁶ yeast/mice). The control group received intra-nasal PBS alone. The survival of mice was assessed daily over 47 d to create the survival curve. For other assays, an inoculum of 10⁴ C. gattii per mouse was used, and the control group received PBS alone. Animals were euthanized on d 7, 14 and 21 post infection to collect whole blood, lungs, brain, liver, spleen, heart and kidneys aseptically. The KO mice were euthanized on d 14 post infection for fungal burden analysis.

Fungal burden

Fungal burden was assessed in the blood, lungs, brain, liver, spleen, heart and kidney homogenates. Tissue homogenates were diluted in sterile PBS buffer (pH 7.2), and 50 µl aliquots were plated on Sabouraud dextrose agar. After 48 h at 30°C, the number of CFU was determined as CFU/mg organ mass, as described by Almeida et al.²⁶

Measurement of biochemical markers

Plasma levels of glutamic oxaloacetic transaminase (GOT), glutamic pyruvic transaminase (GPT), amylase and creatinine were measured with a commercial colorimetric assay (Labtest, Lagoa Santa, Brazil). Concentrations were measured by absorbance using a spectrophotometer (Power Wave-X microplate reader; BioTek Instruments, Inc., Winooski, VT) according to the manufacturer’s instructions.

Leucogram in the peripheral blood

Peripheral blood was collected by cardiac puncture. Blood was diluted 1:20 in Turk’s solution, and the total leucocyte count was estimated using a Neubauer chamber. Mononuclear and granulocytic cells from the blood smear were quantified under a light microscope with an oil immersion (100×) objective after panoptic staining. Total leucocyte, lymphocyte, neutrophil and monocyte counts were expressed as leucocytes/mm³. The determinations of relative numbers of lymphocyte, neutrophil and monocyte counts are expressed as percentages. In both leucocyte analyses, the procedures were performed as described by Oliveira-Brito et al.²⁷

Pulmonary leucocyte isolation

Lung tissues of uninfected and infected mice were perfused with sterile 1× PBS on day 0, 7, 14 and 21 post infection. The lungs were removed and fragmented with scissors to 1-mm chunks, placed in falcon tubes with RPMI 1641 medium (2 ml) and subjected to digestion in RPMI 1640 plus 10 U/µl collagenase type IV (Sigma–Aldrich, St Louis, MO) and 20 µg/ml of Type IV DNAse I at 37°C for 45 min. The reaction was stopped by adding 1 ml heat-inactivated FBS. The digested tissues were successively filtered (40 µm; Thermo Fisher Scientific, Durham, NC) and washed with PBS. Erythrocytes were depleted with lysis buffer (nine parts 0.16 M ammonium chloride and one part 0.17 M Tris–HCl; pH 7.5) for 5 min at 4°C, followed by the addition of a 10-fold excess of PBS. The leucocytes were centrifuged (300 g) for 10 min, washed twice with PBS and suspended in PBS plus 10% heat-inactivated FBS. The live cell count was determined using trypan blue dye exclusion in a haemocytometer.

Flow cytometry using pulmonary leucocytes

Aliquots of 1 × 10⁶ cells from each mouse were assayed to phenotype T cells and CD11b⁺ populations within iNOS⁺ cells and Arg-1⁺ cells by flow cytometry. Pulmonary leucocytes were incubated with anti-CD4 FITC (20 µg/ml; clone H129.19) plus anti-CD3 PE (20 µg/ml; clone 145-2C11), or anti-CD8 FITC (20 µg/ml; clone 53-6.7) plus anti-CD3 PE to quantify CD4⁺ and CD8⁺ T cells, respectively. After 45 min, the cells were washed twice with PBS and analysed by flow cytometry (Guava easyCyte, Guava Technologies; Millipore, Hayward, CA). The pulmonary leucocytes were incubated with anti-CD11b PE (20 µg/ml; clone M1/70) Ab for 45 min at 4°C and washed twice with PBS before being fixed and permeabilised with a Fixation/Permeabilization Solution Kit (Cytofix/Cytoperm™; BD Biosciences, Franklin Lakes, NJ) for 20 min at 4°C. Then, they were washed with permeabilisation wash buffer (BD Biosciences). Cells were incubated with murine anti-iNOS (1:200; clone 4E5) or rabbit anti-Arg-1 (1:100; clone 24HCLC) Ab for 45 min at 4°C. Cells were washed and incubated with anti-mouse IgG-biotin Ab (1:100) or anti-rabbit IgG-biotin Ab (1:100) for 45 min at 4°C. Afterwards, the cells were washed and incubated with streptavidin-FITC conjugate (1:100) for 45 min at 4°C and then analysed by flow cytometry. The CD11b⁺ cells were gated to distinguish the positive cells for iNOS or Arg-1 expression, and the data were used to calculate the percentage, cell concentration and fluorescence intensity of CD11b⁺/iNOS⁺ and CD11b⁺/Arg-1⁺.

Cytokine measurement

Lungs collected from infected mice were homogenised in 1 ml sterile PBS and centrifuged at 3200 g for 10 min at 4°C. The supernatants were used for the measurement of IL-12p40, TNF-α, IFN-γ, IL-10 and IL-17 levels by ELISA according to the manufacturer’s protocol using Ab pairs purchased from BD Biosciences (Pharmingen, San Diego, CA), as previously described.^26,27 Concentrations were determined relative to standard curves prepared from recombinant murine cytokines. Absorbances were read at 450 nm in a PowerWave X microplate scanning spectrophotometer (BioTek Instruments, Inc.). The levels of cytokines are expressed as picograms per milligram of tissue.

Quantitative RT-PCR

Total RNA was extracted from the lungs with TRIzol reagent according to the manufacturer’s instructions. Reverse transcription to produce cDNA from oligo d(T) primers was performed using the ImProm-II™ Reverse Transcription System (Promega Corp., Fitchburg, WI). PCR was performed using EVA Green (Bio-Rad Laboratories, Hercules, CA) on a Bio-Rad CFX96 Real-Time Detection System in 10 µl reaction volumes under the following conditions: 95°C for 30 s, then 40 cycles of 95°C for 5 s and 60°C for 5 s. Quantification of gene expression was performed by the ΔΔCt method relative to a β-actin endogenous control. The specific gene primers used for quantitative RT-PCR of macrophage polarisation markers were: β-actin (F-CCTAAGGCCAACCGTGAAAA; R GAGGCATACAGGGACAGCACA), iNOS2 (F-CCGAAGCAAACATCACATTCA; R-GGTCTAAAGGCTCCGGGCT), Arg-1 (F-GTTCCCAGATGTACCAGGATTC; R-CGATGTCTTTGGCAGATATGC) and Ym1 (F-TCACAGGTCTGGCAATTCTTCTG; R-ACTCCCTTCTATTGGCCTGTCC). This analysis was performed as previously described.^28–30

Statistical analysis

Results are presented as means ± SEM or means ± SD. All data were analysed using GraphPad Prism v6.0 (GraphPad Software, San Diego, CA). The normality and homogeneity of variance of all statistical determinations were analysed by the Kolmogorov–Smirnov test. Student’s t-test was applied to experiments with two groups, and ANOVA followed by Bartlett’s tests was applied to experiments with three or more groups when the samples had Gaussian distributions. For data sets with a non-normal distribution, the Mann–Whitney test was applied to experiments with two groups, and the Kruskal–Wallis test was used for experiments with three or more groups. Differences between the means of groups were evaluated by one-way ANOVA followed by Tukey’s multiple comparisons test or Kruskal–Wallis test followed by Dunn’s multiple comparisons test. Survival curves were analysed by log-rank (Mantel–Cox) tests. Differences at P < 0.05 were considered statistically significant. All assays were performed independently in triplicate, and five mice were used for each group in all experiments.

Results

Systemic evaluation of fungal burden and biochemical markers after C. gattii intra-nasal inoculation

Since host-pathogen interactions during C. gattii infection have not been fully studied, we evaluated biochemical and immunological changes during experimental murine infection. BALB/c mice were inoculated intra-nasally with 10³, 10⁴, 10⁵ and 10⁶ C. gattii yeasts, with the negative control group receiving vehicle instead of fungal suspension. Mouse survival was monitored daily for 7 wk post infection, and the survival curves of the experimental groups were different for various inoculum. By 5 wk post infection, all animals in the 10⁵ or 10⁶ groups had died, whereas complete mortality was observed at 6 wk post infection in the groups inoculated with 10⁴ yeasts. Groups inoculated with 10³ yeasts exhibited 60% mortality at the end of the 7-wk observation period (Figure 1a). The mice infected with 10⁴ yeasts were monitored for 3 wk and were euthanized randomly each wk. The lungs of the animals were examined for fungal burden by CFU, which showed a 10-fold increase after each wk post infection (Figure 1b). The CFU assay was also used to detect the presence of C. gattii in multiple organs of the infected mice each wk to measure the extent of fungal dissemination in the heart, liver, kidney, brain and spleen. At the end of the first wk, about 20% of the animals presented with C. gattii in the liver, kidney and brain, whereas at the end of the second wk, its presence varied from 27% to 48% of mice, varying by organ. At 3 wk post infection, 100% of mice had C. gattii in the spleen and brain, while the heart, liver and kidney were affected in 80–95% of mice (Table 1). Fungus was also detected in the blood of 68% of the animals by the third wk (Table 1). C. gattii burden increased in all organs analysed over time during infection, and at 3 wk post infection, the fungal burden was higher in the brain and blood (Figure 1c). These results provide new insights into the progression and dissemination of intra-nasal infection.

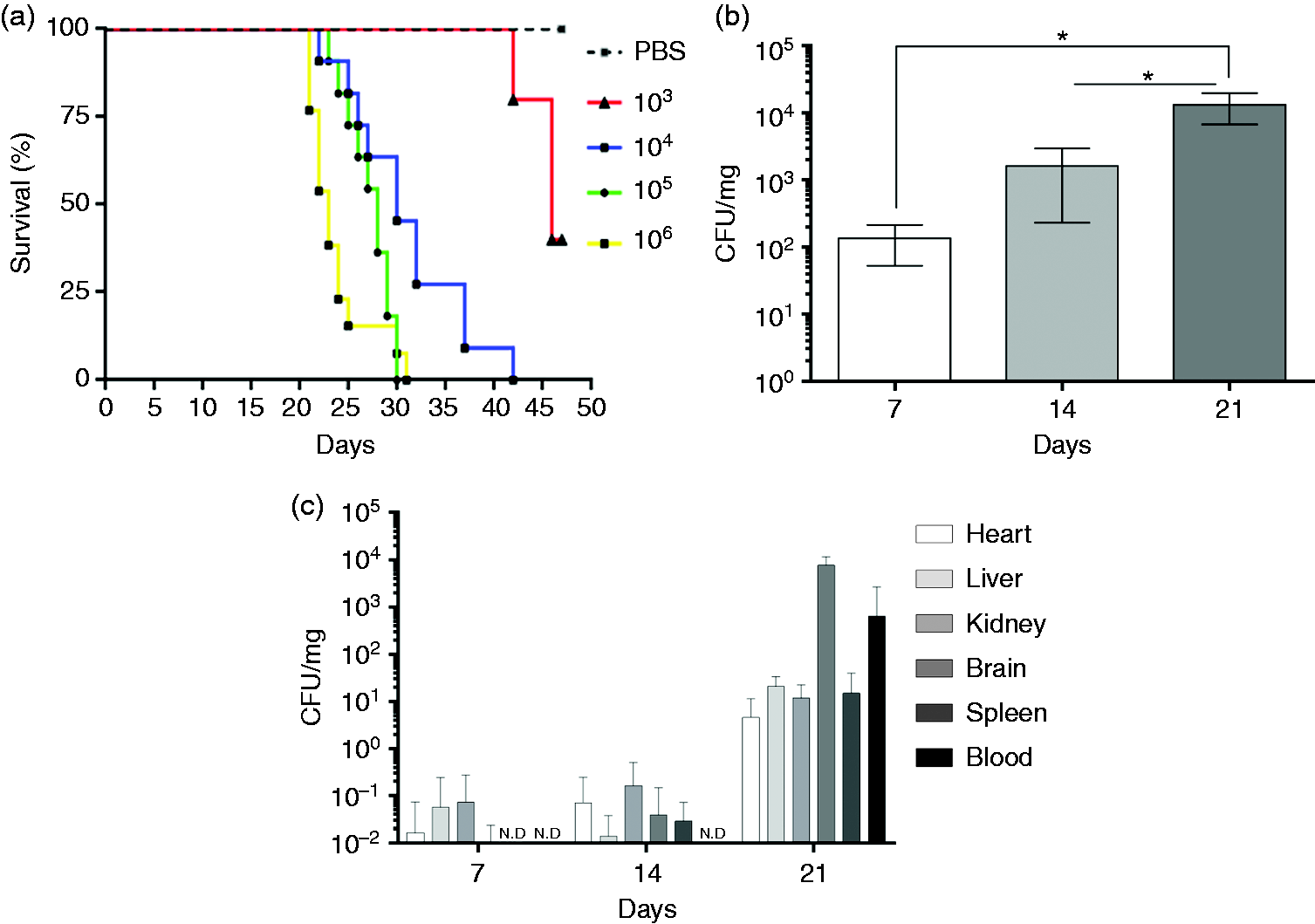

Figure 1.

Mouse survival after C. gattii infection and the fungal burden in multiple organs. (a) Survival of BALB/c mice after intra-nasal (i.n.) inoculation of 10³, 10⁴, 10⁵ or 10⁶ C. gattii yeasts and a control group that received PBS via the intra-nasal route. The survival curve was analysed by a log-rank (Mantel–Cox) test. The differences were considered significant when *P < 0.05. (b and c) Fungal burden in infected BALB/c mice. (b) Fungal burden in lung. (c) Fungal burdens in organ homogenates and whole blood on d 7, 14 and 21 post infection. Results are expressed (mean ± SD) as CFU/mg, CFU/ml or not detected (N.D.).

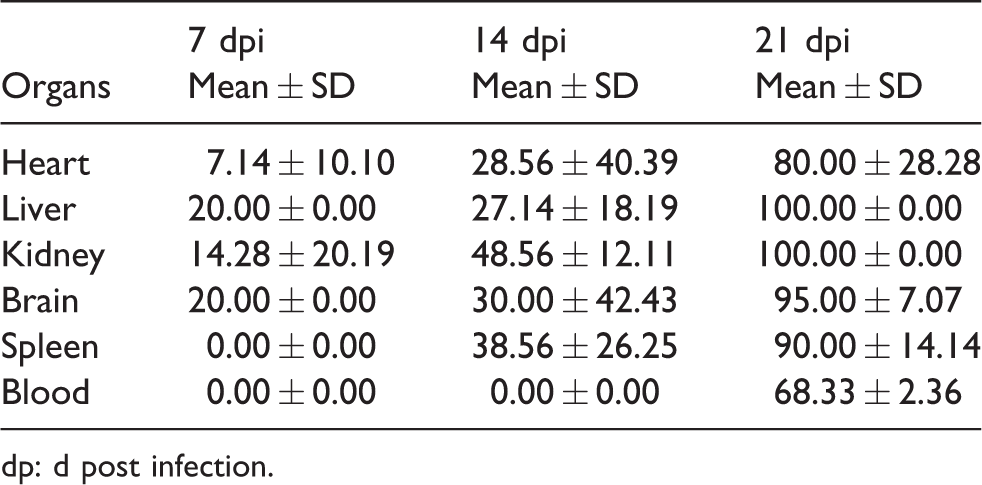

Table 1.

Percentage of infected organs over time during C. gattii infection.

	7 dpi	14 dpi	21 dpi
Organs	Mean ± SD	Mean ± SD	Mean ± SD
Heart	7.14 ± 10.10	28.56 ± 40.39	80.00 ± 28.28
Liver	20.00 ± 0.00	27.14 ± 18.19	100.00 ± 0.00
Kidney	14.28 ± 20.19	48.56 ± 12.11	100.00 ± 0.00
Brain	20.00 ± 0.00	30.00 ± 42.43	95.00 ± 7.07
Spleen	0.00 ± 0.00	38.56 ± 26.25	90.00 ± 14.14
Blood	0.00 ± 0.00	0.00 ± 0.00	68.33 ± 2.36

dp: d post infection.

Because C. gattii dissemination can have systemic effects, we measured the biochemical markers for hepatic, pancreatic and renal dysfunction in the plasma samples. GOT, GPT, amylase and creatinine were evaluated in samples collected from BALB/c mice on d 7, 14 and 21 post infection. Interestingly, the plasma levels of GOT, GPT, amylase and creatinine in the infected mice did not differ significantly from those of uninfected mice at any of the time points analysed (data not shown). In spite of the statistical difference, the levels of biochemical markers were within normal ranges. Our results indicate that intra-nasal inoculation of 10⁴ C. gattii yeasts does not significantly alter these biochemical parameters.

C. gattii intra-nasal inoculum causes an alteration in leucogram of the peripheral blood

During our analysis of systemic manifestations of C. gattii infection, we performed leucograms on peripheral blood samples collected on d 7, 14 and 21 post infection and compared the results to those from uninfected mice. There was no significant alteration in the total leucocyte count (Figure 2a). Moreover, the absolute number of lymphocytes in mice infected with C. gattii decreased on d 21 post infection (Figure 2b) relative to uninfected mice. However, BALB/c mice did not exhibit any alteration in the absolute number of neutrophils and monocytes throughout the infection period (Figure 2c and d). The relative frequencies of leucocytes from uninfected mice were consistent over all periods studied. However, the relative frequencies of leucocytes from infected mice showed a reduction in the relative lymphocyte count and an increase in the relative neutrophil count on d 21 post infection (Figure 2e). Therefore, C. gattii infection is associated with alterations in the absolute number and/or relative frequencies of lymphocytes and neutrophils in the peripheral blood on d 21 post infection.

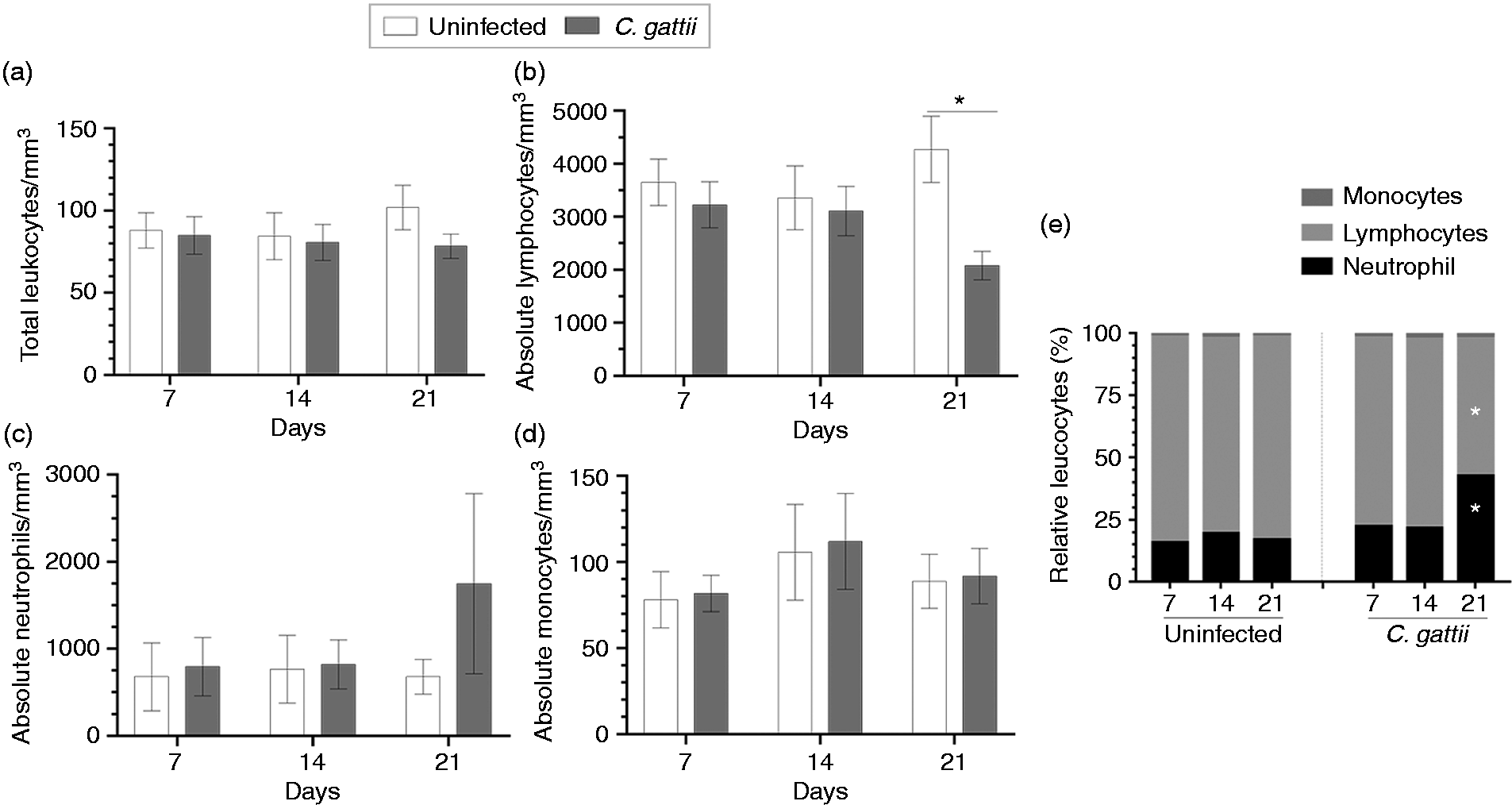

Figure 2.

Leucocyte count in the peripheral blood of BALB/c mice infected with C. gattii. (a) Total leucocyte, (b) absolute number of lymphocyte, (c) absolute number of neutrophil and (d) absolute number of monocyte counts (leucocytes/mm³) were measured on d 7, 14 and 21 post infection. (e) The relative leucocytes are expressed as percentages. The animals receiving PBS were considered as negative controls (uninfected mice). The values are expressed as means ± SD. Differences were considered significant at *P < 0.05 relative to uninfected controls.

Persistence of high levels of CD11b⁺ cells in the lungs of C. gattii–infected mice in all period of infection

The measurement of the frequency and cell concentration of leucocytes, such as CD11b⁺ and T cells, in the lungs of mice infected with C. gattii was performed by flow cytometry. Pulmonary leucocyte suspensions from C. gattii–infected mice and uninfected mice were incubated with anti-CD11b Ab. We observed that the frequencies of CD11b⁺ cells of infected mice were significantly increased at 7, 14 and 21 d post infection relative to those of uninfected mice (Figure 3a). In addition, the percentages and cell concentrations of CD4⁺ T and CD8⁺ T cells were evaluated, which did not differ between infected and uninfected mice (Figure 3b and d). Otherwise, the concentrations of CD4⁺ T and CD8⁺ T cells in pulmonary leucocytes of infected mice significantly increased on d 21 post infection relative to those of uninfected mice (Figure 3c and e). These findings show that C. gattii infection induces an early migration of CD11b⁺ cells into the lungs, while T cells infiltrate later in the infection.

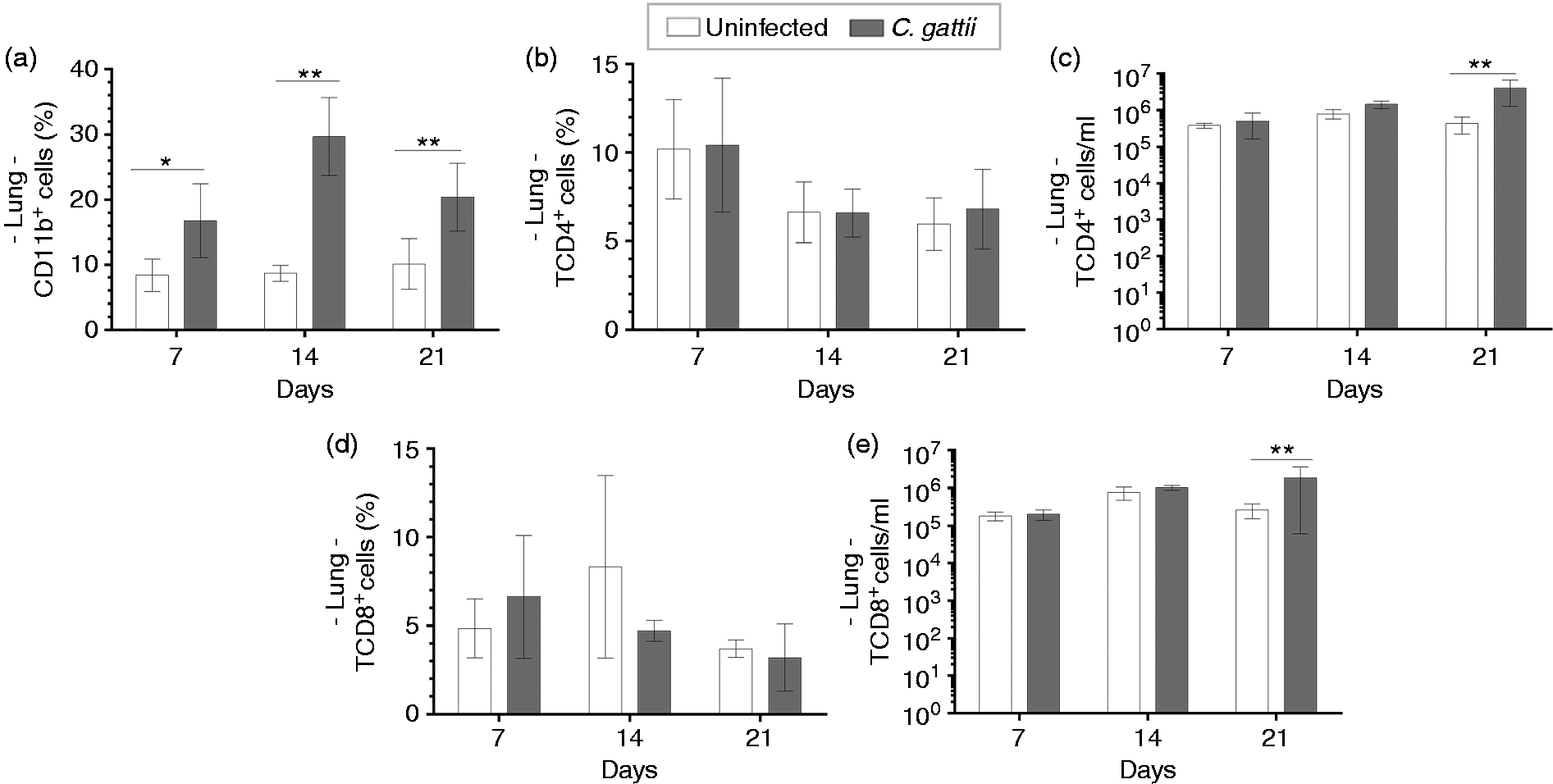

Figure 3.

Relative frequency of TCD4⁺ and TCD8⁺ cells in the lung tissue of infected mice. Frequency and/or cell concentration of (a) CD11b⁺, (b and c) CD4⁺ T cells and (d and e) CD8⁺ T cells by flow cytometry on d 7, 14 and 21 post infection. Animals receiving PBS were considered negative controls (uninfected mice). Results are expressed as percentages and represent the mean ± SD. Differences were considered significant when *P < 0.05 and **P < 0.01 relative to uninfected controls.

We hypothesised that the cytokine micro-environment in the pulmonary tissue might be drastically altered in C. gattii–infected mice due to an imbalance of pro- and anti-inflammatory responses. We therefore measured the IL-12p40, IFN-γ, TNF-α, IL-17 and IL-10 levels in lung homogenates at d 7, 14 and 21 post infection. We did not observe a significant change in pro-inflammatory cytokine levels over this time period (Figure 4a–d). However, IL-10 levels were significantly lower in infected mice than in uninfected controls on d 21 post infection (Figure 4e). Therefore, the reduction of anti-inflammatory cytokine levels, IL-10, in the lungs after infection may be associated with the differentiation and migration of CD11b⁺ cells in the lungs.

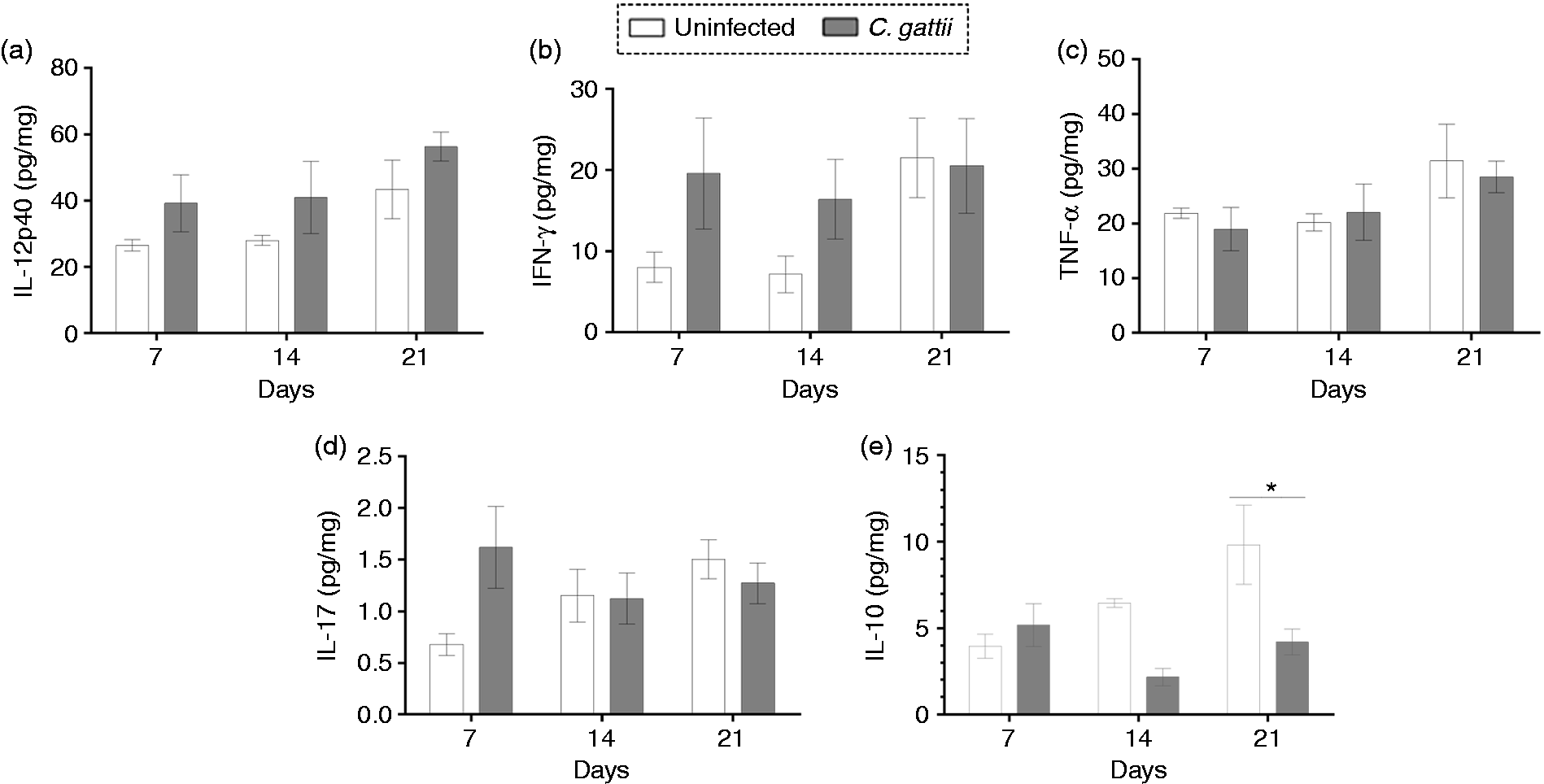

Figure 4.

Cytokine levels in the lungs of BALB/c mice during C. gattii infection. Lung homogenates of BALB/c infected mice were assayed for (a) IL-12p40, (b) IFN-γ, (c) TNF-α, (d) IL-17 and (e) IL-10 by ELISA on d 7, 14 and 21 post infection. The cytokine concentration was normalised per organ mass and is expressed in picograms per milligram of tissue. The injection of PBS alone (uninfected mice) was used for the control group. Data are shown as the mean ± SD. Differences were considered significant at *P < 0.05 relative to uninfected controls.

Plasticity of iNOS/Arg-1 expression in the lungs during C. gattii infection

We investigated the relative expression of mRNAs encoding the iNOS (M1 macrophages) and Arg-1 and Ym-1 (M2 macrophages) in pulmonary tissue of infected and uninfected mice. The relative expression of iNOS was reduced by infection at 7 d post infection (Figure 5a), while the relative expression of Arg-1 and Ym-1 was increased at 14 and 21 d after infection (Figure 5b and c). The relationship between relative expression of iNOS and Arg-1 was evaluated in CD11b⁺ cells located in the lungs by flow cytometry. CD11b⁺ cells in the lungs include interstitial macrophages, monocytes and polymorphonuclear cells.³¹ Previously to C. gattii infection, the prevalence of CD11b+/iNOS+ cells in the lungs of BALB/c mice was significantly higher compared to CD11b⁺/Arg-1⁺ cells (Figure 6g–i). We found that the fold-change in percentage of CD11b⁺/iNOS⁺ cells and CD11b⁺/Arg-1⁺ cells, as well as their cell concentrations, were significantly higher in the lungs of infected mice relative to uninfected controls at d 14 and/or 21 post infection (Figure 6a and b and d and e). To determine the prevalence of CD11b⁺/iNOS⁺ cells over CD11b⁺/Arg-1⁺ cells, we calculated the frequency and concentrations of these cells over time during infection. We observed that the percentage of CD11b⁺/Arg-1⁺ cells increased on d 14 and 21 post infection (Figure 6g), but the concentration of these cells was lower than that of CD11b⁺/iNOS cells at 7 and 14 d post infection (Figure 6h). However, the CD11b⁺/Arg-1⁺ cell concentration reached levels close to that of CD11b⁺/iNOS⁺ cells by d 21 post infection (Figure 6h). The iNOS/Arg-1 expression ratio was lowest at 21 d post infection (Figure 6i). Thus, the iNOS/Arg-1 expression in CD11b⁺ pulmonary cells dynamically changes during infection.

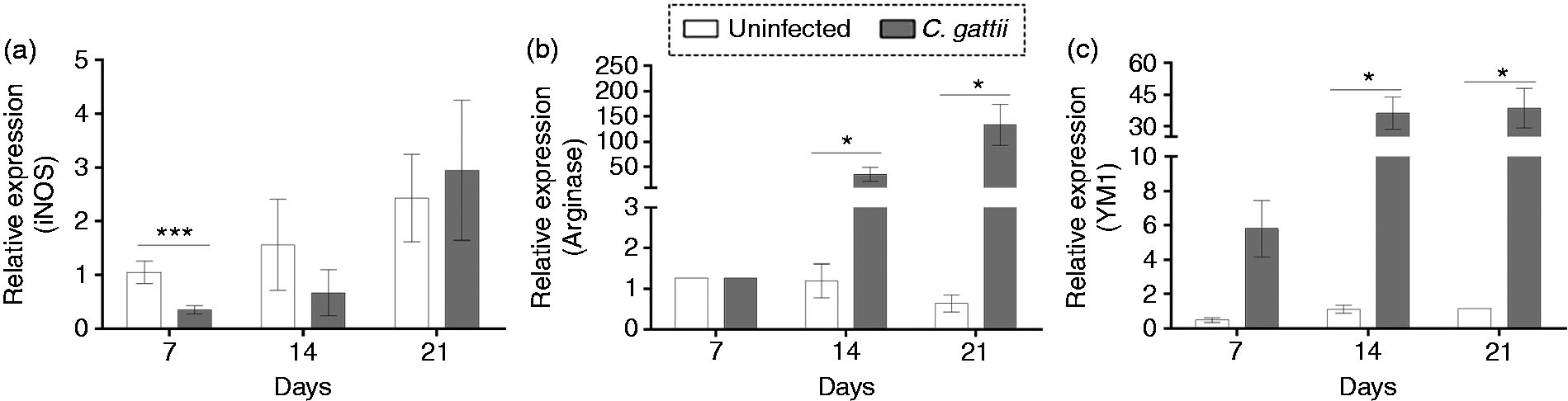

Figure 5.
Relative expression of macrophage polarisation markers in the pulmonary tissue of BALB/c mice infected with C. gattii. Relative expression levels of (a) iNOS, (b) arginase-1 and (c) Ym-1 RNAs determined by quantitative RT- PCR, normalised to β-actin expression. The levels of the relative expression were compared between infected mice and the control group (uninfected). Results are expressed as means ± SD. Differences were considered significantly different at *P < 0.05 and ***P < 0.001 relative to uninfected controls.

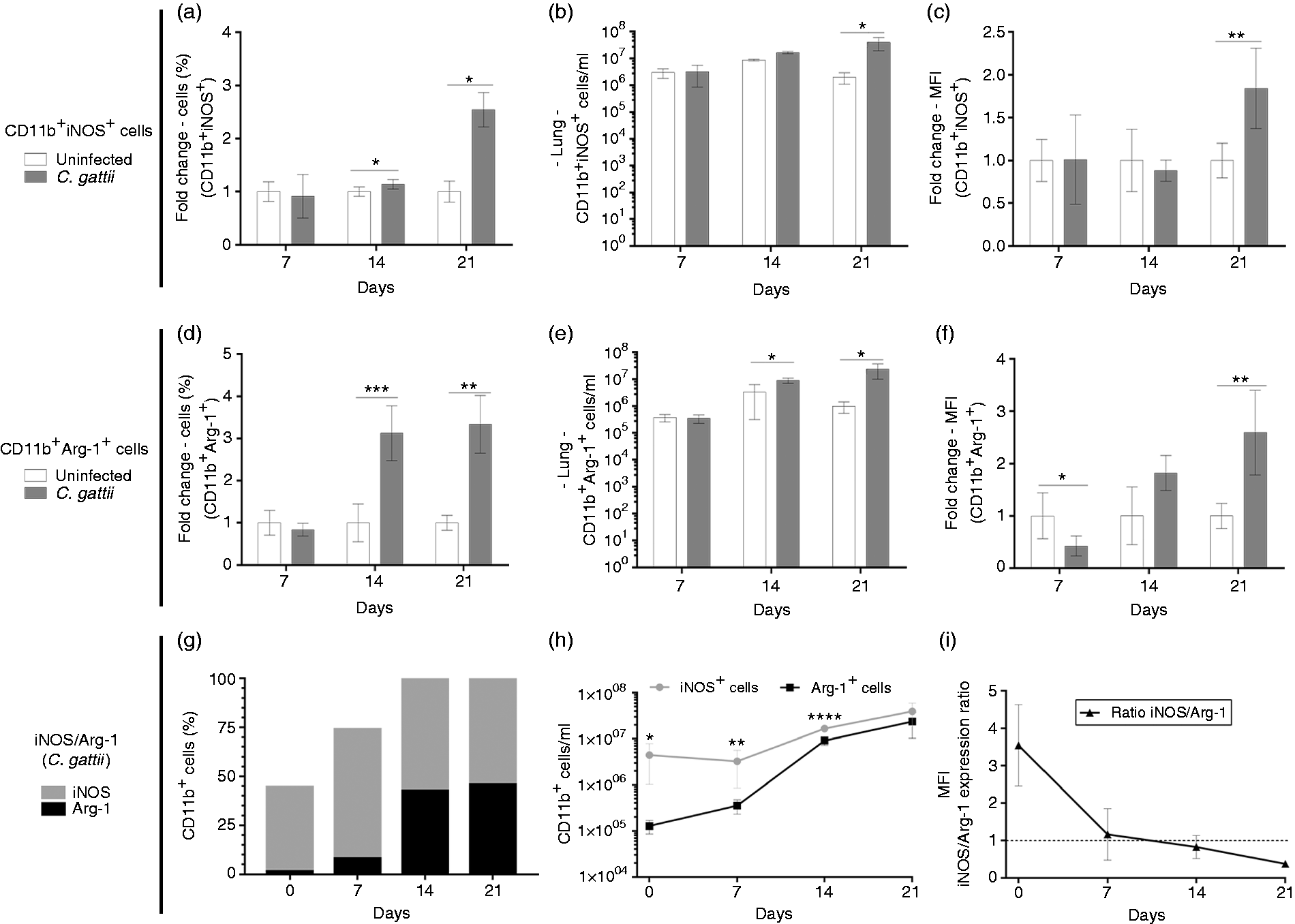

Figure 6.
Phenotype of CD11b⁺iNOS⁺ and CD11b⁺Arg-1⁺ cells in the lung tissue of BALB/c infected with C. gattii. (a–c) CD11b⁺ and CD11b⁺iNOS⁺ or (d–f) CD11b⁺Arg-1⁺ cells were quantitated by flow cytometry. Frequency, cell concentration and mean fluorescence intensity were evaluated. The fold change in (a), (c), (d) and (f) is shown as the ratio between the value from each infected mouse and the mean value of the uninfected group. (g and h) CD11b⁺iNOS⁺/CD11b⁺Arg-1⁺ in C. gattii–infected mice using the percentage and cell concentration of (a and b) CD11b⁺iNOS⁺ and (d and e) CD11b⁺Arg-1⁺ cells. (i) Mean fluorescence intensity of CD11b⁺iNOS⁺ and CD11b⁺Arg-1⁺ cells quantified by flow cytometry was used to calculate the iNOS/Arg-1 ratio. The injection of PBS alone (uninfected mice) was used in the uninfected controls. Results are expressed in percentages and represent the mean ± SD. Differences were considered significant when *P < 0.05, **P < 0.01 and ***P < 0.001 relative to uninfected controls.

Absence of iNOS improves the survival of C. gattii–infected mice

We showed that over the course of C. gattii infection in mice, there was a prevalence of CD11b⁺/iNOS cells in pulmonary tissue mainly at 7 and 14 d post infection. This cell subset is relevant to the control of cryptococcosis. Initially, the inhibition of iNOS of alveolar macrophage cell line (AMJ2-C11) was performed previously to C. gattii infection, and the cells treated with iNOS inhibitor did not reduce the proliferation of C. gattii compared to untreated cells (Figure 7a). Therefore, we infected homozygous mutant KO mice for the major inflammatory mediator, iNOS (iNOS KO), with C. gattii and the pulmonary fungal burden in these mice was compared to that in control C57BL/6 mice at d 14 post infection. The absence of iNOS resulted in a significantly higher burden in the lungs relative to WT control mice (Figure 7b), but the difference between them was less than a log unit. Surprisingly, the survival curve of C. gattii–infected mice demonstrated that the lack of iNOS contributed to higher survival, but it did not prevent the death of the mice (Figure 7c). Thus, while pulmonary fungal growth is impaired by iNOS activity, survival was prolonged in the absence of iNOS (Figure 7).

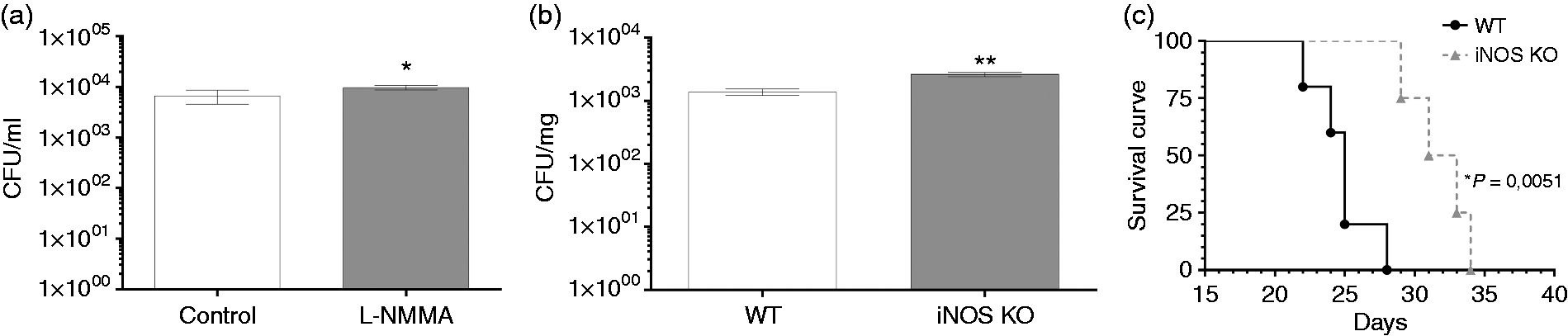

Figure 7.
Pulmonary fungal burden and survival curve of iNOS KO mice infected with C. gattii. (a) AMJ2-C11 macrophages (5 × 10⁵cells/ml) were treated with L-NMMA (1 mM) or medium alone for 4 h, and these cells were infected with C. gattii (5 × 10³cells/ml). After 24 h, the monolayer culture was detached and combined with supernatant to quantify the growth of C. gattii by the CFU assay. (b and c) C57BL/6 mice (genetic background control) and iNOS KO mice were infected i.n. with 10⁴ C. gattii yeasts. Pulmonary fungal burdens are expressed as CFU/mg organ mass and were measured after 14 d of infection. (b) The fungal burden of these mice is compared to that in C57BL/6 mice. (a and b) The results are expressed as means ± SD (SEM). (c) For survival curves, the mortality rate was monitored daily and is expressed as a percentage. Differences were considered significant when *P < 0.05 and **P < 0.01 relative to uninfected controls.

Discussion

The effect of progression of C. neoformans infection on the host immune response is well studied concerning knowledge about C. gattii strain R265. Considering the global health impact of cryptococcosis caused by C. gattii due its ability to infect both immunocompetent and immunocompromised individuals, we explored the host immunity profile, primarily in pulmonary tissue, during C. gattii infection. Initially, we observed that intra-nasal infection induced an alteration in the absolute number and relative frequency of lymphocytes and neutrophils in the peripheral blood. However, the biochemical parameters were not significantly modified. We also observed a consistent infiltration of CD11b⁺ cells into the pulmonary tissue after infection, with the concentration of CD11b⁺/Arg-1 cells increasing over time during infection and reaching levels close to those of CD11b⁺/iNOS cells by d 21 post infection. Moreover, the iNOS/Arg-1 expression ratio fell to its lowest level at 21 d of C. gattii infection. The pulmonary micro-environment of infected mice had low levels of IL-10 on d 21 post infection, while the levels of pro-inflammatory cytokines did not differ during the period of C. gattii infection studied. Unexpectedly, the survival of iNOS KO mice was better than that of WT mice after infection with C. gattii, despite the iNOS KO mice having an increased pulmonary fungal burden at 14 d post infection. Thus, this study reports new features of the dynamic CD11b⁺iNOS⁺/CD11b⁺Arg-1⁺ cells during progression of C. gattii infection.

C. gattii is typically found in tropical and subtropical regions, but it has recently been found in temperate climates as well.³² It has also been reported in HIV-positive individuals residing in sub-Saharan Africa.^33,34 Most patients with cryptococcal lung infection show symptoms such as a dry cough, dyspnoea, chest tightness and fever. However, some patients with cryptococcal pulmonary infection have more vague symptoms. So, an early diagnosis becomes a challenge.³⁵ From the C. gattii strains that have been studied in murine model of infection, we chose the strain R265 because of its high virulence relative to R272 and WM276 in C57BL/6 and A/JCr mice.³⁶ The infection of C57BL/6 mice with strain R265 (5 × 10⁴ yeasts) by intra-pharyngeal aspiration was more lethal than that with C. neoformans strain H99. Moreover, the pulmonary fungal burden was more severe in mice infected with R265.² In this study, 100% mortality was observed by d 28 post infection in C57BL/6 mice infected with 5 × 10⁴ yeast of C gattii. Our results from intra-nasal infection of BALB/c mice with 1 × 10⁴ yeasts of strain R265 are consistent with the C57BL/6 results. We observed that the pulmonary fungal burden increased consistently during infection, and extra-pulmonary infection was established in 100% of mice at 21 d post infection, which is also consistent with previous studies.² Conversely, we could detect C. gattii in the peripheral blood only after d 21 of infection in 65% of infected mice. These findings show that intra-nasal inoculation establishes extra-pulmonary infection, as has been observed with the intra-pharyngeal route of infection.

The distribution of C. gattii in extra-pulmonary organs prompted us to follow the serum levels of relevant biochemical parameters throughout the infection. Our results demonstrate that the biochemical parameters analysed were not strictly correlated with the progression of C. gattii infection in specific organs. By contrast, the relative number of neutrophils and lymphocytes was higher on d 21 post infection (Figure 2e). These findings suggest that the ability of C. gattii and its Ags to inhibit neutrophil migration in vivo and in vitro^20,36 may explain normal absolute numbers of neutrophils in the blood on d 7, 14 and 21 post infection. A previous report verified the ability of C. gattii Ags to maintain CD4⁺ T cells in lung-draining lymph nodes at 7 and 14 d post infection.²⁰ This study is supported by our demonstration of a higher infiltrate of CD4⁺ T cells and CD8⁺ T cells in the pulmonary tissue, with a reduction of lymphocyte numbers in peripheral blood on d 21 post infection.

The protective immune response to cryptococcal infection involves adaptive immunity, particularly cell-mediated immunity, which controls C. gattii infection.³⁷ The mechanism used by C. gattii to escape the Th1- and Th17-mediated immunity primarily involves impairment of innate immune-cell activation, blocking the development of fungus-specific Th1 and Th17 cells, compromising the DC-mediated effective response, which has been well documented.^20,21 Consistent with this mechanism, we found a higher infiltrate of CD4⁺ T cells and CD8⁺ T cells in the lungs of infected mice after 21 d of infection (Figure 3), suggesting a delay in the development of cell-mediated immunity. In addition, the relative expression of transcripts for T-bet and ROR- $γ$ t in the lungs of mice infected with C. gattii were significantly higher than those of mice infected with C. neoformans, indicating that C. gattii regulates the host adaptive immune response more strongly in the pulmonary tissue.²⁰ This modulation of the host immune response is supported by demonstration of a deficiency of C. gattii–infected mice to increase pulmonary pro-inflammatory cytokine levels (Figure 4). Previous studies also showed that C. gattii infection induced lower levels or unaltered levels of protective cytokines.^20,36 These findings highlight the capacity of C. gattii infection to alter the cytokine micro-environment and to control the infiltration of T cells in the lungs, which contributes to disease progression.

In the case of C. neoformans infection, macrophage polarisation in the lungs from BALB/c mice infected intra-tracheally with 10⁴ yeasts was altered during infection. The pulmonary macrophages were strongly M2-polarised, which was verified by high levels of Arg-1 mRNA at 1 wk post infection, while the polarisation of macrophages shifted to M1 at 3 and 4 wk following C. neoformans infection.³⁸ Until now, the iNOS and Arg-1 expression in the pulmonary tissue during C. gattii infection has not been evaluated. We infected BALB/c mice with 10⁴ C. gattii yeasts by the intra-nasal route and measured the levels of Arg-1, YM-1 and iNOS mRNA in the pulmonary tissue. We detected high levels of transcripts from M2 macrophages at wk 2 and 3 post infection, while the relative expression of the M1 marker iNOS did not predominate throughout the infection period (Figure 5). This micro-environment produced in the lungs by C. gattii infection led us to measure the prevalence of CD11b cells positive for iNOS and Arg-1 expression by flow cytometry. Pulmonary leucocyte analysis from C. gattii–infected mice revealed a prevalence of frequency and cell concentration of CD11b⁺/iNOS⁺ cells on d 7 and 14 post infection (Figure 6h). However, an increase in frequency and concentration of CD11b⁺/Arg-1⁺ cells in the lungs of C. gattii–infected mice occurred mainly between d 7 and 14 (Figure 6g and h). The augmentation of CD11b⁺/Arg-1⁺ cells during infection was corroborated by the iNOS/Arg-1 expression ratio within CD11b⁺ cells, which reached a low level on d 21 post infection (Figure 6). Our results demonstrate that CD11b⁺iNOS⁺/CD11b⁺Arg-1⁺ has a plasticity in the pulmonary tissue of C. gattii–infected mice, suggesting a critical factor in host–pathogen interaction. We believe that the prevalence of CD11b⁺/iNOS⁺ cells in the lungs of C. gattii–infected mice for 14 d could be caused by the host immune response, despite the inability to control pathogenesis. Previous studies showed that iNOS sourced from macrophages regulates M1 macrophage differentiation and the production of inflammatory cytokines usually produced by M1 macrophages, but this finding is not fully understood.³⁹ Therefore, the high levels of CD11b⁺/iNOS⁺ cells in the lungs of C. gattii–infected mice identified on d 7 may impair M1 macrophage differentiation and the production of pro-inflammatory cytokines, as verified on d 14 and 21 post infection (Figure 6). The effect of iNOS expression on the regulation of M1 macrophages produces a significant increase in CD11b⁺/Arg-1⁺ cells in the pulmonary tissue of infected mice on d 14 and 21 post infection. However, a balance in the M1/M2 macrophage ratio could prevent tissue damage. Thus, the progression of C. gattii infection can be favoured by the lack of a balance in CD11b⁺iNOS⁺/CD11b⁺Arg-1⁺ early in infection.

Considering that iNOS is essential for pulmonary macrophage polarisation into the M1 subtype and there is little knowledge about such polarisation during C. gattii infection, we investigated the fungal burden in the pulmonary tissue from iNOS KO mice. The mice lacking iNOS had a higher burden than that of WT control infected mice at d 14 post infection (Figure 7). Davis et al.³⁸ also demonstrated that M1 polarised by an IFN- $γ$ stimulus had enhanced inhibition of in vitro growth of C. neoformans. These M1 macrophages depend strictly on iNOS to produce NO as an anti-microbial effector molecule.^40,41 and also as an immunosuppressive molecule that mediates the apoptosis of inflammatory cells.⁴² In this context, Rossi et al.⁴¹ verified that the inhibition of iNOS in vivo by aminoguanidine promoted an increase in yeast burden in the lungs and decreased rat survival after C. neoformans infection. Furthermore, Aguirre et al.¹⁵ and Rivera et al.⁴³ demonstrated that intra-tracheal cryptococcal infection in iNOS KO mice resulted in lower survival relative to WT controls, but a lower pulmonary fungal burden was detected in the iNOS KO mice. In contrast, we found that iNOS KO mice infected with C. gattii had a longer survival curve relative to that of WT control mice, despite a higher pulmonary fungal burden. These findings demonstrate a divergence between survival and fungal burden, which was noted after infection with both C. neoformans⁴⁴ and Candida albicans.⁴⁵ This dissociation may be caused by factors other than fungal burden, and supporting that hypothesis, Chiapello et al.⁴² observed that the high levels of NO induced by C. gattii mediated the apoptosis of inflammatory cells, compromising the control of cryptococcosis. Moreover, Cánovas et al.⁴⁶ reported that the deletion of iNOS attenuated or restored the virulence of C. neoformans. In addition, the inhibition of ROS in macrophages impaired increased intracellular proliferation of C. gattii.^24,25 Thus, our findings suggest an important role of iNOS in the pathogenesis of C. gattii strain R265 that may be related to the maintenance of virulence, which may be supported by the ‘division of labour’ hypothesised by Voelz et al.²⁵ or may be related to the effect of iNOS expression in the balance between M1 and M2 macrophages.^8,39 The current work indicates that the effect of inhibition and lack of iNOS on progression of C. gattii infection should be evaluated among distinct strains of mice.

Conclusion

In conclusion, we found that intra-nasal inoculation of C. gattii establishes a systemic infection spreading to multiple organs, and the primary target organ of C. gattii had a cytokine micro-environment favouring C. gattii growth. The regulation of iNOS/Arg-1 expression in the pulmonary tissue is critical in C. gattii pathogenesis and is likely to be modulated by iNOS expression.
