Abstract

The T-cell adjuvanticity of mycobacterial cord factor trehalose 6,6'-dimycolate (TDM) is well established. The identification of the C-type lectin Mincle on innate immune cells as the receptor for TDM and its synthetic analogue trehalose 6,6'-dibehenate (TDB) has raised interest in development of synthetic Mincle ligands as novel adjuvants. Trehalose mono- (TMXs) and diesters (TDXs) with symmetrically shortened acyl chains [denoted by X: arachidate (A), stearate (S), palmitate (P), and myristate (M)] were tested. Upon stimulation of murine macrophages, G-CSF secretion and NO production were strongly augmented by all TDXs tested, in a wide concentration range. In contrast, the TMXs triggered macrophage activation only at high concentrations. Macrophage activation by all TDXs required Mincle, but was independent of MyD88. The superior capacity of TDXs for activating macrophages was paralleled by direct binding of TDXs, but not of TMXs, to a Mincle-Fc fusion protein. Insertion of a short polyethylene glycol between the sugar and acyl chain in TDS reduced Mincle-binding and macrophage activation. Immunization of mice with cationic liposomes containing the analogues demonstrated the superior adjuvant activity of trehalose diesters. Overall, immune activation in vitro and in vivo by trehalose esters of simple fatty acids requires two acyl chains of length and involves Mincle.

Keywords

Vaccine adjuvant C-type lectin receptor Mincle trehalose dimycolate

Introduction

Activation of innate immune cells with structurally well-defined synthetic ligands for PRRs is an attractive strategy for development of novel adjuvants for immunization purposes. The C-type lectin receptor Mincle is the receptor for the mycobacterial cord factor trehalose-6,6'-dimycolate (TDM),^1,2 can also be activated by the synthetic glycolipid trehalose 6,6'-dibehenate (TDB), a strong Th1/Th17-inducing adjuvant.^2,3 Mincle signalling is initiated by the associated immunoreceptor tyrosine-based activation motif-containing adapter protein Fc receptor gamma chain (FcRγ) that recruits the kinase Syk leading to activation of the Card9–Bcl10–Malt1 complex, which, in turn, promotes expression of target genes encoding chemokines, growth factors and cytokines.

Liposomes based on TDB and the cationic surfactant dimethyldioctadecylammonium (DDA) bromide [also referred to as cationic adjuvant formulation 1 (CAF01); Statens Serum Institut, Denmark] have been shown to be a promising adjuvant in several preclinical animal vaccination models using recombinant protein antigens originating from Mycobacterium tuberculosis, Chlamydia muridarum and Plasmodium yoelii.⁴ In addition, CAF01 has been tested successfully in phase I clinical trials in combination with the recombinant tuberculosis fusion antigen Ag85B-ESAT6 (H1) (NCT ID: NCT00922363) and an HIV-1 peptide mix (NCT ID: NCT01141205; NCT01009762), and it was found to induce long-lasting cellular immune responses.^5,6 TDB activates primary human APCs by binding to Mincle, thereby triggering chemokine and cytokine production via Syk-Card9 signalling, indicating that the mode of signalling is conserved between mice and humans.⁷

Currently, there is intense interest in further development of synthetic Mincle ligands for use as adjuvants. Of particular interest are compounds with increased solubility as compared to TDB, and which are readily synthesized. Recent publications describing synthetic trehalose-based glycolipids include fatty acid esters and synthetic corynomycolates.^8–11 Besides introducing new vaccine adjuvant candidates, such studies also generate valuable mechanistic knowledge that defines the minimal requirements for Mincle-dependent activation of macrophages in terms of sugar headgroup and acyl chain length.

Here, we tested an array of synthetic TDB analogues (Figure 1A) to elucidate the influence of: (i) the chain length, (ii) the degree of acylation (mono- vs. diesters) and (iii) the headgroup display by insertion of a short, hydrophilic polyethylene glycol (PEG) spacer between the headgroup and the acyl chain. The analogues were tested for their capacity to bind to murine Mincle in vitro and to activate macrophages and dendritic cells (DC) with respect to cytokine and NO production. Based on these findings and our previous data,¹⁰ stearic acid esters were selected for in vivo studies and incorporated into DDA liposomes, which were tested for immunogenicity in mice. Our results suggest, in contrast to earlier work by others,¹⁰ that trehalose 6,6'-diesters are superior to the corresponding monoesters in terms of macrophage activation, which correlates with enhanced direct in vitro binding to Mincle found for the diesters. Also in vivo, the trehalose diesters lead to a more robust immune activation than the monoesters.

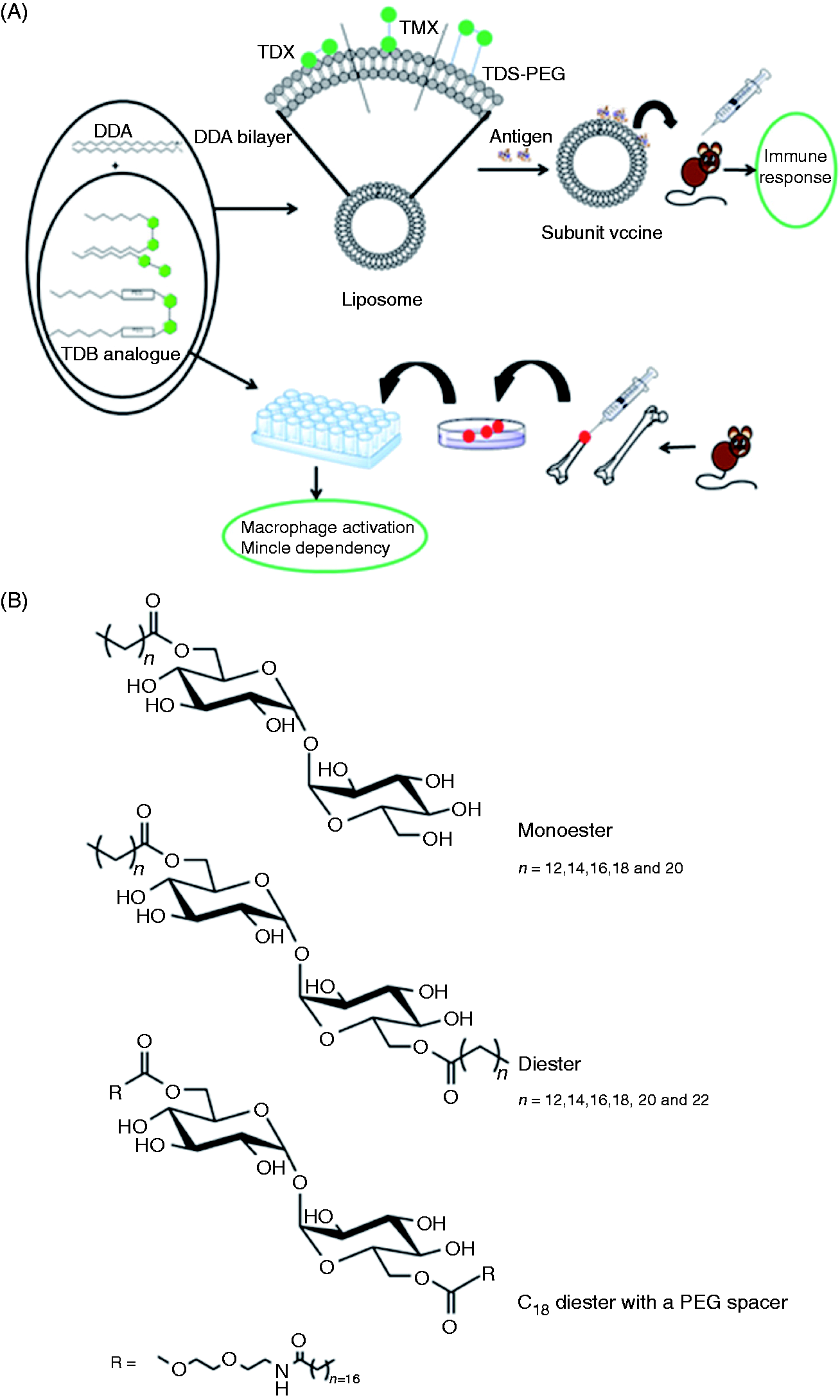

Figure 1.

Study overview and structure of TDB analogues. (A) Graphical overview of the study. (B) Structures of mono- (TMX) and diester (TDX) analogues of TDB with symmetrically shortened acyl chain, and an analogue (PEG–TDS) with a hydrophilic spacer inserted between the trehalose headgroup and each of the acyl chains.

Materials and methods

Materials

DDA was obtained from Avanti Polar Lipids (Alabaster, AL, USA). Two reference batches of TDB were obtained from Avanti Polar Lipids (referred to as TDB-1) and synthesized by Clausen-Kaas A/S (Farum, Denmark; referred to as TDB-2). LPS was from Sigma (catalogue number L2880; St Louis, MO, USA), recombinant murine IFN-γ was from Peprotech (Hamburg, Germany), B-type CpG ODN 1826 was from TIB MOLBIOL (Berlin, Germany) and TDM prepared form Mycobacterium bovis Bacillus Calmette Guérin was from Bioclot (Aidenbach, Germany). All other chemicals and reagents were of analytical grade and purchased from commercial suppliers.

Synthesis of trehalose esters

An array of synthetic TDB analogues was tested to study the influence of: (i) the degree of acylation [trehalose monoesters (TMXs) vs. diesters (TDXs)]; (ii) the chain length by symmetrically shortening of the acyl chain [denoted by X: arachidate (A), stearate (S), palmitate (P) and myristate (Myr)]; and (iii) the distance between the headgroup and the acyl chain by insertion of a hydrophilic PEG spacer between the trehalose headgroup and the acyl chains of TDS (i.e. 6,6'-bis[8-(stearoylamido)-3,6-dioxa-octanoyl]-trehalose referred to as PEG-TDS; Figure 1B and Table 1). The analogues were synthesized and purified as previously reported, and the final identity and purity of the compounds were validated by NMR spectroscopy.⁸

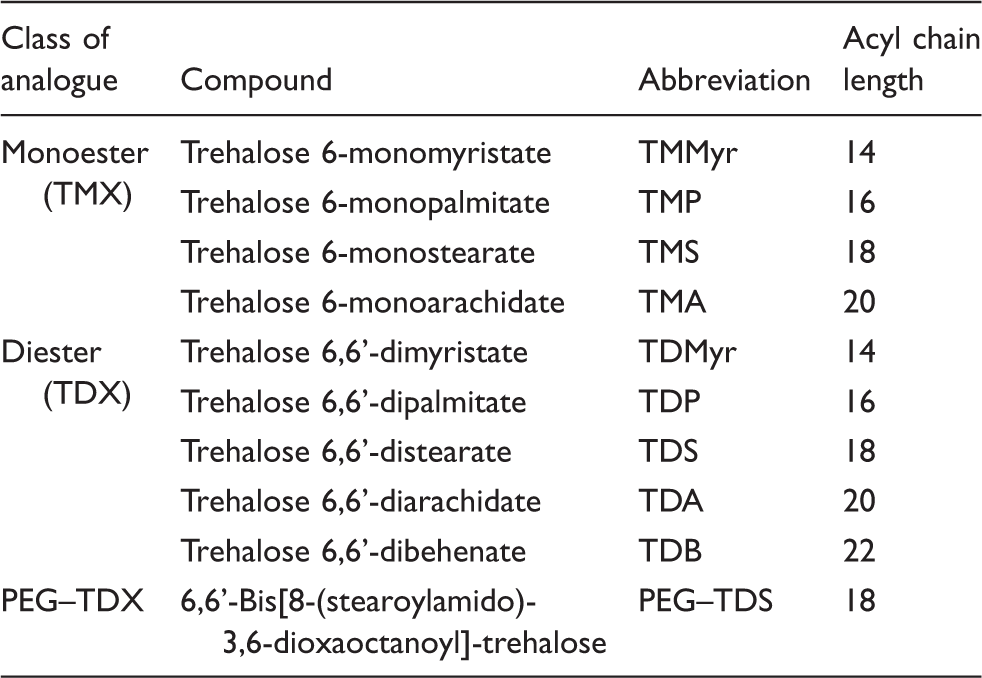

Table 1.

Array of TDB analogues.

Class of analogue	Compound	Abbreviation	Acyl chain length
Monoester (TMX)	Trehalose 6-monomyristate	TMMyr	14
	Trehalose 6-monopalmitate	TMP	16
	Trehalose 6-monostearate	TMS	18
	Trehalose 6-monoarachidate	TMA	20
Diester (TDX)	Trehalose 6,6'-dimyristate	TDMyr	14
	Trehalose 6,6'-dipalmitate	TDP	16
	Trehalose 6,6'-distearate	TDS	18
	Trehalose 6,6'-diarachidate	TDA	20
	Trehalose 6,6'-dibehenate	TDB	22
PEG–TDX	6,6'-Bis[8-(stearoylamido)- 3,6-dioxaoctanoyl]-trehalose	PEG–TDS	18

Differentiation of macrophages and murine BMDC

C57BL/6 mice were originally obtained from Charles River (Sulzfeld, Germany). Mincle-deficient (Clec4e^–/–) mice have been described and were originally generated by the Consortium of Functional Glycomics on a C57BL/6 background.^2,12 MyD88^–/– mice were obtained from Dr Shizuo Akira and maintained on a C57BL/6 background. C57BL6, Mincle-deficient and MyD88^–/– mice were bred at the animal facility of the Medical Faculty of the Friedrich-Alexander University Erlangen-Nürnberg (Germany). The mice were allowed free access to water and food. Sex-matched mice were euthanized at 8–12 wk of age. The bone marrow from the tibias and femurs was flushed with cold PBS; after erythrocyte lysis, bone marrow cells were set into 10-cm Petri dishes (Sarstedt, Kleinstadt, Germany) for overnight (between 16 and 24 h) adherence in cDMEM supplemented with 10% FCS (Biochrom, Berlin, Germany), 1% penicillin/streptomycin (Sigma Aldrich) and 50 µM β-mercaptoethanol, with 10% (v/v) L cell-conditioned medium (LCCM) as a source of M-CSF. On the following day, non-adherent cells were set into 10-cm Petri dishes at 5 to 6 × 10⁶ cells per 10-cm petri dish (medium as before). On day 3, 5 ml cDMEM + 10% (v/v) LCCM were added, and differentiated bone marrow macrophages (BMM) were harvested on day 6 or 7. For generation of DCs, bone marrow cells were cultured in cDMEM + 10% (v/v) conditioned medium of X63 cells producing GM-CSF for 7 d with additional supplementation with GM-CSF-containing medium on d 3 and d 5 of culture. Non-adherent differentiated bone marrow dendritic cells (BMDCs) were harvested by gentle pipetting on day 7, washed and counted.

Stimulation of macrophages and DC with glycolipids coated on dishes

TDB and the TDB analogues were dissolved in sterile isopropanol and stored at −20℃. For coating, the solutions were heated to 60℃ until the solutions were completely clear. Dilutions were prepared in sterile isopropanol and administered to 96-well cell culture plates. After evaporation of isopropanol, the plates were used for stimulation of BMM or BMDC. Soluble control stimuli (LPS, IFN-γ) were diluted in cDMEM. BMM were harvested with Accutase (Life Technologies, Carlsbad, CA, USA) and administered to 96-well plates, coated with the stimuli, at a density of 0.2 × 10⁶ cells per well. Stimulations were performed in triplicate (BMM) or duplicate (BMDC). For each condition, single stimulation and co-stimulation with IFN-γ (50 ng/ml) was performed. After 48 h, the morphology of the cells was observed and the supernatants were harvested.

Measurement of G-CSF by ELISA

G-CSF production of single stimulations (i.e. no IFN-γ) in the supernatants was assessed by a sandwich ELISA (R&D, Minneapolis, MN, USA), performed according to the manufacturer‘s protocol.

Determination of nitrite levels using the Griess assay

The NO production in IFN-γ co-treated BMM was assessed by measuring the nitrite levels with the Griess assay. Nitrite levels are displayed as Δnitrite = nitrite [stimulus] – nitrite [isopropanol].

Binding of Mincle–Fc fusion protein to plate-coated glycolipids

Production of the mouse Mincle–Fc fusion protein has been previously described.¹³ Briefly, cDNA encoding the extracellular part of murine Mincle was ligated into the pFuse–hIgG1–Fc expression vector (InvivoGen, San Diego, CA, USA). The Mincle–Fc-encoding vector was transiently transfected into CHO cells using the FreeStyle Max CHO-S Expression System (Life Technologies, Darmstadt, Germany). The cell supernatant containing Mincle–Fc was collected, and Mincle–Fc was purified using a HiTrap Protein G HP column (GE Healthcare, Piscataway, NJ, USA). SDS-PAGE with subsequent Coomassie stain, as well as Western Blot, were performed to confirm the identity and the purity of Mincle–Fc. The Mincle–Fc concentration was determined using the Micro BCA Protein Assay Kit (Thermo Scientific, Rockford, IL, USA). The plates were coated with the glycolipids as described above. If not otherwise indicated, 2 µg of each trehalose ester per well were used. The plates were blocked with 3% (w/v) BSA in HBSS, and the purified Mincle–Fc fusion protein was applied. After extensive washing with HBSS, bound fusion protein was detected with an HRP-coupled anti-Fc Ab and addition of 3,3',5,5'-tetramethylbenzidine substrate.

Preparation of liposomes

Liposomes consisting of binary mixtures of DDA and glycolipid (TDB-2, TDS, TMS or PEG–TDS) at a molar ratio of 89:11 were prepared by using the thin film method essentially as previously described, combined with probe sonication to ensure a narrow size distribution of the resulting liposomes.^8,14 Briefly, weighed amounts of DDA and glycolipid were dissolved in CHCl₃-MeOH (9:1, v/v) in a round-bottomed flask. The organic solvents were evaporated under vacuum resulting in the formation of a thin lipid film. The film was stripped twice with EtOH and dried overnight to remove trace amounts of organic solvents. The lipid film was rehydrated by adding Tris buffer (10 mM, pH 7.4), and sonicated for 5 min using a Sonifier® cell disruptor (Branson, Danburry, CT, USA), followed by heating to 60℃ for 1 h with 2 min of vigorous vortex mixing every 10 min. After 20 min of rehydration, the liposomes were tip-sonicated for 20 s with a 150 W Branson tip-sonicator (50% of the duty cycle) to reduce the size of the liposomes. The final concentration of DDA and TDB-2/TDS/TMS/PEG–TDS were 2.5 mg/ml and 0.5, 0.44, 0.31 or 0.59 mg/ml, respectively, corresponding to a molar ratio of 89:11. The liposomes were stored at 4℃ until further use. For each immunization, fresh batches of liposomes were prepared immediately prior to immunization. The quality of each liposome batch was confirmed by measuring the particle size distribution, the polydispersity index and the zeta-potential, as previously described (results not shown).⁸

Immunization of mice

Female C57BL/6 mice were obtained from Harlan Laboratories (Boxmeer, The Netherlands). The mice were allowed free access to water and food. The immunization experiments were approved by the Danish Council for Animal Experiments and done in accordance with EU directive 2010/63EU for animal experiments. The vaccines were prepared by mixing the liposomal dispersions with 5 µg Chlamydia trachomatis serovar D major outer membrane protein (MOMP) (kindly donated by Ida Rosenkrands, Statens Serum Institut, Denmark) in 10 mM sterile Tris buffer (pH 7.4).¹⁵ The vaccines were left at room temperature (c. 22℃) with intermittent mixing to allow for full adsorption of Ag to the liposomes.¹⁶ The adjuvant formulations tested in the animal experiments were DDA/TDB-2, DDA/TDS, DDA/TMS and DDA/PEG–TDS liposomes. Naïve mice and mice receiving Ag only were used as negative controls. The numbers of mice per group were four for the naïve group, six for the Ag group, and 10 for the Ag + adjuvant groups, calculated based on a power test. The DDA dose was 250 µg, and the TDB analogue dose was as follows: 50 µg TDB-2, 44 µg TDS, 29 µg TMS or 59 µg TDS–PEG, corresponding to an equimolar content of 11 mol%. Mice were immunized subcutaneously at the base of the tail with 200 µl vaccine three times with a 2-wk interval. The mice were euthanized 3 wk after the final immunization. Suspensions of spleen cells were obtained by passage of spleens through cell strainers followed by centrifugation for 5 min. The cells were washed once with RPMI 1640 (Gibco Invitrogen, Carlsbad, CA, USA) and once with RPMI 1640 supplemented with 10% (v/v) heat-inactivated FBS, 5 × 10⁻⁶M β-mercaptoethanol, 1% (v/v) penicillin-streptomycin, 1% (v/v) sodium pyruvate, 1 mM L-glutamine and 10 mM HEPES.

Detection of IFN-γ and IL-17a from activated T cells by ELISA

Isolated splenocytes were cultured in duplicate in round-bottomed 96-well microtiter plates at a density of 2 × 10⁵ cells/well in a volume of 200 µl RPMI supplemented as described above. The cells were re-stimulated with 5 µg/ml MOMP and allowed to incubate for 3 d at 37℃. Wells containing medium alone or 3 µg/ml concanavalin A (Sigma-Aldrich) were included as negative and positive controls, respectively. After incubation, supernatants were collected, and the IFN-γ and IL-17a production was quantified by a standard ELISA protocol. Briefly, purified rat α-mouse IFN-γ or IL-17a (BD Biosciences, San Jose, CA, USA) were used as capture Abs, and biotin-conjugated rat α-mouse IFN-γ or IL-17a (BD Biosciences) were used as detection Abs, respectively, followed by HRP-conjugated streptavidin (BD Biosciences) and 3,3’,5,5’-tetramethylbenzidine Plus Ready-to-use substrate (Kem-En-Tec, Taastrup, Denmark). The reaction was stopped at the optimal colour development with 0.2 M H₂SO₄, and the absorbance was read at 450 nm with wavelength correction at 570 nm.

Intracellular cytokine staining analysis

Isolated splenocytes (1 × 10⁶ cells/well) were stimulated for 1 h with 5 µg/ml MOMP in the presence of 1 µg/ml anti-CD28 and anti-CD49d mAbs (both BD Pharmingen, San Diego, CA, USA) in a total volume of 200 µl supplemented with RPMI 1640. The cells were subsequently incubated for 5 h at 37℃ after addition of 10 µg/ml brefeldin A (Sigma Aldrich) and 0.7 µl/ml monensin/Golgi-stop (BD Pharmingen). Following overnight storage at 4℃, the cells were washed in FACS buffer and stained with anti-CD4 (APC) and anti-CD44 (FITC) mAbs (BD Biosciences) in FACS buffer for 30 min at 4℃. Cells were washed with FACS buffer, permeabilized by using the Cyto-fix/Cyto-perm kit (BD Pharmingen) according to the manufacturer’s instructions, and stained intracellularly for 30 min at 4℃ using anti-IFN-γ (PE–Cy7) and anti-IL-17a (PerCP–Cy5.5) mAbs (eBiosciences, San Diego, CA, USA) in Perm wash buffer. After washing, the cells were re-suspended in FACS buffer and analysed by flow cytometry using a six-colour BD FACS Canto flow cytometer (BD Biosciences). Responses were analysed with the FlowJo software (Tree Star Inc., Ashland, OR, USA).

Statistical analysis

Graphical display and statistical analysis of the in vitro data was performed in GraphPad Prism 5.0 (GraphPad Software, La Jolla, CA, USA). Data from three (binding assay; see Figure 4) or four (stimulation; see Figure 2) experiments were combined and tested for significance by one-way ANOVA, and pair-wise comparison was performed using Bonferroni correction. Significance levels are indicated as **P < 0.01 and ***P < 0.001. Statistical analysis of the in vivo experiments was done by one-way ANOVA at a 0.05 significance level followed by Dunnet’s multiple comparison test using GraphPad Prism 6 (GraphPad Software) unless otherwise stated. For all analyses P < 0.05 was considered significant.

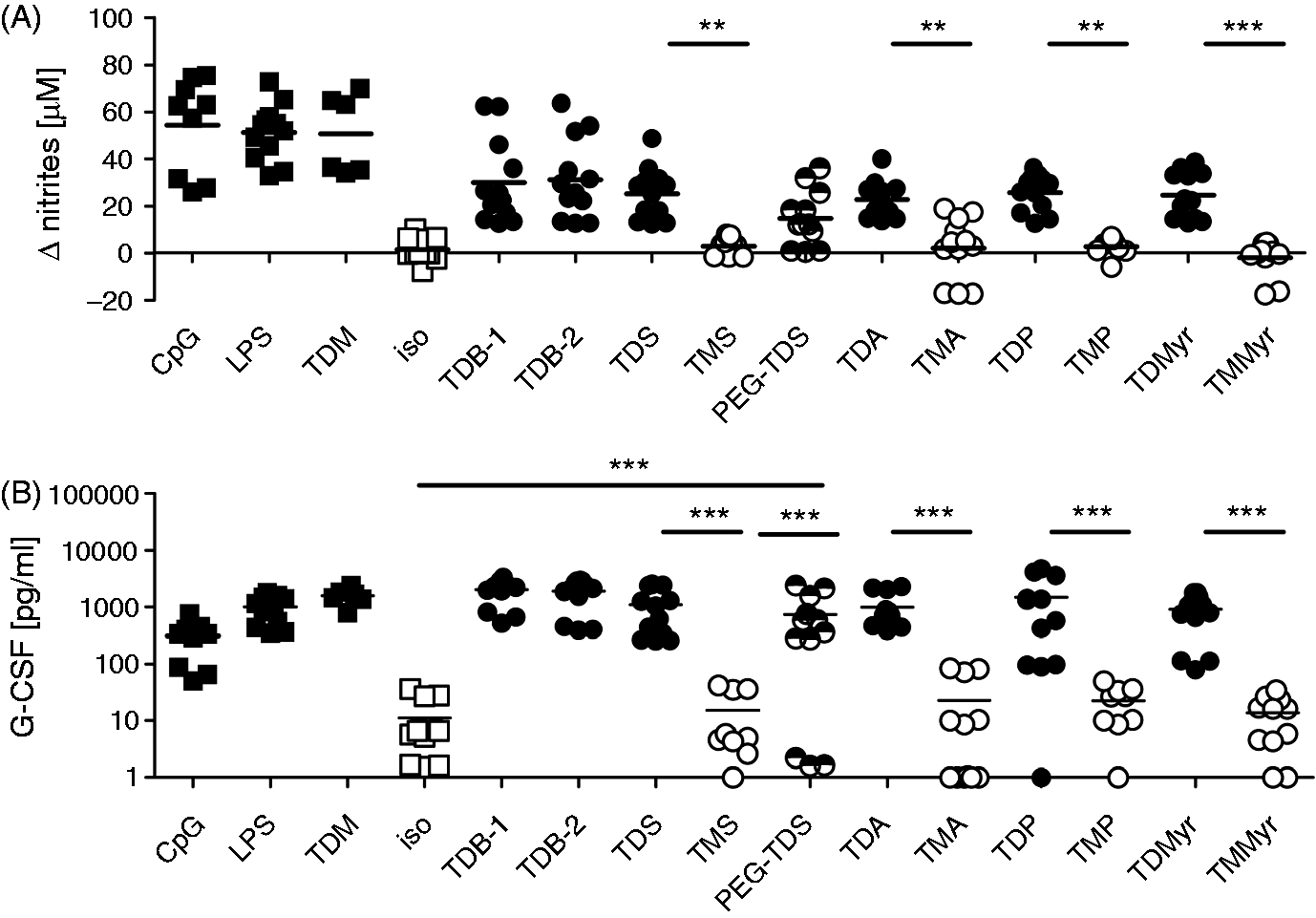

Figure 2.

Comparison of macrophage activation by trehalose mono- and diesters. Murine BMM were stimulated for 48 h with 5 µg/ml of the indicated compound. For monitoring NO production, 50 ng/ml IFN-γ was added. CpG (0.5 µM), LPS (100 ng/ml) and TDM (5 µg/ml) served as positive controls, respectively, while isopropanol served as negative control. (A) NO levels are displayed as ΔNO, i.e. (with stimulus) – (isopropanol control). (B) The G-CSF values are displayed as absolute concentrations. Data represent at least nine replicates per condition pooled from four independent experiments, except for TDM (n = 6). Statistical analysis: one-way ANOVA with Bonferroni correction, **P < 0.01, ***P < 0.001. All diesters differed significantly in nitrite and G-CSF production from the isopropanol control.

Results

Superior activation of macrophages by trehalose diesters as compared to the monoesters

To investigate the stimulatory activity of monoester and diester analogues of TDB, displaying different acyl chain length, on macrophages (Figure 1B, Table 1), mouse BMM differentiated in the presence of M-CSF were seeded into wells coated with synthetic glycolipids. The production of G-CSF by macrophages after 48 h of incubation was determined in the cell culture supernatants by ELISA. The release of NO by macrophages, co-stimulated with IFN-γ in addition to the glycolipids, was measured after 48 h by using the Griess assay. First, we compared the stimulatory capacity of the compounds at a fixed concentration of 5 µg/ml (corresponding to 1 µg coated glycolipid per well) (Figure 2). The TLR ligands LPS and B-type CpG ODN 1826, as well as the natural cord factor TDM, served as stimulation controls. Reference TDB samples obtained from two different commercial suppliers (TDB-1 and TDB-2) were included as positive controls, and both gave rise to comparable levels of G-CSF and NO production (Figure 2). While all TDXs tested induced robust production of G-CSF and NO, the TMX did not induce significant release of these mediators by the macrophages (Figure 2). However, the acyl chain length of the diester analogues did not strongly influence the output of NO and G-CSF by the BMM (Figure 2). The PEG–TDS analogue containing the hydrophilic spacer between the trehalose headgroup and the stearoyl chains did also induce significantly higher G-CSF production than the TMS analogue (Figure 2).

Since the lack of macrophage stimulation observed for the TMXs might indicate a quantitative, albeit not qualitative, difference, the analogues were titrated over a wide concentration range. The results for TDS and TMS are shown as representative examples in Figure 3. TDS stimulated the production of G-CSF in single-treated macrophages and of nitrite in IFN-γ-co-stimulated macrophages starting at a concentration of 0.2 µg/ml, with increasing responses up to 5 µg/ml (TDS). In contrast, the corresponding monoester TMS did not trigger measurable NO or G-CSF release at concentrations in the range of 0.2–5.0 µg/ml. At the higher concentration of 25 µg/ml robust NO release and very low levels of G-CSF were detectable (Figure 3A, B). Increasing the glycolipid concentration to 125 µg/ml again abrogated the production of both G-CSF and NO for TMS (Figure 3A, B), which was due to TMS-induced toxicity (data not shown). Dose–response curves were also determined for the other TMX/TDX pairs (data not shown), confirming the results obtained with the stearate analogues and indicating the requirement for an approximately 100-fold higher concentration of the monoester analogue to elicit significant macrophage activation. PEG–TDS showed intermediate activity and reached similar levels of NO and G-CSF at approximately fivefold higher concentrations, as compared to TDS (Figure 3).

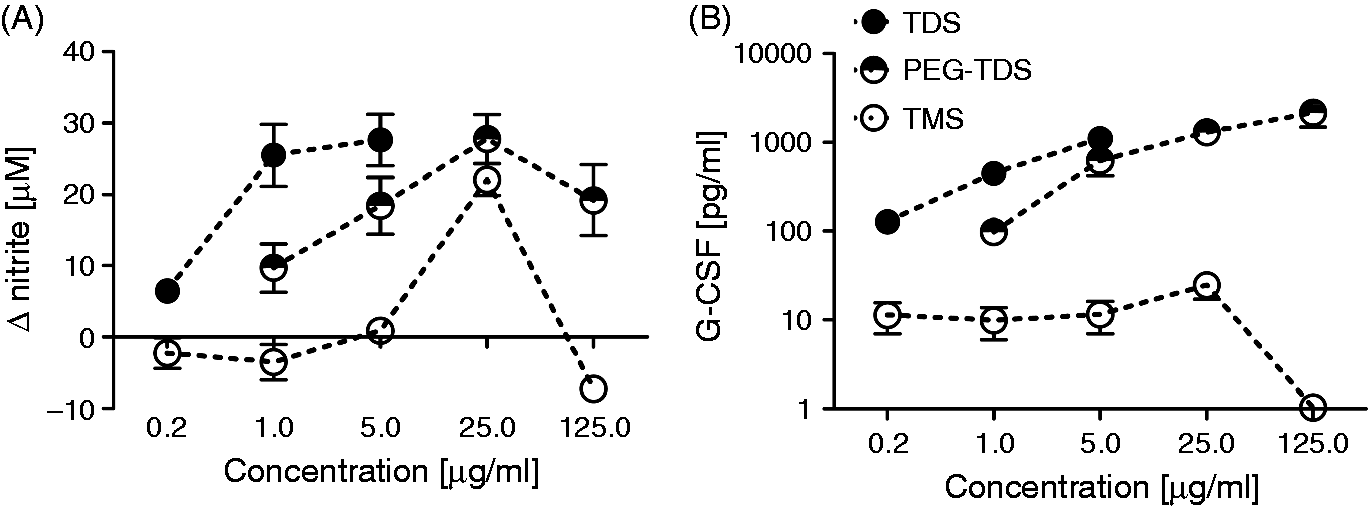

Figure 3.

Dose–response curves of mono- and diester activity in a titration experiment. The trehalose mono- and diesters with stearic acid were used to stimulate BMM at a range of test concentrations. TDS was tested from 0.2 to 5.0 µg/ml, resulting in a clearly detectable response. TMS was tested from 0.2 µg/ml to a concentration of 25 µg/ml, while PEG–TDS was tested from 1 to 25 µg/ml. (A) ΔNO levels in BMM after 48 h in the presence of 50 ng/ml IFN-γ and (B) G-CSF from BMM stimulated for 48 h without IFN-γ. Data represent mean and SD of at least six replicates per condition pooled from two to four independent experiments. The error bars are sometimes smaller than the symbols.

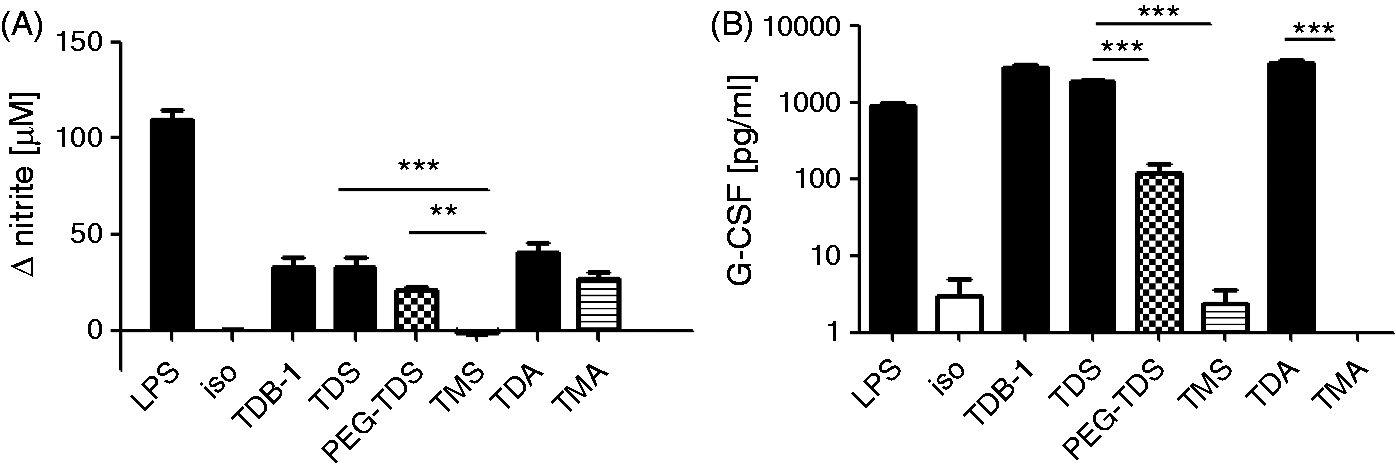

Figure 4.

TDX are more potent stimulators of BMDC. The indicated glycolipids were coated in 96-well plates at a concentration of 5 µg/ml. LPS was used at 100 ng/ml in solution. BMDC were added to the plates. IFN-γ was (A) added or (B) not, and supernatants were harvested after 48 h. (A) NO was determined by Griess assay; (B) G-CSF by ELISA. Shown are mean and SD of six biological replicates per condition pooled from three independent experiments. Statistical analysis: one-way ANOVA with Bonferroni correction, **P < 0.01, ***P < 0.001.

Subsequently we investigated whether the higher stimulatory capacity of TDX would be conserved between different antigen-presenting cell types. Therefore, we stimulated BMDC differentiated in the presence of GM-CSF with the trehalose esters of 18:0 or 20:0 fatty acids. For the stearic acid esters, the monoester TMS failed to increase production of NO and release of G-CSF, whereas TDS triggered strong production and PEG–TDS was moderately active (Figure 4A, B). The 20:0 arachidate monoester TMA induced NO release from BMDC but to a lesser degree as compared to the diester TDA (Figure 4A). TMA failed to trigger G-CSF production from BMDC (Figure 4B). Overall, the stronger activation of antigen-presenting cells by the TDXs as compared to TMXs was conserved between macrophages and DC.

Secretion of G-CSF and NO is abrogated in Mincle-deficient macrophages but intact in the absence of MyD88

TDB activates macrophages by direct binding to the C-type lectin receptor Mincle and via activation of the Syk-Card9 signalling pathway through the adapter protein FcRγ. Therefore, it was next tested whether Mincle is also required for the stimulatory capacity of the other TDXs investigated. Indeed, the release of G-CSF and NO in response to all TDXs were completely abolished in Mincle-knockout macrophages that responded normally to stimulation with the TLR4 ligand LPS and the TLR9 ligand CpG ODN 1826 (Figure 5). In contrast, MyD88-deficient macrophages showed a reduced response to LPS and were unresponsive to CpG stimulation but produced unaltered amounts of G-CSF or NO when stimulated with the glycolipids. Thus, TDX glycolipids with symmetric acyl chain lengths of 14–22 carbon atoms activate macrophages via Mincle signalling independently of MyD88. Notably, the G-CSF secretion triggered by PEG–TDS was dependent on both Mincle and MyD88 (Figure 5B), whereas the quite low levels of NO induced by this compound were not MyD88-dependent (Figure 5A).

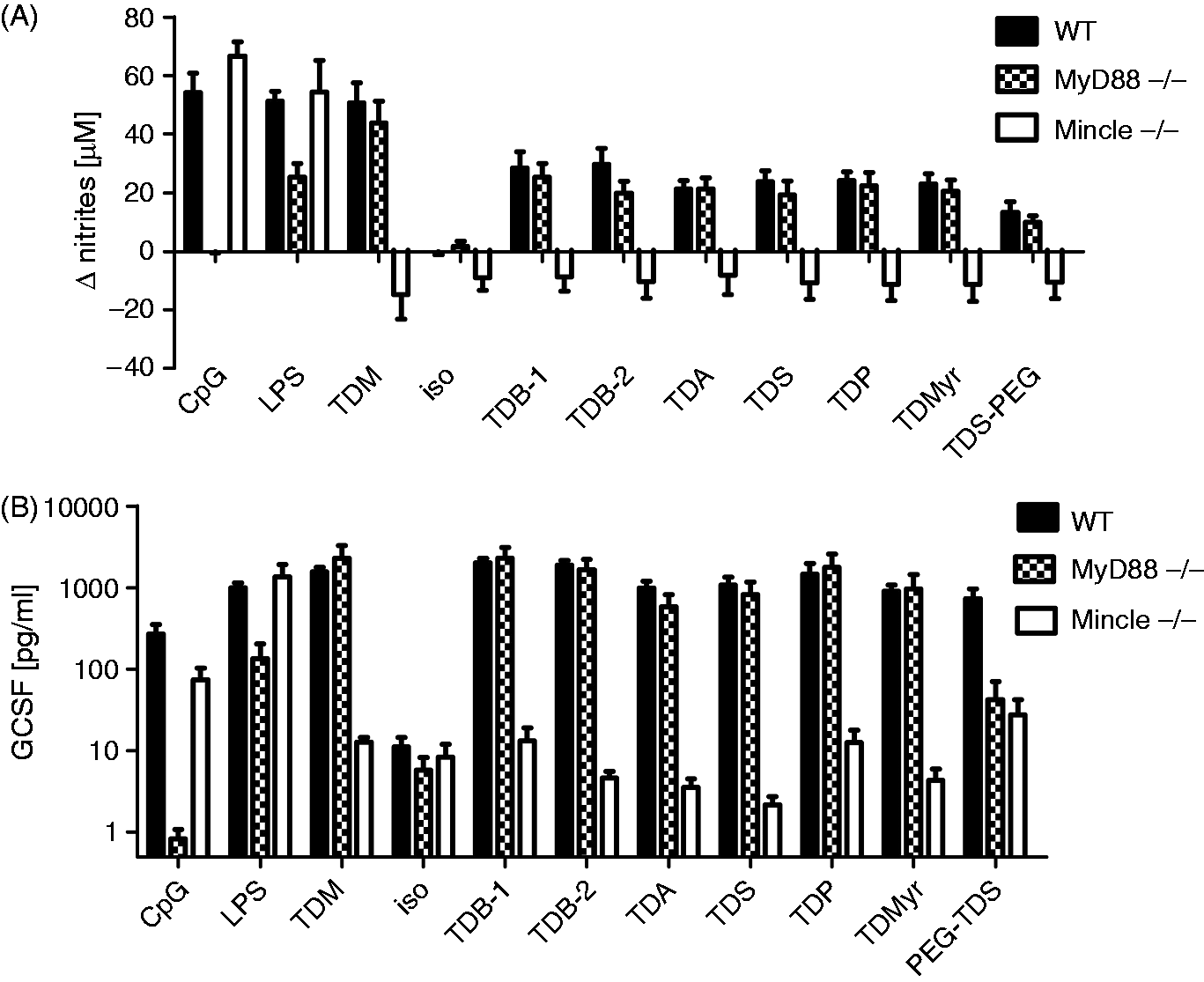

Figure 5.

TDX stimulate macrophages via Mincle independently of MyD88. The glycolipids were immobilized at a fixed concentration of 5 µg/ml in 96-well plates; isopropanol was used as a negative control. BMM of the indicated genotypes were added in (A) the presence or (B) the absence of IFN-γ. (A) NO and (B) G-CSF were measured in the supernatants after 48 h. Mean and SD of n ≥ 11 replicates pooled from four independent experiments.

Binding of trehalose esters to Mincle-Fc protein correlates with macrophage activation

The strongly reduced macrophage activation by the TMXs, as opposed to the TDXs, may be due to a lack of binding to the Mincle receptor or to impaired activation of Syk-Card9, despite conserved binding to Mincle. To differentiate between these possibilities, we used a recombinant fusion protein of mouse Mincle and human Fc to test binding to the coated glycolipids (Figure 6).^17,18 Using a fixed concentration of 10 µg/ml glycolipid, we observed comparably strong binding of this Mincle-Fc for all TDXs tested (i.e. TDB, TDA, TDS, TDP, TDMyr), whereas no detectable signal above the isopropanol background control was found for the monoester compounds (i.e. TMA, TMS, TMP, TMMyr) and PEG–TDS. To correlate the binding of glycolipids with their capacity to stimulate macrophages, we plotted the OD₄₅₀ values from the Mincle–Fc assay against the mean values of G-CSF and NO production (Figure 7A, B). Overall, the ability to bind directly to Mincle correlated closely with the capacity of the glycolipids to trigger G-CSF and NO release from macrophages, except for PEG–TDS, which induced some macrophage activation without significant binding (Figure 7A, B). To address this discrepancy, the binding assay for the stearate analogues was extended to include a range of test concentrations for TDS, TMS and PEG–TDS. PEG–TDS showed binding to Mincle–Fc when coated at higher concentrations, whereas TMS did not bind, even at 50 µg/ml (Figure 7C).

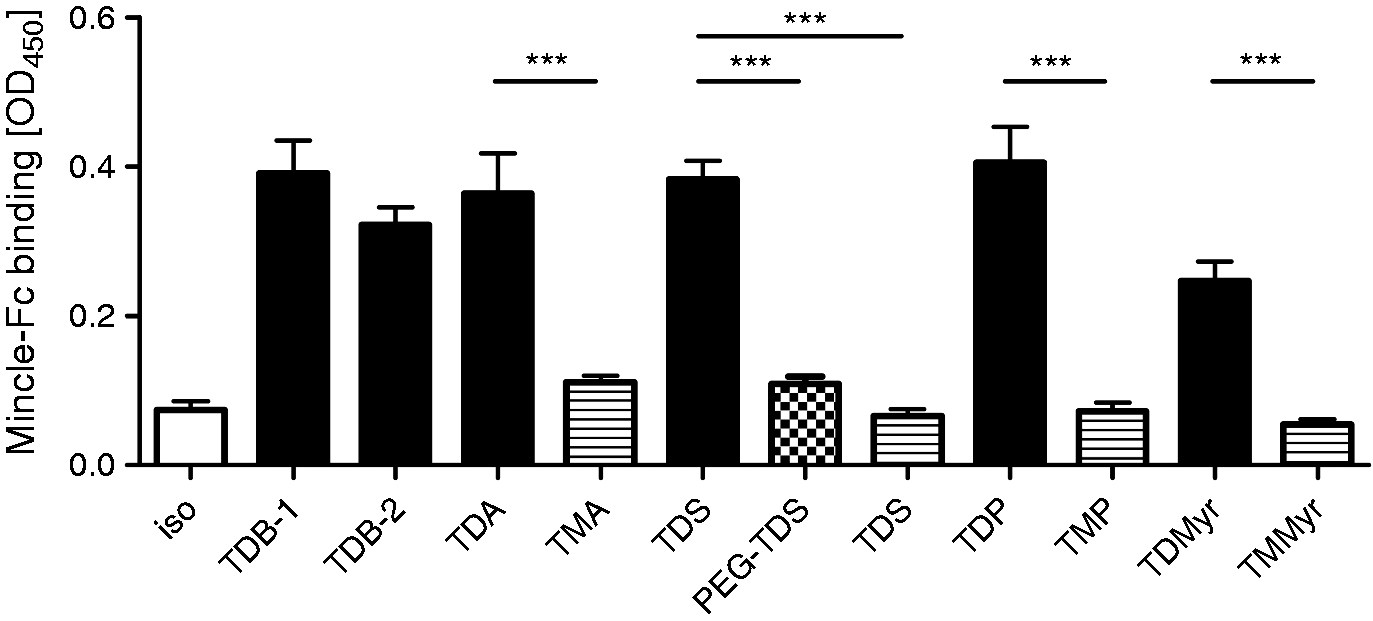

Figure 6.

In vitro binding assay. The compounds were coated to cell culture plates at 2 µg per well, corresponding to 10 µg/ml when used for culture. Isopropanol was used as a negative control. A fusion protein of mouse Mincle, and human Fc was added to the plate and detected with an anti-human HRP-coupled secondary Ab. 3,3',5,5'-Tetramethylbenzidine substrate was used for detection of binding. The results are displayed as OD₄₅₀. Statistical analysis: one-way ANOVA with Bonferroni correction, ***P < 0.001. All diesters differed significantly from the isopropanol control in binding to the Mincle–Fc protein, whereas TMX and PEG–TDS were not significantly different from the isopropanol control. The assay was performed with three independent experiments in four replicates each. Data are mean and SD of pooled replicates.

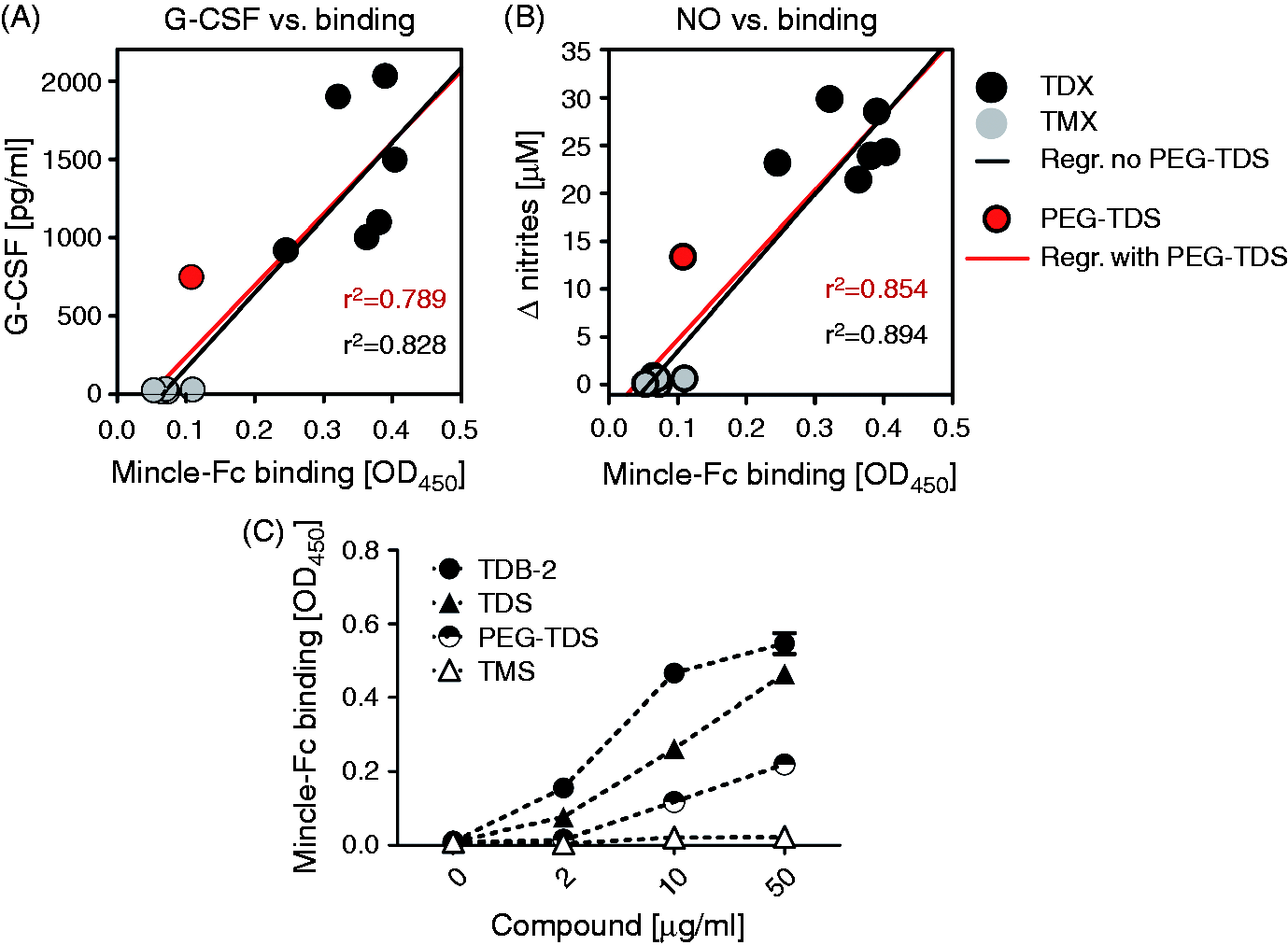

Figure 7.

Correlation between binding to Mincle and NO/G-CSF production. The data shown in Figures 2 and 5 were used to correlate the binding of the compounds to Mincle–Fc with: (A) G-CSF and (B) NO production. Linear regression and r² coefficients of correlation are given in each graph, differentiating between inclusion (red) and exclusion (black) of PEG–TDS in the analysis. (C) Mincle–Fc binding assay using increasing amounts of glycolipids. Mean values of quadruplicate samples from one experiment.

TDS incorporated into DDA liposomes induces more robust and superior Th1/Th17 responses than TMS and PEG–TDS in mice

Based on the data obtained in the in vitro experiments, the stearate analogues (TDS, TMS and PEG–TDS) were selected for further comparison in vivo. Hence, these analogues were incorporated into DDA liposomes and tested for adjuvant activity in mice. This selection was corroborated by recent results showing optimal physicochemical properties and adjuvant activity of DDA/TDS liposomes (similar to that of DDA/TDB liposomes) as compared with TDB analogues with symmetrically shortened acyl moieties.⁸ Thus, the ability of the formulations to induce Th1 and Th17 responses was evaluated by measuring the induction of the cytokines IFN-γ and IL-17a, which was compared with that of DDA/TDB-2 liposomes known to induce a mixed Th1/Th17 response profile.^2,3,8,19

Co-administration of all liposomal dispersions, with the MOMP Ag surface-adsorbed to the liposomes, resulted in a statistically significant increase in the IFN-γ and IL-17a production as compared to naïve control mice and mice immunized with Ag alone (Figure 8A). Comparable IFN-γ levels were observed when co-administering MOMP with DDA/TDB-2 and DDA/TDS (Figure 8A, left). In contrast, the IFN-γ levels induced by the DDA/TMS and the DDA/PEG–TDS formulations were significantly lower (approximately 25% and 30% decreases, respectively) than the IFN-γ levels induced by the DDA/TDS liposomes (P < 0.05 and P < 0.01, respectively), suggesting that the monoester structure and the presence of the PEG spacer between the trehalose headgroup and the acyl chains reduce the activity, also in vivo. Differences between the adjuvant groups were more pronounced for the IL-17a production of the re-stimulated splenocytes (Figure 8A, right). The IL-17a levels were significantly decreased upon immunization with the DDA/TMS liposomes (approximately a 40% decrease; P < 0.05) and DDA/PEG–TDS liposomes (approximately a 60% decrease; P < 0.001) as compared to those found for DDA/TDS liposomes. There was no statistically significant difference in the IL-17a levels between the groups immunized with the Ag surface-adsorbed to the DDA/TDS liposomes and the DDA/TDB-2 liposomes, as previously reported.⁸

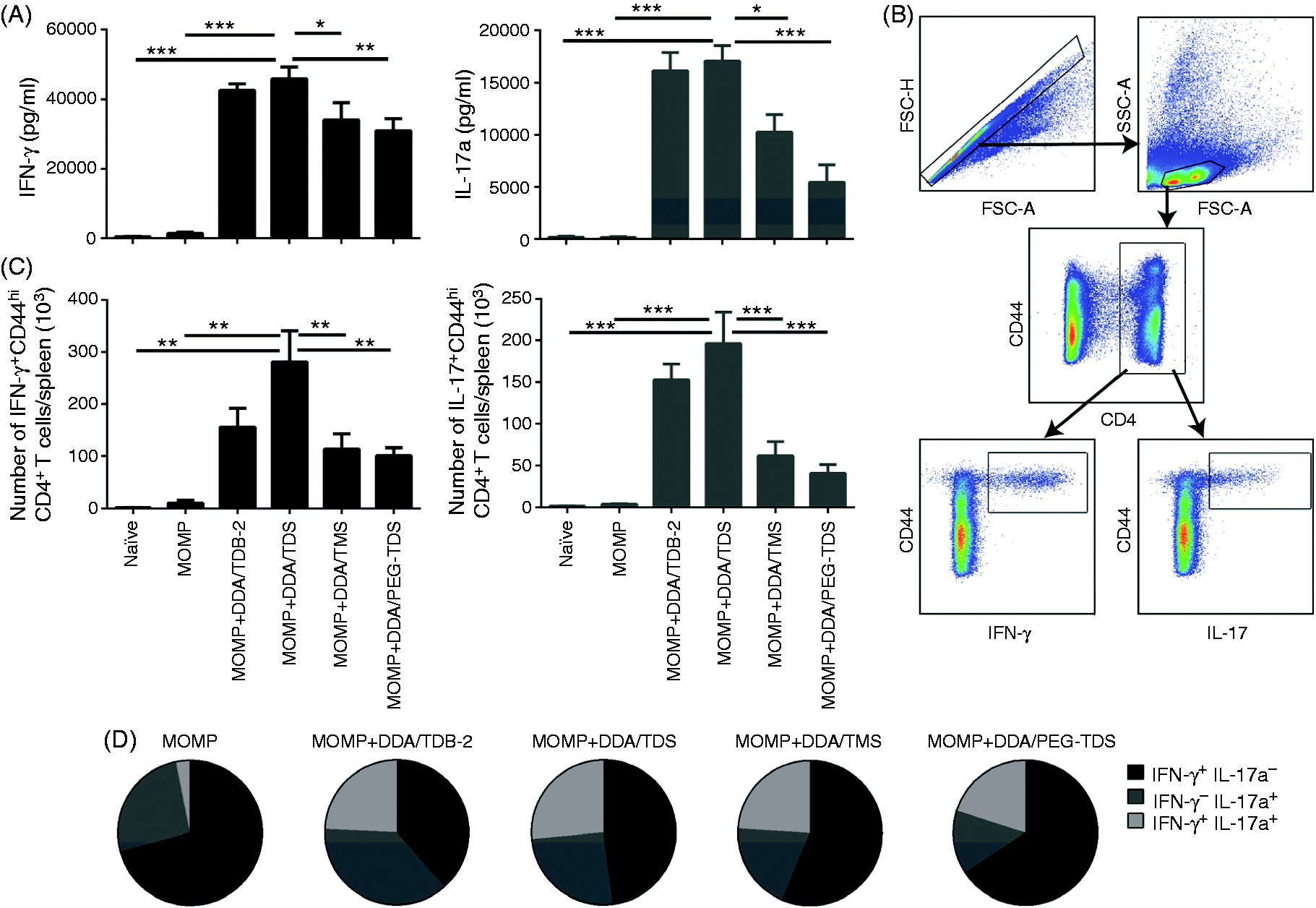

Figure 8.

In vivo data from immunization of mice with TDS, TMS and PEG–TDS formulated into DDA liposomes. C57BL/6 mice were immunized three times, and splenocytes were isolated 3 wk after the third immunization. (A) Production of IFN-γ (left) and IL-17a (right) from splenocytes re-stimulated with 5 µg/ml MOMP for 72 h in vitro were measured by ELISA. (B) Representative dot plots from mice vaccinated with MOMP + DDA/TDS showing the IFN-γ and IL-17a of CD44⁺CD4⁺ T-cells after re-stimulation with 5 µg/ml MOMP for 6 h. (C) Number of Ag-specific IFN-γ⁺ and IL-17a⁺ CD44⁺CD4⁺ T cells. (D) Pie charts illustrating the ratio of the different combinations of single-positive CD44⁺CD4⁺ T cells (IFN-γ⁺/IL-17a^–, IFN-γ^–/IL-17a⁺) and double-positive CD44⁺CD4⁺ T-cells (IFN-γ⁺/IL-17a⁺). Data represent mean values ± SEM [n = 4 (naïve group), n = 6 (MOMP alone group), n = 10 (DDA/TDB, DDA/TDS, DDA/TMS and DDA/PEG-TDS groups)]. Statistically significant differences from the Ag + DDA/TDS group are indicated: *P < 0.05, *P < 0.01 and ***P < 0.001.

The Th1/Th17 responses were further evaluated at a single-cell level by intracellular cytokine staining (the gating strategy is illustrated in Figure 8B). The numbers of IFN-γ⁺CD44⁺CD4⁺ triple-positive T cells were significantly decreased for the DDA/TMS and DDA/PEG–TDS groups, as compared to the group immunized with DDA/TDS [approximately a 50% decrease (P < 0.05); Figure 8C, left]. There was no statistically significant difference between the DDA/TMS group and the DDA/PEG–TDS group. The numbers of IL-17a⁺CD44⁺CD4⁺ T cells were also influenced by the adjuvant used for immunization (Figure 8C, right). Immunization with DDA/TMS liposomes and DDA/PEG–TDS liposomes resulted in statistically significantly decreased numbers of IL-17a⁺ CD4⁺ T cells compared with DDA/TDS liposomes (approximately 60% and 65% decreases, respectively; P < 0.001). No statistically significant differences were found between the DDA/TDB-2 and the DDA/TDS groups. Similar observations were found when assessing the relative numbers of cells.

The polyfunctionality of the T cells was evaluated by combinatorial Boolean gating analysis in order to compare the cytokine expression profiles (Figure 8D). Upon immunization with MOMP–DDA/TDB-2, a mixed Th1/Th17 response with equal percentages of IFN-γ⁺ and IL-17a⁺ T cells was observed. Furthermore, in comparison to the group vaccinated with MOMP alone, a larger percentage of the T cells were double-positive (IFN-γ⁺/IL-17a⁺), although this observation is only based on few cells and should be confirmed. A correlation between the number of IFN-γ⁺/IL-17a⁺ double-positive cells and protection after immunization of mice with DDA/TDB and a chlamydia antigen (PmpG) has previously been reported.²⁰ Vaccination with the formulations adjuvanted with DDA/TDS, DDA/TMS or DDA/PEG–TDS, respectively, did also drive the detected immune response in a Th1/Th17 double-positive direction compared with the response for the antigen alone. However, there was a decrease in the fraction of single-positive IL-17a⁺ T cells in the order DDA/TDS > DDA/TMS > DDA/PEG–TDS. For all adjuvanted groups, the fraction of double-positive T cells (IFN-γ⁺/IL-17a⁺) was almost constant.

The findings from the ELISA analyses and the intracellular cytokine staining thus collectively suggest that the diester TDS leads to a more robust immune activation than found for both the monoester TMS and the PEG–TDS construct.

Discussion

In this study, we tested an array of analogues of the synthetic glycolipid immunostimulator TDB with systematically shortened chain length, varied degree of acylation (mono- vs. diesters), and headgroup display mode. We analysed their potential as: (i) activators of murine macrophages and DC, (ii) ligands of the cord factor receptor Mincle in vitro, and (iii) enhancers of Th1/Th17 immune responses in vivo. The obtained results clearly indicate that all TDX are capable of promoting secretion of G-CSF and NO from macrophages and DC, whereas the monoesters either were inactive or were required in much higher concentrations. A strong correlation between activation and the binding of these glycolipids to the recombinant Mincle–Fc fusion protein was found, which indicates that their capability of interacting with this C-type lectin receptor directly influences macrophage stimulation. These findings corroborate previous results for TDB inferring that Mincle expression on macrophages is an absolute requirement for stimulation by trehalose fatty acid diesters, whereas MyD88-activating pathways (e.g. the TLRs) are not involved.^1,2,9,10 Thus, our present results expand the spectrum of Mincle-activating synthetic adjuvant candidates, and thereby contribute to determining the structural limitations for Mincle binding and activation by this ligand type.

Recently, low-resolution crystal structures for both human and bovine Mincle were reported independently by two laboratories,^21,22 demonstrating the presence of two sugar binding sites and a hydrophobic groove, of which the latter most likely accommodates the acyl chains attached to the trehalose headgroup.^21,22 However, because of the low solubility of the hydrophobic natural TDM ligand for Mincle, the crystals were obtained in the presence of trehalose and citrate, respectively. Nevertheless, the influence of the length of the acyl chains on the binding to Mincle has been addressed by using binding assays with the carbohydrate recognition domain only. Short soluble diester derivatives of trehalose have been shown to compete with 2.5–7-fold higher efficiency than the corresponding monoesters for binding to the mouse Mincle carbohydrate recognition domain, which is consistent with our finding that trehalose 6,6'-diesters display superior binding and activation as compared with the monoesters.²³

Previously, activation of mouse macrophages by trehalose esters has been investigated,^9,10 and our results corroborate the finding that a strong activation may be achieved with 20:0, 22:0 and 26:0 trehalose diesters.⁹ While the 18:0 (stearate) diester was only minimally active in the study by Khan et al.,⁹ we observed strong activation also by TDS, as well as by TDMyr (14:0) and TDP (16:0). The discrepancy between our present results and those of Stocker et al. regarding the potential of TMXs to activate macrophages appears even more striking.¹⁰ Thus, we observed a strongly reduced capacity of the monoester analogues to induce NO and G-CSF production, whereas Stocker et al. found comparable macrophage activation by the corresponding monoester derivatives with similar fatty acid length.¹⁰ Differences in the experimental conditions may account for these discrepancies. We differentiated macrophages from bone marrow cells in the presence of M-CSF, whereas the Stocker group used GM-CSF to differentiate macrophages from bone marrow cells, which is, in fact, a commonly used protocol to generate mouse BMDC, although recent work has revealed that GM-CSF mouse bone marrow cultures comprise a mix of monocyte-derived macrophages and conventional DC.^24,25 To address this potential role of the exact cell type used for stimulation, we compared BMM generated with M-CSF and BMDC differentiated with GM-CSF, but observed that the stronger activity of the diester compounds was observed in both cell types (Figure 4). Kinetics may also play a role, as we measured the accumulation of G-CSF and NO after a stimulation period of 48 h, while the Stocker group harvested the supernatants after 96 h. Finally, the physical presentation of the glycolipids [either adsorbed to the bottom of the well (as in our study) or solubilized by addition of DMSO] to the cells may affect the interaction of the glycolipids with Mincle, and thereby influence the cellular responsiveness owing to differences in their supramolecular structure.

A recent study has described the synthesis of corynomycolic acids and their esters with the disaccharide trehalose and the monosaccharide glucose.¹¹ Testing of Mincle activation by these compounds in dose–response assays with a reporter cell line showed that the trehalose mono-corynomycolates were as potent in activating murine and human Mincle reporter cells as the trehalose di-corynomycolates.¹¹ Strikingly, even glucose Glc mono-corynomycolates activated Mincle signalling, albeit requiring 10-fold higher concentrations, suggesting that the requirement for the trehalose headgroup initially reported by Ishikawa et al. is not absolute.¹ However, when the glucose headgroup was linked not to the branched corynomycolate but to a simple fatty acid of similar length (i.e. behenic acid), Mincle activation was completely abrogated.¹¹ Together with our present findings, it appears that TDX of simple fatty acids (of a certain length) possess affinity to Mincle. By contrast, in order for the glucose derivatives to elicit activation, the acyl chain has to be more complex (i.e. a corynomycolate instead of a simple fatty acid). Mcl, a closely related C-type lectin receptor, has been described as an additional receptor for the cord factor.²⁶ Mcl was recently shown to increase Mincle surface expression through complex formation.^27,28 With regard to direct interaction with the cord factor, Mcl appears to bind with much lower affinity as compared with Mincle. Thus, it is at present not entirely clear to which extent the requirement for Mcl reflects its function as a receptor for the glycolipids or as a chaperone for Mincle.

The poor solubility of long-chain trehalose diesters potentially decreases their attractiveness as adjuvant candidates, and it may explain some of the variance observed in studies using similar compounds under different assay conditions in different laboratories, as discussed above. Therefore, the recent report on the first soluble ligand for Mincle, namely brartemicin, is of considerable interest for functional studies.²⁹ Brartemicin, isolated from bacteria of the genus Nonomuraea (belonging to the family Streptosporangiaceae of the phylum Actinobacteria), is a diester of trehalose with two aromatic ring structures. Interestingly, the high affinity of synthetic brartemicin for the carbohydrate recognition domain of bovine Mincle dropped 30-fold when the monoester was used instead of the diester, while trehalose alone had 100-fold reduced affinity.²⁹ Thus, investigation of these non-lipid trehalose esters revealed a similar requirement for optimal binding to Mincle as found in our experiments comparing trehalose mono- and diesters with fatty acids with chain lengths between 14 and 22 carbon atoms.

For the in vivo comparison of immune activation in mice, the stearate analogues were selected and incorporated into DDA liposomes. Recently, we detected similar responses for mice immunized with the tuberculosis antigen H56 (Ag85B-ESAT-6-Rv2660c fusion protein) co-administered with DDA/TDB liposomes, DDA/TDS liposomes and DDA/TDP liposomes, suggesting that immune activation is independent of the chain length for these TDX analogues.^8,30 In accordance with the in vitro findings in the present study, the TMS and PEG–TDS incorporated into DDA liposomes showed significantly reduced immunostimulatory efficacy in mice as compared to that of the diester TDS. It is clear from the results obtained in both IFN-γ and IL-17a ELISA assays, as well as by the frequency of cytokine-producing T cells from the intracellular cytokine staining experiments, that the diester structure confers a more robust immune response as compared to that of the monoester. In addition, headgroup display mode is obviously important, as insertion of a short PEG spacer between the trehalose headgroup and the acyl chains of TDS significantly reduced immune stimulation. This is consistent with a reduced activation of macrophages and DC by PEG-TDS in vitro, and its binding to Mincle–Fc only at high concentrations. PEG–TDS-induced G-CSF production was dependent on Mincle- and Myd88 signalling, suggesting that this compound (or minor impurities in the preparation) may activate TLR signalling in addition to Mincle.

The reduction in adjuvanticity (when comparing TDS with TMS) was not as pronounced in the in vivo studies as observed for macrophage activation in vitro. This might be explained by a Mincle-independent intrinsic immune-activating ability of DDA liposomes, as also documented in the literature, where DDA liposomes combined with the H1 antigen were shown to induce IFN-γ, although these IFN-γ levels were five times lower than the levels induced by DDA liposomes containing 11 mol% TDB.^2,3,14

The design of adjuvants with a mixed Th1/Th17 response profile has been suggested to be important for vaccination-induced control of lung infectious diseases, such as tuberculosis.^31,32 IL-17 has been shown to be essential for the formation of iBALT, which has resulted in a special interest in Th17-inducing mucosal vaccines.^33–35 However, T cells with IFN-γ⁺/IL-17a⁺ polyfunctionality are not well described in the literature and their significance is thus largely unknown. The induction of IFN-γ⁺/IL-17a⁺ co-expressing T cells has been correlated with vaccine-induced protection upon vaccination with DDA/TDB liposomes and MOMP.²⁰ In the in vivo experiments conducted, it was observed that polyfunctional T cells (IFN-γ⁺/IL-17a⁺ double-positive T cells) were present in the spleen, regardless of the adjuvant system used for immunization, albeit at higher absolute numbers in mice receiving DDA/TDX. Whether or not these cells retain this polyfunctionality for a longer time or alternatively differentiate into either IFN-γ⁺ or IL-17a⁺ single-positive cells will depend on the plasticity of the immune response initiated.

The results from the in vitro and the in vivo experiments collectively infer that the diester structure is important for efficient activation of macrophages via Mincle interaction, as well as for the induction of robust Th1/Th17 immune responses upon immunization. Besides providing new insight into the requirements for glycolipid recognition by Mincle, our findings have direct implications for the development of trehalose esters as adjuvants. In this context, it is important to determine whether the superior activity of the diesters shown here in the murine system is comparable in human macrophages and DC. The consequences of combined stimulation of APCs with Mincle and TLR ligands for immune activation and immunomodulation, for example by synergistic induction of IL-10, is another emerging question.³⁶ Given the increasing number of microbial and synthetic Mincle ligands reported recently, the investigation of their biological activity on macrophages and other cells contributing to pathogen sensing, inflammation, and induction of T cell immune responses can be expected to yield detailed and exciting knowledge on the relationship between structural requirements and biological activities in the near future.
