Abstract

The structural, elastic, and electronic properties of multi-performance ternary phase MgCaSi have been investigated by density functional theory. The present results show that MgCaSi is thermodynamically and mechanically stable. The derived elastic constants indicate that the c axis is the easiest to compress, followed by the a and b axes. The bulk, shear, and Young’s moduli of MgCaSi are higher than these of the mother phase Ca₂Si, demonstrating that the hardness of MgCaSi has been favorably improved. The higher Debye temperature of MgCaSi also indicates stronger interatomic interactions and better thermal conductivity. Although MgCaSi exhibits less brittleness based on Pugh’s empirical formula, Poisson’s ratio, and the Cauchy pressure, orthorhombic MgCaSi possesses lower anisotropy than Ca₂Si based on several criteria. To reveal the bonding nature of MgCaSi, the electronic structures are further investigated. It is found that the strong Si−Si bond plays a significant role for structural stability and elastic properties.

Keywords

density functional theory elastic properties electronic structures MgCaSi alloys structural stabilities

Introduction

Magnesium alloys have attracted significant attention due to their weight reduction when used in automobiles and aerospace.^1–6 Furthermore, lightweight elements such as Si, Ca, and Al are also added to improve the strength and ductility of these Mg alloys,^7–9 and hence lightweight elements are important additives for industrial magnesium alloys. It has been shown that the addition of calcium can improve the strength and creep resistance of Mg alloys,¹⁰ and silicon is also found to improve the mechanical properties of Mg alloys;¹¹ hence, binary Mg-Ca and Mg-Si alloy systems have been developed and studied extensively.^12–14 Moreover, several industrial Mg alloys containing both Ca and Si additives have been developed.¹⁵ These new MgCaSi alloys not only are superior structural materials but also offer potential as new types of degradable biomaterials suitable for implant components with a minimized risk of rejection and toxicity.^16,17 They can also serve as promising candidates for new and environmentally friendly thermoelectric materials due to the eight valence electrons and applicable electronic structures.¹⁸ Thus, ternary MgCaSi alloys^18,19 have attracted significant research interest.

With the technical development of addition of Ca and Si to Mg alloys, several ternary phases have been reported in MgCaSi alloys,^9,11,16–19 such as MgCaSi, Ca₇Mg_7.5±δSi₁₄, Ca₂Mg₃Si, and Ca₂MgSi₃. These ternary phases play an important role in the microstructures, properties, and applications of MgCaSi alloys, especially ternary MgCaSi which is a very typical and important phase. Experimentally, the observed precipitated MgCaSi phase increases the tensile strength of alloys.^20–23 Moreover, this phase may also be a promising thermoelectric material^18,24 and hydrogen storage material.¹⁵ However, research on the ternary MgCaSi phase is very scarce because this ternary phase often occurs as adventitious byproducts. Recently, single crystals of MgCaSi were produced using the metal flux synthesis method⁹ and can also be formed when a mixed powder of CaSi₂ and Mg is heated;²⁴ it can even be formed at the Ca₂Si/Mg₂Si interface by heat treatment in Ca vapor.²³ Although these experiments have produced single-crystal MgCaSi, and some important physical and chemical properties such as hydrogen-storage behavior, heat capacity, and resistivity have also been studied,⁹ crucial information on the mechanical, electronic, and other related properties is still scarce; thus, an understanding of its properties is far from complete. Specifically, to the best to our knowledge, theoretical investigations of this ternary phase are lacking.

The elastic properties describe the response of crystals to external stress, as characterized by the bulk, shear, Young’s moduli, and Poisson’s ratio, which directly relate to the hardness and strength of materials.^25,26 The elasticity provides an essential criterion for the mechanical stability of crystal materials. Moreover, many microscopic processes of materials, such as dislocation interactions and crack propagation, can be studied based on the elasticity of materials. The elastic properties also concern the thermodynamic properties, such as phonon spectra, the melting points, and Debye temperatures. In particular, the elasticity of materials is quite helpful for studying structural phase transitions and searching for new materials. From an application standpoint, elasticity is very fundamental for structural materials because it provides the important parameters of mechanical properties, and the underlying electronic mechanism is also valuable for the design and manufacture of various purpose thermoelectric devices.²⁷ Furthermore, knowledge of elastic properties is fundamental for hydrogen-storage behavior and for biomaterials suitable as implant components. Therefore, as structural materials, thermoelectric materials, and hydrogen-storage materials, a knowledge of the elastic properties of MgCaSi is important, and hence study of the elastic properties of MgCaSi is both necessary and urgent.

The single-crystal elastic constants are related to the tribology and stiffness, and they are the important parameters of mechanical properties for crystals.

Although experimental investigations on MgCaSi have been carried out,^11,17 theoretical research on the mechanical and electronic properties of the ternary MgCaSi phase is rare. Investigations based on density functional theory (DFT) have become a powerful tool in materials science and engineering, which can effectively overcome the limitations of experiments and can predict various properties of materials, and the results are in good agreement with the experimental measurements. So, in this paper, first-principles calculations based on DFT are employed to study the structural, elastic, and electronic properties of the multi-performance ternary MgCaSi phase by comparison with the mother phase Ca₂Si. Our goal is to determine the thermodynamic and mechanical stability of the multi-performance ternary MgCaSi phase and to identify mechanical properties for structural applications, and to further probe the features of the electronic structure and chemical bonding to deepen the understanding of the underlying mechanism for important physical and chemical properties as thermoelectric and hydrogen storage materials. Hence, the present investigation not only provides useful references for mechanical properties of the MgCaSi phase and its structural applications, but also is valuable for understanding the thermoelectric properties hydrogen-storage behavior and implant component applications as biomaterials.

Results and discussion

Structure and stability

From its chemical stoichiometry, the ternary MgCaSi compound appears to be associated with the Zintl phases Mg₂Si and Ca₂Si; it is in fact the complete substitution of Mg for Ca on one of the 4c sites in the Ca₂Si structure, which results in a three-dimensional (3D) Mg/Si network forming channels in which the calcium cations reside. Hence, the Mg and Si sites are four-bonded with highly distorted tetrahedral coordination.⁹ Finally ternary MgCaSi also possesses an orthogonal structure with the space group Pnma (No. 62), in which the Mg, Ca, and Si atoms are located in three independent 4c sites. The crystal structure is shown in Figure 1.

Figure 1.

Crystal structure of (a) Ca₂Si and (b) MgCaSi.

Starting from the above crystal structure, the structural optimization was performed by full relaxation of the cell shape and atomic positions. The optimized lattice constants of MgCaSi are a = 7.4669 Å, b = 4.4311 Å, and c = 8.3019 Å, which are in accordance with the available experimental data, a = 7.4752 Å, b = 4.4272 Å, and c = 8.3149 Å,⁹ and theoretical results, a = 7.4800 Å, b = 4.4000 Å, and c = 8.2900 Å.²⁸ The optimized atomic internal positions are tabulated in Table 1, which are also close to the experimental values, showing that the selected calculation parameters are reasonable, and that our calculations are reliable. For comparison, the lattice constants of the mother phase Ca₂Si have also been calculated, and the optimal results, a = 7.648 Å, b = 4.818 Å, and c = 9.041 Å, being also in good agreement with experimental, a = 7.691 Å, b = 4.816 Å, and c = 9.035 Å, and theoretical data, a = 7.667 Å, b = 4.799 Å, c = 9.002 Å. This excellent agreement again shows the high accuracy and reliability of the present calculations. Because the atomic radius (1.60 Å) of Mg is 0.37 Å smaller than that of a Ca atom (1.97 Å), the lattice constant of ternary MgCaSi is slightly reduced. The distinct degree of reduction along three principle axes implies a difference in the chemical bonding.

Table 1.

Atomic positions in the unit cell of MgCaSi.

Atom	Wyckoff position		x	y	z
Mg	4c	Relaxed	0.14481	0.25000	0.06421
Mg	4c	Expt.^a	0.14423	0.25000	0.06378
Ca	4c	Relaxed	0.01909	0.25000	0.68088
Ca	4c	Expt.^a	0.01945	0.25000	0.68077
Si	4c	Relaxed	0.27021	0.25000	0.38545
Si	4c	Expt.^a	0.27073	0.25000	0.38565

From Whalen et al.⁹

To study the phase stability, enthalpy of formation is calculated by the following expression²⁹

Δ H = \frac{E_{t o t} - N_{A} E_{s o l i d}^{A} - N_{B} E_{s o l i d}^{B} - N_{C} E_{s o l i d}^{C}}{N_{A} + N_{B} + N_{C}}

(1)

where $E_{t o t}$ is the total energy of the unit cell and $E_{s o l i d}^{A}$ , $E_{s o l i d}^{B}$ , and $E_{s o l i d}^{C}$ refer to the total energies of single atoms in pure solid states A, B, and C, respectively. N_A, N_B, and N_C represent the numbers of A, B, and C atoms in the unit cell. The calculated enthalpy of formation of MgCaSi is −0.4766 eV atom⁻¹. The negative enthalpy of formation indicates the thermodynamic stability of MgCaSi. For comparison, the enthalpy of formation of Ca₂Si was also calculated and the result is −0.4474 eV atom⁻¹, which agrees well with the available experimental and theoretical data.¹¹ Compared to the mother phase Ca₂Si, MgCaSi with a lower enthalpy of formation is more thermodynamically stable because the lower enthalpy of formation implies stronger stability.

Elastic properties

Elastic constants are the measure of the response of a crystal to the externally applied stress. Under small strain, Hooke’s law is valid, so the elastic strain total energy E is a quadratic function of strain.³⁰ To calculate the elastic constants, a crystal is elastically strained, and the total strain energy is determined.³¹ Details of the calculation of elastic constants by the energy-strain method are described elsewhere.^32,33 For the orthogonal structure, there are nine independent elastic constants: C₁₁, C₂₂, C₃₃, C₄₄, C₅₅, C₆₆, C₁₂, C₁₃, and C₂₃.³⁴ The corresponding nine types of elastic strain are required, as listed in Table 2. In this work, five different deformations for each strain, δ = 0, ±0.005, ±0.01, are taken to calculate the elastic constants. The derived nine independent elastic constants for orthorhombic MgCaSi are listed in Table 3. Clearly, the elastic constant C₃₃ of MgCaSi is smaller than C₁₁, and C₁₁ is only very slightly smaller than C₂₂, showing that the compressibility along the c axis is easier than along the a and b axes, while the b axis is the hardest to compress, implying that the atomic bonding along the c axis is weaker than along the a axis and b axis. The shear elastic constants decrease in the order of C₄₄, C₆₆, and C₅₅. For comparison, the elastic constants of the mother phase Ca₂Si are also calculated and are listed in Table 3. It can be seen that all the elastic constants C_ij increase with formation of the MgCaSi phase due to substitution of Mg for Ca on one of the 4c sites in the Ca₂Si structure. This demonstrates that the incompressibility and shear resistance in MgCaSi phase are stronger.

Table 2.

The strains during calculation of the elastic constants of MgCaSi and Ca₂Si.

Strain type	Strain tensor (unlisted: e_i = 0)	$δ \frac{1}{V_{0}} \frac{\partial^{2} Δ E}{\partial δ^{2}} \|_{δ = 0}$
(δ, 0, 0, 0, 0, 0)	e₁ = δ	1/2C₁₁
(0, δ, 0, 0, 0, 0)	e₂ = δ	1/2C₂₂
(0, 0, δ, 0, 0, 0)	e₃ = δ	1/2C₃₃
(0, 0, 0, δ, 0, 0)	e₄ = δ	1/2C₄₄
(0, 0, 0, 0, δ, 0)	e₅ =δ	1/2C₅₅
(0, 0, 0, 0, 0, δ)	e₆ = δ	1/2C₆₆
(δ, δ, 0, 0, 0, 0)	e₁ = e₂ = δ	1/2C₁₁ + C₁₂ + 1/2C₂₂
(0, δ, δ, 0, 0, 0)	e₂ = e₃ = δ	1/2C₂₂ + C₂₃ + 1/2C₃₃
(δ, 0, δ, 0, 0, 0)	e₁ = e₃ =δ	1/2C₁₁ + C₁₃ + 1/2C₃₃

Table 3.

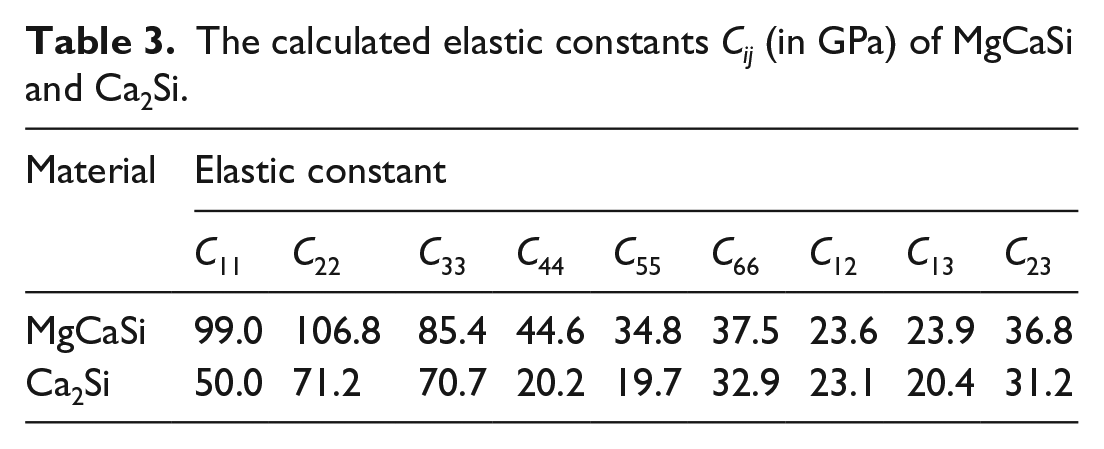

The calculated elastic constants C_ij (in GPa) of MgCaSi and Ca₂Si.

Material	Elastic constant
Material	C ₁₁	C ₂₂	C ₃₃	C ₄₄	C ₅₅	C ₆₆	C ₁₂	C ₁₃	C ₂₃
MgCaSi	99.0	106.8	85.4	44.6	34.8	37.5	23.6	23.9	36.8
Ca₂Si	50.0	71.2	70.7	20.2	19.7	32.9	23.1	20.4	31.2

Mechanical stability of crystalline materials requires meeting the condition that the strain energy should be positive against any strain. For an orthorhombic crystal, the requirement of mechanical stability leads to the following restrictions on the elastic constants³⁵

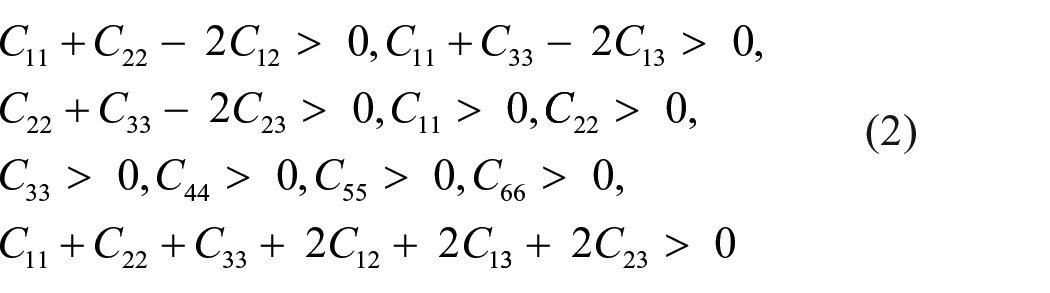

\begin{array}{l} C_{11} + C_{22} - 2 C_{12} > 0, C_{11} + C_{33} - 2 C_{13} > 0, \\ C_{22} + C_{33} - 2 C_{23} > 0, C_{11} > 0, C_{22} > 0, \\ C_{33} > 0, C_{44} > 0, C_{55} > 0, C_{66} > 0, \\ C_{11} + C_{22} + C_{33} + 2 C_{12} + 2 C_{13} + 2 C_{23} > 0 \end{array}

(2)

The calculated elastic constants obey the above criteria, so the orthogonal ternary phase MgCaSi is mechanically stable.

Using the single crystal elastic constants, the polycrystalline elastic moduli are further derived using the Voigt–Reuss–Hill (VRH) approximation.³⁶ The Voigt and Reuss approximations represent the maximum and minimum limits of the polycrystalline elastic moduli, respectively.³⁷ For the orthorhombic system, the Voigt bounds of B and G are

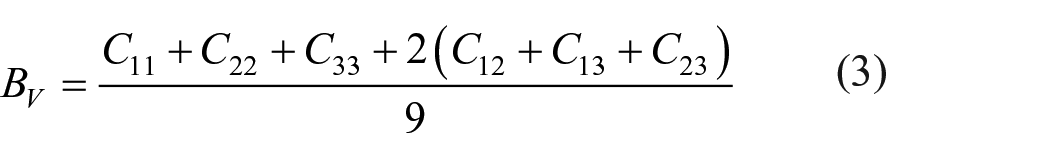

B_{V} = \frac{C_{11} + C_{22} + C_{33} + 2 (C_{12} + C_{13} + C_{23})}{9}

(3)

G_{V} = \frac{\begin{array}{l} C_{11} + C_{22} + C_{33} - C_{12} - C_{13} - \\ C_{23} + 3 (C_{44} + C_{55} + C_{66}) \end{array}}{15}

(4)

And the Reuss bounds are

B_{R} = \frac{1}{S_{11} + S_{22} + S_{33} + 2 (S_{12} + S_{13} + S_{23})}

(5)

G_{R} = \frac{15}{\begin{array}{l} 4 (S_{11} + S_{22} + S_{33}) - 4 (S_{12} + S_{13} + S_{23}) \\ + 3 (S_{44} + S_{55} + S_{66}) \end{array}}

(6)

where S_ij is the elastic compliance constant, $S_{i j}$ = $C_{i j}^{- 1}$ .

Finally, the VRH mean values of B and G are obtained by

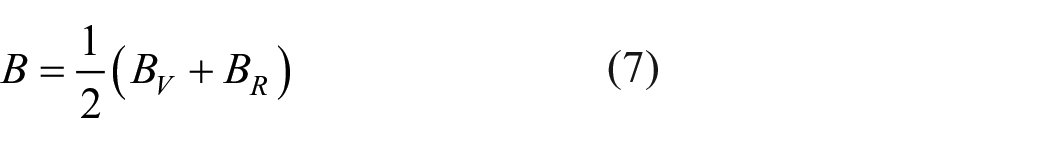

B = \frac{1}{2} (B_{V} + B_{R})

(7)

G = \frac{1}{2} (G_{V} + G_{R})

(8)

Furthermore, Young’s modulus E and Poisson’s ratio υ can be obtained from the bulk modulus and the shear modulus

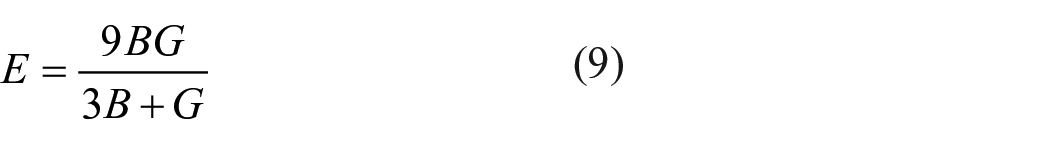

E = \frac{9 B G}{3 B + G}

(9)

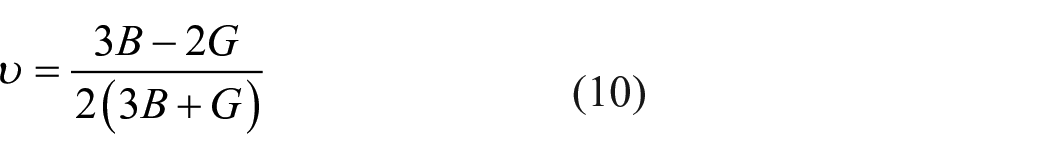

υ = \frac{3 B - 2 G}{2 (3 B + G)}

(10)

The calculated results are listed in Table 4. The bulk modulus of MgCaSi is larger than that of Ca₂Si, showing that the orthogonal ternary MgCaSi phase has strong resistance to volume change because the bulk modulus can be a measurement of resistance to the volume change by applied pressure. Shear modulus is a measure of resistance to reversible shear deformations upon shear stress; it also reflects the strength of directional bonding. The calculated results in Table 4 demonstrate that the shear modulus of MgCaSi is larger than that of Ca₂Si, so MgCaSi possesses stronger resistance to reversible shear deformations upon shear stress than the mother phase Ca₂Si, and the directional bonding in MgCaSi would also be much stronger. Young’s modulus is essential for technological and engineering applications; it provides an estimate of the stiffness of the solid. The larger the Young’s modulus, the stiffer the material is.³⁸ From the calculated values, MgCaSi is much stiffer than Ca₂Si. Furthermore, Poisson’s ratio is an important quantity, which further reflects the stability of a crystal against shear and which usually ranges from −1 to 0.5.³⁹ The smaller value corresponds to the stronger stability under the shear stress. In comparison with Ca₂Si, MgCaSi is more stable against shear due to the smaller Poisson’s ratio.

Table 4.

The elastic moduli (in GPa) and Poisson’s ratios for MgCaSi and Ca₂Si using the Voigt–Reuss–Hill (VRH) approximation.

Material	B_V	B_R	B	G_V	G_R	G	E	$υ$	G/B
MgCaSi	51.1	50.6	50.9	37.2	36.3	36.7	88.8	0.2	0.7
Ca₂Si	37.9	36.1	37.0	22.4	21.2	21.8	54.6	0.3	0.6

The ductility of the MgCaSi phase is a crucial quantity of mechanical properties, which can be estimated from the elastic properties. For isotropic polycrystalline materials, Poisson’s ratio is also correlated with the ductility of materials, and it has been employed as a parameter to identify the intrinsic ductility of crystals. A higher Poisson’s ratio implies better ductility of materials.⁴⁰ The border line between the ductility and brittleness is about 0.33.⁴¹ As can be seen from Table 4, both MgCaSi and Ca₂Si are brittle, and the brittleness of MgCaSi is slightly larger. From the fact that the bulk modulus represents the resistance to fracture, whereas the shear modulus represents the resistance to plastic deformation, Pugh⁴² has introduced an empirical ratio G/B to predict the brittle and ductile behavior of materials. A high (low) G/B value is associated with brittleness (ductility). The critical value separating ductility from brittleness is about 0.57.⁴³ The results in Table 4 show that both MgCaSi and Ca₂Si are brittle. Moreover, the brittleness of MgCaSi is slightly higher due to the slightly larger G/B ratio. The Cauchy pressure is also related to the ductility of materials because it implies the angular character of atomic bonding in materials.⁴⁴ A positive Cauchy pressure means that the atoms are surrounded by an electron cloud of spherical shape, and the electron distribution is not regional and directional. This implies more metallic bonding, while a negative Cauchy pressure suggests that the distribution of electrons is regional and directional. The more negative the Cauchy pressure, the more directional the bonding. These correlations have been verified for the ductile materials Ni and Al with positive Cauchy pressure due to the typical metallic bonding and for brittle Si semiconductors with negative Cauchy pressure due to directional bonding.⁴⁵ The three Cauchy pressure values for the orthogonal structure are computed to be C₁₂ − C₆₆ = −13.70 GPa, C₁₃ − C₅₅ = 10.91 GPa, and C₂₃ − C₄₄ = 7.82 GPa. The negative Cauchy pressure shows the directional bonding and brittle behavior of the orthogonal ternary MgCaSi phase. It is noted that no experimental or theoretical data are available for the elastic properties of MgCaSi, so the present theoretical prediction will provide useful references for further study of MgCaSi in the future.

The elastic anisotropy is important in engineering materials because it is highly correlated with the possibility of inducing microcracks.⁴⁶ Furthermore, recent research further shows that the elastic anisotropy has a significant influence on the nanoscale precursor textures in alloys.⁴⁷ Therefore, it is crucial in materials science and has been extensively studied. So far several methods have been used to study the elastic anisotropy. The elastic anisotropy in compressibility and shear can be roughly described using two-dimensionless quantities:⁴⁸ $A_{B} = (B_{V} - B_{R}) / (B_{V} + B_{R})$ and $A_{G} = (G_{V} - G_{R}) / (G_{V} + G_{R})$ . The zero value of A_B and A_G represents isotropy, while 100% represents the maximum anisotropy. The calculated results for both the MgCaSi and Ca₂Si phases are given in Table 5. Evidently, the MgCaSi phase possesses a smaller degree of anisotropy in compression and shear than Ca₂Si because the A_B and A_G values of the MgCaSi phase are smaller than those of Ca₂Si.

Table 5.

The percentage of anisotropy in compression A_B and shear A_G (in %), the universal anisotropy index $A^{U}$ , and the shear anisotropic factors A..

Material	A_B	A_G	A ^U	A ₁	A ₂	A ₃
MgCaSi	0.47	1.18	0.12	1.27	1.17	0.93
Ca₂Si	2.43	2.67	0.32	1.01	0.99	1.71

It is notable that the above estimate is just considered as the anisotropic level from the individual bulk or shear contribution. In order to determine the extent of the anisotropy considering different contributions from bulk and shear more accurately, a more universal anisotropy index $A^{U}$ has been proposed.⁴⁹ $A^{U}$ is defined as follows

A^{U} = 5 \frac{G^{V}}{G^{R}} + \frac{B^{V}}{B^{R}} - 6

(11)

In this case, A^U = 0 defines isotropy, while deviation from zero defines the extent of anisotropy. The calculated A^U values in Table 5 also show the elastic anisotropy of both phases. With substitution of Mg for Ca, MgCaSi shows a smaller degree of anisotropy than the Ca₂Si phase.

To further reveal the feature of shear anisotropy in detail, the shear anisotropic factor is introduced because it provides a measure of the degree of anisotropy in the bonding between atoms along different directions in crystal planes.⁵⁰ For orthorhombic crystals, the shear anisotropy factors between the <011> and <010> directions for the {100} shear plane, those between the <101> and <001> directions for the {010} plane, and those between the <110> and <010> directions for the {001} plane are, respectively, given by Wu et al.³⁸

A_{1} = \frac{4 C_{44}}{C_{11} + C_{33} - 2 C_{13}}

(12)

A_{2} = \frac{4 C_{55}}{C_{22} + C_{33} - 2 C_{23}}

(13)

A_{3} = \frac{4 C_{66}}{C_{11} + C_{22} - 2 C_{12}}

(14)

The A value of unity corresponds to isotropy, while values smaller or larger than unity indicate the degree of shear anisotropy. The results in Table 5 also show that both MgCaSi and Ca₂Si have obvious shear anisotropy. With complete replacement of Ca by Mg on one of the 4c sites in the Ca₂Si structure, the shear anisotropy on {100} and {010} seems to be slightly more obvious, while the degree of shear anisotropy on {001} is reduced.

To illustrate the crystallographic direction dependence of elastic properties visually and intuitively, the use of a 3D figure of elastic anisotropy is another effective way.⁵¹ The directional dependence of bulk modulus B, shear modulus G, and Young’s modulus E for a 3D figure can be determined by the following equations⁵²

B = {(\begin{array}{l} (S_{11} + S_{12} + S_{13}) l_{1}^{2} + (S_{22} + S_{12} + S_{23}) l_{2}^{2} \\ + (S_{33} + S_{13} + S_{23}) l_{3}^{2} \end{array})}^{- 1}

(15)

G = {(\begin{matrix} 2 S_{11} l_{1}^{2} (1 - l_{1}^{2}) + 2 S_{22} l_{2}^{2} (1 - l_{2}^{2}) + 2 S_{33} l_{3}^{2} (1 - l_{3}^{2}) \\ - 4 S_{12} l_{1}^{2} l_{2}^{2} - 4 S_{13} l_{1}^{2} l_{3}^{2} - 4 S_{23} l_{2}^{2} l_{3}^{2} \\ + \frac{1}{2} S_{44} (1 - l_{1}^{2} - 4 l_{2}^{2} l_{3}^{2}) + \frac{1}{2} S_{55} (1 - l_{2}^{2} - 4 l_{1}^{2} l_{3}^{2}) \\ + \frac{1}{2} S_{66} (1 - l_{3}^{2} - 4 l_{1}^{2} l_{2}^{2}) \end{matrix})}^{- 1}

(16)

E = {(\begin{array}{l} l_{1}^{4} S_{11} + l_{2}^{4} S_{22} + l_{3}^{4} S_{33} + 2 l_{1}^{2} l_{2}^{2} S_{12} + 2 l_{1}^{2} l_{3}^{2} S_{13} + \\ 2 l_{2}^{2} l_{3}^{2} S_{23} + l_{2}^{2} l_{3}^{2} S_{44} + l_{1}^{2} l_{3}^{2} S_{55} + l_{1}^{2} l_{2}^{2} S_{66} \end{array})}^{- 1}

(17)

where l₁, l₂, and l₃ represent the direction cosines and S_ij is the elastic compliance constant that can be obtained through inversion of the elastic constant matrix ( $S_{i j} = C_{i j}^{- 1}$ ). For isotropic materials, the directional dependence would be a spherical shape. The degree of deviation from a sphere indicates the extent of elastic anisotropy.⁵¹ For comparison, the calculated results for MgCaSi and Ca₂Si are shown in Figure 2. Clearly, the bulk, shear, and Young’s moduli for both phases deviate from a spherical shape, indicating elastic anisotropy. Although the two phases exhibit complex features due to the orthogonal structure, the elastic anisotropy of Ca₂Si is more evident than that of the MgCaSi phase.

Figure 2.

The 3D surface of the directional dependence of (a) bulk, (b) shear, and (c) Young’s moduli of MgCaSi and (d) bulk, (e) shear, and (f) Young’s moduli of Ca₂Si.

To further describe the detailed characteristics of elastic anisotropy, the projections on the yz-plane, xz-plane, and yx-plane of the 3D configurations of three elastic modules are accordingly shown in Figure 3. Obviously, these moduli show distinct anisotropy in three planes. For the MgCaSi phase, the bulk modulus on the yz-plane and yx-plane gradually decreases from the y to z and x axes, so the bulk modulus has a maximum along the y-axis and minimums along the z and x axes; it is noted that the value along the x axis is larger than that along the z axis. On the xz-plane, the bulk modulus decreases from the x to z axis. Shear modulus on the yz-plane decreases first and then increases from the y axis to the x axis, reaching a minimum in the 45° angle direction; the value at the y axis is slightly larger than that at the z axis. On the yx-plane, the shear modulus eventually decreases from the y axis to the x axis, dropping to 36.87 GPa. On the xz-plane, the shear modulus increases from the x axis to the z axis, up to 39.89 GPa. The anisotropy of Young’s modulus exhibits approximately the opposite feature to the shear modulus. By comparison, the elastic anisotropy of Ca₂Si also exhibits complex features due to the orthogonal structure. It is noted that the projection of the shear modulus on the yz and xz planes is similar. Evidently, with half the Ca atoms of Ca₂Si replaced by Mg atoms, the degree of anisotropy is decreased, which is consistent with the above discussion.

Figure 3.

The projections of the directional dependence of the (a) bulk, (b) shear, (c) and Young’s moduli of MgCaSi, and the (d) bulk, (e) shear, and (f) Young’s moduli of Ca₂Si. The thick lines represent the yz-plane, the short dashed lines are the xz-plane, and the long dashed lines are the yx-plane.

Debye temperature

The Debye temperature is also fundamental parameter in solid materials, which is related to many physical properties, such as melting temperature, thermal expansion coefficient, heat conductivity, and specific heat.^53,54 The Debye temperature can also characterize the strength of covalent bonds in solids.⁵⁵ The Debye temperature is calculated from the following equation⁵⁶

θ_{D} = \frac{h}{k} {[\frac{3 q}{4 π} \frac{N_{A} ρ}{M}]}^{\frac{1}{3}} υ_{m}

(18)

where h represents Planck’s constant, k denotes Boltzmann’s constant, q represents the number of atoms in the molecule, N_A refers to Avogadro’s number, ρ denotes the density, M refers to the molecular weight, and υ_m represents the average sound velocity in the polycrystalline material, which is approximately given by⁵⁶

υ_{m} = {[\frac{1}{3} (\frac{2}{υ_{s}^{3}} + \frac{1}{υ_{l}^{3}})]}^{\frac{- 1}{3}}

(19)

where υ_s and υ_l represent the longitudinal and transverse sound velocity and can be obtained from Navier’s equation⁵⁷

υ_{s} = \sqrt{G / ρ} and υ_{l} = \sqrt{(B + \frac{4}{3} G) / ρ}

(20)

The calculated density, wave velocities, and Debye temperatures of MgCaSi and Ca₂Si are shown in Table 6. The greater elastic moduli of MgCaSi lead to a larger transverse and longitudinal acoustic velocity, and also a higher average sound velocity, so the Debye temperature of MgCaSi is also higher. It should be noted that the Debye temperature depends upon the characteristics of chemical bonds, and higher Debye temperatures correspond to stronger interatomic interactions⁵⁵ and stronger bonding strengths.^58,59 Therefore, MgCaSi, with a higher Debye temperature, possesses stronger interatomic interactions and chemical bonds than Ca₂Si. Moreover, MgCaSi also has better thermal conductivity owing to the higher Debye temperature.⁶⁰ The obtained data will be valuable for further theoretical and experimental investigations in the future.

Table 6.

The computed densities (ρ in g cm⁻³); longitudinal, transverse, and average sound velocities ( $υ_{s}$ , $υ_{l}$ , $υ_{m}$ in m s⁻¹); and Debye temperatures ( $θ_{D}$ in K).

Compound	ρ	$υ_{s}$	$υ_{l}$	$υ_{m}$	$θ_{D}$
MgCaSi	2.232	4055	6689	4481	470.5
Ca₂Si	2.170	3167	5518	3518	347.0

Electronic structure

The electronic properties of MgCaSi are of particular interest. On one hand, MgCaSi may be a semiconducting Zintl phase, like orthorhombic calcium silicide. On the other hand, this MgCaSi phase is considered to span the boundary between charge-balanced semiconducting Zintl phases and fully delocalized intermetallics.⁹ Therefore, exploration of the electronic structure for materials falling between these two classifications has been of significant interest. In order to study the electronic properties of the ternary MgCaSi phase and reveal the inherent mechanism for structural stability and mechanical properties from the chemical bonding, the electronic density of states (DOS) for MgCaSi is calculated and displayed in Figure 4(a), in which the Fermi level is set as zero as marked by the vertical lines. For comparison, the calculated DOS of Ca₂Si is also shown in Figure 4(b). Clearly, Ca₂Si has a narrow band gap, which shows that Ca₂Si is semiconducting in nature. The present band gap from generalized gradient approximation (GGA) calculations is 0.34 eV, being close to the other theoretical result of 0.36 eV via the local density approximation (LDA) method.⁶¹ Clearly the theoretical band gap is smaller than the experimental measurement of about 1.90 eV,⁶² the deviation originates from the limitations of the pseudopotential and GGA. When half the Ca of Ca₂Si is replaced by Mg, the band gap disappears and a pronounced pseudo-gap is formed at the Fermi level (E_F). The DOS at the bottom of the pseudo-gap at the Fermi level is close to zero, showing that the MgCaSi phase is intrinsically metallic. Moreover, Ca, Mg, and Si contribute to the states near E_F being almost equally; this indicates significant cation–anion orbital mixing (hybridization),⁹ which results in closing of the gap at the Fermi level and metallic behavior. The present results are in good agreement with theoretical calculations using the TBLMTO-ASA program package, where crystal parameters are derived from room temperature X-ray single crystal diffraction data. Meanwhile, the Fermi level located at a valley of the pseudo-gap implies pronounced covalence bonding between atoms, so the MgCaSi phase has a strong stability.⁶³

Figure 4.

The total and partial electronic density of the states of (a) MgCaSi and (b) Ca₂Si, in which the vertical dotted lines indicate the Fermi levels.

For both, the MgCaSi and Ca₂Si phases, the valence band comprises two parts. Figure 4(b) demonstrates that for the Ca₂Si phase the valence band in the lower energy region originates mainly from hybridization of the 3s states of Si with the 3p, 3d, and 4s states of Ca. For the valence band in the high energy region near the Fermi level, DOS is mainly composed of the Si 3p states and the Ca 3p, 3d, and 4s states. The present results indicate an obvious covalent bonding between Si−Ca atoms. As shown in Figure 4(a), with the substitution of Mg for Ca, in spite of the similarity of hybridization between Si and Ca atoms, the apparent difference is that in the low energy valence band, the Mg 3s and 2p states hybridize with the Si 3s and Ca 3p, 3d, and 4s states. In the valence band near the Fermi level, the Mg 2p states hybridize strongly with the Si 3p and Ca 3d states, and hybridization of the Mg 3s states with the Si 3p and Ca 3p, 3d, and 4s states can also be observed, implying Mg−Si and Ca−Si covalent bonding in the MgCaSi phase. The Mg−Ca covalent bond is also obvious due to hybridization of the Mg 3s and 2p states with the Ca 3p, 3d, and 4s states in two valence bands. Evidently, with substitution of Ca in Ca₂Si by Mg, the newly formed Mg−Si and Mg−Ca covalent bonds are stronger, so the stability of MgCaSi is higher, and the elastic constants and elastic moduli are enhanced.

The charge density distributions were also investigated in order to gain more insight into the features of the bonding. Figure 5(a) and 5(b) displays the calculated contour plots of the charge density distributions on the (010) plane for Ca₂Si and MgCaSi. The contour lines are plotted from 0 to 0.05 e Å⁻³ with 0.005 e Å⁻³ intervals. High-density regions correspond to the core electron distribution of the Ca and Si atoms, so contributing relatively little to the chemical bonding.³⁸ From Figure 5(a), one can see clearly that there exists evident overlap of electron densities between Si and Ca atoms in Ca₂Si, so the Ca−Si bond possesses a characteristic of covalent bonding. This covalent bonding has somewhat ionicity because the electronegativity of Si is larger than that of Ca. The Si−Si and Ca−Ca bonds are not very strong. With substitution of Mg with Ca on one of the 4c sites in Ca₂Si, the charge density of MgCaSi in Figure 5(b) shows that the Si−Si covalent bonds become much stronger due to a large amount of charge overlap between Si atoms. Although an Si−Mg covalent bond is formed, the ionicity of the Si−Mg bond is also obvious. The Ca−Si bond is similar to the Ca−Si bond in Ca₂Si. The above features demonstrate that with replacement of Ca by Mg on one of the 4c sites in Ca₂Si, the strong Si−Si covalent bond is an important bonding feature of MgCaSi. The calculated charge density distributions and DOS values show that stronger Si−Si, Mg−Si, and Mg−Ca bonds are formed in the ternary MgCaSi phase. Therefore, compared to Ca₂Si, the MgCaSi phase has stronger elastic constants and moduli due to the stronger chemical bonding.

Figure 5.

The contour plots and charge densities on the (010) plane for (a) Ca₂Si and (b) MgCaSi.

Conclusion

The structural, elastic, and electronic properties of multi-performance ternary MgCaSi have been investigated based on DFT within the GGA. The lattice constants of MgCaSi are reduced due to the smaller atomic radii of Mg than that of Ca. Ternary MgCaSi is more thermodynamically stable owing to a more negative enthalpy of formation in comparison with the Ca₂Si mother phase; MgCaSi is mechanically stable because the calculated nine independent elastic constants satisfy Born’s criterion. The compressive elastic constant along three principle axes indicates that atomic bonding along the c axis is weaker than that along the a and b axes. The derived bulk, shear, and Young’s moduli increase with the formation of the MgCaSi phase due to replacement of Ca by Mg in the Ca₂Si phase, implying that the hardness of MgCaSi has been favorably improved. Compared to the Ca₂Si mother phase, the orthogonal ternary MgCaSi phase exhibits smaller elastic anisotropy from several criteria. The calculated Debye temperature of MgCaSi is higher, showing the stronger interatomic interactions, chemical bonds, and higher thermal conductivity. The electronic density of the states and charge density distributions have been further investigated to reveal the bonding features in MgCaSi. The formed stronger Si−Si bond in MgCaSi would play a crucial role for higher stability and increased elastic moduli. These results are expected to be valuable for the further optimization and design of new magnesium alloys with excellent mechanical properties.

Experimental

The DFT calculations were performed with the projector augmented plane wave method, as implemented in the Vienna Ab Initio Simulation Package (VASP) code.⁶⁴ The valence electron configurations are 2p⁶3s² for Mg, 3p⁶4s² for Ca, and 3s²3p² for Si, respectively. The ion–valence interactions were treated with the projector augmented wave (PAW),⁶⁵ and plane-wave cut energy was 400 eV in all calculations. The exchange-correlation functional for electron–electron interactions was treated within the GGA⁶⁶ parameterized by Perdew, Barke, and Ernzerhof (PBE).⁶⁷ The Brillouin zone integrations were performed using k-point sampling of the Monkhorst–Pack scheme,⁶² and 8 × 12 × 8 grids were used for optimization of the geometrical structure of the conventional unit cell and 10 × 14 × 10 grids for calculation of the electronic structure. Structural optimization was performed by full relaxation until the total energy difference was less than 10⁻⁴ eV atom⁻¹, the Hellmann–Feynman force on all atoms was less than 10⁻² eV Å⁻¹, and the maximum stress was within 0.02 GPa. In the present calculations, the equilibrium lattice parameters were obtained by fitting the calculated total energy–volume curves into the Birch–Murnaghan equation of state (EOS).⁶⁸ Elastic stiffness constants were calculated using the energy-strain method,³⁰ and elastic moduli were derived within the VRH approximation.³⁶ The numerical accuracy of the DFT-based elastic constants and moduli was set to 0.1 GPa, and the electronic total energy and DOS were calculated using the linear tetrahedron method with the Blöchl correction.⁶⁹

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (Grant No. 51461002) and the Key Project of Guangxi Scientific Foundation (Grant No. 2018GXNSFDA281010).

ORCID iD

Bi-Yu Tang

References

Wang

Zhang

Hudon

, et al. J Alloy Compd 2015; 639: 593.

Aghion

Bronfin

Eliezer

, et al. Mater Sci Forum 2003; 419: 407.

Shang

Wang

Zhou

, et al. Acta Mater 2014; 67: 168.

Ağduk

Gökoğlu

J Alloy Compd 2012; 520: 93.

Mahjoub

Laws

Scicluna

, et al. Comp Mater Sci 2015; 96: 246.

Shao

Shi

Zheng

, et al. J Alloy Compd 2016;654: 475.

Kim

Seong

Jun

, et al. J Alloy Compd 2007; 434: 324.

Park

Bae

Kang

, et al. Scripta Mater 2007; 57: 793.

Whalen

Zaikina

Achey

, et al. Chem Mater 2010; 22: 1846.

10.

Hampl

Gröbner

Schmid-Fetzer

J Mater Sci 2007; 42: 10023.

11.

Gröbner

Chumak

Schmid-Fetzer

Intermetallics 2003; 11: 1065.

12.

Zhou

, et al. Acta Biomater 2010; 7: 1880.

13.

Liu

Zhu

Qin

, et al. Metal 2016; 6: 78.

14.

Silsby

Sui

, et al. Chem Mater 2015; 27: 6708.

15.

Buch

Schumann

Friedrich

, et al. Metall-Int Fachz für Metall 2002; 56: 40.

16.

Lou

, et al. Biomaterials 2008; 29: 1329.

17.

Gil-Santos

Szakacs

Moelans

, et al. J Alloys Compd 2017; 694: 767.

18.

Katsura

Takagi

J Electron Mater 2013; 42: 1365.

19.

Wang

Yang

Yao

, et al. J Mater Res 2017; 32: 3723.

20.

Ben-Hamu

Eliezerand

Shin

KS.

Mater Sci Eng: A 2007; 447: 35.

21.

Yuan

Liu

Wang

, et al. Mater Lett 2002; 56: 53.

22.

Luo

Liu

Acta Mater 2007; 55: 531.

23.

Hosono

Kuramoto

Matsuzawa

, et al. Appl Surf Sci 2003; 216: 620.

24.

Niwa

Todaka

Masuda

, et al. Mater Trans 2009; 50: 1725.

25.

Chouhan

Pagare

Sanyal

, et al. Comp Mater Sci 2012; 65: 58.

26.

Shakil

Zafar

Ahmed

, et al. Chin Phys B 2016; 25: 324.

27.

Anatychuk

Luste

Mikhalchenko

J Ther 2003; 3: 30.

28.

Eisenmann

Schäfer

Weiss

Z Anorg Chem 1972; 391: 241.

29.

Sahu

Mater Sci Eng B 1997; 49: 74.

30.

Meenaatci

ATA

Rajeswarapalanichamy

Iyakutti

Thin Solid Films 2012; 525: 200.

31.

Koroglu

Cabuk

Deligoz

J Alloy Compd 2013; 574: 520.

32.

Priyanga

Rajeswarapalanichamy

Iyakutti

J Rare Earth 2015; 33: 289.

33.

Wang

Zhang

, et al. Chin Phys B 2016; 25: 350.

34.

Ravindran

Fast

Korzhavyi

, et al. J Appl Phys 1998; 84: 4891.

35.

Beckstein

Klepeis

Hart

, et al. Phys Rev B 2001; 63: 134112.

36.

Hill

Proc Phys Soc Lond Sect A 1952; 65: 349.

37.

Beddiaf

Djaballah

Bouderba

, et al. Mod Phys Lett B 2014; 28: 610.

38.

Wen

Tang

, et al. J Alloy Compd 2010; 506: 412.

39.

Tang

Peng

, et al. Phys B 2010; 405: 4812.

40.

Greaves

Greer

Lakes

, et al. Nat Mater 2011; 10: 823.

41.

Hadi

Ali

MS.

Chin Phys B 2016; 25.

42.

Pugh

SF.

Philos Mag 1954; 45: 823.

43.

Yang

Hou

Xing

, et al. J Mol Struct 2014; 1076: 63.

44.

Suetin

Shein

Ivanovskii

Solid State Sci 2010; 12: 814.

45.

Pettifor

DG.

Mater Sci Technol 1992; 8: 345.

46.

Bannikov

Shein

Ivanovskii

Phys B 2012; 407: 271.

47.

Benmakhlouf

Bentabet

Bouhemadou

, et al. Solid State Sci 2015; 48: 72.

48.

Chung

Buessem

Anisotropy in single-crystal refractory compounds, vol. 2 (ed Vahldiek

Mersol

). New York: Plenum Press, 1968, pp. 217–225.

49.

Ranganathan

Ostoja-Starzewski

Phys Rev Lett 2008; 101: 055504.

50.

Kavcı

Cabuk

Comput Mater Sci 2014; 95: 99.

51.

Chen

Zeng

Wang

, et al. Comput Mater Sci 2012; 54: 287.

52.

Nye

JF.

Physical properties of crystals: their representation by tensors and matrices. Oxford: Oxford University Press, 1985.

53.

Wang

Zhang

, et al. Chin Phys B 2016; 25: 086302.

54.

Pan

Ma L, Bian

Wang

, et al. Phys Scr 2013; 87: 015601.

55.

Huang

Zhao

Hou

, et al. Phys B 2012; 407: 1075.

56.

Anderson

OL.

J Phys Chem Solids 1963; 24: 909.

57.

Screiber

Anderson

Soga

New York: McGraw-Hill Com. Inc, 1973.

58.

Bao

Liu

Lia nd

, et al. Ceram Int 2019; 45: 1857.

59.

Bao

Liu

, et al. Mater Res Express 2019; 6: 086574.

60.

Liu

, et al. Comput Mater Sci 2014; 83: 27.

61.

Imai

Watanabe

Intermetallics 2002; 10: 333.

62.

Monkhorst

Pack

JD.

Phys Rev B 1976; 13: 5188.

63.

Lue

Xie

, et al. Phys Rev B 2006; 74: 094101.

64.

Fuchs

Scheffler

Comput Phys Commun 1999; 119: 67.

65.

Kresse

Joubert

Phys B 1999; 59: 1758.

66.

Perdew

JP.

Phys B 1991; 172: 1.

67.

Perdew

Burke

Ernzerhof

Phys Rev Lett 1996; 77: 3865.

68.

Birch

J Geophys Res: Solid Earth 1986; 91: 4949.

69.

Blöchl

Jepsen

Andersen

OK.

Phys Rev B 1994; 49: 16223.

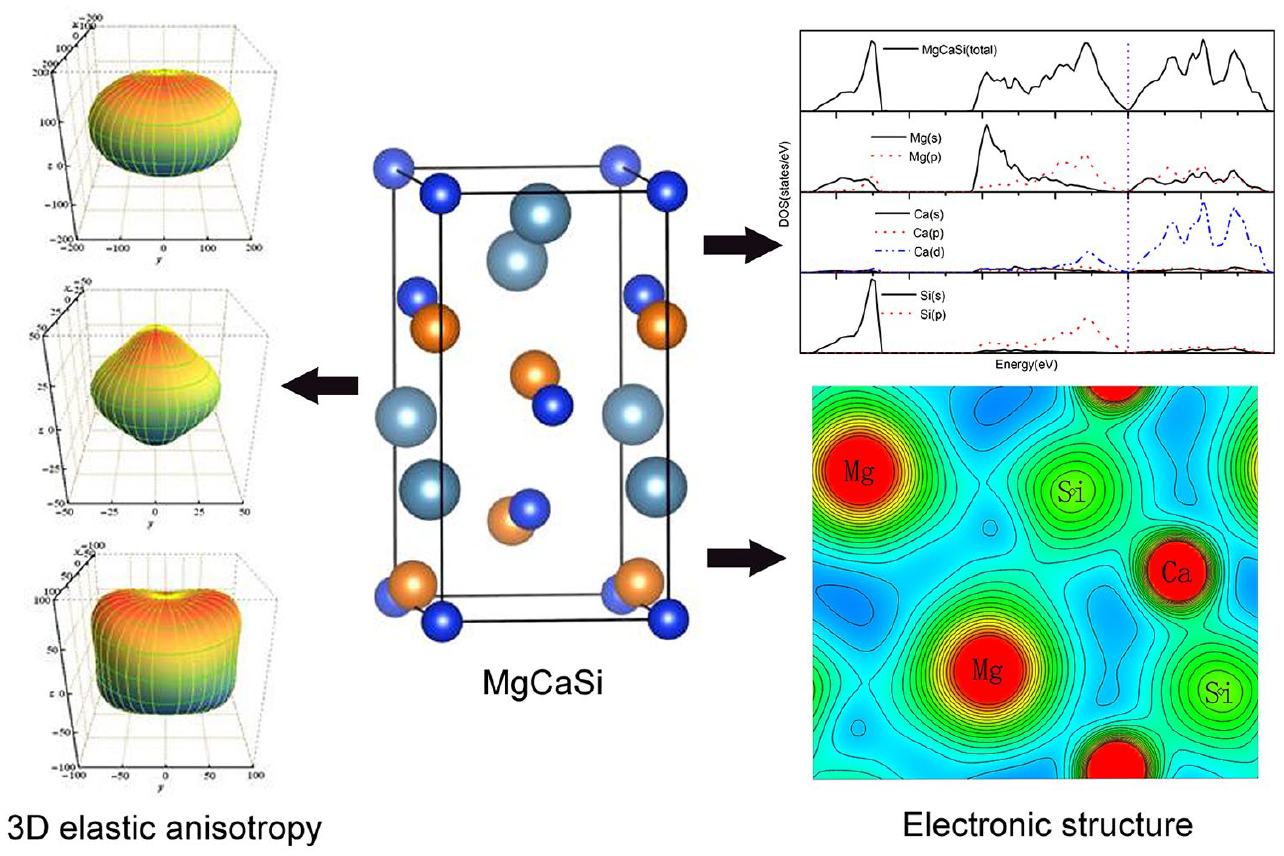

Structural and mechanical properties of ternary MgCaSi phase: A study by density functional theory

Abstract

Keywords

Introduction

Results and discussion

Structure and stability

Elastic properties

Debye temperature

Electronic structure

Conclusion

Experimental

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
