Gradient-guided color image contrast and saturation enhancement

Abstract

Digital color images are capable of presenting hue, saturation, and brightness perceptions. Therefore, quality improvement of color images should be taken into account to enhance all three stimuli. An effective method is proposed that aims at enriching the colorfulness, vividness, and contrast of color images simultaneously. In this method, color correction based on magnitude stretching is carried out first, image enhancement is then derived from an intensity-guided operation that concurrently improves the contrast and saturation qualities. Furthermore, the proposed methodology mitigates the heavy computational burden arising from the need to transform the source color space into an alternative color space in conventional approaches. Experiments had been conducted using a collection of real-world images captured under various environmental conditions. Image quality improvements were observed both from subjective viewing and quantitative evaluation metrics in colorfulness, saturation, and contrast.

Introduction

Visual sensing has been widely used in industrial applications due to advancement of computer and imagery technologies. For instance, computer vision can be employed in object tracking as a means for human–computer interaction. ^1,2 Other examples include the use of robots in manufacturing such as welding. ³ There are applications involving imageries in remote sensing for road damage detection ⁴ and weather monitoring. ^5,6 Moreover, there are many innovative uses of vision in consumer products, and digital color images have become the major medium for capturing, transmitting, and storing of the scene information. ^7,8

The essential requirement for color image is to provide a perception of the scene to a human viewer or for a computer to carry out tasks such as object recognition. A high-quality image that could truly represent the captured object and the scene is therefore crucial to the success of these tasks. In practice, images are generally coded in terms of three primary color channels, that is, in the red–green–blue (RGB) color space. ⁹ However, the human visual system is more sensitive in hue (H), saturation (S), and intensity (I) attributes. Therefore, when images are processed, ¹⁰ many common approaches convert the RGB color space into some convenient working signal spaces that are close to human perceptions, for example, the hue–saturation–intensity (HSI) space.

On the other hand, most display and printing devices require inputs in the RGB format. Hence, processed images often need to be converted back. The conversion operations in both the forward and reverse directions unavoidably increase the computation load to the image processing task. To reduce the computation complexity, the relationships between color channels that can be beneficially used to produce desirable enhanced effects are investigated. Furthermore, it is desirable that simple operations can be designed that are able to simultaneously enhance image qualities with regard to its colorfulness, vividness, and contrast.

In this article, the development of an effective transformation-free approach is reported. In this method, the input image color signals are firstly fed to a magnitude stretching process to mitigate the color bias. The processed signals are then averaged to produce a temporal intensity image. The salient features of the intensity image are further extracted using a 4-connected Laplacian kernel. These obtained features are used as guidance indicators to modify the color channels to produce the enhanced output image. Particularly, to provide simultaneous saturation, contrast enhancements, and to reduce the computation complexity, only two color components are changed directly in the RGB channels instead of adjusting all colors in a pixel. The method not only enhances the image contrast but also improves the saturation and provides color correction.

The rest of the article is organized as follows. In “Color space conversion and induced complexities” section, definitions of the HSI color spaces are reviewed and the computation complexity is examined. The proposed transformation-free color image enhancement is detailed in “Gradient-guided contrast and saturation enhancement” section. Test results from a group of images are evaluated and presented in “Experiments and results” section. The fifth section contains the conclusion.

Color space conversion and induced complexities

Digital color images are often captured, stored, and transmitted based on an aggregation of signals in a color space representing the primary red, green, and blue stimulus. There are some commonly used color spaces in color image processing, for example, the HSI space. ¹¹ The conversion from RGB to HSI can be obtained as

$I_{\mathit{\text{u}}v}=\frac{R_{\mathit{\text{u}}v}+G_{\mathit{\text{u}}v}+B_{\mathit{\text{u}}v}}{3}$

1

$S_{\mathit{\text{u}}v}=1-\frac{3\times \text{min}\{R_{\mathit{\text{u}}v},G_{\mathit{\text{u}}v},B_{\mathit{\text{u}}v}\}}{R_{\mathit{\text{u}}v}+G_{\mathit{\text{u}}v}+B_{\mathit{\text{u}}v}}$

2

$H_{\mathit{\text{u}}v}=\{\begin{array}{ll}{\theta }_{\mathit{\text{u}}v},\hfill & B_{\mathit{\text{u}}v}\le G_{\mathit{\text{u}}v}\hfill \\ 2\pi -{\theta }_{\mathit{\text{u}}v},\hfill & B_{\mathit{\text{u}}v}>G_{\mathit{\text{u}}v}\hfill \end{array}$

3

${\theta }_{\mathit{\text{u}}v}={{\displaystyle \text{cos}}}^{-1}\left[\frac{0.5({\Delta }_{\mathit{\text{R}}G}+{\Delta }_{\mathit{\text{R}}B})}{\sqrt{{\Delta }_{\mathit{\text{R}}G}^2+{\Delta }_{\mathit{\text{R}}B}{\Delta }_{\mathit{\text{G}}B}}}\right]$

4

where ${\Delta }_{\mathit{\text{R}}G}=R_{\mathit{\text{u}}v}-G_{\mathit{\text{u}}v}$ , ${\Delta }_{\mathit{\text{R}}B}=R_{\mathit{\text{u}}v}-B_{\mathit{\text{u}}v}$ , and ${\Delta }_{\mathit{\text{G}}B}=G_{\mathit{\text{u}}v}-B_{\mathit{\text{u}}v}$ .

The subscripts uv are the pixel coordinate. For an image of width U and height V, $u\in [1,U]$ and $v\in [1,V]$ . The intensity $(I_{\mathit{\text{u}}v})$ is the average of the three primary signals from the camera. The saturation $(S_{\mathit{\text{u}}v})$ , representing the richness of the color, is a function of the ratio of the minimum of the primary stimulus and their sum. The hue $(H_{\mathit{\text{u}}v})$ is a nonlinear function of primary color differences including $R_{\mathit{\text{u}}v}-G_{\mathit{\text{u}}v}$ , $R_{\mathit{\text{u}}v}-B_{\mathit{\text{u}}v}$ , and $G_{\mathit{\text{u}}v}-B_{\mathit{\text{u}}v}$ .

If color image enhancement is to be conducted in some transformed working space, say the HSI space, the input image in the RGB space needs to be converted to HSI and back to the RGB space for display as required. ^7,12,13 Obviously, these operations incur severe computation cost when the image size is large.

If the image contains N pixels and needs the conversion between RGB and HSI spaces, it requires two additions and one division to obtain the I-channel, and its complexity is $\mathcal{O}(N)$ . For saturation, the S-channel, a sorting operation is required for each pixel as well as one multiplication and division, hence, it requires $\mathcal{O}(2N)$ operations. The highest computation cost arises from calculating the hue component which involves time-consuming squaring, square rooting, and cosine inversion calculations. In order to obtain the hue, it includes two multiplications, a squaring, rooting, division, and cosine inversion. Thus, the complexity is $\mathcal{O}(6N)$ and the overall complexity becomes $\mathcal{O}(9N)$ . If the same complexity is assumed in the reverse conversion process, it gives $\mathcal{O}(18N)$ for the conversion-based approach. In fact, the inversion from HSI to RGB and vice versa would make the convert/reconvert approach inefficient. ¹¹

Note that the enhancement process relies largely on the algorithm adopted. Hence, irrespective of the enhancement process, conversion and reverse conversion between color spaces introduce extra computational burdens and should be avoided as much as possible.

Gradient-guided contrast and saturation enhancement

In order to simultaneously enhance image contrast and saturation, a streamlined algorithm is proposed that operates directly on the RGB color channels instead of carrying out transformation to a different space and reconvert to the original RGB space. The procedure contains three stages, that is, color channel stretching, salience extraction, and simultaneous saturation and contrast enhancement, which are detailed in the sequel.

System description

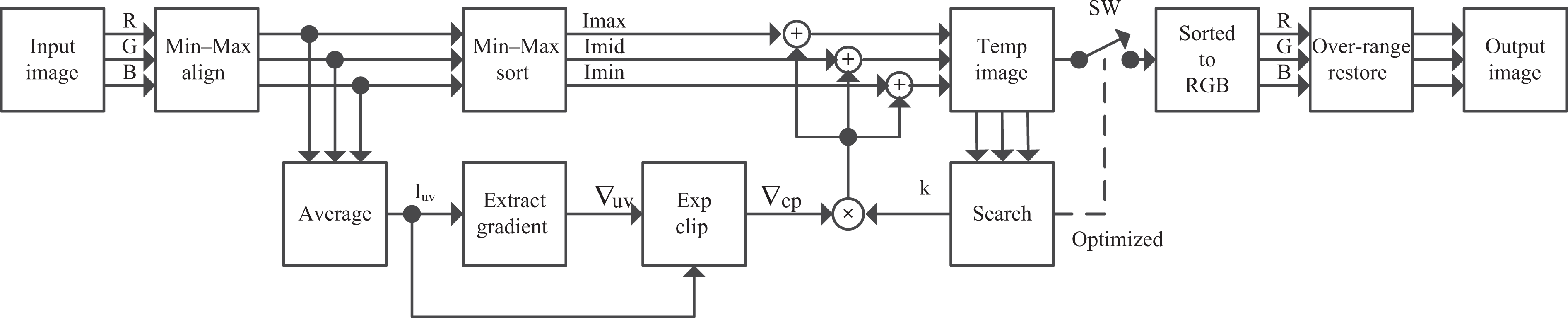

The block diagram of the gradient-guided contrast and saturation enhancement (GGCSE) algorithm, for color images, is illustrated in Figure 1. The input image is firstly passed through the min–max alignment block where the global pixel magnitude, encompassing each RGB signal, is shifted and scaled between the normalized range $[01]$ . Then the three channels are averaged to produce the intensity image for gradient extraction through convolving with a Laplacian kernel. The extracted gradient, whose magnitude is to be optimized, is selectively added to the sorted pixels and produced a temporary image. Its qualities with regard to contrast and saturation are assessed and used in a search for an optimal scaled gradient level. The optimization or search iteration then stops and the fictitious switch SW is closed. The sorted and adjusted pixels are then remapped to the original RGB domain. The temporary image is further processed for over-range correction and finally produces the enhanced output image. Details of the blocks in the overall contrast and saturation enhancement process are described below.

Figure 1.

System block diagram for gradient-guided color image contrast and saturation enhancement.

Min–max alignment and magnitude sorting

Let the input image J be in the RGB color space and indexed by the pixel coordinate uv, we have $\mathcal{J}=\left\{{\mathcal{J}}_{\mathit{\text{u}}v}\right\}$ , ${\mathcal{J}}_{\mathit{\text{u}}v}=\{R_{\mathit{\text{u}}v},G_{\mathit{\text{u}}v},B_{\mathit{\text{u}}v}\}$ . To enhance its quality in the context of hue, saturation, and contrast, the input image is firstly processed using color channel stretching for color bias removal.

As the dominated illumination color is one of the sources that degrades image quality, a correction is needed. ¹⁴ In nonreferencing corrections, the white-point assumption is frequently employed. ¹⁵ Here, we propose an alternative assumption that there is at least one color of one pixel whose magnitude is zero, while at least one pixel whose maximum color magnitude is unity. This assumption leads to stretching the magnitude of each color elements of a pixel to span the complete magnitude range. For example, in the red channel, we have

$R_{\mathit{\text{u}}v}\leftarrow \frac{R_{\mathit{\text{u}}v}-\text{min}\left\{R\right\}}{\text{max}\left\{R\right\}-\text{min}\left\{R\right\}}$

5

The green and blue channels are processed in the same manner to complete the min–max alignment.

After stretching the pixel magnitudes in the RGB color space, the color channel magnitudes in each pixel are sorted in ascending order. A set of three single dimension arrays, namely $I_{\text{min}}$ , $I_{\text{med}}$ , and $I_{\text{max}}$ , is then formed for subsequent processing in which no color space conversion is needed. Note that each pixel still carries its own positional coordinate but the index for RGB is replaced by minimum (min), median (med), and maximum (max), respectively.

Gradient extraction and clipping

It is observed from the HSI space definitions, the intensity (I) is the average of all color channel values. Hence, when the intensity needs to be adjusted for contrast enhancement, the three color values have to be altered simultaneously to decouple the influences in the other two attributes. Here, intensity contrast improvement is obtained from using unsharp masking filter (UMF). ¹⁶

The principle of the UMF is to augment amplified salience along the edges of objects captured in the image. The resultant increase in sharpness as perceived by the human visual system is obtained from the noticeable variations in intensity magnitudes. From the HSI space definition, the change in intensity can be realized by changing all the RGB signals with the same amount. Here, a $3\times 3$ window is used to extract the pixel gradients as a guide for enhancement. We have

${\nabla }_{\mathit{\text{u}}v}=I_{\mathit{\text{u}}v\in W}\otimes \mathcal{K}$

6

and $I_{\mathit{\text{u}}v}$ is given by equation (1). The local patch W is the $3\times 3$ neighboring window, ⊗ is the convolution operator, K is a 4-connected Laplacian kernel.

The complexity is $\mathcal{O}(N)$ , where N is the number of pixels. The multiplication with zero is not necessary while multiplication with $-1$ is implemented as a sign inversion. The output from the filter is given by

${\nabla }_{\mathit{\text{u}}v}=4I_{\mathit{\text{u}}v}-I_{u(v+1)}-I_{u(v-1)}-I_{(u+1)v}-I_{(u-1)v}$

7

Gradient-guided selective adjustment

Pixel magnitude adjustment is carried out based on the extracted object boundaries in the form of local gradients. The three color elements in each pixel are adjusted with the same amount determined by ${\nabla }_{\mathit{\text{u}}v}$ . Because ${\nabla }_{\mathit{\text{u}}v}$ could be positive or negative, pixel magnitudes are increased or decreased locally, thus producing the enhancement in intensity contrast.

For saturation enhancement purpose, the intensity enhancement process has to be modified. The strategy proposed is that if the adjustment is positive, the minimum of RGB channel is left unaltered. On the other hand, if adjustment is negative, the maximum RGB channel is not affected. The pixel is updated according to

$\varphi {(\text{RGB})}_{\mathit{\text{u}}v}+{\nabla }_{\mathit{\text{u}}v}\to {\mathcal{J}}_{\mathit{\text{u}}v}$

8

where $\varphi (\cdot )$ is an operator that outputs two color elements depending on the polarity of gradient ${\nabla }_{\mathit{\text{u}}v}$ . For example, when the gradient ${\nabla }_{\mathit{\text{u}}v}$ is positive and if the color magnitudes are such that $R>G>B$ with the blue channel magnitude being the lowest, then only R and G of larger magnitudes are returned from the $\varphi (\cdot )$ operation. That is, $\varphi (\text{RGB})\to \{R,G\}$ .

It can be seen from equation (1) that the intensity is altered if two of the color channels are modified. Furthermore, when the minimum of the color channels is changed, the saturation is also changed according to equation (2). On the other hand, when one of the color channel differences is not changed by the $\varphi (\cdot )$ operator, the change in color can be kept small to maintain the color integrity.

Parameter optimization and over-range restoration

Based on the fact that individual image contains different contents, the adjustment based on gradient ${\nabla }_{\mathit{\text{u}}v}$ has to be adapted to the image such that the maximum enhancement can be obtained. Additionally, higher contrast regions in the image with greater gradients need not to be adjusted, otherwise the over-range problem will occur where pixel magnitudes are driven outside the permitted levels. First, the extracted gradients are clipped at the high and low end by an exponential function. That is

${\nabla }_{\mathit{\text{c}}p(\mathit{\text{u}}v)}={\nabla }_{\mathit{\text{u}}v}\times \text{exp}(-|{\nabla }_{\mathit{\text{u}}v}|\times |I_{\mathit{\text{u}}v}-0.5|)$

9

where ${\nabla }_{\mathit{\text{c}}p(\mathit{\text{u}}v)}$ denotes the clipped gradient and $I_{\mathit{\text{u}}v}$ is the average intensity obtained using equation (1) before the gradient extraction process. The exponent depends on the product of the extracted absolute gradient $\left|{\nabla }_{\mathit{\text{u}}v}\right|$ and the absolute value of the intensity $I_{\mathit{\text{u}}v}$ shifted by half of the range. As large gradients together with high- and low-intensity values are causes of the over-range problem, it should be reduced. The clipping of adjustment strengths is introduced to mitigate such drawback. The clipping is modulated with a gain factor k, such that

$\varphi {(\text{RGB})}_{\mathit{\text{u}}v}+k{\nabla }_{\mathit{\text{c}}p(\mathit{\text{u}}v)}\to {\mathcal{J}}_{\mathit{\text{u}}v}$

10

Furthermore, the efficient golden section search algorithm ¹⁷ is employed to obtain an optimal gain factor $k^{*}$ so that the image can be enhanced optimally. Temporary gain factors are obtained within the golden section search iteration and a temporary image is obtained. An objective function, ${\mathcal{\text{F}}}_k$ , that relates to a trial gain factor k and accounting for image entropy, contrast, and saturation is defined as

${\mathcal{\text{F}}}_k=\mathcal{H}/8+{\sigma }_{\mathcal{J}}+\overline{\mathcal{S}}$

11

where $\mathcal{H}/8$ is the normalized entropy obtained from dividing the raw entropy by its maximum value. That is

$\mathcal{H}=-{\displaystyle \sum _{i=0}^{L-1}}p(i){{\displaystyle \text{log}}}_{2}p(i)\mathrm{bits}$

12

where $p(i)$ is the probability that a pixel has the i-th intensity. ¹⁸ For an 8-bit digital representation of each pixel magnitude, the maximum entropy is eight.

Another measure of image contrast is the overall standard deviation ${\sigma }_{\mathcal{J}}$ denoting the spread of pixel magnitudes in the image. A larger ${\sigma }_{\mathcal{J}}$ represents a higher contrast. Furthermore, the average saturation $\overline{\mathcal{S}}$ , measuring the color vividness, is obtained from

$\overline{\mathcal{S}}=\frac{1}{N}{\displaystyle \sum _{\mathit{\text{u}}v}}{S}_{\mathit{\text{u}}v}$

13

For a small portion of over-range pixels caused by the enhancement process, they constitute a penalty function

$\mathcal{P}=1-\eta /N$

14

where η is the number of over-range pixels and N is the total number of pixels in the image. The overall objective function then becomes

${\mathcal{\text{F}}}_k=(\mathcal{H}/8+{\sigma }_{\mathcal{J}}+\overline{\mathcal{S}})\times \mathcal{P}$

15

The optimum gain factor is thus

$k^{*}=\underset{k}{\text{argmax}}\left\{{\mathcal{\text{F}}}_k\right\}$

16

Final processing

So far, pixels have been manipulated in the sorted domain where direct display is not ready. A remapping to the RGB space is carried out by recalling the pixel min–max sorting indices and the match to the original color index. Finally, a color image of enhanced colorfulness, contrast, and saturation is obtained.

The result of an example image is shown in Figure 2 together with plots of distributions corresponding to the input and output of the color aligned and enhanced stages. It can be observed that the output quality of the image, Figure 2(b), is enhanced over the input image in Figure 2(a). The distributions representing hue, saturation, and intensity, Figure 2(c) to (e), illustrate that the permissible ranges are more fully covered and an increased amount of information is carried from the scene to viewer.

Figure 2.

Example image: (a) original image, (b) enhanced image, (c) hue distribution, (d) saturation distribution, and (e) intensity distribution.

Experiments and results

The effectiveness of the proposed method, that is, GGCSE, was verified using 300 images of size $360\times 480$ captured under natural environment with various illumination and color characteristics. A consumer grade digital camera was used and the images were stored in the 24-bit JPG color format. The test was carried out on the Matlab 2015b platform running on a general purpose personal computer with an i5-CPU at 1.70 GHz and 4 GB memory with Windows 7 operation system. The proposed approach was also compared to several currently available methods in the context of color image enhancement. These include the adaptive histogram equalization (ADPHEQ), smoothing-based histogram equalization (SMHEQ), ⁸ UMF, and saturation feedback–based enhancement (SFBEN). ¹⁹ The ADPHEQ and UMF tests were adopted from Matlab build-in functions. The enhancements found in the processed images are assessed both qualitatively and quantitatively.

Qualitative analysis

Four sample images and the outputs from the proposed enhancement method are depicted in Figures 3 to 6. Figures 3(a) to 6(a) show the input images. These images are captured under imperfect conditions including effects due to haze and backlighting. They appear with low contrast, low saturation, and low information content. Outputs from the ADPHEQ method are given in Figures 3(b) to 6(b). Since the underlying enhancement is provided by uniform histogram equalization, regions of over-enhancement appear where objects are either too dark or too bright and some details are lost.

Figure 3.

Test image 1. (a) original, (b) ADPHEQ, (c) SMHEQ, (d) UMF, (e) SFBEN, and (f) GGCSE. ADPHEQ: adaptive histogram equalization; SMHEQ: smoothing-based histogram equalization; UMF: unsharp masking filter; SFBEN: saturation feedback–based enhancement; GGCSE: gradient-guided contrast and saturation enhancement.

Figure 4.

Test image 2. (a) original, (b) ADPHEQ, (c) SMHEQ, (d) UMF, (e) SFBEN, and (f) GGCSE. ADPHEQ: adaptive histogram equalization; SMHEQ: smoothing-based histogram equalization; UMF: unsharp masking filter; SFBEN: saturation feedback–based enhancement; GGCSE: gradient-guided contrast and saturation enhancement.

Figure 5.

Test image 3. (a) original, (b) ADPHEQ, (c) SMHEQ, (d) UMF, (e) SFBEN, and (f) GGCSE. ADPHEQ: adaptive histogram equalization; SMHEQ: smoothing-based histogram equalization; UMF: unsharp masking filter; SFBEN: saturation feedback–based enhancement; GGCSE: gradient-guided contrast and saturation enhancement.

Figure 6.

Test image 4. (a) original, (b) ADPHEQ, (c) SMHEQ, (d) UMF, (e) SFBEN, and (f) GGCSE. ADPHEQ: adaptive histogram equalization; SMHEQ: smoothing-based histogram equalization; UMF: unsharp masking filter; SFBEN: saturation feedback–based enhancement; GGCSE: gradient-guided contrast and saturation enhancement.

Figures 3(c) to 6(c) are results processed by the SMHEQ algorithm based on a specification of a smoothed histogram. The over-enhancements are reduced while a slight improvement on saturation can be noticed. Results from the UMF process are shown in Figures 3(d) to 6(d). It can be observed that object boundaries are sharpened but the saturation is not improved. It is because of that in the design of the UMF only contrast enhancement is addressed while saturation improvement is not.

From the SFBEN approach, results are given in Figures 3(e) to 6(e). Although saturation is involved in the feedback for contrast enhancement, the saturation itself has not been boosted by design, hence, its increment is not noticeable. Results from the proposed GGCSE approach are shown in Figures 3(f) to 6(f). From the output images, it can be seen clearly that the contrast and, particularly, the saturation are both enhanced. From these results, it is evident that the proposed method is effective in providing simultaneous color image contrast and saturation enhancements.

Quantitative analysis

In addition to the above qualitative comparison, the performance of the proposed method is also evaluated using four commonly used metrics. These metrics are chosen to assess the effectiveness of the proposed approach in enhancing image contrast, saturation, information content, and colorfulness.

The contrast of an image, as a performance indicator, takes into account the average intensities and their dispersions around a center pixel. This criterion is formulated as the human visual system perceives contrast on the basis of the differences between an object and its neighboring region. A higher value in contrast represents that objects captured in the image are more distinctive. This metric is given by ²⁰

$\mathcal{T}=\frac{1}{N}{\displaystyle \sum _{\mathit{\text{u}}v}}{I}_{\mathit{\text{u}}v}^2-{\left(\frac{1}{N}{\displaystyle \sum _{\mathit{\text{u}}v}}{I}_{\mathit{\text{u}}v}\right)}^2$

17

In addition to the notion of contrast, human perception also concerns with saturation as a measure of color vividness as an attribute of image quality. This metric is adopted from the S-component of the HSI color space. ⁹ The average saturation of all pixels is obtained from equation (13). Higher saturation denotes a more vivid image. Note that the conversion from RGB to HSI color space is only conducted off-line for performance evaluation purpose and is not required in the enhancement process.

One of the functions demanded from an image is to convey the scene information to the viewer. Therefore, a logical and popular measure is the information content or entropy given by equation (12). A higher entropy value represents the desirable higher information content carried in the image.

The metric in colorfulness can quantify an image for the information content conveyed as color to the viewer. This measures is defined as ²¹

$\mathcal{C}={\sigma }_{\mathrm{rgyb}}+0.3\times {\mu }_{\mathrm{rgyb}}$

18

where

${\sigma }_{\mathrm{rgyb}}=\sqrt{{\sigma }_{\mathit{\text{r}}g}^2+{\sigma }_{\mathit{\text{y}}b}^2},{\mu }_{\mathrm{rgyb}}=\sqrt{{\mu }_{\mathit{\text{r}}g}^2+{\mu }_{\mathit{\text{y}}b}^2}$

19

It depends on the standard deviations ${\sigma }_{\mathit{\text{r}}g}$ , ${\sigma }_{\mathit{\text{y}}b}$ of color differences of the enhanced color image, that is, ${\Delta }_{\mathit{\text{r}}g}=R-G$ and ${\Delta }_{\mathit{\text{y}}b}=0.5(R+G)-B$ . Furthermore, ${\mu }_{\mathit{\text{r}}g}$ and ${\mu }_{\mathit{\text{y}}b}$ are the averages of $\Delta r\mathit{\text{g}}$ and $\Delta y\mathit{\text{b}}$ . This measure will be small when an outdoor object is captured under poor image capturing conditions. A larger C value indicates an image with better color information.

The test results obtained using 300 images in contrast, saturation, entropy, and colorfulness are depicted as box plots and are shown in Figure 7. In Figure 7(a), the plots on contrast are shown. With this assessment metric, all methods produce a higher contrast than the input image, whose mean value is at 0.065. The contrast statistics indicates that the GGCSE output at 0.075 is the second highest, while UMF output is 0.076. However, it is noted in the qualitative analysis that UMF is not able to provide enhancements in saturation. Figure 7(b) shows the statistical results of compared methods with respect to the saturation metric. While the input image carries an average saturation of 0.190, histogram-based methods are not able to increase saturation due to their design focuses. On the other hand, the UMF and SFBEN methods produce a slight improvement on saturation. The proposed method, GGCSE, provides the highest gain in the saturation up to 0.283 averaged over the test images.

Figure 7.

Result statistics in box plots: (a) contrast, (b) saturation, (c) entropy, and (d) colorfulness.

The box plot of entropy is given in Figure 7(c). The input image entropy is 7.278 and the highest metric is obtained from the ADPHEQ method. Similar to the contrast measurements, the ADPHEQ method is vulnerable to the over-enhancement problem. On the other hand, the GGCSE method produces high entropy at 7.456 without the over-enhancement problem. Statistics of colorfulness are plotted in Figure 7(d). Colorfulness is strongly related to saturation while the former is more concerned with color harmony. When the original image colorfulness mean value is 0.097, the GGCSE method produces colorfulness at 0.141 which is the highest among the tested enhancement methods.

Hypothetical analysis

Hypothetical tests on the obtained results are also conducted to examine the statistical significance of the improvement by using the two-variable t-test at 0.05 confidence level for hypotheses:

H0: The distributions of the input image characteristic are equal to the enhanced image.

H1: The distributions of the input image characteristic are not equal to the enhanced image.

Test results are given with annotations above the plots in Figure 8. The first row shows the hypotheses and the second row contains the corresponding p values, see also Table 1.

Figure 8.

Statistics of results in distributions and hypothetical tests: (a) contrast, (b) saturation, (c) entropy, and (d) colorfulness.

Table 1.

Hypothetical test results.

	Method
	Input	ADPHEQ	SMHEQ	UMF	SFBEN	GGCSE
Contrast
Hypothesis	N/A	0	0	1	1	1
p Value	N/A	0.712	0.147	0.000	0.001	0.000
Mean	0.065	0.066	0.068	0.076	0.073	0.075
Saturation
Hypothesis	N/A	0	0	0	0	1
p Value	N/A	0.924	0.944	0.193	0.124	0.000
Mean	0.190	0.190	0.190	0.201	0.204	0.283
Entropy
Hypothesis	N/A	1	1	1	1	1
p Value	N/A	0.000	0.000	0.001	0.007	0.000
Mean	7.278	7.612	7.108	7.379	7.356	7.456
Colorfulness
Hypothesis	N/A	1	1	0	0	1
p Value	N/A	0.000	0.043	0.945	0.813	0.000
Mean	0.097	0.121	0.107	0.097	0.095	0.141

ADPHEQ: adaptive histogram equalization; SMHEQ: smoothing-based histogram equalization; UMF: unsharp masking filter; SFBEN: saturation feedback–based enhancement; GGCSE: gradient-guided contrast and saturation enhancement.

In the test on contrast, the null hypothesis was rejected in the UMF, SFBEN, and GGCSE methods, indicating that the result metric distribution is not equal to the distribution of the input image. The GGCSE method had a p value approaching zero that supports the rejection. In the test for saturation, only the GGSCE method rejected the null hypothesis with a p value tends to zero. The null hypothesis was rejected by all methods with the test for entropy. Based on the p value, all methods had equivalent performances. In the test for colorfulness, the ADPHEQ, SMHEQ, and the GGCSE methods rejected the null hypothesis. The ADPHEQ and GGSCE methods also had near zero p values; however, the GGCSE method was free from over-enhancements as observed from the qualitative analysis. From this analysis, it can be seen that the proposed GGCSE method is the only method that has rejected the null hypothesis, meaning that it changed distribution characters of images in all four measured.

Complexity

The complexity involving floating point operations, namely multiplication, division, exponentiation, and trigonometric operations, are considered for the approaches compared with the proposed GGCSE. The complexity in RGB–HSI transformation, $\mathcal{O}(18N)$ , is given in “Color space conversion and induced complexities” section.

In the ADPHEQ method, the intensity image is divided into tiles. The tiles are enhanced using histogram equalization and then interpolated to prevent artifacts. For each pixel, it requires one multiplication in the equalization process, and its complexity is $\mathcal{O}(N)$ . If the image is divided into $M\times M$ tiles, the interpolation complexity is $\mathcal{O}(M^{2}N)$ . Together with the RGB–HSI conversion, the total complexity is $\mathcal{O}((18+1+M^2)N)$ . For instance, if $M=8$ , then the complexity becomes $\mathcal{O}(83N)$ .

For SMHEQ, the smoothing is carried over the intensity levels and is independent on the number of pixels. The equalization process requires $\mathcal{O}(N)$ . The overall complexity is $\mathcal{O}((18+1)N)=\mathcal{O}(19N)$ .

In the UMF algorithm, the kernel adopted contains noninteger elements, hence the complexity to obtain the salience pixels is $\mathcal{O}(9N)$ . Together with the color space transformations, the total complexity is $\mathcal{O}((18+9)N)=\mathcal{O}(27N)$ .

For the SFBEN method, the salience extraction kernel is an average filter, then the complexity is $\mathcal{O}(N)$ . The enhancement in contrast and saturation require two multiplications, thus the complexity is $\mathcal{O}(2N)$ . The overall complexity is $\mathcal{O}((18+3)N)=\mathcal{O}(21N)$ .

The proposed GGCSE method contains a color channel stretching operation, the complexity is $\mathcal{O}(3N)$ . To obtain the intensity image, an operation of $\mathcal{O}(N)$ is needed. With the purpose-specific gradient extraction kernel, the complexity is $\mathcal{O}(N)$ . The exponential clipping process demands a complexity of $\mathcal{O}(N)$ . With regard to the determination of the optimal gain factor, its complexity depends on how the objective function is evaluated and the number of loops required. The former involves the calculation of the saturation $\mathcal{O}(N)$ and applying the gain with $\mathcal{O}(N)$ . From the test of 300 images, the gain factor range is in $[0.53]$ . With a tolerance of 0.1 adopted in the golden section search, the loop required is $\mathcal{L}=\text{log}(0.1/2.5)/\text{log}(0.618)\approx 7$ . Hence, the complexity is $\mathcal{O}((7\times 2)N)$ . The overall complexity is $\mathcal{O}((7\times 2+6)N)=\mathcal{O}(20N)$ .

All algorithms have a linear complexity with respect to the number of pixels. The complexity of the GGCSE is less than ADPHEQ, UMF, and SFBEN but is slightly higher than SMHEQ. However, it should be noted that the compared algorithms are not designed with an optimization routine and their performances are hence suboptimum.

Conclusion

A transformation-free approach had been proposed that can achieve color image enhancement by improving contrast and color vividness simultaneously. The method manipulates pixel values directly in the source RGB color space. Unlike conventional transformation–based approaches, the conversion between color spaces is not involved and therefore reduces the implementation complexity. Furthermore, simple magnitude stretching and feature gradient-guided magnitude adjustments on each color channel are found effective in providing enhanced images in terms of improved color harmony, saturation, and contrast. The complexity analysis has shown that the proposed GGCSE method is lower than most of the compared algorithms and is comparable to the algorithm with lowest complexity. Promising improvements on image qualities were obtained, evaluated both qualitatively and quantitatively, from a large set of images captured in natural scenes.
