Abstract

To eliminate the deep scratches on the 4H-SiC wafer surface in the grinding process, a PVA/PF composite sol-gel diamond wheel was proposed. Diamond and fillers are sheared and dispersed in the polyvinyl alcohol-phenolic resin composite sol glue, repeatedly frozen at a low temperature of −20°C to gel, then 180°C sintering to obtain the diamond wheel. Study shows that the molecular chain of polyvinyl alcohol-phenolic resin is physically cross-linked to form gel under low-temperature conditions. Tested by mechanical property testing machines, microhardness tester, and SEM. The results show that micromorphology is more uniform, the strength of the sol-gel diamond wheel is higher, the hardness uniformity is better than that of the hot pressing diamond wheel. Grinding experiments of 4H-SiC wafer were carried out with the prepared sol-gel diamond wheel. The influence of grinding speed, feed rate, and grinding depth on the surface roughness was investigated. The results showed that by using the sol-gel diamond wheel, the surface quality of 4H-SiC wafer with an average surface roughness R_a 6.42 nm was obtained under grinding wheel speed 7000 r/min, grinding feed rate 6 µm/min, and grinding depth 15 µm, the surface quality was better than that of using hot pressing diamond wheel.

Keywords

Sol-gel diamond wheel 4H-SiC wafer ultra-precision grinding surface roughness abrasion

Introduction

Single crystal SiC (4H-SiC), one of the third-generation semiconductor materials, has excellent electrical and chemical properties, such as wide energy band gap, excellent thermal conductivity, high breakdown electric field, and appropriate chemical stability. It is widely used in high temperature, high pressure, high power high density, and radiation resistance integrated power electronic and optoelectronic devices.^1–3 In those applications, an ultra-smooth and defect-free SiC wafer is essentially important, which directly determines the component performance.⁴ However, SiC is difficult to be machined for its high hardness and chemical inertness. CMP is regarded as a critical technology to achieve high-quality surfaces, but the relatively weak mechanical removal action and chemical effect applied on the SiC wafer by SiO₂ slurry lead to low polishing efficiency.⁵ To realize the high-efficiency and high-precision machining of SiC, Yin et al.⁶ proposed a novel polishing technique that combines anodic oxidation and mechanical polishing (AOMP), Yan et al.⁷ proposed an ultraviolet (UV) photocatalysis-assisted polishing method, Yu et al.⁸ employed ultrasonic vibration-assisted polishing (UVP) of single-crystal SiC, but these methods were complicated. Another way to improve the machining efficiency is to improve the surface quality of SiC wafer in semi finishing stage to reduce CMP polishing time, the conventional semi finishing method is to use resin copper disc and diamond slurry. Under the condition of using free abrasive, it is impossible to achieve high speed, high pressure, and high efficiency polishing. Long time and low efficiency polishing will make the polishing surface profile uncontrollable and produce a large amount of slurry waste. Ultra-precision grinding was introduced as a semi-finishing process before CMP of hard and brittle materials to reduce CMP polishing time,⁹ Kim and Lee¹⁰ found that a finer super-abrasive wheel could obtain the mirror-like grinding surface of MgO single crystals, Ren et al.¹¹ carried out a side grinding experiment of single-crystal silicon (100 lattice orientation) using electroplated diamond micro-grinding tools. Some scholars researched on the ultra-precision wheel to explain the mechanism of the generation of the surface marks on the ground surface,^12,13 Cheng and Wu¹⁴ fabricated a diamond ultra-grinding tool, by conducting grinding experiments on single-crystal silicon, the brittle-ductile transition is observed. In this paper, ultra-precision grinding was employed to process the 4H-SiC wafer.

Ultra-fine diamond powder is an ideal abrasive for ultra-precision grinding of hard and brittle materials.¹⁵ The hardness of diamond is higher than that of ordinary hard brittle materials. Compared with other abrasives, diamond abrasives can invade the surface of workpiece with less pressing force, resulting in mechanical removal. Therefore, the main material removal mechanism of ultra-fine diamond powder in ultra-precision grinding is micro cutting, which produces plastic deformation, makes the contour peak gentle and smooth, and reduces the surface roughness value. But ultra-fine diamond powder has the characteristics of large specific surface area, high surface energy, and thermodynamically unstable system, which means it is prone to agglomeration and forms the large size particle in traditional hot pressing and sintering diamond wheel.^16,17 The inconsistency of the microstructure and hardness of the grinding wheel will cause scratches on the workpiece surface during the grinding process. How to improve structure uniformity is the key to prepare the wheel for ultra-precision grinding of SiC wafers. To avoid agglomeration of ultra-fine diamond particles and improve the surface roughness of silicon wafers, Miao et al.¹⁸ introduced a combination of gel casting and pore-forming agent to fabricate vitrified-bonded ultra-fine diamond grinding wheel with ultra-high porosity (up to 75%), the surface roughness R_a and damaged layer of the ground Si wafers are approximately 5 nm and 0.21 µm respectively. Huang et al.¹⁹ developed sol-gel (SG) polishing pad based on the sodium alginate (AGS) binary compound system, which was used for polishing hard and brittle materials to obtain high-quality surfaces. Luo et al.²⁰ developed a sol-gel polishing tool consisted of gel balls fabricated for green manufacturing of the seal stone, a smooth seal stone surface was obtained after processing by the sol-gel polishing tools. Zhang et al.²¹ discussed the differences in structure and properties of vitrified bonds and vitrified diamond composites prepared by sol-gel and melting methods, sol-gel method could apply to the production of grinding tools with high dimensional accuracy. Yiqing et al.²² combined epoxy resin and a soft gel body containing diamond abrasives to form a hard honeycomb structure. Wang et al.²³ fabricated the diamond/GO/EP abrasive tools via in situ polymerization. The sol-gel method mixing ultra-fine abrasives in solution to obtain uniformly dispersed slurry for manufacturing ultrafine abrasive grinding tools, which solves the problem of fine abrasive dispersion, but the above bonding agent is not a commonly used resin abrasive bonding agent. The heat resistance temperature, impact strength, and friction coefficient stability are all lower than phenolic resin and polyimide resin. A grinding wheel incorporating sol-gel technology and commonly used resin bond will be developed.

Polyvinyl alcohol (PVA) and water-soluble phenolic resin (PF) mixed glue hydrogel were used to make the ultra-precision grinding wheel in this study. The differences in microscopic morphology, structural strength, and surface hardness between the sol-gel diamond wheel and the hot pressing diamond wheel were compared. The influence of grinding process parameters including grinding speed, feed rate, and grinding depth on the surface quality of the 4H-SiC wafer was investigated. Wear of the grinding wheel in different grinding stages and the dressing methods were also discussed.

Preparation and characterization ofsol-gel diamond wheel

Preparation of the sol-gel diamond wheel

Polyvinyl alcohol is easy to cross-link intermolecular hydrogen bonds to form a gel at low temperature,^24,25 the particles can be embedded and fixed in the gel network to form an organic-inorganic gel complex. At the same time, the hydroxyl group in the polyvinyl alcohol can occur a grafting reaction with phenolic resin,^26,27 as shown in Figure 1(a). Based on the low-temperature freezing physical gel ability of polyvinyl alcohol, after dispersing diamond abrasives and fillers in the slurry, the inorganic particles are consolidated to form a gel body, which avoids the uneven dispersion of dry powder. On the other hand, the addition of polyvinyl alcohol increases the network structure and plastic deformation ability of phenolic resin and improves the wrapping performance of phenolic resin and diamond abrasive. After sintering at 180°C, the PVA molecules are dehydrated and etherified, lose solubility finally, which helps maintain the strength of the grinding wheel. The principle diagrams of the sol-gel process and the sol-gel wheel forming are shown in Figure 1(b) and (c).

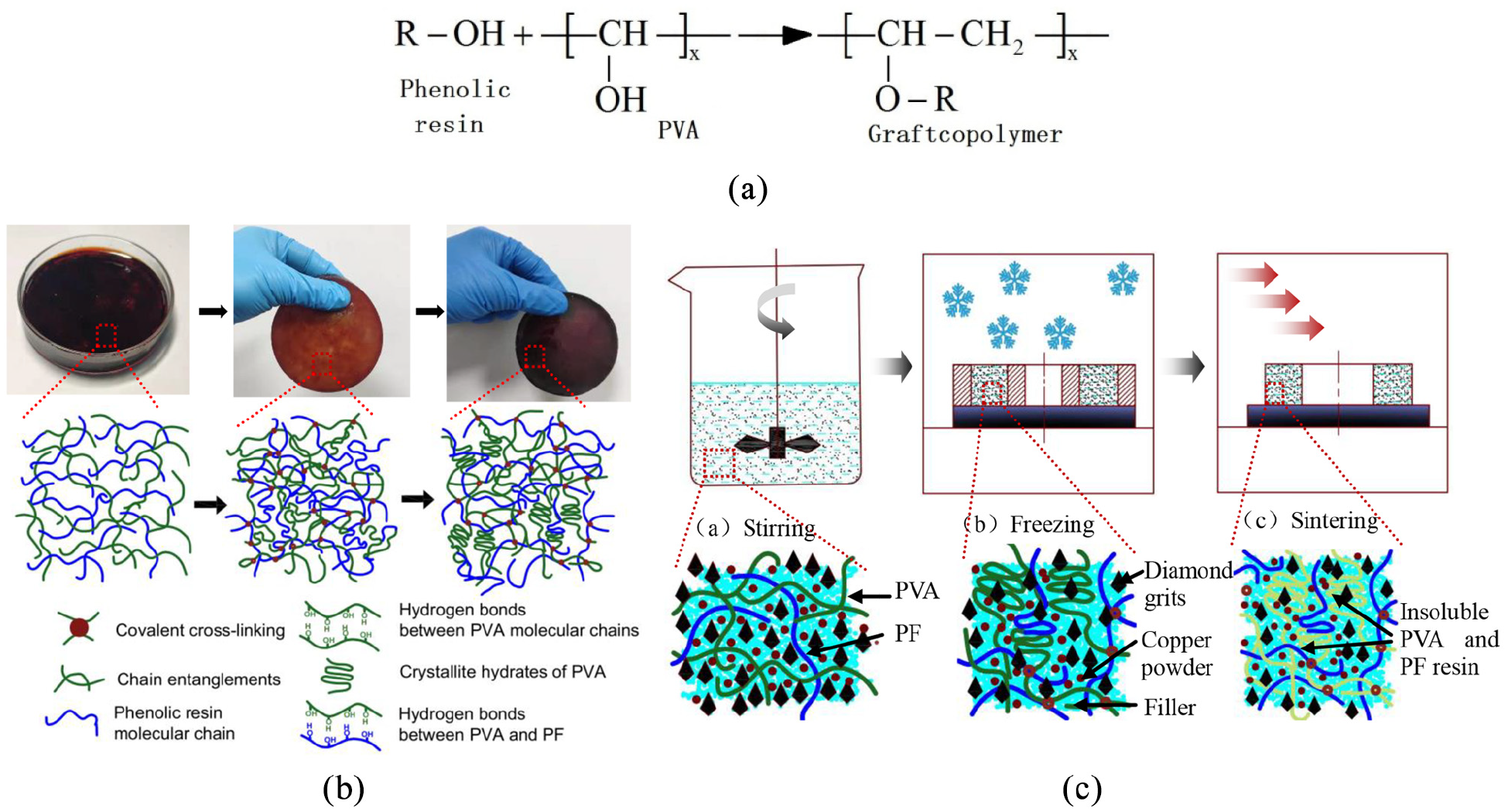

Figure 1.

Principle diagram of resin sol-gel process and sol-gel wheel forming: (a) grafting reaction of phenolic resin and polyvinyl alcohol resin, (b) sol-gel process of polyvinyl alcohol and water-soluble phenolic aldehyde, and (c) schematic diagram of sol-gel wheel forming.

The composition of the sol-gel wheel is shown in Table 1. Fillers are often added to resin bond grinding wheels to improve mechanical properties and polishing performance. The copper powder has good thermal conductivity, which is used to reduce local overheating in the grinding area. SiC powder is used to increase the wear resistance and reduce the blockage of the grinding wheel. Graphite is a lubricant, which is easily crushed during friction to form a layer of lubrication on the friction surface. ZnO is used to prevent continuous furrows from the resin plowing caused by the grinding debris during the grinding process. The functions of the wetting agent and the toughening agent are respectively to improve the wettability of the glue to the inorganic particles and the toughness of the gel body. The preparation process is shown in Figure 2: (1) Disperse diamond micro powder, fillers, and additives in the water to prepare a suspension; (2) Prepare 30 wt% polyvinyl alcohol-phenolic resin blend glue, wherein the mass ratio of polyvinyl alcohol to phenolic resin is 1:5, and then add the mixed glue to the suspension and mix to obtain gel slurry; (3) Pour slurry into a ring mold after sieving, and place it at −20°C for five cycles of freezing; (4) After thawing, dry naturally and put it in an oven for sintering at 180°C.

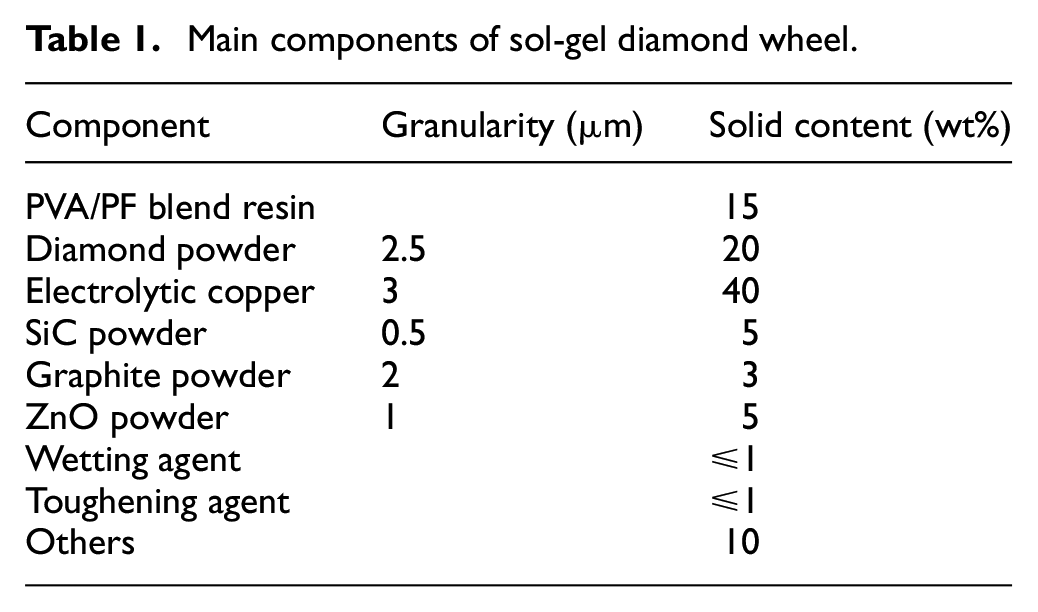

Table 1.

Main components of sol-gel diamond wheel.

Component	Granularity (μm)	Solid content (wt%)
PVA/PF blend resin		15
Diamond powder	2.5	20
Electrolytic copper	3	40
SiC powder	0.5	5
Graphite powder	2	3
ZnO powder	1	5
Wetting agent		≤1
Toughening agent		≤1
Others		10

Figure 2.

Flowchart of sol-gel diamond wheel manufacturing process.

Characterization of sol-gel diamond wheel

The pore structure is an important feature of the grinding wheel.²⁸ Its purpose is to improve the chip space and the self-sharpening ability of the grinding wheel. Compare the surface SEM topography of sol-gel diamond wheel and hot pressing diamond wheel, it can be seen from Figure 3 that the surface phase distribution of the sol-gel diamond wheel is more even compared with the hot pressing diamond wheel, and a large number of capillary micropores are formed inside, and the pores are interlaced and connected. This is because the pores of the sol-gel wheel are caused by the loss of moisture from the cross-linked network resin during the drying process. However, the hot pressing wheel adopts powder dry pressing method, and the resin powder with relatively low density is easy to agglomerate in the mixing process, the agglomerated resin powder forms dense resin body after high temperature curing, which hinders the uniform distribution of pores. Therefore, it is usually necessary to add pore forming agent to hot pressing wheel, it can be seen from Figure 3(b) that the surface of the hot pressing wheel is scattered with large pores, and the size of these pores is very close to the size of the pore former particles, which indicates that it is formed by the vaporization of the pore former.²⁹

Figure 3.

SEM diagram of: (a) sol-gel diamond wheel and (b) hot pressing wheel surface.

The strength of the grinding wheel bond will directly affect the wear resistance, self-sharpening, surface shape retention. The strength of the two grinding wheels was compared by using a three-point bending tester, tensile tester, and impact strength testing machine. As shown in Figure 4, compared with the hot pressing diamond wheel, the sol-gel diamond wheel had 8.4% higher impact strength, 22.8% higher tensile strength, and 26.3% higher flexural strength. From the fracture morphology of the section, it can be seen that the fracture surface of the sol-gel diamond wheel is smooth and the phase is uniform, while the fracture surface of the hot pressing diamond wheel is relatively rough, as shown in Figure 5. On the one hand, the binder powder in the hot pressing diamond wheel is generally micron-sized friction powder, the internal friction between the particles is large, and the fluidity is poor, resulting in uneven molding density, while the gel resin forms a network-like gel structure with good bonding performance, which can better coat the abrasive grains, and has uniform capillary, micropore distribution and high mechanical strength of the grinding wheel. On the other hand, the hot pressing diamond wheel creates pores by adding pore formers. Artificial pore structure has large pore volume and uneven pore distribution, which will reduce the volume and strength of the bonding bridge in the grinding wheel.

Figure 4.

Mechanical property of sol-gel diamond wheel and hot pressing wheel.

Figure 5.

Fracture section micrograph of: (a) sol-gel diamond wheel and (b) hot pressing diamond wheel.

The hardness and hardness uniformity of the grinding wheel will directly affect the grinding performance. When the grinding wheel is too hard, the blunt abrasive grains are not easy to fall off, the grinding wheel is easy to be blocked, which increases the grinding heat, burns the workpiece, and affects the surface quality of the workpiece. If the grinding wheel is too soft, the abrasive grains are prone to fall off, which increases the wear of the grinding wheel and easily loses the correct geometry. Two kinds of grinding wheels were taken for the hardness test at eight points respectively, as seen in Table 2. The hardness average and variance are shown in Figure 6, it can be seen from the figure that the hardness of sol-gel diamond wheel is smaller than that of hot pressing diamond wheel, because the resin bond of hot pressing diamond wheel is pure phenolic resin, there are a lot of rigid aromatic rings in the molecular structure of phenolic resin, and only have methylene connection between the aromatic rings, which endows phenolic resin with the characteristics of high brittleness, low impact strength and high hardness. While the sol-gel diamond wheel uses polyvinyl alcohol and phenolic resin as resin bond, by adding polyvinyl alcohol into phenolic resin and introducing flexible methylene segment, the flexibility of phenolic resin can be improved and the hardness can be reduced. Polyvinyl alcohol modified phenolic resin is also used in industry.^26,30 But the average hardness difference of the two grinding wheels is less than 8%, which means the hardness of the grinding wheel made by the sol-gel method is comparable to that of the hot pressing method. The low hardness uniformity of different parts of the grinding wheel leads to inconsistent consumption rates during the grinding process, which causes serious instability of the processing process, resulting in scratches on the surface, uneven surface roughness, and other processing problems. Comparing the two kinds of grinding wheels, the hardness variance value of the hot pressing diamond wheel is greater than that of the sol-gel diamond wheel. This is because the sintering temperature of the powder hot pressing method is often low at both ends and high in the middle. It is difficult to ensure that the sintering pressure and sintering temperature are uniform in all parts of the grinding wheel. While the sol-gel forming method refines the grains of the binder and improves the uniformity of the structure, finally improves the uniformity of the hardness of the grinding wheel.

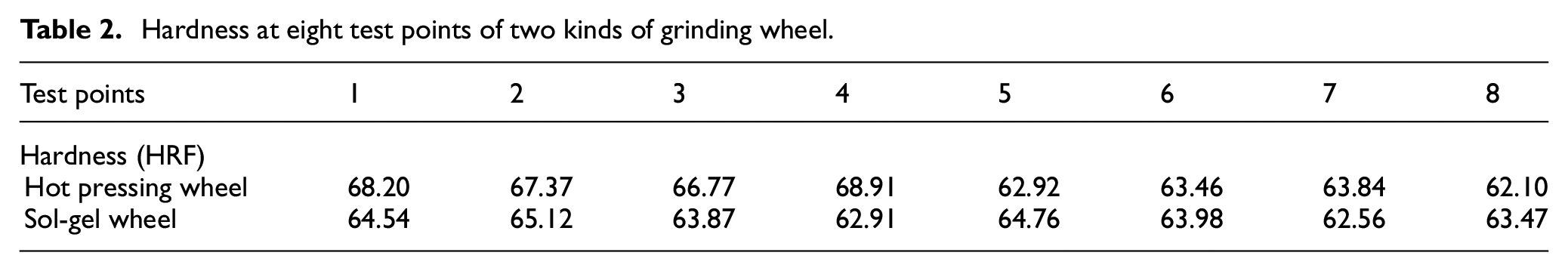

Table 2.

Hardness at eight test points of two kinds of grinding wheel.

Test points	1	2	3	4	5	6	7	8
Hardness (HRF)
Hot pressing wheel	68.20	67.37	66.77	68.91	62.92	63.46	63.84	62.10
Sol-gel wheel	64.54	65.12	63.87	62.91	64.76	63.98	62.56	63.47

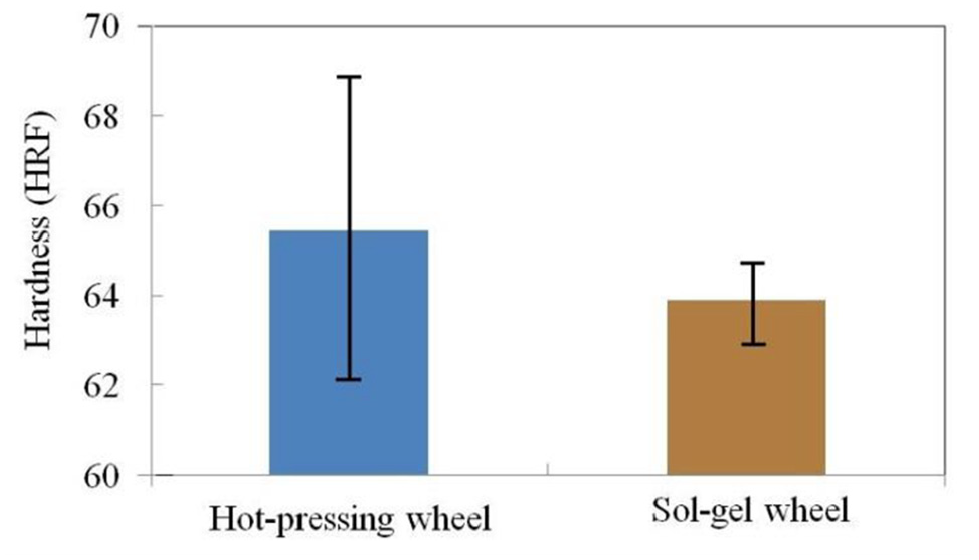

Figure 6.

The hardness average and variance values of hot pressing wheel and sol-gel wheel.

Grinding experiment of 4H-SiC wafer

Two inch 4H-SiC N-type is used as the grinding workpiece. Due to the low material removal rate of ultra-precision grinding, the grinding depth is controlled within 30 µm, so before ultra-precision grinding, the workpiece needs rough grinding to satisfy the surface roughness and flatness. The test is carried out on the SLG80 optical grinding machine, the positioning accuracy of grinding machine reaches 1 µm. Two grinding wheels are installed on the grinding machine at the same time, the rough grinding and fine grinding can be completed in one clamping. The prepared diamond grinding wheel is pasted on the grinding wheel seat, and several radial diversion grooves of about 2 mm on the surface is carve-out for the flow of coolant, which plays a role in cooling and chip removal. Processing equipment and the prepared sol-gel diamond wheel are shown in Figure 7. The rough grinding wheel uses a 1000 mesh resin-metal composite diamond grinding wheel. After rough grinding, the surface roughness R_a reaches 65 nm, and the flatness PV is less than 1 µm. The surface morphology of the SiC wafer after rough grinding is shown in Figure 8, and there is an obvious plow phenomenon on the surface. To verify the effect of the sol-gel diamond wheel, a comparative experiment is designed to grind the 4H-SiC wafer. The comparison group uses a conventional powder hot pressing diamond wheel. Table 3 shows the corresponding processing parameters.

Figure 7.

Grinding equipment and grinding wheel for 4H-SiC wafer.

Figure 8.

Surface morphology of SiC wafer after rough grinding.

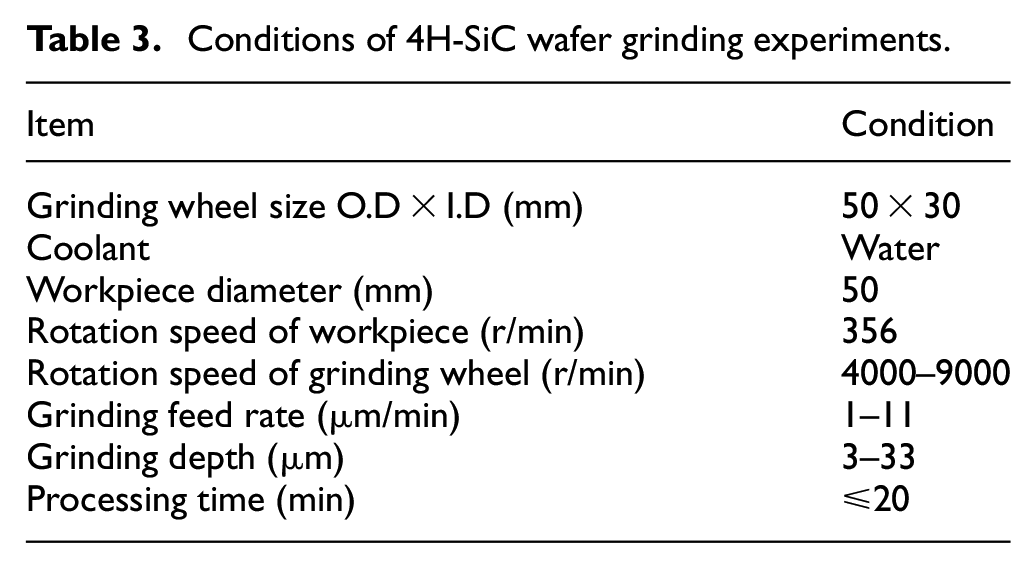

Table 3.

Conditions of 4H-SiC wafer grinding experiments.

Item	Condition
Grinding wheel size O.D × I.D (mm)	50 × 30
Coolant	Water
Workpiece diameter (mm)	50
Rotation speed of workpiece (r/min)	356
Rotation speed of grinding wheel (r/min)	4000–9000
Grinding feed rate (µm/min)	1–11
Grinding depth (µm)	3–33
Processing time (min)	≤20

The grinding machine numerical control system has a power monitoring system (Beckhoff system), which can monitor the grinding power throughout the process. A thickness gauge is used to measure the removal thickness of the workpiece (0.001 mm). White light profiler (KLA Tencor MicroXAM 1200) is used to measure the surface roughness of the workpiece. A laser interference flatness meter (HSINTEK AK100F3) is used to measure flatness. The laser displacement sensor (KEYENCE CL-3000) is used to measure the thickness of the abrasive layer of the grinding wheel before and after grinding.

Test results and analysis

The influence of grinding wheel speed on surface roughness

In the single factor experiment of the grinding wheel speed, the grinding depth is 15 µm, the grinding wheel feed rate is 6 µm/min, and the trend of surface roughness R_a with the increase of the grinding wheel speed is shown in Figure 9, the roughness R_a becomes smaller with the increase of the grinding wheel speed. When the grinding wheel speed is 7000 r/min, the roughness value R_a reaches the minimum value. But as the speed of the grinding wheel continues to increase, the roughness R_a shows a gradually increasing trend. This is because increasing the speed of the grinding wheel will reduce the feed per revolution of the grinding wheel, which directly leads to the reduction of the maximum undeformed chip thickness and the reduction of the grinding force of a single diamond abrasive grain. The specific grinding energy increases, the proportion of plastic removal during grinding increases, the brittle removal decreases, and the marks left by abrasive particles on the grinding surface become shallower. Besides, the increase of the grinding wheel speed can bring out the grinding debris faster, and make the grinding fluid update faster, which reduces the grinding temperature and the grinding burn. The surface roughness R_a of the workpiece becomes smaller with the increase of the grinding wheel speed.

Figure 9.

Effect of the grinding wheel speed on surface roughness R_a.

When the grinding wheel speed increases to more than 7000 r/min, the number of effective abrasive grains passing through the surface of the workpiece per unit time increases, and the generation speed of grinding debris per unit time increases too fast and exceeds the critical point. That is when the accumulation rate of debris on the surface of grinding wheel is greater than the rate of debris shedding on the surface of grinding wheel, a lot of these debris will fill the pores of the grinding wheel and adhere to the surrounding of the abrasive, immediately adhesion and blocking of the grinding wheel happen, which reduces the sharpness of the grinding wheel and cannot perform effective grinding force, thereby reducing the quality of the grinding surface. On the other hand, high-speed rotation increases the instability of the grinding wheel, and the longitudinal amplitude of a single abrasive particle on the grinding surface becomes larger, the grinding surface wear marks increase significantly, as shown in Figure 10. It can be seen that by increasing the speed of the grinding wheel appropriately, better surface quality of the workpiece can be obtained.

Figure 10.

The surface topography of SiC wafer under different grinding wheel speed: (a) 4000 r/min, (b) 5000 r/min, (c) 6000 r/min, (d) 7000 r/min, (e) 8000 r/min, and (f) 9000 r/min.

The influence of grinding feed rate on surface roughness

In the single factor experiment of the grinding wheel feed rate, the grinding depth is 15 μm, the grinding wheel speed is 7000 r/min, and the trend of surface roughness R_a with the grinding wheel feed rate is shown in Figure 11. Initially, the surface roughness R_a beocmes smaller with the increase of the grinding wheel feed rate. When the grinding wheel feed rate is 6 µm/min, the surface roughness value R_a reaches the minimum value. But when the grinding wheel feed rate exceeds 6 μm/min, the surface roughness value R_a of the workpiece tends to increase. This is because when the feed rate of the grinding wheel is small, the tangential grinding force of the grinding wheel is small, the width of the grinding debris is narrow, the friction between the grinding wheel and the workpiece generates less heat, the temperature of the grinding zone is lower, and the material removal efficiency is relatively low. As the feed rate of the grinding wheel increases to 6 µm/min, the frequency of grinding at the same point on the surface of the workpiece becomes higher, and the material removal rate increases. While the material is still removed by plastic deformation, which is beneficial to obtain lower surface roughness. When the feed rate of the grinding wheel exceeds 6 µm/min, the undeformed grinding thickness of a single abrasive grain increases, the friction between the abrasive particles of the grinding wheel and the workpiece is intensified, the grinding heat increases and the grinding wheel generates certain thermal stress, which causes some of the abrasive particles to fall off the workpiece and surface scratches, as shown in Figure 12.

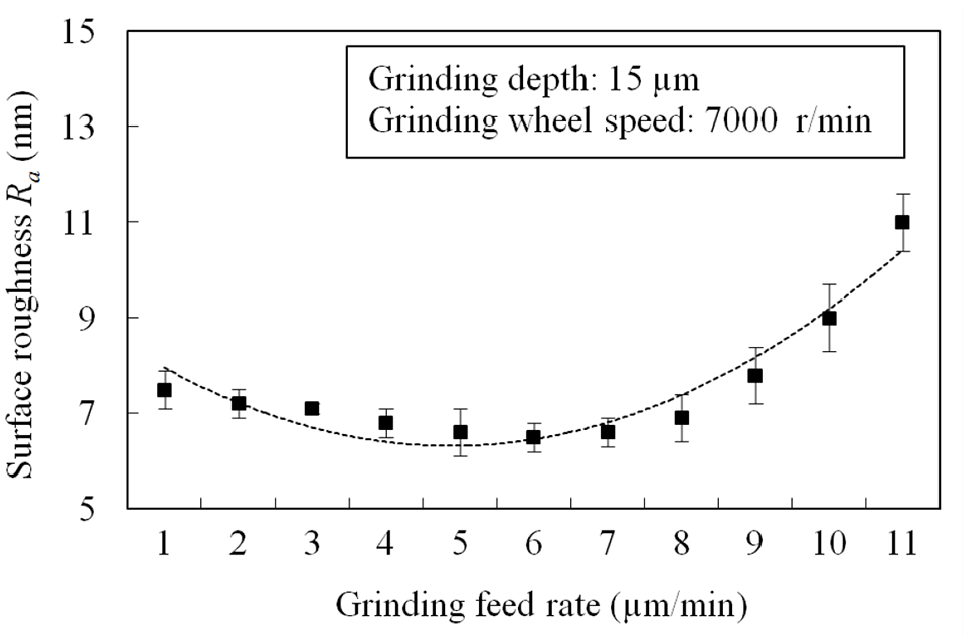

Figure 11.

Effect of the grinding feed rate on surface roughness R_a.

Figure 12.

The surface topography of SiC wafer under different grinding feed rate: (a) 1 µm/min, (b) 3 µm/min, (c) 5 µm/min, (d) 7 µm/min, (e) 9 µm/min, and (f) 11 µm/min.

Influence of grinding depth on surface roughness

In the single-factor experiment of grinding wheel grinding depth, the grinding feed rate is 6 μm/min, the grinding wheel speed is 7000 r/min, and the variation trend of the surface roughness R_a with grinding depth is shown in Figure 13. The grinding depth in this paper refers to the downward feed distance of the grinding wheel when it touches the workpiece, considering the actual wear of the grinding wheel, the actual material removal thickness is slightly less than the grinding depth, when the grinding depth is 3 μm, the material removal thickness is about 3 μm, when the grinding depth reaches 33 μm, the material removal thickness is only 29 μm. The initial surface quality of the workpiece is the same. When the grinding depth increases from 3 to 15 μm, the surface roughness value gradually becomes smaller with the increase of the grinding depth. This is because when the grinding amount is set to be small, the pressure between the grinding wheel and the workpiece is small, the depth of the abrasive particles cutting into the workpiece surface is small, so the grinding wheel abrasive particles have a less cutting effect on the residual peaks on the surface of the workpiece, and the surface roughness improvement effect is not obvious. When increasing the grinding amount, the contact arc length of the grinding wheel and the workpiece increases, the contact area of the grinding zone increases, and the heat accumulation causes the temperature of the grinding zone to rise rapidly, the surface material of the workpiece soften due to high temperature, which improves the fracture toughness of silicon carbide material and increase the proportion of plastic removal, the surface quality will gradually improve. When the grinding depth exceeds 15 μm, the surface roughness value increases slowly. On the one hand, as the grinding depth continues to increase, the scratches on the surface of the workpiece deepen, and the thickness of the grinding layer increases to the critical depth of cut for the transition of material ductility and brittleness removal, the removal mechanism of SiC surface material is gradually transformed from a large amount of plastic removal to mainly brittle removal, which leads to an increase in the surface roughness of 4H-SiC workpieces. On the other hand, the grinding wheel uses 2.5 μm diamond powder, the abrasive grains are fine and dense, the porosity of the grinding wheel is small, and the debris generated during the grinding process is relatively small. These pores and cavities will soon be filled with debris and powder produced by the grinding wheel, and the heat is more difficult to disperse, which accelerates the increase of grinding heat, produces adhesive wear, and produces slight friction on the surface of the workpiece, as shown in Figure 14. Therefore, the appropriate setting for the grinding depth is 15 μm.

Figure 13.

Effect of the grinding depth on surface roughness R_a.

Figure 14.

The surface topography of SiC wafer under different grinding depth: (a) 3 µm, (b) 9 µm, (c) 15 µm, (d) 21 µm, (e) 27 µm, and (f) 33 µm.

Orthogonal optimization experiment

To achieve optimal selection of grinding parameters, it is important to establish a precise grinding quality model for 4H-SiC. The orthogonal experiment method is used, the single factor experiment provided the parameter optimization range for the orthogonal experiment, the optimization range of grinding wheel speed is 4000–7000 r/min, feed speed is 5–11 µm/min, and grinding depth is 15–33 µm. In the orthogonal experiment, each factor has three levels, which are the representative parameter values selected by the three factors after the single factor experiment, as shown in Table 4, the grinding experiment is carried out by using standard orthogonal table L9 (3)³. The grinding test data are shown in Table 5.

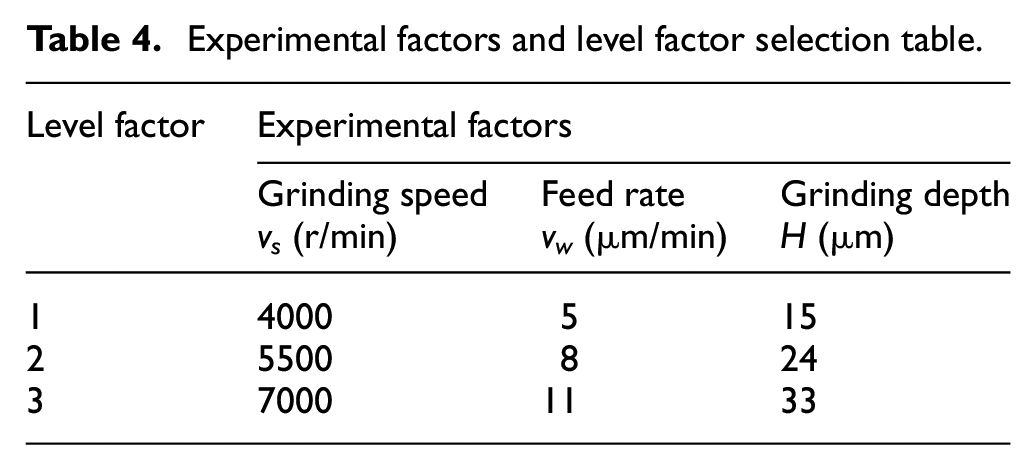

Table 4.

Experimental factors and level factor selection table.

Level factor	Experimental factors
	Grinding speed v_s (r/min)	Feed rate v_w (µm/min)	Grinding depth H (µm)
1	4000	5	15
2	5500	8	24
3	7000	11	33

Table 5.

Orthogonal test results (L3³).

Experiment number	Experimental factors			Surface roughness R_a (nm)
	Grinding speed v_s (r/min)	Feed rate v_w (µm/min)	Grinding depth H (µm)
1	4000	5	15	8.76
2	4000	8	24	10.21
3	4000	11	33	12.23
4	5500	5	24	9.38
5	5500	8	33	10.82
6	5500	11	15	11.39
7	7000	5	33	9.92
8	7000	8	15	6.75
9	7000	11	24	10.14

The conventional empirical formula of grinding roughness is widely expressed by exponential function, so the prediction model of equation (1) can be established, which contains three parameters.^31,32

R_{a} = K {V_{s}}^{C_{1}} {V_{w}}^{C_{2}} H^{C_{3}}

(1)

Where K is the comprehensive coefficient of grinding conditions; V_s is the speed of grinding wheel; V_w is the feed rate; H is the grinding depth, and equation (1) is a typical nonlinear function, which must be transformed into a linear function. Therefore, taking logarithm on both sides of it, equation (2) can be obtained.

Ln R_{a} = Ln (K) + C_{1} Ln V_{s} + C_{2} Ln V_{w} + C_{3} Ln H

(2)

Define $y = Ln R_{a}, C_{0} = Ln (K), x_{1} = Ln V_{s}, x_{2} = Ln V_{w}, x_{3} = Ln H$ , then the exponential equation can be transformed into a linear equation (3).

y = C_{0} + C_{1} x_{1} + C_{2} x_{2} + C_{3} x_{3}

(3)

Using the orthogonal experimental data in Table 5, the multiple linear regression of linear equation (3) can be carried out. Figure 15 is the residual graph of roughness linear regression, dots represent data residuals, and line segments represent confidence intervals of residuals, from the graph, it can be seen that most of the data residuals are very close to the zero point, and the confidence interval of the residuals contains the zero point, which indicates that the regression equation can fit the data well. The sixth and eighth points are abnormal points. The abnormal points are deleted, and the prediction model is modified. The corresponding coefficients in the equation can be obtained by regression again: C₀ = 3.2628, C₁ = −0.2654, C₂ = 0.2097, C₃ = 0.2801. Therefore, the prediction model of surface roughness for grinding 4H-SiC wafer with sol-gel grinding wheel is equation (4).

R_{a} = 26.1225 {V_{s}}^{- 0.2654} {V_{w}}^{0.2097} H^{0.2801}

(4)

Figure 15.

Residual graph of roughness linear regression.

To further verify the accuracy of the prediction model, draw the single factor experiment data and the prediction data in the same figure. As shown in Figure 16, it can be seen from the figure that the predicted value of roughness is in good agreement with the experimental value of roughness, which can reflect the change trend of roughness.

Figure 16.

Comparison of predicted and experimental roughness values R_a.: (a) Grinding wheel speed from 4000 to 7000 r/min, (b) Grinding feed rate from 5 to 11 μm/min, (c) Grinding depth from 15 to 33 μm.

In the optimization range of grinding wheel speed, feed rate, and grinding depth, there is a negative correlation between grinding wheel speed and surface roughness, so the grinding roughness value becomes smaller with the increase of grinding wheel speed, the corresponding index of feed rate and grinding depth in the prediction model is positive, so the grinding roughness value increases with the increase of feed rate and grinding depth. The influence of grinding depth on surface roughness is greater than that of grinding wheel speed, and the influence of feed rate on surface roughness is the least.

Wear and dressing of sol-gel wheel

Wheel truing on-site is necessary to eliminate the installation error of the grinding wheel and form a good surface condition and accuracy. A 150# electroplated diamond grinding disc was employed. The surface of the grinding wheel before and after the dressing is shown in Figure 17. There is a ring of glazed layer on the surface before dressing. After the dressing, the glaze layer disappears.

Figure 17.

The surface of the grinding wheel before and after the dressing.

A wear test was carried out to grind the SiC wafer by a sol-gel diamond wheel and a hot pressing diamond wheel. The grinding feed rate is 6 μm/min, the grinding wheel speed is 7000 r/min, grinding 15 times, each feed depth is 6 μm, the topography and wear amount of the diamond grinding wheel surface are measured and counted every time. The surface morphology of the sol-gel diamond wheel changes with the grinding depth as shown in Figure 18. When the grinding wheel is used for the eighth time (Grinding depth 48 μm), the pores on the surface of the grinding wheel gradually become blocked. This is because the accumulation of debris and other impurities in the pores under high-temperature contact conditions cause some plastic flow of the binder around the pores. When the blockage rate of the pores is too high, the pores lose their function of holding chips and storing coolant, and the grinding wheel needs to be trimmed. Therefore, it is necessary to dress the sol-gel diamond wheel when the quantity of SiC wafers is up to four pieces. Compared with the sol-gel diamond wheel, the pores on the surface of the hot pressing diamond wheel gradually become blocked when the hot pressing diamond wheel is used for the 12th time (Grinding depth 72 μm). Therefore, the hot pressing wheel can be used for five times before dressing, the number of times used is one times more than that of the sol-gel diamond wheel. This is because the sol-gel wheel contains a small amount of thermoplastic polyvinyl alcohol. After long time grinding, thermoplastic materials aggregate on the surface of the sol-gel diamond wheel, which is more likely to cause stomatal clogging on the wheel surface.

Figure 18.

Surface morphology of sol-gel diamond wheel at different grinding depth: (a) initial state, (b) 24 μm, (c) 48 μm, and (d) 72 μm.

The laser displacement sensor is used to measure the change in the thickness of the abrasive layer of the grinding wheel after each grinding. The relationship between the wear of the grinding wheel and the feed depth is shown in Figure 19. In the early stage of grinding, the main form of grinding wheel wear is the crushing of abrasive particles in the initial stage of grinding. The crushing of abrasive particles will lead to rapid changes in the amount of grinding wheel wear, so the growth of grinding wheel wear is more obvious. In the stable wear stage, abrasive wear is the main form of grinding wheel wear. At this time, the contact area between the abrasive particles and the workpiece is slowly increasing, and the wear of the grinding wheel is relatively stable. Continue to grind, the adhesion wear of abrasive grains and the shedding of abrasive grains will increase in the proportion of grinding wheel wear. The form of grinding wheel wear will aggravate the wear of the grinding wheel, so the wear of the grinding wheel shows a rapid upward trend.

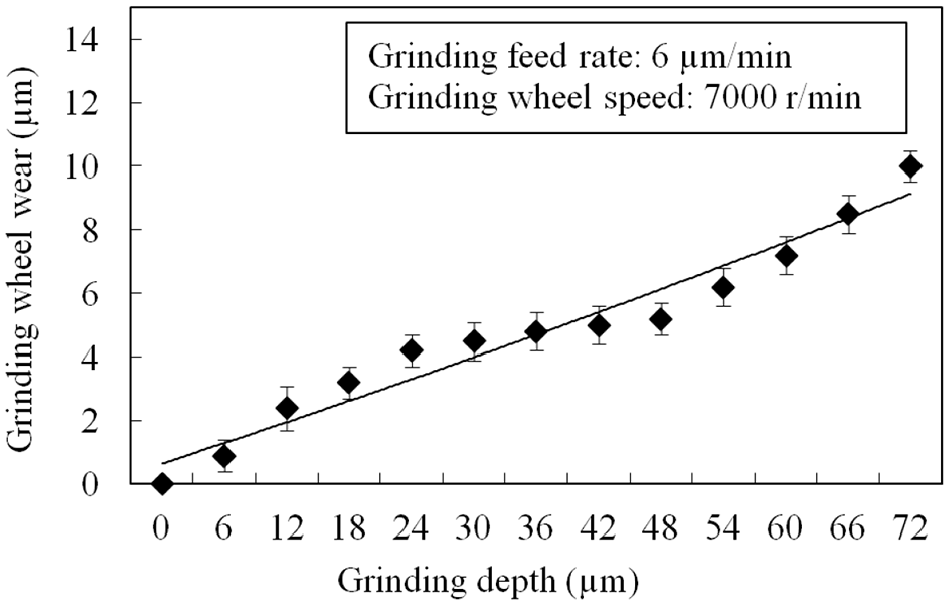

Figure 19.

Relation between grinding wheel wear and grinding depth.

Comparation of surfaces processed with sol-gel wheel and hot pressing wheel

A sol-gel diamond wheel and a hot pressing diamond wheel were used to carry out contrast experiments on the SiC wafer, as seen in Figure 20. In order to verify the difference of the grinding performance between the sol-gel diamond wheel and the hot pressing diamond wheel under different process conditions, eight groups of comparative experiments were carried out, the grinding wheel speed was 4000 and 7000 r/min, the grinding feed rate was 6 and 10 μm/min, and the grinding depth was 15 and 30 μm. The experimental results are shown in Table 6, it can be seen that after grinding with sol-gel wheel, the surface roughness of the workpiece is lower than that of the hot pressing wheel under the same process conditions. Figure 21 is the microscopic morphology of the 4H-SiC wafer after grinding by two kinds of wheels under the process conditions that the grinding wheel speed was 7000 r/min, the grinding feed rate was 6 μm/min, and the grinding depth was 15 μm. After grinding with a sol-gel diamond wheel, the scratches formed on the surface of the wafer are slight and uniform, and the scratches can be removed by CMP polishing. After grinding with a hot pressing wheel, larges scratches will occur on the surface of the wafer, and the scratches cannot be removed by CMP polishing. This is because the particles in the powder hot pressing diamond wheel are easily agglomerated, and the “plow” action of the agglomerates can easily cause scratches on the surface of the workpiece, which greatly affects the surface quality of the SiC wafer. On the other hand, the grinding process with the sol-gel wheel is smooth, no friction noise occurs, and the grinding load power is kept stable within 30%. This is because polyvinyl alcohol can effectively adjust the flexibility of the phenolic resin. The modified resin can produce a certain degree of plastic deformation during friction and heating, which reduces the impact of abrasives on the workpiece. When the frictional heating reaches a certain level, the surface resin will decompose into the tough carbonized film, which is not easy to fall off and helps to increase the thermal decay temperature, thereby ensuring that the friction coefficient of the grinding wheel is relatively stable.

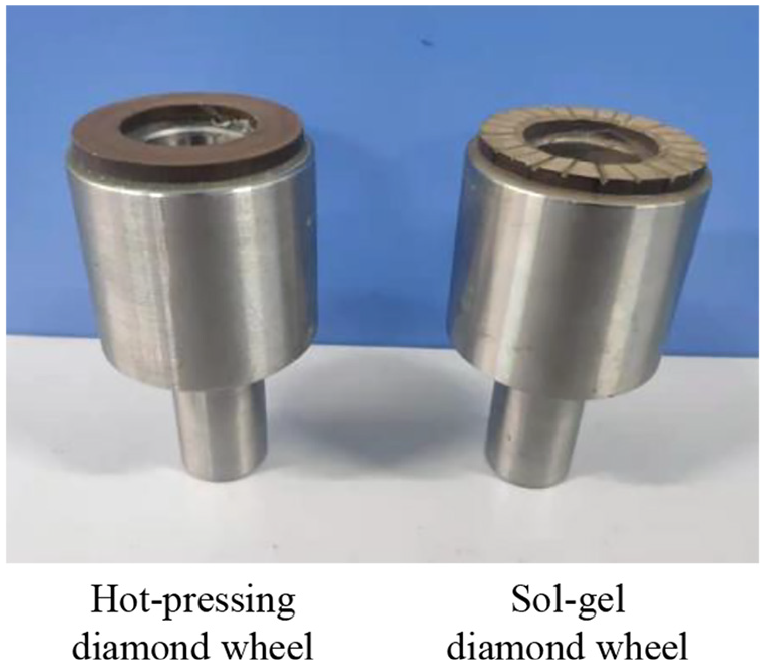

Figure 20.

Two kinds of prepared grinding wheel.

Table 6.

The surface roughness of 4H-SiC grinding by two kinds of grinding wheel in different process conditions.

Experiment number	Grinding speed v_s (r/min)	Feed rate v_w (µm/min)	Grinding depth H (µm)	Surface roughness R_a (nm)
				Sol-gel wheel	Hot pressing wheel
1	4000	6	15	9.21	12.99
2	4000	6	30	10.72	14.67
3	4000	10	15	9.68	13.39
4	4000	10	30	11.59	15.56
5	7000	6	15	6.42	10.28
6	7000	6	30	7.93	11.26
7	7000	10	15	8.55	12.01
8	7000	10	30	10.17	14.51

Figure 21.

The microscopic morphology of the SiC wafer: (a) after being processed by sol-gel diamond wheel and (b) after being processed by hot pressing diamond wheel.

The uneven flatness of wafer will affect the heating degree of each area of photoresist, and eventually lead to insufficient uniformity of wafer etching. High precision machining of SiC wafer requires not only precision grinding equipment, but also good shape keeping of grinding wheel. The surface profile of the SiC wafer after grinding by the two kinds of grinding wheels is shown in Figure 22, it can be seen that the PV value of the surface profile accuracy is about 0.5 µm. The grinding results show that the sol-gel diamond wheel does not greatly affect the surface profile of the SiC wafer, the hardness and wear resistance of the sol-gel diamond wheel can ensure that the shape accuracy of the grinding wheel will not change obviously during grinding process, and then obtain a good grinding surface profile. The real picture of the ultra-precision grinding of the SiC wafer by the sol-gel diamond wheel is shown in Figures 10 and 23 points were selected to test the surface roughness R_a in the radial direction, the average surface roughness R_a is 6.42 nm, which is better than that of using the hot pressing diamond wheel, as shown in Table 7.

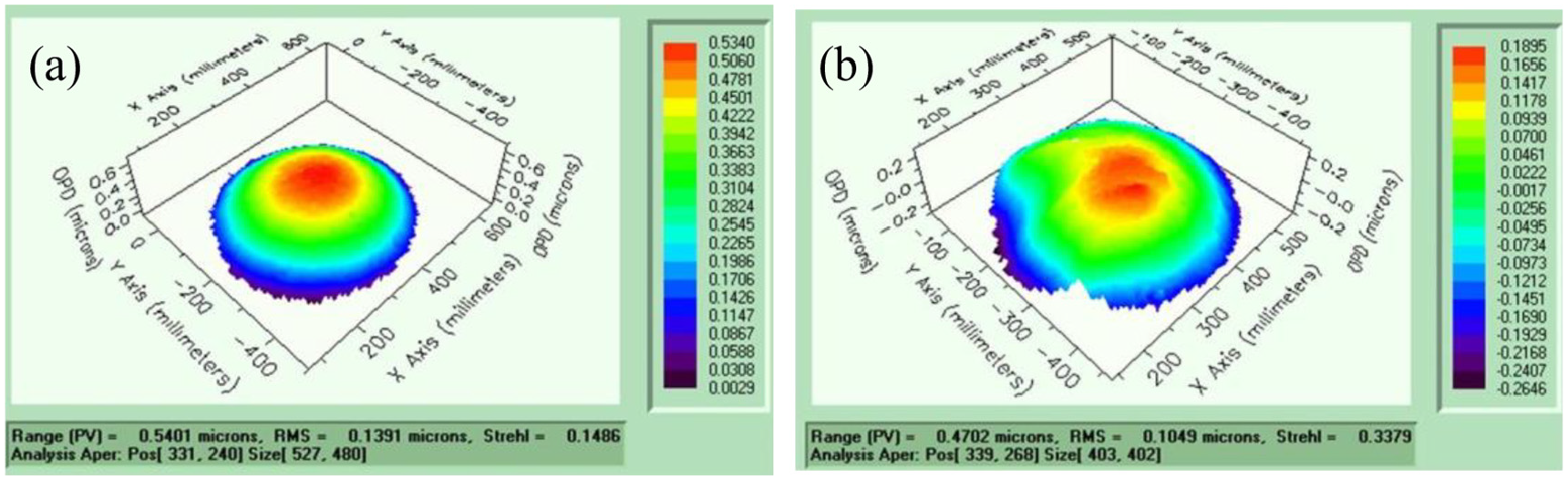

Figure 22.

The surface profile of the SiC wafer: (a) after being processed by the sol-gel diamond wheel (PV 0.5401 µm) and (b) after being processed by the hot pressing diamond wheel (PV 0.4702 µm).

Figure 23.

4H-SiC wafer: (a) before, (b) after ground by sol-gel wheel, and (c) the surface roughness of 10 test points.

Table 7.

Surface roughness R_a measurement of 10 points on 4H-SiC wafer (Unit: nm).

Test points	1	2	3	4	5	6	7	8	9	10	AVG
Sol-gel wheel	6.52	6.37	6.54	5.92	6.39	6.61	6.16	6.74	6.47	6.44	6.42
Hot pressing wheel	10.77	10.48	10.17	9.92	10.21	10.24	10.31	10.43	9.79	10.45	10.28

Conclusion

Ultra-precision grinding of the 4H-SiC wafer by sol-gel diamond wheel was studied in this work. The glue prepared by polyvinyl alcohol and water-soluble phenolic resin was physically gelled after freezing. Polyvinyl alcohol exists in the mixed resin in the form of a semi-interpenetrating network. After the diamond abrasive and filler are dispersed in the mixed glue, it avoids agglomeration and produces large-sized secondary particles. The uniformity of the abrasive distribution is much better than that of powder compacted abrasives. The surface hardness of the sol-gel diamond wheel is close to that of the hot pressing diamond wheel, but the hardness uniformity is significantly improved, and the gel bond shows good bonding performance. Compared with hot pressing diamond wheels, sol-gel diamond wheels have 8.4% higher impact strength, 22.8% higher tensile strength, and 26.3% higher flexural strength.

The grinding experiment was carried out for grinding the 4H-SiC wafer. The prepared sol-gel diamond wheel is used to fine grind the SiC wafer. Single factor experiments show that the surface roughness value of the workpiece shows a trend of first decreasing and then increasing with the setting of the grinding speed, feed rate, and grinding depth. On the basis of single factor experiment, orthogonal optimization experiment shows that when the grinding wheel speed is 4000–8000 r/min, the feed speed is 5–11 µm/min, the grinding depth 15–33 µm, The value of surface roughness decreases with the increase of grinding wheel speed, and increases with the increase of the feed speed and the grinding depth. When the grinding speed is 7000 r/min, the feed rate is 6 µm/min, and the grinding depth is 15 µm, an ultra-precision grinding effect with average surface roughness of R_a 6.42 nm is obtained. The surface quality is better than that of hot pressing grinding wheel, and the surface flatness is equal high.

The cumulative grinding depth of the novel sol-gel diamond wheel reaches 48 µm. The pores on the surface of the sol-gel diamond wheel are gradually blocked, and the sol-gel diamond wheel needs to be dressing. Therefore, it is generally necessary to dress the sol-gel diamond wheel when the quantity of grinding SiC wafers is up to four pieces.
