Abstract

In this article, the free vibration characteristics of spherical caps with different thickness distribution subjected to general boundary conditions are investigated using a semi-analytical approach. Based on the theory of thin shell, the theoretical model of spherical cap is established. Spherical caps are partitioned into sections along the meridional orientation. The displacement components of spherical caps along the meridional direction are represented by Jacobi polynomials. Meanwhile, Fourier series are utilized to express displacement components in the circumferential direction. Various boundary conditions can be easily achieved by the penalty method of the spring stiffness technique. The vibration characteristics of spherical caps are derived by means of the Rayleigh–Ritz energy method. Reliability and validity of the current method are verified by convergence studies and numerical verification. The comparison of results between the current method, finite element method, and those published in the literature prove that the current method works well when handling free vibration of spherical caps. More results of spherical caps with different geometric specifications and edge conditions are displayed in the form of table and graphic, which may serve as a reference for future studies.

Keywords

Vibration characteristics semi-analytical method spherical caps different thickness distribution various boundary conditions

Introduction

Spherical caps with uniform and stepped thickness have been widely applied in practical engineering applications for their excellent mechanical properties. Spherical caps usually subject to a variety of dynamic loads which lead to the excessive vibration. Thus, the vibration characteristics of spherical caps have been well attracted by scholars around the world. The related literature is reviewed below.

On the basis of a semi-analytical method, Artioli and Viola¹ investigated the vibration behavior of spherical shells. Lee² investigated the vibration of a spherical cap by means of the pseudospectral method. He represented the displacement function by Chebyshev polynomials, and the rotations are expressed as Fourier series. Liew et al.³ studied elasticity solutions for the free vibration analysis of curved shell panels on the basis of three-dimensional (3D) displacement-based energy formulation and the Ritz method. Hosseini-Hashemi and Fadaee⁴ proposed a novel solution to investigate the vibration characteristics of a spherical shell. The adaptability and exactness of the method were verified by the results published in the literature and 3D finite element analysis. Pang and colleagues^5–8 used a semi-analytical method to analyze free vibration characteristics of single and combined shells of revolution. Ye et al.^9,10 investigated the vibration behaviors of functionally graded (FG) and composite laminated spherical shells with arbitrary boundary conditions. The results of these papers are compared with those published in the literature and those of the finite element method (FEM). Tessler and Spiridigliozzi¹¹ put forward a new simple shell element of two nodes on the basis of shallow curved meridional assumptions. The new element has better adaptability for element slenderness and curvature properties. Chen et al.¹² presented an analytical method for analyzing the free and forced vibration characteristics of a ring-reinforced conical cylindrical shell with arbitrary boundary conditions, where the stiffener with a rectangular cross section is treated as a separate member and the equation of motion of the annular plate is used to describe the movement of the stiffener. Jin et al.¹³ and Su et al.¹⁴ proposed a modified Fourier series solution and a 3D vibration analysis approach to investigate the vibration property of truncated curved cases with complex boundary edges. Kiani et al.^15–18 investigated static, dynamic, and free vibration analyses of a functionally graded material (FGM) curved panel by means of Hamilton’s principle and the conventional Ritz formulation.

To the authors’ knowledge, there are also a few studies on spherical shells and plates with stepped thickness. Juárez¹⁹ applied the classical uniform plate solution to each zone of different thickness to obtain the frequency and dynamic curve of stepped circular plates. Poultangari and Nikkhahbahrami²⁰ solved the dynamic behavior of stepped cylindrical shells by combining the wave method and the Fourier series method. Li et al.^21,22 analyzed stepped cylindrical and spherical shells with general boundary conditions using the semi-analytical approach. Khalifa²³ investigated the vibration behavior of stepped cylindrical shells by means of the combination of the transfer matrix approach and the Romberg integration method. Based on the theory of thin shell, Zhang and Xiang²⁴ studied the vibration characteristic of stepped cylindrical shells. Ju et al.²⁵ studied the vibration behavior of plates with stepped variations in thickness by means of the FEM. Li et al.^26,27 studied the free vibration of FG shells of revolution with non-uniform thickness distributions.

Most studies mentioned above are about the investigation of the vibration characteristic of uniform spherical shells by means of the pseudospectral method, FEM, Fourier series method, and so on. There are only a few studies on the vibration behavior of spherical shells with stepped thickness. Thus, a unified and efficient formulation is necessary and of great significance to establish to analyze free vibration of spherical caps with uniform and stepped thickness subjected to various boundary conditions.

Theoretical formulations

Description of the model

The geometric notation and coordinate system of spherical caps with uniform and stepped thickness are, respectively, displayed in Figure 1(a) and (b). In the cross section of the uniform and stepped spherical caps, thicknesses are, respectively, denoted by h and h_i. The symbols R and R_s signify the horizontal radius and radius separately. C_s implies the center of the spherical cap and $φ_{1}$ means the center angle of the spherical cap corresponding to horizontal radius. As displayed in Figure 2(a), the spherical cap is described by an orthogonal coordinate system $(φ, θ, δ)$ , where φ, θ, and $δ$ , respectively, represent the meridional, circumferential, and normal orientations. In the differential element of the spherical cap shown in Figure 2(b), the displacement components of the middle section of the spherical cap along the meridional, circumferential, and normal orientations are, respectively, denoted by u, v, and w.

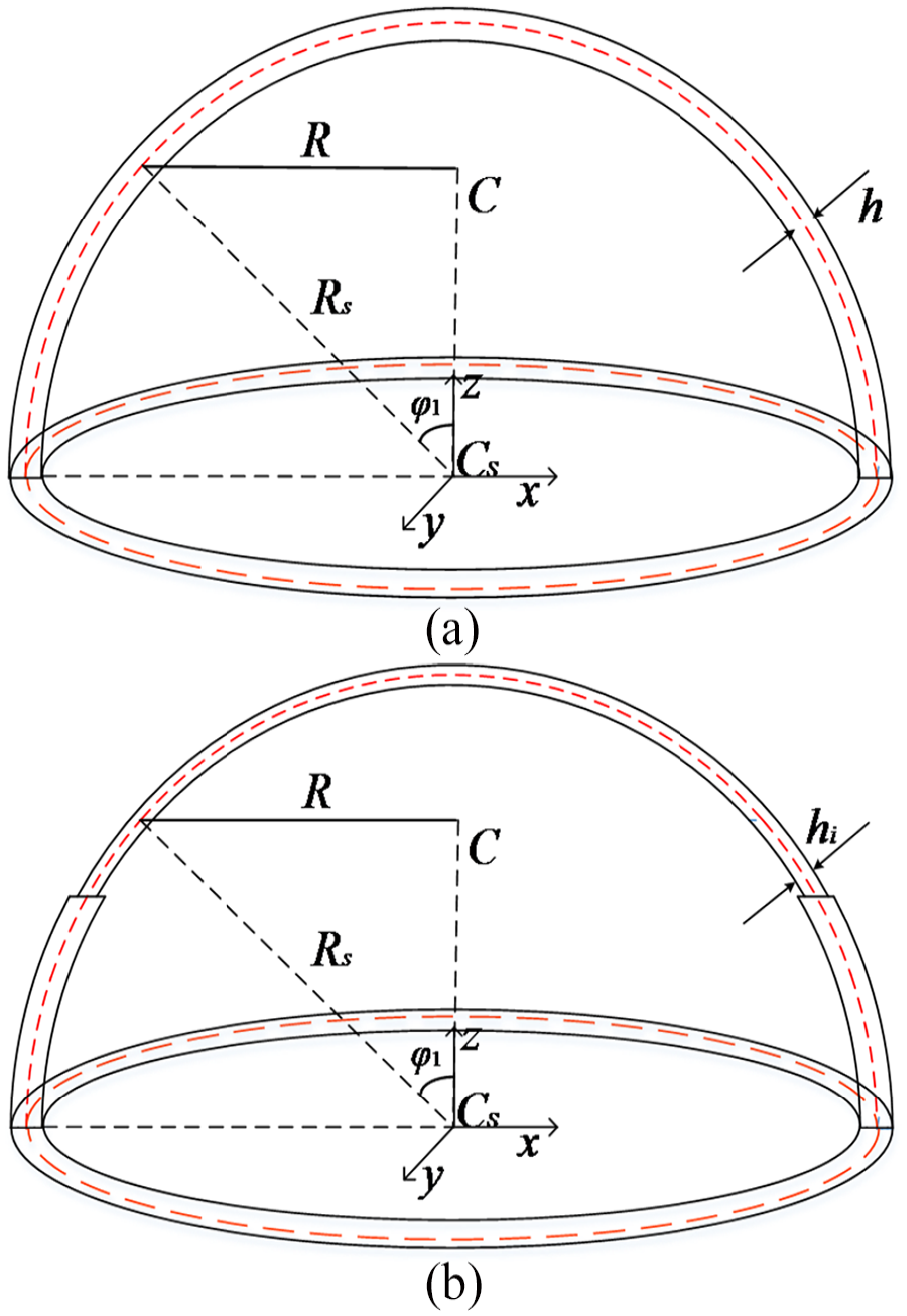

Figure 1.

Geometric characteristic symbols of (a) uniform thickness spherical cap and (b) stepped thickness spherical cap.

Figure 2.

(a) System of coordinates and (b) differential element of the spherical cap.

Energy functional expressions of the spherical cap

The relationship between strain and displacement of the ith section of the spherical cap is expressed as follows on the basis of the theory of thin shell and Kirchhoff hypothesis

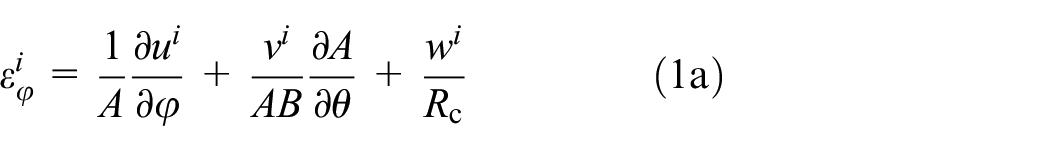

ε_{φ}^{i} = \frac{1}{A} \frac{\partial u^{i}}{\partial φ} + \frac{v^{i}}{AB} \frac{\partial A}{\partial θ} + \frac{w^{i}}{R_{c}}

(1a)

ε_{θ}^{i} = \frac{1}{B} \frac{\partial v^{i}}{\partial θ} + \frac{u^{i}}{AB} \frac{\partial B}{\partial φ} + \frac{w^{i}}{R_{c}}

(1b)

ε_{φ θ}^{i} = \frac{A}{B} \frac{\partial}{\partial θ} (\frac{u^{i}}{A}) + \frac{B}{A} \frac{\partial}{\partial φ} (\frac{v^{i}}{B})

(1c)

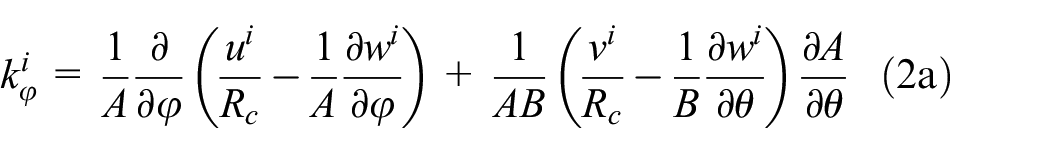

k_{φ}^{i} = \frac{1}{A} \frac{\partial}{\partial φ} (\frac{u^{i}}{R_{c}} - \frac{1}{A} \frac{\partial w^{i}}{\partial φ}) + \frac{1}{AB} (\frac{v^{i}}{R_{c}} - \frac{1}{B} \frac{\partial w^{i}}{\partial θ}) \frac{\partial A}{\partial θ}

(2a)

k_{θ}^{i} = \frac{1}{B} \frac{\partial}{\partial θ} (\frac{v^{i}}{R_{c}} - \frac{1}{B} \frac{\partial w^{i}}{\partial θ}) + \frac{1}{AB} (\frac{u^{i}}{R_{c}} - \frac{1}{A} \frac{\partial w^{i}}{\partial φ}) \frac{\partial B}{\partial φ}

(2b)

\begin{matrix} k_{φ θ}^{i} = \frac{A}{B} \frac{\partial}{\partial θ} [\frac{1}{A} (\frac{u^{i}}{R_{c}} - \frac{1}{A} \frac{\partial w^{i}}{\partial φ})] + \frac{B}{A} \frac{\partial}{\partial φ} [\frac{1}{B} (\frac{v^{i}}{R_{c}} - \frac{1}{B} \frac{\partial w^{i}}{\partial θ})] \\ + \frac{1}{R_{c}} (\frac{1}{B} \frac{\partial u^{i}}{\partial θ} - \frac{v^{i}}{AB} \frac{\partial B}{\partial φ}) + \frac{1}{R_{c}} (\frac{1}{A} \frac{\partial v^{i}}{\partial φ} - \frac{u^{i}}{AB} \frac{\partial A}{\partial θ}) \end{matrix}

(2c)

where i signifies the ith segment of the spherical cap; $ε_{φ}^{i}$ and $ε_{θ}^{i}$ are the normal strains of the spherical cap; $ε_{φ θ}^{i}$ means the shear strains; $k_{φ}^{i}$ and $k_{θ}^{i}$ signify the mid-surface variation in the curvature direction; $k_{φ θ}^{i}$ means the twist mid-surface variation; $u^{i}$ , $v^{i}$ , and $w^{i}$ represent the displacement components of the spherical cap along $φ$ , $θ$ , and $δ$ orientations, respectively; and A and B correspond to different Lamé parameters

A = R_{s}, B = R_{s} \sin φ

(3)

The linear strains of the spherical cap based on Flügge’s thin shell theory can be written as

e_{φ}^{i} = \frac{1}{1 + \frac{z}{R_{s}}} (ε_{φ}^{i} + {zk}_{φ}^{i})

(4a)

e_{θ}^{i} = \frac{1}{1 + \frac{z}{R_{s}}} (ε_{θ}^{i} + {zk}_{θ}^{i})

(4b)

\begin{matrix} γ_{φ θ}^{i} = \frac{1}{(1 + \frac{z}{R_{s}}) (1 + \frac{z}{R_{s}})} \\ [(1 - \frac{z^{2}}{R_{s}^{2}}) ε_{φ θ}^{i} + z (1 + \frac{z}{R_{s}}) k_{φ θ}^{i}] \end{matrix}

(4c)

where $- h / 2 \leq z \leq h / 2$ , and the corresponding stresses mentioned above can be expressed as

{\begin{matrix} σ_{φ}^{i} \\ σ_{θ}^{i} \\ σ_{φ θ}^{i} \end{matrix}} = [\begin{matrix} Q_{11} & Q_{12} & 0 \\ Q_{21} & Q_{22} & 0 \\ 0 & 0 & Q_{66} \end{matrix}] {\begin{matrix} e_{φ}^{i} \\ e_{θ}^{i} \\ γ_{φ θ}^{i} \end{matrix}}

(5)

where $σ_{φ}$ and $σ_{θ}$ are the normal stresses, $σ_{φ θ}$ denotes the shear stress, and $Q_{i, j} (i, j = 1, 2, 6)$ represent the constants relating stresses with strains

Q_{11} = Q_{22} = \frac{E}{1 - ν^{2}}

(6a)

Q_{12} = Q_{21} = \frac{ν E}{1 - ν^{2}}

(6b)

Q_{66} = \frac{E}{2 (1 + ν)}

(6c)

where E and μ, respectively, denote the elastic modulus and Poisson’s ratio. The strain energy stored in the spherical cap during elastic deformation is expressed as

U^{i} = \frac{1}{2} \int_{V} (σ_{φ}^{i} e_{φ}^{i} + σ_{θ}^{i} e_{θ}^{i} + σ_{φ θ}^{i} γ_{φ θ}^{i}) dV

(7)

where dV denotes the volume of the element, which can be expressed as follows

dV = {(1 + \frac{z}{R_{c}})}^{2} R_{s}^{2} \sin φ d φ d θ dz

(8)

By combining equations (7) and (8), the energy function of the spherical cap is rearranged as follows

U^{i} = \frac{E h_{i}}{2 (1 - ν^{2})} \int \int [P_{0}^{i} + \frac{{h_{i}}^{2}}{12} (P_{1}^{i} + P_{2}^{i})] ABd φ d θ

(9)

where

P_{0}^{i} = (ε_{φ}^{i})^{2} + (ε_{θ}^{i})^{2} + 2 ν ε_{φ}^{i} ε_{θ}^{i} + \frac{1 - ν}{2} (ε_{φ θ}^{i})^{2}

(10a)

P_{1}^{i} = (k_{φ}^{i})^{2} + (k_{θ}^{i})^{2} + 2 ν k_{φ}^{i} k_{θ}^{i} + \frac{1 - ν}{2} (k_{φ θ}^{i})^{2}

(10b)

P_{2}^{i} = - \frac{1 - ν}{R_{S}} ε_{φ θ}^{i} k_{φ θ}^{i} + \frac{1 - ν}{2 {R_{S}}^{2}} (ε_{φ θ}^{i})^{2}

(10c)

The kinetic energy of the spherical cap can be defined as

T^{i} = \frac{ρ h}{2} \int \int [{({\overset{\cdot}{u}}^{i})}^{2} + {({\overset{\cdot}{v}}^{i})}^{2} + {({\overset{\cdot}{w}}^{i})}^{2}] ABd φ d θ

(11)

The dot above the displacement component represents the differentiation of displacement with respect to time. The kinetic energy expression of equation (11) can be re-represented as

T^{i} = \frac{ρ h ω^{2}}{2} \int \int [{(u^{i})}^{2} + {(v^{i})}^{2} + {(w^{i})}^{2}] ABd φ d θ

(12)

where ω is the angular frequency of the spherical cap.

Boundary conditions and continuity constraints of the spherical cap

In this research, the boundary conditions and continuity of spherical caps are modeled using the penalty method, where the penalty parameters are translational and rotational spring stiffness values. That is to say, various boundary conditions can be simulated by setting proper values to penalty parameters.

The potential energy stored in the boundary springs of the spherical cap can be expressed as

\begin{matrix} U_{b} = \frac{1}{2} \int_{0}^{2 π} {k_{u, 0} u_{0}^{2} + k_{v, 0} v_{0}^{2} + k_{w, 0} w_{0}^{2} + k_{r, 0} {[- \frac{(u_{0} - \frac{\partial w_{0}}{\partial φ_{0}})}{R_{φ_{0}}}]}^{2}} R_{s} \sin φ d θ \\ + \frac{1}{2} \int_{0}^{2 π} {k_{u, 1} u_{1}^{2} + k_{v, 1} v_{1}^{2} + k_{w, 1} w_{1}^{2} + k_{r, 1} {[- \frac{(u_{1} - \frac{\partial w_{1}}{\partial φ_{1}})}{R_{φ_{1}}}]}^{2}} R_{s} \sin φ d θ \end{matrix}

(13)

where $k_{u, 0}, k_{v, 0}, k_{w, 0}, k_{r, 0}$ and $k_{u, 1}, k_{v, 1}, k_{w, 1}, k_{r, 1}$ , respectively, denote the spring stiffness values on the top and bottom sides of the spherical cap. Meanwhile, the potential energy stored in the connecting springs of two adjacent sections is expressed as

U_{s}^{i} = \frac{1}{2} \int_{0}^{2 π} {\begin{matrix} k_{u} (u^{i} - u^{i + 1})^{2} + k_{v} (v^{i} - v^{i + 1})^{2} + k_{w} (w^{i} - w^{i + 1})^{2} \\ + \frac{k_{r}}{R_{s}^{2}} {[(u^{i} - \frac{\partial w^{i}}{\partial φ}) - (u^{i + 1} - \frac{\partial w^{i + 1}}{\partial φ})]}^{2} \end{matrix}}_{i, i + 1} R_{s} \sin φ d θ

(14)

Finally, the total potential energy stored in the boundary and connective springs is expressed as

U_{BC} = U_{b} + \sum_{i = 1}^{N_{p} - 1} U_{s}^{i}

(15)

where N_p is the number of sections of the spherical cap divided along the axial direction. Various boundary conditions can be easily simulated in this research by setting the boundary and connective spring stiffness at proper values.

Displacement components and the solution process

The choice of the suitable displacement function plays an important role when guaranteeing the accuracy of the solution. The use of the penalty method in this research makes the choice of the displacement function flexible.

In this research, the displacement and rotational components of the spherical cap are, respectively, expressed as Jacobi polynomials and Fourier series, regardless of boundary conditions. As displayed in the published literature, conventional Jacobi polynomials^28,29 are limited in the range of $ϕ \in [- 1, 1]$ . Typical Jacobi polynomials $P_{i}^{(α, β)} (ϕ)$ of degree i are written as follows

P_{0}^{(α, β)} (ϕ) = 1

(16a)

P_{1}^{(α, β)} (ϕ) = \frac{α + β + 2}{2} ϕ - \frac{α - β}{2}

(16b)

\begin{matrix} P_{i}^{(α, β)} (ϕ) = \frac{(α + β + 2 i - 1) {α^{2} - β^{2} + ϕ (α + β + 2 i) (α + β + 2 i - 2)}}{2 i (α + β + i) (α + β + 2 i - 2)} P_{i - 1}^{(α, β)} (ϕ) \\ - \frac{(α + i - 1) (β + i - 1) (α + β + 2 i)}{i (α + β + i) (α + β + 2 i - 2)} P_{i - 2}^{(α, β)} (ϕ) \end{matrix}

(16c)

In the equations above, $α, β > - 1$ and i = 2, 3, …. The Jacobi polynomials are generalized polynomials containing Chebyshev, Legendre, and Gegenbauer multinomials. For example, when $α = β = 1 / 2$ , the Jacobi polynomials correspond to the second type of Chebyshev polynomials. Other types of polynomials can also be obtained by assigning Jacobi polynomial coefficients at different values. The displacement components of the spherical cap along the axial, circumferential, and normal directions are signified as follows

u = \sum_{m = 0}^{M} \sum_{n = 0}^{N} U_{mn} P_{m}^{(α, β)} (ϕ) \cos (n θ) e^{i ω t}

(17a)

v = \sum_{m = 0}^{M} \sum_{n = 0}^{N} V_{mn} P_{m}^{(α, β)} (ϕ) \sin (n θ) e^{i ω t}

(17b)

w = \sum_{m = 0}^{M} \sum_{n = 0}^{N} W_{mn} P_{m}^{(α, β)} (ϕ) \cos (n θ) e^{i ω t}

(17c)

In the equations above, $U_{mn}$ , $V_{mn}$ , and $W_{mn}$ are the corresponding Jacobi expanded coefficients; $P_{m}^{(α, β)} (ϕ)$ are the Jacobi polynomials equivalent to the mth order displacement components along the meridional orientation; and M and N are the highest degrees considered in displacement admissible functions. In addition, a linear transformation $φ_{ξ} = [(φ_{ξ}^{i + 1} - φ_{ξ}^{i}) / 2] ϕ + [(φ_{ξ}^{i + 1} + φ_{ξ}^{i}) / 2]$ is introduced to transform $φ \in [φ^{i}, φ^{i + 1}]$ of the ith segment into interval $ϕ \in [- 1, 1]$ . The total Lagrangian energy function of the spherical cap can be written as

L = \sum_{i = 1}^{H} (T^{i} - U^{i}) - U_{BC}

(18)

The total energy function of the spherical cap is minimized with regard to the undetermined Jacobi coefficients on the basis of the Rayleigh–Ritz method

\frac{\partial L}{\partial ϑ} = 0, ϑ = U_{mn}, V_{mn}, W_{mn}

(19)

By substituting equations (12), (15), (17), and (18) into equation (19), the discretized equation of vibration is summarized in a matrix form as follows

(K - ω^{2} M) T = 0

(20)

where K and M, respectively, signify the stiffness matrix and mass matrix and T is the vector of unknown Jacobi coefficients. The eigenvalues and the corresponding eigenvectors of equation (20), respectively, match frequencies and mode shapes of the spherical cap.

Numerical results and discussion

In this section, the dependability and validity of this method for uniform and stepped spherical caps are confirmed by comparing with the results reported in the related literature and FEM results. When the penalty parameters are not defined as suitable values, the solution may not converge.^30,31 Hence, it is necessary to conduct the convergence study of this method. On the basis of that, more results of spherical caps with different geometry parameters and edge conditions are presented.

To simplify the study, various boundary conditions are represented by symbols. For example, C, SD, SS, F, and E, respectively, denote clamped, shear-diaphragm, shear-support, free, and elastic boundary conditions. Unless otherwise stated, the material constants are set as follows in this research: E = 211 GPa, ρ = 7800 kg/m³, and v = 0.3. To avoid roundoff results, the non-dimensional frequency parameter is used unless otherwise stated: $Ω = ω R_{S} \sqrt{ρ / E}$ .

Convergence studies

Figures 3 and 4, respectively, display the non-dimensional frequency $Ω$ of the clamped hemispherical cap with different edge and connective spring stiffness values. The radius of the hemispherical cap is R_s = 1 m; in addition, the thickness of the hemispherical cap is h = 0.005 m, Jacobi polynomials are α = β = –0.5, and the shell component segment number is N_p = 4.

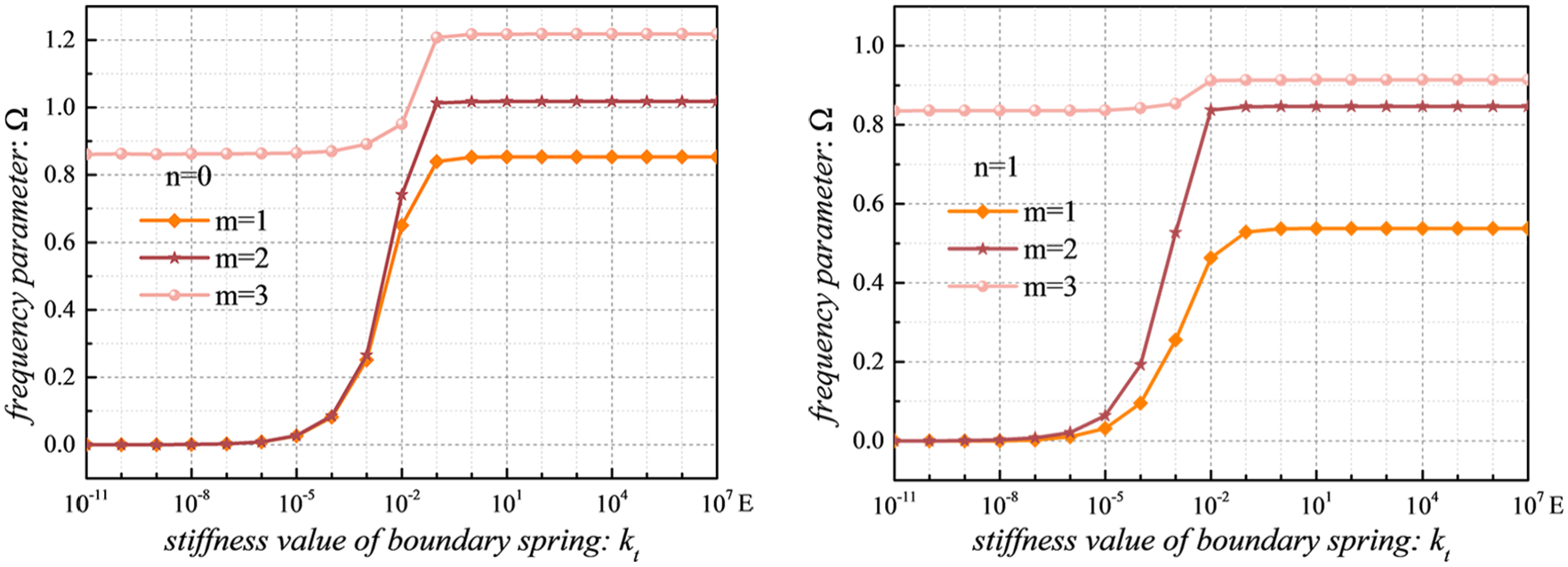

Figure 3.

Non-dimensional frequency Ω of the spherical cap with different boundary spring stiffness values.

Figure 4.

Non-dimensional frequency Ω of the spherical cap with different connective spring stiffness values.

From Figure 3, it can be observed that that the stiffness values of connective springs in the range of $k_{t} = 10^{1} E - 10^{7} E$ and the stiffness values of boundary springs in the range of $k_{t} = 10^{0} E - 10^{7} E$ ensure a stable convergence. Stiffness values in these ranges can be seen as rigid boundary conditions. Meanwhile, free boundary conditions correspond to the stiffness values less than $10^{- 7} E$ . Similarly, spring stiffness values within the scope of $10^{- 7} E to 10^{- 2} E$ can be regarded as elastic. Thus, the spring stiffness values corresponding to different boundary conditions in Table 1 have been proved.

Table 1.

Spring stiffness values corresponding to various boundary conditions.

Boundary condition	k_u,0, k_u,1	k_v,0, k_v,1	k_w,0, k_w,1	k_r,0, k_r,1
F	0	0	0	0
SS	10³E	10³E	10³E	0
SD	0	10³E	10³E	0
C	10³E	10³E	10³E	10³E
E1	10⁻³E	10³E	10³E	10³E
E2	10³E	10⁻³E	10³E	10³E
E3	10³E	10³E	10⁻³E	10³E

Frequency parameters Ω of a uniform spherical cap with different truncation number of segments (N_p) are compared with those published in the literature and of FEM in Table 2. The FEM results were obtained by the Abaqus software and the element type is chosen as S4R. To verify mesh convergence of the FEM model, different mesh numbers have been tried. The results demonstrate that when the element number reaches 17,128, the FEM results have been convergent. The comparison of results between the current method, related literature, and FEM proves that the current method converges well when the shell segment number (N_p) is small. We can find out that when the shell segment number (N_p) of the hemispherical cap reaches 4, the results become convergent. The center angle of the spherical cap in Table 2 is 45 degrees; in addition, the radius and thickness of the spherical cap are, respectively, 1 and 0.05 m.

Table 2.

Convergence study of frequency parameters $Ω = ω R_{S} \sqrt{ρ / E}$ in reference to the section number of the spherical cap (N_p).

m	n	Number of segments (N_p)								Singh³²	FEM (8756)	FEM (17,128)	FEM (33,426)
m	n	3	4	5	6	7	8	9	10	Singh³²	FEM (8756)	FEM (17,128)	FEM (33,426)
1	1	1.0692	1.0698	1.0698	1.0698	1.0698	1.0698	1.0698	1.0698	1.0690	1.0695	1.0696	1.0696
	2	1.6810	1.6813	1.6813	1.6813	1.6813	1.6813	1.6813	1.6813	1.6661	1.6812	1.6812	1.6812
	3	2.6721	2.6711	2.6711	2.6711	2.6711	2.6711	2.6711	2.6711	2.6300	2.6703	2.6708	2.6708
2	1	1.3054	1.3064	1.3064	1.3064	1.3064	1.3064	1.3064	1.3064	1.2931	1.3051	1.3052	1.3052
	2	2.0685	2.1685	2.1685	2.1685	2.1685	2.1685	2.1685	2.1685	2.1543	2.1660	2.1662	2.1662
	3	3.3903	3.4903	3.4903	3.4903	3.4903	3.4903	3.4903	3.4903	3.4793	3.4703	3.4703	3.4703
3	1	1.5702	1.5802	1.5802	1. 5802	1.5802	1.5802	1.5802	1.5802	1.5700	1.5602	1.5602	1.5602
	2	2.7102	2.7112	2.7112	2.7112	2.7112	2.7112	2.7112	2.7112	2.6892	2.6900	2.6912	2.6912
	3	4.2105	4.3105	4.3105	4.3105	4.3105	4.3105	4.3105	4.3105	4.2097	4.2102	4.2105	4.2105
4	1	1.9333	1.9533	1.9533	1.9533	1.9533	1.9533	1.9533	1.9533	1.9300	1.9228	1.9230	1.9230
	2	3.2011	3.3011	3.3011	3.3011	3.3011	3.3011	3.3011	3.3011	3.2810	3.2501	3.2501	3.2501
	3	5.1202	5.0302	5.0302	5.0302	5.0302	5.0302	5.0302	5.0302	4.9669	5.0101	5.0102	5.0102

FEM: finite element method.

Figure 5 displays the percentage error of frequency parameters of the spherical cap with different Jacobi parameters. The maximum percentage error does not exceed 4 × 10⁻⁵ when Jacobi parameters are different. That is to say, Jacobi parameters almost have no effect on the results of the solution. Not only the special polynomials (Chebyshev, Legendre, Bernstein, Gegenbauer) in Jacobi polynomial systems can be used, but other polynomials can also be utilized.

Figure 5.

Fractional error of frequency parameters Ω of the uniform spherical cap with different Jacobi parameters (BC: C–C).

Free vibration of uniform and stepped spherical caps

Table 2 proves the fast convergence and efficiency of the current method when handling free vibration of the uniform spherical cap. Meanwhile, the comparison results of the stepped hemispherical cap between the current method and FEM (S4R model, 17,128 elements) are listed in Table 3. The radius of the stepped hemispherical cap in Table 3 is the same as that given in Table 2, whereas the thickness of the top and bottom sections of the hemispherical cap are, respectively, 0.005 and 0.008 m. The slight difference between the comparison results in Table 3 also proves the efficiency and accuracy of the current method when dealing with free vibration of a spherical cap with stepped thickness.

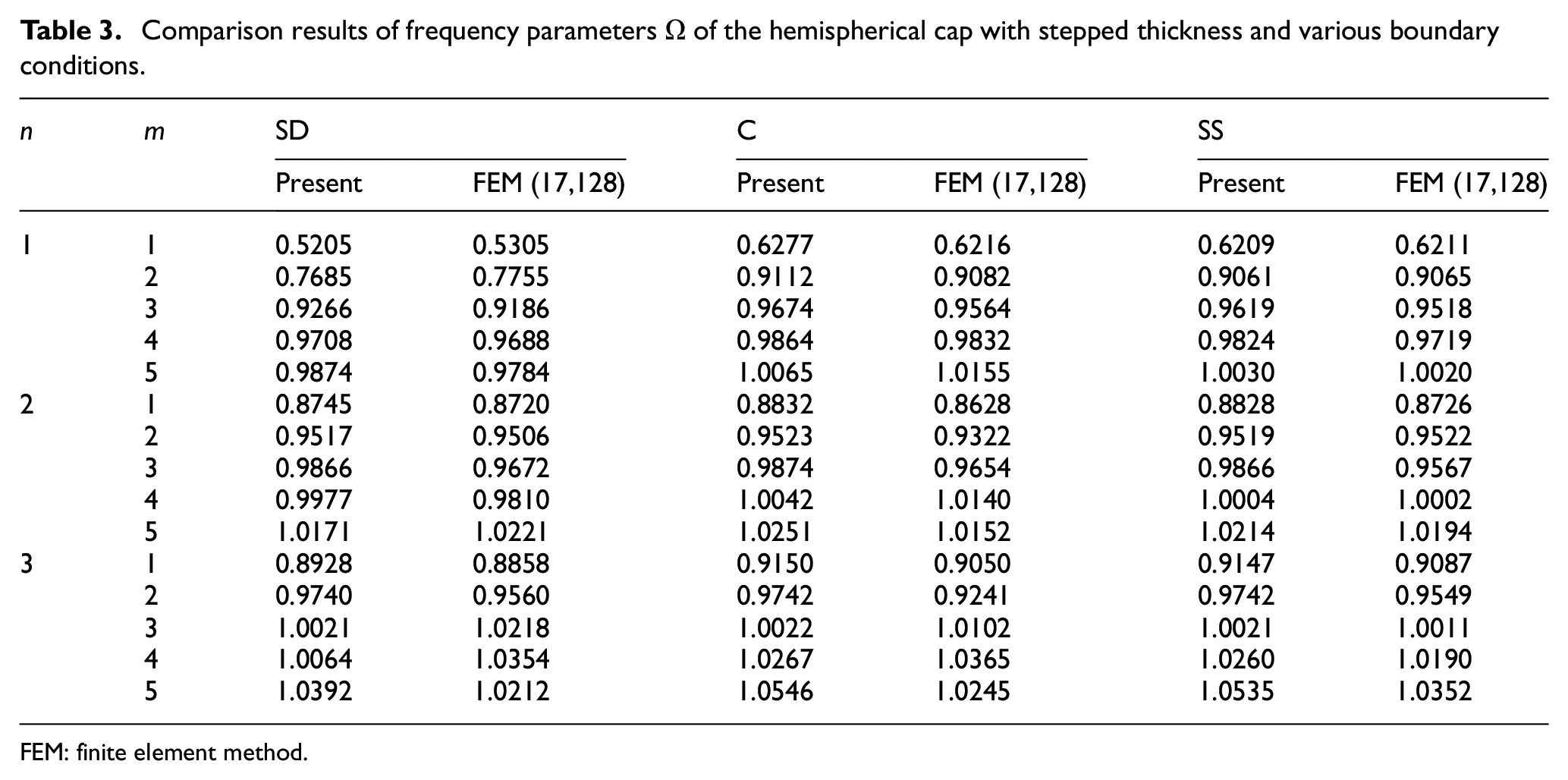

Table 3.

Comparison results of frequency parameters Ω of the hemispherical cap with stepped thickness and various boundary conditions.

n	m	SD		C		SS
n	m	Present	FEM (17,128)	Present	FEM (17,128)	Present	FEM (17,128)
1	1	0.5205	0.5305	0.6277	0.6216	0.6209	0.6211
	2	0.7685	0.7755	0.9112	0.9082	0.9061	0.9065
	3	0.9266	0.9186	0.9674	0.9564	0.9619	0.9518
	4	0.9708	0.9688	0.9864	0.9832	0.9824	0.9719
	5	0.9874	0.9784	1.0065	1.0155	1.0030	1.0020
2	1	0.8745	0.8720	0.8832	0.8628	0.8828	0.8726
	2	0.9517	0.9506	0.9523	0.9322	0.9519	0.9522
	3	0.9866	0.9672	0.9874	0.9654	0.9866	0.9567
	4	0.9977	0.9810	1.0042	1.0140	1.0004	1.0002
	5	1.0171	1.0221	1.0251	1.0152	1.0214	1.0194
3	1	0.8928	0.8858	0.9150	0.9050	0.9147	0.9087
	2	0.9740	0.9560	0.9742	0.9241	0.9742	0.9549
	3	1.0021	1.0218	1.0022	1.0102	1.0021	1.0011
	4	1.0064	1.0354	1.0267	1.0365	1.0260	1.0190
	5	1.0392	1.0212	1.0546	1.0245	1.0535	1.0352

FEM: finite element method.

To further verify the accuracy of the current method, the modal shapes of the spherical cap using the current method and FEM (S4R model, 17,128 elements) are displayed in Figure 6. It is clear that the modal shapes of the current method also match well with the FEM. The high accuracy of the current method is proved again.

Figure 6.

Typical mode shapes of the spherical cap with free boundary restraint using FEM and the current method.

For the shortage of frequency parameters of the stepped spherical cap in the related literature, stepped spherical caps with different center angles and boundary conditions are chosen as research objects in Tables 4 –6. The results shown in Tables 4 –6 signify that the boundary conditions affect the frequency parameters of the stepped spherical cap heavily. In addition, with the enhancement of boundary conditions, the frequency parameters also increase. Meanwhile, the data in Tables 4 –6 prove that when the circumferential mode number is constant, the frequency parameters $Ω$ increase with the meridional wave number. The data in Tables 4 –6 may also act as a reference for related research in the future. Figure 7 shows the relation between frequency parameters $Ω$ of clamped uniform spherical caps and center angles. It is clear that frequency parameters decrease with the increase in the center angle of the spherical cap.

Table 4.

Frequency parameter Ω of the stepped spherical cap with a center angle of 60 degrees and different boundary conditions.

n	m	Boundary conditions
n	m	F	SS	SD	C	E1	E2	E3
1	1	0.9613	0.9127	0.1518	0.9152	0.5209	0.5019	0.9149
	2	0.9857	0.9722	0.9133	0.9734	0.9161	0.9663	0.9734
	3	1.0069	1.0054	0.9722	1.0073	0.9735	1.0045	1.0072
	4	1.0474	1.0352	1.0054	1.0481	1.0073	1.0421	1.0469
	5	1.1093	1.0825	1.0352	1.1071	1.0481	1.0996	1.1008
2	1	0.9861	0.9854	0.8894	0.9860	0.9379	0.7872	0.9860
	2	0.9953	1.0028	0.9866	1.0035	0.9868	0.9873	1.0030
	3	1.0237	1.0234	1.0231	1.0252	1.0245	1.0250	1.0249
	4	1.0755	1.0622	1.0546	1.0762	1.0741	1.0708	1.0748
	5	1.1596	1.1373	1.1232	1.1627	1.1537	1.1502	1.1575
3	1	0.9894	0.9893	0.9282	0.9902	0.9524	0.8683	0.9898
	2	1.0045	1.0080	1.0026	1.0080	1.0028	1.0028	1.0076
	3	1.0473	1.0454	1.0450	1.0477	1.0477	1.0477	1.0475
	4	1.1116	1.0989	1.0805	1.1143	1.1071	1.1032	1.1129
	5	1.2334	1.2087	1.1877	1.2430	1.2271	1.2250	1.2351

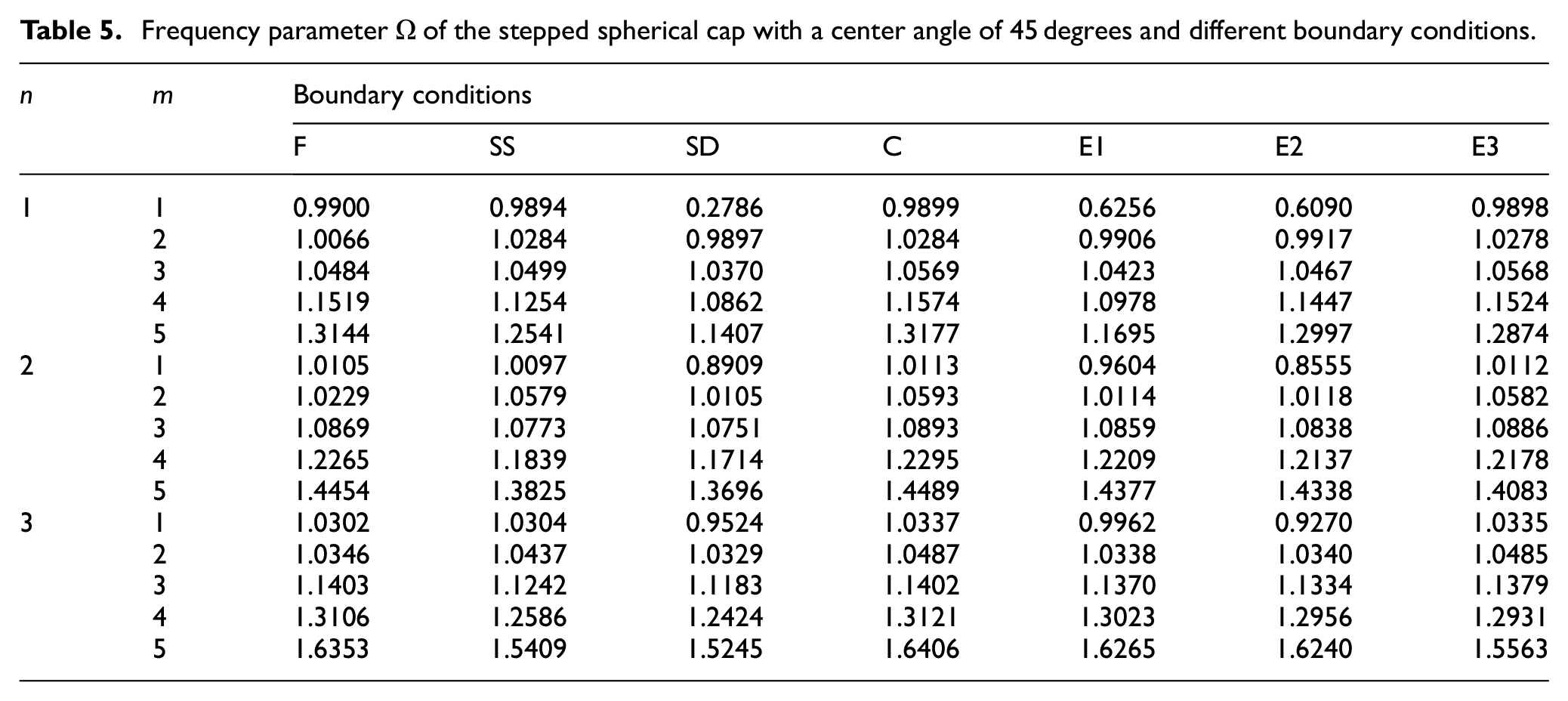

Table 5.

Frequency parameter Ω of the stepped spherical cap with a center angle of 45 degrees and different boundary conditions.

n	m	Boundary conditions
n	m	F	SS	SD	C	E1	E2	E3
1	1	0.9900	0.9894	0.2786	0.9899	0.6256	0.6090	0.9898
	2	1.0066	1.0284	0.9897	1.0284	0.9906	0.9917	1.0278
	3	1.0484	1.0499	1.0370	1.0569	1.0423	1.0467	1.0568
	4	1.1519	1.1254	1.0862	1.1574	1.0978	1.1447	1.1524
	5	1.3144	1.2541	1.1407	1.3177	1.1695	1.2997	1.2874
2	1	1.0105	1.0097	0.8909	1.0113	0.9604	0.8555	1.0112
	2	1.0229	1.0579	1.0105	1.0593	1.0114	1.0118	1.0582
	3	1.0869	1.0773	1.0751	1.0893	1.0859	1.0838	1.0886
	4	1.2265	1.1839	1.1714	1.2295	1.2209	1.2137	1.2178
	5	1.4454	1.3825	1.3696	1.4489	1.4377	1.4338	1.4083
3	1	1.0302	1.0304	0.9524	1.0337	0.9962	0.9270	1.0335
	2	1.0346	1.0437	1.0329	1.0487	1.0338	1.0340	1.0485
	3	1.1403	1.1242	1.1183	1.1402	1.1370	1.1334	1.1379
	4	1.3106	1.2586	1.2424	1.3121	1.3023	1.2956	1.2931
	5	1.6353	1.5409	1.5245	1.6406	1.6265	1.6240	1.5563

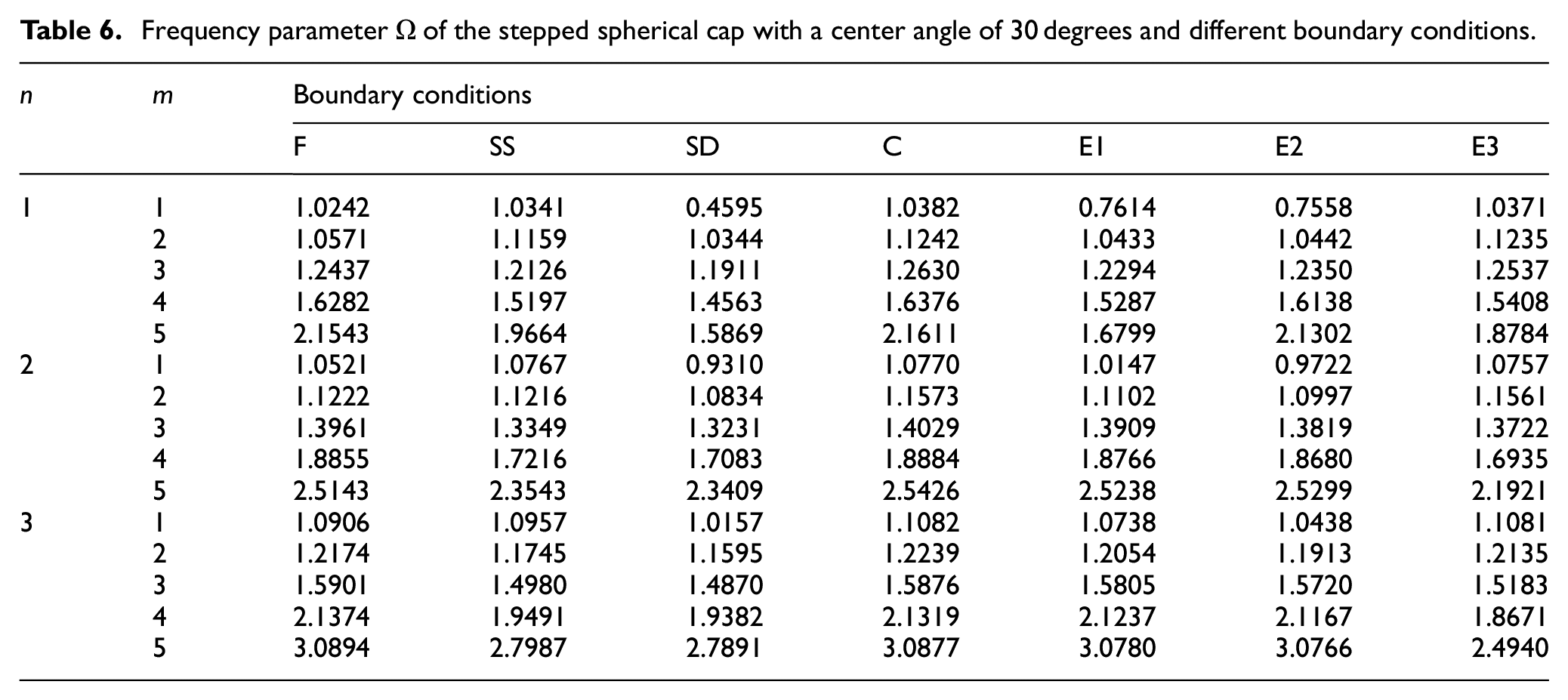

Table 6.

Frequency parameter Ω of the stepped spherical cap with a center angle of 30 degrees and different boundary conditions.

n	m	Boundary conditions
n	m	F	SS	SD	C	E1	E2	E3
1	1	1.0242	1.0341	0.4595	1.0382	0.7614	0.7558	1.0371
	2	1.0571	1.1159	1.0344	1.1242	1.0433	1.0442	1.1235
	3	1.2437	1.2126	1.1911	1.2630	1.2294	1.2350	1.2537
	4	1.6282	1.5197	1.4563	1.6376	1.5287	1.6138	1.5408
	5	2.1543	1.9664	1.5869	2.1611	1.6799	2.1302	1.8784
2	1	1.0521	1.0767	0.9310	1.0770	1.0147	0.9722	1.0757
	2	1.1222	1.1216	1.0834	1.1573	1.1102	1.0997	1.1561
	3	1.3961	1.3349	1.3231	1.4029	1.3909	1.3819	1.3722
	4	1.8855	1.7216	1.7083	1.8884	1.8766	1.8680	1.6935
	5	2.5143	2.3543	2.3409	2.5426	2.5238	2.5299	2.1921
3	1	1.0906	1.0957	1.0157	1.1082	1.0738	1.0438	1.1081
	2	1.2174	1.1745	1.1595	1.2239	1.2054	1.1913	1.2135
	3	1.5901	1.4980	1.4870	1.5876	1.5805	1.5720	1.5183
	4	2.1374	1.9491	1.9382	2.1319	2.1237	2.1167	1.8671
	5	3.0894	2.7987	2.7891	3.0877	3.0780	3.0766	2.4940

Figure 7.

Non-dimensional frequency of the uniform spherical shell with various center angles (BC: C–C).

Based on the above study, we can conclude that the current method has the good ability to implement the free vibration analysis of spherical caps with uniform and stepped thickness regardless of the boundary conditions. In addition, the change of the boundary conditions can be easily achieved by only varying the stiffness of the boundary springs along edges in the MATLAB code without making any change to the solution procedure.

Conclusion

A unified Ritz method for free vibration of uniform and stepped spherical caps subject to arbitrary boundary conditions was demonstrated in this research. The spherical cap was divided into sections along the axial direction. The displacement components of the spherical cap were represented by Jacobi polynomials and Fourier series. The classical and elastic boundary conditions can be easily simulated by the penalty method in this research. Generalized Jacobi polynomials ensure the fast convergence, numerical stability, and high accuracy of the current solution. In addition, the unified Jacobi polynomials make the displacement function easier to be selected in contrast with other approaches. The fast convergence, reliability, and accuracy of the current method were validated by comparing with the results published in the literature and the FEM results. Numerical examples of free vibration for a stepped spherical cap with different center angles and various boundary conditions were presented, which may act as a reference for further research.

Footnotes

Appendix 1

(21)

K = K_{η} + K_{b} + K_{s}

(22)

M = diag [M^{1}, M^{2}, \dots, M^{N}]

(23)

K_{η} = diag [K^{1}, K^{2}, \dots, K^{N}]

(24)

K_{b} = diag [K_{b 0}, \dots, K_{b 1}]

(25)

K_{s} = \int_{0}^{2 π} [\begin{matrix} K_{u_{i} u_{i}} & 0 & K_{u_{i} w_{i}} & K_{u_{i} u_{i + 1}} & K_{u_{i} w_{i + 1}} \\ 0 & K_{v_{i} v_{i}} & 0 & K_{v_{i} v_{i + 1}} \\ K_{u_{i} w_{i}}^{T} & 0 & K_{w_{i} w_{i}} & K_{w_{i} u_{i + 1}} & K_{w_{i} w_{i + 1}} \\ K_{u_{i} u_{i + 1}}^{T} & K_{w_{i} u_{i + 1}}^{T} & K_{u_{i + 1} u_{i + 1}} & K_{u_{i + 1} w_{i + 1}} \\ K_{v_{i} v_{i + 1}}^{T} & K_{v_{i + 1} v_{i + 1}} \\ K_{u_{i} w_{i + 1}}^{T} & K_{w_{i} w_{i +!}}^{T} & K_{u_{i + 1} w_{i + 1}}^{T} & K_{w_{i + 1} w_{i + 1}} \end{matrix}] Bd θ

(26)

M^{i} = \int_{φ_{i}}^{φ_{i + 1}} \int_{0}^{2 π} [\begin{matrix} M_{uu} & 0 & 0 \\ 0 & M_{vv} & 0 \\ 0 & 0 & M_{ww} \end{matrix}] ABd φ d θ

(27)

M_{uu} = ρ h U^{T} U, M_{vv} = ρ h V^{T} V, M_{ww} = ρ h W^{T} W

(28)

U = P_{m} \otimes C_{n}, V = P_{m} \otimes S_{n}, W = P_{m} \otimes C_{n}

(29)

P_{m} = [P_{0}^{(α, β)} (ϕ), P_{1}^{(α, β)} (ϕ), \dots, P_{m}^{(α, β)} (ϕ), \dots, P_{M}^{(α, β)} (ϕ)]

(30)

C_{n} = [\cos (0 θ), \cos (1 θ), \dots, \cos (n θ), \dots, \cos (N θ)]

(31)

S_{n} = [\sin (0 θ), \sin (1 θ), \dots, \sin (n θ), \dots, \sin (N θ)]

(32)

K_{η}^{i} = \int_{φ_{η, i}}^{φ_{η, i + 1}} \int_{0}^{2 π} [\begin{matrix} K_{η, uu} & K_{η, uv} & K_{η, uw} \\ K_{η, uv}^{T} & K_{η, vv} & K_{η, vw} \\ K_{η, uw}^{T} & K_{η, vw}^{T} & K_{η, ww} \end{matrix}] ABd φ d θ

(33)

K_{η, uu} = K_{E} u u_{Q 0} + D_{G} (u u_{Q 1} + u u_{Q 2})

(34)

K_{η, uv} = K_{E} u v_{Q 0} + D_{G} (u v_{Q 1} + u v_{Q 2})

(35)

K_{η, uw} = K_{E} u w_{Q 0} + D_{G} (u w_{Q 1} + u w_{Q 2})

(36)

K_{η, vv} = K_{E} v v_{Q 0} + D_{G} (v v_{Q 1} + v v_{Q 2})

(37)

K_{η, vw} = K_{E} v w_{Q 0} + D_{G} (v w_{Q 1} + v w_{Q 2})

(38)

K_{η, ww} = K_{E} w w_{Q 0} + D_{G} (w w_{Q 1} + w w_{Q 2})

(39)

K_{b 0} = \int_{0}^{2 π} {[\begin{matrix} K_{b 0, uu} & 0 & K_{b 0, uw} \\ 0 & K_{b 0, vv} & 0 \\ K_{b 0, uw}^{T} & 0 & K_{b 0, ww} \end{matrix}]}_{φ = φ_{0}} Bd θ

(40)

K_{b 0, uu} = (k_{u, 0} + k_{r, 0}) U^{T} U

(41)

K_{b 0, uw} = - k_{r, 0} \frac{1}{R_{φ}} U^{T} \frac{\partial W}{\partial φ}

(42)

K_{b 0, vv} = k_{v, 0} V^{T} V

(43)

K_{b 0, ww} = k_{w, 0} W^{T} W + k_{r, 0} {\frac{\partial W}{\partial φ}}^{T} \frac{\partial W}{\partial φ}

(44)

K_{b 1} = \int_{0}^{2 π} {[\begin{matrix} K_{b 1, uu} & 0 & K_{b 1, uw} \\ 0 & K_{b 1, vv} & 0 \\ K_{b 1, uw}^{T} & 0 & K_{b 1, ww} \end{matrix}]}_{φ = φ_{1}} Bd θ

(45)

K_{b 1, uu} = (k_{u, 1} + k_{r, 1}) U^{T} U

(46)

K_{b 1, uw} = - k_{r, 1} \frac{1}{R_{φ}} U^{T} \frac{\partial W}{\partial φ}

(47)

K_{b 1, vv} = k_{v, 1} V^{T} V

(48)

K_{b 1, ww} = k_{w, 1} W^{T} W + k_{r, 1} {\frac{\partial W}{\partial φ}}^{T} \frac{\partial W}{\partial φ}

(49)

K_{u_{i} u_{i}} = (k_{u} + k_{r} \frac{1}{R_{φ}^{2}}) {U_{i}}^{T} U_{i}

(50)

K_{u_{i} w_{i}} = - k_{r} \frac{1}{R_{φ}^{2}} {U_{i}}^{T} \frac{\partial W_{i}}{\partial φ}

(51)

K_{v_{i} v_{i}} = k_{v} {V_{i}}^{T} V_{i}

(52)

K_{w_{i} w_{i}} = k_{w} {W_{i}}^{T} W_{i} + k_{r} \frac{1}{R_{φ}^{2}} {\frac{\partial W_{i}}{\partial φ}}^{T} \frac{\partial W_{i}}{\partial φ}

(53)

K_{u_{i} u_{i + 1}} = - (k_{u} + k_{r} \frac{1}{R_{φ}^{2}}) {U_{i}}^{T} U_{i + 1}

(54)

K_{u_{i} w_{i + 1}} = k_{r} \frac{1}{R_{φ}^{2}} {U_{i}}^{T} \frac{\partial W_{i + 1}}{\partial φ}

(55)

K_{w_{i} u_{i + 1}} = k_{r} \frac{1}{R_{φ}^{2}} \frac{\partial W_{i}^{T}}{\partial φ} U_{i + 1}

(56)

K_{v_{i} v_{i + 1}} = - k_{v} {V_{i}}^{T} V_{i + 1}

(57)

K_{w_{i} w_{i + 1}} = - k_{w} {W_{i}}^{T} W_{i - 1} - k_{r} \frac{1}{R_{φ}^{2}} {\frac{\partial W_{i}}{\partial φ}}^{T} \frac{\partial W_{i + 1}}{\partial φ}

(58)

K_{u_{i + 1} u_{i + 1}} = (k_{u} + k_{r} \frac{1}{R_{φ}^{2}}) U_{i + 1}^{T} U_{i + 1}

(59)

K_{u_{i + 1} w_{i + 1}} = - k_{r} \frac{1}{R_{φ}^{2}} U_{i + 1}^{T} \frac{\partial W_{i + 1}}{\partial φ}

(60)

K_{v_{i + 1} v_{i + 1}} = k_{v} V_{i + 1}^{T} V_{i + 1}

(61)

K_{w_{i + 1} w_{i + 1}} = k_{w} W_{i + 1}^{T} W_{i + 1} + k_{r} \frac{1}{R_{φ}^{2}} \frac{\partial W_{i + 1}^{T}}{\partial φ} \frac{\partial W_{i + 1}}{\partial φ}

Handling Editor: James Baldwin

Data availability statement

The data used to support the findings of this study are included within the article.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was funded by the National Natural Science Foundation of China (Nos 51209052 and 51709063), National Key Research and Development Program (No. 2016YFC0303406), PhD Student Research and Innovation Fund of the Fundamental Research Funds for the Central Universities (No. HEUGIP201801), Fundamental Research Funds for the Central University (Nos HEUCFD1515 and HEUCFM170113), Assembly Advanced Research Fund of China (No. 6140210020105), Naval Pre-research Project, and China Postdoctoral Science Foundation (2014M552661).

ORCID iDs

Yuan Du

Fuzhen Pang

References

Artioli

Viola

. Free vibration analysis of spherical caps using a G.D.Q. numerical solution. J Press Vess Tech 2006; 128: 370–378.

Lee

. Free vibration analysis of spherical caps by the pseudospectral method. J Mech Sci Tech 2009; 23: 221–228.

Liew

Peng

. Three-dimensional vibration analysis of spherical shell panels subjected to different boundary conditions. Int J Mech Sci 2002; 44: 2103–2117.

Hosseini-Hashemi

Fadaee

. On the free vibration of moderately thick spherical shell panel—a new exact closed-form procedure. J Sound Vib 2011; 330: 4352–4367.

Pang

Miao

, et al. Jacobi–Ritz method for free vibration analysis of uniform and stepped circular cylindrical shells with arbitrary boundary conditions: a unified formulation. Comput Math Appl 2019; 77: 427–440.

Pang

Wang

, et al. A semi analytical method for the free vibration of doubly-curved shells of revolution. Comput Math Appl 2018; 75: 3249–3268.

Pang

Chen

. A semi-analytical approach to analyze vibration characteristics of uniform and stepped annular-spherical shells with general boundary conditions. Eur J Mech A: Solid 2019; 74: 48–65.

Pang

Cui

, et al. Application of Flügge thin shell theory to the solution of free vibration behaviors for spherical-cylindrical-spherical shell: a unified formulation. Eur J Mech A: Solid 2019; 74: 381–393.

Jin

. Three-dimensional vibration analysis of laminated functionally graded spherical shells with general boundary conditions. Compos Struct 2014; 116: 571–588.

10.

Jin

. Three-dimensional vibration analysis of functionally graded sandwich deep open spherical and cylindrical shells with general restraints. J Vib Control 2016; 22: 3326–3354.

11.

Tessler

Spiridigliozzi

. Resolving membrane and shear locking phenomena in curved shear-deformable axisymmetric shell elements. Int J Numer Method Eng 2010; 26: 1071–1086.

12.

Chen

Xie

Jia

, et al. Free and forced vibration of ring-stiffened conical-cylindrical shells with arbitrary boundary conditions. Ocean Eng 2015; 108: 241–256.

13.

Jin

Shi

, et al. A modified Fourier series solution for vibration analysis of truncated conical shells with general boundary conditions. Appl Acoust 2014; 85: 82–96.

14.

Jin

. Three-dimensional vibration analysis of thick functionally graded conical, cylindrical shell and annular plate structures with arbitrary elastic restraints. Compos Struct 2014; 118: 432–447.

15.

Kiani

Akbarzadeh

Chen

, et al. Static and dynamic analysis of an FGM doubly curved panel resting on the Pasternak-type elastic foundation. Compos Struct 2012; 94: 2474–2484.

16.

Kiani

Shakeri

Eslami

. Thermoelastic free vibration and dynamic behaviour of an FGM doubly curved panel via the analytical hybrid Laplace–Fourier transformation. Acta Mech 2012; 223: 1199–1218.

17.

Kiani

Sadighi

Eslami

. Dynamic analysis and active control of smart doubly curved FGM panels. Compos Struct 2013; 102: 205–216.

18.

Kiani

. Free vibration of FG-CNT reinforced composite spherical shell panels using Gram-Schmidt shape functions. Compos Struct 2017; 159: 368–381.

19.

Juárez

JAG

. Axisymmetric vibrations of circular plates with stepped thickness. J Sound Vib 1973; 26: 411–416.

20.

Poultangari

Nikkhahbahrami

. Free and forced vibration analysis of stepped circular cylindrical shells with several intermediate supports using an extended wave method; a generalized approach. Latamjsolids Struct 2016; 13: 2027–2058.

21.

Pang

Wang

, et al. Free vibration analysis of uniform and stepped combined paraboloidal, cylindrical and spherical shells with arbitrary boundary conditions. Int J Mech Sci 2018; 145: 64–82.

22.

Pang

Miao

, et al. A semi-analytical method for vibration analysis of stepped doubly-curved shells of revolution with arbitrary boundary conditions. Thin-Walled Struct 2018; 129: 125–144.

23.

Khalifa

. Exact solutions for the vibration of circumferentially stepped orthotropic circular cylindrical shells. CR Mécanique 2011; 339: 708–718.

24.

Zhang

Xiang

. Exact solutions for vibration of stepped circular cylindrical shells. J Sound Vib 2007; 299: 948–964.

25.

Lee

. Free vibration of plates with stepped variations in thickness on non-homogeneous elastic foundations. J Sound Vib 1995; 183: 533–545.

26.

Pang

Gong

, et al. Free vibration analysis of axisymmetric functionally graded doubly-curved shells with un-uniform thickness distribution based on Ritz method. Compos Struct 2019; 225: 111145.

27.

Pang

, et al. Application of first-order shear deformation theory for the vibration analysis of functionally graded doubly-curved shells of revolution. Compos Struct 2019; 212: 22–42.

28.

Bhrawy

Taha

Machado

JAT

. A review of operational matrices and spectral techniques for fractional calculus. Nonlinear Dynam 2015; 81: 1023–1052.

29.

Guo

Shen

Wang

. Optimal spectral-Galerkin methods using generalized Jacobi polynomials. J Sci Comput 2006; 27: 305–322.

30.

Monterrubio

. Free vibration of shallow shells using the Rayleigh–Ritz method and penalty parameters. Proc IMechE, Part C: J Mechanical Engineering Science 2009; 223: 2263–2272.

31.

Sármány

Izsák

van der Vegt

. Optimal penalty parameters for symmetric discontinuous Galerkin discretisations of the time-harmonic Maxwell equations. J Sci Comput 2010; 44: 219–254.

32.

Singh

. On vibrations of shells of revolution using Bezier polynomials. J Press Vess: T ASME 1991; 113: 579–584.

Free vibration of spherical cap subjected to various boundary conditions

Abstract

Keywords

Introduction

Theoretical formulations

Description of the model

Energy functional expressions of the spherical cap

Boundary conditions and continuity constraints of the spherical cap

Displacement components and the solution process

Numerical results and discussion

Convergence studies

Free vibration of uniform and stepped spherical caps

Conclusion

Footnotes

Appendix 1

Data availability statement

Declaration of conflicting interests

Funding

ORCID iDs

References
