Abstract

Software-defined network is an encouraging research area that realizes updates throughout an entire network, and a wireless network is ubiquitous in an up-to-date world. The combination of these techniques, which is referred to as a wireless software-defined network, has been a significant development in numerous testbeds. The extensive use of distributed controllers that achieved elastic extension and are fault tolerant in large-scale wireless networks is hopeful. Despite their profits, they generate significant overhead in synchronizing network information. Thus, power-hungry wireless software-defined network devices limit the usage of distributed controllers in wireless networks. The patterns of storing network information have a crucial effect on controller performances, as they determine the probability of processing requests based on local data. To address this problem, we identify a better pattern for controllers to retain proper network information to balance costs in terms of both synchronous traffic and response time. We analyze the characteristics of distributed controllers and propose an overhead model of a distributed controller in a wireless software-defined network. Based on this model, we design an asymmetric network information cache to make trade-offs among different controller architectures. The asymmetric network information cache measures real-time network traffic and computes the traffic among sub-networks controlled by controller nodes. Then, the controller asymmetrically caches suitable network data to substantially busier nodes. The experimental results indicate that the asymmetric network information cache achieves a trade-off between synchronous traffic and the average response time.

Keywords

Network information cache software-defined networks distributed controller wireless sensor network OpenFlow

Introduction

A software-defined network (SDN) has been significantly attractive for both academic researchers and industrial vendors since it was proposed by N McKeown et al.¹ Therefore, it is extensively employed in various networks to improve the management of physical networks. The core property of an SDN is the programmability achieved by separating the control plane and data plane of a network.² The detached control functions are centralized into an individual control unit, which is referred to as the controller, to ensure that network devices only focus on forwarding packets. The principles of an SDN are suitable for plentiful types of networks. Thus, an SDN has been applied to a campus network, an optical backbone network, and a data center network. Both theories and technologies of an SDN advance with controller improvement.

Starting from wired networks with many improvements, the combination of an SDN and wireless networks (WNs), which is well known as a wSDN, is a promising direction in practice. Many studies have committed to a wSDN for revolutions on WNs. C Chaudet and Y Haddad³ summarized several advantages: (1) Both the connectivity and Quality of Service of end users are prone to improve, and multiple controllers make access points as straightforward as possible to satisfy the needs of users. General wireless devices hold multiple wireless interfaces, such as Wi-Fi, 3G, and Bluetooth. A network vendor can use an SDN to coordinate services in terms of user requests. (2) Within a wSDN, programmers can easily realize network-wide multi-area planning, for instance, the collaboration among close access points, power control, and channel selection. (3) Centralized control creates a global view (or a network-wide view⁴). A controller is able to conveniently execute security policies based on centralized network information. (4) Network information is crucial for locating users and predicting their movements. Numerous paradigms have emerged in several wSDN environments. Research on the Internet of Things (IoT),⁵ which combines multiple types of wireless devices, has attracted global attention. Betzler et al.⁶ discussed the benefits of applying wSDN for dense cells and proposed a model consists of many agents. Gallo et al.⁷ designed wSDN home network with specific MAC processor. K Wang et al.⁸ proposed an architecture of next-generation WN, in which optimize resources allocation, terminal handover, and failure recovery are proposed as key problems. However, we acknowledge that these studies directly employ SDN in these wired networks. To clarify this point, A El-Mougy et al.⁹ summarized related projects, and we use Figure 1 to depict these testbeds.

Figure 1.

wSDN architecture.

Figure 1 depicts common wSDN paradigms with a three-layer architecture. All services are run on the application plane. The control plane consists of several controller nodes, which may be connected with wired or wireless links. Plentiful wireless transport nodes constitute a valid network, and various types of end nodes can connect themselves to this network. Many cluster heads are directly connected to controller nodes. Other network devices can use one or more links that connect with other devices. In a WN, the resources on nodes are limited by battery capacity, CPU, and memory.¹⁰ Distributed controllers generate a vast amount of overhead in these indicators. Therefore, saving network costs with respect to distributed controllers is crucial.¹¹

In the early stages of SDN development, single-node controllers (such as NOX,¹² Floodlight, Ryu, and Beacon) were extensively adopted; however, demands for scalability and high performance have caused an increase in the use of distributed controllers.¹³ The choice to deploy additional controller nodes while the scale of a network continues to expand is better. We consider placing a distributed controller in the IoT, encouraged by Benamrane et al.¹⁴ and Farhady et al.¹⁵ Jayashree and Infant Princy¹⁶ declared that proper management is necessary for a wSDN to make a reasonable trade-off between resource utilization and performance. This work can be accomplished by SDN techniques because of the property of programmability. However, distributed controllers consume a greater number of resources than single controllers. In addition, several typical architectures of distributed controllers can only perform well in terms of either synchronous communication or the response time.¹⁷ Sato et al. conclude that distributed controllers can either be configured to share data centers or hold exclusive storage. These architectures exhibit fundamental differences with regard to synchronization and response processes. A perfect method for performing well in terms of these indicators is hard to find. A controller cannot behave the best in terms of both synchronous traffic and the response time, as we discussed in our previous study.¹⁸

The objective of this article is making a trade-off among traffic, the response time, and storage. We analyze some extensively applied distributed controllers and propose an improvement method that is referred to as the asymmetric network information cache (ANIC). Sato et al.¹⁷ defined network information as an aggregation of basic network data and respective application data. In this definition, network information is substantially more complicated than topology data, as noted by many previous studies.^17,19 It is a state of network that is frequently employed by both pre-installed applications and user-selected applications, such as firewall, load balancing,²⁰ and intrusion detection.²¹ In addition, A Krishnamurthy et al.²² discussed that both synchronization and reading of network information have a significant effect on storage, the response time, and synchronous traffic. Therefore, we improve the storage of network information in an SDN distributed controller. Our contributions include the following:

An overhead model of a distributed controller in a wSDN. This model depicts the total cost of current distributed controllers with some key factors.

A traffic-aware ANIC algorithm. As a module that is run on high-level node(s), it computes the traffic among sub-networks controlled by controller nodes. The controller asymmetrically caches suitable network data to substantially busier nodes. This algorithm requires a minimal amount of overhead to achieve a trade-off between synchronous traffic and the average response time. Less synchronous traffic results in saving energy of mobile nodes.

Mobility of data plane in WNs leads to time-sensitive variations of traffic matrix. We investigate monitoring period and re-computation conditions of ANIC to address this problem. The results of experiments show that there exists an optimal solution due to real collected data.

SDN distributed controllers

An SDN controller is an individual system that is in charge of indicating network devices to take proper actions on packets. Farhady et al.¹⁵ explained these network operating systems. Since the emergence of SDNs, many different controllers with several architectures have been developed. Figure 2 contains some basic steps in the development of mainstream controllers.

Figure 2.

SDN controller development.

In traditional networks, a control plane is integrated into a forwarding device; these devices individually acquire network information and store them in a routing table. An SDN centralizes control functions into a logical centralized controller. In this phase, the key issue is to construct a network-wide view. Early controllers only implement some basic functions and adopt a single thread and a single-node architecture (NOX, Floodlight, and Ryu). The advancement of SDNs continues to require additional capability of a controller in terms of computing and transportation. Then, controllers (such as Beacon²³) are designed to support multi-threads to process requests faster. However, an individual controller is provided with limited computational power and storage to enable subsequent researchers to develop distributed controllers that supervise large-scale networks. Distributed controllers are available in scalability, robustness, and performance.²⁴ Two main categories of distributed controllers exist: collaborative distributed controllers (CDCs) and hierarchical distributed controllers (HDCs). All these controllers are elastic and can extend physical nodes; they are different with regard to the patterns of node connection: CDCs (Hyperflow,²⁵ DISCO²⁶) regard all controller nodes as equal and horizontally scale the control plane; thus, their nodes have the same functions and privileges . In contrast, HDCs (Kandoo²⁷, Orion²⁸) classify physical nodes into two roles: root node process tasks with low frequency and high overhead. Other real-time tasks are processed by local nodes. Local nodes control a sub-network.

HDCs and CDCs have respective benefits and drawbacks. Although they had been deployed in a wSDN, no paradigm is achieved with regard to wireless-based improvement.

Overhead model

A controller monitors many indicators in a wSDN, and we consider synchronous traffic and the response time as the most significant indicators. Synchronous traffic, which is a communication cost among controller nodes in a synchronous process, must be decreased to save energy. The response time reflects the speed of processing requests from network devices. OpenFlow²⁹ is extensively employed in both industry and academia. Therefore, we adopt the OpenFlow protocol to analyze the overhead model and perform experiments.

Synchronous traffic

The traffic among controller nodes consists of monitor traffic (from network devices to the controller) and synchronous traffic (within controller nodes). To maintain consistent global views, both physical network devices and logical network devices continue to transmit their collected information to their respective controller nodes due to the locality of controller nodes; they all spread local network data to maintain consistency. In WN, terminal nodes have limited resources. Synchronous traffic consumes energy and bandwidth. Therefore, it is better for wSDN controller to reduce this overhead.

For a wSDN, in which the number of controller nodes is n, a CDC has n local nodes, and an HDC has a root node and n – 1 local nodes; the synchronization process is shown in Figures 3 and 4.

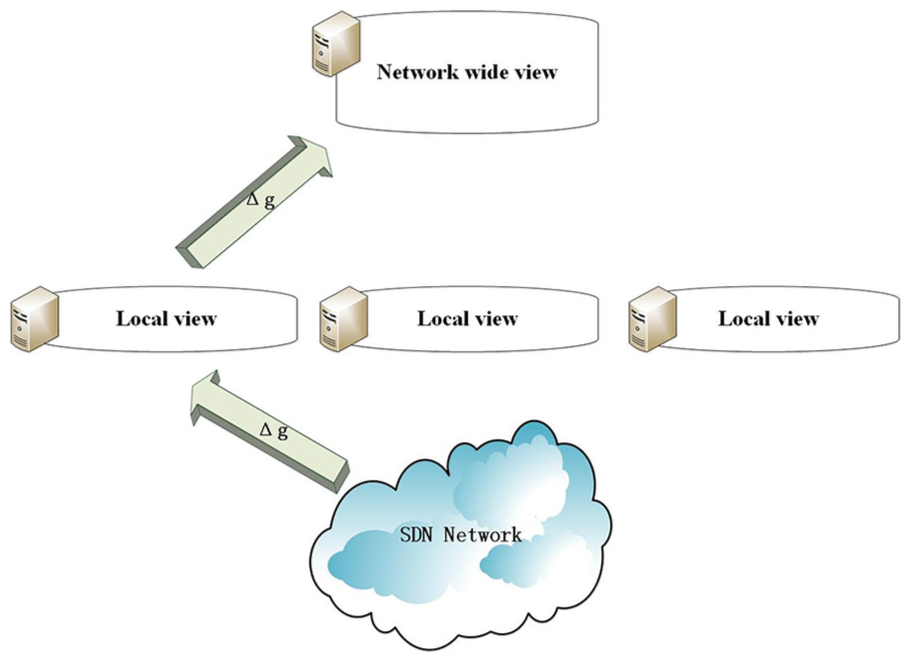

Figure 3.

HDC synchronization process.

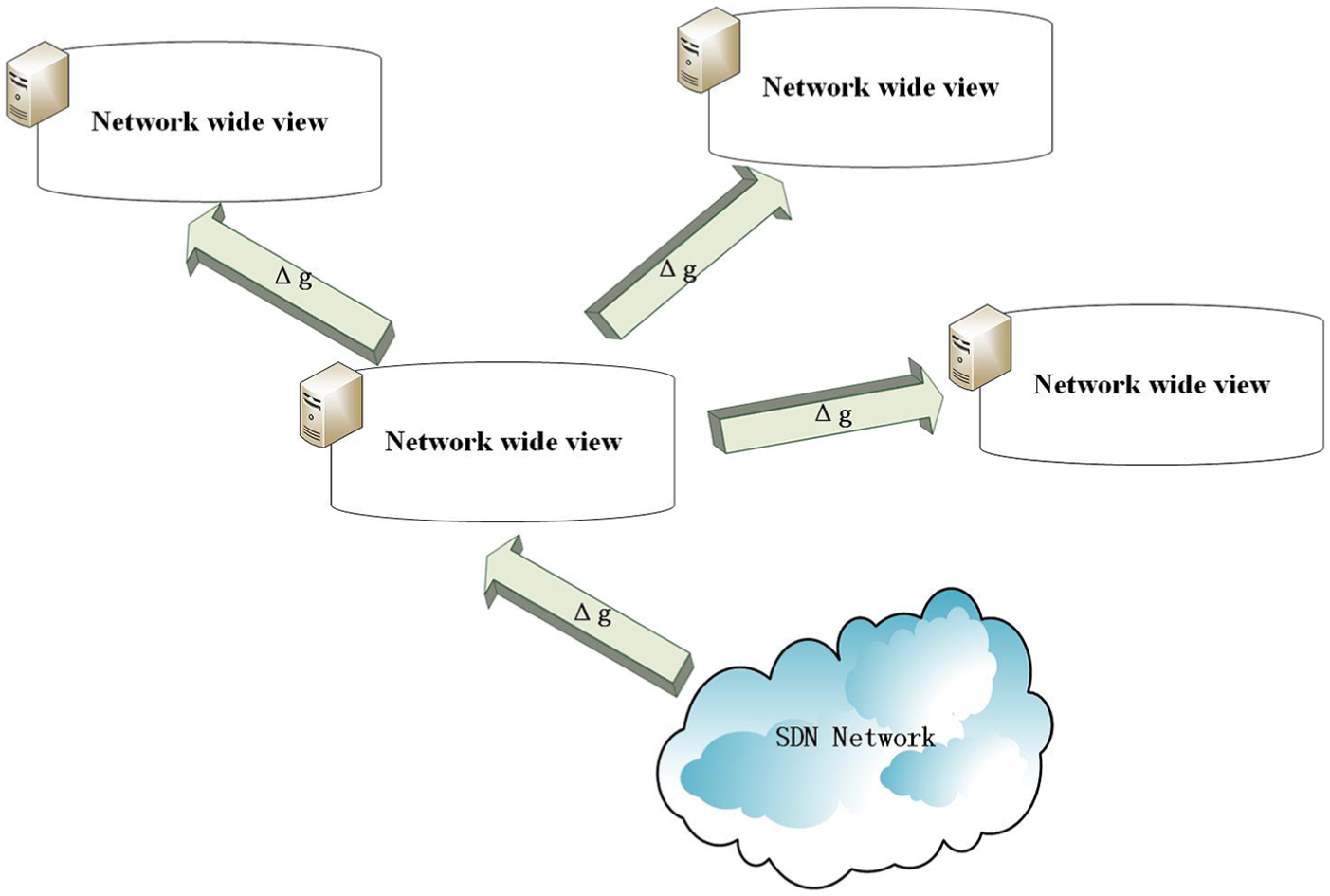

Figure 4.

CDC synchronization process.

When a sub-network experiences variations Δg, the HDC local node only needs to upload related data to the root node (shown in Figure 3). In contrast, the CDC generates (n – 1)Δg traffic in response to remind all nodes of consistency. Assume that the synchronous traffic of the distributed controller A is Tr_(A); we can compare the HDC and CDC

T r_{(HDC)} = 2 Δ g

(1)

T r_{(CDC)} = (n - 1) Δ g

(2)

As shown in (1) and (2), CDCs generate a significant amount of synchronous traffic, which has a significant effect on the energy consumption of wireless nodes. Therefore, HDCs satisfied a larger number of requirements of a wSDN from the perspective of saving energy.

Average response time

The average response time of a controller is defined as the total time from the switch sending a request to the time at which the controller indicates forwarding rules. It has a significant effect on switch performance. Jayashree and Infant Princy¹⁶ model the forward latency of a wSDN but focus on single-node controllers. In this section, we propose a model that depicts the response time of distributed controllers and consider that a wSDN works according to the flow diagram in Figure 5 after receiving unmatched packets. This procedure starts from switch handling of a packet-in message, which includes basic data of an unmatched data flow. The average delay T_t is defined as the latency between any pair of physical devices. Assume that the local node spends T_p on processing every request from switches. Then, it requires T_l to traverse local data to assess whether this request can be processed. If local data are efficient, the local node sends data to applications. Otherwise, it acquires a network-wide view from the shared database. The time required for the shared database to obtain a sufficient amount of data is T_L. Relevant applications compute forwarding rules based on acquired data (T_c) and send these rules to switches.

Figure 5.

Workflow of distributed controller.

We present the factor r as the probability of processing a request with local data. Therefore, the average response time of a distributed controller is calculated as follows

T_{total} = (4 - 2 r) \cdot T_{t} + T_{p} + T_{l} + T_{c} + (1 - r) \cdot T_{L}

(3)

Equation (5) can be simplified due to the capacity of the controller node: T_p and T_c can be neglected if the local node has sufficient computing power. T_l and T_L depend on the scale of the network, and the scale of the sub-network is relatively similar. Thus, T_l can be expressed as follows

T_{l} = 1 / n \cdot T_{L}

(4)

Thus, the response time T is given by

T_{total} = (4 - 2 r) \cdot T_{t} + (1 - r + 1 / n) \cdot T_{L}

(5)

The HDCs cannot ensure that all requests are addressed at the local nodes, whereas CDCs handle requests by retaining the entire network state on local nodes. Based on the difference in r, CDCs are better than HDCs from the perspective of the average response time.

Controller total cost

Fitting the problem of optimizing resource allocation as formulated in the previous section considers synchronous traffic and the response time. However, they use different types of units to express their magnitude. Thus, the total cost is defined as

\begin{matrix} Cost = α \cdot \frac{T r_{(actual)}}{min [T r_{(C_{i})}]} \\ + β \cdot \frac{[(4 - 2 r) \cdot T_{t} + (1 - r + \frac{1}{n}) \cdot T_{L}]}{T_{unit}} \end{matrix}

(6)

where α and β are adjustable coefficients selected based on empirical values, and $T r_{(C_{i})}$ is synchronous traffic caused by the local node c_i. T_unit is a constant time that is selected by the administer. In this article, we choose the least synchronous traffic and 1 ms to transform the physical quantity into evaluation values.

The probability of processing requests with local data is determined by the network information cached on local nodes. Caching more network information on local nodes can reduce the average response time but increases synchronous communication. The main challenge addressed in the use of distributed controllers for a wSDN is the trade-off between synchronous communication and the average response time. CDC generates substantially more synchronous communication in exchange for a shorter response time based on the overhead model.

wSDN distributed controller improvement

The current controllers cannot simultaneously satisfy all indicators. The reduction of the average response time generates more synchronous traffic. Therefore, we make a trade-off between these indicators rather than choosing HDC or CDC. We observed the existence of traffic locality among controller nodes; this characteristic has an available time. Consequently, we propose an ANIC algorithm that caches frequently employed local network information to relative local nodes, as many sub-networks generate a substantially greater amount of traffic than the other networks.

ANIC problem definition

The direct result of a network information cache is an enhanced r based on local data. The main problems are selecting local controllers and computing network information. Assume that two adjacent sub-networks (G_x and G_y) are controlled by the local nodes C_x and C_y, and the network information of these sub-networks is N_x and N_y, respectively. The traffic between G_x and G_y is asymmetric (f₁ > f₂); three plans are shown as follows (Figure 6).

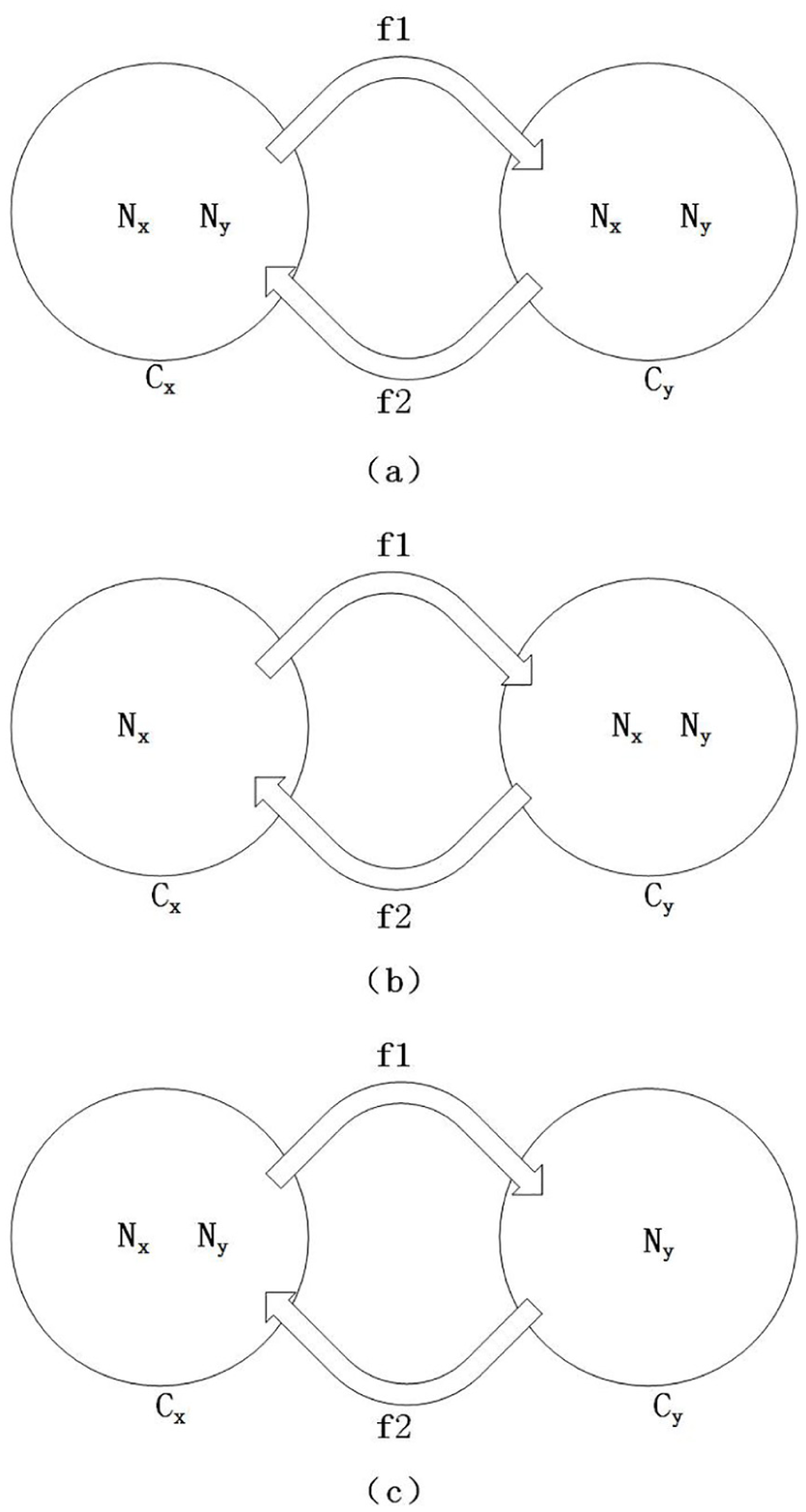

Figure 6.

Network information cache plans: (a) is a symmetric plan, (b) and (c) are asymmetric plans that only cache data to proper local nodes selected based on traffic.

Figure 6(a) is a symmetric plan of spreading local network information to the other networks. Hu et al.¹⁸ proposed a paradigm with a correlation-based algorithm. Figure 6(b) and (c) are asymmetric plans that only cache data to proper local nodes selected based on traffic. Assume that the actual network information on C_i is $N'_{i}$ and that C_i can handle $f'_{i}$ requests based on $N'_{i}$ . Thus, the total cost of C_x and C_y is given by

Cos t_{(x + y)} = N'_{x} + N'_{y} + (4 - 2 r) \cdot T_{t}

(7)

r = \frac{f_{x}' + f_{y}'}{f_{1} + f_{2}}

(8)

Symmetric plan

{\begin{matrix} r = 1 \\ Cos t_{(a)} = 2 \cdot (N_{x} + N_{y}) + 4 \cdot T_{t} \end{matrix}

(9)

Cache N_x to C_y

{\begin{matrix} r = \frac{f_{2}}{f_{1} + f_{2}} \\ Cos t_{(b)} = 2 \cdot N_{x} + N_{y} + (4 - \frac{2 \cdot f_{2}}{f_{1} + f_{2}}) T_{t} \end{matrix}

(10)

Cache N_y to C_x

{\begin{matrix} r = \frac{f_{1}}{f_{1} + f_{2}} \\ Cos t_{(b)} = 2 \cdot N_{y} + N_{x} + (4 - \frac{2 \cdot f_{1}}{f_{1} + f_{2}}) T_{t} \end{matrix}

(11)

Although a symmetric plan can adapt to the variation of network traffic, it consumes a greater amount of resources than an asymmetric plan. The ANIC saves resources due to a focus on frequently employed network information. For instance (Figure 6(c)), when f₁ traverses a path controlled by C_x, it is processed based on both N_x and N_y, which optimizes the forwarding rules. After the f₁ entry devices are controlled by C_y, the controller also obtains sufficient data to compute a best path. Conversely, f₂ is handled based on N_y to ensure that C_y has to acquire additional information from the shared database. In the case of n local nodes, the distributed controller needs to calculate network views on each node. Thus, we present an ANIC algorithm to acquire the results.

ANIC algorithm

We adopt a hierarchical structure to run this algorithm. A shared database is in charge of storing network information. Our ANIC algorithm considers the poor resources of a wSDN to ensure that it computes proper data cached on local nodes; it directly changes the probability of the distributed controller processing requests based on local network information. With cached data, we reduce the times for requesting distant network data. It is designed to make decisions based on statistics of network traffic to prevent useless operations.

Algorithm ANIC
Input:
C consists of all controller nodes, and a specific controller node is denoted as C_i .
M is a traffic matrix which stores statistics of network traffics among sub-networks.
M_i stands for the sum of traffics oriented from G_i.
m_ij stands for traffics from G_i to G_j.
N is vector storing network information of all sub-networks.
N_i represents network information of G_i.
Output:
R stores the actual network information on local nodes, and a specific result for C_i is represented as R_i.
BufferM is output matrix, and BufferM_ij = 1 indicates that N_j will be cached to C_i.
1. for each C_i
2. $M_{i} = \sum_{j = 1}^{n} m_{ij}$
3. Sort C based on M_i in descending order
4. While C is not NULL
5. C_temp = pop(C)
6. Acquire controller node id of C_temp as l
7. Sort (M_l)
8. temp = pop(M_l)
9. p = getDst(temp)
10. If cache N_p to R_i reduce the controller cost
11. R_i+ = N_p
12. BufferM_ip = 1
13. While M_l is not NULL
14. j = getDst (pop(M_l))
15. If cache N_j to R_i reduce the controller cost
16. R_i+ = N_j
17. BufferM_ij = 1
18. Else
19. exit while loop
20. Else
21. end ANIC
23. Cache the result to all local nodes

We sort the elements of M in descending order as m_ij, with a higher value having a higher probability of improvement in controller efficiency. In line 5, pop() removes the first element of the operational object. In line 9, getDst() is a function that is employed to obtain the ID of the destination sub-network. Lines 11 and 16 sum the data of two networks; the operation to achieve this summation depends on the data structure selected by the controller. Redundant operation is prevented by evaluating whether the controller cost decreases.

Evaluation

Experiment environment

The computers are DELL OPTIPLEX3010 (64-bit Intel Core i5-3470, 8 GB of memory). Synchronous traffic and the response time are simulated and measured with a wSDN environment that consists of ONOS and OMNeT++. The dataset of network traffic is the Malware Capture Facility Project (MCFP), which is monitored by the Czech Technical University to detect intrusions. We use this dataset to construct our traffic matrix. The ANIC algorithm is programmed with Python.

The specific values of the evaluation may vary based on the experiment devices; however, we use the same conditions to compare the HDC, CDC, and ANIC. We evaluate the costs of the HDC, CDC, and ANIC. Then, we adopt a series of sequential traffic matrices to test the available time of the ANIC.

Evaluation indicators

We defined several indicators to evaluate the HDC, CDC, and ANIC. These indicators are listed in Table 1.

Table 1.

Evaluation indicators.

Notion	Parameter	Description
Coverage rate of ANIC	µ	Probability of requests being processed based on local data when a BufferM is applied to the distributed controller.
Ratio of synchronous traffic	ξ	Ratio of actual synchronous traffic to the variations in the entire network.
Threshold of available BufferM	ω	A threshold for determining whether to re-compute the ANIC.
Monitoring period	T_mp	A cycle of monitoring the traffic matrix.
Available time of BufferM	T_a _(ω)	Average available time for BufferM under ω.

ANIC: asymmetric network information cache.

1. Coverage rate of BufferM

Network traffic continuously varies after the controller cached network information to local nodes. Therefore, we introduce µ to evaluate the present BufferM. µ is given by

μ = \frac{\sum_{i = 1}^{n} \sum_{j = 1}^{n} (M_{ij} \cdot Buffer M_{ij})}{\sum_{i = 1}^{n} \sum_{j = 1}^{n} M_{ij}}

(12)

2. Ratio of synchronous traffic

ξ = \frac{\sum_{i = 1, 2, \dots, n \cup DB} ({N'}_{i} - N_{i})}{N_{G}' - N_{G}}

(13)

ANIC experiment

We deploy 12 local nodes and assume that all nodes manage an equal quantity of switches. Then, we employ a statistic traffic matrix based on both the source IP and the destination IP of the packets. The change of terminal location is presented by traffic matrix without dis-adjacent communications. The controller nodes $(X_{1}, \dots, X_{12})$ is shown in Figure 7.

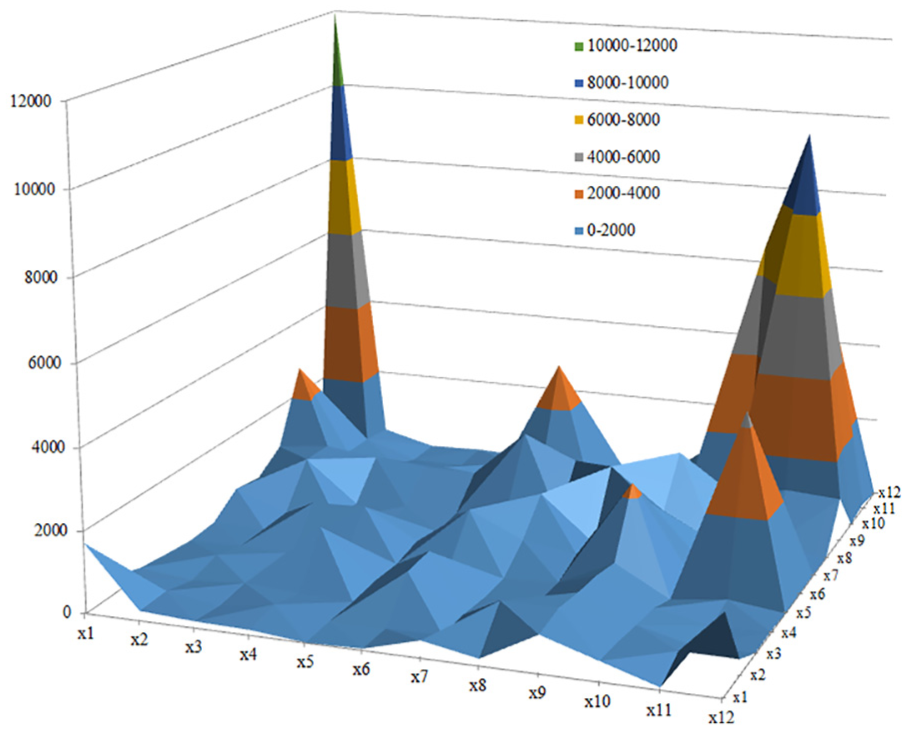

Figure 7.

Network traffic.

Assume that the average synchronous traffic caused by network variations is Δg. BufferM is shown in Figure 8, in which N_i shows the actual network information of C_i.

Figure 8.

BufferM result.

ξ_(HDC) is equivalent to 2, and ξ_(CDC) is equal to 11. The value of ξ_(ANIC) approximates to 2.8. Thus, Figure 8 shows that the ANIC consumes slightly more synchronous traffic than the HDCs. The details of all indicators are depicted with the histogram in Figure 9:

Figure 9.

Cost comparison of HDC, CDC, and ANIC.

The experiment implies that HDCs entail significantly less synchronous traffic than the CDCs. However, the CDCs have significant advantages in terms of the average response time. The ANIC has an increase of 40% in synchronous traffic compared to the HDC; conversely, it saves 26.5% in the average response time. The total cost of the ANIC is the least of the three patterns. Thus, the ANIC makes a trade-off between traffic and the response time according to the locality of the network traffic. The evaluation of the importance of these indicators is beyond the scope of this article.

Monitoring period

After proving the applicability of the ANIC, we compute the average total cost of different T_mp values (shown in Figure 10).

Figure 10.

Average total cost.

We observe that the total cost increases with T_mp; its trend is relatively stable between 46.4 and 81.2 s. Enlarging T_mp sacrifices the availability of BufferM in exchange for computing power. If T_mp is too long, the total cost becomes relatively unacceptable for the controller. Otherwise, the controller spends more power on monitoring. Therefore, the adoption of a value between 46.4 and 81.2 s is beneficial. Mobility of terminals has critical effects on monitoring period. In mobile environments, we recommend setting a relative smaller value for T_mp.

Conditions of ANIC re-computation

For mobile networks and WNs, the mobility of endpoints results in the frequently variable traffic matrix. It is critical for finding proper conditions of ANIC re-computation. In this section, we explore a trigger in re-computing the ANIC. Although the decision to re-compute BufferM is based on the total cost, µ is relatively simple to calculate. $μ_{i, j}$ represents the use of the traffic matrix j to calculate the µ of BufferM i. We calculate µ for 20 consequential traffic matrices. To make the figure clear, the results of $μ_{i, j}$ (i = 1, 3, 5, 7, 9) are shown in Figure 11, where start point indicates the value of BufferM computed for traffic matrix i, the x-axis presents the traffic matrix as j, and the y-axis denotes the value of µ. The distributed controller can select the proper ω based on Figure 11. Then, we list the controller performance for different ω in Table 2.

Figure 11.

Variation of µ in different BufferM.

Table 2.

Re-computation indicators.

Thresholdω	Averageµ	Re-computetime	Average cost	Average available time (s)
0.6	0.646	16	135.0209	14.5
0.55	0.628	12	137.6101	19.3
0.5	0.6	8	138.7188	29
0.45	0.56	6	142.8141	38.7

The data in Table 2 show that frequent re-computation of the ANIC can improve the performance of the controller (average total cost is minimized). Similar to the monitoring period, it generates computation overhead, which should be limited. The selection of a suitable ω can efficiently lengthen the executive time of the ANIC to achieve a balance between the computing power and total cost.

Conclusion

Using an SDN to construct a wSDN has an unavoidable conflict with the poor resources of a WN. In this article, we present a resource consumption model of distributed controllers in WNs. It depicts two major indicators of distributed controllers in a wSDN and guides us to propose further improvements in the wSDN control plane. The ANIC is proposed to improve the efficiency of a distributed controller. It caches proper network information to all physical nodes to ensure that each physical node has sufficient data to make decisions. Our work exchanges a minimal amount of computer resource to reduce the overhead of distributed controllers. It helps distributed controllers to perform better in a wSDN.

In the future, we will introduce more indicators to improve this algorithm and dynamically adjust α and β based on the states of local nodes. We also plan to design a self-adaptable module to learn the values of ω and T_mp.
