Research for a novel class of translational spatial multi-loop coupled mechanisms: Type synthesis and kinematic analysis

Abstract

A novel type synthesis method for a class of spatial multi-loop coupled mechanisms with translational degrees of freedom is proposed in the paper. The novel class of spatial multi-loop coupled mechanisms has a stable topology layout which consists of three branches and three coupled chains. The basic idea of the new structural synthesis method lies at replacing the inputs of one mechanism by the outputs of another, thereby combining several mechanisms, where the topology split method for the topological layout and corresponding degree of freedom splitting principle are provided. The synthesis of the target mechanism is transformed into synthesis of corresponding serial and parallel mechanisms thereby, and a class of spatial multi-loop coupled mechanisms is synthesized. To validate the new synthesis method and to present a theoretical basis for future application, kinematic analysis of a single translational mobility (1T) spatial multi-loop coupled mechanism and a symmetrical two translational degrees of freedom (2T) spatial multi-loop coupled mechanism is performed. This article enriches the family of the spatial mechanisms for further instructing the study of spatial multi-loop coupled mechanisms.

Keywords

Type synthesis spatial multi-loop coupled mechanism translational degree of freedom topology layout kinematic analysis

Introduction

Type synthesis is the core of mechanical design. Over the past few decades, a variety of new mechanisms has been proposed and successfully applied in industry and elsewhere.^1–3 Moreover, many effective type synthesis theories have been proposed for creative design. Huang and Li⁴ proposed a constraint synthesis method based on screw theory and synthesized a large number of symmetrical lower-mobility parallel mechanisms. Similarly, Kong and Gosselin⁵ proposed a virtual chain method to synthesize parallel mechanisms and a number of parallel mechanisms with varying mobility were synthesized.⁶ Yang et al.⁷ used the position and orientation characteristic equations for the topological design of robot mechanisms. Furthermore, using the concept of G_f set, Yang et al.⁸ presented numerous parallel mechanisms with branches consisting of closed loops. However, the methods mentioned above have only been proposed for parallel mechanisms.

The characteristics of spatial multi-loop coupled mechanisms (SMCMs) include high-load carrying capacity, good accuracy, and stability. In addition, the SMCM possesses diverse functions due to its diverse structures. The complicated coupled-chain connection between branches is one of the fundamental differences between SMCMs and parallel mechanisms. Whereas existing methods and theories on parallel mechanisms cannot be applied to novel coupled mechanisms, some innovative research has been carried out on SMCMs. Dai et al.⁹ used constraint loop theory to analyze the mobility of a ball-flower toy; however, as the number of independent loops increases, the calculations become more complex. Inspired by Kirchhoff’s current law, Liu et al.¹⁰ proposed a simple yet effective method for calculating degrees of freedom of SMCMs based on screw theory, and based on the method, a novel regular triangular bipyramid mechanism was designed and analyzed.¹¹ Cao^12,13 synthesized a class of two-layer two-loop mechanisms based on mobility analysis and recently designed a new family of deployable mechanisms derived from this.^14,15 Zeng and colleagues^16,17 synthesized a variety of SMCMs based on mathematical logic and displacement group theory; however, the method is relatively complicated. Again, based on screw theory, Tian et al.¹⁸ proposed a class of 2R2T hybrid mechanisms. Furthermore, a serial of SMCMs with rolling and creeping motion capabilities, called tensegrity robots, has been proposed.¹⁹ Ding et al.²⁰ designed a class of spatial 6-degree-of-freedom (DoF) SMCMs, which was applied to the forging manipulator.

The major form of SMCMs is often a polyhedral mechanism, which have grown in popularity due to good stability and esthetics. Kipper et al.²¹ introduced a family of spatial linkages with Cardan motion. Moreover, Wang and Kong²² dealt with the construction of deployable polyhedron mechanisms by connecting spatial single-loop linkages. Kovacs et al.²³ proposed a kind of regular polyhedron deployable mechanism that maintains regular polyhedron structure during movement. Existing studies have focused on the mobility of output platform; however, the mobility of linkages is also important in certain environments.

Besides the wide application of 3T mechanisms, 1T and 2T mechanisms are also widely used in industry, for example, punching and sorting machines. The mainly planar structures of existing mechanisms with 1T and 2T have insufficient lateral stiffness and would become unreliable when the component force, which is perpendicular to the planar mechanism, was exerted.^24,25 Spatial mechanisms may solve this problem; however, studies on 1T and 2T spatial SMCMs are lacking. Therefore, this article proposes a novel class of translational SMCMs. The notations of P, R, and C represent the prismatic pair, rotating pair, and cylindrical pair, respectively.

The outline of the paper is organized as follows. In section “Type synthesis method for a novel class of translational SMCMs,” the type synthesis method for constructing a novel class of translational SMCMs is proposed. In section “Kinematic analysis of new 1T SMCM,” a proposed 1T SMCM consisting of R pair and C pair is constructed and analyzed. Similarly, a new 2T SMCM is analyzed in section “Design and analysis of a novel 2-DoF mechanism.” Finally, the conclusions are summarized.

Type synthesis method for a novel class of translational SMCMs

The most obvious feature of a SMCM is the complex connections between branches, which differs from parallel mechanisms. Therefore, a SMCM can be regarded as one composed of a combination of serial and parallel mechanisms. In addition, except for the moving and fixed platforms, the linkages connected directly to more than two kinematic pairs are called coupled nodes, and the branches between two coupled nodes are called coupled chains. In general, the driving joints of a parallel mechanism are the joints connected to the fixed platform, and the DoF, the number of branches, and the number of driving joints is equal.

A type synthesis method for this class of SMCMs is presented, which mainly based on the idea of replacing the inputs of one mechanism with the outputs of another is used for synthesis of target mechanism. Following this basic idea and considering a SMCM as a combination of several mechanisms, a topology splitting method and a DoF splitting principle are proposed, which provides an approach for determining the target mechanism module and target DoF in each level of separation. As thus, type synthesis of a SMCM is transformed into that of a three-limb parallel mechanism, a two-loop mechanism as well as a serial chain. All of above make up the content of the type synthesis method, which will be detailedly described in the following section, at meantime, the synthesized results shall be given.

Basic type synthesis idea from a 1T SMCM module

In this article, the type synthesis idea which replacing the inputs of one mechanism with the outputs of another is used for synthesis of target mechanism. To introduce the idea in detail, a simplest basic 1T SMCM module combining two single closed loops is introduced. The module has two branches and a coupled chain connecting coupled nodes. Two coupled nodes can also be regarded as two moving platform, short for PM2 and PM3, as shown in Figure 1. By some separations, a SMCM may be divided into several such modules like Figure 1 shows. Therefore, the basic idea can be extended to synthesize the SMCM.

Figure 1.

Sketch of combination of two single loops: (a) a topological layout of SMCM; (b) separation of the topological layout; (c) two translational loop chains; and (d) A new 1T SMCM.

Sketch of combination of two single-loop modules is shown in Figure 1. Figure 1(a) and (b) describes how to split a basic SMCM module into two modules, while Figure 1(c) and (d) demonstrates how to combine two modules by replacing inputs of the upper mechanism by outputs of the other. The topology layout of a basic SMCM with two branches and a coupled chain is presented in Figure 1(a). The connections between base and moving platform 1, short for PM1, represent two branches, and the connection between PM2 and PM3 represents a coupled chain.

The topology can be split into two parts at the coupled nodes PM2 and PM3. By virtually adding two kinematic pairs, the coupled nodes are connected to a fixed platform and the basic module is divided into two-loop chains, as shown in Figure 1(b).

The single closed loop in the upper part of Figure 1(c) is a 2T loop chain, and driving joints connecting to the fixed platform are both prismatic pairs (P pairs). The lower part in Figure 1(c) is a 1-DoF loop chain with two moving platforms (PM2 and PM3) whose directions are both the same as that of the driving P pairs of the upper 2T loop. A new mechanism is obtained by combining the two-loop chains, wherein the driving pairs (dotted lines) of the 2T loop are replaced by the moving platforms of the 1-DoF loop, as shown in Figure 1(d).

The moving platform PM1 of the 2T loop chain (shown in Figure 1(b)) can be depicted based on screw theory as

f_{1}^{*} (ω_{1}, ω_{2}) $_{1}^{0} + f_{2}^{*} (ω_{1}, ω_{2}) $_{2}^{0}

(1)

where $ω_{1}, ω_{2}$ denote the input parameters of the 2T loop chain; $f_{1}^{*} (ω_{1}, ω_{2}), f_{2}^{*} (ω_{1}, ω_{2})$ are functions of $ω_{1}, ω_{2}$ ; and $$_{1}^{0}, $_{2}^{0}$ constitute a basic motion screw system of PM1 in the 2T loop chain. Since the moving platform has two translations, $$_{1}^{0}, $_{2}^{0}$ can be denoted as two kinematic couples.

As to the 1-DoF loop chain, when PM2 is regarded as the moving platform of the 1-DoF loop chain, its motion screw is $$_{3}^{0}$ ; when PM3 is regarded as the moving platform of the 1-DoF loop chain, its motion screw is $$_{4}^{0}$ . Similar to the analysis and expressions in the 2-DoF loop chain, as shown in Figure 1(c), the motion of PM2 and PM3 of the 1-DoF loop chain can be described as $f_{3}^{*} (ω_{3}) $_{3}^{0}$ and $f_{4}^{*} (ω_{3}) $_{4}^{0}$ . $ω_{3}$ denotes the input parameters of the 1-DoF loop chain. And the motion screws of PM2 and PM3 also denote the motion screw of the driving linkages of the 2T loop chain. $ω_{3}$ denotes the input parameter of the 1-DoF loop chain. Therefore, the motion of PM1 of the new mechanism, depicted in Figure 1(d), can be depicted as

f_{1}^{*} (f_{3}^{*} (ω_{3}), f_{4}^{*} (ω_{3})) $_{1}^{0} + f_{2}^{*} (f_{3}^{*} (ω_{3}), f_{4}^{*} (ω_{3})) $_{2}^{0}

(2)

The motion screw of the moving platform of the new mechanism is a linear combination of $$_{1}^{0}, $_{2}^{0}$ , and the moving direction described by equation (2) is instantaneous. Equation (2) also depicts that the motion of PM1 is only related to an input parameter $ω_{3}$ . From the definition of DoF, we know the new mechanism has only one translational DoF. Furthermore, the combined parts of two-loop chains result in coupled nodes that also perform translational motion. Due to the instantaneity of screw theory, the moving direction of the moving platform of the new mechanism is unknown.

The above analysis represents the DoF of the moving platform is 1T, whereas coupled nodes also exhibit translational motions. In screw theory, any rigid body’s rotation can be depicted as a linear vector which is composed of six numbers. The first three numbers of a linear vector depict the direction of the rotating axis, and the last three numbers depict the position of the rotating axis. But any rigid body’s translation can be depicted as a couple which parallel to the direction of the translation. So the case for which the coupled nodes and moving platform have rotational DoF is very complex. The direction of the axis of rotation, in addition to the position of the axis of rotation, must be considered. In some cases, the axes of the rotating pairs are required to be handed over to a point.^4–8 Compared with the rotation, the direction of the translation is only need to be considered. Thus, SMCMs whose coupling nodes and moving platform are all translational will be studied in this article. Type synthesis of SMCMs with rotational motion will be investigated in future.

In all, the basic idea can be extended to synthesize a target SMCM. Similar to steps of the basic SMCM shown in Figure 1(a)–(d), type thesis for a SMCM will be performed following four steps.

The first step is to determine the topological layout of target mechanism. Because the SMCM has diversity and randomness, the topological layout of a kind of SMCMs needs to be determined before type synthesis.

The second step is separating the topological layout and dividing it into a number of topological layouts of serial and parallel mechanisms. How to separate the topological layout of the target mechanism is the core part of the type synthesis method. And topology splitting method for the target mechanism of this article is introduced in detail in the following.

The third step involves synthesizing the serial and parallel mechanisms obtained by some separations. Target DoF of split mechanisms is determined by a DoF splitting principle, referred to in section “DoF splitting principle.” Synthesis methods for serial and parallel mechanisms are relatively mature, so this article does not involve the details of them.

The fourth step is to combine the serial and parallel mechanisms. In this article, the topological layout of target mechanism is determined, as shown in Figure 2.

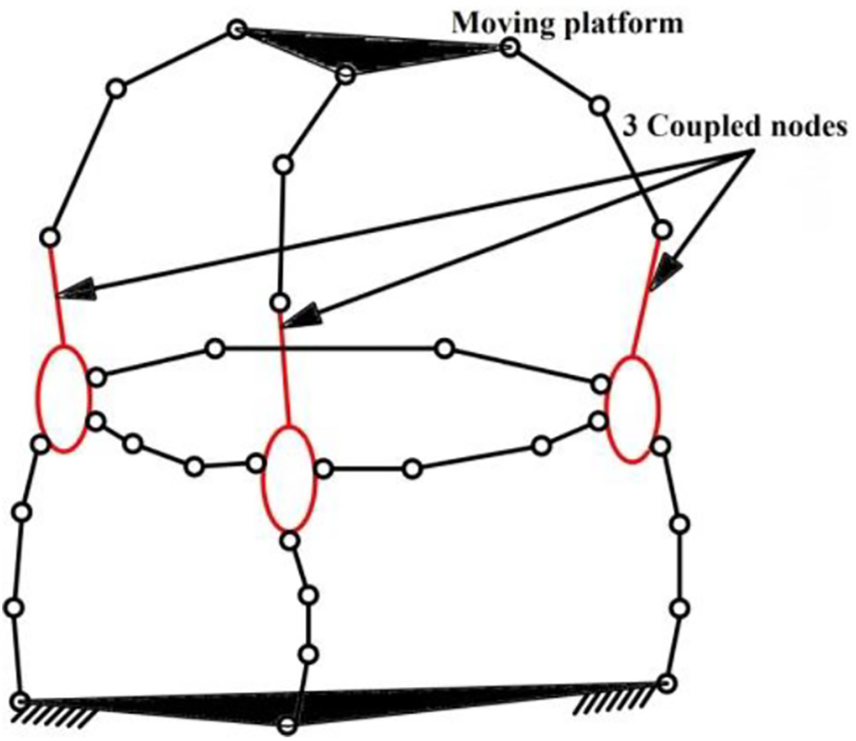

Figure 2.

Illustration of a target mechanism.

A SMCM can be divided into several parallel and serial mechanisms using various splitting methods and different mechanisms are obtained depending on different splitting methods. Aiming at the topology layout as shown in Figure 2, a splitting method of topology and a corresponding splitting principle of DoF are proposed in relation to the above analysis. The topological layout of the target SMCM can be divided into topological layouts of several serial and parallel mechanisms using the proposed splitting method of topology, and the DoF of the serial and parallel mechanisms can be determined according to the splitting principle of DoF. Finally, the target mechanism is obtained by type synthesizing and combining the serial and parallel mechanisms.

Topology splitting method and DoF splitting principle

Topology splitting method

A SMCM may have many different ways to be split. And the topology splitting method proposed in this section is aimed at the topology layout of the target mechanism, as shown in Figure 2.

The first-level separation: Starting at the moving platform, the mechanism is split into the upper and lower parts by first level of separation, which are separated from the coupled nodes directly connected to the moving platform by kinematic chains which do not contain any coupled node. The part containing the moving platform is upper mechanism, the other one is lower mechanism. The upper mechanism is completed by adding virtual actuators corresponding to the output platform of the lower mechanism. The number of coupled nodes equals the number of branches of the upper mechanism.

The following levels of separation: Apart from the first level of separation, each level of separation is aimed at the lower mechanism of the upper level. Any coupled node of the lower mechanism, obtained using the upper level separation, is selected as its moving platform. The following levels of separation are the same as the first-level separation. Topology layout of the target mechanism is separated level by level until only a single loop remains.

If the moving platform is directly connected to the base via a single chain that does not contain any coupled node, the chain is split out as a serial mechanism.

DoF splitting principle

According to the analysis in section “Basic type synthesis idea from a 1T SMCM module,” the following relationships can be derived:

1. Actuators connecting to fixed platform of the upper mechanism would be replaced by the moving platforms of the lower mechanism. In IFToMM terminology, the degrees of freedom (mobility/DoF) is defined as the number of independent coordinates needed to define the configuration of a kinematic chain or mechanism. Based on the definition, DoF of a mechanism is greater than or equal to zero.

When the actuators are locked, the remaining degree of freedom of the upper mechanism is $f_{1} - n$ . As mentioned above, in each level of separation, the DoF of the upper mechanism, f₁, must be greater than or equal to the number of branches, n, that is

f_{1} \geq n

(3)

2. The target DoF f is dynamic in different levels of separation. In the first level of separation, f is the DoF of target SMCM. In any other level of separation, the DoF of the lower mechanism obtained by this level of separation is denoted as f₂, while DoF of lower mechanism obtained by a higher level of separation is regarded as the target DoF, that is, the lower mechanism obtained by this level of separation belongs to the lower mechanism obtained by the higher level of separation. Obviously, the following relation is obtained

f_{2} \leq f

(4)

After combination, actuators connecting to fixed platform of the upper mechanism are replaced by moving platforms of the lower mechanism. Namely, the n actuators of the upper mechanism are replaced by f₂ actuators of the lower mechanism.

3. In the case of no local DoF, only the translational DoF is considered. Therefore, the DoF of mechanisms obtained via splitting cannot be greater than 3 translational freedoms.

4. As analyzed above, a target mechanism can be divided into an upper part and a lower part in each level of separation, whereafter, the n independent inputs of the upper mechanism are replaced by the outputs of the lower mechanism. Therefore, the target DoF f is the sum of lower part’s DoF (f₂) and upper part’s remaining DoF ( $f_{1} - n$ ).

In conclusion, the relationships can be derived

\begin{matrix} f_{1} + f_{2} - n = f \\ n \leq f_{1} \leq 3 \\ f_{2} \leq f \leq 3 \end{matrix}

(5)

From the analysis in section “Basic type synthesis idea from a 1T SMCM module,” the moving direction of output platform of the new mechanism is uncertain. Therefore, the serial mechanisms cannot impose constraints on the connected moving platform. Type synthesis theory of parallel mechanisms is relatively well established based on screw theory.^4–8 In addition, type synthesis of single closed-loop chains is also relatively mature.^5,26

After obtaining the corresponding serial and parallel mechanisms, the target mechanism can be obtained by assembling them. As the actuator of the upper mechanism, the direction of movement of output platforms of lower mechanism varies during motion. Therefore, in synthesizing the lower mechanism, the moving direction of actuators of the upper mechanism must be considered carefully. Taking 3-PRRR parallel mechanism as an example, the axis of P pair cannot be perpendicular to the R pairs in the same branch. When this mechanism is used as the upper mechanism, the movement direction of output platforms of the lower mechanism cannot always be perpendicular to the R pairs.

Topology and DoF splitting

Based on topology splitting method, the target SMCM’s topology layout in Figure 2 can be divided into an upper and a lower part at the coupled nodes via first-level separation. And the upper mechanism is a three-branch parallel mechanism, as shown in Figure 3. The lower part can be further divided into a serial mechanism and a two-loop mechanism, as illustrated in Figure 4. In addition, according to the module in Figure 1, the two-loop mechanism can be further divided into upper and lower loops via second-level separation. Therefore, the target mechanism is divided into four mechanisms: a parallel mechanism, a serial mechanism, an upper loop, and a lower loop. Therefore, we can synthesize such a kind of translational SMCMs by synthesizing and combining the four mechanisms.

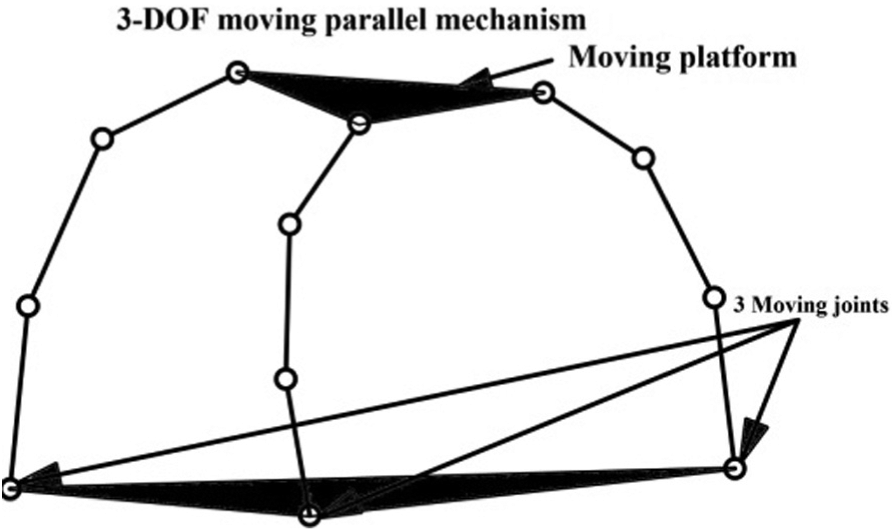

Figure 3.

Sketch of the parallel mechanism.

Figure 4.

Sketch of the separation of the lower part.

The moving platform is constrained by the serial mechanism and the two-loop mechanism simultaneously. From analysis in the paper, motion of the moving platform of the two-loop mechanism is translational, and its direction is unknown. If the serial chain exerts a constraint couple on the connected moving platform, the constraint couple would be overconstraint, which is possible. If the moving platform of the two-loop mechanism is moving in space, and the serial chain only allows the moving platform move in a plane, the serial chain would constrain the motion of the moving platform. Due to the unknown direction of the moving platform of the two-loop mechanism, the serial chain must have at least three translational DoF.

For constructing a 1T SMCM, in the upper and lower mechanisms obtained via first-level separation, the number of branches of the upper mechanism is $n = 3$ , and target DoF is $f = 1$ . The DoF splitting principle can be applied to obtain DoF of the upper and lower parts of the first-level separation. The DoF of the upper mechanism is $f_{1} = 3$ and the DoF of the lower mechanism is $f_{2} = 1$ .

In the upper and lower loops obtained via second-level separation, the number of branches of the upper loop is $n = 2$ and the target DoF is $f = 1$ . Based on the splitting principle of DoF, the DoF of the upper loop is $f_{1} = 2$ and the DoF of the lower loop is $f_{2} = 1$ . In the absence of a rigid substructure, the DoF of the parallel mechanism is 3, the DoF of the upper loop is 2, and the DoF of the lower loop is 1.

Similarly, as to the 2T SMCM and 3T SMCM, the DoF of each mechanism is determined based on the DoF splitting principle. For constructing a 2T SMCM, in absence of a rigid substructure, the DoF of the parallel mechanism is 3, the DoF of the upper loop chain is 3, and the DoF of the lower loop chain is 1. Another situation is that the DoF of both the upper loop and lower loop chain is 2. For constructing a 3T SMCM, the DoF of the parallel mechanism is 3, the DoF of the upper loop chain is 3, and the DoF of the lower loop chain is 2. Another situation is that the DoF of the upper loop chain is 2 and the DoF of the lower loop chain is 3.

The DoF of each part of the translational SMCMs is listed in Table 1. According to the analysis of section “Basic type synthesis idea from a 1T SMCM module,” all of the input pairs of upper mechanism are P pairs, and the motions of output platforms of lower mechanism are translational.

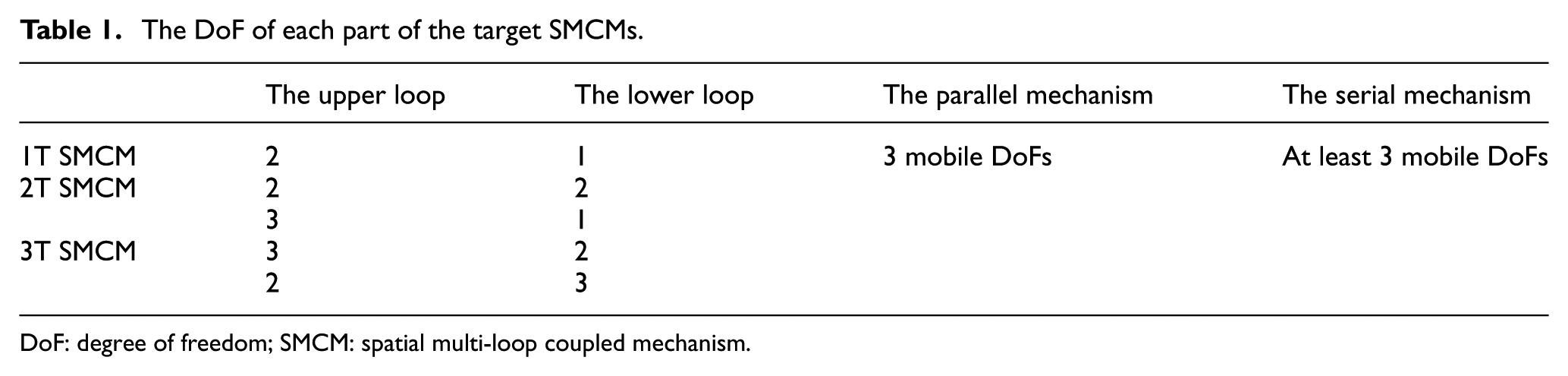

Table 1.

The DoF of each part of the target SMCMs.

	The upper loop	The lower loop	The parallel mechanism	The serial mechanism
1T SMCM	2	1	3 mobile DoFs	At least 3 mobile DoFs
2T SMCM	2	2
2T SMCM	3	1
3T SMCM	3	2
3T SMCM	2	3

DoF: degree of freedom; SMCM: spatial multi-loop coupled mechanism.

Type synthesis of parallel mechanisms

Therefore, the target mechanism is divided into four mechanisms: a parallel mechanism, a serial mechanism, an upper loop, and a lower loop. First, the parallel mechanism is synthesized in this section. In this article, only symmetrical 3-DoF translational parallel mechanisms whose joints connecting to fixed platform are P pairs are constructed in this article. The branch of the target parallel mechanism can be divided into three cases.⁴

Case 1: The branch contains three pairs. In this case, the constraint screws of branch are three couples that constraint three rotations in space, and the basic motion screw system of the branch is

{\begin{matrix} $_{m 1} = (0 0 0; 1 0 0) \\ $_{m 2} = (0 0 0; 0 1 0) \\ $_{m 3} = (0 0 0; 0 0 1) \end{matrix}

(6)

This screw system denotes three P pairs which are non-coplanar.

Case 2: The branch contains four pairs. In this case, the constraint screws of branch are two couples that constraint three rotations in the same directions. Assuming the couples go along Y- and Z-coordinate, respectively, the basic kinematic screw system of the branch is

{\begin{matrix} $_{m 1} = (1 0 0; 0 0 0) \\ $_{m 2} = (0 0 0; 1 0 0) \\ $_{m 3} = (0 0 0; 0 1 0) \\ $_{m 4} = (0 0 0; 0 0 1) \end{matrix}

(7)

The linear combinations of the screw system can denote five types of kinematic chains.

Case 3: The branch contains five pairs. In this case, the constraint screw of branch is only one couple that constraints just one rotation in the same direction. Assuming the couple is located on YZ plane, the basic motion screw system of the branch is

{\begin{matrix} $_{m 1} = (1 0 0; 0 0 0) \\ $_{m 2} = (0 b c; 0 0 0) \\ $_{m 3} = (0 0 0; 1 0 0) \\ $_{m 4} = (0 0 0; 0 1 0) \\ $_{m 5} = (0 0 0; 0 0 1) \end{matrix}

(8)

The linear combinations of the screw system can denote six types of kinematic chains. All types of kinematic chains of 3-DoF symmetrical parallel mechanisms are listed in Table 2.

Table 2.

Type synthesis of 3-DoF symmetrical parallel mechanism.

Number of pairs of branch	Type	Condition of branch	Condition of assemble
3	3-PPP
4	3-PRRR/3-PPRR3-PRPR/3-PRRP	The axes of all the R pairs are parallel, and not perpendicular to the P pairs	The axes of the R pair between different branches are not parallel
4	3-PPPR/3-PPRP/3-PRPP	The R pairs are not perpendicular to the P pairs
5	3-PRRRR	Every two axes of the R pairs are parallel respectively	Three lines each perpendicular to all the axes of the R pairs within a leg are not parallel to a plane
	3-PPRRR/3-PRPRR3-PRRPR/3-PRRRP	The axes of two R pairs are parallel to each other, and the third R pair is not parallel to the other R pairs
	3-PPPRR/3-PRRPP/3-PPRRP	The two R pairs are not parallel

DoF: degree of freedom.

Type synthesis of two-loop mechanism

The lower part obtained via the first-level separation is composed of a two-loop mechanism and a serial mechanism with at least three mobile DoFs. The two-loop mechanism can be split into an upper loop with two translational driving joints and a lower loop with two translational output platforms by the second-level separation. For type synthesis theory of single-loop chain has been very mature,^5,26 the appropriate loop chains can be obtained, as shown in Tables 3 –7.

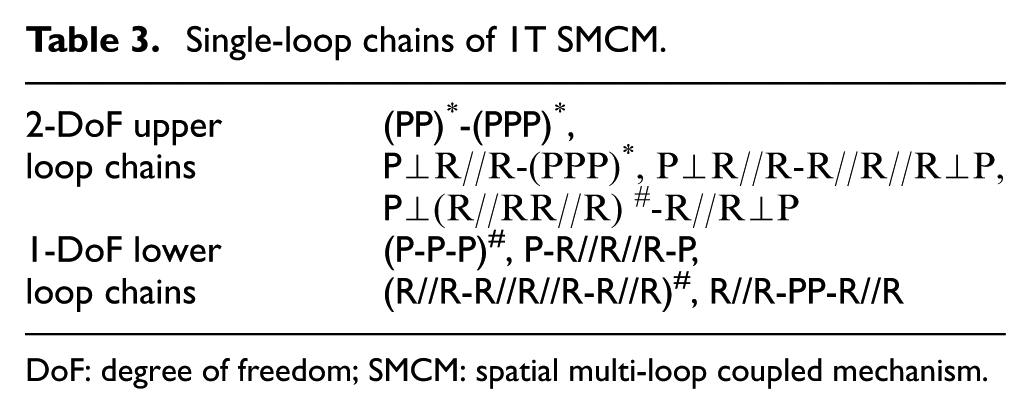

Table 3.

Single-loop chains of 1T SMCM.

2-DoF upper loop chains	(PP)^-(PPP)^,P⊥R∥R-(PPP)^*, P⊥R∥R-R∥R∥R⊥P,P⊥(R//RR//R) ^#-R∥R⊥P
1-DoF lower loop chains	(P-P-P)^#, P-R∥R∥R-P,(R∥R-R∥R∥R-R∥R)^#, R∥R-PP-R∥R

DoF: degree of freedom; SMCM: spatial multi-loop coupled mechanism.

Table 4.

First case of single-loop chains of 2T SMCM.

3-DoF upper loop chains	(PPP)^-(PPP)^, (PPP)^-(R//R-P-P)^,(PPP)^-(PR//RP) ^(PPP)^*-(R//RR//R)^#⊥P,P⊥R//R//R-R//R//R⊥P
1-DoF lower loop chains	(P-P-P)^#, P-R∥R∥R-P,(R∥R-R∥R∥R-R∥R)^#, R∥R-PP-R∥R

DoF: degree of freedom; SMCM: spatial multi-loop coupled mechanism.

Table 5.

Second case of single-loop chains of 2T SMCM.

2-DoF upper loops	(PP)^-(PPP)^,P⊥R∥R-(PPP)^*, P⊥R∥R-R∥R∥R⊥P,P⊥(R//RR//R)^#-R∥R⊥P
2-DoF lower loops	(PP)^-P-(PP)^,P-R∥R-(PPP)^*, P-R∥R-R∥R∥R⊥P,P-(R//RR//R)^#-R∥R⊥P

DoF: degree of freedom; SMCM: spatial multi-loop coupled mechanism.

Table 6.

First case of single-loop chains of 3T SMCM.

3-DoF upper loops	(PPP)^-(PPP)^, (PPP)^-(R//R-P-P)^, (PPP)^-(PR//RP) ^(PPP)^*-(R//RR//R)^#⊥P, P⊥R//R//R-R//R//R⊥P
2-DoF lower loops	(PP)^-P-(PP)^,P-R∥R-(PPP)^*, P-R∥R-R∥R∥R⊥P,P-(R//RR//R)^#-R∥R⊥P

DoF: degree of freedom; SMCM: spatial multi-loop coupled mechanism.

Table 7.

Second case of single-loop chains of 3T SMCM.

2-DoF upper loops	(PP)^-(PPP)^,P⊥R∥R-(PPP)^*, P⊥R∥R-R∥R∥R⊥P,P⊥(R//RR//R)^#-R∥R⊥P
3-DoF lower loops	(PPP)^-(PPP)^, (PPP)^-(R//R-P-P)^, (PPP)^-(PR//RP) ^(PPP)^*-(R//RR//R)^#⊥P, P⊥R//R//R-R//R//R⊥P

DoF: degree of freedom; SMCM: spatial multi-loop coupled mechanism.

In Tables 3 –7, the pairs on both sides of “-” are connected to moving platforms. “*,”“#” denote that the pairs in bracket are not coplanar or not parallel, respectively. “⊥,”“∥”denote that the pairs connected by them are perpendicular and parallel, respectively.

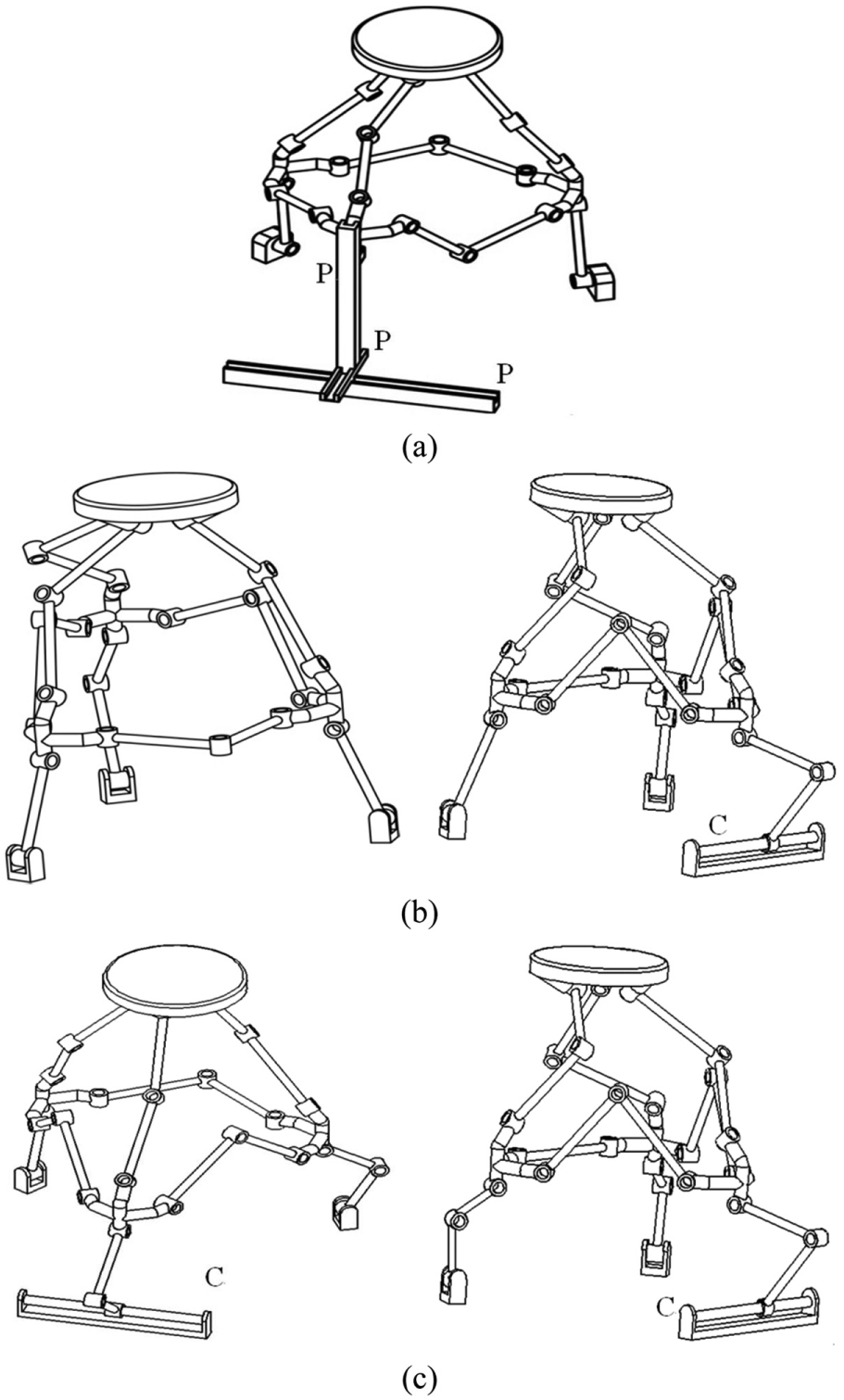

Finally, a novel family of translational SMCMs is obtained by combining the corresponding mechanisms obtained above. The obtained SMCMs, shown in Figure 5(a)–(c), are 1T, 2T and 3T, respectively. In Figure 5, kinematic pairs are rotating pairs except the marked kinematic pairs.

Figure 5.

Five new translational SMCMs: (a) a novel 1T SMCM; (b) two novel 2T SMCMs; and (c) two novel 3T SMCMs.

Based on the above content, to clarify the synthesis method, a flow chart of the procedure for type synthesis of the target SMCM is shown in Figure 6.

Figure 6.

The flow chart of the type synthesis method.

Kinematic analysis of new 1T SMCM

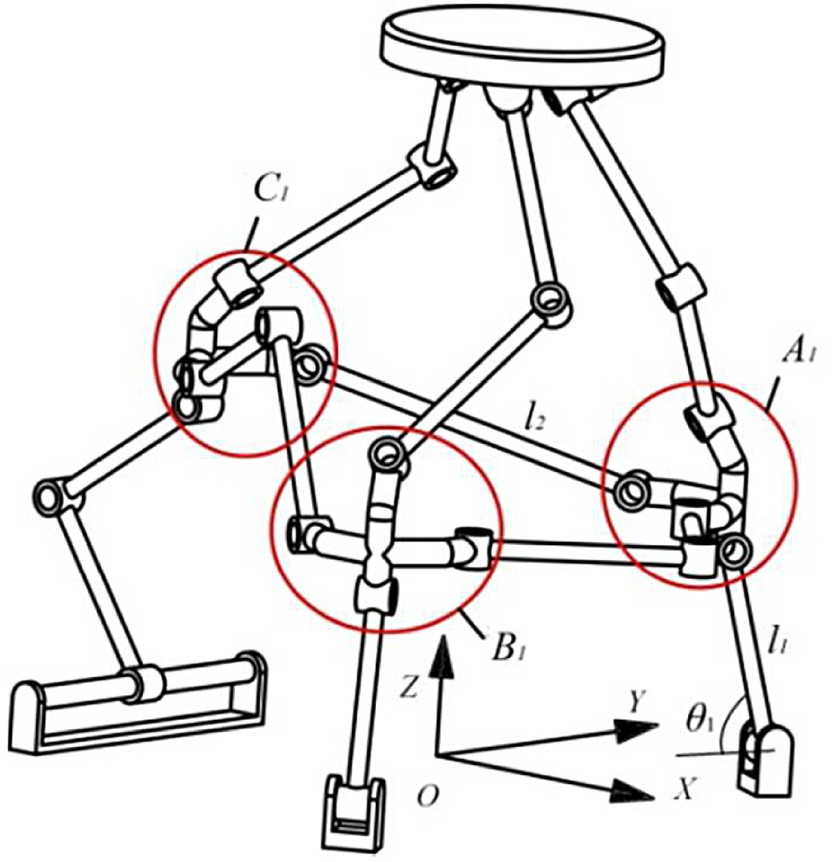

In this section, a new SMCM obtained above, shown in Figure 7, is analyzed. 3-PRRR and CRR are selected out as the parallel mechanism and the serial mechanism, respectively. P⊥R∥R-R∥R∥R⊥P and (R∥R-R∥R∥R-R∥R)^# are selected out from Table 3 as upper and lower loops, respectively. Forward position solution is carried out to verify the synthesis method proposed in this article, and the trajectory of the moving platform of the mechanism is obtained via the forward position solution.

Figure 7.

A new SMCM.

Mechanism description

The new mechanism is composed of several R pairs and a C pair, and the axes of R pairs in the same branch are parallel. The fixed platform is composed of two R pairs and one C pair, and the axes of them form an equilateral triangle. The structures of platform A₁ and C₁ are shown in Figures 8 and 9, respectively. Since the motion of A₁, B₁, and C₁ is translational, to facilitate the calculation, the three coupled nodes are regarded as three points A₁, B₁, and C₁ in the following calculation. Based on this, the rotation pairs of the coupling nodes A₁, B₁, and C₁ are only in different directions, and their axes intersect at A₁, B₁, and C₁, respectively. The axes of the pairs in branch A₁B₁ are perpendicular to the fixed platform in the initial posture.

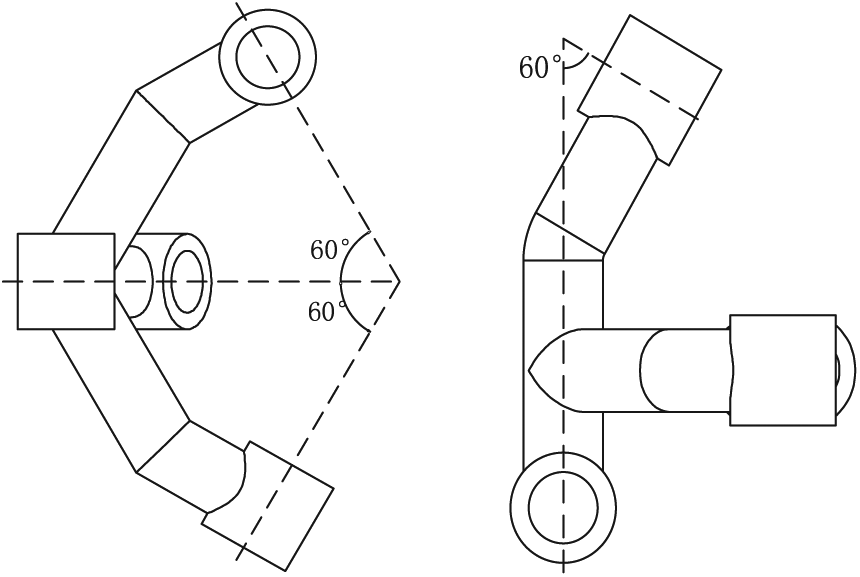

Figure 8.

Sketch of coupled node A_1.

Figure 9.

Sketch of coupled node C_1.

The coordinate system is shown in Figure 7. The origin is located at the center of the fixed platform. The X-axis is along the direction of the intersecting line of the symmetrical plane and the fixed platform. The Z-axis runs along the vertical direction. The coupled nodes A₁ and B₁ are symmetric about the XZ plane in movement process.

Forward position kinematics solution

The coordinates of A₁ and B₁ can be determined based on the property of symmetry

{\begin{matrix} A_{1} = (\begin{matrix} \frac{1}{2} r_{1} - \frac{1}{2} l_{1} \cos θ_{1}, & \frac{\sqrt{3}}{2} r_{1} - \frac{\sqrt{3}}{2} l_{1} \cos θ_{1}, & l_{1} \sin θ_{1} \end{matrix}) \\ B_{1} = (\begin{matrix} \frac{1}{2} r_{1} - \frac{1}{2} l_{1} \cos θ_{1}, & - \frac{\sqrt{3}}{2} r_{1} + \frac{\sqrt{3}}{2} l_{1} \cos θ_{1}, & l_{1} \sin θ_{1} \end{matrix}) \end{matrix}

(9)

where r₁ is the radius of fixed platform and l₁ is the length of chain L₁.

Due to the special structure, we can obtain an equilateral triangle when points A₁, B₁, and C₁ are projected into the XY plane, as shown in Figure 10. Therefore, the X-coordinate of point C₁ is

C_{1 x} = - (\sqrt{3} A_{1 y} - A_{1 x})

(10)

Figure 10.

Top view of partial mechanism.

The Y-coordinate of point C₁ is always equal to zero.

In addition, the coordinate of C₁ can be obtained using the following function

\sqrt{{(A_{1 x} - C_{1 x})}^{2} + {(A_{1 y} - C_{1 y})}^{2} + {(A_{1 z} - C_{1 z})}^{2}} = l_{2}

(11)

where l₂ is the length of chain L₂.

So, the coordinate of C₁ is

C_{1} = (\begin{matrix} l_{1} \cos θ - r_{1}, & 0, & l_{1} \sin θ \pm \sqrt{l_{2}^{2} - 3 {(r_{1} - l_{1} \cos θ)}^{2}} \end{matrix})

(12)

From equation (12), we can know that there are two solutions to the Z-coordinate of C₁. To avoid interference between platform C₁ and the fixed platform, only the larger solution of the Y-coordinate is reserved in the following calculation.

As shown in Figure 11, points A₂, B₂, and C₂ are midpoints of the axes of the R pairs on the moving platform, and they are coplanar to and centrally symmetric about the center of the moving platform. Assuming the coordinate of the center of the moving platform is P $(P_{x}, P_{y}, P_{z})$ , coordinates of these three points can be depicted as

{\begin{matrix} A_{2} = (\begin{matrix} P_{x} + \frac{1}{2} r_{2}, & P_{y} + \frac{\sqrt{3}}{2} r_{2}, & P_{z} \end{matrix}) \\ B_{2} = (\begin{matrix} P_{x} + \frac{1}{2} r_{2}, & P_{y} - \frac{\sqrt{3}}{2} r_{2}, & P_{z} \end{matrix}) \\ C_{2} = (\begin{matrix} P_{x} - r_{2}, & P_{y}, & P_{z} \end{matrix}) \end{matrix}

(13)

where r₂ is the radius of the moving platform.

Figure 11.

Upper part of novel mechanism.

Point A₂ is located on plane n₁, which is perpendicular to the axis of R pair A₂ and goes through the point A₁. Similarly, point B₂ is located on the plane n₂, which is perpendicular to the axis of R pair B₂ and goes through point B₁. In addition, point C₂ is located on the plane n₃, which is perpendicular to the axis of R pair C₂ and passes through point C₁. The above three planes can be expressed as

{\begin{matrix} \frac{\sqrt{3}}{4} (x - A_{1 x}) + \frac{3}{4} (y - A_{1 y}) + \frac{1}{2} (z - A_{1 z}) = 0 \\ \frac{\sqrt{3}}{4} (x - B_{1 x}) - \frac{3}{4} (y - B_{1 y}) + \frac{1}{2} (z - B_{1 z}) = 0 \\ x - C_{1 x} = z - C_{1 z} \end{matrix}

(14)

Substituting equation (13) into equation (14)

{\begin{matrix} \frac{\sqrt{3}}{4} (P_{x} + \frac{1}{2} r_{2} - A_{1 x}) + \frac{3}{4} (P_{y} + \frac{\sqrt{3}}{2} r_{2} - A_{1 y}) + \frac{1}{2} (P_{z} - A_{1 z}) = 0 \\ \frac{\sqrt{3}}{4} (P_{x} + \frac{1}{2} r_{2} - B_{1 x}) - \frac{3}{4} (P_{y} - \frac{\sqrt{3}}{2} r_{2} - B_{1 y}) + \frac{1}{2} (P_{z} - B_{1 z}) = 0 \\ P_{x} - r_{2} - C_{1 x} = P_{z} - C_{1 z} \end{matrix}

(15)

The solution of equation (15) can be obtained

{\begin{matrix} P_{x} = \frac{\frac{\sqrt{3}}{2} A_{1 x} + \frac{3}{2} A_{1 y} + A_{1 z} + (C_{1 x} - C_{1 z}) + (1 - \frac{3 \sqrt{3}}{4}) r_{2}}{1 + \frac{\sqrt{3}}{2}} \\ P_{y} = 0 \\ P_{z} = \frac{\frac{\sqrt{3}}{2} A_{1 x} + \frac{3}{2} A_{1 y} + A_{1 z} - \frac{\sqrt{3}}{2} (C_{1 x} - C_{1 z}) - \frac{5 \sqrt{3}}{4} r_{2}}{1 + \frac{\sqrt{3}}{2}} \end{matrix}

(16)

Trajectory of moving platform

The trajectory of the moving platform can be obtained from the forward position kinematic solution. All necessary structural parameters are given. It is assumed that the length of each link is equal to 180 mm, r₁ = 200 mm, and r₂ = 50 mm. The trajectory of the moving platform can be presented in MATLAB, as shown in Figure 12. It can be found that although the mobility is 1T, the trajectory of the moving platform is not a straight line but a general curve located on the XZ plane. Changing the parameters of the mechanism, the motion trajectory of the mechanism can be designed, which suggests good prospects for the application of this type of mechanism, for example, in an aircraft landing gear.

Figure 12.

Trajectory of moving platform.

According to the analysis in this section, the Y-coordinate of point C₁ is zero, which means the path of C₁ is on the symmetrical plane. If the serial mechanism has only one translational DoF, this will limit the motion of C₁. Therefore, the serial mechanism should demonstrate at least two-dimensional planar translation and moves on the symmetrical plane. Thus, the C pair can be replaced by an R pair with the same axial direction in this mechanism.

Design and analysis of a novel 2-DoF mechanism

Replacing the upper loop of the 1T mechanism, P⊥R∥R-R∥R∥R⊥P, presented in section “Kinematic analysis of new 1T SMCM” with P⊥R//R//R-R//R//R⊥P, listed in Table 5, and replacing the C pair by an R pair with the same axial direction, a new 2T SMCM is obtained, as shown in Figure 13.

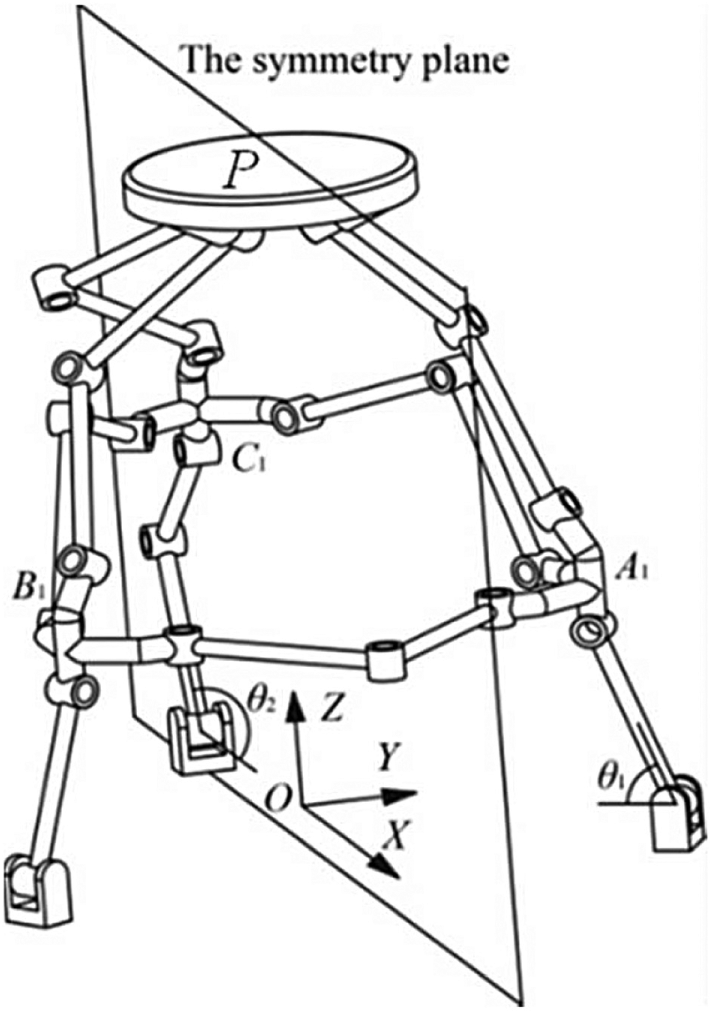

Figure 13.

New 2T multi-loop coupled mechanism.

Forward position kinematics solution

The coordinate system of the new 2-DoF mechanism is the same as the coordinate system in section “Mechanism description” and is shown in Figure 13.

The coordinates of A₁ and B₁ can also be obtained using equation (9). Moreover, the X-coordinate of point C₁ can be obtained from equation (10). As shown in Figure 13, the coordinate of Point C₁ can be expressed as

C_{1} = (\begin{matrix} - r_{1} + l_{3} \cos θ_{2} + l_{4} \cos α, & 0, & l_{3} \sin θ_{2} + l_{4} \sin α \end{matrix})

(17)

Then, we can obtain the coordinate of point C₁ by solving equations (9), (10), and (17)

C_{1} = (\begin{matrix} l_{1} \cos θ_{1} - r_{1}, & 0, & l_{2} \sin θ_{2} \pm \sqrt{l_{3}^{2} - {(l_{1} \cos θ_{1} - l_{2} \cos θ_{2})}^{2}} \end{matrix})

(18)

where l₂ and l₃ are the link lengths, as shown in Figure 14. Similarly, the larger solution of the Z-coordinate of C₁ is reserved in the following calculation.

Figure 14.

Right elevation of lower part of the mechanism.

According to the analysis of the 1T mechanism, the coordinate of the midpoint of the moving platform of the new 2-DoF mechanism can always be described in equation (16) which is functions of the coordinates of A₁, B₁, and C₁.

Inverse position kinematics solution

The inverse position kinematics solution is the process of obtaining angle $θ_{1}$ , $θ_{2}$ for known coordinates of point P. When the coordinates of point P are $(P_{x}, P_{y}, P_{z})$ , we can assume the input angle is $θ_{1}$ , $θ_{2}$ , and the coordinates of points A₁, B₁, and C₁ can be expressed by equations (9) and (18). Points A₂ and A₁ are located on the plane n₁, points B₂ and B₁ are located on the plane n₂, and points C₂ and C₁ are located on the plane n₃. The explicit expressions of the three planes, n₁, n₂, and n₃, can be given by equation (14).

Solving equations (9), (14), and (18), we can obtain the expressions for $θ_{1}$ , $θ_{2}$

{\begin{matrix} θ_{1} = 2 \arctan \frac{- E \pm \sqrt{E^{2} - 4 FG}}{2 F} \\ θ_{2} = 2 \arctan \frac{- H \pm \sqrt{H^{2} - 4 IJ}}{2 I} \end{matrix}

(19)

where

\begin{matrix} E = 2 (\sqrt{3} + 2) l_{1} \\ F = (3 + 2 \sqrt{3}) l_{1} - T \\ G = - [T + (3 + 2 \sqrt{3}) l_{1}] \\ T = (2 + \sqrt{3}) (\frac{\sqrt{3}}{2} P_{x} + P_{z}) - (3 + 2 \sqrt{3}) r_{1} \\ + (\frac{9}{4} + \frac{3 \sqrt{3}}{2}) r_{2} \\ H = - 4 N l_{2} \\ I = M + 2 l_{1} l_{2} \cos θ_{1} \\ J = M - 2 l_{1} l_{2} \cos θ_{1} \\ M = l_{2}^{2} + N^{2} - l_{3}^{2} + l_{1}^{2} \cos^{2} θ_{1} \\ N = l_{1} \cos θ_{1} - r_{1} - P_{x} + P_{z} + r_{2} \end{matrix}

Numerical simulations

To verify the solutions, numerical simulations are performed in MATLAB to generate the forward and inverse position kinematics solutions. Assuming that each linkage is assumed equal to 120 mm, the radius of the fixed platform is set as 210 mm, and the radius of the moving platform is 50 mm. Results are presented in Tables 8 and 9. Based on these results, the kinematics solution is correct.

Table 8.

Numerical simulations of the forward position kinematic solution.

( $θ_{1}$ , $θ_{2}$ )	(60, 120)	(50, 100)	(50, 105)	(50, 110)	(40, 95)	(40, 100)	(30, 95)
X-axis	50.8330	−7.0908	3.4404	21.7772	−17.9602	−5.6806	−17.7541
Z-axis	254.7561	263.2440	254.1238	238.2436	232.2479	221.6134	194.1542

Table 9.

Numerical simulations of the inverse position kinematic solution.

( $P_{x}$ , $P_{z}$ )	(50.8, 254.8)	(–7.1, 263.2)	(21.7772, 238.2436)	(–17.9602, 232.2479)
$θ_{1}$	60.0037	49.9874	20.0000	40.0000
$θ_{2}$	120.0036	99.9957	110.0000	94.9987
( $P_{x}$ , $P_{z}$ )	(–5.7, 221.6)	(–17.8, 194.2)	(3.4404, 254.1238)
$θ_{1}$	39.9923	30.0016	50.0113
$θ_{1}$	99.9926	94.9875	105.0076

Analysis of velocity and acceleration

Taking the derivative of equations (9), (16), and (18) with respect to time, we obtain

[\begin{matrix} v_{x} \\ v_{z} \end{matrix}] = G [\begin{matrix} {\overset{•}{θ}}_{1} \\ {\overset{•}{θ}}_{2} \end{matrix}]

(20)

where $v_{x}$ , $v_{z}$ is the velocity of the moving platform, ${\overset{•}{θ}}_{1}$ , ${\overset{•}{θ}}_{2}$ is velocity of the driving pairs, and G is the first-order influence coefficient²⁷ of the mechanism. G can be expressed as

G = \frac{2}{2 + \sqrt{3}} [\begin{matrix} (\sqrt{3} - 1) l_{1} \sin θ_{1} + l_{1} \cos θ_{1} \mp Q l_{1} \sin θ_{1} & - l_{2} \cos θ_{2} \pm Q l_{2} \sin θ_{2} \\ \frac{3 \sqrt{3}}{2} l_{1} \sin θ_{1} + \frac{\sqrt{3}}{2} l_{1} \cos θ_{1} \pm \frac{\sqrt{3}}{2} Q l_{1} \sin θ_{1} & \frac{\sqrt{3}}{2} l_{2} \cos θ_{2} \mp \frac{\sqrt{3}}{2} Q l_{2} \sin θ_{2} \end{matrix}]

(21)

where

Q = \frac{l_{1} \cos θ_{1} - l_{2} \cos θ_{2}}{\sqrt{l_{3}^{2} - {(l_{1} \cos θ_{1} - l_{2} \cos θ_{2})}^{2}}}

Taking the derivative of equation (20) with respect to time, we obtain

[\begin{matrix} a_{x} \\ a_{z} \end{matrix}] = [\begin{matrix} {\overset{•}{θ}}_{1} & {\overset{•}{θ}}_{2} \end{matrix}] H_{2 \times 2 \times 2} [\begin{matrix} {\overset{•}{θ}}_{1} \\ {\overset{•}{θ}}_{2} \end{matrix}] + G [\begin{matrix} {\overset{• •}{θ}}_{1} \\ {\overset{• •}{θ}}_{2} \end{matrix}]

(22)

where $a_{x}$ , $a_{z}$ is the acceleration of the moving platform, ${\overset{• •}{θ}}_{1}$ , ${\overset{• •}{θ}}_{2}$ is the acceleration of the driving pairs, and $H_{2 \times 2 \times 2}$ is the second-order influence coefficient²⁷ of the mechanism. $H_{2 \times 2 \times 2}$ is a three-dimensional matrix and can be depicted as

{\begin{matrix} H_{1 : :} = [\begin{matrix} H_{111} & H_{112} \\ H_{121} & H_{122} \end{matrix}] \\ H_{2 : :} = [\begin{matrix} H_{211} & H_{212} \\ H_{221} & H_{222} \end{matrix}] \end{matrix}

(23)

where

\begin{matrix} H_{111} = (\sqrt{3} - 1 \mp Q) l_{1} \cos θ_{1} - l_{1} \sin θ_{1} \pm l_{1}^{2} \sin^{2} θ_{1} \\ [{(l_{3}^{2} - S)}^{- \frac{1}{2}} + S {(l_{3}^{2} - S)}^{- \frac{3}{2}}] \end{matrix}

H_{121} = \mp l_{1} \sin θ_{1} l_{2} \sin θ_{2} [{(l_{3}^{2} - S)}^{- \frac{1}{2}} - S {(l_{3}^{2} - S)}^{- \frac{3}{2}}]

H_{112} = \mp l_{2} \sin θ_{2} l_{1} \sin θ_{1} [{(l_{3}^{2} - S)}^{- \frac{1}{2}} + S {(l_{3}^{2} - S)}^{- \frac{3}{2}}]

\begin{matrix} H_{112} = l_{2} \sin θ_{2} \pm Q l_{2} \cos θ_{2} \pm l_{2}^{2} \sin^{2} θ_{2} \\ [{(l_{3}^{2} - S)}^{- \frac{1}{2}} + S {(l_{3}^{2} - S)}^{- \frac{3}{2}}] \end{matrix}

\begin{matrix} H_{211} = (\frac{3 \sqrt{3}}{2} \pm \frac{\sqrt{3}}{2} Q) l_{1} \cos θ_{1} - \frac{\sqrt{3}}{2} l_{1} \sin θ_{1} \\ \mp \frac{\sqrt{3}}{2} l_{1}^{2} \sin^{2} θ_{1} [{(l_{3}^{2} - S)}^{- \frac{1}{2}} + S {(l_{3}^{2} - S)}^{- \frac{3}{2}}] \end{matrix}

H_{221} = \pm \frac{\sqrt{3}}{2} l_{1} \sin θ_{1} l_{2} \sin θ_{2} [{(l_{3}^{2} - S)}^{- \frac{1}{2}} + S {(l_{3}^{2} - S)}^{- \frac{3}{2}}]

H_{212} = \pm \frac{\sqrt{3}}{2} l_{1} \sin θ_{1} l_{2} \sin θ_{2} [{(l_{3}^{2} - S)}^{- \frac{1}{2}} + S {(l_{3}^{2} - S)}^{- \frac{3}{2}}]

\begin{matrix} H_{222} = - \frac{\sqrt{3}}{2} l_{2} \sin θ_{2} \mp \frac{\sqrt{3}}{2} Q l_{2} \cos θ_{2} \\ \mp \frac{\sqrt{3}}{2} l_{2}^{2} \sin^{2} θ_{2} [{(l_{3}^{2} - S)}^{- \frac{1}{2}} + S {(l_{3}^{2} - S)}^{- \frac{3}{2}}] \end{matrix}

S = {(l_{1} \cos θ_{1} - l_{2} \cos θ_{2})}^{2}

Working space analysis

When the limitation of range of kinematic pairs and interference between linkages are neglected, we can obtain the reachable working plane of the moving platform based on the forward position solution. Again, using the structural parameters given in section “Numerical simulations,” the working space can be obtained in MATLAB, as shown in Figure 15. In relation to multi-loop coupled mechanisms, to avoid inappropriate input variables, it is necessary to analyze variation in input variables. Similarly, the appropriate input variables can be obtained based on the forward position solution. Result is calculated in MATLAB and is shown in Figure 16. The working space is found to be similar to a triangular shape located on the XZ plane. In addition, the working space and range of input variables are relatively small. Therefore, further optimization is required and will form the basis of future work.

Figure 15.

Working space.

Figure 16.

Appropriate input variables.

Conclusion

A novel method is proposed for type synthesis of translational SMCMs with three branches and three coupled chains. The basic synthesis idea is based on replacing the input of one mechanism with the output of another, thereby combining several mechanisms. The type synthesis method is composed of a topology splitting method, a DoF splitting principle as well as type synthesis of every split part. Four topological layouts are obtained by separating the topology layout of the target mechanism based on the topology split method. And DoF of each topology layout is determined based on the DoF splitting principle. In this way, type synthesis of the target mechanism is transformed into type synthesis of a parallel mechanism, a serial mechanism, and two single closed loops. A novel class of translational SMCMs is obtained via combining the four satisfied parts. Of note, the motion of coupled nodes of this kind of mechanisms is also translational.

Following the synthesis, kinematic analysis of a proposed 1T mechanism is carried out, and the trajectory of the output platform, which is a general curve located on the symmetrical plane, is obtained. The results verify the effectiveness of the type synthesis method for the synthesized mechanisms and demonstrate prospective applications of the 1T mechanism. Subsequently, kinematics of a new 2T mechanism is theoretically analyzed, and a numerical simulation is also performed to verify the kinematics analysis. The working plane of the 2T mechanism is located on the symmetrical plane, and the range of the input joints is obtained as well. The contribution of this article is to explore and develop the SMCM, which enriches the theoretical reserves of this kind of mechanisms.

Footnotes

Handling Editor: Jose Ramon Serrano

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (grant number: 51475015).

ORCID iD

Shuang Zhang

References

Stewart

A platform with six degrees of freedom. P I Mech Eng 1965; 180: 371–386.

Clavel

Delta, a fast robot with parallel geometry. In: Proceedings of the international symposium on industrial robots, Lausanne, 26–28 April 1988, pp.91–100. Berlin: Springer.

Merlet

. Optimal design for the micro parallel robot MIPS. In: IEEE international conference on robotics and automation, Washington, DC, 11–15 May 2002, vol. 2, pp.1149–1154. New York: IEEE.

Huang

QC.

General methodology for type synthesis of symmetrical lower-mobility parallel manipulators and several novel manipulators. Int J Robot Res 2002; 21: 131–146.

Kong

Gosselin

CM.

Type synthesis of parallel mechanisms. Doctoral Dissertation, Springer, Berlin, 2007.

Kong

Gosselin

Richard

Type synthesis of parallel mechanisms with multiple operation modes. J Mech Design 2007; 129: 595–601.

Yang

Liu

Jin

et al . Position and orientation characteristic equations for topological synthesis of robot mechanisms. J Mech Design 2008; 131: 1347–1356.

Yang

Gao

et al . Type synthesis of parallel mechanisms having the first class G_F sets and one-dimensional rotation. Robotica 2011; 29: 895–902.

Dai

Zhang

et al . Mobility analysis of a complex structured ball based on mechanism decomposition and equivalent screw system analysis. Mech Mach Theory 2004; 39: 445–458.

10.

Liu

Huang

et al . Equivalent method of output mobility calculation for a novel multi-loop coupled mechanism. J Mech Eng 2014; 50: 13–19.

11.

Gao

Liu

Design and motion analysis of a novel coupled mechanism based on a regular triangular bipyramid. Int J Adv Robot Syst 2016; 13: 1–17.

12.

Cao

Ding

Chen

et al . Mobility analysis and structural synthesis of a class of spatial mechanisms with coupling chains. Robotica 2016; 34: 2467–2485.

13.

Ding

Cao

Chen

et al . Structural synthesis of two-layer and two-loop spatial mechanisms with coupling chains. Mech Mach Theory 2015; 92: 289–313.

14.

Cao

Yang

Ding

et al . A new family of deployable mechanisms derived from two-layer and two-loop spatial linkages with 5R coupling chains. J Mech Robot 2017; 9: 061016.

15.

Cao

Yang

Ding

Topological structural design of umbrella-shaped deployable mechanisms based on new spatial closed-loop linkage units. J Mech Design 2018; 140: 062302.

16.

Zeng

Fang

Structural synthesis and analysis of serial–parallel hybrid mechanisms with spatial multi-loop kinematic chains. Mech Mach Theory 2012; 49: 198–215.

17.

Zeng

Fang

Ehmann

KF.

Topological structural synthesis of 4-DOF serial-parallel hybrid mechanisms. J Mech Design 2011; 133: 091008.

18.

Tian

Fang

Guo

Structural synthesis of a class of 2R2T hybrid mechanisms. Chin J Mech Eng 2016; 29: 703–709.

19.

Paul

Valero-Cuevas

Lipson

Design and control of tensegrity robots for locomotion. IEEE T Robot 2006; 22: 944–957.

20.

Ding

Feng

Yang

et al . Structure synthesis of 6-DOF forging manipulators. Mech Mach Theory 2017; 111: 135–151.

21.

Kiper

Söylemez

Kişisel

AUÖ

. Polyhedral linkages synthesized using Cardan motion along radial axes. In: Proceedings of 12th IFTbMM World Congress, Besancon, France, Besançon, 18–21 June 2007, pp.326–331.

22.

Wang

Kong

Deployable polyhedron mechanisms constructed by connecting spatial single-loop linkages of different types and/or in different sizes using S joints. Mech Mach Theory 2018; 124: 211–225.

23.

Kovacs

Tarnai

Fowler

et al . A class of expandable polyhedral structures. Int J Solids Struct 2004; 41: 1119–1137.

24.

Hartenburg

Denavit

Freudenstein

Kinematic synthesis of linkages, vol. 34. New York: McGraw-Hill, 1965.

25.

Woo

LS.

Type synthesis of plane linkages. J Eng Ind 1967; 89: 159–170.

26.

Fang

Tsai

LW.

Enumeration of a class of overconstrained mechanisms using the theory of reciprocal screws. Mech Mach Theory 2004; 39: 1175–1187.

27.

Huang

Fang

Kong

Mechanism theory and control of parallel manipulators. Beijing: China Machine Press, 1997. (in Chinese).
