Abstract

A reduced-order approach to the adaptive fuzzy sliding mode control of the constrained manipulator is proposed. Based on the Udwadia–Kalaba motion constraint equation, the dynamic equation of the constrained manipulator with both ideal and non-ideal constraints is obtained. Considering the uncertainty of the terminal non-ideal constrained force and the chattering phenomenon of sliding mode control, the adaptive fuzzy and the sliding mode control method are combined to control the constrained manipulator. Because the system is constrained, the model order reduction method is innovatively used in the control algorithm. The stability of the system is proved by Lyapunov theorem. For demonstrating the effectiveness of the control algorithm, the 2-degree-of-freedom manipulator is taken as the research object. Finally, the high-precision control of the manipulator is achieved and the chattering phenomenon caused by the sliding mode control is weakened.

Keywords

Constrained manipulator non-ideal force adaptive fuzzy sliding mode control reduced order simulation

Introduction

In the actual work, the terminal of the manipulator is generally subjected to various constrained forces. In the constrained condition, there will be two kinds of forces acting at the manipulator, which are named as the ideal and the non-ideal constrained forces. According to the D’Alember’s principle, constraint forces can do positive, negative, or zero work under virtual displacement in the constrained condition. When constrained forces do no work, it is called ideal constrained force. While constrained forces do work, constraint forces can be named as the non-ideal constraint force. In 1992, Udwadia and colleagues,^1–4 professors at the University of Southern California, proposed an equation of motion for a multi-body mechanical system under constraint conditions, which is called the U-K equation. This equation has enjoyed great achievements in the field of Lagrange⁵ mechanics. The U-K equation is applicable to the constraint system under various conditions, including ideal and non-ideal constraints. Because the non-ideal constraint does not satisfy D’Alembert’s principle,⁶ they generalized the U-K equation to general motion equations, which promote the equation is not limited to D’Alembert’s principle.

In recent years, The U-K equation has got more and more attentions and applications. A large number of scholars have used U-K equations to research the dynamic modeling and control of constrained robots. Liu and Liu⁷ obtained the dynamic modeling of a constrained industrial robot in the basis of the U-K equation. Huang et al.⁸ used this equation to establish a dynamic model of a parallel robot. But so far, all studies based on the U-K equation have only considered the ideal constrained force, which are one-sided in the analysis of constrained forces. Although the analytical expression of constrained forces can be obtained by the U-K equation, the non-ideal constrained force still changes with time and environment, and has the characteristic of high nonlinearity and uncertainty, which make its application limited in practice. In this article, the adaptive fuzzy control method and the sliding mode control method are combined to control the non-ideal constrained force. Benefiting for the characteristic of the fuzzy control with universal approximation, the unknown non-ideal constrained force of the constrained manipulator can be approximated and compensated.

As we all known, the manipulator is an extremely complex multi-input and multi-output nonlinear system. The manipulator control methods mainly include proportional–integral–derivative (PID) control, adaptive control, neural network control, fuzzy control, iterative learning control, conventional backstepping, and sliding mode control. The PID control⁹ is simple and easy to implement, but it is difficult to guarantee the control accuracy of the nonlinear system, and the demand of control energy is very large. The adaptive control¹⁰ can modify its own parameters in time to adapt to external disturbances and changes in control objects. When there are many uncertainties, the stability and high quality of the adaptive control cannot be guaranteed. The neural network control and fuzzy control¹¹ can realize the accurate approximation of the unknown part in the robot dynamics equation, so as to realize the high-precision tracking of the robot. The iterative learning control¹² does not depend on the precise mathematical model of the system and the algorithm is simple. The conventional backstepping¹³ can decompose the complex robot system into subsystems that do not exceed the order number of the system, thus the system’s non-matching uncertainty can be solved.

The sliding mode control,¹⁴ also known as the variable structure control, was proposed by Soviet scholars Utkin and Emeleyanov. By designing the hyper planes in the control process, when there are errors and disturbances in the system, the sliding mode controller constantly switches its states so that all uncertainties can reach to the hyper plane to ensure the stability of the control system.¹⁵ The sliding mode control of the manipulator has several advantages: (1) when designing the sliding mode control system, it is not necessary to establish an accurate mathematical model for the system as well as parameter perturbations and external disturbances. Generally, knowing of their changes can provide accurate trajectory tracking control of the manipulator system. (2) When the sliding mode control system is designed, there is no need to specifically decouple the system’s internal coupling. When designing a multi-input and multi-output manipulator control system, the independent system can be designed separately. (3) The manipulator sliding mode control system has strong robustness to uncertainties, parameter perturbation and external disturbance. (4) The sliding mode control of the manipulator system has the characteristics of fast response, no overshoot, small calculation, and simple physical implementation.

The sliding mode control will cause chattering of the system due to its inherently discontinuous switching characteristics. When the system trajectory reaches to the switching surface, its speed is limited and the movement point can pass through the switching surface, which formats the chattering caused by the inertia. The main factors that cause chattering are the time lag switch, the space lag switch, and the inertia of the system. Chattering has a strong hazard to the electromechanical system of the manipulator, which affects the accuracy of the system control and consumes more energy of the system. Therefore, eliminating the influence of chattering is imperative for the control of the manipulator.

Many scholars have done a lot of researches on the problem of anti-chattering in the sliding mode control. Different solutions have been proposed from different perspectives, including filter method, observer method, switching gain method, fuzzy method, neural network method, and genetic algorithm. In Xu et al.,¹⁶ a low-pass filter is used to obtain the gain of the switching term for the control problem of multi-joint robotic systems, and another low-pass filter is used to obtain the control law. The effect gain control item effectively suppresses chattering. Cui et al.¹⁷ used the adaptive gain update algorithm to estimate the upper bound of the uncertainties, which is based on the sliding mode control. Han and Liu¹⁸ proposed a continuous higher-order sliding mode control scheme with time-varying gain for a class of uncertain nonlinear systems, which can reduce the chattering. In Soltanpour et al.,¹⁹ in order to remove the undesirable chattering phenomenon, an adaptive fuzzy approximator is designed to approximate the maximum boundary of the remaining uncertainties.

In this article, due to the uncertainty of the terminal non-ideal constrained force and the chattering phenomenon of sliding mode control, the adaptive fuzzy and the sliding mode control method are combined to control the constrained manipulator.

The fuzzy control is derived from the fuzzy theory, which is benefiting from the control experience of the operator or expert to control the object.^20,21 The combination of the fuzzy control and the sliding mode control can realize complementary advantages. This combination is manifested in two aspects. On one hand, the fuzzy controller is used to reduce the chattering of the sliding mode control. Based on experience, fuzzy rules are designed to reduce chattering and soften the control signal to achieve the attenuation of the chattering phenomenon. On the other hand, the fuzzy system approximate to the unknown forces in the sliding mode control, which can achieve the adaptive sliding mode control without modeling. In Veysi et al.,²² an optimal fuzzy sliding mode controller has been designed for controlling the end-effector position in the task space. In Modi et al.,²³ an adaptive fuzzy sliding mode controller is designed to control the position tracking of robot manipulator.

The rest of this article is organized in the following. First, the Udwadia–Kalaba approach is described in detail. Second, the dynamic model is order-reduced and the adaptive fuzzy sliding mode control algorithm is derived. Third, to specify and verify the correctness of the control algorithm, the 2-degree-of-freedom (2-DOF) robot with vertical constraint is used as the example. Finally, some conclusions are presented.

Detail the Udwadia–Kalaba approach

For the multi-body system without constraint, the dynamic equation²⁴ of n-DOF system is described as

M (θ, t) \overset{. .}{θ} = Q (θ, \dot{θ}, t)

(1)

where $θ = [θ_{1}, θ_{2}, \dots, θ_{n}]^{T}$ describes joint displacements. $M (θ, t)$ is the positive inertia or mass matrix which is the function of $θ$ and t. $Q (θ, \overset{\cdot}{θ}, t)$ is the external resultant force of the system. For the manipulator system without constraint $Q (θ, \overset{\cdot}{θ}, t)$ can be expressed as

Q (θ, \dot{θ}, t) = τ - C (θ, \dot{θ}) \dot{θ} - G (θ)

(2)

where $τ$ denotes applied joint torques vector. $C (θ, \overset{\cdot}{θ})$ represents coriol and centrifugal torques. $G (θ)$ is the gravitational torque vector. Substituting equation (2) into equation (1), the dynamic equation of n-DOF manipulator is described as

M (θ, t) \overset{\cdot\cdot}{θ} + C (θ, \overset{\cdot}{θ}) \overset{\cdot}{θ} + G (θ) = τ

(3)

The manipulator is subjected to $m_{1}$ ideal constraints, and it can be described as

φ_{i} (θ, t) = 0 i = 1, 2, \dots, m_{1}

(4)

We shall assume $m - m_{1}$ non-ideal constraints are given by

ψ_{j} (θ, \overset{\cdot}{θ}, t) = 0 j = m_{1} + 1, m_{2} + 2, \dots, m

(5)

Now, take time derivative twice on equation (4) and take time derivative once on equation (5), the constraints equations can be obtain in the following form²⁵

A (θ, \overset{\cdot}{θ}, t) \overset{\cdot\cdot}{θ} = b (θ, \overset{\cdot}{θ}, t)

(6)

where A referred to as $m \times n$ constraint matrix and $b$ is a m-vector. Due to the ideal and non-ideal constraints, equation (1) can be extended to the complete form

M (θ, t) \overset{\cdot\cdot}{θ} = Q (θ, \overset{\cdot}{θ}, t) + Q^{c} (θ, \overset{\cdot}{θ}, t)

(7)

where $Q^{c} (θ, \overset{\cdot}{θ}, t)$ is n-vector, which donates the additional forces acting on the manipulator system.

On the basis of the D’Alembert’s principle, Udwadia and Kalaba extend to the non-ideal constraint. The virtual work done by the ideal constrained force is zero, and the virtual work of the non-ideal constrained force is not zero. In this article, the non-ideal constrained force is the friction acted in the manipulator. So, the $Q^{c} (θ, \overset{\cdot}{θ}, t)$ can be divided into two parts¹

Q^{c} (θ, \overset{\cdot}{θ}, t) = Q_{id}^{c} (θ, \overset{\cdot}{θ}, t) + Q_{nid}^{c} (θ, \overset{\cdot}{θ}, t)

(8)

where $Q_{id}^{c} (θ, \overset{\cdot}{θ}, t)$ is the ideal constraint force and $Q_{nid}^{c} (θ, \overset{\cdot}{θ}, t)$ donates the non-ideal constraint force. According to the Udwadia and Kalaba equation, the ideal and non-ideal constraint forces take the following forms

Q_{id}^{c} = M^{\frac{1}{2}} B^{+} (b - A M^{- 1} Q)

(9)

and

Q_{nid}^{c} = M^{\frac{1}{2}} (I - B^{+} B) M^{- \frac{1}{2}} c

(10)

where $B = A M^{- \frac{1}{2}}$ and the superscript “+” denotes the Moore–Penrose generalized inverse matrix. The vector c is a known vector, which can be obtained by experimentation or observation in a certain mechanical system. From equations (7)–(10), the equation of the constrained manipulator system is expressed in detail

M \overset{\cdot\cdot}{θ} = Q + M^{\frac{1}{2}} B^{+} (b - A M^{- 1} Q) + M^{\frac{1}{2}} (I - B^{+} B) M^{- \frac{1}{2}} c

(11)

Model reduction

In order to verify the validity of the proposed dynamic equations and control algorithms, this article only focuses on the modeling and simulation of the 2-DOF manipulator, which is shown in Figure 1.

Figure 1.

2-DOF robot with vertical constraint.

As shown in Figure 1, it is the case that the terminal of the manipulator is subjected to the vertical plane. The manipulator can move linearly along the vertical surface. The coordinate in the Cartesian coordinate system of the manipulator terminal is expressed as $x = [X, Y]^{T}$ , and $θ = [θ_{1}, θ_{2}]^{T}$ represents the generalized coordinate. The manipulator terminal is constrained by two perpendicular forces. One of the forces is the ideal constrained force perpendicular to the contact surface, mainly from the positive pressure of the surface. The other force is the non-ideal constrained force along the surface, mainly from the surface friction. The ideal constrained force provides the support force for the manipulator on the vertical surface, and the non-ideal constrained force provides the tangential acceleration for the manipulator. The constraints imposed on the terminal of the manipulator can be written as follows²⁶

ϕ (X) = 0

(12)

In equation (12), the function $ϕ$ is a second-order continuous derivative, assuming the following relationship between the generalized coordinates $θ$ and the Cartesian coordinates $x$ have such a relation

x = h (θ)

(13)

In equation (13), the function $h$ is also a second-order continuous derivative. In the joint space, equation (13) can be expressed as

Φ (θ) = ϕ (h (θ)) = 0

(14)

Since the terminal of the manipulator is constrained, the number of degrees is reduced. When the number of degrees is not equal to the number of dynamic equations, some dynamic parameters are unknown. To solve this problem, this article adopts the geometric method to reduce the dynamic equation to achieve the solution of the dynamic equation. This method has universality and can be extended to n-DOF manipulator or other constrained mechanical systems. Choose $θ_{1}$ as the variable, so $θ_{2}$ can be expressed by $θ_{1}$

θ_{2} = ψ (θ_{1})

(15)

After determining the first-order and second-order derivations of equation (15), the following equation is obtained

\overset{\cdot}{θ} = [\begin{matrix} {\overset{\cdot}{θ}}_{1} \\ {\overset{\cdot}{θ}}_{2} \end{matrix}] = [\begin{matrix} {\overset{\cdot}{θ}}_{1} \\ \frac{\partial ψ (θ_{1})}{\partial θ_{1}} {\overset{\cdot}{θ}}_{1} \end{matrix}] = L (θ_{1}) {\overset{\cdot}{θ}}_{1}

(16)

and

\overset{\cdot\cdot}{θ} = \overset{\cdot}{L} (θ_{1}) {\overset{\cdot}{θ}}_{1} + L (θ_{1}) {\overset{\cdot\cdot}{θ}}_{1}

(17)

where

L (θ_{1}) = [\begin{matrix} 1 \\ \frac{\partial ψ (θ_{1})}{\partial θ_{1}} \end{matrix}]

According to the functional relationship between $θ_{1}$ and $θ_{2}$ , equation (7) can be expressed as

\begin{matrix} M_{1} (θ_{1}, t) {\overset{\cdot\cdot}{θ}}_{1} + C_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1}) {\overset{\cdot}{θ}}_{1} + G_{1} (θ_{1}) + Q_{id 1}^{c} (θ_{1}, {\overset{\cdot}{θ}}_{1}, t) \\ + Q_{nid 1}^{c} (θ_{1}, {\overset{\cdot}{θ}}_{1}, t) = τ_{1} \end{matrix}

(18)

where

{\begin{matrix} M_{1} (θ_{1}, t) = M (θ, t) L (θ_{1}) \\ C_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1}) = M (θ, t) \overset{\cdot}{L} (θ_{1}) + C (θ, \overset{\cdot}{θ}) L (θ_{1}) \\ G_{1} (θ_{1}) = G (θ) \\ Q_{id 1}^{c} (θ_{1}, {\overset{\cdot}{θ}}_{1}, t) = Q_{id}^{c} (θ, \overset{\cdot}{θ}, t) \\ Q_{nid 1}^{c} (θ_{1}, {\overset{\cdot}{θ}}_{1}, t) = Q_{nid}^{c} (θ, \overset{\cdot}{θ}, t) \end{matrix}

The design of the fuzzy controller

The following is the fuzzy controller design for the constrained manipulator system, which is mainly divided into four steps:

Selection of the fuzzy controller.

There are three kinds of fuzzy controllers: single-valued fuzzy, Gaussian fuzzy, and triangle fuzzy. Gaussian fuzzy controller can improve the precision and efficiency of control. In this article, Gaussian fuzzy is used for constrained manipulator, and its membership function can be expressed as

μ_{A_{i}^{l}} (x_{i}) = \exp [- {(\frac{x_{i} - {\bar{x}}_{i}^{l}}{α_{i}})}^{2}]

(19)

where $A_{i}$ can be denoted as $NB$ , $NS$ , $ZO$ , $PS$ , and $PB$ . ${\bar{x}}_{i}^{l}$ determines the center point of the Gaussian function, and $α_{i}$ determines the width of the Gaussian function curve.

Representation of the fuzzy rule library.

When $θ_{1}$ and $θ_{2}$ have 5 language variables, the number of inputs and outputs are 25. Due to the functional relationship between two angle variables, the input and output of the fuzzy control, respectively, are $θ_{1}$ and $f_{1} (x | σ)$ , where $f_{1} (x | σ)$ is fuzzy output of the system. The fuzzy system contains fuzzy rules and can be expressed as

\begin{matrix} R_{l} : If θ_{1} is A_{1}^{l}, θ_{2} is A_{2}^{l}, \dots, θ_{n} is A_{n}^{l} \\ then f_{1} is B_{1}^{l}, f_{2} is B_{2}^{l}, \dots, f_{n} is B_{m}^{l} \end{matrix}

(20)

where $A_{i}^{l}$ is the system input language variables and $B_{i}^{l}$ is the system output language variables. The specific fuzzy adjustment rules²⁸ are designed as follows:

Rule 1: IF $θ_{1}$ is NB, THEN $f_{1} (x | σ)$ is NB.

Rule 2: IF $θ_{1}$ is NS, THEN $f_{1} (x | σ)$ is NS.

Rule 3: IF $θ_{1}$ is Z, THEN $f_{1} (x | σ)$ is Z.

Rule 4: IF $θ_{1}$ is PS, THEN $f_{1} (x | σ)$ is PS.

Rule 5: IF $θ_{1}$ is PB, THEN $f_{1} (x | σ)$ is PB.

3. Fuzzy inference machine.

The commonly used inference machines are product inference machine, minimum inference machine, Lukasiewicz inference machine, and Dienes–Rescher inference machine. Considering that the product inference machine has the advantages of small computation and intuitive calculation, the product inference machine used in the article is donated as

μ_{B} (f) = {max}_{l = 1}^{M} [sup_{x \in U} (μ_{A} (x) Π_{i = 1}^{n} μ_{A_{i}^{l}} (x_{i}) μ_{B} (f))]

(21)

where $μ_{A_{i}^{l}} (x_{i})$ is the membership function of $x_{i}$ . According to the calculation, fuzzy inference result is expressed as

f {(x | σ)}_{j} = \sum_{l = 1}^{M} (Π_{i = 1}^{n} μ_{A_{i}^{l}} (x_{i})) {\bar{f}}_{j}^{l}, j = 1, 2, \dots, m

(22)

where ${\bar{f}}_{j}^{l}$ is the real value of the system output when $μ_{B} (f)$ take the maximum value.

4. The solution of the fuzzy device.

The solution of the fuzzy device is to convert the fuzzy output to the accurate output. At present, the solution of the fuzzy machine mainly contains the center average solution and the maximum solution. In view of the calculation and simplicity, the solution of the central average fuzzy machine is used in the article, and the accurate output of the system is shown as

\hat{f} {(x | σ)}_{j} = \frac{\sum_{l = 1}^{M} (Π_{i = 1}^{n} μ_{A_{i}^{l}} (x_{i})) {\bar{f}}_{j}^{l}}{\sum_{l = 1}^{M} (Π_{i = 1}^{n} μ_{A_{i}^{l}} (x_{i}))}, j = 1, 2, \dots, m

(23)

where $\hat{f} (x | σ)_{j}$ is the accurate output of the system.

The above fuzzy system can approximate any continuous function with high precision. The adaptive fuzzy sliding mode control is adopted to approximate and compensate the non-ideal constrained force in this article.

Adaptive fuzzy sliding mode control for constrained robot

In this part, the control algorithm of the adaptive fuzzy sliding mode control is proposed. In the constrained manipulator system, the non-ideal constrained $Q_{nid}^{c} (θ, \overset{\cdot}{θ}, t)$ can be regarded as friction force $\hat{F} (θ, \overset{\cdot}{θ} | Θ)$ . Because $Q_{nid}^{c} (θ, \overset{\cdot}{θ}, t)$ is obtained by experimentation or observation in a certain mechanical system, the fuzzy control is used to make $\hat{F} (θ, \overset{\cdot}{θ} | Θ)$ approximate to $Q_{nid}^{c} (θ, \overset{\cdot}{θ}, t)$ . The terminal tracking of the constrained manipulator is studied, and the control algorithm is to track the desired joint position $θ_{d} (t)$ and the desired non-ideal constrained force $Q_{nidd}^{c} (θ, \overset{\cdot}{θ}, t)$ . Since $θ_{2}$ and $θ_{1}$ have the functional relationship, it is only need to determine a control law to satisfy $θ_{1} (t)$ track $θ_{d 1} (t)$ and $Q_{nid 1}^{c} (θ, \overset{\cdot}{θ}, t)$ track $Q_{nidd 1}^{c} (θ, \overset{\cdot}{θ}, t)$ as $t \to \infty$ .

The sliding surface is selected as the hyper plane when $s_{1} = 0$ , and the sliding mode function is defined as

\begin{matrix} s_{1} = {\overset{\cdot}{e}}_{1} + Λ_{1} e_{1} \\ e_{1} = θ_{1} - θ_{d 1} \end{matrix}

(24)

where $Λ_{1}$ is a positive definite matrix whose eigenvalues are all located in the right complex plane. $e_{1}$ is the tracking error of the first joint. $θ_{d 1}$ is the desired joint position of the first link. In order to derive the sliding mode control law, a custom reference vector is introduced in the following

{\overset{\cdot}{θ}}_{r 1} = {\overset{\cdot}{θ}}_{d 1} - Λ_{1} e_{1}

(25)

From above equations, ${\overset{\cdot}{θ}}_{d 1}$ is the desired angular velocity of the first link. The following equation is obtained

s_{1} = {\overset{\cdot}{e}}_{1} + Λ_{1} e_{1} = {\overset{\cdot}{θ}}_{1} - {\overset{\cdot}{θ}}_{d 1} + Λ_{1} e_{1} = {\overset{\cdot}{θ}}_{1} - {\overset{\cdot}{θ}}_{r 1}

(26)

The left and right of equation (26) are all multiplied by $M_{1}$ to obtain

\begin{matrix} M_{1} {\overset{\cdot}{s}}_{1} & = M_{1} {\overset{\cdot\cdot}{θ}}_{1} - M_{1} {\overset{\cdot\cdot}{θ}}_{r 1} \\ = τ_{1} - C_{1} {\overset{\cdot}{θ}}_{1} - G_{1} - Q_{id 1}^{c} - Q_{nid 1}^{c} - M_{1} {\overset{\cdot\cdot}{θ}}_{r 1} \end{matrix}

(27)

Before accurately obtaining the adaptive fuzzy sliding mode control law, take the Lyapunov function as

V = \frac{1}{2} (s_{1}^{T} M_{1} s_{1} + {\tilde{Θ}}_{1}^{T} Γ_{1} {\tilde{Θ}}_{1})

(28)

where ${\tilde{Θ}}_{1} = Θ_{1}^{*} - {\hat{Θ}}_{1}$ , $Θ_{1}^{*}$ is the optimal parameter. $Γ_{1}$ is a positive number. In order to verify the stability of the control system, derivate the Lyapunov function

\begin{matrix} \dot{V} = \frac{1}{2} s_{1}^{T} {\dot{M}}_{1} s_{1} + s_{1}^{T} M_{1} {\dot{s}}_{1} + {\tilde{Θ}}_{1}^{T} Γ_{1} {\dot{\tilde{Θ}}}_{1} \\ = - s_{1}^{T} (- τ_{1} + C_{1} {\dot{θ}}_{1} + G_{1} + Q_{i d 1}^{c} + Q_{n i d 1}^{c} + M_{1} {\overset{. .}{θ}}_{r 1} - C_{1} s_{1}) + {\tilde{Θ}}_{1}^{T} Γ_{1} {\dot{\tilde{Θ}}}_{1} \\ = - s_{1}^{T} (M_{1} {\overset{. .}{θ}}_{r 1} + C_{1} {\dot{θ}}_{r 1} + G_{1} + Q_{i d 1}^{c} + Q_{n i d 1}^{c} - τ_{1}) + {\tilde{Θ}}_{1}^{T} Γ_{1} {\dot{\tilde{Θ}}}_{1} \end{matrix}

(29)

where $\overset{\cdot}{V}$ is the derivative of the Lyapunov function.

Use functions ${\hat{F}}_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1} | Θ_{1})$ to approximate the non-ideal constrained force $Q_{nid 1}^{c} (θ_{1}, {\overset{\cdot}{θ}}_{1}, t)$ . The control law is designed to

\begin{matrix} τ_{1} = M_{1} {\overset{\cdot\cdot}{θ}}_{r 1} + C_{1} {\overset{\cdot}{θ}}_{r 1} + G_{1} (θ_{1}) + Q_{id 1}^{c} + {\hat{F}}_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1} | Θ_{1}) \\ - K_{D 1} s_{1} - ω_{1} sgn (s_{1}) \end{matrix}

(30)

where $K_{D 1}$ is a positive number. $ω_{1}$ is the fuzzy approximation error, so $ω_{1} = Q_{nid 1}^{c} (θ_{1}, {\overset{\cdot}{θ}}_{1}) - {\hat{F}}_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1} | Θ_{1})$ . ${\hat{F}}_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1} | Θ_{1})$ is the non-ideal force acted in the first link. The value of the symbolic function is

sgn (s_{1}) = {\begin{matrix} \begin{matrix} 1 \\ 0 \\ - 1 \end{matrix} & \begin{matrix} s_{1} > 0 \\ s_{1} = 0 \\ s_{1} < 0 \end{matrix} \end{matrix}

(31)

The function ${\hat{F}}_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1} | Θ_{1})$ can be expressed as

{\hat{F}}_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1} | Θ_{1}) = Θ_{1}^{T} ζ (θ_{1}, {\overset{\cdot}{θ}}_{1})

(32)

Substituting equation (29) into equation (30), the following is obtained

\begin{matrix} \dot{V} = - s_{1}^{T} (Q_{n i d 1}^{c} (θ_{1}, {\dot{θ}}_{1}) - {\hat{F}}_{1} (θ_{1}, {\dot{θ}}_{1} | Θ_{1}) + K_{D 1} s_{1} + ω_{1} sgn (s_{1})) + {\tilde{Θ}}_{1}^{T} Γ_{1} {\dot{\tilde{Θ}}}_{1} \\ = - s_{1}^{T} (\begin{array}{l} Q_{n i d 1}^{c} (θ_{1}, {\dot{θ}}_{1}) - {\hat{F}}_{1} (θ_{1}, {\dot{θ}}_{1} | Θ_{1}) + {\hat{F}}_{1} (θ_{1}, {\dot{θ}}_{1} | Θ_{1}^{*}) \\ - {\hat{F}}_{1} (θ_{1}, {\dot{θ}}_{1} | Θ_{1}^{*}) + K_{D 1} s_{1} + ω_{1} sgn (s_{1}) \end{array}) + {\tilde{Θ}}_{1}^{T} Γ_{1} {\dot{\tilde{Θ}}}_{1} \\ = - s_{1}^{T} ({\tilde{Θ}}_{1}^{T} ζ (θ_{1}, {\dot{θ}}_{1}) + ω_{1} + K_{D 1} s_{1} + ω_{1} sgn (s_{1})) + {\tilde{Θ}}_{1}^{T} Γ_{1} {\dot{\tilde{Θ}}}_{1} \\ = - s_{1}^{T} K_{D 1} s_{1} + s_{1}^{T} ω_{1} - s_{1}^{T} ω_{1} sgn (s_{1}) + ({\tilde{Θ}}_{1}^{T} Γ_{1} {\dot{\tilde{Θ}}}_{1} - s_{1}^{T} {\tilde{Θ}}_{1}^{T} ζ (θ_{1}, {\dot{θ}}_{1})) \\ = - s_{1}^{T} K_{D 1} s_{1} + ({\tilde{Θ}}_{1}^{T} Γ_{1} {\dot{\tilde{Θ}}}_{1} - s_{1}^{T} {\tilde{Θ}}_{1}^{T} ζ (θ_{1}, {\dot{θ}}_{1})) \end{matrix}

(33)

where ${\hat{F}}_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1} | Θ_{1}^{*}) - {\hat{F}}_{1} (θ_{1}, {\overset{\cdot}{θ}}_{1} | Θ_{1}) = {\tilde{Θ}}_{1}^{T} ζ (θ_{1}, {\overset{\cdot}{θ}}_{1})$ . In order to make the control system keep stability, the adaptive law is designed to

{\dot{\tilde{Θ}}}_{1} = Γ_{1}^{- 1} s_{1}^{T} ζ (θ_{1}, {\overset{\cdot}{θ}}_{1})

(34)

Substituting equation (34) into equation (33)

\overset{\cdot}{V} = - s_{1}^{T} K_{D 1} s_{1} \leq 0

(35)

In equation (35), when $\overset{\cdot}{V} \equiv 0$ , $s_{1} \equiv 0$ . The control system is asymptotically stable according to the Lyapunov stability theorem, when $t \to \infty$ , $s_{1} \to 0$ .

Simulated example

According to the dynamic equation of the manipulator established, the detailed matrix representations²⁷ of the 2-DOF constrained manipulator in Figure 1 are shown in the following

M (θ, t) = [\begin{matrix} p_{1} + p_{2} + p_{3} + 2 p_{4} \cos θ_{2} & p_{3} + p_{4} \cos θ_{2} \\ p_{3} + p_{4} \cos θ_{2} & p_{3} \end{matrix}]

(36)

C (θ, \overset{\cdot}{θ}) = [\begin{matrix} - p_{4} {\overset{\cdot}{θ}}_{2} \sin θ_{2} & - p_{4} ({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2}) \sin θ_{2} \\ p_{4} {\overset{\cdot}{θ}}_{1} \sin θ_{2} & 0 \end{matrix}]

(37)

G (θ) = [\begin{matrix} \frac{3}{2} p_{1} e_{1} \cos θ_{1} + p_{2} e_{1} \cos θ_{1} + p_{4} e_{1} \cos (θ_{1} + θ_{2}) \\ p_{4} e_{1} \cos (θ_{1} + θ_{2}) \end{matrix}]

(38)

where $e_{1} = g / l_{1}$ , $g$ is the acceleration of gravity. The four unknown parameters in the matrix expression and the concrete expression are as follows

\begin{matrix} p_{1} = \frac{1}{3} m_{1} l_{1}^{2}, p_{2} = m_{2} l_{1}^{2} \\ p_{3} = \frac{1}{3} m_{2} l_{2}^{2}, p_{4} = \frac{1}{2} m_{2} l_{1} l_{2} \end{matrix}

(39)

On the basis of the geometric relationship between two joints in Figure 1, the Cartesian coordinates $[X, Y]$ of the manipulator terminal in the generalized coordinate system are

\begin{matrix} X = 0 \\ Y = \sqrt{l_{1}^{2} + l_{2}^{2} - 2 l_{1} l_{2} \cos (2 θ_{1})} \end{matrix}

(40)

Considering that the terminal of the manipulator is constrained on the vertical plane, the coordinate exits the following relationship

\begin{matrix} l_{1} \cos θ_{1} + l_{2} \cos (θ_{1} + θ_{2}) = X \\ l_{1} \sin θ_{1} + l_{2} \sin (θ_{1} + θ_{2}) = Y \end{matrix}

(41)

Equation (41) is taken quadratic derivation by time to obtain the following equation

\begin{matrix} - l_{1} \sin θ_{1} {\overset{\cdot\cdot}{θ}}_{1} - l_{2} \sin (θ_{1} + θ_{2}) {\overset{\cdot\cdot}{θ}}_{1} - l_{2} \sin (θ_{1} + θ_{2}) {\overset{\cdot\cdot}{θ}}_{2} \\ = l_{1} \cos θ_{1} {\overset{\cdot}{θ}}_{1}^{2} + l_{2} \cos (θ_{1} + θ_{2}) {({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2})}^{2} + \overset{\cdot\cdot}{X} \\ l_{1} \cos θ_{1} {\overset{\cdot\cdot}{θ}}_{1} + l_{2} \cos (θ_{1} + θ_{2}) {\overset{\cdot\cdot}{θ}}_{1} + l_{2} \cos (θ_{1} + θ_{2}) {\overset{\cdot\cdot}{θ}}_{2} \\ = l_{1} \sin θ_{1} {\overset{\cdot}{θ}}_{1}^{2} + l_{2} \sin (θ_{1} + θ_{2}) {({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2})}^{2} + \overset{\cdot\cdot}{Y} \end{matrix}

(42)

Take quadratic derivation of equation (40) by time, it is obtained

\begin{matrix} \overset{\cdot\cdot}{X} = 0 \\ \overset{\cdot\cdot}{Y} = \frac{2 n}{m} {\overset{\cdot\cdot}{θ}}_{1} + \frac{4 m^{2} p - 4 n^{2}}{m^{3}} {\overset{\cdot}{θ}}_{1}^{2} \end{matrix}

(43)

In equation (43), the concrete expressions of the three unknown parameters are shown as follows

\begin{matrix} m = \sqrt{l_{1}^{2} + l_{2}^{2} - 2 l_{1} l_{2} \cos (2 θ_{1})} \\ n = l_{1} l_{2} \sin (2 θ_{1}) \\ p = l_{1} l_{2} \cos (2 θ_{1}) \end{matrix}

(44)

Put equation (43) into equation (42) and the expression can be written as

A (θ, \overset{\cdot}{θ}, t) \overset{\cdot\cdot}{θ} = b (θ, \overset{\cdot}{θ}, t)

(45)

In the above equation, the expressions of $A$ and $b$ are shown as

\begin{matrix} A = [\begin{matrix} - l_{1} \sin θ_{1} - l_{2} \sin (θ_{1} + θ_{2}) & - l_{2} \sin (θ_{1} + θ_{2}) \\ l_{1} \cos θ_{1} + l_{2} \cos (θ_{1} + θ_{2}) - \frac{2 n}{m} & l_{2} \cos (θ_{1} + θ_{2}) \end{matrix}] \\ b = [\begin{matrix} l_{1} \cos θ_{1} {\overset{\cdot}{θ}}_{1}^{2} + l_{2} \cos (θ_{1} + θ_{2}) {({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2})}^{2} \\ l_{1} \sin θ_{1} {\overset{\cdot}{θ}}_{1}^{2} + l_{2} \sin (θ_{1} + θ_{2}) {({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2})}^{2} + \frac{4 m^{2} p - 4 n^{2}}{m^{3}} {\overset{\cdot}{θ}}_{1}^{2} \end{matrix}] \end{matrix}

(46)

The expressions of $M$ , $A$ , $b$ , and $Q$ are obtained, and the ideal constrained force $Q_{id}^{c}$ can be calculated. The constrained function is obtained according to Figure 1

\begin{matrix} X = ϕ (x) = 0 \\ ϕ (θ_{1}) = l_{1} \cos θ_{1} + l_{2} \cos (θ_{1} + θ_{2}) = 0 \end{matrix}

(47)

In the simulation, the physical parameters of the manipulator are set as $l_{1} = l_{2} = 1, m_{1} = m_{2} = 1$ . Put the parameters into equation (47), it can be obtained

\cos θ_{1} + \cos (θ_{1} + θ_{2}) = 0

(48)

Considering the manipulator is constrained on the vertical surface, so $0 < θ_{1} \leq π / 2, 0 \leq θ_{2} < π$ . Then

\cos (θ_{1} + θ_{2}) = \cos (π - θ_{1})

(49)

Now, the relation between $θ_{1}$ and $θ_{2}$ can be shown as

θ_{2} = π - 2 θ_{1}

(50)

Due to equation $L (θ_{1}) = [\begin{matrix} 1 \\ \frac{\partial ψ (θ_{1})}{\partial θ_{1}} \end{matrix}]$ , put the equation in it and can be obtained

L (θ_{1}) = [\begin{matrix} 1 \\ - 2 \end{matrix}]

(51)

Take the 2-DOF constrained manipulator in Figure 1 as the simulation object. Due to the input of $θ_{1}$ and $ψ (θ_{1})$ , five fuzzy sets are designed for the fuzzy system. The Gauss membership function²⁰ is defined as $μ_{A_{i}^{l}} (x_{i}) = \exp [- (x_{i} - {\bar{x}}_{i}^{l} / α_{i})^{2}]$ . In the function, $α_{i} = π / 24$ , $i = 1, 2, 3, 4, 5$ . ${\bar{x}}_{i}^{l}$ is equal to $- π / 6$ , $- π / 12$ , 0, $π / 12$ , and $π / 6$ , respectively. The Gauss membership function is solved, and the result is shown in Figure 2.

Figure 2.

Gauss membership function.

The reduced-order dynamic equation (18) is used as the control target. The initial position function of joint 1 is selected as $θ_{d 1} = 0.6 \cos (t) + 0.7$ . The ideal value of the non-ideal constrained force function is taken as $F_{d} (θ, \overset{\cdot}{θ} | Θ^{*}) = 8 \sin (t)$ . According to the functional relationship between the two angle variables, the angle variable and the angular velocity of the joint 2 can be calculated. In the meantime, the non-ideal constrained force is computed, which can be used as the practical value. The initial angle value of the two joints is selected as $θ = [\begin{matrix} 1.3 & π - 2.6 \end{matrix}]$ . The parameters of the control system are selected as $Λ_{1} = 10$ , $K_{D 1} = 20$ , and $Γ_{1} = 0.0001$ . Set the simulation time to 20 s, and the control scheme of the proposed control method is shown in Figure 3.

Figure 3.

The control scheme of the control system.

The angles and angular velocities tracking and tracking errors of the two joints are shown in Figures 4 –7.

Figure 4.

The angle and angular velocities tracking of the first link.

Figure 5.

The angle and angular velocities tracking of the second link.

Figure 6.

Tracking errors of the first link.

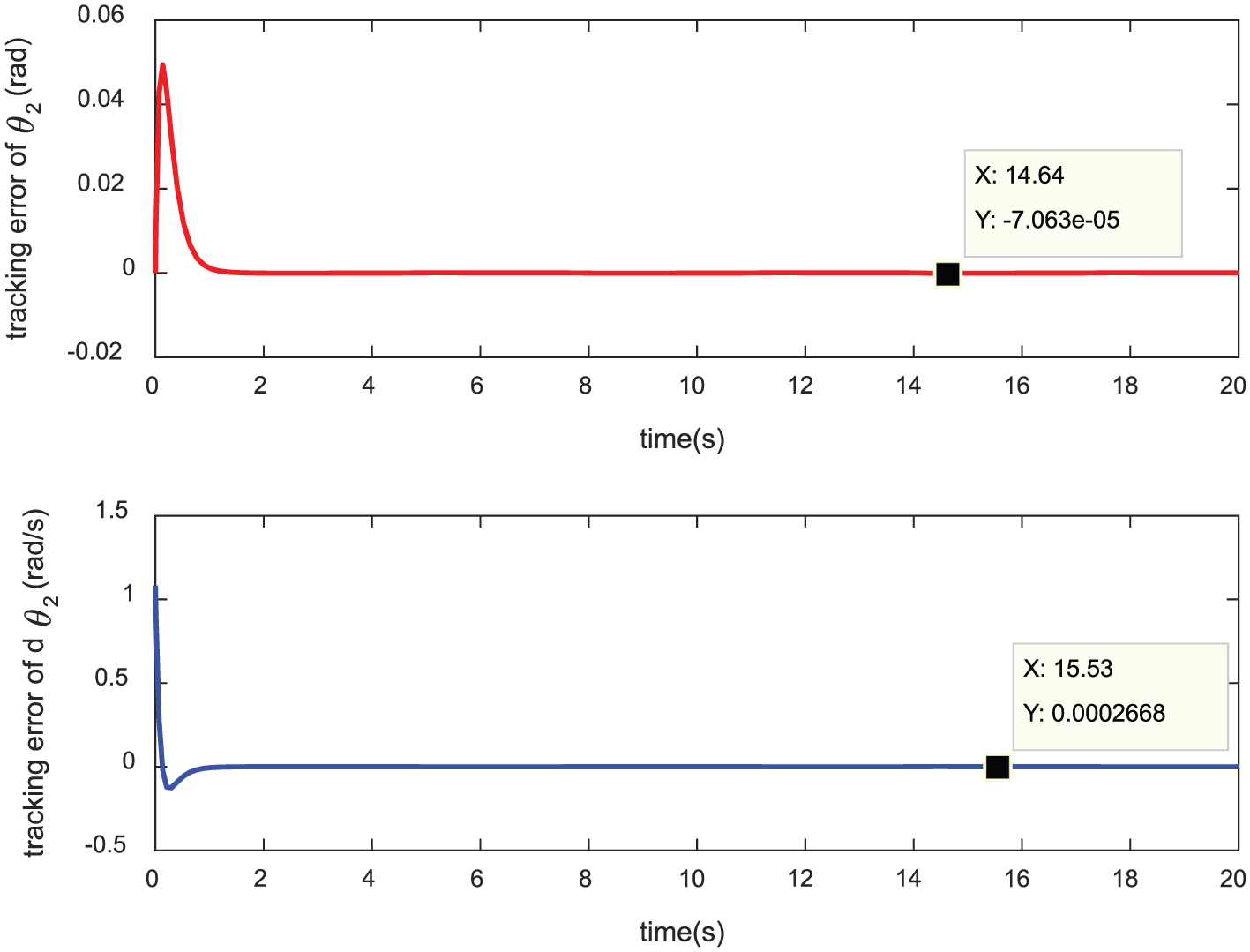

Figure 7.

Tracking errors of the second link.

Figures 4 and 5 are the angular position and velocity tracking of the constrained manipulator. The solid red lines in the figure represent the ideal angular position and velocity given by each joint, and the dashed blue lines express the actual tracking angle and angular velocity. It can be seen that the tracking curves and the ideal lines are almost coincident, and the relationship between the angular variables satisfies $2 θ_{1} + θ_{2} = π$ , which can valid the correction of the reduced-order adaptive fuzzy sliding mode control model.

Figures 6 and 7 are the angular position and velocity tracking error of the constrained manipulator. In the stable phase, the maximum value of the angular tracking errors are $- 1.38 \times 10^{- 5} rad$ and $- 1.712 \times 10^{- 4} rad$ , and the maximum value of the angular velocity tracking errors are $- 7.063 \times 10^{- 5} rad / s$ and $2.668 \times 10^{- 4} rad / s$ . The tracking errors are equal to zero, which can verify the validity and correctness of the control algorithm.

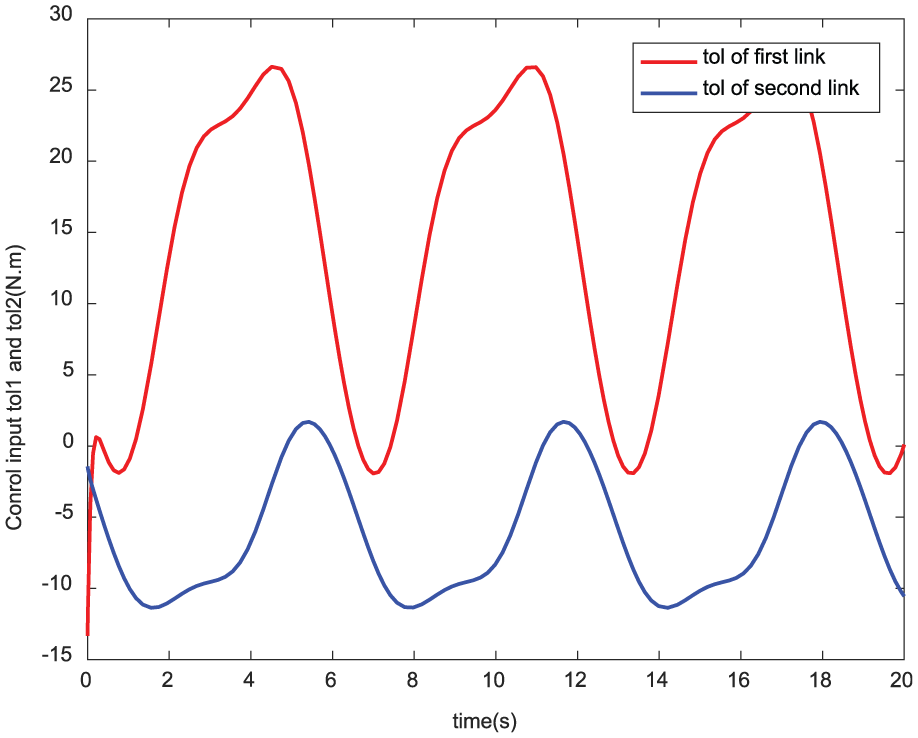

Figure 8 shows the control torques of the constraint manipulator, in which the red line expresses the control torque of the first link, and the blue line represents the torque of the second link. By designing suitable fuzzy rules and adaptive fuzzy sliding mode control algorithm, the chattering phenomenon of the control system is effectively reduced.

Figure 8.

The control torques of the constrained manipulator.

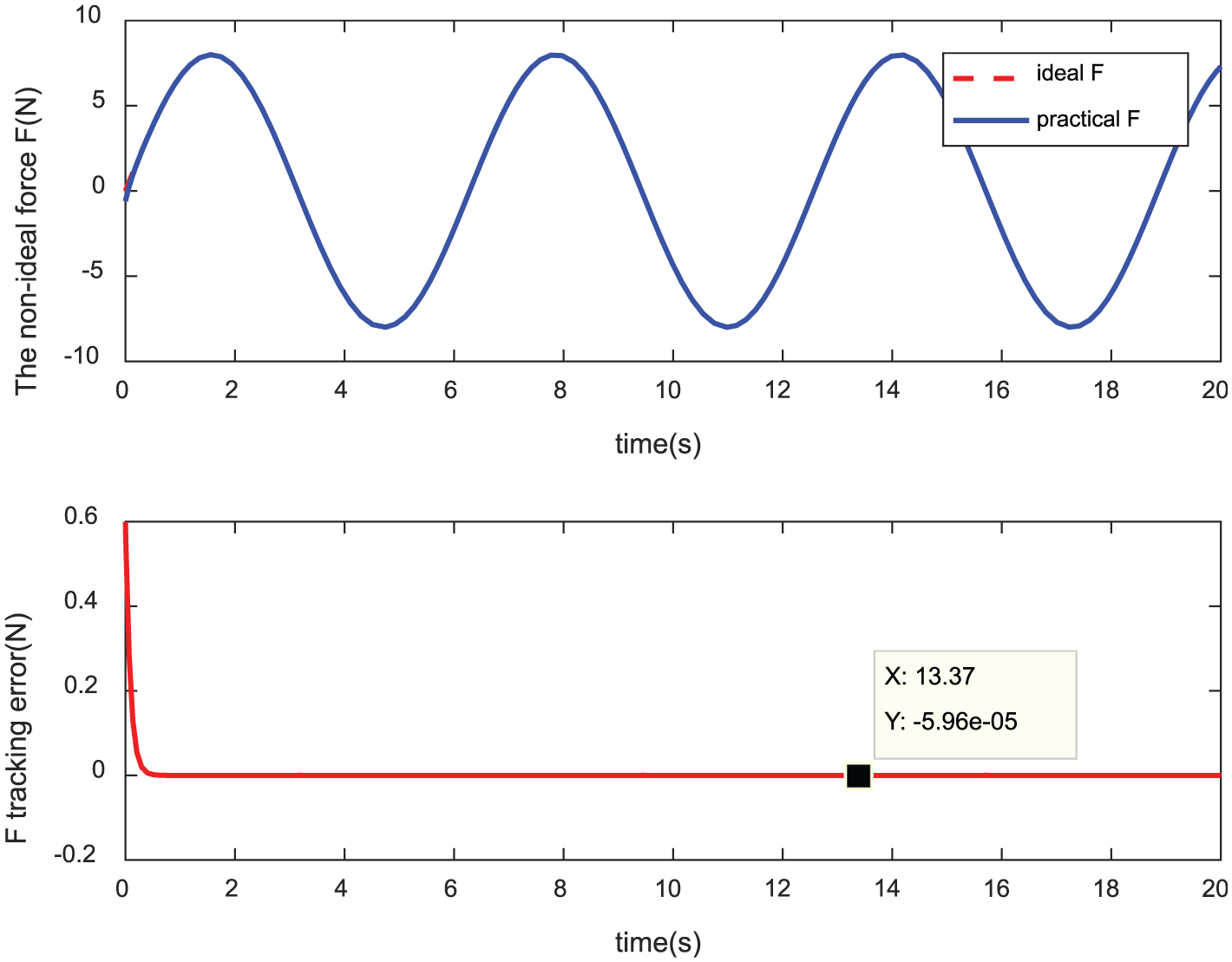

The tracking and tracking error of the non-ideal constrained force $\hat{F} (θ, \overset{\cdot}{θ} | Θ^{*})$ are shown in Figure 9.

Figure 9.

The tracking and tracking error of the non-ideal constrained force.

In Figure 9, the dashed red line represents the given ideal value $F_{d} (θ, \overset{\cdot}{θ} | Θ^{*})$ for the non-ideal constrained force, and the solid blue line expresses the practical value $\hat{F} (θ, \overset{\cdot}{θ} | Θ^{*})$ in the simulation. It can be seen that the maximum error of the non-ideal binding in the stable phase is $- 5.96 \times 10^{- 5} N$ . Benefiting for the characteristic of the fuzzy control with universal approximation, the practical value and the ideal value are almost coincident, realizing the approximation and compensation of the unknown non-ideal constrained force of the constrained manipulator.

According to the simulation, the tracking errors of angle variables, angular velocity, and the non-ideal binding force are shown in Table 1.

Table 1.

The maximum tracking error of the constrained manipulator.

	Maximum tracking error
Angle variable of link 1	$- 1.38 \times 10^{- 5} rad$
Angle variable of link 2	$- 1.712 \times 10^{- 4} rad$
Angular velocity of link 1	$- 7.063 \times 10^{- 5} rad / s$
Angular velocity of link 2	$2.668 \times 10^{- 4} rad / s$
Non-ideal binding force	$- 5.96 \times 10^{- 5} N$

The above simulation results show that the adaptive fuzzy sliding mode control method realizes the high-precision control of the constrained manipulator, and the tracking errors of angle variables, angular velocity, and the non-ideal binding force are equal to zero.

Conclusion

In this article, a reduced-order approach to the adaptive fuzzy sliding mode control of the constrained manipulator is proposed. The stability of the system is proved by Lyapunov theorem. For demonstrating the effectiveness of the control algorithm, the 2-DOF manipulator is taken as the research object. From the simulation results, the tracking errors of angle variables, angular velocity, and the non-ideal binding force are equal to zero, and the high-precision control of the manipulator is achieved and the chattering phenomenon caused by the sliding mode control is weakened. At present, the experimental platform of the manipulator has been set up, and some equipment is still in preparation. The subsequent experiments will be carried out to verify the effectiveness and correctness of the proposed control algorithm. The contribution of this article is shown and highlight in the following

Based on the Udwadia–Kalaba motion constraint equation, the dynamic equation of the constrained manipulator with both ideal and non-ideal constraints is obtained. Considering the uncertainty of the terminal non-ideal constrained force and the chattering phenomenon of sliding mode control, the adaptive fuzzy and the sliding mode control method are combined to control the constrained manipulator.

Because the system is constrained, the model order reduction method is innovatively used in the control algorithm. The order reduction method is generic and can be generalized to multi-DOF manipulator or mechanical system.

Footnotes

Handling Editor: Francesco Massi

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Heng Shi

References

Udwadia

Kalaba

. Explicit equations of motion for mechanical systems with non-ideal constraints. J Appl Mech 2001; 68: 462–467.

Udwadia

. On constrained motion. Appl Math Comput 2005; 164: 313–320.

Udwadia

Wanichanon

. Control of uncertain nonlinear multi-body mechanical systems. J Appl Mech 2013; 81: 041020.

Udwadia

Kalaba

. On the foundations of analytical dynamics. Int J Nonlin Mech 2002; 37: 1079–1090.

Lagrange

. Mechanique analytique. Paris: Mme ve Courcier, 1987.

Udwadia

Kalaba

. Nonideal constraints and Lagrangian dynamics. J Aerospace Eng 2000; 13(1): 17–22.

Liu

. Simple method to the dynamic modeling of industrial robot subject to constraint. Adv Mech Eng 2016; 8: 1–9.

Huang

Chen

Zhong

. Udwadia-Kalaba approach for parallel manipulator dynamics. J Dynam Syst Meas Contr 2013; 135: 061003.

Luca

Siciliano

Zollo

. PD control with on-line gravity compensation for robots with elastic joints: theory and experiments. Automatica 2005; 41: 1809–1819.

10.

Chen

Lin

Chen

et al . Adaptive control on wire feeding in robot arc welding system. In: Proceedings of the 2008 IEEE conference on robotics, automation and mechatronics, Chengdu, China, 21–24 September 2008, pp.119–122. New York: IEEE.

11.

Woo

P-Y

. Fuzzy supervisory sliding-mode and neural-network control for robotic manipulators. IEEE T Ind Electron 2006; 53: 929–940.

12.

Tayebi

. Adaptive iterative learning control for robot manipulators. Automatica 2004; 40: 1195–1203.

13.

Ognjen

Nitin

Frank

et al . Design and implementation of industrial neural network controller using backstepping. IEEE T Ind Electron 2003; 50: 193–201.

14.

Utkin

. Sliding modes in control and optimization. New York: Springer, 1992.

15.

Sun

. Adaptive sliding-mode tracking control for a class of nonholonomic mechanical systems. Math Probl Eng 2013; 2013: 734307.

16.

Pan

Lee

. A gain scheduled sliding mode control scheme using filtering techniques with applications to multi-link robotic manipulators. J Dynam Syst Meas Contr 2000; 122: 641–649.

17.

Cui

Chen

Yang

. Extended state observer-based integral sliding mode control for an underwater robot with unknown disturbances and uncertain nonlinearities. Trans Ind Electron 2017; 64: 6785–6795.

18.

Han

Liu

. Continuous higher-order sliding mode control with time-varying gain for a class of uncertain nonlinear systems. ISA T 2016; 62: 193–201.

19.

Soltanpour

Khooban

Khalghani

. An optimal and intelligent control strategy for a class of nonlinear systems: adaptive fuzzy sliding mode. J Vib Contr 2014; 8: 10–11.

20.

Wiktorowicz

. Design of state feedback adaptive fuzzy controllers for second-order systems using a frequency stability criterion. IEEE T Fuzzy Syst 2017; 25: 499–510.

21.

Shi

. Fuzzy control of nonlinear electromagnetic suspension systems. In: Wu

Shi

(eds) Fuzzy control systems with time-delay and stochastic perturbation. Berlin: Springer, 2015, pp.289–307.

22.

Veysi

Soltanpour

Khooban

. A novel self-adaptive modified bat fuzzy sliding mode control of robot manipulator in presence of uncertainties in task space. Robotica 2015; 33: 2045–2064.

23.

Modi

Dantuluri

AKR

Perumalla

et al . Robust control strategy for electrically driven robot manipulators: adaptive fuzzy sliding mode. Sci Meas Techn 2015; 9: 322–334.

24.

Maosen

. Dynamics modeling and simulation of an industrial manipulator subject to constraint. In: Proceedings of the 3rd international conference on mechanics and mechanical engineering, Chengdu, China, 16–18 December 2016.

25.

Liu

Zhen

Huang

et al . A systematic approach for designing analytical dynamics and servo control of constrained mechanical systems. IEEE: CAA J Automat Sin 2015; 2: 382–393.

26.

Leung

Zhou

. Force/motion control of constrained robots using sliding mode. IEEE T Automat Contr 1992; 37: 668–672.

27.

Shi

Liang

Liu

. An approach to the dynamic modeling and sliding mode control of the constrained robot. Adv Mech Eng 2017; 9: 1–10.

28.

Porebski

Straszecka

. Membership functions for fuzzy focal elements. Arch Contr Sci 2016; 26: 395–427.
