Abstract

An improved particle swarm optimization method that has better equilibrium characteristic between global search and local search is proposed for parameter identification of hysteresis nonlinear dynamic model for piezoelectric positioning system. In this article, a general electromechanical-based piezoelectric positioning systems’ hysteresis nonlinear dynamic model suitable for engineering optimization is introduced, and a parameter identification technique based on improved particle swarm optimization for this dynamic model is presented. For increasing the speed and precision of identification process, the hysteresis effect is described by the generalized Prandtl–Ishlinskii model, and the symmetric solutions of the system are applied to solve the hysteresis nonlinear dynamics equations and then the working process of the improved particle swarm optimization method is given. In order to verify the effectiveness of the proposed method, comparisons between experimental data and simulation data are carried out. The results demonstrate that improved particle swarm optimization method can make the hysteresis nonlinear dynamic model with identified parameters fit the experimental data with higher precision, and since the application of the symmetric solutions, the identification time is greatly reduced. Therefore, the improved particle swarm optimization method is an optional effective technique for identifying the parameters of hysteresis nonlinear dynamic model for the piezoelectric positioning system.

Keywords

Piezoelectric positioning system improved particle swarm optimization parameter identification hysteresis

Introduction

With the rapid development of precision manufacturing industry, piezoelectric positioning systems are becoming more and more necessary for nanometer displacement resolution in high-precision positioning and tracking applications, such as atomic force microscopes, scanning tunneling microscopes, hard disk drive, and diamond turning machines.^1–4 Among various types of actuators, piezoelectric ceramic actuator is arguably the most popularly used in precise positioning systems due to its advantages of high speed, high bandwidth, high electrical–mechanical transformation efficiency, and little heat generation. Although the piezoelectric actuator possesses many advantages, it produces a nonlinear hysteresis phenomenon owing to piezoelectric material property.⁵ It was shown that the maximum tracking error caused by the hysteresis nonlinearity can be as much as 10%–15% of the traveling path if the piezoelectric actuators are steered by driving voltage in the open-loop system.⁶

Piezoelectric positioning system is a complex nonlinear and strongly electromechanical coupled dynamic system. Its working process is accompanied with mechanical and electrical effects. Over the past decade, such a mechatronic system has attracted significant attention in the literature on its modeling, controller design, and applications due to the complex hysteresis nonlinearity existing in the system.^7–11 Generally speaking, the modeling and controller design are closely related, and the models of the piezoelectric positioning systems should account for the dynamic effects due to frequency response of the actuator, voltage–charge hysteresis, and nonlinear electric behavior. Therefore, the piezoelectric positioning systems usually are described by a linear system preceded by a hysteresis nonlinearity in many literatures,^12–14 the dynamic equations of which are actually nonlinear ordinary differential equations containing hysteresis nonlinear term. However, no matter what kind of models, there must be some errors between the models and the actual performance of the piezoelectric positioning system because assumptions and approximations are made in modeling. In order to improve the accuracy of hysteresis nonlinear dynamic model and make the models reflect the actual system performance better, it is necessary to identify the parameters of the models using optimization techniques. Nevertheless, traditional optimization methods, such as the least square method, gradient descent method, quasi-Newton method, and simplex method, which may use all local information in an effective way, easily trap into the local optimum and fail to provide reliable results in hysteresis nonlinear dynamic system.

In recent years, evolutionary algorithms such as the genetic algorithm (GA), particle swarm optimization (PSO), harmony search (HS) algorithm, and memetic algorithm (MA) have received much attention in the optimization problems of nonlinear and complex system. Among them, GA is one of the most popular methods and was proposed to improve the accuracy of the fuel-cell model parameter identification.^15,16 However, the GA usually suffers from certain inefficiency in optimizing complex problems because of their well-known drawbacks, premature convergence, and weak exploitation capabilities.¹⁷ The performance of GA can be improved by incorporating different local search (LS) and traditional GAs, which is called memetic algorithm. An efficient MA with a novel LS, namely, MA with adaptive LS (MA-ALS) is proposed to improve the accuracy and convergence speed simultaneously.¹⁸ HS algorithm imitates the musician seeking to find pleasing harmonies as determined by an aesthetic standard. But there is imbalance between the exploration and the exploitation of HS. Recently, incorporating fuzzy logic and discrete HS algorithm, an effective fuzzy discrete harmony search (FDHS) is developed for optimizing capacitor placement and sizing in distribution systems¹⁹ and excellent results have been obtained. As an alternative to GA, the PSO algorithm is a swarm intelligence optimization algorithm based on observations of the social behavior of bird flocking or fish schooling.^20–22 Due to the simple concept, easy implementation, and quick convergence, nowadays PSO has been developed and applied in various fields, especially for wide-ranging optimization problems,^23,24 and then based on fractional PSO, a novel MA FPSOMA is introduced to solve optimization problem using fractional calculus concept.²⁵ Moreover, a variety of evolutionary algorithms are employed to obtain optimal performance for synchronization of bilateral teleoperation systems against uncertainties including model parameters.²⁶ Actually, parameter identification for piezoelectric positioning system could be essentially formulated as a multi-dimensional optimization problem; however, only a few applications of piezoelectric positioning system opted for PSO. Even if the classical PSO is adopted, the speed of parameter identification is not ideal when the amount of data is very large.

In this article, an improved PSO method is proposed, which has preferable search ability and search rate based on the equilibrium characteristics between global search and LS. A general electromechanical-based hysteresis nonlinear dynamic model for piezoelectric positioning system is introduced. In the model, numerous identified parameters are utilized to describe the main characteristics of the piezoelectric positioning system. Then, an improved PSO is proposed to identify the parameters of hysteresis nonlinear dynamic model for piezoelectric positioning system. In order to raise computing speed of parameter identification, the symmetric solutions of piezoelectric positioning system are introduced to the improved PSO method. To the best of our knowledge, this is the first time the symmetric solutions are applied for parameter identification of piezoelectric positioning system. Finally, some experiments and comparisons are conducted to show the feasibility and effectiveness of the improved PSO method.

Piezoelectric positioning system dynamic modeling

Architecture of the piezoelectric positioning systems

A piezoelectric positioning system consists of a voltage power amplifier, a piezoelectric stack actuator, and a flexure hinge mechanism; the architecture of the system is shown in Figure 1. A voltage power amplifier is used to supply power for piezoelectric stack actuator by either voltage or charge control. A piezoelectric stack actuator is applied to realize the actuation effect by generating force on the flexure hinge mechanism. A flexure hinge mechanism is utilized to provide motion based on elastic deformations of a solid part made from a stiff metal because of the advantages of its no sliding parts, thereby avoiding undesired nonlinear effects such as backlash and friction.²⁷ For controlling purpose, a displacement sensor is usually mounted on the flexure hinge mechanism to measure the instantaneous displacement of the positioning system.

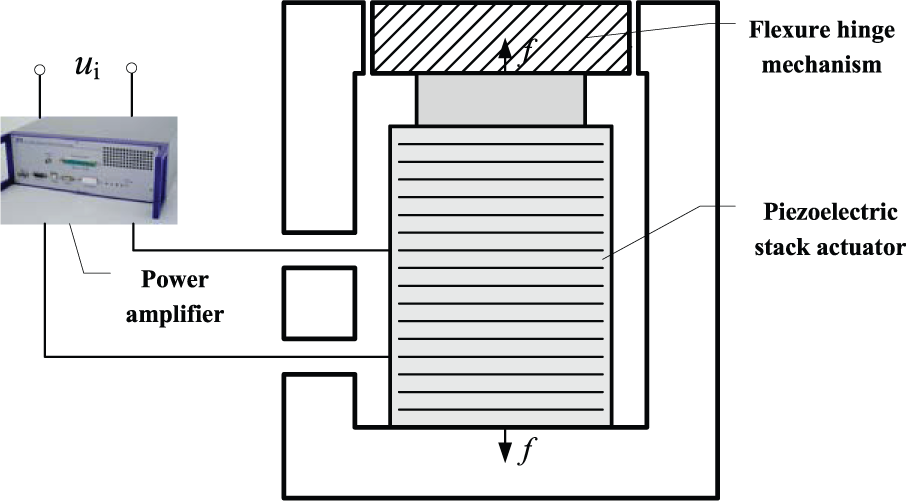

Figure 1.

Architecture of a piezoelectric positioning system.

Hysteresis nonlinear dynamic model of piezoelectric positioning system

On the basis of the classical model²⁸ and previous results,^5,12–14 considering the architecture of a piezoelectric positioning system in Figure 1, a general electromechanical-based hysteresis nonlinear dynamic model for piezoelectric positioning systems is shown in Figure 2. Therein, the hysteresis and piezo effect are separated. H represents the hysteresis effect and $u_{h}$ is the voltage due to this effect. The piezo effect is represented by $T_{em}$ , which is an electromechanical transducer with transformer ratio $T_{em}$ . The capacitance C represents the sum of the capacitances of the piezoelectric stack ceramics, which is electrically in parallel with the transformer. The total charge in the system is q, and the resulting current flowing through the circuit is $\overset{\cdot}{q}$ . The charge stored in capacitor C is $q_{c}$ , and the corresponding current flowing is ${\overset{\cdot}{q}}_{c}$ . The charge $q_{t}$ is the transduced charge from the mechanical side due to the piezoelectric effect, and voltage $u_{t}$ is the transduced voltage. The input voltage over the piezoelectric positioning system is $u_{i}$ . The voltage power amplifier is modeled as an integrated operational amplifier with fixed gain $k_{a}$ . The force $F_{t}$ is the transduced force from the electrical side. The force $F_{\exp}$ is externally applied. In practice, this is most often a pushing force. The resultant force $F_{t} - F_{\exp}$ mechanically drives the piezoelectric material. The resulting elongation of the piezoelectric positioning system is denoted by x. The equivalent mass, stiffness, and damping of the mechanical part of the system are m, k, and c, respectively.

Figure 2.

Electromechanical-based hysteresis nonlinear dynamic model for the piezoelectric positioning system.

Consider the piezoelectric transducer in Figure 2 and take electric charges q and endpoint displacement x as generalized coordinates. The total power delivered to the transducer is the sum of the electric power $u_{t} \overset{\cdot}{q}$ , and the output mechanical power is $(F_{t} - kx) \overset{\cdot}{x}$ . The net work on the transducer is

\begin{matrix} d W = u_{t} \overset{\cdot}{q} d t - (F_{t} - kx) \overset{\cdot}{x} d t \\ = u_{t} d q - (F_{t} - kx) d x \end{matrix}

(1)

For a conservative element, this work is converted into stored energy, $d W_{e}$ . Upon differentiating $W_{e} (x, q)$ , we have

d W_{e} (x, q) = \frac{\partial W_{e}}{\partial x} d x + \frac{\partial W_{e}}{\partial q} d q

(2)

Comparing equation (2) with equation (1), we recover the equations

F_{t} - kx = - \frac{\partial W_{e}}{\partial x}, u_{t} = \frac{\partial W_{e}}{\partial q}

(3)

In Figure 2, one easily finds the relations as follows

q_{t} = T_{em} x, F_{t} = T_{em} u_{t}

(4)

q = q_{c} + q_{t}

(5)

and it is obvious from equations (4) and (5) that

u_{t} = \frac{q}{C} - \frac{T_{em} x}{C}

(6)

Substituting equations (4) and (6) into equation (1), one gets

\begin{matrix} d W_{e} = u_{t} d q - (F_{t} - kx) d x \\ = \frac{1}{C} q d q + kx d x - \frac{T_{em}}{C} x d q \\ - \frac{T_{em}}{C} q d x + \frac{{(T_{em})}^{2}}{C} x d x \end{matrix}

which is the total differential of

W_{e} (x, q) = \frac{q^{2}}{2 C} + \frac{1}{2} k x^{2} + \frac{{(T_{em})}^{2}}{2 C} x^{2} - \frac{T_{em}}{C} xq

(7)

This is the analytical expression of the stored electromechanical energy for the piezoelectric transducer in Figure 2.

Considering the piezoelectric positioning system of Figure 2, the kinetic coenergy of the system is

T^{*} = \frac{1}{2} m {\overset{\cdot}{x}}^{2}

(8)

and the electromechanical energy for the piezoelectric transducer is given by equation (7). Combining these equations, we can write the Lagrangian²⁹

\begin{matrix} L = T^{*} - W_{e} \\ = \frac{1}{2} m {\overset{\cdot}{x}}^{2} - \frac{q^{2}}{2 C} - \frac{1}{2} k x^{2} - \frac{{(T_{em})}^{2}}{2 C} x^{2} + \frac{T_{em}}{C} xq \end{matrix}

(9)

and the dissipation function is the mechanical contribution of the viscous damper

D = \frac{1}{2} c {\overset{\cdot}{x}}^{2}

(10)

The virtual work of the non-conservative forces is

δ W_{nc} = k_{a} u_{i} δ q - u_{h} δ q - F_{\exp} δ x

(11)

With the Euler–Lagrange equations of displacement and charge generalized coordinates for electromechanical systems,³⁰ the motion differential equations of the piezoelectric positioning system are

\frac{q}{C} - \frac{T_{em} x}{C} = k_{a} u_{i} - u_{h}

(12)

m \overset{\cdot\cdot}{x} + c \overset{\cdot}{x} + kx + \frac{{(T_{em})}^{2}}{C} x - \frac{T_{em}}{C} q = - F_{\exp}

(13)

Furthermore, equations (12) and (13) can be represented as

\overset{\cdot\cdot}{x} + b_{1} \overset{\cdot}{x} + b_{0} x (t) = Kv (t)

(14)

v (t) = H_{1} (u_{i} (t))

(15)

where

{\begin{matrix} b_{0} = \frac{k}{m} \\ b_{1} = \frac{c}{m} \\ K = \frac{k_{a} T_{em}}{m} \\ v (t) = u_{i} (t) - \frac{1}{k_{a}} u_{h} (q) - \frac{F_{\exp}}{k_{a} T_{em}} \end{matrix}

(16)

It is shown that the hysteresis effect is encountered between the applied actuator voltage and the resulting charge.⁵ In the voltage steering mode, the charge $q (t)$ in the circuit should be a function of input $u_{i}$ , that is, $q (t) = f (u_{i} (t))$ , which is the hysteresis nonlinear function relation. And then, the term

u_{i} (t) - \frac{u_{h} (q)}{k_{a}} - \frac{F_{\exp}}{k_{a} T_{em}}

in equation (37) can be rewritten as

u_{i} (t) - \frac{u_{h} (f (u_{i}))}{k_{a}} - \frac{F_{\exp}}{k_{a} T_{em}}

which can be seen as a new hysteresis nonlinearity $H_{1} (u_{i} (t))$ .

So from equations (14) and (15), the hysteresis nonlinear dynamic model for piezoelectric positioning systems can be viewed as a second-order linear subsystem with a hysteresis nonlinear input voltage $v (t)$ . The block diagram of the model is shown in Figure 3, where $G (s)$ is the transfer function of the second-order linear subsystem, that is

G (s) = \frac{X (s)}{V (s)} = \frac{K}{s^{2} + b_{1} s + b_{0}}

(17)

Figure 3.

Block diagram of the hysteresis nonlinear dynamic model.

Now, we consider the description of the hysteresis nonlinearity in equation (15), which is part of the general electromechanical coupling model of equations (15) and (16). In recent years, there exist many hysteresis models developed to describe the hysteresis nonlinearity, and these models can be divided into physics-based models and phenomenological hysteresis models in general. In the article, the Prandtl–Ishlinskii (P–I) model is selected as the model describing the hysteresis nonlinearity for its simplicity, ease of implementation, and accuracy.

The P–I model^31–33 utilizes the play operator and the density function to describe input–output relationships of the hysteresis. Since hysteresis loops of the piezoelectric positioning system may be asymmetric, using the generalized P–I model, hysteresis nonlinearity $v (t)$ in equation (15) can be represented as

v (t) = g (u_{i} (t)) + \sum_{j = 1}^{n} p_{j} F_{r_{j}} [u_{i}] (t)

(18)

where $p_{j}$ is a density function, satisfying $p_{j} \geq 0$ , which is generally identified from the experimental data; $F_{r_{j}} [u_{i}]$ is the one-side play operator and $r_{j}$ is the threshold of $F_{r_{j}} [u_{i}]$ , satisfying

r_{j} = \frac{i}{n - 1} {| u_{i} (t) |}_{\max}, j = 0, 1, 2, \dots, n - 1

and $g (u_{i})$ is a undetermined function of input voltage $u_{i} (t)$ . For convenience of calculation, we select the three times polynomial function to fit $g (u)$ , that is

g (u_{i} (t)) = a_{3} u_{i}^{3} (t) + a_{2} u_{i}^{2} (t) + a_{1} u_{i} (t)

(19)

where $a_{3}$ , $a_{2}$ , and $a_{1}$ are constants. Certainly, except for the P–I model, other hysteresis models, for instance, the Preisach model,³ the polynomial model,³ the Maxwell model,⁵ the Bouc–Wen model,³⁴ the Duhem model,^34,35 and the Dahl,³⁶ all can be applied in the general electromechanical coupling model to describe the hysteresis nonlinearity for piezoelectric positioning systems.

To sum up, the hysteresis nonlinear dynamic model for piezoelectric positioning system can be expressed as

\overset{\cdot\cdot}{x} + b_{1} \overset{\cdot}{x} + b_{0} x (t) = Kv (t)

(20)

v (t) = g (u_{i} (t)) + \sum_{j = 1}^{n} p_{j} F_{r_{j}} [u_{i}] (t)

(21)

where

{\begin{matrix} b_{0} = \frac{k}{m} \\ b_{1} = \frac{c}{m} \\ K = \frac{k_{a} T_{em}}{m} \\ g (u_{i} (t)) = a_{3} u_{i}^{3} (t) + a_{2} u_{i}^{2} (t) + a_{1} u_{i} (t) \end{matrix}

(22)

The improved PSO algorithm

Principle of PSO algorithm

In an M-dimensional search space (solution space), the particle swarm is composed of s particles where the position of each individual particle $i (1 \leq i \leq s)$ can be expressed by $X_{i} (n) = [X_{i 1}, X_{i 2}, \dots, X_{ij}, \dots, X_{iM}]$ (j stands for the jth dimension of variable $X_{i}$ , and M is the dimension size); the fly rate of the position change (velocity) for particle i is represented as $w_{i} (n) = [w_{i 1}, w_{i 2}, \dots, w_{ij}, \dots, w_{iM}]$ ; the personal best position is denoted by $pBes t_{i} (n) = [pBes t_{i 1}, pBes t_{i 2}, \dots, pBes t_{ij}, \dots, pBes t_{iM}]$ and the global best position can be expressed as $gBes t_{i} (n) = [gBes t_{i 1}, gBes t_{i 2}, \dots, gBes t_{ij}, \dots, gBes t_{iM}]$ , so far. The velocity and position of each particle are updated in accordance with the following^20,21

{\begin{matrix} w_{i} (n) = ω w_{i} (n - 1) \\ + c_{1} r_{1} [pBes t_{i} (n - 1) - X_{i} (n - 1)] \\ + c_{2} r_{2} [gBes t_{i} (n - 1) - X_{i} (n - 1)] \\ X_{i} (n) = X_{i} (n - 1) + w_{i} (n) \end{matrix}

(23)

where $ω$ is the inertia weight; $c_{1}$ and $c_{2}$ are the acceleration coefficients; $r_{1}$ and $r_{2}$ are the random functions in the range from 0 to 1; n is the iteration index; and i is the particle index, $i = 1, 2, \dots, s$ .

Principle of improved PSO algorithm

Although PSO has shown some important advances by providing high speed of convergence in specific problems, it does exhibit some shortages; the improved PSO algorithm has made corresponding improvements in the following respects.

First, increase the diversity of equilibrium points. The equilibrium point of PSO depends on $pBes t_{i}$ and $gBes t_{i}$ , and the changing equilibrium point maintains the search performance. However, it will lead the other particles to converge to $gBes t_{i}$ too fast if $gBes t_{i}$ is not good and make the equilibrium point resting and then cause premature convergence.³⁷ To solve this problem, the diversity of equilibrium points should be increased. In the improved PSO algorithm, the particle’s equilibrium point is composed of its neighbor’s personal best position, which is better than its current position or personal best position. Thus, the particle not only makes the best of its outstanding neighbors’ information but also avoids the negative influence of its neighbors with bad performance. As more information of the particle optimal locations is used, the update in the optimal location of any particle will cause the update of the equilibrium point so that the equilibrium point updates more frequently and improves the search efficiency of the algorithm.

Second, adopt adaptive inertia weight and acceleration coefficient. Further empirical studies of PSO show that a relatively large inertia weight has more global search ability while a relatively small inertia weight results in a faster convergence. Therefore, the linear reduction inertia weight (PSO-w) was designed by Shi and Eberhart.³⁸ However, there are some disadvantages for the decreasing strategy of inertia weight: the largest iteration time is unpredictable in practice, and the inertia weights of all particles are so smaller in the later search stage that it is difficult to jump out from the local optimum in some complex optimal problems. Based on the idea of division of labor, the better particles get larger inertia weight, making them explore better search regions, and the worse particles get smaller inertia weight so that they can converge at the search regions rapidly to carry out meticulous search. The acceleration coefficients are adjusted adaptively according to the variation in inertia weight. The kind of processing methods for improved PSO algorithm can obtain better balance between the global and LS capabilities in every iteration, and it does not require preset maximum iteration number. Specifically, the particles are sorted according to personal best position from good to bad and then the inertia weight and the corresponding acceleration coefficients of the ith-ranked particles are expressed as follows^38,39

ω_{i} = ω_{min} + \frac{(s - i) (ω_{max} - ω_{min})}{s - 1}

(24)

c_{i 1} = \frac{(ω_{i} + 1 + 2 \sqrt{ω_{i}})}{2}

(25)

c_{i 2} = \frac{(ω_{s + 1 - i} + 1 + 2 \sqrt{ω_{s + 1 - i}})}{2}

(26)

where $ω_{\max}$ and $ω_{\min}$ are the predefined maximum and minimum inertia weights, respectively; s is the particle size, and the acceleration coefficients $c_{i 1}$ and $c_{i 2}$ adjust adaptively according to $ω_{i}$ . In this way, the better particles obtain larger $c_{i 1}$ and smaller $c_{i 2}$ , making them have better LS ability, and the worse particles obtain smaller $c_{i 1}$ and larger $c_{i 2}$ , making them have better global search ability, basically.

Finally, introduce the symmetric solutions of piezoelectric positioning system. In parameter identification of piezoelectric positioning system with the PSO algorithm, calculating the objective function should solve the hysteresis nonlinear dynamic equations (20) and (21) frequently. Such a problem can be solved by fourth-order Runge–Kutta numerical computing method certainly, but the amount of operation in this way is too large to accomplish in a shorter period of time. In view of this situation, we introduce the symmetric solutions for piezoelectric positioning system to speed up the calculating the objective function greatly in the improved PSO algorithm.^40–42 The symmetric solutions of the system can be expressed as follows

\begin{matrix} x = \frac{I_{1} e^{- (β - γ) t}}{2 mr} - \frac{I_{2} e^{- (β + γ) t}}{2 mr} - F_{\exp} \frac{1}{β^{2} - γ^{2}} \frac{1}{m} \\ + T_{em} (k_{a} u_{i} - u_{h}) \frac{1}{β^{2} - γ^{2}} \frac{1}{m} \end{matrix}

(27)

\overset{\cdot}{x} = - \frac{I_{1} (β - γ) e^{- (β - γ) t}}{2 mr} + \frac{I_{2} (β + γ) e^{- (β + γ) t}}{2 mr}

(28)

where x denotes the output displacement; $β$ and $γ$ are constants, and they can be calculated as

β = \frac{c}{2 m}, γ = \frac{{\sqrt{c}}^{2} - 4 mk}{2 m}

(29)

$I_{1}$ and $I_{2}$ are conserved quantities, with initial conditions

{x |}_{t = 0} = x (0), {\overset{\cdot}{x} |}_{t = 0} = \overset{\cdot}{x} (0)

Conserved quantities $I_{1}$ and $I_{2}$ can be calculated by

{\begin{matrix} I_{1} = m \overset{\cdot}{x} (0) + x (0) m (β + γ) \\ - T_{em} (k_{a} u_{i} - u_{h}) \frac{1}{β - γ} + F_{\exp} \frac{1}{β - γ} \\ I_{2} = m \overset{\cdot}{x} (0) + x (0) m (β - γ) \\ - T_{em} (k_{a} u_{i} - u_{h}) \frac{1}{β + γ} + F_{\exp} \frac{1}{β + γ} \end{matrix}

(30)

To sum up, the main advantages of the proposed algorithm are to achieve faster speed of convergence and better solution accuracy with minimum incremental computational burden.

Parameter identification of hysteresis nonlinear dynamic model

To identify the parameters of the hysteresis nonlinear dynamic model, an actual piezoelectric positioning testing system, which produced by Physik Instrumente GmbH and Company, is set up and shown in Figure 4. A z-axis piezo flexure objective scanner (PZT model P-721.CDQ) is manipulated by the piezo controller E-725 integrating the voltage power amplifier with a fixed gain of 10. The scanner P-721.CDQ is driven by applied control input voltage in the range of −20 to 120 V and has 140 µm open-loop travel. The capacitive sensor is integrated in the mechanical structure to measure the displacement of the scanner. The experimental data can be obtained by the NanoCapture software, which is a versatile tool for system response analysis and optimization. Therein, the experimental process involves no external load, that is, $F_{\exp} = 0$ .

Figure 4.

Experimental piezoelectric positioning testing system.

As shown in Figure 3, the hysteresis nonlinear dynamic model for piezoelectric positioning system can be described as a second-order linear subsystem preceded by a hysteresis nonlinearity input. Due to the existence of hysteresis nonlinearity, there is no general identification method for the parameters of the model so far. In practice, two-step identification method is employed mostly,⁴³ that is, through selecting identification signals realizes the identification of the linear subsystem (20) and hysteresis nonlinear part (21), respectively. In the article, we also adopt the two-step identification strategy and put emphasis on parameter identification of the hysteresis nonlinear part.

Identification of the linear part

From equations (20) to (22), the parameters for linear subsystem part cannot be obtained by simply using the specifications of the piezoelectric positioning system, because the exact information on the parameters c, $T_{em}$ , and m is generally not available. They are usually identified by the experimental method based on the input voltage and the corresponding output displacement. To avoid distortion from the preceded hysteresis nonlinearity as much as possible, the small-amplitude input signals are used to excite the piezoelectric positioning system, and the experimental data of both the frequency response and transient response are acquired.⁴⁴ The system identification toolbox of MATLAB is adopted to analyze the frequency response of the positioning system with these experimental data, and then the parameters of the linear part can be directly obtained through the frequency response data. The identified parameters are listed in Table 1.

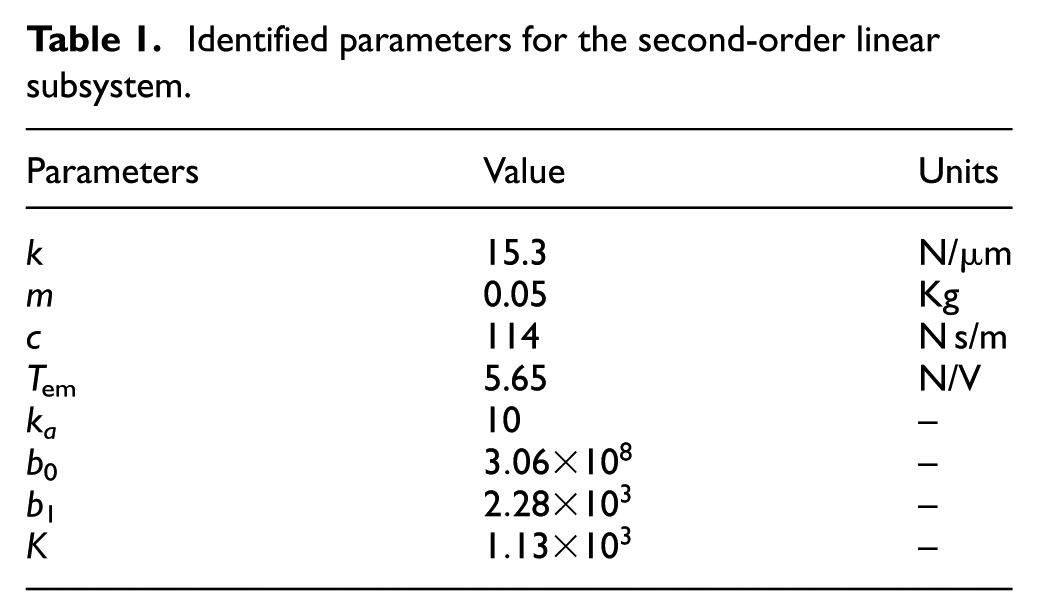

Table 1.

Identified parameters for the second-order linear subsystem.

Parameters	Value	Units
k	15.3	N/µm
m	0.05	Kg
c	114	N s/m
T _em	5.65	N/V
k_a	10	−
b ₀	$3.06 \times 10^{8}$	−
b ₁	$2.28 \times 10^{3}$	−
K	$1.13 \times 10^{3}$	−

Parameter identification of hysteresis nonlinear part with improved PSO algorithm

As shown in equations (21) and (22), the hysteresis nonlinear part is described by the generalized P–I model; since the output $v (t)$ of hysteresis nonlinear part is always unmeasurable, the parameters of the model are identified with the improved PSO algorithm based on the identified results of linear subsystem, which are shown in Table 1. In order to carry out the optimization operations, an objective function should be defined to identify the parameters of hysteresis nonlinear model for piezoelectric positioning system. According to the principle of mean-square error, the objective function is defined as follows

J (θ) = \frac{1}{N} \sum_{k = 1}^{N} {[x (k) - \hat{x} (k, θ]}^{2}

(31)

where $θ = [a_{1}, a_{2}, a_{3}, p_{1}, p_{2}, p_{3}, p_{4}, p_{5}, p_{6}, p_{7}, p_{8}, p_{9}, p_{10}]$ is a set of identified parameters of the generalized P–I model in the hysteresis nonlinear dynamic model, which is unknown for an actual system; N is the number of experimental data; $x (k)$ is output displacement value in the experiment; and $\hat{x} (k, θ)$ are the simulated data of the output displacement, which satisfy equations (20)–(22).

In this article, the problem consists of minimizing the objective function $J (θ)$ , defined in equation (31), with respect to the parameter values. Utilizing the improved PSO to identify the parameter vector $θ = [a_{1}, a_{2}, a_{3}, p_{1}, p_{2}, p_{3}, p_{4}, p_{5}, p_{6}, p_{7}, p_{8}, p_{9}, p_{10}]$ as particle can acquire the optimized parameters in the generalized P–I model. The search ranges for each parameter are preset according to their meaning. So the problem of parameter identification could be expressed as minimum optimization problem with restraints

\min J (θ)

(32)

s . t . {\begin{matrix} a_{1 \min} \leq a_{1} \leq a_{1 \max} \\ a_{2 \min} \leq a_{2} \leq a_{2 \max} \\ a_{3 \min} \leq a_{3} \leq a_{3 \max} \\ p_{1 \min} \leq p_{1} \leq p_{1 \max} \\ p_{2 \min} \leq p_{2} \leq p_{2 \max} \\ p_{3 \min} \leq p_{3} \leq p_{3 \max} \\ p_{4 \min} \leq p_{4} \leq p_{4 \max} \\ p_{5 \min} \leq p_{5} \leq p_{5 \max} \\ p_{6 \min} \leq p_{6} \leq p_{6 \max} \\ p_{7 \min} \leq p_{7} \leq p_{7 \max} \\ p_{8 \min} \leq p_{8} \leq p_{8 \max} \\ p_{9 \min} \leq p_{9} \leq p_{9 \max} \\ p_{10 \min} \leq p_{10} \leq p_{10 \max} \end{matrix}

(33)

The procedure of parameter identification with improved PSO is shown in Algorithm 1.

Algorithm 1. The improved PSO.
1: BEGIN improved PSO
2: Objective function $J (X), X = (x_{1}, x_{2}, \dots, x_{M})$
3: NFE = 0;
4: for i = 1:s do
5: Initialize randomly the velocity and position of each particle;
6: Evaluate $J (X_{i})$ ;
7: NFE = NFE + 1;
8: $pBes t_{i} : = X_{i}$ ;
9: end for
10: while (Stop condition) do
11: Sort the population according to personal best position from good to bad;
12: Calculate the inertia weight $w_{i}$ using Eq. (24);
13: Calculate acceleration coefficients $c_{i 1}$ and $c_{i 2}$ using Eqs. (25) and (26);
14: for i = 1:s do
15: Update the velocity $w_{i}$ and position $X_{i}$ of each particle;
16: if $X_{i} > X_{\max}$ then
17: $X_{i} = X_{\max}$ ;
18: end if
19: if $X_{i} < X_{\min}$ then
20: $X_{i} = X_{\min}$ ;
21: end if
22: Evaluate $J (X_{i})$
23: NFE = NFE+1;
24: if $J (X_{i}) < J (pBes t_{i})$ then
25: $pBes t_{i} : = X_{i}$ ;
26: end if
27: if $J ({pBest}_{i}) < J (gBes t) then$
28: $gBest : = pBes t_{i}$ ;
29: end if
30: end for
31: end while
32: END improvedPSO

According to the experimental data, the procedure of the improved PSO is running with MATLAB software to obtain the identified parameters of the hysteresis nonlinear part of the hysteresis nonlinear dynamic model. To compare the performance of the improved PSO with other algorithms, the parameter identification of the hysteresis nonlinear part is also implemented using the PSO-w and GA, in which the objective function is calculated by fourth-order Runge–Kutta method. In all identification experiments, the particle size is 200, the maximum iteration number is 300, the running number is 15, and all the software are run on a PC (Core i5 CPU 2.66 GHz, 4 G RAM). Over 15 runs, the identified results of all algorithms are obtained and shown in Table 2. In the table, $J_{best}$ and $J_{a}$ are the best value and the average value in all objective function values over 15 runs, respectively, and $J_{s}$ is the standard deviation.Table 2 manifests that the improved PSO has the smallest $J_{best}$ , $J_{a}$ , $J_{s}$ , and running time than all the other listed algorithms. Furthermore, the convergence graph of the objective function $J_{best}$ of all the algorithms with the experimental data is shown in Figure 5. From the results of Table 2 and Figure 5, it can be seen that the improved PSO algorithm works better, and due to the introduction of the symmetric solutions the calculation speed of the algorithm is increased greatly, which means that the proposed method is feasible to parameter identification of the hysteresis nonlinear part of the hysteresis nonlinear dynamic model.

Table 2.

Parameter identification results of each algorithm for the hysteresis nonlinear part of hysteresis nonlinear dynamic model.

Parameters	Algorithms
Parameters	PSO-w	GA	Improved PSO
$a_{1}$	1.0926	1.9855	2.0084
$a_{2}$	0	0	0
$a_{3}$	0	0	0
$p_{1}$	0.9333	0.0187	0.0009
$p_{2}$	0.5815	0.6533	0.6057
$p_{3}$	0.2679	0.1307	0.2735
$p_{4}$	0.1540	0.4051	0.1036
$p_{5}$	0.3332	0	0.4741
$p_{6}$	0.2763	0.4527	0.0093
$p_{7}$	0.0009	0.1008	0.2940
$p_{8}$	0.9333	0.8251	0.9193
$p_{9}$	1.1041	1.1116	0.8839
$p_{10}$	0.2763	0.0009	0.3547
$J_{best} (μ m^{2})$	0.0663	0.0854	0.0558
$J_{a} (μ m^{2})$	0.0713	0.0930	0.0566
$J_{s}$	0.0039	0.005	$5.9378 \times 10^{- 4}$
Running time (s)	$5.0465 \times 10^{4}$	$5.0279 \times 10^{4}$	$2.7765 \times 10^{3}$

PSO: particle swarm optimization; GA: genetic algorithm.

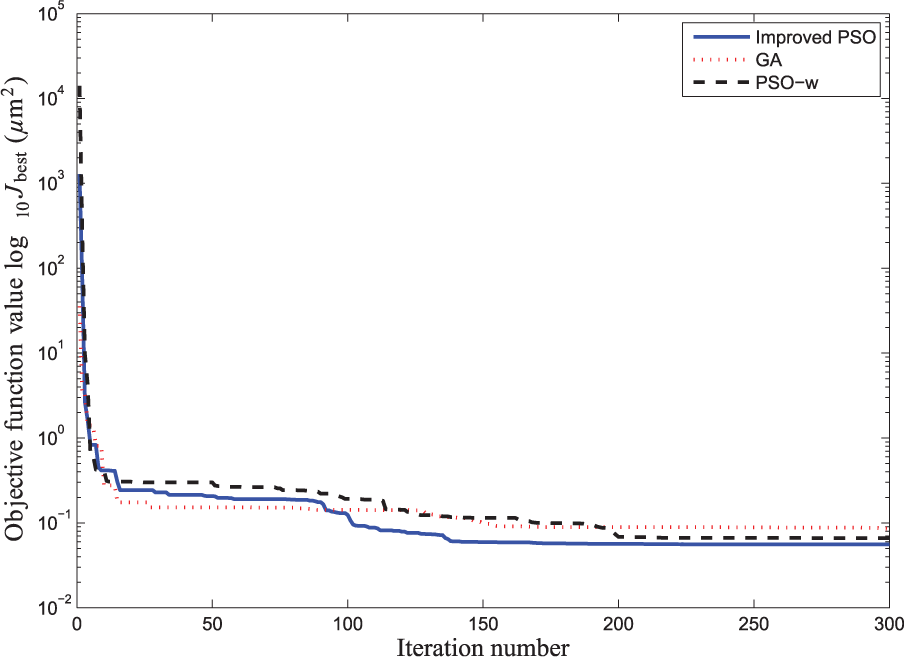

Figure 5.

Convergence process of all the algorithms with the experimental data.

It should be pointed out that the challenge for controlling the piezoelectric positioning system lies on the way to handle the hysteresis nonlinearity after obtaining the hysteresis nonlinear dynamic model with identified parameters. An important approach is to construct inverse hysteresis model to compensate the hysteresis effect,³² and the feed-compensation control strategies should be applied to the positioning system.^33,34,36 Certainly, other control method can also be utilized³⁵ and it will be the focus of our future research work.

Experimental validation of the hysteresis nonlinear dynamic model

In order to prove the effectiveness of the identified results, the obtained parameter values can be fed back to the hysteresis nonlinear dynamic model to achieve the output displacement response under the specific input voltage.

Figure 6 shows the applied input voltage signal

u_{i} = 5 + 3.4 e^{- 0.24 t} \cos (2 π t) (V), t \in [0, 5] (s)

which is used to drive the piezoelectric positioning system. With the input voltage, some positioning experiments are conducted to show the effectiveness of the proposed method. Specifically, we use equation (21) to construct the hysteresis $v (t)$ with identified parameters by improved PSO in Table 2, and then calculate the simulation result of output displacement x using equation (20) with the parameters of Table 1. As a comparison, applying the input signal $u_{i}$ to drive the piezoelectric positioning system, the actual experimental results of output displacement are recorded.

Figure 6.

Input voltage.

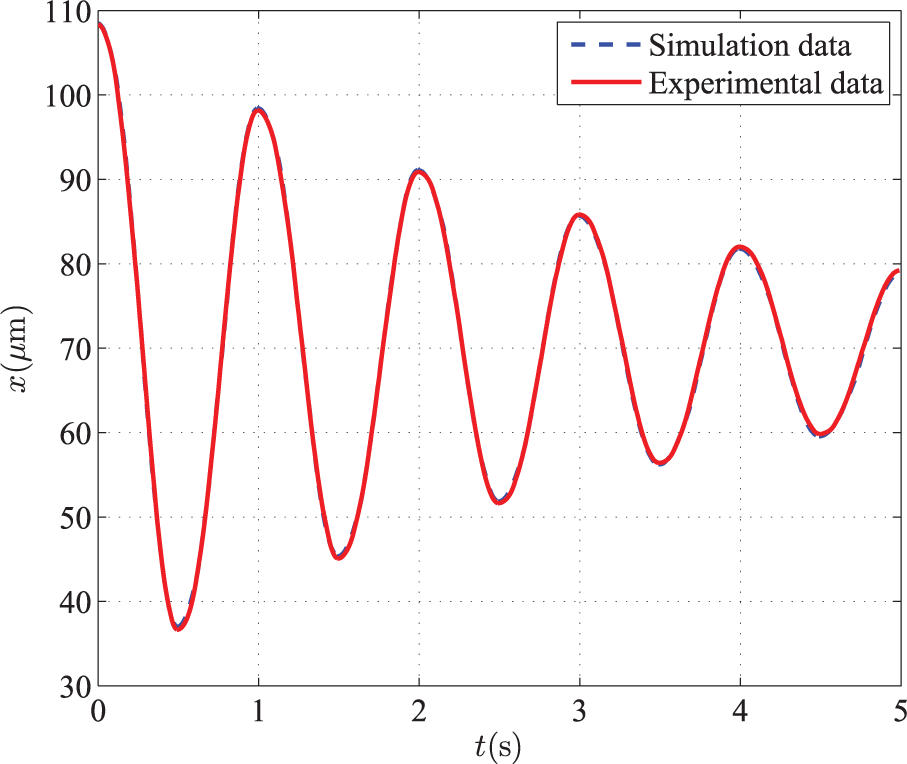

Figure 7 shows the comparison between the experimental data and the simulation data of output displacement, and it can be seen that two kinds of result are consistent, which indicates that the simulative result of the hysteresis nonlinear dynamic model can give a good prediction of the actual output displacement of the piezoelectric positioning system. The prediction error curve between the simulation data and the experimental data of output displacement is shown in Figure 8; we can see from it that the peak error of the output displacement is no more than $0.7 μ m$ , which is approximately 0.65% of the maximum output for the piezoelectric positioning systems. These results all prove the effectiveness of the proposal parameter identification method.

Figure 7.

Output displacement.

Figure 8.

Prediction error.

Notice that comparing Figures 6 and 7, the output displacement actually evinces some distortion on both the rising and fall sections. Further observation indicates that this is not typical dynamic distortion. There is no discernible phase lag between the input voltage and output displacement, as indicated by the relative position of the waveform peaks, and there are no significant filtering effects, evidenced by the fact that the peaks are neither rounded nor otherwise distorted. These observations indicate the existence of a rate-independent hysteresis. The hysteresis behavior is clearly displayed in Figure 9, which shows hysteresis curve plotted output displacement versus input voltage with simulation data and experimental data. Obviously, the difference of the results between the proposal method and experimental measurement is also difficult to discern. The fact further illustrates effectiveness of the improved PSO parameter identification method.

Figure 9.

Hysteresis curve of output displacement versus input voltage.

Conclusion

In the article, a parameter identification method based on the improved PSO for general electromechanical-based hysteresis nonlinear dynamic model of piezoelectric positioning systems has been presented. Through increasing the diversity of equilibrium points, adopting adaptive inertia weight and acceleration coefficient, and introducing the symmetric solutions of piezoelectric positioning system, the proposal method has been implemented in MATLAB environment. It is shown from the identified results that the improved PSO has faster convergence speed and smaller running time. With identified parameters, some comparisons between the simulation data and experimental data are carried out. The results indicated the effectiveness of the improved PSO parameter identification method. So the improved PSO could play an important role for identifying the parameters of the hysteresis nonlinear dynamic model for the piezoelectric positioning systems, and it also has reference value for other dynamic systems.
