High mechanical advantage design of six-bar Stephenson mechanism for servo mechanical presses

Abstract

This article proposed a two-phase design scheme of Stephenson six-bar working mechanisms for servo mechanical presses with high mechanical advantage. In the qualitative design phase, first, a Stephenson six-bar mechanism with a slide was derived from Stephenson six-bar kinematic chains. Second, based on the instant center analysis method, the relationship between mechanical advantage and some special instant centers was founded, and accordingly a primary mechanism configuration with high mechanical advantage was designed qualitatively. Then, a parameterized prototype model was established, and the influences of design parameters toward slide kinematical characteristics were analyzed. In the quantitative design phase, a multi-objective optimization model, aiming at high mechanical advantage and dwelling characteristics, was built, and a case design was done to find optimal dimensions. Finally, simulations based on the software ADAMS were conducted to compare the transmission characteristics of the optimized working mechanism with that of slide-crank mechanism and symmetrical toggle mechanism, and an experimental press was made to validate the design scheme. The simulation and experiment results show that, compared with general working mechanisms, the Stephenson six-bar working mechanism has higher mechanical advantage and better dwelling characteristics, reducing capacities and costs of servo motors effectively.

Keywords

Servo mechanical press working mechanism instant center mechanical advantage optimum design

Introduction

Servo mechanical presses are novel metal forming equipments utilizing servo drive technology. They can offer the flexibility of hydraulic presses and productivity of mechanical presses, being propitious to improve the forming limit, product accuracy, and working environment.¹

The most common working mechanism for traditional mechanical presses is the slide-crank mechanism (SCM) with a heavy flywheel mounted on the high-speed shaft. The flywheel, accumulating the mechanical energy during empty stroke and releasing the stored energy during forming, can reduce the capacity and restrain the speed variation of the induction motor (IM). The flywheel, however, is disadvantageous for servo mechanical presses, which pursue low inertia because of the increasing demands on the flexibility of slide motion. Therefore, for most servo mechanical presses, flywheels have to be removed and the forming forces are supplied totally by servo motors (usually, permanent magnet synchronous motors (PMSMs)). Hence, when common SCMs with low mechnical advantage are adopted as working mechanisms of servo presses, the capacities of PMSMs would have to been increased greatly, which raising manufacturing costs and hindering development and popularity of servo mechanical presses, especially the large-tonnage ones.

Generally, mechanical transmission system of servo mechanical presses includes driving elements, reducing mechanisms, and working mechanisms. In order to develop mechanical servo presses with large tonnage and low costs, several approaches are studied to develop new driving technologies or transmission mechanisms.

One of them is to develop hybrid driving technology, in which a large IM with constant speed and a small PMSM with variable speed were integrated together. The output motions from the IM and PMSM were synthesized by a 2 degree-of-freedom hybrid drive mechanism. Du and Guo,² Meng et al.,³ Li and Zhang,⁴ Guo et al.,⁵ and Ouyang et al.⁶ conducted the studies on a 7R-type seven-bar linkage. He et al.,^7,8 Tang and Guo,⁹ and Soong¹⁰ conducted the studies on a 5R2P-type seven-bar linkage. Li et al.¹¹ and Tso and Liang¹² conducted the studies on a nine-bar linkage. Tokuz and Jones¹³ and Wang et al.¹⁴ conducted the studies on a differential gearbox.

Another approach is to develop novel transmission mechanisms to cut down the capacities of PMSMs. Guo and colleagues^15–17 proposed a parallel kinematic mechanism (PKM)-type transmission mechanism based on a parallel mechanism and a dual screw transmission mechanism. Sun et al.¹⁸ and Suzuki and Hata¹⁹ adopted double reducing mechanisms to increase reduction ratio.

In the former case, the hybrid driving technology combines advantages of the inexpensive IM and flexible PMSM; however, the uncontrollability of the IM makes it difficult for the slide to stop or turn around in the approaching stroke, which are demanded by some sheet metal forming technologies, such as blending, coining, deep drawing, hot stamping, and so on, introduced by Osakada et al.¹ Moreover, due to the dynamic interaction of the two motors of different types, they have to counteract in power to obtain some required slide motion trajectories.

In the latter case, the adoption of parallel mechanisms will not cut down the total required capacities of PMSMs, but increasing the complexity for synchronization control. And too high reduction ratio will decrease the production efficiency of mechanical presses to an unacceptable degree, because the rated speed of large capacity servo motor is usually just a few hundred rotations per minute.

This article focuses on the development of Stephenson six-bar mechanisms (SSMs) with high mechanical advantage to cut down the capacities of servo motors. First, an instant center analysis method was presented to design qualitatively the primary mechanism configuration with high mechanical advantage, and then, a multi-objective optimization method was employed to synthesize the dimensions of the mechanism. Instant center analysis method has been successfully applied to the design of automobile rear suspension systems²⁰ and optical adjusting mechanisms,²¹ proven to be a visual, qualitative analysis technology. While, the multi-objective optimization design method is an analytic, quantitative technology. Hwang et al.²² employed a multi-objective optimization method to synthesize the drag-link of mechanical press for precision drawing. In that case, the objective functions include the maximum normal force on the guide, mean mechanical advantage, variance of the drawing speed, and so on. In order to optimize the balancing design of the drag-link drive with adding disk counterweights, Chiou et al.²³ used a multi-objective optimization method to minimize the fluctuations of the shaking force and shaking moment. Smaili and Diab²⁴ applied an ant-gradient algorithm to solve the multi-objective dimensional synthesis problem of planar four-bar mechanisms, by considering transmission angle and mechanical advantage constraint into the objective function.

The purpose of this study is to propose a two-phase design scheme, qualitative and quantitative, to obtain a Stephenson six-bar working mechanism with high mechanical advantage for 1 degree-of-freedom servo mechanical presses, reducing the required PMSM capacity and improving the controllability, without decreasing the production efficiency. In the qualitative design phase, the relationship between mechanical advantage and instant centers is built and used to find the mechanism configuration with high mechanical advantage. While in the quantitative design phase, a multi-objective optimization model, with mechanical advantage, low-speed characteristics, and slow-moving uniformity of the slide being considered into objective functions, is constructed and solved. And some simulation and experiment studies were done to validate the design results.

Stephenson six-bar working mechanism

The six-bar linkage of four binary bars and two ternary bars has two valid isomers, Watt’s chain and Stephenson’s chain.¹⁸ The six bars and seven joints of the Stephenson six-bar linkage compose one four-bar loop and one five-bar loop. It has two ternary links that are separated by a binary link, as shown in Figure 1. Once link 1 is chosen as the frame, link 2 as the input crank, and the revolute pair between links 6 and 1 is evolved into a sliding pair, a Stephenson-type six-bar mechanism with a slide can be derived, as shown in Figure 2. The continuous rotation of input crank 2 can be converted into a reciprocation of slide 6, which can be used as a working mechanism for servo mechanical presses. It should be noted that, being different from the conventional toggle mechanism, the connecting rod 3 of the SSM is a ternary link, which will bring about different transmission characteristics.

Figure 1.

Stephenson six-bar kinematic chain.

Figure 2.

Stephenson six-bar mechanism with a slide.

Qualitative design based on instant centers

Relationship between mechanical advantage and instant centers

The mechanical advantage of a mechanism could be defined as the ratio of the output force or torque to the input one.²⁰ In order to cut down the capacities of servo motors, the mechanical advantage within the slide working stroke should be as high as possible. For the SSM with a slide, the main output is the forming force applied to the slide, and the input refers to the input torque applied to the crank.

According to the definition of instant center of rotation, at a particular instant of time, there is a coincidence point with the same speed for the input part and output part of a linkage mechanism undergoing planar movement, and thus, the following relationship can be achieved

ω_{i} \cdot \bar{I_{1 i} I_{io}} = ω_{o} \cdot \bar{I_{1 o} I_{io}}

(1)

where $ω_{i}$ denotes the angular speed of input part, $ω_{o}$ is the angular speed of output part, $I_{1 i}$ is the instant center between input part and frame, $I_{1 o}$ is the instant center between output part and frame, $I_{io}$ is the instant center between input part and output part, $\bar{I_{1 i} I_{io}}$ is the distance of instant centers between $I_{1 i}$ and $I_{io}$ , and $\bar{I_{1 o} I_{io}}$ is the distance of instant centers between $I_{1 o}$ and $I_{io}$ .

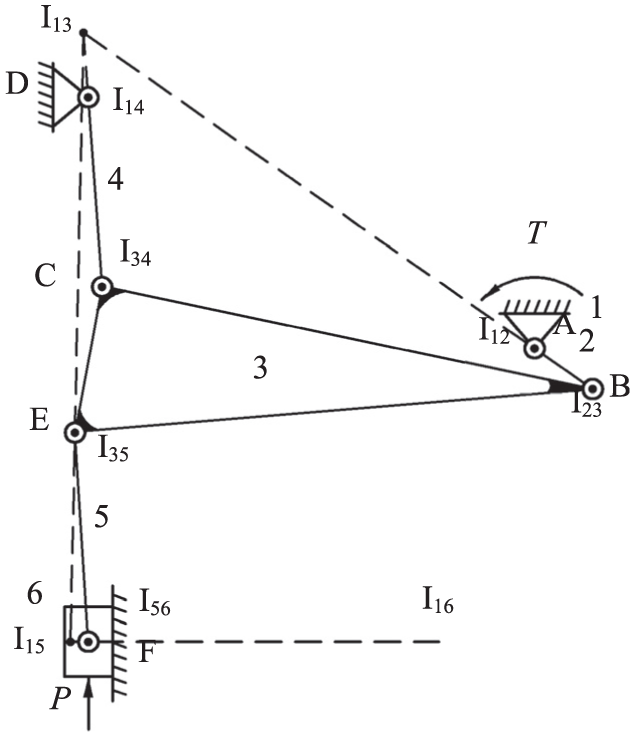

Figure 3 shows the locations of some special instant centers when the working mechanism is at working stroke.

Figure 3.

Stephenson six-bar mechanism with a slide.

Assuming the friction and inertia are ignored, according to the principle of virtual work, for the SSM with a slide, the following relationship can be found

T_{i} \cdot ω_{i} = F_{o} \cdot v_{o}

(2)

where F_o denotes the forming force, T_i is the input torque, ω_i is the angular speed of the crank, and v_o is the linear speed of the slide.

Note that the slide is evolved from link 6, the relationship between the linear speed of the slide and the angular speed of the link 6 can be written as follows

v_{o} = \bar{I_{56} I_{16}} \cdot ω_{o}

(3)

Based on equations (1)–(3), the mechanical advantage of the SSM can be defined as follows

MA = \frac{F_{o}}{T_{i}} = \frac{ω_{i}}{v_{o}} = \frac{\bar{I_{1 o} I_{io}}}{\bar{I_{56} I_{16}} \cdot \bar{I_{1 i} I_{io}}} = \frac{\bar{I_{16} I_{26}}}{\bar{I_{56} I_{16}} \cdot \bar{I_{12} I_{26}}}

(4)

By the Aronhold-Kennedy theorem and geometric principle, equation (5) can be obtained

\frac{\bar{I_{16} I_{26}}}{\bar{I_{12} I_{26}}} = \frac{\bar{I_{16} I_{26}} \cdot \bar{I_{35} I_{15}} \cdot \bar{I_{23} I_{13}}}{\bar{I_{15} I_{56}} \cdot \bar{I_{35} I_{13}} \cdot \bar{I_{23} I_{12}}}

(5)

Note that the instant center I₁₆ is at infinity, equation (6) can be written as follows

\frac{\bar{I_{16} I_{26}}}{\bar{I_{56} I_{16}}} = 1

(6)

By substituting equations (5) and (6) into equation (4), the mechanical advantage can be rewritten as follows

M A^{*} = \frac{\bar{I_{35} I_{15}} \cdot \bar{I_{23} I_{13}}}{\bar{I_{15} I_{56}} \cdot \bar{I_{35} I_{13}} \cdot \bar{I_{23} I_{12}}}

(7)

It is noted that the mechanical advantage of the Stephenson six-bar working mechanism is associated with the locations of the six instant centers $I_{12}$ , $I_{23}$ , $I_{35}$ , $I_{56}$ , $I_{13}$ , and $I_{15}$ . According to equation (7), there are four cases that will make $M A^{*}$ to go to the limit value, namely zero or infinity, as shown in Table 1. When the numerator goes to zero and denominator does not (case 1), or when the denominator goes to infinity and numerator does not (case 2), $M A^{*}$ will go to zero. When the numerator goes to infinity and denominator does not (case 3), or when the denominator goes to zero and numerator does not (case 4), $M A^{*}$ will go to infinity.

Table 1.

Relationship between the limit value of $M A^{*}$ and the location features of instant centers.

Case		Mechanical advantage	Location features of instant centers
1	Num → zero	Zero	I₁₃ is coincident with I₂₃ or/and I₁₅ is coincident with I₃₅
2	Den → infinity	Zero	Never happen
3	Num → infinity	Infinity	Never happen
4	Den → zero	Infinity	I₁₃ is coincident with I₃₅ or/and I₁₅ is coincident with I₅₆

In this study, the known instant centers, such as $I_{12}$ , $I_{23}$ , $I_{35}$ , and $I_{56}$ , are referred to as the primary instant centers. The unknown instant centers, such as $I_{13}$ and $I_{15}$ , are referred to as the secondary instant centers. Compared with the central-in-space primary instant centers, the secondary instant centers are widely distributed in the domain, which have significant impacts to the mechanical advantage.

Based on equation (7), the following analytic results can be given:

The distance of instant centers $\bar{I_{23} I_{12}}$ refers to the length of the input crank, so its value will never go to zero or infinity. When the secondary instant centers $I_{13}$ and/or $I_{15}$ are at infinity, both the numerator and denominator will go to infinity. Therefore, it could be said that case 2 and case 3 will never happen.

When the secondary instant center $I_{13}$ is coincident with the primary instant center $I_{23}$ , or/and the secondary instant center $I_{15}$ is coincident with the primary instant center $I_{35}$ , the numerator will go to zero, and then case 1 will happen.

When the secondary instant center $I_{13}$ is coincident with the primary instant center $I_{35}$ , or/and the secondary instant center $I_{15}$ is coincident with the primary instant center $I_{56}$ , the denominator will go to zero, and then case 4 will happen.

Special primary mechanism configuration with high mechanical advantage

In order to obtain high mechanical advantage within working stroke, it is necessary to ensure that the numerator of the fraction in equation (7) is as large as possible, while the denominator as small as possible. Based on this, some suggestions for qualitative design of the primary mechanism configuration with high mechanical advantage can be listed as follows:

Note that the denominator of the fraction in equation (7) is the product of distances of instant centers $\bar{I_{15} I_{56}}$ , $\bar{I_{35} I_{13}}$ , and $\bar{I_{23} I_{12}}$ . The mechanical advantage is tightly associated with $\bar{I_{15} I_{56}}$ and $\bar{I_{35} I_{13}}$ . When the crank rotates from the nominal position (the beginning of working stroke) to the bottom dead center (BDC; the end of working stroke), if $I_{13}$ and $I_{15}$ are, respectively, approaching to $I_{35}$ and $I_{56}$ , the high mechanical advantage can be obtained. This can be ensured by adjusting the locations of primary instant centers $I_{34}$ , $I_{35}$ , and the orientation of link 2, as shown in Figure 3. Namely, the instant center $I_{34}$ (or $I_{35}$ ) should be a little to the left (or right) from the vertical line between points D and F, and the instant center $I_{23}$ should lie in the lower right of $I_{12}$ .

Note that the numerator of the fraction in equation (7) is the product of $\bar{I_{23} I_{13}}$ and $\bar{I_{35} I_{15}}$ , so the mechanical advantage can be improved by increasing the length of link 3 and link 5, unless the frame is unallowable.

The distance of instant centers $\bar{I_{23} I_{12}}$ is the length of the crank, having some influence to the mechanical advantage but a lot to the slide maximum stroke. Thus, the smaller of the crank length, the larger of the mechanical advantage, but restrained by the constraint of slide maximum stroke.

Based on above suggestions, a mechanism configuration with high mechanical advantage, as shown in Figure 3, can be sketched by qualitative design, which is advantageous to reduce the searching domain of design variables and to simplify the numeric computation of optimization model.

Kinematic design study

Figure 3 is just a primary mechanism configuration designed qualitatively from the view of mechanical advantage. It is also necessary to study its kinematic characteristics, such as the slide maximum stroke, the slide speed monotonic property, and so on. The slide maximum stroke is an important performance index, deciding the working capability of mechanical presses. The slide speed monotonic property means that when the crank keeps unidirectional rotation and the slide is approaching from the top dead center (TDC) to the BDC, the motion direction of the slide always keeps downward, without turning around.

The purpose of kinematic design study is to analyze the sensitivities of design parameters to the slide maximum stroke and slide speed monotonic property. Using vector loop method, the mechanism configuration designed in section “Qualitative design based on instant centers” can be defined by 6 points A, B, C, D, E, and F, and parameterized by 10 variables, as shown in Figure 4. The coordinate values of the six points can be parameterized by the norms of vectors ${\overset{⇀}{l}}_{1}$ , ${\overset{⇀}{l}}_{2}$ , ${\overset{⇀}{l}}_{3}$ , ${\overset{⇀}{l}}_{4}$ , ${\overset{⇀}{l}}_{6}$ and the related orientations $ϕ_{11}$ , $ϕ_{21}$ , $ϕ_{31}$ , $γ$ , and $ϕ_{61}$ . The 10 design dimensions can be set as the design parameters $x_{j} (j = 1 - 10)$ , respectively, as shown in Table 2. The coordinate values of the six points can be given by the design parameters, as shown in Table 3.

Figure 4.

The parameterized configuration of the six-bar working mechanism.

Table 2.

Relationship between the design parameters and the kinematic dimensions.

Design parameters	x ₁	x ₂	x ₃	x ₄	x ₅	x ₆	x ₇	x ₈	x ₉	x ₁₀
Kinematic dimensions	${\overset{⇀}{l}}_{1}$	${\overset{⇀}{l}}_{2}$	${\overset{⇀}{l}}_{3}$	${\overset{⇀}{l}}_{4}$	${\overset{⇀}{l}}_{6}$	$ϕ_{11}$	$ϕ_{21}$	$ϕ_{31}$	$γ$	$ϕ_{61}$

Table 3.

Relationship between the design parameters and the kinematic dimensions.

Points	X-coordinate values	Y-coordinate values
A	0	0
B	$x_{2} * \cos x_{7}$	$x_{2} * \sin x_{7}$
C	$x_{2} * \cos x_{7} + x_{3} * \cos x_{8}$	$x_{2} * \sin x_{7} + x_{3} * \sin x_{8}$
D	$x_{1} * \cos x_{6}$	$x_{1} * \sin x_{6}$
E	$x_{2} * \cos x_{7} + x_{4} * \cos (x_{8} + x_{9})$	$x_{2} * \sin x_{7} + x_{4} * \sin (x_{8} + x_{9})$
F	$x_{1} * \cos x_{6}$	$x_{2} * \sin x_{7} + x_{4} * \sin (x_{8} + x_{9}) + x_{5} * \sin x_{10}$

Based on software MSC/ADAMS, the kinematic design study was conducted to analyze the influences of design parameters toward the slide maximum stroke and the speed monotonic property. Figure 5(a)–(d) shows, respectively, the influences of ${\overset{⇀}{l}}_{1}$ , ${\overset{⇀}{l}}_{2}$ , ${\overset{⇀}{l}}_{3}$ , and ${\overset{⇀}{l}}_{4}$ toward those kinematic characteristics, where curve A denotes the border line of the slide maximum stroke. The arrowhead side is the zone (caller A zone) that the slide maximum stroke is greater than 200 mm. Curve B denotes the border line of the slide speed monotonic property. The arrowhead side is the zone (caller B zone) that the slide speed is monotonic. The intersection of A zone and B zone is the effective zone that meets the kinematic requirements of enough slide maximum stroke and monotonic slide approaching direction. The results of kinematic design study are useful for the optimization model to decide appropriate initial values and value ranges of the design parameters in section “Multi-objective optimum design.”

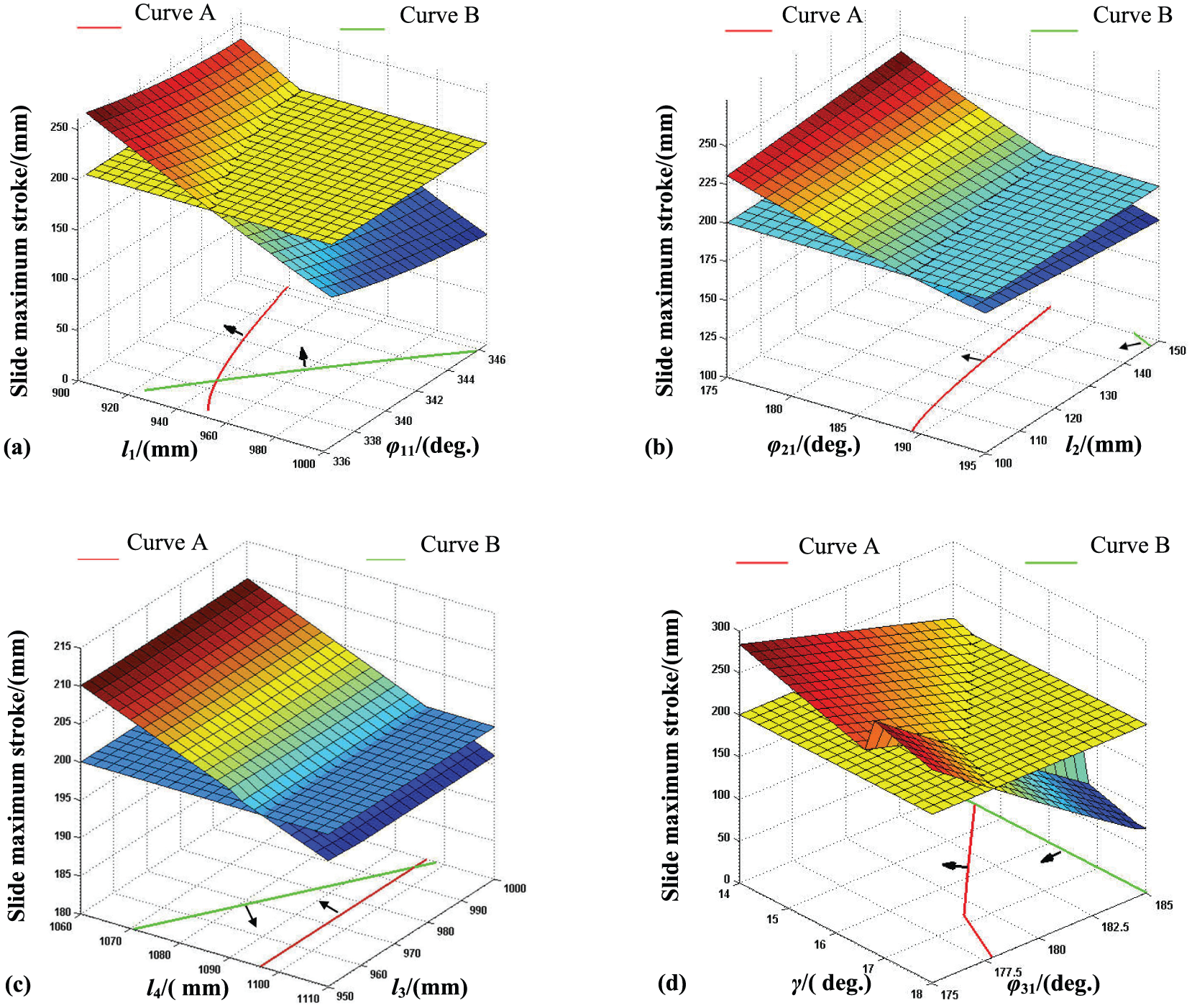

Figure 5.

Influences of design parameters toward slide maximum stroke and speed: (a) x1 and x6; (b) x₂ and x₇; (c) x₃ and x₄ and (d) x₈ and x₉.

Multi-objective optimum design

Multi-objective function

Besides the high mechanical advantage, the other requirements for servo mechanical presses are low-speed characteristics and slow-moving uniformity within the working stroke, namely dwelling characteristics, which is beneficial to reduce the speed-changing requirement within slide approaching stroke.²⁵ Thus, the optimum design here is a multi-objective problem.

It is assumed that the forming force applied to the slide is constant, and the torque required to apply to the input crank can be measured by building measure functions in the software MSC/ADAMS, the non-dimensionalized mechanical advantage can be expressed as follows

f_{1} (x_{j}) = \frac{T_{ref}}{T (t)} (j = 1 - 10)

(8)

where $x_{j} (j = 1 - 10)$ denote the design variables of the optimization model, $T (t)$ is the value of measure function used to measure the crank torque within working stroke, and $T_{ref}$ is the constant reference value of the crank torque.

The low-speed characteristics can be expressed by the relative average speed of the slide within working stroke as follows

f_{2} (x_{j}) = \frac{\bar{V}}{V_{ref}} (j = 1 - 10)

(9)

The slow-moving uniformity can be expressed in terms of coefficient of standard deviation of the slide speed within working stroke as follows

f_{3} (x_{j}) = \sqrt{[\sum_{i = 1}^{N} {(V_{i} - V)}^{2}] / N} / \bar{V} (j = 1 - 10)

(10)

where V_i (mm/s) is the value of slide speed within working stroke, $\bar{V} (mm / s)$ is the average value of slide speed, and N is the number of sampling data.

In this study, it is aimed at maximizing the mechanical advantage and minimizing the slide’s average speed and speed uniformity within the working stroke. For the multi-objective problem, the following multi-objective function is constructed

Minimize f (x_{j}) = \frac{ω_{1}}{f_{1}} + ω_{2} f_{2} + ω_{3} f_{3} (j = 1 - 10)

(11)

where $ω_{1}$ , $ω_{2}$ , and $ω_{3}$ are the weighting factors, given as percentage values, such as 70%, 20%, and 10%, respectively.

Design variables

The kinematic dimensions, as shown in Table 2, are set as the design variables $x_{j} (j = 1 - 10)$ for optimization. The initial values of the design variables can be given based on the suggestions for qualitative design of primary mechanism configuration in section “Qualitative design based on instant centers.”

Constraints

The constraints of the optimization model are mainly dominated by the space limitation and performance requirements of the working mechanism. The space limitation includes the bond values of the design variables and the allowable maximum swag angles of link 4 and link 5. The performance requirements include the desired slide maximum stroke and the slide speed monotonic property. The constraints about allowable maximum swag angles and slide maximum stroke can be decided by the performance index. The constraints about the bond values of design variables and slide speed monotonic property can be given in the light of results of kinematic design study in section “Kinematic design study.” Based on this, the constraints can be expressed as follows

\begin{matrix} Subject to \\ g_{j} = x_{jl} ⩽ x_{j} ⩽ x_{ju} (j = 1 - 10) \\ g_{11} = 0 ⩽ α ⩽ α_{u} \\ g_{12} = 0 ⩽ β ⩽ β_{u} \\ g_{13} = S_{\max l} ⩽ Max (S) ⩽ S_{\max u} \\ g_{14} = V_{sign} ⩽ 0 \end{matrix}

(12)

where $x_{jl}$ and $x_{ju}$ are, respectively, the lower bound and upper bound of the design variables $x_{j}$ ; $α$ and $β$ are measure functions for swag angles of link 4 and link 5, respectively; $α_{u}$ and $β_{u}$ are allowable maximum swag angles of link 4 and link 5, respectively; $Max (S)$ is the function used to get the maximum value of slide stroke. $S_{\max l}$ and $S_{\max u}$ are the required minimum and maximum values of slide stroke, respectively; $V_{sign}$ is the sign function used to identify the direction of the slide motion within approaching stroke (from the TDC to the BDC), and the negative value means that the slide is moving to the BDC.

It can be found that the optimization is a nonlinear constrained optimization problem, and it can be solved by the embedded algorithm, namely, Sequential Quadratic Programming.

Case design and comparative analysis

The performance requirements of a working mechanism are given as shown in Table 4, where the nominal pressure is the reference value about mechanical presses’ tonnage, the slide maximum stroke is the stroke range between the TDC and BDC, and the nominal pressure stroke means the slide stroke range able to undergo the nominal pressure. The initial values of the design variables are given as shown in Table 5. The design constrains are assigned as shown in Table 6. Based on the multi-objective optimization model in section “Multi-objective optimum design” and the software MSC/ADAMS, the optimized values of the design variables and the corresponding multi-objective function value are solved, as shown in Table 7.

Table 4.

Performance requirements for all working mechanisms.

Performance requirements	Nominal pressure	Slide maximum stroke	Nominal pressure stroke	Default stroke rate
Values/units	4000/kN	200/mm	6/mm	30/spm

Table 5.

Initial values of the design variables of the SSM.

Design variables	x ₁	x ₂	x ₃	x ₄	x ₅	x ₆	x ₇	x ₈	x ₉	x ₁₀
Initial values	920	125	970	1085	450	340	185	180	16	310

SSM: Stephenson six-bar mechanism.

Table 6.

Design constrains of the SSM.

$g_{1} = 900 ⩽ x_{1} ⩽ 940 mm$	$g_{8} = 175 ⩽ x_{8} ⩽ 185^{\circ}$
$g_{2} = 100 ⩽ x_{2} ⩽ 150 mm$	$g_{9} = 14 ⩽ x_{9} ⩽ 18^{\circ}$
$g_{3} = 950 ⩽ x_{3} ⩽ 995 mm$	$g_{10} = 305 ⩽ x_{10} ⩽ 315^{\circ}$
$g_{4} = 1070 ⩽ x_{4} ⩽ 1098 mm$	$g_{11} = 0 ⩽ Mea_USwagAng ⩽ 50^{\circ}$
$g_{5} = 400 ⩽ x_{5} ⩽ 490 mm$	$g_{12} = 0 ⩽ Mea_BSwagAng ⩽ 50^{\circ}$
$g_{6} = 336 ⩽ x_{6} ⩽ 346^{\circ}$	$g_{13} = 200 ⩽ Max (Fun_Stroke) ⩽ 210 mm$
$g_{7} = 175 ⩽ x_{7} ⩽ 190^{\circ}$	$g_{14} = Fun_Slide velocity < 0$

SSM: Stephenson six-bar mechanism.

Table 7.

Optimum values of the design variables of the SSM.

Design variables	x ₁	x ₂	x ₃	x ₄	x ₅	x ₆	x ₇	x ₈	x ₉	x ₁₀
Optimum values	930.5	135.0	983	1096	465	341.5	188	180	16	311
Objective function	T	T_ref	$\bar{V}$	${\bar{V}}_{ref}$	f ₁	f ₂	f ₃	f
Objective function values	41,882	200,000	16	60	4.78	3.75	3.80	5.32

SSM: Stephenson six-bar mechanism.

In order to compare the transmission characteristics of the optimum SSM with that of general working mechanisms, such as SCM and symmetrical toggle mechanism (STM), the three working mechanisms with the same performance requirements (as shown in Table 4) have been modeled and simulated by the software MSC/ADAMS.

Figure 6(a) and (b) is the structure diagrams of the SCM and STM, respectively. The information about rod length, rod mass, and friction coefficient are shown in Table 8.

Figure 6.

Structure diagrams of the (a) SCM and (b) STM.

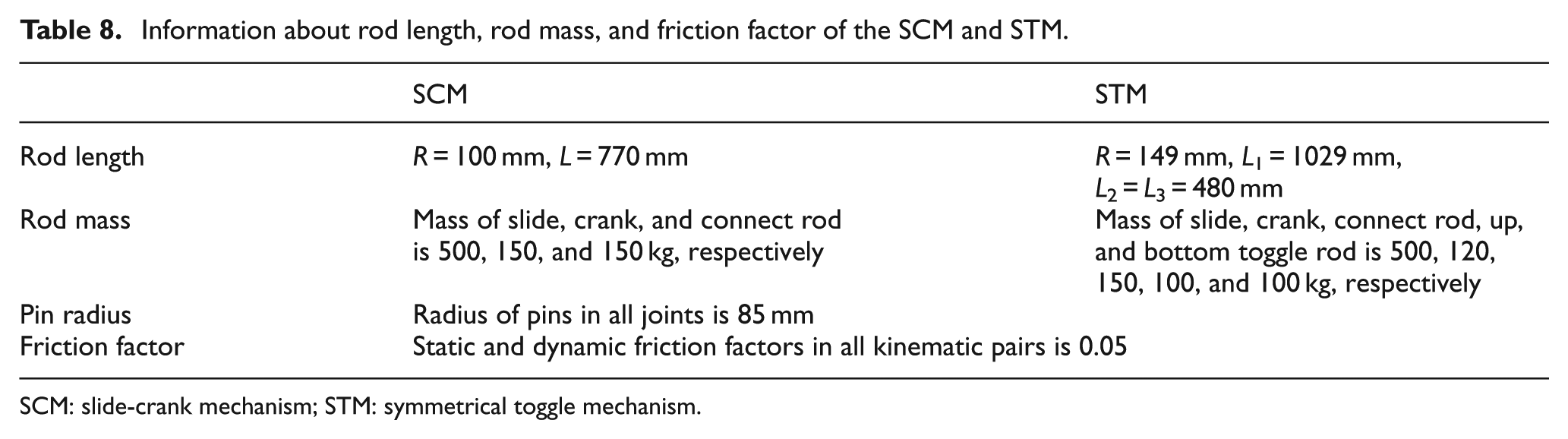

Table 8.

Information about rod length, rod mass, and friction factor of the SCM and STM.

	SCM	STM
Rod length	R = 100 mm, L = 770 mm	R = 149 mm, L₁ = 1029 mm, L₂ = L₃ = 480 mm
Rod mass	Mass of slide, crank, and connect rod is 500, 150, and 150 kg, respectively	Mass of slide, crank, connect rod, up, and bottom toggle rod is 500, 120, 150, 100, and 100 kg, respectively
Pin radius	Radius of pins in all joints is 85 mm
Friction factor	Static and dynamic friction factors in all kinematic pairs is 0.05

SCM: slide-crank mechanism; STM: symmetrical toggle mechanism.

Figure 7 is the virtual prototype of the SSM according to the optimum values of rod dimensions in Table 7. Here, several hypotheses were made as follows:

All parts are rigid;

All clearances at joints are ignored;

The material property of all parts is steel, which decides the mass of rods and slide;

The radius of pins in all joints is 85 mm;

The static and dynamic friction factors of all joints are 0.05;

The servo motor runs at a constant speed without speed volatility.

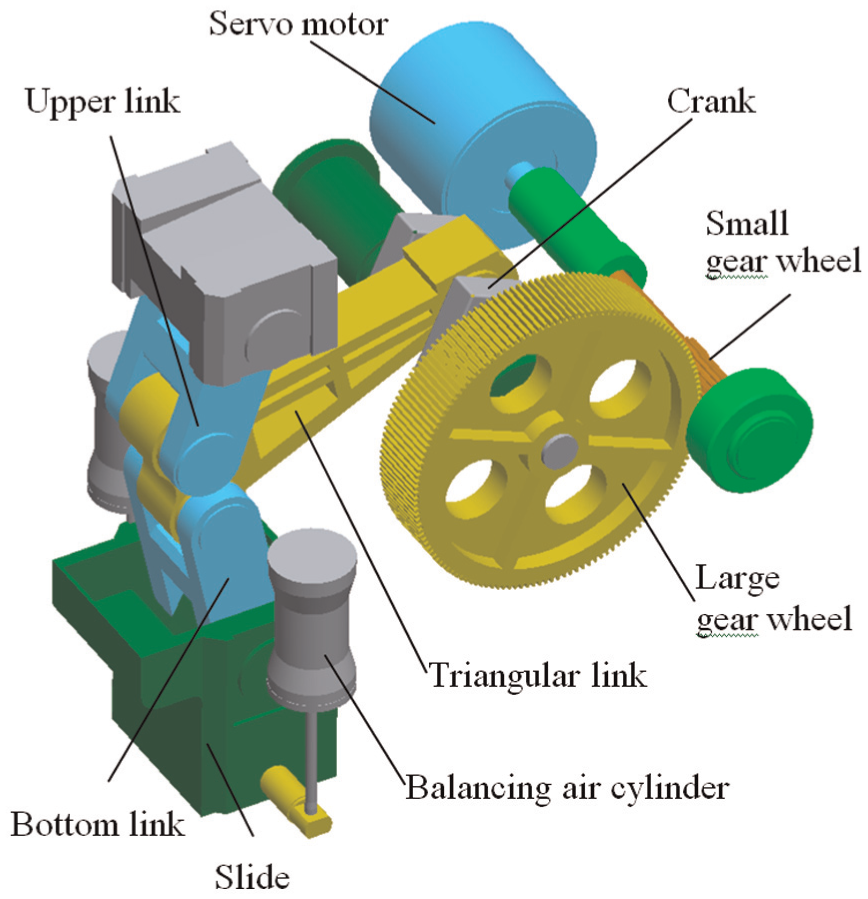

Figure 7.

Virtual prototype of the SSM.

Based on the same calculation conditions, such as the same input speed of crank pi rad/s, end time of 2 s and step size of 0.01 s, the simulations of the three working mechanisms for servo mechanical presses were conducted and some comparison results were got, including slide stroke curves, slide speed curves, crank torque curves, and allowable load curves, as shown in Figures 8 –11, respectively.

Figure 8.

Slide stroke curves.

Figure 9.

Slide speed curves.

Figure 10.

Crank torque curves.

Figure 11.

Slide allowable load curves.

Figures 8 and 9 show, respectively, the stroke and speed curves of the slide within one operational period of the three working mechanisms. From Figure 8, it can be seen that when the input crank rotates at a same constant speed, the advance-to return-time ratios of SCM, STM, and SSM are 1.00, 1.06, and 1.67, respectively, indicating that SSM has the best quick-return characteristics. From Figure 9, it can be seen that within nominal pressure stroke (0–6 mm), the average speeds of the slide are 61, 29, and 16 mm/s, implying that the SSM has the best low-speed characteristics.

Figure 10 shows the required crank torques of the three working mechanisms when 4000 kN nominal pressures are applied to the slides within nominal pressure stroke. It can be seen that at 6 mm nominal pressure stroke point, the required crank torque of the SSM is 41,882 N m, decreasing, respectively, from 180,540 N m by 76.8% and from 122,020 N m by 65.7% when compared with SCM and STM, able to cut down the capacities and costs of servo motors effectively.

Figure 11 shows the allowable loads of the three working mechanisms when the input torque keeps constant within approaching stroke. The allowable load curve is an important performance index and a selection basis for mechanical presses. In order to be convenient for comparison, it is assumed that the nominal pressures at the nominal position (6 mm) of all the three working mechanism are 4000 kN. According to the mechanical advantages of the three working mechanisms, the input torques should be equal to the required torques, namely, 41,882 N m for SSM, 122,020 N m for STM, and 180,540 N m for SCM. It can be seen that when the slide is approaching to the BDC, the allowable load of SSM will decrease first and then increase again, but with a little greater than the nominal pressure 4000 kN.

Experiment validation

In order to validate the transmission characteristics of the designed and optimized Stephenson six-bar working mechanism, an experimental servo mechanical press was designed and manufactured, as shown in Figure 12.

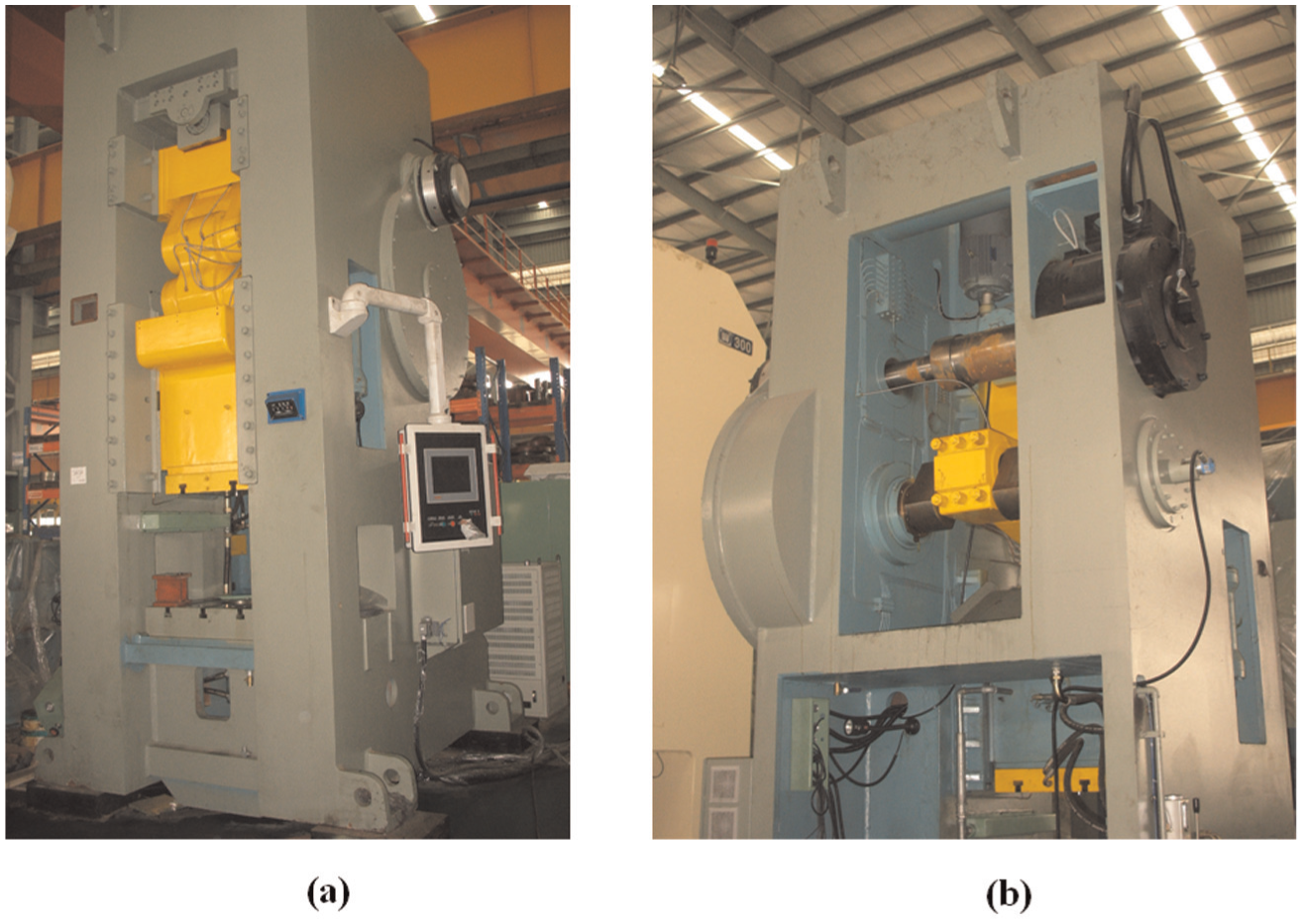

Figure 12.

Experimental servo mechanical press with SSM: (a) front side and (b) back side.

This experimental servo mechanical press was driven by a large capacity servo motor (BAUMULLER, DST2-315, rated power, 78 kW; rated speed, 300 r/min; maximum output torque, 5700 N m), and reduced by a pair of gear wheels (ratio, 1:10). The slide displacement can be measured by a grating scale mounted on the slide. The forming force can be applied to the slide by a hydraulic cylinder and was measured indirectly by a pressure transmitter. The driving torque applied to the crank can be measured by a resistance strain gauge with wireless communication function. The forming force and driving torque signals were received synchronously and processed by a dynamic signal analyzer (DonghuaTEST, DH5905). Figure 13 is the slide stroke curve when the servo motor running at a constant angular speed of 300 r/min, which is similar with the simulation curve (shown in Figure 8), with ideal quick-return and dwelling characteristics.

Figure 13.

Slide stroke curve of the optimum Stephenson six-bar mechanism by experiment.

Figure 14 is the comparison of mechanical advantages at different working strokes (within 20 mm) of the three working mechanism, between the simulation and experiment results. It can be seen that in the 6 mm nominal pressure stroke, the mechanical advantage of the SSM is apparently higher than that of the STM and SCM. For the former, during the nominal pressure stroke, the mechanical advantage is greater than 100 N/N m, with a rebound to 132 N/N m at 4.3 mm. At the position above the BDC 10 mm, the mechanical advantage is still up to 40 N/N m. And, the experimental results have good agreement with the simulation results.

Figure 14.

Comparison of mechanical advantages at different working strokes of the three working mechanism between simulation and experiment.

From the above analysis, it can be validated that the designed and optimized Stephenson six-bar working mechanism has not only high mechanical advantage, but good dwelling characteristics. The higher mechanical advantage makes the SSM cut down greatly the required crank torque, accordingly reducing the required PMSM capacity effectively. The better dwelling characteristics can reduce requirements for varying speed, improving the controllability and saving the energy for acceleration and deceleration.

Conclusion

In order to cut down the capacities of the servo motors and reduce the costs of servo mechanical presses, a two-phase, qualitative and quantitative, design scheme of Stephenson six-bar working mechanisms with high mechanical advantage and good dwelling characteristics for servo mechanical presses was proposed.

In qualitative design, an instant center analysis method was presented to set up the relationship between mechanical advantage and some special instant centers, and to find the primary mechanism configuration with high mechanical advantage, which is advantageous to reduce the searching domain of design variables and to simplify the numeric computation of optimization model.

A sensitivity analysis method is employed to analyze the influences of design parameters to the slide maximum stroke and the slide speed monotonic property, which is useful for the decision of initial and bond values of design variables in optimization.

In quantitative design, a multi-objective optimization method, aiming at high mechanical advantage, low-speed characteristics, and slow-moving uniformity, was employed to synthesize the dimensions of the SSM.

An experimental servo mechanical press was made, and the tests of slide motion and mechanical advantage were conducted. The experimental results validated the simulation results.

Compared with general working mechanisms, the Stephenson six-bar working mechanism has higher mechanical advantage and better dwelling characteristics.
