Abstract

The dynamic model is very important for the design of a wall-climbing robot and the final realization of its motion performance. The general process of dynamic modeling and expression equations of dynamic models are given for the wheeled wall-climbing robot based on the modeling method of the Udwadia-Phohomsiri equation. Firstly, the dynamic model of an unconstrained four-wheeled wall-climbing robot is constructed. Then, a trajectory constraint is defined, the rationality of the dynamic model for the unconstrained wall-climbing robot is verified by numerical simulation. Again, constraint equations under the conditions of synchronous toothed belt structure, non-lateral motion and nonslip between the driving wheel and the wall surface are established. Finally, the dynamic model of the unconstrained wall-climbing robot is gradually combined with constraint equations, and numerical simulations are implemented. Numerical simulation results verify the correctness of the wall-climbing robot model and constraint models, as well as the effectiveness and advantages of the modeling method.

Keywords

Wall-climbing robot dynamic modeling constraints analysis constrained violated stabilization trajectory tracking

Introduction

Wall-climbing robots could be widely used in wind power detection and repair,¹ aircraft skin detection,² building exterior wall cleaning detection,^3,4 dam detection,⁵ and other aerial work fields. They have great application potential in replacing human to complete aerial dangerous work. According to different working environment and structure requirements, there are a variety of adsorption and moving modes for currently developed climbing robots.^6–12

The construction of dynamic models is an important step in the research and development of wall-climbing robots, because the dynamic models play important roles in the design of robot control algorithm to achieve motion performance.¹³ In the literature reported of recent years, when designing wall-climbing robots with different structures and functions, the dynamic modeling methods of wall-climbing robots mainly includes vector mechanics method based on Newton Euler equation^14–19 and analytical mechanics method based on Lagrange equation.^20–22 Dynamic models established by Newton Euler method and by Lagrange method are equivalent.²³ The process of constructing the dynamic equations of wall-climbing robots by Newton Euler method is tedious and difficult to solve, and constraint forces are required to be known in the process of solving. To solve the dynamic models, which constructed by Lagrange multiplier method, the unique solution could be obtained only when the initial conditions satisfied the given conditions. The solution of Lagrange multiplier is also complex. The combination method of Lagrange equation and Newton Euler equation could avoid the calculation of Lagrange multiplier, that would inevitably fall into the analysis process of vector mechanics again. Kane’s equations and Gibbs-Appell formulation embed constraints into dynamic expressions, which could construct dynamic equations without introducing additional parameters such as the Lagrange multiplier. However, the modeling process introduces process parameters such as “partial velocities,”²⁴“quasi-coordinates,”²⁵ and “quasi-accelerations,”²⁶ that do not have clear physical significance. Although the dynamic model of a wall-climbing robot could be constructed concisely by Udwadia-kalaba equation,²⁷ the constraint construction and the constraint treatment of the inherent structural and physical characteristics of the robot system are still important contents in the modeling process, and few scholars focus on these parts.

In this paper, the constraints which were generated by robot structure, working environment, and tasks are analyzed and modeled. The dynamic model and modeling process of a wall-climbing robot were studied and analyzed based on Udwadia-Phohomsiri equation. The dynamic model of unconstrained the wall-climbing robot, as well as models of structure constraint and environmental constraint of the robot such as synchronous toothed belt, non-lateral motion, and nonslip on wall were constructed. By combining with a trajectory tracking task, the correctness of various models was verified step by step. The process of constraint modeling for structures and working environments could be extended in the modeling of other wall-climbing robots or mobile robots with similar structures, so that dynamic equations of robots can be obtained by using analytical mechanics method without solving the auxiliary variables such as Lagrange multiplier. Through the numerical solution of the dynamic equation, the basis for the selection of robot driving motors of the robot could be obtained, which lays the foundation for the structure design and control algorithm design.

The main contributions of this paper are as follows. (1) A modular method for building the dynamic model of wall climbing robot is proposed based on the Udwadia-Phohomsiri equation. The method could construct the dynamic model of robot more flexibly and conveniently. (2) The proposed method could not only reintegrate the body structure of the wall climbing robot after modeling by modules, but also integrate the constraints between structures, or between structures and environments after modeling by modules, which is more convenient for the constraint analysis of the robot. (3) According to the requirements of dynamic analysis, the structure and environmental constraints of the wall climbing robot with the conditions of synchronous toothed belt structure, non-lateral motion and nonslip between the driving wheel and the wall surface are constructed. Combined with the trajectory tracking task, various constraints are applied step by step to the dynamic model of the wall climbing robot. The impacts of various structural constraints on the trajectory tracking task of the wall climbing robot are analyzed through numerical simulation.

The outline of the remaining of the paper is organized as follows. In Section “Theoretical basis,” the theoretical basis of the proposed dynamic modeling method for wall-climbing robot is provided. In Section “Dynamic modeling of the unconstrained wall-climbing robot,” the structure of a wheeled wall-climbing robot is described, and the dynamic model of the unconstrained wall-climbing robot is constructed without considering detailed structural characteristics and specific environmental conditions. In Section “Trajectory tracking of the four wheeled wall-climbing robot,” the dynamic equation of the wall-climbing robot is constructed by assigning a constraint of task trajectory, and the numerical simulation analysis is carried out. In Section “Trajectory tracking of the robot with constraints from synchronous toothed belts,” Section “Trajectory tracking of the robot with non-lateral motion constraint,” and Section “Trajectory tracking of the robot under the nonslip constraint between wheels and wall,” constraints of the wall-climbing robot are analyzed, and constraint equations of the synchronous toothed belt structure, the non-lateral motion structure, and the nonslip between driving wheel and wall surface are constructed. Simulations show influences of constraints on the trajectory tracking task of the wall-climbing robot, and verifies that constraint models are consistent with the actual situation. Finally, in Section “Conclusion,” concluding remarks are stated.

Theoretical basis

Udwadia and Kalaba²⁸ have proposed the basic framework of dynamics modeling for constrained mechanical systems through three steps. Firstly, the dynamic equation of unconstrained system is constructed. Secondly, the working environment and tasks are described as the form of constraint equations. Finally, the dynamic equation for constrained system is constructed by combining the dynamic equation of unconstrained system with constraint equations. Because the dynamic model of multibody system can be established relatively simply, the method has been studied in the aspects of dynamic modeling and control,^29,30 and has been gradually popularized and applied in the field of robots.^31,32 Aiming at the problem for the singularity of mass matrix in dynamics modeling of mechanical systems, Udwadia and Phohomsiri³³ have discussed and solved.

Unconstrained robot system

If each functional part of the robot system is regarded as a single rigid body, according to the Lagrange equation, at any time $t$ , the general form of the dynamic equation of a single rigid body without external constraints can be described by the second-order differential equation as:

M_{i} (q_{i}, t) {\overset{\cdot\cdot}{q}}_{i} = Q_{i} (q_{i}, {\overset{\cdot}{q}}_{i}, t)

(1)

where $q_{i} = {[q_{i}^{1}, q_{i}^{2}, \dots, q_{i}^{n}]}^{T}$ is the $n$ dimensional generalized coordinates used to describe the rigid body. If the rigid body is in three-dimensional space, $n \leq 6$ . ${\overset{\cdot}{q}}_{i}$ and ${\overset{\cdot\cdot}{q}}_{i}$ are all n-vector of generalized velocities and generalized accelerations of the rigid body, respectively. $M_{i} > 0$ is the $n \times n$ inertia matrix, $Q_{i}$ is the generalized force matrix of the un-constrained rigid body.

If $N$ rigid bodies of the robot system are independent of each other, the part $q_{i}$ in the generalized coordinate vector is independent of each other. The arbitrary generalized coordinate part of the unconstrained robot system could be obtained by the Lagrange equation as

\frac{d}{dt} (\frac{\partial L}{\partial {\overset{\cdot}{q}}_{i}}) - \frac{\partial L}{\partial q_{i}} = 0, i = 1, 2, \dots, N

(2)

where $L$ is the Lagrange function of the robot system.

If $q_{i}$ and $q_{j}$ ( $i \neq j$ ) are the generalized coordinates in the robot system, the rigid body structure $i, j \in (1, N)$ described by the generalized coordinate is independent of each other. Then generalized coordinates which used to describe the robot system can be expressed as:

q = {[{(q_{1})}^{T}, {(q_{2})}^{T}, \dots, {(q_{N})}^{T}]}^{T}

(3)

If the i-th rigid body in a robot system is described by $n_{i}$ column vectors of the generalized coordinate $q_{i}$ , the total number of generalized coordinates in the system is

k = \sum_{i = 1}^{N} n_{i}

(4)

The dynamic equations of the robot system under unconstrained conditions could be integrated as

M \overset{\cdot\cdot}{q} : = [\begin{matrix} M_{1} & 0 & \dots & 0 \\ 0 & M_{2} & \dots & 0 \\ ⋮ & ⋮ & ⋱ & ⋮ \\ 0 & 0 & \dots & M_{N} \end{matrix}] [\begin{matrix} {\overset{\cdot\cdot}{q}}_{1} \\ {\overset{\cdot\cdot}{q}}_{2} \\ ⋮ \\ {\overset{\cdot\cdot}{q}}_{N} \end{matrix}] = [\begin{matrix} Q_{1} \\ Q_{2} \\ ⋮ \\ Q_{N} \end{matrix}] : = Q

(5)

In equation (5), the virtual displacements of the subsystems in the $k$ dimensional vector $q$ are independent of each other. The motion equation of each rigid body can be constructed independently first and then combined. This provides flexibility for selecting generalized coordinates in the vector $q$ with $k$ elements, and provides convenient to obtain the acquisition of equation (5).

Constraint models

In order to accomplish specific tasks, a robot system needs to be constrained in many specific forms. If the number of constraints imposed on the robot is $m$ , in which the number of holonomic constraints is $m_{1}$ , and the number of nonholonomic constraints is $m_{2}$ , $m = m_{1} + m_{2}$ . Then constraint equations can be expressed as

φ_{k} (q, t) = 0, k = 1, 2, \dots, m_{1}

(6)

ψ_{k} (q, \overset{\cdot}{q}, t) = 0, k = 1, 2, \dots, m_{2}

(7)

Equations (6) and (7), which describe constraints of the robot system, contain the number of equations is $m$ . These equations are related to $k$ -dimensional vectors $q$ and $\overset{\cdot}{q}$ .

Φ = {[\begin{matrix} φ_{1} & φ_{2} & \dots & φ_{m_{1}} \end{matrix}]}^{T} = 0

(8)

Ψ = {[\begin{matrix} ψ_{2} & ψ_{2} & \dots & ψ_{m_{2}} \end{matrix}]}^{T} = 0

(9)

If continuous constraint equations in equations (8) and (9) are smooth enough, the first and second derivatives of their relative time $t$ are calculated, respectively. The constraint equation could be obtained as

A (q, \overset{\cdot}{q}, t) \overset{\cdot\cdot}{q} = b (q, \overset{\cdot}{q}, t)

(10)

where $A$ is an $m \times k$ dimensional matrix, $b$ is an $m$ dimensional vector. Each row in equation (10) corresponds to a constraint equation applied to the robot system.

Dynamic model of constrained robot

In order to complete given tasks of the robot system, constraints which represented by equation (10) are applied to the dynamic model of the unconstrained robot system represented by equation (5). When the k-dimensional generalized forces/torques vector $Q_{c}$ is applied to the dynamic model of the unconstrained robot, the dynamic equation of the robot with constraints can be expressed as

M (q, t) \overset{\cdot\cdot}{q} = Q (q, \overset{\cdot}{q}, t) + Q_{c} (q, \overset{\cdot}{q}, t)

(11)

The coordinates in the generalized coordinate vector $q$ are independent of each other, and the $k \times k$ dimensional matrix $M$ which given in equation (5) generally is a semi-positive definite.

According to Udwadia-Phohomsiri equation,³³ if constraint equations and the dynamic equation of the unconstrained robot are correctly described, then the matrix with the rank of $k$ is

\hat{M} = [\begin{matrix} M \\ A \end{matrix}]

(12)

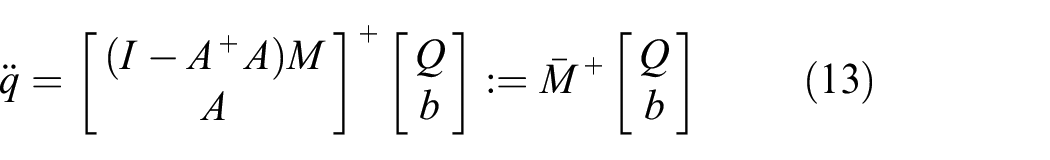

The explicit acceleration equation for the constrained robot can be expressed as

\overset{\cdot\cdot}{q} = {[\begin{matrix} (I - A^{+} A) M \\ A \end{matrix}]}^{+} [\begin{matrix} Q \\ b \end{matrix}] : = {\bar{M}}^{+} [\begin{matrix} Q \\ b \end{matrix}]

(13)

where ${(\cdot)}^{+}$ is the Moore-Penrose generalized inverse of the matrix. By substituting equation (13) into equation (11), the constraint forces/torques required to be imposed on the robot to realize given constraint conditions could be obtained as

Q_{c} = M {\bar{M}}^{+} [\begin{matrix} Q \\ b \end{matrix}] - Q

(14)

Thus, the explicit equation of the robot and the constraint equations of forces/torques all could be obtained. The dynamic model of the robot could be constructed.

Dynamic modeling of the unconstrained wall-climbing robot

Structure of the four wheeled wall-climbing robot

Consider an individual wall-climbing robot with general features, as shown in Figure 1. The robot is attached to the vertical wall, and two driving motors drive the wheels on the same side of the robot respectively through the synchronous toothed belt to form a four-wheel drive. The robot can go straight or turn by controlling the synchronous or differential rotation of the left and right driving wheels.

Figure 1.

The four wheeled wall-climbing robot on the wall.

In Figure 1, $XOY$ is the wall coordinate system perpendicular to the horizontal ground. $p$ is the geometric center point of the four wheels on the wall-climbing robot. $x_{p} p y_{p}$ is the local coordinate system of robot with $p$ as the origin, $x_{p}$ coincides with the symmetry axes of the left and right wheels of the robot, and $y_{p}$ coincides with the symmetrical center lines of the front and rear wheels of the robot. $x$ , $y$ are coordinates of point $p$ in the wall coordinate system, and $θ$ is the angle between the $x_{p}$ axis in the local coordinate system and the $X$ axis in the wall coordinate system. $c$ is the body mass center of the wall-climbing robot. Due to the influence of the installation positions of the robot’s electrical components, controllers, and sensors, it is often difficult for the robot’s body mass center $c$ to precisely coincide with the geometric center position $p$ . $x_{c}$ and $y_{c}$ are coordinates of the mass center of the wall-climbing robot in the wall coordinate system. $x_{pc}$ and $y_{pc}$ are coordinates of the mass center of the wall-climbing robot in the local coordinate system. $2 b$ is the distance between the left and right wheel centers of the wall-climbing robot. $2 l$ is the distance between the front wheel axis and the rear wheel axis of the wall-climbing robot.

According to the general form of Lagrange dynamic equation, the dynamic model of the wall-climbing robot can be expressed as

M (q, t) \overset{\cdot\cdot}{q} + C (q, \overset{\cdot}{q}, t) \overset{\cdot}{q} + G (q, t) + F_{d} = Q_{c} (q, \overset{\cdot}{q}, t)

(15)

where $q$ is the generalized coordinate of the geometric center point p on the wall-climbing robot. $\overset{\cdot}{q}$ and $\overset{\cdot\cdot}{q}$ are the generalized velocity and acceleration vector of point p, respectively.

$M$ is the mass matrix of the wall-climbing robot. $C$ is the centripetal Coriolis force matrix. $G$ is the gravity term matrix. $F_{r}$ is the friction resistance matrix of the wall to the robot, which is closely related to the adsorption force of the wall-climbing robot. $Q_{c}$ is the constraint vector to be applied to the wall-climbing robot by the driving motor.

Let

Q (q, \overset{\cdot}{q}, t) = - C (q, \overset{\cdot}{q}, t) - G (q, t)

(16)

Q_{v} (q, \overset{\cdot}{q}, t) = Q (q, \overset{\cdot}{q}, t) - F_{d}

(17)

According to the Udwadia-Kalaba equation, the dynamic model of the wall-climbing robot could be expressed as

M (q, t) \overset{\cdot\cdot}{q} = Q_{v} (q, \overset{\cdot}{q}, t) + Q_{c} (q, \overset{\cdot}{q}, t)

(18)

Analysis of adsorption force

The motion resistance of the robot on the wall is determined by the adsorption force. The larger the adsorption force is, the greater the stability and load capacity of the wall-climbing robot are, and the motion resistance on the wall increases correspondingly.

When the wall-climbing robot is stationary on the wall, it needs to meet

μ F_{a} = (m_{c} + 4 m_{w}) g

(19)

where $F_{a}$ is the equivalent adsorption force of the wall-climbing robot, $μ$ is the friction coefficient between the robot wheel and the wall, $m_{c}$ is the mass of the wall-climbing robot platform, $m_{w}$ is the mass of a driving wheel of the wall-climbing robot. The equivalent adsorption force can be obtained as

F_{a} = \frac{(m_{c} + 4 m_{w}) g}{μ}

(20)

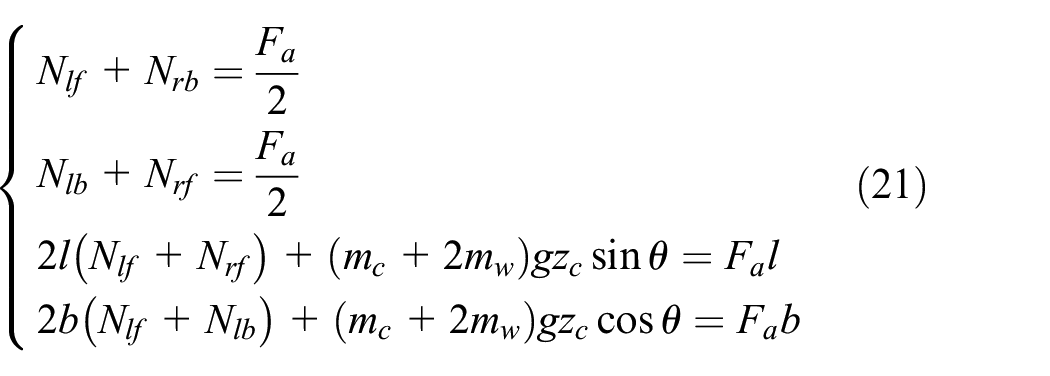

If the mass centers of the four wheels in the same plane with the mass center of the body structure, the distance between the center of mass and the wall is $z_{c}$ . The equivalent adsorption force act on the geometric center of the robot. Based on the principle of force balance and moment balance when the wall-climbing robot is stationary on the wall. The equilibrium equation can be obtained as

\begin{matrix} {\begin{matrix} N_{lf} + N_{rb} = \frac{F_{a}}{2} \\ N_{lb} + N_{rf} = \frac{F_{a}}{2} \\ 2 l (N_{lf} + N_{rf}) + (m_{c} + 2 m_{w}) g z_{c} \sin θ = F_{a} l \\ 2 b (N_{lf} + N_{lb}) + (m_{c} + 2 m_{w}) g z_{c} \cos θ = F_{a} b \end{matrix} \end{matrix}

(21)

where $N_{lf}$ is the elastic force of the wall to the left front wheel of the robot, $N_{lb}$ is the elastic force of the wall to the left back wheel of the robot, $N_{rf}$ is the elastic force of the wall to the right front wheel of the robot, $N_{rb}$ is the elastic force of the wall to the right back wheel of the robot.

From

N_{min} = min (N_{lf}, N_{lb}, N_{rf}, N_{rb}) > 0

(22)

The following inequality can be obtained as

\begin{matrix} F_{a} > max \\ (\frac{z_{c}}{b} (m_{c} + 2 m_{w}) g (\cos θ + \sin θ), \frac{z_{c}}{l} (m_{c} + 2 m_{w}) g (\cos θ + \sin θ)) \end{matrix}

(23)

Combined with the equation (6)

\begin{array}{l} F_{a} > \max (\frac{(m_{c} + 4 m_{w}) g}{μ}, \frac{z_{c}}{b} (m_{c} + 2 m_{w}) g (\cos θ + \sin θ), \\ \frac{z_{c}}{l} (m_{c} + 2 m_{w}) g (\cos θ + \sin θ)) \end{array}

(24)

The minimum critical equivalent adsorption force, which acting on the wall-climbing robot can be obtained. According to the relationship between the wall friction resistance and the equivalent adsorption force, the friction resistance of the wall-climbing robot can be obtained as

F_{d} = [\begin{matrix} μ \cos θ \\ μ \sin θ \\ 0 \end{matrix}] F_{a} .

(25)

Dynamic model of the unconstrained wall-climbing robot

The centroid position of the body structure for the wall-climbing robot in the XOY coordinate system can be expressed as

{\begin{matrix} x_{c} = x + \sqrt{x_{pc}^{2} + y_{pc}^{2}} \cos (θ + \arctan \frac{y_{pc}}{x_{pc}}) \\ y_{c} = y + \sqrt{x_{pc}^{2} + y_{pc}^{2}} \sin (θ + \arctan \frac{y_{pc}}{x_{pc}}) \end{matrix}

(26)

Axis position coordinates of the left two wheels and the right two wheels for the wall-climbing robot can be expressed as

{\begin{matrix} x_{lf / lb} = x \pm \sqrt{l^{2} + b^{2}} \cos (\arctan \frac{b}{l} \pm θ) \\ {y_{lf /}}_{lb} = y + \sqrt{l^{2} + b^{2}} \sin (\arctan \frac{b}{l} \pm θ) \end{matrix}

(27)

and

{\begin{matrix} {x_{rf /}}_{rb} = x \pm \sqrt{l^{2} + b^{2}} \cos (\arctan \frac{b}{l} \mp θ) \\ y_{rf / rb} = y - \sqrt{l^{2} + b^{2}} \sin (\arctan \frac{b}{l} \mp θ) \end{matrix}

(28)

According to the modeling idea of the Udwadia-Kalaba equation, the dynamic model of the wall-climbing robot without driving constraints can be obtained through the Lagrange equation

M \overset{\cdot\cdot}{q} = Q_{v}

(29)

in equation (29)

M = [\begin{matrix} m_{c} + 1 & 0 & - λ_{1} \sin (θ + α) \\ 0 & m_{c} + λ_{2} & λ_{1} \cos (θ + α) \\ - λ_{1} \sin (α + θ) - λ_{2} \cos θ & λ_{1} \cos (α + θ) - λ_{2} \sin θ & (m_{c} + I_{c}) (x_{pc}^{2} + y_{pc}^{2}) + λ_{3} \end{matrix}]

(30)

\overset{\cdot\cdot}{q} = [\begin{matrix} \overset{\cdot\cdot}{x} \\ \overset{\cdot\cdot}{y} \\ \overset{\cdot\cdot}{θ} \end{matrix}]

(31)

and

Q_{v} = Q - F_{d} .

(32)

In equation (32)

Q = [\begin{matrix} λ_{1} \cos (α + θ) {\overset{\cdot}{θ}}^{2} \\ λ_{1} \sin (α + θ) {\overset{\cdot}{θ}}^{2} - m_{c} g - m_{w} g \\ [λ_{1} \sin (α + θ) + λ_{2} \cos θ] \overset{\cdot}{y} \overset{\cdot}{θ} + [λ_{1} \cos (α + θ) - λ_{2} \sin θ] \overset{\cdot}{x} \overset{\cdot}{θ} + m_{w} g \sin θ + λ_{1} g \cos (α + θ) \end{matrix}]

(33)

In equations (30) and (33)

{\begin{matrix} α = \arctan \frac{y_{pc}}{x_{pc}} \\ λ_{1} = m_{c} \sqrt{x_{pc}^{2} + y_{pc}^{2}} \\ λ_{2} = m_{w} + \frac{B_{w}}{r^{2}} \\ λ_{3} = λ_{2} b + λ_{2} \frac{l^{2}}{b} + \frac{A_{w}}{b} \end{matrix}

(34)

in equations (30), (33), and (34), $I_{c}$ is the moment of inertia of the wall-climbing robot body about point $P$ in the direction of $Z$ -axis, $\overset{\cdot}{θ}$ is the first derivative of the relative time of the angle $θ$ , $g$ is the acceleration of gravity. $A_{w}$ is the moment of inertia in the radial direction of the wheel. $B_{w}$ is the moment of inertia in the direction of wheel axle. $r$ is the radius of the wheel.

The proposed dynamic model of the unconstrained wall-climbing robot neither include the external constraints imposed by the robot to perform the predetermined tasks, nor include the structural constraints of robot itself. The model is the wall-climbing robot structure with four omni-directional wheels, and each omni-directional wheel on each corresponding position of the body.

Trajectory tracking of the four wheeled wall-climbing robot

Trajectory constraints are common holonomic constraints in robot dynamics. It is a common task in application scenarios to make the wall-climbing robot move along a given trajectory.

Task trajectory constraints

According to the specific task, the wall-climbing robot needs to move on wall according to specified trajectories. One of trajectories is a circle and the equation is

{\begin{matrix} x = 10 \sin t \\ y = - 10 \cos t \end{matrix}

(35)

The other trajectory is an 8-shaped, and the equation is

{\begin{matrix} x = 8 \sin t \\ y = 8 \sin \frac{t}{2} \end{matrix}

(36)

Differentiating equations (35) and (36) with respect to time t twice yields

{\begin{matrix} \overset{\cdot\cdot}{x} = - 10 \sin t \\ \overset{\cdot\cdot}{y} = 10 \cos t \end{matrix}

(37)

{\begin{matrix} \overset{\cdot\cdot}{x} = - 8 \sin t \\ \overset{\cdot\cdot}{y} = - 2 \sin \frac{t}{2} \end{matrix}

(38)

According to the Udwadia-Phohomsiri modeling method, the constraint equation could be obtained as

A_{1} (q, \overset{\cdot}{q}, t) \overset{\cdot\cdot}{q} = b_{1} (q, \overset{\cdot}{q}, t)

(39)

Baumgarte stability correction for the trajectory constraint

The forward dynamic simulation of the robot needs to solve the dynamic equation of the wall-climbing robot with constraints. In this process, the initial conditions of the robot are required to meet the requirements of the constraint equation, which is difficult to realize in the practical application of the robot. The numerical solution of acceleration level equation inevitably produces the constraint violation errors. The control of constraint violation errors can be realized by the correction of acceleration, speed, or position level.³⁴ Baumgarte violation stability correction method³⁵ can eliminate the influence of numerical solution errors from the acceleration level without significantly increasing the amount of numerical simulation calculation, and make the robot that does not meet the initial conditions asymptotically stable to the constrained trajectory. Therefore, the Baumgarte violation stability correction method is selected in this paper to complete the numerical simulation of task trajectory constraint tracking.

According to equation (8), the trajectory constraint as a complete constraint equation could be denoted as

Φ \equiv Φ (q) = 0

(40)

Combined with equation (39), the second derivative of equation (40) could be recorded as

\overset{\cdot\cdot}{Φ} \equiv A_{1} \overset{\cdot\cdot}{q} - b_{1} = 0

(41)

The Baumgarte violation stability correction method treats the integrating process shown in Figure 2 as an open-loop control system. In this system, if there is any interference, neither $\overset{\cdot}{Φ}$ nor $\overset{\cdot\cdot}{Φ}$ could converge to zero, so the system is unstable.

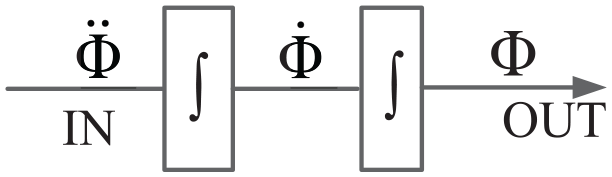

Figure 2.

Integrating processes.

According to the Baumgarte constrained violated stabilization method, replace $\overset{\cdot\cdot}{Φ}$ with

\overset{\cdot\cdot}{Φ} + α \overset{\cdot}{Φ} + β Φ = 0 .

(42)

If $α > 0$ , $β > 0$ , then the system is stable.

The basic correction principle of this idea is that the numerical integration error is regarded as interference. The structure of the control system of closed loop can be considered as Figure 3. From the formula (42), it can be found that the fundamental principle of the correction equation is to correct the acceleration by the feedback of position and velocity. Equation (42) is the differential equation of the closed loop system of the constrained equation, and in which $α$ and $β$ can be considered as control parameters. The stability result of constrained violated is related to the choices of violation stability parameters.³⁶

Figure 3.

The control system of the method for constrained stabilization.

Combined equation (41) and (42), the trajectory constraint equation which is treated by stability correction could be obtained as

A_{1} \overset{\cdot\cdot}{q} = b_{1 B}

(43)

in which

b_{1 B} = b_{1} - α \overset{\cdot}{Φ} - β Φ

(44)

Dynamic model of the robot with trajectory constraint

According to the Udwadia-Phohomsiri equation, the explicit acceleration equation of the wall-climbing robot with the modified trajectory constraint can be obtained as

\overset{\cdot\cdot}{q} = {\bar{M}}^{+} [\begin{matrix} Q_{v} \\ b_{1 B} \end{matrix}]

(45)

in which,

\bar{M} = [\begin{matrix} (I - A_{1}^{+} A_{1}) M \\ A_{1} \end{matrix}]

(46)

in equations (45) and (46), $M$ is obtained by formula (30), $Q_{v}$ is obtained by formula (32), $A_{1}$ and $b_{1 B}$ are obtained by formula (43), and $I$ is a three-dimensional identity matrix.

The constraint force equation of the wall-climbing robot system with the given trajectory constraint is

Q_{c} = M {\bar{M}}^{+} [\begin{matrix} Q_{v} \\ b_{1 B} \end{matrix}] - Q_{v}

(47)

Equation (45) represents the dynamic equation of the wall-climbing robot with four omni-directional wheels installed at each corresponding position of the robot body part under the given trajectory constraint. The numerical simulation of the forward dynamics for the wall-climbing robot can be carried out according to the equation. Equation (47) represents the equation of constraint forces along the wall coordinate directions when the robot moves along the given trajectory. According to the equation, the selection of robot motor and parts can be checked, which lays the foundation for the design of robot controller.

Numerical simulation analysis

The structural parameters of the wall-climbing robot shown in Figure 1 are shown in Table 1. The numerical simulation is carried out on a PC with Intel Core i5 CPU, 3.20 GHz basic frequency, and 4.00 GB RAM. The Simulink platform of software MATLAB 2019a is used in the simulation. The fourth-order Runge Kutta integration method with fixed step size is used to the simulation calculation, and the integration step size is 0.001 s. The simulation time for circular and 8-shaped trajectories is set to 20 and 30 s, respectively.

Table 1.

Physical parameters of the wall-climbing robot.

Parameter (unit)	$m_{c}$ $(kg)$	$m_{w}$ $(kg)$	$x_{pc}$ $(m)$	$y_{pc}$ $(m)$	$l$ $(m)$	$b$ $(m)$	$I_{c}$ $(kg \cdot m^{2})$	$A_{w}$ $(kg \cdot m^{2})$	$B_{w}$ $(kg \cdot m^{2})$	$r$ $(m)$	$g$ $(m / s^{2})$
Figure	$50$	$2$	$0.1$	$0.1$	$0.6$	$0.5$	$1$	$0.0036$	$0.0036$	$0.15$	$9.8$

If at the initial time of $t = 0$ , the initial position coordinates of the geometric center $p$ of the wall-climbing robot are $x (0) = 0 m$ , $y (0) = 0 m$ , $θ (0) = 0 rad$ . The initial velocities of each coordinate direction are $\overset{\cdot}{x} (0) = 0 m / s$ , $\overset{\cdot}{y} (0) = 0 m / s$ , $\overset{\cdot}{θ} (0) = 0.1 rad / s$ when implementing circular trajectory simulation. The initial velocities of each coordinate direction are $\overset{\cdot}{x} (0) = 8 m / s$ , $\overset{\cdot}{y} (0) = 4 m / s$ , $\overset{\cdot}{θ} (0) = 0 rad / s$ , which are compatible with the constraint requirements when implementing 8-shaped trajectory simulation. The violation stability parameters are taking as $α = diag (10, 10)$ , $β = diag (100, 100)$ . The numerical simulation results are shown in Figures 4 to 9.

Figure 4.

Numerical trajectories of the robot along coordinate axes of the wall coordinate system: (a) circular trajectory and (b) “8-shaped” trajectory.

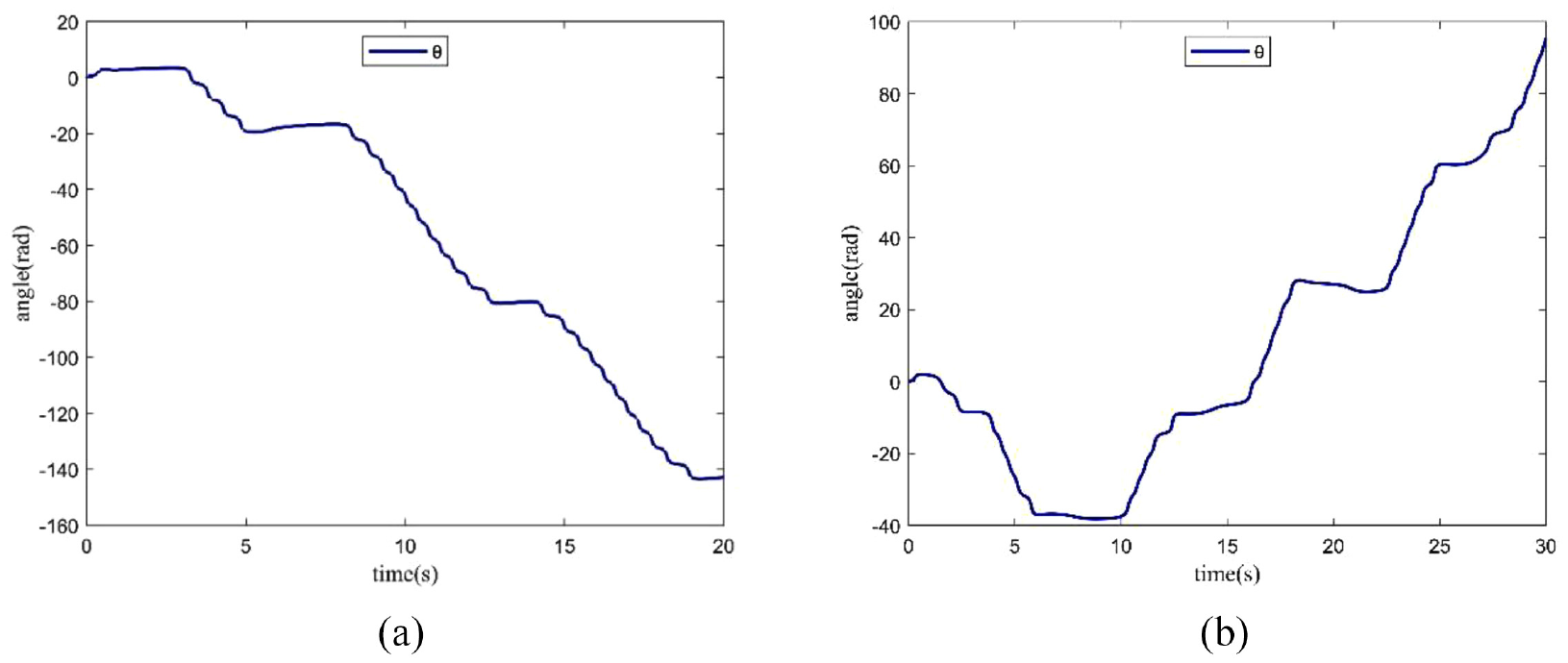

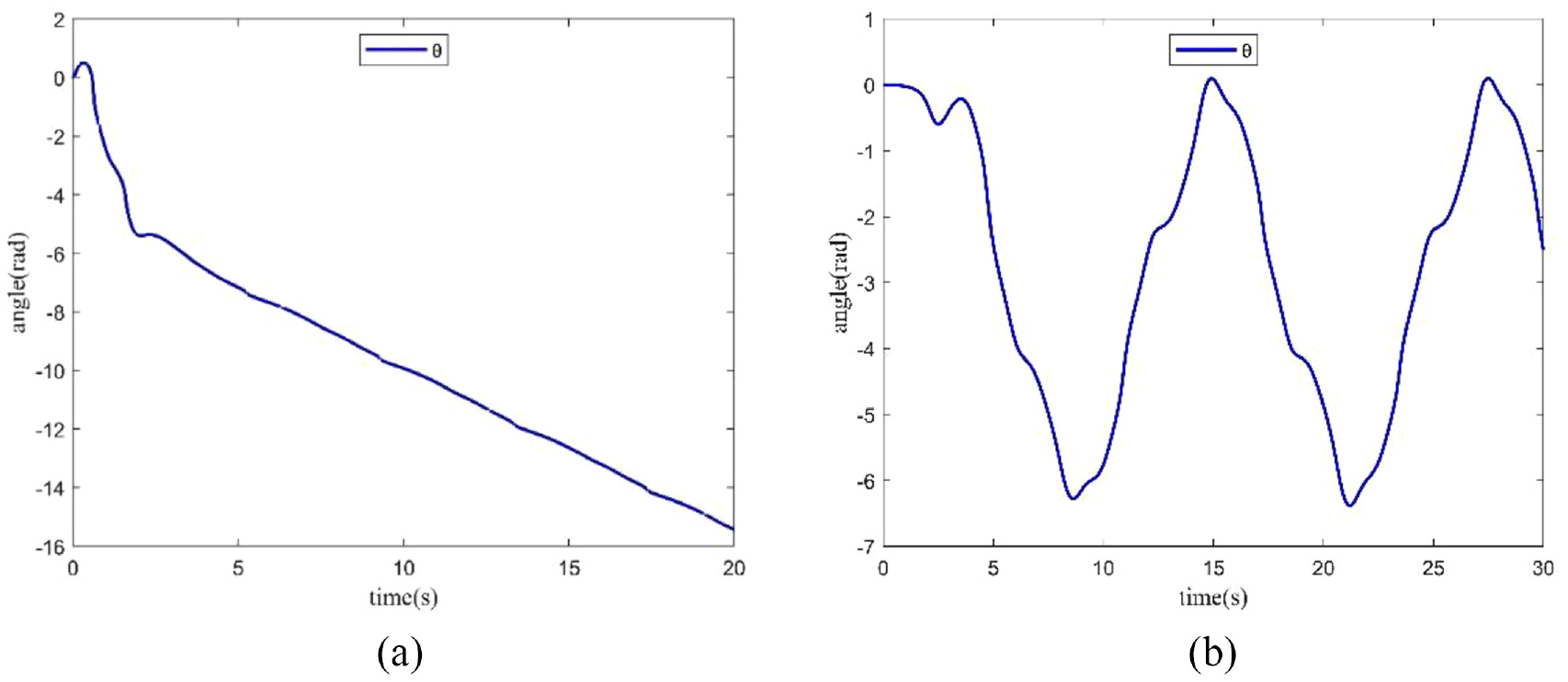

Figure 5.

The change curve of the robot attitude angle $θ$ which is obtained from solving the dynamic equation: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 6.

The trajectory of the robot geometric center in the wall coordinate system: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 7.

The error between the trajectory of the robot geometric center and the desired theoretical trajectory: (a) circular trajectory and (b) “8-shaped” trajectory.

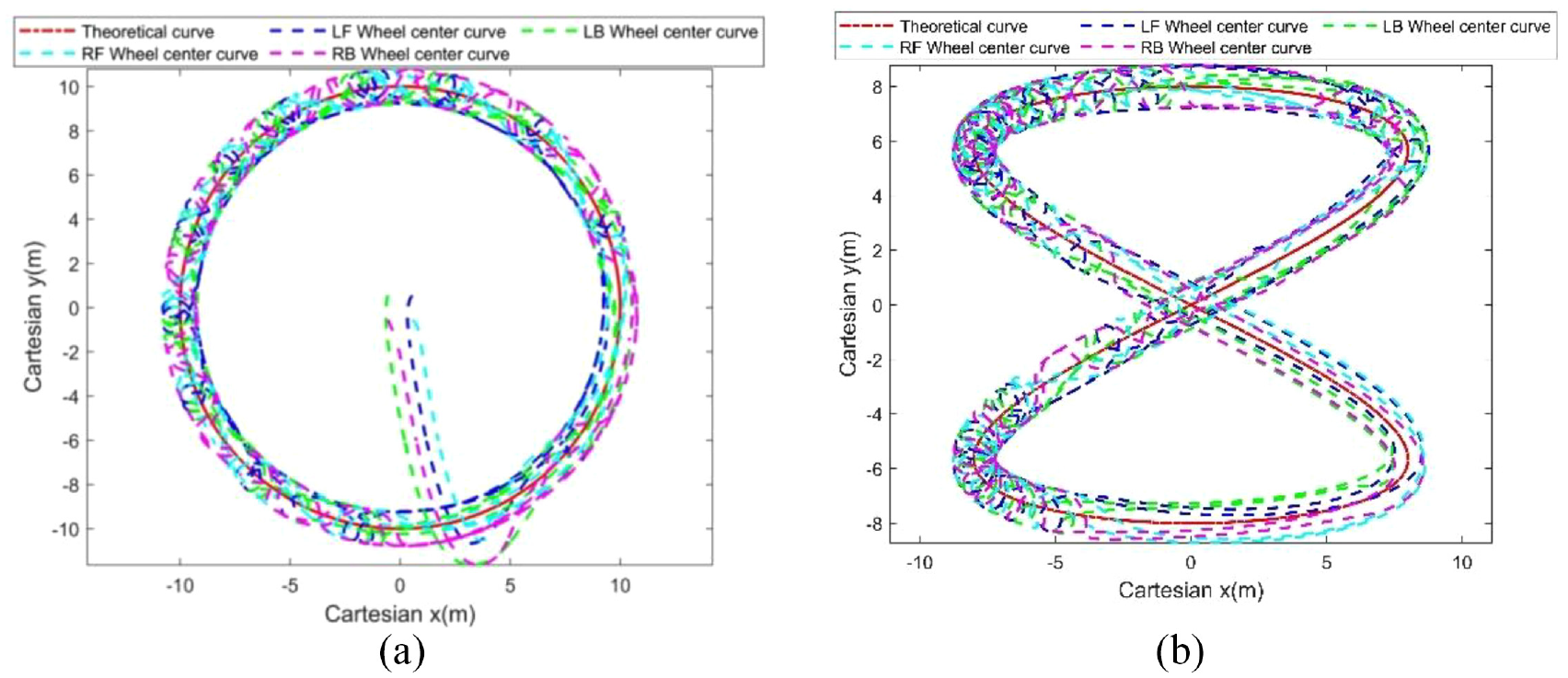

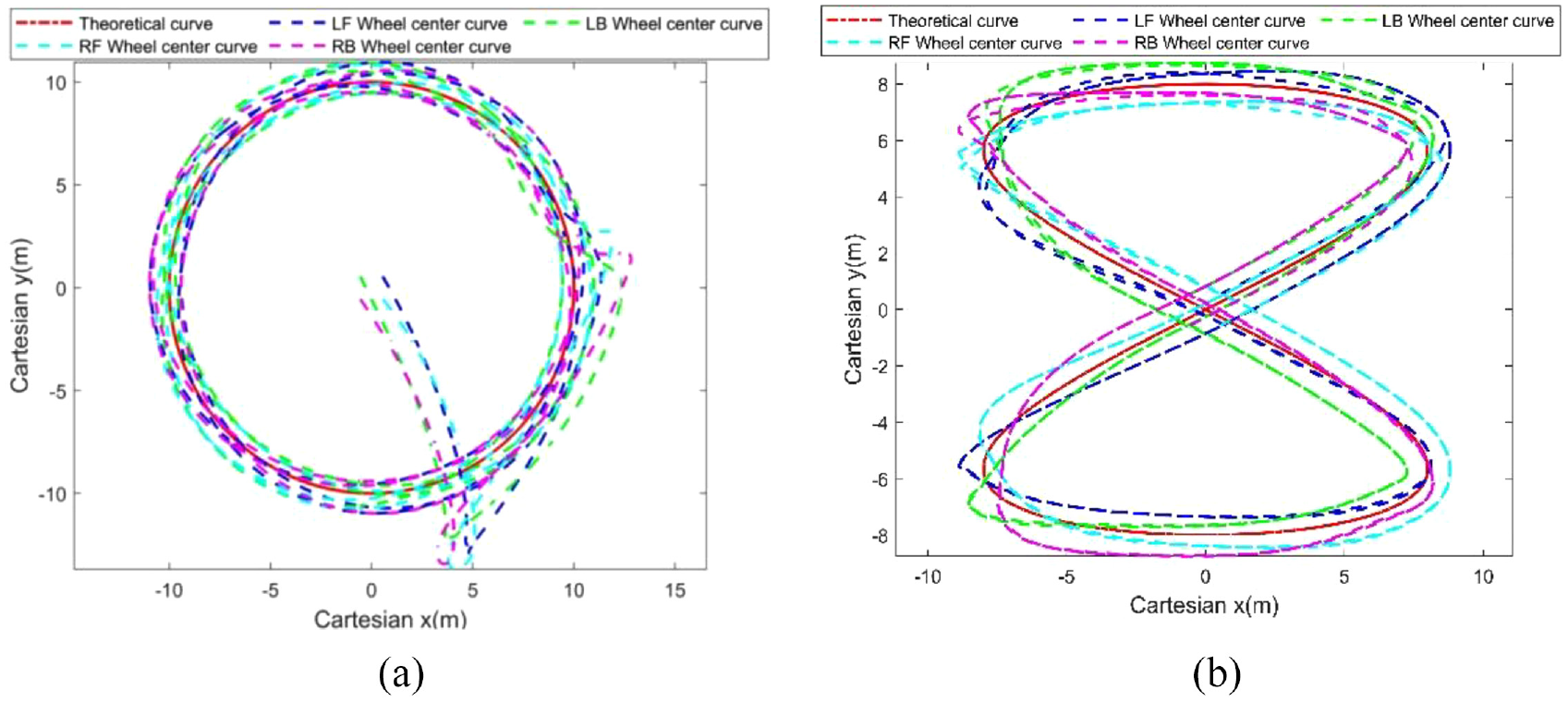

Figure 8.

Position trajectories of four wheels in the wall coordinate system: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 9.

Constraint forces of the wall-climbing robot on the wall: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 4 shows the relationship between the numerical solution of the dynamic equation of the wall-climbing robot and the desired theoretical trajectory in the wall coordinate system. The black dotted line in the figure represents the theoretical curve of the geometric center $p$ of the wall-climbing robot along the X-axis in the wall coordinate system under the constraint of the task trajectory. The red dotted line represents the theoretical curve of the geometric center $p$ of the wall-climbing robot along the $Y$ -axis in the wall coordinate system under the constraint of the task trajectory. The black solid line in the figure represents the numerical curve of the geometric center point $p$ of the wall-climbing robot along the $X$ -axis direction in the wall coordinate system, obtained from the numerical solution result of the dynamic equation of the wall robot with task trajectory constraints. The red solid line represents the numerical curve of the geometric center point $p$ of the wall-climbing robot along the $Y$ -axis direction in the wall coordinate system, also obtained from the numerical solution result of the dynamic equation of the wall robot with task trajectory constraints. Figure 5 shows the curve of $θ$ between the direction of the coordinate axis $x_{p}$ in the local coordinate system of the wall-climbing robot and the direction of the coordinate axis $X$ in the wall coordinate system. Figure 6 shows the trajectory curve earned from the numerical solution of the dynamic equation and the trajectory curve of the desired task in the wall coordinate system. Figure 7 further shows the error between the numerical solution trajectory of the wall-climbing robot center and the desired theoretical trajectory. Figure 8 shows four wheels position trajectories of the robot in the wall coordinate system obtained by solving the dynamic equation of the wall-climbing robot. The red dotted line in the figure represents the desired task trajectory of the robot geometric center, and the blue dotted line, green dotted line, cyan dotted line, and purple dotted line represent wheel trajectories of the front left, rear left, front right, and rear right of the wall-climbing robot respectively. Figure 9 shows the change of constraint forces on the wall surface of the wall-climbing robot in order to complete the given trajectory tracking task. In the figure, the black solid line indicates the change of constraint force in the $X$ axis direction in the wall coordinate system, the red solid line indicates the change of constraint force in the $Y$ axis direction in the wall coordinate system, and the blue solid line indicates the change of the torque which needs to be applied to change the attitude parameter $θ$ of the wall-climbing robot in the wall coordinate system.

From Figures 4 to 9, It could be seen that:

(1) When implementing the 8-shaped trajectory simulation, the given initial conditions are compatible with the constraint requirements. Baumgarte stability could correct integration errors so that trajectory tracking errors remains within a small range during simulation.

(2) When implementing the circular trajectory simulation, the Baumgarte stability method could gradually move the geometric center of the wall-climbing robot from the initial position that is incompatible with the constraint requirements to the expectancy theory trajectory and maintain it.

(3) There is no specific requirement for the robot attitude in the current task. When moving along different trajectories, the variation of the $θ$ angle varies.

(4) There are no other external structural constraints applied to the wall climbing robot, which means that only four universal idlers are installed at the corresponding positions of the body. The robot is subjected to forces in the $X$ axis and $Y$ axis directions to maintain its geometric center in motion along the expected trajectory. The uncontrolled attitude causes the wheels to move back and forth on both sides of the theoretical curve.

(5) The constraint torque related to the attitude exerted on the wall-climbing robot is relatively small relative to forces of coordinate axis directions in the wall coordinate system.

Trajectory tracking of the robot with constraints from synchronous toothed belts

Velocity analysis under constraints of synchronous toothed belts

The wheels on the left and right sides of the wall-climbing robot are constrained by synchronous toothed belts. Therefore, the speeds of front and rear wheels on both sides are equal, so

{\overset{\cdot}{x}}_{lf}^{2} + {\overset{\cdot}{y}}_{lf}^{2} = {\overset{\cdot}{x}}_{lb}^{2} + {\overset{\cdot}{y}}_{lb}^{2}

(48)

{\overset{\cdot}{x}}_{rf}^{2} + {\overset{\cdot}{y}}_{rf}^{2} = {\overset{\cdot}{x}}_{rb}^{2} + {\overset{\cdot}{y}}_{rb}^{2}

(49)

where ${\overset{\cdot}{x}}_{lf}$ , ${\overset{\cdot}{y}}_{lf}$ , ${\overset{\cdot}{x}}_{lb}$ , and ${\overset{\cdot}{y}}_{lb}$ are the derivatives of $x_{lf}$ , $y_{lf}$ , $x_{lb}$ , and $y_{lb}$ relative to time, respectively. ${\overset{\cdot}{x}}_{rf}$ , ${\overset{\cdot}{y}}_{rf}$ , ${\overset{\cdot}{x}}_{rb}$ , and ${\overset{\cdot}{y}}_{rb}$ are the derivatives of $x_{rf}$ , $y_{rf}$ , $x_{rb}$ , and $y_{rb}$ relative to time, respectively.

Taking the derivatives of equations (27) and (28) with respect to time, and substituting the derivative results into equations (48) and (49), respectively. The substituted equations are derived with respect to time again. Equations could be obtained as

\begin{matrix} (L_{l 1} - L_{l 3}) \overset{\cdot\cdot}{x} + (L_{l 2} - L_{l 4}) \overset{\cdot\cdot}{y} + (a_{2} L_{l 2} - a_{1} L_{l 1} - a_{3} L_{l 3} + a_{4} L_{l 4}) \overset{\cdot\cdot}{θ} \\ = (a_{1} L_{l 2} + a_{2} L_{l 1} + a_{3} L_{l 4} + a_{4} L_{l 3}) {\overset{\cdot}{θ}}^{2} \end{matrix}

(50)

\begin{matrix} (L_{r 3} - L_{r 1}) \overset{\cdot\cdot}{x} + (L_{r 4} - L_{r 2}) \overset{\cdot\cdot}{y} + (a_{2} L_{r 2} - a_{1} L_{r 1} - a_{3} L_{r 3} + a_{4} L_{r 4}) \overset{\cdot\cdot}{θ} \\ = (a_{1} L_{r 2} + a_{2} L_{r 1} + a_{4} L_{r 3} + a_{3} L_{r 4}) {\overset{\cdot}{θ}}^{2} \end{matrix}

(51)

in equations (50) and (51)

{\begin{matrix} a_{1 / 3} = \sqrt{b^{2} + l^{2}} \sin (θ \pm \arctan \frac{b}{l}) \\ a_{2 / 4} = \sqrt{b^{2} + l^{2}} \cos (θ \pm \arctan \frac{b}{l}) \end{matrix}

(52)

{\begin{matrix} L_{l 1 / l 2} = \frac{(\overset{\cdot}{x} / \overset{\cdot}{y} \mp a_{1} / a_{2} \overset{\cdot}{θ})}{\sqrt{{(\overset{\cdot}{y} + a_{2} \overset{\cdot}{θ})}^{2} + {(\overset{\cdot}{x} - a_{1} \overset{\cdot}{θ})}^{2}}} \\ L_{l 3 / l 4} = \frac{(\overset{\cdot}{x} / \overset{\cdot}{y} \pm a_{3} / a_{4} \overset{\cdot}{θ})}{\sqrt{{(\overset{\cdot}{y} - a_{4} \overset{\cdot}{θ})}^{2} + {(\overset{\cdot}{x} + a_{3} \overset{\cdot}{θ})}^{2}}} \end{matrix}

(53)

{\begin{matrix} L_{r 1 / r 2} = \frac{(\overset{\cdot}{x} / \overset{\cdot}{y} \pm a_{1 / 2} \overset{\cdot}{θ})}{\sqrt{{(\overset{\cdot}{y} - a_{2} \overset{\cdot}{θ})}^{2} + {(\overset{\cdot}{x} + a_{1} \overset{\cdot}{θ})}^{2}}} \\ L_{r 3 / r 4} = \frac{(\overset{\cdot}{x} / \overset{\cdot}{y} \mp a_{3 / 4} \overset{\cdot}{θ})}{\sqrt{{(\overset{\cdot}{y} + a_{4} \overset{\cdot}{θ})}^{2} + {(\overset{\cdot}{x} - a_{3} \overset{\cdot}{θ})}^{2}}} \end{matrix}

(54)

According to the Udwadia-Phohomsiri modeling method, the constraint equation could be obtained as

A_{2} (q, \overset{\cdot}{q}, t) \overset{\cdot\cdot}{q} = b_{2} (q, \overset{\cdot}{q}, t)

(55)

in which

\begin{matrix} A_{2} = \\ [\begin{matrix} L_{l 1} - L_{l 3} & L_{l 2} - L_{l 4} & a_{2} L_{l 2} - a_{1} L_{l 1} - a_{3} L_{l 3} + a_{4} L_{l 4} \\ L_{r 3} - L_{r 1} & L_{r 4} - L_{r 2} & a_{2} L_{r 2} - a_{1} L_{r 1} - a_{3} L_{r 3} + a_{4} L_{r 4} \end{matrix}] \end{matrix}

(56)

b_{2} = [\begin{matrix} (a_{1} L_{l 2} + a_{2} L_{l 1} + a_{3} L_{l 4} + a_{4} L_{l 3}) {\overset{\cdot}{θ}}^{2} \\ (a_{1} L_{r 2} + a_{2} L_{r 1} + a_{3} L_{r 4} + a_{4} L_{r 3}) {\overset{\cdot}{θ}}^{2} \end{matrix}]

(57)

The constraint equation shown in equation (55) could make the speeds of the driving wheels on the left and right sides of the wall-climbing robot equal respectively, which is equivalent to that the moving wheels on both sides of the wall-climbing robot are constrained by the synchronous toothed belt structure. The whole driving module of the constrained robot still could rotate in all directions on the wall.

Dynamic model of the robot with constraints from synchronous toothed belts

By combining the trajectory constraint equation (43), which modified by stability correction, with the constraint equation (55). The constraint equation could be obtained as

A_{12} (q, \overset{\cdot}{q}, t) \overset{\cdot\cdot}{q} = b_{12}

(58)

in which,

A_{12} = [\begin{matrix} A_{1} \\ A_{2} \end{matrix}]

(59)

b_{12} = [\begin{matrix} b_{1 B} \\ b_{2} \end{matrix}]

(60)

According to the Udwadia-Phohomsiri equation, the dynamic model of the wall-climbing robot with synchronous toothed belt constraints could be obtained as

\overset{\cdot\cdot}{q} = {\bar{M}}_{12}^{+} [\begin{matrix} Q_{v} \\ b_{12} \end{matrix}]

(61)

where

{\bar{M}}_{12} = [\begin{matrix} (I - A_{12}^{+} A_{12}) M \\ A_{12} \end{matrix}] .

(62)

The equation of the constraint force which applied on the wall-climbing robot system could be described as

Q_{c} = M {\bar{M}}_{12}^{+} [\begin{matrix} Q_{v} \\ b_{12} \end{matrix}] - Q_{v}

(63)

Numerical simulation of the robot with constraints from synchronous toothed belts

Structure constraints from synchronous toothed belts are applied to the robot, the dynamic equations (61) and (63) are solved by using the same configuration parameters as those in section “Numerical simulation analysis.” Some numerical simulation results are shown in Figures 10 to 12.

Figure 10.

The change curve of the attitude angle $θ$ of the wall-climbing robot, which obtained by solving the dynamic equation with synchronous toothed belt constraints: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 11.

Position trajectories of four wheels in the wall coordinate system, which obtained by solving the dynamic equation with synchronous tooth belt constraints: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 12.

Constraint forces of the wall-climbing robot with synchronous tooth belt constraint to perform the desired trajectory tracking task: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 10 shows, when the synchronous toothed belt constraints applied, the change curve of $θ$ between the direction of the coordinate axis x_p in the local coordinate system of the wall-climbing robot and the direction of the coordinate axis $X$ in the wall coordinate system. Compared with Figure 5, it can be seen that θ changes from 0 to a small angle, and then remains near the angle. The change of the angle is caused by the fact that the center of gravity of the robot does not coincide with the geometric center of the four wheels. In terms of other geometric center positions, there is no significant difference between other numerical simulation results and the results in section “Numerical simulation analysis.”

Figure 11 shows position trajectories of four wheels in the wall coordinate system, which obtained by solving the dynamic equation. Comparing Figure 11 with Figure 8, it can be seen that trajectory changes present specific regular patterns for the robot’s four wheels relative to its geometric center, and after it is stable near the desired task trajectory, the robot’s attitude does not change significantly in the moving process.

Figure 12 shows the changes of the constraint forces on the wall-climbing robot in order to complete the given trajectory tracking task, when constraints of synchronous toothed belts are applied. Comparing Figure 12(a) with Figure 9(a), it could be seen that the torque/forces required changing the attitude of the wall-climbing robot increases obviously at the initial time, and when it is stabilized near the desired task trajectory, torque/forces required to change on the robot are no longer obvious. From Figures 9(b) and 12(b), it could be seen that in the wall coordinate system, compared to the constraint forces applied to the robot along the coordinate axes, the constraint torque related to the attitude exerted on the robot is very small.

Trajectory tracking of the robot with non-lateral motion constraint

Analysis of the robot with non-lateral motion constraint

When the wall-climbing robot moves on the wall, there is no lateral movement in Y direction. The left or right sides driving wheels are controlled to rotate synchronously or differentially to realize the straight or turning movement of the robot. The constraint of the robot with non-lateral motion could be expressed as

\overset{\cdot}{x} \sin θ - \overset{\cdot}{y} \cos θ = 0

(64)

By deriving equation (64) relative to time, the equation could be obtained as

\overset{\cdot\cdot}{x} \sin θ - \overset{\cdot\cdot}{y} \cos θ + \cos θ \overset{\cdot}{θ} \overset{\cdot}{x} + \sin θ \overset{\cdot}{θ} \overset{\cdot}{y} = 0

(65)

The constraint equation could be obtained as

A_{3} (q, \overset{\cdot}{q}, t) \overset{\cdot\cdot}{q} = b_{3} (q, \overset{\cdot}{q}, t)

(66)

in which,

A_{3} = [\begin{matrix} \sin θ & - \cos θ & 0 \end{matrix}]

(67)

b_{3} = [- \cos θ \overset{\cdot}{θ} \overset{\cdot}{x} - \sin θ \overset{\cdot}{θ} \overset{\cdot}{y}]

(68)

The constraint equation (66) could make the geometric center of the robot move only in the direction of $x_{p}$ in the local coordinate system of the robot. The change of the robot’s attitude angle θ in the wall coordinate system is realized by the differential motion of the left and right driving wheels.

Analysis of driving forces

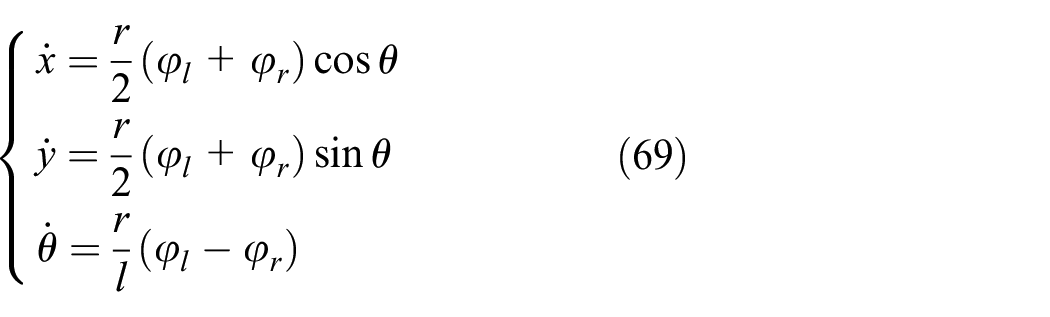

From the relationship between the rotational speeds of left and right wheels and the speed of the robot in the wall coordinate system, the equation can be obtained as

\begin{matrix} {\begin{matrix} \overset{\cdot}{x} = \frac{r}{2} (φ_{l} + φ_{r}) \cos θ \\ \overset{\cdot}{y} = \frac{r}{2} (φ_{l} + φ_{r}) \sin θ \\ \overset{\cdot}{θ} = \frac{r}{l} (φ_{l} - φ_{r}) \end{matrix} \end{matrix}

(69)

Equation (69) could be arranged as

\begin{matrix} [\begin{matrix} \overset{\cdot}{x} \\ \overset{\cdot}{y} \\ \overset{\cdot}{θ} \end{matrix}] = \frac{r}{2} [\begin{matrix} \cos θ & \cos θ \\ \sin θ & \sin θ \\ \frac{2}{l} & - \frac{2}{l} \end{matrix}] [\begin{matrix} φ_{l} \\ φ_{r} \end{matrix}] \end{matrix}

(70)

The Jacobian matrix between the rotational speeds of wheels on both sides and the velocity of the robot on the wall could be obtained as

\begin{matrix} J = \frac{r}{2} [\begin{matrix} \cos θ & \cos θ \\ \sin θ & \sin θ \\ \frac{2}{l} & - \frac{2}{l} \end{matrix}] \end{matrix}

(71)

The relationship between the wheel driving forces on both sides of the robot and the wall constraint force could be obtained from

u = J^{T} Q_{c}

(72)

Through equation (72), the wheel driving forces of both sides of the wall-climbing robot can be obtained.

Dynamic model of the robot with structural constraint of non-lateral motion

By combining the constraint equation (58) with the non-lateral sliding constraint equation (66), the constraint equation could be obtained as

A_{123} (q, \overset{\cdot}{q}, t) \overset{\cdot\cdot}{q} = b_{123}

(73)

where

A_{123} = {[\begin{matrix} A_{1} & A_{2} & A_{3} \end{matrix}]}^{T}

(74)

b_{123} = {[\begin{matrix} b_{1 B} & b_{2} & b_{3} \end{matrix}]}^{T}

(75)

According to the Udwadia-Phohomsiri equation, the dynamic model of the wall-climbing robot with constraints can be obtained as

\overset{\cdot\cdot}{q} = {\bar{M}}_{123}^{+} [\begin{matrix} Q_{v} \\ b_{123} \end{matrix}]

(76)

where

{\bar{M}}_{123} = [\begin{matrix} (I - A_{123}^{+} A_{123}) M \\ A_{123} \end{matrix}]

(77)

The required constraint force on the wall-climbing robot system can be expressed as

Q_{c} = M {\bar{M}}_{123}^{+} [\begin{matrix} Q_{v} \\ b_{123} \end{matrix}] - Q_{v}

(78)

Combined with equation (72), the driving forces which need to be applied on two side wheels of the wall-climbing robot can be obtained.

Numerical simulation of robot with the structural constraint of non-lateral motion

When the robot is also constrained by the non-lateral motion structure, by using the same configuration parameters as in section “Numerical simulation analysis,” the dynamic equations (76), and (78) could be solved. The driving forces applied to the wheels on both sides of the robot moving along the task trajectory could be obtained by equation (72). Some numerical simulation results are shown in Figures 13 to 19.

Figure 13.

The change curve of the attitude angle $θ$ of the wall-climbing robot which is obtained by solving the dynamic equation with the non-lateral motion constraint: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 14.

The trajectory of the geometric center of the robot with non-lateral motion constraint: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 15.

The error between the trajectory of the geometric center of the robot with non-lateral motion constraint and the desired theoretical trajectory: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 16.

Position trajectories of four wheels obtained by solving the dynamic equation with the non-lateral motion constraint: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 17.

Constraint forces of the robot with the non-lateral motion constraint to perform the desired trajectory tracking task: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 18.

Driving force on the left wheel of the wall-climbing robot: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 19.

Driving force on the right wheel of the wall-climbing robot: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 13 shows the change curve of the angle θ between the x_p axis in the local coordinate system and the X axis in the wall coordinate system, when the structure constraint of non-lateral motion is applied to the robot. Figure 14 shows the trajectory curve of the numerical solution of the dynamic equation in the wall coordinate system after the structural constraint is applied, and the trajectory curve of the desired task. Figure 15 shows the error curve between the numerical trajectory of the center point of the robot and the desired trajectory task. Figure 16 shows trajectories of four wheels in the wall coordinate system, which obtained by solving the dynamic equation of the wall-climbing robot with structural constraints. Figure 17 shows the constraint force curves of the wall-climbing robot on the wall surface when the structure constraints are applied to complete the task of moving along the desired trajectory. Figures 18 and 19 show the driving forces to be applied on the left and right wheels of the wall-climbing robot, which are solved by equation (72).

From Figures 13 to 19, It could be seen that:

(1) The angle θ changes from 0 is smaller than that in Figure 10.

(2) Comparing Figure 14 with Figure 6, Figure 15 with Figure 7, it can be found that, if the values of violation stability parameters $α$ and $β$ are consistent, the time from the initial point to the desired trajectory increases longer, and the tracking error also increases greater after tracking stability.

(3) Comparing Figure 16(a) with Figure 11(a), the required distances increase significantly for four wheels from the initial state to the stable state. Combining Figures 11(b) and 16(b), there is no obvious change after the center of the robot stable near the desired trajectory.

(4) Comparing Figure 17(a) with Figure 12(a), it can be found that constraint forces required for the initial state of the robot obviously smaller. Combining Figures 12(b) and 17(b), the change ranges of constraint forces are basically the same when the robot stable at the desired constraint trajectory.

(5) In Figures 18(a) and 19(a), the right wheel driving force is positive and the left wheel driving force is negative at the initial state, to complete the rotation of a small angle. The peak driving torque of the right wheel is larger than that of the left wheel.

Trajectory tracking of the robot under the nonslip constraint between wheels and wall

Constraint analysis of nonslip between wheels and wall

When the wall-climbing robot moves on the wall, the friction coefficients between different wall materials and robot wheel materials are different. It is inevitable that there would be axial or lateral slip between the wheel and the wall. The slip between wheels and the wall involves the wall structure, slip rate and other related problems. In order to simplify the model, it is assumed that there is only rolling constraint between the wheel and the wall.

If the wall-climbing robot does not slide relative to the wall and the driving wheel only rolls on the wall, then

\overset{\cdot}{x} \cos θ + \overset{\cdot}{y} \sin θ - b \overset{\cdot}{θ} = \sqrt{{\overset{\cdot}{x}}_{lf}^{2} + {\overset{\cdot}{y}}_{lf}^{2}}

(79)

\overset{\cdot}{x} \cos θ + \overset{\cdot}{y} \sin θ + b \overset{\cdot}{θ} = \sqrt{{\overset{\cdot}{x}}_{rf}^{2} + {\overset{\cdot}{y}}_{rf}^{2}}

(80)

For the relative time derivative of equations (79) and (80), equations can be obtained as

\begin{matrix} \overset{\cdot\cdot}{x} (\cos θ - L_{l 1}) + \overset{\cdot\cdot}{y} (\sin θ - L_{l 2}) - (b + L_{l 2} a_{2} - L_{l 1} a_{1}) \overset{\cdot\cdot}{θ} \\ + (\cos θ \overset{\cdot}{y} - \sin θ \overset{\cdot}{x} + L_{l 1} a_{2} \overset{\cdot}{θ} + L_{l 2} a_{1} \overset{\cdot}{θ}) \overset{\cdot}{θ} = 0 \end{matrix}

(81)

\begin{matrix} \overset{\cdot\cdot}{x} (\cos θ - L_{r 3}) + \overset{\cdot\cdot}{y} (\sin θ - L_{r 4}) + (b - L_{r 4} a_{4} + L_{r 3} a_{3}) \overset{\cdot\cdot}{θ} \\ + (\cos θ \overset{\cdot}{y} - \sin θ \overset{\cdot}{x} + L_{r 3} a_{4} \overset{\cdot}{θ} + L_{r 4} a_{3} \overset{\cdot}{θ}) \overset{\cdot}{θ} = 0 \end{matrix}

(82)

The constraint equation could be obtained as

A_{4} (q, \overset{\cdot}{q}, t) \overset{\cdot\cdot}{q} = b_{4} (q, \overset{\cdot}{q}, t)

(83)

in which

A_{4} = [\begin{matrix} \cos θ - L_{l 1} & \sin θ - L_{l 2} & a_{1} L_{l 1} - a_{2} L_{l 2} - b \\ \cos θ - L_{r 3} & \sin θ - L_{r 4} & b - a_{4} L_{r 4} + a_{3} L_{r 3} \end{matrix}]

(84)

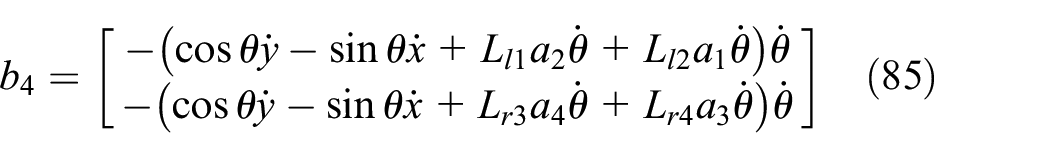

b_{4} = [\begin{matrix} - (\cos θ \overset{\cdot}{y} - \sin θ \overset{\cdot}{x} + L_{l 1} a_{2} \overset{\cdot}{θ} + L_{l 2} a_{1} \overset{\cdot}{θ}) \overset{\cdot}{θ} \\ - (\cos θ \overset{\cdot}{y} - \sin θ \overset{\cdot}{x} + L_{r 3} a_{4} \overset{\cdot}{θ} + L_{r 4} a_{3} \overset{\cdot}{θ}) \overset{\cdot}{θ} \end{matrix}]

(85)

Dynamic model of the robot under the nonslip constraint between wheels and wall

Combining the constraint equation (73) with the nonslip constraint equation (83), the equation containing the three kinds of constraints could be obtained as

A_{1234} (q, \overset{\cdot}{q}, t) \overset{\cdot\cdot}{q} = b_{1234}

(86)

where

A_{1234} = {[\begin{matrix} A_{1} & A_{2} & A_{3} & A_{4} \end{matrix}]}^{T}

(87)

b_{1234} = {[\begin{matrix} b_{1 B} & b_{2} & b_{3} & b_{4} \end{matrix}]}^{T}

(88)

According to the Udwadia-Phohomsiri equation, the dynamic model for trajectory tracking of the wall-climbing robot with above three kinds of constraints could be obtained as

\overset{\cdot\cdot}{q} = {\bar{M}}_{1234}^{+} [\begin{matrix} Q_{v} \\ b_{1234} \end{matrix}]

(89)

where

{\bar{M}}_{1234} = [\begin{matrix} (I - A_{1234}^{+} A_{1234}) M \\ A_{1234} \end{matrix}]

(90)

The required constraint force on the wall-climbing robot system can be expressed as

Q_{c} = M {\bar{M}}_{1234}^{+} [\begin{matrix} Q_{v} \\ b_{1234} \end{matrix}] - Q_{v}

(91)

According to equation (72), the driving forces to be applied to the wheels on both sides of the wall-climbing robot also could be obtained.

Simulation of the nonslip constraint on the wall

When there are nonslip between the driving wheels and the wall surface, the dynamic equations (89) and (91) could be solved by using the same configuration parameters as those in section “Numerical simulation analysis.” The driving forces applied to the wheels on both sides of the robot moving along the task trajectory could be obtained by equation (72). Some numerical simulation results are shown in Figures 20 to 27.

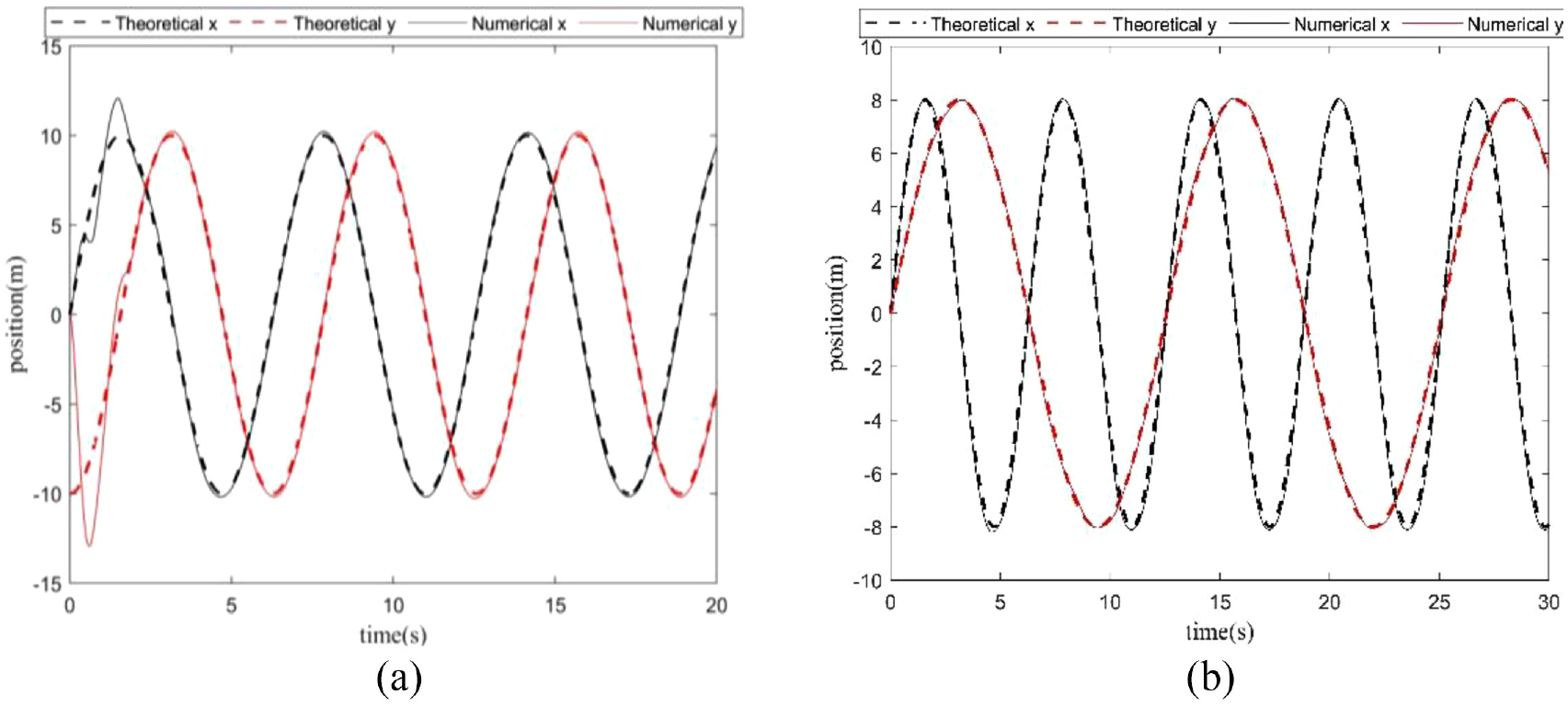

Figure 20.

Numerical trajectories of the robot under the nonslip constraint along coordinate axes: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 21.

The change curve of the attitude angle $θ$ which is obtained by solving the dynamic equation also with the nonslip constraint: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 22.

The geometric center trajectory of the robot under the nonslip constraint: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 23.

The error between the geometric center trajectory of the robot with the nonslip constraint and the desired theoretical trajectory: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 24.

Position trajectories of four wheels which is obtained by solving the dynamic equation also with the nonslip constraint: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 25.

Constraint forces of the wall-climbing robot with the nonslip constraint to perform the desired trajectory tracking task: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 26.

Driving force on left wheel of the wall-climbing robot: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 27.

Driving force on right wheel of the wall-climbing robot: (a) circular trajectory and (b) “8-shaped” trajectory.

Figure 20 shows relationship curves between the numerical solution of the wall-climbing robot and the desired task trajectory in the X and Y coordinate directions of the wall coordinate system. Figure 21 shows the curve of the angle $θ$ between the direction of the coordinate axis x_p in the local coordinate system of the wall-climbing robot and the direction of the coordinate axis $X$ in the wall coordinate system. Figure 22 shows when the above constraints applied, the trajectory curve of the numerical solution of the dynamic equation in the wall coordinate system and the desired task trajectory curve. Figure 23 shows the error curve between the numerical trajectory of the center point of the robot and the desired trajectory task. Figure 24 shows trajectory curves of positions for four wheels in the wall coordinate system obtained by numerically solving the dynamic equation of the wall-climbing robot under the nonslip constraint. Figure 25 shows the constraint force curves of the wall-climbing robot on the wall surface when the nonslip constraint is also applied to complete the task of moving along the desired trajectory. Figures 26 and 27 show the driving forces to be applied on the left and right wheels of the wall-climbing robot, which are solved from the numerical solution of curves in Figure 25 by equation (72).

From Figures 13 to 19, It could be seen that:

(1) Comparing Figure 20 with Figure 4, Figure 22 with Figures 6 and 14, Figure 23 with Figures 7 and 15, the values of violation stability parameters $α$ and $β$ are consistent, it can be found that the time from the initial point to the desired task trajectory would further increase. The error would become larger when the robot under the nonslip constraint.

(2) The $θ$ angle of the wall climbing robot would exhibit different changes when tracking different trajectories.

(3) Compared Figure 22(a) with Figures 11(a) and 16(a), the distance from the initial state to the required stable trajectory increases significantly. Combing Figures 11(b), 16(b), and 22(b), when the trajectory tracking stable, the curves of trajectories in Figure (22) are also different from that in Figures 11 and 16.

(4) Comparing Figures 18 and 26, as well as Figures 19 and 27, it could be found that the existence of pure rolling friction constraint causes mutation points on the left and right wheel drive torque curves.

Conclusion

Dynamic modeling is an important part of a robot research and development. Forward dynamics could be used for the robot simulation. Reverse dynamics could provide the basis for the selection of driving motor for the robot, and lay the foundation for the design of the robot structure and control algorithm. Aiming at the problem of constraint processing in the dynamic modeling of the wall-climbing robot, the dynamic modeling method based on the Udwadia-phohomsiri equation is adopted. The main conclusions revealed in the research process are as follows:

(1) The general process of dynamic modeling of the wall-climbing robot with constraints is given. The process can easily model other robots with complex structural constraints.

(2) The task trajectory of the wall-climbing robot is defined. By integrating the trajectory constraints into the dynamic equation of the wall-climbing robot, the dynamic modeling and simulation of the wall-climbing robot without structural constraints are implemented. The simulation results show that the established dynamic model is consistent with the actual situation.

(3) The structure constraint models of the wall-climbing robot, such as synchronous toothed belt, non-lateral motion, and nonslip between the driving wheels and the wall surface, are constructed. Combining the unconstrained wall-climbing robot model with trajectory constraints, structural constraints, and environmental constraints, the dynamic model of wall-climbing robot with constraints is gradually constructed. Numerical simulation results show that the constructed constraints of the wall-climbing robot are reasonable and correct.

At present, the main research and analysis are the nonholonomic constraints related to the structure and ideal environment of the wall-climbing robot. In the future, we will continue to discuss the non-ideal constraints modeling problems such as the friction between the wheels of the wall-climbing robot and the wall surface, and use the robot physical experiment to verify them.

Footnotes

Handling Editor: Chenhui Liang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by a grant from the NationalKey R&D Program of China(No.2019YFB1600700). The name of the funded project is “Service status evaluation and intelligent maintenance technology and equipment for cross sea cluster facilities”.

ORCID iD

Lyu Guizhi

References

Franko

Kallweit

, et al. Design of a multi-robot system for wind turbine maintenance. Energies 2020; 13: 1–18.

Wang

Hua

. Adaptive extended state observer-based nonsingular terminal sliding mode control for the aircraft skin inspection robot. J Intell Robot Syst 2020; 98: 721–732.

Seo

Jeon

Park

, et al. Survey on glass and Façade-cleaning robots: climbing mechanisms, cleaning methods, and applications. Int J Precis Eng Manuf Green Technol 2019; 6: 367–376.

Cai

Skibniewski

, et al. Construction automation and robotics for high-rise buildings over the past decades: a comprehensive review. Adv Eng Inform 2019; 42: 1–18.

Schmidt

Schütz

Berns

. CREA - a climbing robot with eleven vacuum adhesion chambers. In: International conference on climbing and walking robots and the support technologies for mobile machines, Germany, 2014, no. 3, pp.1–8. University of Kaiserslautern.

Bogue

. Climbing robots: recent research and emerging applications. Ind Rob 2019; 46: 721–727.

Schmidt

Berns

. Climbing robots for maintenance and inspections of vertical structures—a survey of design aspects and technologies. Rob Auton Syst 2013; 61: 1288–1305.

Lee

Kim

Seo

, et al. Series of multilinked caterpillar track-type climbing robots. J Field Robot 2016; 33: 737–750.

Sahay

Low

Baji

, et al. A state-of-the-art review and analysis on the design of dry adhesion materials for applications such as climbing micro-robots. RSC Adv 2015; 63: 50821–50832.

10.

Liu

Chen

, et al. Design and realization of a bio-inspired wall climbing robot for rough wall surfaces. In: International conference on intelligent robotics and applications, Shenyang, China, 2019, pp.47–59. Cham, Switzerland: Springer International Publishing.

11.

Liu

Wang

, et al. A novel tracked wall-climbing robot with bio-inspired spine feet. In: International conference on intelligent robotics and applications, Shenyang, China, 2019, pp.84–96. Cham, Switzerland: Springer International Publishing.

12.

Bian

Xie

Wei

, et al. A wall climbing robot arm capable of adapting to multiple contact wall surfaces. In: International conference on intelligent robotics and applications, Shenyang, China, 2019, pp.97–109. Cham, Switzerland: Springer International Publishing.

13.

, et al. Adaptive-constrained impedance control for human-robot co-transportation. IEEE Trans Cybern 2022; 52: 13237–13249.

14.

Liu

, et al. Design, modeling and experimentation of a biomimetic wall-climbing robot for multiple surfaces. J Bionic Eng 2020; 17: 523–538.

15.

Liu

, et al. Analysis and optimization of the wall-climbing robot with an adsorption system and adhesive belts. Int J Adv Robot Syst 2020; 17: 1729881420926409.

16.

Dharmawan

Xavier

Hariri

, et al. Design, modeling and experimentation of a bio-inspired miniature climbing robot with bilayer dry adhesives. J Mech Robot 2019; 11: 1–9.

17.

Kanada

Giardina

Howison

, et al. Reachability improvement of a climbing robot based on large deformations induced by tri-tube soft actuators. Soft Robot 2019; 6: 483–494.

18.

Yue

Xiao

Wang

, et al. Modeling and path planning of the city-climber robot part I: dynamic modeling. IEEE ROBIO 2009; 19–23: 2385–2390.

19.

Zhu

Sun

Huang

, et al. Design of a master-slave composite wall climbing robot system for penstock assembly welding. In: International conference on intelligent robotics and applications, Shenyang, China, 2019, pp.123–134. Cham, Switzerland: Springer International Publishing.

20.

Alkalla

Fanni

Mohamed

, et al. Ejbot-II: an optimized skid-steering propeller-type climbing robot with transition mechanism. Adv Robot 2019; 33: 1042–1059.

21.

Takeru

Rajesh

Thejus

, et al. Design and implementation of a shape shifting rolling-crawling-wall-climbing robot. Appl Sci 2017; 7: 1–21.

22.

Wang

, et al. Effects of pendular waist on gecko’s climbing: dynamic gait, analytical model and bio-inspired robot. J Bionic Eng 2017; 14: 191–201.

23.

Yiu

Cheng

Xiong

, et al. On the dynamics of parallel manipulators. IEEE Int Conf Robot Autom 2001; 4: 3766–3711.

24.

Thanjavur

Rajagopalan

. Ease of dynamic modeling of wheeled mobile robots (WMRs) using Kane’s approach. In: IEEE international conference on robotics and automation, Albuquerque, New Mexico, 1997, pp.2926–2931. New York: IEEE.

25.

Vossoughi

Pendar

Heidari

, et al. Assisted passive snake-like robots: conception and dynamic modeling using Gibbs–Appell method. Robotica 2008; 26: 267–276.

26.

Korayem

Shafei

. Motion equation of nonholonomic wheeled mobile robotic manipulator with revolute–prismatic joints using recursive Gibbs–Appell formulation. Appl Math Model 2015; 39: 1701–1716.

27.

Liu

. Concise method to the dynamic modeling of climbing robot. Adv Mech Eng 2017; 9: 1–10.

28.

Udwadia

Kalaba

. What is the general form of the explicit equations of motion for constrained mechanical systems. J Appl Mech 2002; 69: 335–339.

29.

Schutte

Udwadia

. New approach to the modeling of complex multibody dynamical systems. J Appl Mech 2011; 78: 856–875.

30.

Koganti

Udwadia

. Unified approach to modeling and control of rigid multibody systems. J Guid Control Dyn 2016; 39: 2683–2698.

31.

Liu

. Dynamic modeling of dual-arm cooperating manipulators based on Udwadia-Kalaba equation. Adv Mech Eng 2016; 8: 1–10.

32.

Liu

. Dynamic modeling of constrained planar multibody systems: a case of lower limbs rehabilitative robot. J Mech Sci Technol 2018; 32: 3389–3394.

33.

Udwadia

Phohomsiri

. Explicit equations of motion for constrained mechanical systems with singular mass matrices and applications to multi-body dynamics. Proc R Soc A 2006; 462: 2097–2117.

34.

Lyu

Liu

. Errors control of constraint violation in dynamical simulation for constrained mechanical systems. J Comput Nonlinear Dyn 2019; 14: 1–9.

35.

Baumgarte

. Stabilization of constraints and integrals of motion in dynamical systems. Comput Methods Appl Mech Eng 1972; 1: 1–16.

36.

Guizhi

Rong

. Determination of stability correction parameters for dynamic equations of constrained multibody systems. Math Probl Eng 2018; 2018: 8945301.

Dynamic modeling and analysis of wheeled wall-climbing robot

Abstract

Keywords

Introduction

Theoretical basis

Unconstrained robot system

Constraint models

Dynamic model of constrained robot

Dynamic modeling of the unconstrained wall-climbing robot

Structure of the four wheeled wall-climbing robot

Analysis of adsorption force

Dynamic model of the unconstrained wall-climbing robot

Trajectory tracking of the four wheeled wall-climbing robot

Task trajectory constraints

Baumgarte stability correction for the trajectory constraint

Dynamic model of the robot with trajectory constraint

Numerical simulation analysis

Trajectory tracking of the robot with constraints from synchronous toothed belts

Velocity analysis under constraints of synchronous toothed belts

Dynamic model of the robot with constraints from synchronous toothed belts

Numerical simulation of the robot with constraints from synchronous toothed belts

Trajectory tracking of the robot with non-lateral motion constraint

Analysis of the robot with non-lateral motion constraint

Analysis of driving forces

Dynamic model of the robot with structural constraint of non-lateral motion

Numerical simulation of robot with the structural constraint of non-lateral motion

Trajectory tracking of the robot under the nonslip constraint between wheels and wall

Constraint analysis of nonslip between wheels and wall

Dynamic model of the robot under the nonslip constraint between wheels and wall

Simulation of the nonslip constraint on the wall

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
