Abstract

Increased temperature and surface wear of high-speed and heavy-load gears are inevitable. Thermal deformation and surface wear modify the position of the action line of the tooth surface and thus influence the dynamic characteristics of the gear mesh. In this study, the elastic modulus and tooth profile thermal deformation were calculated when the tooth contact temperature (TCT) increased. A dynamic wear calculation method was used to combine the dynamic mesh force and dynamic wear coefficient caused by the dynamic mesh force obtained in the nonlinear dynamics model with the quasi-static wear model to obtain the cumulative wear depth. The changed elastic modulus, the tooth profile thermal deformation and the wear depth are considered when calculating the mesh stiffness using the energy method. A nonlinear dynamics model was established by considering the effects of TCT and dynamic wear on the internal dynamic excitation of the gear transmission system. The effects of internal excitation variations such as mesh stiffness, STE and backlash on gear dynamics are analyzed, and the study showed their complex effects on gear dynamics. Comparing the bifurcation diagrams with or without considering TCT and dynamic wear reveals that the system enters chaos earlier after considering TCT and dynamic wear.

Keywords

Gear dynamics tooth contact temperature gear wear mesh stiffness bifurcation

Introduction

Gear transmission plays an essential role in aerospace, national defense and military industry, automotive transportation, and other fields. With the high-speed and heavy-load gear system, tooth surface wear often occurs, which will not only alter stress and load distribution, but will also worsen system vibration and noise.¹ Moreover, due to the tooth surface friction, the TCT increases, which induces thermal expansion and modifies the gear meshing characteristics and dynamic characteristics.² Consequently, it is essential to research gear dynamics considering TCT and dynamic wear.

Many specialists have studied the influence of tooth surface wear on the dynamics of the gear system. Gao et al.³ established a dynamics model of spur gear system with 6-degree-of-freedom on a single-stage and proposed a wear fault analysis method on dynamic backlash. Osman and Velex⁴ investigated the influence of wide-face solid spur and helical gears on the dynamic performance of gears in quasi-static and dynamic wear. Huangfu et al.⁵ suggested a three-dimensional wear prediction model considering the thin-rimmed structure and the modification of the teeth, and analyzed the dynamic performance of the thin-rimmed gear throughout the wear process. Wu et al.⁶ combined the static wear calculation model with the dynamic iteration method to study the influence of the clearance from accumulated surface wear on the dynamic characteristics of the composite planetary gear system. Shen et al.⁷ considered gear wear as a tooth deflection and investigated the effect of gear wear on dynamic parameters and vibration response of planetary gears. In addition, in the analysis of spur gear system dynamics, the dynamics model was improved by Chen et al.⁸ after considering the coupling effect between gear neighboring teeth. The model is able to consider both additional deformation of neighboring teeth caused by loading the gear and the nonlinear teeth contact immediate effects in the dynamics analysis, and the dynamics model is experimentally proven. Wei et al.⁹ studied the effect of different uncertain parameters on the dynamic response of a spur gear system. Ambaye and Lemu¹⁰ assumed a uniform distribution of surface wear, modeled the wear as the backlash, and analyzed the gear dynamics using ADAMS. Some scholars have researched the effect of gear dynamics on tooth surface wear. Feng et al.¹¹ proposed a scheme based on vibration to update wear prediction model. The worn fault tooth profile is regarded as the transmission error and updated into the dynamics model, from which the vibration response and contact force are obtained, and the process is reduplicated to create curves for different wear depths. Ding and Kahraman¹² combined the gear pair dynamics model with the wear model to research the interaction between wear and dynamics under linear and nonlinear conditions. Later, they extended this method to planetary gear system to research the interaction between wear and dynamics of planetary gear system.¹³ Liu et al.¹ suggested a dynamic wear calculation method to study the coupling effect between tooth wear and spur gear system dynamics. In this study, the worn surface is represented by TVMS excitation and is applied to the dynamics model to research the influence of tooth wear on the dynamic performance of the system. The Miner rule is also used to uncover the influence of dynamics upon wear behavior. Asymmetric tooth spur gears have the advantages of high bending strength and low vibration. Karpat and Ekwaro-Osire¹⁴ parameterized the tooth tip relief modification and pressure angle and investigated its effect on the wear of asymmetric tooth spur gears. Karpat et al.¹⁵ has developed another new method for calculating the mesh stiffness of asymmetric gears, providing important results for gear researchers to understand involute asymmetric tooth spur gears.

During gear meshing, heat generated by friction causes the TCT to rise and affects the stability of the system. Similarly, many efforts have been made to investigate the dynamic response of the gear system to the TCT. Luo and Li¹⁶ suggested the gear thermal mesh stiffness and brought it into the system dynamics equations in order to research the influence of temperature on the dynamics of gear system. Gou et al.¹⁷ developed a nonlinear dynamics model for a gear-rotor-bearing system to research the effect of tooth flash temperature on the dynamics of a spur gear system. Pan et al.¹⁸ developed a 10 DOF coupled nonlinear dynamics model for a gear-shaft-bearing transmission system and investigated the effects of TCT, and random loading on the dynamic performance. Liu et al.¹⁹ focused on the effect of thermal conditions on the nonlinear vibration of planetary systems under thermal equilibrium. The thermal meshing stiffness is expressed by mathematical expression, the variation of backlash caused by heat is calculated, and the variation trend of nonlinear dynamic characteristics with temperature is obtained. Sun et al.² expressed the influence of temperature on the Poisson’s ratio and elastic modulus of gear by mathematical expression, and combined it with the improved calculation formula of meshing stiffness to obtain the meshing thermal stiffness. Afterward, the dynamic behaviors of gear system is studied.

At high-speed under heavy-load, rising of tooth surface temperature and increased wear will inevitably occur simultaneously. However, there are few studies on gear dynamics considering both temperature and wear in existing literatures. Zhang et al.²⁰ used Hertzian theory to obtain the meshing thermal stiffness and calculated the quasi-static wear depth by Archard’s equation, and then studied the influence of the changes of meshing stiffness and transmission error on system dynamics. Xu et al.²¹ established meshing stiffness model based on flash temperature theory and dynamic wear model by Archard’s theory calculation. The effects of initial wear, friction coefficient and damping ratio on system response are also studied. In the above study, gear wear during all operating periods is considered to be the same, without considering the dynamics process of tooth surface wear. Furthermore, the influence of the gear bulk temperature on the modification of the tooth profile thermal deformation is dominant and should be considered. Therefore, in this study, the proposed dynamic wear calculation method is adopted for calculation of the surface wear depth. This method combines the dynamic wear coefficient caused by the dynamic mesh force and the dynamic mesh force obtained from the nonlinear dynamics model with the quasi-static wear model, and finally acquires the accumulated wear depth thanks to a continuous geometry update of the tooth surface. The increase of TCT is accompanied by a modification of the elastic modulus of the tooth and the generation of the tooth profile thermal deformation. This will directly affect internal excitations of the gear system such as TVMS excitation, STE excitation and backlash excitation of gears. The TVMS is calculated using the energy method, and the cumulative wear depth caused by the dynamic surface wear, the tooth profile thermal deformation and the modified elastic modulus caused by the TCT are included. The STE is created by the elastic deformation, wear depth and thermal deformation of gear teeth. Similarly, the wear depth and thermal deformation are taken into account in the backlash. In this study, a nonlinear dynamics model has been established based on the idea that TCT and dynamic wear affect internal dynamic excitation of gear system and then affect nonlinear dynamic characteristics, and the influence of internal excitation changes such as TVMS, STE and backlash on gear dynamics has been studied. Specifically, in Section 2, a method for calculating dynamic wear for a spur gear system is proposed by combining the nonlinear dynamics model with the quasi-static wear model of gear. Section 3 the thermal deformation of the tooth profile along the gear action line in accordance with Blok’s theory of flash temperature and the thermal deformation formula was calculated. In Section 4, the research idea is that the TCT and dynamic wear impact the internal excitation of the gear system, and then affect the entire gear system. The impacts of TCT and dynamic wear on TVMS, STE and backlash are analyzed. In the calculation of TVMS, the energy method is used and the impact of temperature on the elastic module of the gear teeth is considered. Then, a nonlinear dynamics model of a spur gear system considering TCT and dynamic wear was established. In Section 5, the influence of changes in internal excitation such as TVMS, STE and backlash on gear dynamics were studied after considering TCT and dynamic wear. Finally, this paper is summarized.

Dynamic wear calculation of a spur gear system

In this section, a method for calculating the dynamic wear of a spur gear system is proposed by combining the nonlinear dynamics model with the quasi-static wear model. On the basis of this calculation method, the depth of surface wear at any point can be obtained, which is more convenient for the study of surface wear of gears.

Nonlinear dynamics model

The dynamics model is established by simplifying the continuous mass-stiffness-damping systems of actual engineering structures into discrete lumped parameter systems.

The nonlinear dynamics model of the spur gear system prepared by Kahraman and Singh²² was used to develop the motion equation of a spur gear system as follows:

m_{e} \overset{\cdot\cdot}{x} + c_{m} \overset{\cdot}{x} + k_{m} f (x) = F_{m} + F_{aT} (t) - m_{e} \overset{\cdot\cdot}{e} (t)

(1)

where m_e, c_m, k_m, and e(t) denote the equivalent mass, viscous damping, TVMS, and STE. f(x) is a nonlinear description function used to calculate the teeth mesh force with backlash of 2b. F_m illustrates the average mesh force, F_aT(t) represents the relative fluctuation force of the component of the input external excitation variable. x(t) is defined as:

x (t) = x_{d} (t) - e (t)

(2)

and f(x) can be expressed as:

f (x) = {\begin{matrix} x - b, x > b \\ 0, - b \leq x \leq b \\ x + b, x < - b \end{matrix}

(3)

Quasi-static wear model

Flodin²³ proposed a wear prediction method for spur gears based on Archard’s wear equation. The method can predict the wear depth of any point P on the tooth surface with the following formula:

h_{P, (n)} = h_{P, (n - 1)} + k_{w} p_{P, (n - 1)} s_{P}

(4)

where the wear coefficient k_w and the contact pressure p are constants, h_P_,n denotes the wear depth of the tooth surface at point P with n operation cycles, h_P_,(n−1) is the wear depth with (n−1) operation cycles, p_P_,(n−1) indicates the contact pressure, s_P illustrates the sliding distance. Based on the above formula, Flodin provided the wear formula for the points on the pinion:

h_{P, (n)} = h_{P, (n - 1)} + k_{w} p_{P, (n - 1)} 2 α_{H} | 1 - \frac{u_{g}}{u_{p}} |

(5)

and the gear:

h_{P, (n)} = h_{P, (n - 1)} + k_{w} p_{P, (n - 1)} 2 α_{H} | 1 - \frac{u_{p}}{u_{g}} |

(6)

where α_H denotes the half contact width, u_p and u_g represent peripheral velocities at the two meshing points of the pinion and gear, respectively.

According to Hertz contact principle,²⁴ the contact pressure p_P of point P along the action line can be given as follows:

p_{P} = \frac{2 F_{p}}{π B α_{H}^{2}} (α_{H}^{2} - y_{i}^{2})^{1 / 2}

(7)

where F_p is the tangential force of the tooth, B represents the tooth width, y_i denotes the distance between the contact point and the Hertz contact center. F_p can be calculated as follows:

F_{p} = LSF \cdot F

(8)

F = \frac{T}{r_{b, p}}

(9)

where LSF refers load sharing factor, F denotes the total mesh force tangent to the gear base circle, T illustrates the torque, r_b_,p represents the base circle radius.

α_H in equation (7) can be expressed as:

α_{H} = \sqrt{\frac{4 F_{p} R_{e}}{π B E_{e}}}

(10)

where R_e and E_e indicate the equivalent curvature radius of the contact surface and the equivalent elastic modulus of the material.

Dynamic wear prediction method

In actual gear meshing, k_w and p_P changed with time due to the internal excitation of the gear. Therefore, in order to calculate more accurately the tooth wear depth of a spur gear system, a dynamic wear calculation method is suggested. The flow chart of dynamic wear calculation method of a spur gear system is demonstrated in Figure 1.

Figure 1.

Flow chart of dynamic wear calculation.

As illustrated in Figure 1, when calculating the dynamic wear depth of a spur gear system, the TVMS model is used to obtain the TVMS k^q_m(n)(t) after theq-th tooth profile update under different wear depths, firstly. The wear of gear tooth surface will not only affect the TVMS, but also the STE e^q_(n)(t) and backlash b^q_(n)(t) will be changed with the aggravation of wear depth. Secondly, the three excitations c^hq_m(n)(t), e^el_(n)(t) and b^q_(n)(t) are brought to the dynamics equation to analyze the dynamic response at this moment. Finally, the dynamics equation is solved to obtain the steady-state response x^q(t) after the q-th tooth profile update, and x^q(t) refers the relative displacement on the action line during gear meshing, which is used to calculate the dynamic mesh force F^q_d(n)(t) = k^q_m(n)(t) f(x^q(t)).

The load sharing factor is applied to characterize the variation of the load distribution on the tooth surface. LSF represents the ratio of the mesh force of a pair of teeth to the total mesh force,²⁵ which can be calculated by the following:

LS F^{1} = \frac{F^{1}}{F} = \frac{k^{1}}{k^{1} + k^{2}} (1 + \frac{k^{2} {\tilde{E}}_{h}}{F})

(11)

LS F^{2} = \frac{F^{2}}{F} = \frac{k^{2}}{k^{1} + k^{2}} (1 - \frac{k^{1} {\tilde{E}}_{h}}{F})

(12)

where F and k demonstrate the mesh force and mesh stiffness of a pair of teeth respectively, superscripts 1 and 2 represent tooth pairs 1 and 2 respectively, ${\tilde{E}}_{h}$ refers the error function with the influence of wear, which can be calculated as:

F^{1} = k^{1} δ^{1}, F^{2} = k^{2} δ^{2}, F = F^{1} + F^{2}

(13)

δ^{1} - δ^{2} = {\tilde{E}}_{h} = h_{w, g}^{1} + h_{w, p}^{1} - h_{w, g}^{2} - h_{w, p}^{2}

(14)

where δ is the elastic deformation of a gear pair under load. Assumed that the wear depth h_w is negative (subscripts p and g represent the pinion and the gear respectively). If two gears contact with an ideal involute profile, then δ¹-δ² = ${\tilde{E}}_{h}$ = 0. Accurate wear calculation depends on reliable load sharing method. Dynamic mesh force should be considered to obtain dynamic load sharing factor LSF_d, which can be calculated as:

LS F_{d} = \frac{F_{d}}{F} \cdot LSF

(15)

and dynamic contact pressure p_Pd can be expressed as:

{p_{P}}_{d} = \frac{2 F \cdot LS F_{d}}{π B α_{Hd}^{2}} (α_{Hd}^{2} - y_{i}^{2})^{1 / 2}

(16)

where

α_{Hd} = \sqrt{\frac{4 F R_{e} LS F_{d}}{π B E_{e}}}

(17)

The wear coefficient¹² is essential for tooth surface wear. The dynamic wear coefficient k_wd can be written as:

k_{wd} = {\begin{matrix} k_{wd 0}, λ < 0.5 (Boundary lubrication) \\ 2 k_{wd 0} (4 - λ) / 7, 0.5 < λ < 4 (Mixed lubrication) \\ 0, λ > 4 (Elastohydrodynamic lubrication) \end{matrix}

(18)

where k_wd0 is the wear coefficient under relatively low speed boundary lubrication and it can be given by²⁶:

{k_{w}}_{d 0} = 3.981 \times 10^{29} L_{wd}^{1.219} G_{w}^{- 7.377} S_{w}^{1.589} / E_{e}

(19)

where the dimensionless load L_wd = F·LSF_d/(bE_eR_e), the dimensionless lubricant pressure-viscosity coefficient G_w = α_pvE_e (α_pv denote the pressure-viscosity coefficient of the lubrication), the dimensionless composite surface roughness amplitude S_w = R_rms/E_e (R_rms represent the composite roughness amplitude), the lambda ratio λ = h_min/R_rms, and the minimum film thickness h_min can be given as follows:

h_{\min} = 3.63 U^{0.68} G_{w}^{0.49} L_{wd}^{- 0.073} (1 - e^{- 0.68 κ}) R_{e}

(20)

where the dimensionless speed U = η₀u_r/(E_eR_e) (η₀ denote the ambient lubricant viscosity and the rolling velocity u_r = (u₁+u₂)/2), and for spur gears, κ is infinity.¹²

After LSF_d, p_Pd and k_wd are obtained, the wear depth h_Pd of P at any point on the meshing surface can be calculated by the equation for a wear cycle. As illustrated in Figure 1, after n running cycles of the pinion, the wear depth h_Pd_,(n) at any point on the meshing surface can be calculated. If n is less than the threshold value N₁, the wear depth is repeated until n reached the set threshold value, under which not only the TVMS will be changed correspondingly, but also the STE and so on will be affected. At this time, it is necessary to reconstruct the gear profile to obtain the dynamic mesh force F^q_d(n), dynamic load sharing factor LSF^q_d(n), dynamic contact pressure p^q_Pd(n) and dynamic wear coefficient k^q_wd(n) after the q-th geometrical update to predict the dynamic wear depth h^q_Pd,_(n) of the tooth surface. Updated the dynamic mesh force and the dynamic load sharing factor can be used to obtained the new dynamic contact pressure and the dynamic wear coefficient to perform new dynamic wear calculations. The process is repeated. After q-th tooth profile update, the pinion had N = q·N₁ running cycles. Until N reached the threshold value N₂ after Q-th updates. The final accumulated wear depth at all points on the tooth surface can be calculated by summarizing the wear depth at all points updated at different pressures.

Thermal deformation analysis of tooth profile for a spur gear system

In this section, the TCT of the gear under stable running conditions will be calculated and the tooth profile thermal deformation at this temperature will be analyzed. Friction heat occurred during the transmission of the gear system. The friction heat raised the TCT to rise and at the same time accompanies the tooth profile thermal deformation, which will destroy the original involute characteristics of gear and affected the gear transmission.

Calculation of TCT

During the gear meshing process, the TCT T_c(t) mainly consists of two parts²⁷: the bulk temperature T_b and the flash temperature T_f(t), as demonstrated below:

T_{c} (t) = T_{b} + T_{f} (t)

(21)

The bulk temperature of the pinion and the gear is the same and does not change with time under stable working state. However, because of the existence of friction on the surface, and the temperature rises, thereby forming the flash temperature on the surface. The tooth flash temperature may be calculated from the Blok’s flash temperature formula²⁸:

T_{f} (t) = \frac{u f_{m} (t) f_{n} | v_{p} (t) - v_{g} (t) |}{(\sqrt{g_{p} ρ_{p} c_{p} v_{p} (t)} + \sqrt{g_{g} ρ_{g} c_{g} v_{g} (t)}) \sqrt{B_{H} (t)}}

(22)

where u = 0.83 indicates the temperature rise coefficient, v_i(t)(i = p, g) is the surface tangential velocity, g_i shows the heat transfer coefficient, ρ_i means the density, c_i illustrates the specific heat, B_H(t) demonstrates half of the tooth contact width and the normal load of per tooth width f_n =F_p/B (F_p can be calculated from equation (8) and B refers the tooth width), the friction coefficient f_m can be given by^29,30:

f_{m} (t) = {\begin{matrix} f_{mD} (t) = 0.1 ~ 0.5, ζ = 0 (Dry friction) \\ f_{mE} (t) = e^{f (S R_{i} (t), α_{H} (t), η_{0}, R_{rms})} α_{H}^{b_{2}} {| S R_{i} (t) |}^{b_{3}} v_{e}^{b_{6}} (t) η_{0}^{b_{7}} R_{e}^{b_{8}} (t) sgn (v_{s} (t)), \\ 4 \leq ζ < 10 (Elastohydrodynamic lubrication) \\ f_{mM} (t) = 0.0143511 g (29700 f_{e} / (η_{0} v_{s} (t) v_{e}^{2} (t))) sgn (v_{s} (t)) / \\ (1.13 - R_{rms}), 1 < ζ < 4 (Mixed lubrication) \\ f_{mB} (t) = \frac{2 μ_{av}}{π} \arctan [Φ x_{i} (t)] + \frac{2 μ_{av} σ x_{i} (t)}{π [1 + Φ^{2} x_{i}^{2} (t)]} (i = 1, 2), ζ < 1 \\ (Boundary lubrication) \end{matrix}

(23)

where, f_mD(t), f_mE(t), f_mM(t), and f_mB(t) demonstrate the friction coefficients under dry friction, elastohydrodynamic lubrication, mixed lubrication and boundary lubrication respectively, and ζ(t) denotes the oil film thickness.

Calculation of tooth profile thermal deformation

When the gear is in stable operation, the temperature of the gear will reach thermal equilibrium, the temperature field is basically stable, and the bulk temperature will not change any more, but the temperature is non-uniform everywhere. The temperature field inside the base cylinder can be considered as a stable non-uniform steady-state temperature field without internal heat source. Therefore, the temperature spread is constant and only a function of radius, so the temperature changes in a gradient along the radius of the base cylinder. Thus the thermal deformation of the base circle due to the bulk temperature can be expressed as follows¹⁷:

\begin{matrix} u_{b, i} = l r_{b, i} T (r_{s, i}) + \frac{(1 + ν) l}{1 - ν} \frac{r_{b, i} [r_{b, i}^{2} (1 - 2 ν) - r_{s, i}^{2}]}{r_{b, i}^{2} - r_{s, i}^{2}} \\ \times [T (r_{b, i}) - T (r_{s, i})] \end{matrix}

(24)

where l denotes the linear expansion coefficient, T(r_s,i) and r_s_,i(i = p, g) illustrate the temperature of transmission shafts and the shaft radius respectively, T(r_b_,i) indicates the temperature of the base circle and takes its value equal to 100°C.¹⁸

As the standard involute spur gear system enters the steady-state running state from the initial state, the base circle radius will change due to the change of TCT. The involute polar coordinate parameter equation of theoretical thermal deformation in the new base circle is as follows:

{\begin{matrix} r_{k 1, i} = \frac{r_{b, i} + u_{b, i}}{\cos α_{k 1, i}} \\ θ_{k 1, i} = inv α_{k 1, i} = \tan α_{k 1, i} - α_{k 1, i} \end{matrix}

(25)

where subscript 1 represents the theoretical value after thermal deformation, r_k_1,i, θ_k_1,i, and α_k1_,i are the polar diameter, polar angle and meshing point pressure angle of the theoretical involute after thermal deformation, respectively.

In actual gear transmission, the tooth profile thermal deformation at any meshing point includes two parts: radial direction and tooth thickness direction. Therefore, the polar coordinate parameter equation of actual gear thermal deformation can be calculated as:

{\begin{matrix} r_{k 2, i} = r_{k, i} + Δ r_{k, i} \\ θ_{k 2, i} = θ_{k, i} - Δ θ_{k, i} \end{matrix}

(26)

where subscript 2 represents the actual value after thermal deformation, r_k_2,i and θ_k2_,i indicate the polar diameter and polar angle after thermal deformation, r_k_,i and θ_k_,i denote the polar diameter and polar angle before thermal deformation. As demonstrated in Figure 2, Δr_k_,i and Δθ_k_,i can be obtained, which can be calculated as:

{\begin{matrix} Δ r_{k, i} = \frac{u_{b, i} \cos α_{k, i} + Δ t λ r_{b, i} (1 - \cos α_{k, i})}{\cos α_{k, i}} \\ Δ θ_{k, i} = \frac{Δ s_{k, i}}{2 r_{k 2, i}} = \frac{Δ tl \cos α_{k, i} \cdot [s \frac{r_{k, i}}{r_{i}} - 2 r_{k, i} (inv α_{k, i} - α)]}{2 [r_{b, i} + u_{b, i} \cos α_{k, i} + Δ tl r_{b, i} (1 - \cos α_{k, i})]} \end{matrix}

(27)

Figure 2.

Geometric relation of radius at one point of actual tooth profile after thermal deformation.

where Δt = T_c(t)−T₀ (T₀ represents the initial tooth temperature), α_k_,i indicates the pressure angle before thermal deformation, r_i and r_k_,i denote the pitch circle radius and the radius of any point on the tooth profile before thermal deformation respectively. α and s are pitch circle pressure angle and tooth thickness before thermal deformation respectively.

During gear meshing, the tooth profile thermal deformation due to TCT, resulting in the loss of the involute characteristics of the tooth profile. There is an error between the actual tooth profile and the theoretical tooth profile, which can be expressed by the normal distance δ_i(t)(i = p, g). As demonstrated in Figure 3 and it can be given by³¹:

δ i (t) = \frac{- Δ tl r_{b, i} (r_{b, i} + u_{b, i}) \cdot [\frac{s}{r_{i}} - 2 (inv α_{k, i} - inv α)]}{2 [r_{b, i} + u_{b, i} \cos α_{k, i} + Δ tl r_{b, i} (1 - \cos α_{k, i})]}

(28)

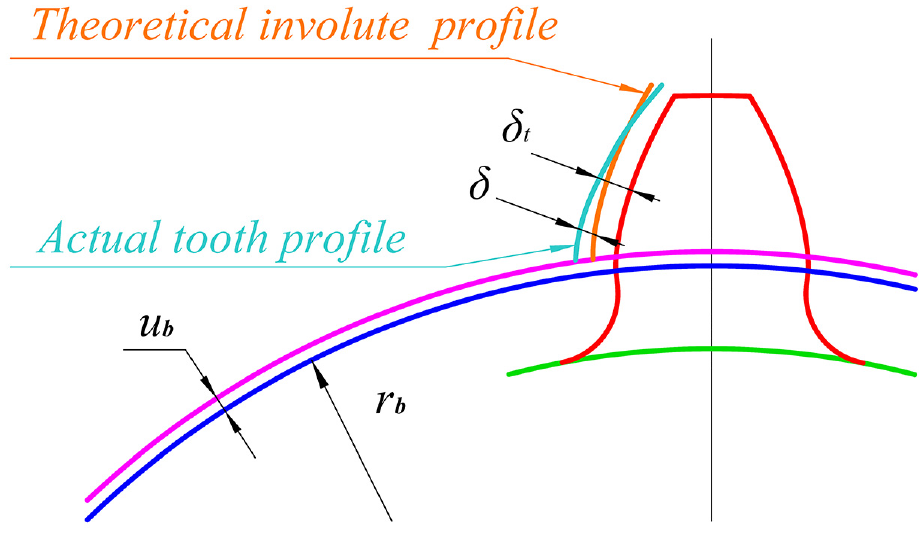

Figure 3.

Schematic diagram of the gear thermal deformation.

When δ_i(t) ≤ 0, it indicates that the actual tooth profile after thermal deformation is outside the theoretical tooth profile, that is the actual tooth profile envelope theoretical tooth profile, and when δ_i(t) > 0, the opposite is true.

In the above analysis, δ_i(t) can also be called non-involute error after thermal deformation of involute gear. If the standard involute tooth profile is taken as the tooth profile at the TCT at 20°C, the tooth thickness at this time is the tooth thickness s_k_,i before thermal deformation, while there is a difference Δs_kt_,i between the tooth thickness s_k_,i before thermal deformation and the tooth thickness s_k_1,i after theoretical thermal deformation, and it may be formulated as:

Δ s_{kt, i} = s_{k 1, i} - s_{k, i}

(29)

where

{\begin{matrix} s_{k 1, i} = \frac{s r_{k 1, i}}{r_{i}} - 2 r_{k 1, i} (inv α_{k, i} - inv α) \\ s_{k, i} = \frac{s r_{k, i}}{r_{i}} - 2 r_{k, i} (inv α_{k, i} - inv α) \end{matrix}

(30)

Therefore, the tooth profile thermal deformation along the action line δ_t_,i(t) may be calculated as follows:

δ_{t, i} (t) = - δ_{i} (t) + \frac{Δ s_{kt, i}}{2} \cos α_{k, i}

(31)

Dynamics modeling of a spur gear system considering TCT and dynamic wear

In this section, a dynamics model of spur gear system considering TCT and dynamic wear is proposed, which combines the dynamic wear prediction model of Section 2 with the tooth profile thermal deformation analysis model of Section 3. In the nonlinear dynamics model for a spur gear system, TVMS excitation, STE excitation and backlash excitation are the mainly internal dynamic excitation forms in gear transmission, which have essential influence on the dynamic behavior for spur gear system. In addition, the surface wear occurs only on one side of the teeth, while the tooth profile thermal deformation is bilateral deformation of the teeth.

Calculation of TVMS

In gear transmission system, the TVMS of gears can be calculated according to the energy method. Moreover, the energy saved in meshing gear mainly includes Hertz contact energy, bending potential energy, axial compressive deformation energy, and shear deformation energy. Each energy can calculate its corresponding stiffness separately.

The mesh stiffness of the single-tooth-pair may be described as:

k = \frac{1}{\frac{1}{k_{h}} + \frac{1}{k_{b, p}} + \frac{1}{k_{s, p}} + \frac{1}{k_{f, p}} + \frac{1}{k_{a, p}} + \frac{1}{k_{b, g}} + \frac{1}{k_{s, g}} + \frac{1}{k_{f, g}} + \frac{1}{k_{a, g}}}

(32)

and the double-tooth-pair:

k = \sum_{i = p, g} \frac{1}{\frac{1}{{k_{h}}_{, i}} + \frac{1}{k_{b (p, i)}} + \frac{1}{k_{s (p, i)}} + \frac{1}{k_{f (p, i)}} + \frac{1}{k_{a (p, i)}} + \frac{1}{k_{b (g, i)}} + \frac{1}{k_{s (g, i)}} + \frac{1}{k_{f (g, i)}} + \frac{1}{k_{a (g, i)}}}

(33)

where k_h, k_b, k_s, and k_a represent Hertz contact stiffness, bending stiffness, axial compressive stiffness and shear stiffness respectively. k_f is the stiffness of the flexible base, which can be given by³²:

\begin{matrix} \frac{1}{k_{f}} = \frac{\cos^{2} α_{1}}{EB} \\ {L^{*} {(\frac{μ_{f}}{s_{f}})}^{2} + M^{*} (\frac{μ_{f}}{s_{f}}) + P^{*} (1 + Q^{*} \tan^{2} α_{1})} \end{matrix}

(34)

and the parameters of the equation can be found in Chaari et al.³²

Hertz contact stiffness k_h is a constant expressed as:

k_{h} = \frac{π EB}{4 (1 - ν^{2})}

(35)

where B, E, and ν represent tooth width, Elastic modulus and Poisson ratio, respectively.

As demonstrated in Figure 4, the energy method for calculating the TVMS of gears is to regard the teeth as cantilever beam on the base circle. Based on energy method, bending stiffness k_b, axial compressive stiffness k_a and shear stiffness k_s are given in the following equation by³³:

{\begin{matrix} \frac{1}{k_{b}} = \int_{0}^{d} \frac{{[(d - x) \cos α_{1} - h \sin α_{1}]}^{2}}{E I_{x}} dx \\ \frac{1}{k_{a}} = \int_{0}^{d} \frac{\sin^{2} α_{1}}{E A_{x}} dx \\ \frac{1}{k_{s}} = \int_{0}^{d} \frac{2.4 (1 + ν) \cos^{2} α_{1}}{E A_{x}} dx \end{matrix}

(36)

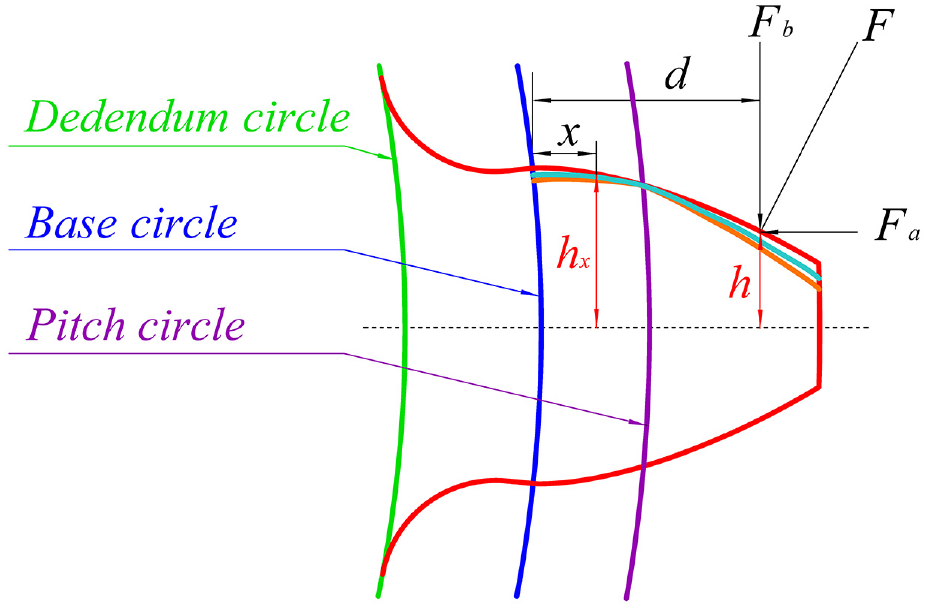

Figure 4.

Cantilever beam model of a gear tooth.

where I_x and A_x denote the moment of inertia and the area of cross-section at a distance of x from the base circle. The geometric parameters h, h_x, d, I_x, A_x are calculated as:

{\begin{matrix} h = r_{b} [(α_{1} + α_{2}) \cos α_{1} - \sin α_{1}] \\ h_{x} = r_{b} [(α_{2} - α) \cos α + \sin α] \\ d = r_{b} [\cos α_{1} + (α_{1} + α_{2}) \sin α_{1} - \cos α_{2}] \\ I_{x} = (2 h_{x})^{3} B / 12 \\ A_{x} = (2 h_{x}) B \end{matrix}

(37)

Therefore, k_b, axial k_a and k_s are expressed as:

{\begin{matrix} \frac{1}{k_{b}} = \int_{- α_{1}}^{α_{2}} \\ \frac{3 {1 + \cos α_{1} [(α_{2} - α) \sin α - \cos α]}^{2} (α_{2} - α) \cos α}{2 EB {[\sin α + (α_{2} - α) \cos α]}^{3}} d α \\ \frac{1}{k_{a}} = \int_{- α_{1}}^{α_{2}} \frac{(α_{2} - α) \cos α \sin^{2} α_{1}}{2 EB [\sin α + (α_{2} - α) \cos α]} d α \\ \frac{1}{k_{s}} = \int_{- α_{1}}^{α_{2}} \frac{1.2 (1 + ν) (α_{2} - α) \cos α \cos^{2} α_{1}}{EB [\sin α + (α_{2} - α) \cos α]} d α \end{matrix}

(38)

where

{\begin{matrix} α_{1} = \sqrt{\frac{r_{k}^{2} (t)}{r_{b}^{2}} - 1} - \frac{π}{2 z_{1}} - inv α \\ α_{2} = \frac{π}{2 z_{1}} + inv α \end{matrix}

(39)

In Section 2, a dynamic wear calculation method of spur gear system was proposed, by which the dynamic wear depth at all points on the tooth profile can be calculated. As illustrated in Figure 5, in actual meshing of spur gear systems, the accumulated wear depth of the tooth surfaces of the pinion and the gear is non-uniformly distributed along the involute tooth profile, the smallest at the pitch point and the largest at addendum. Tooth surface wear changes the geometric parameters h and h_x of a cantilever beam, which in turn changes the TVMS.

Figure 5.

The variation of tooth profile in different wear depths.

In Section 3, the tooth profile thermal deformation for a spur gear system was analyzed. Changes in the TCT results in changes in the thickness and height of the teeth, which ultimately results in the profile no longer having involute characteristics after thermal deformation. If the TCT changes Δt, the tooth profile thermal deformation along the action line is δ_t_,i(t). In spur gear system with considering TCT, temperature rise not only causes tooth profile thermal deformation, but also changes elastic modulus of gear material. These two factors together affect TVMS. Li et al.³⁴ gave a method to predict the elastic modulus at different temperatures:

\begin{matrix} E' (T) = \frac{{(1 + \int_{0}^{T_{0}} l (t) dt)}^{3}}{{(1 + \int_{0}^{T_{c}} l (t) dt)}^{3}} E (T_{0}) \\ \times {[1 - \frac{\int_{T_{0}}^{T_{c}} C_{v} (t) dt}{\int_{T_{0}}^{T_{m}} C_{v} (t) dt + Δ fusH + K (\int_{T_{m}}^{T_{B}} C_{v} (t) dt + Δ vapH)}]}^{\frac{1}{2}} \end{matrix}

(40)

where l(t) denotes the linear expansion coefficient, C_v(t) represents the heat capacity at constant volume, T_m and T_B are the melting point and boiling point of bulk material, respectively. ΔfusH and ΔvapH are the molar enthalpy of fusion at the melting point and the molar enthalpy of vaporization at the boiling point, respectively. K is a ratio coefficient.

Therefore, the TVMS $k'$ considering the TCT and dynamic wear can be calculated as:

k' = {\begin{matrix} \frac{1}{\frac{1}{{k'}_{h}} + \frac{1}{{k'}_{b, p}} + \frac{1}{{k'}_{s, p}} + \frac{1}{{k'}_{f, p}} + \frac{1}{{k'}_{a, p}} + \frac{1}{{k'}_{b, g}} + \frac{1}{{k'}_{s, g}} + \frac{1}{{k'}_{f, g}} + \frac{1}{{k'}_{a, g}}} (single - tooth - pair) \\ \sum_{i = p, g} \frac{1}{\frac{1}{{k'}_{h}_{, i}} + \frac{1}{{k'}_{b (p, i)}} + \frac{1}{{k'}_{s (p, i)}} + \frac{1}{{k'}_{f (p, i)}} + \frac{1}{{k'}_{a (p, i)}} + \frac{1}{{k'}_{b (g, i)}} + \frac{1}{{k'}_{s (g, i)}} + \frac{1}{{k'}_{f (g, i)}} + \frac{1}{{k'}_{a (g, i)}}} (double-tooth-pair) \end{matrix}

(41)

where

{\begin{matrix} \frac{1}{{k'}_{h}} = \frac{4 (1 - ν^{2})}{π E' B} \\ \frac{1}{{k'}_{f}} = \frac{\cos^{2} α_{1}}{E' B} {L^{*} {(\frac{μ_{f}}{s_{f}})}^{2} + M^{*} (\frac{μ_{f}}{s_{f}}) + P^{*} (1 + Q^{*} \tan^{2} α_{1})} \\ \frac{1}{{k'}_{b}} = \int_{- α_{1}}^{α_{2}} \frac{3 {1 + \cos α_{1} [(α_{2} - α) \sin α - \cos α - D]}^{2} (α_{2} - α) \cos α}{2 E' B {[\sin α + (α_{2} - α) \cos α + H]}^{3}} d α \\ \frac{1}{{k'}_{a}} = \int_{- α_{1}}^{α_{2}} \frac{(α_{2} - α) \cos α \sin^{2} α_{1}}{2 E' B [\sin α + (α_{2} - α) \cos α + H]} d α \\ \frac{1}{{k'}_{s}} = \int_{- α_{1}}^{α_{2}} \frac{1.2 (1 + ν) (α_{2} - α) \cos α \cos^{2} α_{1}}{E' B [\sin α + (α_{2} - α) \cos α + H]} d α \end{matrix}

(42)

where D = (h_wd+2δ_tcosα₁)sinα₁/r_b, H = (h_wd+2δ_t cosα)cosα/(2r_b). The wear depth h_wd refers the material removed from the ideal involute profile and set to negative, then the tooth profile thermal deformation δ_t is positive. It is worth noting that δ_t is the tooth profile thermal deformation along the action line and the wear depth along the action line is h_t =h_wd/cosα₁.

Analysis of STE

In dynamics analysis of spur gear system, STE is usually expressed by periodic displacement variation along the action line, which is mainly caused by elastic deformation of loaded teeth and manufacturing error of gears. The manufacturing transmission error of gear pair is composed by the manufacturing transmission error of the pinion and the gear, while the manufacturing transmission error of the pinion and the gear is obtained by the tooth profile manufacturing transmission error of each tooth.

Chen and Shao²⁵ put forward an analytical equation of error along the direction of action line in the mesh of a pair of gear pairs by considering the tooth profile error and spacing error between the teeth. It reads:

δ^{1} + E_{p}^{1} + E_{g}^{1} = δ^{2} + E_{p}^{2} + E_{g}^{2} + E_{p}^{s, 12} - E_{g}^{s, 12}

(43)

where δ, E, and E^s respectively represent the elastic deformation of a gear pair under load, tooth profile error and spacing error between the teeth. Superscripts 1 and 2 represent the first tooth pair and the second tooth pair, and subscripts p and g represent the pinion and the gear respectively. If some material is removed relative to the ideal tooth profile, the tooth profile error E is defined as positive, otherwise it is negative.

In the established dynamics model, the pinion and the gear before meshing are considered as ideal gears without error. In the spur gear system, the cumulative wear depth of surface presents a non-uniform distribution along the involute tooth profile, and the error caused is considered to be the tooth profile error. Although the tooth profile thermal deformation caused by TCT changes the tooth thickness at the gear pitch circle, it will not change the spacing error between the teeth, so the error caused is also considered as tooth profile error.

In this analysis model, the analytical equation of STE could be represented as:

e' (t) = δ_{p} + δ_{g} + E_{p} + E_{g} = δ_{p} + δ_{g} - H_{t} - Δ_{t}

(44)

where H_t = h_t,p+h_t,g and Δ _t = 2δ_t,p+2δ_t,g.

Calculation of backlash

Backlash in spur gear system can not only prevent thermal expansion caused by rising TCT and stuck, but also store lubricant to reduce surface wear. Therefore, the backlash is very important for the operation of the gear system.

The backlash is caused by the elastic deformation, thermal deformation and wear of the gear teeth. A time-varying backlash model for the gear pair was developed by Shi et al.³⁵ and the time-varying backlash $b' (t)$ can be calculated as:

b' (t) = b_{0} + b (t)

(45)

where b₀ denotes the constant part (affected by gear center distance, spacing error between the teeth and installation error etc.), b(t) represents the time-varying part (affected by elastic deformation, thermal deformation and wear of the gear teeth etc.) can be calculated by the following equation:

b (t) = \frac{δ (t) - H_{t} (t) - Δ_{t} (t)}{2} \cos (2 α)

(46)

where 2α is the angle between the Back-side action line and the Drive-side action line.³⁵

In summary, the TVMS $k' (t)$ , STE $e' (t)$ and backlash $b' (t)$ considering TCT and dynamic wear are brought into the motion equation (1) to obtain the dynamics model considering TCT and dynamic wear.

Numerical simulation and discussions

In Table 1, the gear pair parameters are summarized, and the prediction of the dynamic wear depth and the calculation of the tooth profile thermal deformation are demonstrated by using the dynamic wear calculation method in Section 2.3 and the tooth profile thermal deformation calculation method in Section 3.2. Then the gear dynamic behaviors considering TCT and dynamic wear is studied., in which TVMS excitation, STE excitation and backlash excitation caused by TCT and dynamic wear are introduced into the gear dynamics model to perform dynamic response analysis.

Table 1.

Parameters in the simulations.

Parameters	Pinion/Gear
Number of tooth z	21/26
Module m_n (mm)	5
Pressure angle α (°)	20
Tooth width B (mm)	13
Addendum coefficient h^_a*	1
Material	40 Cr steel
Elastic modulus E (GPa)	211
Poisson’s ratio ν	0.3
Density ρ (kg·m⁻³)	7820
Mass m (kg)	0.88/1.35
Moment of inertia I (kg·mm²)	1213/2849
Input torque T (N·m)	340
Composite surface roughness R_rms (μm)	0.3
Pressure-viscosity coefficient ofthe lubrication oil α_pv (m²/N)	2.6 × 10⁻⁸
Ambient lubricant viscosity η₀ (Pa⁻¹)	6.5 × 10⁻³
Linear expansion coefficient l (1/°C)	1.3 × 10⁻⁵
Thermal conductivity g (J/(m·s·°C))	46.47
Specific heat capacity c (J/(kg·°C))	550
Radius of shafts r_s (mm)	10
Temperature of shafts T(r_s) (°C)	20
Temperature of base circle surface T(r_b) (°C)	100
Initial temperature of tooth surface T₀ (°C)	20
Steady temperature of tooth surface T_b (°C)	100

Calculation of surface wear depth and tooth profile thermal deformation

As described in Section 2, the surface wear depth is primarily influenced from the contact pressure and wear coefficient of the tooth surface. In the dynamic wear model, the tooth contact pressure is related to the dynamic mesh force. The dynamic mesh force originates from the contribution of the nonlinear dynamic response of the system and varies with the operating speed of the system. Therefore, surface wear is affected by operating speed, and Liu et al.¹ believes that there is not a simple linear relationship between maximum wear depth and operating speed. Surface wear is influenced by the nonlinear dynamic responses of the system, which in turn, as internal excitation, affects the dynamic behaviors of the system. In most literatures, the contact pressure and wear coefficient are considered to be constants. However, in this study, dynamic contact pressure and dynamic wear coefficient are considered.

Figure 6 demonstrates the accumulated wear depth of the gear system at all meshing positions on the tooth surfaces of the pinion and the gear with various number of runs N. As demonstrated in Figure 6(a), heavy wear happens in the dedendum area of the pinion due to the high wear coefficient and the high sliding ratio. Conversely, heavy wear happens in the addendum area of the gear (as shown in Figure 6(b)). As there is no relative slip on the pitch of the gear pair, there is no wear. It is worth noting that since the gear pair coincidence is not an integer, there is a sudden change in the tooth surface wear depth during the alternating engagement of single and double teeth. The simulated wear depth demonstrated in Figure 6 is very similar to the experimental results.³⁶

Figure 6.

Tooth wear depth with different running cycles: (a) the pinion and (b) the gear.

As described in Section 3, the TCT includes the bulk temperature and the flash temperature. The flash temperature increases monotonically with the increase of friction coefficient, speed and load, which eventually affects the TCT.¹⁷ Tooth profile thermal deformation occurs due to changes in the TCT. When the gear is in stable operation, the tooth profile thermal deformation resulting from the bulk temperature is much larger than that resulting from the flash temperature of the surface, so the tooth profile thermal deformation resulting from the bulk temperature is mainly studied. Figure 7 demonstrates the tooth profile thermal deformation at all meshing positions on the surfaces of the pinion and the gear with different T_b. As demonstrated in Figure 7(a), the tooth profile thermal deformation in the tooth thickness direction decreases as the thickness of the pinion decreases from the dedendum to the addendum of the tooth. Correspondingly, the tooth profile thermal deformation reaches its maximum at the dedendum of the gear (as shown in Figure 7(b)).

Figure 7.

Tooth profile thermal deformation with different temperatures: (a) the pinion and (b) the gear.

Analysis of gear TVMS, STE, and backlash

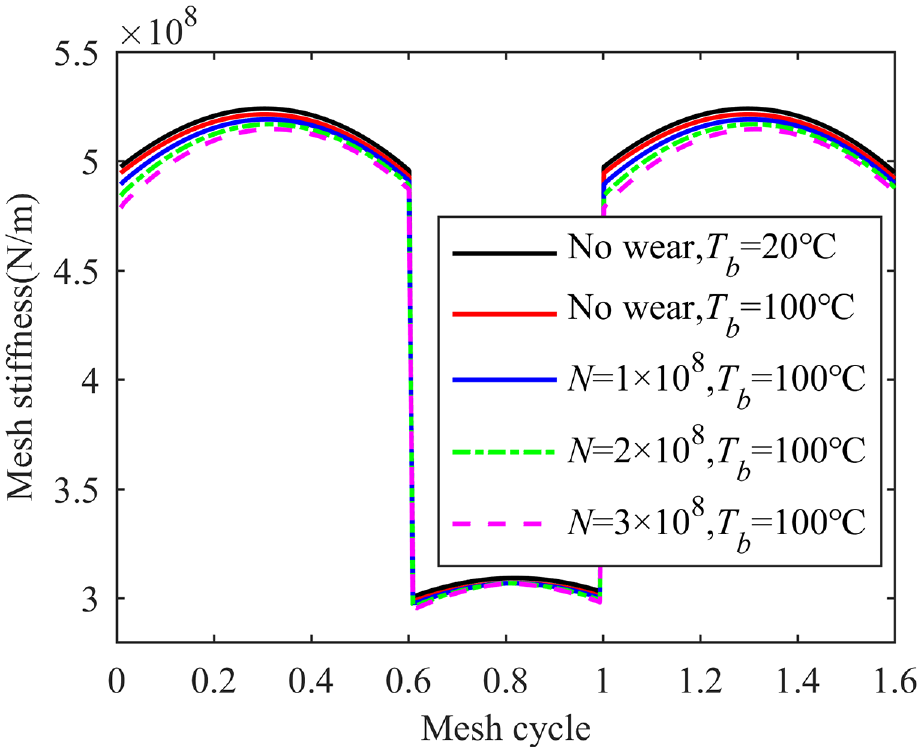

The influence of TCT and dynamic wear on the TVMS is shown in Figure 8. As the TCT rises, not only the tooth profile thermal deformation but also the elastic modulus changes, which finally results in the monotonous reduction of the TVMS. At the same time, the dynamic wear of tooth surface will also reduce the TVMS of gear. The influence of dynamic wear on stiffness of double-tooth-mesh area is more significant than that of single-tooth-mesh area, which is consistent with other scholars’ research results.³⁷ In fact, the mesh stiffness decreases in the single-tooth-mesh area even if it is not significant. TCT and dynamic wear increase the excitation of TVMS, which in turn leads to the degradation of gear system dynamics.

Figure 8.

Mesh stiffness with different running cycles and temperatures.

The influence of TCT and dynamic wear on the STE is shown in Figure 9. During gear meshing cycles, the STE increases monotonously with increasing wear depth and contact temperature. Similar to the change of TVMS, the influence in the double-tooth-mesh area is significantly greater than that in the single-tooth-mesh area. As one of the main internal excitations, changes in STE due to TCT and dynamic wear also impact the dynamic performance of the gear system.

Figure 9.

STE with different running cycles and temperatures.

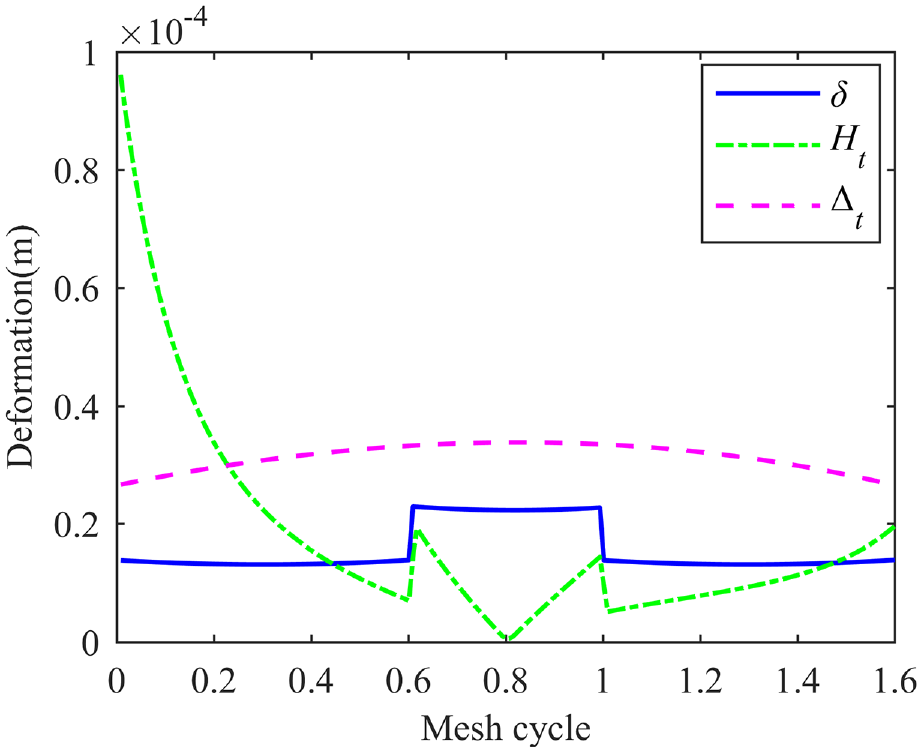

The variation of the elastic deformation δ, wear depth H_t and thermal deformation Δ_t of the gear along the action line is illustrated in Figure 10. As observed, the mean value of thermal deformation is relatively large. Therefore, elastic deformation and wear depth have little influence on gear system when wearing slightly, but thermal deformation has great influence on gear system. Consequently, the effect of TCT on spur gear system cannot be neglected. The wear depth jumps and catastrophes in the single-tooth-mesh area and the double-tooth-mesh area, which will lead to backlash jumps. Figure 11 shows the backlash considering the total elastic deformation, total wear depth and total thermal deformation of single and double tooth meshing. As the TCT and surface wear depth increase, the backlash shows a trend of decreasing first and then increasing along the action line.

Figure 10.

Variations of various deformation amounts along the action line.

Figure 11.

Backlash with different running cycles and temperatures.

TVMS excitation, STE excitation and backlash excitation are the main factors causing vibration and noise for spur gear system. Therefore, in the research of dynamic performance of spur gear systems, the influence of TCT and dynamic wear on TVMS, STE, and backlash must be considered.

Research on nonlinear dynamics of spur gear system

Considering the contributions of TCT and dynamic wear to the internal excitation of the spur gear system, the dynamic behavior of the example system can forecast using a gear nonlinear dynamics model. Based on the established nonlinear dynamics model of spur gear system with TCT and dynamic wear, the impacts of mesh frequency, STE and backlash on system dynamics were analyzed respectively. For convenience of calculation, the periodic TVMS and STE of gears only take the first order component, and then the 4–5 variable-step Runge-Kutta method was applied to solve the nonlinear differential equation of motion of spur gear system.

Effect of mesh frequency on system dynamics

Since the input speed of the pinion directly determines the mesh frequency of the system, it is crucial to research the impact of the mesh frequency on the dynamic behavior of the spur gear system. In dimensionless simulation, the dimensionless meshing frequency ω_h = ω_e/ω_n (ω_e is the mesh frequency; ω_n is the natural frequency).

When dimensionless mesh frequency of gear pair is ω_h = [0.1–1.7], the bifurcation diagrams of mesh frequency without TCT and dynamic wear and with TCT and dynamic wear are demonstrated in Figure 12. In Figure 12(a) and (b), the system is in single-periodic motion as ω_h = [0.1–0.58]. Where ω_h = [0.1–0.47], the amplitude of vibration increases linearly with the mesh frequency and shows a small change. In the ω_h = [0.48–0.58] section, the vibration amplitude first decreases sharply until it is less than 1, then decreases slowly. Subsequently, mutations occur at ω_h = 0.60 and ω_h = 0.58 respectively, while the latter is more intense than the former. The system is in quasi-periodic motion as ω_h = [0.61–1.04], and the amplitude of vibration increases rapidly and remains unchanged, but the amplitude of increase in Figure 12(a) is more visible. The system is in period-doubling motion as ω_h = [1.05–1.23]. Where ω_h = [1.04–1.18] is the period-2 motion area and ω_h = [1.19–1.23] is the period-4 motion area. The system goes into chaotic motion as ω_h = [1.27–1.7].

Figure 12.

Bifurcation diagrams of system via the mesh frequency: (a) without the TCT and dynamic wear and (b) with the TCT and dynamic wear.

Although it is easy to see that the amplitude of vibration fluctuates with the increase of gear pair mesh frequency in Figure 12, in order to accurately study the system motion mode at a certain mesh frequency, phase portrait is used to find the mesh frequency at which different motion behaviors (single-periodic motion, quasi-periodic motion, period-doubling motion, chaotic motion) are about to occur and cut out the Poincaré section.

Figure 13 demonstrates the phase portraits and Poincaré sections without the TCT and dynamic wear. Figure 14 demonstrates the phase portraits and Poincaré sections with TCT and dynamic wear. By cutting out the Poincaré sections at ω_h = 0.4 in Figure 12(a) and (b), respectively, as demonstrated in Figures 13(b) and 14(b), with closed phase diagrams Figures 13(a) and 14(a), it can be seen that the system is moving in a single-periodic motion at this moment. As the mesh frequency increases, the system enters into quasi-periodic motion at ω_h = 0.6042 and ω_h= 0.6004, respectively. The phase portrait is a closed ring band and the Poincaré section has a point group, respectively. At ω_h = 1.0423 and ω_h = 1.0470, the system enters a period-2 motion, the phase portrait shows a closed ring band, and the Poincaré section consists of two-point groups. At ω_h = 1.1828 and ω_h = 1.1928, the phase portrait shows a closed ring band containing many circles of similar shapes but different sizes. The Poincaré section consists of four-point groups, where the system enters period-4 motion. The system enters into chaotic motion at ω_h = 1.2691 and ω_h = 1.2360, respectively. Because of chaotic motion, the ring of phase portrait is not compact and the points in Poincaré section are irregular.

Figure 13.

System response diagrams without the TCT and dynamic wear: (a) phase portrait and (b) Poincaré section.

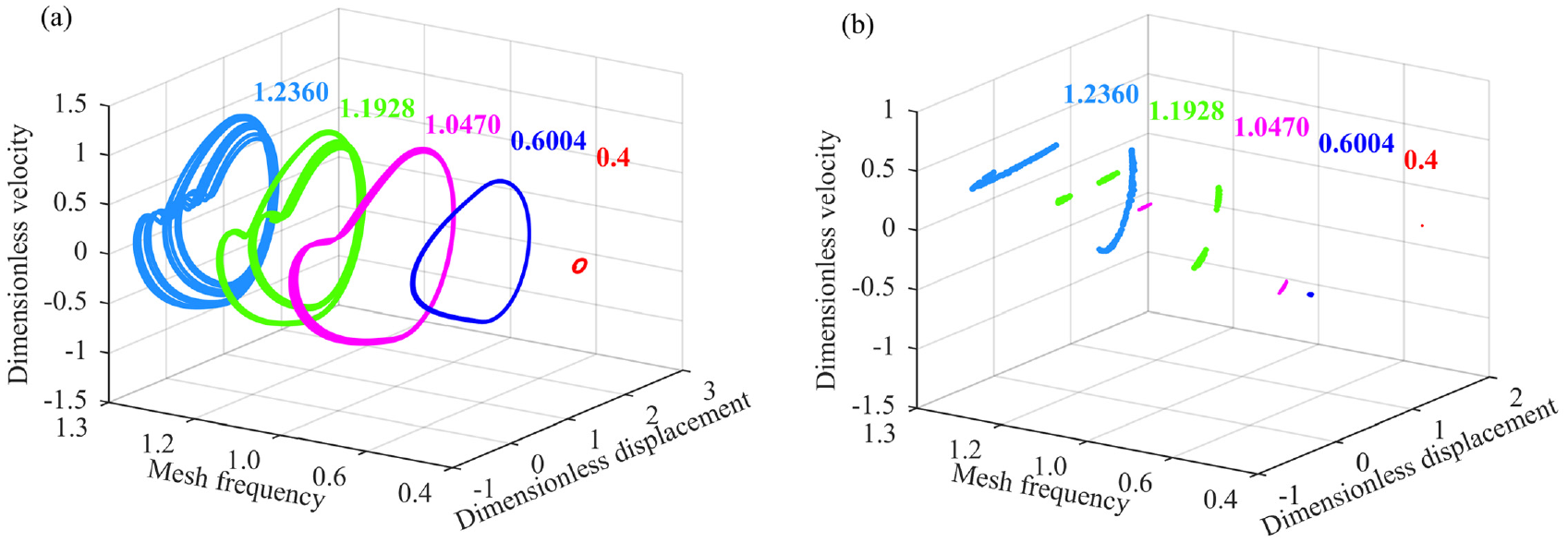

Figure 14.

System response diagrams with the TCT and dynamic wear: (a) phase portrait and (b) Poincaré section.

Based on the above analysis, the bifurcation diagrams (as shown in Figure 12) show the same trend of variation at low and high mesh frequencies in both cases (without TCT and dynamic wear and with TCT and dynamic wear). Compared with the former, the latter system enters into chaos ahead of time. In order to reduce the influence of TCT and dynamic wear on chaotic motion of the system, the mesh frequency should be controlled in the range ω_h< 1.23.

Effect of STE on system dynamics

Gear STE is an essential index to measure the dynamic performance of gear pair. The TCT and dynamic wear will cause tooth profile error, so that the STE increases gradually with the transmission of gear pair. Therefore, it is essential to research the effect of STE on the dynamic characteristics of gear system. In dimensionless simulation, dimensionless mesh frequency ω_h = 1.0 is taken. The mean value of the STE e_mm without TCT and dynamic wear is defined as the nominal size, so the mean value of the dimensionless static transfer error e_h = e_m/e_mm (e_m is the mean value of STE).

As demonstrated in Figure 15, a bifurcation diagram of dimensionless STE e_h= [0.1–3.0] for a spur gear system with TCT and dynamic wear. The system is in single-periodic motion as e_h= [0.1–0.5] and quasi-periodic motion as e_h= [0.51–1.11]. Subsequently, the system jumps and enters the period-doubling motion. By doubling the period, the system is in period-2 motion as e_h= [1.12–1.38] and period-4 motion as e_h= [1.39–1.48], soon afterward, the system enters into chaotic motion as e_h= [1.49–1.58], then changes into period-2 motion as e_h= [1.59–1.70], then re-enters chaotic motion as e_h= [1.71–1.95], afterward transitions to the area of period-6 motion as e_h= [1.96–2.15], then re-enters chaotic motion, and next makes short period-4 motion as e_h= [2.28–2.29]. The system has experienced alternating transformation areas of complex multi-periodic motion and chaotic motion, one time into period-6 motion, two times into period-2 motion, period-4 motion and three times into chaos motion. Finally, with the increase of STE, chaotic motion is carried out as e_h= [2.3–3.0].

Figure 15.

Bifurcation diagram of system via the STE.

Figure 16 demonstrates the phase portraits and the Poincaré sections of the STE when the system with TCT and dynamic wear. In section e_h= [0.1–0.5], by cutting out the Poincaré section at e_h = 0.15 in Figure 15, where Figure 16(b) is a point and has a closed ring phase portrait in Figure 16(a), it is in single-periodic motion. With the increase of STE, the phase portrait at e_h = 0.68 is a closed ring band and the Poincaré section is a point group, at which time the system performs quasi-periodic motion. In section e_h= [1.12–2.29], Poincaré sections are cut at e_h = 1.25 and e_h = 1.65, as two groups of points, respectively, and the phase portraits shows a closed circle, including many circles of similar shape but different size, which are in period-2 motion. The system begins to double its motion near e_h = 1.25 and e_h = 1.65, and demonstrates four-point groups on the Poincaré sections at e_h = 1.39 and e_h = 2.28. The phase portraits are similar to that at e_h = 1.25, where the system is in period-4 motion. Then, the Poincaré sections of the system at e_h = 1.51, e_h = 1.75 and e_h = 2.25 is a lot of disordered points, respectively. Phase portraits show many rings which are not compact and the system goes into chaotic motion. The Poincaré section is doubled to six-point groups at e_h = 2.05, which illustrates that the system is moving period-6 motion near it. Finally, at e_h = 2.35 it is clear that chaotic motion exists.

Figure 16.

System response diagrams via the STE: (a) phase portrait and (b) Poincaré section.

In summary, with the increase of STE, the stability of the system gradually decreases and undergoes a complex dynamics process. Single-periodic motion, quasi-periodic motion, period-doubling motion and chaotic motion occur one after another in the system, and complex dynamic behaviors of mutual conversion between period-doubling motion and chaotic motion occurs. Consequently, when considering the TCT and dynamic wear, the spur gear system tends to be unstable due to e_h > 1.12 entering the period-doubling motion area when it runs N= 2100 million at stable operating state T_b = 100°C.

Effect of backlash on system dynamics

Backlash has strong nonlinear characteristics and its influence on gear dynamics is very complex. Proper backlash is beneficial to the normal working of the gear. Too small backlash will cause the gear to jam due to thermal expansion, while too large backlash will cause collision between high-speed gear teeth and aggravate the vibration and noise of the system. Therefore, it is important to obtain the proper backlash for the gear drive system. In dimensionless simulation, dimensionless mesh frequency ω_h = 1.0 is taken. The mean value of the initial backlash b_mm= 65 μm without TCT and dynamic wear is defined as the nominal size, so the mean value of the dimensionless backlash b_h = b_m/b_mm (b_m is the mean value of backlash).

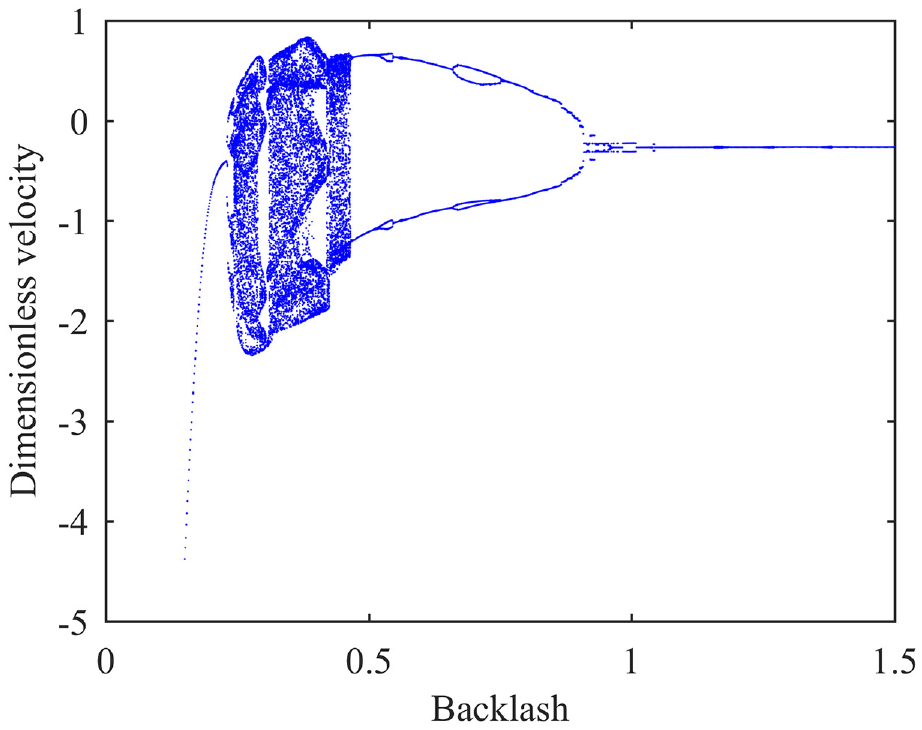

As demonstrated in Figure 17, a bifurcation diagram of dimensionless backlash b_h = [0.1–1.5] for spur gear system with TCT and dynamic wear. The system is in quasi-periodic motion as b_h = [0.10–0.22], the amplitude of vibration increases rapidly with the enlarge of backlash, and then gets into the chaotic motion as b_h = [0.23–0.46]. Then the system enters period-doubling motion as b_h = [0.47–0.91]. Where b_h = [0.47–0.91] evolves into period-2 motion and then enters a short period-4 motion state at b_h = 0.50. Through inverse-doubling, the system degrades to period-2 motion as b_h = [0.51–0.67], and then to period-4 motion as b_h = [0.68–0.71]. With the enlarge of backlash, the system degrades to period-2 motion as b_h = [0.72–0.91]. In the period-doubling motion part, the system undergoes complex multi-periodic motion, three times trans-forms into period-2 motion and two times evolves into period-4 motion. The system deteriorates into quasi-periodic motion as b_h = [0.92–1.00] and then evolves into single-periodic motion as b_h = [1.01–1.31]. Finally, the system is in stable quasi-periodic motion as b_h = [1.32–1.50].

Figure 17.

Bifurcation diagram of system via the backlash.

Figure 18 demonstrates the phase portraits and the Poincaré sections of the backlash when the system with TCT and dynamic wear. In section b_h = [0.10–0.22], by cutting out the Poincaré section at b_h = 0.15 in Figure 17, where Figure 18(b) is a point group and has a phase portrait with a closed ring band in Figure 18(a), it is quasi-periodic motion. As the increase of backlash, it is obvious that the system performs chaotic motion as b_h = [0.23–0.46], the phase portrait at b_h = 0.35 is not a tight ring and the Poincaré section is a lot of disordered points. In section b_h = [0.47–0.91], the Poincaré sections are cut at b_h = 0.48, b_h = 0.60 and b_h = 0.80, respectively, as two groups of points, and the phase portrait illustrates a closed ring band, which includes many rings of similar shape but different size, now in period-2 motion. The Poincare section of the system at b_h = 0.50 and b_h = 0.69 shows four-point groups and the phase portrait is similar to that at b_h = 0.48, where the system is in period-4 motion. Then, the system is transformed into a point group at the Poincaré section of b_h = 0.95. The phase portrait shows a closed ring band and the system enters a quasi-periodic motion state. Subsequently, the Poincaré section evolves to a point at b_h = 1.25, which indicates a stable single-periodic motion of the system near it. Finally, the phase portrait at b_h = 1.25 and the Poincaré section are similar to those at b_h = 0.95, where the system is in quasi-periodic motion.

Figure 18.

System response diagrams via the backlash: (a) phase portrait and (b) Poincaré section.

Thus, the variation of backlash affects the dynamic performance of spur gear systems considering TCT and dynamic wear in a more complex way. With the increase of backlash, there are alternating changes of quasi-periodic motion, chaotic motion, period-doubling motion, quasi-periodic motion, single-periodic motion, quasi-periodic motion. Moreover, the period-doubling motion part changes more frequently. Through period-doubling and inverse-doubling, the system has the phenomenon of alternating transformation of period-2 motion and period-4 motion. Therefore, when the system has a large backlash b_h≥ 0.92, it is in a stable quasi-periodic motion or single-periodic motion state.

Conclusions

A nonlinear dynamics model of spur gear system considering TCT and dynamic wear was established, and the effects of mesh frequency, STE and backlash on dynamic behaviors were studied. These conclusions are as follows:

By comparing the dynamic characteristics considering TCT and dynamic wear or not, the study shows that with the increase of TCT and dynamic wear of the spur gear system, the TVMS demonstrates a monotonous decrease, STE monotonous increase, and the change trend of backlash first decreases and then increases, which causes the system to enter chaotic motion at the mesh frequency ω_h = 1.230. And the system enters chaotic motion at the mesh frequency ω_h = 1.2691 when TCT and dynamic wear are not considered. Therefore, this leads the system to enter chaos in advance. To reduce the influence of TCT and dynamic wear on the chaotic motion of spur gear system, the mesh frequency should be controlled in the range of ω_h< 1.230.

Errors due to TCT and dynamic wear are considered to be tooth profile errors in STE. With the operation of gear system, the STE increases monotonically, resulting in a complex dynamics process. In the nonlinear dynamic analysis of a spur gear system considering TCT and dynamic wear, the system tends to become unstable due to the STE e_h> 1.12 after operating approximately N = 2100 million times at the steady temperature of tooth surface T_b= 100°C.

In the research of nonlinear dynamic characteristics of a spur gear system, the influence of backlash excitation of the system dynamics is complicated. Due to the change in backlash caused by TCT and dynamic wear, the system will change between stable state and unstable state. Therefore, to reduce the impact of backlash on the system stability, the backlash should be controlled in the range of b_h ≥ 0.92.

Footnotes

Handling Editor: Chenhui Liang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Key Laboratory of Vibration and Control of Aero-Propulsion System, Ministry of Education, Northeastern University (No: VCAME202106); the Fundamental scientific research project of Liaoning Provincial Department of Education (No: LJKZ0570); the National Science Foundation of China (No: 52075348; No: 51905357).

ORCID iDs

Zhe Yuan

Fei Fan

Xiaotian Bai

References

Liu

Yang

Zhang

. Investigation on coupling effects between surface wear and dynamics in a spur gear system. Tribol Int 2016; 101: 383–394.

Sun

Chen

Tao

, et al. Research on dynamic characteristics of gear system considering the influence of temperature on material performance. J Vib Control 2022; 28: 1792–1803.

Gao

Liu

. Dynamic analysis of a spur gear system with tooth-wear faults based on dynamic backlash. J Vib Shock 2014; 33: 221–226.

Osman

Velex

. Static and dynamic simulations of mild abrasive wear in wide-faced solid spur and helical gears. Mech Mach Theory 2010; 45: 911–924.

Huangfu

Zhao

, et al. Effects of tooth modifications on the dynamic characteristics of thin-rimmed gears under surface wear. Mech Mach Theory 2020; 150: 103870.

Zhang

Wang

, et al. Influence of the backlash generated by tooth accumulated wear on dynamic behavior of compound planetary gear set. Proc IMechE, Part C: J Mechanical Engineering Science 2017; 231: 2025–2041.

Shen

Qiao

Yang

, et al. Fault mechanism and dynamic modeling of planetary gear with gear wear. Mech Mach Theory 2021; 155: 104098.

Chen

Ning

Wang

, et al. An improved dynamic model of spur gear transmission considering coupling effect between gear neighboring teeth. Nonlinear Dyn 2021; 106: 339–357.

Wei

Chu

F-L

Ding

, et al. Dynamic analysis of uncertain spur gear systems. Mech Syst Signal Process 2021; 150: 107280.

10.

Ambaye

Lemu

. Dynamic analysis of spur gear with backlash using ADAMS. Mater Today Proc 2021; 38: 2959–2967.

11.

Feng

Borghesani

Smith

, et al. Vibration-based updating of wear prediction for spur gears. Wear 2019; 426–427: 1410–1415.

12.

Ding

Kahraman

. Interactions between nonlinear spur gear dynamics and surface wear. J Sound Vib 2007; 307: 662–679.

13.

Kahraman

Ding

. A methodology to predict surface wear of planetary gears under dynamic conditions#. Mech Based Des Struct Mach 2010; 38: 493–515.

14.

Karpat

Ekwaro-Osire

. Influence of tip relief modification on the wear of spur gears with asymmetric teeth. Tribol Trans 2008; 51: 581–588.

15.

Karpat

Dogan

Yuce

, et al. An improved numerical method for the mesh stiffness calculation of spur gears with asymmetric teeth on dynamic load analysis. Adv Mech Eng 2017; 9: 1687814017721856.

16.

Luo

. Investigation on the influence of heat on the dynamic characteristics of a gear transmission system. Eng Fail Anal 2020; 116: 104724.

17.

Gou

Zhu

. Nonlinear dynamic model of a gear-rotor-bearing system considering the flash temperature. J Sound Vib 2017; 410: 187–208.

18.

Pan

Wang

, et al. Nonlinear response analysis of gear-shaft-bearing system considering tooth contact temperature and random excitations. Appl Math Model 2019; 68: 113–136.

19.

Liu

Yan

Gao

. Effects of temperature on the time-varying mesh stiffness, vibration response, and support force of a multi-stage planetary gear. J Vib Acoust 2020; 142: 051110.

20.

Zhang

Zhong

, et al. Nonlinear dynamic analysis of high-speed gear pair with wear fault and tooth contact temperature for a wind turbine gearbox. Mech Mach Theory 2022; 173: 104840.

21.

Chen

, et al. Dynamic characteristics analysis of gear-bearing system considering dynamic wear with flash temperature. Mathematics 2021; 9: 2739.

22.

Kahraman

Singh

. Interactions between time-varying mesh stiffness and clearance non-linearities in a geared system. J Sound Vib 1991; 146: 135–156.

23.

Flodin

Andersson

. Simulation of mild wear in spur gears. Wear 1997; 207: 16–23.

24.

Tunalioğlu

MŞ

Tuç

. Theoretical and experimental investigation of wear in internal gears. Wear 2014; 309: 208–215.

25.

Chen

Shao

. Mesh stiffness calculation of a spur gear pair with tooth profile modification and tooth root crack. Mech Mach Theory 2013; 62: 63–74.

26.

Janakiraman

Kahraman

. An investigation of the impacts of contact parameters on wear coefficient. J Tribol 2014; 136: 69–74.

27.

Gou

Chen

. Nonlinear dynamic modelling and analysis of gear system with tooth contact temperature. Mech Eng J 2015; 51: 71–77.

28.

Blok

. Theoretical study of temperature rise at surfaces of actual contact under oiliness lubricating conditions. Proc Instn Mech Engrs 1937; 2: 222.

29.

Shi

Gou

Zhu

. Modeling and analysis of a spur gear pair considering multi-state mesh with time-varying parameters and backlash. Mech Mach Theory 2019; 134: 582–603.

30.

Zhu

Gou

Chai

, et al. Novel measurement method of tooth surface contact temperature for spur gear pair based on Seebeck effect. Mech Eng J 2022; 58: 1–11.

31.

Fei

. Influences on tooth shape of spur gear affected by temperature variation. J Mach Des 2005; 22: 22–23.

32.

Chaari

Fakhfakh

Haddar

. Analytical modelling of spur gear tooth crack and influence on gearmesh stiffness. Eur J Mech A/Solids 2009; 28: 461–468.

33.

Shen

Qiao

Yang

, et al. Evaluating the influence of tooth surface wear on TVMS of planetary gear set. Mech Mach Theory 2019; 136: 206–223.

34.

Kou

Zhang

, et al. Temperature-dependent elastic modulus model for metallic bulk materials. Mech Mater 2019; 139: 103194.

35.

Shi

Gou

Zhu

. Calculation of time-varying backlash for an involute spur gear pair. Mech Mach Theory 2020; 152: 103956.

36.

Flodin

. Wear investigation of spur gear teeth. Lubr Sci 2010; 7: 45–60.

37.

Huangfu

Chen

, et al. Investigation on meshing and dynamic characteristics of spur gears with tip relief under wear fault. Sci China Technol Sci 2019; 62: 1948–1960.

Nonlinear dynamics analysis of a gear system considering tooth contact temperature and dynamic wear

Abstract

Keywords

Introduction

Dynamic wear calculation of a spur gear system

Nonlinear dynamics model

Quasi-static wear model

Dynamic wear prediction method

Thermal deformation analysis of tooth profile for a spur gear system

Calculation of TCT

Calculation of tooth profile thermal deformation

Dynamics modeling of a spur gear system considering TCT and dynamic wear

Calculation of TVMS

Analysis of STE

Calculation of backlash

Numerical simulation and discussions

Calculation of surface wear depth and tooth profile thermal deformation

Analysis of gear TVMS, STE, and backlash

Research on nonlinear dynamics of spur gear system

Effect of mesh frequency on system dynamics

Effect of STE on system dynamics

Effect of backlash on system dynamics

Conclusions

Footnotes

Declaration of conflicting interests

Funding

ORCID iDs

References
