Abstract
Phthalates are endocrine-disrupting compounds detectable in more than 75% of the U.S. population with differential distributions across racial and ethnic groups, and they have been linked with reduced levels of serum testosterone. This study aims to investigate the associations of phthalate metabolites with erectile dysfunction (ED) and to determine whether these associations vary by race/ethnicity among men in the United States. Analyzed data for 12 phthalate metabolites from 3,746 men (≥20 years old), who participated in the National Health and Nutrition Examination Survey 2001-2004 cross-sectional study, were included. Metabolites included MBP, MCHP, MEP, MEHP, MiNP, MBzP, MMP, MCPP, MEHHP, MEOHP, MiBP, and MECPP. Racial/ethnic groups included non-Hispanic Blacks (
Introduction
Phthalates are a family of diester compounds of 1,2-benzenedicarboxylic acid made by man and found mainly in plastics (i.e., food and beverage containers) and medical and personal care products (i.e., cosmetics, shampoos, soaps; Centers for Disease Control and Prevention [CDC], 2009). Phthalates are quickly metabolized and excreted in humans (Anderson, Castle, Scotter, Massey, & Springall, 2001); and they have been detected in urine in >75% of the U.S. population (Silva et al., 2004) and there is an unclear disproportionate burden of these phthalates among racial and ethnic groups (CDC, 2009; Silva et al., 2004). A population-based cross-sectional study reported differences in the distribution of phthalates among non-Hispanic Whites, non-Hispanic Blacks, and Mexican Americans identifying minority populations as having the highest concentrations (Huang, Saxena, Isganaitis, & James-Todd, 2014; Silva et al., 2004).
Phthalates are known to be the most widely studied endocrine-disrupting compounds and to disrupt the male reproductive development in an antiandrogenic fashion compounds (Zoeller et al., 2012). Phthalates metabolites have been associated with a reduction in levels of testosterone (Meeker, 2010; Meeker, Calafat, & Hauser, 2009; Pan et al., 2006). In addition, testosterone concentrations have been reported to vary by race and ethnicity among young and middle-aged men; previous research reported that Mexican American men had higher levels of testosterone compared with non-Hispanic Whites (Lopez et al., 2013; Rohrmann et al., 2007).
Low levels of testosterone have been associated with reduced sexual desire, decreased spontaneous erections, and erectile dysfunction (ED; Sansone, Romanelli, Gianfrilli, & Lenzi, 2014; Seftel, Kathrins, & Niederberger, 2015; Traish, Miner, Morgentaler, & Zitzmann, 2011). Prevalence of ED in men aged ≥20 years in the United States is 18.4% suggesting that more than 18 million are affected (Lue, 2000; Selvin, Burnett, & Platz, 2007). In addition, prevalence of ED varies by race/ethnicity identifying non-Hispanic Whites (22.6%) and Hispanics (20.1%) with higher rates than non-Hispanic Blacks (Weinberg, Eisenberg, Patel, Chertow, & Leppert, 2013). In older men, the prevalence of ED increases significantly affecting their overall quality of life (Francis, Kusek, Nyberg, & Eggers, 2007); at ages 40 and 70 years, approximately 44% and 70%, respectively, are affected by this condition (Guay et al., 2003; Selvin et al., 2007). Although modifiable and nonmodifiable factors have been associated with ED, the role of phthalates metabolites as potential risk factors for ED remains undetermined. The current study investigated the associations of 12 urinary phthalate metabolites with ED and aimed to determine whether these associations vary by race and ethnicity in the National Health and Nutrition Examination Survey (NHANES) 2001-2004.
Method
Study Population
NHANES is a program of studies undertaken by the National Center for Health Statistics (NCHS) of the CDC to assess the health and nutritional status of adults and children in the United States. NHANES uses a multistage, stratified, and clustered probability sampling strategy in which Mexican Americans, non-Hispanic Blacks, and the elderly are oversampled to ensure adequate sample size and to represent the total U.S. civilian, noninstitutionalized population (NCHS, 1994). For the purpose of this study, data from continuous NHANES waves 2001-2002 and 2003-2004 were combined because information on ED was reported only on those years.
Assessment of Erectile Dysfunction
NHANES participants were in a private room using a self-paced audio computer–assisted self-interview system that enabled them to both hear questions through earphones and read questions on the computer screen related to ED. To assess ED, men (≥20 years) were asked the following question (that has been previously validated by O’Donnell Araujo, Goldstein, and McKinlay [2005]) who suggested that it can be added in large ongoing national epidemiologic surveys to provide information about the prevalence of ED: “Many men experience problems with sexual intercourse. How would you describe your ability to get and keep an erection adequate for satisfactory intercourse?” The following answers were provided: “Would you say that you are . . . always or almost always able, usually able, sometimes able, or never able?” For the purpose of this study, positive ED was dichotomized from the answers “sometime able” or “never able” to keep an erection, and subsequently negative ED was derived from the answers “almost always able” or “usually able” to maintain an erection (Selvin et al., 2007). In this study, men were excluded if they have the following conditions as they could influence the condition of ED: Men who were diagnosed with prostate cancer (
Assessment of Phthalate Exposure Data
Phthalate metabolites were measured in urine samples in a random one-third subsample of the NHANES participants (Latini, 2005). After collection, urine samples were stored at −20 °C and later shipped to CDC’s National Center for Environmental Health for analysis. Laboratory methods and quality control statistics regarding specific phthalate measurement are reported elsewhere (Silva et al., 2004). For laboratory testing results below the limit of detection, they were replaced with limit of detection divided by the square root of 2 (CDC, 2009); this method of handling nondetectable values produces reasonably nonbiased means and standard deviations (Finkelstein & Verma, 2001).
The following 12 phthalate metabolites that were selected and measured in the two NHANES waves 2001-2004: mono-
Assessment of Covariates
Age, race/ethnicity, smoking status, education, and physical activity during the past 30 days (moderate and vigorous) were self-reported during the NHANES interview. NHANES categorizes race/ethnicity as non-Hispanic White, non-Hispanic Black, Mexican American, and “other” (other Hispanics and all others). Due to the small number of the latter group, it was not included in the final analyses. Participants were classified as never, former, and current smokers. Participants were asked if they had smoked more than 100 cigarettes in their lifetime and if they were current smokers; serum cotinine was measured using high-performance liquid chromatography/atmospheric-pressure ionization tandem mass spectrometry (Bernert et al., 1997). Cotinine is a more accurate marker of exposure to environmental tobacco smoke; thus, by controlling for this marker, there is a reduction in residual confounding that could be present when there is only adjustment for active smoking status. Current smokers consisted of those who self-reported smoking habits, smoked more than 100 cigarettes in their lifetime and cotinine (ng/ml) that was dichotomized as ≥10 ng/ml (actively exposed). Information about vigorous physical activity was obtained from the questions on whether participants did any activity that caused heavy sweating or large increases in breathing or heart rate (e.g., swimming, aerobics, or fast cycling), while moderate physical activity was determined from the questions on whether they did any activities that caused light sweating or a moderate increases in the heart rate, such as playing golf, dancing, bicycling for pleasure, or walking. Body mass index (BMI) was calculated from measured weight and height (weight in kilograms divided by height in meters squared). Individuals were classified as having type 2 diabetes if their fasting plasma glucose levels were ≥126 mg/dl, or if they responded positively to questions about medication treatment or being “told by a doctor you have diabetes or sugar diabetes.” Fasting plasma glucose concentration was measured in the morning session after an overnight fast of at least 8 hours (Ford & Giles, 2003), details related to the laboratory procedures are reported elsewhere (NCHS, 1994).
Statistical Analysis
Sampling weights were applied to take into account selection probabilities, oversampling, nonresponse, and differences between the sample and the total U.S. population. Population distributions of categorical and continuous covariates were adjusted for the complex NHANES sampling design. Computed median and interquartile ranges for phthalate metabolite levels, adjusted for urinary creatinine concentrations were reported. These values were also stratified by race and ethnicity. Distribution of phthalate metabolite concentrations was log-transformed to normalize the data. Adjusted odds ratios and 95% confidence intervals (CI) for ED using weighted logistic regression models were estimated in relation of continuous phthalate metabolites and quartiles of these continuous phthalates, respectively. In the multiple logistic regression models, the variables vigorous and moderate physical activity, age (categorical), smoking status, education, race/ethnicity (only in total population), obesity (BMI ≥ 30 kg/m2), diabetes (yes/no), and urinary creatinine (continuous) were included. The Wald test for trend across quartiles was conducted by entering quartiles values (e.g., 1, 2, 3, and 4) as an ordinal variable into the weighted logistic regression models. Adjustment for multiple comparisons was not conducted due to the exploratory nature of this study (Rothman, 1990).
Stratified analyses were conducted by race and ethnicity (Mexican American, non-Hispanic White, and non-Hispanic Black) because there are differences in ED across racial/ethnic groups (CDC, 2009; Silva et al., 2004; Weinberg et al., 2013). Quartiles of continuous phthalate metabolite levels were categorized according to their distribution in each specific racial and ethnic group. With the exception of the race and ethnicity variable, the multiple regression logistic models were identical as described above. All
Results
The distribution of baseline characteristics in the study population after applying sample weights is reported in Table 1. The mean age was approximately 45 years with a higher frequency for the 20 to 30 years old age category (

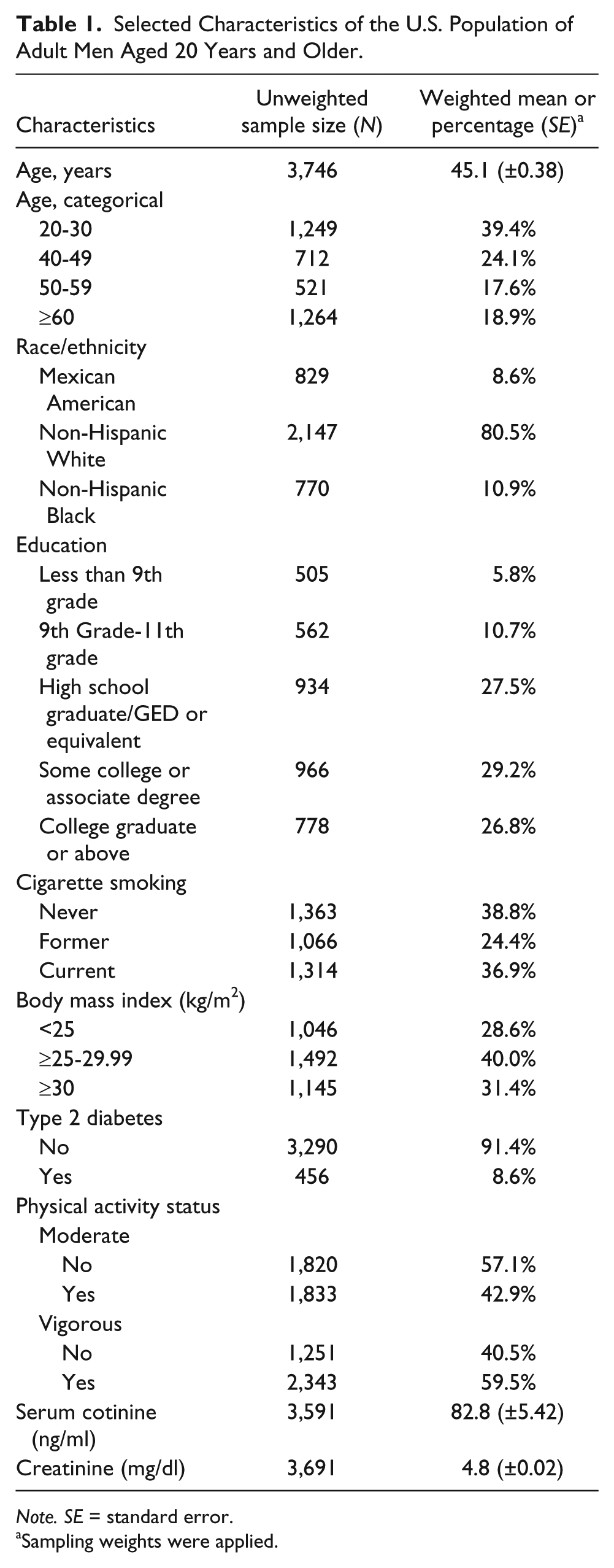

Selected Characteristics of the U.S. Population of Adult Men Aged 20 Years and Older.
Sampling weights were applied.
The distribution of creatinine-adjusted concentrations of phthalate metabolites in the total U.S. population and stratified by race and ethnicity is reported in Table 2. Concentrations of phthalates varied widely by race and ethnicity with Mexican Americans having the highest levels of MEP, MiNP, MMP, MiBP; non-Hispanic Whites having the highest levels of MBP, MCPP, and MECPP; and non-Hispanic Blacks having the highest concentrations of MCHP, MEHP, MBzP, MEHHP, and MEOHP. The two minority populations, Mexican Americans and non-Hispanic Blacks, had higher phthalate concentrations of MEP, MEHP, MBzP, MMP, and MiBP than non-Hispanic Whites.

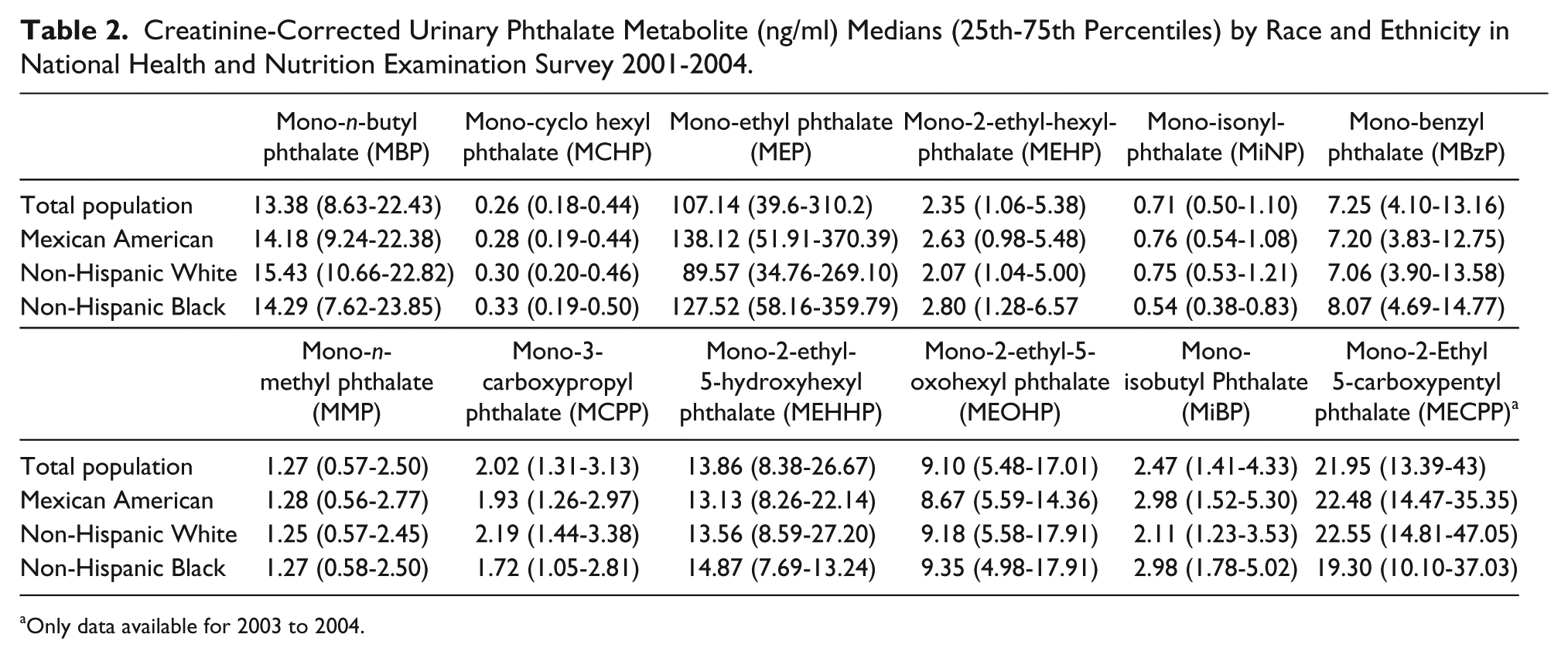

Creatinine-Corrected Urinary Phthalate Metabolite (ng/ml) Medians (25th-75th Percentiles) by Race and Ethnicity in National Health and Nutrition Examination Survey 2001-2004.
Only data available for 2003 to 2004.
Multivariable logistic regression analyses were conducted to investigate the association of the 12 phthalate metabolites with ED after adjusting for age, race/ethnicity (only in total population), physical activity (vigorous and moderate), smoking status, education, obesity, diabetes, and urinary creatinine (Figures 1-3 and Online Supplemental Table 1). In the total population, none of the associations between urinary phthalates and ED reached statistical significance. However, in racial and ethnic-specific stratified analyses, three phthalate metabolites, MBP, MBzP, and MEHHP, were inversely associated with ED (Figures 1-3). In detail, MBP was analyzed in two forms, continuous and categorical (fourth-highest vs. first-lowest quartile), with ED among Mexican American, non-Hispanic Black, and non-Hispanic White men (Figure 1). Only in Mexican American men, there were significant inverse associations between MBP and ED in both statistical models, continuous (odds ratio [

Association of mono-

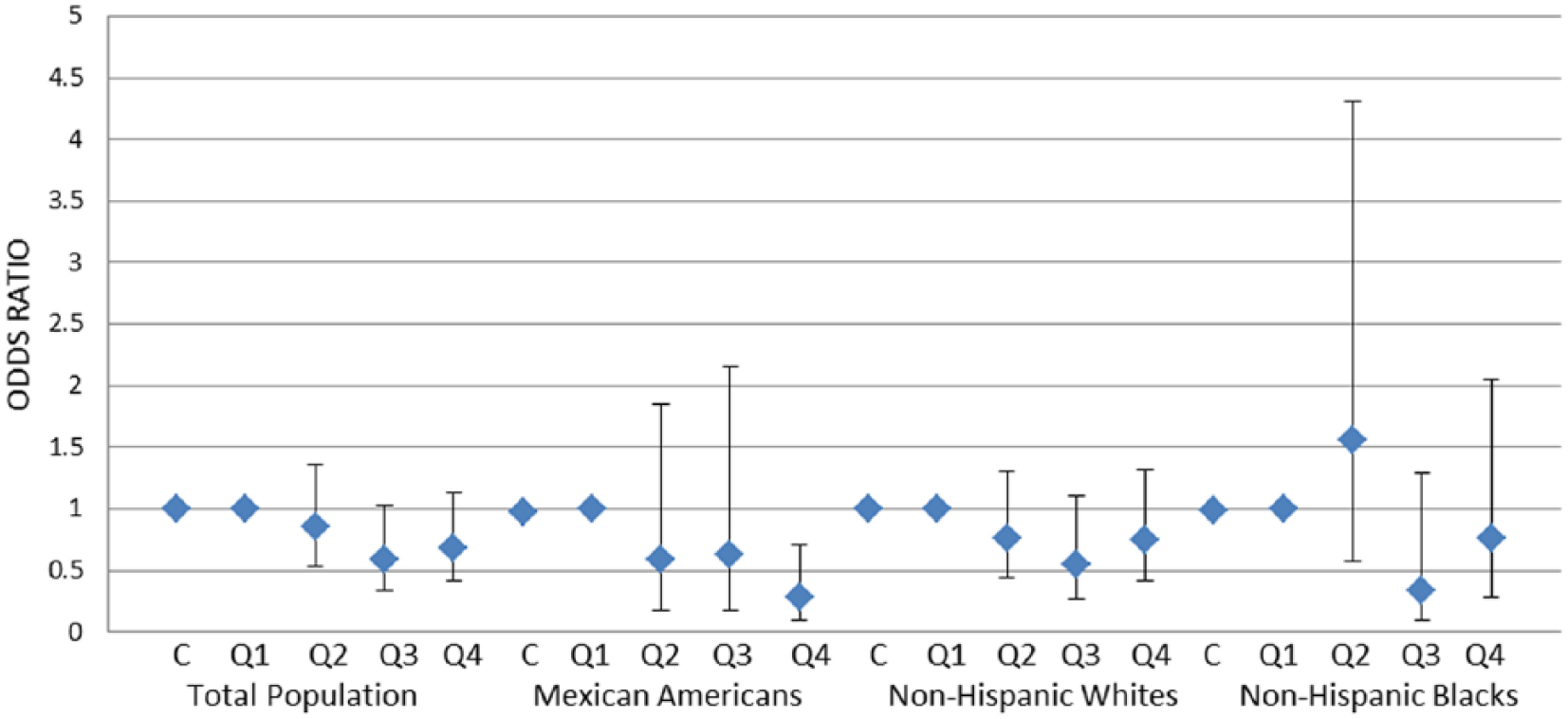

Association of mono-benzyl phthalate (MBzP) with erectile dysfunction (ED) in total population and stratified by race and ethnicity.

Association of Mono-(2-ethyl-5-hydroxyhexyl) phthalate (MEHHP) with erectile dysfunction (ED) in total population and stratified by race and ethnicity.
The association between MBzP and ED in total population and by race and ethnicity is reported in Figure 2. Similar to the aforementioned analyses with MBP, no significant association was identified in the total population and among non-Hispanic White and non-Hispanic Black men, but among Mexican American men, there was significant strong-dose response inverse association between MBzP and ED (fourth-highest vs. first-lowest quartile:
The association of MEHHP with ED is reported in Figure 3. Similar to MBP and MBzP, no significant association was identified in total population. However, in non-Hispanic Blacks, there was a significant inverse association (fourth-highest vs. first-lowest quartile:
In an online supplement (Supplemental Data Table 1), detailed information on the independent associations of the 12 urinary phthalates with ED was provided. In general and with the exception of MBP, MBzP, and MEHHP metabolites, no significant associations and patterns were reported for the remaining nine phthalates. The association of ΣDEHP2003-2004 (MEHP, MEHHP, MEOHP, and MECPP) was not significant or trend was observed in total population or among different racial/ethnic groups (data not reported).
Discussion
In this population-based NHANES 2001-2004 cross-sectional study, there were no significant associations between 12 urinary phthalate metabolites and ED in the total population. However, when these associations were stratified by race and ethnicity, two phthalate metabolites, MBP and MBzP, had a strong inverse dose–response relationship with lower odds prevalence of ED among Mexican Americans. In addition, higher concentrations of MEHHP were associated with lower odds of ED among non-Hispanic Black men. Interestingly, no significant associations were observed among non-Hispanic White men.
To the best of our knowledge, this is the first study to investigate the association of phthalate metabolites with ED across racial and ethnic groups. Although a recent study identified that women exposed to higher concentrations of phthalates had a reduced libido (Barrett et al., 2014), little is known about the role of phthalates on men’s libido. It is important to note that phthalates were previously reported to have a detrimental effect on the male’s reproductive system by acting on an antiandrogenic fashion (Meeker, 2010; Pan et al., 2006; Zoeller et al., 2012). Therefore, the suggested biological mechanism for the phthalate metabolites-ED association was that phthalates reduces levels of testosterone (Duty, Calafat, Silva, Ryan, & Hauser, 2005; Meeker, 2010) and subsequently, these low levels of testosterone could lead to the development of ED (Sansone et al., 2014); this suggested mechanism is under the assumption that low levels of testosterone are biologically responsible for increasing the risk of ED (Sansone et al., 2014).
Several aspects of this study merit discussion. Although the sample size in racial/ethnic stratification was small, the men in this study were sampled from the U.S. population to be nationally representative. In addition, racial and ethnic differences in phthalate concentrations have been previously reported. Huang et al. (2014) concluded that minority populations may be more susceptible to high concentrations of phthalates with respect to metabolic disturbances. Thus, in the present study, phthalate metabolite levels were categorized into quartiles according to their distribution in each specific racial and ethnic group. Only significant associations among minority populations were identified. However, unexpectedly these associations were inversed.
There are several possible explanations for the observed inverse associations of some phthalate metabolites with ED in minority populations. First, one possibility is that phthalate metabolites had little or no effect at all on reducing levels of testosterone, therefore, there was no increased risk in the development of ED, but this is only true under the hypothesis that low levels of testosterone is the main underlying mechanism in the etiology of ED. Note that the null effect of phthalates on testosterone levels is feasible and reported previously (Han et al., 2014; Jonsson, Richthoff, Rylander, Giwercman, & Hagmar, 2005; Li et al., 2011). Recently, Meeker et al. demonstrated in NHANES 20112012 (Meeker & Ferguson, 2014) that within the 20- to 40-year and 60- to- 80-year age groups, the associations between phthalate metabolites and testosterone levels were not statistically significant in men; and among the 40- to 60-year age group only one phthalate (i.e., MBP) was inversely associated with testosterone. Because the mean age of the participants in the present study was approximately 45 years old, it is possible that this population is still considered relatively young to experience any significant urological health-related problem attributed to low levels of testosterone.
Another possibility in the present study is that high levels of phthalates may have reduced levels of estradiol concentrations among men and this reduction led to a decreased likelihood of ED. This is a feasible hypothesis as a body of literature suggests that high levels of estradiol are associated to a more severe ED and greater sexual distress (El-Sakka, 2013; Sansone et al., 2014; Srilatha & Adaikan, 2011); however, in an animal study model, Lovekamp and Davis (2001) reported that phthalates may interfere with the production of estradiol.
Second, a study investigated the association of prenatal DEHP metabolite exposure with testosterone, and reported a positive and significant association (Jensen et al., 2015), 18% higher testosterone level in the highest MECPP tertile compared with the lowest tertile (
Third, this is a cross-sectional study and there may be residual and unknown confounders that could be driving these findings in an inverse direction; therefore, this can be a potential alternative explanation that cannot be ruled out. However, the adjustment for major confounders for ED such as age, race/ethnicity (only in total population), physical activity, smoking status, education, obesity, and diabetes was conducted.
The current study has a number of strengths. NHANES includes a representative sample of the civilian noninstitutionalized U.S. men population, which aids in the generalizability of these results. The oversampling of minorities and the elderly allowed for reasonably stable estimates of the U.S. male population. In addition, phthalate concentrations were detected using a solid-phase extraction, isotope dilution, and liquid chromatography separation followed by tandem mass spectrometry. This results in an increased accuracy and precision of the data (Silva et al., 2004). Despite these strengths, the current study has some possible limitations. First, NHANES is a cross-sectional study; therefore, causality cannot be inferred in any of the observed associations or suggest any clinical practice change. Plus, there is an inherent bias in the use of surveys for data collection, ED for this matter. Second, single time point measurement of the phthalate metabolites were obtained, which may provide an imperfect estimate of a man’s usual or total phthalate exposure status. This is important to note as it has been previously suggested to perform frequent biological monitoring of phthalates to help physicians perform better health risk assessments (Latini, 2005). Finally, the adjustment for multiple comparisons was not conducted due to the exploratory nature of this study, therefore, the possibility that some of the statistical findings are due to chance cannot be ruled out.
In conclusion, there were inverse associations between higher concentrations of phthalates and ED only in Mexican American and non-Hispanic Black men. These findings seem to raise more questions related to the role of androgens in the development of ED. Therefore, further investigations, particularly prospective studies, are warranted to identify if and how phthalate metabolites influence ED.
